Dinuclear lanthanide–lithium complexes based on fluorinated β-diketonate with acetal group: magnetism and effect of crystal packing on mechanoluminescence

Denis N. Bazhin *ab, Yulia S. Kudyakova a, Artem S. Bogomyakov c, Pavel A. Slepukhin ab, Grigory A. Kim a, Yanina V. Burgart ab and Victor I. Saloutin ab
aPostovsky Institute of Organic Synthesis, the Ural Branch of the Russian Academy of Sciences, 620990 Ekaterinburg, Russian Federation. E-mail: dnbazhin@gmail.com
bUral Federal University named after the First President of Russia B.N. Eltsin, Mira Str. 19, 620002, Ekaterinburg, Russian Federation
cInternational Tomography Center, Siberian Branch of the Russian Academy of Sciences, 630090 Novosibirsk, Russian Federation

Received 26th July 2018 , Accepted 17th September 2018

First published on 18th September 2018


The synthesis of novel dinuclear lanthanide complexes with formulas [(LnL3)(LiL)(MeOH)] (1–3) and [(LnL3)(LiL)(H2O)] (4–6) (Ln = Eu(III), Tb(III), Dy(III)) based on functionalized lithium β-diketonate (LiL) is reported. The coordination environment of the Ln(III) ion is formed by oxygen atoms of both the 1,3-dicarbonyl moiety and the acetal group. Depending on the solvent used for the crystallization, methanol or water molecules participate in the coordination with Li(I) ions affecting the crystal structure of complexes. In contrast to [(LnL3)(LiL)(H2O)] 4–6, a series of complexes [(LnL3)(LiL)(MeOH)] 1–3 showed mechanoluminescence properties, thereby demonstrating the relationship between the observed optical properties and crystal packing architecture. The magnetic measurements of [(LnL3)(LiL)(MeOH)] 1–3 revealed SMM behavior of [(DyL3)(LiL)(MeOH)] 3 at low temperatures (Ueff is 37.7 cm−1).


Introduction

β-Diketones are among the most used tools in coordination chemistry providing a wide variety of metal–organic architectures such as homo- and heterometallic complexes, clusters of various nuclearities, MOFs, nanoparticles, and thin metal films.1 The applicability and efficiency of these ligands in the design and synthesis of advanced materials with optical, magnetic and catalytic properties are well documented.1e,f,2

It is well known that β-diketones are coordinated with the lanthanide ion through the two oxygen atoms of the enolate anion to give lanthanide tris- and tetrakis-β-diketonates.1a–d Typically, the coordination sphere of the metal ion in this case consists of solvent or water molecules, which can be replaced by a variety of mono- or bidentate N,O,P-ligands, e.g. hydroxide, alcoholates, N-heterocycles, Schiff bases, ethers, carboxylates, and phosphines.3 Such an approach opens the door to a large family of coordination compounds. Lanthanide tetrakis-β-diketonate formation proceeds through the addition of a deprotonated enol form of β-diketone to the neutral Ln tris-diketonate.

Varying the substituents in diketones causes minor changes in the coordination environment of lanthanide ions influencing the complexes’ properties. The introduction of fluorine-containing substituents into the β-diketone fragment resulted in the increase of their thermal stability and solubility in organic solvents.1e,4 The replacement of the C–H bonds with lower-energy C–F oscillators plays a crucial role in the design of high performance luminescent molecular devices.5 In addition, electron-withdrawing perfluoroalkyl groups reduce the electron density on the oxygen atoms of β-diketones, thereby increasing the Lewis acidity of the metal center in the complex. In the reactions with other metal complexes or organic ligands, these compounds act as strong Lewis acids affording heterometallic or metal organic complexes and polymers.1e,9b,c,6 The weak intermolecular interaction caused by the presence of perfluoroalkyl groups determines the high volatility of such diketonates providing their further application in CVD processes.1e,9b,c,6 In some cases, the use of fluorinated diketonates instead of non-fluorinated analogues facilitates the crystallization of complexes due to less influence of intermolecular hydrogen bonds.7

Lanthanide complexes have attracted extensive attention in materials science due to their unique luminescence and magnetic properties.2,8,9 Showing extremely bright luminescence, Eu(III) and Tb(III) β-diketonates have been intensively studied in terms of their potential application in OLED devices.10 Furthermore, examples possessing triboluminescence (sub-division of mechanoluminescence) have been found among Ln diketonates.11 This property can be effectively used in detecting the deterioration of the principal components’ parts or their mechanical stress.

The chelation of β-diketone with Ln(III) salts has become a powerful tool for the construction of numerous examples of single-ion magnets.8,9,12,13 As has been recently shown, the structural variations of a β-diketone molecule within the Dy(III) heteroleptic cluster have a crucial effect on its magnetic properties.12g The mononuclear Ln systems provide ideal models to manipulate the magnetic properties by optimization of the ligand structure. One of the important factors in the realization of Ln SMM behavior is the obtainment of higher order local symmetry around the metal ion such as D4d (square antiprismatic structures), D∞i (linear 2-coordinated structures), D3h (tri coordinated structures), and large rotational symmetry.9a However, systematic studies of Ln tris- and tetrakis-diketonate series are relatively recent.8d,13 In 2010, Gao et al. reported the SMM behavior of Dy(acac)3·2H2O, which exhibited slow magnetic relaxation with an energy barrier of 64 K.13a Later, a significant SMM behavior improvement up to 187 K was achieved by the substitution of water molecules in Dy(acac)3·2H2O with the binuclear aza-coligand.13b,c In the series of tris-diketonates thus far studied the construction of the LnN2O6 core was based on readily available 1,3-diketones with a limited set of aliphatic and/or aromatic substituents.13 Another prospective and highly efficient strategy for improving the magnetic properties of polynuclear Ln systems is the incorporation of diamagnetic ions in direct coordination with the LnO8 core.9 The tuning of the Ln SMM behavior by doping with K(I), Li(I), Mg(II), Zn(II), Co(III) and Ti(IV) is reported.9h–o

The employment of non-symmetrical 1,3-diketones in coordination with lanthanides should also be stressed as a challenging approach for fine-tuning magnetic and luminescence properties. Moreover, the additional functional groups in the dicarbonyl fragment enable the metal ion coordination sphere to be filled without extra ligands (e.g. aza-coligands). We have therefore endeavored to investigate the potential of such β-diketonates for the synthesis of multifunctional lanthanide complexes.

Recently, we have elaborated the preparation of a novel lithium fluorinated β-diketonate bearing an acetal fragment (Fig. 1, LiL), which was successfully employed in the preparation of 3d metal complexes and heterocyclic derivatives.14 However, analyzing the literature data we have found only a few examples of heterometallic 3d or 4f metal complexes based on non-functional lithium β-diketonates.6d,12c,15 In all the cases thus far studied, the lithium ions were coordinated with metal-containing β-diketonate anions. In this work, we report the synthesis, crystal structures, and investigations of the optical and magnetic properties of novel Ln β-diketonates based on LiL. Among these complexes a new example of SMM was found (for Ln = Dy(III)) and crystal packing-controlled triboluminescence (TL) was observed (for Ln = Eu(III), Tb(III), Dy(III)).


image file: c8qi00772a-f1.tif
Fig. 1 Structure of the starting β-diketonate ligand.

Results and discussion

Syntheses and characterization of complexes

The ligand LiL is a non-symmetrical β-diketonate with a unique combination of substituents. On the one hand, we have a small and electron-withdrawing trifluoromethyl group. On the other hand, there is a bulky and strongly electron-donating substituent containing methyl group and two potentially coordinating methoxy functionalities. Enolate LiL provides a simple procedure for the synthesis of metal complexes as it does not require the use of any bases. In addition, LiL is readily soluble in many organic solvents and insoluble in water. We have chosen methanol as the mostly used solvent for the synthesis of Ln diketonates. NMR spectroscopy of a LiL solution in methanol-d4 showed that diketonate is mainly in an enolate form (see ESI). In the 13C NMR spectrum, we observed differences in the chemical shift values of carbon atoms in the 1,3-dicarbonyl fragment, indicating unequal negative charge distribution in the molecule.

The preparation reaction of [(LnL3)(LiL)(MeOH)] 1–3 was carried out according to the following scheme (eqn (1.1)):


image file: c8qi00772a-t1.tif(1.1)

image file: c8qi00772a-t2.tif(1.2)

image file: c8qi00772a-t3.tif(1.3)

The above reactions are simple and straightforward and do not need special conditions. Initially, assuming the formation of lanthanide tris-diketonates, we used the molar ratio of LiL to Ln(III) salt of 3[thin space (1/6-em)]:[thin space (1/6-em)]1. However, in this case complexes 1–3 with formula [(LnL3)(LiL)(MeOH)] were obtained in good yields. In view of this result, we changed the molar ratio of LiL[thin space (1/6-em)]:[thin space (1/6-em)]Ln(III) salt to 4[thin space (1/6-em)]:[thin space (1/6-em)]1 and obtained the same complexes. This reaction is easily reproducible and scalable, allowing us to use up to 1 g of lithium diketonate at a single synthetic run. Complexes 1–3 suitable for XRD analysis and physicochemical property study can be obtained by direct crystallization from the reaction mixture under slow evaporation of the solvent.

The complex formation occurs with different lanthanide salts (e.g., chlorides, acetates, and nitrates). We did not observe the influence of the nature of the Ln(III) salt anion on the yield or crystallization of 1–3. The presence of water molecules from the Ln(III) salt hydrates also did not prevent the complex formation. However, when ethanol was used as a solvent instead of methanol in the reaction of LiL with Ln(III) salts, the resulting complex structure was changed. In this case, the water molecule acts as a co-ligand of the lithium ion, forming the complex [(LnL3)(LiL)(H2O)] 4–6 (eqn (1.2)). We have found that these crystals can undergo reversible recrystallization: in methanol they give crystals of 1–3, heating of which at reflux in high-boiling ethanol (95%) leads again to 4–6 (eqn (1.3)). Clearly, the coordination of lithium ions with methanol, which is a stronger Lewis base, is preferred compared with the water molecule.

Furthermore, we attempted to obtain hetero-ligand complexes with a Ln tris-β-diketonate fragment by adding nitrogen-containing heterocycles as co-ligands. The reaction of lithium β-diketonate with Ln(III) salts was carried out in the presence of 2,2′-bipyridine and 4-pyridinecarboxylic acid in methanol. However, after crystallization from the reaction mixture, only the complexes of structures 1–3 were isolated and no other complexes were found.

The IR spectra of 1–3 and 4–6 are similar and display, typical of β-diketonates, strong absorption bands in the range 1635–1633 and 1519–1435 cm−1, which can be attributed to enolate C[double bond, length as m-dash]O and C[double bond, length as m-dash]C vibrations, respectively.16 The carbonyl stretching frequency νs(C[double bond, length as m-dash]O) of LiL (1645 cm−1) shifts to 1635–1633 cm−1 in 1–6, thus indicating coordination of the carbonyl groups to the Ln(III) cation. Typical C–F vibrations are observed in the range 1198–1139 cm−1 (the most intensive peaks are at 1143–1139 cm−1), and weak C–H vibrations can be seen between 3002 and 2841 cm−1. The presence of coordinated water molecules in complexes 4–6 is determined by high-frequency absorption bands at 3537–3487 cm−1 while in IR spectra of complexes 1–3 the medium broad band is observed at 3395–3383 cm−1, corresponding to (O–H) vibrations of the solvate MeOH molecule.

X-Ray structural characterization

Compounds 1–3. Single crystal X-ray diffraction analysis revealed the structures of all three complexes with the general molecular formula [(LnL3)(LiL)MeOH] (Ln = Eu (1), Tb (2) and Dy (3)). All three complexes are crystallized in the monoclinic non-centrosymmetric space group Pn and are structurally analogous to each other. This is further strongly corroborated by their unit cell parameters (Table S1, ESI). Due to their structural similarity, 3 was chosen as a prototype for discussion. Complex 3 is a neutral dinuclear heterometallic complex, which is formed because of the coordination of four LiL molecules (Fig. 2a). The complex structure consists of two metal-containing moieties. The first is dysprosium(III) tris-diketonate in which all three diketonate ligands are in cis-configuration. The second fragment is the initial LiL that completes the coordination sphere of the dysprosium(III) ion with the methoxy group of the acetal fragment and the carbonyl group of LiL. The lithium ion, in turn, is similarly coordinated with a coplanar diketonate fragment from the DyL3 moiety. As a result, the lanthanide atom in the complex is octa-coordinated with eight oxygen atoms of four diketonate ligands and the lithium atom is penta-coordinated with four oxygen atoms of two diketonate ligands and one oxygen atom from the solvate methanol molecule. Two diketonates acting as the anionic O,O,O-tridentate ligands coordinate the metal ions through the bridging μ2-oxygen atoms to four coplanar chelate cycles, thereby providing the core of the heterometallic complex (Fig. S1, ESI).
image file: c8qi00772a-f2.tif

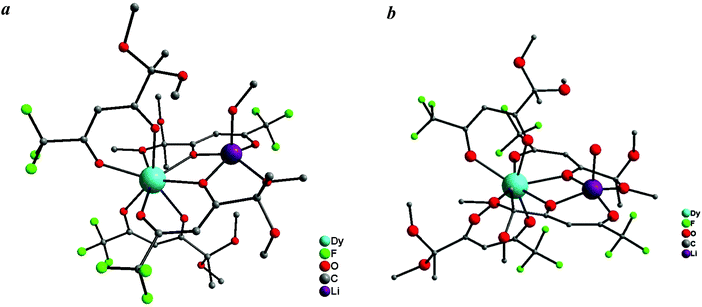

Fig. 2 Molecular structures of Dy(III) complexes 3 (a) and 6 (b). Hydrogens are not shown for clarity.

Therefore, the synthesized complexes 1–3 have similar compositions but different structures compared with the known Ln tetrakis-diketonates, which are polymeric and consist of the anionic Ln(diketonate)4 moiety and the bridging alkali metal cation. The discrete structure of heteronuclear complexes 1–3 results from the presence of sterically different substituents and donor methoxy groups in the starting diketonate as well as the small radius of the lithium ion.

To evaluate the geometry of the DyO8 coordination polyhedron, we used the SHAPE 2.1 software.17,18 On the basis of the analysis performed, the geometry of the octa-coordinated Dy(III) ion can be best described as a distorted triangular dodecahedron (TDD-8) with the D2d symmetry (Fig. 3a), and the penta-coordinated Li(I) ion – as a distorted square pyramid (SPY-5) with the C4v symmetry (Fig. 3b). In addition, we calculated the trigonality index τ519 for the LiO5 coordination polyhedron. Its value (0.155) confirms a slightly distorted square pyramidal geometry and, therefore, is in agreement with SHAPE measurements. The complete results of geometric analysis for complexes 1–3 are given in the ESI (Tables S2 and S3, ESI).


image file: c8qi00772a-f3.tif

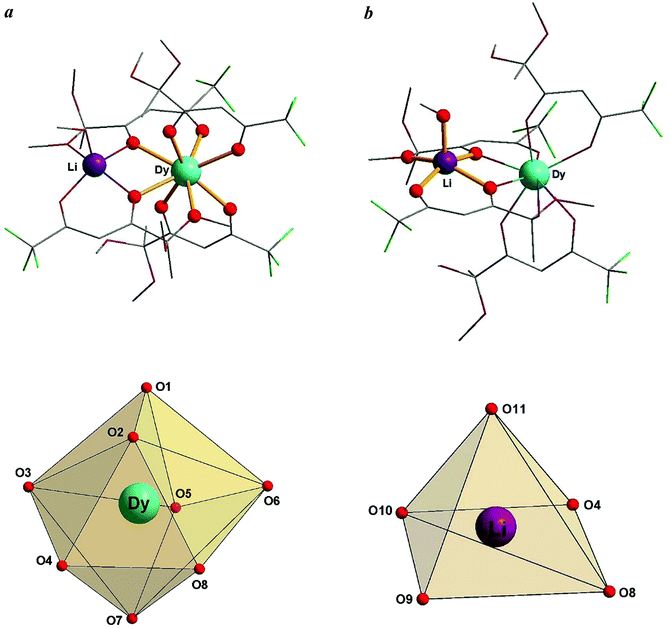

Fig. 3 Polyhedra representing the geometries of the coordination environments of the metal ions: (a) DyO8 coordination polyhedron; (b) LiO5 coordination polyhedron.

Bond-length distribution in the four six-membered chelate cycles indicates strong π-electron delocalization. Therefore, this structural ligand fragment represents a depronated enol form of 1,3-diketone. The five-membered cycles formed by the oxygen atom of the acetal fragment are obviously less stable because the Ln–O bond length in this case is relatively longer (about 2.5 Å) compared with the other Ln–O bonds (2.3–2.4 Å). Because of lanthanide contraction, a systematic decrease of Ln–O bond lengths from complex 1 to 3 is observed (Table S6, ESI). Taking into consideration the Li–Ln distance in all the investigated complexes (>3.5 Å), the metal–metal interaction is unlikely and electron exchange through the bridging O atoms of the ligands takes place. The shortest Ln⋯Ln distances between the dinuclear molecules are 10.527, 10.552, and 10.615 Å for 1, 2 and 3, respectively, thus indicating well-isolated dinuclear units. The distinctive feature of heterometallic crystal structures 1–3 is the absence of inversion centers in the space group symmetry (Fig. 4).


image file: c8qi00772a-f4.tif

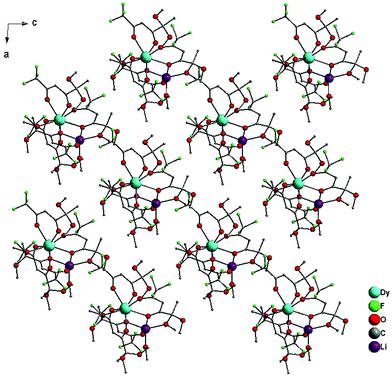

Fig. 4 Crystal packing of 3 along the b axis. Hydrogens are not shown for clarity.
Compounds 4–6. Complexes 4–6 have similar crystal structures with the general molecular formula [(LnL3)(LiL)H2O] (Fig. 2b). In comparison with 1–3, complexes 4–6 are crystallized in the centrosymmetric space group P21/c (Table S1, ESI). According to SHAPE measurements,18,19 the coordination polyhedron around the Ln(III) ions adopts a distorted triangular dodecahedron (TDD-8) geometry and Li(I) ion has a distorted square pyramidal (SPY-5) configuration (Tables S4 and S5, ESI). However, the minimal SQ(P) values of complexes 4–6 (1.780–2.019 for LnO8 and 0.931–0.986 for LiO5) are higher compared with those of complexes 1–3 (1.315–1.145 for LnO8 and 0.668–0.689 for LiO5), indicating their greater deviation from the ideal TDD-8 and SPY-5 shapes. Comparison of τ5 values for LiO5 coordination polyhedra in 1–3 (0.155–0.171) and 4–6 (0.278–0.283) also confirms this observation (Tables S3 and S5, ESI). Such polyhedra distortion in crystals of 4–6 can be explained by the presence of a water molecule coordinating with a Li(I) ion, which forms the intra- and intermolecular H-bonds (Fig. S2 and Table S8, ESI). Each of 4–6 participates in the intermolecular H-bonding between the OH group of the H2O molecule and the oxygen atom of a methoxy group of an adjacent complex, thereby providing the planar-oriented wavy layer network (Fig. 5). It is notable that only one of the three diketonate-anions [LnL3] forms the intermolecular H-bonds, in which the second methoxy group of the acetal moiety coordinates the Li(I) ion in the LiO5 polyhedron. Therefore, it is the presence of two methoxy groups in the structure of 1,3-diketone used that promotes the construction of complexes 4–6.
image file: c8qi00772a-f5.tif

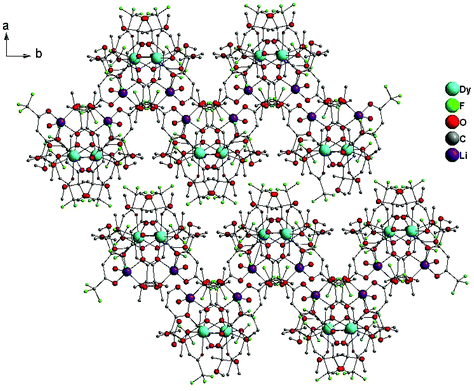

Fig. 5 Crystal packing of [(DyL3)(LiL)H2O] 6 along the c axis. Hydrogens are not shown for clarity.

Similar to 1–3, the Ln–O bond lengths gradually decrease from 4 to 6 because of the lanthanide contraction effect (Table S7, ESI). In addition, with a decrease in the ionic radius of Ln(III), the Ln⋯Ln distance gradually increases.

Luminescence of complexes

All complexes were illuminated by a standard laboratory UV lamp at 254 nm and showed visible luminescence. The solid-state luminescence properties of complexes 1–6 were measured at room temperature. Upon excitation at 340 nm, complexes showed the characteristic emission bands of the corresponding Ln(III) ion originating from the following transitions: 5D07FJ for 1, 4; 5D47FJ for 2, 5; and 4F9/26HJ for 3, 6 (Table S9, ESI). The dysprosium-based complexes showed less intensive luminescence compared with europium- and terbium-containing ones. For Dy(III) diketonates 3 and 6, near-infrared transitions are identified as a result of the overlapping of 4F9/26F11/2 and 4F9/26H9/2 transitions at ∼750 nm. Based on the literature data, we can assume that the sensitization mechanism for luminescent complexes involves the usual triplet pathway, in which the transfer of energy absorbed by the ligand to the Ln(III) ion takes place from the ligand-centered triplet excited state. Here we would like to put the accent on the unique structure of 1–6 providing their bright luminescence: despite the presence of solvent molecules, which often quench the luminescence of metal complexes,20,21 in our case they are not in the direct coordination environment of the lanthanide ion. Also the high luminescence performances of the obtained complexes are in good agreement with the low symmetry coordination environment of lanthanide ions. There is a significant difference in the phosphorescence lifetimes between Eu(III) complexes 1 and 4 (90 μs) and Tb(III) complexes 2 and 5 (128 μs), while for the less luminescent Dy(III) complexes 3 and 6 this difference is negligible (7 μs) (Table S9, ESI). We assume that the decrease of phosphorescence lifetimes in the case of complexes 4–6 is the result of quenching effects based on the nonradiative channels to the ground state. As we have shown above, the incorporation of a water molecule into the structure of 4–6 changes their crystal packing. Furthermore, the decrease of the Ln⋯Ln distance in complexes 4–6 by ∼1 Å compared with that of 1–3 (Tables S6 and S7, ESI) can bring about intersystem crossing and reduce their phosphorescence lifetimes.

Complexes 1 and 2 exhibited strong triboluminescence upon crushing, which can be seen with the naked eye as bright red (for 1) and green (for 2) flashes at daylight or in the dark (see Fig. S3–S6 and video in ESI). The intensity of yellow TL for 3 is much lower and can be observed only in the dark (Fig. S5, ESI). The TL spectra showed the same emission lines as in the corresponding PL spectra of complexes 1–3 (Fig. S7–S9, ESI). The differences between the PL and TL emission spectra are mainly caused by the differences in resolution and spectral sensitivity of the spectrophotometer used.

The interpretation of the triboluminescence mechanism in lanthanide complexes is still under discussion.11j To gain deeper insight into the structural aspects of mechanoluminescence properties, more detailed criteria should be postulated. Recently it was proposed that weak intermolecular interactions within the layered crystal architectures are preferred for TL compared with π-stacking or hydrogen bonding in a wavy chain network.11a,i,j Here, considering a series of two different types of crystals, we proved the validity of this idea. The crucial point is that complexes 1–3 and 4–6 are formed from the same ligand and have similar dinuclear structures. However, by changing the co-ligand of the Li(I) ion, different packing modes can be obtained, allowing us to obtain either the 2D parallel-layered (layers follow the ab diagonal of the cell) structure in 1–3 (Fig. S10a, ESI) or the wavy chain frameworks in the case of 4–6 (Fig. S10b, ESI). The crystals of 1–3 have no symmetry centers and, therefore, their crushing along the separate layers of Ln–Li complex molecules (so-called cleavage planes over which the crystal fracturing can easily take place) is possible (Fig. S11, ESI). The weak intermolecular interactions of face-to-face oriented trifluoromethyl groups in 1–3 are also favorable for the sliding effect between the layers.6k Otherwise, the crystal packing of 4–6 is built up via the intermolecular H-bonding caused by the presence of water molecules, and the contribution of intermolecular fluoroalkyl interactions in this case is negligible (Fig. S12, ESI).

Magnetic properties

The crystal structure of Ln complexes 1–3 based on a non-symmetrical β-diketonate prompted us to evaluate their SMM behavior as highly anisotropic properties can be expected. The μeff(T) dependences for polycrystalline samples of complexes 1–3 are shown in Fig. 6. For complex 1 the μeff is 3.34μB at 300 K and decreases with lowering the temperature to 0.32μB at 2 K. The ground state of Eu(III) is singlet (7F0), but there are closely spaced levels with different J-states, whose population decreases dramatically with a decrease in the temperature. The equation for the magnetic susceptibility of Eu(III) describes well the experimental μeff(T) dependence (Fig. 6, red line). The best fit value of the spin–orbital coupling parameter λ is 340 cm−1.
image file: c8qi00772a-f6.tif

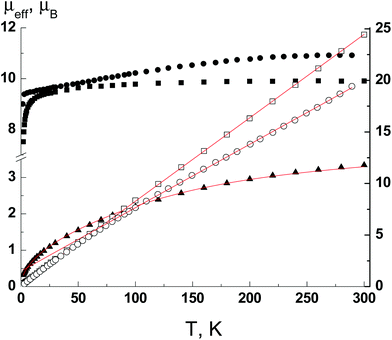

Fig. 6 The μeff(T) and 1/χ(T) dependencies for complexes 1 (▲), 2 (■, □) and 3 (●, ○). Solid lines are theoretical curves.

The high temperature values of μeff are 9.91 and 10.92μB for complexes 2 and 3 and agree with the theoretical values of 9.72 and 10.63μB for Tb(III) (7F6 ground state with gJ = 3/2) and Dy(III) (6H15/2 ground state with gJ = 4/3) ions, respectively. The 1/χ(T) dependencies are linear in the temperature range 300–2 K for 2 and 300–80 K for 3 and obey the Curie–Weiss law with the best fit parameters C and Θ of 12.35 K cm3 mol−1 and −2.2 K for complex 2 and 16.26 K cm3 mol−1 and −24.4 K for complex 3. For complex 2 the Curie constant is close to the theoretical value of 11.81 K cm3 mol−1 for the Tb(III) ion. In the case of complex 3, the Curie constant is substantially larger than the theoretical value of 14.17 K cm3 mol−1. In conjunction with a large Weiss constant, it indicates the presence of significant anisotropy. The decrease of μeff with lowering the temperature is also a consequence of the mixture of anisotropy and possible intermolecular interactions. So, only complex 3 displays SMM behavior at low temperatures. The temperature dependencies of the in-phase (χ′) and out-of-phase (χ′′) parts of magnetic susceptibility for complex 3 are frequency dependent under a dc field of 1000 Oe (Fig. 7).


image file: c8qi00772a-f7.tif

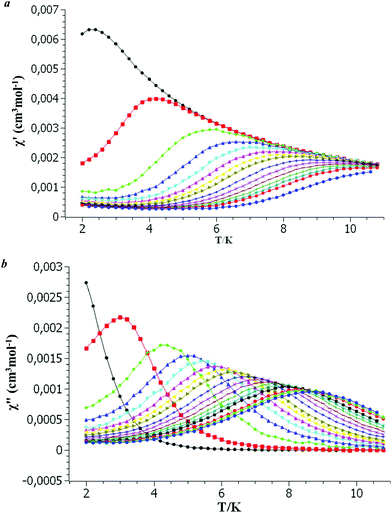

Fig. 7 The temperature dependencies of the in-phase (χ′) (a) and out-of-phase (χ′′) (b) parts of magnetic susceptibility for complex 3 at different frequencies.

Complex 3 displays SMM behavior at low temperatures. To identify the quantum tunneling process and obtain an effective energy barrier, the temperature dependencies of the in-phase (χ′) and out-of-phase (χ′′) parts of magnetic susceptibility are frequency dependent under a dc field of 1000 Oe (Fig. 7).

To extract the relaxation times and their distribution, the frequency dependencies of the in-phase (χ′) and out-of-phase (χ′′) parts of magnetic susceptibility were fitted simultaneously with the generalized Debye model (Fig. S13, ESI) in the temperature range 2–10.8 K. The best fit values of χT, χS, τ and α are listed in Table S10 in ESI. At lower temperatures, the distribution broadens drastically, with α increasing to 0.324 at 2 K. Taken together with the shapes of the in-phase magnetic susceptibilities at low temperature, this large increase of the distribution width suggests more than one relaxation process. Logarithmic variation of the relaxation time τ (τ = (2πυ)−1) for 3 as a function of 1/T under 1000 Oe dc field is nonlinear (Fig. 8), suggesting different relaxation processes. The equation for the thermally activated (τ0[thin space (1/6-em)]exp(−Ueff/kT)) slow magnetic relaxation and Raman (CTn) processes describes well the ln(τ) versus T−1 dependency. The best fit values of C, n, τ0 and Ueff are 0.0691, 4.361, 9.857 × 10−6 s and 37.7 cm−1.


image file: c8qi00772a-f8.tif

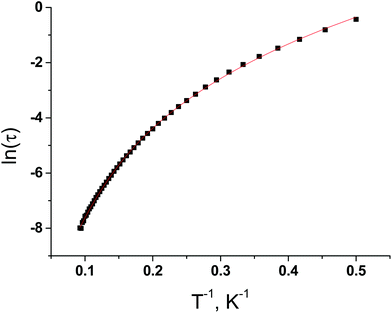

Fig. 8 The logarithmic variation of the relaxation time τ as a function of 1/T under 1000 Oe dc field for 3. (Solid line – a theoretical curve.)

The symmetry of the LnO8 coordination sphere in complexes 1–3 is a key point influencing their magnetic properties. The impressive SMM examples of Ln tris- and tetrakis-diketonates have highly symmetrical structures with the square-antiprismatic (SAP) coordination environment and approximate D4d axial symmetry. The increase of the coordination environment symmetry is known to result in the decrease of the QTM process effect at low temperatures. However, a slight change in the coordination environment, the ligand field strength and the complicated inter-molecular interactions can regulate the anisotropy and tune the magnetic dynamics of the mononuclear Ln SMM systems. For example, notwithstanding the TDD geometry of the LnO8 coordination polyhedron in complex 3 its energy barrier value (Ueff = 53 K) is twice higher than that of [K{Dy(hfac)4}]12a having a SAP geometry (Ueff = 23 K). To thoroughly investigate the magnetic properties and elaborate the “structure–property” relationships, the study should be broadened by looking at further examples of Ln β-diketonates with an LnO8 coordination polyhedron. From our point of view, this research can be continued by varying the nature of the alkali metal in the series of Ln complexes based on the described diketonate. In this case there is a more specific and obvious task for magnetism, since we can expect more significant changes in the structure of complexes.

Conclusions

Herein, a novel lithium β-diketonate was used for the construction of a series of lanthanide-based complexes. As in the case of tetrakis-diketonates, we have obtained structures including four β-diketonate-anions. However, the described complexes [(LnL3)(LiL)(MeOH)] 1–3 and [(LnL3)(LiL)(H2O)] 4–6 are strongly different from the known M[Ln(β-diketonate)4] (M is an alkali metal). Unusual assembly of Ln–Li dinuclear complexes becomes possible due to the presence of methoxy-groups in the structure of the starting β-diketonate participating in the coordination with metal ions. In this context, the employment of functionalized β-diketonates is a straightforward and efficient approach to the novel metal organic complexes.

We investigated the influence of crystal packing on the mechanoluminescence properties of complexes 1–6. The intermolecular H-bonds between the layers in the structures of [(LnL3)(LiL)H2O] 4–6 prevent their mechanical destruction and, therefore, suppress triboluminescence. In this case, the manipulation of crystal structure with different co-ligands is of crucial importance along with the construction of a complex framework by placing the metal ion in the coordination shell of the organic ligand.

The magnetic properties of [(LnL3)(LiL)(MeOH)] 1–3 were studied. The dysprosium-based complex [(DyL3)(LiL)(MeOH)] 3, in which the DyO8 coordination polyhedron is close to the triangular dodecahedron (TDD-8) in shape, revealed SMM behavior at low temperatures with Ueff being 37.7 cm−1. We foresee the further development of these types of complexes in the field of advanced multifunctional materials.

Conflicts of interest

The authors declare no competing financial interest.

Acknowledgements

Financial support of this work (the synthesis part and structure characterization) by the Russian Foundation for Basic Research (grant no. mol_a_dk 16-33-60048) is gratefully acknowledged. ASB is thankful to the FASO (0033-2017-0001). VIS is thankful to the Ural Branch of the Russian Academy of Sciences (AAAA-A18-118020290158-5). The authors would like to thank Dr Djamila Guettas for assistance in the optical and magnetic property measurements. The authors acknowledge Prof. Dominique Luneau, Prof. Olivier Maury, Prof. Boris Le Guennic, Dr Francois Riobe, and Dr Guillaume Pilet for their interest in this work and fruitful discussions. We also thank Prof. Michael Kiskin for his assistance in the SHAPE measurements. XRD experiments and physicochemical studies were carried out using the equipment of the Center for Joint Use “Spectroscopy and Analysis of Organic Compounds” at the Postovsky Institute of Organic Synthesis UB RAS. We also thank both reviewers for helpful suggestions, improving the visibility of the presented results.
