Investigating the isolation and interconversion of two diastereoisomers in an octahedral system

Abstract

Two diastereoisomers of bis(2-benzoylpyridine-O,N)dichloridonickel(II) have been isolated from the reactions of nickel(II) chloride hexahydrate and the organic ligand depending on the reaction solvent (ethanol, acetonitrile) used. DFT studies indicate that one of the isomers is more stable in both solvents, but nevertheless different diastereoisomers are crystallized from the two solvents. The two complexes represent the first pair of well characterized diastereoisomers in the coordination chemistry of 2-pyridyl ketones, providing a new example in the chemistry of octahedral complexes (A = a monodentate ligand, = an unsymmetrical bidentate chelate).

---

Diastereoisomeric and enantiomeric metal complexes (especially those of the d-block elements) have played a central role in the development of modern inorganic chemistry.^1–5 An isomer is one of several chemical species that have the same atom composition (molecular formula), but have different constitutional formulae (atom connectivities) or different stereochemical formulae.¹ Isomers exhibit different physical and/or chemical properties. If two complex molecules or ions have the same molecular formula and the same atom connectivity, but differ in the spatial arrangement of different atoms or groups about a central metal ion, then the coordination compounds are stereoisomers.¹ Diastereoisomers (which are the focus of the present work) are stereoisomers that are not mirror-images of one another, whereas enantiomers are stereoisomers that are mirror-images of one another. A famous example is the diastereoisomers in the pair of the square planar complexes [PtCl₂(NH₃)₂]; the cis isomer is a well-known antitumor drug, but the trans isomer is pharmacologically inactive.⁶ Diastereoisomerism continues to attract the intense interest of synthetic and physical inorganic chemists. For instance, recent examples include cis–trans interconversion in octahedral bis(2,2′-bipyridine) Ru(II) complexes;⁷ this results in specific synthetic applications of the trans species, potentially useful as a platform for designing highly efficient visible light-activated caged compounds. Single-crystal X-ray crystallography is the state-of-the-art method for identifying diastereoisomers in the solid state, while advanced theoretical methods can explain the preference of a given system for one diastereoisomer and predict/explain interconversions.

The introduction of chelating ligands in six-coordinate octahedral complexes usually acts to limit the number of diastereoisomers (or geometrical isomers), or at least not to extend the number.² For example, the coordination of three symmetrical bidentate chelates can take place in only one way, in the same sense that six identical monodentate ligands can coordinate in only one way. Likewise, compounds (where A refers to a monodentate group) have precisely the same number and type of diastereoisomers as the all-monodentate analogue MA₂X₄. The same holds true for the and the all-monodentate MA₂X₂Y₂ complexes, where refers to an unsymmetrical bidentate chelate (X and Y are monodentate ligands bearing the same donor atoms that are present in the B and C parts, respectively, of ); for these compounds there are now five diastereoisomers (Scheme 1). Contrary to diastereoisomers,^1–5 studies in diastereoisomers are generally lacking. As a continuation of our interest in the chemistry of diastereoisomers possessing asymmetrical bidentate chelating ligands,⁸ we report here experimental (synthetic, structural, spectroscopic) and theoretical studies on two nickel(II) diastereoisomers that belong to the class. We selected 2-benzoylpyridine (or phenyl 2-pyridyl ketone), (py)(ph)CO, for two reasons. First, this molecule normally behaves as a neutral, O,N-bidentate chelating ligand,^9,10 (exceptions are known,^11–14Scheme 2) and, second, it can undergo impressive metal ion-assisted transformations,^15,16 a topic that is currently one of the central themes in our research efforts.^17–19

Scheme 1 Diastereoisomers (with indication of point symmetry) possible for octahedral complexes (in the present work M = Ni, A = Cl and = 2-benzoylpyridine). B (O in the present case) and C (N in the present case) denote the donor atoms of the unsymmetrical (heterotopic) bidentate chelating ligand 2-benzoylpyridine; b corresponds to complex 2 of this work and e corresponds to 1·0.4H₂O·0.6EtOH.

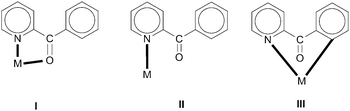

Scheme 2 The to-date crystallographically established coordination modes of (py)(ph)CO. The ligand is neutral in I (the most common ligation mode) and II, and anionic organometallic in III.

Treatment of NiCl₂·6H₂O with (py)(ph)CO (1 : 2) in EtOH gave an olive green solution from which were subsequently isolated dark orange-red crystals of trans,trans,trans-[NiCl₂{(py)(ph)CO}₂]·0.4H₂O·0.6EtOH (1·0.4H₂O·0.6EtOH) in moderate yields (50–55%) upon vapour diffusion with Et₂O. The 1 : 2 reaction between NiCl₂·6H₂O and (py)(ph)CO (1 : 2) in MeCN gave a green solution from which were subsequently isolated green crystals of cis,cis,trans-[NiCl₂{(py)(ph)CO}₂] (2) in rather high yields (∼70%) upon liquid diffusion with Et₂O. The first prefix in the formulae refers to the chlorido groups, the second to the O and the third refers to the N donor atoms (vide infra). Complex 1 is readily transformed into 2 upon dissolution in MeCN and either slow solvent evaporation or precipitation with Et₂O. Solid 2 reverts to 1 in EtOH under heating and precipitation with Et₂O. The IR v(C=O) mode appears at ∼1625 cm⁻¹ in the spectra of the complexes (which are similar but not identical) and is shifted to lower wavenumbers by ∼45 cm⁻¹ (compared with the free ligand) due to coordination.²⁰

The mononuclear octahedral complexes 1 and 2 (Fig. 1, 2 and Fig. S4, S8a, ESI†) are diastereoisomers. In the former, all the chemically similar donor atoms are in trans positions. The latter possesses a crystallographic 2-fold axis which is parallel to the a axis and passes through Ni1 bisecting the Cl1–Ni1–Cl1′ angle; the molecule is the cis,cis,trans isomer considering the positions of the chlorido ligands, the carbonyl oxygen atoms and the 2-pyridyl nitrogen atoms. In both complexes, the (py)(ph)CO molecules behave as O,N-bidentate chelating ligands (I in Scheme 2). The distortion from the regular octahedral geometry in the two complexes is primarily attributed to the somewhat small bite angles of the two 5-membered chelating rings (the N–Ni–O angles for a given ligand are in the range 77.2(1)–78.9(1)°). There is one crystallographically independent (and its symmetry equivalent) intramolecular H bond in 2 with the aromatic carbon atom C1 as donor and the chlorido group as acceptor (Fig. S8a and Table S5, ESI†). Intermolecular H-bonding interactions (1·0.4H₂O·0.6EtOH), and both intermolecular H bonds and π–π stacking interactions (2) are responsible for the formation of interesting 3D architectures in the two structures (see the ESI† for full details).

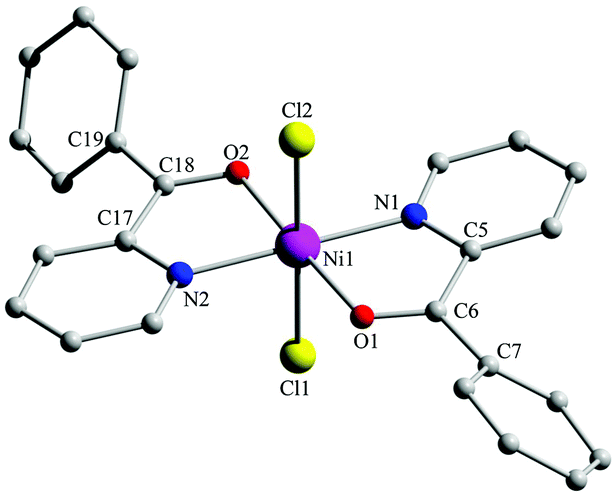

Fig. 1 The structure of the molecule trans,trans,trans-[NiCl₂{(py)(ph)CO}₂] that is present in the crystal of 1·0.4H₂O·0.6EtOH. Bond lengths (Å) in the coordination sphere of Ni^II: Ni1–Cl1 2.417(1), Ni1–Cl2 2.397(1), Ni1–O1 2.095(2), Ni1–O2 2.088(2), Ni1–N1 2.046(2), Ni–N2 2.049(3).

Fig. 2 The structure of the molecule cis,cis,trans-[NiCl₂{(py)(ph)CO}₂] that is present in the crystal of 2. Bond lengths (Å) in the coordination sphere of Ni^II: Ni1–Cl1/Cl1′ 2.376(1), Ni1–O1/O1′ 2.160(1), Ni1–N1/N1′ 2.054(2). The N1–Ni1–N1′ angle is 169.9(1)°. Symmetry operation: (′) x, 1 − y, 3/2 − z.

Complexes 1 and 2 are the third and fourth examples of structurally characterized Ni(II) complexes with (py)(ph)CO as N,O-bidentate chelating ligand.^20–22 Only one of them is of the type [], namely [Ni(N̲CS)₂{(py)(ph)CO}₂];^20,22 this compound is the cis,cis,trans diastereoisomer considering the positions of the isothiocyanato ligands, the oxygen and the 2-pyridyl nitrogen atoms, i.e. like 2. The only to-date characterized [M^IICl₂{(py)(ph)CO}₂] (M = any divalent metal) complexes are [CuCl₂{(py)(ph)CO}₂],²⁰ [CdCl₂{(py)(ph)CO}₂]⁹ and [RuCl₂{(py)(ph)CO}₂].²³ The Cu(II) complex is trans square planar with a N-monodentate ligation of the two (py)(ph)CO molecules; the Cd(II) and Ru(II) complexes are the cis,cis,trans (like 2) and cis,cis,cis diastereoisomers, respectively. Complexes 1 and 2 represent the first authentic pair of well characterized diastereoisomers in the coordination chemistry of (py)(ph)CO.

The different spatial arrangement of the donor atoms in the two complexes is reflected in their different solid-state (diffuse reflectance) electronic spectra (Fig. S1 and S2, ESI†). The 10 Dq values, calculated directly from the wavenumber of the lowest energy ³A_2g → ³T_2g transition (under a simplified O_h model) are 9260 cm⁻¹ for 1 and 9900 cm⁻¹ for 2. The appearance of a distinct shoulder at 810 nm in the middle visible band of 1 at ∼700 nm (assigned to the ³A_2g → ³T_1g(F) transition) is due⁵ to spin–orbit coupling that mixes the ³T_1g(F) and ¹E_g states which are very close in energy at the 10 Dq value given by the all-trans disposition of the donor atoms, whereas in the stronger field of 2 they are so far apart that no significant mixing occurs.

We studied in detail by DFT methods (see the ESI†) the model complexes cis-[NiCl₂(H₂O)₄] and trans-[NiCl₂(H₂O)₄] in solution (MeCN and EtOH), from which 2 and 1, respectively, are assumed to derive. Then the equilibrium geometries of cis,cis,trans-[NiCl₂{(py)(ph)CO}₂] and trans,trans,trans-[NiCl₂{(py)(ph)CO}₂] in MeCN and EtOH solutions were calculated at the PBE0/SDD(Ni)∪6-31G(d,p)(E) level of theory; the results of the calculations are presented in Fig. 3.

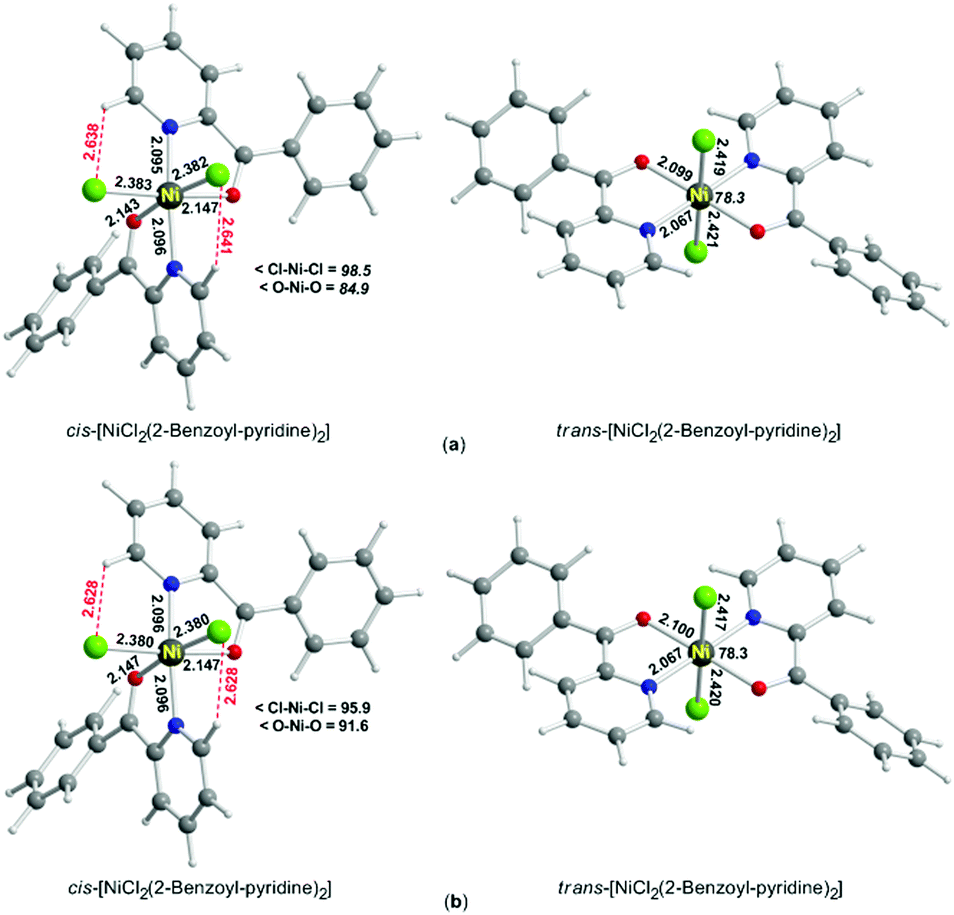

Fig. 3 Equilibrium geometries of the molecules cis,cis,trans-[NiCl₂{(py)(ph)CO}₂] (2) and trans,trans,trans-[NiCl₂{(py)(ph)CO}₂] (1) in MeCN (a) and EtOH (b) solutions calculated at the PBE0/SDD(Ni)∪6-31G(d,p)(E) level of theory.

Fig. 3 shows that the solvent has a marginal effect on the structural parameters of the two diastereoisomers. The calculated Ni–Cl, Ni–O and Ni–N bond lengths for the two diastereoisomers in solution are in good agreement with the experimental data in the solid state. The minor elongations in most of the calculated Ni–Cl, Ni–O and Ni–N bond lengths, relative to the corresponding ones in the solid-state structures, are expected on the ground that solvation effects play a role in the solution structures.

Interestingly, the cis,cis,trans-[NiCl₂{(py)(ph)CO}₂] diastereoisomer is more stable than the trans,trans,trans one in solutions of both MeCN and EtOH by 2.0 and 1.7 kcal mol⁻¹, respectively. This could be due to the intramolecular C–H⋯Cl hydrogen bond formation for the cis,cis,trans molecule in solution (Fig. 3), which does not occur in the trans,trans,trans isomer; these H bonds are also observed in the solid-state structure of 2 (vide supra).

However, two distinct diastereoisomers have been crystallized. The orange-red isomer 1 is precipitated from EtOH and this can be attributed to the lattice EtOH and H₂O molecules that are present in its crystal structure, and the stabilizing effect of intermolecular O(H₂O)–H⋯Cl and O(EtOH)–H⋯Cl H bonds, which exist in the solid-state structure (see the ESI†). The lack of solvents in the crystal lattice of 2 results in the absence of extra intermolecular H bonds, favouring the formation of the stabilizing intramolecular C–H⋯Cl H bonds and the isolation of this isomer.

In conclusion, two of the five possible diastereoisomers of [NiCl₂{(py)(ph)CO}₂] have been isolated and studied. DFT calculations reveal that the cis,cis,trans isomer 2 is more stable than the trans,trans,trans isomer 1 in both MeCN and EtOH solutions; this is proven by the green colour of the reaction solutions that lead to the two complexes (vide supra) and the fact that the electronic spectra of both reaction solutions are very similar with the solid-state spectrum of 2 (the spectrum of the reaction solution that leads to 1 indicates the presence of a very small percentage of the trans,trans,trans isomer). Work is in progress in our laboratories to isolate other diastereoisomers of [NiCl₂{(py)(ph)CO}₂] (including the two enantiomers of the all cis diastereoisomer) and to study the effect of the halogenido ligand (Br⁻ and I⁻vs. Cl⁻) on the diastereoisomerism of the interesting [NiX₂{(ph)(py)CO}₂] system.
