A new “ON–OFF–ON” fluorescent probe for sequential detection of Fe³⁺ and PPi based on 2-pyridin-2-ylethanamine and benzimidazo [2,1-a]benz[de]isoquinoline-7-one-12-carboxylic acid

Abstract

A new fluorescent probe X based on 2-pyridin-2-ylethanamine and benzimidazo[2,1-a]benz[de]isoquinoline-7-one-12-carboxylic acid was designed and synthesized for the detection of Fe³⁺ and PPi. X showed high sensitivity and selectivity for Fe³⁺ in the presence of other competing metal ions in DMF/H₂O buffer solution. The limit of detection for Fe³⁺ was calculated from the titration curve to be 6.7 × 10⁻⁷ M. The Job's plot confirmed a 1 : 1 stoichiometry between the probe and Fe³⁺, and the complexation stability constant was calculated to be 7.46 × 10³ M⁻¹. Moreover, the fluorescence intensity of the probe was recovered after addition of the PPi. X could act as a fluorescence “ON–OFF–ON” probe for the sequential detection of Fe³⁺ and PPi. The binding mode and sensing mechanism of X with Fe³⁺ was verified by DFT/TDDFT calculations using Gaussian 09.

---

1. Introduction

At the present, heavy metal ions are of great concern because they are ubiquitous. Among the various heavy metals, iron, which usually exists as an oxide, is the second most abundant element in the earth's crust, and accounts for about 5% of the elemental content.^1–4 Moreover, iron plays an important role in the human body since it is an essential component of hemoglobin, myoglobin and various enzymes; it also participates in many physiological processes at the cellular level, such as oxygen metabolism and DNA and RNA synthesis.^5–7 However, both excess or deficiency from the normal permissible consumption limit of iron could lead to physiological disorders and health problems.^8,9 An imbalance of iron could cause cell damage and death. Concentration of iron in the human body exceeding a certain limit may cause diseases, such as methemoglobinemia, iron deficiency anemia (IDA), and Parkinson's disease.^10–12 Therefore, significant efforts should be made to develop selective and sensitive sensors of Fe³⁺ that could distinguish Fe³⁺ from other metal ions in environmental and biological systems.^13–15

Anions are responsible for a diverse range of applications that are of biological and environmental importance.¹⁶ Pyrophosphate (P₂O₇⁴⁻, PPi) is a biologically notable anion in many cellular processes, such as DNA and RNA polymerization and enzymatic reactions. Most importantly, the detection of PPi has also been considered to be vital in cancer research.^17,18 Considering its essential physiological role, facile monitoring of the concentrations of PPi becomes very crucial. Hence, the design of a probe for detection of PPi is urgent.

Given this discussion, research on carbon-based materials has continued to advance.^19–21 The method of detecting Fe³⁺ by fluorescence sensing has been greatly developed and has gradually replaced the traditional method due to its simple operation, quick response, high sensitivity and selectivity.^22–26 At present, numerous excellent fluorescent sensors have been designed and synthesized to recognize iron, such as derivatives based on coumarin, rhodamine and naphthalimide.^27–33 1,8-Naphthalimide is a widely used functional material due to its bright color, strong fluorescence, thermal stability, light resistance and rapid response. Therefore, the study of 1,8-naphthalimide derivatives should be paid extensive attention. Recently, a series of fluorescent sensors based on benzimidazo[2,1-a]benz[de] isoquinoline-7-one-12-carboxylic acid derived from 1,8-naphthalimide were designed and synthesized by our group to selectively detect various metal ions.^34–41 Benzimidazo[2,1-a]benz[de]isoquinoline-7-one, which contains five conjugated rings, was used as a developmental fluorophore. This heterocyclic compound comprising both benzimidazo and naphthalimide group exhibits both strong extent of conjugation and the biological activity of naphthalimide. These excellent properties also give benzimidazo[2,1-a]benz[de]isoquinoline-7-one a broad potential application as a fluorophore in the field of chemsensors.^34,36,38

Furthermore, much attention has been paid on the introduction of various receptors, such as 1-pyridin-2-ylmethanamine and di-2-picolylamine (DPA), to fluorophores for the construction of effective fluorescent probes.^42–46 Few studies have been conducted on 2-pyridin-2-ylethanamine. As a recognition group, 2-pyridin-2-ylethanamine could provide N atoms (amino nitrogen and pyridine nitrogen), which are excellent coordinating sites. In this report, sensor X was designed and synthesized based on benzimidazo[2,1-a]benz[de]isoquinoline-7-one as a fluorophore and 2-pyridin-2-ylethanamine as a receptor. As anticipated, the fluorescent probe X could sequentially detect Fe³⁺ and PPi in DMF/H₂O buffer solution.

2. Experimental section

2.1. Materials and methods

All reagents and solvents were used as received from commercial suppliers without further purification. All metal salts (NaCl, LiCl, MgCl₂·6H₂O, CaCl₂, ZnCl₂, CdCl₂·2.5H₂O, HgCl₂, AgNO₃, CuCl₂·2H₂O, CoCl₂·6H₂O, NiCl₂·6H₂O, MnCl₂·4H₂O, CrCl₃·6H₂O, AlCl₃·6H₂O, FeCl₃ and FeSO₄) and all anionic sodium salts (Na₄P₂O₇, NaNO₃, Na₃PO₄, Na₂S, NaHCO₃, NaF, NaS₂O₃, NaCl, NaBF₃, NaHSO₃, NaH₂PO₄, NaBr, Na₂CrO₄, NaNO₂, Na₂SO₄ and EDTA) were of analytical grade and used without further purification. Stock solutions of the ions mentioned above were prepared with distilled water.

2.2. Measurements

UV-vis spectra were obtained on a Shimadzu 3100 spectrometer. Fluorescence spectral data was recorded on an Edinburgh Instruments Ltd-FLS920 Fluorescence Spectrophotometer. Fluorescence measurements were recorded using excitation at 340 nm. The slits of excitation and emission were 10 nm and 10 nm, respectively. ¹H NMR measurement was performed on a Bruker AV III 400 MHz NMR spectrometer. ¹³C NMR spectra data was taken on a Bruker AV III 100 MHz NMR spectrometer with tatramethysilane (TMS) as internal standard and CDCl₃ as solvent. Infrared spectral data was obtained on a Bruker Vertex 70 FT-IR spectrometer using samples as KBr pellets. Thin layer chromatography (TLC) analyses were performed to monitor all the reactions.

2.3. Sample preparation

All stock solutions of metal salts (NaCl, LiCl, MgCl₂·6H₂O, CaCl₂, ZnCl₂, CdCl₂·2.5H₂O, HgCl₂, AgNO₃, CuCl₂·2H₂O, CoCl₂·6H₂O, NiCl₂·6H₂O, MnCl₂·4H₂O, CrCl₃·6H₂O, AlCl₃·6H₂O, FeCl₃ and FeSO₄) and all anionic sodium salts (Na₄P₂O₇, NaNO₃, Na₃PO₄, Na₂S, NaHCO₃, NaF, NaS₂O₃, NaCl, NaBF₃, NaHSO₃, NaH₂PO₄, NaBr, Na₂CrO₄, NaNO₂, Na₂SO₄ and EDTA) were prepared at a concentration of 0.03 M. The probe X was dissolved in DMF/H₂O (v/v = 9 : 1) buffer solution (10 mM tris, pH = 7.4) at room temperature with the concentration of 1 × 10⁻⁵ M.

2.4. Calculation of quantum yield

Quantum yield was calculated according to the following formula (1):Φ, F, A, and n represent the quantum yield, the integrated area under the corrected emission spectra, the absorbance intensity at the excitation wavelength and the refractive index of solvent, respectively. In addition, s refers to rhodamine B as the standard, and u refers to the target. The quantum yield (Φ) of rhodamine B dissolved in anhydrous ethanol is 0.97.

2.5. Calculation of the association constant

The association constant between X and Fe³⁺ was calculated by the Benesi–Hildebrand eqn (2):where F is the fluorescence intensity of the X–Fe³⁺ complex, which is in accordance with the concentration of Fe³⁺ at 498 nm. F₀ is the fluorescence intensity of free X. F_max is the fluorescence intensity of X–Fe³⁺ complex in the presence of the maximum concentration of Fe³⁺.

2.6. Theoretical calculations

Density functional theory (DFT) structural optimizations were performed with the Gaussian 09 program. In all cases, the structures were optimized using the B3LYP functional and the mixed basis set 6-31+G (d). Each structure was subsequently subjected to TD-DFT calculation using the B3LYP functional.⁴⁷ For all optimized structures, frequency calculations were performed to confirm the absence of imaginary frequencies. The molecular orbitals were visualized and plotted with the GaussView 5.0 program.

2.7. Synthesis of X

Compound 1 (benzimidazo[2,1-a]benz[de]isoquinoline-7-one-12-carboxylic acid) and compound 2 (benzimidazo[2,1a]benz[de]isoquinoline-7-one-12-carbonyl chloride) were prepared according to a previous report.³⁸

Synthesis of 7-oxo-N-(2-(pyridin-2-yl)ethyl)-7H-benzo[de]benzo [4,5]imidazo[2,1-a] isoquinoline-12-carboxamide (X). Compound 2 (80 mg, 0.24 mmol) was suspended in 10 mL chloroform and added dropwise to a chloroform (10 mL) solution of 2-pyridin-2-ylethanamine (40 mg, 0.32 mmol) with triethylamine (1 mL) as a scavenger. The reaction mixture was stirred at room temperature for 1 hour. The organic layer was washed with 5% Na₂CO₃ (50 mL × 3) solution and dried over anhydrous Na₂SO₄ and evaporated under reduced pressure. The obtained residue was washed with methanol (1 mL × 5) to obtain the pure compound X. Yield: 84 mg, 84%. Ms (ESI): m/z = 419.10 [M + H]⁺. FTIR (KBr, cm⁻¹): 3307 (N–H), 1701 (C=O), 1662 (C=O), 1361 (C–N). ¹H NMR (400 MHz, CDCl₃) δ 9.84 (t, J = 5.4 Hz, 1H), 8.74 (dd, J = 7.3, 1.0 Hz, 1H), 8.66 (dd, J = 4.9, 0.8 Hz, 1H), 8.59 (dd, J = 8.0, 1.1 Hz, 1H), 8.52 (dd, J = 7.3, 0.8 Hz, 1H), 8.30 (dd, J = 7.7, 1.1 Hz, 1H), 8.25 (dd, J = 8.1, 0.6 Hz, 1H), 8.13 (d, J = 7.7 Hz, 1H), 7.82–7.73 (m, 2H), 7.62 (td, J = 7.7, 1.8 Hz, 1H), 7.52 (t, J = 7.9 Hz, 1H), 7.32 (d, J = 7.8 Hz, 1H), 7.21–7.14 (m, 1H), 4.10 (dd, J = 12.7, 6.8 Hz, 2H), 3.29 (t, J = 6.9 Hz, 2H). ¹³C NMR (101 MHz, CDCl₃) δ = 164.91, 160.47, 159.71, 149.37, 149.18, 141.04, 136.59, 135.63, 132.61, 132.14, 131.82, 127.90, 127.21, 127.10, 127.03, 127.01, 125.27, 123.64, 123.39, 122.76, 121.43, 119.63, 118.78, 39.22, 38.21.

3. Results and discussion

3.1. The synthesis of X

X was synthesized in medium yield according to the synthetic route, as shown in Scheme 1. Compounds 1 (benzimidazo[2,1-a]benz[de]isoquinoline-7-one-12-carboxylic acid) and 2 (benzimidazo[2,1-a]benz[de]isoquinoline-7-one-12-carbonyl chloride) were prepared according to the previous report.³⁸ The structure of X was confirmed by ¹H NMR (Fig. S1, ESI†), ¹³C NMR (Fig. S2, ESI†), FTIR (Fig. S3, ESI†), ESI-MS (Fig. S4, ESI†). All of the data in the spectra were in good accordance with the published structures.

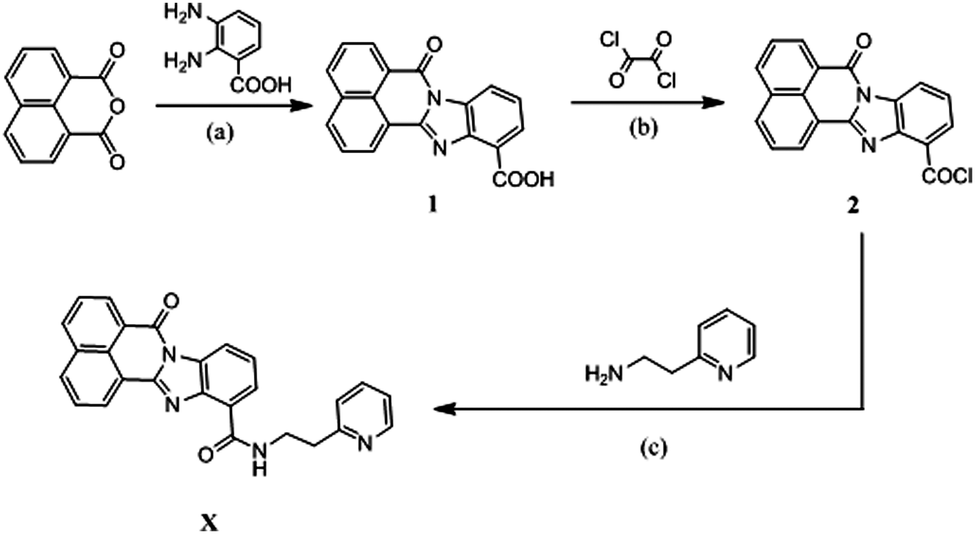

Scheme 1 Synthesis routes of X. Conditions: (a) CH₃COOH, refluxed, 20 h; (b) CH₂Cl₂, DMF, r.t., overnight; (c) CHCl₃, Et₃N, r.t., 1 h.

3.2. The fluorescence properties of probe X towards various metal ions

Primarily, the fluorescence response of X towards various metal ions was evaluated in DMF/H₂O (v/v = 9 : 1) buffer solution (0.01 M tris, pH = 7.4). As shown in Fig. 1, X showed suitable fluorescence intensity centered at 498 nm under excitation wavelength of 340 nm. The addition of Fe³⁺ led to a remarkable fluorescence quenching of X, while negligible response of X was observed towards other common metal ions, including Na⁺, Li⁺, Mg²⁺, Ca²⁺, Zn²⁺, Cd²⁺, Hg²⁺, Ag⁺, Cu²⁺, Co²⁺, Ni²⁺, Mn²⁺, Cr³⁺, Al³⁺ and Fe²⁺. When 20 equivalents of Fe³⁺ were added to the solution of X, the change in emission color could be clearly observed from yellow-green to colorless under UV light. Correspondingly, the quantum yield (Φ) changed from 0.34 of X to 0.1 of X–Fe complex. Therefore, the probe X exhibited good selectivity towards Fe³⁺ over other metal ions. This “ON–OFF” switching mechanism could be ascribed to the paramagnetic quenching effect of Fe³⁺ and/or ligand-to-metal charge transfer (LMCT).⁴⁸

Fig. 1 Fluorescence spectra of probe X in DMF/H₂O buffer solution upon the addition of various metal ions.

In order to further explore the response properties of probe X to Fe³⁺, the fluorescence titration experiment in tris buffer solution was performed with gradual addition of Fe³⁺ to X. The concentration of X was maintained at 1 × 10⁻⁵ M, while the concentration of Fe³⁺ was over the range from 0 to 40 × 10⁻⁵ M. As shown in Fig. 2, the free probe X displayed maximum fluorescence intensity at 498 nm. Upon incremental addition of Fe³⁺ to X, the maximum fluorescence intensity at 498 nm decreased gradually. The fluorescence intensity decreased to a plateau when the concentration of Fe³⁺ was increased to 40 × 10⁻⁵ M (Fig. S5, ESI†). As shown in the inset of Fig. 2, a good linear relationship (R² = 0.9729) was observed between F₀–F and Fe³⁺ in the range from 1.0 × 10⁻⁶ M to 1.0 × 10⁻⁵ M. The detection limit was calculated to be 6.7 × 10⁻⁷ M based on the formula LOD = 3σ/s, where σ is the standard deviation of blank measurements of 10 times, s is the slope of the linear relationship between F₀–F and concentration of Fe³⁺, where F and F₀ were the emission intensities with and without Fe³⁺, respectively. These results indicated the high sensitivity of X to Fe³⁺. Moreover, the Job's plot showed 1 : 1 stoichiometry for the binding between X and Fe³⁺ (Fig. 3). The association constant of X with Fe³⁺ in DMF/H₂O solution was accordingly calculated to be 7.46 × 10³ M⁻¹ based on the Benesi–Hildebrand eqn (2) (Fig. S6, ESI†).

Fig. 2 Fluorescence titration spectra of probe X in DMF/H₂O buffer solution upon the addition of Fe³⁺ ions (0–40 equiv.) and inset: the linear change ratio between F₀ − F (at 498 nm) and different concentration of Fe³⁺ in DMF/H₂O buffer solution.

Fig. 3 Job's plot of X–Fe³⁺ system in DMF/H₂O ([X] + [Fe³⁺] = 1.0 × 10⁻⁴ M).

3.3. The UV-Vis spectral studies

The sensing behavior of probe X with different metal ions (Na⁺, Li⁺, Mg²⁺, Ca²⁺, Zn²⁺, Cd²⁺, Hg²⁺, Ag⁺, Cu²⁺, Co²⁺, Ni²⁺, Mn²⁺, Cr³⁺, Al³⁺, Fe³⁺ and Fe²⁺) was investigated by UV-vis spectroscopy. As shown in Fig. S7 (ESI†), the absorption spectra of X exhibited two bands at 311 nm and 392 nm in DMF/H₂O solution. Upon adding 20 equivalents of Fe³⁺, the absorption intensity was significantly enhanced; however, the addition of other common metal ions did not induce significant changes in the absorption spectrum of probe X, except on addition of Cu²⁺. As shown in Fig. S8 (ESI†), the absorption titration experiment of X against Fe³⁺ was performed in DMF/H₂O buffer solution. Upon increasing concentration of Fe³⁺ from 0 to 2 × 10⁻⁴ M, the increase in absorption intensity of probe X (1 × 10⁻⁵ M) at 315 nm and 365 nm was observed. The absorption spectra changes of X indicated the binding mode between X and Fe³⁺. There were no evident isosbestic points, which indicated that only the 2-pyridin-2-ylethanamine moiety was involved in the binding. When excited at 392 nm in DMF–H₂O (v/v = 9 : 1, pH = 7.4) solution, X showed a broad emission brand with the maximum emission at wavelength of 498 nm (Fig. S9, ESI†).

3.4. Competition experiments with other metal ions

To further prove that the selectivity of probe X to Fe³⁺ ion was not affected by other metal ions, competition experiments were performed in DMF/H₂O buffer solution. As shown in Fig. 4, the probe X (1 × 10⁻⁵ M) was treated with 20 equiv. of Fe³⁺ in the presence of the same concentration of other common metal ions, including Na⁺, Li⁺, Mg²⁺, Ca²⁺, Zn²⁺, Cd²⁺, Hg²⁺, Ag⁺, Cu²⁺, Co²⁺, Ni²⁺, Mn²⁺, Cr³⁺, Al³⁺ and Fe²⁺. This result indicated that the detection of X towards Fe³⁺ was not interrupted by other metal ions. In Fig. S10 (ESI†), there was almost no decrease in fluorescence intensity when X was treated with 20 equivalent of other common metal ions (Na⁺, Li⁺, Mg²⁺, Ca²⁺, Zn²⁺, Cd²⁺, Hg²⁺, Ag⁺, Cu²⁺, Co²⁺, Ni²⁺, Mn²⁺, Cr³⁺, Al³⁺ and Fe²⁺). However, significant fluorescence quenching was observed with no shift in maximum emission when 5 equiv., 10 equiv., 15 equiv. and 20 equiv. of Fe³⁺ were respectively added to the above solution. It was found that fluorescence quenching caused by the mixture of Fe³⁺ with other metal ions was similar to that caused by Fe³⁺ only. Therefore, the common competing ions did not significantly influence the detection of Fe³⁺, which confirms the selectivity of X for Fe³⁺ in DMF/H₂O solution.

Fig. 4 Fluorescence response of X and different metal ions in DMF/H₂O buffer solution. The black bars represent the addition of 20 equiv. of the various metal ions to the solution of probe X. The red bars represent the change in emission that occurs upon the subsequent addition of 20 equiv. of Fe³⁺ to the above solution (1: the fluorescence of free X, 2: addition of 20 equiv. of Fe³⁺ to X).

3.5. Effect of pH

The effects of pH value on the fluorescence spectra of X in the absence and presence of Fe³⁺ was evaluated. As shown in Fig. 5, the fluorescence intensity of X increased slightly with the change of pH values from 3 to 7.4, and maintained relative stability in the pH range of 7.4–13 due to the protonation and deprotonation of nitrogen atom (pyridine) of X. In addition, on adding 20 equivalent Fe³⁺ to the buffer solution of the probe X at different pH values, the fluorescence intensity of X–Fe³⁺ complex was relatively stable at a pH range from 3 to 13. This result indicated that X could detect Fe³⁺ in a physiological pH range.

Fig. 5 The influence of pH value of solution on the fluorescence of X and X–Fe³⁺.

3.6. Reversible test of probe X towards Fe³⁺ by PPi

The reversibility and cycling ability properties of X were investigated by testing the probe in presence of some anions. The fluorescence signal response of the X–Fe³⁺ complex towards various anions were evaluated in DMF/H₂O (v/v = 9 : 1) buffer solution (0.01 M tris, pH = 7.4). As shown in Fig. 6, X–Fe³⁺ showed quenched fluorescence (Φ = 0.1). The fluorescence of X–Fe³⁺ drastically enhanced with the addition of 2 × 10⁻⁴ M PPi. In contrast, the addition of other anions (NO₃⁻, PO₄³⁻, S²⁻, HCO₃⁻, F⁻, S₂O₃⁻, Cl⁻, BF₃⁻, HSO₃⁻, H₂PO₄⁻, Br⁻, CrO₄²⁻, NO₂⁻, SO₄²⁻ and EDTA) to the X–Fe³⁺ solution did not induce significant fluorescence changes. To validate the practicability of X–Fe³⁺ as a new fluorescent probe for the detection of PPi in a complicated environment, competition experiments were performed in DMF/H₂O solutions. As shown in Fig. S11 (ESI†), the complex X–Fe³⁺ was treated with 20 equivalents of PPi in the presence of the same concentration of other anions, namely, NO₃⁻, PO₄³⁻, S²⁻, HCO₃⁻, F⁻, S₂O₃⁻, Cl⁻, BF₃⁻, HSO₃⁻, H₂PO₄⁻, Br⁻, CrO₄²⁻, NO₂⁻, SO₄²⁻ and EDTA. All the chosen competitive anions showed no influence on the fluorescence detection of PPi, suggesting that X–Fe³⁺ complex had high selectivity for PPi even in the presence of competing anions.

Fig. 6 The fluorescence spectra changes of [X–Fe³⁺] complex system (X + 20 equiv. Fe³⁺) in the presence of various anions (PPi, NO₃⁻, PO₄³⁻, S²⁻, HCO₃⁻, F⁻, S₂O₃⁻, Cl⁻, BF₃⁻, HSO₃⁻, H₂PO₄⁻, Br⁻, CrO₄²⁻, NO₂⁻, SO₄²⁻ and EDTA) in buffer solution.

The titration experiments of X–Fe³⁺ toward PPi were also performed in buffer solutions. As shown in Fig. S12 (ESI†), the fluorescence intensity of X–Fe³⁺ complex increased gradually with the increase in the concentration of PPi, and then reached the maximum values at about 40 equivalents of PPi without a shift in wavelength. As shown in Fig. S13 (ESI†), a good linear relationship (R² = 0.9942) was observed between F and PPi in the range from 1.0 × 10⁻⁵ M to 1.0 × 10⁻⁴ M. The detection limit was calculated to be 2.19 × 10⁻⁶ M based on the formula LOD = 3σ/s, demonstrating that X–Fe³⁺ was a highly sensitive probe for PPi detection in buffer solution.

The reversibility experiments of probe X are shown in Fig. 7. The addition of sodium pyrophosphate (PPi) to the solution containing X and Fe³⁺ (20 equivalents) immediately restored the fluorescence intensity to the original level of X. This “ON–OFF–ON” fluorescence changes were observed by the alternative additions of Fe³⁺ and PPi to the solution of X. Furthermore, the fluorescence changes were nearly reversible even after four cycles with the sequentially alternative addition of Fe³⁺ and PPi. These results indicated that the X–Fe³⁺ complex with high selectivity and sensitivity could be used as a new sensor to detect PPi in DMF/H₂O solution.

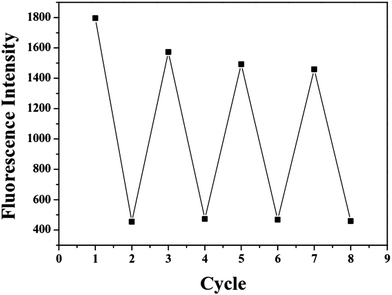

Fig. 7 Reversible switching cycles of fluorescence intensity by addition of Fe³⁺ and PPi (40 equiv., 50 equiv., and 60 equiv.).

3.7. Theoretical calculations

Based on the UV-Vis and fluorescent spectral data (Fig. 3 and Fig. S7, ESI†), evidence for the 1 : 1 stoichiometry ratio of X to Fe³⁺ was proved. The plausible binding modes for Fe³⁺ are shown in Scheme 2. Only the nitrogen atoms (amino nitrogen and pyridine nitrogen) in 2-pyridin-2-ylethanamine moiety were involved in the binding with Fe³⁺. The medium fluorescence of X was likely due to the free 2-pyridin-2-ylethanamine group, which did not have a lone pair of suitable energy for causing a sufficient PET effect in the molecule.³⁷ Fe³⁺ could strongly quench the fluorescence of the probes because it is paramagnetic with an unfilled d shell.^48–52 The optimized structures of probe X and X–Fe³⁺ complex are shown in Fig. S14 (ESI†), and the optimized structure of the ground state displayed that X provided a highly conjugated π plane with 6 rings containing the fluorophore and pyridine moiety of the receptor.⁴⁰ Structural optimization and energy calculations provided the best binding mode between X and Fe³⁺.

Scheme 2 The proposed binding mode of sensor L with Fe³⁺ and PPi.

To investigate the coordination of X with Fe³⁺, energy-optimized structures of X and its corresponding metal complexes were investigated using ab initio density functional theory (DFT) combined with time-dependent density functional theory (TDDFT) calculations, as implemented in the Gaussian 09 package based on B3LYP/6-31G(d) basis. The spatial distributions and orbital energies of the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) of X and X–Fe³⁺ complexes were also calculated.^42,44 As shown in Fig. 8, in the molecular orbital structure of X (left), the orbitals were localized on fluorophore for both the HOMO and the LUMO, and there was no electron transfer in the excited; hence, X showed yellow-green fluorescence.³⁴ However, the molecular orbital structure of X–Fe³⁺ complex is clearly different from that of X. The HOMO is mostly located around the metal ions and nearby groups, while electrons in LUMO are localized on the fluorophore. The energy gaps between the HOMO and LUMO in the X and X–Fe³⁺ were calculated to be 3.32 eV and 1.48 eV, respectively. The energy gaps between the HOMO and LUMO of X–Fe³⁺ is much lower than that of X. Thus, these results showed that X prefers to coordinate with Fe³⁺ ions.

Fig. 8 Energy diagram of HOMO and LUMO orbital X and X–Fe³⁺ complex.

4. Conclusions

In summary, a new fluorescent probe X was designed and synthesized based on 2-pyridin-2-ylethanamine as the receptor and benzimidazo[2,1-a]benz[de]isoquinoline-7-one-12-carboxylic acid as a fluorophore. The probe was characterized by NMR and ESI-MS spectroscopy. X displayed high selectivity and sensitivity for Fe³⁺ over other metal ions in DMF/H₂O buffer solution and the detection limit for Fe³⁺ ion was 6.7 × 10⁻⁷ M. The fluorescence intensity of X was recovered after the addition of the PPi. This “ON–OFF–ON” switching process could be repeated several times, and detection of Fe³⁺ and PPi was not affected in the presence of other competing ions. In addition, the Job's plot showed a 1 : 1 stoichiometry between X and Fe³⁺. The binding mode and sensing mechanism of X with Fe³⁺ was verified by DFT/TDDFT calculation using Gaussian 09.
