Lipid-soluble arsenic species identified in the brain of the marine fish skipjack tuna (Katsuwonus pelamis) using a sequential extraction and HPLC/mass spectrometry

Abstract

Lipid-soluble arsenicals, so called arsenolipids, occur in appreciable quantities in various marine organisms including fish. In this study, arsenolipids as well water-soluble arsenic species were investigated in brain (9.1–17.4 mg As per kg; dry mass) and muscle (4.0–5.8 mg As per kg; dry mass) tissues in five specimens of the marine fish skipjack tuna (Katsuwonus pelamis). For this purpose, we developed a sequential extraction method whereby the freeze-dried tissue was first treated with pyridine (organic extract) followed by aqueous ammonium bicarbonate (water extract) to extract arsenolipids and water-soluble species, respectively. When the method was applied to the tuna tissues, the arsenic distribution for brain was 55% (organic extract), 30% (water extract) and 15% (pellet), whereas for muscle tissue the corresponding values were 20%, 55%, and 25%. Arsenic species in water and organic extracts of muscle and brain tissues were investigated by HPLC/mass spectrometry. For both tissues, the water extracts contained arsenobetaine as the major arsenic species together with small amounts of dimethylarsinate and trimethylarsine oxide; trace amounts of dimethylarsinoyl propionic acid were found only in brain tissues. Arsenic-containing hydrocarbons (AsHCs), were the major arsenolipids in both tuna brain and muscle. The arsenolipid content in brain ranged from 3.8–5.9 mg As per kg, whereas it was substantially lower in muscle (0.3–0.8 mg As per kg) reflecting arsenolipids' potential to cross the blood brain barrier and accumulate in the fish brain.

---

Introduction

Marine organisms can contain arsenic at levels of up to and above 100 mg As per kg (dry mass) comprising mainly water-soluble organic arsenic species, such as arsenobetaine (AB) in fish and arsenosugars in algae. Besides the water-soluble arsenic species, marine organisms can also contain appreciable quantities of lipid-soluble arsenic often constituting 10–30% of the total arsenic content,¹ or even higher in fatty fish such as sashimi tuna,² or in lipid-rich organs of marine fish.³

Although lipid-soluble arsenic in cod-liver was first reported in 1928,⁴ the identity of the arsenic compounds remained unknown until the first structural elucidation of an arsenosugar phospholipid in 1988 by Morita and Shibata.⁵ Since then more than 100 arsenolipids have been identified, all of them in the last 11 years following improvements in analytical techniques for their detection and identification.⁶ Arsenolipids range from simple compounds like arsenic fatty acids⁷ (AsFAs, Fig. 1) and arsenic hydrocarbons⁸ (AsHCs, Fig. 1) to more structurally complex lipid arsenicals, such as arsenic-containing phosphatidylcholines⁹ (AsPCs, Fig. 1) or a newly discovered arsenic-containing phytol.¹⁰ Arsenolipids occur in various marine sources, such as fish oils,^11,12 seal oil,¹¹ fish tissues,^2,13–15 algae^16–18 and fish roe,⁹ but they have not yet been detected in a terrestrial organism.

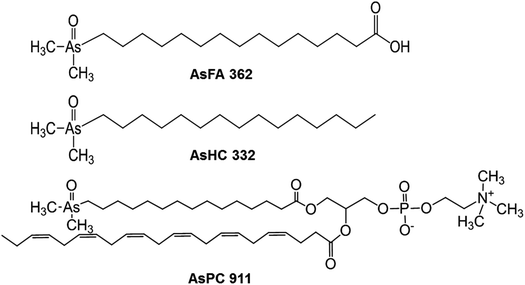

Fig. 1 Examples of structures of three known arsenolipid classes found in different marine organisms: AsFA = arsenic fatty acid, AsHC = arsenic hydrocarbon, & AsPC = arsenic-containing phosphatidylcholine. The compounds are referred to by the aforementioned abbreviation followed by the nominal molecular mass of the compound.

Arsenolipids are currently under investigation with regard to human health, as recent research demonstrated that some arsenolipids are toxic to cultured human cells¹⁹ and also showed toxicity in the in vivo model Drosophila melanogaster.²⁰ In the in vitro Caco-2 intestinal barrier model,²¹ AsHCs transferred efficiently across this barrier towards the blood-facing side and showed a high intestinal bioavailability, suggesting that AsHCs have the potential to cross physiological barriers. In a first study²² with a living organism, the fruit fly Drosophila melanogaster, it was shown that the arsenolipid AsHC 332 accumulated in the brain of the fly. It is currently unknown, however, if arsenolipids are also able to cross the blood–brain barrier in higher organisms.

The aim of the current study was to investigate if arsenolipids cross the blood–brain barrier and preferentially accumulate in the brain of a higher organism. For the test samples, we chose brain and muscle tissue of skipjack tuna, Katsuwonus pelamis, because it is a top-predator marine fish naturally exposed to arsenic through its diet and surrounding environment. The analytical objectives were to extract the major arsenic species from the tuna tissues, and quantify them by using HPLC/mass spectrometry. To provide efficient and separate extraction of both lipid-and water-soluble arsenicals on the one sample, we developed a sequential extraction procedure whereby pyridine and then an aqueous ammonium bicarbonate solution were used to remove lipid-soluble and water-soluble arsenic species, respectively. The method was applied to muscle and brain tissues from five individual specimens of skipjack tuna, and the results are discussed in terms of selective accumulation of arsenolipids in the tuna brain.

Experimental

Collection and sampling of tuna fish tissues

Skipjack tuna fish (Katsuwonus pelamis) were captured by a commercial fishing vessel in the fishing area FAO 34 in the Eastern Central part of the Atlantic Ocean on September 15, 2015, and stored frozen onboard. On January 20, 2016, heads of five frozen single specimens of skipajack tuna fish (average length 67 cm, ranging from 60 to 75 cm) were retrieved for research purpose. In the laboratory, brain and muscle were dissected, tissues were carefully rinsed with distilled water before freeze-drying.

Chemicals, reagents and standards

Water (18 MΩ cm) used throughout this work was from a Milli-Q Academic water purification system (Millipore GmbH, Vienna, Austria). Ammonium bicarbonate (≥99%, p.a.), pyridine (≥99% for synthesis), ammonia solution (≥25%, p.a.), formic acid (FA; ≥98%, p.a.), ammonium formate (≥95%, pure), tert-butylmethylether (MTBE; ≥99.5%, p.a.) and hydrogen peroxide (30%) were purchased from Carl Roth GmbH + Co KG (Karlsruhe, Germany). Nitric acid (65%, p.a.), further purified in a MLS duoPUR sub-boiling unit (MLS GmbH, Leutkirch, Germany) and methanol (HPLC grade) were purchased from VWR Chemicals International (Fontenay-sous-Bois, France). Dichloromethane (DCM; p.a.) and acetone (HPLC grade) were purchased from Chem-Lab (Zedelgem, Belgium). Glacial acetic acid (p.a.) was obtained from Merck (Darmstadt, Germany).

Single-element ICP-standard solutions of arsenic (1000 mg As per L ± 2% in 2% HNO₃) and germanium (1000 mg Ge per L ± 2% in 2% HNO₃ and 0.5% HF), both obtained from Carl Roth GmbH & Co. KG (Karlsruhe, Germany), were used for the determination of total arsenic and as an internal standard, respectively. For analysis of water-soluble arsenicals, the following analytical standards were available in-house and used in this study: arsenobetaine (AB, as the bromide salt), dimethylarsinoylacetate (DMAA), dimethylarsinoylethanol (DMAE), dimethylarsinoyl propionate (DMAP), dimethylarsinoyl butanoate (DMAB), carboxyethyl-trimethylarsonium ion (AB-2) and trimethylarsine oxide (TMAO). Dimethylarsinate (DMA) was prepared from sodium dimethylarsinate obtained from Fluka Chemie (Buchs, Switzerland). For analysis of arsenolipids, six arsenolipid standards, namely AsFA 362 (15-dimethylarsinoyl-pentadecanoic acid), AsFA 388 (17-dimethylarsinoyl-9-heptadecenoic acid), AsFA 418 (19-dimethylarsinoyl-nonadecanoic acid), AsHC 332 (1-dimethylarsinoyl-pentadecane), AsHC 360 (1-dimethylarsinoyl-heptadecane), and AsHC 444 (1-dimethylarsinoyl-tricosane), were available in-house, previously synthesized as described by Taleshi et al.²³

The certified reference material BCR-627 Tuna Fish Tissue purchased from Sigma Aldrich (Vienna, Austria) with a certified total As value of 4.8 ± 0.3 mg As per kg was used as quality control for total arsenic measurements and arsenic speciation analysis; in the course of this study, we obtained a value of 4.7 ± 0.3 mg As per kg (dry mass, n = 6) for this reference material. In general, results are expressed on a dry mass basis.

Instrumentation

Brain and muscle tissues were freeze-dried with a CHRIST Gamma 1–16 LSC freeze-dryer (Martin Christ GmbH, Osterode am Harz, Germany) to constant mass, and homogenized under liquid nitrogen with mortar and pestle. Microwave-assisted acid digestions were performed with a MLS Ultraclave IV microwave system (MLS, Leutkirch, Germany). Total As measurements were performed with an Agilent 7900 inductively coupled plasma mass spectrometer (ICPMS, Agilent Technologies, Waldbronn, Germany) equipped with a Scott type spray chamber and a Micro Mist concentric glass nebulizer (Glass Expansion, West Melbourne, Australia). For HPLC/ICPMS measurements of water-soluble arsenic species, an Agilent 1100 HPLC system was coupled to the Agilent 7900 ICPMS instrument. For HPLC/ICPMS measurements of lipid-soluble arsenic species, an Agilent 1260 Infinity II HPLC system was connected via a QuickSplit™ flow splitter (Analytical Scientific Instruments US) to the Agilent ICPMS 7900. For HPLC/high-resolution electrospray mass spectrometry (HR ESMS) measurements, a Dionex Ultimate 3000 series instrument HPLC system (Thermo Fischer Scientific, Erlangen, Germany) was connected to a high-resolution mass spectrometer (Q-Exactive Hybrid Quadrupole-Orbitrap MS from Thermo Fischer Scientific) equipped with an electrospray ionization source. A high-speed refrigerated microcentrifuge (SCILOGEX, Rocky Hill, CT), a Hettich Hermle Z 200 A centrifuge (Andreas Hettich GmbH & Co. KG, Tuttlingen, Germany) and a Christ RVC 233 CDplus vacuum lyophilizator (Martin Christ Gefriertrocknungsanlagen GmbH, Osterode am Harz, Germany) were used during sample preparation.

Extraction of arsenic species & purification of arsenolipids

For method development and optimizing extraction conditions one of the five tuna brain samples was used. Pyridine was used directly and without further dilution or modification for the extraction of arsenolipids from freeze-dried tissues. Note, preliminary experiments with pyridine applied directly to wet tissue resulted in a rubbery tissue texture and poor extraction efficiency; this problem was overcome by freeze-drying the tissue before the direct application of pyridine. In general, portions of 50 mg (brain) and 250 mg (muscle), weighed to a precision of 0.1 mg, of homogenized and freeze-dried tissues, were placed in a 2 mL centrifuge tube and 15 mL polypropylene tube, respectively. Then, 1 mL (brain) and 5 mL (muscle) of pyridine were added for the extraction of lipid-soluble arsenic species, followed by vortexing, and shaking the mixture for 1 h on a mechanical rotation device. Afterwards, the mixtures were centrifuged for 15 min at 21 000 × g (brain) and 4000 × g (muscle) and the supernatants were removed and further purified by normal-phase solid-phase-extraction (SPE) for subsequent analysis of arsenolipids. For the extraction of water-soluble arsenic species from tissues, 1 mL (brain) and 5 mL (muscle) of an aqueous 20 mM ammonium bicarbonate solution pH 9.2 (pH adjusted with aqueous ammonia) were added to the remaining pellet. After vortexing and shaking (1 h), the mixtures were centrifuged as described above. The supernatants were decanted and filtered through 0.2 μm Nylon™ syringe filters prior to analysis.

For DCM/MeOH and methyl-tert-butylether (MTBE)/MeOH extractions, 1 mL mixtures of DCM/MeOH (2 : 1, v/v) or MTBE/MeOH (10 : 3, v/v) were added to portions of 50 mg freeze-dried brain tissue material and mixtures were shaken for 1 h. After centrifugation, the supernatant was decanted and the remaining pellet was dried under vacuum. Then, 1 mL of an aqueous 20 mM ammonium bicarbonate solution pH 9.2 was added to the pellet, vortexed and shaken for 1 h to extract water-soluble arsenicals.

Pyridine, DCM/MeOH, MTBE/MeOH and aqueous crude extracts were analysed without any further treatment by HPLC/MS. Additionally, arsenolipids were purified from pyridine extracts of brain and muscle tissues according a SPE-silica clean-up procedure developed for the purification of arsenolipids from algae.¹⁶ The pyridine extracts of brain (0.5 mL) and muscle tissues (4 mL) were evaporated to dryness and the residues were redissolved in 1 mL of DCM/acetone (1 : 1, v/v)/1% v/v FA. The crude extracts were transferred quantitatively to a small silica column (230 × 5 mm glass Pasteur pipette plugged with cotton wool and filled with silica to a height of 6 cm) that was conditioned with 5 mL of DCM/acetone (1 : 1, v/v)/1% (v/v) FA. Then, the column was washed with 5 mL of DCM/acetone (1 : 1, v/v)/1% (v/v) FA and 5 mL of methanol before eluting arsenolipids with 1 × 10 mL of methanol/1% (v/v) NH₃. This fraction was evaporated to dryness and redissolved in 0.5 mL of methanol for arsenolipid analysis.

At each step of the extraction and purification procedures, varying portions of extracts, pellets and fractions were subjected to a microwave-assisted acid digestion followed by determination of the arsenic concentrations in digested samples by ICPMS.

Determination of the total arsenic content

Portions of 50 mg (weighed to a precision of 0.1 mg) of homogenized and freeze-dried brain & muscle tissues and certified reference material were placed in 12 mL quartz tubes of the digestion system. Then 2 mL of nitric acid and 1 mL of an internal standard solution containing 100 μg L⁻¹ of Ge in 1% (v/v) HNO₃ were added. The tubes were covered with Teflon caps, placed in a Teflon rack, and transferred to the microwave system; an argon pressure of 4 × 10⁶ Pa was applied, and the acid mixture was heated to 250 °C for 30 min. After mineralization and cooling to room temperature, the digested samples were transferred to 15 mL polypropylene tubes and diluted with water to 10 mL. The digested samples were then analyzed for total As concentration by ICPMS.

Determinations of total As were made by using ICPMS with conventional nebulization and operated with helium (4.0 mL min⁻¹) as collision cell gas for removing polyatomic interferences from argon chloride (⁴⁰Ar³⁵Cl on ⁷⁵As). Monitored masses were m/z 75 (⁷⁵As, 0.3 s per point), and m/z 72 and 74 (internal standard ⁷²Ge and ⁷⁴Ge (each 0.1 s per point)). Standards for calibration were prepared in 15 mL polypropylene tubes (Greiner Bio-One International GmbH, Kremsmünster Austria) containing 20% (v/v) HNO₃ for matrix matching and the internal Ge standard at a final concentration of 10 μg L⁻¹; calibration range was 0.1 to 100 μg As per L. Each sample was analyzed 2–4 times for total As, and SDs of measured arsenic values were always <10%.

Analysis of arsenic species in tissue extracts by HPLC/mass spectrometry

Water-soluble arsenic species in aqueous extracts (acidified with 20% v/v FA) were investigated by HPLC/ICPMS under cation-exchange HPLC conditions. An Agilent Ionosphere 5C (200 × 3 mm; 5 μm) cation-exchange column with 20 mM ammonium formate pH 2.60 (pH adjusted with formic acid) containing 10% v/v methanol as mobile phase under isocratic elution conditions was used. The ICPMS was operated in no gas mode using 1% CO₂ in argon as optional gas to enhance the arsenic signal. Monitored masses in time resolved analysis mode (one channel per isotope) were m/z 75 (0.3 s per point for ⁷⁵As), m/z 53 (0.05 s per point, ⁴⁰Ar¹³C to monitor carbon), m/z 77 and m/z 82 (each 0.1 s, to ascertain possible argon chloride interferences on ⁷⁵As). Quantification of water-soluble arsenic species using cation-exchange HPLC was based on external calibration against the standards DMA, AB and TMAO in the calibration range 1–200 μg As per L.

Arsenolipids in crude and purified pyridine extracts were separated using the ACE Ultra Core 5 SuperPhenylHexyl Column (250 × 4.6 mm; 5 μm) employing gradient elution with mobile phases comprising mixtures of 25 mM aqueous ammonium acetate pH 9.2 and methanol (for chromatographic details see legend of Fig. 3 and 4). 10% of the column effluent was directed post-column to the ICPMS in the HPLC/ICPMS setup used for arsenic selective detection and quantification of arsenolipids. The flow to the ICPMS was supported with an aqueous make-up flow (0.8 mL min⁻¹) containing 20 μg Ge per L as internal standard and 0.1% (v/v) FA provided from an isocratic pump to ensure stable plasma conditions. To maintain a constant carbon load to the plasma, a carbon compensation solution containing 5% (v/v) acetone/water was introduced with the peristaltic pump of the ICPMS to the spray chamber.²⁴ The ICPMS instrument was operated in no gas mode and time-resolved analysis mode using sample and skimmer cones made of platinum. Monitored masses were m/z 53 (0.01 s per point), m/z 74 (0.01 s per point), m/z 75 (0.3 s per point), m/z 77 and m/z 82 (0.3 s per point). Mixed calibration standards of three arsenic fatty acids (AsFA 362, AsFA 388, and AsFA 418) and three arsenic hydrocarbons (AsHC 332, AsHC 360, and AsHC 444) were prepared in methanol in the calibration range of 10–200 μg of As per L; quantification was based on peak areas.

For HPLC/HR ESMS measurements of arsenic species in tissue extracts, the same chromatographic conditions that were applied in HPLC/ICPMS measurements (see legends to Fig. 2–4) were used. The high-resolution mass spectrometer was operated in positive mode with nitrogen as the drying gas (450 °C), a capillary voltage of 3500 V, and a capillary temperature of 300 °C. The following instrumental settings were used for the assessment of arsenic species in tissue extracts: full scan at a resolution of 70 000 full width at half-maximum (fwhm) within a scan range of m/z 100–1500, with automatic gain control (AGC) target set to 3 × 10⁶, and a maximal injection time of 100 ms. The following settings were used for the data-dependent MS/MS measurements: isolation window set to m/z 0.4, resolution of 17 500 fwhm, and AGC target set to 1 × 10⁶. A maximal injection time of 200 ms and a loop count of 5 were used. The intensity threshold was set to 4 × 10⁴, and normalized collision energies of 15, 35 or 50 eV were used.

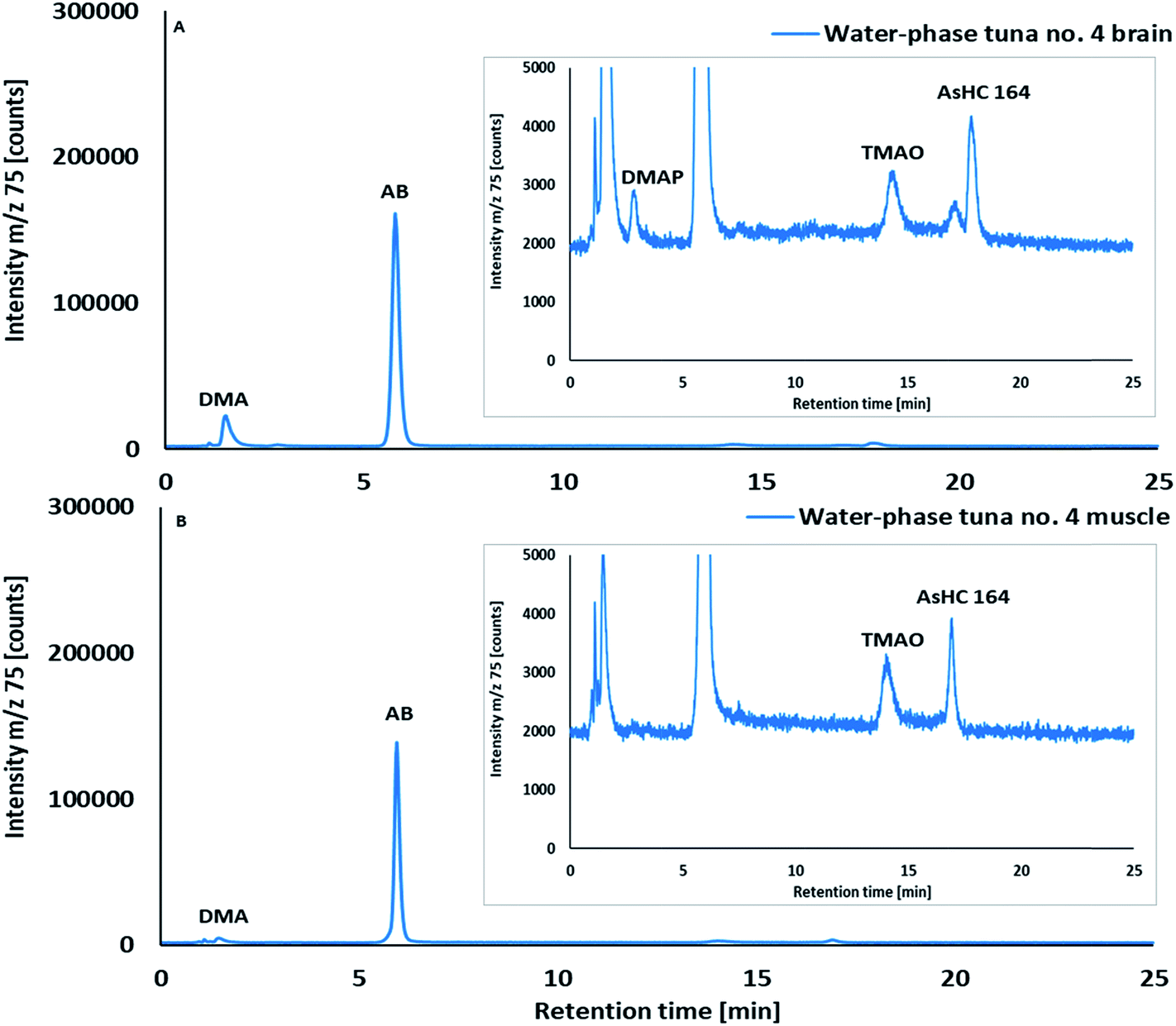

Fig. 2 Cation-exchange HPLC/ICPMS chromatograms of crude water extracts of (A) brain and (B) muscle tissues of skipjack tuna no. 4. Column, Varian Ionosphere 5C (100 × 3 mm; 5 μm); mobile phase, 20 mM ammonium formate pH 2.60 containing 10% (v/v) methanol; flow rate, 1 mL min⁻¹ and injection volume, 20 μL.

Fig. 3 HPLC/ICPMS chromatogram (A) and HPLC/HR ESMS extracted ion chromatograms (B) of identified arsenolipids isolated with a mass tolerance of Δ 5 ppm of a pyridine crude extract of tuna fish no. 3. Column, ACE Ultra Core 5 SuperPhenylHexyl (250 × 4.6 mm; 5 μm); mobile phases, 25 mM NH₄(CH₃COO)/water pH 9.2 (pH adjusted with aqueous ammonia) and 25 mM NH₄(CH₃COO)/MeOH pH 9.2; gradient elution: 0–15 min from 60–100%, 15–25 min holding at 100%, and returning at 25.1 min to 60% 25 mM NH₄(CH₃COO)/MeOH pH 9.2; flow rate, 1 mL min⁻¹; T, 40 °C and injection volume 20 μL. The retention time shift (ca 0.2 min) between HPLC/ICPMS and HPLC/HR ESMS measurements was normalized by comparison of authentic arsenolipid standards and the HR ESMS chromatogram was adjusted accordingly. The extracted ion chromatogram of AsHC 332 is displayed on the secondary axis.

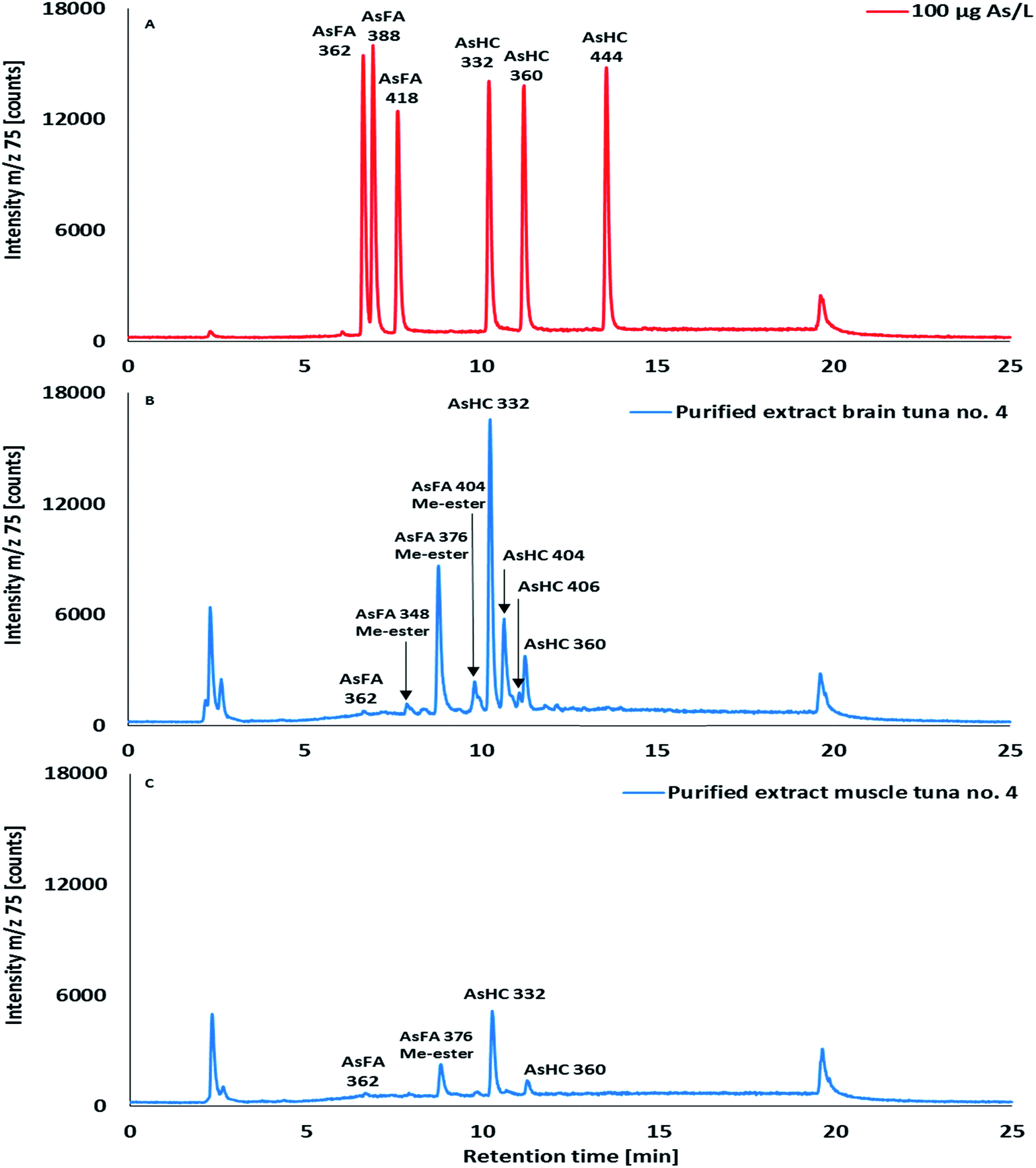

Fig. 4 HPLC/ICPMS chromatograms of (A) an arsenolipid mixed standard solution of AsFA 362, AsFA 388, AsFA 418, AsHC 332, AsHC 360 and AsHC 444 (each 100 μg As per L), and purified pyridine extracts of (B) brain and (C) muscle of skipjack tuna no. 4. Column, ACE Ultra Core 5 SuperPhenylHexyl (250 × 4.6 mm; 5 μm); mobile phases, 25 mM NH₄(CH₃COO)/water pH 9.2 (pH adjusted with aqueous ammonia) and 25 mM NH₄(CH₃COO)/MeOH pH 9.2; gradient elution: 0–2 min from 0–20%, 2–4 min from 20–80%, 4–12 min from 80–100%, 12–17 min holding at 100% and returning at 17.1 min to 25 min to 0% 25 mM NH₄(CH₃COO)/MeOH pH 9.2; flow rate, 1 mL min⁻¹; T, 40 °C and injection volume 20 μL.

Results and discussion

Extraction of arsenic species

For analyzing both water- and lipid-soluble arsenic species in tissue samples, we developed a method for the selective extraction of arsenolipids and water-soluble arsenic species from the same sample. Normal lipids are commonly extracted from solid materials using mixtures of chloroform/MeOH,^25,26 and more recently MTBE/MeOH²⁷ for improved practical sample handling. Current arsenolipid research employs a mixture of DCM/MeOH for the extraction of most common arsenolipids from solid samples.²⁴ However, under these conditions considerable amounts of water-soluble arsenic species are also extracted, which complicates their targeted analysis from the same sample. Water-soluble arsenic species that are extracted into the organic phase can be investigated after the addition of water by analyzing the aqueous phase. This partitioning step, however, presents practical difficulties in sample handling, and, additionally, the presence of water introduces the possibility of degrading the arsenolipids. Degradation of labile non-polar arsenolipids, likely through hydrolysis, has been observed in fish meal samples when water was used as a first extractant before subsequent extraction of arsenolipids with organic solvents.²⁸

Consequently, our extraction strategy was to search for a mild organic solvent with polarity similar to that of a DCM/MeOH mixture, which would efficiently extract arsenolipids, but only negligible amounts of water-soluble arsenic species. In this way we could avoid the use of water in a partitioning step, and hence prevent possible hydrolysis of the arsenolipids. Based on the relative polarities of DCM (0.42) and MeOH (0.95) retrieved from elutropic series tables,²⁹ a 2 : 1 (v/v) mixture of DCM/MeOH shows a calculated relative polarity of 0.61. Pyridine with a relative polarity of 0.71 resides in a similar polarity range than that of a DCM/MeOH mixture, however, is slightly more polar. Latter aspect could benefit the extraction of arsenolipids because of their polar dimethylarsinoyl-group, characteristic for nearly all arsenolipids identified so far, which facilitates the solubility in polar solvents.

Therefore, we explored a sequential extraction on the same tissue sample using pyridine for selective removal of arsenolipids, and then an aqueous ammonium bicarbonate solution to remove water-soluble arsenic species. DCM/MeOH and MTBE/MeOH methodologies for extracting lipids were used as reference extraction methods. The mass balance of the reference and pyridine extraction methods applied on a fish brain tissue sample is shown in Table 1.

Table 1 Total As mass balance and arsenic species in crude extracts of DCM/MeOH, MTBE/MeOH and pyridine extractions of brain of tuna fish no. 3. Results are given as mean ± SD (n = 3; dry mass)^a

Extraction	Total As mass balance				As species
	Organic [mg As per kg] (%)*	Water [mg As per kg] (%)*	Pellet [mg As per kg] (%)*	Recovery (%)*	Void vol. [mg As per kg] (%)*	AsHC 332 [mg As per kg]	AsHC 360 [mg As per kg]	Lipid-soluble** [mg As per kg]	AB*** [mg As per kg]	DMA*** [mg As per kg]
a *Calculated as % of the mean total As content. **Sum of arsenic species excluding arsenic in the void volume determined by reversed-phase HPLC/ICPMS. ***Arsenobetaine and dimethylarsinate in tuna brain after quantitation in water crude extracts by cation-exchange HPLC/ICPMS.
DCM/MeOH	11.6 ± 0.3 (83 ± 2)	0.45 ± 0.02 (3 ± 1)	0.87 ± 0.05 (6 ± 1)	94 ± 3	3.2 ± 0.2 (23 ± 2)	1.48 ± 0.08	0.39 ± 0.03	6.4 ± 0.1	0.20 ± 0.01	0.04 ± 0.01
MTBE/MeOH	10.2 ± 0.1 (74 ± 1)	2.48 ± 0.02 (18 ± 1)	0.96 ± 0.02 (7 ± 1)	99 ± 2	1.8 ± 0.1 (13 ± 1)	1.52 ± 0.05	0.37 ± 0.01	6.5 ± 0.2	1.59 ± 0.02	0.14 ± 0.01
Pyridine	8.0 ± 0.2 (57 ± 1)	3.85 ± 0.13 (28 ± 1)	1.24 ± 0.05 (10 ± 1)	95 ± 2	0.6 ± 0.1 (4 ± 1)	1.40 ± 0.02	0.38 ± 0.01	6.1 ± 0.1	2.33 ± 0.02	0.39 ± 0.01
Total As (mean)	13.9 mg As per kg

---

With our pyridine extraction method, around 60% and 30% of the total As in the fish brain was extractable with pyridine and aqueous ammonium bicarbonate, respectively. Relative to the data for pyridine, higher amounts of arsenic (74–83%) were extracted into the organic phases of DCM/MeOH and MTBE/MeOH, whereas lower amounts (3–18%) were removed in the subsequent extraction with aqueous ammonium bicarbonate (Table 1). These results suggested that considerable amounts of water-soluble As compounds had been extracted into the DCM/MeOH and MTBE/MeOH phases. This interpretation was supported by analysis of DCM/MeOH and MTBE/MeOH extracts by reversed-phase HPLC/ICPMS (ESI Fig. S1†), which showed elevated concentrations of non-retained arsenic corresponding to 12–25% of the total As content, assumed to be mostly water-soluble, eluting in the void volume. However, it cannot be excluded that water-soluble degradation products of labile arsenolipids are formed under these extraction conditions that contribute to the arsenic in the void volume. In contrast, less than 5% of the total arsenic was found in the void volume of pyridine extracts indicating that pyridine hardly extracts the water-soluble arsenic compounds and prevents at the same time the hydrolysis of labile arsenolipids (Table 1 and Fig. 3). Storage of in-house available previously synthesized arsenolipid standards,²³ namely the AsHCs 332, 360 and 444, 360 and AsFAs 362, 388 and 418, in pyridine over a one-week period at room temperature and subsequent analysis by HPLC/ICPMS showed no degradation/transformation of these compounds. Crude extracts obtained after the extraction with pyridine were analyzed within two days after extraction. Therefore, we do not expect a degradation/transformation of arsenolipids present in these extracts during the extraction process and storage until analysis, however a hydrolysis of labile arsenolipids beyond storing time cannot be excluded.

Arsenobetaine was identified as the major water-soluble arsenical in the tuna samples, while DMA was present as a minor arsenic species (see ESI Fig. S2 and S3†). Arsenobetaine and DMA could not be reliably quantified with the DCM/MeOH and MTBE/MeOH extraction methods (Table 1). The sequential extraction with pyridine and aqueous ammonium bicarbonate, however, selectively extracted arsenobetaine and other water-soluble arsenicals such as DMA, into the aqueous layer, rather than into the pyridine, producing excellent quantitative results as shown by the analysis of CRM BCR-627 Tuna fish tissue, which has been included in our study for quality control, but was also investigated as a potential future seafood reference material for arsenolipids (ESI Fig. S4 and Table S1†). When applying our pyridine method (n = 3) on this fish tissue material, 10 ± 1% of its total As were found in the organic phase, 74 ± 1% in water phase and 16 ± 1% remained in the pellet; the recovery of the sum of all three phases based on the total As was 107 ± 2%. In terms of arsenic species, this CRM has certified values of 3.90 ± 0.22 mg As per kg and 0.150 ± 0.022 mg As per kg for AB and DMA, respectively; we obtained 3.66 ± 0.07 mg As per kg (n = 3) for AB and 0.15 ± 0.02 mg As per kg (n = 3) for DMA corresponding to recoveries of 94 ± 2% (n = 3) and 100 ± 15% (n = 3), respectively.

The total mass extracted from the brain was very similar for all three organic extracts (66 ± 3%; mean of all extractions n = 9). Analysis of the same extracts by HPLC/ICPMS (ESI Fig. S1†) showed that the amounts of arsenolipids extracted from brain samples with the pyridine were comparable to those obtained with the other two solvents. The arsenolipids AsHC 332 and AsHC 360 were used as markers to compare the extraction efficiency of the three methods; our pyridine extraction method returned results for these two compounds within 8% of those obtained with DCM/MeOH and MTBE/MeOH extractions (Table 1).

Thus, pyridine was able to efficiently and selectively extract arsenolipids from the tuna brain tissue while essentially leaving behind the water-soluble arsenicals, which could then be extracted by the aqueous bicarbonate solution. This selectivity enabled the parallel investigation of both arsenolipids and water-soluble arsenic species in the same sample. The method was then used to investigate the arsenic species in brain and muscle tissues of tuna fish.

Total arsenic concentrations in the brain and muscle of skipjack tuna

The total arsenic content in the muscle tissues of five specimens of tuna ranged from 4.0 to 5.8 mg As per kg with a mean total arsenic concentration of 4.7 ± 0.8 mg As per kg (n = 5), respectively. These arsenic concentrations are similar to those reported for muscle tissues of various tuna species^30,31 and in canned tuna,³² and are in accordance with arsenic concentrations commonly found in muscle tissue of marine fish. The total arsenic content in brain tissues of skipjack tuna, however, showed up to three-fold higher concentrations than in the muscle tissues of the same specimen, ranging from 9.1 to 17.4 mg As per kg with mean and median values of 12.2 and 10.9 mg As per kg (n = 5), respectively, suggesting an accumulation of arsenic in the brain of this marine fish (Table 2 and ESI Fig. S5†).

Table 2 Total arsenic mass balance of pyridine extraction of freeze-dried brain (n = 1 to 3) and muscle (n = 1) tissues of skipjack tuna^a

Skipjack tuna no.	n	Brain					n	Muscle
		Total As* [mg As per kg]	Pyridine [%]	Water [%]	Pellet [%]	Recovery** [%]		Total As* [mg As per kg]	Pyridine [%]	Water [%]	Pellet [%]	Recovery** [%]
a *Mean. **Recovery of the sum (pyridine + water + pellet) of mean total As.
1	1	9.1	54	32	14	105	1	4.0	18	53	29	101
2	1	9.9	58	29	13	98	1	4.4	17	62	22	95
3	3	13.9	57	28	10	95	1	5.2	30	41	29	92
4	2	17.4	52	35	14	100	1	5.8	11	66	23	97
5	1	10.9	58	29	13	94	1	4.0	20	55	24	98

---

Most of the arsenic in the brain was extractable with pyridine (6.2–8.7 mg As per kg corresponding to 52–58%), whereas around 30% of the total arsenic was found in the water phase and around 15% remained in the pellet (Table 2). For the muscle tissue, only 20% (mean, n = 5; range 11–30%), was extractable with pyridine, whereas 55% (mean, n = 5; range 41–66%) of the total arsenic was found in the water phase.

Water-soluble As species in the brain and muscle of skipjack tuna

Water-soluble arsenic species in aqueous extracts of brain and muscle tissues of skipjack tuna were investigated by HPLC/ICPMS (Fig. 2) and HPLC/HR ESMS (ESI, Fig. S2 and S3; Table S2†). Arsenobetaine, the major water-soluble arsenical in muscle tissues of marine fish, crustaceans and mollusks,^33,34 was also the major water-soluble arsenic species in both muscle tissues (mean 47% of total As; range 31–57%) and brain tissues (mean 24% of total As, 15–31%; n = 5) of skipjack tuna. DMA, a common arsenic metabolite of inorganic arsenic,³⁵ arsenosugars and arsenolipids,³⁶ and TMAO were detected as minor constituents in both brain and muscle tissues, whereas a trace amount of DMAP, a small dimethylarsinoyl carboxylic acid and metabolite of arsenolipids,^37,38 was detected only in the brain (Fig. 2, ESI Fig. S2, S6 and Table S2†). DMAB, an urinary metabolite observed after ingestion of arsenolipids^37,38 and structurally similar to DMAP, was not detected.

In addition to the known water-soluble arsenicals described above, a late eluting arsenic peak (Fig. 1, retention time (RT) = ca 17 min) in the aqueous extracts was observed by cation-exchange HPLC/ICPMS. Analysis by HPLC/HR ESMS showed that this As species had a molecular mass of m/z 164.0177 (ESI, Fig. S2 and S3; Table S2†), which suggested it was a short chain arsenic-containing hydrocarbon with a molecular formula of C₅H₁₃AsO; we could, however, not confirm its structure.

Lipid soluble arsenic species in the brain and muscle of tuna

Investigation of the arsenolipids in the pyridine crude extracts of brain tissues by HPLC/ICPMS revealed the presence of appreciable quantities of two AsHCs, namely AsHC 332 and AsHC 360, together with traces of AsFA 362; these compounds were identified by co-chromatography with authentic arsenolipid standards (Fig. 3; ESI, Fig. S1 and S7†).

Moreover, traces of arsenicals with retention times resembling those of medium chain AsFAs, a strong arsenic signal around 11–13 min, minor amounts of late eluting compounds (around 15 min) together with a broad arsenic peak between 18–24 min (Fig. 3 and ESI Fig. S1D and S7B–F†) were observed in brain crude extracts under reversed-phase HPLC conditions. The identity of AsFA 362, AsHC 332 and AsHC 360 in brain crude extracts was confirmed by HPLC/high resolution mass spectrometry and accurate mass measurements in positive ionization mode of protonated molecular ions (full MS). The fragment ions m/z 104.96799 and m/z 122.97855 characteristic for arsenolipids containing a dimethylarsinoyl moiety were observed in MS² spectra of AsHC 332 and AsHC 360, whereas the intensity of the [M + H]⁺ ion of AsFA 362 was below the threshold required for being selected in a MS/MS experiment. Additionally, accurate masses of [M + H]⁺ ions of two more AsHCs, AsHC 404 and AsHC 406, were identified after selectively extracting the fragment ions m/z 104.96799 and m/z 122.97855 from the obtained MS spectra. In a previous study,² the arsenolipids AsFA 362, AsHC 332, AsHC 360 and AsHC 404 have also been identified in muscle tissue of sashimi tuna. The arsenic peak at RT 4.6 min and the compounds eluting after 12.5 min did not show any of these fragment ions (ESI Fig. S7 B–F†). Their low concentrations and the high matrix load of pyridine crude extracts (>50% of the total brain mass was extractable with pyridine), challenged the identification of these compounds. HPLC analysis of crude extracts showed no practical difficulties. However, a higher arsenic background and poor peak shapes, which negatively influenced chromatographic separation have been observed (ESI S7†).

To better elucidate the structure of the unidentified arsenolipids and to improve HPLC separation, we applied a SPE-silica clean-up previously used for purifying arsenolipids from algae^10,16,24 on the pyridine crude extracts of five tuna brain and muscle samples. For example, applying this clean-up procedure to the pyridine crude extract (0.5 mL) of tuna brain sample no. 1 containing 199 ng As in 18 mg of total mass returned a purified arsenic fraction (1% NH₃ (v/v)/methanol) containing 173 ng As in just 3 mg of total mass. Under these conditions, 87% of the arsenic loaded onto the column was recovered in the ammonia methanol fraction, whereas >80% of the total mass was removed. The total recovery of arsenic loaded onto the silica column was 97% in this sample. The rest of the samples closely matched those values with SD < 5%. Application of the clean-up procedure to pyridine muscle tissue extracts returned similar results to those obtained with brain samples, however, the arsenic content in the purified fraction was slightly lower, around 70%, with 90% of the total arsenic loaded onto the column recovered within all collected fractions. The purified fractions were analysed by HPLC/ICPMS (Fig. 4 and ESI Fig. S8 and S9†) and HPLC/HR ESMS.

Purification of pyridine brain extracts significantly improved the HPLC separation as indicated by a lower arsenic background, and sharper and better-resolved peaks in HPLC/ICPMS measurements. However, changes in the arsenic profile of silica-purified extracts compared to crude extracts were observed after the purification procedure when analysed by HPLC/ICPMS (ESI Fig. S10†). The identity of arsenic fatty acid AsFA 362, and the four AsHCs 332, 360, 404 and 406, detected in brain crude extracts (Table 3) remained unchanged in purified extracts. It was noticeable, however, that an arsenic signal overlapping with AsHC 404 within the band of unresolved peaks (RT 10–12 min) and the late eluting arsenicals (>12 min) detected in crude extracts disappeared after the silica clean-up. Instead, several new arsenic species appeared in the purified extracts including a strong arsenic signal at RT 8.8 min eluting in a retention time window between AsFA 362 and AsHC 332 (Fig. 4B). Investigation of these compounds by HPLC/HR ESMS showed them to be the methyl esters of three known arsenic fatty acids, namely AsFA 334, AsFA 362 and AsFA 390 (Table 3 and ESI Fig. S11†). This observation suggests that more complex arsenolipids, made-up of least one AsFA bound into an ester, were present in the original crude pyridine extract, and that these compounds underwent transesterification during the purification process using silica and methanol. A similar transesterification of arsenolipids with silica/methanol has been previously reported.³⁹ These results suggested that the tuna brain may contain arsenic-containing phosphatidylcholines⁹ or perhaps arsenic-containing triglycerides; the latter arsenicals were thought to be present in fish oils of blue whiting, Micromesistius poutassou,³⁹ and fish collected in the Pacific,⁴⁰ and have recently been positively identified in the green alga Coccomyxa.⁴¹ HPLC/ICPMS analysis of purified extracts of muscle tissues showed a similar profile of arsenolipids, but the compounds were present at much lower concentrations than in brain tissues (Fig. 4C and ESI Fig. S9†).

Table 3 Arsenolipids in purified brain and muscle tissue extracts of skipjack tuna identified by HPLC/HR ESMS in positive ionization mode and quantified by HPLC/ICPMS. Percentage of total arsenic given as mean of n = 5, followed by the range of percentage values^a

Compound code	Formula [M + H]^+	Mass theor.	Mass exp.	Δm [ppm]	Brain* (% of total As)	Muscle* (% of total As)
a Theor. = theoretical; exp. = experimental; column recoveries (purified extracts): 89–109%.
AsFA 362	C17H36AsO3	363.1875	363.1883	2.2	0.6 (0.2–0.7)	0.09 (0.04–0.1)
AsHC 332	C17H38AsO	333.2133	333.2130	−0.8	14 (11–19)	1.4 (1.0–2.4)
AsHC 360	C19H42AsO	361.2446	361.2446	<0.1	3 (2.1–3.4)	0.3 (0.2–0.5)
AsHC 404	C23H38AsO	405.2133	405.2132	−0.3	6 (4.7–6.9)	0.08 (0.04–0.11)
AsHC 406	C23H40AsO	407.2290	407.2279	−2.6	1 (0.7–1.2)	<0.01 (LOD)
AsFA 348 Me-ester	C16H34AsO3	349.1718	349.1720	0.5	0.6 (0.3–1.0)	0.05 (0.04–0.08)
AsFA 376 Me-ester	C18H38AsO3	377.2031	377.2023	−2.1	7 (3.8–11)	0.8 (0.5–1.3)
AsFA 404 Me-ester	C20H42AsO3	405.2344	405.2340	−1.1	1.7 (1.0–2.1)	0.1 (0.07–0.14)
Total As [mg As per kg]					12.2 (9.1–17.4)	4.4 (4.0–5.8)

---

The concentrations and distribution of individual arsenolipids detected in brain and muscle tissues of skipjack tuna are shown in Table 3. In the brain, 3.8–5.9 mg As per kg corresponding to 34–51% with a mean of 40% (n = 5) of the total arsenic were arsenolipids, whereas in the muscle only a small portion of the arsenic, 0.3–0.8 mg As per kg corresponding to 9–14% with a mean of 9% (n = 5), was lipid-soluble arsenic.

Arsenic-containing hydrocarbons, the sum of AsHC 332, 360, 404 and 406 (AsHC 406 only detected in the brain), were identified as the main arsenolipids in brain and muscle tissues, with AsHC 332 being the most dominant, in both tissue types. AsFA 362 was detected as a minor constituent (<1% of total As) in brain and muscle tissues. Arsenolipid profiles obtained by HPLC/ICPMS indicated generally low amounts of unesterified (free) AsFAs in both tissues. However, the AsFAs 334, 362 and 390 incorporated into more complex arsenolipid structures, and transformed to AsFA Me-esters in the course of the sample clean-up, contributed ca 20% to the total arsenolipid content in brain and muscle tissues.

Our results indicate a transfer of AsHCs across the fish blood–brain barrier and their accumulation in the brain since these species occur in muscle tissues at much lower concentrations. The transfer of AsHCs across the fish-blood brain barrier is consistent with a recent in vitro study of arsenolipids in the Caco-2 intestinal barrier model.²¹ In that study, AsHCs transferred efficiently across this barrier towards the blood-facing side and showed a high intestinal bioavailability, suggesting that AsHCs have the potential to cross physiological barriers. Moreover, in the in vivo model Drosophila melanogaster²² it was shown that AsHC 332 accumulated in the brain of the fruit fly. Compared to AsHCs, the AsFAs were transferred less efficiently across the intestinal barrier in the Caco-2 model, although they showed a higher degree of presystemic metabolism.²¹ This latter aspect might be a reason for the low concentration of free AsFAs found in the fish brain in our study. Possibly, AsFAs after crossing the blood–brain barrier of the fish are either further metabolized or transformed to more complex arsenolipid structures or are reversibly exchanged with the blood facing side again. Also, it cannot be excluded that more complex lipid arsenicals, e.g. arsenic containing-phosphatidylcholines or triglycerides, are biosynthesized earlier and then cross the blood–brain barrier as intact molecules. AsHCs, on the other hand, might be efficiently transferred across the blood–brain barrier owing to their more lipophilic nature, and once there they are stored unchanged, and consequently accumulated in the fat-rich tissue of the fish brain.

Conclusions

The applied method incorporating pyridine and an aqueous bicarbonate solution to sequentially extract both arsenolipids and water-soluble arsenic compounds from the same tissue sample is suitable for the investigation of arsenic compounds in tissue samples. By using this extraction method in combination with HPLC/mass spectrometry, we identified arsenic-containing hydrocarbons as major constituents in brain and muscle tissue of skipjack tuna (Katsuwonus pelamis). The brain also contained more complex arsenolipids incorporating an arsenic fatty acid; possibly these compounds were arsenic-containing phosphatidylcholines or arsenic-containing triglycerides. The arsenolipid concentrations were ten-fold higher in the brain compared to the muscle, indicating a transfer of these compounds across the fish blood–brain barrier and accumulation in the fish brain.

Conflicts of interest

There are no conflict of interests to declare.

Acknowledgements

We thank Empresa de Pesca de Aveiro S. A., Gafanha da Nazaré, Aveiro for all the technical personnel for the help and facilitating sampling. We thank also the Austrian Science Fund (FWF I12412-B21) and the German Research Foundation (DFG SCHW903/10-1) for financial support, and NAWI Graz for supporting the Graz Central Lab—Metabolomics. The authors acknowledge the financial support by the University of Graz.
