The role of hydrogen and fuel cells in the global energy system

Iain Staffell *a, Daniel Scamman b, Anthony Velazquez Abad b, Paul Balcombe c, Paul E. Dodds b, Paul Ekins b, Nilay Shah d and Kate R. Ward a
aCentre for Environmental Policy, Imperial College London, London SW7 1NE, UK
bUCL Institute for Sustainable Resources, University College London, London WC1H 0NN, UK
cSustainable Gas Institute, Imperial College London, SW7 1NA, UK
dCentre for Process Systems Engineering, Dept of Chemical Engineering, Imperial College London, London SW7 2AZ, UK. E-mail: i.staffell@imperial.ac.uk

Received 19th April 2018 , Accepted 9th October 2018

First published on 10th December 2018


Hydrogen technologies have experienced cycles of excessive expectations followed by disillusion. Nonetheless, a growing body of evidence suggests these technologies form an attractive option for the deep decarbonisation of global energy systems, and that recent improvements in their cost and performance point towards economic viability as well. This paper is a comprehensive review of the potential role that hydrogen could play in the provision of electricity, heat, industry, transport and energy storage in a low-carbon energy system, and an assessment of the status of hydrogen in being able to fulfil that potential. The picture that emerges is one of qualified promise: hydrogen is well established in certain niches such as forklift trucks, while mainstream applications are now forthcoming. Hydrogen vehicles are available commercially in several countries, and 225[thin space (1/6-em)]000 fuel cell home heating systems have been sold. This represents a step change from the situation of only five years ago. This review shows that challenges around cost and performance remain, and considerable improvements are still required for hydrogen to become truly competitive. But such competitiveness in the medium-term future no longer seems an unrealistic prospect, which fully justifies the growing interest and policy support for these technologies around the world.



Broader context

Hydrogen and fuel cells have arguably suffered a ‘lost decade’ after high expectations in the 2000s failed to materialise. Three factors are enabling the sector to regain momentum. Firstly, improvements in technology and manufacturing mean that systems which cost $60[thin space (1/6-em)]000 in 2005 are now cost $10[thin space (1/6-em)]000. Secondly, commercial products are becoming widely available, and significant uptake is occurring in specific sectors such as Japanese microgeneration and US forklift trucks. Thirdly, a strengthened global resolve to mitigate climate change is coupled with increasing realisation that clean power alone is insufficient, due to the complexity of decarbonising heat and transport. This paper provides a comprehensive state-of-the-art update on hydrogen and fuel cells across transport, heat, industry, electricity generation and storage, spanning the technologies, economics, infrastructure requirements and government policies. It defines the many roles that these technologies can play in the near future, as a flexible and versatile complement to electricity, and in offering end-users more choice over how to decarbonise the energy services they rely on. While there are strong grounds for believing that hydrogen and fuel cells can experience a cost and performance trajectory similar to those of solar PV and batteries, several challenges must still be overcome for hydrogen and fuel cells to finally live up to their potential.

Introduction

Thirty years ago, hydrogen was identified as “a critical and indispensable element of a decarbonised, sustainable energy system” to provide secure, cost-effective and non-polluting energy.1 Today, energy leaders see hydrogen as the lowest impact and least certain issue facing the global energy system.2 “Hydrogen, as a viable alternative fuel, continues to promise much and deliver precious little”.3

Yet hydrogen could play a significant role in low-carbon future:4–8 counterbalancing electricity as a zero-carbon energy carrier that can be easily stored and transported;9,10 enabling a more secure energy system with reduced fossil fuel dependence;11,12 with the versatility to operate across the transport,13,14 heat,15,16 industry17 and electricity sectors.18,19 Together, these account for two-thirds of global CO2 emissions (Fig. 1).


image file: c8ee01157e-f1.tif
Fig. 1 Global greenhouse gas emissions in 2014, broken down by sector and by major countries. Data from CAIT.23

Whilst electricity is proving comparatively easy to decarbonise thanks to the dramatic cost reductions and uptake of renewables,20 these other sectors must not be forgotten. In the UK for example, heat and transport are expected to decarbonise at just one-third the rate of electricity production, with emissions falling 24% compared to 68% over the coming 15 years.21,22 Solutions are desperately needed to make transport and buildings sustainable that are cost-effective and appealing to consumers. Hydrogen and fuel cell technologies offer greater personal choice in the transition to a low-carbon economy, given their similar performance, operation and consumer experience to fossil-fuelled technologies. They also provide valuable insurance against the possibility of other vaunted technologies failing to deliver, such as carbon capture and storage, bioenergy and hybrid heat pumps.

Hydrogen and fuel cells are seeing a resurgence in interest: large-scale production of fuel cell vehicles has begun, and hundreds of thousands of homes are now heated and powered by fuel cells.5 A key difference since the last hydrogen “hype cycle”24 in the 2000s is that manufacturing scale up and cost decreases mean hydrogen and fuel cells are being commercialised in several sectors, from portable electronics and backup power to fork-lift trucks.25,26 Meanwhile, energy systems analyses have become more sophisticated in identifying the complexity of decarbonising heat and transport via full electrification, and thus the need for a flexible and storable energy vectors.27–30

Thirteen international corporations recently formed the Hydrogen Council “to position hydrogen among the key solutions of the energy transition”.6 Doing so involves challenges around its complexity and diversity:

(1) Hydrogen can be produced from many feedstocks and processes, with varying greenhouse gas and other emissions, costs and infrastructural requirements;

(2) Hydrogen can be used in many ways, including without fuel cells, whilst fuel cells can operate using fuels other than hydrogen;

(3) Hydrogen and fuel cells can contribute in many ways spanning the whole energy system;

(4) Hydrogen infrastructure may be costly, but pathways include several low-cost incremental routes that ‘piggy-back’ off established networks, which are often neglected.

In March 2017, the UK's Hydrogen and Fuel Cell Supergen Hub published a white paper that systematically assessed the current status and future prospects of hydrogen and fuel cells in future energy systems.31 This article synthesises and updates that white paper, broadening its scope to a global focus. It builds upon previous holistic reviews of hydrogen and fuel cells,32–34 and takes the novel approach of considering how they might be integrated together across the energy system.

This review covers the following:

• The transport sector, both personal vehicles and larger heavy-duty freight and public transit vehicles;

• Heat production for residential, commercial and industrial users;

• Electricity sector integration, balancing intermittent renewable energy;

• Infrastructure needs, options for using existing gas grids, compression and purity requirements; and

• Policy challenges, global support and targets for hydrogen and fuel cells.

Transportation

The suitability of hydrogen and fuel cells varies between transport modes and reflects the diverse nature of the transport sector, which spans land, sea and air, plus freight and passengers, as shown in Fig. 2. Nearly half of energy demand for global transport is from light duty vehicles and the number of passenger cars worldwide is expected to rise from 1 to 2.5 billion by 2050.35
image file: c8ee01157e-f2.tif

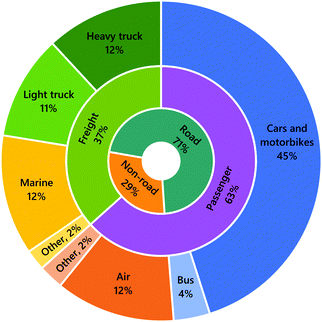

Fig. 2 Breakdown of energy usage in the transport sector globally in 2015. The outer ring gives the share of individual modes. “Other” is primarily passenger rail and air freight. The middle and inner rings aggregate these uses by mode and function. Data from EIA.35 Total consumption was 110 million TJ in 2015 worldwide, equivalent to 37 kW h per person per day in OECD countries and 7 kW h in non-OECD countries.

The UK must halve its transport CO2 emissions between 2015 and 2030 to meet national carbon budget commitments.22 Emissions have increased though, and the share of renewable energy in UK transport has fallen to 4.2% versus a target of 10%,36 bringing calls for stronger action.37 Hydrogen represents one of three main options for low-carbon transport alongside biofuels and electric vehicles (EVs). Hydrogen avoids the land-use and air quality impacts of biofuels, and the limited range and long recharging times associated with EVs.5 However, electric cars are several years ahead of hydrogen in terms of maturity due to their lower costs and readily-available infrastructure. Plug-in electric vehicles now account for 30% of new vehicle sales in Norway and 2% in the UK.38,39

In addition to tackling climate change, hydrogen vehicles can improve air quality. This is an urgent priority with over half a million premature deaths per year across Europe due to particulates and NOx emissions.40,41 The direct cost of air pollution due to illness-induced loss of production, healthcare, crop yield loss and damage to buildings is around €24b per year across Europe with external costs estimated to be €330–940b per year.42 92% of the world's population are exposed to air quality levels that exceed World Health Organisation limits.43,44 Major cities have recently announced bans on all diesel-powered cars and trucks by 2025,45 and UK and France have announced nationwide bans on all pure combustion vehicles by 2040.46,47

Hydrogen powertrains

Conventional internal combustion engines can be modified to run on pure hydrogen (‘HICEs’) and could see early deployment as they are substantially cheaper than fuel cells. However, hydrogen combustion is less efficient than a fuel cell and releases NOx, hence is not expected to play a significant long-term role in transport. Hydrogen can be blended with natural gas (‘hythane’) or diesel in dual-fuel vehicles; or it is possible to switch between both in bi-fuel powertrains. This allows the use of existing infrastructure, but these are not zero-emission and could eventually be displaced by lower-carbon options.48

Fuel cell electric vehicles (FCEVs) predominantly use PEM fuel cells, offering high efficiency, high power density and cold-start capabilities.49 A 60 kW fuel cell is typical for European cars,50 which is substantially larger than for residential fuel cells (∼1 kW). Competing powertrains includes conventional internal combustion engines (ICEs), battery electric vehicles (BEVs) and plug-in hybrid vehicles (PHEVs, also known as range-extender EVs), which allow most journeys to be completed using a battery, and switch to the engine or fuel cell for less-frequent longer journeys.51

Hydrogen powertrains are compared to alternatives in Table 1, and differ in the following ways:49,52

Table 1 Comparative performance of primary drivetrains. Symbols give a qualitative comparison between different performance metrics (low/medium/high). Data from ref. 49
ICE FCEV BEV
Lower is better Current capital cost $ $ $ $ $ $
Fuel cost $ $ $ $ $ $
Maintenance costs $ $ $ $ $
Infrastructure needs $ $ $ $ $ $
Emissions image file: c8ee01157e-u1.tif image file: c8ee01157e-u2.tif image file: c8ee01157e-u3.tif
Higher is better Efficiency * * * * * *
Range * * * * * * *
Refuelling speed * * * * * * *
Lifetime * * * * * * * *
Acceleration * * * * * * * *


(1) Capital cost: FCEVs have higher capital and operating cost than BEVs today: $60–75k for the Toyota Mirai or Hyundai ix3553,54versus $25–30k for the Renault Zoe or Nissan Leaf.55,56 However, FCEVs have the potential for considerable cost reduction as manufacturing volumes rise, and could end up as cheaper alternatives.5,50

(2) Range and refuelling time: FCEVs have longer driving ranges and shorter refuelling times than BEVs, comparable to conventional vehicles (ca. 500 miles and 3 minutes).49 The power-hungry computers and sensors in driverless cars will impact BEV range more than FCEV,57 as does the air conditioning/heating for vehicles in hot/cold regions.

(3) Infrastructure requirements: hydrogen filling stations can serve substantially more vehicles than EV chargers, and a wider radius due to greater FCEV range.58 Hydrogen refuellers are currently more expensive than electric charging posts: around $1.5m versus <$1000 for slow chargers,4,59–61 although costs are expected to fall by two-thirds once the technology matures.7,48

(4) Lifetime: battery lifetimes are affected by local climate, overcharging, deep discharge and high charging/discharging rates;62 Tesla expect batteries to last 10–15 years, yet most BEVs are <5 years old so such lifetimes are unproven.51 In contrast to batteries, hydrogen tanks can undergo fast refilling and frequent, deep discharging without compromising lifetime, and fuel cell stacks are expected to outlive other drivetrain components.63

(5) User experience: FCEVs offer a smoother driving experience than ICEs (quieter, less vibration and no gear shifting).64 However, hydrogen tanks are large and inconveniently shaped, potentially restricting luggage space.

(6) Emissions: FCEVs have zero emissions at point of use and are low-carbon at the point of production if made from renewable-powered electrolysis, biomass or fossil fuels with CCS. The same is true for BEVs, whereas there is limited decarbonisation potential for ICEs. Blending biofuels with petrol and diesel can reduce CO2 emissions, but not improve local air quality.

(7) Network requirements: FCEVs and refuelling infrastructure can avoid the electricity network upgrades required for significant BEV penetration, and offer valuable grid-balancing services.

(8) Safety: FCEVs have comparable, but different, safety considerations to BEVs and ICEs. Hydrogen is flammable (more so than petrol) but hydrogen fires can cause little damage to the vehicle due to their localised nature.49

Passenger cars

Deep decarbonisation of transport must focus on private cars, which account for around half of the global transport sector (Fig. 2). FCEVs are currently expensive, but several analyses suggest cost reductions from mass-production could see their total cost of ownership (TCO) converging with other principal powertrains by 2030 (Fig. 3).4,7,13,50,65,66
image file: c8ee01157e-f3.tif

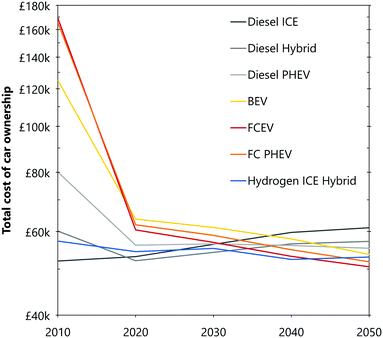

Fig. 3 Total cost of ownership for major powertrains from ref. 50. Hydrogen, electric and fossil-fuelled vehicle lifetime costs are expected to converge by 2030.

Platinum is a key contributor to capital cost, as mid-sized fuel cell vehicles require ten times more (circa 30 g) than a diesel autocatalyst.67 Strong progress has been made on reducing platinum content: Daimler cut 90% since 2009 and Toyota target a 50% reduction from current levels,68 which will prove essential for volume scale-up.67

Passenger FCEVs are believed to require production volumes of around 100[thin space (1/6-em)]000 units per year (and hence considerable financial support) to approach cost parity. With global passenger car sales of ∼70 million per year, this small penetration represents a sizeable market.69 If cost parity is achieved, other key aspects relating to user experience may make FCEVs favourable: 78% of automotive executives believe faster refuelling will make FCEVs the breakthrough for electric mobility, whilst BEV recharging times will remain an insuperable obstacle to acceptance.70

Deployment could be accelerated by targeting powertrain configurations with smaller initial hurdles. These include range-extender EVs (FC RE-EVs), where smaller stacks (<20 kW) and lower fuel consumption mean FC RE-EVs can be competitive at smaller volumes.7

Toyota, Hyundai and Honda now produce FCEV passenger vehicles, with Audi, Mercedes-Benz and others expected to follow suit.71,72 Whilst FCEVs are offered in only a few countries due to infrastructure requirements, around 3000 FCEVs have been sold to date (see Policy challenges section). Deployment is expected to accelerate, with the Hydrogen Council pledging to invest $1.75 billion p.a.73 The majority of automobile executives identified FCEVs as the most important trend up to 2025.70 Longer term, the IEA concludes that FCEV sales could reach 8 million by 2030 in developed nations, and 150 million sales and a 25% share of road transport by 2050.4

Refuelling stations

A complication for passenger vehicles is the need for extensive expansion of refuelling infrastructure to offer the reach and freedom of conventional vehicles.58 Battery electric vehicles face this to a lesser extent due to the lower cost of electric chargers: the UK has rapidly developed 5000 electric charging locations to rival its 8500 petrol stations, compared to just 15 hydrogen stations74,75 While 15 hydrogen dispensers could deliver comparable throughput to 900 BEV fast-chargers, they do not offer the same geographic coverage and convenience.

Globally, there are 330 hydrogen refilling stations as of 2018, half of which are in Japan and the US76 (Fig. 4). The various European H2Mobility programs have suggested a rollout of refuelling stations at critical locations, with a network of 65 refuelling stations for the UK by 2020 to start the market, growing to 1150 stations by 2030 to cover the whole country.77 The Hydrogen Council targets 3000 refilling stations globally by 2025, sufficient to provide hydrogen for about 2 million FCEVs, after which refuelling infrastructure should be self-sustaining.66 National roadmaps only target around half this number though (see Section 6.1).


image file: c8ee01157e-f4.tif

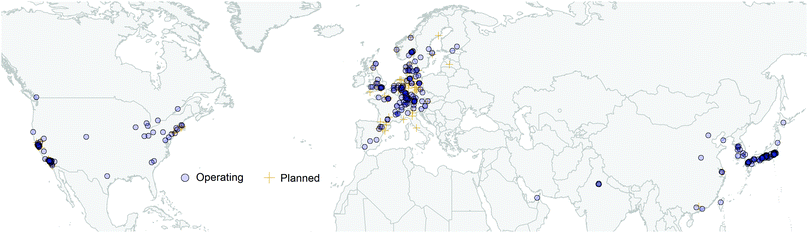

Fig. 4 Map of the hydrogen filling stations currently in operation and planned. The map focusses on the existing stations in the northern hemisphere, a further 8 stations are not plotted. Data from http://www.h2stations.org by LBST and TÜV SÜD.76

Return-to-base fleets such as delivery vans and taxis, or passenger cars in a future car-sharing economy will see high utilisation and benefit from single refuelling depots with fast, infrequent refuelling. The requirement for less infrastructure could enable distribution costs to fall more rapidly than in the passenger FCEV sector, suggesting deployment in these sectors should be targeted.7 Urban taxis are another promising early market: new London taxis must be zero emission capable from 2018,78 and Paris will purchase 60 new FCEV taxis with plans for hundreds more.79

Other road transport

Whilst FCEVs face strong competition from ICE and BEV passenger cars, they may be the best (and perhaps the only) realistic zero-carbon option for high-utilisation, heavy-duty road transport vehicles such as buses and trucks. These are significant sectors, accounting for a quarter of transport energy usage (Fig. 2 earlier). Growing calls to minimise urban air and noise pollution are major drivers for hydrogen bus rollout.64 Back-to-base operation means fewer refuelling stations are needed and are more highly utilised, reducing initial refuelling costs.

Three key differences for heavy-duty transport are low manufacturing volumes (meaning the cost gap with ICE is smaller), and the need for greater longevity and energy density. The US DOE targets 25[thin space (1/6-em)]000 hour operating lifetime for fuel cell buses, versus just 8000 for passenger cars.80,81 Greater vehicle weight and driving range mean battery technologies are likely to remain unsuitable outside of urban environments; for example, fuel cell buses consume 10 times more hydrogen per kilometre than passenger cars – amplifying range limitations.82,83

Fuel cell buses. Fuel cell buses in particular have attracted significant attention and are relatively mature, at Technology Readiness Level (TRL) 7.84 On-board tanks typically hold around 40 kg of hydrogen stored in the bus roof,48 and reduced space restrictions mean this can be stored at 350 bar, reducing tank and compression costs. Fuel cell buses may have a 10–20% higher total cost of ownership (TCO) than diesel by 2030, and could be cheaper if deployed at scale.85

Fuel cell buses have seen substantial early deployment, with 7 million kilometres of operational experience so far in Europe.86 Europe has 83 operating fuel cell buses, with 44 in North America.87,88 Toyota is planning to introduce over 100 fuel cell buses before the Tokyo 2020 Olympic Games.89 China has the world's largest bus market,90 with 300 fuel cell buses ordered for Foshan City (quadrupling the global fleet of hydrogen powered buses).91 For context, Shenzhen City has electrified its entire fleet of over 16[thin space (1/6-em)]000 buses using BEVs.92,93

Good progress is being made with longevity, with four London buses operating more than 18[thin space (1/6-em)]000 hours.87 Ten buses in California have passed 12[thin space (1/6-em)]000 hours of operation with one reaching 22[thin space (1/6-em)]400 hours: close to the DOE's ultimate target of 25[thin space (1/6-em)]000 hours.80,82 Fuel cell bus availability has exceeded 90% in Europe (versus an 85% target), with refuelling station availability averaging 95%.87

Trucks. Trucks show considerable potential for fuel cell adoption as high energy requirements mean few low-emission alternatives exist. Light goods vehicles with short low-speed journeys could be managed with batteries and range-extender vehicles;48 however, long-haul heavy vehicles which require high utilisation are likely to require hydrogen. Competition from batteries is nonetheless increasing, with the Tesla Semi expected to offer 300–500 mile range for ∼$200[thin space (1/6-em)]000.94 Cost parity of fuel cell trucks with other low-carbon alternatives could be achieved with relatively low manufacturing volumes.7 Return-to-base delivery vehicles could see lower fuel costs with a single refuelling depot, although long-range HGVs need an adequate refuelling network.

Higher longevity is required than for other applications due to the high mileage expected of trucks, with one program targeting 50[thin space (1/6-em)]000 hour stack lifetime.48 High efficiency and low fuel costs are also essential.4 Kenworth and Toyota are considering hydrogen truck production,95,96 and Nikola is also developing a long-distance HGV using liquefied hydrogen in the US.97 Fuel cells are also being developed as Auxiliary Power Units (APUs) for HGVs.48 These could power refrigeration units and ‘hotel’ loads on stationary HGVs (e.g. cabin heating, cooling, lighting, and electrical devices) to avoid engine idling.98

FCEV trucks have seen lower adoption than buses due to the HGV market being highly cost sensitive with limited government support or intervention, and highly conservative with hauliers wary of being pioneers.48 However, Anheuser-Busch InBev (an international drinks company), recently ordered 800 FCEV trucks to be in operation in 2020.99 Interest could grow as diesel trucks begin to be banned from major city centres.45

Motorbikes. Two-wheeled vehicles are dominant for passenger transport in many regions. Intelligent Energy has developed a 4 kW fuel cell system in cooperation with Suzuki,48 now being trialled in the UK.100 Their low fuel consumption allows them to be refuelled using hydrogen canisters from vending machines. FCEV motorbikes could contribute toward air quality and noise pollution targets.

Off-road transport

Trains. Electrification can replace diesel trains but progress has slowed recently across Europe.48 Hydrogen trains could be used on routes which are difficult or uneconomic to electrify due to route length or lack of space in urban areas. A fuel-cell powered train with roof-mounted hydrogen tanks and a range of 500 miles has begun testing in Germany,101 and 40 trains could be in service by 2020.102 Alstom announced plans to convert a fleet of trains in the UK from electric to hydrogen to negate the need for line electrification and meet the government target of eliminating diesel trains by 2040.103

Light rail also presents opportunities for hydrogen, with fuel cell-powered trams being developed and operated in China.7,104 Low volumes mean that hydrogen trains are expected to use the same stacks and storage tanks as buses and trucks, so cost reductions will be consolidated with the automotive sector. Hydrogen powertrains may be 50% more expensive than diesel, but economic viability will depend on lower-cost fuel, and hydrogen costing under $7 per kg.7 One study concludes that FCEV trains are already cost competitive with diesel trains from a TCO perspective.66

Ships. Marine applications hold promise for hydrogen deployment, with fuel cells already being trialled for propulsion in a handful of projects including ferries.7,48,105 Hydrogen is not expected to gain traction until after 2030, although the growth of emissions controlled zones (such as the Baltic Sea and urban ports) and hydrogen's higher efficiency than LNG could drive early niches.48 Most vessels have long lifetimes, are built in small numbers highly tailored to specific applications; this could hamper the rollout of new propulsion systems.7 With ferries potentially consuming 2000 kg of hydrogen per day, cryogenic storage is necessary, and fuel costs are more important than upfront capital, with hydrogen significantly below $7 per kg needed.7,106 Fuel cells for auxiliary power could be adopted earlier than for propulsion,48 and port vehicles could also be early adopters, improving local air quality with a single refuelling depot.
Aeroplanes. Aviation is one of the hardest sectors to decarbonise, and reducing emissions from aircraft propulsion has seen little progress. In 2016 the International Civil Aviation Organization agreed to cap aviation emissions at 2020 levels, but primarily through carbon offsetting rather than low-emission fuels.107 Some hybrid electric concepts are being studied, though emission reductions will be limited.108 Biofuels could be suitable due to their higher energy density than hydrogen or batteries, but are not completely emission-free and could remain costly with limited availability. Hydrogen could be used as a propulsion fuel, but needs to be liquefied to supply the required range. Combustion turbines are likely to be needed as fuel cells lack the power required for take-off. However the climate benefits of hydrogen for aviation have been questioned because it produces more than double the water vapour emissions of kerosene; water vapour at high altitudes, although short lived in the atmosphere, causes radiative forcing and thus contributes to net warming.109 Significant hydrogen deployment is thought unlikely before 2050 except perhaps for small or low-flying aircraft.48 Hence much work remains on developing options for low-emission aircraft propulsion.
Other aviation-based sectors are more promising. Fuel cells have been tested for aircraft auxiliary power units and for taxiing aircraft to/from airport terminals.110 There is an increasing motivation to improve air quality around airports and fuel cells could play an important role in powering ground vehicles and buses in the next 10 to 20 years,48 aided by the need for a low number of refuelling stations experiencing high utilisation. Unmanned aerial vehicles (UAVs) are also attracting considerable interest for both civilian and military applications.7 Fuel cell UAVs are quieter, more efficient, and have lower vibration and infrared signatures than fossil fuel-powered UAVs, and are lighter than battery systems, offering longer range. Fuel cell UAVs are currently considerably more expensive than battery UAVs; but the cost gap will close with manufacturing volume, and fuel cells retain the advantage in long-duration or high energy applications.7
Forklift trucks and others. Other promising applications include forklift trucks, with around 12[thin space (1/6-em)]000 fuel cell units deployed in the US and a handful elsewhere.111 Plug Power supplies 85% of FC forklifts in the US.112 The zero emissions from FC forklifts allow them to operate indoors, and their faster refuelling than batteries can lead to TCO savings of 24% in a typical high throughput warehouse.113 FC forklifts also have a wide temperature range, capable of operating in temperatures as low as −40 °C. PEMFCs are most widely used with longer lifetimes, but direct methanol fuel cells (DMFCs) are also found in lower usage applications with shorter lifetimes and lower cost of ownership.112 Fuel cells could also see adoption in agricultural equipment such as tractors114 and recreational applications such as caravan APUs and golf carts, one of the few sectors that are proving profitable.90

Heat and industry

Heat and hot water accounts for 60–80% of final energy consumption in residential and commercial buildings across Europe.115,116 Emissions from heating need to be reduced rapidly and largely eliminated by 2050; however, the heat sector is proving hard to decarbonise for several reasons:117,118

(1) Heating is the largest energy demand in many temperate countries and presents a problem of scale;

(2) Requirements are diverse, ranging from dispersed low temperature space heating to large high-temperature industrial loads, with no one solution capable of meeting all heat demands;

(3) Heat demand varies daily and seasonally, requiring highly flexible supply;119

(4) Fossil heating fuels provide this flexibility at a lower cost than low-carbon alternatives less competitive and risk increasing energy poverty.120

A particular challenge for low-emission heating in temperate countries is meeting winter peak heat demand,121–123 which is considerably higher and more variable than peak electricity demand (Fig. 5 and 6). This strong seasonal variation is easily met by prevailing gas heating technologies, as low per-kW capital cost means they are routinely oversized for buildings,119 and the gas network (including geological storage) can store a month's worth of consumption.122


image file: c8ee01157e-f5.tif

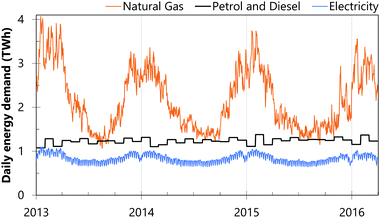

Fig. 5 Demand for the major energy vectors in Britain.124

image file: c8ee01157e-f6.tif

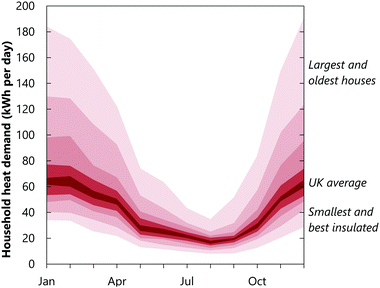

Fig. 6 Variation in British household heat demand between classes of housing for an average year. Heat demand includes space and water heating. Consumption is strongly temperature-dependent and winter peaks can be much higher in a cold year.123

Improved insulation, residential or communal thermal storage, and more efficient conversion devices could reduce peak requirements, but require strong regulation which has not been forthcoming.122 Alternative low carbon options such as electrification or district heating could meet peak heat demand, but large infrastructural investment would be required, and a decarbonised gas-based approach may be more cost-effective.

Hence progress in decarbonising heating has lagged severely behind other sectors. For example, the UK relies heavily on natural gas and is likely to miss its 2020 target for renewable heat.36,125 It may only achieve emission reductions from buildings and industry of around 20% by 2030, compared to an overall target of 57%.22 Natural gas is currently a cheap, convenient and relatively clean alternative to coal and oil, and is the dominant fuel for heating in many counties, as shown in Fig. 7. Electric heat pumps are well established in Asia, America and parts of Europe, with over a billion systems heating homes;126 whilst district heating is widely used in Russia and Scandinavia.127


image file: c8ee01157e-f7.tif

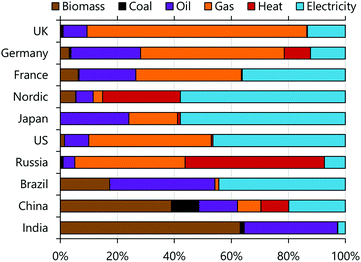

Fig. 7 The share of fuels used for domestic heating in ten countries, estimated using the DESSTINEE model132 with data from the IEA.134 Biomass includes both traditional (wood, dung) and modern (wood and miscanthus products); heat is generated off-site and sold to users; electricity includes both traditional (resistance and night-storage heaters) and modern (heat pumps).

Options for low-carbon heat

Five main options have been proposed for decarbonising heat globally,122,128–131 as summarised in Table 2 and below. Most of these have gained traction in specific countries, but none are widely used on a global scale. The main options are:
Table 2 Summary of the decarbonisation options for heat
Advantages Disadvantages
Demand reduction + Insulation and more efficient devices raise consumer awareness − Low turnover rate of building stock
+ Reduction to energy bills − Difficulty retrofitting existing buildings
+ Low-regret option − Consumer indifference/apathy
Green gas + High customer satisfaction/familiarity − Gas is difficult to decarbonise
+ Low cost for gas appliances − Limited availability and need for cleaning
+ Easily meets peak demand − Hydrogen networks unproven, with uncertain availability, costs and safety implications
+ Low conversion cost and disruption
Electrification + Proven and widely used in many countries − Could necessitate power system upgrades
+ Benefits from further decarbonisation of electricity systems − Difficulty meeting peak demand without greater building thermal efficiency.
+ Well suited to countries with mild winters − Higher cost, higher space requirements
+ Good option for remote rural properties not on gas or heat networks − May require heat storage
− Performance sensitive to installation quality
Heat networks + Proven and widely used in some countries − High conversion cost and disruption
+ Could meet ∼10–20% of UK heating needs − Heat cannot be transported long distances
+ Good option for new-builds and densely-populated regions − Needs low-carbon heat sources
− User scepticism
Onsite renewables + Use local energy sources − Small schemes less cost-effective
+ Reduces network dependence and upgrade requirements − Limited availability and high emissions (biomass)
− Poor match to demand (solar thermal)


(1) Demand reduction. Insulation, higher efficiency devices and changing demand behaviour (e.g. via smart meters and pricing) can all reduce heating energy demand. Residential heat consumption could fall 20% by 2050,122 which is a valuable contribution and an enabler for other low-carbon heating technologies, but insufficient in isolation. Barriers to greater reduction include 80–90% of the 2050 housing stock having already been built in developed countries;125 some properties being unsuitable for retrofitted insulation; and household size (people per building) shrinking due to lifestyle choices.132

(2) Green gas. Natural gas could be replaced by a low-carbon gases, utilising the existing gas network assets and potentially reducing costs and disruption.133 Biogases can be generated by anaerobic digestion or gasification of waste, sewage, landfill gas, energy crops, etc. However, barriers to large-scale delivery include: resource availability and priority (it could be used in various energy/product routes); emission reduction potential; local emissions; and gas quality. The UK Bioenergy Strategy therefore limits heating uptake to 15%.122 An alternative is hydrogen, which can be injected into the existing gas network in small quantities, or the existing gas network can be converted to distribute 100% hydrogen rather than natural gas (Section 5.4).

(3) Electrification. Heat pumps are widely used in many countries, and globally could deliver an 8% reduction in CO2 emissions if widely adopted.126 However, their low-grade heat and limited output may not meet peak winter demand and consumer preferences, and high uptake may force electricity network upgrades.29 High upfront costs restrict uptake, although these might fall as rollout progresses. Nevertheless, heat pumps may play an important role, particularly for rural homes too remote for district heating or gas networks, which use expensive high carbon fuels such as heating oil, and with space for larger systems.133 Electric heating is also well suited to high density urban housing blocks where gas is not allowed for fire safety, and space heating requirements are lower.133

(4) Heat networks. District heating is only commonplace in a handful of countries, which typically combine a cold climate with an acceptance of collective solutions. It has the potential to provide 10–20% of residential heat by 2050 in densely populated countries such as the UK.122,135 Retrofitted heat networks are capital-intensive and disruptive to install, and heat losses limit transmission distances to around 30 km.136 They are best suited to urban new-build, but offer 30% lower heating costs than gas boilers.121 They can use geothermal heat or waste heat from industry and data centres. Large district heating CHP schemes are cheaper and more efficient than individual residential systems.

(5) Onsite renewables. Modern renewable energy produces 9% of the world's heat, nine-tenths of which is biomass, and the remainder solar thermal and geothermal.20 However, there are concerns over the limited availability and high localised emissions of biomass, poor matching between solar thermal production and demand,122,137 and cost and performance penalties of small-scale residential systems.138

Each low carbon heating technology exhibits barriers or uncertainties associated with technical feasibility, cost, suitability across regions and building types, user acceptance and safety. Individual countries are often dominated by a single technology. The UK has an 84% penetration of gas, although this is a recent development (Fig. 8). In the US, 97% of new family homes are either heated by natural gas or electricity.139 Previous studies have therefore focussed on widespread rollout of a single technology to meet decarbonisation needs.140


image file: c8ee01157e-f8.tif

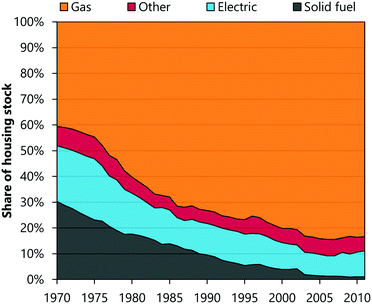

Fig. 8 The mix of heating technologies used in UK households over forty years.141

However, a portfolio of complementary heating technologies used to be more prevalent, and is now regaining recognition.123 For example fuel cell CHP systems can export electricity to the grid at the same time as heat pumps consume it; a UK case study found that a 50% penetration of fuel cell micro-CHP could completely offset the electrical demand from a 20% penetration of heat pumps.123 The UK recognises the lack of consensus on the optimal technology mix to deliver the required long-term changes, and the need to thoroughly re-assess the evidence and test different approaches.121 This technology mix could vary according to regional availability and building type and provide a hedge against uncertainties over technology feasibility and fuel price.

Hydrogen and fuel cell technologies

Until recently, most energy systems and building stock models did not include hydrogen and fuel cell technologies for meeting decarbonisation targets.123 However, recent studies have identified hydrogen as having an important role in decarbonising heat,122,142 able to provide the majority of UK heat demand by 2050.48 There are several H2FC technologies to deliver heating.
Hydrogen boilers. Existing gas boilers and furnaces can run on hydrogen mixtures at low levels (see Section 5.4). Although high concentrations have a similar Wobbe index to natural gas, different burner tips are required due to hydrogen's higher flame speed.143 Catalytic boilers are also under development, which eliminate NOx formation48 but are less powerful and require higher purity hydrogen.144 Consequently, a changeover to hydrogen would require wholesale refitting of either appliances or components within appliances. Such a wholesale refitting of appliances is not unprecedented: many countries have switched from town gas to natural gas in recent decades, with the UK replacing 40 million appliances, at a cost of £8b in 2015 money, over an 11 year conversion programme.144
Fuel cell CHP. Combined heat and power (CHP) systems co-produce electricity and heat at high efficiencies via engines or fuel cells and may use a variety of fuels.32 The balance between electrical and thermal generation varies between technologies (Fig. 9). Combustion devices (IC engines and Stirling engines) generate more heat than electricity so are better suited to large buildings with high heat loads, but release particulates and NOx.146
image file: c8ee01157e-f9.tif

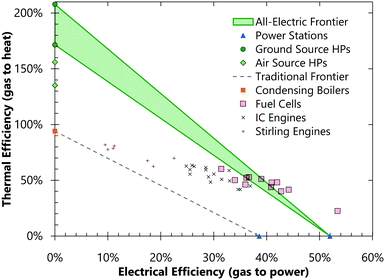

Fig. 9 Thermal and electrical efficiencies of CHP devices.145 The ‘thermal efficiency’ of heat pumps is their coefficient of performance (COP)126 multiplied by the efficiency of power generation.

All CHP technologies offer greater combined efficiency than the ‘traditional frontier’ of using average power stations and condensing gas boilers. Only fuel cell CHP can exceed the efficiency of the ‘all-electric frontier’ of using the best combined-cycle gas power stations with the best ground-source heat pumps.145 Fuel cell CHP systems have higher electrical efficiency and lower emissions (Table 3) than other CHP. PEMFCs and SOFCs are typically used for domestic systems, and SOFCs, PAFCs and MCFCs for larger commercial systems.123 Given their higher power-to-heat ratio, fuel cells are more suitable for well-insulated buildings with lower heat loads. FC-CHPs are currently expensive, but costs have halved in the last six years and lifetimes have grown with increasing rollout in Japan and also more recently in Europe.147 Existing CHP systems mostly operate on natural gas, but could switch to hydrogen if available with little modification (or even simplification).

Table 3 At-a-glance summary of fuel cell CHP performance145,161
PEMFC SOFC PAFC MCFC
Res: residential. Com: commercial.a Rated specifications when new.b Loss of peak power and efficiency.c Requires an overhaul of the fuel cell stack half-way through the operating lifetime.
Application Res Res/Com Com Com
Electrical capacity (kW) 0.75–2 0.75–250 100–400 300+
Thermal capacity (kW) 0.75–2 0.75–250 110–450 450+
Electrical efficiencya (LHV) 35–39% 45–60% 42% 47%
Thermal efficiencya (LHV) 55% 30–45% 48% 43%
Expected lifetime (‘000 hours) (years) 60–80 20–90 80–130 20
10 3–10 15–20c 10c
Degradation rateb (per year) 1% 1–2.5% 0.5% 1.5%


Fig. 10 visualises how prices are falling with increased uptake for some technologies (residential PEMFCs in Asia), but have stagnated for others (large MCFC and SOFCs in the US). Prices are converging at around $10[thin space (1/6-em)]000 per kW; a price point which solar PV modules reached in 1990.148 Other issues such as product lifetime and reliability have improved significantly, to the extent that a fuel cell CHP unit is now equivalent in both these respects to a modern gas-fired boiler.149–154


image file: c8ee01157e-f10.tif

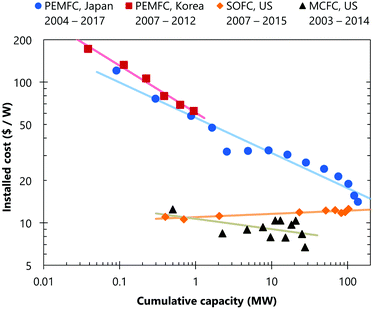

Fig. 10 Learning curves fitted to historic prices of Japanese and Korean residential PEMFCs,147,155,156 American SOFCs and MCFCs.157,158 The year for the first and last data point in each series is shown. Each doubling in production has seen prices fall by 16% for EneFarm in Japan; by 21% for Korean residential PEM generators; by 5% for 250 kW-class MCFCs in the US; and increase by 2% for 200 kW-class SOFCs in the US.
Other technologies. Other heat technology options include gas-driven heat pumps (GDHPs), where the heat pump is powered by an engine, which could run on hydrogen. GDHPs currently achieve energy savings of 26–43% compared to condensing boilers, and avoid upstream complications from increased electricity demand.122

Tens of thousands of non-residential GDHPs have been sold across Europe and Asia; costs are currently high, but should come down significantly.122,123 Hybrid heat pumps are another option, with electric heat pumps providing the majority (60–95%) of a building's annual heat demand, but with a gas boiler retained for meeting peak demand.122 Several studies have identified hybrid heat pumps as suitable for many buildings in 2050;48,122,123 though such systems require additional capital expenditure and connection to both electric and gas networks. Wall-mounted fires are waning in popularity, but several hydrogen-powered fireplaces have been designed.144

There is considerable scope for hydrogen usage as a cooking fuel, with burners and barbecues under development today.123 Hydrogen for cooking will need food-safe odorants and colourants, and will alter cooking times as hydrogen produces about 60% more water vapour than natural gas when burnt.144

Residential and commercial heating

Residential fuel cells have seen significant uptake, and now have the largest market share for micro-CHP systems,7 with over 225[thin space (1/6-em)]000 systems installed globally (see Section 6.1). PEMFCs are the dominant technology with high efficiency, durability, reliability, rapid start-up and shut-down, part-load capability and operating temperatures of around 80 °C.32,123 Their electrical efficiency is lower than other fuel cells (∼35%), but with higher thermal efficiencies (55%).147 Their low-temperature heat output makes them suitable for individual buildings. About 7% of Japan's systems are SOFCs,159 which tend to run constantly as start-up and shut-down times can exceed 12 hours.123 They have higher electrical efficiency (∼40–60%), greater fuel flexibility, reduced purity requirements, reduced catalyst costs due to higher operating temperatures, and higher temperature heat which is more suitable for existing building stock with smaller radiators.7

The cost of residential systems is dominated by capital and stack replacement costs, with small systems used to maximise utilisation.48 Fuel cell micro-CHP could be cost competitive with other heating technologies between 2025–2050,123,160 with fuel costs becoming dominant. Larger multi-family home and commercial units (2–20 kWe) could be competitive at smaller production volumes, but have a smaller market.7

CHP systems are also popular in the commercial sector, with 100s of MWs installed globally, primarily in the US and South Korea.7 MCFC and PAFC fuel cells dominate commercial systems with stable operation, cheaper catalysts and high efficiencies, although their complex subsystems do not scale down well for smaller applications (e.g. needing to remain heated whilst off to prevent electrolyte freezing). MCFCs have higher electrical efficiencies (>50%) with correspondingly lower heat production; however, they are inflexible with short lifetimes (20[thin space (1/6-em)]000 hours) and high degradation rates due to corrosive electrolytes (Table 3). Their reliance on carbon dioxide for fundamental electrode reactions also make them unsuitable for operating on hydrogen,48 but opens up new possibilities for carbon capture and storage.162 PAFCs have a lower electrical efficiency than MCFCs but a higher thermal and overall efficiency (Table 3). They last longer (80[thin space (1/6-em)]000–130[thin space (1/6-em)]000 hours) with lower degradation rates and are more flexible, giving scope for load-following capability.7 PAFCs could potentially be cost-competitive with ICE-CHP by 2025 at relatively low production levels of 100 units per year.7

FC-CHP systems are quiet and low-emission making them ideal for urban areas.120 Fuel costs are a major component of the Total Cost of Ownership (TCO), driving improvements in efficiency.7 PEMFC and SOFC also see some uptake in commercial applications.

Industry

Industry relies on fossil fuels for three-quarters of its fuel mix,23 and accounts for one fifth of direct global greenhouse gas emissions (see Fig. 11), with very little progress on decarbonisation to date. Hence low-carbon options for industry need to be identified urgently; options identified to date include CCS, biomass as a fuel, electrification, energy efficiency and heat recovery, industrial clustering and switching to hydrogen – noting it can be both a fuel and feedstock.7 Long equipment lifetime and investment cycles in conservative sectors mean change will be slow.
image file: c8ee01157e-f11.tif

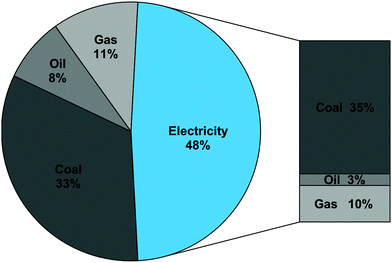

Fig. 11 Carbon emissions from industry, broken down by fuel. Global emissions (including those from electricity production) were 12 GtCO2 in 2014, 37% of the global total. Data from ref. 163.

Hydrogen is already widely used in industry as a chemical feedstock (e.g. in ammonia production and oil refining) and produced as a by-product in chemical manufacturing processes (e.g. chlorine), rather than as an energy vector.123,136

Hydrogen could replace natural gas as a fuel for providing heat and power in a number of industries; burners and furnaces may need replacement, but would not require high purity. Hydrogen could also be introduced into several high-temperature industries including steelmaking and cement, although commercialisation is not expected before 2030 due to low maturity, uncertain costs, the likelihood of needing fundamentally redesigned plant and the slow turnover of existing systems.7,48 Industry requires cost-effective and reliable systems, with purchasing decisions based primarily on technical performance and economic rationality; space constraints and aesthetic concerns can be largely ignored.123

The power system

Global electricity consumption has doubled since 1990 and represents 40% of primary energy demand.134,164 Fossil fuels produce two-thirds of global electricity, emitting 15 GtCO2 each year, or 42% of the global total.165 National roadmaps22,166 and international modelling studies128,167,168 agree that electricity should be rapidly decarbonised during the 2020s and then push forwards the decarbonisation of transport and heating through electrification.

Unlike other sectors, electricity generation has available a range of low-, zero- and even negative-carbon alternatives already available. The IPCC recommends that low-carbon generation rise from around 30% of total generation today to over 80% by 2050.169 This radical shift appears feasible: Fig. 12a shows that wind and solar power have seen ten-fold growth over the last decade to total 665 GW: 11% of global generating capacity.164


image file: c8ee01157e-f12.tif

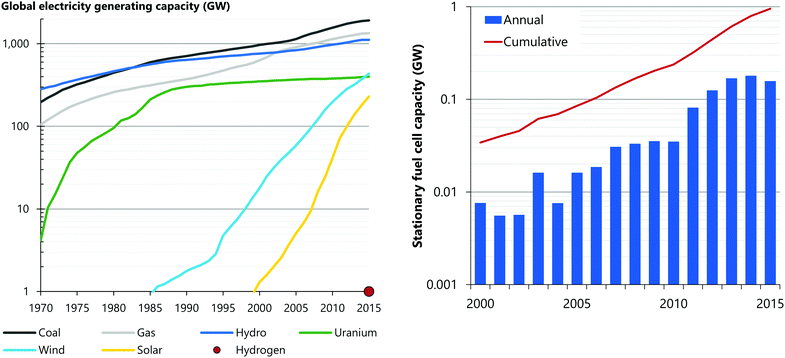

Fig. 12 Installed power generation capacity worldwide over the last 25 years (left),164,172 and global installed power capacity of stationary fuel cells (power-only and micro-CHP) (right).173–175 Annual growth rates since 2000 has been 52% for solar, 25% for fuel cells, 24% for wind, and 1–5% for other technologies.

Wind and solar power are forms of intermittent renewable energy: their output cannot be fully controlled or predicted as they rely upon the weather. Balancing supply and demand requires new solutions if electricity systems are to fully decarbonise whilst maintaining current levels of cost and reliability. Electricity has the fundamental constraint that supply must always balance demand,170 and system reliability is paramount as outages cause severe economic and social damage.171 At the same time, electricity demand is anticipated to grow in both developing and developed countries, as the rise of electric vehicles and electric heating will exceed even the most stringent efficiency measures.132 This will raise demand during cold winter evenings, when demand is already highest in temperate countries, thus adding to the difficulties of maintaining secure, affordable and clean electricity.

Hydrogen technologies are able to assist with both the integration and expansion of low-carbon electricity generation and with the electrification of heating and transport sectors. Power generation from hydrogen is gaining ground – global capacity reached the milestone of 1 GW in 2015, as seen in the bottom right corner of Fig. 12a. Fig. 12b shows that the installed capacity of stationary fuel cells has grown by 25% per year. If this were maintained, fuel cells would reach 10 GW capacity in 2025, and 30 GW in 2030. However despite this growth, no company has yet turned a profit through sale of stationary fuel cells.176

Electricity generation

Fuel cells can benefit the electricity system in several ways: they are flexible, controllable, typically co-located with demand (minimising losses in transmission and distribution), and likely to generate when demand for electricity is highest if used for combined heat and power (thus helping to cope with peak demand). Additionally, hydrogen feedstock may be produced from power-to-gas, providing the large-scale long-term storage required to shift electricity from times of renewable surplus to those of shortfall.

It is important to note that the decarbonisation potential depends on the hydrogen feedstocks and supply chains. Any use of fossil fuel-derived natural gas to produce hydrogen (without CCS) will necessarily lead to carbon emissions that are at least at the level of a new CCGT power station.

Peak generation. With changes to turbine design, existing gas turbines can be converted to burn hydrogen rather than natural gas.177 This is the hydrogen equivalent of business as usual: it allows grid operators continued access to low-cost thermal peaking plant and to operate much as they do now. Lack of hydrogen delivery infrastructure is an impediment, so the ETI suggests a system of on-site production and storage: a small steam-methane reformer (SMR) equipped with carbon capture and storage (CCS), a salt cavern for storage and a large open-cycle gas turbine (OCGT).178 The other key disadvantage is the low efficiency of combustion relative to electrochemical conversion (35–40% vs. 40–60%), giving high operating costs.

A key advantage of fuel cells is that they retain their performance at smaller scales. Parasitic loads and thermal losses mean the efficiency of other small-scale gas generators is at least a quarter lower than their larger (>10 MW) equivalents.179,180 In contrast, fuel cells can deliver electrical efficiencies that are comparable to the best combined-cycle gas power stations (∼60%) from several hundred kW down to 1 kW residential units.145,181 Small, modular units can be co-located with centres of demand, saving on transmissions losses of around 7% in America and Europe,134 and allowing fuel cells to provide ancillary services to the grid operator.

Power-only and backup fuel cells. Power-only fuel cell systems (i.e. without combined heat and power) are gaining popularity, particularly with American technology firms and multinationals seeking a green image. The units deliver cheaper electricity than local utilities (8–10 ¢ per kW h versus 14 ¢ per kW h),182 and allow a move away from diesel engines as an uninterruptable power supply.

The Bloom Energy Server is a high-profile example, a 200 kW SOFC module that runs on either natural gas or bio-gas with an efficiency of 50–60%.181 The first commercial units were installed at Google in 2008, and units can now be leased for either 10 or 15 years.183 Bloom's announced contracts outstrip those of its three largest competitors combined.184

Energy Servers have received large subsidies from US green generation incentives (e.g. $200 million in California in 2010),185 but carbon savings are relatively low. The carbon intensity of SOFC using natural gas is 350–385 gCO2 kW h−1,181 compared to new combined-cycle gas turbines at 360–390 gCO2 kW h−1, or the average British electricity mix at below 250 g kW h−1.186 Power-only fuel cells therefore match the best conventional production technology, but require decarbonised fuel sources to offer further carbon savings. For comparison, the carbon intensity of electricity from fuel-cell CHP (with a credit for co-produced heat) with natural gas feedstock is in the range 240–290 gCO2 kW h−1,119 lower than the average electricity mix in most large countries.

Vehicle-to-grid. Electrification of the transport sector has the potential to exacerbate the peak power problem if the charging of vehicle batteries is unmanaged.187,188 The use of FCEVs rather than BEVs removes this issue, whilst also potentially delivering additional benefits. Private vehicles spend around 95% of the time parked, and so a large fleet of electric vehicles would provide grid operators with a reliable resource to call upon.187

Vehicle-to-grid (V2G) describes a system for communication with electric vehicles, allowing grid operators and utilities to access the energy stored within electric vehicles to meet demand and provide other grid services.189 In this system FCEV might be able to act as a distributed source of peak power and spinning reserve,190 though studies indicate that the economics for this scenario are marginal under current market conditions.191,192 The increasing value of balancing services as electricity systems move towards more variable renewables may radically alter this in the future.193

A key barrier for drivers is the fear of being left ‘out of gas’ when an unexpected or emergency need to travel arises.194 This ‘range anxiety’ is a key issue for BEVs due to range limitations, but not so for FCEVs as they could use their hydrogen tank for further top-up. For example, the Toyota Mirai, holds 5 kg of hydrogen, or 600 MJ of chemical energy (LHV basis). If this could be converted with 50% efficiency, then half a fuel tank would yield 40 kW h of electricity. With current battery technologies, the lifetime of a BEV would be reduced through participation in V2G, since additional charge/discharge cycles degrades the battery. Even with current lifetimes, it is expected that the fuel cell stacks would not be a chief determinant of lifetime in FCEVs.190,194

Electricity storage

With growing deployment of variable renewables and distributed generation, flexibility and control to balance supply and demand becomes increasingly valuable. There are already several technologies in various stages of maturity that allow the temporal shifting of electrical energy over time periods of hours to a few days (e.g. pumped hydro, batteries and compressed air electrical storage (CAES)). None of these can provide spatial redistribution of energy or storage on the week-month timescale that is required for balancing the output from wind generation.195,196 Hydrogen technologies have the potential to meet both these needs.

Power-to-gas (P2G) refers to the process of converting excess electrical energy into storable chemical energy in the form of either hydrogen or grid-compatible methane – a key form of ‘sector coupling’. Surplus electricity is used to power hydrogen production via water electrolysis. The resulting gas may then be stored and used when required, for instance by a fuel cell, or undergo further processing to produce methane, also known as synthetic natural gas (SNG). Equally, it can then be converted back to electricity or used to displace demand for natural gas in the heating (and power) sector, or indeed for transport. There are two commercially available processes for water electrolysis: alkaline electrolysis cells (AEC) and polymer electrolyte membranes (PEMEC); while solid oxide (SOEC) offers the possibility of high efficiency but are still at a development stage.197 These technologies are described later in Section 5.1, and their market uptake is shown in Fig. 13. Globally, 30% of P2G pilot plants now use PEMEC,198 and with rapid growth, prices are likely to fall to those of AEC by 2030.199,200


image file: c8ee01157e-f13.tif
Fig. 13 Total installed power in existing power-to-gas pilot plants. Data from ref. 202, 205 and 206.
Power-to-hydrogen or power-to-methane?. Hydrogen is superior to methane in terms of both process cost and simplicity.201 In its most basic implementation, the process is being used to provide fuel for the rapidly-growing numbers of hydrogen filling stations. It is also the process in use in the majority of larger-scale P2G demonstration projects.202 In the absence of a hydrogen distribution network, one key issue is the storage of the gas once it has been produced. From the range of alternatives,203,204 storage in high pressure tanks is currently the favoured option. Another solution is to inject the resulting hydrogen into the natural gas network, although blending may be limited to 10–20% at most as explained in Section 5.4.4.

Onward conversion of the hydrogen to methane is a less efficient and significantly more complex process. Methanation of hydrogen is achieved via either a catalytic207 or a biological process,208 and requires a source of CO or CO2, plus compression and storage of the hydrogen feedstock. Overall, power-to methane has an efficiency in the range 49–65%, while power-to-hydrogen achieves efficiencies in the range 51–77%.209,210 The roundtrip efficiency of a power-to-hydrogen-to-power process is in the range 34–44%, while for power-to-methane-to-power it is only 30–38%.210 Estimates indicate that the levelised cost of power-to-methane is 15–30% more than for simple conversion to hydrogen.198 The advantage of power-to-methane is the ability to feed directly into existing gas infrastructure. Globally, the energy storage capacity of the natural gas network is in excess of 3600 TW h,211 approximately three times the global production from wind and solar power combined in 2016.164 The source of CO or CO2 is obviously central to whether power-to-methane aids carbon emission reductions: only carbon derived from biomass or direct air capture will be carbon neutral. There is a growing number of power-to-methane pilot projects in progress globally,212 with Europe leading the way in driving forwards development of the technology.

Economics of power-to-gas. Several modelling studies have considered the economics of P2G under differing assumptions and scenarios.198,203,213,214 Several authors conclude that P2G is not profitable at present, nor in the near-term: the costs are too high and the regulatory environment is unhelpful.198,215–220 However, the studies show that P2G significantly reduces the need for curtailment of renewables215,218 and that, where the resulting hydrogen is injected into the gas grid, further benefits may be gained from reduced costs and improved performance of both the gas and electricity grids.216,218 The potential to exploit multiple revenue streams (e.g. selling H2, CH4 or O2, providing ancillary services, heating, exploiting carbon levies, frequency control) improves the chances of profitability,198 as does operating the plant so that it only uses renewable energy that would otherwise have been curtailed. The common message is that falling electrolysis costs and altered national regulatory frameworks should render P2G profitable within 10–15 years.219

Looking further ahead, several authors have examined the role that P2G might play in future national electricity markets with very high penetration of renewables. All studies indicate that P2G could play a pivotal role in balancing electricity systems once the penetration of VRE exceeds about 80%, in spite of the high cost and low efficiency.209,217,221 With investment in hydrogen infrastructure, or increasing local demand for hydrogen, high-renewables scenarios envisage hundreds of GW of installed P2G capacity by the 2050s.

Hydrogen infrastructure

The development of hydrogen infrastructure is an important barrier to the widespread uptake of H2FC technologies. There is a perception that an all-encompassing ‘hydrogen economy’ must be established with enormous cost and duplication of existing energy infrastructure.222–224 However, numerous production and distribution pathways exist, as summarised in Fig. 14, and include several incremental steps which do not require a wholesale infrastructure transformation. Developing a cost-efficient infrastructure from these options that may evolve over time with developing demand is a significant challenge.225
image file: c8ee01157e-f14.tif

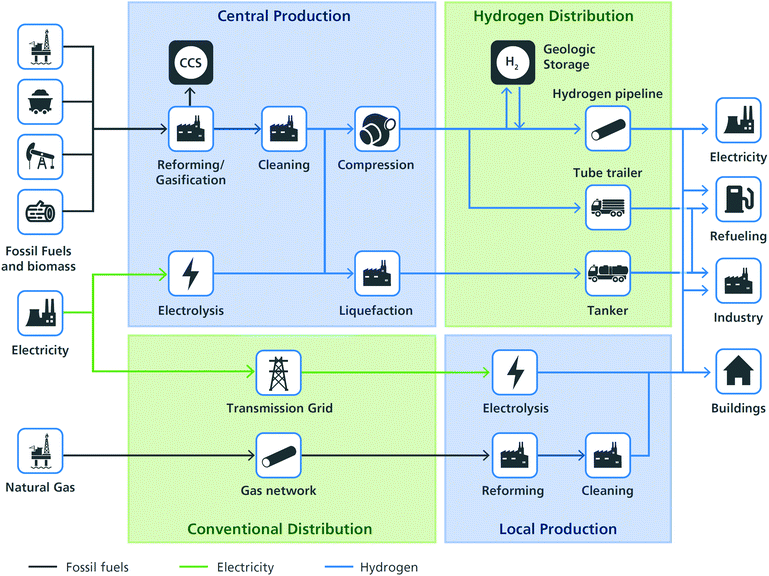

Fig. 14 Hydrogen delivery pathways discussed in this paper. This diagram is simplified and non-exhaustive, and serves to highlight the diversity of options at each stage of the system.

The upper half of Fig. 14 depicts centralised production methods that rely on new distribution networks, synonymous with the ‘hydrogen economy’ vision. Incremental and less infrastructurally-intensive routes also exist (the lower half of the figure), which utilise existing gas or electricity networks and reduce large up-front costs, albeit at the expense of lower efficiency. Indeed, H2Mobility concluded that only 60 small refuelling stations with onsite hydrogen production would be sufficient to supply most of the UK population in the early stages of a transition to fuel cell vehicles, with additional infrastructure deployed as demand increased.77 This suggests that infrastructure development might not be as challenging as some have suggested.

Hydrogen production

Producing cost-competitive low-carbon hydrogen at a range of scales is arguably the greatest barrier to developing the hydrogen energy system.226 Approximately 45–65 Mt year−1 hydrogen is produced globally as feedstock for chemical and petrochemical industries, equivalent to 5.4–7.8 EJ, or ∼1% of Global energy supply.227–230 Around half of this is produced by steam reforming natural gas, 30% from partial oxidation of crude oil products, 18% from coal gasification, and 4% from water electrolysis. Several emerging hydrogen production routes are at earlier stages of development,226 including high-temperature steam electrolysis,206,231 solar thermo-chemical water splitting (artificial photosynthesis)232,233 and biological hydrogen production.234,235
Fossil fuels and biomass. Reforming is the conversion of hydrocarbons and steam into hydrogen and carbon monoxide (known as syngas). It produces relatively pure hydrogen with high efficiency, but is a slow endothermic reaction, and so does not react well to transient or stop/start cycling.236

Partial oxidation is the incomplete combustion of a fuel-rich mixture to produce syngas. It is more versatile than reforming, allowing a greater range of fuels to be used, and proceeds more rapidly with no need for external heat input (allowing for smaller reactors); however, the hydrogen yield is lower (meaning more hydrocarbon feedstock is required), and the resulting gas requires additional cleaning.237

Gasification is the process of partially combusting coal or biomass at high temperature and pressure to produce syngas. This gives a faster reaction than steam reforming, but has higher costs as the solid fuel requires pre-treatment and the resulting syngas requires greater treatment.197

The vast majority of hydrogen is produced from fossil fuels, with CO2 emission intensities depending on the feedstock and conversion efficiency.238 Carbon capture and storage (CCS) could be feasible for large centralised production and could potentially deliver negative CO2 emissions when using bioenergy feedstocks.239,240 This relies on CCS maturing to the point of widespread rollout after ‘a lost decade’241,242 and on wider sustainability issues surrounding bioenergy supply-chains being carefully managed.243,244

Water electrolysis. Alkaline electrolysis cells (AEC) are the incumbent technology with a 100 year history, but polymer electrolyte membrane (PEMEC) are rapidly reaching maturity and are of particular interest for power-to-gas applications, while solid oxide electrolysers are transitioning from the laboratory to the demonstration phase.200,208,245,246

Alkaline electrolysers are the most mature, durable and cheapest technology.247 A direct voltage current is applied between an anode and a cathode submerged in an alkaline electrolyte. Units can be several MW in size, but have a limited operating range (from a minimum of 20–40% to 150% of design capacity) and slow start-times.203,205,208 With growing interest in integration with renewable energy, development aims to improve its dynamic operation.199,245

PEM systems were introduced in the 1960s and became commercialised in the last decade.200 They have faster response and start-up and a wider dynamic range (0–200%), more suitable for intermittent power supply.205,246 They have higher power density (and thus are smaller) due to their solid plastic electrolyte,248 and have a high-pressure output (e.g. 80 bar) reducing the energy required for compression downstream. However, capital costs are currently approximately twice those of AEC,199,200,249 and cell lifetimes need to improve.202,208

Solid oxide electrolysers (SOEC) use a solid ceramic electrolyte and operate at very high temperatures (700–900 °C), enabling higher electrical efficiencies than other electrolysers.248,250 Material degradation and lifetimes are critical shortcomings that must be improved.200,251–253

Capital costs for electrolysers are high, around $1300 per kW for AEC and $2500 per kW for PEMEC,200 although these are declining rapidly,249 whereas variable costs are governed by the electricity source. They also have high fuel costs for electricity, although the growing prospects of overproduction from intermittent renewables means zero (or negative) electricity prices are becoming more common.254

Production efficiency. Table 4 summarises the nominal efficiency and energy requirements for different hydrogen production methods. Early demonstrations have seen much lower efficiencies in practice though. For example, hydrogen production efficiency at dozens of filling stations in California and Japan averaged 55.8 ± 8.4% efficiency from natural gas,255 while electrolysers averaged 55.9 ± 3.5% LHV (for those with >4 operating hours per day).256–260
Table 4 The efficiency and energy consumption of hydrogen production pathways. Data from ref. 161, 200 and 208
Efficiency (LHV) Energy requirement (kW h per kgH2)
Methane reforming 72% (65–75%) 46 (44–51)
Electrolysis 61% (51–67%) 55 (50–65)
Coal gasification 56% (45–65%) 59 (51–74)
Biomass gasification 46% (44–48%) 72 (69–76)


Trade-offs. Of the various production routes, there are multiple trade-offs between scale of production, cost and GHG emissions. Natural gas, oil, and coal-derived hydrogen is lowest cost at large scales, but has poor environmental credentials. If CCS can be deployed, hydrogen from natural gas exhibits relatively low emissions with costs that will depend on the available CCS infrastructure.261 However, GHG emissions may still be significant and will be governed by the carbon capture rate, and the embodied upstream supply chain emissions.262 Methane emissions from shale gas productions vary widely between sites and are a key contributor to total global warming potential.263 Biomass gasification may also offer large scale centralised hydrogen production, but at a higher capital cost.261 Emissions are significantly lower than hydrogen from natural gas, but are again non-negligible and are largely dependent on the biomass feedstock. Hydrogen production from electrolysis is highest cost but is more suitable for small-scale generation given the modular nature of electrolysers. Total greenhouse gas emissions may be very low if supplied with low-carbon electricity (e.g. combined with offshore wind), and so electrolysis represents a key technology if cost profiles improve.

Hydrogen compression

Hydrogen is produced at a range of pressures across the different options and can be generated up to 15–80 bar by high-pressure electrolysers.264 Hydrogen pipelines typically operate at such pressures, with regularly-spaced pipeline compressors used to maintain pressure over long distances. For storage, hydrogen must either be compressed or liquefied to obtain sufficient energy density. Highly-compressed gas is currently the preferred option for onboard vehicle storage, avoiding the expense and boil-off losses of liquefaction, the conversion losses of synthetic fuels such as ethanol and the technological immaturity of hydrogen carriers such as hydrides. Refuelling stations store hydrogen in in high-pressure tanks (825–950 bar) to allow fast refuelling despite the pressure drop across the dispenser.265 Compressed hydrogen also needs cooling to −20 to −40 °C to avoid overheating the vehicle's tank.161

The energy penalty of compression to 875 bar is significant; estimated as 2.67 kW h kg−1 from 20 bar.31,266 This means about 7% of the hydrogen's energy content is lost in refuelling a 700-bar vehicle. Standard compressor efficiency is around 70%, and while the US DOE has targeted 80% compressor efficiency by 2020, this is still low compared to some other compressor technologies.265 While this is notably less than required for liquefaction, it still adds appreciably to the cost and carbon intensity of the resulting fuel. Compression costs are significant but not prohibitive, adding around $1.50 per kg for pipeline and onsite production, or $0.40 per kg from tube trailers.265 These are not expected to change dramatically due to mature compressor technology.267

Mechanical compressors are the most mature technology for hydrogen, although they suffer poor reliability and are a leading cause of downtime in hydrogen refilling stations.265,268 Within this category, centrifugal compressors are used in centralised production and pipelines, and piston compressors are used for high-pressure refuelling stations.269 Electrolysis can generate hydrogen at pressures up to 200 bar with higher efficiency than mechanical technologies.264 Less mature technologies include electrochemical, ionic and hydride compressors (Table 5).31

Table 5 Advantages and disadvantages of compression technologies
Technology Advantages Disadvantages
Mechanical265,268,269 + Commercially available – Low efficiency (∼70%) and expensive
+ Wide operating range – Poor reliability due to many moving parts
– Regular maintenance due to start-ups
– Purification due to oil contamination
High-pressure electrolysis246,264 + High efficiency – Strong materials needed (increasing cost)
+ Production at 50–200 bar – Increased cross-over and back-diffusion losses
+ High temperature reduces energy use – Long start-up times requires stable supply
Electrochemical7,271,272 + High efficiency – Strong materials needed (increasing cost)
+ 1000 bar demonstrated – Back-diffusion and resistive losses
+ High reliability (no moving parts) – Trade-off against throughput and efficiency
+ Pure output (no oil contamination) – Pure inlet required and needs drying
Ionic273 + Low contamination – Expensive and unproven
+ High efficiency – Limited throughput to avoid foaming
+ Reliable (few moving parts)
Hydride246 + Compact, reversible – Expensive and unproven
+ Reliable (few moving parts) – Heavy


Liquefaction. Liquefaction of hydrogen greatly increases its energy density, allowing large-scale transport by road tanker or ship which is particularly attractive for long distances where pipelines are not economically feasible.48 Over 90% of merchant hydrogen is transported as liquid in the US, indicating the maturity of liquefaction technology.270

Liquefaction consumes considerably more energy than compression, as seen in Table 6. The US's 2020 target for the energy consumption of large-scale liquefaction is 11 kW h kg−1, with the potential to reduce to 6 kW h kg−1 in the long-term.270 All large-scale hydrogen liquefaction plants are based on the pre-cooled Claude system and while several alternate designs have been proposed, “they are still neither more efficient nor realistic”.274 For context, 11 kW h is one third of the LHV content of a kg of fuel, so if the electricity input is produced with 50% efficiency, liquefaction adds 0.66 units of primary energy consumed per unit of delivered hydrogen.

Table 6 The efficiency and energy consumption of hydrogen distribution pathways, assuming production at 20 bar. Data from ref. 161 and 208. The energy penalty is measured relative to the LHV energy content of hydrogen, and assumes electricity is produced with 50% efficiency (generation plus distribution)
Energy penalty (vs. LHV) Electricity requirement (kW h per kgH2)
Compression to 500 bar (including cooling) 15% (12–24%) 2.6 (2–4)
Compression to 900 bar (including cooling) 21% (18–30%) 3.5 (3–5)
Liquefaction 78% (66–90%) 13 (11–15)


Hydrogen purity

The ISO 14687-2 standard for transport PEMFCs requires 99.97% purity hydrogen,275 and all fuel cell systems have tightly-controlled specifications on input purity to preserve cell lifetimes (Table 7). High temperature SOFCs and MCFCs have the advantage of being the most fuel-flexible technologies, in some cases able to use methane and carbon monoxide directly as a fuel. PAFCs are tolerant to around 1% CO; however, the Pt catalyst in the PEMFC is easily poisoned, and so the CO present in syngas must be removed or converted. Sulphur is a critical poison to all fuel cells, which is problematic due to its use as an odourant in natural gas for safety reasons.
Table 7 Summary of fuel tolerance for different fuel cell types. Data from ref. 151 and 236
Sulphur (S, H2S) Carbon monoxide (CO) Ammonia (NH3)
a Standard Pt anode catalysts can only withstand CO concentrations up to 10 ppm, and PtRu alloys up to 30 ppm. These limits can be extended by bleeding air into the anode and using alternative bi-layer catalysts.
PEMFC <0.1 ppm <10–100a ppm Poison
PAFC <50 ppm <0.5–1% <4%
MCFC <1–10 ppm Fuel <1%
SOFC <1–2 ppm Fuel <0.5%


Hydrogen from electrolysis. Hydrogen produced from water electrolysis is typically pure enough for FCEV applications, as recombination catalysts remove oxygen that crosses the membrane.276,277 The main contaminant is water vapour which, although required for fuel cell humidification, corrodes and erodes the compressing, storing and transporting equipment. It can also freeze in cold temperatures, damaging pipework and valves. Electrolysers therefore normally include dryers, typically regenerative desiccant towers, which are low-cost with low power consumption. However regeneration either involves electrical heating, or sending some dry gas back through the wet tower to pick up the accumulated moisture, typically reducing yield by around 10%, though there is scope for reducing this.278
Hydrogen from steam methane reforming. Hydrogen from reformed natural gas needs several clean-up stages if used in low-temperature fuel cells, as shown in Fig. 15. Pressure-swing adsorption (PSA) is the incumbent technology for separating hydrogen from carbon dioxide and other contaminants, and is capable of achieving hydrogen purities of >99.9% at the expense of loss of yield.238,279 Hydrogen purification costs from SMR have been estimated as $0.70 per kg, projected to fall to $0.40 per kg in 2025.7
image file: c8ee01157e-f15.tif

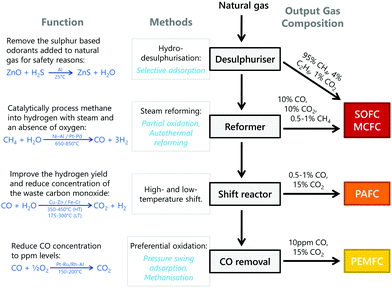

Fig. 15 An overview of fuel processing for fuel cell systems. Each stage is highlighted in bold, and given with the most common methods that are used; for each stage, the primary method is highlighted in italics. A description of each stage is given at the far left, along with the ideal reactions for the primary method. Indicative ranges of gas composition after each stage are given to the right. Following the stages down from natural gas to each type of fuel cell on the right indicates which processing stages are required. Data from ref. 147 and 151.

An alternative to PSA is pressure-driven diffusion membranes, typically palladium-based. Current palladium filters achieve exceptionally high purity but are expensive, require a 400 °C operating temperature and a pressure differential of 10–15 bar,280 reduce yield by 3–5%, and can suffer short lifetimes. One study found a palladium-based separation system that is potentially cheaper than PSA280 and further research is required to determine potential for diffusion membranes and electrochemical compressors.7

Hydrogen from pipelines and storage. Hydrogen extracted from pipelines and/or salt-cavern storage requires onsite cleaning before FCEV usage to remove lubricants, odourants, colourants, debris or dust acquired. Odourants are likely needed to warn against leaks; cyclohexene has been found to be compatible with fuel cell technology in Japan, but is described as having too pleasant a smell and lacking the stench of current EU odourants.144,238 A colourant may also be required to warn users of fires, as hydrogen burns with a colourless flame; an extremely dilute strontium solution is being considered.281 It may be that PSA or activated carbon filters would be appropriate for onsite purification. The cost of cleaning hydrogen from pipelines is currently an unknown and requires further work.282

Hydrogen distribution

There are typically three routes for hydrogen distribution, the suitability of which depends on the size of demand and the transportation distance (Table 8). Compressed hydrogen transport via tube trailers is likely to assist initial rollout, whereas pipelines are better suited for mass deployment. Pipelines could provide scalability if heat, power and industry converted to hydrogen as well as transport. Liquefaction could be used for international shipping of bulk hydrogen; distribution of liquefied hydrogen by road could be restricted to a few heavy-duty transport sectors.
Table 8 Qualitative overview of hydrogen transmission and distribution technologies for the transport sector4
Distribution route Capacity Transport distance Energy loss Fixed costs Variable costs
On-site production Low Zero Low Low High
Gaseous tube trailers Low Low Low Low High
Liquefied tankers Medium High High Medium Medium
Hydrogen pipelines High High Low High Low


Gas tube trailers. An option for low demand, such as during initial rollout, is distributing hydrogen from centralised production facilities as a compressed gas in tube trailers. This is well-established, and large trailers for FCEV refuelling hold 1000 kg capacity at 500 bar.7 The trailer can be parked at the refuelling station to refuel vehicles directly, reducing onsite storage and compression requirements as compression begins from a much higher starting pressure. However, this uses valuable surface space at the refuelling station and delays the trailer's return for its next load. Tube trailers become less economic as demand rises and over long distances,48 but remain an attractive near-term solution for its lower infrastructure cost and risk.283 Longer term it could still present the best option for remote or low-demand areas.48
Liquid hydrogen tankers. Liquid hydrogen tanker capacities are typically 2000–7500 kg and have greater density than compressed storage.48 This would likely pose additional safety restrictions, as applied to industrial sites using hydrogen.48 Despite early interest in using liquid hydrogen for vehicles, boil-off results in high storage losses for low-utilisation vehicles and is potentially unsafe for parking in enclosed spaces.284 While lower density compressed hydrogen offers sufficient range for personal vehicles, heavy-duty transport sectors (e.g. trucks and ships) may still be better served by liquid hydrogen.13
Gas pipelines. Pipelines are regarded as the most efficient method of transporting large quantities of hydrogen over short distances.48 Around 3000 km of high-pressure hydrogen pipelines are already in use in Europe and North America for industrial processes.48 However, high costs prevent further pipeline development until sizeable and consistent demand for hydrogen can be assured.

Low initial utilisation and high upfront costs are likely to hinder financing.48 Existing high-carbon steel natural gas pipelines might fail if repurposed due to hydrogen embrittlement, so new high-grade steel construction would be required.285 Embrittlement is not a concern at lower pressures286 and newer polythene natural gas pipes being installed across the UK and Europe are hydrogen compatible.287 These polythene pipes are currently limited to 7 bar, but larger plastic pipes up to 17 bar have been proposed.48 Hydrogen pipelines have long lifetimes (50–100 years), although the rate of embrittlement in steel pipelines can make this difficult to predict.48

Blending hydrogen into natural gas. Hydrogen can be safely mixed in small quantities with natural gas and injected into the existing gas network, but administrative and technical constraints limit the permissible fraction of hydrogen. The level of hydrogen that could be safely added depends on the distribution system and end-use appliances. The UK and US have amongst the lowest legal limits of any country at 0.1%, compared to 10–12% (by volume) in Germany and the Netherlands (Fig. 16, left).
image file: c8ee01157e-f16.tif

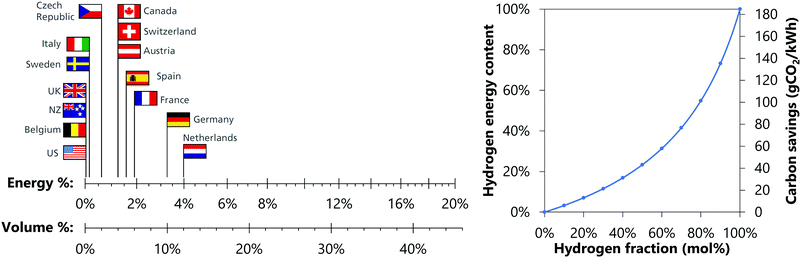

Fig. 16 Limits on hydrogen blending into national gas grids around the world, using data from ref. 304 (left); and the relationship between energy content, carbon savings and hydrogen injection mixtures (right).

Current research aims to refine this range of allowable injections.280,288–291 A Dutch study concluded that off-the shelf gas appliances operated with no serious problems with up to 20% hydrogen blends by volume.292 Similarly, the Health and Safety Laboratory concluded that 20% hydrogen was unlikely to harm the UK gas network or most appliances, although the identification and modification of vulnerable appliances is required for concentrations above 10%.143 The different combustion characteristics of hydrogen may interact differently across the wide range of gas appliances in use, many installed decades ago.

Even if limits were relaxed, a 20% blend would represent only 7% hydrogen by energy content, due to its lower density than methane. The share of hydrogen by energy content (EH) is calculated from the volume percentage (or mole fraction) of hydrogen (VH) and methane (VM) as in eqn (1):


image file: c8ee01157e-t1.tif(1)
where 11.88 and 39.05 are the volumetric HHV energy content of hydrogen and methane respectively (MJ m−3),293 and VM = 1 − VH by definition.

The direct carbon emissions savings of a 20% (volume) hydrogen blend would be 13 gCO2 per kW h (Fig. 16, right), so hydrogen injection alone could not achieve deep decarbonisation of the gas network. That said, this amount of hydrogen blending would deliver most of the decarbonisation required in UK buildings to 2030 (a 10% reduction on 2015 emissions),22 not accounting for upstream hydrogen supply chain emissions.

Converting the natural gas network to hydrogen. An alternative to blending is complete conversion of existing natural gas distribution networks to distribute hydrogen. Consumer satisfaction with gas heating indicates this could be a popular low-carbon choice;294 although the UK is among the only countries actively considering this option, e.g. with the Leeds H21 project238 or in the North of England.295,296 In the 1970s, Britain converted from town gas to natural gas progressively over 11 years, with all networks converted in parallel.297 Early desk studies have shown that conversion back to hydrogen could be technically feasible and economically viable.15,238 Such a switch would likely take 10–20 years, with appliances in every building being systematically converted or replaced and careful planning to ensure continuity of supply.238

Gradual conversion of the heating stock as products reach their end of life; with a roll-out of 1 million properties a year at a cost of $5000 per house is considered feasible.48 This transition period may require “hydrogen-ready” boilers capable of running on both natural gas and hydrogen. While this is thought of as uneconomical,144 it was used in the gradual roll-out of digital television and in plans for “CCS-ready” power stations.298 Legislating for standardised backplates for all new boilers would greatly reduce the cost and time required for such a conversion.299

Hydrogen storage

Bulk storage. Large-scale hydrogen storage is one of the few low-carbon solutions to balance long-term intermittency in electricity generation from wind and solar power, especially in relation to inter-seasonal shifts (see Section 4.2).214,300 As with compressed air energy storage (CAES), hydrogen can be stored in compressed form in underground salt caverns.301 Hydrogen offers energy densities of 280 kW h m−3 – 100 times greater than for compressed air.48 A limited number of regions have suitable salt deposits, but several chemical and refinery complexes have used substantial hydrogen salt cavern storage facilities since the 1960s.48 Operational projects include a 24 GW h facility in the UK and an 83 GW h facility in Texas.302 Hydrogen is currently the only low-carbon technology able to store over 100 GW h and operate over a timescale of weeks or even months, although this is countered by low round-trip efficiency and high equipment costs.302,303

If hydrogen were delivered by pipeline for heat and electricity provision, line-packing (using the compressibility of gas within the network) combined with geologic storage could balance supply and demand. However, significant high-pressure decentralised storage is required for transport applications due to space constraints, particularly at refuelling stations and on-board vehicles. Higher pressures increase tank material and compressor specifications, compression work requirements and safety measures such as minimum separation distances at forecourts. Low (∼45 bar) and medium pressure (200–500 bar) pressure vessels are common in industry, but high pressure tubes and tanks (700–1000 bar) are almost exclusively used for FCEVs and refilling stations, and are currently produced in low quantities.48 Hydrogen tanks at refuelling stations have higher pressures than in FCEVs (e.g. 925 vs. 700 bar) to allow rapid refuelling without requiring a slow compressor to fill vehicle tanks. Compressed hydrogen gas has only 15% the energy density of petrol, so refuelling stations require more physical space to supply the same amount of fuel. This could be offset by using underground storage at refuelling stations to reduce surface land usage in densely populated urban areas. Even then it is possible that many existing urban refuelling stations would not be suitable for hydrogen if they were remote from the high-pressure hydrogen network.48

Alternative hydrogen carriers. Hydrogen can also be distributed in the form of fuels such as ethanol, CNG or ammonia,305 which can be low-carbon if produced from biomass or non-fossil fuel sources. These could offer low-pressure, high-volume energy carriers similar to those used extensively today. However, biomass availability is limited and synthetic fuels are costly and difficult to produce, so these options are not currently under widespread consideration.

A number of alternative hydrogen carriers with lower technology-readiness levels are currently under investigation. Solid carriers including metal hydrides are already established in a few niche applications including submarines and scooters.48 They operate at low pressure and hence require lower safety restrictions and separation distances than highly-compressed or liquefied hydrogen, making them attractive in densely-populated areas. Their gravimetric energy density (around 3% hydrogen by weight) is comparable to compressed gas at 500 bar.306 Borohydrides are a promising option being researched, potentially offering over 10 wt% storage.307,308

Energy is released during charging (i.e. hydrogenation), but energy input of about 30% is required during discharging.48 Hydrides have cheaper system components (e.g. a small compressor, a heater for discharging) than for compressed or liquefied hydrogen storage. Slow charging and discharging rates limit their suitability for on-board applications, meaning that the hydrogen must be released from the hydrides at the refuelling stations and compressed for on-board storage.

Liquid organic hydrogen carriers (LOHCs) attain densities of 6 wt%, and like hydrides they offer low pressure operation and improved safety.48 Around 25% of the energy content of hydrogen is required to release the fuel, though this could be offset if the equivalent amount of energy released during hydrogenation could be captured.309 Catalysts can be employed to speed up the reactions, potentially enabling their usage on-board vehicles hence avoiding compression requirements. Recently, discarded cigarette butts were discovered to hold over 8 wt% hydrogen after thermal processing, potentially creating a new class of hydrogen store from a toxic waste product.310

For comparison, 700 bar compressed hydrogen tanks offer 5.7 wt% hydrogen storage (using the Toyota Mirai as an example).311 The DOE target improvement to 7.5 wt% at a cost reduction from $33 per kW h at present to $8 per kW h.312

Policy challenges

International policy context

Globally, relatively few energy policies apply directly to H2FC technologies. Policies aimed at reducing GHG emissions such as feed-in tariffs focus on renewables and exclude non-green hydrogen, while policies that tackle energy affordability generally exclude hydrogen and fuel cells due to their current high costs.31

This is slowly changing, as some countries extend their policies to include H2FC technologies. For example, European hydrogen refuelling infrastructure is now promoted under the Alternative Fuels Infrastructure Directive,313 and while the current Renewable Energy Directive (RED) accepts renewable biofuels and bioliquids that save at least 60% GHG emissions, hydrogen is excluded.314 However, the revised RED will be broadened to include hydrogen from 2021, with pathways saving 70% GHG emissions being classified as a renewable fuel of non-biological origin,315,316 which may encourage countries to give policy support to hydrogen supply chains. Support exists in the US, with eight federal programs having some scope to promote H2FC uptake, although individual states define the supporting mechanisms, meaning FCEV rebates range from zero to $5000 per vehicle.317

Table 9 summarises the national targets for H2FC technology uptake in six leading countries, and Table 10 compares the level of financial support provided to achieve these. Whilst these demonstrate ambition towards FCEV uptake, incentives are smaller than for other technologies. For example, the UK budget for hydrogen transport projects is £23m, while the funding for BEV recharging and manufacturing infrastructure is £646m.318 Additionally, the UK supports only biogas combustion micro-CHP devices rather than fuel cell CHP, whilst there is support for battery electric vehicles but not fuel cell vehicles.319

Table 9 Summary of hydrogen and fuel cells uptake targets. Data from ref. 325, 334 and 340
Country CHP Fuel cell cars Refuelling stations
2020 2030 2020 2025 2030 2020 2025 2030
a Zero emission vehicle. b Shanghai only. c California only.
Japan 1.4m 5.3m 40[thin space (1/6-em)]000 200[thin space (1/6-em)]000 800[thin space (1/6-em)]000 160 320 900
Germany 100% ZEVa by 2040 400
China 3000b 50[thin space (1/6-em)]000 1m 100 1000
US 0 3.3m 100c
South Korea 1.2 MW 10[thin space (1/6-em)]000 100[thin space (1/6-em)]000 630[thin space (1/6-em)]000 100 210 520
UK 100% ZEVa by 2040 30 150


Table 10 Summary of the support offered in various countries for hydrogen and fuel cells in 2017. Data from ref. 317, 325, 334 and 341–350. Values given in 2016 US Dollars, converted as ¥102 = €0.75 = CNY 3.5 = KRW 894 = £0.69 = $1
Country Residential CHP Fuel cell vehicles Refuelling
Japan $93m $700–1700 per unit $147m $61m
Germany $13[thin space (1/6-em)]600 per unit $4000 per vehicle $466m
China $1700 per kW (up to $57[thin space (1/6-em)]000 per vehicle) $1.1m per unit
US $1000 per unit (up to $3000 per kW for larger systems) Up to $13[thin space (1/6-em)]000 per vehicle 30% of cost (up to $30[thin space (1/6-em)]000) (California $100m up to 2023)
South Korea $5.3m $5.4m (up to $31[thin space (1/6-em)]000 per vehicle)
UK $33m (60% of cost for refuelling)


Policy support for H2FC technologies are driven by various national priorities, including air quality, climate change,31 energy security,320 affordability and economic growth.321 US policy is driven by the need to improve air quality due to transportation; thus there are no national targets for deploying fuel cells in stationary applications. China aims to reduce severe urban air quality issues and boost economic growth through manufacturing fuel cells as part of the “Made in China 2025” strategy.322 In Japan, hydrogen is promoted to provide energy security through improving efficiency, to support national industries and revitalise regional economies and reduce environmental burdens.323

Japan envisions a three stage transition to a hydrogen society: promoting FCEVs, hydrogen production and residential fuel cells (currently); developing and integrating hydrogen supply chains into the energy system (by 2030); and finally establishing a carbon-free hydrogen supply by 2040.324 In contrast, the main driver in Europe is reducing GHG emissions, with hydrogen also seen as a critical part of the industrial strategy of countries such as the UK.325 The UK and France plan to halt the sale of new petrol and diesel cars from 2040326,327 and the Netherlands from 2030.328 Norway aims to replace sales of diesel cars with electric and hydrogen passenger cars from 2025.329

Current market size

Evidently, countries that have provided stronger incentives and broader strategies (Table 10) have seen greater uptake of H2FC technologies, as shown in Table 11. Fuel cell vehicles are an area where the US is leading, with 2750 FCEVs sold as of 2017, more than in Japan and Europe combined.330,331 China's stance on fuel cells could have global implications;90 its 2016 Fuel Cell Vehicle Technology Roadmap includes a modest target for 5000 FCEVs in 2020 but a scale of millions in 2030.332
Table 11 Summary of hydrogen and fuel cells uptake as of 2018. Data from ref. 76, 331, 334, 340, 351 and 352
Country CHP units Fuel cell vehicles Refuelling stations Forklift trucks
Japan 223[thin space (1/6-em)]000 1800 cars 90 21
Germany 1200 467 cars, 14 buses 33 16
China 1 60 cars, 50 buses 36 N/A
US 225 MW 2750 cars, 33 buses 39 public, 70 total 11[thin space (1/6-em)]600
South Korea 177 MW 100 cars 11 N/A
UK 10 42 cars, 18 buses 14 2


Fig. 17 illustrates the extent to which Japan is leading fuel cell CHP rollout: South Korea and Europe trail by a decade, and the US has seen very limited uptake. In 2012, fuel cells outsold engine-based micro-CHP systems for the first time, taking 64% of the global market.333 Japan has deployed 98% of the world's residential fuel cell systems with over 223[thin space (1/6-em)]000 systems sold as of October 2017.334,335 The dotted lines in Fig. 17 indicate the Japanese government's target of 1.4 million fuel cells installed by 2020,336 although Bloomberg forecast that only a quarter of this target will be reached as subsidies have fallen too quickly to offset high costs and competition from rooftop solar. Toshiba recently exited the industry, leaving only two EneFarm manufacturers.337 The European Union originally anticipated 50[thin space (1/6-em)]000 systems by 2020, but only 1046 systems were installed in the ene.field project,338 and 2650 additional units will be installed by 2021 as part of the PACE demonstration.339


image file: c8ee01157e-f17.tif

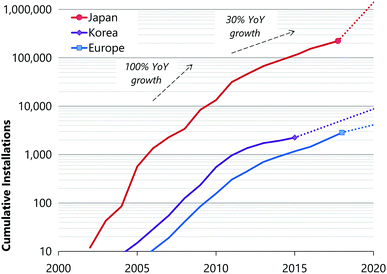

Fig. 17 Cumulative number of residential micro-CHP systems installed to date (solid lines) and near-term projections (dotted lines). Data from ref. 16, 339, 355 and 356.

Strong policy signals can evidently yield substantial benefits, as seen by the uptake of home heating systems and vehicles deployed in Japan, and the strength of Japanese manufacturers. Demonstration projects that enable learning-by-doing through manufacturing scale-up have been necessary for decreasing the price of H2FC technologies as with other technologies. However, the scale of such demonstration programmes has arguably been trivial outside of Japan. For context, the two largest demonstration projects in Europe (ene.field and PACE) target just 3% the number of households that received solar PV panels in Germany's 100[thin space (1/6-em)]000 roofs programme over a decade ago.353

Policy drivers for hydrogen and fuel cells

The drivers for promoting hydrogen and fuel cells in energy policy relate to improving the reliability, efficiency and security of the energy system, reducing environmental impacts, and developing new low-carbon industries, with their associated employment opportunities and skills. The potential of H2FC technologies to contribute to all the dimensions of sustainable development (environmental, social and economic) arguably justifies their systematic and long-term policy support.

Several European countries are working to define green hydrogen standards, showing a concern for the climate benefits from fuel cells rather than just the level of uptake.354 Some standards focus on hydrogen from renewable sources, others include hydrogen from low-carbon sources (including nuclear and CCS). These differences must be resolved if a pan-European or global certification scheme is to be agreed.31

A changing climate, natural disasters, war and cyber-security flaws can have extreme impacts on energy supply chains.320 H2FC technologies can support the electricity system in balancing weather-dependent renewables, and hydrogen can improve national energy self-reliance, as it has numerous production pathways. Hydrogen can also be produced anywhere, which makes it particularly attractive to oil-deficient countries as one of the principal alternative fuels with a considerable potential for long-term substitution of oil and natural gas.313

Hydrogen and fuel cells are currently more expensive in most applications than their low-carbon competitors. However, they possess some superior characteristics to these competitors, which could aid the public acceptability of decarbonising personal energy use. The steep cost reductions seen for fuel cells in Asia (see Section 3.2) suggest that programmes to support for research, development and deployment can significantly influence the economic viability of H2FC technologies. Japan's Hydrogen and Fuel Cell Roadmap, the US DOE Hydrogen and Fuel Cells Program, and Europe's Fuel Cells and Hydrogen Joint Undertaking (FCH-JU) are prominent examples.

Conclusions

Hydrogen has fallen in and out of favour since the oil shocks of the 1970s and remains a marginal energy system option. However, mainstream products are now emerging: Honda, Toyota and Hyundai have launched the first mass-produced hydrogen fuel cell vehicles, and fuel cells now heat 225[thin space (1/6-em)]000 homes. Early-mover companies, notably in Japan, are beginning to see lucrative export opportunities.

Hydrogen can play a major role alongside electricity in the low-carbon economy, with the versatility to provide heat, transport and power system services. It does not suffer the fundamental requirement for instantaneous supply-demand balancing, and so enables complementary routes to deeper decarbonisation through providing low carbon flexibility and storage. The numerous hydrogen production, distribution and consumption pathways present complex trade-offs between cost, emissions, scalability and requirements for purity and pressure; but provide a multitude of options which can be exploited depending on local circumstances (e.g. renewable energy or suitable sites for CO2 sequestration).

Hydrogen and fuel cells are not synonymous; they can be deployed in combination or separately. Fuel cells can operate on natural gas, which avoids combustion and thus 90% of airborne pollutants. Hydrogen can be burnt in engines and boilers with no direct CO2 and near-zero NOx emissions. When used together, hydrogen fuel cells are zero-emission at the point of use, with overall emissions dependent on the fuel production method (as with electricity).

Fuel cell vehicle costs are high relative to battery electric vehicles, but with mass production they can achieve parity by 2025–2030. Driving range and refuelling time are significantly better than premium electric vehicles, which is particularly advantageous for buses, heavy goods and other highly-utilised vehicles. As with electric vehicles and unlike biofuels, fuel cell vehicles can tackle urban air quality problems by producing zero exhaust emissions. This has the potential to drive deployment in cities, railways, airports, seaports and warehouses.

Innovations in heat decarbonisation lag behind other sectors as heat pumps, district heating and burning biomass face multiple barriers. Households are accustomed to powerful, compact, rapid response heating systems, which can be modified to use hydrogen. Fuel cell combined heat and power can operate on today's natural gas network, albeit with limited carbon savings. Hydrogen presents various options for decarbonising this network in the longer term.

Hydrogen technologies can support low-carbon electricity systems dominated by intermittent renewables and/or electric heating demand. Fuel cells provide controllable capacity that helpfully offsets the additional peak demand of heat pumps. In addition to managing short-term dynamics, converting electricity into hydrogen or other fuels (power-to-gas) could provide the large-scale, long-term storage required to shift renewable electricity between times of surplus and shortfall.

Hydrogen applications and the supporting infrastructure may be installed incrementally and simultaneously, with care taken to avoid potentially high-regret investments early on. Existing electricity and gas infrastructures can be used for on-site hydrogen production in distributed refilling stations and fuel cell heating. Focussing on specific users such as captive vehicle fleets (e.g. urban buses with central refuelling depots) could provide the high utilisation and demand certainty needed for investment. Given the diversity of decarbonisation pathways, a clear strategy will reduce the costs of introducing hydrogen and fuel cell technologies.

Successful innovation requires focused, predictable and consistent energy policy, which is probably the single greatest challenge in realising the hydrogen and fuel cell potential. Stop-go policies, and frequent, unexpected policy changes undermine the confidence that businesses and industry need to make long-term investments in low-carbon technologies such as hydrogen and fuel cells. Countries should develop a system of policy support for hydrogen and fuel cell technologies that offers the long-term stability needed for large, transformative investments to be made. Policy reviews, decision points and milestones in a support programme should be announced well in advance, with ongoing support conditional on meeting reasonable performance and cost targets. Given such sustained support, and the technological progress in hydrogen and fuel cells in recent years, there are strong grounds for believing that hydrogen and fuel cells can experience a cost and performance trajectory similar to those of solar PV and batteries, and in the medium term provide another important and complementary low-carbon option with versatility to be deployed in multiple uses across the energy system.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We thank the Engineering and Physical Sciences Research Council for funding this work via the H2FC Supergen Hub EP/J016454/1 and EP/P024807/1.

Notes and references

  1. US Department of Energy, The Green Hydrogen Report, NREL, 1995.
  2. World Energy Council, World Energy Issues Monitor, 2017.
  3. N. Cackett, Honda Clarity FCV review, https://www.autocar.co.uk/car-review/honda/clarity-fcv.
  4. International Energy Agency, Technology Roadmap: Hydrogen and Fuel Cells, Paris, 2015 Search PubMed.
  5. N. P. Brandon and Z. Kurban, Philos. Trans. R. Soc., A, 2017, 375, 1–17 CrossRef PubMed.
  6. Hydrogen Council, Hydrogen scaling up: a sustainable pathway for the global energy transition, 2017 Search PubMed.
  7. D. Hart, J. Howes, B. Madden and E. Boyd, Hydrogen and Fuel Cells: Opportunities for Growth. A Roadmap for the UK, E4Tech and Element Energy, 2016 Search PubMed.
  8. E. S. Hanley, J. P. Deane and B. P. Ó. Gallachóir, Renewable Sustainable Energy Rev., 2018, 82, 3027–3045 CrossRef.
  9. M. Pudukudy, Z. Yaakob, M. Mohammad, B. Narayanan and K. Sopian, Renewable Sustainable Energy Rev., 2014, 30, 743–757 CrossRef.
  10. T. Abbasi and S. A. Abbasi, Renewable Sustainable Energy Rev., 2011, 15, 3034–3040 CrossRef.
  11. J. W. Sheffield and Ç. Sheffield, Assessment of Hydrogen Energy for Sustainable Development, Springer Netherlands, 2007 Search PubMed.
  12. S. Dunn, Int. J. Hydrogen Energy, 2002, 27, 235–264 CrossRef CAS.
  13. Coalition study, A portfolio of power-trains for Europe: a fact-based analysis, McKinsey & Company, 2010 Search PubMed.
  14. J. Tollefson, Nature, 2010, 464, 1262–1264 CrossRef CAS PubMed.
  15. P. E. Dodds and S. Demoullin, Int. J. Hydrogen Energy, 2013, 38, 7189–7200 CrossRef CAS.
  16. P. E. Dodds, I. Staffell, A. D. Hawkes, F. Li, P. Grünewald, W. McDowall and P. Ekins, Int. J. Hydrogen Energy, 2015, 40, 2065–2083 CrossRef CAS.
  17. T. A. Napp, A. Gambhir, T. P. Hills, N. Florin and P. S. Fennell, Renewable Sustainable Energy Rev., 2014, 30, 616–640 CrossRef CAS.
  18. M. Ball and M. Weeda, Int. J. Hydrogen Energy, 2015, 40, 7903–7919 CrossRef CAS.
  19. S. Samsatli, I. Staffell and N. J. Samsatli, Int. J. Hydrogen Energy, 2016, 41, 447–475 CrossRef CAS.
  20. REN21, Renewables Global Status Report, 2017.
  21. DECC, Provisional UK greenhouse gas emissions national statistics 2015, 2016.
  22. CCC, The Fifth Carbon Budget: The next step towards a low-carbon economy, 2015.
  23. World Resources Institute, CAIT Climate Data Explorer, http://cait.wri.org.
  24. S. Bakker, Energy Policy, 2010, 38, 6540–6544 CrossRef.
  25. E4Tech, The Fuel Cell Industry Review, 2017.
  26. T. Wilberforce, A. Alaswad, A. Palumbo, M. Dassisti and A. G. Olabi, Int. J. Hydrogen Energy, 2016, 41, 16509–16522 CrossRef CAS.
  27. G. Strbac, M. Aunedi, D. Pudjianto, F. Teng, P. Djapic, R. Druce, A. Carmel and K. Borkowski, Value of Flexibility in a Decarbonised Grid and System Externalities of Low-Carbon Generation Technologies, NERA Economic Consulting, 2015 Search PubMed.
  28. KPMG, 2050 Energy Scenarios: The UK Gas Networks role in a 2050 whole energy system, KPMG, 2016.
  29. I. Staffell and S. Pfenninger, Energy, 2018, 145, 65–78 CrossRef.
  30. S. Collins, P. Deane, B. Ó. Gallachóir, S. Pfenninger and I. Staffell, Joule, 2018, 2, 1–15 CrossRef PubMed.
  31. I. Staffell, P. Dodds, D. Scamman, A. Velazquez Abad, N. M. Dowell, K. Ward, P. Agnolucci, L. Papageorgiou, N. Shah and P. Ekins, The Role of Hydrogen and Fuel Cells in Future Energy Systems, H2FC Supergen, 2017 Search PubMed.
  32. A. Hawkes, I. Staffell, D. Brett and N. Brandon, Energy Environ. Sci., 2009, 2, 729–744 RSC.
  33. M. Momirlan and T. N. Veziroglu, Renewable Sustainable Energy Rev., 2002, 6, 141–179 CrossRef CAS.
  34. K. Mazloomi and C. Gomes, Renewable Sustainable Energy Rev., 2012, 16, 3024–3033 CrossRef CAS.
  35. Energy Information Administration, International Energy Outlook, 2017.
  36. ECC Select Committee, Government to miss 2020 renewable energy targets, 2016.
  37. CCC, Meeting Carbon Budgets – 2016 Progress Report to Parliament, 2016.
  38. Norsk Elbil Forening, Elbilsalget: Ned i fjor – venter ny vekst i år, http://elbil.no/elbilsalget-ned-i-fjor-venter-ny-vekst-i-ar/.
  39. Next Greencar, Electric car market statistics, http://www.nextgreencar.com/electric-cars/statistics/.
  40. EEA, Air quality in Europe—2016 report, European Environment Agency, Luxembourg, 2016.
  41. D. D. Heather Walton, S. Beevers, M. Williams, P. Watkiss and A. Hunt, Understanding the Health Impacts of Air Pollution in London, King's College London, London, 2015 Search PubMed.
  42. European Commission, A Clean Air Programme for Europe, 2013.
  43. WHO, Country estimates on air pollution exposure and health impact, 2016.
  44. UN, Transforming our world: the 2030 Agenda for Sustainable Development, United Nations General Assembly, New York, 2015.
  45. M. McGrath, Four major cities move to ban diesel vehicles by 2025, BBC News, 2016.
  46. DEFRA, Plan for roadside NO2concentrations published, 2017, https://tinyurl.com/defra-no2.
  47. Reuters, France to end sale of diesel and gasoline vehicles by 2040, 2017, https://tinyurl.com/reuters-france-diesel-ban.
  48. D. Hart, J. Howes, F. Lehner, P. Dodds, N. Hughes, B. Fais, N. Sabio and M. Crowther, Scenarios for deployment of hydrogen in contributing to meeting carbon budgets and the 2050 target, 2015.
  49. B. G. Pollet, I. Staffell and J. L. Shang, Electrochim. Acta, 2012, 84, 235–249 CrossRef CAS.
  50. P. E. Dodds and P. Ekins, Int. J. Hydrogen Energy, 2014, 39, 13941–13953 CrossRef CAS.
  51. A. Stewart and T. Dodson, Low carbon cars in the 2020s: Consumer impacts and EU policy implications, Element Energy, Brussels, 2016 Search PubMed.
  52. G. J. Offer, D. Howey, M. Contestabile, R. Clague and N. P. Brandon, Energy Policy, 2010, 38, 24–29 CrossRef.
  53. Autocar, Hyundai ix35 Fuel Cell review, 2015, https://tinyurl.com/autocar-ix35.
  54. Green Car Reports, Toyota Mirai Priced At $57,500, With $499 Monthly Lease, 2016, https://tinyurl.com/greencar-mirai.
  55. Renault, ZOE – Models & prices, 2018, https://www.renault.co.uk/vehicles/new-vehicles/zoe-250/models-and-prices.html.
  56. Nissan, 2017 Leaf Specs, 2017, https://www.nissanusa.com/electric-cars/leaf/versions-specs/version.s.html.
  57. Bloomberg, Driverless Cars Are Giving Engineers a Fuel Economy Headache, 2017, https://tinyurl.com/y92aqxu2.
  58. J. Alazemi and J. Andrews, Renewable Sustainable Energy Rev., 2015, 48, 483–499 CrossRef CAS.
  59. M. Melaina and M. Penev, Hydrogen Station Cost Estimates, NREL, 2013 Search PubMed.
  60. Cleantech Canada, Ontario to get first public hydrogen fueling stations as feds shell out $1.6M, 2017, https://tinyurl.com/yaj7kgxv.
  61. Rolec, Rolec Electric Vehicle Charging Stations, 2017, http://www.rolecserv.com/ev-charging.
  62. M. M. Kabir and D. E. Demirocak, Int. J. Energy Res., 2017, 41, 1963–1986 CrossRef CAS.
  63. D. Scamman, M. Newborough and H. Bustamante, Int. J. Hydrogen Energy, 2015, 40, 13876–13887 CrossRef CAS.
  64. H. Ammermann, Y. Ruf, S. Lange, D. Fundulea and A. Martin, Fuel Cell Electric Buses – Potential for Sustainable Public Transport in Europe, 2015 Search PubMed.
  65. J. Marcinkoski, J. Spendelow, A. Wilson and D. Papageorgopoulos, Fuel Cell System Cost – 2015, US Department of Energy, 2015.
  66. Hydrogen Council, How hydrogen empowers the energy transition, 2017.
  67. I. E. L. Stephens, J. Rossmeisl and I. Chorkendorff, Science, 2016, 354, 1378 CrossRef CAS PubMed.
  68. J. Harvey, Platinum's fuel-cell car bonanza proves elusive, 2018, https://tinyurl.com/reuters-fcev-platinum.
  69. International Organization of Motor Vehicle Manufacturers, OICA Sales Statistics, 2017, http://www.oica.net/category/sales-statistics/.
  70. D. Becker, M. Pawelke, P. Schalk, A. Feege, U. Bergmann, G. Silberg, S. H. Wi, M. Komikado and H.-H. Tran, Global Automotive Executive Survey 2018, KPMG, 2018 Search PubMed.
  71. L. Mearian, Hydrogen refueling stations for cars to reach 5,000 by 2032, in Computerworld, 2017.
  72. Toyota, Toyota moves to expand mass-production of fuel cell stacks and hydrogen tanks towards ten-fold increase post-2020, 2018, https://newsroom.toyota.co.jp/en/corporate/22647198.html.
  73. Daimler, New “Hydrogen Council” launches in Davos, 2017.
  74. Zap-Map, 2017, https://www.zap-map.com/.
  75. J. Murray, Electric vehicle charge points to outnumber petrol stations by 2020, say Nissan, The Guardian, Manchester, 2016.
  76. Ludwig-Bölkow-Systemtechnik and TÜV SÜD, Hydrogen Refuelling Stations Worldwide, 2017, https://www.netinform.de/H2/H2Stations/Default.aspx.
  77. UK H2Mobility, Phase 1 Results, London, UK, 2013 Search PubMed.
  78. GLA, Draft Mayor's Transport Strategy, Greater London Authority, 2017.
  79. Cars UK, An extra 60 Hyundai ix35 Hydrogen Fuel Cell taxis for Paris – will grow to a fleet of hundreds, Cars UK, 2016 Search PubMed.
  80. J. Spendelow and D. Papageorgopoulos, Fuel Cell Bus Targets, US Department of Energy, 2012 Search PubMed.
  81. J. Marcinkoski, A. Wilson and D. Papageorgopoulos, On-Road Fuel Cell Stack Durability, US Department of Energy, 2016 Search PubMed.
  82. L. Eudy, M. Post and M. Jeffers, Zero Emission Bay Area (ZEBA) Fuel Cell Bus Demonstration Results: Fifth Report, 2016.
  83. US Department of Energy, Compare Fuel Cell Vehicles, 2017, http://www.fueleconomy.gov/feg/fcv_sbs.shtml.
  84. L. Eudy, M. Post and M. Jeffers, Fuel Cell Buses in U.S. Transit Fleets: Current Status 2016, NREL, Golden, CO, 2016 Search PubMed.
  85. FCH-JU, Urban buses: alternative powertrains for Europe, 2012 Search PubMed.
  86. N. Brahy, Fuel Cell Electric Buses – Potential for Sustainable Public Transport in Europe, 2015 Search PubMed.
  87. B. Madden, London hydrogen buses and the CHIC project, All-Energy, 2016.
  88. T. Hua, R. Ahluwalia, L. Eudy, G. Singer, B. Jermer, N. Asselin-Miller, S. Wessel, T. Patterson and J. Marcinkoski, J. Power Sources, 2014, 269, 975–993 CrossRef CAS.
  89. Toyota, Toyota to Start Sales of Fuel Cell Buses under the Toyota Brand from Early 2017, 2016.
  90. E4Tech, The Fuel Cell Industry Review, 2016.
  91. N. O. Pearson, China's Buses Bolster Ballard's Three-Decade Quest for Hydrogen, Bloomberg, 2017 Search PubMed.
  92. H. Ximin, image file: c8ee01157e-u4.tif, Shenzhen Daily, 2017.
  93. F. Lambert, Shenzhen shows the world how it's done, electrifies all public transit with massive fleet of 16,000+ electric buses, https://electrek.co/2017/12/28/shenzhen-electrifies-entire-public-transit-fleet-electric-buses/, (accessed 1st September, 2018).
  94. Tesla, Semi, 2017, https://www.tesla.com/semi.
  95. Kenworth, Kenworth Receives $8.6 Million in Grants for Low-Emission T680 Day Cab Drayage Truck Projects in California, 2016, http://tinyurl.com/zm84j3d.
  96. Forbes, Toyota Rolls Out Hydrogen Semi Ahead Of Tesla's Electric Truck, 2017, https://tinyurl.com/ljs9xke.
  97. Nikola Motor Company, Nikola One: Electric Sleeper Semi-Truck, 2016, https://nikolamotor.com/one.
  98. A. Velazquez Abad, T. Cherrett and B. Waterson, Int. J. Logist. Res. Appl., 2016, 20, 3–19 CrossRef.
  99. Edie, World's largest brewer orders 800 hydrogen-electric trucks, 2018, http://www.edie.net/news/6/World-s-largest-brewer-orders-800-hydrogen-electric-trucks/.
  100. Intelligent Energy, Met trials hydrogen powered scooters, 2017, https://tinyurl.com/yddjx4yl.
  101. Alstom, Alstom unveils its zero-emission train Coradia iLint at InnoTrans, 2016.
  102. S. Thompson, International Association for Hydrogen Energy Electronic Newsletter, 2016, vol. 8(6).
  103. B. Gerrard, French train giant Alstom set to make UK's first hydrogen fleet at British site, Telegraph, 2018, http://www.telegraph.co.uk/business/2018/05/14/french-train-giant-alstom-set-make-uks-first-hydrogen-fleet/.
  104. Ballard Power Systems, Ballard Signs Framework Agreement for Fuel Cell Module Development to Power Trams in China, 2015.
  105. H. Burley, World's first hydrogen ferry to be built in Scotland, 2018, http://www.scotsman.com/news/world-s-first-hydrogen-ferry-to-be-built-in-scotland-1-4759942.
  106. E. Baldassari, Hydrogen-powered ferry? National lab says it's possible, though costly, East Bay Times, 2016.
  107. ICAO, Historic agreement reached to mitigate international aviation emissions, International Civil Aviation Organization, 2016.
  108. C. Gonzalez, The Future of Electric Hybrid Aviation, Machine Design, 2016.
  109. IPCC, Climate Change 2013: The Physical Science Basis, Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change, Cambridge University Press, 2013 Search PubMed.
  110. C. Lawson, eTaxi Fuel Cell System – Feasibility for Low Cost Carriers, Royal Aeronautical Society, London, 2016 Search PubMed.
  111. US Department of Energy, Industry Deployed Fuel Cell-Powered Lift Trucks, 2016.
  112. M. W. Ahmad Mayyas, S. H. Chan and T. Lipman, Fuel Cell Forklift Deployment in the US, NREL, 2014.
  113. Ballard Power Systems, Economics of Fuel Cell Solutions for Material Handling, 2010.
  114. New Holland, NH2 Hydrogen Tractor, 2017, http://www.newholland.co.nz/?id=155.
  115. International Energy Agency, Energy Technology Perspectives, OECD/IEA, Paris, 2016 Search PubMed.
  116. B. Lapillonne and K. Pollier, ODYSSEE-MURE: Energy Efficiency Trends for households in the EU, Enerdata, 2014 Search PubMed.
  117. M. Chaudry, M. Abeysekera, S. H. R. Hosseini, N. Jenkins and J. Wu, Energy Policy, 2015, 87, 623–640 CrossRef CAS.
  118. N. Eyre, Decarbonising Heat, Oxford Energy Expert Meeting, London, 2016 Search PubMed.
  119. I. Staffell, I. Hamilton and R. Green, in Domestic Microgeneration: Renewable and Distributed Energy Technologies, Policies and Economics, ed. I. Staffell, D. J. L. Brett, N. P. Brandon and A. D. Hawkes, Routledge, London, 2015 Search PubMed.
  120. I. Staffell, D. J. L. Brett, N. P. Brandon and A. D. Hawkes, Domestic Microgeneration: Renewable and Distributed Energy Technologies, Policies and Economics, Routledge, London, 2015 Search PubMed.
  121. BEIS, Baroness Neville-Rolfe's speech at Policy Exchange's Heat Summit, 2016.
  122. Z. B. Richard Howard, Too Hot to Handle? How to decarbonise domestic heating, Policy Exchange, 2016.
  123. P. E. Dodds, A. Hawkes, W. McDowall, F. Li, I. Staffell, P. Grünewald, T. Kansara, P. Ekins and P. Agnolucci, The role of hydrogen and fuel cells in providing affordable, secure low-carbon heat, H2FC SUPERGEN, London, 2014 Search PubMed.
  124. I. A. Grant Wilson, Front. Energy Res., 2016, 4 DOI:10.3389/fenrg.2016.00033.
  125. CCC, Next steps for UK heat policy, Committee on Climate Change, 2016.
  126. I. Staffell, D. Brett, N. Brandon and A. Hawkes, Energy Environ. Sci., 2012, 5, 9291–9306 RSC.
  127. R. Hanna, B. Parrish and R. Gross, Best practice in heat decarbonisation policy: a review of the international experience of policies to promote the uptake of low-carbon heat supply, UKERC Working Paper, 2016.
  128. GEA, Global Energy Assessment: Toward a Sustainable Future, Cambridge University Press, 2012 Search PubMed.
  129. O. Edenhofer, R. Pichs-Madruga, Y. Sokona, E. Farahani, S. Kadner, K. Seyboth, A. Adler, I. Baum, S. Brunner, P. Eickemeier, B. Kriemann, J. Savolainen, S. Schlömer, C. V. Stechow, T. Zwickel and J. C. Minx, Climate Change 2014: Mitigation of Climate Change. Contribution of Working Group III to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change, Cambridge University Press, 2014 Search PubMed.
  130. European Climate Foundation, Roadmap 2050: A Practical Guide to a Prosperous, Low Carbon Europe, 2010 Search PubMed.
  131. Ofgem, Future Insights Series: The Decarbonisation of Heat, 2016 Search PubMed.
  132. T. Boßmann and I. Staffell, Energy, 2015, 90(Part 2), 1317–1333 CrossRef.
  133. K. MacLean, R. Sansom, T. Watson and R. Gross, Comparing the impacts and costs of transitions in heat infrastructure, 2016 Search PubMed.
  134. International Energy Agency, World Energy Balances, ESDS International, University of Manchester, 2012.
  135. DECC, Heat Networks Investment Project Consultation: Capital Funding For Building Heat Networks, 2016.
  136. L. Lidstone, UK Networks Transition Challenges: Heat, Energy Technologies Institute, 2016 Search PubMed.
  137. I. Staffell, P. Baker, J. P. Barton, N. Bergman, R. Blanchard, N. P. Brandon, D. J. L. Brett, A. Hawkes, D. Infield, C. N. Jardine, N. Kelly, M. Leach, M. Matian, A. D. Peacock, S. Sudtharalingam and B. Woodman, Proceedings of the ICE – Energy, 2010, 163, 143–165 CAS.
  138. I. Staffell and I. Hamilton, in Domestic Microgeneration: Renewable and Distributed Energy Technologies, Policies and Economics, ed. I. Staffell, D. J. L. Brett, N. P. Brandon and A. D. Hawkes, Routledge, London, 2015 Search PubMed.
  139. US Census Bureau, Annual Characteristics of New Housing, 2014.
  140. DECC, The Future of Heating: Meeting the challenge, Department of Energy and Climate Change, 2013.
  141. J. Palmer and I. Cooper, United Kingdom housing energy fact file, Department of Energy and Climate Change, 2013.
  142. CCC, Meeting Carbon Budgets: Closing the policy gap. 2017 Report to Parliament, 2017.
  143. J. Hodges, W. Geary, S. Graham, P. Hooker and R. Goff, Injecting hydrogen into the gas network – a literature search, Health and Safety Laboratory, Buxton, 2015 Search PubMed.
  144. M. Dorrington, M. Lewitt, I. Summerfield, P. Robson and J. Howes, Desk study on the development of a hydrogen-fired appliance supply chain, Kiwa & E4 Tech, 2016 Search PubMed.
  145. I. Staffell, Appl. Energy, 2015, 147, 373–385 CrossRef CAS.
  146. I. Staffell and E. Entchev, in Domestic Microgeneration: Renewable and Distributed Energy Technologies, Policies and Economics, ed. I. Staffell, D. J. L. Brett, N. P. Brandon and A. D. Hawkes, Routledge, London, 2015 Search PubMed.
  147. H. R. Ellamla, I. Staffell, P. Bujlo, B. G. Pollet and S. Pasupathi, J. Power Sources, 2015, 293, 312–328 CrossRef CAS.
  148. IRENA, Renewable Energy Technologies: Cost Analysis Series. Volume 1, Issue 4: Solar Photovoltaics, 2012.
  149. Panasonic, Launch of New 'Ene-Farm' Home Fuel Cell Product More Affordable and Easier to Install, 2013.
  150. Y. Nagata, Toshiba Fuel Cell Power SystemsCommercialization of Residential FC in Japan, in FCH-JU General Assembly, Brussels, 2013.
  151. I. Staffell, PhD thesis, University of Birmingham, 2010.
  152. K. Kuwaba, Development of SOFC for Residential Use by Aisin Seiki, in 9th FC Expo., Tokyo, 2013.
  153. Osaka Gas, Long-term durability data for single-cell, 2012, http://tinyurl.com/osaka-sofc-longterm.
  154. A. Ballhausen, BlueGen: Vom Feldversuch in den Markt (From Field Tests to Market), in NIP General Assembly, Berlin, 2013.
  155. I. Staffell and R. Green, Int. J. Hydrogen Energy, 2013, 38, 1088–1102 CrossRef CAS.
  156. S. Kawamura, IPHE Country Update: Japan, in 28th IPHE Steering Committee Meeting, The Hague, Netherlands, 2017.
  157. M. Wei, S. J. Smith and M. D. Sohn, Appl. Energy, 2017, 191, 346–357 CrossRef.
  158. M. Wei, S. H. Chan, A. Mayyas and T. Lipman, in Fuel Cells: Data, Facts, and Figures, ed. D. Stolten, R. C. Samsun and N. Garland, Wiley VCH, 2016 Search PubMed.
  159. A. Maruta, Japan's ENE-FARM programme, in Fuel cells: Why is Austria not taking off?, 2016.
  160. R. Berger, Advancing Europe's energy systems: stationary fuel cells in distributed generation, European Commission: FCH-JU, 2015 Search PubMed.
  161. D. Stolten, R. C. Samsun and N. Garland, Fuel Cells – Data, Facts and Figures, Wiley-VCH, Weinheim, 2015 Search PubMed.
  162. ExxonMobil and FuelCell Energy, Inc., Pursue Novel Technology in Carbon Capture, 2016, https://tinyurl.com/exxon-fuelcell-energy.
  163. International Energy Agency, CO2Emissions from Fuel Combustion, 2016.
  164. BP, BP Statistical Review of World Energy, 2017.
  165. International Energy Agency, World Energy Outlook, Paris, 2016.
  166. Deep Decarbonization Pathways Project, Pathways to deep decarbonization 2015 report, SDSN – IDDRI, 2015.
  167. IPCC, Climate Change 2014 – Mitigation of Climate Change. Contribution of Working Group III to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change, 2014.
  168. E. Kriegler, J. P. Weyant, G. J. Blanford, V. Krey, L. Clarke, J. Edmonds, A. Fawcett, G. Luderer, K. Riahi, R. Richels, S. K. Rose, M. Tavoni and D. P. van Vuuren, Clim. Change, 2014, 123, 353–367 CrossRef.
  169. IPCC, Climate Change 2014. Synthesis Report. Summary for Policymakers, 2014.
  170. R. Green and I. Staffell, Oxf. Rev. Econ. Pol., 2016, 32, 282–303 CrossRef.
  171. Royal Academy of Engineering, Counting the cost: the economic and social costs of electricity shortfalls in the UK, 2014.
  172. Platts, World Electric Power Plants Database, 2016.
  173. Fuel Cell Today, The Industry Review 2011, 2011.
  174. U.S. Department of Energy, 2007 Fuel Cell Technologies Market Report, 2007.
  175. K.-A. Adamson, The Fuel Cell and Hydrogen Annual Review, 2016, http://tinyurl.com/4ew-fchar.
  176. E. Wessof, Fuel Cells 2016: ‘Within Striking Distance of Profiability’, 2016, http://tinyurl.com/zmmkecb.
  177. P. Chiesa, G. Lozza and L. Mazzocchi, J. Eng. Gas Turbines Power, 2005, 127, 73–80 CrossRef CAS.
  178. Energy Technologies Institute, The role of hydrogen storage in a clean responsive power system, Energy Technologies Institute, Loughborough, UK, 2015 Search PubMed.
  179. EPA, Catalog of CHP Technologies, US Environmental Protection Agency, 2008 Search PubMed.
  180. Osaka Gas, Review of Operations, 2012.
  181. Bloom Energy, ES-5700 Energy Server Data Sheet, 2017, http://www.bloomenergy.com/fuel-cell/es-5700-data-sheet/.
  182. New York Times, A Maker of Fuel Cells Blooms in California, 2010, http://tinyurl.com/j5csg7w.
  183. Bloom Energy, NASA™ Technology Comes to Earth, 2017, http://www.bloomenergy.com/about/company-history/.
  184. R. Smith, 3 Top Hydrogen Fuel Cell Stocks You Can Buy Right Now, 2016, http://www.fool.com/investing/2016/11/28/should-you-invest-in-a-fuel-cell-stock.aspx.
  185. S. Hardman, A. Chandan and R. Steinberger-Wilckens, J. Power Sources, 2015, 287, 297–306 CrossRef CAS.
  186. I. Staffell, Energy Policy, 2017, 102, 463–475 CrossRef.
  187. S. Letendre, P. Denholm and P. Lilienthal, Electric & Hybrid Cars: New Load, or New Resource?, in Public Utilities Fortnightly, 2006.
  188. EREC, Re-thinking 2050: A 100% renewable energy vision for the European Union, European Renewable Energy Council, 2013 Search PubMed.
  189. J. Tomic and W. Kempton, J. Power Sources, 2007, 168, 459–468 CrossRef CAS.
  190. W. Kempton, T. Jasna, L. Steven, B. Alec and L. Timothy, Vehicle-to-Grid Power: Battery, Hybrid, and Fuel Cell Vehicles as Resources for Distributed Electric Power in California, California Air Resources Board and the California Environmental Protection Agency, 2001 Search PubMed.
  191. W. Kempton and J. Tomic, J. Power Sources, 2005, 144, 268–279 CrossRef CAS.
  192. T. E. Lipman, J. L. Edwards and D. M. Kammen, Energy Policy, 2004, 32, 101–125 CrossRef.
  193. G. Strbac, M. Aunedi, D. Pudjianto, P. Djapic, F. Teng, A. Sturt, D. Jackravut, R. Sansom, V. Yufit and N. Brandon, Strategic Assessment of the Role and Value of Energy Storage Systems in the UK Low Carbon Energy Future, Carbon Trust, London, UK, 2012 Search PubMed.
  194. F. Moura, Driving Energy System Transformation with “Vehicle-to-Grid” Power, IIASA, 2006 Search PubMed.
  195. F. Diaz-Gonzalez, A. Sumper, O. Gomis-Bellmunt and R. Villafafila-Robles, Renewable Sustainable Energy Rev., 2012, 16, 2154–2171 CrossRef.
  196. C. M. Grams, R. Beerli, S. Pfenninger, I. Staffell and H. Wernli, Nat. Clim. Change, 2017, 7, 557–562 CrossRef PubMed.
  197. J. D. Holladay, J. Hu, D. L. King and Y. Wang, Catal. Today, 2009, 139, 244–260 CrossRef CAS.
  198. D. Parra and M. K. Patel, Int. J. Hydrogen Energy, 2016, 41, 3748–3761 CrossRef CAS.
  199. L. Bertuccioli, A. Chan, D. Hart, F. Lehner, B. Madden and E. Standen, Study on development of water electrolysis in the EU, 2014.
  200. O. Schmidt, A. Gambhir, I. Staffell, A. Hawkes, J. Nelson and S. Few, Int. J. Hydrogen Energy, 2017, 42, 30470–30492 CrossRef CAS.
  201. O. M. Balan, M. R. Buga, A. Brunot, A. Badea and D. Froelich, J. Energy Storage, 2016, 8, 111–118 CrossRef.
  202. G. Gahleitner, Int. J. Hydrogen Energy, 2013, 38, 2039–2061 CrossRef CAS.
  203. M. Gotz, J. Lefebvre, F. Mors, A. M. Koch, F. Graf, S. Bajohr, R. Reimert and T. Kolb, Renewable Energy, 2016, 85, 1371–1390 CrossRef.
  204. F. Zhang, P. C. Zhao, M. Niu and J. Maddy, Int. J. Hydrogen Energy, 2016, 41, 14535–14552 CrossRef CAS.
  205. G. Reiter, in Fuel Cells – Data, Facts and Figures, ed. D. Stolten, R. C. Samsun and N. Garland, Wiley-VCH, Weinheim, 2015 Search PubMed.
  206. A. Buttler and H. Spliethoff, Renewable Sustainable Energy Rev., 2018, 82, 2440–2454 CrossRef CAS.
  207. P. Sabatier and J. B. Senderens, Comptes Rendus, 1902, 134, 514–516 CAS.
  208. M. Lehner, R. Tichler, H. Steinmüller and M. Koppe, Power-to-Gas: Technology and Business Models, Springer International Publishing, 2014 Search PubMed.
  209. M. Jentsch, T. Trost, M. Sterner and Eurosolar, 8th International Renewable Energy Storage Conference and Exhibition (Ires 2013), 2014, vol. 46, pp. 254–261.
  210. M. Sterner and M. Jentsch, Energiewirtschaftliche und ökologische Bewertungeines Windgas-Angebotes, 2011.
  211. International Gas Union, Triennium 2009–2012. Working Committee 2: Underground Gas Storage. WOC2 Final Report, 2012.
  212. M. Bailera, P. Lisbona, L. M. Romeo and S. Espatolero, Renewable Sustainable Energy Rev., 2017, 69, 292–312 CrossRef CAS.
  213. M. Kopp, D. Coleman, C. Stiller, K. Scheffer, J. Aichinger and B. Scheppat, Int. J. Hydrogen Energy, 2017, 42, 13311–13320 CrossRef CAS.
  214. S. Schiebahn, T. Grube, M. Robinius, V. Tietze, B. Kumar and D. Stolten, Int. J. Hydrogen Energy, 2015, 40, 4285–4294 CrossRef CAS.
  215. S. Clegg and P. Mancarella, IET Gener. Transm. Distrib., 2016, 10, 566–575 CrossRef.
  216. J. Vandewalle, K. Bruninx and W. D'Haeseleer, Energy Convers. Manage., 2015, 94, 28–39 CrossRef.
  217. H. S. de Boer, L. Grond, H. Moll and R. Benders, Energy, 2014, 72, 360–370 CrossRef.
  218. M. Qadrdan, M. Abeysekera, M. Chaudry, J. Z. Wu and N. Jenkins, Int. J. Hydrogen Energy, 2015, 40, 5763–5775 CrossRef CAS.
  219. W. Vanhoudt, F. Barth, J.-C. Lanoix, J. Neave, P. R. Schmidt, W. Weindorf, T. Raksha, J. Zerhusen and J. Michalski, Power-to-gas: short term and long term opportunities to leverage synergies between the electricity and transport sectors through power-to-hydrogen, Munich, 2016 Search PubMed.
  220. G. Guandalini, S. Campanari and M. C. Romano, Appl. Energy, 2015, 147, 117–130 CrossRef.
  221. FCH-JU, Commercialisation of Energy Storage in Europe, 2015.
  222. V. A. Goltsov and T. N. Veziroglu, Int. J. Hydrogen Energy, 2001, 26, 909–915 CrossRef CAS.
  223. National Research Council and National Academy of Engineering, The Hydrogen Economy: Opportunities, Costs, Barriers, and R&D Needs, The National Academies Press, Washington, DC, 2004 Search PubMed.
  224. M. Balat and E. Kirtay, Energy Sources, Part A, 2010, 32, 863–876 CrossRef CAS.
  225. J. A. Turner, Science, 1999, 285, 687–689 CrossRef CAS PubMed.
  226. Royal Society Policy Briefing, Options for producing low-carbon hydrogen at scale, 2018.
  227. OECD/IEA, IEA Energy Technology Essentials: Hydrogen Production & Distribution, 2007.
  228. A. A. Evers, Actual Worldwide Hydrogen Production, 2008, http://tinyurl.com/89h9zot.
  229. MarketsandMarkets, Hydrogen Generation Marketby Merchant & Captive Type, Distributed & Centralized Generation, Application & TechnologyTrends & Global Forecasts (2011–2016), 2011.
  230. K. Wawrzinek and C. Keller, Industrial Hydrogen Production & Technology, FuncHy-Workshop, Karlsruhe, Germany, 2007.
  231. J. Mougin, Compendium of Hydrogen Energy, Woodhead Publishing, Oxford, 2015, pp. 225–253 Search PubMed.
  232. C. L. Muhich, B. D. Ehrhart, I. Al-Shankiti, B. J. Ward, C. B. Musgrave and A. W. Weimer, Wiley Interdiscip. Rev.: Energy Environ., 2016, 5, 261–287 CAS.
  233. D. Yadav and R. Banerjee, Renewable Sustainable Energy Rev., 2016, 54, 497–532 CrossRef CAS.
  234. M. Y. Azwar, M. A. Hussain and A. K. Abdul-Wahab, Renewable Sustainable Energy Rev., 2014, 31, 158–173 CrossRef CAS.
  235. R. S. Poudyal, I. Tiwari, A. R. Koirala, H. Masukawa, K. Inoue, T. Tomo, M. M. Najafpour, S. I. Allakhverdiev and T. N. Veziroğlu, Compendium of Hydrogen Energy, Woodhead Publishing, Oxford, 2015, pp. 289–317 Search PubMed.
  236. D. J. L. Brett, E. Agante, N. P. Brandon, E. Brightman, R. J. C. Brown, M. Manage and I. Staffell, in Functional materials for sustainable energy applications, ed. J. Kilner, S. Skinner, S. Irvine and P. Edwards, Woodhead Publishing, Cambridge, 2012 Search PubMed.
  237. R. B. Gupta, Hydrogen Fuel, Production, Transport and Storage, CRC Press, 2008 Search PubMed.
  238. D. Sadler, A. Cargill, M. Crowther, A. Rennie, J. Watt, S. Burton, M. Haines, J. Trapps, M. Hand, R. Pomroy, K. Haggerty, I. Summerfield and M. Evans, H21 Leeds City Gate: 100% hydrogen conversion feasibility study, 2016, http://tinyurl.com/leeds-H21.
  239. A. Susmozas, D. Iribarren, P. Zapp, J. Linβen and J. Dufour, Int. J. Hydrogen Energy, 2016, 41, 19484–19491 CrossRef CAS.
  240. N. H. Florin and A. T. Harris, Chem. Eng. Sci., 2008, 63, 287–316 CrossRef CAS.
  241. C. v. Hirschhausen, J. Herold and P.-Y. Oei, Economics of Energy & Environmental Policy, 2012, 1, 115–123 Search PubMed.
  242. V. Scott, S. Gilfillan, N. Markusson, H. Chalmers and R. S. Haszeldine, Nat. Clim. Change, 2012, 3, 105 CrossRef.
  243. R. Slade, A. Bauen and R. Gross, Nat. Clim. Change, 2014, 4, 99–105 CrossRef.
  244. R. Matthews, N. Mortimer, J. P. Lesschen, T. J. Lindroos, L. Sokka, A. Morris, P. Henshall, C. Hatto, O. Mwabonje, J. Rix, E. Mackie and M. Sayce, Carbon impacts of biomass consumed in the EU: quantitative assessment, The European Commission DG ENER/C1/427, 2015.
  245. K. Zeng and D. Zhang, Prog. Energy Combust. Sci., 2010, 36, 307–326 CrossRef CAS.
  246. M. Carmo, D. L. Fritz, J. Mergel and D. Stolten, Int. J. Hydrogen Energy, 2013, 38, 4901–4934 CrossRef CAS.
  247. W. Kreuter and H. Hofmann, Int. J. Hydrogen Energy, 1998, 23, 661–666 CrossRef CAS.
  248. US Department of Energy, Hydrogen Production: Electrolysis, 2016.
  249. O. Schmidt, A. Hawkes, A. Gambhir and I. Staffell, Nat. Energy, 2017, 2, 17110 CrossRef.
  250. US Department of Energy, Future Central Hydrogen Production from Solid Oxide Electrolysis, 2015.
  251. S. D. Ebbesen, S. H. Jensen, A. Hauch and M. B. Mogensen, Chem. Rev., 2014, 114, 10697–10734 CrossRef CAS PubMed.
  252. M. A. Laguna-Bercero, J. Power Sources, 2012, 203, 4–16 CrossRef CAS.
  253. J.-h. Myung, D. Neagu, D. N. Miller and J. T. S. Irvine, Nature, 2016, 537, 528 CrossRef CAS PubMed.
  254. M. Joos and I. Staffell, Renewable Sustainable Energy Rev., 2018, 86, 45–65 CrossRef.
  255. K. Wipke, S. Sprik, J. Kurtz, T. Ramsden, C. Ainscough and G. Saur, Status of U.S. FCEV and Infrastructure Learning Demonstration Project, in The FY2010 JHFC International Seminar, Tokyo, 2011.
  256. National Renewable Energy Laboratory, CDP#13: On-Site Hydrogen Production Efficiency, 2010.
  257. National Renewable Energy Laboratory, CDP#60: On-Site Hydrogen Production Efficiency vs. Capacity Utilization, 2010.
  258. M. Monde and K. Saito, WG1: Hydrogen Infrastructure, JHFC International Seminar, Tokyo, Japan, 2011.
  259. J. Tomuro, Hydrogen Stations – JHFC Activities in FY2008, IPHE 11th ILC Meeting, Oslo, Norway, 2009.
  260. K. Okazaki, Operation Results and Efficiency Evaluation of JHFC Hydrogen Stations, The 4th JHFC Seminar, Tokyo, 2005.
  261. J. Speirs, P. Balcombe, E. Johnson, J. Martin, N. Brandon and A. Hawkes, Energy Policy, 2018, 118, 291–297 CrossRef.
  262. P. Balcombe, J. Speirs, E. Johnson, J. Martin, N. Brandon and A. Hawkes, Renewable Sustainable Energy Rev., 2018, 91, 1077–1088 CrossRef CAS.
  263. P. Balcombe, N. P. Brandon and A. D. Hawkes, J. Cleaner Prod., 2018, 172, 2019–2032 CrossRef CAS.
  264. R. Hanke-Rauschenbach, B. Bensmann and P. Millet, Compendium of Hydrogen Energy, Woodhead Publishing, Oxford, 2015, pp. 179–224 Search PubMed.
  265. G. Parks, R. Boyd, J. Cornish and R. Remick, Hydrogen Station Compression, Storage, and Dispensing Technical Status and Costs, NREL, Golden, CO, 2014 Search PubMed.
  266. M. Gardiner, Energy Requirements for Hydrogen Gas Compression and Liquefaction as Related to Vehicle Storage Needs, 2009 Search PubMed.
  267. IEA, Technology Roadmap: Hydrogen and Fuel Cells, International Energy Agency, Paris, France, 2015 Search PubMed.
  268. LCICG, Technology Innovation Needs Assessment (TINA): Hydrogen for Transport, Low Carbon Innovation Coordination Group, 2014 Search PubMed.
  269. F. Di Bella, Development of a Centrifugal Hydrogen Pipeline Gas Compressor, US Department of Energy, 2015 Search PubMed.
  270. US Department of Energy, Multi-Year Research, Development, and Demonstration Plan.Section 3.2 – Hydrogen Delivery, Fuel Cell Technologies Office, US Department of Energy, 2015 Search PubMed.
  271. HyET, 2011.
  272. L. Lipp, Electrochemical Hydrogen Compressor, EERE, 2016 Search PubMed.
  273. A. Kitchener, Bridging the pressure gap, The Future of CAES in the UK, London, 2016 Search PubMed.
  274. S. Krasae-in, J. H. Stang and P. Neksa, Int. J. Hydrogen Energy, 2010, 35, 4524–4533 CrossRef CAS.
  275. International Organization for Standardization, ISO 14687-2:2012, https://www.iso.org/standard/55083.html.
  276. S. A. Grigoriev, P. Millet, S. V. Korobtsev, V. I. Porembskiy, M. Pepic, C. Etievant, C. Puyenchet and V. N. Fateev, Int. J. Hydrogen Energy, 2009, 34, 5986–5991 CrossRef CAS.
  277. H. Ito, N. Miyazaki, M. Ishida and A. Nakano, Int. J. Hydrogen Energy, 2016, 41, 20439–20446 CrossRef CAS.
  278. M. Hamdan, High Efficiency Large PEM Electrolyzers, in the H2FC Fair, Hannover Messe, 2014.
  279. S. Sircar and T. Golden, Sep. Sci. Technol., 2000, 35, 667–687 CrossRef CAS.
  280. M. W. Melaina, O. Antonia and M. Penev, Blending Hydrogen into Natural Gas Pipeline Networks: A Review of Key Issues, NREL, 2013 Search PubMed.
  281. D. Sadler, A. Cargill, M. Crowther, A. Rennie, J. Watt, S. Burton, M. Haines, J. Trapps, M. Hand, R. Pomroy, K. Haggerty, I. Summerfield and M. Evans, H21 Leeds City Gate: 100% hydrogen conversion feasibility study, 2016.
  282. D. Hart, J. Howes, B. Madden and E. Boyd, Hydrogen and Fuel Cells: Opportunities for Growth. A Roadmap for the UK, E4Tech and Element Energy, 2016 Search PubMed.
  283. C. Yang and J. Ogden, Int. J. Hydrogen Energy, 2007, 32, 268–286 CrossRef CAS.
  284. A. Kotchourko, D. Baraldi, P. Bénard, N. Eisenreich, T. Jordan, J. Keller, A. Kessler, J. LaChance, V. Molkov, M. Steen and A. Tchouvelev, State of the art and research priorities in hydrogen safety, Joint Research Centre of the European Commission (JRC), 2014 Search PubMed.
  285. B. C. C. van der Zwaan, K. Schoots, R. Rivera-Tinoco and G. P. J. Verbong, Appl. Energy, 2011, 88, 3821–3831 CrossRef.
  286. N. E. Nanninga, Y. S. Levy, E. S. Drexler, R. T. Condon, A. E. Stevenson and A. J. Slifka, Corros. Sci., 2012, 59, 1–9 CrossRef CAS.
  287. R. P. Gangloff and B. P. Somerday, Gaseous Hydrogen Embrittlement of Materials in Energy Technologies, Woodhead Publishing, 2012 Search PubMed.
  288. F. Tabkhi, C. Azzaro-Pantel, L. Pibouleau and S. Domenech, Int. J. Hydrogen Energy, 2008, 33, 6222–6231 CrossRef CAS.
  289. V. Reitenbach, L. Ganzer, D. Albrecht and B. Hagemann, Environ. Earth Sci., 2015, 73, 6927–6937 CrossRef CAS.
  290. M. Abeysekera, J. Wu, N. Jenkins and M. Rees, Appl. Energy, 2016, 164, 991–1002 CrossRef CAS.
  291. G. Guandalini, P. Colbertaldo and S. Campanari, Appl. Energy, 2017, 185, 1712–1723 CrossRef CAS.
  292. P. E. Dodds and W. McDowall, Energy Policy, 2013, 60, 305–316 CrossRef.
  293. I. Staffell, The Energy and Fuel Data Sheet, 2011, http://tinyurl.com/energy-fuel-data-sheet.
  294. Ispos MORI and Energy Saving Trust, Homeowners' Willingness To Take Up More Efficient Heating Systems, DECC, London, 2013 Search PubMed.
  295. A. Vaughan, Trial to phase in hydrogen as fuel to begin in north-west, The Guardian, 2017.
  296. Cadent, HyNet North West, https://hynet.co.uk/.
  297. T. I. Williams, A History of the British Gas Industry, Oxford University Press, Oxford, UK, 1981 Search PubMed.
  298. The Global Carbon Capture and Storage Institute, CCS Ready Policy: Considerations and Recommended Practices for Policymakers.
  299. Policy Connect, Next Steps for the Gas Grid, 2017.
  300. M.-R. d. Valladares, Global trends and outlook for hydrogen, Inernational Energy Agency, 2017 Search PubMed.
  301. H. L. Ferreira, R. Garde, G. Fulli, W. Kling and J. P. Lopes, Energy, 2013, 53, 288–298 CrossRef.
  302. A. Ozarslan, Int. J. Hydrogen Energy, 2012, 37, 14265–14277 CrossRef CAS.
  303. I. Staffell and M. Rustomji, J. Energy Storage, 2016, 8, 212–225 CrossRef.
  304. ITM Power, National Grid, Shell, SSE, Scotia Gas Networks and Kiwa, Power-To-Gas: A UK Feasibility Study, ITM Power, Sheffield, 2013 Search PubMed.
  305. Nissan, 2016.
  306. L. Klebanoff, Hydrogen Storage Technology: Materials and Applications, CRC Press, Boca Raton, FL, 2016 Search PubMed.
  307. M. B. Ley, L. H. Jepsen, Y.-S. Lee, Y. W. Cho, J. M. Bellosta von Colbe, M. Dornheim, M. Rokni, J. O. Jensen, M. Sloth, Y. Filinchuk, J. E. Jørgensen, F. Besenbacher and T. R. Jensen, Mater. Today, 2014, 17, 122–128 CrossRef CAS.
  308. L. E. Klebanoff and J. O. Keller, Int. J. Hydrogen Energy, 2013, 38, 4533–4576 CrossRef CAS.
  309. Hydrogenious Technologies, Hydrogenious Release BOX, 2016.
  310. T. S. Blankenship and R. Mokaya, Energy Environ. Sci., 2017, 10, 2552–2562 RSC.
  311. Toyota, Toyota Mirai technical specifications vs. FCHV-adv, 2014, http://blog.toyota.co.uk/toyota-mirai-technical-specifications-vs-fchv-adv.
  312. B. D. James, W. G. Colella and J. M. Moton, Hydrogen Storage Cost Analysis, DOE Annual Merit Review, Arlington, VA, 2013 Search PubMed.
  313. European Commission, DIRECTIVE2014/94/EU on the deployment of alternative fuels infrastructure, European Commission, Brussels, 2014 Search PubMed.
  314. European Commission, DIRECTIVE 2009/28/EC on the promotion of the use of energy from renewable sources and amending and subsequently repealing Directives 2001/77/EC and 2003/30/EC, European Commission: Brussels, 2009.
  315. European Commission, Proposal for a directive of the european parliament and of the council on the promotion of the use of energy from renewable sources (recast), Brussels, European Commission, 2016.
  316. European Commission, Directive on the promotion of the use of energy from renewable sources (recast), European Commission, Brussels, 2017.
  317. US Department of Energy, Federal Laws and Incentives for Hydrogen, 2017, http://www.afdc.energy.gov/fuels/laws/HY/US.
  318. HM Government and Automotive council UK, Industrial Strategy: Automotive Sector Deal, 2018.
  319. A. Velazquez Abad, MBA Dissertation, University of Southampton, 2017.
  320. R. Steinberger-Wilckens, J. Radcliffe, N. Al-Mufachi, P. E. Dodds, A. Velazquez Abad, O. Jones and Z. Kurban, The role of hydrogen and fuel cells in delivering energy security for the UK, H2FC Supergen, London, UK, 2017 Search PubMed.
  321. M. J. Smith, O. Alabi, N. Hughes, P. E. Dodds, K. Turner and J. T. S. Irvine, The economic impact of hydrogen and fuel cells in the UK, H2FC Supergen, London, UK, 2017 Search PubMed.
  322. Chinese State Council, Made in China 2025, 2015.
  323. ANRE, Summary of the Strategic Road Map for Hydrogen and Fuel Cells, METI, 2014 Search PubMed.
  324. METI, Japan's Energy White Paper, 2017, http://www.meti.go.jp/english/report/downloadfiles/energy_hakusho_201711.pdf.
  325. DfT and OLEV £23 million boost for hydrogen-powered vehicles and infrastructure, D.f. Transport, O.f.L.E. Vehicles, 2017.
  326. Defra and DfT, Plan for roadside NO2concentrations published in Plan includes an end to the sale of all new conventional petrol and diesel cars and vans by 2040 and a new Clean Air Fund, 2017.
  327. Ministère de la Transition écologique et solidaire, Mobilités et transports: quelles priorités? 2017.
  328. VVD, CDA, D66 and CU, Confidence in the Future. 2017–2021 Coalition Agreement, 2017.
  329. NEA, Climate mitigation measures up to 2030 – short term climate effects and health effects, Oslo, 2016 Search PubMed.
  330. U. Irfan, Lack of Cheap, Clean Hydrogen Slows Fuel-Cell Cars, in Scientific American, 2016.
  331. EERE, Cumulative U.S. Fuel Cell Vehicle Sales, 2017, https://tinyurl.com/eere-fact-17-01.
  332. X. Pan, IPHE Country Update March 2017: China, International Partnership for Hydrogen and Fuel Cells in the Economy, Brussels, 2017 Search PubMed.
  333. Delta-ee, Micro-CHP Annual Roundup, 2012.
  334. IPHE, 27th Steering Committee Meeting: Country Reports, 2017, http://www.iphe.net/events/meetings/SC_27.html.
  335. E. Ohira, Private communication of Japanese representative to the IEA Hydrogen meeting: Naples, 2017.
  336. I. Hara, Current Status of H2 and Fuel Cell Programs of Japan, in 20th IPHE Steering Committee Meeting, Fukuoka, Japan, 2013.
  337. A. Shimizu, Will Japan's hydrogen dreams come true?, in Bloomberg New Energy Finance, 2017.
  338. M. Small, European-wide field trials for residential Fuel Cell micro-Cogeneration, in FCH-JU Programme Review Days, Brussels, 2017.
  339. B. Biebuyck, EU policy & micro-CHP, IPHE, 2016 Search PubMed.
  340. W. Ling, Latest Development of China's Hydrogen Energy, in World Hydrogen Energy Conference, Rio de Janeiro, 2018.
  341. METI, Compilation of the Revised Version of the Strategic Roadmap for Hydrogen and Fuel Cells, 2016.
  342. A. Maruta, Japan's ENE-FARM programme, Technova Inc., Vienna, 2016 Search PubMed.
  343. BMVI, Fortsetzung des Nationalen Innovationsprogramms Wasserstoff- und Brennstoffzellentechnologie (NIP) 2016–2026, BMVI, Berlin, 2016 Search PubMed.
  344. NOW, Hydrogen as an electricity-based clean fuel in transport, 2016.
  345. P. Rosner and G. Appel, Bosch Fuel Cell System Experience in Austria and Germany, 2016, https://www.energyagency.at/fileadmin/dam_en/pdf/fuelcells/Appel_Rosner.pdf.
  346. NOW, Hydrogen as an electricity-based clean fuel in transport, 2016, https://www.now-gmbh.de/en/news/press/hydrogen-as-an-electricity-based-clean-fuel-in-transport.
  347. B. Acosta Iborra, E. Gupta and L. Seissler, 4th International Workshop on Hydrogen Infrastructure and Transportation, Report EUR 28242 EN, JRC, Luxemburg, 2016.
  348. US Department of Energy, Federal Legislation Supports and Advances Alternative Fuels, 2016, https://www.afdc.energy.gov/bulletins/2016_10_11_Fed_Advances.html.
  349. MOTIE, Korean government to increase the number of eco-friendly cars to one million by 2020, 2015, https://tinyurl.com/MOTIE-2015-12-08.
  350. HM Government, Industrial Strategy: Automotive Sector Deal 2017, https://tinyurl.com/ybah838e.
  351. T. Karlsson, Developments and Drivers for Fuel Cells Electric Mobility, in 2017 International Forum on Electric Vehicle Pilot Cities and Industrial Development, 2017.
  352. US Department of Energy, Hydrogen Fueling Station Locations, 2018, https://www.afdc.energy.gov/fuels/hydrogen_locations.html.
  353. U. Dewald and B. Truffer, Industry and Innovation, 2011, 18, 285–300 CrossRef.
  354. Certifhy, Developing a European Framework for the generation of guarantees of origin for green hydrogen, Hinicio, Brussels, 2016 Search PubMed.
  355. M. Yamazumi and S. Kawamura, IPHE Country Update November 2016: Japan, IPHE, 2016 Search PubMed.
  356. S. Ko, IPHE Country Update May 2016: Korea, IPHE, 2016 Search PubMed.

This journal is © The Royal Society of Chemistry 2019
