On the preparation and NMR spectroscopic characterization of potassium aluminium tetrahydride KAlH₄

Abstract

Potassium aluminium tetrahydride KAlH₄ of high phase purity (space group Pnma (62)) was synthesized via a mechanochemical route. The thus obtained material was studied by ²⁷Al and ³⁹K MAS NMR spectroscopy. For both nuclei precise data for the isotropic chemical shift and the quadrupole coupling at T = 295 K were derived (²⁷Al: δ_iso = (107.6 ± 0.2) ppm, C_Q = (1.29 ± 0.02) MHz and η = 0.64 ± 0.02; ³⁹K: δ_iso = (6.1 ± 0.2) ppm, C_Q = (0.562 ± 0.005) MHz and η = 0.74 ± 0.02). The straightforward NMR spectroscopic approach applied here should also work for other complex aluminium hydrides and for many other materials containing half-integer nuclei experiencing small to medium-sized quadrupole couplings.

---

Introduction

In the quest for materials for reversible hydrogen storage, complex aluminium hydrides have attracted much scientific interest in the last two decades.^1–3 Because of its excellent dehydrogenation reversibility under the influence of a catalyst at moderate conditions,⁴ sodium aluminium tetrahydride NaAlH₄ is certainly one of the most studied potential hydrogen storage materials. Besides other methods, X-ray^5–8 and neutron diffraction,^6–9 Raman scattering^10–12 and X-ray absorption^13,14 and nuclear magnetic resonance (NMR) spectroscopy^5,15–17 have been applied to study NaAlH₄ and its decomposition in great detail. Nevertheless, some important questions concerning the mechanism of hydrogen release and uptake remain open.^18,19

The number of papers devoted to the characterization of the next heavier alkali aluminium hydride KAlH₄ is rather limited. Morioka et al.²⁰ have shown that potassium aluminium hydride can reversibly be dehydrogenated and rehydrogenated in the temperature range from 523 to 613 K without any catalysts. The decomposition of KAlH₄ into potassium hydride and aluminium metal releases only 4.3 wt% hydrogen compared to 5.6 wt% for the corresponding decomposition of NaAlH₄. So, KAlH₄ is of course a rather unlikely candidate for a widespread application as hydrogen storage material. Nevertheless, the elucidation of structural details and mechanisms of dehydrogenation and rehydrogenation of KAlH₄ and other alkali aluminium hydrides, interesting in its own right, may help to better understand the more promising NaAlH₄ hydrogen storage system. Indeed, studies of the decomposition of KAlH₄ have revealed the formation of an unknown intermediate either instead of ref. 21 or alongside with ref. 22 the expected formation of the hexahydride K₃AlH₆. In an in situ powder X-ray diffraction study using synchrotron radiation, three different intermediates with hitherto unknown structures have been found during the decomposition and formation of KAlH₄.²³ More recently, Ares et al.²⁴ have detected only K₃AlH₆ as intermediate in both the mechanochemical synthesis and the subsequent decomposition of KAlH₄. These at least partially contradictory findings might indicate that the release and uptake reactions in alkali aluminium hydrides are more complex than hitherto thought and might also depend on the experimental conditions used.

There are at least two straightforward preparation methods for KAlH₄. The first is a direct synthesis reported by Ashby et al.²⁵ starting from metallic potassium (or potassium hydride) and metallic aluminium under hydrogen pressure at elevated temperatures in diglyme. After precipitation with a nonpolar solvent, filtration and careful drying, a pure KAlH₄ material can be obtained. Alternatively, the direct hydrogenation can be performed under mechanochemical conditions.^24,26 Another, less demanding preparation method for KAlH₄ is the salt metathesis reaction starting from a potassium halide and NaAlH₄ or LiAlH₄ under mechanochemical conditions.²¹ To remove the produced alkali halide, a subsequent treatment with diglyme is necessary. The pure KAlH₄ can once again be obtained after precipitation, filtration and drying.

To the best of our knowledge, there are only four reports on NMR studies of potassium aluminium tetrahydride. Tarasov et al.²⁷ studied KAlH₄ by using ²⁷Al and ³⁹K NMR on stationary (non-spinning) samples. They reported chemical shift and quadrupole coupling data for both nuclei. Surprisingly, the authors found three different aluminium species with distinctly different quadrupole couplings. They interpreted their findings in terms of a static orientational disorder of the [AlH₄]⁻ anions. According to the widely accepted structure solutions for KAlH₄²⁸ and KAlD₄,²⁹ all aluminium atoms are equivalent. Later on, Tarasov et al.³⁰ studied the thermal decomposition of KAlH₄ by the same methods. They identified the decomposition products potassium hydride KH and aluminium metal and the intermediate hexahydride K₃AlH₆.

The third, more recently published paper by Sorte et al.³¹ is mainly devoted to the study of the dynamics of the [AlH₄]⁻ anions. To this end, ¹H and ²⁷Al NMR measurements on a stationary sample were performed in a wide temperature range. The experimental results with respect to the quadrupole coupling do not really fit those obtained earlier. The ²⁷Al NMR line measured for the stationary sample at room temperature is broad, but the singularities typical of quadrupole coupling are missing. This holds also for the sideband pattern observed in the ²⁷Al MAS NMR spectrum. The authors assume “that the quadrupolar singularities were broadened by some disorder, resulting in a distribution of the parameters” which are describing the quadrupole coupling. For the additionally given ³⁹K NMR spectrum, the disagreement with the earlier work²⁷ is even more evident. Sorte et al.³¹ finally arrive at the rather unsatisfactory conclusion “that there may be other crystal structures present in our KAlH₄ or that used in the previous study.” In the fourth, above already mentioned paper, Ares et al.²⁴ used ²⁷Al and ¹H MAS NMR spectroscopy to characterize their KAlH₄ samples obtained via direct hydrogenation under ball milling conditions. Although the spectral resolution achieved in the ²⁷Al MAS NMR spectra is way better than in the earlier papers, the authors have to admit that the “lack of sharp feature in the first-order quadrupolar spinning-sideband pattern suggests that structural disorder exists.” Since materials produced by ball milling usually consist of very small particles with a large number of defects this finding is not surprising.

Recent papers^5,15,16 on the sodium aluminium hydrides NaAlH₄ and Na₃AlH₆ have shown that the NMR parameters, which mirror the site geometry, can reliably be determined for both the aluminium atom and the alkali cation if well-defined alkali aluminium hydride samples are used. In our very recent study on CsAlH₄³² we were able to unambiguously distinguish two different polymorphs present in the freshly precipitated hydride on the basis of well resolved ²⁷Al and ¹³³Cs MAS NMR spectra.

The aim of the present paper is to demonstrate that KAlH₄ with the previously described structure²⁹ can readily be synthesized following the established metathesis procedure. The thus obtained material exhibits a sufficient crystallinity and phase purity and allows the NMR chemical shift and quadrupole coupling parameters to be determined with high accuracy. The precise determination of these parameters combined with state-of-the-art DFT calculations offers an alternative approach to high-quality structures for polycrystalline materials. This NMR crystallographic approach is particularly helpful when diffraction-based methods are hampered by crystal twinning and stacking faults.³³

To ease the understanding of the procedure used for the extraction of the relevant parameters, we give a brief summary of important peculiarities of solid-state NMR spectroscopy of quadrupolar nuclei. The procedure outlined for ²⁷Al can be considered as a blueprint for NMR studies of materials containing half-integer quadrupolar nuclei with small to medium values of the coupling constant.

Experimental

Synthesis of KAlH₄

All procedures were performed under argon as protective gas atmosphere and with carefully dried solvents. 3.00 g (40.2 mmol) KCl and 2.15 g (40.2 mmol) of NaAlH₄ were mechanochemically treated in a planetary ball mill for 3 h (Pulverisette P7, 500 rpm, hardened steel milling vial 45 ml with 7 balls 13.5 g each, 15 min milling, 10 min break after each milling period, 12 repetitions). The resulting powder was suspended in 25 ml diglyme and stirred for 12 h. After filtration, KAlH₄ was precipitated through the addition of toluene and filtered off. The carefully dried KAlH₄ contained small amounts of unreacted NaAlH₄ observable in the X-ray diffraction pattern. Pure KAlH₄ was obtained after treatment with 20 ml tetrahydrofurane for 12 h, filtration and drying in vacuum.

X-ray diffraction

The X-ray diffraction (XRD) measurements were carried out in Debye–Scherrer transmission geometry on a STOE STADI P diffractometer using Cu Kα₁ (λ = 1.5460 Å) radiation. To avoid any contact with air, sealed 0.5 mm diameter glass capillaries were used. The data were collected with a linear position sensitive detector fabricated by Stoe in the 15–80° 2Θ range.

Solid-state NMR spectroscopy

The NMR spectra were recorded on a Bruker Avance III HD 500WB spectrometer using double-bearing MAS probes (DVT BL4) at resonance frequencies of 130.3 MHz and 23.3 MHz for ²⁷Al and ³⁹K, respectively. The magic angle was adjusted by maximizing the rotational echoes of the ²³Na resonance of solid NaNO₃.

For the ²⁷Al MAS NMR spectra, single π/12 pulses (t_p = 0.6 μs) were applied at a repetition time of 2 s (2000–16 000 scans) and spinning frequencies (ν_MAS) between 1.4 and 8.0 kHz. High-power proton decoupling (SPINAL-64) was used for all spectra shown in this paper, although its influence on the spectral resolution was hardly noticeable at spinning frequencies above 5 kHz. The ²⁷Al chemical shifts were referenced relative to an external 1.0 M aqueous solution of aluminium nitrate. The same solution was used for determining the flip-angle.

For the ³⁹K MAS NMR spectra, single π/8 pulses (t_p = 3.0 μs) were applied at a repetition time of 6 s (4000–24 000 scans) and spinning frequencies between 4.0 and 6.0 kHz. The ³⁹K chemical shifts are given with respect to 1.0 M aqueous solution of potassium chloride using solid potassium chloride (ν_MAS = 6 kHz) with its sharp resonance at δ = 47.8 ppm³⁴ as secondary standard. Solid potassium chloride was also used for determining the flip-angle.

Both the spinning-sideband patterns of the ²⁷Al MAS NMR spectra and the centrebands of the ³⁹K MAS NMR spectra were simulated by using the solids lineshape analysis module implemented in the TopSpin™ 3.2 NMR software package from Bruker BioSpin GmbH. Throughout the paper any effect of chemical shift anisotropy on the ²⁷Al NMR lineshape is neglected.

Results and discussion

Structure

Fig. 1 shows the X-ray powder diffraction pattern measured for our KAlH₄ sample in comparison with a calculated diffraction pattern based on the structural data for KAlD₄.²⁹ To account for the difference between KAlH₄ and KAlD₄, the lattice parameters (in Å) were slightly adjusted: a = 8.8475 (8.8514), b = 5.81428 (5.8119) and c = 7.3448 (7.3457). The values in parentheses are those reported by Hauback et al.²⁹ for KAlD₄ at T = 295 K. The agreement between the calculated and the observed pattern shows that the material under study is structurally identical to the previously reported orthorhombic potassium aluminium tetrahydride KAlH₄.^20,28,29,35 No crystalline by-product can be identified in the powder pattern in Fig. 1. According to the structure solutions for KAlH₄ in space group Pnma (62)²⁹ or Pbnm (62),²⁸ both the aluminium and the potassium atoms as well as half of the hydrogen atoms are located in Wyckoff position 4c, i.e., they sit on mirror planes.

Fig. 1 X-ray powder diffraction pattern of KAlH₄: black circles for the measured intensities (I₀), red line for the calculated intensities (I_c, cf. text) and black line (bottom trace) for the difference (I₀ − I_c). The black tick-marks represent the positions of the Bragg reflections.

²⁷Al MAS NMR spectroscopy

Different regions of a ²⁷Al MAS NMR spectrum of the above structurally characterized KAlH₄ sample are depicted in Fig. 2. The bottom trace shows the centreband region with an almost symmetrical line at 106.9 ppm. This position of the resonance line agrees with those reported in the previous studies of KAlH₄^24,27,31 and fits into the range generally obtained for isolated [AlH₄]⁻ units in alkali aluminium hydrides.³⁶ The linewidth of about 190 Hz (full width at half height, FWHH) is comparable with that measured for the isostructural orthorhombic CsAlH₄ under the same experimental conditions.³² It should be noted that spinning the sample at about 3 kHz results in the best spectral resolution. A further increase in the spinning speed leads to a significant broadening and a high-field shift of the centreband. This effect can easily be explained by a non-uniform increase in temperature over the length of the sample brought about by frictional heating.^37,38 At ν_MAS = 8 kHz, a centreband with a width of about 230 Hz is observed at 106.8 ppm. Although no indication of crystalline by-products was found in the XRD powder pattern of the sample after the treatment with tetrahydrofurane, a close inspection of the spectrum in Fig. 2 reveals the presence of traces of both NaAlH₄ and Na₃AlH₆ (see ESI,† Fig. S1).

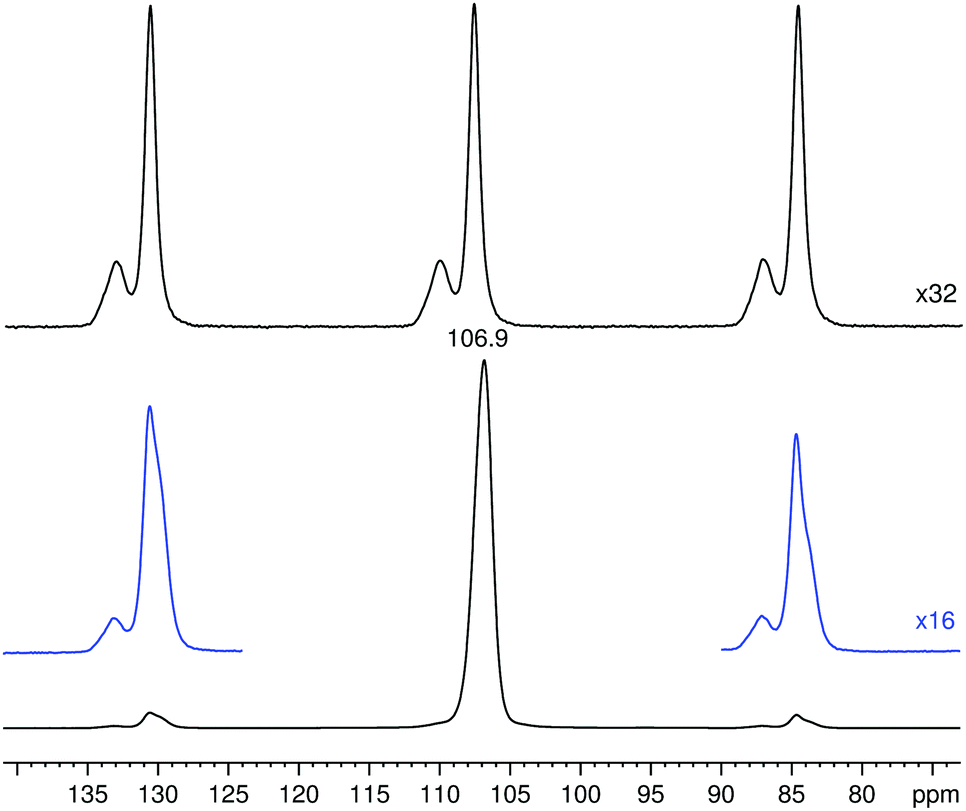

Fig. 2 ²⁷Al MAS NMR spectrum of KAlH₄ measured at the rather low spinning frequency ν_MAS = 3 kHz (bottom trace). The top trace depicts the enlarged spinning sidebands +3 to +5 shifted by −4ν_MAS. The two blue inserts show the enlarged first (±1) spinning sidebands.

Since ²⁷Al is a nucleus with a spin , the NMR spectrum consists not only of the central transition , but comprises also the pair of inner satellite transitions and and the pair of outer satellite transitions and .^39,40 These pairs of satellite transitions are symmetric, i.e., the lineshape of a satellite transition (−m ↔ −m + 1) is a mirror image of the lineshape of the transition (m − 1 ↔ m). The quadrupole interaction does not only cause several, usually broad, resonance lines per nucleus, but also shifts the positions of the resonance lines with respect to those given by the Larmor equation. This additional shift of the resonance lines occurs with and without sample spinning. Hence, as distinct from the case of nuclei with , the position of the centreband is not identical with the isotropic chemical shift δ_iso. Instead, the position of the centre of gravity of the resonance line δ_cg of the (m − 1 ↔ m) transition of a quadrupolar nucleus differs from δ_iso by the so-called quadrupole-induced shift δ_qis(m):

δ_cg(m) = δ_iso + δ_qis(m). (1)

The quadrupole-induced shift δ_qis(m) depends on the spin quantum numbers I and m, the quadrupole coupling constant C_Q and the asymmetry parameter η of the nucleus under study and the magnetic field at which the spectrum is measured.⁴¹ The quadrupole coupling constant is defined aswhere eq = V_zz is the zz-component of the electric-field gradient tensor, e is the elementary charge, and Q is the quadrupole moment of the nucleus.⁴² With the usual convention for the principal tensor components, |V_zz| ≥ |V_yy| ≥ |V_xx|, the asymmetry parameter is definded asAs shown by Samoson,⁴¹ the quadrupole-induced shift of a transition (m − 1 ↔ m) of a nucleus with spin I can be calculated by the following formula:Here, ν_L is the Larmor frequency divided by 2π.

Although the effects of the quadrupole interaction on shape and position of NMR lines are well known to experts in the field, line positions observed in NMR spectra of quadupolar nuclei are very often erroneously reported as chemical shifts. For the central transition, the quadrupole-induced shift is always negative, i.e., the resonance line is shifted to higher field. By determining δ_cg(m) for two different values of m, the isotropic chemical shift δ_iso can be experimentally obtained in a reliable way. In particular, for a nucleus with the quadrupole-induced shift of the inner satellite transitions is given by .⁴¹ Hence, the isotropic chemical shift can easily be calculated from the following relation:

If the quadrupole coupling is small, δ_iso is very close to the centre of gravity of the inner satellite transitions.

For the sample under study, the centreband and the first spinning sidebands (enlarged in the blue insets above the bottom trace of Fig. 2) obviously contain contributions of both the central transition and the satellite transitions. The top trace of Fig. 2 shows the third to fifth spinning sidebands of the same spectrum. These spinning sidebands contain only the well-resolved contributions of the inner and outer satellite transitions. The width of the symmetric spinning sidebands of the inner satellites is about 115 Hz (FWHH). From the positions of the spinning sidebands +5 to +3 and −3 to −5, we obtain . With we arrive at δ_iso = (107.6 ± 0.2) ppm at T = 295 K. The margin of error given is a rather conservative estimate, taking into account possible errors in the calibration with the external standard and the above mentioned effect of a temperature increase by frictional heating under MAS.

The well-resolved MAS NMR spectrum in Fig. 2 does not only allow the correct isotropic chemical shift to be determined, but also the strength of the quadrupole coupling to be estimated. The splitting between the maxima of the spinning sidebands of the two pairs of satellite transitions amounts to (2.3 ± 0.1) ppm. Eqn (1) implies that the splitting is caused by the difference in the quadrupole-induced shifts. Eqn (4) shows that for this difference is given by

Hence, the splitting observed in the spinning sidebands is directly related to the two parameters describing the quadrupole interaction: the quadrupole coupling constant C_Q and the asymmetry parameter η. The quantityis referred to as quadrupolar interaction product⁴³ or second-order quadrupole effect (SOQE).^44,45 Since eqn (6) yields a value of about 1.39 MHz for P, the quadrupole coupling constant for the aluminium atom in KAlH₄ must lie somewhere in the range of 1.20 MHz (if η = 1) to 1.39 MHz (if η = 0). Alternatively, the value of P could be determined from the difference . However, this difference is only one third of that given in eqn (6). Provided that the spinning sidebands of the outer satellite transitions are well resolved, calculations based on eqn (6) are more precise.

We can even go one step further. At sufficiently low spinning speeds, the envelope of the spinning sidebands agrees with the lineshape one would obtain for a stationary sample. The total spread of the resonance line caused by a pair of satellite transitions (Δν_TS(m)) depends on the quadrupole coupling constant C_Q, but is independent of the asymmetry parameter η.⁴⁶ Hence, the range over which the spinning sidebands can be observed yields a rather good estimate for C_Q. If the range over which sidebands are actually detected is limited by the finite bandwidth of the probe, the excitation or the receiver, spectra with various frequency offsets can be taken to overcome these limitations. For the ²⁷Al nucleus (), the relation between Δν_TS(m) and C_Q reads as^39,46

²⁷Al MAS NMR spectra of KAlH₄ measured at different spinning frequencies are summarized in Fig. 3. The spectrum in the middle shows the same spectrum as Fig. 2, but now in a wide range of 6700 ppm corresponding to about 0.87 MHz. The two sets of spinning sidebands caused by the inner and outer satellite transitions can easily be discerned. In the spectrum measured at the lowest spinning frequency (top trace in Fig. 3), the sidebands of the inner satellites spread from 1620 ppm to −1410 ppm () and those of the outer satellites from 3130 ppm to −2920 ppm (). Since the range of the spinning sidebands of the outer satellite is about twice as wide as the range of the inner satellite, we can exclude detection problems caused by a limited bandwidth. With the estimate for , eqn (8) yields a value for the quadrupole coupling constant of C_Q ≈ 1.32 MHz. This result falls into the range derived above from the splitting of the spinning sidebands of the satellite transitions. From this value for C_Q and the above determined value for the quadrupolar interaction product P, we obtain a first estimate for the asymmetry parameter: η ≈ 0.6. The non-vanishing asymmetry parameter corresponds to the fact that the aluminium atoms are located in Wyckoff position 4c in Pnma KAlH₄. There is no C_n axis with n ≥ 3 going through this position.

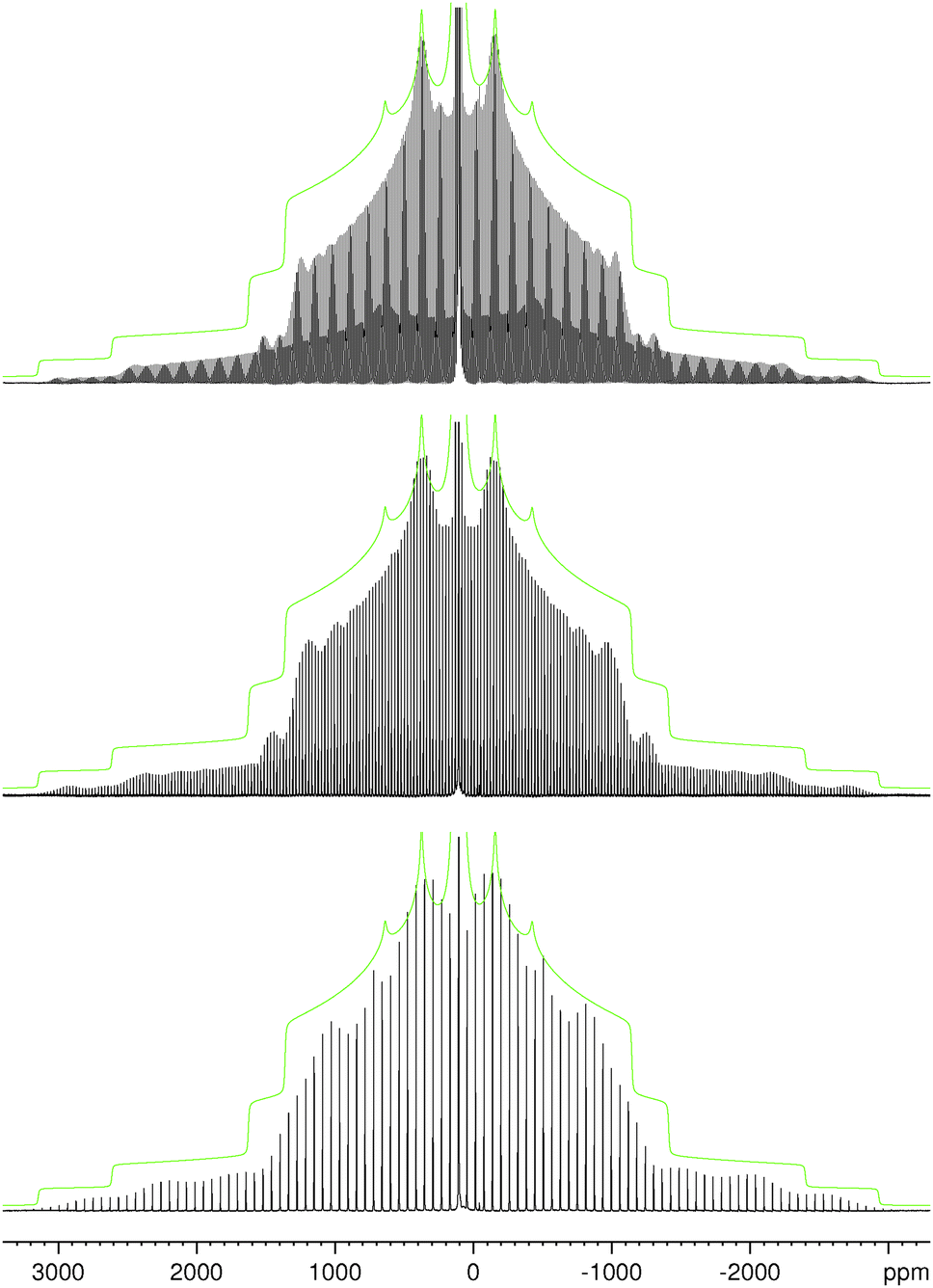

Fig. 3 ²⁷Al MAS NMR spectra of KAlH₄ measured at different spinning frequencies ν_MAS: 1.4 kHz (top), 3.0 kHz (middle) and 8.0 kHz (bottom). The intense lines of the central transition are cut off above the maxima of the inner satellite transitions, i.e., at about 2 to 7% of their maximum height. The green lines depict the lineshape one would obtain for a non-spinning sample. For the simulation the parameters δ_iso = 107.6 ppm, C_Q = 1.32 MHz and η = 0.65 were used.

A more precise estimate of the asymmetry parameter can be obtained when the ratio between the splitting of the maxima of the inner satellite transition () and the total spread of this transition () is used. From the definition of η (eqn (3)) and the fact that the field gradient tensor is traceless, it follows that for any transition m the asymmetry parameter is related to the characteristic points of the first-order quadrupole lineshape by the following equation:

The spectrum measured at ν_MAS = 1.4 kHz (top trace in Fig. 3) yields . With the above derived value for we obtain η ≈ 0.65. This value of the asymmetry parameter and the above derived one for the quadrupole coupling constant have been used to simulate the lineshape of the satellite transitions one would obtain for a non-spinning sample (cf.Fig. 3).

Fig. 3 shows that spinning at 1.4 kHz is still too fast to avoid significant deviations of the envelope of the sideband pattern from the lineshape of the stationary sample. Almost three decades ago, Jakobsen and co-workers have demonstrated that these characteristic intensity modulations of the spinning sidebands of the satellite transitions can be used to determine the values of the parameters C_Q and η with high accuracy.^44,45 Nowadays, the software to perform this kind of lineshape simulations comes with the spectrometer. Using the above derived values for the parameters δ_iso, C_Q and η as starting values for the fit, only a few iteration cycles are necessary to reach a nice agreement between experiment and simulation, as shown in Fig. 4. The reduced intensities in the outer wings of the experimental sideband pattern are mainly caused by the limited excitation width of the rf pulses used. The quality of the fit can better be judged from the enlarged version of Fig. 4 given as Fig. S2 in the ESI.†

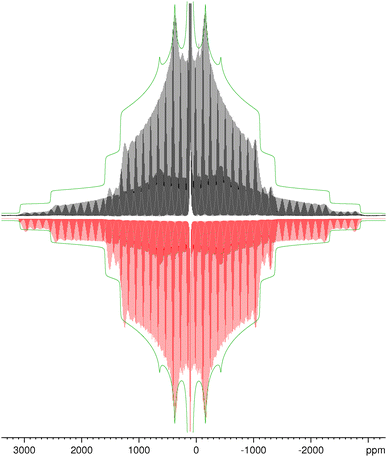

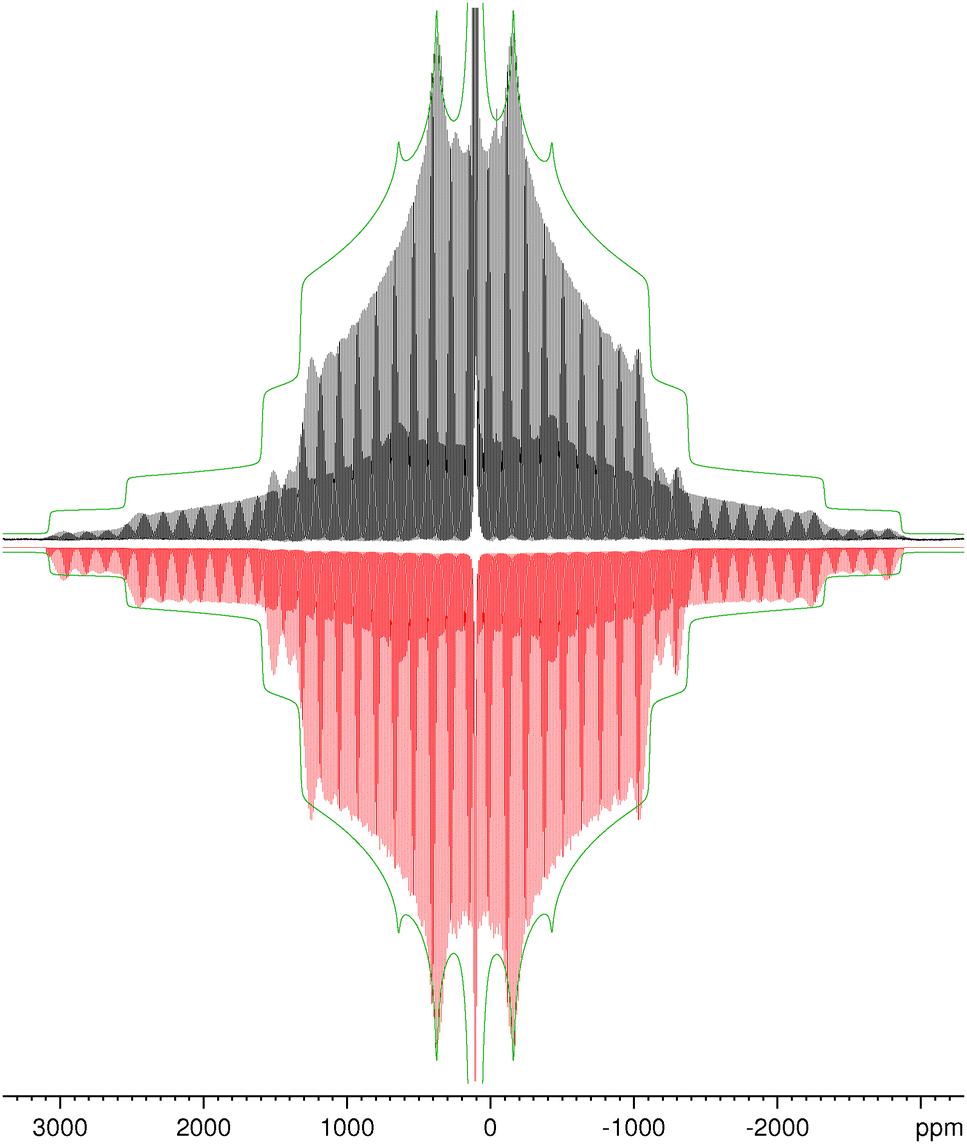

Fig. 4 Experimental ²⁷Al MAS NMR spectrum of KAlH₄ measured at ν_MAS = 1.4 kHz (black) and its simulation (red) with the parameters δ_iso = 107.6 ppm, C_Q = 1.29 MHz and η = 0.64. To ease the comparison, the simulated MAS NMR spectrum has been inverted. Again, the green lines depict the lineshape one would obtain for a non-spinning sample.

By varying the simulation parameters and carefully comparing the simulated with the experimental spectrum we finally derived the following values for the parameters describing the quadrupole interaction: C_Q = (1.29 ± 0.02) MHz and η = 0.64 ± 0.02. A comparison between experiment and simulation for ν_MAS = 3.0 kHz (Fig. S3) and a complete list of the parameters used for the simulation of the sideband patterns (Table S1) can be found in the ESI.†

From the strength of the quadrupole coupling found for ²⁷Al in KAlH₄, it is apparent why the centreband of the central transition in Fig. 2 does not show any indication of second-order quadrupolar broadening. The mathematical expressions for the characteristic features of the lineshape for a quadrupolar nucleus with a half-integer spin I under MAS conditions were derived decades ago. With the expressions given by Freude and Haase⁴² for the minimum and maximum frequencies, the total width of the MAS centreband of the central transition is obtained as

For and the above determined values of C_Q and η, eqn (10) yields . The total broadening caused by second-order quadrupole interaction exceeds the experimental FWHH of the centreband of the central transition by only a few Hertz. Other broadening mechanisms such as the homonuclear dipole–dipole interaction or the line broadening caused by structural defects mask the effect of second-order quadrupole interaction.

The two-dimensional one pulse (TOP) presentation of 1D MAS NMR spectra⁴⁷ can offer an alternative convenient way to extract the relevant parameters for half-integer quadrupolar nuclei. We have added such a presentation of an experimental spectrum shown in Fig. 3 as Fig. S4 to the ESI.† The line positions of the central transition and the satellite transitions can be read out directly from this plot. The lack of any significant second-order quadrupolar broadening is obvious.

Provided that neither other broadening mechanisms nor the presence of by-products obscure the characteristic features of the quadrupolar lineshape, the parameters describing the quadrupole interaction can alternatively be derived from spectra measured without spinning the sample under the magic angle. Because of the width of these spectra, corresponding to a very fast decay of the NMR signal, the spectra of stationary samples have to be measured with an appropriate echo technique to overcome the inevitable dead time problems after a strong radio pulse. For molecular aluminophosphate compounds containing aluminium nuclei with quadrupole coupling constants slightly larger than the one observed here, the Solomon echo sequence⁴⁸ has successfully been applied as an alternative approach for the determination of C_Q and η.⁴⁹

The values determined for C_Q and η in the present paper do not agree with any of the pairs of quadrupole coupling parameters determined by Tarasov et al.²⁷ for the three different sites they found (C_Q in MHz/η: 0.58/0.1, 2.07/0.0, 2.8/0.05). The authors inferred the presence of these different sites with different quadrupole couplings from a pattern of very weak resonance lines on both sides of the strong central line of KAlH₄. On the other hand, the authors mention the presence of a by-product giving rise to a broad line in the ²⁷Al NMR spectrum. Unfortunately, no diffraction data are reported. Based on chemical analysis, the authors state a phase purity of no more than 95–97%. Hence, we refrain from speculating about the origin of this obvious disagreement with our data.

Sorte et al.³¹ reported first-order quadrupole patterns “from both MAS and quadrupole echoes, with no sharp singularities.” The lack of well-defined lineshapes is obviously due to the rather questionable quality of the KAlH₄ sample used. It should be noted that the NMR measurements were performed on the unannealed material, i.e., not on the material whose XRD pattern is given in the paper. Apart from the obvious presence of a significant amount of metallic aluminium, the authors mention several reflections in the XRD pattern of the unannealed material that do not correspond to Pnma KAlH₄ and assign them to unknown impurities or to other crystal phases of KAlH₄.³¹ With these characteristics of the material it is debatable as to which extent the experimental results obtained mirror intrinsic properties of KAlH₄ and not the peculiarities of the sample measured.

Ares et al.²⁴ reported rather well resolved ²⁷Al MAS NMR spectra for KAlH₄ samples synthesized via direct hydrogenation under mechanochemical conditions with and without the presence of different metal chlorides. To further compare our material with those used in this recent study, we measured ¹H MAS NMR spectra at different spinning frequencies (cf. Fig. S5 in the ESI†). The ¹H resonance line of KAlH₄ at about 3 ppm (FWHH ≈ 1.3 kHz at ν_MAS = 8 kHz) is very similar to those reported by Ares et al.,²⁴ except that our spectra do not show any indication of the presence of KH. Their ²⁷Al MAS NMR spectra are also very similar to those we recorded for samples directly after the salt metathesis, i.e., prior to the recrystallisation procedure described above. We believe that the lack of sharp features in the first-order quadrupolar spinning-sideband patterns noticed by the authors²⁴ is typical of materials produced by ball milling since they usually consist of very small particles with a large number of defects. In particular, the presence of strong spinning sidebands of the central transition masks the minimum in the envelope of the spinning sidebands of the inner satellite transition in the centre of the line. This leads to the erroneous assumption of a small or even vanishing asymmetry parameter. Furthermore, we have never achieved a sufficient resolution of the sidebands of the outer and inner satellite transition for samples obtained directly from ball milling. The attempt undertaken by Ares et al.²⁴ to fit the sideband envelope by using the parameters reported by Tarasov et al.²⁷ was bound to fail. Hence, we are left without any ²⁷Al NMR study on KAlH₄ we can compare our results with.

For the much better studied NaAlH₄, which crystallises in the tetragonal space group I4₁/a,⁹ a significantly stronger quadrupole coupling has been found (C_Q = 3.15 MHz¹⁵). Since the Al atoms in NaAlH₄ are located in Wyckoff position 4b, i.e., on a C₄ axis, the asymmetry parameter is zero. For the monoclinic LiAlH₄ (space group P2₁/c⁵⁰) an even stronger quadrupole coupling (C_Q = 3.90 MHz^51,52) has been reported. The asymmetry parameter for LiAlH₄ has been determined as 0.30⁵¹ or 0.24.⁵² For both the orthorhombic and the tetragonal phases of CsAlH₄, centrebands of the ²⁷Al central transition have been observed³² that are almost as narrow and without any indication of second-order quadrupole interaction as the centrebands obtained here for KAlH₄. Hence, we estimate that the strength of the quadrupole coupling for both modifications of CsAlH₄ is similar to that of KAlH₄.

³⁹K MAS NMR spectroscopy

Because of the relatively low gyromagnetic ratio of the ³⁹K isotope (natural abundance: 93.3%, ), the intensity of the resonance line is much weaker than in the case of the same number ²⁷Al nuclei at the same field. Furthermore, quadrupole coupling constants of up to 3.2 MHz have been found for the cation in simple potassium salts.⁵³ For a quadrupole coupling of this strength leads to much wider resonance lines than in the case of . As can be seen in eqn (10), the total width of the central transition due to second-order quadrupole interaction scales with the factor . However, with the sensitivity of modern NMR spectrometers operating at sufficiently high magnetic fields the detection of ³⁹K NMR lines for solids is usually no serious problem, provided that the samples are well defined.

A ³⁹K MAS NMR spectrum of our KAlH₄ sample is shown in Fig. 5. The shape of the centreband of the central transition is clearly governed by second-order quadrupole interaction. The spectrum exhibits the discontinuities characteristic of this type of interaction. The overall lineshape indicates a non-vanishing asymmetry parameter.³⁹ Since the potassium cation sits in Wyckoff position 4c in Pnma KAlH₄,²⁹ this finding is not surprising. The total spread of the resonance line is about 920 Hz. Assuming an asymmetry parameter of 0.8, eqn (10) yields an estimate for the quadrupole coupling constant: C_Q ≈ 0.5 MHz. These values were used as starting values for an iterative simulation of the lineshape. As Fig. 5 shows, the simulation does not only reproduce the characteristic features of the centreband of the central transition, but identifies the spectral intensity on the low-field side of this line as the much weaker centreband of the satellite transitions and . There is no indication of the presence of any potassium-containing by-product. By comparing simulated and experimental spectra measured at different spinning speeds we derived the following parameters: δ_iso = (6.1 ± 0.2) ppm, C_Q = (0.562 ± 0.005) MHz and η = 0.74 ± 0.02.

Fig. 5 Experimental ³⁹K MAS NMR spectrum of KAlH₄ measured at ν_MAS = 6 kHz (black). The inset shows the region of the centreband of the satellite transitions enlarged by a factor of four. The red lines depict the theoretical lineshapes of the centrebands of both the central transition and the satellite transitions simulated with the parameters δ_iso = 6.1 ppm, C_Q = 0.562 MHz and η = 0.74.

At first glance, there is a large discrepancy between our data and those reported by Tarasov et al.: δ_iso = (−49 ± 5) ppm, C_Q = (1.12 ± 0.07) MHz and η = (0.83 ± 0.05).²⁷ However, this discrepancy can easily be resolved. Tarasov et al.²⁷ used a procedure outlined by Granger⁵⁴ to extract the parameters of the quadrupole interaction from their spectrum measured for a stationary sample. Unfortunately, they overlooked an obvious typo in the original paper. The correct equation for C_Q should read

with a = 144Δν_TS/(25 + 22η + η²). For , using a factor (2I + 1) instead of the correct (2I − 1) accounts for a factor of two for the quadrupole coupling constant. Hence, our data for the quadrupole coupling actually agree very nicely with those found by Tarasov et al.²⁷Eqn (11) follows directly from the mathematical expressions found for the minimum and maximum frequencies of the central transition for a half-integer nucleus that is subjected to second-order quadrupole interaction.⁴² In analogy to eqn (10) for a sample under MAS conditions, the total spread of the resonance line for a stationary sample is given by:The discrepancy concerning the chemical shift data can be explained even more easily. What Tarasov et al.²⁷ refer to as isotropic chemical shift is not δ_iso, but the shift of the centre of gravity of the resonance line caused by second-order quadrupole interaction, i.e., the quadrupole-induced shift δ_qis. From eqn (4) it follows that for this shift is given byWith our above determined parameters of the quadrupole coupling, eqn (13) yields a value of −47.7 ppm for δ_qis at the Larmor frequency of ν_L = 14.0 MHz used by Tarasov et al.²⁷ Hence, our data agree very well with those of the earlier study.

In the more recent paper by Sorte et al.,³¹ a ³⁹K NMR line at −10.9 ppm with FWHH = 800 Hz and a total spread of about 3 kHz is reported for a stationary sample. Under the same experimental conditions, Tarasov et al.²⁷ observed a resonance line with a splitting of 614 Hz and a total spread . According to eqn (12), one would expect a total spread of the resonance line of about 4.92 kHz from the above determined parameters. Hence, we have to conclude that the ³⁹K NMR line reported by Sorte et al.³¹ is not caused by the potassium ions in Pnma KAlH₄.

Conclusions

We have shown that potassium aluminium tetrahydride KAlH₄ of high phase purity can easily be synthesized via a mechanochemical route. The thus obtained material crystallises in space group Pnma (62). We believe that a sufficient quality of the hydride sample is not only important for obtaining a convincing resolution in the MAS NMR spectra, but will be of paramount importance in future studies of dynamical properties and the decomposition process.

Using a well-established procedure and spectral simulation we have derived precise data for the isotropic chemical shift and the quadrupole coupling for both nuclei studied. Apart from the quadrupole coupling data for ²⁷Al, the results agree fairly well with those of an earlier study by Tarasov et al.²⁷

Provided that samples of sufficient crystallinity and phase purity are used, the approach applied in the present paper should also work for other alkali aluminium hydrides and, more generally, for many other materials containing half-integer nuclei experiencing small to medium-sized quadrupole couplings.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We are very much indebted to Dr Thomas Bernert for measuring and evaluating the X-ray data. Open Access funding provided by the Max Planck Society.
