Thermally stable resistive switching of a polyvinyl alcohol-based atomic switch

Karthik Krishnan *ab, Masakazu Aono a and Tohru Tsuruoka *a
aInternational Center for Materials Nanoarchitectonics (WPI-MANA), National Institute for Materials Science, 1-1 Namiki, Tsukuba 305-0044, Japan. E-mail: TSURUOKA.Tohru@nims.go.jp
bCouncil of Scientific and Industrial Research, Central Electrochemical Research Institute, Karaikudi 630-003, India. E-mail: karthikk@cecri.res.in

Received 17th April 2018 , Accepted 29th May 2018

First published on 29th May 2018


Abstract

We demonstrate thermally stable resistive switching of a solid polymer electrolyte (SPE)-based atomic switch device, in which a Ag salt incorporated polyvinyl alcohol (PVA) film is sandwiched between Ag and Pt electrodes. The observed switching is attributed to the formation and dissolution of a Ag filament in the PVA matrix. The device exhibits good endurance characteristics, with large ON/OFF ratios (>105) in the temperature range between 25 and 70 °C. This temperature stability can be explained by competition between increased segmental mobility and water evaporation at higher temperatures. The results indicate that the thermal behavior of the polymer matrix plays a crucial role in determining the temperature window for stable operation of SPE-based atomic switches.


Introduction

Owing to a variety of advantages such as good film forming ability, easy scalability, high adhesiveness on various substrates, and low fabrication costs, polymer materials are considered to be essential candidates to revolutionize not only the field of energy conversion and storage, but also the field of memory, logic, and neuromorphic device applications.1–6 Redox-based resistive switching in a metal–insulator–metal (MIM) structure, in which a solid polymer electrolyte (SPE) film is sandwiched between an electrochemically active metal electrode (Ag or Cu) and an inert metal electrode (Pt or Au), is a promising approach for the development of next-generation organic memory devices.7 In SPE-based memory devices, the observed resistive switching has mostly been explained by the redox-induced formation and rupture of conducting filaments in the polymer matrix.8,9 The application of forward bias (relative to the electrochemically active electrode) induces oxidation of metal atoms at the active electrode, and the oxidized ions transport toward the inert electrode. Then, precipitation of metal atoms on the inert electrode takes place and its growth to the active electrode forms a metal filament between the electrodes. Subsequent reverse bias disconnects the filament by the opposite redox reactions at the thinnest part. Thus, by sweeping bias voltage, the device resistance switches between a high-resistance (OFF) state and a low-resistance (ON) state. From the similarity of its operating mechanism to the “gap-type atomic switch,” whose resistance across a nanometer gap between a mixed conductor electrode and an inert electrode is switched between OFF and ON states under bias sweeping,10 the SPE-based, MIM-structured device is referred to as a “gapless-type atomic switch”.11

In recent years, we have demonstrated resistive switching operations in a MIM-structured device using a Ag salt incorporated polyethylene oxide (Ag-PEO) as the SPE. PEO is a highly crystalline polymer that possesses high ionic conductivity at room temperature, which is well above the glass transition temperature Tg. The device showed not only nonvolatile resistive switching behaviour but also conductance quantization under bias sweeping.12,13 The filament morphology was found to be determined by the redox rates at the metal/SPE interfaces and by ion mobility in the PEO matrix.14 However, when the substrate temperature was increased from 25 to 75 °C, the operation voltages significantly decreased in magnitude and the switching behaviour changed from nonvolatile to volatile.15 This can be explained by the increased conductivity of Ag ions in the amorphous PEO-salt complex region of the polymer matrix at elevated temperatures. The results suggest that the stability in device performance seems to be determined by the intrinsic thermal property of the polymer matrix. However, to date, few reports are available on the impact of the thermal properties of the polymer matrix on the resistive switching characteristics of polymer-based memory devices. Recently, Zhang et al. reported thermally stable resistive switching, using poly(triphenylamine), based on the formation of cationic conducting filamentary pathways.16

Here, we report thermally stable resistive switching operations in polyvinyl alcohol (PVA)-based atomic switches. PVA is a hydrophilic linear polymer with excellent thermal and mechanical stability and is widely reported to facilitate the enhancement of ion conducting properties for various applications.17–22 Due to the strong interaction between polymer chains and water molecules, PVA showed higher conductivity even at temperatures lower than Tg.23,24 Here, we report resistive switching behaviour of a Ag/Ag-salt included PVA (Ag-PVA)/Pt device in a wide temperature widow ranging from 25 to 70 °C.

Experimental

MIM-structured Ag/Ag-PVA/Pt devices were fabricated on Si substrates covered with 300 nm thick SiO2, in which a spin-coated Ag-PVA film with a salt concentration of 3 wt% is sandwiched between electron-beam (EB) deposited Ag and Pt electrodes, as illustrated schematically in the inset of Fig. 1a. By optimizing the spin coating conditions, a uniform Ag-PVA film with a thickness of ∼100 nm was formed on the Pt electrode. The device had a cross-point structure with a junction area of 5 × 5 μm2. Current–voltage (IV) measurements were performed in atmosphere using a two-probe system equipped with a heater stage and a semiconductor characterization system. The substrate temperature was varied between 25 and 70 °C. The thermal behaviour of the Ag-PVA electrolyte was evaluated by means of differential scanning calorimetry (DSC) and thermal gravity (TG) analysis. Details of the device fabrication and the experimental methods employed are provided in the ESI.
image file: c8tc01809j-f1.tif
Fig. 1 (a) Forming characteristics of a Ag/Ag-PVA/Pt device, measured for substrate temperatures ranging from 25 to 70 °C. The inset illustrates the fabricated device. (b) The forming voltage and subsequent RESET voltage plotted as a function of the substrate temperature, evaluated from the IV data of 4–7 devices at each temperature.

Results and discussion

Fig. 1a shows the typical IV curves measured at the first sweep cycle for different substrate temperatures. The bias voltage was swept relative to the Ag electrode with a constant sweep rate of 7.2 mV s−1, while the Pt electrode was grounded. For all the measured temperatures, the device exhibited a SET operation from the pristine OFF state to the ON state under forward bias and a RESET operation from the ON state to the OFF state under reverse bias, showing bipolar resistive switching behaviour. This first SET operation corresponds to the first formation of a metal filament between the Ag and Pt electrodes. This is referred to as the forming process. Fig. 1b plots the forming voltage and the subsequent RESET voltage, evaluated from the IV data of 4–7 devices at each temperature. As the substrate temperature was increased from 25 °C, the forming voltage (the voltage of the first SET operation) initially increased from ∼1.4 V to ∼2 V up to 50 °C, and then decreased to ∼1.1 V at 70 °C. The RESET voltage seemed to increase slightly in magnitude with the increase of substrate temperature, but it is difficult to determine any clear tendency.

After the forming process, the Ag/Ag-PVA/Pt device exhibited repeatable resistive switching behaviour in the temperature range observed. Fig. 2a and b represent the typical IV curves for 102 consecutive sweep cycles, measured with the same sweep rate at 25 and 70 °C, respectively. Although the SET and RESET voltages fluctuated somewhat, the device exhibited stable switching behaviour at both substrate temperatures, as indicated by the black (first sweep) and red (102th sweep) curves. Fig. 3a plots the SET and RESET voltages as a function of the substrate temperature, evaluated from the IV data for selected temperatures (25, 40, and 70 °C). The SET and RESET voltages were approximately 0.27 and −0.13 V at 25 °C, respectively. As the substrate temperature increased, the SET voltage rose to ∼0.5 V up to 40 °C and then increased gradually to ∼0.6 V at 70 °C. The magnitude of the RESET voltage decreased from −0.13 V (at 25 °C) to −0.03 V (at 70 °C). The SET voltages were much smaller than the forming voltages. At the first sweep cycle, more Ag ions are required for the formation of a metal filament, giving rise to a large forming voltage. After the second sweep cycle, most parts of the filament remained in the polymer matrix, and the formation and dissolution take place in a small gap of the filament, resulting in smaller SET voltages. This situation has already been reported for planar Ag/Ag-PEO/Pt devices14 and was also confirmed for planar Ag/Ag-PVA/Pt devices (not shown here).


image file: c8tc01809j-f2.tif

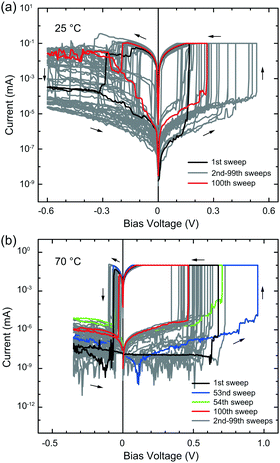

Fig. 2 Resistive switching characteristics of a Ag/Ag-PVA/Pt device, measured at 25 (a) and 70 °C (b) with a constant sweep rate of 7.2 mV s−1 and ICC of 100 μA for 102 continuous sweep cycles.

image file: c8tc01809j-f3.tif
Fig. 3 SET/RESET voltages (a) and ON/OFF resistances (b) plotted as a function of the substrate temperature.

The corresponding temperature variation of the ON and OFF resistances is shown in Fig. 3b. The ON resistance was kept on the order of 103 Ω. This means that the size of the formed metal filament is similar for the temperature range observed. In contrast, the OFF resistance remained on the order of 105 Ω up to 40 °C and then increased to ∼109 Ω at 70 °C, which suggests a drastic decrease in the conductivity of the OFF state at higher temperatures. It was found that the ON states (with ∼103 Ω) can be retained for at least more than 1 h, while the OFF states show longer retention times (i.e. on the order of days).

Note that if a pure PVA film is used as the electrolyte matrix, the forming and subsequent resistive switching are not observed, despite the existence of the electrochemically active Ag electrode. Only when Ag salt is incorporated into the PVA matrix can one see repeatable resistive switching. This result means that both the Ag ions dissolved in the PVA matrix and oxidized from the Ag electrode participate in the formation of a metal filament, which is similar to what occurs in a Ag/Ag-PEO/Pt device.8,14

Fig. 4a and b plot the SET/RESET voltages and the corresponding ON/OFF resistances at 70 °C as a function of the sweep (switching) cycle, respectively, extracted from the IV curves of Fig. 2b. The SET voltages are distributed mostly between 0.3 and 0.7 V, while the RESET voltages range from −0.1 to −0.02 V. The corresponding ON and OFF resistances were on the order of 103 and 109 Ω, respectively, up to ∼50th sweep cycle, resulting in an ON/OFF resistance ratio of ∼106. After ∼60th sweep cycle, the OFF resistance decreased slightly, with some fluctuation, but the ON resistance remained on the order of ∼103 Ω. As a result, the ON/OFF resistance ratio was greater than 105 even at the 102th switching cycle.


image file: c8tc01809j-f4.tif
Fig. 4 Example of the endurance characteristics of a Ag/Ag-PVA/Pt device, measured at 70 °C. SET/RESET voltages (a) and ON/OFF resistances (b), plotted as a function of the switching (sweep) cycle.

The current minima in the IV curves measured at 70 °C are significantly distributed over the cycle-to-cycle, as seen in Fig. 2b. This current minimum in the logarithmic scale corresponds to a zero-crossing point in a linear scale, at which the corresponding voltage is associated with electric polarization and an open-circuit voltage.25,26 In our device, electric polarization is generated by redox reactions at the metal/PVA interfaces and charge distributions in the PVA matrix, resulting in charge accumulation of cations and anions in the opposite electrode interfaces. We also see that electric polarization dynamically changes during switching cycles. For example, at the 53rd sweep cycle, the device was turned on with a large SET voltage, as shown by the blue curve in Fig. 2b and by the arrow in Fig. 4a. After the subsequent RESET operation, electric polarization almost disappeared at the next (54th) sweep cycle, but the OFF current increased (OFF resistance decreased) by about one order of magnitude, as shown by the green curve in Fig. 2b. We can see that the SET/RESET voltages and the OFF resistance fluctuate in several sweep cycles around the 53rd cycle, as indicated by the dotted circles in Fig. 4a and b. After that, the OFF resistance continued to fluctuate up to the 102th cycle. This result indicates that control of charge distribution in the polymer matrix is critically important in achieving stable switching behaviour.

To reveal the origin of the stable switching at higher temperatures, the thermal properties of the Ag-PVA electrolyte were investigated by DSC/TG analysis. Fig. 5 shows a typical DSC and TG curves measured for a thick Ag-PVA film with the same Ag salt concentration. They were obtained at the first scan with the same heating rate, in nitrogen atmosphere. Three characteristic features appeared in the DSC curve. First, a baseline shift appears at around 40 °C, in which a cross point between tangents on the lower temperature side and on the slope corresponds to Tg of the amorphous region. From the obtained curve, Tg of the Ag-PVA electrolyte is estimated to be 37.5 °C. Second, a large endotherm peak is observed at around 199 °C, which corresponds to the melting point Tm of the crystalline region. The observed Tg and Tm are lower than those of pure (and dry) PVA (80 and 227 °C, respectively).27 These lowered values are due to the plasticizing effect of the Ag salt and water incorporated in the PVA matrix. Finally, an additional broad endotherm is observed at around 125 °C. If the DSC curve was re-measured immediately after the curve of Fig. 5 in nitrogen atmosphere (corresponding to the second scan), this endotherm disappeared and Tg increased to 73.2 °C, as shown in Fig. S1 of ESI. However, if the film was left in air, the endotherm developed again and Tg was lowered to below 40 °C. Thus, this third endotherm is attributed to evaporation of water from the PVA matrix.28,29 Similar behaviour was also observed in other polymer materials such as polyvinyl pyrrolidone.30


image file: c8tc01809j-f5.tif
Fig. 5 DSC and TG curves measured for Ag-PVA electrolyte with a Ag salt concentration of 3 wt%.

From the DSC curve in Fig. 5, the degree of crystallinity of the Ag-PVA electrolyte is estimated to be 47%, which is much lower than that of the Ag-PEO electrolyte (78%) with the same Ag salt concentration.15 The TG curve indicates that water starts to evaporate from the Ag-PVA film above ∼50 °C, as evidenced by the observed weight loss.31 This thermal behaviour of the Ag-PVA electrolyte can explain the observed switching characteristics. Under ambient conditions, water absorption into the Ag-PVA film leads to the formation of hydrogen bonds between PVA hydroxyl groups and water molecules. Hence, water acts as a plasticizer by an increase of the free volume in the amorphous phase,32 and Tg is considerably lowered. As a result, the film changes from a glassy state to a rubbery state, which reduces the resistance of the film and increases ionic conductivity. Therefore, because of the increased ionic conductivity, the Ag/Ag-PVA/Pt device exhibits resistive switching behaviour even at 25 °C, which is well below Tg of pure (and dry) PVA. As the substrate temperature increases, molecular segmental mobility increases, further enhancing ionic conductivity. However, a portion of the absorbed water is evaporated from the PVA matrix, which decreases the interaction between hydroxyl groups and water molecules. This retards conductivity because of decreased free volume and thus increases the OFF resistance at higher temperatures, as observed experimentally (Fig. 2). Due to the competition between the increased segmental mobility and the decreased interaction between hydroxyl groups and water, stable SET voltages can be realized at higher temperatures. It is expected that the water evaporation should start from a lower temperature, because the Ag-PVA film of the device is much thinner than the film used for the DSC/TG analysis.

Compared with the SET voltage, the RESET voltage exhibited different temperature behaviour; it decreased in magnitude with increased substrate temperature. This behaviour can be explained by the temperature stability of the filament formed. Because the ON resistance is fixed by the current compliance function at approximately 103 Ω (Fig. 3b), the size of the filament is expected to be similar for all the temperatures. Under these circumstances, the filament can be dissolved by a smaller bias voltage at higher temperatures, resulting in the observed tendency of the RESET voltage.

We see that the temperature variation of the forming voltage (Fig. 1b) is somewhat different from that of the SET voltage (Fig. 3a). Up to 50 °C, both the forming and SET voltages increased with increased substrate temperature. However, above 50 °C, the forming voltage decreased while the SET voltage continued to increase slightly. The decrease of the forming voltage at higher temperatures may suggest a larger contribution of the segmental mobility to the forming process, although this cannot be stated categorically at this stage.

It is found that the IV curves in Fig. 2 show different polarization behaviours at two substrate temperatures; almost no electric polarization at 25 °C, but large electric polarization at 70 °C. This behaviour is likely to be related to the OFF resistance and to be explained by the thermal behaviour of the Ag-PVA film. At lower temperatures, the resistance of the film is lowered by the plasticizing effect of Ag salt and absorbed water. In these circumstances (low OFF resistances), the electric polarization almost vanishes, as seen in Fig. 2a. In contrast, at higher temperatures, water evaporation takes place, which causes a decrease in the conductivity of the Ag-PVA matrix, as discussed above. This leads to high OFF resistances and large electric polarization, as seen in Fig. 2b. Further investigation is needed to elucidate and control the mechanism that determines the electric polarization and the OFF resistance.

Finally, it is necessary to emphasize that the temperature behaviour in the resistive switching of the Ag/Ag-PVA/Pt device is completely different from that observed for the Ag/Ag-PEO/Pt device. In the Ag/Ag-PEO/Pt device, the SET and RESET voltages decrease in magnitude with increased temperatures, and the resistive switching changed to volatile behaviour at 70 °C.15 In contrast, the Ag/Ag-PVA/Pt device continued to exhibit nonvolatile switching under similar bias condition, even at 70 °C. The larger amorphous region and the stronger interaction between hydroxyl groups and water molecules in the Ag-PVA matrix contribute to the difference in device performance.

Conclusions

In summary, stable resistive switching operation for more than 102 continuous sweep cycles has been achieved in a temperature range of between 25 and 70 °C in a Ag/Ag-PVA/Pt atomic switch. The temperature stability seems to originate from competition between the increased segmental mobility and the decreased interaction between hydroxyl groups and water molecules, which is caused by water evaporation in the Ag-PVA matrix. The high-endurance bipolar switching with a large ON/OFF resistance ratio (∼106) indicates that the PVA-based atomic switch has the potential for use in high-temperature switch/memory applications. There is a possibility of extending the temperature window for stable operation by selecting a more appropriate polymer material. Our results indicate the importance of the thermal property of the polymer matrix in controlling the switching characteristics of SPE-based atomic switches.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported in part by a Grant-in-Aid for Scientific Research on Basic Research C (No. 17K05065).
