Light-induced degradation of fullerenes in organic solar cells: a case study on TQ1:PC₇₁BM

Abstract

The stability of organic solar cells (OSCs) is critical for practical applications of this emerging technology. Unfortunately, in spite of intensive investigations, the degradation mechanisms in OSCs have not been clearly understood yet. In this report, we employ a range of spectroscopic and transport measurements, coupled with drift-diffusion modelling, to investigate the light-induced degradation mechanisms of fullerene-based OSCs. We find that trap states formed in the fullerene phase under illumination play a critical role in the degradation of the open-circuit voltage (V_OC) in OSCs. Our results indicate that the degradation is intrinsic to the fullerenes in OSCs and that alternative acceptor materials are desired for the development of stable OSCs.

---

Introduction

Organic solar cells (OSCs) have attracted intensive attention during the past few decades. Very recently, the power conversion efficiency (PCE) of OSCs has reached a high value of above 14%,^1,2 making this technology commercially relevant. However, the stability of OSCs remains an issue for the practical applications of OSCs.

The degradation of OSCs can be caused by different factors, including moisture, oxygen,^3–6 heat,^7–10 and light.^11–14 Among these different factors, to enhance the stability of OSCs under light is critically important for OSCs, as OSCs are inevitably illuminated during the operation. Light exposure can affect the photovoltaic parameters of OSCs in different ways. For instance, in some material systems mainly the short-circuit current (J_SC) and fill factor (FF) were affected by light exposure,¹⁵ while in some other systems mainly the open-circuit voltage (V_OC) was affected.^16,17

Different mechanisms were found in light-induced degradation processes. For instance, new sub-band gap trap states were identified in polymer donor materials after exposure to light, and the light-induced new traps can broaden the density of states, decreasing the V_OC.^16,17 In addition, the ultraviolet (UV) region of the spectrum can trigger the photochemical reaction between the polymer donor materials and the fullerene, resulting in irreversible degradation of the active layer.¹⁸ For fullerene based OSCs, the fullerene can be dimerized when exposed to light in an inert atmosphere.^19–21 The dimerization of the fullerene could result in a significantly reduced carrier mobility or morphological changes of the active layer, leading to decreased J_SC and FF.^19–21

In this paper, we investigate the light-induced degradation mechanisms in a classical fullerene-based OSC blend solar cell, i.e. poly[2,3-bis-(3-octyloxyphenyl)quinoxaline-5,8-diyl-alt-thiophene-2,5-diyl] (TQ1):[6,6]-phenyl-C71-butyric acid methyl ester (PC₇₁BM) (as shown in Fig. 1a). We find that the V_OC significantly decreases during the light-induced degradation process in both conventional and inverted device structures. We attribute the decrease of V_OC to non-radiative recombination, as identified by highly sensitive Fourier Transform Photocurrent Spectroscopy (FTPS), electroluminescence (EL) and external quantum efficiency of EL (EQE_EL) measurements. We combine temperature-dependent charge transport measurements and Extended Gaussian Disorder Modelling (EGDM) and find that the Gaussian disorder width of the electron states increases during the photo-degradation, while that of the holes remains the same. Fourier transform infrared spectroscopy (FTIR) measurements reveal that the fullerenes are oxidized during the degradation process, resulting in electron traps. These different measurements present a consistent picture that the photo-induced oxidation of fullerenes plays a critical role in the degradation of this system, resulting in electron traps and additional non-radiative recombination, which decreases the V_OC.

Fig. 1 (a) The chemical structures of TQ1 and PC₇₁BM. (b) Evolution of normalized V_OC of the devices with a conventional structure in the dark (solid line) and under illumination (dash line) as functions of time.

Results and discussion

We employ a conventional device structure, where the active layer is sandwiched between ITO/PEDOT:PSS and LiF/Al. As shown in Fig. 1b, the V_OC of the device stored under illumination (without load) shows a significant decrease, while the one of the device stored in the dark stays constant. The V_OC degradation can be due to either the interlayers or the active layer.^22,23 In order to distinguish between the contribution from the interlayers and that from the active layer, we perform a control experiment on an inverted device, where the active layer is sandwiched between two different interlayers (ITO/ZnO and MoO_x/Al). Similar to that observed in the conventional structure, the V_OC in the inverted structure has also decreased upon light exposure for 72 h (Fig. S1d†). In terms of the J_SC and FF, their degradation behaviour is obviously affected by the device structures (and hence the interlayers) (Fig. S1 and S2†), meaning that the effects of the interlayers and active layer cannot be easily separated in this case.²³ The change in V_OC, on the other hand, is the parameter that contains unique information about the light-induced degradation of the active layer, which is the focus of this work.

In order to understand the mechanisms of light-induced V_OC degradation, we quantify the V_OC. In the bulk-heterojunction (BHJ) structured OSCs, the V_OC can be described using the following equations:²⁴

andwhere E_CT is the energy of charge-transfer (CT) states, k is Boltzmann's constant, T is the absolute temperature, λ is the reorganization energy related to the CT absorption process, q is the elementary charge, c is the speed of light in vacuum, h is Planck's constant and f is a prefactor. As shown in eqn (1), the V_OC consists of three components, including the energy of CT states, radiative recombination energy loss and non-radiative recombination energy loss. The first two parts can be determined by fitting the EQE_PV or EL spectrum in the CT state regime and the last part correlates to the external efficiency of the EL (EQE_EL) of the device.^24,25

We investigate all three items in eqn (1) to determine the origin of the V_OC degradation under illumination. The absorption of the CT states is very weak because of the weak overlap between the highest occupied molecular orbital (HOMO) of the donor and the lowest unoccupied molecular orbital (LUMO) of the acceptor. Herein we employ a sensitive photocurrent spectroscopy method FTPS to measure the EQE_PV in the CT state region. As shown in Fig. 2a, there is a region with a swollen FTPS signal at low energy, corresponding to the photocurrent due to CT state absorption.^24–26 The shape of the EQE_PV curve in the CT state region shows no change after 72 h illumination, indicating that there is no change in either the E_CT or ΔV^rad_OC. In order to further confirm the information we obtained from the FTPS measurements, we measure the EL spectrum of the devices as well. As shown in Fig. 2b, the EL spectra of CT states (Fig. S3†) show no changes after 72 h illumination, consistent with the FTPS results.

Fig. 2 (a) FTPS and (b) EL spectra of the fresh devices (black solid lines) and aged devices after 72 h illumination (red dashed lines). Both of the FTPS and EL spectra of CT states remain unchanged after illumination, indicating that there is no change in E_CT and ΔV^rad_OC. (c) Variation of EQE_EL curves versus voltage. EQE_EL of fresh devices (black and red solid lines), device aged in dark (blue dash line) and device aged under light (red dash line). All measurements are based on the conventional structure.

The EQE_EL results are depicted in Fig. 2c. Compared with the device stored in the dark, the EQE_EL of the device aged under light decreases by one order of magnitude, corresponding to an increase of a non-radiative V_OC loss by ∼60 meV according to eqn (3). This result matches well with the overall V_OC decrease after 72 h illumination (Table S2†). We also perform EQE_EL measurements on the inverted devices and obtain similar results (Fig. S4 and Table S4†), further confirming that the degradation originates from the active layer, rather than the interlayers. From this quantification of the light-induced V_OC losses, we can conclude that the light-induced V_OC loss stems from the increased non-radiative recombination losses in the active layer.

A possible reason for the increased non-radiative V_OC losses is the formation of additional trap states induced by illumination, leading to trap-assisted non-radiative recombination. A direct approach to investigate the traps is to perform temperature-dependent mobility measurements.^27–29 Therefore, we measure the J–V curves of the hole-only (HO) and electron-only (EO) devices based on blends at different temperatures. As shown in Fig. 3a, the electron transport of the blend devices decreases after 72 h illumination, meaning that degradation generates an increasing amount of electron traps. We can further quantify the disorder values in the devices before and after degradation by using EGDM. The details of this method are shown in the ESI of ref. 12. We find that the disorder value, which is denoted as σ, increases from 46 meV to 50 meV upon degradation (Fig. 3e and f). Surprisingly, the hole transport shows an enhancement after 72 h of illumination (Fig. 3d), the reason of which will be discussed later on.

Fig. 3 Comparison of the temperature dependent J–V curves of fresh and 72 h illumination aged devices are presented in (a–d), respectively. (a) Electron-only (EO) device based on blends, (b) hole-only (HO) device based on blends, (c) EO device based on pure PC₇₁BM, and (d) HO device based on pure TQ1. The fitting results of EO devices based on TQ1:PC₇₁BM are shown in (e) before and (f) after 72 h illumination.

In order to further confirm the light-induced electron traps and understand the unusual enhancement of the hole transport, we measure the single-carrier devices of the pristine materials (Fig. 3e and f). Indeed, consistent with the EO device of the blend, the EO device of PC₇₁BM shows decreased transport, confirming light-induced electron traps. In contrast to the enhancement of the hole transport in the blend, the hole transport in the pristine TQ1 device shows no difference after 72 h illumination.

We further investigate the degradation processes at the molecular level with polarization-modulation infrared reflection-absorption spectroscopy (PM-IRRAS). As shown in Fig. 4a, a new band appears at ∼1776 cm⁻¹, near the PC₇₁BM methyl ester carbonyl peak at 1732 cm⁻¹, during the illumination in the TQ1:PC₇₁BM blend film. A similar band at ∼1776 cm⁻¹ also appears in the pure PC₇₁BM film (Fig. 4b), but not in the pure TQ1 film (Fig. 4c), indicating that the new vibrational peak is due to the oxidation of PC₇₁BM. The fact that pure TQ1 shows no light-induced vibrational band is consistent with the charge transport result in Fig. 3f, where no change of the hole transport is observed in the HO device of TQ1. We propose that the formation of the band at ∼1776 cm⁻¹ is due to the oxidation of carbon elements resulting in the formation of carbonyl groups (C=O) in PC₇₁BM. The origin of oxygen could be from the oxygen in the glovebox (5–10 ppm oxygen level) and/or small amounts of oxygen remaining in the materials before they are transferred into the glovebox (the solid materials are stored outside in a fridge). It is now becoming clear why we observe abnormal enhancement of the hole transport in the blend film, as shown in Fig. 3d. We suppose that in the blend film, the oxygen in TQ1 tends to react with the PC₇₁BM due to the scavenger properties of fullerene,^30,31 helping to de-dope the polymer and thus improving the hole transport.^32,33 This process was previously demonstrated to be facilitated by illumination.²⁰

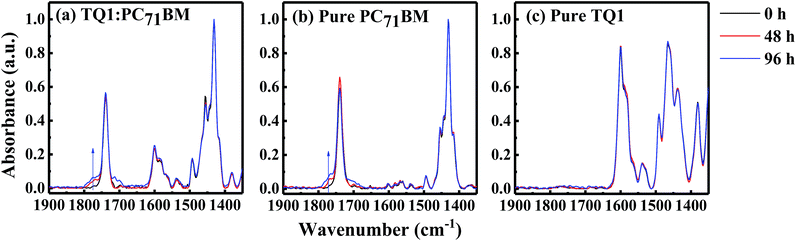

Fig. 4 FTIR measurements of the films based on (a) TQ1:PC₇₁BM (1 : 2.5); (b) pure PC₇₁BM; (c) pure TQ1; all the films are stored in the glovebox when exposed to light; blue arrows indicate carbonyl bands emerging due to oxidation.

In order to further demonstrate the oxidization of the materials, we intentionally expose the films in air under light exposure, and then perform the FTIR measurements. As shown in Fig. S5a–c,† we observe that all the films exposed to air show a new vibration signal, corresponding to the carbonyl group. This vibration signal now emerges much more quickly, compared with the experiments performed in the glovebox, as a result of the large amounts of oxygen available in air. We notice that TQ1 in this case also shows an oxidation signal. The lack of the oxidation signal of the TQ1 film in the glove-box might be due to the fact that compared with PC₇₁BM, the TQ1 is less reactive with oxygen.³⁴ Based on these results, we conclude that the newly appearing carbonyl vibrational band in Fig. 4a comes from the oxidation of PC₇₁BM during the illumination.

Conclusion

We investigate the light-induced degradation of the devices based on TQ1:PC₇₁BM and find that the oxidation of PC₇₁BM (as revealed by FTIR results) plays a key role in the degradation of the device parameters, especially the V_OC. The oxidation of PC₇₁BM results in electron traps, leading to enhanced non-radiative recombination loss of the V_OC, which we have quantified by measuring the electroluminescence quantum efficiency of the devices. We also quantified the energetic disorder induced by the electron trap states due to the oxidation of PC₇₁BM. Our work indicates that fullerene acceptors are detrimental to the light stability of devices, and alternative acceptor materials are required to develop stable OSCs. Our conclusion is in line with the recent trend towards the development of OSCs based on non-fullerene acceptors.^35–38

Experimental section

Solution preparation

TQ1 is provided by Ergang Wang's group at Chalmers University of Technology and PC₇₁BM is purchased from Solenne b.v. The polymer and fullerene mixtures are dissolved at a 1 : 2.5 w/w ratio in 1,2-dichlorobenzene (o-DCB). The total concentration of the TQ1:PC₇₁BM blend in o-DCB is 25 mg ml⁻¹. The TQ1 is dissolved in o-DCB with a concentration of 15 mg ml⁻¹ and the PC₇₁BM is dissolved in chloroform (CF) with a concentration of 15 mg ml⁻¹. All the solutions are stirred overnight at 60 °C before use. PEDOT:PSS Al 4083 is purchased from Heraeus and zinc oxide (ZnO) nanoparticle solution is purchased from Suprapur.

Device preparation

All the solar cells are fabricated on an indium tin oxide (ITO) coated glass substrate and a 90 nm aluminium layer is used as the top contact. The ITO glass is cleaned in the TL1 process (boiled for 20 min in the mixed solution of hydrogen peroxide (H₂O₂) and ammonia (NH₃)). A structure of ITO/PEDOT:PSS/active layer/LiF/Al is employed for the conventional structure device and a structure of ITO/ZnO/active layer/MoO_x/Al is employed for the inverted structure device. A structure of ITO/PEDOT:PSS/active layer/MoO_x/Al is employed for the HO devices and a structure of ITO/ZnO/active layer/LiF/Al is employed for the EO devices. The thickness of the TQ1:PC₇₁BM blend active layer is ∼90 nm. The thickness of the pure TQ1 and PC₇₁BM active layers is ∼80 nm and ∼110 nm, respectively.

Stability measurements

All the devices studied in our experiments are encapsulated with a coverslip which is UV-glued on the surface of the device. The devices in the glovebox (filled with nitrogen, ≤1% ppm moisture and 5–10% ppm oxygen) are divided into two groups, with one group stored in the dark and the other group stored under the illumination of a white LED. The LED spectrum is shown in Fig. S6† and the intensity is calibrated to be ∼50 mW cm⁻² with a standard Si solar cell. J–V measurements of the devices are performed outside the glovebox. An AM1.5G sun simulator purchased from Oriel is used for the J–V measurements.

FTPS measurements

FTPS measurements are performed on a Vertex 70 from Bruker optics, equipped with a QTH lamp, quartz beam-splitter and external detector option. A low noise current amplifier (SR570) is used to amplify the photocurrent produced by the illumination of FTIR on the devices. The output voltage of the amplifier is fed back to the external port of the FTIR, in order to be able to employ the FTIR software to collect the photocurrent spectrum.

EL measurements

A Keithley 2400 is used for supplying voltage/current to the devices. An Andor spectrometer (Shamrock sr-303i-B, coupled to a Newton EMCCD detector) is used to record the EL spectra.

EQE_EL measurements

The EQE_EL measurements are performed on a home built setup comprising a Hamamatsu silicon photodiode 1010B, a Keithley 2400 for supplying voltages and recording the injected current, and a Keithley 485 for measuring the emitted light intensity.

FTIR measurements

Polarization-modulation infrared reflection-absorption spectroscopy (PM-IRRAS) measurements are carried out by means of a Bruker PMA 50 with a LN2-cooled mercury cadmium telluride (MCT) detector at 86° grazing angle, using a Bruker VERTEX70 as a light source. A photo-elastic modulator (Hinds: ZnSe 50 kHz) is used to modulate the polarization of light. Spectra containing PC₇₁BM are normalized to the fullerene peak near 1430 cm⁻¹, and the TQ1 spectra normalized to the ring vibration at 1465 cm⁻¹.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors thank Dr Jonas Bergqvist for the supply of the LED. The authors are grateful to the National Basic Research Program of China (Grant No. 2015CB932200), Natural Science Foundation of Jiangsu (Grant No. BK20140952, BK20150043), National Natural Science Foundation of China (Grant No. 11474164, 61405091, 61634001), Joint Research Program between China and European Union (Grant No. 2016YFE0112000), Synergetic Innovation Center for Organic Electronics and Information Displays, National High Technology Research and Development Program of China (Grant No. 2011AA050520), Jiangsu Specially-Appointed Professor program, Chinese Scholarship Council (CSC), Swedish Research Council (VR), European Commission SOLAR-ERA-NET, Swedish Energy Agency (Energimyndigheten), Swedish Government Strategic Research Area in Materials Science on Functional Materials at Linköping University (Faculty Grant No. SFO-Mat-LiU #2009-00971), and Knut and Alice Wallenberg foundation (KAW) for financial support.

Notes and references

1. Z. Xiao, X. Jia and L. Ding, Sci. Bull., 2017, 62, 1562.
2. S. Zhang, Y. Qin, J. Zhu and J. Hou, Adv. Mater., 2018 DOI:10.1002/adma.201800868.
3. M. P. Nikiforov, J. Strzalka and S. B. Darling, Sol. Energy Mater. Sol. Cells, 2013, 110, 36.
4. Q. Bao, X. Liu, S. Braun and M. Fahlman, Adv. Energy Mater., 2014, 4, 1301272.
5. Y. W. Soon, H. Cho, J. Low, H. Bronstein, I. McCulloch and J. R. Durrant, Chem. Commun., 2013, 49, 1291.
6. S. Karuthedath, T. Sauermann, H.-J. Egelhaaf, R. Wannemacher, C. J. Brabec and L. Lüer, J. Mater. Chem. A, 2015, 3, 3399.
7. E. Vitoratos, S. Sakkopoulos, E. Dalas, N. Paliatsas, D. Karageorgopoulos, F. Petraki, S. Kennou and S. Choulis, Org. Electron., 2009, 10, 61.
8. T. Sachs-Quintana, T. Heumüller, W. R. Mateker, D. E. Orozco, R. Cheacharoen, S. Sweetnam, C. J. Brabec and M. D. McGehee, Adv. Funct. Mater., 2014, 24, 3978.
9. Z. Yi, W. Ni, Q. Zhang, M. Li, B. Kan, X. Wan and Y. Chen, J. Mater. Chem. C, 2014, 2, 7247.
10. Z. Li, H. C. Wong, Z. Huang, H. Zhong, C. H. Tan, W. C. Tsoi, J. S. Kim, J. R. Durrant and J. T. Cabral, Nat. Commun., 2013, 4, 2227.
11. E. A. Lukina, M. N. Uvarov and L. V. Kulik, J. Phys. Chem. C, 2014, 118, 18307.
12. M. O. Reese, A. M. Nardes, B. L. Rupert, R. E. Larsen, D. C. Olson, M. T. Lloyd, S. E. Shaheen, D. S. Ginley, G. Rumbles and N. Kopidakis, Adv. Funct. Mater., 2010, 20, 3476.
13. T. Tromholt, M. V. Madsen, J. E. Carlé, M. Helgesen and F. C. Krebs, J. Mater. Chem., 2012, 22, 7592.
14. H. K. H. Lee, A. M. Telford, J. A. Röhr, M. F. Wyatt, B. Rice, J. Wu, A. de Castro Maciel, S. M. Tuladhar, E. Speller, J. McGettrick, J. R. Searle, S. Pont, T. Watson, T. Kirchartz, J. R. Durrant, W. C. Tsoi, J. Nelson and Z. Li, Energy Environ. Sci., 2018, 11, 417.
15. C. J. Schaffer, C. M. Palumbiny, M. A. Niedermeier, C. Jendrzejewski, G. Santoro, S. V. Roth and P. Muller-Buschbaum, Adv. Mater., 2013, 25, 6760.
16. T. Heumueller, T. M. Burke, W. R. Mateker, I. T. Sachs-Quintana, K. Vandewal, C. J. Brabec and M. D. McGehee, Adv. Energy Mater., 2015, 5, 1500111.
17. T. Heumueller, W. R. Mateker, I. T. Sachs-Quintana, K. Vandewal, J. A. Bartelt, T. M. Burke, T. Ameri, C. J. Brabec and M. D. McGehee, Energy Environ. Sci., 2014, 7, 2974.
18. D. Bartesaghi, G. Ye, R. C. Chiechi and L. J. A. Koster, Adv. Energy Mater., 2016, 6, 1502338.
19. N. Wang, X. Tong, Q. Burlingame, J. Yu and S. R. Forrest, Sol. Energy Mater. Sol. Cells, 2014, 125, 170.
20. T. Heumueller, W. R. Mateker, A. Distler, U. F. Fritze, R. Cheacharoen, W. H. Nguyen, M. Biele, M. Salvador, M. von Delius, H.-J. Egelhaaf, M. D. McGehee and C. J. Brabec, Energy Environ. Sci., 2016, 9, 247.
21. F. Piersimoni, G. Degutis, S. Bertho, K. Vandewal, D. Spoltore, T. Vangerven, J. Drijkoningen, M. K. Van Bael, A. Hardy, J. D'Haen, W. Maes, D. Vanderzande, M. Nesladek and J. Manca, J. Polym. Sci., Part B: Polym. Phys., 2013, 51, 1209.
22. Y.-M. Chang and C.-Y. Leu, J. Mater. Chem. A, 2013, 1, 6446.
23. C. H. Peters, I. T. Sachs-Quintana, W. R. Mateker, T. Heumueller, J. Rivnay, R. Noriega, Z. M. Beiley, E. T. Hoke, A. Salleo and M. D. McGehee, Adv. Mater., 2012, 24, 663.
24. K. Vandewal, K. Tvingstedt, A. Gadisa, O. Inganäs and J. V. Manca, Phys. Rev. B: Condens. Matter Mater. Phys., 2010, 81, 125204.
25. K. Vandewal, K. Tvingstedt, A. Gadisa, O. Inganas and J. V. Manca, Nat. Mater., 2009, 8, 904.
26. Z. Tang, L. M. Andersson, Z. George, K. Vandewal, K. Tvingstedt, P. Heriksson, R. Kroon, M. R. Andersson and O. Inganas, Adv. Mater., 2012, 24, 554.
27. J. C. Blakesley, H. S. Clubb and N. C. Greenham, Phys. Rev. B: Condens. Matter Mater. Phys., 2010, 81, 045210.
28. F. Gao, S. Himmelberger, M. Andersson, D. Hanifi, Y. Xia, S. Zhang, J. Wang, J. Hou, A. Salleo and O. Inganas, Adv. Mater., 2015, 27, 3868.
29. W. F. Pasveer, J. Cottaar, C. Tanase, R. Coehoorn, P. A. Bobbert, P. W. Blom, D. M. de Leeuw and M. A. Michels, Phys. Rev. Lett., 2005, 94, 206601.
30. J. J. Yin, F. Lao, P. P. Fu, W. G. Wamer, Y. Zhao, P. C. Wang, Y. Qiu, B. Sun, G. Xing, J. Dong, X. J. Liang and C. Chen, Biomaterials, 2009, 30, 611.
31. E. B. Zeynalov, N. S. Allen and N. I. Salmanova, Polym. Degrad. Stab., 2009, 94, 1183.
32. J. Schafferhans, A. Baumann, A. Wagenpfahl, C. Deibel and V. Dyakonov, Org. Electron., 2010, 11, 1693.
33. C.-K. Lu and H.-F. Meng, Phys. Rev. B: Condens. Matter Mater. Phys., 2007, 75, 235206.
34. R. Hansson, C. Lindqvist, L. K. Ericsson, A. Opitz, E. Wang and E. Moons, Phys. Chem. Chem. Phys., 2016, 18, 11132.
35. Y. Cai, L. Huo and Y. Sun, Adv. Mater., 2017, 29, 1605437.
36. H. Fu, Z. Wang and Y. Sun, Sol. RRL, 2018, 2, 1700158.
37. P. Cheng, G. Li, X. Zhan and Y. Yang, Nat. Photonics, 2018, 12, 131.
38. J. Hou, O. Inganas, R. H. Friend and F. Gao, Nat. Mater., 2018, 17, 119.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c8ta03112f

---
