Si nanocrystal solution with stability for one year

Abstract

Colloidal silicon nanocrystals (SiNCs) are a promising material for next-generation nanostructured devices. High-stability SiNC solutions are required for practical use as well as studies on the properties of SiNC. Here, we show a solution of SiNCs that was stable for one year without aggregation. The stable solution was synthesized by a facile process, i.e., pulsed laser ablation of a Si wafer in isopropyl alcohol (IPA). The long-term stability was due to a large ζ-potential of −50 mV from a SiNC passivation layer composed of oxygen, hydrogen, and alkane groups, according to the results of eight experiments and theoretical calculations. This passivation layer also resulted in good performance as an additive for a conductive polymer film. Namely, a 5-fold enhancement in carrier density was established by the addition of SiNCs into an organic conductive polymer, poly(3-dodecylthiophene), which is useful for solar cells. Furthermore, it was found that fresh (<1 day) and aged (4 months) SiNCs give the same enhancement. The long-term stability was attributed to a great repulsive energy in IPA, whose value was quantified as a function the distance between SiNCs.

---

Introduction

Colloidal semiconductor nanoparticles (NPs) have attracted great interest in the field of electronic, photonic, and magnetic materials.^1–3 Specifically, colloidal NPs, e.g., those used in printed electronics, are a promising material for development of quantum dot displays, sensors, solar cells, and flexible circuits via solution processes.^4–6 One problem that must be solved is creation of stable colloidal NPs that do not aggregate during production processing and storage.^7–9 To solve this problem, NPs have been stabilized by surface modification for steric hindrance^10–13 or electrostatic interaction.^10–16 In fact, NPs with surface passivation appear as an optically clear solution for up to several months, whereas NPs without passivation form a cloudy dispersion in a short time.^17–19

Synthesis of surface-passivated NPs is principally categorized into chemical^8,13,20 and physical^14,21,22 methods. In chemical methods, reduction and decomposition of reactants synthesizes colloidal NPs with a stability of up to months, e.g., no aggregation of Au NPs for eleven months via passivation with long-chain polyethylene glycol groups²⁰ and of ZnO NPs for six months via passivation with the long-chain functional group methacrylate.¹⁸ Physical synthesis methods such as milling, plasma treatment, sputtering, etching, and sonication of target materials produce concentrated solutions of NPs with no precipitation and stable optical properties that last for months.²² However, almost all methods require various reagents, multiple steps, high temperatures, vacuum conditions, and long synthesis times. Another critical issue is that the NP surfaces are sensitive to carrier injection and transport in a device.¹⁶ Specifically, long-chain passivation disturbs carrier injection and transport in the device, whereas short-chain passivation causes aggregation of NPs. Accordingly, a trade-off exists between long-term stability and good performance of electrical materials.

Another good synthesis method for NPs known as pulsed laser ablation^23–58 in liquid (PLAL) is a promising approach used to obtain stable colloidal NPs, as shown in Scheme 1. This method consists of a one-step process conducted at room temperature with a short duration, e.g., a few minutes to an hour.^24,43,56 In addition, the scalability of NPs in PLAL has attracted much attention, e.g., a synthesis rate as high 4 g h⁻¹.⁵⁸ To this end, production of Si nanocrystals (SiNCs) by PLAL has been investigated in various liquids (Table S1, ESI†), and a clear colour and stability for a period of at least forty days were observed in alcohol.^34,39,54 Therefore, passivated SiNCs have been synthesized by PLAL in alkyl, halide, and aromatic hydrocarbons,^40,52 and stable optical properties over a period of months were observed after long-alkyl passivation.^33,44 Because Si is a bioinert, abundant, and cost-effective material,^59–62 colloidal SiNPs have been used to develop solar cells,⁶³ light emitters,⁶⁴ on-skin sensors,⁶⁵ and Li-ion batteries⁶⁶ via solution processes.^67–76

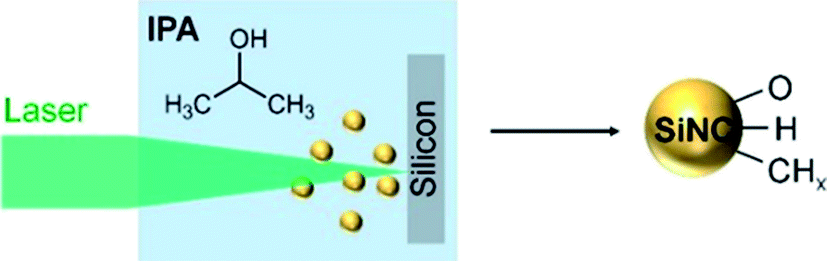

Scheme 1 Illustration of PLAL to generate SiNCs.

In a previous study, we synthesized SiNCs using the two different methods of PLA^{30,35,42,44,46,47,54} and ball milling,⁷⁷ both of which are mechano-synthesis methods. We note that the SiNCs prepared by ball milling in isopropyl alcohol (IPA) showed notably long-term (4 months) stability, which is attributed to their large ζ-potential.⁷⁷ However, the essential factor in achievement of long-term stability and the mechanism of the large ζ-potential has not yet been understand. Because ball milling itself is a simple method, this approach involves complex processes that require understanding of the details of the reaction mechanism. Interestingly, laser light is a well-defined source of measurable energy injected into a material during synthesis, and theoretical research on nanoparticle synthesis has been reported in PLAL.

In this work, we describe a SiNCs solution synthesized by PLAL in IPA that is stable for one year (Scheme 1). The particle sizes and ζ-potential were tracked for one year. In addition, the structures and optical properties of the SiNCs were quantified using eight experimental methods and theoretical calculations. Furthermore, it was found that the stable SiNCs solution demonstrate 5-fold enhancement of charge density when involved in a flexible film prepared by a wet process.

Experimental

PLAL was conducted using the second harmonic of a Nd:YAG laser (Rayture Systems, RH-30) as a light source for 1 h at a repetition rate of 20 Hz. The laser was operated at 532 nm with a pulse width of 7 ns. The laser fluence during PLAL was in the range from 0.2 to 0.9 J cm⁻², which were adjusted by changing the irradiated area. Namely, diameters of these area were set as 1.1, 1.9, and 1.5 mm for fluences of 0.2, 0.5, and 0.9 J cm⁻², respectively, on the surface of a target Si wafer. A crystal Si wafer with a (111) plane (500441 or 500439, Nilaco) was immersed in IPA (29113-95, NACALAI TESQUE) with a volume of 1.5 mL in a quartz cuvette at room temperature. After PLAL, the SiNC solutions were filtered using a PTFE syringe filter with a pore size of 0.2 μm (6784-1302, Whatman).

Dynamic light scattering (DLS) measurements were performed using a commercial instrument (Zetasizer Nano ZS, Malvern Instruments) with a wavelength of 532 nm to determine the size distribution and ζ-potential of the SiNCs dispersed in IPA. The sizes of the dried SiNCs were analyzed using transmission electron microscopy (TEM) (JEM-2011, JEOL). The TEM samples were prepared by dropping the SiNC solution onto TEM grids (10-1013, STEM Cu100P, Okenshoji Co., Ltd.) in a glovebox (UNILab, MBRAUN) filled with high-purity argon gas (99.999%, Taiyo Nippon Sanso). The Raman spectra of the dried SiNCs were measured using a commercial Raman spectrometer (T64000, Horiba Jobin Yvon) at an excitation wavelength of 514.5 nm. The Fourier transform infrared (FTIR) (FT/IR-4200, Jasco) spectra of the SiNCs were measured by the attenuated total reflectance (ATR) method for droplets of the sample (SiNCs in IPA) and reference (IPA) on an ATR prism made of zinc selenide (ATR PRO450-S, Jasco). X-ray photoelectron spectroscopy (XPS) was performed using a spectrometer (ESCA3400, Shimadzu) with Mg K_α as the X-ray source.

The SiNC/poly(3-dodecylthiophene) (P3DDT) hybrid film was prepared by the successive drop-casting method described elsewhere.⁴⁷ Briefly, SiNCs dissolved in 2-propanol were dropped onto an indium tin oxide (ITO)-coated glass substrate (FLAT-ITO, Geomatec), followed by drop casting of P3DDT (regioregularity 97%, M_w = 27 kDa, PDI = 1.5, Sigma Aldrich) dissolved in chlorobenzene onto the SiNCs. The weight ratio in the hybrid film was 25 wt% SiNCs and 75 wt% P3DDT, which was determined using an analytical balance (Sartorius, MC1). After the film was dried for 12 h in air at room temperature, an Al electrode was deposited on the film using a vacuum evaporation system (SVC-700TM, Sanyu Electron). A pristine P3DDT film was prepared in the same manner as the hybrid film without SiNCs. The photoconductivity of films with thicknesses of 4–5 μm was measured using an in-house-built instrument described elsewhere.⁷⁸ The light source was the second harmonic of an Nd:YAG laser (λ = 532 nm, 7 ns, 6 Hz, 0.5 μJ per pulse). The photoluminescence (PL) decay of the films was measured using a photon counting method (FluoroCube, Horiba) at an excitation wavelength of 453 nm and a luminescence wavelength of 720 nm. The surface roughnesses of the films were measured using a confocal laser microscope (Shimadzu, OLS4000) equipped with a 100× objective and an atomic force microscope (SPM-9700, Shimadzu) in tapping mode.

Results and discussion

Fig. 1a shows the transmission electron microscopy (TEM) images of the products synthesized by PLAL in IPA. The mean sizes of the products were 12, 8, and 6 nm at laser fluences of 0.2, 0.5, and 0.9 J cm⁻², respectively. The lattice fringe of the (111) plane of crystalline Si was observed in all images. Thus, the products are crystalline Si nanoparticles. Fig. 1b shows the Raman spectra of the products. The crystalline-Si band at 520 cm⁻¹ is present, but the amorphous-Si band at 480 cm⁻¹ is absent. These results indicate that the product is composed of SiNC. The size of the crystalline region involved in the SiNC was estimated using an empirical equation relating Raman shift (ν) and crystalline size (D) of spherical SiNC (Fig. S1†):^79–81

ν = ν₀ − 47.41(0.543/D)^1.44 (1)

where ν₀ is the Raman shift of bulk-crystal Si. As a result, the crystalline sizes were 12, 6, and 5 nm for 0.2, 0.5, and 0.9 J cm⁻², respectively, as listed in Table 1.

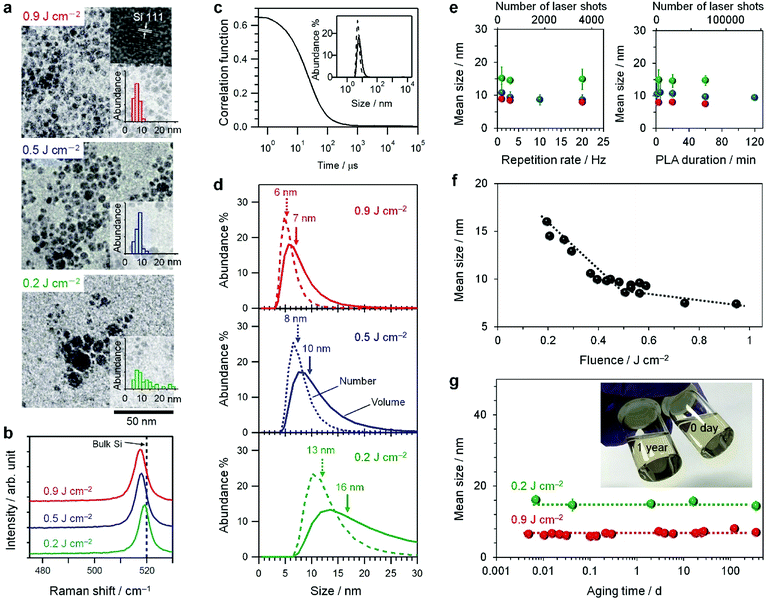

Fig. 1 (a) TEM, (b) Raman, and (c)–(g) DLS results. (a) and (b) TEM images and Raman spectra of SiNCs synthesized by PLAL at fluences of 0.9, 0.5, or 0.2 J cm⁻². Histogram is obtained from thirty SiNCs. The dashed line is the frequency of the Raman band for bulk-crystal Si. (c) A typical DLS result for the time correlation function of SiNCs dispersed in IPA. The inset shows the size distribution of SiNCs determined by analyzing the correlation function using the nonnegative least-squares method. The size distributions weighted by volume and number are shown by solid and dashed curves, respectively. (d) Fluence dependence of the size distribution of the SiNCs. Arrows denote the mean size. The volume-weighted mean size of SiNCs in IPA as a function of: (e) PLAL repetition rate and duration, (f) laser fluence, and (g) aging time. Dotted lines are used as a visual guide. The photograph in (g) shows the SiNCs in IPA before and after aging for one year.

Table 1 The mean size, ζ-potential, and passivation ratio of SiNCs synthesized at different fluences. The analysis of the passivation ratio in described in Note S1 of the ESI

Fluence (J cm^−2)	Mean size (nm)				ζ-Potential (mV)	Passivation ratio (%)
	TEM	Raman	DLS			Si–O	Si–H	Si–CHx
			number-weighted	volume-weighted
0.2	12.1 ± 2.8	11.9 ± 0.9	13.0 ± 1.6	15.8 ± 1.6	−54	37	34	29
0.5	8.0 ± 0.6	5.8 ± 0.5	8.2 ± 0.5	9.7 ± 1.6	−46	35	33	32
0.9	6.3 ± 0.3	5.0 ± 0.2	6.1 ± 0.3	6.8 ± 0.4	−43	31	34	35

---

Fig. 1c shows a typical result for DLS of SiNCs dispersed in IPA. The single size distribution reveals a good dispersion of colloidal SiNCs. As shown in Fig. 1d, the mean sizes of the SiNCs were 13, 8, and 6 nm as number-weighted size and 16, 10, and 7 nm as volume-weighted size for 0.2, 0.5, and 0.9 J cm⁻², respectively (Table 1). Their mean sizes and size-distribution profiles are similar to those observed in the TEM images (Fig. 1a). Note that the size was independent of the PLAL parameters, such as the repetition rate (1–20 Hz) and duration (1–120 min), as shown in Fig. 1e. However, the size was tunable continuously by the laser fluence, as shown in Fig. 1f. Additionally, the size did not change during aging in IPA for one year (Fig. 1g). The photograph in Fig. 1g shows the solutions of SiNCs dispersed in IPA before and after aging, which are similar to each other. Therefore, a stable colloid SiNC is synthesized by a nanosecond laser pulse on a Si wafer immersed in IPA.

Fig. 2a shows the ζ-potentials of SiNCs dispersed in IPA. Their values are listed in Table 1. A large negative value of −50 mV is observed and remains for one year. This result is the same as the previous result obtained for SiNCs prepared by ball milling in IPA.⁷⁷ Such a large ζ-potential is considered a driving force for a good dispersion of colloidal SiNCs without aggregation (vide infra).

Fig. 2 (a) The ζ-potential of SiNCs in IPA (top) and its aging-time dependence (bottom). Dotted lines are used as visual guides. (b) FTIR spectra of SiNCs. Insets show data for the C–H or Si–H stretching mode regions. (c) The analysis of the C–H stretching mode for CH₃ and CH₂ components using the Gaussian functions. The ratios denote the number ratio of methyl, ethyl, and propyl groups considered as passivation species of short alkyl chains.

To investigate the origin of the large negative ζ-potential, we measured the Fourier transform infrared (FTIR) spectra of SiNCs (Fig. 2b) and analysed the number of functional groups using their oscillator strengths.^82,83 The spectra indicate the Si–O, Si–H, Si–C, and C–H stretching modes of the functional groups attached to the SiNCs as the passivation species of O, H, and CH_x. The CH_x species are assigned to short alkyl chains such as either methyl, ethyl, or propyl groups. This is because the integrated intensity of spectrum for CH₃ (≈2970 cm⁻¹)^22,82 is higher than that of CH₂ (≈2930 cm⁻¹).^22,82 Namely, the intensity is two-fold high, as shown in Fig. 2c. The two-fold is given by the combination of methyl, ethyl, propyl groups, whose ratios are 5 : 3 : 1, respectively. Table 1 lists the relative amounts of the functional groups; the Si–O, Si–H, and Si–CH_x components comprise 37, 34, and 29%, respectively, for 0.2 J cm⁻² (Note S1†). Si–O and Si–H have a negative charge, whereas Si–CH_x has a positive charge. The net charge becomes negative, as described in Note S2.† The SiNCs repel each other and do not agglomerate due to the negative charge. In fact, no aggregation is observed with a negative ζ-potential, as shown in Fig. 1g and 2a. Table 1 also shows that the passivation ratio is changed by the laser fluence. A higher fluence results in more Si–CH_x. Namely, the negativity of the ζ-potential decreases with the increasing fluence. In fact, such a trend is observed in the ζ-potential, as shown in Fig. 2a.

Chemical species on the surface of SiNPs were also analysed by XPS measurements. C, O, Si, and Al elements are observed using SiNCs deposited on an Al substrate, as shown in Fig. 3a. The former three elements are due to SiNCs and the latter one is the substrate. Fig. 3b shows Si–O, Si–H, Si–C, and C–H bands. Since the species are in good agreement with the results of FTIR spectra, it can be concluded that the SiNCs prepared by PLAL in IPA are passivated by the functional groups.

Fig. 3 XPS spectra of SiNCs. (a) Survey spectrum. (b) Spectra for C 1s, O 1s, Si 2p, and Al 2p. The spectra were analysed using the Gaussian functions.

To discuss the synthesis mechanism that depends on the laser fluence, we estimated the temperature increase due to laser irradiation of a single shot on the Si target. The calculation was conducted using a heat conduction equation for PLA.^84,85

where T is the temperature; t is the time; x is the position (x = 0 at surface); D_T, ρ, C_P, R, and λ are the thermal diffusivity, density, heat capacity, reflectivity, and thermal conductivity, respectively, of the Si target; E is the energy from the laser; and I is the incident power density of the spatially uniform laser. Fig. 4 shows the calculated results of the temperature over time before and after pulse laser irradiation. When the fluence is low (0.2 J cm⁻²), the temperature increases to the melting point of Si.⁸⁶ Since SiNCs at 0.2 J cm⁻² are large and inhomogeneous (Fig. 1a), the results indicate that large and inhomogeneous SiNCs are generated near the threshold of melting. When the fluence is high (0.9 J cm⁻²), the temperature is high (Fig. 4), and the size is small (Fig. 1f). Thus, a higher temperature produces smaller SiNCs. It has been reported that higher temperatures cause smaller critical-size nuclei, which share ablated Si and become smaller SiNCs.^34,87 Thus, a higher fluence results in smaller SiNCs.

Fig. 4 A time profile of the calculated temperature on the Si-target surface by laser pulse irradiation (top) and its fluence dependence (bottom). The mp and bp denote the melting point and boiling point, respectively, of bulk-crystal Si.⁸⁶

Next, we investigated the fluence dependence of passivation. According to a previous ab initio calculation for the thermal decomposition of IPA,⁸⁸ the following reaction occurs as a principle pathway at a temperature higher than 1200 K

CH₃C(H)OHCH₃ → CH₃C(H)OH + CH₃ (4)

The calculated temperature was higher than 1200 K from a few nanoseconds to a few tens of nanoseconds, as shown in Fig. 4. The reaction (4) produces alkyl species, which can attach to SiNCs as alkyl passivation. This reaction (4) becomes more dominant than other decomposition reactions as the temperature increases.⁸⁸ Since a higher fluence causes a higher temperature, as shown in Fig. 4, more alkyl passivation can appear at a higher fluence. In fact, an increase in alkyl passivation with an increase in fluence is observed in the FTIR results, as shown in Table 1. A higher ratio of alkyl passivation is obtained with a higher fluence. The positive charge of the alkyl group reduces the negative ζ-potential, and the negative ζ-potential decreases as the fluence increases, as shown in Fig. 2a.

A solution-processed SiNCs/P3DDT hybrid film was demonstrated as an example of printed solar cell application. The P3DDT is a conductive polymer with good flexibility, photostability, and mechanical durability.^89,90 Fig. 5a shows the time profile of photogenerated holes in a P3DDT pristine film or a SiNC/P3DDT hybrid film. The SiNCs were used within one day or four months of synthesis at 0.9 J cm⁻². The integrated-intensity profile for the hybrid film is higher than that for the pristine film. This result indicates a higher hole density in the hybrid film. The magnitude of the hole density was estimated using a previous method.⁴⁷ As a result, a 5-fold enhancement was evaluated by the addition of SiNCs into a P3DDT film, as shown in Fig. 5b (photo-conversion efficiency was estimated in Note S3†). Furthermore, the degree of the enhancement is the same for fresh and aged SiNCs. Hole densities of the hybrid films composed of SiNC (fresh <1 day)/P3DDT and SiNC (aged 4 months)/P3DDT were (5.0 ± 0.3) × 10⁻⁹ and (4.7 ± 0.6) × 10⁻⁹ C, respectively (Fig. 5b). Here, let us mention the reason for the enhancement. It can be attributed to the charge separation of P3DDT excitons (Fig. S2†), because an electron can transfer from P3DDT to the SiNCs at the P3DDT/SiNCs interface, according to the energy diagram in Fig. 5c. In addition, alkyl passivation allows energy transfer with no energy barrier,^47,91–93 as shown in Fig. 5c. This explanation is consistent with the results of PL decay. PL decay of the hybrid film is faster than that of the pristine film due to faster charge separation, as shown in Fig. 5d. The hybrid film presented here has a free standing (Fig. 5e) and smooth surface (Fig. 5f and g), which is convenient for integration into soft electronics. Since the light emission of the SiNCs was weak (Fig. S3†), we show not photo-emitting but photo-detecting application.

Fig. 5 (a) Time profiles for holes photogenerated in a P3DDT pristine film and a SiNCs/P3DDT hybrid film. The SiNCs were used within 1 day or after 4 months aging in IPA. (b) Hole densities of the pristine and hybrid films. A higher fluence corresponds to a higher alkyl passivation of SiNCs, as listed in Table 1. The SiNCs were used within 1 day or after 4 months. (c) Schematic illustration of the dissociation of P3DDT excitons on the basis of the band diagram of P3DDT and Si.^91,92 C.B. and V.B. denote conduction and valence bands, respectively, and their energies are changed by the passivation species. The LUMO level of P3DDT lies above the conduction band of Si, which enables exciton dissociation and electron transfer. (d) PL decay for the pristine and hybrid films. (e) A photograph of a free-standing flexible hybrid film, which was obtained by peeling the hybrid film from a substrate using tweezers. (f) The laser microscopy image and surface roughness of the hybrid film. The surface roughnesses of the arithmetic mean height, S_a, for the hybrid and pristine films were 0.04 and 0.02 μm, respectively. (g) The atomic force microscope (AFM) height image of the hybrid film.

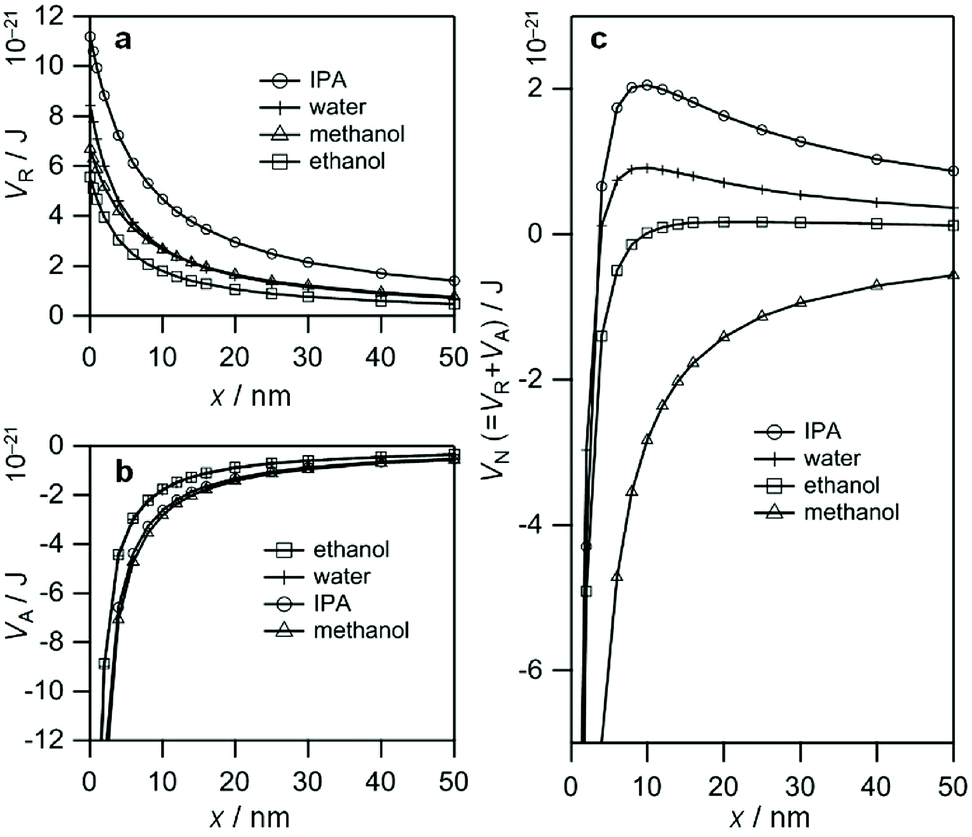

Fig. 6 Calculated results of (a) V_R, (b) V_A, and (c) V_N between SiNCs in IPA, ethanol, methanol, or water. These data quantify repulsive (V_R) and attractive (V_A) energies between SiNCs in the four solvents as function of the distance.

Finally, we describe the details about stability in the current system. The SiNCs in IPA showed large ζ-potential (vide supra). This large ζ-potential is due to a large surface charge, which can cause great repulsive energy between SiNCs by Coulomb's potential, i.e. V = q²/4πε_rε₀r, where q is charge, ε_r is relative permittivity of solvent, ε₀ is the vacuum permittivity, and r is separation of SiNCs. In general, a great repulsive energy results in a good dispersion and a high stability in solution. In addition, the repulsive energy becomes further higher when 1/ε_r of solvent is large. In fact, the 1/ε_r of IPA is 0.05,⁸⁶ which is larger than that of ethanol (0.04), methanol (0.03), or water (0.01).⁸⁶ Consequently, IPA solvent used in the present study can give both large repulsive energy and high stability. To understand further detail mechanism, we quantified the repulsive and attractive energies as a function of the distance between SiNCs, based on DLVO (Derjaguin–Landau–Verwey–Overbeek) theory.⁹⁴ The calculated results are shown in Fig. 6 using the following equations.

V_N = V_A + V_R (5)

V_A = −Aa/12x (6)

V_R = 4πε_rε₀a²ζ² exp(−κx)/(2a + x) (7)

where V_R and V_A are repulsive and attractive energies, respectively, A the Hamaker constant;^95–98 a the SiNCs radius;^31,54 x the distance between two SiNCs surfaces; ζ the ζ-potential; exp(−κx) approximately unity at no electrolyte.⁹⁴ According to the results in Fig. 6, the repulsive energy for SiNCs in IPA is the highest in the solvents at the all the distance. Thus, the SiNCs in IPA do not aggregate such as a long period for 1 year. This high stability and quantified analysis of SiNCs are very important for applications, e.g. printed electronics and materials of a Li-ion battery, as well as the interpretation of long stability of SiNCs (4 months), previously synthesized by the ball milling in IPA.⁷⁷

Conclusions

Colloidal SiNCs were prepared by a one-step and one-pot PLAL method with a Si wafer immersed in IPA in a cuvette. The products were analyzed by DLS, TEM, Raman, ζ-potential, IR, XPS, photoconductivity, and PL decay measurements, and temperature and potential-energy calculations. The results show that the SiNCs synthesized were stable for one year in IPA with no aggregation due to a large ζ-potential of −50 mV, which is attributed to a passivation layer composed of oxygen, hydrogen, and short alkyl groups. The mechanism of long-term stability was attributed to the strong repulsive energy among the SiNCs in IPA, whose amounts were calculated as a function of distance of the SiNCs particles in all the solvents. As the other important conclusions, an increase in fluence causes a decrease in the SiNC size and an increase in alkyl passivation due to an increase in temperature. The alkyl passivation contributed to a 5-fold enhancement in the hole density for a solution-processed hybrid film, and then this enhancement was not changed using SiNCs aged for 4 months. Such an enhancement can serve for the development of optoelectronics such as solar cells. Thus, stable and applicable SiNCs can be established by a laser and environmentally benign materials. The method presented here does not require toxic reagents, vacuum, and a long time to produce very stable colloidal SiNCs at room temperature and enhances the properties of flexible polymer films.
