Density functional theory investigation on iridium(III) complexes for efficient blue electrophosphorescence

Abstract

The geometrical structures, electronic structures, optoelectronic properties and phosphorescence efficiencies of four blue-emitting phosphors [Ir(fpmi)₂(pyim)] (1), [Ir(pyim)₂(fpmi)] (2), [Ir(fpmi)₂(fptz)] (3), [Ir(tfmppz)₂(pyim)] (4), [fpmi = 1-(4-fluorophenyl)-3-methylimdazolin-2-ylidene-C,C²′; pyim = 2-(1H-imidazol-2-yl)pyridinato; fptz = 5-(trifluoromethyl-2H-1,2,4-triazol-3-yl)pyridine; tfmppz = 1-(4-trifluoromethylphenyl)pyrazolyl] were investigated by DFT and TDDFT methods. We first optimized geometrical structures in the ground and lowest triplet states, and computed the absorption and emission spectra of 1 and 5 [Ir(fpmi)₂(pypz)] [pypz = 2-(1H-pyrazol-5-yl)pyridinato], which have been synthesized and characterized in a laboratory, using three functionals, B3LYP, CAM-B3LYP, and M062X. The calculation results were compared with relevant experimental data to assess the performance of the functionals. The suitable methods and functionals were then applied to study properties of the three other complexes. The HOMOs of 1–3 are composed of d(Ir) and π(cyclometalated ligands), however, the HOMO of 4 resides on the pyim ligand, while the LUMOs of all four complexes are dominantly localized on the chelating ligands. The calculated absorption results show that the corresponding absorption peaks for the four mainly studied complexes are almost at the same positions, however, the absorption intensities of the bands differ largely from each other. The lowest energy emissions of the four complexes are localized at 507, 512, 468, and 513 nm, respectively. In order to estimate their efficiencies, we carried out simplified radiative rate constant calculations. It turns out that complex 3, which possesses the shortest emission wavelength and the largest radiative rate constant (k_r) value, can be considered as a highly efficient blue-emitting iridium(III) complex.

---

Introduction

Over the past decade, considerable attention has been paid to the development of organic light-emitting diodes (OLEDs), which are playing a vital role in future flat-panel display technologies and next generation solid-state energy-saving lighting sources.^1,2 Phosphorescent emitters based on transition metal complexes have much higher efficiencies than their fluorescent counterparts and can achieve 100% internal quantum efficiency theoretically, because these complexes can harvest both singlet and triplet excitons.^2–5 Therefore, a great deal of effort has been directed toward developing highly efficient phosphorescent transition metal complexes, especially iridium(III) complexes.⁶

To attain a full-color display, phosphors that can emit three primary colors (red, green, and blue) are indispensable.^7,8 Highly efficient green- and red-emitting Ir(III) complexes have been successfully synthesized.^9–16 However, the challenge of synthesizing saturated blue phosphorescent materials with high efficiency still remains.^17–19 The initially reported ‘blue’ phosphorescent complexes are bis[2-(2,4-difluorophenyl)pyridyl]iridium(acetylacetonate) [FIr(acac)] and bis[2-(2,4-difluorophenyl)pyridyl]iridium(picolinate) [FIrpic],^20–23 and the device that utilizes FIrpic as the dopant emitter exhibited greenish-blue phosphorescence with Commission Internationale de l’Éclairage (x,y) coordinates (CIE_x,y) of (0.16, 0.29),²⁰ which cannot meet the requirement for true blue phosphors with an ideal CIE_x,y of (0.14, 0.09).²⁴ Subsequently, several corresponding blue-emitting complexes were reported, which were synthesized by varying the picolinate in FIrpic with other ancillary ligands, such as tetrakis(1-pyrazolyl)borate in FIr6,²⁵ pyridyl triazolate ligand in FIrtaz,^26,27 pyridyl tetrazolate in FIrN4 (ref. 26) and so on, all in the form of (dfppy)₂Ir(L^X). Although the devices based on some of these complexes display excellent efficiency, the majority of these blue phosphors showed inferior color chromaticity which limits their practical applications in OLEDs.²⁸ Further improvements were made by the adoption of N-heterocyclic carbene ligand and novel fluorine-substituted bipyridine based chelates.^7,29 Recently, Chi and Chou et al. have made a significant contribution to the development of the blue-emitting phosphorescent OLEDs. Through bringing in a concept of non-π electron-conjugated cyclometalated ligand, they designed and synthesized a class of novel true-blue phosphors,^29–33 especially the Ir(fppz)₂(dfbdp)(fppzH): 5-(2-pyridyl)-3-trifluoromethylpyrazole, (dfbdpH: (2,4-difluorobenzyl)diphenylphosphine),³² on which the device based exhibits a true blue CIE_x,y of (0.15, 0.11) and external quantum efficiency of ∼12%. More recently, they reported a series of Ir complexes applied tripodal, facially coordinated phosphite (or phosphonite), abbreviated as P^C₂ chelate, as the ancillary ligand, which shows a lot of potential owing to its functionality of readily adjusting the electronic structures and of stabilizing the phosphors.²⁴ The conclusion that we can draw from these researches is that the emission wavelength can be easily tuned through subtle changes in the ligands and a deep understanding of the structure–property relationships is quite significant in designing and synthesizing potentially highly efficient true-blue emitting complexes.³⁴

The developments of computing equipment and methods make quantum calculation become an increasingly powerful tool for chemists and the quantum calculation shows significant advantages in many fields, in particular in elucidating the structure–property relationships. In a number of theoretical researches,^35–39 the results of DFT calculations are comparable to the experimental data, such as bond length, emission wavelength, and spectroscopic properties and thus suggest their credibility.

In this paper, we carried out a density functional theory (DFT) study on a novel complex, [Ir(fpmi)₂(pyim)] (1),⁴⁰ and its derivatives, [Ir(pyim)₂(fpmi)] (2), [Ir(fpmi)₂(fptz)] (3), [Ir(tfmppz)₂(pyim)] (4), (fpmi = 1-(4-fluorophenyl-3-methylimdazolin)-2-ylidene-C,C²′; pyim = 2-(1H-imidazol-2-yl)pyridinato; fptz = 5-(trifluoromethyl-2H-1,2,4-triazol-3-yl)pyridine; tfmppz = 1-(4-trifluoromethylphenyl)pyrazolyl) (Scheme 1, Fig. 1).

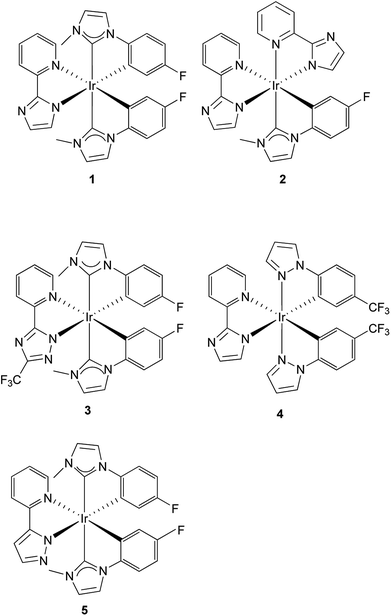

Scheme 1 Chemical structures of Ir(III) complexes 1–5.

Fig. 1 Optimized geometries of 1–5 in the ground states at DFT/B3LYP level.

Complex 1 has a high quantum yield with 30.7% and however, exhibits the sky-blue phosphorescence with vibronic peak wavelengths at 474 and 497 nm measured in toluene.⁴⁰ According to what we know, the triazole has a larger HOMO–LUMO gap than that of imidazole,⁴¹ we thus anticipated that replacing the imidazole moiety with triazole group in complex 3 would lead to a blue-shifted emission wavelength.⁴²

Moreover, we designed complexes 2, for which pyim ligand serves as the main ligand, and 4, for which tfmppz serves as the main ligand, and then studied electronic structures and phosphorescence properties of the four complexes, with the aim of finding suitable true-blue emitting complexes and of understanding their structure–property relationship. Finally, to study the phosphorescence efficiency of the four complexes, their radiative rate constant values were estimated.

Computational details

In all calculations, the “double-ζ” quality LANL2DZ basis set was employed for Ir atom,⁴³ and 6-31G(d) basis set for non-metal atoms.^44,45 A relativistic effective core potential (ECP) was used on Ir atom,⁴³ which replaces the inner core electrons and accordingly leaves outer [(5s)²(5p)⁶] and (5d)⁶ as the valence electrons of Ir(III). Meanwhile, one f-type (α_f = 0.14)⁴⁶ polarization function was adopted for Ir atom.

Considering that some experimental data, for example, the absorption and emission spectra, were measured in certain solutions, we thus used the polarized continuum model (PCM) approach to model the solvent effect.^47–49

Recently, a large number of functionals have been developed to improve accuracy and save computational time. In this study, we examined the applicability of B3LYP (Becke's three parameter functional and the Lee–Yang–Parr functional),^50,51 M062X,⁵² and CAM-B3LYP⁵³ for our system. Because the crystal data of complex 1 lacks in the paper,⁴⁰ for better comparing the reliability of the three functionals, geometry and excitation energies calculations were also performed on 5 (shown on Scheme 1 and Fig. 1). According to the ordinary process,⁵⁴ the geometrical structures of 1 and 5 in the ground and lowest-lying triplet excited state were optimized using the DFT method with the above three functionals. To get accurate energies of reoptimizations, single-point calculations were performed with the dispersion-corrected functionals, but the computational accuracy is not increased immediately under the condition of increasing computational cost. Based on the respective optimized structures in the ground and excited states, TDDFT^55–57 calculations utilizing these functionals associated with PCM model were carried out to acquire their vertical singlet–singlet and vertical singlet–triplet excitation energies. There is a newly developed method, the Spin-Flip TDDFT (SF-TDA), which performed better in computing phosphorescence energies of transition metal complexes than TDDFT.⁵⁸ However, the TDDFT method was still used to calculate excitation energies in our work because it has been proven reliable and can implement PCM approach to stimulate the solvent effect.

The selected parameters of optimized geometrical structures of 1, 5 in the ground state and corresponding experimental data of 5 are presented in Table 1. The calculated geometries of 1 were also compared with experimental data of 5 as 1 is similar to 5 in terms of their chemical structures. From Table 1, the percent error indicates that the geometries optimized by CAM-B3LYP are in the best agreement with the measured values. However, with respect to absorption spectra, we can conclude from Fig. 2 and 3 that the absorption spectra computed by the B3LYP functional is more accurate than by other functionals comparing with experimental results.⁴⁰ For example, the simulated absorption spectrum by B3LYP of 1 best reproduces the features, including band positions and separations, of its experimental spectrum. Meanwhile, for the simulated spectra of 5, it can be noticed that there is an absorption peak on the spectrum calculated by B3LYP appearing at approximately 356 nm that deviates from the corresponding experimental data (379 nm) by 23 nm,⁴⁰ while there is almost no noticeable absorption peak around in the spectra simulated by CAM-B3LYP and M062X functionals. Because the geometries optimized by B3LYP are also comparable to experimental results (though not as good as CAM-B3LYP functional) and the absorption properties are quite important in our study, the B3LYP functional was used to optimize geometrical structures of three other complexes in the ground state and to calculate their absorption spectra. It should be indicated that the simulated absorption spectrum depends on the choice of half-width and it is set to 0.14 eV in this work.³⁴

Table 1 Optimized geometries of 1, 5 in the ground state by different functionals and the percent error (δ), together with experimental data of 5

	Expt^a	5						1
		B3LYP		CAM-B3LYP		M062X		B3LYP		CAM-B3LYP		M062X
		Cal	δ	Cal	δ	Cal	δ	Cal	δ	Cal	δ	Cal	δ
	Bond length (Å)
a See ref. 40.
Ir–C1	2.041	2.058	0.8	2.050	0.4	2.025	0.8	2.055	0.7	2.047	0.3	2.022	0.9
Ir–C2	2.034	2.053	0.9	2.042	0.4	2.031	0.1	2.064	1.5	2.056	1.1	2.041	0.3
Ir–C3	2.026	2.046	1.0	2.037	0.5	2.013	0.6	2.046	1.1	2.038	0.6	2.012	0.7
Ir–C4	2.031	2.061	1.5	2.051	1.0	2.040	0.4	2.055	1.2	2.045	0.7	2.035	0.2
Ir–N1	2.146	2.216	3.4	2.196	2.3	2.225	3.8	2.222	3.5	2.198	2.4	2.230	4.0
Ir–N2	2.097	2.144	2.2	2.126	1.4	2.149	2.5	2.161	3.1	2.140	2.1	2.162	3.1

---

Fig. 2 Simulated absorption spectra of 1 in CH₂Cl₂ media using TDDFT method with different functionals.

Fig. 3 Simulated absorption spectra of 5 in CH₂Cl₂ media using TDDFT method with different functionals.

The lowest emission wavelengths calculated by the three functionals on the basis of the excited state geometrical structures optimized by respective functionals are shown in Table 2. For 1, the result gained from M062X deviates from experimental data (497 nm) by 10 nm,⁴⁰ while the emission wavelengths calculated by two other functions, B3LYP and CAM-B3LYP, lead to deviations of 43 nm and 81 nm, respectively. Meanwhile, it is obvious that the performance of M062X in calculating the emission wavelength of 5 is much better that other functionals. And previous work has proven that the M062X functional can be adopted to evaluate the singlet–triplet excitation energies of Ir complexes,⁵⁴ and the non-local correlation effects and self-interaction error (delocalization SIE) have been systematically investigated by comparing the electron density distribution ρ(r) generated with a series of reference densities obtained by DFT that cover typical electron correlation effects. In this regard, the geometrical structures in the T₁ state and the singlet–triplet excitation energies of three other complexes were calculated by TDDFT method with the M062X functional in this study. All the calculations were performed using the Gaussian 09 software package.⁵⁹

Table 2 Calculated lowest emission wavelengths of 1, 5 with TDDFT method in toluene media on the basis of triplet excited-state geometrical structures optimized by respective functionals

	Expt^a	B3LYP	CAM-B3LYP	M062X
a See ref. 40.
1/nm	497	540	578	507
5/nm	468	520	555	482

---

Results and discussion

Molecular geometries structures in the ground and the excited states

The optimized geometrical structures for 1–4 in the ground state are displayed in Fig. 1.

Since Ir(III) has d⁶ configuration, all the complexes exhibit a pseudo-octahedral coordination geometry. Selected optimized geometrical parameters are listed in Table 3. In order to test if each of the optimized geometries is truly the global minimum of the potential energy surface, the vibrational frequencies calculation was performed for complexes 1–4. The results, in which there is no imaginary frequency, indicate that the optimized geometries are reasonable.

Table 3 Main optimized geometry structural parameters of 1–4 in the ground and lowest lying triplet states calculated by B3LYP and M062X, respectively, together with the experimental values of 5

	5	1		2		3		4
	Expt^a	S0	T1	S0	T1	S0	T1	S0	T1
a See ref. 40.
Bond length (Å)
Ir–C1	2.041	2.055	2.015	2.041	2.015	2.053	2.020	2.042	2.001
Ir–C2	2.034	2.064	2.051	2.000	1.967	2.056	2.035
Ir–C3	2.026	2.046	2.019			2.043	2.017	2.028	2.004
Ir–C4	2.031	2.055	2.033			2.063	2.042
Ir–N1	2.146	2.222	2.200	2.220	2.190	2.238	2.217	2.221	2.191
Ir–N2	2.097	2.161	2.184	2.070	2.063	2.153	2.152	2.147	2.170
Ir–N3				2.166	2.187			2.043	2.046
Ir–N4				2.064	2.044			2.147	2.044
Bond angle (°)
C1–Ir–C2	79.11	78.84	79.33	79.29	79.65	78.90	79.27
N1–Ir–N2	76.56	76.00	76.27			75.34	76.30	76.36	76.49
C2–Ir–C4	168.54	169.90	169.55			169.92	169.10
N2–Ir–N4				168.35	168.49
C1–Ir–N3								79.54	80.06
N3–Ir–N4				77.79	77.81			174.16	174.08
Dihedral angle (°)
C1–C2–Ir–C3		90.67	89.52			91.02	89.55
C1–Ir–C2–N1		95.96	95.07			95.35	95.07
N1–N2–Ir–N3				85.40	85.08
N3–Ir–N4–C1				94.11	94.63
C1–N3–Ir–C3								89.13	87.83
C1–Ir–N3–N1								96.91	97.21

---

With respect to 1, two carbene fragments are at the trans position, whereas both of phenyl fragments are located in the cis position. As shown in Table 3, the dihedral angles of C1–C2–Ir–C3 (90.67) and C1–Ir–C2–N1 (95.96) are nearly 90 degree, suggesting that the three ligands are mutually perpendicular, which also can be observed in other complexes. It is worth noting that the bond distances of Ir–C2 and Ir–C4 are slightly longer than that of Ir–C1 and Ir–C3, respectively. The discrepancy can be traced back to the fact that the intense electron donation of the methyl group weakens the interaction between the carbene ligand and the metal center.³⁹

It is notable that the bond distance of Ir–C (average = 2.055 Å) in 1 is significantly longer than that in complex 2 (2.020 Å). The different bond distances suggest that the bonds are not in the same electronic environment,⁸ though the two complexes have similar cyclometalated ligands. However, the average Ir–C distance (2.054 Å) in 3 is almost identical to that in 1, indicating that the replacement of imidazole moiety with triazole substituted by a CF₃ group exerts no apparent effect on the Ir–C distances. Meanwhile, the lengths of Ir–C1 and Ir–C3 (average = 2.051 Å) in 1 are significantly longer than those in complex 4 (average = 2.035 Å), because the carbene is a stronger field ligand than the pyrazolyl.²⁹ Moreover, for 1 and 3, since the π-accepting ability of the imidazole and triazole ring is bigger than that of the pyridine ring,⁵⁴ the Ir–N1 bond lengths are longer than the Ir–N2.

The calculated geometrical parameters of 1–4 in the triplet excited states by M062X are also listed in Table 3. The selected dihedral angles in the two states are nearly identical, for example, the dihedral angles of C1–C2–Ir–C3 for complex 1 in ground and excited states are 90.67 and 89.52, respectively, meaning that there is only a slight distortion in geometry on going from the ground state to the T₁ state.

The frontier molecular orbital properties

In order to investigate the effects of varying ligands on optoelectronic properties in nature, we would discuss comprehensively the ground state electronic structure in this part, particularly the HOMO and LUMO distributions, energy levels and energy gaps. Selected FMOs (frontier molecular orbitals) compositions of 1–4 are listed in Tables 4–7, and the HOMO and LUMO distributions and energy levels are illustrated in Fig. 4.

Table 4 Molecular orbital compositions in the ground state for 1 at DFT/B3LYP level

Orbital	Energy (eV)	MO composition (%)				Characteristics
		Ir	fpmi-1	fpmi-2	pyim
L+4	0.09	6	23	63	7	π*(fpmi)
L+3	−0.17	8	63	26	2	π*(fpmi)
L+2	−0.29	10	25	57	8	π*(fpmi)
L+1	−0.58	2	5	4	89	π*(pyim)
L	−1.04	7	3	2	88	π*(pyim)
H	−4.96	18	8	5	69	d(Ir) + π(pyim)
H−1	−5.11	37	24	20	20	d(Ir) + π(fpmi/pyim)
H−2	−5.44	35	27	26	12	d(Ir) + π(fpmi)
H−3	−5.70	38	17	33	11	d(Ir) + π(fpmi)
H−4	−5.85	27	44	16	13	d(Ir) + π(fpmi)
H−5	−6.09	32	22	42	4	d(Ir) + π(fpmi)

---

Table 5 Molecular orbital compositions in the ground state for 2 at DFT/B3LYP level

Orbital	Energy (eV)	MO composition (%)				Characteristics
		Ir	pyim-1	pyim-2	fpmi
L+4	−0.36	7	3	5	85	π*(fpmi)
L+3	−0.55	2	18	77	4	π*(pyim)
L+2	−0.78	2	76	16	6	π*(pyim)
L+1	−1.11	6	3	89	2	π*(pyim)
L	−1.21	5	89	3	3	π*(pyim)
H	−5.14	19	3	70	8	d(Ir) + π(pyim)
H−1	−5.25	11	78	7	5	d(Ir) + π(pyim)
H−2	−5.49	29	13	21	37	d(Ir) + π(pyim/fpmi)
H−3	−5.83	44	17	13	25	d(Ir) + π(pyim/fpmi)
H−4	−6.10	23	17	11	49	d(Ir) + π(pyim/fpmi)
H−5	−6.37	70	6	9	15	d(Ir) + π(fpmi)

---

Table 6 Molecular orbital compositions in the ground state for 3 at DFT/B3LYP level

Orbital	Energy (eV)	MO composition (%)				Characteristics
		Ir	fpmi-1	fpmi-2	fptz
L+5	0.34	7	77	13	4	π*(fpmi)
L+4	−0.01	7	14	72	8	π*(fpmi)
L+3	−0.18	9	80	9	3	π*(fpmi)
L+2	−0.39	11	9	5	74	π*(fptz)
L+1	−1.04	2	4	2	93	π*(fptz)
L	−1.52	5	3	1	91	π*(fptz)
H	−5.22	42	38	16	3	d(Ir) + π(fpmi)
H−1	−5.58	34	28	28	10	d(Ir) + π(fpmi)
H−2	−5.81	37	18	29	16	d(Ir) + π(fpmi/pyim)
H−3	−5.97	27	42	16	14	d(Ir) + π(fpmi/pyim)
H−4	−6.22	32	17	43	8	d(Ir) + π(fpmi)
H−5	−6.40	12	23	4	61	d(Ir) + π(fpmi/pyim)
H−6	−6.52	6	30	60	5	π(fpmi)
H−7	−6.94	4	16	14	66	π(fpmi/fptz)

---

Table 7 Molecular orbital compositions in the ground state for 4 at DFT/B3LYP level

Orbital	Energy (eV)	MO composition (%)				Characteristics
		Ir	tfmppz-1	tfmppz-2	pyim
L+4	−0.19	6	23	63	8	π*(ftmppz)
L+3	−0.66	2	1	3	94	π*(pyim)
L+2	−1.16	5	32	3	61	π*(tfmppz/pyim)
L+1	−1.16	4	52	14	30	π*(tfmppz/pyim)
L	−1.27	2	14	81	4	π*(tfmppz)
H	−5.14	5	1	1	94	π(pyim)
H−1	−5.64	49	25	27	4	d(Ir) + π(tfmppz)
H−2	−5.92	52	10	7	30	d(Ir) + π(tfmppz/pyim)
H−3	−6.29	66	8	19	6	d(Ir) + π(tfmppz)
H−4	−6.38	2	45	41	13	π(tfmppz/pyim)
H−5	−6.65	3	5	21	72	π(tfmppz/pyim)

---

Fig. 4 Presentation of the frontier molecular orbital energy levels and molecular orbital profiles of the HOMO and LUMO of four subject complexes calculated at DFT/B3LYP level.

For complex 1, the HOMO is predominantly localized on the iridium metal center (18%) and the pyim ligand (69%), while the LUMO is principally composed of π*(pyim), indicating the ancillary ligand pyim is also involved in determining the emissive excited state of 1. Therefore, we anticipate that the emission color can be adjusted by grafting electron withdrawing groups or electron donating groups to the pyim ligand.²

With respect to 2, the HOMO is mainly composed of d(Ir) (19%) atom and π(pyim-2) (70%) and the LUMO is contributed principally by π*(pyim-1), almost identical to the compositions in 1. However, due to the large electronegativity of pyim ligand,⁸ the energy levels of HOMO (−5.14 eV) and LUMO (−1.21 eV) are lower than that of HOMO (−4.96 eV) and LUMO (−1.04 eV) in 1, respectively. We can see from Table 5 that the LUMO+1 is also contributed chiefly by one pyim ligand (89%), but not the one that mainly dominates the composition in the LUMO.

For 3, the HOMO is dominantly composed of d(Ir) and π(fpmi). Meanwhile, like that in 1, the LUMO resides primarily on the ancillary ligand (91%). Moreover, because triazole has a lower LUMO energy than that of imidazole and the LUMO is mainly composed of π(ancillary ligand) for 1, 3, the energy level of LUMO (−1.52 eV) of 3 is lower than that in 1 (−1.04 eV).

With respect to 4, unlike 1 and 3, for which the fpmi is the main ligand and the ancillary ligands contribute more to the LUMO, the LUMO is mainly contributed by the main ligand tfmppz, not the ancillary ligand pyim, verifying that the strong field of the fpmi ligand provides the LUMO level of the complexes principally located on the ancillary ligand.⁴⁰ It is noteworthy that the HOMO resides mainly on pyim ligand, with less compositions from Ir atom (5%), which is different from most Ir complexes.

Absorptions in CH₂Cl₂ media

The calculated absorption spectra of the four complexes associated with their oscillator strengths, main configurations, and assignments with experimental wavelengths are shown in Table 8.

Table 8 Calculated absorptions of 1–4 in CH₂Cl₂ media at TDDFT/B3LYP level, together with experimental energy wavelength values

Complex	States	Oscillator	E/nm (eV)	Main configuration	Assignment	Expt^a/nm
a See ref. 40.
1	S1	0.017	368 (3.37)	H → L (88%)	MLCT/ILCT
	S2	0.0836	348 (3.57)	H−1 → L (79%)	MLCT/LLCT	356
	S3	0.0779	326 (3.80)	H−2 → L (91%)	MLCT/LLCT
	S7	0.1317	303 (4.09)	H−3 → L (24%)	MLCT/LLCT
				H−1 → L+1 (46%)	MLCT/LLCT/ILCT
	S10	0.0816	289 (4.28)	H−2 → L+1 (74%)	MLCT/LLCT	292
	S17	0.0744	272 (4.55)	H−5 → L (90%)	MLCT/LLCT
	S19	0.1123	267 (4.65)	H−3 → L+2 (55%)	MLCT/LLCT/ILCT
2	S1	0.0255	367 (3.38)	H → L+1 (92%)	MLCT/ILCT
	S4	0.078	351 (3.53)	H−1 → L+1 (75)	MLCT/LLCT
	S9	0.0826	312 (3.97)	H−3 → L+1 (77%)	MLCT/LLCT
	S21	0.0716	275 (4.51)	H−2 → L+4 (69%)	MLCT/LLCT/ILCT
	S22	0.2394	273 (4.54)	H−5 → L+1 (58%)	MLCT/LLCT
3	S1	0.0002	400 (3.10)	H → L (98%)	MLCT/LLCT
	S2	0.0481	360 (3.45)	H−1 → L (89%)	MLCT/LLCT
	S5	0.0468	312 (3.98)	H−3 → L (90%)	MLCT/LLCT/ILCT
	S12	0.121	281 (4.41)	H−5 → L (70%)	MLCT/LLCT/ILCT
	S13	0.1015	277 (4.48)	H → L+4 (77%)	MLCT/LLCT/ILCT
	S17	0.1067	269 (4.60)	H−2 → L+2 (71%)	MLCT/LLCT/ILCT
4	S1	0.0235	356 (3.49)	H → L (94%)	LLCT
	S2	0.1078	352 (3.53)	H → L+1 (91%)	LLCT/ILCT
	S9	0.0719	303 (4.09)	H−2 → L+2 (33%)	MLCT/LLCT/ILCT
				H → L+3 (25%)	ILCT
	S10	0.1237	302 (4.11)	H−2 → L+1 (32%)	MLCT/LLCT/ILCT
				H−2 → L+2 (50%)	MLCT/LLCT/ILCT
	S14	0.1432	287 (4.33)	H−3 → L+1 (61%)	MLCT/LLCT
	S18	0.1026	271 (4.58)	H−4 → L+2 (44%)	LLCT/ILCT
				H−1 → L+4 (44%)	MLCT/LLCT/ILCT
	S20	0.1219	269 (4.61)	H−4 → L+2 (41%)	LLCT/ILCT
				H−1 → L+4 (33%)	MLCT/LLCT/ILCT

---

For clarity, merely the typical excited states possessing relatively larger oscillator strengths are listed. Meanwhile, the simulated Gaussian type absorption curves are displayed in Fig. 5.

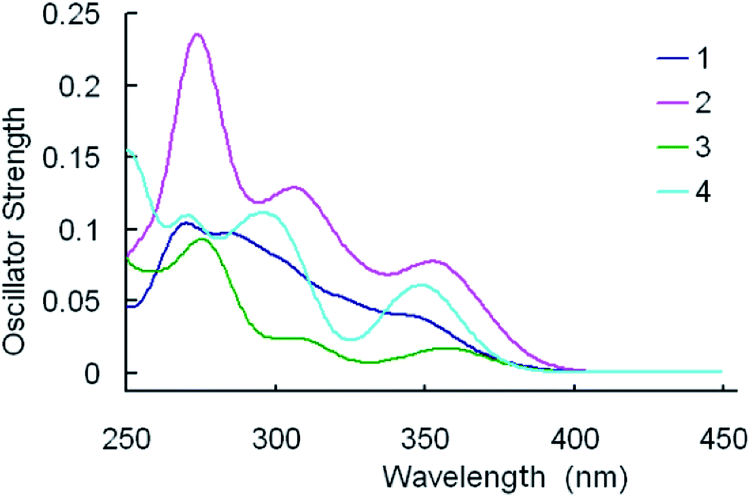

Fig. 5 Simulated absorption spectra of 1–4 in CH₂Cl₂ media under the TDDFT/B3LYP level.

As shown in Table 8, the lowest lying absorption bands of 1–4 are 368, 367, 400, 356 nm, respectively. The S₀ → S₁ transitions for the titled complexes are principally contributed by the HOMO → LUMO excitation, with the exception of 2, for which the HOMO → LUMO+1 excitation is the core configuration. According to above FMOs discussion, the HOMO of 1 is dominantly localized on the Ir atom and the pyim ligand, whereas the LUMO of 1 mainly resides on the pyim ligand, thus the lowest lying absorption can be characterized as [d(Ir) + π(pyim)] → [π*(pyim)] transition with mixing ML_pyimCT/IL_pyimCT characters. Correspondingly, for 2 and 3, the transitions can be described as characters of ML_pyimCT/IL_pyimCT, [d(Ir) + π(pyim)] → [π*(pyim)], and ML_fptzCT/L_fpmiL_fptzCT, [d(Ir) + π(fpmi)] → [π*(fptz)], respectively. However, for complex 4, the HOMO is mainly localized on the pyim ligand, while the LUMO is primarily composed of π(tfmppz) (81%), therefore the lowest-lying absorption at 356 nm can be attributed to [π(pyim)] → [π*(pyim)] transition with IL_pyimCT.

As shown in Table 8 and Fig. 5, the calculated values of the first distinguishable absorption bands are 348, 351, 360, and 352 nm for 1–4, respectively. The absorptions of 1 and 3 are contributed by the transition configuration of HOMO−1 → LUMO, while the HOMO–1 → LUMO+1 excitation is the main configuration for 2, and the HOMO → LUMO+1 for 4. As shown in Tables 4–7, for 1 and 3, LUMO resides primarily on the ancillary ligands, and HOMO is d(Ir) + π(chelate ligands), therefore, the MLCT/LLCT are the transition character for their absorptions around 350 nm. The absorption at 351 nm for 2 can be characterized as MLCT/LLCT, [d(Ir) + π(fpmi) → π*(fptz)]. For 4, the absorption at 352 nm can be ascribed to [π(pyim) → π*(pyim + tfmppz)] transition.

One can see from Fig. 5 that the calculated spectrum of complex 1 have two non-negligible higher energy absorption peaks at around 289, and 267 nm. However, in experiment, probably because they are too close to each other and are not well separated,⁶⁰ or one of them is relatively weak and can't be detected experimentally, there is only one absorption peak localized at 292 nm in this region.⁴⁰ In Fig. 5, the second apparent absorption bands of the four complexes are located at 285–315 nm. The absorption at 289 nm for 1 can be characterized as MLCT[d(Ir) → π*(pyim)] mixing with LLCT [π(fpmi) → π*(pyim)]. Likewise, with respect to 2, 3 and 4, the absorption at 312, 312 and 302 nm, respectively, can be classified as mixed character of MLCT/LLCT/ILCT.

Furthermore, the calculated highest-energy absorptions are 267, 273, 277, 271 nm for 1–4, respectively. The absorption at 267 nm for 1 is mainly contributed by the HOMO−3 → LUMO+2 configuration and can be characterized as MLCT/LLCT/ILCT, [d(Ir) + π(fpmi) → π* (fpmi)]. For 2 and 3, the absorptions are contributed by HOMO−5 [d(Ir) + π(fpmi)] → LUMO+2 [π*(fpmi)], and HOMO [d(Ir) + π(fpmi)] → LUMO+4 [π*(fpmi)], respectively. With respect to 4, the absorption at 271 nm is contributed by HOMO−4 → LUMO+2, [π(tfmppz) → π*(tfmppz + pyim)], and HOMO−1 → LUMO+4, [d(Ir) + π(tfmppz) → π*(tfmppz)].

It's notable that the corresponding absorption peak positions for the four complexes are practically identical to each other. Equally noteworthy is that the relative absorption intensities of the bands for the complexes are quite different, following the order: 2 > 4 > 1 > 3.

Phosphorescence spectra

On the basis of the optimized triplet excited-state geometries, TDDFT method was used to compute emission spectra of 1–4 in toluene solution with M062X functional, and the results are shown in Table 9. The FMOs concerning the lowest-lying emission transitions of the complexes are presented in Table 10 and Fig. 6.

Table 9 Calculated phosphorescent emissions of 1–4 in toluene media at TDDFT/M062X level, together with corresponding experimental values

Complexes	States	E/nm (eV)	Configurations	Assignments	Expt^a
a See ref. 40.
1	T1	507 (2.45)	H → L (0.95)	^3ILCT	497
2	T1	512 (2.42)	H → L (0.96)	^3LLCT
3	T1	468 (2.65)	H−2 → L (0.31)	^3MLCT/^3LLCT/^3ILCT
			H−1 → L (0.54)	^3MLCT/^3LLCT
4	T1	513 (2.42)	H → L (0.94)	^3LLCT

---

Table 10 Molecular orbital compositions (%) of 1–4 in the excited states with TDDFT/M062X level

		MO composition (%)				Characteristics
		Ir	1st ligand	2nd ligand	3rd ligand
1			fpmi-1	fpmi-2	pyim
L	−0.38	0.08	0.03	0.02	0.87	π*(pyim)
H	−6.10	0.03	0.01	0.01	0.95	π(pyim)
2			pyim-1	pyim-2	fpmi
L	−0.65	0.05	0.89	0.03	0.03	π*(pyim)
H	−6.35	0.03	0.95	0.01	0.01	π(pyim)
3			fpmi-1	fpmi-2	fptz
L	−0.97	0.04	0.03	0.02	0.92	π*(fptz)
H−1	−7.00	0.20	0.11	0.20	0.48	d(Ir) + π(fpmi/fptz)
H−2	−7.10	0.09	0.27	0.33	0.31	π(fpmi/fptz)
4			tfmppz-1	tfmppz-2	pyim
L	−0.50	0.06	0.02	0.04	0.88	π*(pyim)
H	−6.20	0.02	0.01	0.01	0.97	π(pyim)

---

Fig. 6 Singlet electron emission of T₁ → S₀ transition for 1–4, calculated at TDDFT/M062X level.

The maxima emission wavelengths of the four complexes under investigation are 507, 512, 468, 513 nm, respectively. The calculated emission wavelength of 1 is satisfactorily consistent with the experimental value of 497 nm,⁴⁰ with a deviation of only 10 nm.

For 1, the 507 nm emission is principally contributed by HOMO → LUMO transition configuration. The HOMO for 1 is mainly localized on the pyim ligand, the LUMO is also primarily composed of π*(pyim). Thus, the calculated emission should be ³IL_pyimCT character. Like 1, the emission of 2 at 512 nm is predominately contributed by transition of HOMO → LUMO. Since the HOMO of 2 has 89% π(pyim-1) and the LUMO is mainly localized on the pyim-1 moiety, the emission can be assigned to ³IL_pyim-1CT character. With respect to 3, two transitions of HOMO−2 → LUMO and HOMO−1 → LUMO are responsible for the emission at 468 nm, which is blue-shifted compared with 1. Correspondingly, the calculated emission at 468 nm is contributed by the ³MLCT/³LLCT/³ILCT. As for 4, the calculated emission at 513 nm originates mainly from HOMO → LUMO. As the HOMO is contributed by π(pyim) with 97% compositions and the LUMO is composed of 88% π*(pyim), the phosphorescence at 513 nm can be assigned to ³IL_pyimCT.³⁶

The calculated emission wavelength of 3 at 468 nm is the shortest and is blue-shifted by almost 40 nm compared with 1. Thus, complex 3 can be considered as a potential pure-blue phosphorescent material.⁸

Prediction of the radiative rate constant for the complexes

It is meaningful to utilize our results of calculation to discuss the photoluminescence quantum yield, which is an important consideration when choosing which complex can be used as the dopant emitter for OLED device fabrication, in terms of the radiative rate constant k_r.

The radiative rate constant k_r from the T₁ state to the ground state (S₀) can be theoretically calculated using the following formula:^61–64

where η, h, ε₀, E(T₁), and M_Sn represent the refractive index of the medium, Planck's constant, vacuum permittivity, energy of the T₁ → S₀ transition, and transition dipole moment from the S_n state to the S₀ state. In addition, the α denotes the spin sublevel of the triplet state T₁ (a = x, y, or z). Meanwhile, the M_Sn can be given bywhere e and m_e are the charge and mass of an electron, c is the speed of light and f_n is the oscillator strength.

Therefore, by putting eqn (2) into (1), the k_r^a can be depicted as

In order to simplify the calculation, the spin–orbit integrals between two coupling states are reduced to that between two 5d atomic orbitals on iridium(III).^61,62 It is important that the electronic spin–orbit coupling matrix element SOCMEs are often less sensitive to the level of electron correlation treatment than the energetic splittings.^65,66 Hereupon, the matrix elements 〈S_n|H_SOC|T₁^a〉 can be depicted as

where ¹Ψ_n and ³Ψ_m are the nth singlet and the mth triplet state wavefunctions.^62,67 In the eqn (4),where a_i is the CI coefficient of the configuration ψ_i contributing to the state wavefunction Ψ, and ψ_i represents a one-electron excitation from an occupied orbital to an unoccupied orbital, such as a HOMO → LUMO transition. The one-center spin–orbit approximation simply involves the coupling between ¹MLCT and ³MLCT, which is considerably bigger than the neglected ones between ^3,1MLCT and ^1,3LC in the magnitude.^52,68 These molecular orbitals involved in the transition could be described as a combination of atomic orbitals via φ = ∑c_iχ_i, in which the c_i is the mixing coefficient. In eqn (4), Ω represents the singlet spin function or three components of the triplet spin function.⁶² One example of the integrals Ξ is,where ζ is a spin–orbit coupling constant. And the radiative rate constant k_r is equal to the algebraic average of the three k_r^a values

Thus, the calculation of radiative rate constant k_r can be literally straightforward according to the above equations. Take the spin–orbit coupling between S₂ and T₁ of complex 1 for example, the T₁ excited state is derived mainly from one transition: H → L (a_i = 0.69), with H composed of Ir d orbital: 83% Ir(d_yz), where the coefficient of natural atomic orbitals is obtained from NBO analysis.⁶⁹ The S₂ is derived dominately from the H−1 → L transition [a_i = 0.47; 28% Ir(d_xy)]. Thus, we could evaluate the 〈S₂|H_SOC|T₁^y〉 value, with theoretical values of ζ_5d-Ir = 4430 cm⁻¹ for the Ir(III) ion.⁷⁰ The coefficients of natural atomic orbitals, and the use of eqn (4) and (6). Then, with E(S₂), E(T₁), f provided by TDDFT result, and η, the refractive index of the medium, the k_r,2 can be obtained according to eqn (3). Further calculations for 1 and others can be done in the same way.

Presented in Table 11 are the t calculated radiative rate constants, k_r. For 1, the number (k_r = 3.90 × 10⁴ s⁻¹) is underestimated compared to the experimental radiative rate constant (k_r,expt = 4.72 × 10⁴) obtained from the phosphorescence lifetime and quantum yield: k_r,expt = Φ/τ, however, the deviation, which can be due to the oversimplifications of spin–orbit interaction, is relatively small, and k_r and k_r,expt have the same magnitude. Thus, the present simplified analysis can be applicable in evaluating the k_r values.

Table 11 Radiative rate constants of 1–4 calculated at the triplet excited state geometry obtained at TDDFT/M062X level in toluene media in comparison with experimental data

	kr^x/s^−1	kr^y/s^−1	kr^z/s^−1	kr/s^−1	kr,expt^a/s^−1
a See ref. 40.
1	0.00	1.87 × 10^4	9.84 × 10^4	3.90 × 10^4	4.72 × 104
2	0.00	13.45	1.49 × 10^3	5.01 × 10^2
3	9.49 × 10^3	5.03 × 10^3	1.38 × 10^5	5.08 × 10^4
4	1.11 × 10^2	1.16 × 10^2	0.00	76

---

The calculated radiative decay rate constants k_r are in the order: 3 (k_r = 5.07 × 10⁴ s⁻¹) > 1 (k_r = 3.90 × 10⁴ s⁻¹) > 2 (k_r = 5.01 × 10² s⁻¹) > 4 (k_r = 76 s⁻¹). It is obvious that the replacement of ligands leads to larger changes in k_r values. The complex 4 has an extremely low k_r value because the ¹MLCT and ³MLCT transitions have almost no identical unoccupied ligand π* orbital, a requisite for the effective spin–orbit coupling between the triplet and singlet excited states. Meanwhile, complex 3 has the largest k_r value and thus can be reasonably considered to be a highly efficient blue-emitting iridium(III) complex.

The gap between computational k_r value and experimental radiative rate constant is still should not negligible, and first principle relativistic density functional theory may be only method for describing large and complex systems containing heavy elements very well. Meanwhile, it is of great value to extend it to the time-dependent domain in order to describe excited states and dynamical properties of heavy elements. Even though it is hard to treat the larger transition metal complexes throughout, but the exact two-component (X2C) Hamiltonian can be applied to construct the SOC operator to treat spin–orbit coupling as a perturbation for more accurate k_r and k_ISC calculations.⁷¹ Our future work should be devoted to further improve the estimations of radiative and nonradiative rate constants and luminescence efficiencies in a quantitative basis.

Conclusions

The geometrical structures, electronic structures, optoelectronic properties and phosphorescence mechanism of four blue-emitting iridium(III) cyclometalated complexes were investigated in this study. Through the comparison of calculated results of 1, 5 with experimental data, we tested the applicability of three functionals and then applied the reasonable functionals to study three other complexes. The calculated results show that the HOMOs of 1–3 in the ground state were mainly localized on the metal center and the cyclometalated ligands. However, for 4, the HOMO mainly resides on pyim ligand, while the LUMOs of all these complexes are localized on the ligands. According to the frontier molecular orbital discussion, we can anticipate that the emission color can be adjusted by grafting electron withdrawing groups or electron donating groups to the pyim ligand in 1. Although the corresponding absorption peaks for the complexes are found at approximately the same positions, the absorption intensities of the bands differ largely from each other and follow the order: 2 > 4 > 1 > 3. As to phosphorescence behavior in toluene media, four complexes exhibit their emissions at 507, 512, 468 and 513 nm, respectively. Moreover, we evaluated the radiative rate constants and the results show 3 has the largest k_r value and the complex 4 has the smallest k_r value. That ¹MLCT and ³MLCT transitions have almost no identical unoccupied ligand π* orbital probably explains the extremely low k_r value of 4 (76 s⁻¹). And 3 can be expected to be a highly efficient blue-emitting iridium(III) complex. In the end, we hope that our work in elucidating structure–property relationships and estimating the radiative rate constant k_r values of the four complexes can provide experimenters with a guideline for the fabrication of more efficient blue phosphorescence-based OLED dyes.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by the Natural Science Foundation of China (21405058) and the Young Scholar Training Program of Jilin University.

Notes and references

1. S.-C. Lo, R. E. Harding, C. P. Shipley, S. G. Stevenson, P. L. Burn and I. D. Samuel, J. Am. Chem. Soc., 2009, 131, 16681–16688.
2. I. Avilov, P. Minoofar, J. Cornil and L. De Cola, J. Am. Chem. Soc., 2007, 129, 8247–8258.
3. H.-W. Chen, J.-H. Lee, B.-Y. Lin, S. Chen and S.-T. Wu, Light: Sci. Appl., 2018, 7, 17168.
4. M. A. Baldo, D. F. O'Brien, Y. You, A. Shoustikov, S. Sibley, M. E. Thompson and S. R. Forrest, Nature, 1998, 395, 151–154.
5. F.-Q. Bai, J. Wang, B.-H. Xia, Q.-J. Pan and H.-X. Zhang, Dalton Trans., 2012, 41, 8841–8846.
6. T.-Y. Li, Y.-M. Jing, X. Liu, Y. Zhao, L. Shi, Z. Tang, Y.-X. Zheng and J.-L. Zuo, Sci. Rep., 2015, 5, 14912.
7. S. J. Lee, K.-M. Park, K. Yang and Y. Kang, Inorg. Chem., 2008, 48, 1030–1037.
8. L. Shi, B. Hong, W. Guan, Z. Wu and Z. Su, J. Phys. Chem. A, 2010, 114, 6559–6564.
9. J. Markham, S.-C. Lo, S. Magennis, P. Burn and I. Samuel, Appl. Phys. Lett., 2002, 80, 2645–2647.
10. S.-C. Lo, N. A. Male, J. P. Markham, S. W. Magennis, P. L. Burn, O. V. Salata and I. D. Samuel, Adv. Mater., 2002, 14, 975–979.
11. T. D. Anthopoulos, J. P. Markham, E. B. Namdas, J. R. Lawrence, I. D. Samuel, S.-C. Lo and P. L. Burn, Org. Electron., 2003, 4, 71–76.
12. T. D. Anthopoulos, M. J. Frampton, E. B. Namdas, P. L. Burn and I. D. Samuel, Adv. Mater., 2004, 16, 557–560.
13. S. C. Lo, G. J. Richards, J. P. Markham, E. B. Namdas, S. Sharma, P. L. Burn and I. D. Samuel, Adv. Funct. Mater., 2005, 15, 1451–1458.
14. C. Adachi, M. A. Baldo, S. R. Forrest and M. E. Thompson, Appl. Phys. Lett., 2000, 77, 904–906.
15. F. Hua, S. Kinayyigit, J. R. Cable and F. N. Castellano, Inorg. Chem., 2005, 44, 471–473.
16. J. Kavitha, S. Y. Chang, Y. Chi, J. K. Yu, Y. H. Hu, P. T. Chou, S. M. Peng, G. H. Lee, Y. T. Tao and C. H. Chien, Adv. Funct. Mater., 2005, 15, 223–229.
17. D. J. Stufkens and A. Vlček Jr, Coord. Chem. Rev., 1998, 177, 127–179.
18. S. Ranjan, S.-Y. Lin, K.-C. Hwang, Y. Chi, W.-L. Ching, C.-S. Liu, Y.-T. Tao, C.-H. Chien, S.-M. Peng and G.-H. Lee, Inorg. Chem., 2003, 42, 1248–1255.
19. S.-C. Lo, C. P. Shipley, R. N. Bera, R. E. Harding, A. R. Cowley, P. L. Burn and I. D. Samuel, Chem. Mater., 2006, 18, 5119–5129.
20. C. Adachi, R. C. Kwong, P. Djurovich, V. Adamovich, M. A. Baldo, M. E. Thompson and S. R. Forrest, Appl. Phys. Lett., 2001, 79, 2082–2084.
21. R. Holmes, S. Forrest, Y.-J. Tung, R. Kwong, J. Brown, S. Garon and M. Thompson, Appl. Phys. Lett., 2003, 82, 2422–2424.
22. S. Tokito, T. Iijima, Y. Suzuri, H. Kita, T. Tsuzuki and F. Sato, Appl. Phys. Lett., 2003, 83, 569–571.
23. Y. You, S. H. Kim, H. K. Jung and S. Y. Park, Macromolecules, 2006, 39, 349–356.
24. C. H. Lin, Y. Y. Chang, J. Y. Hung, C. Y. Lin, Y. Chi, M. W. Chung, C. L. Lin, P. T. Chou, G. H. Lee and C. H. Chang, Angew. Chem., 2011, 123, 3240–3244.
25. X. Ren, J. Li, R. J. Holmes, P. I. Djurovich, S. R. Forrest and M. E. Thompson, Chem. Mater., 2004, 16, 4743–4747.
26. S. J. Yeh, M. F. Wu, C. T. Chen, Y. H. Song, Y. Chi, M. H. Ho, S. F. Hsu and C. H. Chen, Adv. Mater., 2005, 17, 285–289.
27. P. T. Chou and Y. Chi, Chem.–Eur. J., 2007, 13, 380–395.
28. Y.-C. Chiu, Y. Chi, J.-Y. Hung, Y.-M. Cheng, Y.-C. Yu, M.-W. Chung, G.-H. Lee, P.-T. Chou, C.-C. Chen and C.-C. Wu, ACS Appl. Mater. Interfaces, 2009, 1, 433–442.
29. T. Sajoto, P. I. Djurovich, A. Tamayo, M. Yousufuddin, R. Bau, M. E. Thompson, R. J. Holmes and S. R. Forrest, Inorg. Chem., 2005, 44, 7992–8003.
30. Y. H. Song, Y. C. Chiu, Y. Chi, Y. M. Cheng, C. H. Lai, P. T. Chou, K. T. Wong, M. H. Tsai and C. C. Wu, Chem.–Eur. J., 2008, 14, 5423–5434.
31. C. Chang, Y. Cheng, Y. Chi, Y. Chiu, C. Lin, G. Lee, P. Chou, C. Chen, C. Chang and C. Wu, Angew. Chem., Int. Ed., 2008, 120, 4618–4621.
32. Y. C. Chiu, J. Y. Hung, Y. Chi, C. C. Chen, C. H. Chang, C. C. Wu, Y. M. Cheng, Y. C. Yu, G. H. Lee and P. T. Chou, Adv. Mater., 2009, 21, 2221–2225.
33. J.-Y. Hung, Y. Chi, I.-H. Pai, Y.-C. Yu, G.-H. Lee, P.-T. Chou, K.-T. Wong, C.-C. Chen and C.-C. Wu, Dalton Trans., 2009, 33, 6472–6475.
34. X. Li, B. Minaev, H. Ågren and H. Tian, J. Phys. Chem. C, 2011, 115, 20724–20731.
35. Q. Peng, Q. Shi, Y. Niu, Y. Yi, S. Sun, W. Li and Z. Shuai, J. Mater. Chem. C, 2016, 4, 6829–6838.
36. F. Q. Bai, X. Zhou, B. H. Xia, T. Liu, J. P. Zhang and H. X. Zhang, J. Organomet. Chem., 2009, 694, 1848–1860.
37. H.-W. Fan, F.-Q. Bai, Z.-X. Zhang, Y. Wang, Z.-X. Qu, R.-L. Zhong and H.-X. Zhang, RSC Adv., 2017, 7, 17368–17376.
38. M.-X. Song, Y. Li, D. Xu, R.-P. Deng, F.-Q. Bai and Z.-K. Qin, RSC Adv., 2016, 6, 68960–68963.
39. L.-M. Xie, F.-Q. Bai, W. Li, Z.-X. Zhang and H.-X. Zhang, Phys. Chem. Chem. Phys., 2015, 17, 10014–10021.
40. C. H. Hsieh, F. I. Wu, C. H. Fan, M. J. Huang, K. Y. Lu, P. Y. Chou, Y. H. O. Yang, S. H. Wu, I. Chen and S. H. Chou, Chem.–Eur. J., 2011, 17, 9180–9187.
41. K. Tamao, M. Uchida, T. Izumizawa, K. Furukawa and S. Yamaguchi, J. Am. Chem. Soc., 1996, 118, 11974–11975.
42. E. Orselli, G. S. Kottas, A. E. Konradsson, P. Coppo, R. Fröhlich, L. De Cola, A. van Dijken, M. Büchel and H. Börner, Inorg. Chem., 2007, 46, 11082–11093.
43. P. J. Hay and W. R. Wadt, J. Chem. Phys., 1985, 82, 299–310.
44. A. Petersson, A. Bennett, T. G. Tensfeldt, M. A. Al-Laham, W. A. Shirley and J. Mantzaris, J. Chem. Phys., 1988, 89, 2193–2218.
45. G. Petersson and M. A. Al-Laham, J. Chem. Phys., 1991, 94, 6081–6090.
46. A. Ehlers, M. Böhme, S. Dapprich, A. Gobbi, A. Höllwarth, V. Jonas, K. Köhler, R. Stegmann, A. Veldkamp and G. Frenking, Chem. Phys. Lett., 1993, 208, 111–114.
47. M. Cossi, G. Scalmani, N. Rega and V. Barone, J. Chem. Phys., 2002, 117, 43–54.
48. V. Barone, M. Cossi and J. Tomasi, J. Chem. Phys., 1997, 107, 3210–3221.
49. J. Tomasi, B. Mennucci and R. Cammi, Chem. Rev., 2005, 105, 2999–3094.
50. A. D. Becke, J. Chem. Phys., 1993, 98, 5648–5652.
51. C. Lee, W. Yang and R. G. Parr, Phys. Rev. B: Condens. Matter Mater. Phys., 1988, 37, 785–789.
52. Y. Zhao and D. G. Truhlar, J. Phys. Chem. A, 2006, 110, 5121–5129.
53. T. Yanai, D. P. Tew and N. C. Handy, Chem. Phys. Lett., 2004, 393, 51–57.
54. J. Wang, F.-Q. Bai, B.-H. Xia and H.-X. Zhang, J. Phys. Chem. A, 2011, 115, 11689–11695.
55. J. Autschbach, T. Ziegler, S. J. van Gisbergen and E. J. Baerends, J. Chem. Phys., 2002, 116, 6930–6940.
56. T. Helgaker and P. Jorgensen, J. Chem. Phys., 1991, 95, 2595–2601.
57. K. L. Bak, P. Jorgensen, T. Helgaker, K. Ruud and H. J. r. A. Jensen, J. Chem. Phys., 1993, 98, 8873–8887.
58. M. Kühn and F. Weigend, ChemPhysChem, 2011, 12, 3331–3336.
59. M. J. Frish, et al., Gaussian 09 Revision D.01, Gaussian Inc., Wallingford CT, 2009.
60. I. Omae, Coord. Chem. Rev., 2016, 310, 154–169.
61. Z. A. Siddique, Y. Yamamoto, T. Ohno and K. Nozaki, Inorg. Chem., 2003, 42, 6366–6378.
62. K. Nozaki, J. Chin. Chem. Soc., 2006, 53, 101–112.
63. S. Haneder, E. Da Como, J. Feldmann, J. M. Lupton, C. Lennartz, P. Erk, E. Fuchs, O. Molt, I. Münster and C. Schildknecht, Adv. Mater., 2008, 20, 3325–3330.
64. S. Obara, M. Itabashi, F. Okuda, S. Tamaki, Y. Tanabe, Y. Ishii, K. Nozaki and M.-a. Haga, Inorg. Chem., 2006, 45, 8907–8921.
65. Z. Cao, F. Wang and M. Yang, J. Chem. Phys., 2017, 146, 134108.
66. F. Dinkelbach, M. Kleinschmidt and C. M. Marian, J. Chem. Theory Comput., 2017, 13, 749–766.
67. G. S. M. Tong and C. M. Che, Chem.–Eur. J., 2009, 15, 7225–7237.
68. Y. Komada, S. Yamauchi and N. Hirota, J. Phys. Chem., 1986, 90, 6425–6430.
69. F. Weinhold and C. R. Landis, Chem. Educ. Res. Pract., 2001, 2, 91–104.
70. S. Fraga, J. Karwowski and K. M. S. Saxena, Handbook of Atomic Data, Physical Science Data, Elsevier, Amsterdam, 1976.
71. X. Zhang, D. Jacquemin, Q. Peng, Z. Shuai and D. Escudero, J. Phys. Chem. C, 2018, 122, 6340–6347.

---
