Dual role of coal fly ash in copper ion adsorption followed by thermal stabilization in a spinel solid solution

Pengfei Wuab, Yuanyuan Tang*ac and Zongwei Caib
aSchool of Environmental Science and Engineering, Southern University of Science and Technology, 1088 Xueyuan Blvd, Nanshan District, Shenzhen 518055, P. R. China. E-mail: tangyy@sustc.edu.cn; Tel: +86-755-88015460
bState Key Laboratory of Environmental and Biological Analysis, Department of Chemistry, Hong Kong Baptist University, Hong Kong SAR, P. R. China
cKey Laboratory of Municipal Solid Waste Recycling Technology and Management of Shenzhen City, Shenzhen 518055, P. R. China

Received 18th October 2017 , Accepted 7th February 2018

First published on 27th February 2018


Abstract

Coal fly ash is usually used as a cost-effective adsorbent for heavy metal removal, accumulating large amounts of spent coal fly ash that requires further disposal. In this study, fly ash that adsorbs copper with a maximum copper adsorption capacity of 48.8 mg g−1 was further sintered at 900–1050 °C, and it was found that the copper is thermally incorporated in a spinel structure in aluminum- and iron-containing ceramic matrices provided by the fly ash. To further explore the immobilization mechanisms of copper in both aluminum- and iron-containing ceramic matrices like those in fly ash, two systems were prepared from CuO + Fe2O3 + kaolinite and CuO + Fe2O3 + Al2O3. A CuAlxFe2−xO4 spinel solid solution was formed, the peak intensity of which was found to increase upon an increase in the sintering temperature until a maximum amount was reached at 1150 °C. In the CuO + Fe2O3 + Al2O3 system, the 2θ value of the CuAlxFe2−xO4 peaks was found to increase due to the continuous engagement of aluminum in the spinel structure. However, iron was found to be more likely to react with the copper in CuO + Fe2O3 + kaolinite during the formation of CuAlxFe2−xO4. Through effective adsorption of copper on coal fly ash and the subsequent copper stabilization in the spinel, this study found a dual role for fly ash in copper immobilization and further confirmed the potential to recycle waste coal fly ash as a marketable ceramic material.


1. Introduction

Heavy metal contamination has always been a significant environmental concern by virtue of anthropogenic activities and industrialization in many areas.1,2 Copper ions, once they enter organisms, accumulate, and the bioaccumulation leads to various diseases and disorders.3,4 It has been found that living in an environment with excessive copper can increase the risk of diseases such as lung cancer,5 hepatolenticular degeneration,6 and Alzheimer's disease.7 Nowadays, a variety of technologies have been applied to remove copper ions through electrolysis,8 membrane separation,9 ionic exchange process,10 chemical precipitation,11 etc. However, the aforementioned technologies are usually limited by economic feasibility, technical difficulties, and/or recovery rate.12–14 With the accessibility of inexpensive and efficient adsorbents, adsorption has been widely used as the simplest and most available technology to remove copper ions from aqueous solutions.15,16

Fly ash is mainly generated from pulverized coal combustion processes as an inevitable by-product17,18 and has gained popularity as a significant adsorbent for the removal of a variety of organic compounds and heavy metals.19–21 The annual amount of coal fly ash produced has been reported to be approximately 750 million tons worldwide,22,23 and more up-to-date statistics show that the annual generation of fly ash in China alone is anticipated to be more than 600 million tons.24 Without proper treatment, such a huge amount of fly ash can disrupt ecological cycles and pose potential environmental hazards.25 Moreover, the costs for fly ash management are significant and are continuously increasing due to more stringent regulations.26 Fly ash is usually composed of particles with a porous structure and sizes ranging from 0.5 to 300 μm,21 which provide possible sites to accommodate large quantities of cations. Therefore, because it is a low-cost and effective adsorbent, numerous studies have reported that there are remarkable economic and environmental benefits to reutilizing fly ash.21,22

Even after being adsorbed on fly ash, copper ions are likely to be released from the copper-adsorbed fly ash, thus regenerating the adsorbent. Although the regeneration of metal-loaded fly ash has been achieved by desorbing the contaminants,27,28 the adsorption capacity of the fly ash was found to always significantly decrease after repeated cycles of desorption,29,30 leading to the accumulation of waste metal-laden fly ash. It has been reported that heavy metals adsorbed on adsorbents may leach from the adsorbents when they are placed in the environment.31,32 For example, Mori et al.33 reported that more than 15% of copper ions in copper-adsorbed mortars could be easily eluted using a solution of CH3COONa–CH3COOH. Therefore, a reliable and applicable approach is urgently needed to prevent the consequential environmental pollution caused by the continuous generation of waste metal-laden fly ash. It has been reported that hazardous metal-containing wastes can be used to fabricate ceramic products,34,35 with the hazardous metals being effectively stabilized in matrices rich in aluminum (Al), silicon (Si), and iron (Fe) via encapsulation into a variety of crystal structures.36,37 Aluminum, silicon, and iron have also been reported as predominant components in coal fly ash,38,39 which provides a possible matrix for heavy metal stabilization after its exhaustion as a heavy metal adsorbent. Therefore, in this work, coal fly ash is used as an adsorbent for copper removal from aqueous solutions, and its dual role in the immobilization of heavy metals is further studied.

In copper-containing systems either rich in aluminum or iron, crystalline phases with a spinel structure can be generated with the chemical formulae CuAl2O4 and CuFe2O4, respectively.36,37 However, in fly ash containing both aluminum and iron as the major components, a different mechanism is anticipated due to the competition for copper between aluminum and iron during thermal processes. This study will first investigate the adsorption of copper ions on coal fly ash, and then propose a ceramic sintering scheme for the disposal of the copper-adsorbed fly ash. Furthermore, to extensively study the mechanisms of copper incorporation and competition by aluminum and iron, two simulated copper-laden systems were prepared from mixtures of hematite (Fe2O3) with kaolinite and γ-Al2O3, respectively. Through the successful immobilization of copper ions during the ceramic sintering processes, the waste metal-adsorbed fly ash can be further beneficially used to fabricate a variety of ceramic products. With this dual effect of fly ash on copper removal from waste streams and further stabilization for marketable ceramic products, this study suggests an effective and economical way to relieve the environmental burden caused by metal-laden waste and proposes a “waste-to-resource” strategy to achieve the sustainable management of solid wastes.

2. Experimental

2.1. Copper ion adsorption

Adsorption isotherm experiments were conducted to evaluate the adsorption capacity of coal fly ash (Fig. S1 of the ESI) for different concentrations of copper ions using Cu(NO3)2 (Aladdin Chemistry Co., Shanghai). The fly ash was collected from Castle Peak Power Station, the largest coal-fired power station in Hong Kong. The elemental compositions of the fly ash were determined using X-ray fluorescence (XRF) (JSX-3201Z, JEOL, Tokyo, Japan) and normalized by their oxide forms (Table S1 of the ESI). From the results, the fly ash was classified as Class F by The American Society for Testing and Materials (ASTMs), with a combined SiO2, Al2O3, and Fe2O3 content of greater than 70%. The particle size distribution of the collected fly ash was measured using a laser scattering technique (Mastersizer 3000, Malvern), and the values Dv(10), Dv(50), Dv(90) as 37.5 μm, 62.2 μm, 91.1 μm were found. Batch experiments were performed in a 50 mL clear plastic bottle with 20 mg of adsorbent and 20 mL of aqueous solution at a pH of around 7.11 at room temperature. Copper containing solutions were prepared with a variety of copper concentrations ranging from 20 to 160 mg L−1. The initial pH values of all of the solutions were adjusted to ∼5.3 by adding negligible volumes (<0.2 mL) of 0.1 mol L−1 NaOH or HCl. 20 mg of coal fly ash was then added into each solution for copper adsorption. After stirring at a shaking speed of 180 rpm for 20 h, the fly ash was then separated from the solution using a membrane filter (0.45 μm). The pH of the final solution was measured and was found to be stable at 7.1. Both residues and filtered solutions were stored at 4 °C for further analysis. The concentrations of the copper ions were determined using inductively coupled plasma optical emission spectrometry (ICP-OES, PerkinElmer, Optima 8000DV). The amount of copper ions adsorbed per unit mass of coal fly ash was calculated using the mass balance equation as follows:

image file: c7ra11495h-t1.tif(1)
where q is the amount of copper ions adsorbed per gram of fly ash (mg g−1); c0 and ce are the initial and equilibrium concentrations of the copper ions in the solution (mg L−1); m is the mass of the coal fly ash (g); and v is the volume of the copper ion-containing solution (L).

2.2. Sample preparation for ceramic sintering

Three sample systems were prepared for an intensive study on the copper immobilization mechanisms in the aluminum- and iron-matrices of the fly ash systems during thermal processes. Firstly, the copper-adsorbed fly ash was collected from solutions with an initial copper ion concentration of 80 mg L−1 and was dried at 60 °C before being used in further experiments. Secondly, to clarify the effect of iron and aluminum on copper immobilization, samples were further prepared by mixing CuO + Fe2O3 with kaolinite (Fisher Scientific) or γ-Al2O3 (sintered from AlOOH (Pural SB, Sasol) at 650 °C for 5 h), respectively. Each mixture was prepared with a total sample weight of 60 g at a molar ratio of Cu[thin space (1/6-em)]:[thin space (1/6-em)]Al[thin space (1/6-em)]:[thin space (1/6-em)]Fe = 1[thin space (1/6-em)]:[thin space (1/6-em)]2[thin space (1/6-em)]:[thin space (1/6-em)]2 by ball milling in a water slurry for 18 h. The slurry samples were then dried, well-ground in a mortar, and then pressed into cylindrical-shaped pellets at 650 MPa to ensure a better solid-state reaction during the sintering processes.

All samples from the aforementioned steps were sintered in a high-temperature furnace (LHT 02/16 LB, LBR, Nabertherm Inc. Lilienthal, Germany) at temperatures ranging from 650 to 1150 °C with a heating rate of 10 °C min−1 in air. After a dwelling time of 3 h at the target temperatures, each fired sample was then cooled down in the furnace to room temperature with a controlled cooling rate of 10 °C min−1 and then well-ground into fine powders for X-ray diffraction (XRD) analysis. The microstructures of the sintered samples from the CuO + Fe2O3 + kaolinite and CuO + Fe2O3 + γ-Al2O3 systems were further observed using a scanning electron microscope (SEM). Prior to SEM, the surfaces of the pellets were polished using a polish-grinding machine (MetaServ250, Buehler) and were gold-coated to mitigate electron charge effects.

2.3. Sample characterization

XRD is a rapid analytical technique and has been successfully used to provide accurate information about the crystal structure of materials for many decades.42 In this study, the XRD patterns of the samples were collected using a Bruker D8 Advance diffractometer (Mannheim, Germany) equipped with a LynxEye detector and a CuKα1,2 X-ray radiation source (40 kV, 40 mA). The 2θ scanning range was 10 to 90°, and the step size was 0.02° with a scan speed of 0.8 s per step. The phase identification was executed by matching the powder XRD patterns with those retrieved from the standard powder diffraction database of the International Centre for Diffraction Data (ICDD PDF-2, Release 2008) using the JADE software (MDI Products). A SEM (Merlin SEM, ZEISS Ltd.) coupled with energy dispersive spectrometry (EDS) (ZEISS Ltd.) was employed to observe the microstructures of the CuO + Fe2O3 + kaolinite and CuO + Fe2O3 + γ-Al2O3 samples that had been sintered at 950 °C for 3 h. After surface polishing, the sample morphologies were investigated through SEM equipped with a secondary electron detector. Meanwhile, backscattered electron images were used to identify compositionally distinct areas together with multipoint-mode EDS analyses throughout this work.

2.4. Leaching experiments

To evaluate the effect of copper stabilization, a leaching experiment was carried out for the copper-adsorbed fly ash before and after the thermal sintering processes. The leaching experiment was modified from the U.S. EPA SW-846 Method 1311-Toxicity Characteristic Leaching Procedure (TCLP), using acetic acid solution (pH 2.88) as the extraction fluid. The leaching vials were filled with 10 mL of the leaching fluid and 0.5 g of the powder sample, and then rotated end-over-end at 60 rpm for 18 h. At the end of the agitation period, the leachates were filtered using 0.45 μm syringe filters. The copper concentrations of the leachates were measured using ICP-OES. The leaching experiment was conducted in triplicate.

3. Results and discussion

3.1. Copper adsorption on coal fly ash

Fig. 1 shows the copper ion adsorption capacity of fly ash in solutions with initial copper ion concentrations ranging from 20 to 160 mg L−1. From Fig. 1, the copper ion adsorption capacity of fly ash rose dramatically to 49.2 mg g−1 when the copper ion concentration increased from 20 to 40 mg L−1. With a continuous increase in the copper ion concentration, the adsorption capacity of the fly ash kept slowly increasing until it reached an equilibrium at a maximum value of 58.2 mg g−1 in solutions with an initial copper ion concentration of higher than 60 mg L−1. The adsorption behavior of the copper ions on the fly ash was further analyzed by applying the linear Langmuir isotherm and Freundlich models, shown in the ESI.
image file: c7ra11495h-f1.tif
Fig. 1 Adsorption isotherm of copper ions on coal fly ash fitted using the Langmuir model and its linear expression (inset). A dramatic increase in the copper ion adsorption capacity was observed when the concentration of copper ions was increased to 40 mg L−1, and the maximum copper ion adsorption capacity of fly ash was found to be around 56.8 mg g−1.

Table 1 summarizes the parameters of both the Langmuir and Freundlich isotherm models for the adsorption of the Cu ions on the fly ash, along with the linear regression coefficients (R2). A much higher correlation coefficient was obtained from the Langmuir equation (R2 = 0.99) than that from the Freundlich equation (R2 = 0.92), which means that the adsorption results are a better fit to the Langmuir model. Since Langmuir isotherms are always involved in monolayer adsorption onto homogeneous surfaces with a finite number of identical sites,40,41 the fitting results indicate that the interaction between the copper ions and the fly ash may be a monolayer rather than a multiple-layer adsorption process. Moreover, the theoretical maximum adsorption capacity (qm) was calculated as 56.8 mg g−1 according to the Langmuir isotherm model, which is consistent with the value obtained from the adsorption experiment (56.8 mg g−1). Since the adsorption capacity is largely affected by the surface area and pore volume of the fly ash, the maximum adsorption capacity of copper ions has been reported to be approximately 100 mg g−1 after the modification of fly ash samples.42

Table 1 Parameters of the Langmuir and Freundlich isotherm models fitted using the copper ion adsorption on coal fly ash dataa
Langmuir Model Freundlich Model
qm (mg L−1) kL (L mg−1) R2 qm,exp (mg g−1) kF (mg−1/n L−1/n g−1) n R2
a qm,exp (mg g−1) represents the maximum amount of adsorbed copper ions obtained from the experiment.
56.8 2.81 0.99 58.2 21.1 2.42 0.92


3.2. Copper immobilization in thermally treated copper-adsorbed fly ash

Fig. 2 shows XRD patterns of the copper-adsorbed fly ash before and after thermal treatment at temperatures ranging from 900 to 1050 °C. From the XRD pattern of the unsintered copper-adsorbed fly ash, the main copper-hosting phase was found to be gerhardtite (Cu4(NO3)2(OH)6; PDF#77-0148). When samples were sintered at 900 °C for 3 h, phase identification results showed that copper oxide (CuO; PDF#80-0076) was generated from gerhardtite and became the predominant copper-hosting phase. Besides the formation of CuO, copper iron oxide (CuFe2O4; PDF#77-0010) was also detected as another copper-hosting crystalline phase at 900 °C. The generation of CuFe2O4 might be attributed to interactions between copper ions adsorbed on the fly ash and iron ions originally contained in the fly ash. Reactions between copper and iron ions have also been reported previously in a solid CuO–Fe2O3 system followed by the formation of CuFe2O4 with a spinel structure.37 The copper leachability from the spinel was found to decrease by over two orders in magnitude in comparison with that from copper oxides in acetic acid solutions,37 which confirmed the effective immobilization of copper ions in copper-adsorbed fly ash after sintering. With a further increase in the sintering temperature, the CuFe2O4 peaks eventually grew while the CuO signals reduced accordingly. At the highest temperatures (1050 °C) of the sintering scheme in this experiment, the peak intensities of the CuFe2O4 reached a maximum value and no further diffraction was observed from CuO.
image file: c7ra11495h-f2.tif
Fig. 2 XRD patterns of copper-absorbed fly ash before and after being thermally treated at temperatures ranging from 900 to 1050 °C for 3 h. The standard patterns retrieved from the ICDD database include quartz (SiO2; PDF#89-1961), anorthite (CaAl2Si2O8; PDF#89-1462), hedenbergite (CaFe(Si2O6); PDF#87-1695), copper oxide (CuO; PDF#80-0076), copper iron oxide (CuFe2O4; PDF#77-0010), and gerhardtite (Cu4(NO3)2(OH)6; PDF#77-0148).

Besides the crystallization of CuFe2O4 spinel from reactions between the copper and iron ions, aluminum-containing oxides such as kaolinite and alumina (Al2O3) have also been reported as effective precursors to incorporate copper in a CuAl2O4 spinel.36 However, although Al was measured as another major element in fly ash, there was no CuAl2O4 detected from the XRD analysis. From the XRD patterns shown in Fig. S1 of the ESI, aluminum was found to exist as mullite (3Al2O3·2SiO2, PDF#79-1455) and other poorly crystallized phases in the raw fly ash. However, the major aluminum-containing crystalline phase was identified as anorthite (Ca(Al2Si2O8); PDF#89-1462) when the copper-adsorbed fly ash was sintered at temperatures higher than 950 °C. When silicon-containing phase(s) were taken into consideration, the amount of quartz (SiO2; PDF#89-1961) decreased significantly at temperatures higher than 950 °C, which is attributed to the formation of anorthite. The generation of anorthite indicated that aluminum ions were more likely to react with quartz rather than to compete with iron ions to form a spinel structure. A further study was carried out to explore the detailed stabilization mechanisms of the copper ions in aluminum and iron co-existing ceramic matrices such as coal fly ash.

3.3. Incorporation mechanisms of copper in aluminum- and iron-rich ceramic matrices

The immobilization mechanisms of the copper ions in aluminum- and iron-containing matrices were further studied using the CuO + Fe2O3 + kaolinite and CuO + Fe2O3 + Al2O3 systems with a molar ratio of Cu[thin space (1/6-em)]:[thin space (1/6-em)]Fe[thin space (1/6-em)]:[thin space (1/6-em)]Al as 1[thin space (1/6-em)]:[thin space (1/6-em)]2[thin space (1/6-em)]:[thin space (1/6-em)]2 used for both mixtures, through a sintering scheme at 650–1250 °C with a dwelling time of 3 h. Fig. 3 collates the XRD patterns of both CuO + Fe2O3 + kaolinite and CuO + Fe2O3 + Al2O3 before and after thermal treatment. As seen in Fig. 3a, a new phase was observed with the same XRD patterns as those of the spinel crystals when a mixture of CuO + Fe2O3 + kaolinite was sintered at 850 °C for 3 h. Since the spinel formation might be due to potential reactions between the Cu, Fe, and Al contained in the system, a further peak comparison was carried out for CuAl2O4 (PDF#78-1605), CuFe2O4 (PDF#77-0010) and the as-formed spinel phase in this experiment. The results showed that the peaks of the spinel phase in this experiment are located between corresponding peaks for both the CuAl2O4 and CuFe2O4 spinels (Fig. 3), indicating the formation of a CuAlxFe2−xO4 spinel solid solution. The peaks of the spinel solid solution kept increasing with an increase in the temperature until the maximum value temperature of 1150 °C was reached. With a further increase in the sintering temperature above this temperature, the peak intensities of the CuAlxFe2−xO4 spinel decreased due to decomposition caused by the reduction of Cu(II) to Cu(I) at higher temperatures (>1150 °C).43,44 Fig. 3b shows a similar spinel solid solution that was also generated but at a lower temperature (750 °C) than that of the thermally sintered CuO + Al2O3 + Fe2O3 system. The spinel peaks also grew continuously with an increase in the sintering temperature, but peak shrinkage was not clearly detected at higher temperatures (>1150 °C). Meanwhile, the signals of reactants such as CuO, Fe2O3 and aluminum-containing compounds were eventually diminished with the continuous formation of the CuAlxFe2−xO4 spinel.
image file: c7ra11495h-f3.tif
Fig. 3 XRD patterns of sintered (a) the CuO + Fe2O3 + kaolinite system and (b) the CuO + Fe2O3 + Al2O3 system showing the thermal incorporation of copper when heated at temperatures ranging from 650 to 1250 °C for 3 h. The crystalline phases are identified as: copper oxide (CuO; PDF#80-0076), corundum (α-Al2O3; PDF#10-1073), hematite (Fe2O3; PDF#85-0599), spinel (CuAlxFe2−xO4), mullite (3Al2O3·2SiO2; PDF#79-1455), and cristobalite (SiO2; PDF#85-0621).

Since the highest peak of the CuAlxFe2−xO4 product phase was overlapped with those from other phases in both the CuO + Fe2O3 + kaolinite and CuO + Al2O3 + Fe2O3 systems, the second highest peak at 2θ at around 30.30° was chosen for an intensive study on the reaction mechanisms during the thermal processes. Fig. 4a and b illustrate the amplification and shifting of the second largest peak of the CuAlxFe2−xO4 generated in the CuO + Fe2O3 + kaolinite and CuO + Al2O3 + Fe2O3 systems, respectively. As shown in Fig. 4a, the peak intensity was seen to increase dramatically when the temperature rose from 850 to 1050 °C, and an obvious shifting of the peak was detected from lower to higher 2θ positions. The peak reached its maximum value at 1150 °C and decreased at a higher temperature (1250 °C), with a slight change in the 2θ position, while in the CuO + Al2O3 + Fe2O3 system, the peak intensity also increased significantly when the sintering temperature rose from 850 to 950 °C but maintained a relatively steady increase afterwards with an increase in temperature until reaching a maximum value at 1150 °C. Although not obviously detected, a slight decrease in the peak intensity was also found with a further 100 °C increase in the sintering temperature to 1250 °C. However, unlike the variation of the peak positions for the CuO + Fe2O3 + kaolinite system, the peak positions of CuAlxFe2−xO4 in the CuO + Al2O3 + Fe2O3 system kept steadily increasing from lower to higher 2θ values.


image file: c7ra11495h-f4.tif
Fig. 4 Comparison of the XRD peak intensities (between 2θ = 29.0 and 33.0°) for (a) the CuO + Fe2O3 + kaolinite system and (b) the CuO + Fe2O3 + Al2O3 system sintered at 650–1250 °C for 3 h, and (c) the variation of the peak positions with respect to the sintering temperature for both systems.

According to Bragg's equation, the 2θ positions of the diffraction peaks are related to the interplanar spacing (d) of a crystal structure. Since the radii of aluminum atoms are smaller than those of iron atoms, the diffraction peaks of the CuAl2O4 spinel are located at a higher 2θ value when compared with peaks from the same lattice plane in the CuFe2O4 crystals. Therefore, the peak shifting of CuAlxFe2−xO4 is due to the shrinkage of distances between lattice planes which is caused by the continuous increase in the amount of aluminum. The spinel peak shifting from a lower to a higher 2θ value indicates that is easier to engage iron ions at lower temperatures in the formation of the spinel phase, but at higher temperatures the iron ions were outcompeted by aluminum ions. Previous studies have also reported a lower sintering temperature for a ferrite spinel when compared to that of an aluminate spinel.36,37 The tendency for peaks to shift with an increase in temperature was further analyzed and the results are shown in Fig. 4c. A perfect linear relationship was found between the 2θ value of the peak position and the sintering temperature for the CuO + Al2O3 + Fe2O3 system, which can be explained by the continuous and steady engagement of aluminum ions in the formation of the CuAlxFe2−xO4 spinel with an increase in the sintering temperature. However, the aluminum ions in CuO + Fe2O3 + kaolinite were involved in mullite formation as reflected from the increase in the number of mullite peaks at temperatures higher than 850 °C (Fig. 3a), and therefore, there were no obvious changes observed in the 2θ positions of the CuAlxFe2−xO4 spinel. An overall higher 2θ value for the spinel peaks was found in the CuO + Al2O3 + Fe2O3 system when compared with that of the CuO + Fe2O3 + kaolinite system, which shows a stronger competition between aluminum and iron in ceramic matrices without silicon.

3.4. Microstructures and stabilization effect of copper-immobilized products with aluminum- and iron-rich matrices

The microstructures of samples always play a vital role in exploring the reaction mechanisms and determining the potential applications of the products. Therefore, an investigation was further conducted on the microstructures of the CuO + Fe2O3 + kaolinite and CuO + Al2O3 + Fe2O3 systems that had been sintered at 950 °C for 3 h (Fig. 5). Although there is effectively a similar copper incorporation in both the CuO + Fe2O3 + kaolinite and CuO + Al2O3 + Fe2O3 systems, different microstructures were detected from the secondary electron micrograph of the surface-polished samples (Fig. 5a and b). Even after being subjected to intensive surface polishing, the product of the CuO + Al2O3 + Fe2O3 system had a porous texture, whereas the crystallite grains were closely packed in the CuO + Fe2O3 + kaolinite system with a relatively smooth surface. The flux property of the silica has been reported36 to enhance mass transfer to minimize surface tension in the CuO + Fe2O3 + kaolinite system at high temperatures, which results in a different microstructure to that of the CuO + Al2O3 + Fe2O3 system.
image file: c7ra11495h-f5.tif

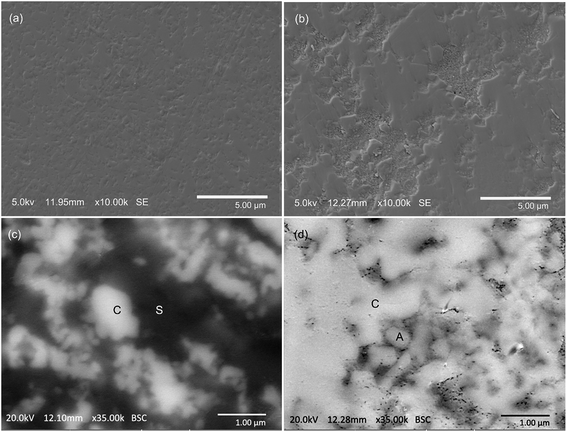

Fig. 5 Secondary electron micrographs showing (a) the highly dense microstructure sintered from the CuO + Fe2O3 + kaolinite mixture, and (b) the very porous texture of the product of CuO + Fe2O3 + Al2O3 sintered at 950 °C for 3 h. Backscattered electron images of the polished surfaces of the products obtained from (c) the CuO + Fe2O3 + kaolinite system and (d) the CuO + Fe2O3 + Al2O3 system sintered at 950 °C for 3 h. The light-color grains marked ‘C’ show an enrichment of the CuAlxFe2−xO4 spinel solid solution, and those marked ‘A’ are the unreacted ‘Al2O3’. The dark-color matrix marked ‘S’ shows the enrichment of Si. The EDS analysis is supplied in the ESI to demonstrate the elemental compositions of the areas marked “C”, “S”, and “A”.

Backscatter electron micrographs are shown in Fig. 4c and d, which demonstrate the phase distribution in the products of the CuO + Fe2O3 + kaolinite and CuO + Al2O3 + Fe2O3 systems. The EDS results (Tables S2–S5 in the ESI) confirmed the enrichment of silicon in the dark-colored areas marked ‘S’ in Fig. 4c, which might be due to the existence of mullite as clearly detected from the XRD patterns shown in Fig. 3a. The light-colored grains marked ‘C’ were confirmed as the formed CuAlxFe2−xO4 spinel and were distributed separately in the flux of Si-containing materials in the CuO + Fe2O3 + kaolinite system. However, the grains of the CuAlxFe2−xO4 spinel (also marked with a ‘C’) were tightly-connected to each other in the CuO + Al2O3 + Fe2O3 system. Much smaller spinel grains were found in the CuO + Fe2O3 + kaolinite system when compared with those found in the CuO + Al2O3 + Fe2O3 system. The existence of large amounts of small-sized CuAlxFe2−xO4 microcrystals is attributed to the homogenously distributed Al ions in the kaolinite structure acting as small nucleation sites for the spinel crystallization.36 In contrast, a much larger size of the CuAlxFe2−xO4 grains was observed in the CuO + Al2O3 + Fe2O3 system, which may be caused by sufficient space for the growth of crystals in the voids contained in the samples.

To evaluate the stabilization effect of copper in the sintered products, the copper concentrations of the leachates from the copper-adsorbed fly ash were measured before and after the sintering processes. The copper concentration was measured to be 1682 mg L−1 in the leachate from the copper-adsorbed fly ash without sintering, while that value decreased by 10 times (to 150 mg L−1) for the leachate from the 900 °C sintered sample. When the sintering temperature increased from 900 to 950 °C, an obvious decrease in the copper concentration was also detected from 150 mg L−1 to 25.4 mg L−1 in the corresponding leachates. Moreover, the copper concentration was found to stabilize at around 22 mg L−1 with a further increase in the sintering temperature. Furthermore, when the copper leachability was considered with respect to the transformation of the copper-containing phases, it was found that the copper leachability significantly reduced due to the formation of copper spinel can be seen in the XRD patterns (Fig. 2). Moreover, the results also indicated a promising temperature of ∼950 °C to reach satisfactory copper stabilization without extra energy consumption.

4. Conclusions

In this study, coal fly ash was effectively used as an adsorbent for the removal of copper ions, and the adsorption mechanism was fitted to the Langmuir model, with a maximum adsorption capacity of 48.8 mg g−1 based on theoretical calculations. Furthermore, to reduce the toxicity of the copper-adsorbed coal fly ash, a thermal strategy was applied to incorporate copper ions into a stable structure through interactions with aluminum and/or iron ions in the fly ash. A spinel structure was detected in the thermally treated copper-adsorbed fly ash, and eventually grew upon an increase in the sintering temperature. The immobilization mechanisms of copper ions in both aluminum- and iron-containing matrices were further studied using two CuO + Fe2O3 + kaolinite and CuO + Al2O3 + Fe2O3 systems sintered from 650 to 1250 °C for 3 h, which indicated the formation of a CuAlxFe2−xO4 spinel solid solution. The peaks of the spinel solid solution kept growing in intensity with an increase in the temperature until a maximum value was reached at 1150 °C, and decreased with any further increase in the sintering temperature. In the CuO + Fe2O3 + kaolinite system, the peaks underwent an obvious shift from lower to higher 2θ positions when the samples were heated from 850 to 1050 °C but the 2θ position changed slightly at temperatures higher than 1050 °C, while in the CuO + Al2O3 + Fe2O3 system, the peak position of the CuAlxFe2−xO4 spinel kept steadily increasing from a lower to a higher 2θ value throughout the sintering scheme from 850 to 1250 °C. From the observation of the product microstructures, the CuO + Al2O3 + Fe2O3 product had a porous texture, whereas the grains were closely packed in CuO + Fe2O3 + kaolinite product, with a relatively smooth surface. Much smaller spinel grains were found in the CuO + Fe2O3 + kaolinite system when compared with those derived from the CuO + Al2O3 + Fe2O3 system. Moreover, the leaching results demonstrated that the copper leachability decreased by about 70 times when the copper-adsorbed fly ash was sintered in a temperature range of 950–1050 °C. Therefore, the overall results demonstrated the dual role of coal fly ash as an adsorbent and ceramic matrix for toxic copper ion adsorption and stabilization, respectively. Through effective adsorption of copper ions on coal fly ash and the successful stabilization of toxic copper in the spinel phase thermally generated in aluminum- and iron-rich ceramic matrices, the work in this study not only reduces the potential hazards caused by metal pollution but also provides a reliable “waste-to-resource” strategy for the sustainable utilization of waste coal fly ash.

Conflicts of interest

The authors declare no conflicts of interest.

Acknowledgements

This work was supported financially by the National Natural Science Foundation of China (NSFC) (21707063), Shenzhen Science and Technology Innovation Committee (JCYJ20150601155130432; JCYJ20160429191618506; ZDSYS201602261932201).

References

  1. M. Guney and G. J. Zagury, Environ. Sci. Technol., 2012, 46(8), 4265–4274 CrossRef CAS PubMed.
  2. K. Jomova and M. Valko, Advances in metal-induced oxidative stress and human disease, Toxicology, 2011, 283(2–3), 65–87 CrossRef CAS PubMed.
  3. R. S. Boyd, J. Chem. Ecol., 2010, 36(1), 46–58 CrossRef CAS PubMed.
  4. A. H. Panhwar, T. G. Kazi, H. I. Afridi, S. A. Arain, K. D. Brahaman and A. S. S. Naeemullah, Environ. Geochem. Health, 2016, 38(1), 265–274 CrossRef CAS PubMed.
  5. M. Ajmal, A. H. Khan, S. Ahmad and A. Ahmad, Water Res., 1988, 32(10), 3085–3091 CrossRef.
  6. J. Świetlik, U. Raczyk-Stanislawiak, P. Piszora and J. Nawrocki, Water Res., 2012, 46(1), 1–10 CrossRef PubMed.
  7. G. J. Brewer, Clin. Neurophysiol., 2010, 121(4), 459–460 CrossRef PubMed.
  8. Y. Gao, Y. Zhou, H. Wang, Y. Lin, Y. Wang, D. Sun, J. Hong and Q. Li, Ind. Eng. Chem. Res., 2013, 52(17), 5871–5879 CrossRef CAS.
  9. W. Chen, Y. Su, J. Peng, X. Zhao, Z. Jiang, Y. Dong, Y. Zhang, Y. Liang and J. Liu, Environ. Sci. Technol., 2011, 45, 6545–6555 CrossRef CAS PubMed.
  10. J. Lv, K. Wang and T. Chung, J. Membr. Sci., 2008, 310, 557–566 CrossRef CAS.
  11. T. A. Kurniawan, G. Y. S. Chan, W. H. Lo and S. Babel, Chem. Eng. J., 2006, 118, 83–98 CrossRef CAS.
  12. J. L. Huisman, G. Schouten and C. Schultz, Hydrometallurgy, 2006, 83, 106–113 CrossRef CAS.
  13. F. Fu and Q. Wang, J. Environ. Manage., 2011, 92, 407–418 CrossRef CAS PubMed.
  14. Q. Chang and G. Wang, Chem. Eng. Sci., 2007, 62, 4636–4643 CrossRef CAS.
  15. C. Hu, T. Zhang, Y. Huang, M. Dahab and R. Surampalli, Environ. Sci. Technol., 2005, 39(18), 7240–7245 CrossRef CAS PubMed.
  16. H. Wang, C. Wang, S. Tao, J. Qiu, Y. Yu and M. Gu, ACS Sustainable Chem. Eng., 2016, 4(3), 992–998 CrossRef CAS.
  17. Managing Coal Combustion Residues in Mines, Committee on Mine Placement of Coal Combustion Wastes, National Research Council of the National Academies (NRCNA), 2006.
  18. Human and Ecological Risk Assessment of Coal Combustion Wastes, Research Triangle Park, United States Environmental Protection Agency (USEPA), 2007.
  19. V. V. B. Rao and S. R. M. Rao, Chem. Eng. J., 2006, 116, 77–84 CrossRef CAS.
  20. C. W. Kwong and C. Y. M. Chao, Bioresour. Technol., 2010, 101, 1075–1081 CrossRef CAS PubMed.
  21. H. Javadian, F. Ghorbani, H. A. Tayebi and S. H. Asl, Arabian J. Chem., 2015, 8, 837–849 CrossRef CAS.
  22. R. S. Blissett and N. A. Rowson, Fuel, 2012, 97, 1–23 CrossRef CAS.
  23. M. Izquierdo and X. Querol, Int. J. Coal Geol., 2012, 94, 54–66 CrossRef CAS.
  24. F. Yan, J. Jiang, S. Tian, Z. Liu, J. Shi, K. Li, X. Chen and Y. Xu, ACS Sustainable Chem. Eng., 2016, 4(9), 4654–4661 CrossRef CAS.
  25. M. Ilic, C. Cheeseman, C. Sollars and J. Knight, Fuel, 2003, 82, 331–336 CrossRef CAS.
  26. A. O. Babatunde and Y. Q. Zhao, Constructive approaches towards water treatment works sludge management: an international review of beneficial re-uses, Crit. Rev. Environ. Sci. Technol., 2007, 37(2), 129–164 CrossRef CAS.
  27. J. Wang, X. Teng, H. Wang and H. Ban, Environ. Sci. Technol., 2004, 38, 6710–6715 CrossRef CAS PubMed.
  28. J. Kuo, C. Lin and M. Y. Wey, Energy Fuels, 2008, 22(6), 3789–3797 CrossRef CAS.
  29. L. Jiang and P. Liu, ACS Sustainable Chem. Eng., 2014, 2, 1785–1794 CrossRef CAS.
  30. J. P. Yang, Y. C. Zhao, L. Chang, J. Y. Zhang and C. G. Zheng, Environ. Sci. Technol., 2015, 49, 8210–8218 CrossRef CAS PubMed.
  31. A. Deonarine, A. Kolker, A. L. Foster, M. W. Doughten, J. T. Holland and J. D. Bailoo, Environ. Sci. Technol., 2016, 50(11), 6099–6106 CrossRef CAS PubMed.
  32. E. Tahmasebi, M. Y. Masoomi, Y. Yamini and A. Morsali, Inorg. Chem., 2015, 54(2), 425–433 CrossRef CAS PubMed.
  33. M. Mori, Y. Sekine, N. Hara, K. Nakarai, Y. Suzuki, H. Kuge, Y. Kobayashi, A. Arai and H. Itabashi, Chem. Eng. J., 2013, 215–216, 202–208 CrossRef CAS.
  34. N. Okuno, Y. Ishikawa, A. Shimizu and M. Yoshida, Water Sci. Technol., 2004, 49(10), 225–232 CAS.
  35. K. Shihand and J. O. Leckie, J. Eur. Ceram. Soc., 2007, 27, 91–99 CrossRef.
  36. Y. Tang, S. S. Y. Chui, K. Shih and L. Zhang, Environ. Sci. Technol., 2011, 45, 3598–3604 CrossRef CAS PubMed.
  37. Y. Tang, K. Shih, C. Liu and C. Liao, RSC Adv., 2016, 6, 28579–28585 RSC.
  38. M. Ahmaruzzaman and V. K. Gupta, Ind. Eng. Chem. Res., 2012, 51, 15299–15314 CrossRef CAS.
  39. T. K. Choo, Y. Song, L. Zhang, C. Selomulya and L. Zhang, Energy Fuels, 2014, 28(6), 4051–4061 CrossRef CAS.
  40. D. A. H. Hanaor, M. Ghadiri, W. Chrzanowski and Y. Gan, Langmuir, 2014, 30, 15143–15152 CrossRef CAS PubMed.
  41. K. I. Andersson, M. Eriksson and M. Norgren, Ind. Eng. Chem. Res., 2011, 50(13), 7722–7732 CrossRef CAS.
  42. J. Pizarro, X. Castillo, S. Jara, C. Ortiz, P. Navarro, H. Cid, H. Rioseco, D. Barros and N. Belzile, Fuel, 2015, 156, 96–102 CrossRef CAS.
  43. K. T. Jacob and C. B. Alcock, J. Am. Ceram. Soc., 1975, 58, 192–195 CrossRef CAS.
  44. T. Tsuchida, R. Furuichi, T. Sukegawa, M. Furudate and T. Ishii, Thermochim. Acta, 1984, 78, 71–80 CrossRef CAS.
