DOI:
10.1039/C7NJ04189F
(Paper)
New J. Chem., 2018,
42, 3619-3632
Bis(picolinato) complexes of vanadium and zinc as potential antidiabetic agents: synthesis, structural elucidation and in vitro insulin-mimetic activity study†
Received
30th October 2017
, Accepted 24th January 2018
First published on 29th January 2018
Abstract
Vanadium(V) compounds with 3,5-difluoropicolinic acid (HpicFF) and 3-hydroxypicolinic acid (H2hypic) and zinc(II) compounds with HpicFF, H2hypic and 4-methylhydroxypicolinic acid (HpicCH2OH) in the presence or absence of pyridine (py), 4-(dimethylamino)pyridine (DMAP), and 1,10-phenanthroline (phen) have been synthesized and characterized. The crystal structures of NH4[VO2(picFF)2]·1.6H2O (3·1.6H2O), NH4[VO2(hypic)2]·H2O (4·H2O), [Zn(picFF)2(H2O)2] (5), [Zn(picFF)2(py)2]·py (6·py), [Zn(picFF)2(DMAP)2]·
H2O (7·
H2O), [Zn(picFF)2(phen)]·2CHCl3 (8·2CHCl3), [Zn(Hhypic)2(MeOH)2] (10), [Zn(Hhypic)2(DMAP)(H2O)] (11) and [Zn(Hhypic)2(phen)] (12) were determined by X-ray crystallography. The spatial arrangement of the vanadium(V) complex 3 possesses carboxylate oxygen atoms in a mutual trans orientation while crystal structure 4 represents the first crystallographic evidence for the formation of an isomer with two picolinato nitrogen atoms in a mutual trans position. Two different spatial arrangements were found in the zinc(II) complexes with trans (5, 10 and 11) and cis (6, 7, 8 and 12) octahedral geometry. Insulin-mimetic activity of the selected VIVO, VVO2 and ZnII complexes was studied by in vitro inhibition of the free fatty acid (FFA) release from isolated rat adipocytes treated with epinephrine. All the studied metal complexes showed insulin-mimetic activity. Vanadium complexes 1–4 exhibit activities similar to VOSO4 with the Hhypic complexes being more active than the picFF ones. The zinc complexes also exhibited some insulin-mimetic activity, with the Hhypic complex (9) being more active than the other two, however, the insulin-mimetic activity of these complexes did not show more potent activity than ZnSO4.
Introduction
According to the estimations of the World Health Organization high blood glucose level represents a risk, that is globally the third most important factor for premature mortality, after high blood pressure and the use of tobacco.1 The worldwide number of patients suffering from diabetes mellitus (DM) has been estimated to be 415 million in 2015 representing ∼8.8% of adult population and is expected to increase to 642 million by 2040 when ∼10% of adult population will be affected.1 DM is a metabolic disorder characterized by abnormal glucose levels with a tendency to hyperglycaemia that occurs due to the decrease of insulin function and/or level. Undiagnosed hyperglycaemia represents a severe risk since it can lead to serious damage of several body systems. DM is generally classified as type 1, type 2, and gestational diabetes. Type 1 DM is a consequence of an absolute lack of insulin due to autoimmune destruction of pancreatic β cells and as such is not a lifestyle-related condition. Type 2 DM representing the majority of diabetic patients (∼90%) is caused by insulin resistance or degradation of secreted insulin and is a life-style related disease. Ageing populations and modern lifestyle, i.e. reduced physical activity, dietary changes, obesity, increasing urbanization, and increased stress are believed to be the main reason for the prevalence of DM.1,2 The treatment for type 1 DM is subcutaneous injections of insulin, since oral administration of insulin is not efficient. Primary treatments for type 2 DM are dietary control and regular exercise and after the development of the disease oral hypoglycaemic drugs are used. However, they are often associated with undesirable side effects or a drop in efficacy is observed after prolonged use3 and patients have to start using insulin injections.
Zinc and vanadium compounds possess various biological roles in living organisms3–5 and are thus among the suitable candidates in the search for novel orally active chemotherapeutics as an alternative for the existing hypoglycaemic drugs. Zinc is essential in growth and development and plays an important role in hundreds of metalloenzymes and in thousands of metalloproteins.3 Over 75% of the zinc content in the human body is located in skeletal muscle and bone tissue.4 Zinc deficiency can lead to several diseases including diabetes and the recommended dietary allowance is 8 mg kg−1 for women and 11 mg kg−1 for men.4 Zinc compounds exhibit a wide variety of pharmacological properties, such as anticancer,6 antioxidant,7 antibacterial and antimicrobial activities,8 as well as effects in the treatment of Alzheimer disease.9 Biological activities of vanadium compounds, e.g., as antitumor, antiparasitic (Chagas disease), and osteogenic agents have also been described.10 The first report regarding the influence of vanadium on diabetic patients dates back to 1899 when Lyonett and Martin observed reduced levels of glucose in the urine of patients using sodium metavanadate.11,12 In 1980 and in 1992 it was found that vanadium and zinc salts, respectively, mimic the action of insulin.3,12 Those findings gave impetus to the extensive research on zinc and vanadium coordination compounds where organic carriers were found to substantially increase the bioavailability and reduce the administrated doses needed.13 Several classes of very promising complexes consist of Zn and V species among which the ethylmaltolato vanadium complex has entered the phase IIa clinical trials. Further studies on this compound as an antidiabetic agent were abandoned due to renal problems, however, it is currently studied as a therapeutic for the prevention, stoppage, and reparation of secondary tissue injuries.13f Picolinato complexes were also found to possess strong antidiabetic action. Several derivatives of the picolinato scaffold have been prepared, such as 6-methylpicolinate, 6-ethylpicolinate, halopicolinates, 3-hydroxypicolinate, and also species formed by monoesters and amides of 2,5-dipicolinic acid, all exhibiting insulin-mimetic properties.3,14 Additionally, complexes with several other ligand systems have been studied during the last few years15 among which complexes with antioxidants such as allixin, S-allixin-N-methyl and pyrrolidine-N-dithiocarbamato ligands were found to be particularly active.16 All these recent efforts have been oriented towards the synthesis of new compounds with high bioavailability and low toxicity since the main obstacle with the ethylmaltolato vanadium complex was the high dose necessary to achieve the therapeutic effect.13f Recently it has been established on selected zinc complexes by noninvasive methods for analyzing the biodistribution of complexes that high antidiabetic activity correlates with a long retention time of complexes in the blood.17 According to Rehder,10a ligands containing the pyrone, the pyridinone or the pyridine-carboxylate scaffold are seen as the best candidates with a sufficiently long physiological half-life to recombine with metal in the body and thus to decrease potential toxicity.
Herein, we report ten vanadium and zinc compounds formed by 3,5-difluoropicolinic acid (HpicFF), 3-hydroxypicolinic acid (H2hypic) and 4-(hydroxymethyl)picolinic acid (HpicCH2OH). Structural characterization of nine complexes was carried out by X-ray diffraction analysis. Insulin-mimetic activity of the selected complexes was studied by an in vitro inhibition of the FFA release from isolated rat adipocytes treated with epinephrine.
Experimental section
Materials and physical measurements
Reagents and solvents were used as received from commercial suppliers. Oxidovanadium(IV), VIVO, compounds [VO(picFF)2(H2O)] (1) and Na[VO(Hhypic)3]·H2O (2) were synthesized from VOSO4·5H2O and HpicFF or H2hypic as described previously.18 Compound [Zn(Hhypic)2(H2O)2] (9) was prepared by a modified synthetic procedure.19 Infrared (IR) spectra (4000–600 cm−1) of the samples were recorded using a Perkin–Elmer Spectrum 100, equipped with a Specac Golden Gate Diamond ATR as a solid sample support. Elemental (C, H, N) analyses were obtained using a Perkin-Elmer 2400 Series II CHNS/O Elemental Analyser.
Synthesis
Ammonium bis(3,5-difluoropicolinato-κ2N,O)dioxidovanadate(V)–water (1/1.6) (3·1.6H2O).
Ammonium metavanadate (58 mg, 0.50 mmol) was suspended in methanol (2 mL) and a solution of HpicFF (159 mg, 1.00 mmol) in methanol (5 mL) was added. The resulting solution was stirred at room temperature for 30 min until dissolution and the solution turned light green. The solution obtained after filtration was stored at room temperature. After a few days of slow evaporation of the solvent, light green crystals grew from the solution. Yield: 127 mg, 57%. Anal. calcd for (C12H11.2F4N3O7.6V): C, 32.32; H, 2.53; N, 9.42. Found: C, 32.05; H, 2.64; N, 9.02%. IR (ATR, cm−1): 3445br, 3176w, 3052m, 1666s, 1600m, 1472m, 1429m, 1330s, 1245s, 1213w, 1157w, 1118s, 1000w, 891s, 853m, 681m, 633m.
Ammonium bis(3-hydroxypicolinato-κ2N,O)dioxidovanadate(V) hydrate (4·H2O).
Ammonium metavanadate (58 mg, 0.50 mmol) was suspended in water (5 mL) and a solution of H2hypic (139 mg, 1.00 mmol) in methanol (3 mL) was added. The resulting solution was stirred under reflux until dissolution (∼15 min). The solution obtained after hot filtration was stored at room temperature. After a few days of the slow evaporation of solvents, yellow-green crystals grew from the solution. Yield: 98 mg, 50%. Anal. calcd for (C12H14N3O9V): C, 36.47; H, 3.57; N, 10.63. Found: C, 36.40; H, 3.48; N, 10.51%. IR (ATR, cm−1): 3504br, 3260br, 3072br, 1637m, 1606m, 1571w, 1457m, 1400m, 1312s, 1261w, 1230w, 1156w, 1125w, 897m, 869s, 822m, 782w, 689s.
trans-Di(aqua-κO)bis(3,5-difluoropicolinato-κ2N,O)zinc(II) (5).
Zinc acetate dihydrate (110 mg, 0.50 mmol) was dissolved in water (2 mL) and a hot solution of HpicFF (159 mg, 1.00 mmol) in methanol (6 mL) was added. After the addition, a white precipitate was found in the mixture. The resulting suspension was stirred at 60 °C for an additional 30 min and then cooled to room temperature. The white precipitate was filtered, washed with methanol and dried on air. Yield: 185 mg, 97%. Anal. calcd for (C12H8F4N2O6Zn): C, 34.52; H, 1.93; N, 6.71. Found: C, 34.53; H, 1.71; N, 6.63%. IR (ATR, cm−1): 3385m, 3078m, 1636s, 1604m, 1590w, 1470w, 1422w, 1379s, 1362m, 1318m, 1255m, 1223m, 1154w, 1126m, 999m, 905m, 845m, 746m, 678s, 620s.
cis-Bis(3,5-difluoropicolinato-κ2N,O)di(pyridine-κN)zinc(II)–pyridine (1/1) (6·py).
Compound 5 (21 mg, 0.050 mmol) was dissolved in a mixture of toluene (3 mL), methanol (1 mL) and pyridine (2 mL, 25 mmol). The resulting solution was stirred under reflux for 30 min, then hot filtered and stored at room temperature. After few days of slow evaporation of solvents, colorless crystals grew from the solution. The crystals decomposed when exposed to air. Elemental analysis shows that the pyridine moiety leaves the complex and crystal lattice outside the solution, while it is replaced by water molecules. Yield: 17 mg, 55%. Anal. calcd for diaqua complex (C12H8F4N2O6Zn): C, 34.52; H, 1.93; N, 6.71. Found: C, 35.08; H, 2.06; N, 6.80%. IR (ATR, cm−1): 3062w, 1654s, 1599m, 1466m, 1445m, 1420m, 1346s, 1250s, 1221w, 1120s, 1040w, 999w, 904w, 830m, 768w, 698m, 686m, 617s.
cis-Bis(3,5-difluoropicolinato-κ2N,O)bis(4-dimethylaminopyridine-κN)zinc(II)–water (3/2) (7·2/3H2O).
Compound 5 (21 mg, 0.050 mmol) was suspended in toluene (5 mL) and a solution of DMAP (12 mg, 0.10 mmol) in methanol (3 mL) was added. The resulting solution was stirred for 120 min at 70 °C. The solution obtained after hot filtration was stored at room temperature. After a few days of slow evaporation of solvents, colorless crystals grew from the solution. Yield: 12 mg, 37%. Anal. calcd for (C26H25.33F4N6O4.66Zn): C, 48.96; H, 4.00; N, 13.18. Found: C, 48.95; H, 3.70; N, 12.92%. IR (ATR, cm−1): 3061w, 1646s, 1613s, 1536m, 1463w, 1419w, 1346s, 1249m, 1228s, 1118m, 1010s, 902w, 827m, 811m, 687m, 614s.
Bis(3,5-difluoropicolinato-κ2N,O)(1,10-phenanthroline-κ2N,N′)zinc(II)–chloroform (1/2) (8·2CHCl3).
Compound 5 (21 mg, 0.05 mmol) was suspended in chloroform (4 mL) and then solid 1,10-phenanthroline (9 mg, 0.05 mmol) was added. Methanol (2 mL) was added and the resulting mixture was stirred under reflux for 15 min. The solution obtained after hot filtration was stored at room temperature. After few days of the slow evaporation of solvents colorless crystals grew from the solution. The crystals decomposed in air, elemental analysis showed that the chloroform solvate molecules leave the crystal lattice when the crystals are dried in air. Yield: 15 mg, 51%. Anal. calcd for (C25H16F4N4O5Zn): C, 50.57; H, 2.72; N, 9.44; found: C, 50.99; H, 2.91; N, 9.20%. IR (ATR, cm−1): 3359w, 3063w, 1648s, 1636m, 1601w, 1521w, 1465m, 1421m, 1356m, 1337m, 1253s, 1119s, 1007m, 898w, 848m, 833w, 726s, 686m, 616s.
trans-Di(aqua-κO)bis(3-hydroxypicolinato-κ2N,O)zinc(II) (9).
Zinc acetate dihydrate (110 mg, 0.50 mmol) was dissolved in water (2 mL) and a hot solution of H2hypic (139 mg, 1.00 mmol) in water (3 mL) was added. After the addition, a white precipitate occurred in the mixture. The resulting suspension was stirred under reflux for 20 min and then cooled to room temperature. The white precipitate was filtered, washed with methanol and dried in air. Yield: 181 mg, 96%. Anal. calcd for (C12H12N2O8Zn): C, 38.17; H, 3.20; N, 7.42. Found: C, 38.28; H, 2.87; N, 7.46%. IR (ATR, cm−1): 3282m, 1650m, 1576w, 1450s, 1405m, 1392m, 1341m, 1300s, 1231m, 1139w, 1117m, 892m, 842m, 803s, 689s.
trans-(Aqua-κO)(4-dimethylaminopyridine-κN)bis(3-hydroxypicolinato-κ2N,O)zinc(II) dihydrate (11).
Compound 9 (38 mg, 0.10 mmol) was suspended in toluene (5 mL) and a solution of DMAP (24 mg, 0.20 mmol) in chloroform (3 mL) was added. Methanol (3 mL) was added and the resulting mixture was stirred for 10 min at 50 °C. The solution obtained after hot filtration was stored at room temperature. After a few days of slow evaporation of solvents, colorless crystals grew from the solution. Yield: 43 mg, 90%. Anal. calcd for (C19H20N4O7Zn): C, 47.37; H, 4.18; N, 11.63. Found: C, 47.12; H, 4.02; N, 11.88%. IR (ATR, cm−1): 3318w, 2901w, 1618s, 154w, 1453s, 1388m, 1330m, 1303m, 1241m, 1223s, 1114w, 1059m, 1009m, 887m, 846m, 807s, 700m, 682s.
Bis(3-hydroxypicolinato-κ2N,O)(1,10-phenanthroline-κ2N,N′)zinc(II) (12).
Compound 9 (38 mg, 0.10 mmol) was suspended in toluene (5 mL) and a solution of phen (9 mg, 0.10 mmol) in methanol (5 mL) was added. The resulting solution was stirred for 10 min at 50 °C. The solution obtained after hot filtration was stored at room temperature. After a few days of slow evaporation of solvents, colorless crystals grew from the solution. Yield 32 mg, 61%. Anal. calcd for (C24H16N4O6Zn): C, 55.24; H, 3.09; N, 10.74. Found: C, 55.34; H, 2.94; N, 10.74%. IR (ATR, cm−1): 3060w, 1636s, 1594w, 1455s, 1428w, 1382m, 1336m, 1304m, 1249m, 1227w, 1146w, 883m, 852m, 813s, 725m, 699m, 680s, 638w.
Bis(4-(hydroxymethyl)picolinato-κ2N,O)zinc(II)–water (1/0.5) (13·0.5H2O).
Zinc acetate dihydrate (110 mg, 0.50 mmol) was dissolved in methanol (2 mL) and a hot solution of HpicCH2OH (153 mg, 1.00 mmol) in methanol (6 mL) was added. After the addition, a white precipitate was found in the mixture. The resulting suspension was stirred under reflux for 20 min and then cooled to room temperature. The white precipitate was filtered, washed with methanol and dried in air. Yield: 148 mg, 80%. Anal. calcd for (C14H13N2O6.5Zn): C, 44.41; H, 3.46; N, 7.40. Found: C, 44.23; H, 3.00; N, 7.21%. IR (ATR, cm−1): 3033br, 2635br, 1629w, 1598s, 1559w, 1436m, 1376s, 1331w, 1286w, 1233w, 1065m, 1025m, 859w, 801m, 701m, 627m.
X-ray structure determination
Crystals suitable for X-ray analysis were obtained from compound solutions or filtered reaction mixtures at room temperature by slow evaporation of the solvents over a few days. Single-crystal X-ray diffraction data were collected on either a Nonius Kappa CCD diffractometer or an Agilent Technologies SuperNova Dual diffractometer with an Atlas detector using monochromated Mo-Kα radiation (λ = 0.71073 Å) or Cu-Kα radiation (λ = 1.54184 Å) at room temperature or at 150 K. The data were processed using DENZO or CrysAlis Pro.20 The structures were solved by direct methods using the program SHELXS-97 or SIR97 and refined on F2 using full-matrix least-squares procedures with SHELX2014.21 All non-hydrogen atoms were refined anisotropically. The hydrogen atoms on carbon atoms and OH groups were treated as riding atoms in geometrically idealized positions. Hydrogen atoms attached to the nitrogen atom of ammonium cations, water and methanol oxygen atoms were readily located from difference Fourier maps and were refined fixing the bond lengths and isotropic temperature factors as Uiso(H) = 1.5Ueq(N,O) unless otherwise noted. In 3·1.6H2O water oxygen atoms O8, O9 and O10 were refined with a 0.25
:
0.20
:
0.14 occupancy ratio and ISOR instruction was used on them for proper refinement. Hydrogen atoms on the O7–O10 atoms in 3·1.6H2O and on the O13 and O14 atoms in 7·2/3H2O were not found in the difference Fourier maps and were not included in the refinement. In 8·2CHCl3 the chloroform solvate molecule is disordered over two positions in a refined ratio of 0.60
:
0.40, and DFIX, SADI, SIMU and DELU instructions were used on the solvate molecule for the appropriate refinement. Crystallographic data are listed in Table S1 (ESI†).
In vitro insulin-mimetic activity
The procedure for the in vitro test was adopted from the literature.22 Male Wistar rats were sacrificed under anesthesia with ether. The adipose tissues were removed, chopped with scissors, and digested with collagenase for 60 min at 37 °C in Krebs-Ringer bicarbonate buffer (120 mM NaCl, 1.27 mM CaCl2, 1.2 mM MgSO4, 4.75 mM KCl, 1.2 mM KH2PO4, 24 mM NaHCO3: pH 7.4), containing 2% BSA (bovine serum albumin). The obtained adipocytes were then separated from undigested tissues by filtration through nylon mesh and washed three times. The metal complexes which were dissolved in ultrapure water at 500 μM (final conc.) and glucose solution (final conc.; 5 mM) was separately added to the isolated adipocytes, and the resulting suspension was pre-incubated at 37 °C for 30 min. Finally, epinephrine solution (final conc.; 10 μM) was added to the above suspension, and the resulting solutions were incubated at 37 °C for 180 min. The reactions were stopped by soaking in ice water, and the mixtures were centrifuged at 3000 rpm for 10 min. FFA (free fatty acids) levels in the outer solution of the cells were determined using an FFA kit (NEFA C-test WAKO, Wako Pure Chemicals).
All animal experiments in the present study were approved by the Experimental Animal Research of Kyoto Pharmaceutical University (KPU) and were performed according to the Guideline for Animal Experimentation of KPU.
Results and discussion
Synthesis and IR spectroscopy
Oxidovanadium(IV), VIVO, compounds 1 and 2 were synthesized from VOSO4·5H2O and HpicFF or H2hypic as described previously.18 Dioxidovanadate(V) and VVO2, compounds were prepared from ammonium metavanadate and the corresponding picolinic acid analogues, HpicFF (3) or H2hypic (4), in a 1
:
2 ratio in methanol or water/methanol, respectively.
Zinc(II) bis(3,5-difluoropicolinato) and bis(3-hydroxypicolinato) complexes were prepared in two steps. In the first step the white powder of the zinc bis(3,5-difluoropicolinato) compound (5) and the zinc bis(3-hydroxypicolinato) compound (9) were prepared in a water/methanol mixture or in water from zinc acetate dihydrate and HpicFF or H2hypic acid in a 1
:
2 ratio. In the second step 5 or 9 was suspended in an organic solvent and then the neutral N-donor ligands py (6·py), DMAP (7·
H2O, 11) or phen (8·CHCl3, 12) were added. The N-donor ligands were selected in order to make a structural comparison with previously published zinc complexes with the 5-cyanopicolinato (picCN) organic carrier where a cis-octahedral arrangement was observed in py and 4-aminopyridine (4apy) complexes and also a square-pyramidal geometry was observed in the 4apy complex in contrast to the [Zn(picCN)2(H2O)2] complex possessing a trans arrangement of the ligands in the coordination sphere.23 The reaction of 5 with py in toluene/methanol yielded crystals 6·py, however, when these crystals were dried in air, the pyridine was lost and the complex decomposed transforming into the compound 5 as was observed also in the analogous system with the picCN ligand.23 The reaction of 9 with DMAP yielded complex 11 even though the ratio 1
:
2 was used. A small amount of crystals of 10 with methanol molecules bonded to the metal center were obtained during the unsuccessful synthesis of 11 in methanol. For comparison, the reaction of [Zn(picCN)2(H2O)2] with py in methanol yielded only the starting complex, the substitution of the water by py or MeOH as the ligand was not observed.23 The zinc bis(4-(hydroxymethyl)picolinato) compound 13·0.5H2O was prepared in methanol in an analogous way as were compounds 5 and 9. Although several attempts were made to structurally characterize the zinc bis(4-(hydroxymethyl)picolinato) species in the presence or absence of neutral N-donors we were not able to obtain crystals of 13·0.5H2O or other adducts suitable for X-ray structural determination.
IR spectroscopy of 3 and 4 shows the presence of N–H stretching vibrations of the ammonium cation in the range between 3176 and 3052 cm−1 in both compounds and stretching bands of the VO2+ cation were observed between 897 and 853 cm−1. The IR spectra of vanadium compounds 3 and 4 and zinc compounds 5–9 and 11–13 show antisymmetric, νasym(CO2), and symmetric, νsym(CO2), stretching vibrations of the carboxylato group in the ranges of 1666–1598 cm−1 and 1392–1300 cm−1, respectively. The difference Δ, a useful parameter revealing the possible coordination mode of the carboxylato ligands, has values greater than 200 cm−1 for each of these complexes indicating a monodentate coordination of the carboxylate group.24
Structure of the complexes
Crystal structures of NH4[VO2(picFF)2]·1.6H2O (3·1.6H2O) and NH4[VO2(Hhypic)2]·H2O (4·H2O).
Crystals of compounds 3 and 4 were grown from the reaction mixtures after a few days of slow evaporation of the solvents. Diagrams of the structures of both complexes are shown in Fig. 1 and 3, and selected bond distances and angles are summarized in Tables 1 and 2. Compound 3·1.6H2O crystallizes in the tetragonal space group P42/n and the asymmetric unit contains a complex dioxidovanadate(V) anion, an ammonium cation, one water molecule with full occupancy and 0.6 water molecule disordered over three positions. Compound 4 crystallizes in the monoclinic space group C2/c and the asymmetric unit contains one half of the complex anion, one half of the ammonium cation and one half of the water molecule due to the two-fold rotation axis.
![image file: c7nj04189f-f1.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-f1.gif) |
| Fig. 1 Structure of NH4[VO2(picFF)2]·1.6H2O (3·1.6H2O). Thermal ellipsoids are shown with 30% probability level at 293 K. Crystal water molecules have been omitted for clarity. | |
![image file: c7nj04189f-f2.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-f2.gif) |

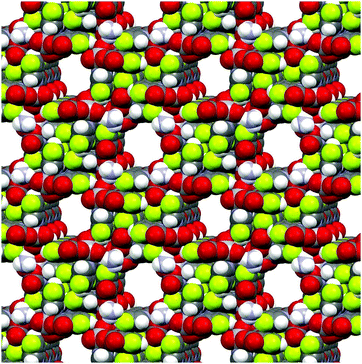

| Fig. 2 Space filled representation of the packing in 3·1.6H2O showing the channels along the c-axis. Water molecules filling the channels have been omitted for clarity. | |
![image file: c7nj04189f-f3.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-f3.gif) |

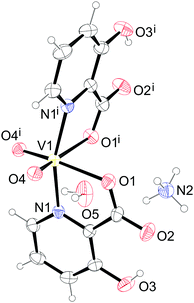

| Fig. 3 Asymmetric unit of NH4[VO2(Hhypic)2]·H2O (4·H2O). Thermal ellipsoids are shown with 30% probability level at 293 K. | |
Table 1 Selected bond distances (Å) and angles (°) for NH4[VO2(picFF)2]·1.6H2O (3·1.6H2O)
Distance (Å) |
V1–O1 |
1.964(4) |
V1–O6 |
1.629(4) |
V1–O3 |
1.988(4) |
V1–N1 |
2.332(5) |
V1–O5 |
1.628(4) |
V1–N2 |
2.322(4) |
Angle (°) |
O1–V1–O3 |
149.82(18) |
O3–V1–N2 |
72.38(15) |
O1–V1–O5 |
97.4(2) |
O5–V1–O6 |
105.2(2) |
O1–V1–O6 |
103.1(2) |
O5–V1–N1 |
165.0(2) |
O1–V1–N1 |
73.11(16) |
O5–V1–N2 |
89.93(19) |
O1–V1–N2 |
83.97(16) |
O6–V1–N1 |
88.5(2) |
O3–V1–O5 |
100.9(2) |
O6–V1–N2 |
162.1(2) |
O3–V1–O6 |
95.0(2) |
N1–V1–N2 |
77.74(16) |
O3–V1–N1 |
83.55(17) |
|
|
Table 2 Selected bond distances (Å) and angles (°) for NH4[VO2(Hhypic)2]·H2O (4·H2O)
Distance (Å) |
Symmetry code: (i) –x + 1, y, −z + 1/2. |
V1–O1 |
2.149(4) |
V1–N1 |
2.116(4) |
V1–O4 |
1.624(3) |
|
|
Angle (°) |
O1–V1–O1i |
76.7(2) |
O4–V1–O4i |
104.1(3) |
O1–V1–O4 |
91.00(16) |
O4–V1–N1 |
100.36(16) |
O1–V1–O4i |
161.15(16) |
O4–V1–N1i |
90.51(16) |
O1–V1–N1 |
75.55(14) |
N1–V1–N1i |
162.3(2) |
O1–V1–N1i |
90.50(15) |
|
|
Vanadium atom in 3 is six-coordinated having an octahedral geometry with a cis arrangement of oxido oxygen atoms of the VO2+ group and two bidentate 3,5-difluoropicolinate (picFF) ligands coordinated with picolinato nitrogen atoms trans to oxido oxygen atoms [V–N = 2.332(5) and 2.322(4) Å] and carboxylate oxygen atoms in mutual trans orientation [V–O = 1.964(4) and 1.988(4) Å]. The octahedral geometry displays a distortion with O5–V1–N1 and O6–V1–N2 angles of 165.0(2)° and 162.1(2)°, respectively, and an O1–V1–O3 angle of 149.82(18)°.
Ammonium cations and complex anions in the crystal structure of 3·1.6H2O are connected into the infinite belt along the c axis. The ammonium cation is connected to three adjacent [VO2(picFF)2]− complex anions where the hydrogen-bond acceptors are the O1 carboxyl atom of one complex anion, the O3 carboxyl atom of the second complex anion and the O5 oxido oxygen atom of the VO2+ unit of the third complex anion. The fourth hydrogen-bonding of ammonium cation is with the O7 atom of the water molecule (Fig. S1 and Table S2, ESI†). Additionally, C6–H6⋯O2 and C12–H12⋯O4 interactions between pyridyl rings and carbonyl moieties stabilize the belt formation. Belts are connected to the supramolecular structure via C4–H4⋯O5 interactions between the pyridyl rings and oxido atoms and C10–H10⋯O4 interactions between the pyridyl rings and carbonyl moieties (Table S2, ESI†). Channels along the c axis are occupied by water molecules (Fig. 2). There are no significant π⋯π interactions present.
Vanadium atom in 4 is also six-coordinated having an octahedral geometry similar to 3 with a cis arrangement of the oxido oxygen atoms of VO2+ group. The main difference in the structure of complex anion in comparison to the structure 3 is in the mutual orientation of the two bidentate 3-hydroxypicolinato ligands. While in compound 3 the coordinated picolinato nitrogen atoms are in a mutual cis position, in compound 4 they are in a mutual trans position and thus the carboxylate oxygen atoms are in mutual cis orientation. The V–N bond in 4 is shorter than in 3 (2.116(4) Å vs. 2.332(5) and 2.322(4) Å), while the V–O bond in 4 is elongated compared to 3 (2.149(4) Å vs. 1.964(4) and 1.988(4) Å). The octahedral geometry displays a distortion with angles N1–V1–N1i of 162.3(2)° and O1–V1–O4i of 161.15(16)°.
Ammonium cations, complex anions and solvate water in the crystal structure of 4·H2O form hydrogen-bonded infinite 2D layers along the ab plane (Fig. S2, ESI†). The ammonium cation is connected to three adjacent [VO2(Hhypic)2]− complex anions through two bifurcated hydrogen-bonds N2–H2A⋯O1 and N2–H2A⋯O2 with carboxylato units of two complex anions and through two N2–H2B⋯O4 hydrogen bonds with both oxido atoms of VO2+ unit of the third complex anion (Table S3, ESI†). The solvate water molecule is involved in O5–H5A⋯O4 hydrogen-bonding with the oxido atoms of two adjacent VO2+ units. The C6–H6⋯O2 interaction between the pyridyl ring and carbonyl oxygen atom of the adjacent complex anion further stabilize the layer formation. Layers are connected into the supramolecular structure along the c axis via N2–H2B⋯O3 interactions between the ammonium cation and the hydroxyl group as well as C4–H4⋯O4 interactions between the pyridyl ring and the oxido atoms of the VO2+ unit and by π–π interactions with a Cg3⋯Cg3 centroid-to-centroid distance of 3.736(3) Å (Fig. S3 and Table S4, ESI†).
Crystal structures of [Zn(picFF)2(H2O)2] (5), [Zn(picFF)2(py)2]·py (6·py), [Zn(picFF)2(DMAP)2]·
H2O (7·
H2O) and [Zn(picFF)2(phen)]·2CHCl3 (8·2CHCl3).
Crystals of compounds 5–8 were grown from the reaction mixtures after a few days of slow evaporation of the solvents. In air the crystals of 8·2CHCl3 gradually lose solvate molecules and transform into solvate-free 8. Diagrams of the structures of complexes 5–8 are shown in Fig. 4–7, and selected bond distances and angles are summarized in Tables 3–6.
![image file: c7nj04189f-f4.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-f4.gif) |

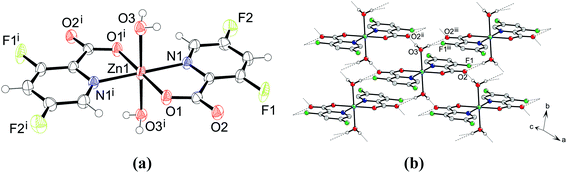

| Fig. 4 (a) Structure of the compound [Zn(picFF)2(H2O)2] (5). Thermal ellipsoids are shown with 30% probability level at 293 K. (b) The layer of hydrogen-bonded molecules in 6. Dashed lines indicate O–H⋯O/F hydrogen bonds. Symmetry codes: (i) −x + 1, −y + 1, −z + 1; (ii) x − 1, y, z; (iii) −x + 1, −y + 2, −z + 1. | |
![image file: c7nj04189f-f5.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-f5.gif) |
| Fig. 5 Asymmetric unit of [Zn(picFF)2(py)2]·py (6·py). Thermal ellipsoids are shown with 30% probability level at 293 K. | |
![image file: c7nj04189f-f6.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-f6.gif) |
| Fig. 6 Structure of [Zn(picFF)2(DMAP)2] (7). For clarity only one out of three crystallographically independent molecules is shown. Thermal ellipsoids are shown with 30% probability level at 293 K. | |
![image file: c7nj04189f-f7.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-f7.gif) |
| Fig. 7 Structure of [Zn(picFF)2(phen)]·2CHCl3 (8·2CHCl3). Thermal ellipsoids are shown with 30% probability level at 293 K. Symmetry code: (i) −x + 2, y, −z + 1/2. | |
Table 3 Selected bond distances (Å) and angles (°) for [Zn(picFF)2(H2O)2] (5)
Distance (Å) |
Symmetry code: (i) −x + 1, −y + 1, −z + 1. |
Zn1–O1 |
2.0541(12) |
Zn1–N1 |
2.1020(14) |
Zn1–O3 |
2.2092(14) |
|
|
Angle (°) |
O1–Zn1–O3 |
91.16(5) |
O1–Zn1–N1i |
100.51(5) |
O1–Zn1–O3i |
88.84(5) |
O3–Zn1–N1 |
89.93(5) |
O1–Zn1–N1 |
79.49(5) |
O3–Zn1–N1i |
90.07(5) |
Table 4 Selected bond distances (Å) and angles (°) for [Zn(picFF)2(py)2]·py (6·py)
Distance (Å) |
Zn1–O1 |
2.0438(16) |
Zn1–N2 |
2.308(2) |
Zn1–O3 |
2.0335(17) |
Zn1–N3 |
2.164(2) |
Zn1–N1 |
2.2267(19) |
Zn1–N4 |
2.156(2) |
Angle (°) |
O1–Zn1–O3 |
168.56(7) |
O3–Zn1–N4 |
89.33(8) |
O1–Zn1–N1 |
76.30(7) |
N1–Zn1–N2 |
88.76(7) |
O1–Zn1–N2 |
96.26(7) |
N1–Zn1–N3 |
163.54(8) |
O1–Zn1–N3 |
87.88(7) |
N1–Zn1–N4 |
90.91(8) |
O1–Zn1–N4 |
99.60(7) |
N2–Zn1–N3 |
88.48(7) |
O3–Zn1–N1 |
96.57(7) |
N2–Zn1–N4 |
163.59(7) |
O3–Zn1–N2 |
74.42(7) |
N3–Zn1–N4 |
96.26(8) |
O3–Zn1–N3 |
98.31(8) |
|
|
Table 5 Selected bond distances (Å) and angles (°) for [Zn(picFF)2(DMAP)2]·
H2O (7·
H2O)
Distance (Å) |
Zn1–O1 |
2.056(3) |
Zn2–O5 |
2.061(3) |
Zn3–O9 |
2.089(3) |
Zn1–O3 |
2.082(3) |
Zn2–O7 |
2.068(3) |
Zn3–O11 |
2.066(3) |
Zn1–N1 |
2.344(4) |
Zn2–N7 |
2.267(4) |
Zn3–N13 |
2.195(4) |
Zn1–N2 |
2.214(4) |
Zn2–N8 |
2.228(3) |
Zn3–N14 |
2.260(4) |
Zn1–N3 |
2.075(4) |
Zn2–N9 |
2.133(3) |
Zn3–N15 |
2.091(3) |
Zn1–N5 |
2.078(3) |
Zn2–N11 |
2.101(3) |
Zn3–N17 |
2.120(4) |
Angle (°) |
O1–Zn1–O3 |
162.84(12) |
O5–Zn2–O7 |
163.74(11) |
O9–Zn3–O11 |
163.20(13) |
O1–Zn1–N1 |
74.48(14) |
O5–Zn2–N7 |
75.25(13) |
O9–Zn3–N13 |
75.55(15) |
O1–Zn1–N2 |
91.51(15) |
O5–Zn2–N8 |
89.91(12) |
O9–Zn3–N14 |
90.25(15) |
O1–Zn1–N3 |
95.37(15) |
O5–Zn2–N9 |
93.47(12) |
O9–Zn3–N15 |
93.19(13) |
O1–Zn1–N5 |
96.06(13) |
O5–Zn2–N11 |
100.92(12) |
O9–Zn3–N17 |
101.33(13) |
O3–Zn1–N1 |
92.24(14) |
O7–Zn2–N7 |
96.74(12) |
O11–Zn3–N13 |
94.63(16) |
O3–Zn1–N2 |
75.98(14) |
O7–Zn2–N8 |
75.91(12) |
O11–Zn3–N14 |
75.46(15) |
O3–Zn1–N3 |
96.31(14) |
O7–Zn2–N9 |
94.56(12) |
O11–Zn3–N15 |
95.67(13) |
O3–Zn1–N5 |
94.64(13) |
O7–Zn2–N11 |
92.84(12) |
O11–Zn3–N17 |
92.11(14) |
N1–Zn1–N2 |
83.67(12) |
N7–Zn2–N8 |
90.93(12) |
N13–Zn3–N14 |
87.13(14) |
N1–Zn1–N3 |
167.79(15) |
N7–Zn2–N9 |
168.62(13) |
N13–Zn3–N15 |
168.47(16) |
N1–Zn1–N5 |
89.56(13) |
N7–Zn2–N11 |
88.31(13) |
N13–Zn3–N17 |
89.90(14) |
N2–Zn1–N3 |
89.94(14) |
N8–Zn2–N9 |
90.56(12) |
N14–Zn3–N15 |
90.46(13) |
N2–Zn1–N5 |
168.14(15) |
N8–Zn2–N11 |
168.56(13) |
N14–Zn3–N17 |
166.93(16) |
N3–Zn1–N5 |
98.39(15) |
N9–Zn2–N11 |
92.43(14) |
N15–Zn3–N17 |
94.87(13) |
Table 6 Selected bond distances (Å) and angles (°) for [Zn(picFF)2(phen)]·2CHCl3 (8·2CHCl3)
Distance (Å) |
Symmetry code: (i) −x + 2, y, −z + 1/2. |
Zn1–O1 |
2.046(2) |
Zn1–N2 |
2.164(2) |
Zn1–N1 |
2.194(2) |
|
|
Angle (°) |
O1–Zn1–O1i |
163.53(12) |
N1–Zn1–N1i |
96.19(13) |
O1–Zn1–N1 |
77.12(9) |
N1–Zn1–N2 |
165.96(10) |
O1–Zn1–N2 |
93.14(9) |
N1–Zn1–N2i |
94.19(9) |
O1–Zn1–N1i |
91.82(9) |
N2–Zn1–N2i |
77.32(13) |
O1–Zn1–N2i |
99.72(10) |
|
|
The complex 5 crystallizes in the triclinic space group P
. The asymmetric unit contains one half of the complex with the zinc atom sitting on the inversion center. The zinc atom is octahedrally coordinated with two bidentate picFF ligands in the equatorial position in a trans arrangement and with two water molecules in the axial positions. The distance between the zinc and carboxyl oxygen (Zn1–O1 = 2.0541(12) Å) is shorter than the bond between zinc and water (Zn1–O3 = 2.2092(14) Å). The Zn1–N1 distance is 2.1020(14) Å. The angles between the trans oriented atoms are 180° due to the center of symmetry. The chelate angle of the picFF ligand O1–Zn1–N1 is 79.49(5)°, the angle between the water and carboxyl oxygen atom O1–Zn1–O3 is 91.16(5)°, and the angle between the water and picolinato nitrogen atom O3–Zn1–N1 is 89.93(5)°.
The crystal structure of 5 is stabilized by hydrogen bonding between a coordinated water molecule acting as a hydrogen bond donor and a carbonyl atom acting as a hydrogen bond acceptor forming centrosymmetric hydrogen bonding with a R24(8) ring motif. The water molecule is also involved in hydrogen bonding with the fluorine atom of the adjacent molecule forming a R21(6) ring motif. These interactions form hydrogen-bonded layers parallel to the ab plane (Fig. 4(b) and Table S5, ESI†). The layers are connected into the supramolecular structure along the c axis via C–H⋯F interactions and π–π interactions with a Cg3⋯Cg3 centroid-to-centroid distance of 3.6302(10) Å (Tables S5 and S6, ESI†).
The compound 6·py crystallizes as a pyridine solvate in the monoclinic space group P21/c with the formula [Zn(picFF)2(py)2]·py. The asymmetric unit contains one molecule of the complex and one molecule of pyridine. The complex has a distorted octahedral geometry, with a cis-octahedral arrangement of py ligands on the zinc central atom. Two py molecules are bound to the zinc through the pyridine nitrogen atoms with Zn–N distances of 2.164(2) and 2.156(2) Å in cis positions with the N3–Zn1–N4 angle of 96.26(8)°, while the two bidentate picFF ligands are coordinated with the picolinato nitrogen atoms in a mutual cis position [N1–Zn1–N2 = 88.76(7)°] with the Zn–N distances of 2.2267(19) and 2.308(2) Å, being longer than those in compound 5. Carboxyl oxygen atoms are bound to the zinc atom in mutual trans positions [O1–Zn1–O3 = 168.56(7)°] with Zn–O distances 2.0438(16) and 2.0335(17) Å.
The supramolecular structure of 6·py is stabilized by various C–H⋯O and C14–H14⋯F2 hydrogen bonding interactions forming layers along the bc axis (Fig. S4 and Table S7, ESI†). Pyridine solvate molecules are part of these layers and are connected through C15–H15⋯N5 hydrogen bonding and π⋯π interactions with a Cg4⋯Cg7 centroid-to-centroid distance of 4.170(3) Å. The layers are connected into the supramolecular structure through π⋯π interactions with a Cg3⋯Cg5 centroid-to-centroid distance of 4.0362(17) Å between the picolinate and pyridine moieties that are part of adjacent complexes (Table S8, ESI†).
The compound 7·
H2O crystallizes as a hydrate in the orthorhombic space group Pbca with the formula [Zn(picFF)2(DMAP)2]·
H2O. The asymmetric unit contains three crystallographically independent complex molecules and two water solvate molecules. All three independent complexes have a distorted octahedral geometry, with a cis-octahedral arrangement of DMAP ligands on the zinc central atom analogous to 6·py. The geometric parameters for all three complexes are very similar (Table 5). DMAP molecules are bound to the zinc through the pyridine nitrogen atoms in cis positions with Zn–N distances in the range of 2.075(4)–2.133(3) Å and NDMAP–Zn–NDMAP angles in the range of 92.43(14)–98.39(15)°. Two bidentate picFF ligands are coordinated with the picolinato nitrogen atoms in a mutual cis position [Npic–Zn–Npic in the range of 83.67(12)–90.93(12)°] with Zn–Npic distances in the range 2.195(4)–2.344(4) Å, being longer than those in compound 5. Carboxyl oxygen atoms are bound to the zinc atom in mutual trans positions [O–Zn–O in the range of 162.84(12)–163.74(11)°] with Zn–O distances in the range of 2.056(3)–2.089(3) Å.
The supramolecular structure of 7·
H2O is stabilized by several C–H⋯O and C26–H26A⋯F3 hydrogen bonding interactions in all three dimensions (Table S7, ESI†). DMAP ligands are also involved in C–H⋯π and π⋯π interactions [Cg6⋯Cg17 centroid-to-centroid distance of 3.917(2) Å] connecting three adjacent molecules (Fig. S5 and Table S8, ESI†).
The compound 8·2CHCl3 crystallizes in the monoclinic space group C2/c as a chloroform solvate (1
:
2) with the formula [Zn(picFF)2(phen)]·2CHCl3 and the asymmetric unit contains one half of the complex molecule and one solvate molecule since the zinc metal center is positioned on the two-fold rotation axis. The zinc central atom is hexacoordinated with the same octahedral arrangement as in 6 and 7. Phen is coordinated to the zinc with a Zn–N distance of 2.164(2) Å and the picFF ligands with a somewhat longer Zn–N distance of 2.194(2) Å and a Zn–O distance of 2.046(2) Å. The two picolinic nitrogen atoms are cis to each other [N1–Zn1–N1i = 96.19(13)°], and the two carboxyl oxygen atoms are in a trans arrangement [O1–Zn1–O1i = 163.53(12)°].
In the crystal structure of 8·2CHCl3 the complex molecules are connected into the infinite belt along the c axis through C4–H4⋯O2 interactions and chloroform solvate molecules are connected to the complex molecules through bifurcated C13–H13⋯O1/O2 interactions with the carboxylato groups. The π⋯π stacking interactions between adjacent phen moieties with a Cg6⋯Cg17 centroid-to-centroid distance of 3.706(3) Å connect the belts into a three-dimensional structure (Fig. S6, Tables S7 and S8, ESI†).
Crystal structures of [Zn(Hhypic)2(MeOH)2] (10), [Zn(Hhypic)2(DMAP)(H2O)] (11) and [Zn(Hhypic)2(phen)] (12).
A small amount of the crystals of 10 was obtained during the unsuccessful synthesis of 11 when using methanol as the solvent. The complex 10 crystallizes in the monoclinic space group C2/c. The asymmetric unit contains one half of the complex with the zinc atom sitting on the inversion center. The zinc atom is octahedrally coordinated with two bidentate Hhypic ligands in the equatorial position in trans arrangement and with two methanol molecules in the axial positions (Fig. 8). The distance between zinc and the carboxyl oxygen (Zn1–O1 = 2.0750(10) Å) is shorter than the bond between zinc and the methanol oxygen atom (Zn1–O4 = 2.1930(11) Å). The Zn1–N1 distance is 2.0765(14) Å. The chelate angle of the Hhypic ligand O1–Zn1–N1 is 80.73(4)°, the angle between the methanol and carboxyl oxygen atoms O1–Zn1–O4 is 93.85(4)°, and the angle between the methanol oxygen atom and the picolinato nitrogen atom O4–Zn1–N1 is 90.03(5)° (Table 7).
![image file: c7nj04189f-f8.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-f8.gif) |
| Fig. 8 Structure of [Zn(Hhypic)2(MeOH)2] (10). Thermal ellipsoids are shown with a 50% probability level at 150 K. Symmetry code: (i) −x + 1/2, −y + 1½, −z. | |
Table 7 Selected bond distances (Å) and angles (°) for [Zn(Hhypic)2(MeOH)2] (10)
Distance (Å) |
Symmetry code: (i) –x + 1/2, −y + 1½, −z. |
Zn1–O1 |
2.0750(10) |
Zn1–N1 |
2.0765(14) |
Zn1–O4 |
2.1930(11) |
|
|
Angle (°) |
O1–Zn1–O4 |
93.85(4) |
O1–Zn1–N1i |
99.27(4) |
O1–Zn1–O4i |
86.15(4) |
O4–Zn1–N1 |
90.03(5) |
O1–Zn1–N1 |
80.73(4) |
O4–Zn1–N1i |
89.97(5) |
The crystal structure of 10 is stabilized by hydrogen bonding between a coordinated methanol molecule acting as a hydrogen bond donor and a carbonyl atom of an adjacent complex acting as a hydrogen bond acceptor forming centrosymmetric hydrogen bonding with a R22(12) ring motif and a chain along the b axis is formed. These chains are further connected into an infinite layer along the bc plane through the formation of C–H⋯O hydrogen bonding, with the picolinic moiety as a hydrogen bond donor and the methanol molecule as a hydrogen bond acceptor (Fig. S7 and Table S9, ESI†). There are no significant π⋯π interactions present.

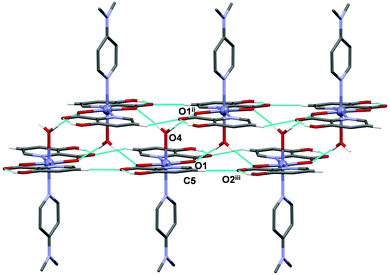

The compound 11 crystallizes in the orthorhombic space group Pnna with the formula [Zn(Hhypic)2(DMAP)(H2O)]. The asymmetric unit contains one half of the complex with a zinc atom, DMAP and water sitting on the two-fold axis. The zinc atom is octahedrally coordinated with two bidentate Hhypic ligands in the equatorial position in trans arrangement and with one DMAP and one water molecule in the axial positions (Fig. 9). The distance between the zinc and carboxyl oxygen (Zn1–O1 = 2.1028(11) Å) is shorter than the bond between zinc and the water oxygen atom (Zn1–O4 = 2.1578(19) Å). The Zn1–N1 distance is 2.1350(14) Å and the DMAP is coordinated to the zinc with a Zn1–N2 distance of 2.161(2) Å. The chelate angle of the Hhypic ligand O1–Zn1–N1 is 79.18(5)°, the angle between the water and carboxyl oxygen atoms O1–Zn1–O4 is 88.62(3)°, and the angle between the water oxygen atom and picolinato nitrogen atom O4–Zn1–N1 is 86.21(3)° (Table 8).
![image file: c7nj04189f-f9.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-f9.gif) |

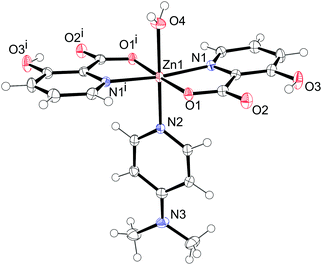

| Fig. 9 Structure of [Zn(Hhypic)2(DMAP)(H2O)] (11). Thermal ellipsoids are shown with a 50% probability level at 150 K. Symmetry code: (i) –x + 1½, –y + 1, z. | |
Table 8 Selected bond distances (Å) and angles (°) for [Zn(Hhypic)2(DMAP)(H2O)] (11)
Distance (Å) |
Symmetry code: (i) –x + 1½, –y + 1, z. |
Zn1–O1 |
2.1028(11) |
Zn1–N1 |
2.1350(14) |
Zn1–O4 |
2.1578(19) |
Zn1–N2 |
2.161(2) |
Angle (°) |
O1–Zn1–O1i |
177.24(6) |
O1–Zn1–N2 |
91.38(3) |
O1–Zn1–O4 |
88.62(3) |
N1–Zn1–O4 |
86.21(3) |
O1–Zn1–N1 |
79.18(5) |
N1–Zn1–N1i |
172.41(7) |
O1–Zn1–N1i |
100.64(5) |
N1–Zn1–N2 |
93.79(3) |
The supramolecular structure of 11 is stabilized by hydrogen bonding between a coordinated water molecule acting as a hydrogen bond donor and carboxylic oxygen atoms of two adjacent complexes acting as hydrogen bond acceptors as well as by the C–H⋯O interactions between the Hhypic moiety and the carbonyl atom of the adjacent complex forming a chain along the a axis (Fig. 10 and Table S9, ESI†). The chains are further connected into the 3D structure through C–H⋯O and C–H⋯π interactions (Fig. S8 and Table S9, ESI†).
![image file: c7nj04189f-f10.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-f10.gif) |
| Fig. 10 A chain of hydrogen-bonded molecules in 11. Blue dashed lines indicate O–H⋯O and C–H⋯O interactions. H atoms not involved in the motif shown have been omitted for clarity. Symmetry codes: (ii) x + 1/2, y, –z; (iii) x + 1, y, z. | |
The compound 12 crystallizes in the monoclinic space group P21/c with the formula [Zn(Hhypic)2(phen)] and the asymmetric unit contains one complex molecule (Fig. 11). The zinc atom is hexacoordinated with the same octahedral arrangement as in 8. Phen is coordinated to the zinc with Zn–N distances of 2.1573(13) and 2.2339(13) Å and the Hhypic ligands with somewhat shorter Zn–N distances of 2.1000(13) and 2.1455(13) Å and Zn–O distances of 2.0907(11) and 2.1059(11) Å. The two picolinic nitrogen atoms are cis to each other [N1–Zn1–N2 = 106.11(5)°], and the two carboxyl oxygen atoms are in a trans arrangement [O1–Zn1–O4 = 170.64(5)°] (Table 9).
![image file: c7nj04189f-f11.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-f11.gif) |
| Fig. 11 Asymmetric unit of [Zn(Hhypic)2(phen)] (12). Thermal ellipsoids are shown with 50% probability level at 150 K. | |
Table 9 Selected bond distances (Å) and angles (°) for [Zn(Hhypic)2(phen)] (12)
Distance (Å) |
Zn1–O1 |
2.1059(11) |
Zn1–N2 |
2.1000(13) |
Zn1–O4 |
2.0907(11) |
Zn1–N3 |
2.2339(13) |
Zn1–N1 |
2.1455(13) |
Zn1–N4 |
2.1573(13) |
Angle (°) |
O1–Zn1–O4 |
170.64(5) |
O4–Zn1–N4 |
92.45(5) |
O1–Zn1–N1 |
78.16(5) |
N1–Zn1–N2 |
106.11(5) |
O1–Zn1–N2 |
94.27(5) |
N1–Zn1–N3 |
159.55(5) |
O1–Zn1–N3 |
87.84(5) |
N1–Zn1–N4 |
90.30(5) |
O1–Zn1–N4 |
95.55(5) |
N2–Zn1–N3 |
89.58(5) |
O4–Zn1–N1 |
96.99(5) |
N2–Zn1–N4 |
162.31(5) |
O4–Zn1–N2 |
79.29(5) |
N3–Zn1–N4 |
76.15(5) |
O4–Zn1–N3 |
98.81(5) |
|
|
The supramolecular structure of 12 is stabilized by several C–H⋯O and π⋯π interactions in all three dimensions. The adjacent picolinato moieties are involved in π⋯π interactions with a Cg4⋯Cg5 centroid-to-centroid distance of 3.8969(9) Å and the adjacent phen moieties are involved in π⋯π stacking interactions with centroid-to-centroid distances in the range 3.5779(9) to 3.6668(9) Å (Fig. S9, Tables S9 and S10, ESI†).
Structural comparison
Valuable structural information is usually obtained by a solid-state X-ray diffraction study, however, when the compounds are introduced into a biological system certain chemical and biological changes can occur. EPR spectroscopy was found to be a powerful tool for the study of the solution structure and (bio)transformations of vanadium(IV) species.25 Lately, we have been studying VIVO compounds with picolinic acid and pyrazine derivatives concerning their structures and interactions with serum proteins.18 For compounds 1 and 2 three isomers were observed by EPR in an organic solvent or in aqueous solution. The H2hypic was found to be the strongest ligand and the HpicFF the weakest one and thus different biotransformations at physiological pH in the presence of apo-transferrin and human serum albumin were observed.18 For the study of pharmacological activity all such generated species have to be taken into account and it is a challenge to obtain the observed solution-state species also in the solid state. In this respect, we were able to establish the first crystallographic evidence for the formation of an isomer of a vanadyl bis(picolinato) complex with the two pyridine nitrogen atoms in a mutual trans position previously observed only in the solution-state; the known solid-state structures possess a common arrangement with the two equatorial pyridine nitrogen atoms in a mutual cis position.18 We have extended our research on the diverse structural characteristics and supramolecular topologies of potential antidiabetic vanadium species23,26 also on vanadium(V) and zinc(II) compounds in order to study the flexibility of the coordination sphere and possible spatial arrangements in these species as well.
In general, for mononuclear bisoxidovanadate(V) compounds with two bidentate N,O ligands, such as picolinates, pyrazine-2-carboxylates or their analogues, only three isomers are possible (Scheme 1). A search in the Cambridge Structural Database (CSD) gave five crystal structures. Structure (I) (Scheme 1) was observed in a VVO2 compound with the 5-(methoxycarbonyl)picolinato ligand reported by Gätjens et al.,27 in two compounds with the pyrazine-2-carboxylato ligand (NBu4)[VO2(prz)2]28 and NH4[VO2(prz)2]23 and in two compounds with 5-cyanopicolinato and 3-aminopyrazine-2-carboxylato ligands23 possessing nitrogen atoms coordinated to the V(V) metal center trans to the oxido oxygen atoms as observed also in 3. The only report on structure (II) is the prototypical complex NH4[VO2(pic)2]·H2O prepared by Melchior et al.29 with one picolinato nitrogen atom coordinated to the V metal center trans to the oxido oxygen and the other picolinato nitrogen atom coordinated in a trans position to the carboxyl oxygen atom. There were no reports on isomer (III) in the CSD and the 3-hydroxypicolinato complex 4 is thus the first crystallographic evidence for the formation of an isomer of a VVO2 bis(picolinato) complex with the two pyridine nitrogen atoms in a mutual trans position. It has to be pointed out that 3-hydroxypicolinic acid possesses diverse ligation modes and can act not just as N,O-bidentate Hhypic− ligand but also as a monodentate O-ligand as observed in Na[VO(Hhypic-N,O)2(Hhypic-O)]·H2O18 as well as the O,O-ligand through the carboxylate-O and the phenolate-O atoms as observed in the VIVO mononuclear compound [VO(Hhypic-N,O)(Hhypic-O,O′)(H2O)]30 and in the cyclic tetramer [(VO)4(μ-(hypic-N,O,O′,O′′))4(H2O)4] where hypic2− acts as a bridging ligand (Scheme 2).30,31
![image file: c7nj04189f-s1.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-s1.gif) |

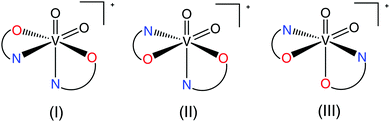

| Scheme 1 Possible bis-chelated structures for VO2+ species formed by a bidentate N,O-ligand. | |
![image file: c7nj04189f-s2.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-s2.gif) |

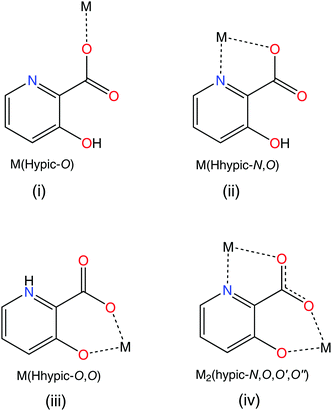

| Scheme 2 Possible binding modes of H2hypic. (i) Monodentate Hhypic-O, (ii) bidentate Hhypic-N,O, (iii) bidentate Hhypic-O,O' and (iv) bridging hypic-N,O,O′,O'' ligation modes. | |
CSD data for neutral mononuclear zinc(II) compounds with bidentate picolinato ligands show several different spatial arrangements for hexacoordinated structures. Isomer A (Scheme 3) with 19 compounds is the most frequent and was observed for example in trans-[Zn(pic)2(H2O)2] (Hpic = picolinic acid)32 and trans-[Zn(Hypic)2(H2O)2]19 and also in 5, 10, and 11. Structure B with a cis arrangement was found in six entries where the neutral ligand L is imidazole, pyridine, 4-aminopyridine or phenanthroline and was found also in 6–8 and 12.23,33 For each additional two cis spatial arrangements for the octahedral environment was reported only one example, cis-[Zn(pic)2(H2O)2]34 possesses the structure C and [Zn(bipyc)2(H2O)2]35 (Hbipyc = 4,4′-bipyridyl-2-carboxylic acid) possesses the structure D. For comparison, the pentacoordinated arrangement is less frequent with only eight reported structures. Out of these, five complexes [Zn(6Rpic)2(H2O)] (H6Rpic = 6-methylpicolinic acid and 6-ethylpicolinic acid),32,36 [Zn(q2c)2(H2O)] (Hq2c = quinoline-2-carboxylic acid),37 [Zn(3apic)2(H2O)] (H3apic = 3-aminopicolinic acid)38 and [Zn(bp18c6)2(H2O)] (H2bp18c6 = N,N′-bis[(6-carboxy-2-pyridyl)methyl]-4,13-diaza-18-crown-6)39 exhibit the trigonal-bipyramidal geometry E with the nitrogen donor atoms in an axial position and one complex [Zn(Hpycc)2(H2O)] (H2pycc = pyridine-5-carboxylato-2-carboxylic acid)40 exhibits the trigonal-bipyramidal geometry F with the carboxylic oxygen atoms in an axial position. The square-pyramidal geometry G was reported only in two complexes [Zn(bupyc)2(H2O)] (Hbupyc = 5-butylpyridine-2-carboxylic acid)41 and [Zn(picCN)2(4apy)] (HpicCN = 5-cyanopicolinic acid, 4apy = 4-aminopyridine).23 In previously published zinc complexes with the 5-cianopicolinato (picCN) organic carrier in the presence of the 4apy ligand in a 1
:
2 ratio the cis-octahedral complex [Zn(picCN)2(4apy)2] was obtained from the apolar solvent system and the square-pyramidal complex [Zn(picCN)2(4apy)] was obtained from methanol.23 On the other hand, the reaction of the starting compound [Zn(Hypic)2(H2O)2] (9) with two equivalents of DMAP in methanol gave small amount of crystals 10 with methanol molecules bonded to metal center and the same reaction in chloroform/toluene/methanol solvent mixture gave complex 11 as the product. These findings show the rich structural diversity and an important influence of the solvent system.
![image file: c7nj04189f-s3.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-s3.gif) |

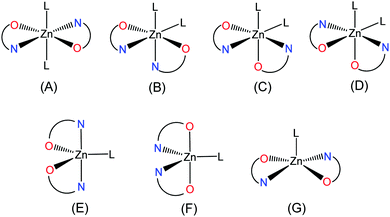

| Scheme 3 Observed bis-chelated structures for Zn2+ species formed by N,O a bidentate picolinato ligand and analogues in the presence of a neutral ligand L. | |
In vitro insulin-mimetic activity
The inhibitory effects on free fatty acid (FFA) release from the isolated rat adipocytes treated with epinephrine were measured on selected vanadium and zinc complexes with sufficient solubility in water in order to determine the insulin-like activities. For these in vitro experiments seven vanadium and zinc complexes with 3,5-difluoropicolinato, 3-hydroxypicolinato and 4-(hydroxymethyl)picolinato ligands were found to have suitable solubility in water. Two of them were the vanadium(IV) complexes [VO(picFF)2(H2O)] (1) and Na[VO(Hhypic)3]·H2O (2) which were synthesized as described previously18 and two were their vanadium(V) analogues (3, 4). The zinc(II) complexes selected were 5, 9 and 13. The effects of the vanadium and zinc complexes on the FFA release compared with those of the inorganic compounds VS (VOSO4) and ZS (ZnSO4) are summarized in Fig. 12 and 13, respectively. All the studied complexes show insulin-mimetic activity. Vanadium complexes 1–4 exhibit activities similar to VOSO4 with Hhypic complexes (2, 4) being more active than the picFF ones. According to previous findings13a VIVO compounds generally exhibit higher activity than VVO2 species and this observation can be attributed to the different redox behavior of the vanadium species,42 the different mechanism of cellular uptake43 or the different speciation in the cytosol,44 and it has been also proposed that [VIVO(OH)3]− could be the active species.5,10 In our study the picFF complex with VIVO indeed exhibits slightly higher activity than the VVO2 complex, while in the Hhypic complexes the oxidation state of the metal center has no significant influence on the inhibition of FFA. Zinc complexes also exhibited some insulin-mimetic activity, with the Hhypic complex (9) being more active than the other two, however, the insulin-mimetic activity of these complexes did not show more potent activity than ZnSO4.
![image file: c7nj04189f-f12.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-f12.gif) |

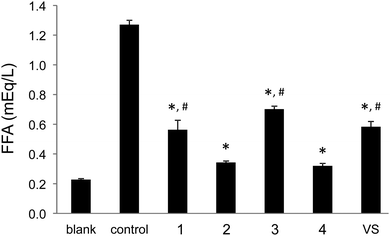

| Fig. 12 Inhibitory effects of vanadium complexes (1–4) and VOSO4 (VS) on the free fatty acid release from isolated rat adipocytes treated with epinephrine. The blank represents cells only and the control represents cells plus 10 μM epinephrine solution. Data are expressed as the means ± SDs for three experiments at a 0.5 mM concentration of the vanadium complex in water. Significant differences were analyzed by one-way analysis of variance and Tukey test. *: p < 0.01 vs. control, and #: p < 0.01 vs. compound 2. | |
![image file: c7nj04189f-f13.tif](/image/article/2018/NJ/c7nj04189f/c7nj04189f-f13.gif) |
| Fig. 13 Inhibitory effects of zinc complexes (5, 9, 13) and ZnSO4 (ZS) on the free fatty acid release from isolated rat adipocytes treated with epinephrine. The blank represents cells only and the control represents cells plus 10 μM epinephrine solution. Data are expressed as the means ± SDs for three experiments at 0.5 mM concentration of the zinc complex in water. Significant differences were analyzed by one-way analysis of variance and Tukey test. *: p < 0.01 vs. control, #: p < 0.01 vs. compound 13, and $: p < 0.01 vs. compound 5. | |
Conclusion
Two vanadium(V) compounds with 3,5-difluoropicolinato acid (HpicFF) and 3-hydroxypicolinato acid (H2hypic), four zinc(II) compounds with HpicFF in the presence of water, pyridine (py), 4-(dimethylamino)pyridine (DMAP), and 1,10-phenanthroline (phen) and two zinc(II) compounds with H2hypic in the presence of DMAP and phen as well as a zinc(II) compound with HpicCH2OH have been prepared and characterized. The crystal structure of NH4[VO2(picFF)2]·1.6H2O (3·1.6H2O) possesses a spatial arrangement with the carboxylate oxygen atoms in a mutual trans orientation although the carboxylate oxygen atoms in the prototypical complex NH4[VO2(pic)2] are positioned in a mutual cis orientation. The crystal structure of NH4[VO2(Hhypic)2]·H2O (4·H2O) represents the first crystallographic evidence for the formation of an isomer with the two pyridine nitrogen atoms in a mutual trans position although 3-hydroxypicolinic acid could ligate also as a bidentate O,O-ligand through the carboxylate-O and phenolate-O atoms. In the crystal structures of zinc bis(3,5-difluoropicolinato) and bis(3-hydroxypicolinato) complexes [Zn(picFF)2(H2O)2] (5), [Zn(picFF)2(py)2]·py (6·py), [Zn(picFF)2(DMAP)2]·
H2O (7·
H2O), [Zn(picFF)2(phen)]·2CHCl3 (8·2CHCl3), [Zn(Hhypic)2(MeOH)2] (10), [Zn(Hhypic)2(DMAP)(H2O)] (11) and [Zn(Hhypic)2(phen)] (12) two different spatial arrangements were found with trans (5, 10 and 11) and cis (6, 7, 8 and 12) octahedral geometry. The presence of the DMAP ligand seems not to play a crucial role in the spatial arrangement since the geometry in 7 is cis and in 11 it is trans. Attempts were made to prepare the analogue of 11 with the py ligand for structural comparison with 6, however, we were not able to obtain crystals suitable for XRD analysis. As already observed for [Zn(picCN)2(py)2] also 6 loses all pyridine molecules on standing in air and is transformed to the water complex 5. The insulin-mimetic activity of VIVO (1, 2), VVO2 (3, 4) and the ZnII complexes (5, 9 and 13) was studied by an in vitro inhibition of the free fatty acid (FFA) release from isolated rat adipocytes treated with epinephrine. All selected metal complexes showed the insulin-mimetic activity. Vanadium complexes 1–4 exhibit activities similar to VOSO4 with H2hypic complexes being more active than the picFF ones. Zinc complexes also exhibited some insulin-mimetic activity, with the H2hypic complex (9) being more active than the other two (5, 13).
Conflicts of interest
There are no conflicts of interest to declare.
Acknowledgements
The authors thank the Slovenian Research Agency for financial support (P1-0230-0175) as well as the EN-FIST Centre of Excellence, Slovenia for use of the Supernova diffractometer.
References
- IDF Diabetes Atlas, International Diabetes Federation, 7th edn, 2015.
- L. Guariguata, D. R. Whiting, I. Hambleton, J. Beagley, U. Linnenkamp and J. E. Shaw, Diabetes Res. Clin. Pract., 2014, 103, 137–149 CrossRef CAS PubMed
.
- Y. Yoshikawa and H. Yasui, Curr. Top. Med. Chem., 2012, 12, 210–218 CrossRef CAS PubMed
.
- G. Vardatsikos, N. R. Pandey and A. K. Srivastava, J. Inorg. Biochem., 2013, 120, 8–17 CrossRef CAS PubMed
.
-
(a) D. C. Crans, J. J. Smee, E. Gaidamauskas and L. Yang, Chem. Rev., 2004, 104, 849–902 CrossRef CAS PubMed
;
(b) D. Rehder, Future Med. Chem., 2016, 8, 325–338 CrossRef CAS PubMed
;
(c) J. Costa Pessoa, E. Garribba, M. F. A. Santos and T. Santos-Silva, Coord. Chem. Rev., 2015, 301–302, 49–86 CrossRef CAS
.
-
(a) E. Mrkalić, A. Zianna, G. Psomas, M. Gdaniec, A. Czapik, E. Coutouli-Argyropoulou and M. Lalia-Kantouri, J. Inorg. Biochem., 2014, 134, 66–75 CrossRef PubMed
;
(b) A. Zianna, G. Psomas, A. Hatzidimitriou, E. Coutouli-Argyropoulou and M. Lalia-Kantouri, J. Inorg. Biochem., 2013, 127, 116–126 CrossRef CAS PubMed
;
(c) A. Tarushi, E. Polatoglou, J. Kljun, I. Turel, G. Psomas and D. P. Kessissoglou, Dalton Trans., 2011, 40, 9461–9473 RSC
.
-
(a) A. Tarushi, X. Totta, A. Papadopoulos, J. Kljun, I. Turel, D. P. Kessissoglou and G. Psomas, Eur. J. Med. Chem., 2014, 74, 187–198 CrossRef CAS PubMed
;
(b) A. Tarushi, Z. Karaflou, J. Kljun, I. Turel, G. Psomas, A. N. Papadopoulos and D. P. Kessissoglou, J. Inorg. Biochem., 2013, 128, 85–96 CrossRef CAS PubMed
.
- A. Tarushi, K. Lafazanis, J. Kljun, I. Turel, A. A. Pantazaki, G. Psomas and D. P. Kessissoglou, J. Inorg. Biochem., 2013, 121, 53–65 CrossRef CAS PubMed
.
- H. Kozlowski, M. Luczkowski, M. Remelli and D. Valensin, Coord. Chem. Rev., 2012, 256, 2129–2141 CrossRef CAS
.
-
(a) D. Rehder, Future Med. Chem., 2012, 4, 1823–1837 CrossRef CAS PubMed
;
(b) D. Rehder, Dalton Trans., 2013, 42, 11749–11761 RSC
;
(c) J. Costa Pessoa, E. Garribba, M. F. A. Santos and T. Santos-Silva, Coord. Chem. Rev., 2015, 301–302, 49–86 CrossRef CAS
;
(d) D. Gambino, Coord. Chem. Rev., 2011, 255, 2193–2203 CrossRef CAS
;
(e) C. Rozzo, D. Sanna, E. Garribba, M. Serra, A. Cantara, G. Palmieri and M. Pisano, J. Inorg. Biochem., 2017, 174, 14–24 CrossRef CAS PubMed
;
(f) D. Sanna, V. Ugone, A. Fadda, G. Micera and E. Garribba, J. Inorg. Biochem., 2016, 161, 18–26 CrossRef CAS PubMed
.
- B. M. Lyonett and E. Martin, La Press Med., 1899, 32, 191–192 Search PubMed
.
- Y. Shechter, I. Goldwaser, M. Mironchik, M. Fridkin and D. Gefel, Coord. Chem. Rev., 2003, 237, 3–11 CrossRef CAS
.
-
(a) D. Rehder, J. C. Pessoa, C. F. Geraldes, M. M. Castro, T. Kabanos, T. Kiss, B. Meier, G. Micera, L. Pettersson, M. Rangel, A. Salifoglou, I. Turel and D. Wang, J. Biol. Inorg. Chem., 2002, 7, 384–396 CrossRef CAS PubMed
;
(b) K. H. Thompson and C. Orvig, J. Inorg. Biochem., 2006, 100, 1925–1935 CrossRef CAS PubMed
;
(c) K. H. Thompson, J. Lichter, C. LeBel, M. C. Scaife, J. H. McNeill and C. Orvig, J. Inorg. Biochem., 2009, 103, 554–558 CrossRef CAS PubMed
;
(d) A. Levina and P. A. Lay, Dalton Trans., 2011, 40, 11675–11686 RSC
;
(e) J. Costa Pessoa, S. Etcheverry and D. Gambino, Coord. Chem. Rev., 2015, 301–302, 24–48 CrossRef
;
(f) K. D. Mjos and C. Orvig, Chem. Rev., 2014, 114, 4540–4563 CrossRef CAS PubMed
.
-
(a) H. Sakurai, Y. Yoshikawa and H. Yasui, Chem. Soc. Rev., 2008, 37, 2383–2392 RSC
;
(b) H. Sakurai, Y. Kojima, Y. Yoshikawa, K. Kawabe and H. Yasui, Coord. Chem. Rev., 2002, 226, 187–198 CrossRef CAS
.
-
(a) R. Saito, M. Tamura, S. Kawano, Y. Yoshikawa, A. Kato, K. Sasaki and H. Yasui, New J. Chem., 2017, 41, 5572–5581 RSC
;
(b) Y. Naito, Y. Yoshikawa, K. Masuda and H. Yasui, J. Biol. Inorg. Chem., 2016, 21, 537–548 CrossRef CAS PubMed
;
(c) J. Pelletier, N. Domingues, M. M. C. A. Castro and C.-G. Östenson, J. Inorg. Biochem., 2016, 154, 29–34 CrossRef CAS PubMed
;
(d) B. Fernández, A. Gómez-Vílchez, C. Sánchez-González, J. Bayón, E. San Sebastián, S. Gómez-Ruiz, C. López-Chaves, P. Aranda, J. Llopis and A. Rodríguez-Diéguez, New J. Chem., 2016, 40, 5387–5393 RSC
;
(e) D. Briones, B. Fernández, A. J. Calahorro, D. Fairen-Jimenez, R. Sanz, F. Martínez, G. Orcajo, E. San Sebastián, J. M. Seco, C. Sánchez González, J. Llopis and A. Rodríguez-Diéguez, Cryst. Growth Des., 2016, 16, 537–540 CrossRef CAS
;
(f) N. Wang, Z. Wang, X. Niu and X. Yang, J. Inorg. Biochem., 2015, 152, 104–113 CrossRef CAS PubMed
;
(g) T. Moroki, Y. Yoshikawa, K. Yoshizawa, A. Tsubura and H. Yasui, Metallomics, 2014, 6, 1632–1638 RSC
;
(h) M. E. López-Viseras, B. Fernández, S. Hilfiker, C. S. González, J. L. González, A. J. Calahorro, E. Colacio and A. Rodríguez-Diéguez, J. Inorg. Biochem., 2014, 131, 64–67 CrossRef PubMed
;
(i) N. Domingues, J. Pelletier, C.-G. Ostenson and M. M. C. A. Castro, J. Inorg. Biochem., 2014, 131, 115–122 CrossRef CAS PubMed
;
(j) Z.-Q. Han, S. Han and Y. Wang, Acta Chim. Slov., 2016, 63, 200–203 CrossRef CAS PubMed
;
(k) J.-X. Lei, J. Wang, Y. Huo and Z. You, Acta Chim. Slov., 2016, 63, 670–677 CrossRef CAS PubMed
.
-
(a) Y. Adachi, J. Yoshida, Y. Kodera, A. Katoh, J. Takada and H. Sakurai, J. Med. Chem., 2006, 49, 3251–3256 CrossRef CAS PubMed
;
(b) M. Hiromura, Y. Adachi, M. Machida, M. Hattori and H. Sakurai, Metallomics, 2009, 1, 92–100 RSC
;
(c) Y. Adachi, J. Yoshida, Y. Kodera and H. Sakurai, Chem. Lett., 2005, 34, 656–657 CrossRef CAS
;
(d) Y. Yoshikawa, Y. Adachi and H. Sakurai, Life Sci., 2007, 80, 759–766 CrossRef CAS PubMed
.
-
(a) M. Munekane, S. Motomura, S. Kamino, M. Ueda, H. Haba, Y. Yoshikawa, H. Yasui, M. Hiromura and S. Enomoto, Biochem. Biophys. Rep., 2016, 5, 211–215 Search PubMed
;
(b) S. Fujimoto, H. Yasui and Y. Yoshikawa, J. Inorg. Biochem., 2013, 121, 10–15 CrossRef CAS PubMed
;
(c) M. Munekane, M. Ueda, S. Motomura, S. Kamino, H. Haba, Y. Yoshikawa, H. Yasui and S. Enomoto, Biol. Pharm. Bull., 2017, 40, 510–515 CrossRef CAS PubMed
.
- T. Koleša-Dobravc, E. Lodyga-Chruscinska, M. Symonowicz, D. Sanna, A. Meden, F. Perdih and E. Garribba, Inorg. Chem., 2014, 53, 7960–7976 CrossRef PubMed
.
-
(a) C. Sun, X. Zheng and L. Jin, J. Mol. Struct., 2003, 646, 201–210 CrossRef CAS
;
(b) V. B. Di Marco, A. Tapparo, A. Dolmella and G. G. Bombi, Inorg. Chim. Acta, 2004, 357, 135–142 CrossRef CAS
.
-
(a) Z. Otwinowski and W. Minor, Methods Enzymol., 1997, 276, 307–326 CAS
;
(b) CrysAlis PRO, Agilent Technologies, Yarnton, England, 2013.
-
(a) G. M. Sheldrick, Acta Crystallogr., 2015, C71, 3–8 Search PubMed
;
(b) A. Altomare, M. C. Burla, M. Camalli, G. L. Cascarano, C. Giacovazzo, A. Guagliardi, A. G. G. Moliterni, G. Polidori and R. Spagna, J. Appl. Crystallogr., 1999, 32, 115–119 CrossRef CAS
.
- M. Nakai, H. Watanabe, C. Fujiwara, H. Kakegawa, T. Satoh, J. Takada, R. Matsushita and H. Sakurai, Biol. Pharm. Bull., 1995, 18, 719–725 CAS
.
- T. Koleša-Dobravc, K. Maejima, Y. Yoshikawa, A. Meden, H. Yasui and F. Perdih, New J. Chem., 2017, 41, 735–746 RSC
.
-
K. Nakamoto, Infrared and Raman Spectra of Inorganic and Coordination Compounds, Wiley, New York, 4th edn, 1986 Search PubMed
.
-
(a) K. A. Doucette, K. N. Hassell and D. C. Crans, J. Inorg. Biochem., 2016, 165, 56–70 CrossRef CAS PubMed
;
(b) T. Jakusch, J. Costa Pessoa and T. Kiss, Coord. Chem. Rev., 2011, 255, 2218–2226 CrossRef CAS
;
(c) M. F. A. Santos, I. Correia, A. R. Oliveira, E. Garribba, J. Costa Pessoa and T. Santos-Silva, Eur. J. Inorg. Chem., 2014, 3293–3297 CrossRef CAS
;
(d) S. Mehtab, G. Gonçalves, S. Roy, A. I. Tomaz, T. Santos-Silva, M. F. A. Santos, M. J. Romão, T. Jakusch, T. Kiss and J. C. Pessoa, J. Inorg. Biochem., 2013, 121, 187–195 CrossRef CAS PubMed
;
(e) G. Gonçalves, I. Tomaz, I. Correia, L. F. Veiros, M. M. C. A. Castro, F. Avecilla, L. Palacio, M. Maestro, T. Kiss, T. Jakusch, M. H. V. Garcia and J. C. Pessoa, Dalton Trans., 2013, 42, 11841–11861 RSC
;
(f) D. Sanna, V. Ugone, M. Serra and E. Garribba, J. Inorg. Biochem., 2017, 173, 52–65 CrossRef CAS PubMed
;
(g) D. Sanna, G. Sciortino, V. Ugone, G. Micera and E. Garribba, Inorg. Chem., 2016, 55, 7373–7387 CrossRef CAS PubMed
;
(h) S. P. Dash, S. Majumder, A. Banerjee, M. Fernanda, N. N. Carvalho, P. Adão, J. Costa Pessoa, K. Brzezinski, E. Garribba, H. Reuter and R. Dinda, Inorg. Chem., 2016, 55, 1165–1182 CrossRef CAS PubMed
;
(i) D. Sanna, M. Serra, G. Micera and E. Garribba, Inorg. Chem., 2014, 53, 1449–1464 CrossRef CAS PubMed
;
(j) D. Sanna, G. Micera and E. Garribba, Inorg. Chem., 2013, 52, 11975–11985 CrossRef CAS PubMed
;
(k) E. Lodyga-Chruscinska, G. Micera and E. Garribba, Inorg. Chem., 2011, 50, 883–899 CrossRef CAS PubMed
;
(l) D. Sanna, G. Micera and E. Garribba, Inorg. Chem., 2011, 50, 3717–3728 CrossRef CAS PubMed
;
(m) D. Sanna, G. Micera and E. Garribba, Inorg. Chem., 2009, 48, 5747–5757 CrossRef CAS PubMed
.
-
(a) T. Koleša-Dobravc, A. Meden and F. Perdih, New J. Chem., 2015, 39, 4265–4277 RSC
;
(b) T. Koleša-Dobravc, A. Meden and F. Perdih, Acta Chim. Slov., 2015, 62, 261–271 CrossRef
;
(c) T. Koleša-Dobravc, A. Meden and F. Perdih, Monatsh. Chem., 2014, 145, 1263–1275 CrossRef
.
- J. Gätjens, B. Meier, T. Kiss, E. M. Nagy, P. Buglyó, H. Sakurai, K. Kawabe and D. Rehder, Chem. – Eur. J., 2003, 9, 4924–4935 CrossRef PubMed
.
- G. Süss-Fink, S. Stanislas, G. B. Shul’pin, G. V. Nizova, H. Stoeckli-Evans, A. Neels, C. Bobillier and S. Claude, J. Chem. Soc., Dalton Trans., 1999, 3169–3175 RSC
.
- M. Melchior, K. H. Thompson, J. M. Jong, S. J. Rettig, E. Shuter, V. G. Yuen, Y. Zhou, J. H. McNeill and C. Orvig, Inorg. Chem., 1999, 38, 2288–2293 CrossRef CAS
.
-
(a) S. Yano, M. Nakai, F. Sekiguchi, M. Obata, M. Kato, M. Shiro, I. Kinoshita, M. Mikuriya, H. Sakurai and C. Orvig, Chem. Lett., 2002, 916–917 CrossRef CAS
;
(b) M. Nakai, M. Obata, F. Sekiguchi, M. Kato, M. Shiro, A. Ichimura, I. Kinoshita, M. Mikuriya, T. Inohara, K. Kawabe, H. Sakurai, C. Orvig and S. Yano, J. Inorg. Biochem., 2004, 98, 105–112 CrossRef CAS PubMed
.
- E. Kiss, A. Bényei and T. Kiss, Polyhedron, 2003, 22, 27–33 CrossRef CAS
.
- Y. Yoshikawa, E. Ueda, K. Kawabe, H. Miyake, T. Takino, H. Sakurai and Y. Kojima, J. Biol. Inorg. Chem., 2002, 7, 68–73 CrossRef CAS PubMed
.
-
(a) D. Dobrzyńska, T. Lis and L. B. Jerzykiewicz, Inorg. Chem. Commun., 2005, 8, 1090–1093 CrossRef
;
(b) H.-L. Seng, S.-T. Von, K.-W. Tan, M. J. Maah, S.-W. Ng, R. N. Z. R. A. Rahman, I. Caracelli and C.-H. Ng, BioMetals, 2009, 23, 99–118 CrossRef PubMed
;
(c) J.-C. Daran, P. Lemoine and B. Viossat, Acta Crystallogr., 2002, C58, m210–m212 CAS
.
- L. Croitor, D. Chisca, E. B. Coropceanu and M. S. Fonari, Acta Crystallogr., Sect. E: Struct. Rep. Online, 2013, 69, m454 CAS
.
- C.-L. Chen, J. M. Ellsworth, A. M. Goforth, M. D. Smith, C.-Y. Su and H.-C. zur Loye, Dalton Trans., 2006, 5278–5286 RSC
.
- Y. Kojima, Y. Yoshikawa, E. Ueda, N. Kishimoto, M. Tadokoro and H. Sakurai, Bull. Chem. Soc. Jpn., 2005, 78, 451–455 CrossRef CAS
.
- N. Okabe and Y. Muranishi, Acta Crystallogr., Sect. E: Struct. Rep. Online, 2003, 59, m244–m246 CAS
.
- D. Wang, S.-M. Li, Y.-F. Li, X.-J. Zheng and L.-P. Jin, Dalton Trans., 2016, 45, 8316–8319 RSC
.
- R. Ferreirós-Martínez, D. Esteban-Gómez, É. Tóth, A. de Blas, C. Platas-Iglesias and T. Rodríguez-Blas, Inorg. Chem., 2011, 50, 3772–3784 CrossRef PubMed
.
- Y.-C. Liang, M.-C. Hong, R. Cao and J.-B. Weng, Chin. J. Struct. Chem., 2001, 20, 455–458 CAS
.
- Y.-W. Tao and Y. Wang, Acta Crystallogr., Sect. E: Struct. Rep. Online, 2011, 67, m908 CAS
.
- Y. Yoshikawa, H. Sakurai, D. C. Crans, G. Micera and E. Garribba, Dalton Trans., 2014, 43, 6965–6972 RSC
.
- X. Yang, K. Wang, J. Lu and D. C. Crans, Coord. Chem. Rev., 2003, 237, 103–111 CrossRef CAS
.
- A. Levina, A. I. McLeod, S. J. Gasparini, A. Nguyen, W. G. M. De Silva, J. B. Aitken, H. H. Harris, C. Glover, B. Johannessen and P. A. Lay, Inorg. Chem., 2015, 54, 7753–7766 CrossRef CAS PubMed
.
Footnote |
† Electronic supplementary information (ESI) available. CCDC 1574080–1574088 (3–8, 10–12). For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c7nj04189f |
|
This journal is © The Royal Society of Chemistry and the Centre National de la Recherche Scientifique 2018 |
