Clara
Sanchez-Perez
ab,
Caroline E.
Knapp
b,
Minna M.
Karjalainen
a,
Raija
Oilunkaniemi
a,
Claire J.
Carmalt
*b and
Risto S.
Laitinen
*a
aLaboratory of Inorganic Chemistry, Environmental and Chemical Engineering, University of Oulu, P. O. Box 3000, FI-90014 Oulu, Finland
bDepartment of Chemistry, University College London, 20 Gordon Street, London, WC1H 0AJ, UK. E-mail: c.j.carmalt@ucl.ac.uk
First published on 12th March 2018
Macrocyclic [Fe(η5-C5H4Se)2M(η5-C5H4R)2]2 [M = Ti (1), Zr (2), Hf (3), R = H; and M = Zr (4), Hf (5), R = tBu] were prepared and characterized by 77Se NMR spectroscopy and the crystal structures of 1–3 and 5 were determined by single-crystal X-ray diffraction. The crystal structure of 4 is known and the complex is isomorphous with 5. 1–5 form mutually similar macrocyclic tetranuclear complexes in which the alternating Fe(C5H4Se)2 and M(C5H4R)2 centers are linked by selenium bridges. The thermogravimetric analysis (TGA) of 1–3 under a helium atmosphere indicated that the complexes undergo a two-step decomposition upon heating. The final products were identified using powder X-ray diffraction as FexMSe2, indicating their potential as single-source precursors for functional materials.
Attempts to improve the stability of these compounds have yielded several complexes of the type [(η5-C5H4R)2M(SeR)2], [(η5-C5H4R)2MSe2R′′] and the bulkier [(η5-C5H4R)2M(E{SiMe3})2] (M = group 4 element).13 These studies show that there is increasing stability down the group, where the highest reactivity is observed when M = Ti.
Traditional synthetic routes for aryl chalcogenides involve the use of chalcogenols, but due to their toxicity, synthetic routes involving dilithium salts are preferentially used nowadays.13,15 Special interest was focussed on zirconocene dichalcogenides although high temperatures were required for the complex formation.3,15–17 Access to titanium and hafnium analogues through transmetallation decreased their overall yields dramatically to 40%,18 and therefore the use of dilithium salts of diselenolate ligands with metallocene dichlorides was a good compromise for simple synthetic design and achieving high yields.19 Few examples are found in the literature involving sulfur and tellurium analogue species.20,21 An important strategy to increase the stability and control the reactivity of metallocene dichalcogenides is the choice of appropriate ligands surrounding the transition metal.22
Aryl substituents bonded to metallocene dichalcogenides have been shown to increase the molecular stability in comparison with alkyl fragments.16 Also, the choice of flexible organic groups in the selenolato ligands are shown to allow maximum interaction between the d-orbitals of the metal and the p-orbitals of the chalcogen atoms.23,24
A lot of research has been focused on the field of single-source precursors for binary transition metal selenides; however ternary systems are still only achievable through multi-source precursor synthesis.12 Intercalation of group 4 metal dichalcogenides with first row transition metals creates an overlap of the M–M 3d electronic states, which is predicted to tune their optical properties.25 As these materials are potentially interesting for photovoltaic applications, the development of precursors for their deposition is long overdue. To the best of our knowledge, we are reporting the first class of single-source precursors for iron-doped group 4 transition metal dichalcogenides.
Lithiation of ferrocene in hexane with tetramethylethylenediamine (TMEDA) proceeded with further addition of selenium powder to form Li2[Fe(η5-SeC5H4)2].29 The cyclic complexes [Fe(η5-C5H4Se)2M(η5-C5H4R)2]2 [R = H, M = Ti (1), Zr (2), Hf (3); R = tBu, M = Zr (4), Hf (5)] were isolated from the equimolar reaction of Li2[Fe(η5-SeC5H4)2] with the respective metallocene dichloride (Scheme 1), with high yields of complexes 1–3 (84% (1), 74% (2), and 69% (3)). The molecular structures of [Fe(η5-C5H4Se)2M(η5-C5H5)2]2 [M = Ti (1), Zr (2), Hf (3)] are shown in Fig. 1, left and that of the related complex [Fe(η5-C5H4Se)2Hf(η5-C5H4tBu)2]2 (5) is shown in Fig. 1, right. Selected bond lengths and angles are given in Table 1. Crystallographic parameters of complexes 1–3 and 5 are listed in Table 2.
1 M = Ti | 2 M = Zr | 3 M = Hf | 5 M = Hf | |
---|---|---|---|---|
Lengths (Å) | ||||
M1–Se1 | 2.5471(11) | 2.6434(11) | 2.6219(5) | 2.6438(11) |
M1–Se3 | 2.5242(12) | 2.6396(12) | 2.6145(5) | 2.6180(10) |
M2–Se2 | 2.5414(11) | 2.6284(15) | 2.6197(5) | 2.6368(11) |
M2–Se4 | 2.5517(10) | 2.6521(14) | 2.6301(5) | 2.6253(10) |
Se1–C111 | 1.907(4) | 1.918(7) | 1.918(4) | 1.923(8) |
Se2–C121 | 1.907(4) | 1.907(7) | 1.913(4) | 1.902(8) |
Se3–C211 | 1.902(4) | 1.908(7) | 1.912(5) | 1.906(9) |
Se4–C221 | 1.904(5) | 1.921(7) | 1.916(5) | 1.894(9) |
Angles (°) | ||||
Se1–M1–Se3 | 97.80(4) | 102.52(4) | 102.947(16) | 98.53(3) |
Se2–M2–Se4 | 99.40(4) | 100.98(5) | 101.800(16) | 98.37(3) |
1·3CH3C6H5 | 2·(CH2)4O | 3·1.90CH2Cl2 | 5 | |
---|---|---|---|---|
a I ≥ 2σ(I). b R 1 = ∑||Fo| − |Fc||/∑|Fo|, wR2 = [∑w(Fo2 − Fc2)2/∑wFo4]1/2. | ||||
Empirical formula | C57H52.50Fe2Se4Ti2 | C44H44OFe2Se4Zr2 | C41.91H39.81Cl3.81Fe2Hf2Se4 | C56H68Fe2Hf2Se4 |
Relative molecular mass | 1262.84 | 1198.77 | 1462.90 | 1525.62 |
Radiation (Å) | Mo-Kα, 0.7173 | Mo-Kα, 0.7173 | Cu-Kα, 1.5418 | Mo-Kα, 0.7173 |
Crystal system | Triclinic | Triclinic | Monoclinic | Monoclinic |
Space group |
P![]() |
P![]() |
P21/c | P21/c |
a (Å) | 11.413(2) | 11.542(2) | 11.648(2) | 13.866(3) |
b (Å) | 14.514(3) | 14.304(3) | 23.329(5) | 20.452(4) |
c (Å) | 15.645(3) | 14.484(3) | 15.788(3) | 18.464(4) |
α (°) | 96.90(3) | 99.53(3) | ||
β (°) | 101.22(3) | 109.08(3) | 94.372(3) | 90.62(3) |
γ (°) | 90.15(3) | 108.16(3) | ||
V (Å3) | 2522.7(9) | 2050.0(9) | 4277.5(14) | 5235.7(18) |
T (K) | 120(2) | 120(2) | 155(2) | 120(2) |
Z | 2 | 2 | 4 | 4 |
F(000) | 1257 | 1160 | 2752 | 2944 |
D calc. (g cm−3) | 1.662 | 1.942 | 2.272 | 1.935 |
μ(Mo-Kα) (mm−1) | 3.792 | 4.773 | 7.312 | |
μ(Cu-Kα) (mm−1) | 20.334 | |||
Crystal size (mm) | 0.16 × 0.13 × 0.12 | 0.20 × 0.18 × 0.15 | 0.05 × 0.05 × 0.05 | 0.22 × 0.10 × 0.08 |
θ range (°) | 2.92–26.00 | 3.01–26.00 | 3.36–73.42 | 2.94–26.00 |
No. of reflns. collected | 34![]() |
21![]() |
71![]() |
34![]() |
No. of unique reflns. | 9831 | 7696 | 8598 | 10![]() |
No. of observed reflns.a | 8290 | 6357 | 8227 | 8528 |
No. of parameters/restraints | 584/2 | 479/0 | 496/9 | 580/0 |
R INT | 0.0826 | 0.1038 | 0.0500 | 0.1344 |
R
1![]() |
0.0488 | 0.0626 | 0.0326 | 0.0586 |
wR2![]() |
0.1208 | 0.0773 | 0.0829 | 0.1427 |
R 1 (all data)b | 0.0603 | 0.1559 | 0.0344 | 0.0718 |
wR2 (all data)b | 0.1291 | 0.1675 | 0.0840 | 0.1526 |
GOF on F2 | 1.027 | 1.061 | 1.059 | 1.095 |
Δρmax,min (e Å−3) | 0.906, −0.722 | 1.278, −1.210 | 1.893, −1.480 | 2.336, −1.201 |

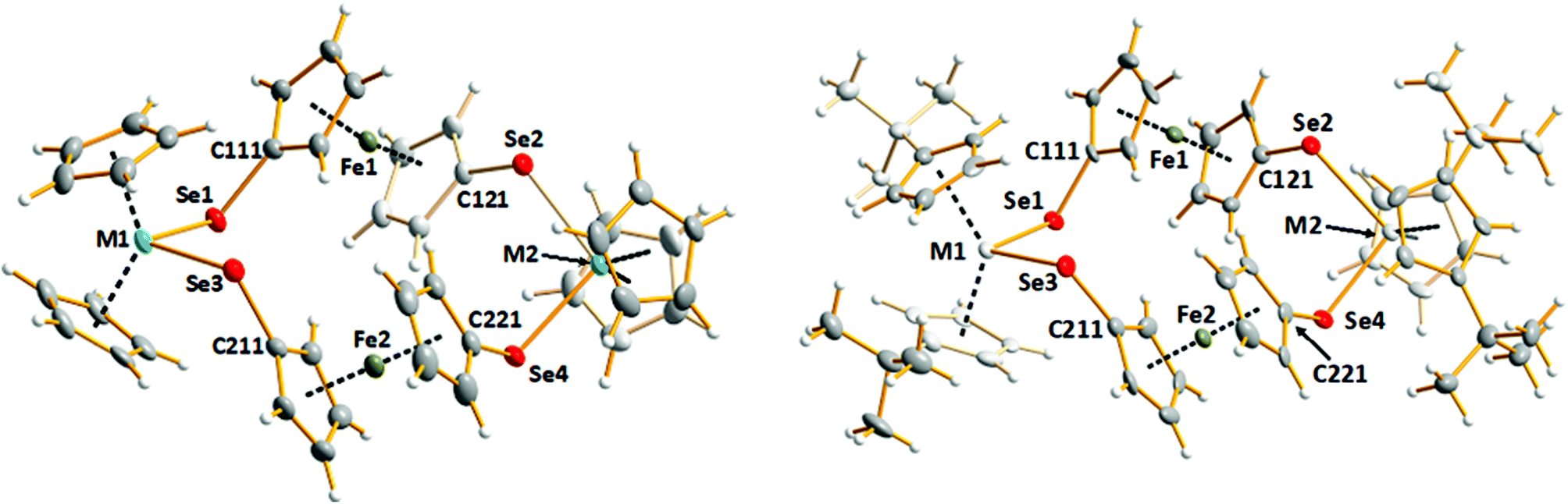

All five complexes 1–5 form similar macrocyclic tetranuclear complexes in which the alternating Fe(C5H4Se)2 and M(C5H4R)2 centres are linked by selenium bridges. The conformation of each ring molecule is remarkably similar, as evidenced by the selected dihedral angles shown in ESI Table S1.† The Ti–Se bond length range is 2.5242(12)–2.5517(10) Å in 1, the Zr–Se bond length range is 2.6284(15)–2.6525(14) Å in 2, and the Hf–Se bond length ranges are 2.6145(5)–2.6301(5) and 2.6180(10)–2.6438(11) Å in 3 and 5, respectively. The M–Se bond lengths in related titanocene, zirconocene, and hafnocene complexes are consistent, as shown by the illustrative examples for Ti–Se [2.5327(10)–2.6039(7) Å],30–34 Zr–Se [2.628(2)–2.6696(17)],20,28,34,35 and Hf–Se [2.6113(5)–2.649(3)].34 The coordination polyhedron around the transition metal atom defined by the cyclopentadienyl (Cp) ring centroids and the selenium atoms is a distorted tetrahedron of nearly C2v symmetry. The range of M–Se–C angles for complexes 1–3 and 5 spans 104–108°, giving rise to a variety of Se–M–Se angles of 98–103°. Complexes 1–3 were crystallized in different solvents. In every case the solvent plays an important role in the lattice, as shown in Fig. S1–S3 in the ESI.† The discrete complexes form quasi-2D layers, which are separated by layers of solvent molecules. Interestingly, [Fe(η5-C5H4Se)2Hf(η5-C5H4tBu)2]2 (5) crystallizes without the lattice solvent. In this case, the complexes form a three-dimensional network (see Fig. S4 in the ESI†) with weak H⋯Se hydrogen bonds. The shortest contacts are in the range 2.9598(4)–3.1648(5). The related [Fe(η5-C5H4Se)2Zr(η5-C5H4tBu)2]2 (4) is isomorphic with 5 and exhibits a similar hydrogen bonding network.28
Complexes 1–5 are air/moisture sensitive and unstable in solution to varying degrees; however, they are stable in the solid state under an argon atmosphere. Ferrocenylselenolate complexes of zirconium and hafnium were shown to be far less reactive towards air and could even be handled in air for some time, without decomposition noticeable in the 77Se NMR spectrum in solution. This fact may be rationalized on the basis of the corresponding higher redox potentials of these metals relative to titanium.13 Their enhanced stability compared to that of ferrocenylselenolate complexes of titanium goes in accord with the hard and soft acid and base (HSAB) theory. It has also been reported that the steric bulk of the substituent in the Cp ring also plays a role in the relative stabilities of the complexes.21 Due to the low stability of the species in solution, all spectroscopic measurements were made using freshly prepared solutions. Chemical shifts were in good agreement with those reported for structurally similar complexes.17,34,36,37
Selenium resonances are largely sensitive to a change in the transition metal. Changing the transition metal from Ti to Zr has a shielding effect of −400 ppm (δ = 963.0 ppm (1), 558.0 ppm (2)), which is substantially larger than that recorded previously using a phenyl substituent (Δδ = −170 ppm).36 On the other hand, the shielding effect from Zr to Hf (δ = 444.8 ppm (3)) is practically the same for structurally comparable complexes (Δδ = −125 ppm). This effect adds to the number of examples proving that titanium has markedly different chemistry from zirconium and hafnium.
Complexes 1–3 exhibit a marked trend in 77Se NMR shift; however in comparison, substitution on the metallocene moiety has little effect on the shift. For example, substitution of H in 2 and 3 for a tBu group in 4 and 5 yields virtually the same shift (δ = 583.0 ppm (4), 449.0 ppm (5)).
Since Cp rings are not directly bonded to selenium atoms, the substitution of hydrogen atoms creates a much smaller change in the 77Se NMR chemical shift. Therefore, the substitution of these Cp rings can be designed to increase the solubility of complexes in non-polar solvents without severe effects in the analytical process. Furthermore, substitution of Cp rings with specific substituents can be used to tune the reactivity of the resulting complex towards protic reagents,22 and thus increase their scope for use as precursors for electronic materials.
The use of ferrocene instead of bulky organic linkers to stabilize metallocene chalcogenide moieties both reduces carbon contamination upon decomposition and facilitates delivery of early transition metal, chalcogen and iron elements in one step for potential iron-doped metal diselenide synthesis. The design of suitable precursors that can undergo clean decomposition processes is essential in the development of selenides as functional materials.9,38–41
A thermogravimetric study of complexes 1–3 was carried out to further probe the suitability of complexes of this type as CVD precursors. Although complexes 4 and 5 can be synthesized through the same tandem synthetic route, their isolation requires a more complicated process, making them less adequate precursors for CVD of iron-intercalated TMDs and thus were not further investigated. TGA was performed up to 1000 °C to maximize intercalation of iron in TMDs, for which temperatures over 900 °C are required.10–12 The decomposition profiles of 1–3 exhibit a two-step decomposition route (see Fig. 2). The first mass loss appears in the temperature range 225–310 °C consistent with the loss of the two (C5H5) fragments bonded to the group 4 metallocene of the respective complexes 1, 2 and 3. Further decomposition of ferrocene begins at ∼350 °C, with a mass loss expected for the loss of two (C5H4) rings.
In all three cases the mass percentage that remains after thermal decomposition corresponds to a ratio for Fe:
M
:
Se of 1
:
1
:
2: ∼50%, ∼55% and ∼60% respectively for complexes 1, 2 and 3.
The polycrystalline product of the thermolysis of complexes 1–3 during 1 h were characterized by X-ray diffraction (see Fig. 3), showing the formation of iron-intercalated transition metal diselenides. The peak at 2θ ∼ 20° in all three diffractograms is likely due to the excess of α-iron which is not intercalated into the TMD structures. These results act as a proof of concept that these complexes can thus act as precursors to the described ternary mixed metal selenides.
![]() | ||

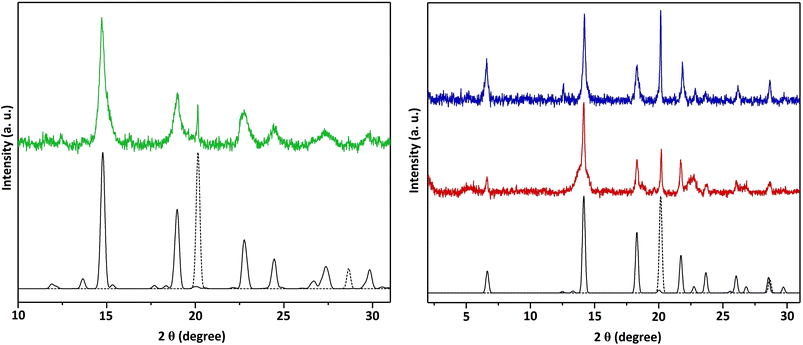

Fig. 3 (Left) X-Ray diffraction patterns of standards for Fe0.48TiSe2![]() ![]() |
Further study will continue to expand the research involving these single-source precursors and their application in CVD, with the scope of minimization of the iron contamination in the final product, and production of these materials as thin films.
Li2[Fe(η5-C5H4)2]45 and Li2[Fe(η5-SeC5H4)2]29 were prepared according to literature procedures. N,N,N′,N′-Tetramethylethylenediamine (Aldrich) was distilled over sodium and stored over molecular sieves. Ferrocene (Merck) was purified by Soxhlet extraction from hexane. Selenium (granules, Aldrich), nBuLi (2.5 M in hexane, Aldrich), tBuLi (1.7 M in hexane, Aldrich), (MCl2(η5-C5H4tBu)2) (M = Zr, Hf) (Alpha Aesar), and (MCl2(η5-C5H5)2) (M = Ti, Zr, Hf) (Aldrich), were used as supplied. Solvents were dried and distilled under argon prior to use. Toluene, tetrahydrofuran and n-hexane were dried over Na/benzophenone and stored over a Na mirror. CH2Cl2 was dried over P2O5 and stored over 3 Å molecular sieves (20% m/v).
Structures were solved by direct methods using SHELXS-2016 and refined using SHELXL-2016.46,47 After the full-matrix least-squares refinement of non-hydrogen atoms with anisotropic thermal parameters the hydrogen atoms were placed in calculated positions in the cyclopentadienyl rings (C–H = 0.95 Å) and in the methyl and methylene groups (C–H = 0.98 and 0.99 Å, respectively). The isotropic thermal parameters of the hydrogen atoms were fixed at 1.2 times that of the corresponding carbon atom. The scattering factors for the neutral atoms were those incorporated into the programs.
Solvent molecules in 1·3CH3C6H5 and 3·1.90CH2Cl2 are disordered. In the former complex, one of the toluene molecules assumed two orientations of an equal site occupancy of 0.5 around the inversion center. The anisotropic displacement parameters of all carbon atoms were constrained to be equal during the refinement. In 3·1.90CH2Cl2, there are two crystallographically independent solvent molecules. One of them is disordered in three different orientations. The disorder involving the three most abundant orientations was resolved by constraining the anisotropic displacement parameters of all atoms to be equal and refining the site occupancy factors of the three orientations. The sum of the site occupancy factors of the disordered solvent molecule was refined to the value of 0.905(9).
A table of bond parameters and the packing diagrams of 1–3 and 5, as well as crystallographic/refinement data for compounds 1–3 and 5, respectively, can be found in the ESI.† CCDC 1810808, 1810810, 1810811 and 1810809.†
