Synthesis, isomerisation and biological properties of mononuclear ruthenium complexes containing the bis[4(4′-methyl-2,2′-bipyridyl)]-1,7-heptane ligand

Abstract

A series of mononuclear ruthenium(II) complexes containing the tetradentate ligand bis[4(4′-methyl-2,2′-bipyridyl)]-1,7-heptane have been synthesised and their biological properties examined. In the synthesis of the [Ru(phen′)(bb₇)]²⁺ complexes (where phen′ = 1,10-phenanthroline and its 5-nitro-, 4,7-dimethyl- and 3,4,7,8-tetramethyl- derivatives), both the symmetric cis-α and non-symmetric cis-β isomers were formed. However, upon standing for a number of days (or more quickly under harsh conditions) the cis-β isomer converted to the more thermodynamically stable cis-α isomer. The minimum inhibitory concentrations (MIC) and the minimum bactericidal concentrations (MBC) of the ruthenium(II) complexes were determined against six strains of bacteria: Gram-positive Staphylococcus aureus (S. aureus) and methicillin-resistant S. aureus (MRSA); and the Gram-negative Escherichia coli (E. coli) strains MG1655, APEC, UPEC and Pseudomonas aeruginosa (P. aeruginosa). The results showed that the [Ru(5-NO₂phen)(bb₇)]²⁺ complex had little or no activity against any of the bacterial strains. By contrast, for the other cis-α-[Ru(phen′)(bb₇)]²⁺ complexes, the antimicrobial activity increased with the degree of methylation. In particular, the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ complex showed excellent and uniform MIC activity against all bacteria. By contrast, the MBC values for the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ complex varied considerably across the bacteria and even within S. aureus and E. coli strains. In order to gain an understanding of the relative antimicrobial activities, the DNA-binding affinity, cellular accumulation and water–octanol partition coefficients (log P) of the ruthenium complexes were determined. Interestingly, all the [Ru(phen′)(bb₇)]²⁺ complexes exhibited stronger DNA binding affinity (K_a ≈ 1 × 10⁷ M⁻¹) than the well-known DNA-intercalating complex [Ru(phen)₂(dppz)]²⁺ (where dppz = dipyrido[3,2-a:2′,3′-c]phenazine).

---

Introduction

Due to a developing resistance to antimicrobial drugs, bacterial diseases are becoming a significantly greater threat to humans. Of note, the World Health Organisation has stated that antimicrobial resistance is one of the most important problems currently affecting global health, food security and development.¹ As a consequence, there is considerable interest in the development of new classes of antimicrobial agents, and while the development of new drugs based upon organic compounds continues, transition metal-based antimicrobial agents in general have been attracting attention – and ruthenium(II) complexes in particular.^2–14 A range of ruthenium(II) complexes have been studied, and generally have shown good activity against Gram-positive bacteria, but variable and often poor activity against Gram-negative species.^10–12

Dwyer and co-workers were the first to study the biological activity of mononuclear tris(bidentate) inert metal complexes with ligands such as 1,10-phenanthroline (phen) and its derivatives {e.g. 3,4,7,8-tetramethyl-1,10-phenanthroline (Me₄phen) and 5-nitro-1,10-phenanthroline (5-NO₂phen)}.⁹ More recently, a wide range of mononuclear {e.g. [Ru(2,9-Me₂phen)₂(dppz)]²⁺} (2,9-Me₂phen = 2,9-dimethyl-1,10-phenanthroline; dppz = dipyrido[3,2-a:2′,3′-c]phenazine)¹⁰ and di- and oligo-nuclear polypyridylruthenium(II)^12,14,15 complexes have been examined. In particular, earlier studies from our laboratories have examined the antimicrobial properties of di-, tri- and tetra-nuclear polypyridylruthenium(II) complexes in which the metal centres are linked by the bis[4(4′-methyl-2,2′-bipyridyl)]-1,n-alkane ligand (“bb_n”; see Fig. 1).¹⁴ While these oligonuclear ruthenium complexes showed excellent activity against drug-sensitive Gram-positive bacterial strains, and maintained the activity against drug-resistant strains, they exhibited relatively poor activity against some Gram-negative strains.¹⁶ More recently, we synthesised mononuclear ruthenium complexes that contained the bb_n moiety (for n = 10 and 12), but as a tetradentate ligand,¹⁷ rather than as a ligand linking metal centres. While the cis-α-[Ru(phen)(bb₁₂)]²⁺ species showed better activity towards the clinically-important Gram-negative Pseudomonas aeruginosa, its activity against other bacteria was only equivalent to [Ru(Me₄phen)₃]²⁺,⁸ the most active of the ruthenium complexes prepared by Dwyer and co-workers sixty years ago. The cis-α-[Ru(phen)(bb₁₀)]²⁺ complex was less active than cis-α-[Ru(phen)(bb₁₂)]²⁺ and [Ru(Me₄phen)₃]²⁺ against most of the bacterial strains.¹⁷ The antimicrobial activity of the [Ru(phen)(bb_n)]²⁺ complexes could be potentially improved through an increase of the lipophilicity, for example by utilising the bb₁₆ ligand. However, an alternative approach is to decrease the lipophilicity of the bb_n chain but increase the electron density at the ruthenium centre through the incorporation of electron-donating groups on the 1,10-phenanthroline ligand. It has been established that the antimicrobial activity of the metal complexes is significantly affected by the cellular uptake,¹⁵ which in turn is presumably sensitive to the charge on the metal centre as well as the overall lipophilicity. Consequently, the modulation of the electron density at the metal centre could provide higher uptake and greater ability to modulate the differential uptake between bacterial and eukaryotic cells.

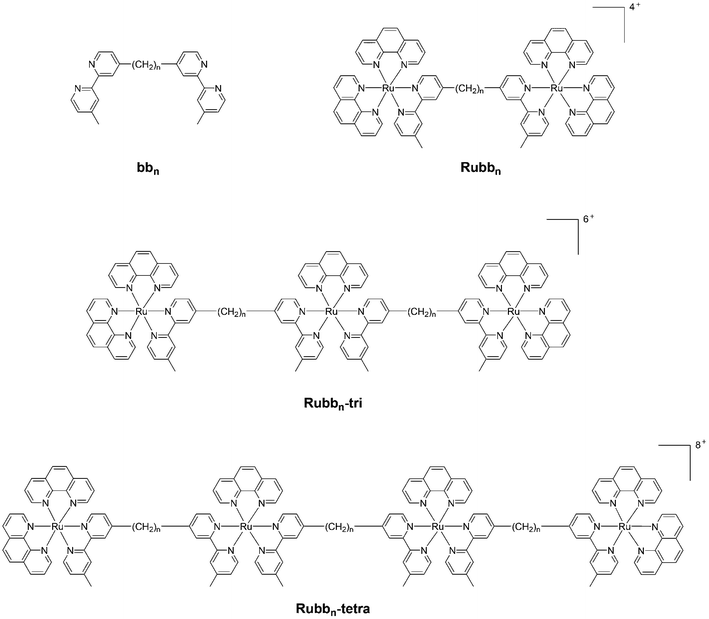

Fig. 1 The bb_n ligand and the Rubb_n, Rubb_n-tri and Rubb_n-tetra complexes.

Herein, we describe the synthesis of a series of complexes involving 1,10-phenanthroline and some of its derivatives – [Ru(phen′)(bb₇)]²⁺ {where phen′ = phen; 4,7-dimethyl-1,10-phenanthroline (Me₂phen); Me₄phen; and 5-NO₂phen} – and an examination of their DNA binding, cellular uptake and antimicrobial activity against a range of bacteria. Synthetically, the results indicate that although the cis-β-[Ru(phen′)(bb₇)]²⁺ complexes are formed initially they are unstable and are converted to the cis-α isomer and, to a very small extent, the corresponding [Ru(phen′)(Me₂bpy)₂]²⁺ species. The cis-α-[Ru(Me₄phen)(bb₇)]²⁺ complex showed uniformly high activity against Gram-positive and Gram-negative bacteria. Furthermore, the results demonstrate the effect of the electron density at the ruthenium centre on the cellular uptake of the metal complexes.

Results

Synthesis of cis-α-[Ru(phen′)(bb₇)]²⁺ complexes

The synthesis of the cis-α and cis-β isomers of [Ru(phen)(bb₁₂)]²⁺ was carried out as previously reported.¹⁷

The synthesis of a series of mononuclear cis-α-[Ru(phen′)(bb₇)]²⁺ complexes was achieved with good yields, as shown in Scheme 1, by heating cis,cis-[RuCl₂(DMSO)₂(phen′)]¹⁷ to 130–140 °C with the bb₇ ligand in ethylene glycol: the 2+ complexes were isolated from higher-charged species using cation-exchange chromatography on a SP Sephadex C-25 column with aqueous sodium chloride as the eluent, and the resulting solid products recrystallised from acetonitrile/diethyl ether. Subsequent cation-exchange chromatography on a SP Sephadex C-25 column (1 metre) with sodium toluene-4-sulfonate as the eluent realised two bands – the cis-α isomer and corresponding [Ru(phen′)(Me₂bpy)₂]²⁺ species as a minor product. All the complexes were characterised by microanalysis, NMR spectroscopy and high-resolution electrospray ionisation (ESI) mass spectrometry. The cis-α-[Ru(Me₄phen)(bb₇)]²⁺ complex was also characterised by X-ray crystallography (see Table 1 and Fig. 2).

Scheme 1 Synthesis of [Ru(phen′)(bb₇)]²⁺ complexes containing the bb₇ ligand.

Fig. 2 X-ray crystal structure of the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ complex.

Table 1 X-Ray experimental and refinement data for cis-α-[Ru(Me₄phen)(bb₇)]²⁺ and [Ru(Me₄phen)(Me₂bpy)]²⁺

Compound	cis-α-[Ru(Me4phen)(bb7)](PF6)2·3(CHCl3) (Fig. 2)	[Ru(Me4phen)(Me2bpy)](PF6)2·0.25(H2O) (Fig. S1; ESI)
Empirical formula	C48H51Cl9F12N6P2Ru	C40H40.5F12N6O0.25P2Ru
Formula weight	1422.01	1000.29
Crystal system	Monoclinic	Monoclinic
Space group	P21/c	P21/c
a (Å)	9.853(2)	10.782(2)
b (Å)	28.124(6)	28.514(6)
c (Å)	20.632(4)	13.176(3)
α (°)
β (°)	92.25(3)	96.63(3)
γ (°)
Volume (Å^3)	5713(2)	4023.7(14)
Z	4	4
Density (calc.) g m^−3	1.653	1.651
Absorption coefficient (mm^−1)	0.832	0.566
F(000)	2864	2026
Crystal size (mm^3)	0.567 × 0.100 × 0.017	0.289 × 0.255 × 0.006
θ range for collection (°)	1.225 to 31.928	1.428 to 31.900
Reflections collected	105 036	75 249
Observed reflections [R(int)]	14 330 [0.0463]	11 496 [0.0794]
Goodness-of-fit on F2	1.049	1.036
R 1 [I > 2σ(I)]	0.0488	0.0489
wR2 (all data)	0.1349	0.1272
Largest diff. peak and hole (e Å^−3)	1.553, −2.055	0.535, −1.420

---

In our recent synthetic study¹⁷ of the analogous [Ru(phen)(bb₁₀)]²⁺ and [Ru(phen)(bb₁₂)]²⁺ complexes, in both cases the cis-α isomers and cis-β isomers (see Fig. 3) were isolated and individually characterised. In the present case, only the cis-α-[Ru(phen′)(bb₇)]²⁺ isomer was isolated, and consequently the cis,cis-[RuCl₂(DMSO)₂(Me₄phen)] reaction with the bb₇ ligand was examined in detail. When samples were taken from the reaction mixture during the course of the synthesis and studied by ¹H NMR, both the cis-α and cis-β isomers were unambiguously identified in COSY spectra of the reaction mixture. However, after either heating the reaction mixture to 200 °C (see Fig. 4) or allowing the mixture of the isolated isomers stand at room temperature for several weeks, only the cis-α isomer was observed. In addition, during the purification process for the cis-α isomer for all the [Ru(phen′)(bb₇)]²⁺ cases, a small amount (<5% yield based upon starting material) of [Ru(phen′)(Me₂bpy)₂]²⁺ was observed: for phen′ = Me₂phen and Me₄phen, the products were isolated and the ¹H NMR and TOF-MS (ESI+) characterisation data are provided in the ESI.† For [Ru(Me₄phen)(Me₂bpy)₂]²⁺, the structure confirmed by X-ray crystallography (see Fig. S1: ESI†).

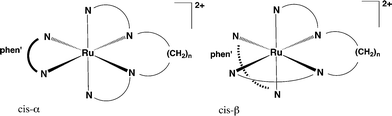

Fig. 3 Structures of cis-α- and cis-β-[Ru(phen′)(bb_n)]²⁺.

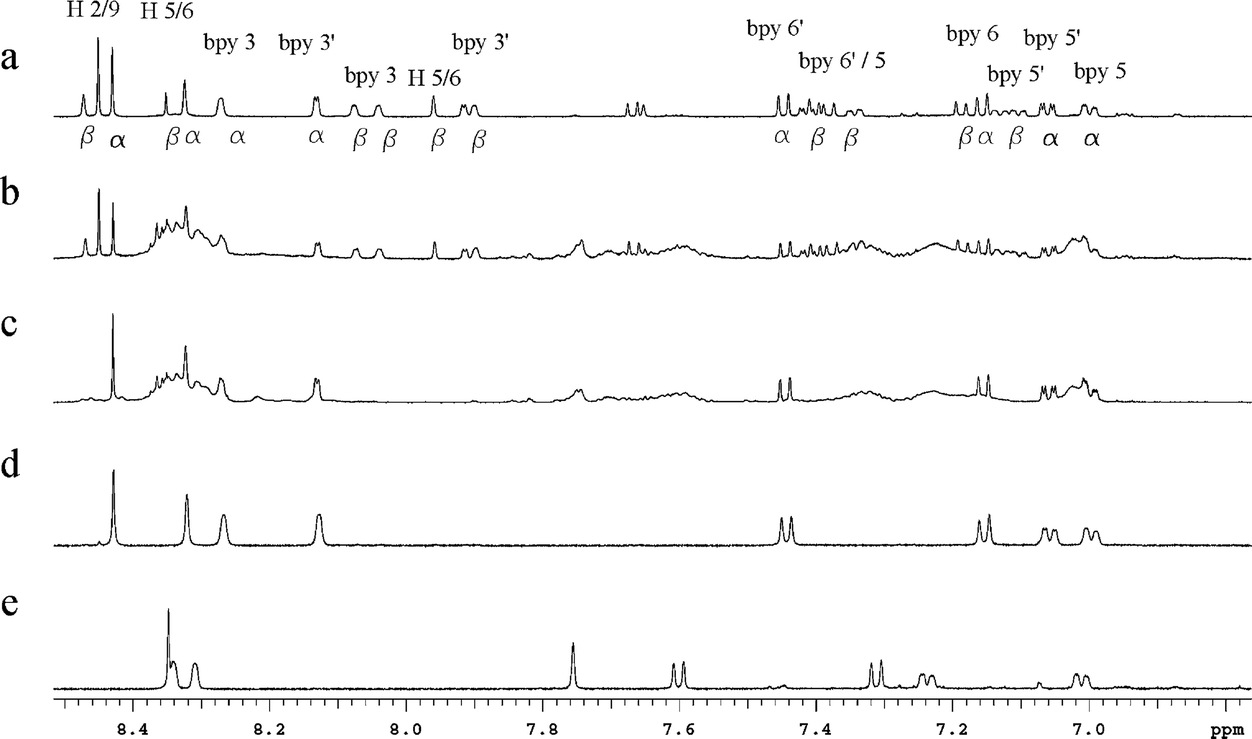

Fig. 4 Aromatic region of the ¹H NMR spectra of cis-α and cis-β isomers of [Ru(Me₄phen)(bb₇)]²⁺ and reaction mixtures in CD₃CN at different reaction conditions. (a) Isolated mixture of the cis-α and cis-β isomers (sample from reaction after 2 h at 130–140 °C). (b) Isolated products from reaction (Scheme 1) after 1 h at 130–140 °C. (c) Isolated products from reaction (Scheme 1) after 1 h at 130–140 °C and then a second hour at ∼200 °C. (d) cis-α-[Ru(Me₄phen)(bb₇)]²⁺ and (e) [Ru(Me₄phen)(Me₂bpy)]²⁺.

The same observations were made for reactions conducted under normal laboratory light or in the dark.

As the cis-β-[Ru(Me₄phen)(bb₇)]²⁺ complex appeared to be less stable than the corresponding cis-α isomer, it was of interest to compare the relative energies of the isomers through DFT calculations. In addition, the differences in energies between the cis-α and cis-β isomers for the bb₇ complex were compared to those for the corresponding bb₁₂ complex. As shown in Table 2, there was good agreement between the X-ray and DFT-optimised structures based upon the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ N–Ru–N angles for the corresponding chelate rings. While there were only small differences in the N–Ru–N bond angles between the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ (designated α-Me₄phen-7) and the cis-α-[Ru(Me₄phen)(bb₁₂)]²⁺(designated α-Me₄phen-12) complexes, significant differences were observed between the corresponding cis-β isomers (designated β-Me₄phen-7 and β-Me₄phen-12, respectively): see Table 3. Furthermore, the β-Me₄phen-12 complex was determined to be 5.6 kJ mol⁻¹ less stable than the α-Me₄phen-12, whereas by contrast β-Me₄phen-7 was 76.8 kJ mol⁻¹ less stable than the α-Me₄phen-7 isomer. It is observed that the calculated difference in the N1–Ru–N5 angle between the β-Me₄phen-7 and β-Me₄phen-12 species is significant (Table 3), and this may well be the origin of the instability of the β-Me₄phen-7 species relative to both the α-Me₄phen-7 isomer and the β-Me₄phen-12 analogue. However, no significant differences in the calculated Ru–N bond lengths were observed between the α-Me₄phen-7 and β-Me₄phen-7 isomers.

Table 2 Comparison of angles (in degrees) in cis-α-[Ru(Me₄phen)(bb₇)]²⁺ X-ray crystal and DFT-optimised structures. Nomenclature is defined in Fig. 5

Angle	α-Me4phen-7 (crystal structure)	α-Me4phen-7 (DFT)	% deviation
N1–Ru–N2	78.9	77.5	1.77
N1–Ru–N3	94.6	95.5	0.95
N1–Ru–N5	97.1	97.3	0.21
N1–Ru–N6	88.9	89.5	0.67
N4–Ru–N2	94.6	95.6	1.06
N4–Ru–N3	78.5	77.4	1.40
N4–Ru–N5	89.4	89.9	0.56
N4–Ru–N6	98.2	97.8	0.41
N2–Ru–N6	100.6	99.5	1.09
N2–Ru–N3	82.1	83.7	1.95
N3–Ru–N5	98.4	99.1	0.71
N3–Ru–N6	176.0	174.6	0.80

---

Table 3 Comparison of angles (in degrees) in all DFT-optimised structures. Nomenclature is defined in Fig. 5

Angle	α-Me4phen-7	α-Me4phen-12	β-Me4phen-7	β-Me4phen-12	[Ru(Me2bpy)2-(Me4phen)]^2+
N1–Ru–N2	77.5	77.3	76.9	77.4	77.2
N1–Ru–N3	95.5	98.1	89.2	88.8	89.6
N1–Ru–N5	97.3	96.5	103.9	99.1	97.5
N1–Ru–N6	89.5	88.4	96.5	97.2	96.4
N4–Ru–N2	95.6	98.0	96.2	96.7	97.3
N4–Ru–N3	77.4	77.3	97.2	96.5	96.5
N4–Ru–N5	89.9	88.4	84.2	87.3	88.4
N4–Ru–N6	97.8	96.4	77.6	77.9	78.0
N2–Ru–N6	99.5	97.6	94.2	89.3	88.1
N2–Ru–N3	83.7	87.3	91.0	96.6	98.2
N3–Ru–N5	99.1	97.7	75.8	77.3	77.2
N3–Ru–N6	174.6	172.6	173.0	172.3	172.1

---

Antimicrobial activity

The minimum inhibitory concentrations (MIC) for the ruthenium complexes against six bacterial strains (methicillin-resistant Staphylococcus aureus (MRSA) and a methicillin-sensitive strain of S. aureus, both avian pathogenic (APEC) and uropathogenic (UPEC) strains of Escherichia coli as well as a laboratory strain (E. coli MG1655), and Pseudomonas aeruginosa PAO1) were determined and the results are summarised in Table 4. Interestingly, the [Ru(5-NO₂phen)(bb₇)]²⁺ complex (designated α-NO₂phen-7) showed very little or no activity against any of the bacterial strains. By contrast, for the other cis-α-[Ru(phen′)(bb₇)]²⁺ complexes, the antimicrobial activities increased with the degree of methylation. Most importantly, cis-α-[Ru(Me₄phen)(bb₇)]²⁺ displayed very similar activity against all bacterial strains: for ruthenium(II)-based complexes, the observed similarity in activity against Gram-positive and Gram-negative is rare. In absolute terms, the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ complex exhibited comparable or better activities to the Gram-negative species compared to cis-α-[Ru(Me₄phen)(bb₁₂)]²⁺ and [Ru(Me₄phen)₃]²⁺ {designated (Me₄phen)₃}. The dinuclear complexes Rubb₇ and Rubb₁₂ (see Fig. 1) were also examined, and the results indicated that the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ complex was more active than Rubb₇, but less active than Rubb₁₂.

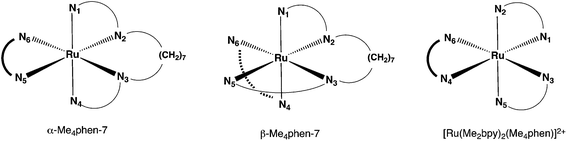

Fig. 5 Atom label nomenclature for the ruthenium complexes in this work, shown for [Ru(phen′)(bb_n)]²⁺ {where phen′ = Me₄phen (shown bolded); bb_n = bb₇} and [Ru(Me₂bpy)₂(Me₄phen)]²⁺. Carbon chain lengths of n = 7 and 12 were calculated for cis-α- and cis-β-[Ru(Me₄phen)(bb_n)]²⁺.

Table 4 MIC values (μg mL⁻¹) for the ruthenium complexes after a 16–18 hours incubation against Gram-positive and Gram-negative bacteria

Compound	Gram-positive		Gram-negative
	S. aureus	MRSA	E. coli MG1655	E. coli APEC	E. coli UPEC	P. aeruginosa PAO1
α-phen-7	8	16	>128	>128	>128	>128
α-Me2phen-7	8	8	32	64	128	>128
α-Me4phen-7	4	4	4	8	8	8
α-NO2phen-7	128	128	>128	>128	>128	>128
α-phen-12	1–2	2	4	8	8	16
β-phen-12	2	2	8	16	16	32
(Me4phen)3	0.5–1	0.5	4	4	8	32
Rubb7	8	8	16	4	16	128
Rubb12	2	2	2	2	2	16
Gentamicin	0.25	0.25	0.5	0.5	1	0.25

---

The minimum bactericidal concentrations (MBC) of the ruthenium complexes were also determined, and the results are summarised in Table 5. Consistent with previous results, the MBC values for Rubb₁₂ and [Ru(Me₄phen)₃]²⁺ were generally ≤2 × MIC, indicating that the two ruthenium complexes are bactericidal. By contrast, cis-α-[Ru(phen)(bb₁₂)]²⁺ is borderline bactericidal/bacteriostatic. Surprisingly, the MBC values for cis-α-[Ru(Me₄phen)(bb₇)]²⁺ show considerable variation, e.g. S. aureus compared to MRSA, or APEC to UPEC. Based upon the MBC/MIC ratios, cis-α-[Ru(Me₄phen)(bb₇)]²⁺ is clearly bactericidal against MRSA and APEC, but bacteriostatic against S. aureus and UPEC. These significant differences within both the Gram-positive and Gram-negative classes of bacteria indicate that cis-α-[Ru(Me₄phen)(bb₇)]²⁺ has significant specific toxicity to some bacteria and suggests that the mechanism of the activity is considerably different compared to [Ru(Me₄phen)(bb₁₂)]²⁺, [Ru(Me₄phen)₃]²⁺ and Rubb₁₂.

Table 5 MBC values (μg mL⁻¹) for the ruthenium complexes against Gram-positive and Gram-negative bacterial strains

Compound	Gram-positive		Gram-negative
	S. aureus	MRSA	MG1655	APEC	UPEC	PAO1
α-phen-7	64	16	>128	>128	>128	>128
α-Me2phen-7	64	16	≥128	≥128	>128	>128
α-Me4phen-7	64	4	32–64	16	>128	≥128
α-NO2phen-7	128	≥128	>128	>128	>128	>128
α-phen-12	4	2	8–16	32	32	≥64
β-phen-12	4–8	8	16–32	32	32	128
(Me4phen)3	1	1	8	8	16–32	64
Rubb7	≥32	≥16	32	32	64	>128
Rubb12	2	2	2	2	2–4	64
Gentamicin	2	1	2	1	4	1

---

Lipophilicity (log P)

Lipophilicity is a factor that affects the biological activity of any metal complex because it is often correlated with the capacity of the drug to penetrate through the cell membrane. The standard octanol/water partition coefficients (log P) were determined for the [Ru(phen′)(bb_n)]²⁺ and [Ru(Me₄phen)₃]²⁺ complexes, and the results are summarised in Table 6. As expected, cis-α-[Ru(Me₄phen)(bb₇)]²⁺ was more lipophilic than the other cis-α-[Ru(phen′)(bb₇)]²⁺ analogues. The introduction of the nitro-substituent on 1,10-phenanthroline ligand in cis-α-[Ru(5-NO₂phen)(bb₇)]²⁺ did not decrease the lipophilicity compared with the cis-α-[Ru(phen)(bb₇)]²⁺ analogue. More significantly, the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ isomer is more lipophilic than the Rubb_n complexes, but of similar lipophilicity to [Ru(Me₄phen)₃]²⁺, and less lipophilic than their [Ru(phen)(bb₁₂)]²⁺ analogues.

Table 6 Octanol/water partition coefficients (log P) for the ruthenium complexes

Metal complex	Charge	log P
a Results from ref. 10. b Results from ref. 7.
α-phen-7	2	−1.83 ± 0.04
α-Me2phen-7	2	−1.41 ± 0.07
α-Me4phen-7	2	−1.33 ± 0.03
α-NO2phen-7	2	−1.58 ± 0.09
α-phen-12^a	2	−0.9
β-phen-12^a	2	−1.0
(Me4phen)3 ^a	2	−1.35
Rubb7 ^b	4	−3.4
Rubb12 ^b	4	−2.7
Rubb10 ^b	4	−3.3

---

Cellular accumulation

The cellular accumulations of the cis-α-[Ru(phen′)(bb_n)]²⁺ analogues (and Rubb₁₂ and [Ru(Me₄phen)₃]²⁺) in MRSA, UPEC and PAO1 were determined by measuring the concentration of the complex remaining in the culture supernatant after removing the bacteria by centrifugation. The concentration of the ruthenium complex in the supernatant was calculated from a luminescence calibration curve obtained by adding known concentrations of the ruthenium complex to a blank supernatant. As the luminescence of the ruthenium complexes varied with the different broths and supernatants for each bacterial strain, a calibration curve was determined for each complex in the supernatant of each bacterial strain.

Fig. 6 shows the cellular accumulation of the ruthenium complexes against MRSA, UPEC and PAO1 at various time points. The uptake of the ruthenium complexes was greater with the Gram-positive bacteria compared with the Gram-negative strains, with PAO1 showing the lowest accumulation – consistent with the observed MIC/MBC values. In addition, while the accumulation in Gram-positive bacteria gradually increased with time for all complexes, the same result was not observed for the Gram-negative bacteria strains. Interestingly, the cellular accumulation of the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ and [Ru(Me₄phen)₃]²⁺ in PAO1 reached its highest within 15 minutes and then maintained this level; in contrast, the accumulation of Rubb₁₂ and cis-α-[Ru(phen)(bb₁₂)]²⁺ steadily increased over the two hours. Moreover, the uptake of the cis-α-[Ru(phen′)(bb₇)]²⁺ family is consistent with the MIC/MBC values, with the degree of methylation of the phen ligand correlated with the accumulation. However, there was significantly less accumulation of cis-α-[Ru(Me₄phen)(bb₇)]²⁺ in PAO1 than with [Ru(Me₄phen)₃]²⁺, cis-α-[Ru(phen)(bb₁₂)]²⁺ and Rubb₁₂ despite the activity for cis-α-[Ru(Me₄phen)(bb₇)]²⁺ being two- to four-fold higher than for the other three complexes.

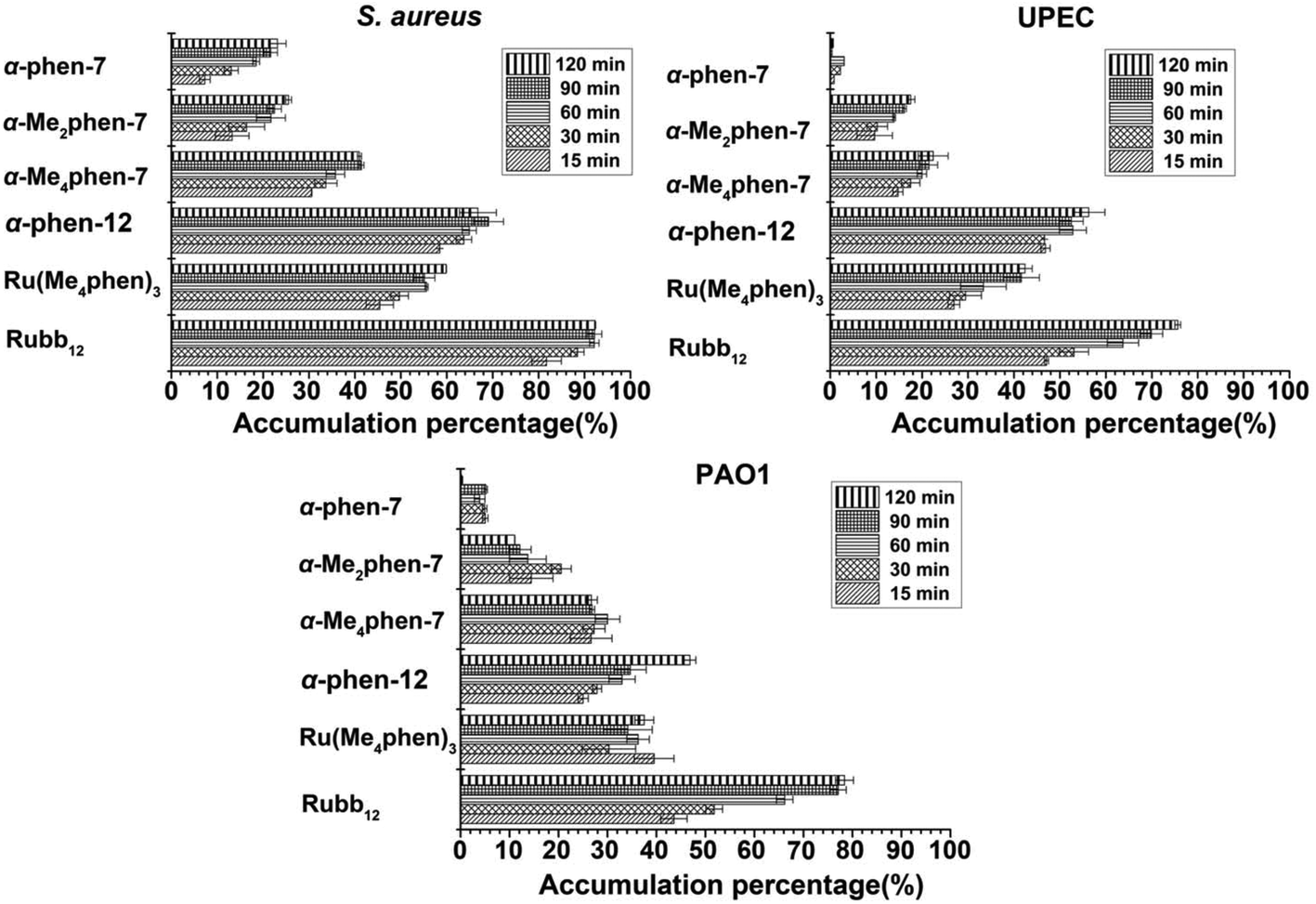

Fig. 6 Cellular accumulation of the cis-α-[Ru(phen′)(bb₇)]²⁺, [Ru(Me₄phen)₃]²⁺ and Rubb₁₂ complexes into bacteria after incubation for 15, 30, 60, 90 and 120 minutes.

Interaction with DNA

As previous studies showed that the di-, tri- and tetra-nuclear ruthenium complexes linked by the bb_n ligand preferentially localise with DNA and RNA in bacterial and eukaryotic cells,^18,19 it was of interest to examine the DNA binding affinity of the [Ru(phen′)(bb_n)]²⁺ complexes to DNA. The binding of the ruthenium complexes to calf-thymus (CT)-DNA was examined by UV/Vis spectroscopy and the intrinsic binding constants K to DNA calculated by a non-linear least-square method using eqn (1).²⁰

(ε_a − ε_f)/(ε_b − ε_f) = (b − (b² − 2K²C_t[DNA]/s)^1/2)/2KC_t (1a)

b = 1 + KC_t + K[DNA]/2s (1b)

where [DNA] is the concentration of DNA in M (nucleotide); ε_a is the molar absorption coefficient observed for the ¹MLCT absorption band at a given DNA concentration; ε_f is the molar absorption coefficient of the free complex without DNA; ε_b is the molar absorption coefficient of the complex fully bound to DNA; K is the equilibrium-binding constant in M⁻¹; and C_t is the total metal complex concentration and s is the binding site size.

All [Ru(phen′)(bb_n)]²⁺ complexes showed strong binding to CT-DNA, with binding constants of approximately 1 × 10⁷ M⁻¹ (see Table 7). As the DNA binding affinities were surprisingly strong, the well-known high affinity metallointercalator complex [Ru(phen)₂(dppz)]²⁺ (ref. 21) was examined as a control. The observed binding constant, 2 × 10⁶ M⁻¹, was comparable with previously reported values.^20,21 The cis-α-[Ru(5-NO₂phen)(bb₇)]²⁺ complex exhibited the strongest binding affinity. However, no significant differences in the DNA binding affinities between the cis-α-[Ru(phen)(bb₇)]²⁺ and cis-α-[Ru(Me₄phen)(bb₇)]²⁺ complexes were observed. In addition, the binding constants of cis-α-[Ru(phen′)(bb₇)]²⁺ isomers are higher than for the [Ru(phen)(bb₁₂)]²⁺ analogues, which is consistent with reported values for the DNA binding affinities for [Ru(phen)(bb₁₀)]²⁺ and [Ru(phen)(bb₁₂)]²⁺ analogues.¹⁷

Table 7 The CT-DNA binding constants (K) of the mononuclear ruthenium complexes

Complexes	K [M^−1] × 10^7
α-phen-7	1.73 ± 0.26
α-Me2phen-7	0.42 ± 0.04
α-Me4phen-7	1.46 ± 0.47
α-NO2phen-7	4.22 ± 0.93
α-phen-12	0.59 ± 0.05
β-phen-12	0.20 ± 0.02
(phen)2dppz	0.21 ± 0.05
(Me4phen)3	0.25 ± 0.01

---

Discussion

Due to the emergence of drug-resistant bacteria there is a need to develop new classes of antimicrobial agents. We have previously shown¹⁷ that ruthenium(II) complexes containing bis[4(4′-methyl-2,2′-bipyridyl)]-1,n-alkane (bb_n; for n = 10 and 12) as a tetradentate ligand in a mononuclear complex (rather than as a bridging ligand in oligonuclear complexes) exhibit excellent antimicrobial activity in terms of MIC values, against both Gram-positive and Gram-negative bacteria. In this study we have extended the [Ru(phen)(bb_n)]²⁺ family of complexes by altering both the bb_n and phen ligands, and report their antimicrobial activities in terms of both MIC and MBC values.

In the syntheses of the [Ru(phen′)(bb₇)]²⁺ complexes, both the cis-α and cis-β isomers were initially observed. However, in contrast to the bb₁₀ and bb₁₂ homologues of [Ru(phen)bb_n]²⁺, the cis-β isomer was not stable and converted predominantly to the cis-α isomer over time or in harsh conditions. It is concluded that the cis-β is a kinetic product but the cis-α is the thermodynamic product. The DFT calculations demonstrated that the cis-β complex is highly strained and considerably less stable than the corresponding cis-α isomer. As ruthenium(II) complexes with three bidentate chelating ligands groups (as is essentially the case in [Ru(phen′)(bb₇)]²⁺ – but with an additional chelate ring involving the polymethylene chain in the tetradendate bb₇) are considered to be “kinetically inert” the conversion from the cis-β to the cis-α is unusual, although isomerisation of ruthenium(II) complexes with monodentate ligands, e.g. pyridine, is well known.²² Examples of photoactivated isomerisation, ligand loss and degradation of tris(bidentate) complexes, e.g. [Ru(bpy)₃]²⁺, are known²³ and it has been suggested that ruthenium(II) complexes with distorted octahedral geometry photodecompose through ligand dissociation.²⁴ The present DFT calculations have indicated that the cis-β-[Ru(Me₄phen)(bb₇)]²⁺ complex is unstable and the octahedral geometry is distorted: consequently, the cis-β and cis-α isomers can interconvert but demonstrably by a thermal mechanism in this case, as the presence of light does not affect the process.

The MIC/MBC values presented in this study demonstrate that apart from cis-α-[Ru(5-NO₂phen)(bb₇)]²⁺, the cis-α-[Ru(phen′)(bb₇)]²⁺ complexes are active against Gram-positive bacteria but exhibit variable activity towards Gram-negative species. However, the cis-α-[Ru(Me₄-phen)(bb₇)]²⁺ complex shows good activity (MICs ≤ 8 μg mL⁻¹) against both Gram-positive and Gram-negative bacteria, including the notoriously drug-resistant P. aeruginosa. Ruthenium(II) complexes,^12,16 like most antimicrobial agents,²⁵ have generally not shown good activity against P. aeruginosa. Recently we reported that the cis-α-[Ru(phen)(bb₁₂)]²⁺ complex does readily accumulate in P. aeruginosa and exhibits good activity against this bacterial strain.¹⁷ The results of the current study indicate that cis-α-[Ru(Me₄phen)(bb₇)]²⁺ is slightly more active (in terms of MIC) against P. aeruginosa than cis-α-[Ru(phen)(bb₁₂)]²⁺. However, a sixteen-fold difference between the MBC and MIC values for cis-α-[Ru(Me₄phen)(bb₇)]²⁺ against P. aeruginosa was observed, compared to the two-fold difference for [Ru(Me₄phen)₃]²⁺ and a four-fold difference for cis-α-[Ru(phen)(bb₁₂)]²⁺. This suggests the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ complex may exert its antimicrobial activity through a different mechanism. Furthermore, and of note, of all the mono-, di-, tri- and tetra-nuclear ruthenium complexes that incorporate the bb_n ligand that we have examined,^12–17 the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ complex displays the most similar MIC values but the most varied MBC values across a range of Gram-positive and Gram-negative bacteria. This is also consistent with the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ complex exerting its antimicrobial activity through a different mechanism. Alternatively, the highly variable MBC values observed for cis-α-[Ru(Me₄phen)(bb₇)]²⁺ could be due to different resistance mechanisms – e.g. the up-regulation of efflux pumps and plasmid-mediated resistance mechanisms – that exist between bacteria, even closely related bacteria such as the E. coli strains UPEC and APEC.

While we have previously reported the antimicrobial activities of mono- and oligo-nuclear ruthenium complexes that incorporate the bb_n ligand, the present study also examined the effects of substituents on the 1,10-phenanthroline ligand. The antimicrobial activities were examined in relationship to the electron-withdrawing/-donating effect of substituents on the phenanthroline ligand through the analyses of their respective cellular accumulations and DNA binding. The results clearly demonstrate the importance of both cellular accumulation and DNA binding. The cis-α-[Ru(5-NO₂phen)(bb₇)]²⁺ complex bound DNA with the highest affinity but displayed no antimicrobial activity because it was not taken up by the bacterial cells. Given that cis-α-[Ru(5-NO₂phen)(bb₇)]²⁺ is slightly more lipophilic than cis-α-[Ru(phen)(bb₇)]²⁺, the lack of uptake and antimicrobial activity of the nitro-substituted complex suggests that relatively minor charges of the charge density on the ruthenium centre play a critical role in the diffusion of the ruthenium complex across the bacterial membrane. The introduction of methyl substituents on the 1,10-phenanthroline progressively increased the cellular accumulation and antimicrobial activities of the cis-α-[Ru(phen′)(bb₇)]²⁺ complexes, especially against Gram-negative bacteria.

All the ruthenium complexes showed better accumulation in the Gram-positive than the Gram-negative bacteria, suggesting a clear relationship between the cellular accumulation and MIC, but only to a point. The cis-α-[Ru(phen)(bb₁₂)]²⁺ exhibited similar antimicrobial activity but a higher level of cellular accumulation than the cis-α-[Ru(phen)(bb₇)]²⁺ across the bacteria, consistent with increasing lipophilicity (log P = −0.9 and −1.83 respectively). Furthermore, cis-α-[Ru(Me₄phen)(bb₇)]²⁺ has similar or even higher activity against Gram-negative bacteria than [Ru(Me₄phen)₃]²⁺ in terms of MIC, but cis-α-[Ru(Me₄phen)(bb₇)]²⁺ showed lower cellular accumulation in the Gram-negative bacteria compared to [Ru(Me₄phen)₃]²⁺. Notably, there was a different pattern of accumulation in P. aeruginosa between the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ and [Ru(Me₄phen)₃]²⁺ complexes compared with the cis-α-[Ru(phen)(bb₁₂)]²⁺ and Rubb₁₂ complexes. The uptake of the latter two complexes steadily increased over the two-hour time period; whereas for the former complexes, maximum accumulation was achieved at the first time point (15 minutes), with the cellular accumulation then remaining constant up to two hours. These results potentially suggest that P. aeruginosa may have an effective efflux pump against the cis-α-[Ru(Me₄phen)(bb₇)]²⁺ and [Ru(Me₄phen)₃]²⁺ complexes, or that the ruthenium complexes incorporating the bb₁₂ ligand can permeabilise the bacterial membrane.

The cis-α-[Ru(phen′)(bb₇)]²⁺ complexes showed surprisingly high DNA binding affinity, even binding more strongly than the established high-affinity metallointercalator [Ru(phen)₂(dppz)]²⁺. The high DNA binding affinity of the cis-α-[Ru(phen′)(bb₇)]²⁺ complexes is likely to be due to an increased hydrophobic effect coupled with the decreased ability of the complexes to self-associate in water due to steric clashes between the methyl groups. The observations that cis-α-[Ru(Me₄phen)(bb₇)]²⁺ shows lower accumulation but exhibits the same or slightly better antimicrobial activities against the Gram-negative bacteria than the [Ru(Me₄phen)₃]²⁺ or cis-α-[Ru(phen)(bb₁₂)]²⁺ complexes could suggest DNA (and RNA) binding is at least one aspect of the antimicrobial activity. Indeed, we have previously demonstrated that the dinuclear and oligonuclear ruthenium complexes target DNA and RNA in bacteria and eukaryotic cells.^18,19 However, the mechanism of action for kinetically-inert polypyridylruthenium(II) complexes is still a matter of debate. In addition to nucleic acid binding, a variety of studies have proposed that these ruthenium complexes can permeabilise the bacterial membrane,^26,27 inhibit the activity of important enzymes,²⁸ or induce the production of reactive oxygen species (ROS) that could cause DNA damage and bacterial cell death.²⁹ It is likely that for each ruthenium complex a number of these potential mechanisms are simultaneously active, with the balance between the various mechanisms modulated by the specific chemical structure.

Conclusions

The mononuclear cis-α-[Ru(Me₄phen)(bb₇)]²⁺ complex has significant potential as an antimicrobial agent. In this study, it has been shown that it is highly active against P. aeruginosa. Our results also suggest that the antimicrobial activity differences between the cis-α-[Ru(phen′)(bb₇)]²⁺ complex and the mononuclear [Ru(phen)(bb₁₂)]²⁺ complexes previously studied are significant in terms of the electron density imposed by substituents on the 1,10-phenanthroline ligand. As a consequence, and given that the structure can be readily modified, it is possible that ruthenium(II) complexes can be customised to particular bacteria. Our studies continue on this project: the toxicity on eukaryotic cells of [Ru(phen′)(bb_n)]²⁺ species will be explored and a further probe of the working mechanisms of this class of ruthenium complexes is on the way.

Experimental

Physical measurements

¹H and ¹³C NMR spectra were recorded on a Varian Advance 400 MHz spectrometer at room temperature {CDCl₃ (99.8%, CIL), CD₃CN (>99.8%, Aldrich), or CD₃OD (>99.8%, Aldrich)}. Luminescence was measured on a Cary Eclipse Fluorescence Spectrophotometer with λ_ex = 488 nm: emission spectra were collected from λ_em = 500–800 nm. Absorbance (200–600 nm) was measured on a VARIAN CARY 50 Probe UV–visible spectrophotometer. Mass-spectroscopic analysis was performed by the RSC Mass-Spectrometry Facility (Research School of Chemistry, Australian National University, Canberra), and the Campbell Microanalytical Laboratory (Chemistry Department, University of Otago) performed the microanalyses.

Materials and methods

Potassium hexafluorophosphate (KPF₆), and 1,10-phenanthroline and its derivatives, were purchased from Aldrich and used as supplied. Amberlite IRA-402 (chloride form) anion-exchange resin and SP Sephadex C-25 cation exchanger were obtained from GE Health Care Bioscience. Cation-adjusted Mueller–Hinton broth (CAMHB), Mueller–Hinton Agar2 and the antibiotic gentamicin were purchased from Sigma-Aldrich (UK). LB broth was purchased from Formedium (UK).

The syntheses of ligands bb_n (n = 7, 12) and cis-[RuCl₂(DMSO)₄] were performed according to previously reported methods.^30,31

Syntheses of metal complexes

cis,cis-[RuCl₂(DMSO)₂(phen′)]. cis,cis-[RuCl₂(DMSO)₂(phen′)] complexes were synthesised using schemes based on previously reported methods.³² A suspension of 1 mmol of cis-[RuCl₂(DMSO)] and 1 mmol of the appropriate substituted 1,10-phenanthroline was refluxed in toluene (10 mL) for 2 h. The solid that separated was filtered and washed with toluene and then with diethylether. For cis,cis-[RuCl₂(DMSO)₂(phen)], cis,cis-[RuCl₂(DMSO)₂(Me₄phen)] and cis,cis-[RuCl₂(DMSO)₂(5-NO₂phen)], the pure product was realised after filtration. For cis,cis-[RuCl₂(DMSO)₂(Me₂phen)], after filtration the crude product was dissolved in a minimal volume of dichloromethane (DCM) and then loaded onto a silica gel column (230–400 mesh; 3 cm diam). The desired product and side products were gradient-eluted using 1–4% (v/v) methanol in DCM. The purity and contents of each fraction were determined by TLC (silica gel), using 5% (v/v) methanol in DCM as eluent. The purest fractions were combined and the solvent was removed in vacuo to give light yellow-green solids: yields: cis,cis-[RuCl₂(DMSO)₂(phen)], yellow-green powder – 83%; cis,cis-[RuCl₂(DMSO)₂(Me₄phen)], green-brown powder – 85%; cis,cis-[RuCl₂(DMSO)₂(Me₂phen)], light yellow-green powder – 70%; cis,cis-[RuCl₂(DMSO)₂(5-NO₂phen)], brown powder – 90%.

cis,cis-[RuCl₂(DMSO)₂(phen)]. The ¹H NMR and mass-spectral data were consistent with that reported previously for this complex.³³

cis,cis-[RuCl₂(DMSO)₂(Me₂phen)]. Anal. calcd for C₁₈H₂₄Cl₂N₂O₂RuS₂: C, 40.3%; H, 4.51%; N, 5.2%. Found: C, 40.9%; H, 4.60%; N, 5.1%. ¹H NMR (400 MHz, CDCl₃): δ 9.96 (d, J = 5.6 Hz, 1H; H2 or H9); 9.80 (d, J = 5.6 Hz, 1H; H2 or H9); 8.14 (d, J = 9.6 Hz, 1H; H5 or H6); 8.10 (d, J = 9.2 Hz, 1H; H5 or H6); 7.74 (d, J = 5.6 Hz, 1H; H3 or H8); 7.57 (d, J = 5.6 Hz, 1H; H3 or H8); 3.58 (d, J = 10.8 Hz, 6H; 2 × CH₃); 3.15 (s, 3H; S(CH₃)); 2.93 (s, 3H; S(CH₃)), 2.87 (s, 3H; S(CH₃)); 2.50 (s, 3H; S(CH₃)). TOF MS (ESI+): most abundant ion found for [M + Na]⁺, m/z 559.0. Calc. for Ru[C₁₈H₂₄Cl₂N₂NaO₂S₂]⁺, m/z 558.96.

cis,cis-[RuCl₂(DMSO)₂(Me₄phen)]. Anal. calcd for C₂₀H₂₈Cl₂N₂O₂RuS₂: C, 42.6%; H, 5.00%; N, 5.0%. Found: C, 42.1%; H, 4.91%; N, 5.0%. ¹H NMR (400 MHz, CDCl₃): δ 9.80 (s, 1H; H2 or H9); 9.75 (s, 1H; H2 or H9); 8.14 (d, J = 9.2 Hz, 1H; H5 or H6); 8.10 (d, J = 9.2 Hz, 1H; H5 or H6); 3.61 (d, J = 7.2 Hz, 6H; 2 × CH₃); 3.18 (s, 3H; S(CH₃)); 2.76 (s, 6H; 2 × CH₃); 2.65 (s, 3H; S(CH₃)); 2.60 (s, 3H; S(CH₃)); 2.41 (s, 3H; S(CH₃)). TOF MS (ESI+): most abundant ion found for [M + Na]⁺, m/z 587.0. Calc. for Ru[C₂₀H₂₈Cl₂N₂NaO₂S_2]⁺, m/z 586.99.

cis,cis-[RuCl₂(DMSO)₂(5-NO₂phen)]·H₂O. Anal. calcd for C₁₆H₂₁Cl₂N₃O₅RuS₂: C, 33.6%; H, 3.70%; N, 7.4%. Found: C, 33.5%; H, 3.59%; N, 7.3%. ¹H NMR (400 MHz, CDCl₃): δ 10.33 (dd, J = 1.2, 5.2 Hz, 1H; H2 or H9, one isomer); 10.30 (dd, J = 1.6, 5.6 Hz, 1H; H2 or H9, another isomer); 10.17 (dd, J = 1.2, 5.6 Hz, 1H; H2 or H9, one isomer); 10.10 (dd, J = 0.8, 5.2 Hz, 1H; H2 or H9, another isomer); 9.33 (dd, J = 1.2, 8.4 Hz, 1H; H4 or H7, one isomer); 9.18 (dd, J = 1.2, 8.8 Hz, 1H; H4 or H7, another isomer); 8.92 (d, J = 5.2 Hz, 1H, H6 for two isomers); 8.68 (dd, J = 1.2, 8.0 Hz, 1H; H4 or H7, one isomer); 8.56 (dd, J = 1.2, 7.6 Hz, 1H; H4 or H7, another isomer); 8.12 (m, 2H, H3/H8, one isomer); 7.94 (m, 2H, H3/H8, another isomer); 3.61 (d, J = 2 Hz, 6H; 2 × CH₃, one isomer); 3.57 (d, J = 4.4 Hz, 6H; 2 × CH₃, another isomer); 3.23 (s, 3H; S(CH₃), one isomer); 3.20 (s, 3H; S(CH₃); another isomer); 2.75 (s, 3H; S(CH₃), one isomer); 2.66 (s, 3H; S(CH₃), another isomer). TOF MS (ESI+): most abundant ion found for [M + Na]⁺, m/z 575.9. Calc. for Ru[C₁₆H₁₉Cl₂N₃NaO₄S₂]⁺, m/z 575.91.

[Ru(phen′)(bb₇)](PF₆)₂

A solution of cis,cis-[RuCl₂(DMSO)₂(phen′)] {where phen′ = phen; Me₂phen; Me₄phen; and 5-NO₂phen} (0.39 mmol) and the bb₇ ligand (0.47 mmol) in N₂-purged ethylene glycol (35 mL) was heated to 130–140 °C and stirred in an N₂ atmosphere for 2 h. The reaction mixture turned from light green to bright orange during the course of the reaction. The reaction mixture was cooled to room temperature and water (10 mL) was added to the bright-orange solution, which was then loaded onto a SP Sephadex C-25 cation-exchange column (3 × 20 cm). The column was washed with water and the desired mononuclear complex was eluted with aqueous NaCl solution (0.3 M). Solid KPF₆ (ca. 5 mg) was added to the eluate and the complex was extracted into DCM (2 × 30 mL). The organic layer was washed with water (20 mL), dried over anhydrous Na₂SO₄ and evaporated to dryness to obtain the PF₆⁻ salt of the complex. The complex was further purified by recrystallisation from acetonitrile/diethyl ether to obtain a bright-red/orange solid of [Ru(phen′)(bb_n)](PF₆)₂. Typical yields were approximately 20–25%. For cis-[RuCl₂(DMSO)₂(Me₂phen)(bb₇)](PF₆)₂ and cis [RuCl₂(DMSO)₂(Me₄-phen)(bb₇)](PF₆)₂, after recrystallisation, the symmetrical isomers were purified by the long SP Sephadex C-25 cation-exchange column (1.5 × 90 cm).

Purification of cis-α isomers

[RuCl₂(DMSO)₂(Me₂phen)(bb₇)] or [RuCl₂(DMSO)₂(Me₄phen)(bb₇)](PF₆)₂ (35 mg) was converted into the chloride salt by stirring in methanol with Amberlite IRA-402 (chloride form) anion-exchange resin for 1 h. After removal of the resin by filtration, the methanol filtrate was evaporated and the resultant chloride salt was dissolved in water (20 mL) and loaded onto a SP Sephadex C-25 cation-exchange column (1.5 × 90 cm). The cis-α isomers and impurities were eluted as separate bands with an aqueous solution of sodium toluene-4-sulfonate (0.125 M) as the eluent. Solid KPF₆ was added to the eluents and the complexes were extracted into DCM (2 × 20 mL). The organic layer was washed with water (20 mL), dried over anhydrous Na₂SO₄, and evaporated to dryness to obtain the PF₆ salt of the complex.

cis-α-[Ru(phen)(bb₇)](PF₆)₂·CH₂Cl₂. Anal. calcd for C₄₂H₄₂Cl₂F₁₂N₆P₂Ru: C, 46.2%; H, 3.87%; N, 7.7%. Found: C, 46.3%; H, 3.90%; N, 7.6%. ¹H NMR (400 MHz, CD₃CN): δ 8.66 (dd, J = 1.2, 8.4 Hz, 2H; H2/H9); 8.63 (dd, J = 1.2, 5.2 Hz, 2H; H4/H7); 8.32 (s, 2H; H5/H6); 8.28 (br s, 2H; bipy3); 8.15 (d, J = 1.2 Hz, 2H, bipy3′); 7.74 (dd, J = 5.2, 8.0 Hz, 2H, H3/H8); 7.47 (d, J = 6 Hz, 2H; bipy6′); 7.16(d, J = 5.6 Hz, 2H; bipy6); 7.08 (dd, J = 2.0, 6.0 Hz, 2H; bipy5′); 7.00 (dd, J = 1.2, 6.0 Hz, 2H; bipy5); 2.77–2.83 (m, 2H; CH₂, bipy); 2.60–2.67 (m, 2H; CH₂, bipy); 2.48 (s, 6H; CH₃ bipy); 1.58–1.69 (m, 2H; CH₂, bipy); 1.37–1.47 (m, 2H; CH₂, bipy); 0.91–0.97 (m, 2H; CH₂, bipy); 0.66–0.83 (m, 4H; 2 × CH₂, bipy). TOF MS (ESI+): most abundant ion found for [M − 2PF₆]²⁺, m/z 359.12. Calc. for Ru[C₄₁H₄₀N₆]²⁺, m/z 359.12; most abundant ion found for ([M − PF6] ⁺), m/z 863.20. Calc. for Ru[C₄₁H₄₀N₆(PF₆)] ⁺, m/z 863.21.

cis-α-[Ru(Me₂phen)(bb₇)](PF₆)₂. Anal. calcd for C₄₃H₄₄F₁₂N₆P₂Ru: C, 49.9%; H, 4.28%; N, 8.1%. Found: C, 49.4%; H, 4.37%; N, 8.1%. ¹H NMR (400 MHz, CD₃CN): δ 8.45 (t, J = 5.6 Hz, 4H; H2/H9 & H5/H6); 8.27 (br s, 2H; bipy3); 8.13 (d, J = 1.2 Hz, 2H, bipy3′); 7.57 (dd, J = 5.6, 0.8 Hz, 2H, H3/H8); 7.46 (d, J = 5.6 Hz, 2H; bipy6′); 7.16 (d, J = 5.6 Hz, 2H; bipy6); 7.06 (dd, J = 1.6, 5.6 Hz, 2H; bipy5′); 7.00 (dd, J = 1.2, 6.0 Hz, 2H; bipy5); 2.95 (s, 6H; CH₃ Me₂phen); 2.76–2.82 (m, 2H; CH₂, bipy); 2.60–2.66 (m, 2H; CH₂, bipy); 2.47 (s, 6H; CH₃ bipy); 1.60–1.68 (m, 2H; CH₂, bipy); 1.37–1.46 (m, 2H; CH₂, bipy); 0.90–0.97 (m, 2H; CH₂, bipy); 0.63–0.82 (m, 4H; 2 × CH₂, bipy). TOF MS (ESI+): most abundant ion found for [M − 2PF₆]²⁺, m/z 373.2. Calc. for Ru[C₄₃H₄₄N₆Ru]²⁺, m/z 373.0. Most abundant ion found for ([M − PF₆] ⁺), m/z 891.30. Calc. for Ru[C₄₃H₄₄N₆(PF₆)]⁺, m/z 890.88.

cis-α-[Ru(Me₄phen)(bb₇)](PF₆)₂·CH₂Cl₂. Anal. calcd for C₄₆H₅₀Cl₂F₁₂N₆P₂Ru: C, 48.1%; H, 4.39%; N, 7.3%. Found: C, 48.2%; H, 4.44%; N, 7.7%. ¹H NMR (400 MHz, CD₃CN): δ 8.43 (s, 2H; H2/H9); 8.32 (s, 2H, H5/H6); 8.27 (s, 2H; bipy3); 8.13 (s, 2H, bipy3′); 7.45 (d, J = 6.0 Hz, 2H; bipy6′); 7.16 (d, J = 5.6 Hz, 2H; bipy6); 7.06 (dd, J = 1.6, 4.4 Hz, 2H; bipy5′); 7.00 (dd, J = 0.8, 5.2 Hz, 2H; bipy5); 2.83 (s, 6H, CH₃ Me₄phen); 2.77–2.79 (m, 2H; CH₂, bipy); 2.60–2.66 (m, 2H; CH₂, bipy); 2.48 (s, 6H; CH₃ bipy); 2.36 (s, 6H, CH₃ Me₄phen); 1.60–1.69 (m, 2H; CH₂, bipy); 1.38–1.47 (m, 2H; CH₂, bipy); 0.92–0.98 (m, 2H; CH₂, bipy); 0.67–0.83 (m, 4H; 2 × CH₂, bipy). TOF MS (ESI+): most abundant ion found for [M − 2PF₆]²⁺, m/z 387.2. Calc. for Ru[C₄₅H₄₈N₆Ru]²⁺, m/z 387.1. Most abundant ion found for [M − PF₆]²⁺, m/z 919.3. Calc for Ru[C₄₅H₄₈N₆(PF₆)]⁺, m/z 919.3.

cis-α-[Ru(5-NO₂phen)(bb₇)](PF₆)₂·1.5CH₂Cl₂. Anal. calcd for C_41.5H₄₄Cl₃F₁₂N₇O₂P₂Ru: C, 43.3%; H, 3.59%; N, 8.3%. Found: C, 43.2%; H, 3.61%; N, 8.5%. ¹H NMR (400 MHz, CD₃CN): δ 9.22 (s, 1H, H6); 9.13 (d, J = 8.4 Hz, 2H; H2); 8.80 (dd, J = 3.2, 8.4 Hz, 2H; H4/H7); 8.75 (d, J = 5.6 Hz, 1H, H9); 8.29 (s, 2H; bipy3′); 8.15 (s, 2H, bipy3); 7.62–7.88 (m, 2H, H3/H8); 7.45 (d, J = 6.0 Hz, 2H; bipy6′); 7.19 (d, J = 5.6 Hz, 2H; bipy6); 7.10 (dd, J = 1.6, 5.6 Hz, 2H; bipy5′); 7.03 (d, J = 6.0 Hz, 2H; bipy5); 2.77–2.83 (m, 2H; CH₂, bipy); 2.62–2.67 (m, 2H; CH₂, bipy); 2.49 (s, 6H; CH₃ bipy); 1.60–1.67 (m, 2H; CH₂, bipy); 1.41–1.45 (m, 2H; CH₂, bipy); 0.91–0.96 (m, 2H; CH₂, bipy); 0.72–0.79 (m, 4H; 2 × CH₂, bipy). TOF MS (ESI+): +: most abundant ion found for [M − 2PF₆]²⁺, m/z 381.60. Calc. for Ru[C₄₁H₃₉N₇O₂]²⁺, m/z 381.61. Most abundant ion found for [M − PF₆]⁺, m/z 908.20. Calc. for Ru[C₄₁H₃₉N₇O₂(PF₆)], m/z 908.16.

Density functional theory calculations

The geometries of five ruthenium metal complexes – cis-α- and cis-β-[Ru(Me₄phen)(bb_n)]²⁺ (n = 7 and 12) and [Ru(Me₂bpy)₂(Me₄phen)]²⁺ – were optimised with density functional theory (DFT) using QCHEM 4.4³⁴ at the B3LYP/6-311G(d,p)^35,36 level of theory with the LANL2DZ effective core potential³⁷ used for ruthenium atoms. Calculations were carried out for both low- and high-spin electronic configurations of the complexes, with the low-spin state (multiplicity 1 and net charge 2) found to have the lower energy in all five cases, as expected for d⁶ octahedral ruthenium complexes. Initial structures for cis-α-[Ru(Me₄phen)(bb₇)]²⁺ and [Ru(Me₂bpy)₂(Me₄phen)]²⁺ were obtained from crystal structures and were used to build the initial structures for cis-α-[Ru(Me₄phen)(bb₁₂)]²⁺, cis-β-[Ru(Me₄phen)(bb₇)]²⁺ and cis-β-[Ru(Me₄phen)(bb₁₂)]²⁺ using Materials Studio 5.0.³⁸

Single crystal X-ray diffraction

Crystals of compounds [Ru(Me₄phen)(bb₇)](PF₆)₂·3CHCl₃ and [Ru(Me₄phen)(Me₂bpy)₂](PF₆)₂ suitable for X-ray crystallographic studies were grown by slow diffusion of toluene into a chloroform solution of [Ru(Me₄phen)(bb₇)](PF₆)₂, and hexane into a DCM solution of [Ru(Me₄phen)(Me₂bpy)₂](PF₆)₂, respectively. [Ru(Me₄phen)(bb₇)](PF₆)₂·3CHCl₃ crystallised as orange rod-shaped crystals and [Ru(Me₄phen)(Me₂bpy)₂](PF₆)₂ as orange plate-like crystals. Single crystals were selected and mounted on a nylon loop in paratone-N cryo-protectant. Single-crystal X-ray diffraction was performed at 100(2) K on the MX-1 beamline of the Australian Synchrotron (λ = 0.7107 Å).³⁹ Data sets were corrected for absorption using a multi-scan method, and structures were solved by direct methods using SHELXS-2014 and refined by full-matrix least squares on F² by SHELXL-2014,⁴⁰ interfaced through the program X-Seed.⁴¹ In general, all non-hydrogen atoms were refined anisotropically and hydrogen atoms were included as invariants at geometrically estimated positions, unless specified otherwise.

CIF data have been deposited with the Cambridge Crystallographic Data Centre, CCDC reference numbers 1559396 and 1558934† {where [Ru(Me₄phen)(bb₇)](PF₆)₂·3CHCl₃ = 1559396 and [Ru(Me₄phen)(Me₂bpy)₂](PF₆)₂ = 1558934}.

Special refinement details

Compound [Ru(Me₄phen)(bb₇)](PF₆)₂ crystallises with three molecules of chloroform in the unit cell, two of which are disordered over 2 positions. The disorder was modelled and both molecules were left to freely refine to give 70% and 76% occupancy for each main position.

Bacterial strains

Two Staphylococcus aureus (Gram-positive) isolates {a wild type S. aureus strain (SH 1000) and a clinical multidrug-resistant MRSA strain (USA 300 LAC JE2)}, and three Gram-negative Escherichia coli isolates {MG 1655, NCTC 12241 (APEC) and ST 131 (UPEC)} and a Pseudomonas aeruginosa strain PAO1 (WT), were used for in vitro antimicrobial studies.

MIC and MBC determination

The MIC tests were conducted by the broth micro-dilution method in duplicate as outlined in the CLSI guidelines.⁴² The MBC tests were performed in duplicate according to the standard microbiological techniques protocol.⁴³ The bacteria were grown in LB media incubating at 37 °C for overnight. After washing and suspending in CAMHB, the bacteria were plated out on Mueller–Hinton agar, grown overnight and then suspended in growth medium CAMHB. Bacterial inocula were adjusted to a turbidity equivalent to that of a 0.5 McFarland standard and diluted to a final concentration of 4–8 × 10⁵ cfu mL⁻¹. Compounds tested were dissolved and serially diluted in CAMHB in sterile 96-well flat-bottom plates to a final volume of 100 μL in each well. An equal volume of inocula was added to each well, making a final concentration range of the compounds tested, including the control antibiotics gentamicin, of between 0.25 and 128 μg mL⁻¹. MICs were recorded after 16–18 h of incubation at 37 °C. Colony counts of the inocula were performed for determination of the MBC. After MIC results were noted, 10 μL from each well was plated out on Mueller–Hinton agar. MBCs were recorded after overnight incubation at 37 °C, and the concentration of compounds that produced a 99.9% kill relative to the starting inoculum was recorded as the MBC.

Cellular accumulation

The cellular accumulation of the ruthenium complexes was measured by monitoring the luminescence of the complexes remaining in the supernatant of the cultures after incubation for various periods. Bacterial inocula in log phase were adjusted to a cell concentration from 1–7 × 10⁷ cfu mL⁻¹. The cell culture (24 mL) was placed in a 250 mL conical flask and 75 μL of stock solution (2.56 mg mL⁻¹) of the ruthenium complex was added to give a final concentration of 8 μg mL⁻¹. Control flasks containing 50 mL of each bacterial suspension were set up as blank samples to obtain fluorescence calibration curves for each complex. Culture flasks and control flasks were incubated with shaking (Incu-shake TL6-5, SciQuip Ltd, Newtown, Wem, Shropshire, UK) at 200 rpm at 37 °C for 15, 30, 60, 90 or 120 min. At each time point, 3.3 mL of bacterial suspension was centrifuged (5500 rpm) at 4 °C for 10 min. Supernatants (3 mL) were carefully transferred to 5 mL tubes and the phosphorescence of the remaining ruthenium complex was measured on a Cary Eclipse Fluorescence Spectrophotometer with λ_ex = 488 nm. The emission spectra were collected from λ = 500–800 nm. Volumes (21, 39, 57, 75 and 93 μL) of a stock solution (320 μg mL⁻¹) of each complex were added to 3 mL aliquots of the supernatant from each control bacterial suspension (untreated with drug) to acquire a fluorescence-concentration linear correlation chart for calibration.

Lipophilicity (log P) determination

The partition coefficients (log P) were measured using the shake-flask technique. Each ruthenium complex (0.1 mM) was dissolved in the water phase (Milli-Q water) and an equal volume of n-octanol was added. The two phases were mutually saturated by shaking overnight at ambient temperature and allowed to separate on standing. The concentration of the metal complex in each phase was determined spectrophotometrically at λ = 450 nm.

DNA-binding studies

Experiments were carried out in phosphate-buffered saline (PBS) at pH 7.4. The ratio of the UV absorbance of a solution of CT-DNA at λ = 260 and 280 nm was greater than 1.8, thus indicating that the CT-DNA was sufficiently free from protein. The DNA concentration of the stock solution (2.8 × 10⁻³ M) was determined by UV absorbance by using a molar absorption coefficient of 13 300 M⁻¹ cm⁻¹ per base pair at λ = 260 nm. Absorption titration experiments were carried out by keeping the concentration of the ruthenium complex constant (2 × 10⁻⁵ M) and varying the CT-DNA concentration from 0 to fully binding. Absorbance values were recorded after each successive addition of the solution of CT-DNA.
