Single-site and nano-confined photocatalysts designed in porous materials for environmental uses and solar fuels

Hiromi Yamashita *ab, Kohsuke Mori *abc, Yasutaka Kuwahara ab, Takashi Kamegawa ad, Meicheng Wen a, Priyanka Verma a and Michel Che *e
aDivision of Materials and Manufacturing Science, Graduate School of Engineering, Osaka University, Osaka, 565-0871, Japan. E-mail: yamashita@mat.eng.osaka-u.ac.jp; mori@mat.eng.osaka-u.ac.jp
bUnit of Elements Strategy Initiative for Catalysts & Batteries (ESICB), Kyoto University, Kyoto, 615-8245, Japan
cJST, PRESTO, 4-1-8 HonCho, Kawaguchi, Saitama, 332-0012, Japan
dNanoscience and Nanotechnology Research Center, Osaka Prefecture University, 1-2 Gakuencho, Nakaku, Sakai, Osaka 599-8570, Japan
eInstitut Universitaire de France and Laboratoire de Réactivité de Surface, Université Pierre et Marie Curie-Paris 6, CNRS-UMR 7197, Paris, France. E-mail: michel.che@upmc.fr

Received 30th April 2018

First published on 12th June 2018


Silica-based micro-, meso-, macro-porous materials offer attractive routes for designing single-site photocatalysts, supporting semiconducting nanoparticles, anchoring light-responsive metal complexes, and encapsulating metal nanoparticles to drive photochemical reactions by taking advantage of their large surface area, controllable pore channels, remarkable transparency to UV/vis and tailorable physicochemical surface characteristics. This review mainly focuses on the fascinating photocatalytic properties of silica-supported Ti catalysts from single-site catalysts to nanoparticles, their surface-chemistry engineering, such as the hydrophobic modification and synthesis of thin films, and the fabrication of nanocatalysts including morphology controlled plasmonic nanostructures with localized surface plasmon resonance. The hybridization of visible-light responsive metal complexes with porous materials for the construction of functional inorganic–organic supramolecular photocatalysts is also included. In addition, the latest progress in the application of MOFs as excellent hosts for designing photocatalytic systems is described.


image file: c8cs00341f-p1.tif

Hiromi Yamashita

Hiromi Yamashita has been a professor of Osaka University since 2004. He received his PhD degree from Kyoto University in 1987. He was an assistant professor of Tohoku University, an associate professor of Osaka Prefecture University, and an invited professor of Pierre and Marie Curie University (UPMC). He was also a visiting research fellow of Pennsylvania State University, the University of Texas at Austin, and the California Institute of Technology. His research interests include the design of single-site photocatalysts and nanostructured catalysts.

image file: c8cs00341f-p2.tif

Kohsuke Mori

Kohsuke Mori received his PhD degree from the Graduate School of Engineering Science at Osaka University under the supervision of Prof. K. Kaneda in 2003. In 2004, he joined Prof. T. Don Tilley's group at the University of California, Berkeley, as a postdoctoral fellow. He moved to the current faculty in 2005 and then became an associate professor in 2009. His current research interests focus on hybrid photocatalysts based on visible-light-responsive metal complexes, metal and alloy nanoparticle catalysts to establish clean and environmentally-friendly chemical processes, and diesel automobile catalysts.

image file: c8cs00341f-p3.tif

Yasutaka Kuwahara

Yasutaka Kuwahara received his PhD degree in engineering from Osaka University in 2011. He was a postdoctoral research fellow at the Georgia Institute of Technology, USA, in 2011. He had been a researcher at the National Institute of Advanced Industrial Science and Technology (AIST), Japan, from 2012 to 2014. Since 2014, he has been appointed as an assistant professor in Osaka University. His current research interests include the design of nanostructured catalysts with multi-functionalities utilizing porous materials and their applications to green chemical reactions and the conversion of energy and resources.

image file: c8cs00341f-p4.tif

Takashi Kamegawa

Takashi Kamegawa received his PhD degree in engineering from Osaka Prefecture University under the supervision of Prof. M. Anpo in 2008. He worked in Prof. Yamashita's group in the Graduate School of Engineering at Osaka University as an assistant professor for six years. In 2014, he was appointed as a special lecturer in the Nanoscience and Nanotechnology Research Center at Osaka Prefecture University. His current research interests are the design of nanostructured catalysts and photofunctional nanomaterials for energy and environmental applications.

image file: c8cs00341f-p5.tif

Meicheng Wen

Meicheng Wen received his PhD degree in engineering from Osaka University under the supervision of Professor Hiromi Yamashita in 2016. He was a specially appointed assistant professor in the Division of Materials and Manufacturing Science at Osaka University from 2016 to 2017. He has been an associate professor at Guangdong University of Technology, China. His research mainly focuses on the preparation of nanomaterials, and their applications in energy conversion and environmental remediation.

image file: c8cs00341f-p6.tif

Priyanka Verma

Priyanka Verma did her Bachelor and Master of Science education in India and completed PhD in engineering under the supervision of Prof. Hiromi Yamashita at Osaka University. She has been working as a specially appointed assistant professor in the Division of Materials and Manufacturing Science at Osaka University since October 2017. Her research interests focus on the design of silver-based plasmonic nanomaterials for various energy and environmental applications.

image file: c8cs00341f-p7.tif

Michel Che

Michel Che obtained his PhD in 1968 (University of Lyon). He was a postdoctoral fellow at Princeton University (1969–1971). He was appointed Professor at Université Pierre et Marie Curie-Paris 6 in 1975 and Senior Member of the Institut Universitaire de France in 1995. He was the President-Founder of EFCATS (European Federation of Catalysis Societies) and the President of IACS (International Association of Catalysis Societies) from 2000 to 2004. He has obtained awards from several countries, notably the UK (the Royal Society of Chemistry's Centenary Lectureship in 2009/2010, the Faraday Lectureship Prize and a Fellow in 2014). He pioneered a molecular approach to catalyst design by bridging the gap between homogeneous and heterogeneous catalysis through the new field of interfacial coordination chemistry.


1. Introduction

To satisfy the ever-growing energy demands and the environmental issues simultaneously, the development of green technology is of paramount importance. The extensive research and practical applications carried out in the field of photocatalysis (converting solar energy into chemical energy) are essential missions to solve the above-mentioned issues.1–6 Its mainstream is still semiconducting photocatalysts constructed from TiO2-based materials, which show high photocatalytic activity by producing a large number of excited electrons and holes under light irradiation.7–10 These photocatalysts can realize hydrogen production by water splitting, reduction fixation of carbon dioxide, complete oxidative decomposition of pollutants, and many reactions. The downsizing of such semiconducting photocatalysts into nanometer scale fine particles leads to particular intrinsic properties such as quantum size effects. Such fine semiconducting nanoparticles (NPs) exhibit extremely high photocatalytic activity, but photochemical excitation can be performed under shorter wavelength light irradiation. The ultimate small-size limit is an isolated single atom species, which makes them very promising candidates for novel photocatalysts due to the high ratio of low-coordinated metal atoms. However, isolating nanometer scale fine particles and single atom species is still difficult because of the increase of surface free energy upon decreasing the size of the particles. Thus appropriate support materials that strongly interact with nanoparticles and isolated single atom species are necessary in order to maintain their original structures and inherent properties.11

Zeolites are silica-based crystals having ordered micropores (0.5–2.0 nm),12 while mesoporous silica materials are porous frameworks having ordered mesopores (2–50 nm).13,14 These porous-silica-based materials can be employed as hosts in the design and functionalization of photocatalytic systems that provide a defined micro-molecular-environmental-field and act as transparent molecular reaction vessels because of the following advantages: (1) their structures and pore sizes can be controlled at atomic and/or molecular levels, (2) the fine connectivity of the pores facilitates the diffusion of reactants within the channels and provides ease of access to the active centers, (3) remarkable transparency in the wide UV/vis wavelength range provides a photochemically inactive surface reaction field, and (4) chemically and thermally stable frameworks with a large number of silanol groups enable functionalization with a variety of modifiers. The introduction of TiO2 into the pore spaces of zeolite or mesoporous silica materials creates nanometer scale ultrafine particles smaller than the pores in a controlled fashion, which exhibit fascinating photocatalytic activity owing to the quantum size effect. The main component of zeolites and mesoporous materials is silica (SiO2), but the addition of a metal precursor, such as Ti, V, Cr, Mo, or W atoms, as a constituent element at the synthesis stage enables the replacement of Si atoms in the frameworks of the nanoporous materials with these heteroatoms in a highly dispersed manner. The heteroatoms incorporated into the silica frameworks have an isolated tetrahedrally-coordinated structure and form a charge transfer type excited state in which excited electrons and positive holes are adjacent to each other under light irradiation.

We have focused on mononuclear photocatalytically active species in an isolated highly dispersed state on a silica substrate or incorporated into silica-based nanoporous materials (zeolite, mesoporous silica), which exhibit quite different photochemical properties from conventional semiconducting photocatalysts due to their unique photoexcited state. By utilizing the pore spaces of the nanoporous materials or the inside of the frameworks, it is also possible to integrate well-defined photo-functional metal complexes within silica matrices, which can also be included in the category “single-site photocatalysts”.1,15,16 Porous supports, such as zeolites and mesoporous silicas, having a restricted framework, pore structure and nanospaces are the most suitable materials for the design and functionalization of “single-site photocatalysts” for the following reasons: (i) their pore structure can adsorb and concentrate reactants, (ii) the capture of heteroatoms can incorporate single site photocatalysts, (iii) their large surface area can expose plenty of single-site photocatalysts to the outer surface, (iv) colorless transparency can allow the penetration of UV/vis light into the inside of pores, which indispensable for photocatalytic reactions, (v) the surface characteristics can largely be changed with only a small amount of heteroatom addition, and (vi) specified pore spaces can be remarkably influenced by the modifications of the reaction field environment.

In recent years, Metal Organic Frameworks (MOFs) have attracted much attention as new nanoporous materials.17,18 They are three dimensional microporous materials with a coordination network structure as well as large surface area far beyond activated carbon and zeolites. It is expected that they be applied to gas adsorption, separation technology, sensors, catalysts, etc. Besides these porous materials, the nano-spaces of interlayer materials, nanosheet materials, porous carbons, and organic functionalized polymers can provide unique reaction fields for nano structured photocatalysts. By fusing the features of single-site photocatalysts and nanoporous materials with controlled structure, size, and surface characteristics of pore spaces, a wide variety of advanced functional materials can also be developed. Furthermore, by utilizing a defined space precisely, it is possible to control the size and morphology of the metal NPs.19 Such a methodology is quite useful for the fabrication of size- and morphology-controlled plasmonic metal NPs, such as Au, Ag, and Cu, because they behave not only as visible-light absorbers but also as catalytically active species that induce photocatalysis directly under visible light irradiation due to their localized surface plasmon resonance (LSPR) properties.20 In this case, silica-based supports also act as inert insulators to rule out the support effect because of the difficulty in capturing the hot electrons induced by the plasmonic metal NPs, which helps in the understanding of their intrinsic plasmonic catalytic properties.

In this review, we have highlighted the progress in the design and architecture of silica-supported Ti catalysts from single-site catalysts to NPs and their modulation in terms of surface-chemistry engineering (Fig. 1). Porous silica-based materials, interlayer materials, and organic polymers can also be utilized as promising hosts for designing plasmonic nanocatalysts and integrating photo-responsive metal complexes to drive photochemical reactions for the purpose of solar-energy utilization. Additionally, the latest advances for the application of MOFs in the visible-light-enhanced H2 production from water or hydrogen carriers are summarized. This review aims to present an overview of the design and functionalization of photocatalytic systems with unique characteristics from the viewpoints of not only the support materials but also the catalytically active components with regard to environmental remediation and energy production issues.


image file: c8cs00341f-f1.tif

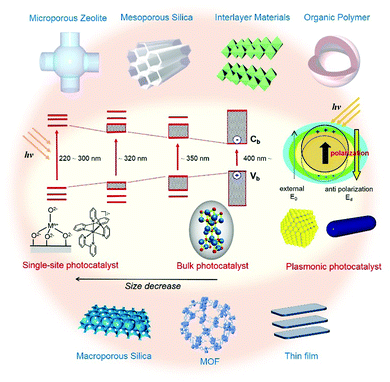

Fig. 1 Change in the band structures with decreasing size of photocatalysts and the schematic illustration of LSPR excitation on plasmonic catalysts confined within porous materials, such as zeolites, mesoporous silica, and MOFs.

2. Single-site photocatalysts implanted within silica matrices

Isolated metal oxide (Ti, V, Cr and Mo-oxide) moieties in a tetrahedral coordination geometry implanted in silica matrixes, such as microporous zeolites and mesoporous silica materials, are called “single-site photocatalysts”.1,21–24 In the case of semiconducting bulk TiO2 materials, photochemical excitation leads to charge separation in the particle. The generated holes (h+) in the valence band (vb) and the electrons (e) in the conduction band can react with electron donors and electron acceptors adsorbed on its surface, respectively. In contrast, the photocatalytic activities of single-site photocatalysts are attributed to the ligand to metal charge transfer (LMCT) processes from the oxygen (O2−) to Mn+ ions, which resulted in the formation of pairs of trapped hole centers (O) and e centers (M(n−1)+) (Fig. 2). Such a UV-light induced charge-transfer excited state generated in the single-site photocatalysts, i.e., the excited electron–hole pairs of trapped h centers and e centers that are localized in a quite short distance compared with the electrons and holes produced in semiconducting materials, exhibits unprecedented photocatalytic properties. The specific features of the single-site photocatalysts embedded in the silica matrices are reviewed in this section.
image file: c8cs00341f-f2.tif

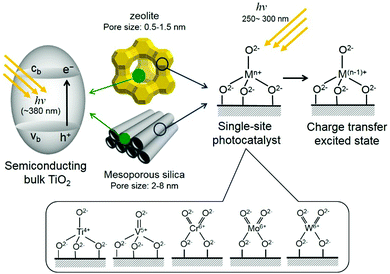

Fig. 2 Titanium oxide photocatalysts from semiconducting bulk TiO2 to isolated Ti-oxide molecular species implanted within silica matrices and the formation of a charge transfer excited state with tetrahedrally coordinated metal oxide moieties under UV-light irradiation.

2.1. Unique activity of single-site Ti-oxide photocatalysts

Single-site Ti-oxide photocatalysts can be obtained by substituting Si atoms in silica matrixes with Ti atoms (Si/Ti > 30), which are created by various anchoring techniques, such as hydrothermal synthesis, the sol–gel method, chemical vapor deposition, etc., and the isolated local structures of the single-site Ti-oxide moieties in a tetrahedral coordination geometry have been well evidenced from photoluminescence, ESR, and UV-vis spectra.25 In particular, the Ti K-edge XAFS measurement is an ideal technique to probe the chemical and structural environments of the titanium surroundings.26 Semiconducting bulk TiO2 gives rise to several well-defined preedge peaks attributable to the titanium in a symmetric octahedral environment, whereas the single-site Ti-oxide moiety exhibits an intense single preedge peak at 4967 eV corresponding to a dipole-allowed transition from the 1s to t2 molecular levels built from the 3d and 4p metal orbitals and from a neighbouring orbital.27

The TS-1 zeolite and the Ti-mesoporous silicas are active for the photocatalytic reduction of CO2 with H2O, affording CH3OH and CH4 as the main products under UV-irradiation (Fig. 3).2,28–30 Ti-MCM-48 (pore size > 2 nm, 3-dimensional channel) exhibits superior activity to TS-1 (∼0.6 nm, 3-dimensional), Ti-MCM-41 (pore size > 2 nm, 1-dimensional) and semiconducting TiO2, which is presumably due to the combined contribution of the high dispersion state of the Ti-oxide moieties and the large pore size with a 3-dimensional channel structure of MCM-48. The single-site Ti-oxide moiety exhibits photoluminescence due to the radiative decay process from the charge transfer excited state of the Ti-oxide moieties in a tetrahedral coordination geometry, (Ti3+–O)*, to their ground state upon excitation with light at around 250–280 nm.31,32 The addition of H2O or CO2 molecules leads to the quenching of the photoluminescence, suggesting that CO2 or H2O interacts and/or reacts with the Ti-oxide species in both its ground and excited states.


image file: c8cs00341f-f3.tif

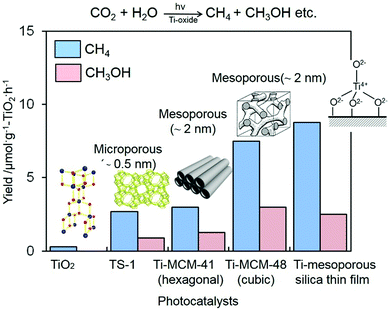

Fig. 3 The photocatalytic reduction of CO2 with H2O on various Ti-oxide photocatalysts.

The semiconducting TiO2 and the single-site Ti-oxide were found to lead to the evolution of N2, O2 and N2O with different selectivities in the presence of NO under UV-light irradiation.33,34 The single-site Ti-oxide moieties exhibited a high activity and selectivity for the predominant formation of N2, while N2O was the major product on the bulk TiO2 as well as on the catalysts with aggregated octahedrally coordinated Ti-oxide. The addition of NO onto the single-site Ti-oxide photocatalyst led to the appearance of a new ESR signal with a g value of g = 2.0015 at 77 K, attributed to the adsorbed NO species on the Ti ions. UV light irradiation of the catalyst led to a gradual linear decrease in the intensity of the ESR signal, which returned to its original level after UV light irradiation was discontinued. These changes in the ESR signal of the NO species suggest that not only do the adsorbed NO species act as reaction precursors but also the decomposition of NO proceeds photocatalytically.

2.2. Visible-light sensitive single-site photocatalysts

Single-site V, Cr, and Mo-oxide photocatalysts in a tetrahedral coordination geometry can operate as efficient photocatalysts for various reactions such as the photo-oxidation of hydrocarbons and the photoinduced metathesis of alkanes.35–37 In particular, the single-site Cr-oxide moieties implanted in mesoporous silica exhibit photocatalytic activities even under visible-light irradiation.38,39 Upon excitation at around 450 nm, the single-site Cr-oxide photocatalysts exhibit photoluminescence emission at around 550–750 nm, which are attributed to the charge transfer processes on the tetrahedrally coordinated Cr-oxide moieties having terminal Cr[double bond, length as m-dash]O as also evidenced by the XAFS and UV-vis measurements. In the case of the single-site Cr-oxide moieties implanted in mesoporous silica (Cr-HMS), the fine structures due to the vibration mode of Cr[double bond, length as m-dash]O bonding can be observed, since the energy separation between the bands for the vibronic transition in the Cr[double bond, length as m-dash]O bond is more clear rather than the single-site Cr-oxide moieties implanted in a zeolite (CrS-1) (Fig. 4). This is presumably because the open space of the mesoporous structure is suitable to keep the isolated tetrahedrally coordinated structure without the perturbation due to the neighboring surface OH groups.38 Based on such unique emission properties, Cr-HMS showed high photocatalytic activity for NO decomposition to produce N2, N2O and O2 even under visible light irradiation (λ > 450 nm), while the reaction hardly occurred in the presence of CrS-1.
image file: c8cs00341f-f4.tif

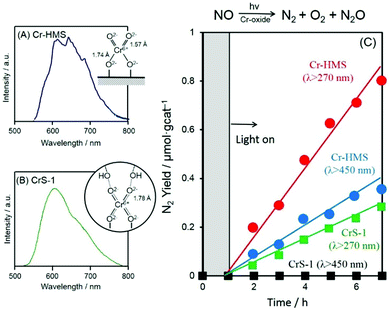

Fig. 4 Photoluminescence spectra of (A) Cr-HMS and (B) CrS-1, and (C) reaction time profiles in the photocatalytic NO decomposition on Cr-HMS and CrS-1 under UV-light and visible light irradiation.

Moreover, it is possible to create binary metal oxide moieties, such as Cr,Ti-oxides and V,Ti-oxides, implanted within mesoporous silica frameworks using the photo-assisted deposition and metal ion-implantation methods.40 For example, the metal ion-implantation with V ions was effective in shifting the absorption band of the single-site Ti-oxide moieties to longer wavelengths, which enabled the photoepoxidation of propene with molecular oxygen under visible light irradiation, while no reaction proceeded on the original single-site Ti-oxide.

2.3. Application of single-site photocatalysts

Single-site photocatalysts not only can promote photocatalytic reactions but can also be utilized to synthesize functional materials. A transparent mesoporous thin film with a single-site photocatalyst generates the hydrophilic surface even before UV-light irradiation, and further superhydrophilic properties can be observed upon UV-light irradiation.41 We have also demonstrated that the nano-sized metal and alloy nanoparticles can be photodeposited on the excited single-site photocatalyst under UV-light irradiation.42–44

As mentioned above, single-site photocatalysts with heteroatoms can generate potential active sites that exhibit the required activity and selectivity for specific reactions. However, the difficulties in recovering the small silica particles from the reaction mixture severely circumvent their industrial applications. To overcome these drawbacks, a multifunctional nanocomposite involving superparamagnetic NPs, ordered mesoporous channels, and isolated and tetrahedral Ti-oxide moieties has been developed, in which the magnetic cores are shielded by an impermeable coating and the Ti-oxide moieties are located on the external surface of the coating.45 As expected, recovery from the liquid reaction mixture was easily attained by applying an external permanent magnet, and the spent catalyst could be recycled.

A new type of core–shell structure catalyst that consisted of Pd NPs supported on a SiO2 core covered with a Ti-mesoporous shell was also developed in order to achieve one-pot oxidation reactions involving the synthesis of H2O2 from H2 and O2 gases by the Pd NPs and the subsequent oxidation reaction by the isolated Ti-oxide moiety using in situ produced H2O2.46 The optimized core–shell catalyst exhibited catalytic activity approximately 20 times higher than that of a conventional catalyst due to control of the Pd NP position, pore diameter, and thickness of the Ti-mesoporous shell by enhancement of the H2O2 utilization efficiency.47

2.4. Metal ion photocatalysts

Metal ions loaded onto the surface of silica or alumina easily aggregate, whereas the metal ions (Cu+([Ar]3d10) or Ag+([Kr]4d10)) immobilized in the zeolite pores by the ion exchange method are highly dispersed on the inner surfaces of the pores. The dispersion of the metal ions depends on the zeolite types, the Si/Al ratio of the frameworks, the number and density of the ion exchange sites in the pores, the spatial volume of the pores, and the geometrical pore structure. A highly dispersed metal ion photocatalyst in an isolated state can be prepared in the pores of ZSM-5 or Mordenite zeolites having moderate density of ion exchange sites and pore diameters.48,49

Cu+ and Ag+ ions with the d10 state immobilized in zeolite pores can be excited to the (d9s1) electronic state by UV light irradiation, as shown in eqn (1) and (2) in Fig. 5. The s electrons and d vacancies generated by photoexcitation are considered as couples of excited electrons and holes, which are localized on one atom of Cu+ and Ag+ ions. This type of excited species can show unique photocatalytic activity different from a semiconductor photocatalyst. The dispersion and coordination structures of Cu+ and Ag+ ion species depend on pore shape/size and the ion exchange site density of pores, and their photocatalytic properties also change. For example, Cu+ and Ag+ ions immobilized in the ZSM-5 pores adopt a unique linear bidentate structure, which can show high photocatalytic performance for direct decomposition of nitrogen oxide (NOx) to N2 and O2 at room temperature. In particular, the Ag+ ion photocatalyst can maintain photocatalytic activity even in the presence of oxygen and water and be applied as a catalyst for NOx decomposition and antibacterial remediation. The photocatalytic properties based on the formation of charge transfer excited species between inner shells have also been confirmed with rare earth ions (Pr3+, Eu3+, etc.) ion-exchanged in zeolite pores.


image file: c8cs00341f-f5.tif

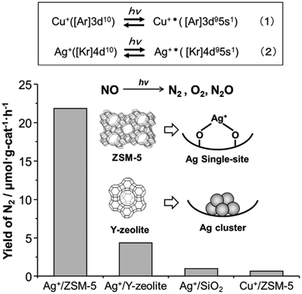

Fig. 5 Photocatalytic NO decomposition by Ag+ and Cu+ ion loaded photocatalysts.

3. Visible-light-driven supported metal complexes on solid matrices

Molecule-based photosystems in homogeneous solutions including emissive d6 or d8 metal complexes, such as Ru(II) and Pt(II), have been extensively investigated in not only selective oxidation reactions but also H2 evolution from water, because of their precise controllability of the steric and electronic properties of metal centers by the appropriate choice of organic ligand based on molecular-engineering.50–53 The integration of such metal complexes with functional solid materials is the prominent strategy that bridges the gap between homogeneous and heterogeneous systems,3,54–57 which is also responsible for unpredicted physicochemical properties as single-site photocatalysts on the solid induced by not only steric- and electrostatic effects inside the constrained void spaces, but also the unique characteristics of the host materials.

Our design strategy employs encapsulation, anchoring, ion-exchange, and intercalation techniques for the hybridization of metal complexes with rigid solid matrices, such as zeolites, mesoporous silica, organic polymers, and layered materials (Fig. 6). The use of solid matrices with special functional groups as promising macroligands for photocatalytically active centers has also led to the exploitation of unique catalytic functions, including isolation of well-defined active centers, cooperative catalysis by adjacent sites, and steric control of reaction intermediates. Thus, the solid matrices serve as promising macroligands for photocatalytically active single-atom centers.


image file: c8cs00341f-f6.tif

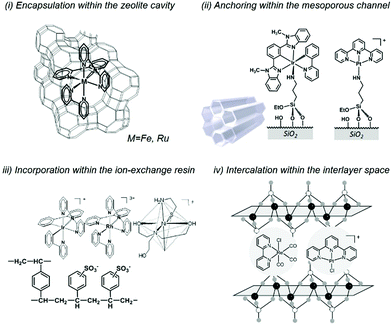

Fig. 6 Immobilization techniques of metal complexes on solid matrices.

3.1. Encapsulation within the zeolite cavity

Zeolites are promising host materials that can encapsulate a wide variety of organometallic complexes,58–60 in which the restricted pore structure often allows the stabilization of unstable reaction intermediates. Additionally, the electronic field and the volume of the space inside the zeolite supercage can be controlled by continuously varying the alkali metal cations from small Li+ to large Cs+.

In the case of zeolite Y, which belongs to the faujasite family, the diameter of the supercage is ∼1.3 nm, which enables the encapsulation of polybipyridyl complexes (∼1.2 nm), but the direct exchange through the tunnels and/or windows with a widest diameter of ∼0.74 nm cannot be realized. Thus the ship-in-a-bottle method is a strong protocol for the encapsulation of the complexes.61,62 The formation of the metal complexes within the supercage of zeolite Y was ascertained by an XRD pattern, in which the intensity of the (220) reflection was lower than that of (311). The encapsulation of Fe(bpy)32+ inside zeolite Y cages allowed the aerobic oxidation of styrene derivatives under visible-light irradiation. It is interesting to note that the turnover number (TON) based on Fe atoms gradually improved using the larger size of the alkali metal cations. This tendency is corroborated with the increasing intensity of the metal-to-ligand charge transfer (3MLCT) absorption of Fe(bpy)32+ and the decreasing electron density of the Fe centers, as determined using Fe K-edge XANES spectra. It should be noted that the intensity of the phosphorescence emission due to the excited 3MLCT state of Ru(bpy)32+ complexes encapsulated within the supercage increased upon decreasing the size of the alkali metal cations.63 This result was found to correlate with the increased TON for the aerobic oxidation of styrene derivatives under visible-light irradiation. In the Stern–Volmer equation using O2 as a quencher, a larger quenching rate constant was obtained in the presence of lighter alkali metal cations. These results suggest that the zeolite cavity can control photocatalytic activities as well as emission properties related to the electronic configuration of the excited 3MLCT state of the Ru(bpy)32+ complex.

3.2. Anchoring onto the silica surface

The high surface areas and large pore volumes of mesoporous silica materials can facilitate the introduction of large size molecules, which cannot be included in the zeolite cavity, while retaining their well-defined active structure as well as high concentration. Their surfaces can also be readily tailored to afford specific characteristics by anchoring versatile silane coupling reagents with unique functional groups.64 The anchoring of the [Ir(Mebib)(ppy)Cl] (Mebib: bis(N-methylbenzimidazolyl)pyridine, ppy: phenylpyridine) complex to mesoporous silica can be realized by the modification with (3-aminopropyl)triethoxysilane (APTES), via the formation of the new Ir–N bond. The original [Ir(Mebib)(ppy)Cl] complex in acetonitrile solution showed a strong phosphorescence emission attributable to the 3MLCT transition at 77 K, while the anchored Ir complex exhibited a high luminescence even at room temperature.65 Similarly, the anchored one enabled selective aerobic oxidation of trans-stilbene and 1-naphthol, while the reaction using the original homogeneous Ir precursor hardly occurred. It is assumed that the enhanced excitation rate and quantum efficiency of the anchored Ir complex, which originate from the reasonable suppression of the undesired deactivation processes inside the mesoporous channel, increase the energy-transfer from the excited 3MLCT to O2, leading to an increase in photooxidation activity. Additionally, the type of mesoporous silica structure also influences the photocatalytic activity, which increased in the order MCM-41 < MCM-48 < SBA-15. This tendency is well consistent with the larger quenching rate constant of SBA-15 in the Stern–Volmer equation using O2 as a quencher than those of MCM-48 and MCM-41. These results account for the larger pore diameter of SBA-15, which helps in the diffusion of O2 within the channels. Additionally, the 3D-connected channel structure of MCM-48 increases the diffusion efficiency compared to the unidirectional pore structure of MCM-41 with small diameter.

The anchoring of the [Pt(tpy)Cl]+ (tpy: terpyridine) complex can also be attained by the same method using APTES modified mesoporous silica (Fig. 7).66–68 At low Pt loadings, the Pt complex is anchored without self-interaction and exhibits emission due to 3MLCT transitions at around 530 nm. This isolated species is capable of promoting the photooxidation via energy and/or electron transfer from 3MLCT to O2 to generate potentially active oxygen species. At high loading levels, the metal–metal-to-ligand charge-transfer (3MMLCT) transition at around 620 nm is prominent because of the short Pt⋯Pt interactions with close proximity, which catalyze the H2-evolving reaction in aqueous media under visible-light irradiation. We succeeded in controlling the spatial distribution of the Pt complex in the mesoporous channel by varying the amount of Pt loading, which ultimately influences the phosphorescence emission and photocatalytic activities with predominant selectivities.


image file: c8cs00341f-f7.tif

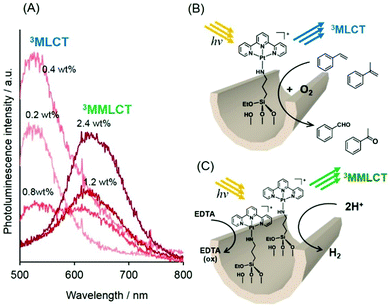

Fig. 7 (A) Photoluminescence spectra of Pt complex-anchored mesoporous silica MCM-48 with various Pt loadings at room temperature (λex = 450 nm), (B) photocatalytic oxidation of styrene derivatives in the presence of O2 at low Pt loading, and (C) H2 production from an aqueous solution.

The Ru(bpy)32+ species was anchored onto the surfaces of Ag NPs (dav = 58 nm) coated with a sufficiently thin SiO2 layer (about 3 nm), in order to demonstrate a new phenomenon that the excitation rate and quantum efficiency of the anchored Ru(bpy)32+ were boosted by the local electromagnetic field near the plasmonic Ag NPs, which increases the energy and/or electron transfer from Ru(bpy)32+ to O2, and ultimately enhances the photo-induced oxidation activity.69 Expectedly, the photoluminescence emission intensity under degassing conditions and photocatalytic activity using O2 were boosted with the assistance of LSPR, which are twice as large as those without the Ag core. The quantum yield attained by the Ru(bpy)32+ species anchored onto the surface of Ag@SiO2 was determined to be 14%, which is two times larger than that over the Ru(bpy)32+ anchored onto the surface of colloidal SiO2 without the Ag core. The thin SiO2 shell not only provides chemical inertness and transparency toward visible light absorption, but also behaves as a spacer to optimize the LSPR effect. More significantly, the colloidal catalyst could be completely recovered without the leaching of active components and retained its original activity, demonstrating that the photooxidation proceeded on the Ru complex on the Ag@SiO2 surface, but not with the detached one.

3.3. Incorporation within the macroreticular resin

The unique characteristics inside the macroreticular domains of the organic polymers, including moderate surface areas, and acidic/basic and hydrophilic/hydrophobic properties, are very attractive for the design of heterogeneous catalysts. It is further expected that the introduction of appropriate surface functional groups in the vicinity of catalytically active centers exerts a beneficial impact on their performances.70

Direct ion-exchange of bis-(2-phenylpyridine)-(2,2′-bipyridine)iridium(III) ([Ir(ppy)2(bpy)]+) as a photosensitizer and [Rh(bpy)3]3+ as a H2 evolution catalyst has been accomplished with an acidic polymer possessing –SO3 groups.71 A photoluminescence quenching experiment evidenced that both complexes are located in a short separation and the occurrence of electron transfer from Ir to Rh, which enabled H2 evolution as a heterogeneous catalyst under visible-light irradiation in the absence of an electron mediator.

Numerous uses of precious metals, such as Pt, Rh, and Ir, have evoked widespread interest in the possibility for the use of abundant and inexpensive metal complexes consisting of Fe, Co, and Ni.72 The introduction of Ni(NiL2)2Cl2 (L = β-mercaptoethylamine) into an acidic polymer possessing –SO3 groups creates a monomeric Ni species in octahedral coordination ligated by a mercaptoethylamine and H2O, which further transformed into a real catalytically active Ni(II) species surrounded by β-mercaptoethylamine and triethanol amine (TEOA) ligands during the induction period of the H2 production under visible-light irradiation using Eosin Y as a photosensitizer and TEOA as a sacrificial reagent.73 It should be noted that the catalytic activity was superior to that of the homogeneous precursor by a factor of 5, because the functional polymer matrix offers a unique reaction field that allows the reasonable transformation of the active center, which cannot be attained by the homogeneous counterparts.

3.4. Intercalation within the interlayer space of layered materials

The utilization of the two dimensional interlayer space of inorganic layered materials with structurally rigid and well-defined arrangements is another strategy to construct organic–inorganic hybrid materials via the intercalation of metal complexes. K4Nb6O17 is accepted as one of the essential classes of layered materials, in which K+ ions within the interlayer space between two anionic sheets are exchangeable with methyl viologen,74 porphyrin,75 and [Ru(bpy)3]2+.76 Unlike the free Pt complex in solution, the intercalation of [Pt(tpy)Cl]+ exhibits strong emission from an excited 3MMLCT state originating from short Pt⋯Pt separation and behaves as a bifunctional heterogeneous photocatalyst enabling visible-light sensitization as well as H2 evolution from water in a single-component with high reusability.77 The intercalation of two components, visible-light responsive Ir(III) and proton reduction catalyst Rh(III) complexes, also succeeded in affording a new type of heterogeneous photocatalyst whose activity was higher than those of the homogeneous counterparts by a factor of about 2.78

Zirconium phosphate (Zr(HPO4)2·H2O, α-ZrP) also allows intercalation via the strong electrostatic interaction between the exchangeable proton and the guest molecules with positive charge. The visible-light-driven photocatalytic CO2 conversion system was constructed by the intercalation of Re(bpy)(CO)3Cl combined with Rhodamine B (RhB) as a photosensitizer and TEOA as a sacrificial reagent.79 Additionally, this hybrid catalyst showed outstanding durability and was recycled several times without any loss of activity, presumably because of the trapping of the unstable Re complex within the restricted interlayer space. Moreover, leaching and agglomeration of the active metal species were not observed for all photocatalytic systems, and the recovered photocatalyst can be reused without significant deterioration in their catalytic activity.

4. TiO2-Loaded porous silicate materials

Since the discovery by Honda and Fujishima, titanium dioxide (TiO2) has extensively been investigated as a promising photocatalyst capable of decomposing organic compounds into CO2 and H2O under environmentally-benign conditions using ultraviolet (UV) light as an energy source.7,80 Owing to its inherent chemical stability, suitable band gap energy for photo-induced redox reactions, low cost for production, and low toxicity, the photocatalysis of TiO2 has been regarded as a key technology to solve environmental problems, including water/air purification, sterilization, antibacterial coating and antifouling, while applications in solar energy conversion, energy storage and green chemical synthesis have been attracting tremendous attention as well.81

The heterogeneous photocatalysis of TiO2 provides multiple chemical events on its surface;82,83 under UV light irradiation, the wettability of a TiO2 surface drastically changes, which is responsible for the photo-induced self-cleaning effect of TiO2. The photo-excited electrons and holes in TiO2 react with the surrounding O2 and H2O molecules on its surface to produce superoxide anions (˙O2) and hydroxyl radicals (˙OH), respectively. These radical species can react with the surrounding organic reactants to completely mineralize them into CO2 and H2O. Practical engineering applications of TiO2 photocatalysts require fixation on inorganic support materials or blending with binder materials to facilitate the catalyst recovery. Previous studies have reported on TiO2 photocatalytic systems supported using mechanically and chemically stable oxides, including silica and alumina,84 and sorbents such as clays as support materials.85 However, the resulting photocatalytic activities have been commonly reported to be less active than the corresponding TiO2 alone, because the combination with support materials often leads to a reduced crystallinity of TiO2 particles. According to previous research studies, we have found that the utilization of porous silicate materials as supports for TiO2 photocatalysts can create more efficient photo-catalytic systems.4,86 Porous silicate materials with interesting and tunable nano-architectures periodically aligned in the nanoscale can offer large surface areas, adsorption and condensation properties towards guest molecules, and transparency to UV and visible light, which can serve as suitable nano-reactors for the design of heterogeneous photocatalytic systems. We have recently designed various types of TiO2-loaded porous silicate materials with diverse surface functionalities, which not only facilitate the recovery of catalysts but also improve the photocatalytic efficiency of TiO2 due to their enhanced adsorption properties towards organic compounds diluted in water and air. The following section summarizes our recent findings on the utilization of porous silicate materials as supports in the development of high performance TiO2-based photocatalysts.

4.1. TiO2–Zeolite composite photocatalysts

Zeolites are microporous aluminosilicate materials formed by the crosslinkage of SiO44− and AlO45− tetrahedral units. The general formula is expressed as Mm[AlmSinO2(m+n)xH2O, where M is an exchangeable cation (H+, Na+, K+, Ca2+, Mg2+, etc.) electrostatically trapped at the tetrahedral aluminium sites in the extra framework for charge compensation. Large surface areas derived from the micropore channel systems as well as the electrostatically polarized cation-exchange sites are responsible for the strong adsorption properties of zeolites toward small organic reactants. In a primitive study, we examined the photocatalytic activities of TiO2–zeolite composites in the photocatalytic degradation of 2-propanol diluted in water under UV light irradiation (Fig. 8).
image file: c8cs00341f-f8.tif

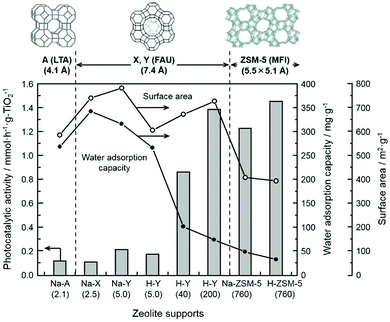

Fig. 8 Comparison of the photocatalytic activities of TiO2 photocatalysts supported on various types of zeolites and their water adsorption capacities and surface areas. The photocatalytic activities were determined by the photocatalytic degradation of 2-propanol diluted in water under UV-light irradiation. Reproduced from ref. 86 with permission from The Royal Society of Chemistry.

Various types of zeolites accommodating 10 wt% of TiO2 particles were prepared by the conventional wet impregnation method using titanium ammonium oxalate ((NH4)2[TiO(C2O4)2]) dissolved in water as a titanium precursor, followed by calcination at 550 °C in air. The photocatalytic activities (normalized by the mass of TiO2 in the catalyst) were found to be highly dependent on the SiO2/Al2O3 ratio of the zeolite framework, while their topologies and surface areas did not provide any clear correlations.86 In particular, TiO2 particles supported on high-silica zeolites, such as HY(200) and ZSM-5(760), showed superior photocatalytic activities to TiO2 alone or TiO2 particles supported on conventional oxide supports. The observed activity trend was found to be associated with the adsorption behavior of water molecules; Al-rich zeolites having inherently high water adsorption capacities, such as NaA(2.1), NaY(2.5) and HY(5.0), exhibited lower photocatalytic activities, while high-silica zeolites with lower water adsorption capacities, such as HY(40), HY(200) and ZSM-5(760), commonly provided higher photocatalytic activities. This result demonstrates that the hydrophobicity of the zeolite surface dominates the photocatalytic activity in such TiO2–zeolite composite photocatalytic systems working in an aqueous medium, rather than other structural factors. Since water is a highly polarized molecule, an Al-rich hydrophilic surface allows a preferential adsorption of water, which interrupts the adsorption of organic reactants, hence resulting in a decreased catalytic activity. On the other hand, a Si-rich hydrophobic surface allows an adsorption of organic reactants, facilitates the transportation to active TiO2 sites, and thus leads to an effective photocatalytic degradation.

4.1.1. Dealumination of zeolite supports. Dealumination is one of the widely-accepted techniques to improve the surface hydrophobicity of a zeolite, by which the Al atoms are expelled from the zeolite framework, while the framework structure remains unchanged. A highly hydrophobic FAU zeolite was prepared without any significant loss of crystallinity and sorption capacity by an easy two-step preparation method, which consists of predealumination treatment using strong protonic acids (e.g. HNO3, HCl) and the subsequent calcination treatment at elevated temperature (∼1000 °C).87 The thermogravimetric, IR, and 29Si NMR analyses confirmed that the high hydrophobicity of the Y-zeolite can be achieved by the post-synthetic dealumination treatment due to the formation of a refined silica surface having fewer Al and silanol sites. As expected, when the thus-prepared hydrophobic Y zeolite was utilized as a support for TiO2, the photocatalytic degradation rates were significantly improved both in aqueous- and in gaseous phase reactions because of its improved hydrophobic nature. Such a TiO2-loaded hydrophobic zeolite photocatalyst was further extendable to the selective oxidation of olefins in an organic medium. We demonstrated that TiO2 confined in a hydrophobic zeolite could afford a higher catalytic activity in the epoxidation of olefins in the presence of molecular O2 as an oxidant under UV light, and outperforms TiO2 confined in untreated hydrophilic zeolites.88
4.1.2. Effect of Ti precursors. In the design of TiO2–zeolite composite photocatalysts, the Ti precursor also strongly affects the characteristics of a TiO2 photocatalyst in terms of its crystallinity and light absorption properties, which play important roles in determining the final photocatalytic activity. For instance, two different TiO2 precursors, titanium ammonium oxalate (AO: (NH4)2[TiO(C2O4)2]) and ammonium hexafluorotitanate (AF: (NH4)2[TiF6]), show clear differences.89,90 TiO2 photocatalysts supported on a commercially available hydrophobic Y-zeolite (SiO2/Al2O3 = 810) were prepared using these Ti precursors (denoted AO-TiO2/Y and AF-TiO2/Y, respectively). Hydrofluoric acid gas evolved during the thermal decomposition of AF to TiO2 in air can react with the surface hydroxyl groups on the Y-zeolite, which leads to the formation of fluorinated groups. FT-IR investigations clearly show the decreases of the surface hydroxyl group density on the Y-zeolite. The amount of water adsorbed on AF-TiO2/Y was one-third less than that on AO-TiO2/Y in a low relative pressure region (P/P0 ≒ 0.2) in the water adsorption isotherm, indicating a more hydrophobic nature of the AF-TiO2/Y surface. Furthermore, AF-TiO2/Y shows visible light absorption in the region from 400 to 500 nm, thus giving a yellow coloration, whereas AO-TiO2/Y is a simple white powder, indicating that nitrogen and fluorine atoms derived from AF are doped into TiO2 crystals during the thermal decomposition, thus extending the light absorption to the visible light region. With these improved functionalities, AF-TiO2/Y showed a superior photocatalytic performance to AO-TiO2/Y in the degradation of 2-propanol as a model contaminant in water and air under both UV and visible light (λ > 420 nm) irradiation conditions, in which a good relationship was observed between the adsorption capacities toward 2-propanol and the observed photocatalytic activities. Thus, the fluorine-containing Ti precursor was found to be effective in enhancing the photocatalytic characteristics of the TiO2–zeolite composite.

4.2. TiO2–Mesoporous silica composite photocatalysts

The channel size of zeolites is intrinsically narrow (less than 2 nm); therefore, the adsorption and mass transfer of large organic compounds within zeolite crystals are significantly limited. Mesoporous silicas having meso-size pores with 2–50 nm size can provide more extended catalytic opportunities as host materials. A number of research studies have been reported on the post-modification of mesoporous silica to improve the hydrophobicity of its surface. The overwhelming majority of the methods is the surface modification using organosilane coupling agents containing hydrophobic alkane functional groups (e.g. methyl, propyl, octyl, phenyl, etc.). For example, Inumaru et al. demonstrated that the n-octyl-grafted TiO2/MCM-41 decomposed 4-nonylphenol polyethoxylate (NEPO), an endocrine disrupter, diluted in water under UV light irradiation, and outperformed commercial TiO2 under identical reaction conditions.91 The improved photocatalytic activity was attributed to the hydrophobic nano-spaces, which enabled selective adsorption/condensation of low-concentration NEPO molecules from water. Thus, the adsorption and enrichment of organic pollutants on the catalyst surface play critical roles in achieving a high catalytic efficiency.

Surface-chemistry engineering to improve the adsorption/enrichment of organic pollutants on the catalyst surface is key to constructing efficient TiO2/mesoporous silica photocatalytic systems (Fig. 9).92 To this end, we developed an alternative method to modify a silica surface using a fluorine-containing silane coupling agent, triethoxyfluorosilane (TEFS).93,94Fig. 10(A) schematically illustrates the surface modification of a TiO2/mesoporous silica photocatalyst with TEFS, in which the thermally stable Si–F bond is covalently anchored on the silica surface. Grafting an optimal amount of TEFS onto HMS-type mesoporous silica (pore diameter of ∼2–3 nm) was found to be effective in dramatically decreasing the water adsorption capacity, by reducing the silanol group density on the silica surface, without any significant loss of the original porous structure (Fig. 10(B)). With UV light irradiation, TiO2 on TEFS-modified HMS (named TiO2/FS-HMS) exhibited a dramatically improved adsorption ability and photocatalytic activity toward some organic pollutants (e.g. 2-propanol, phenol) diluted in water compared to that supported on pristine HMS silica (Fig. 10(C)). The obtained catalytic activity exceeded that of commercial TiO2 photocatalyst powder (Evonik, P25®) under the same reaction conditions. The photocatalytic activities corresponded well to the adsorbed amounts of organic molecules, evidencing that the hydrophobic nature of the silica support plays a critical role in determining the final photocatalytic degradation rate, i.e. hydrophobic pores with less affinity with water molecules allow adsorption of organic reactants and give them easy access to the TiO2 active sites, resulting in a higher photocatalytic efficiency.


image file: c8cs00341f-f9.tif

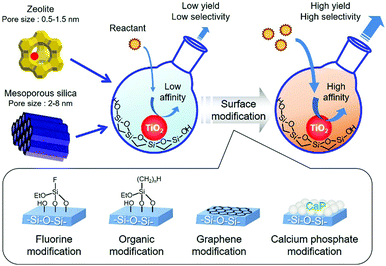

Fig. 9 Schematic illustration of the surface-chemistry engineering of the TiO2/silica composite photocatalyst.

image file: c8cs00341f-f10.tif

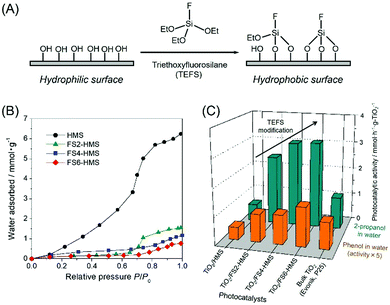

Fig. 10 (A) Schematic illustration of the surface modification of a silica surface with triethoxyfluorosilane (TEFS) as a silylation agent. (B) Water adsorption isotherms of TEFS-modified HMS silicas measured at 25 °C. (C) Comparison of the photocatalytic activities of TiO2 photocatalysts supported on TEFS-modified HMS silicas and commercial TiO2 (Evonik, P25®) in the photocatalytic degradation of 2-propanol in water (2.6 mmol L−1) and phenol diluted in water (0.23 mmol L−1) under UV-light irradiation. Adapted from ref. 94 with permission from American Chemical Society.

4.3. TiO2 photocatalysts supported on CaP-modified silica

We also developed an alternative surface-engineering method of mesoporous silica in order to construct a photocatalytic degradation system effective for the specific target organic compounds in water. Calcium phosphate (CaP) mineral was chosen as a modifier, since cationic Ca2+ ions and anionic PO43− ions are expected to provide strong interactions between specific organic molecules, and calcium phosphates, exemplified by hydroxyapatite (Ca10(PO4)6(OH)2), are known to show strong affinity toward protein molecules.95–97 Incorporation of CaP into a TiO2-loaded SBA-15 silica (TiO2/SBA-15) surface was achieved by a facile sol–gel process, in which ethanolic solutions containing calcium nitrate tetrahydrate (Ca(NO3)2·4H2O) and phosphoric pentoxide (P2O5) were used as Ca and P precursors, respectively, and the Ca/P molar ratio was adjusted to ∼1.67.98 TEM showed mesopore channels typical of SBA-15, which were clearly observed over a large domain, and no aggregated particles were present after CaP modification, indicating that the SBA-15 silica surface was uniformly covered by CaP. The absorption capacities and photocatalytic activities of the samples were examined using methylene blue (MB), a cationic dye molecule often found in textile synthetic wastewater, as a model contaminant in water. An increased MB uptake was achieved on a CaP-modified TiO2/SBA-15 composite after the modification of SBA-15 silica with CaP (Fig. 11(A)), suggesting that MB with positively charged nitrogen-alkyl groups could be easily enriched on the surface of CaP–SBA-15 with abundant PO43− groups through electrostatic interactions. Under UV light irradiation, CaP-modified TiO2/SBA-15 exhibited an improved photocatalytic performance in the degradation of MB compared with the unmodified analogue. A moderate adsorption affinity toward MS allows adsorption/diffusion of MB in the mesopore spaces of SBA-15, leading to the enrichment of MB around the TiO2 particles. This close proximity between the reactants and photocatalytically active sites is likely key to improving the photocatalytic degradation efficiency (Fig. 11(B)).
image file: c8cs00341f-f11.tif

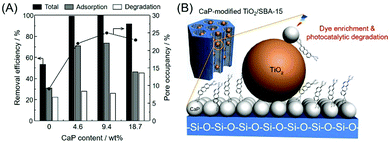

Fig. 11 (A) Removal efficiency of MB by adsorption, photocatalytic degradation, and sum of them (total) on TiO2/SBA-15 hybrid photocatalysts modified with different amounts of CaP (0–18.7 wt%) and (B) schematic illustration of the adsorption and photocatalytic degradation kinetics of MB dye on CaP-coated TiO2/SBA-15. Adapted from ref. 98 with permission from American Chemical Society.

4.4. Carbon coating of TiO2 photocatalysts supported on mesoporous silica

We also carried out the selective and direct modification of a TiO2 surface loaded onto MCM-41 mesoporous silica (TiO2/MCM-41) by graphene synthesis. Carbon materials often exhibit hydrophobicity and show good affinity toward organic molecules.99–101 In recent years, nanostructured carbon materials (e.g. carbon nanotubes, graphene) have been widely investigated due to their unique functions. In this case, we modified the surface of TiO2 with graphene, via the formation of surface complexes between TiO2 and 2,3-dihydroxynaphthalene (DN) followed by carbonization in an inert gas atmosphere (Fig. 12(A)), utilizing the specific reaction between the TiO2 surface and the hydroxyl groups of aromatic molecules (e.g. phenol, catechol and salicylic acid). This dehydration reaction selectively occurs on the surface of TiO2, enabling the selective coating of the TiO2 surface with graphene.102–105 A clear color change was observed after the formation of a surface complex, and the successive carbonization under an inert atmosphere at relatively high temperature caused a successful transformation into graphene, which was confirmed by Raman spectroscopy.106 As the graphene content in the samples increased, a decrease in the water adsorption capacity was observed, and accordingly an increase in the 2-propanol adsorption capacity was observed, demonstrating an improved surface hydrophobicity by graphene modification (Fig. 12(B)). In the photocatalytic degradation of 2-propanol in water, the sample with a suitable amount of graphene content exhibited a higher photocatalytic performance compared to that of the original TiO2/MCM-41. A moderate amount of graphene modification was found to be effective for the enhancement of the photocatalytic performance of TiO2/MCM-41 (Fig. 12(B)), since modification of an excess amount of graphene interrupts incident light and limits the diffusion of reactant molecules, which rather have adverse effects on the photocatalytic performance.
image file: c8cs00341f-f12.tif

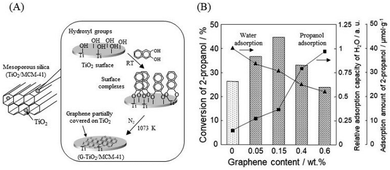

Fig. 12 (A) Schematic diagram of the procedures in the selective graphene modification of the TiO2 surface supported on MCM-41 and (B) effect of the contents of graphene on the photocatalytic activities for the degradation of 2-propanol (reaction time: 6 h), and water and 2-propanol adsorption capacities. Reproduced from ref. 106 with permission from American Chemical Society.

4.5. TiO2–Macroporous/mesoporous silica composite photocatalysts

Nano-spaces in zeolite and mesoporous silica materials with pore diameters less than 50 nm have extensively used for the design of catalytic and photocatalytic materials. However, the role of macroporous silicate materials having larger nano-spaces (greater than 50 nm) as hosts has rarely been investigated. Three-dimensionally ordered macroporous (3DOM) structures in SiO2, Al2O3 and other inorganic oxides can be designed using a hard template.107–112 Spherical polymers such as polystyrene (PS) and poly(methyl methacrylate) (PMMA) are utilized as hard templates, which are easily removed from the products by simple calcination in air, and thus inverse structures reflecting the periodic structure of aligned polymer particles can be obtained. We have reported a synthesis of porous silica materials with hierarchical macroporous and mesoporous architectures (MacroMeso-SiO2) for utilization as supports of TiO2 photocatalysts.113 MacroMeso-SiO2 was successfully prepared by the combined use of a typical precursor solution for the synthesis of mesoporous silica containing cationic surfactants (Meso-SiO2) and close-packed PMMA particles (Fig. 13(A)). Macroporous silica (Macro-SiO2) was also synthesized via the same procedures without use of the former surfactant solution. Hierarchical macroporous and ordered mesoporous architectures were retained even after loading TiO2 onto these porous silicas by the conventional impregnation method. A FE-SEM image of TiO2/MacroMeso-SiO2 clearly showed the presence of interconnecting macroporous networks (Fig. 13(B)). The neighboring macropores were connected by three round holes shown as black dots on the inside wall of each macropore in the FE-SEM image. The walls separating two neighboring macropores (thickness: ∼50 nm) consist of ordered mesoporous structures. The macropores of TiO2/MacroMeso-SiO2 uniformly segmentalized the structure of TiO2/Meso-SiO2, which leads to the formation of an increased number of mesopore entrances and shortening of the mesoporous channel length. Fig. 13(C and D) shows the adsorption profiles and photocatalytic decolorization rates of methylene blue (MB) on TiO2/MacroMeso-SiO2, TiO2/Meso-SiO2, TiO2/Macro-SiO2 and bulk TiO2 (P25) as a reference. TiO2/MacroMeso-SiO2 showed a relatively large adsorption capacity of MB, whereas the surface area and pore volume were less than half of those of TiO2/Meso-SiO2 and TiO2/Macro-SiO2. In the series of samples examined, TiO2/MacroMeso-SiO2 showed a superior adsorption capability and a higher photocatalytic decolorization activity for MB in water, in which a strong correlation was observed between the adsorption capacities and apparent rate constants. Thus, the combination of hierarchical macroporous and mesoporous architectures in a support can offer the TiO2 photocatalyst a superior adsorption capability to condense organic compounds and photocatalytic performance effective for water purification.
image file: c8cs00341f-f13.tif

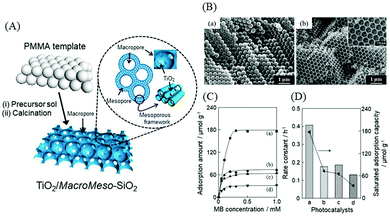

Fig. 13 (A) Schematic diagram of the procedures for the synthesis of TiO2/MacroMeso-SiO2, (B) FE-SEM images of (a) PMMA particles and (b) TiO2/MacroMeso-SiO2, (C) adsorption isotherms of MB and (D) relationship between the rate constants of the photocatalytic decolourization of MB and saturated adsorption capacities for MB diluted in water with different photocatalysts ((a) TiO2/MacroMeso-SiO2; (b) TiO2/Meso-SiO2; (c) TiO2/Macro-SiO2; and (d) TiO2 (P25)). Reproduced from ref. 113 with permission from The Royal Society of Chemistry.

4.6. Core–shell/yolk–shell TiO2–SiO2 composite photocatalysts

4.6.1. Core–shell TiO2/silica photocatalysts. Thanks to the progress of colloid chemistry, a number of synthetic approaches to fabricate porous silicate materials with tunable nanoarchitecture, controlled composition, and multifunctionalities by changing the preparation procedures have recently been reported.114 An example to improve the photocatalytic performance of TiO2 is the direct coating of TiO2 particles with a flexible mesoporous SiO2 layer, which results in the formation of a core–shell TiO2@SiO2 structure.115,116 Integration of individual functions in the TiO2 core and the mesoporous SiO2 shell is expected to offer advanced and synergistic functions. We prepared a core–shell type TiO2/mesoporous SiO2 photocatalyst (TiO2@MS) through a mesoporous SiO2 (MS) coating process of spherical TiO2 particles.117 FE-SEM and TEM images clearly show that the spherical TiO2 (core) was uniformly covered by the MS layer (shell). The homogeneity in particle size was also observed in the dynamic light scattering (DLS) measurement. Since the zeta-potential of SiO2 is more negative compared to that of TiO2 in a wide pH region, the point of zero charge (pzc) decreases from ∼5.6 in spherical TiO2 to ∼3.4 in TiO2@MS. Therefore, TiO2@MS exhibits good affinity toward cationic dye (e.g. methylene blue (MB)) in water compared to the original TiO2. In the photocatalytic degradation of MB in water, TiO2@MS exhibited a much higher decolorization rate than uncoated spherical TiO2 and bulk TiO2 (ST-01), demonstrating that the MS layer in the outer shell region of TiO2@MS serves as a good adsorbent to accumulate MB near the active TiO2 surface.
4.6.2. Yolk–shell TiO2@hollow silica photocatalysts. Hollow-structured silica can be a viable support for a TiO2 photocatalyst. The so-called yolk–shell nanostructured catalyst composed of a catalytically-active core material and an outer porous silica shell is an emerging class of material. The outer shell layer works as molecular sieves to improve the adsorption properties and as a physical barrier to protect the core material from external environments. Furthermore, the core materials encapsulated within the shell can keep their surface “free”, thereby allowing them to retain their inherent catalytic activities.118–121 For example, Ikeda et al. synthesized a rattle-like TiO2@SiO2 composite, containing TiO2 nanoparticles inside the hollow silica, by a layer-by-layer fabrication technique.122–124 They demonstrated that the composite showed a photocatalytic performance comparable to or even better than naked TiO2, due to the existence of the void space between the core (TiO2) and the shell (SiO2), which keeps the surface of TiO2 free and allows diffusion of small reactant molecules to the TiO2. Yang et al. developed a method to synthesize TiO2 particles encapsulated in hollow silicas using poly(methacrylic acid) (PMAA) as an organic template.125 Wu et al. fabricated a similar yolk–shell TiO2@SiO2 composite by utilizing two kinds of polyelectrolytes with different electric charges as templates.126 However, most of the techniques require complex multiple preparation steps to achieve ideal TiO2@SiO2 configurations and severe control of synthetic conditions to create porous silica shells.

Recently, we reported an alternative facile method to prepare TiO2 nanoparticles encapsulated in hollow silica spheres (TiO2@HSS) using an oil-in-water (O/W) microemulsion as an organic template.127,128 FE-SEM and TEM images revealed that TiO2 nanoparticles (Evonik, P25®) are successfully encapsulated within the hollow silica spheres with a particle size of ∼160 nm and a shell thickness of ∼20 nm (Fig. 14(A)). The resulting yolk–shell nanostructured TiO2@SiO2 composite exhibited both improved adsorption properties and catalytic efficiency in the photocatalytic decomposition of VOCs (acetaldehyde and 2-propanol), which markedly exceeded those of unprotected TiO2. Reaction profiles and comparative studies revealed that this is attributed to the ability of the porous silica shell to adsorb/enrich small VOC molecules inside of the void space and efficient transportation to the adjacent active TiO2 core material (Fig. 14(B)).


image file: c8cs00341f-f14.tif

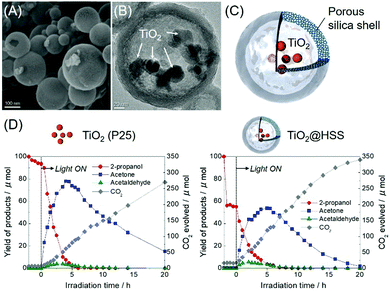

Fig. 14 (A) FE-SEM and (B) TEM images and (C) illustration of a TiO2@HSS composite photocatalyst. (D) Reaction kinetics in the photocatalytic degradation of 2-propanol in air over (left) commercial TiO2 (Evonik, P25®) and (right) the TiO2@HSS composite photocatalyst under UV light irradiation. Reproduced from ref. 127 with permission from John Wiley and Sons.

Furthermore, the protective porous silica shell endowed this material with molecular-sieving properties, indicating the possibility for the combined use with organic support materials such as organic binders, polymer films, and organic fibers. We combined TiO2@HSS particles with a cellulose fiber (CF) to fabricate composite papers with photocatalytic functionality and high durability even under UV-light irradiation (Fig. 15).129 The fabrication of the composite papers was performed via physical adhesion process using a dual polymer system. The fabricated TiO2@HSS/paper provided a high photocatalytic activity in the degradation of VOCs diluted in air similar to or even higher than sole TiO2@HSS particles because of the reticular fiber network and high air permeability of the paper. The paper support was hardly degraded by TiO2 photocatalysis, while retaining its tensile strength even after long-term UV light irradiation, which was due to the ability of the silica shell as a physical barrier to prevent direct contact between CFs and TiO2 particles. Thus the fabricated photocatalytically active paper is easy to handle and shows higher photocatalytic performances in the degradation of VOCs compared with the bare TiO2 particles, making it as a promising candidate for real application in air cleaning.


image file: c8cs00341f-f15.tif

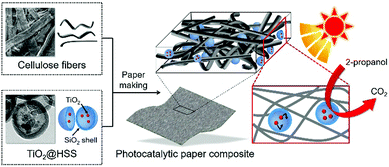

Fig. 15 Schematic illustration for the fabrication protocol of a photocatalytic paper composite consisting of cellulose fibers and TiO2@HSS photocatalyst particles. Reproduced from ref. 129 with permission from American Chemical Society.

5. Thin film photocatalysts

Coating technologies are able to control the surface wettability of materials. Two states in a solid surface, i.e., hydrophilic state and hydrophobic state, are often categorized according to the behavior of the water droplet. The hydrophilic state shows a water contact angle (θ) less than 90°. Materials with hydrophilic surfaces easily get wet by water. In particular, a water droplet rapidly and uniformly spreads on a superhydrophilic surface (θ: less than 5°). Antifogging mirrors, glasses and outward walls of buildings are commercialized using hydrophilic coating technologies.80,130 Meanwhile, the hydrophobic state shows a water contact angle greater than 90°. Materials with hydrophobic surfaces repel water droplets. In particular, the water droplet has a spherical shape on the superhydrophobic surface (θ: larger than 150°). Waterproof, antifogging, the effect of a decrease in surface friction and accretion of ice and snow are realized as specific functions by utilization of the hydrophobic coating technologies.131–134 The following section summarizes our recent studies about the coating technologies for the design of superhydrophilic and superhydrophobic thin films.

5.1. TiO2 thin films for superhydrophilic coatings

TiO2 is well-known as an efficient photocatalyst for environmental remediation and energy related issues.80,135,136 After the discovery of the photoinduced superhydrophilicity of a TiO2 surface in 1997, many researchers have focused on TiO2 as a multifunctional material for superhydrophilic coatings with photocatalytic self-cleaning properties.80,137,138 The oily dirt is easily removable due to the photocatalytic properties of TiO2. The sol–gel method, chemical vapor deposition (CVD) and sputtering deposition are mainly used for TiO2 coatings.139–143 The architectures of the TiO2 surface are important in relation to noticeable phenomena such as photoinduced hydrophilicity and photocatalytic self-cleaning properties. In this regard, we carried out the design of TiO2 thin films with a macroporous structure on a quartz substrate (m-TiO2/Q) by a combination of the sol–gel technique and the template strategy (Fig. 16).143,144
image file: c8cs00341f-f16.tif

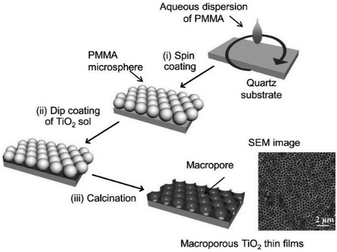

Fig. 16 A schematic diagram of the procedures for the preparation of macroporous TiO2 thin films. Reproduced from ref. 143 with permission from The Royal Society of Chemistry.

Pre-coated poly(methyl methacrylate) (PMMA) microspheres on a quartz substrate were used as a hard template for the construction of a macroporous structure, which was easily removable by heat treatment or solvent extraction. For comparative studies, TiO2 thin films were also directly prepared on a quartz substrate (TiO2/Q) using the same precursor sol. The positive effect of the macroporous structure on the surface wettability changes and photocatalytic performance in the degradation of volatile organic compounds (VOCs) was clearly observed in m-TiO2/Q. After a short period of UV light irradiation, the water contact angle on m-TiO2/Q became lower than 5°. The rougher surfaces of the TiO2 thin films exhibit a faster change from the hydrophobic to hydrophilic state under UV light irradiation.145 The macroporous structure in m-TiO2/Q induced a quick change in surface wettability. When kept in the dark after UV light irradiation, m-TiO2/Q shows a slow recovery of water contact angles compared to that on TiO2/Q. The surface wettability gradually changed from the superhydrophilic state to its original state in the dark. A good durability of the hydrophilic surface in the dark was also achieved by the construction of a macroporous structure. Moreover, in the degradation of acetaldehyde in air, m-TiO2/Q showed higher photocatalytic performance than TiO2/Q.143 The macroporous structure in m-TiO2/Q was also quite effective for the improvement of the self-cleaning properties and maintaining a clean environment.

5.2. Porous silica thin films for superhydrophilic coatings

Isolated tetrahedrally coordinated transition metal species can be designed within the matrixes of porous siliceous materials.146,147 Porous silica thin films have been prepared by wet chemical processes such as spin-coating and dip-coating methods.23,148,149 Controlling the chemical composition of the precursor solution, isolated tetrahedrally coordinated transition metal species are successfully incorporated within the porous silica framework. We carried out the design of tetrahedral Ti-containing mesoporous silica thin films (TiMSF) on a quartz glass substrate via a spin-coating method.21,150–154 The TiMSF shows unique surface wettability in water contact angle measurements. The water contact angles on the pure mesoporous silica thin films (MSF) were 20–30° (Fig. 17). Incorporation of Ti-species within silica matrixes realized surface wettability changes. The water contact angle on the TiMSF was smaller than 10°. Compared to the surface wettability of TiO2 thin films, the TiMSF has a relatively hydrophilic surface even before UV light irradiation. The TiMSF showed changes in surface wettability to a highly hydrophilic state after UV light irradiation. This behavior is similar to the property of bulk TiO2 thin films. The surface wettability of the MSF scarcely changed under UV light irradiation. The tetrahedral Ti species in a mesoporous silica matrix play a significant role in the improvement of hydrophilic properties. The differences in the architectures directly influence the surface properties of the TiMSF. The combination of macroporous and mesoporous structures as well as the roles of tetrahedral Ti-species led to a significant improvement of surface hydrophilicity compared to that on the TiMSF.155 Moreover, the incorporation of the other kinds of transition metal oxide species (e.g. V, Cr, Mo, W, etc.) instead of tetrahedral Ti-species was effective for the improvement of the surface hydrophilicity of the MSF.21,151,156,157 Among of them, a tetrahedral Cr-containing mesoporous silica thin films (CrMSF) showed superhydrophilicity even after visible light irradiation, which had possibilities for application in indoor uses.27,29,34 The water contact angle on the tetrahedral W-containing mesoporous silica thin film (WMSF) was ∼3°, and changed to almost 0° after UV light irradiation. The WMSF showed the highest hydrophilic properties among the evaluated samples and exhibited a long durability of the superhydrophilic state in the dark.157
image file: c8cs00341f-f17.tif

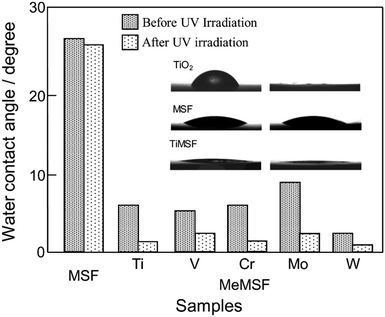

Fig. 17 Contact angles of water droplets on a MSF and tetrahedral transition metal (Me)-containing MSF (MeMSF, Me = Ti, V, Cr, Mo, and W) before and after UV light irradiation. The inset shows photographic images of the water droplet on each sample before and after UV light irradiation (irradiation time: 3 h). Reproduced from ref. 158 with permission from The Elsevier B.V.

5.3. Nanocomposite materials for superhydrophobic coatings

5.3.1. Superhydrophobic surfaces designed by the catalysis of coated materials. Nanocomposite coatings are effective tools for superhydrophobic coatings on various materials. Controlling the chemical compositions for lowering the surface energies and geometric structures of solid surfaces in a micro- or nano-scale is indispensable for the design of artificial hydrophobic surfaces.156,159–162 Composite coatings of carbon materials, fluorine-containing polymers and other desired materials are widely investigated by many researchers for the design of superhydrophobic surfaces.163–166 In this regard, we carried out the design of superhydrophobic surfaces by uses of catalytic properties in coated materials. The surface modification by polyethylene (PE) synthesis was realized by the photocatalytic polymerization of ethylene.167 In this case, tetrahedral Cr-containing colloidal silica nanoparticles (Cr/SNPs) were used as a coating material of the quartz substrate. Cr/SNPs had two roles in the formation of surface roughness and photocatalyst for surface modification (Fig. 18). Photocatalytic activity for the polymerization of ethylene on tetrahedral Cr-species was reported under UV and visible light irradiation.151,157,168 Before UV light irradiation, the Cr/SNP-coated quartz substrate showed hydrophilicity. After surface PE modification through the photocatalytic ethylene polymerization, the water contact angle reached ∼162°. These thin films have a high transparency and sufficient superhydrophobic properties.
image file: c8cs00341f-f18.tif

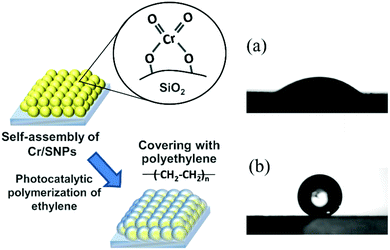

Fig. 18 Schematic image of Cr/SNP-coated glass and photographic images of the water droplet before (a) and after (b) the photocatalytic polymerization of ethylene. Reproduced from ref. 167 with permission from The Royal Society of Chemistry.

Moreover, the surface modification with carbon nanotubes (CNTs) was also performed on tetrahedral Ti-containing mesoporous silica thin films (TiMSF) with a Co–Mo catalyst.169 The highly dispersed Co–Mo catalyst was successfully deposited on the TiMSF under microwave irradiation (500 W; 2450 MHz). The Co–Mo catalyst was not uniformly formed on the MSF without the incorporation of Ti-species and by conventional thermal heating, indicating that Ti-species play important roles in anchoring the Co–Mo catalyst.170 The Co–Mo catalyst on the TiMSF was used for CNT synthesis by the decomposition of alcohol vapor at elevated temperature. The water contact angle reached 165° after surface modification with CNTs, which showed a good superhydrophobic property.

5.3.2. Superhydrophobic surfaces with photocatalytic self-cleaning properties. In recent years, the design of superhydrophobic surfaces with additional functions is investigated by many researchers. External stimuli, i.e., light, temperature, pH and others, induce reversible switching of surface wettability.171–177 TiO2 is an external stimulus sensitive material and promising for superhydrophilic coatings with self-cleaning properties. However, the combination of hydrophobic materials and TiO2 has not yet received a full investigation. Due to their inherent properties, combination of hydrophobic materials and TiO2 is not so easy. In this regard, we found that the nanocomposite coating of TiO2 and polytetrafluoroethylene (PTFE) prepared by a radiofrequency-magnetron sputtering (RF-MS) deposition provides a superior hydrophobicity with a photocatalytic self-cleaning effect.178–180 The TiO2 and PTFE composite film was prepared on a quartz and structured Ti substrate (TiO2–PTFE/Ti). Each component was uniformly accumulated on the structured Ti substrate without large geometric changes. The water contact angle was below 120° on the flat samples such as TiO2–PTFE composites and PTFE film surfaces. TiO2–PTFE/Ti fulfilled the definition of a superhydrophobic surface (Fig. 19). The water contact angle reached ∼157° on TiO2–PTFE/Ti. Under UV light irradiation, the TiO2 surface was gradually hydrophilized and finally achieved a superhydrophilic state. However, TiO2–PTFE/Ti maintained the superhydrophobic state even after UV light irradiation. The chemical composition plays important roles in this system. The two domains mixed in the nanoscale possess the hydrophilic and hydrophobic natures, which maintained the good water-repellent properties of TiO2–PTFE/Ti. The surface wettability change was observed in the TiO2 rich composite of TiO2–PTFE under the same conditions. In practical uses, the performance of hydrophobic coatings gradually decreases by adhesion of oily dirt. The water repellent properties easily disappeared and did not recover without the maintenance process by washing. Oily dirt can be easily removed by the photocatalytic self-cleaning effect of TiO2. The self-cleaning properties of TiO2–PTFE/Ti were confirmed by the decomposition of oleic acid as a model contaminant (Fig. 19). After adhesion of oleic acid, the water contact angle immediately changed to around 65°. By the photocatalytic decomposition of oleic acid and the effect of photoinduced surface hydrophilicity, the water contact angle on TiO2 changed to almost 0° after UV light irradiation. The superhydrophobicity of PTFE/Ti hardly recovered without washing with an organic solvent. TiO2–PTFE/Ti showed unique response and gradual increases in the water contact angle to its original superhydrophobic state. The photocatalytic self-cleaning properties of the TiO2 domain showed sufficient performance for the removal of oleic acid. Nanocomposites of TiO2 and PTFE realized a use of photocatalytic self-cleaning properties on superhydrophobic surfaces. The simultaneous use of self-cleaning properties as an additional function is useful for maintaining a clean surface.
image file: c8cs00341f-f19.tif
Fig. 19 (A) Water contact angle changes and (B) photographic images of the water droplet on each sample by adhesion of oleic acid and following UV light irradiation ((a) TiO2/Ti, (b) PTFE/Ti, and (c) TiO2-PTFE/Ti). Reproduced from ref. 178 with permission from John Wiley and Sons.

6. Ag-Based plasmonic catalysts confined within mesoporous silica

The efficient light absorption by noble metal NPs in the visible region of the solar spectrum recently became very popular due to their high absorption intensity.181 The absorption intensity can be easily tuned by modifying their size, morphology and composition. This branch of photocatalysis, popularly known as plasmonic photocatalysis, has seen tremendous growth in the sustainable development of energy and the environment.182,183 Over the past two decades, plasmonics grew out of the extensive research in the frame of nanotechnology in diverse areas of electronics, photocatalysis, photovoltaics, biosensing and artificial photosynthesis.20,184–186 Noble metal NPs (e.g., silver and gold), immobilized on a suitable support material, can be excited by light absorption to drive chemical reactions on its surface. Over the past few years, Ag has attracted significant attention to be used as a plasmonic photocatalyst due to its low cost and distinctively strong absorption in the visible spectrum of solar light irradiation.187 Numerous reports have been published focusing on the direct plasmonic catalysis by Ag NPs, supported on insulator support materials, due to their enhanced photocatalytic quantum efficiency.188 Among the insulating solid supports, hexagonal mesoporous silica SBA-15 acts as a promising platform for NPs to couple the incident light energy on the surfaces of plasmonic metal NPs because of its optical transparency in the visible light region. In this section, the synthetic strategy, characterization and properties of Ag-based plasmonic nanocatalysts utilized for efficient catalytic reactions under visible light irradiation conditions are summarized (Fig. 20).
image file: c8cs00341f-f20.tif

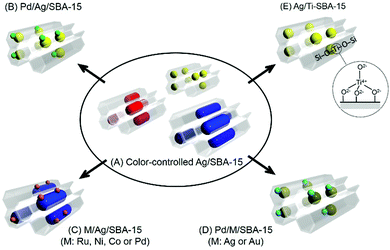

Fig. 20 Schematic outline of the plasmonic catalysts prepared with confined mesopores.

6.1. Color-controlled Ag-based plasmonic catalysts

We have synthesized the size- and morphology-controlled Ag plasmonic NPs supported on mesoporous silica SBA-15 by a new method in which the color of the Ag NPs can be altered by changing the irradiation times of microwave (MW) heating.19,189 The support material SBA-15 mesoporous silica has a regular one-dimensional and hexagonally ordered structure. Three types of Ag NPs were prepared within the confined mesopores of SBA-15 by a MW-assisted alcohol reduction method upon varying the irradiation time from 3 to 5 min in the presence or absence of a surface modifying agent, i.e. sodium laurate (Lau) CH3(CH2)10COONa. A spherical yellow colored Ag catalyst, denoted Ag/SBA-15 (Y), was synthesized by preparing a suspension of silica in 1-hexanol, an aqueous AgNO3 solution and Lau followed by MW heating of 3 min under an Ar atmosphere. Red Ag/SBA-15 (R) and blue Ag/SBA-15 (B) catalysts were synthesized using a similar procedure in the absence of a surfactant with MW heating times of 3 and 5 min, respectively (Fig. 20A).

As can be seen from the TEM micrographs (Fig. 21(a–c)), nanosized Ag NPs were successfully deposited within the well-ordered mesoporous channel structure of SBA-15. The mean diameter of the yellow NPs, and the aspect ratios of the red and blue nanorods were found to be 4 nm, 2.8 nm and 6.1 nm, respectively. The optical absorption of the three different NPs showed the characteristic plasmonic absorption peak at 400 nm, and an additional peak centered at λ = 1200 nm was observed for Ag/SBA-15 (B). The two absorption peaks for Ag/SBA-15 (R) and Ag/SBA-15 (B) in the visible and infrared regions were assigned to the transverse (perpendicular) and longitudinal (parallel) modes of the Ag nanorods, respectively.


image file: c8cs00341f-f21.tif

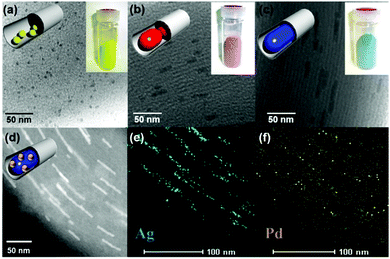

Fig. 21 TEM micrographs of size and color controlled Ag and Pd/Ag NPs: (a) Ag/SBA-15 (Y), (b) Ag/SBA-15 (R), (c) Ag/SBA-15 (B), and (d) Pd/Ag/SBA-15 (B), and (e and f) elemental mapping of Ag and Pd in Pd/Ag/SBA-15 (B).

The effects of the size and color of Ag NPs were investigated in their catalytic performance ability in the H2 production from ammonia borane (NH3BH3 + 2H2O → NH4+ + BO2 + 3H2).190,191 The smallest yellow NPs were the most efficient followed by red and then blue. Upon visible light irradiation (λ > 420 nm, 320 mW cm−2), all Ag NPs showed enhanced catalytic performances owing to the LSPR effect, which increased in the following order: yellow (29%) < red (66%) < blue (124%). The light originating from the Xe lamp contains not only visible light but also a part of infrared light. So, it can be suspected that the enhancement of catalytic activity can be due to the thermal effect arising from infrared light. It was observed that the overall temperature of the reaction solution increased by 5 °C under light irradiation conditions in the case of Ag/SBA-15 (B), due to its wide LSPR absorption arising from the longitudinal mode of the nanorods. We carried out the thermal reaction at 30 °C under dark conditions, in order to elucidate the effect of thermal heating. The observed catalytic activity was found to be slightly higher than the measured activity under dark conditions but significantly lower than that measured under light irradiation conditions, which confirmed the negligible contribution of temperature to the enhanced catalytic activity. Moreover, the recovered plasmonic Ag catalysts retained their original unique structures and colors even after the reaction, as confirmed by TEM and UV-vis spectra.

6.2. Bimetallic M/Ag-based plasmonic photocatalysts

Noble metal incorporating bimetallic nanostructures are capturing more attention in diverse areas, due to their better catalytic, optical, electrical and magnetic properties than monometallic nanostructures. A detailed study can indicate the significance of the relative concentration and the shapes of the metallic components. In order to improve the optical properties, catalytic activity and selectivity, the decoration of Pd NPs on the surfaces of size- and color-controlled plasmonic Ag NPs was carried out by a simple LSPR-assisted deposition method under visible light irradiation conditions (Fig. 20B and C).192 The catalysts are named Pd/Ag/SBA-15 (Y), Pd/Ag/SBA-15 (R) and Pd/Ag/SBA-15 (B). Fig. 21(d–f) displays the HR-TEM images and elemental mapping of uniformly deposited Pd NPs on the surfaces of the Ag nanorods for Pd/Ag/SBA-15 (B).

These bimetallic NPs showed higher catalytic activities and significant enhancement effects when tested for the AB dehydrogenation reaction in the dark and under light irradiation conditions. A similar trend to those of monometallic nanostructures was observed under visible light irradiation. The wavelength dependences of the catalytic performances over Ag/SBA-15 and Pd/Ag/SBA-15 using monochromatic light (λ = 400, 460, 650 nm) were also explored. The increased catalytic performances were found to be in accordance with the LSPR absorption intensities of the Ag NPs, suggesting the key role of particle color in increasing the catalytic activity.

The Pd/Ag bimetallic plasmonic catalyst was also found to display an enhanced catalytic activity in the Suzuki–Miyaura coupling reaction under visible light irradiation. The above work was extended to study the effects of plasmonic Au and Pd/Au nanostructures and compare their absorption and catalytic activities with Ag and Pd/Ag nanocatalysts (Fig. 20D).193 The LSPR absorption peaks of the Ag, Pd/Ag and Au, Pd/Au supported catalysts exhibited characteristic absorption at approximately 400 and 520 nm, respectively. We were able to design and synthesize spherical nanosized Pd/Ag and Pd/Au nanostructures with average particle sizes of 4.2 and 4.9 nm, respectively. Pd/Au exhibited significant superior catalytic activity in the Suzuki–Miyaura coupling reaction, while Pd/Ag was found to be active in the AB dehydrogenation reaction. A plausible mechanism of the plasmonic catalysis under light irradiation conditions is proposed, in which the electron transfer from the plasmonic metal to active Pd and then to the adsorbed reactant molecules enhances bond weakening and/or cleavage. Several bimetallic combinations of catalytically active metals like Pd, Co, Ni, Ru, etc., with Ag NPs were explored in order to design visible light sensitive plasmonic nanocatalysts.194,195 The bimetallic combination with Ag NPs depends on the work function values of the active metal, which enables the lower positioning of Fermi energy level of active metal than that of Ag. This enables the effective charge transfer pathway from Ag to M under visible light irradiation conditions. These bimetallic plasmonic systems of catalysts depicted excellent catalytic performance and visible-light enhancements in the hydrogen production from AB and nitrophenol reduction using AB as an in situ source of H2.

6.3. Ag plasmonic photocatalysts with the assistance of single-site photocatalysts

In another strategy, a Ag-based plasmonic catalyst supported on mesoporous silica was designed with isolated and tetrahedrally coordinated single-site Ti-oxide moieties, namely, Ag/Ti-SBA-15, with the purpose of utilizing the broad spectral range of solar energy.196 A sharp plasmonic peak at 410 nm characteristic of LSPR absorption with an average particle size of 3.2 nm was observed for Ag/Ti-SBA-15 (Fig. 20E). In the Ag K-edge FT-EXAFS spectra, a main peak due to the contiguous Ag–Ag bond in the metallic state was observed at 2.4 Å. XPS analysis also confirmed the metallic nature of Ag. Also, the peaks observed at binding energies (BE) of 375.2 eV (3d3/2) and 369.3 eV (3d5/2) in Ag/SBA-15 exhibited a shift towards lower values upon incorporation of Ti-oxide and TiO2 moieties. This shift confirms the possible interactions of Ti-oxide and Ag via an electron-transfer process from Ti-oxide moieties to Ag to create electron-rich Ag species, ultimately assisting in enhancing the reaction rate. Fig. 22(a) illustrates the formation of trapped hole (Ti3+) and electron (O) centers in the charge transfer excited state upon UV light irradiation in the Ti-oxide moieties. The heterojunction between Ag and Ti-oxide moieties allows both UV and visible light irradiation to be exploited by possible charge transfer from the excited Ti-oxide moieties to the plasmonic Ag nanostructures and further to the antibonding molecular orbitals of the adsorbed reactant species. With an optimum doping of 0.5 mol% of Ti-oxide species within the mesoporous silica framework, the reaction rate for AB dehydrogenation was found to be 3.3 μmol−1, which was almost six times higher than that of Ag/TiO2/SBA-15 and two times than that of the Ag/SBA-15 catalyst without Ti species, as summarized in Fig. 22(b). The superior catalytic activities can be explained due to the unique synergistic interaction and effective charge relay of visible light sensitive plasmonic Ag NPs with UV-active Ti-oxide species.
image file: c8cs00341f-f22.tif

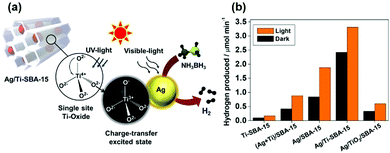

Fig. 22 (a) Schematic illustration of a light induced charge transfer pathway on the surface of the Ag/Ti-SBA-15 catalyst under UV-vis light irradiation. (b) Reaction rates for all catalysts in the AB dehydrogenation at room temperature in the dark and under light irradiation conditions.

The efficient use of solar energy in chemical reactions by employing plasmonic photocatalysis undoubtedly represents one of the foremost techniques in order to develop and design new catalytic materials for sustainable development. It depends mainly on the material used and on its physical properties such as its size, morphology, work function, plasmonic band, hot carrier lifetime and energy distribution. To be able to tailor and fine-tune all properties is a systematic task which requires advanced synthetic methodologies and fabrication techniques. We hope that future studies will help in the better understanding of the effects arising from LSPR and on the enhancement of photocatalysis from fundamental and technical perspectives.197–199

7. MOF-Based photocatalysts

Metal organic frameworks (MOFs), a new class of synthetic porous materials with high crystallinity, are composed of inorganic parts as connecting centers and organic parts as linkers.200–202 The inorganic part is a metal–oxygen cluster formed by the transition metal cations coordinated with the oxygen of the organic part, and the organic part is normally based on multi-dentate organic molecules with two carboxylic functional groups or electron-rich binding sites.202,203 MOFs have been demonstrated as a promising platform for the design and architecture of novel photocatalysts by taking advantage of their significant chemical diversity and structural regularity.204 Indeed, an increasing number of recent research studies have demonstrated that MOFs are emerging as a new class of photocatalysts employed in a wide range of photocatalytic applications including hydrogen (H2) production from water, CO2 reduction, organic pollutant degradation, heavy metal reduction and organic transformation reactions.201,205,206 The modular nature of MOF synthesis as well as tailorable nature allows us to rationally design and engineer the multifunctional catalytic sites in the MOF at the molecular level. In this section, the design approaches and post-modification strategies for MOF-based photocatalysts are introduced with an emphasis on engineering the catalytically active sites. According to the reported results, methodologies to design MOF photocatalysts can be simply divided into 5 branches.

7.1. MOF semiconductors

The integration of quantum sized-inorganic clusters and light responsive organic ligands endows MOFs with semiconducting properties. As is well known that most semiconductors are composed of transition metal cations coordinated with oxygen. In the case of MOFs, not only is the quantum sized-inorganic cluster light responsive, but also the organic linker is light responsive. Photocatalytic reactions can be easily realized by converting solar energy to chemical energy on this hybrid material under light irradiation. Taking MOF-5 (Zn oxide cluster linked by 1,4-benzenedicarbolylate) as an example,207 the generation and migration of reactive charges on MOF-5 in the microsecond were observed under light irradiation, suggesting the semiconducting properties of MOF-5. The semiconducting properties of MOF-5 are further confirmed by the photocatalytic phenol degradation. NH2-MIL-125(Ti) is also used as a photocatalyst in the hydrogen production from water and conversion of CO2 to formate under visible light irradiation in the presence of sacrificial reagents.208,209

7.2. Organometallic compounds incorporated into MOFs

Organometallic compounds are a class of highly effective photocatalysts,51,52 but their photocatalytic applications are significantly limited due to their low stability and unrecoverable properties.210,211 MOFs are highly crystallized solid materials offering an ideal platform for the heterogenization of homogeneous organometallic compounds.206,212 In the case of the in situ synthetic method, organometallic compounds are introduced into the MOF synthetic precursor as ligands to link the metal oxide clusters.212,213 On the other hand, the post-modification strategy employs multi-dentate organic molecules with dicarboxylic groups as organic linkers, in which the dicarboxylic group coordinates with metal cations to form MOFs with free binding sites for anchoring active sites.214,215 Additionally, anchoring functional groups within the frameworks of MOFs for post-chelating active sites and post-synthetic exchange of the organic linker with organometallic compounds has also been developed to synthesize novel MOF photocatalysts.216 Lin and co-workers reported Re-complex, Ru-complex and Ir-complex derived MOFs as single-site photocatalysts for CO2 reduction and water oxidation.205 More recently, a proton reduction photocatalyst is synthesized by chelating Pt on MOF-253 (oxophilic Al3+ coordinated with 2,2′-bipyridine-5,5′-dicarboxylic linker) for H2 production under visible light.206

7.3. Organic dye-sensitized MOF photocatalysts

So far, tens of thousands of MOFs have been developed; however, most of them display limited visible light absorption capacity and poor photocatalytic performance.208 In order to increase the visible light adsorption capacity and enhance the photocatalytic performance, much effort has been devoted towards developing dye sensitized MOFs for photocatalytic application.217 The metal oxide clusters in MOFs are typically composed of transition metal oxides that can be considered as semiconductor quantum dots. Employing suitable dye to sensitize these quantum dots is widely studied recently with the aim of enhancing the photocatalytic performance under visible light irradiation, particularly in water splitting.218–220 Organic dye sensitized MOF photocatalysts can be obtained by the impregnation method or introducing MOFs into organic dye solution.218,221

Our group constructed a novel H2 production system using Pt NP supported MOFs as photocatalysts, Rhodamine B (RhB) as a photosensitizer and triethanolamine as an electron donor. Considerable H2 is generated on Pt/MOFs, which is much higher than that of Pt/TiO2 and Pt/SiO2, and this H2 production system exhibits remarkable stability; this can be repeated for five cycles without any decrease in catalytic activity. Such high catalytic performance towards H2 production is due to the synergistic effect between Pt/MOFs and organic dyes. Fig. 23 explains the possible reaction mechanism. The photogenerated electrons are first excited from the HOMO state to the LUMO state of RhB based on visible light irradiation; the excited electrons are subsequently injected into the LUMO state of the MOF and further transferred to the metal oxide clusters of the MOFs, and then finally gathered on the surfaces of the Pt NPs. Protons carried by water react with excited electrons to produce H2 on the surfaces of the Pt NPs and metal oxide clusters. In addition, the organic linker is also capable of harvesting visible light and leads to the generation of photo-electrons, which can be used to reduce protons. In this study, MOFs play vital roles in protecting RhB from self-degradation, preventing Pt NP aggregation, offering significant electron transportation pathways, and facilitating the proton diffusion. This work definitely shows the enormous potential of dye sensitized MOF photocatalysts for various photocatalytic reactions.


image file: c8cs00341f-f23.tif

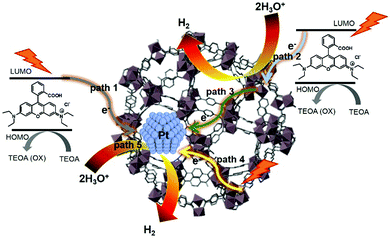

Fig. 23 Pt nanoparticle embedded MOFs as photocatalysts for H2 production in the presence of Rhodamine B as a photosensitizer.

7.4. Semiconductor/plasmonic material loaded MOF photocatalysts

The integration of semiconductor/plasmonic materials and MOFs has attracted significant attention.222,223 The large surface area can prevent the aggregation of semiconductor/plasmonic materials, and facilitate reagent diffusion and migration. The semiconducting properties of the MOFs can promote the transportation of photogenerated charges, leading to enhanced photocatalytic performance.224

Recently, our group reported the synthesis of plasmonic Au@Pd loaded onto titanium-doped zirconium based amine-functionalized MOFs (UiO-66(TixZr100−x)) (denoted Au@Pd/MOFs) by photocatalytically depositing Pd on the surfaces of Au nanoparticles.225 In this regard, MOFs display a vital role in the formation of Au@Pd NPs with a core–shell structure. Au@Pd with a core–shell structure is successfully synthesized and highly dispersed on the surfaces of the MOFs as observed by HAADF-STEM and EDX-line scanning (Fig. 24(a)). This is due to the large surfaces of the MOFs preventing the aggregation of metal NPs and semiconducting properties transferring the photogenerated charges to the surfaces of the Au NPs. The as prepared Au@Pd/MOF photocatalysts can strongly adsorb visible light over a wide range due to the LSPR effect of Au and the chromophore on the linker of the MOFs. The H2 amount generated by formic acid dehydrogenation over Au@Pd/MOFs is significantly increased under visible light irradiation compared to that under dark conditions (Fig. 24(b)). The enhanced activity of Au@Pd/UiO-66(Zr85Ti15) can be assigned to the synergistic effect between the MOFs and plasmonic Au@Pd NPs in the dissociation of the O–H bond and the C–H bond of formic acid. The visible-light enhanced H2 production rate of this hybrid photocatalyst is 42[thin space (1/6-em)]000 mL h−1 g−1(Pd), corresponding to a TOF of 200 h−1, and it can be recycled three times with a slight decrease in catalytic activity, suggesting considerable stability in FA dehydrogenation. We used monochromatic light (λ = 400 nm or 480 nm) and an LED lamp (λ = 530 nm) as a light source to investigate the synergistic effect between plasmonic Au@Pd nanoparticles and photoactive MOFs. It was found that the largest enhancement was observed using monochromatic light (λ = 400 nm). This can be explained by a linker-to-cluster charge-transfer mechanism (LCCT), in which the incident light (λ = 400 nm) is absorbed by the organic linker, and photo-excited electrons are transferred from the linker to the cluster. In the case of Au@Pd nanoparticle loaded MOFs, the photo-excited electrons are finally gathered on the surface of Au@Pd metal, which leads to the generation of electron rich Au@Pd NPs. A considerable enhancement was also observed under LED lamp (λ = 530 nm) irradiation. This can be ascribed to the positive LSPR effect of Au upon increasing the electron density of Pd. It was proven that the electron rich Pd can greatly promote the dissociation of the C–H bond as evidenced by a kinetic isotope effect (KIE) study. The KIE study also suggested that the weakly basic –NH2 groups within the frameworks of the MOFs have positive effects on the O–H bond cleavage. Therefore, the rate-determining step (C–H bond dissociation) and O–H bond dissociation are, respectively, promoted by the electron rich Pd generated by light irradiated on MOFs and plasmonic Au@Pd NPs and weakly basic –NH2. The roles of weakly basic –NH2, the LSPR effect, and optical responsive MOFs in improving H2 production from formic acid are illustrated in Fig. 24(c). This study suggests that MOFs can serve as a platform to design a novel photocatalyst by combining with other catalytic active compounds for various catalytic reactions under light irradiation.


image file: c8cs00341f-f24.tif

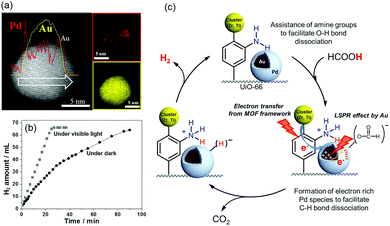

Fig. 24 (a) High-magnification EDX spectra of Pd and Au for an individual Au@Pd nanoparticle and cross-sectional EDX line profile on a single Au@Pd core–shell nanoparticle. (b) Amount of H2 produced in the FA dehydrogenation in the dark and under visible light irradiation (λ > 420 nm). (c) The illustration of a possible reaction mechanism for the visible light enhanced H2 production from FA dehydrogenation over Au@Pd/UiO-66(Zr85Ti15) upon visible light irradiation.

7.5. Metal nanoparticles supported on MOFs

MOFs hold great potential to improve the intrinsic catalytic activity of metal NPs for versatile redox reactions. Our group reported the synthesis of a Ce ion doped metal–organic framework (Ce-MOF) for significantly promoting the catalytic activity of Pd.226 In this study, a mediator was introduced within the nodes of MOFs with the aim of promoting the photo-generated charge separation by a recycling (Ce4+/Ce3+) redox, resulting in reduction of the photo-generated electron–hole recombination rate. Indeed, the intrinsic catalytic activity of H2 production from ammonia borane is enhanced on Ce doped MOFs under visible light irradiation. We also propose a general way to enhance the catalytic activity using non-noble metal NPs supported on MOFs.227 The TOFs of Cu, Co and Ni/MOFs are comparable to or even higher than those of noble metal NPs already reported for AB hydrolysis. These studies provide a novel pathway for the design of new photocatalysts enabling efficient conversion of solar energy to chemical energy for promoting the metal NP driven redox reaction.

The study of the application of MOFs in photocatalysis has a bright future due to their unique structure; MOFs offer a way towards the development of advanced photocatalysts for solar energy conversion and environmental remediation. However, there are still some problems to be solved. First, MOFs are known to be unstable during the photocatalytic application. The coordination bonds between the metal oxide cluster and organic linker are weak, leading to poor stability of the MOFs. The development of stable MOFs is urgently required. Second, it is difficult to perform a high-throughput synthesis on a large scale. The common solvothermal methods is not effective for MOF fabrication on a large scale and with low cost. Looking for the cheap starting materials and the feasibility of fabrication methods with high yield should be explored. Finally, the photocatalytic performance of MOFs needs to be further improved in the case of practical application.

8. Summary

In this review, we introduced the concept of photocatalyst-based functional materials prepared by utilizing the empty spaces of porous materials. The photocatalysts in the pore spaces are greatly influenced by a subtle change in the coordination structure and the reaction field environment (hydrophilicity/hydrophobicity, electrostatic fields, etc.) in the vicinity of the active species, and they can exhibit unique activity and selectivity different from conventional semiconducting photocatalysts. The combination of pore spaces and photocatalysts can be applied not only to catalytic materials but also to hydrophilic/water repellent coatings. With light or microwave irradiation, it is also possible to synthesize plasmonic nanometals and alloys, which can be further extended to composite materials designed for environmental uses and solar fuel harvesting. There is still great potential for nanoporous space materials with various structures and synthesis methods. New nanoporous materials having unprecedented compositions, frameworks, structures and sizes like MOFs are also actively developed. Research studies on novel functional photocatalysts having intrinsic features will be expanded, by combining the features of photocatalysts and porous materials skilfully to construct composite materials applicable to environmental purification and energy conversion.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The present work was supported by Grants-in-Aid for Scientific Research (No. 26220911, 25289289, 26630409, and 26620194) from the Japan Society for the Promotion of Science (JSPS) and MEXT. HY, KM and YK thank the MEXT program “Elements Strategy Initiative to Form Core Research Centers”.

Notes and references

  1. H. Yamashita and K. Mori, Chem. Lett., 2007, 36, 348–353 CrossRef.
  2. K. Mori, H. Yamashita and M. Anpo, RSC Adv., 2012, 2, 3165–3172 RSC.
  3. K. Mori and H. Yamashita, Chem. – Eur. J., 2016, 22, 11122–11137 CrossRef PubMed.
  4. X. Qian, K. Fuku, Y. Kuwahara, T. Kamegawa, K. Mori and H. Yamashita, ChemSusChem, 2014, 7, 1528–1536 CrossRef PubMed.
  5. M. Wen, K. Mori, Y. Kuwahara, T. C. An and H. Yamashita, Appl. Catal., B, 2017, 218, 555–569 CrossRef.
  6. H. Cheng, K. Fuku, Y. Kuwahara, K. Mori and H. Yamashita, J. Mater. Chem. A, 2015, 3, 5244–5258 Search PubMed.
  7. A. Fujishima and K. Honda, Nature, 1972, 238, 37–38 CrossRef PubMed.
  8. A. Kudo and Y. Miseki, Chem. Soc. Rev., 2009, 38, 253–278 RSC.
  9. R. Eisenberg, Science, 2009, 324, 44–45 CrossRef PubMed.
  10. T. Maschmeyer and M. Che, Angew. Chem., Int. Ed., 2010, 49, 1536–1539 CrossRef PubMed.
  11. J. F. Lambert and M. Che, J. Mol. Catal. A: Chem., 2000, 162, 5–18 CrossRef.
  12. A. Corma, J. Catal., 2003, 216, 298–312 CrossRef.
  13. Y. Wan and D. Zhao, Chem. Rev., 2007, 107, 2821–2860 CrossRef PubMed.
  14. K. S. W. Sing, D. H. Everett, R. A. W. Haul, L. Moscou, R. A. Pierotti, J. Rouquerol and T. Siemieniewska, Pure Appl. Chem., 1985, 57, 603–619 CrossRef.
  15. M. Che, K. Mori and H. Yamashita, Proc. R. Soc. A, 2012, 468, 2113–2128 CrossRef.
  16. X. Wei, K.-X. Wang, X.-X. Guo and J.-S. Chen, Proc. R. Soc. A, 2012, 468, 2099–2112 CrossRef.
  17. J. Lee, O. K. Farha, J. Roberts, K. A. Scheidt, S. T. Nguyen and J. T. Hupp, Chem. Soc. Rev., 2009, 38, 1450–1459 RSC.
  18. T. R. Cook, Y.-R. Zheng and P. J. Stang, Chem. Rev., 2013, 113, 734–777 CrossRef PubMed.
  19. K. Fuku, R. Hayashi, S. Takakura, T. Kamegawa, K. Mori and H. Yamashita, Angew. Chem., Int. Ed., 2013, 52, 7446–7450 CrossRef PubMed.
  20. W. Hou and S. B. Cronin, Adv. Funct. Mater., 2013, 23, 1612–1619 CrossRef.
  21. H. Yamashita, K. Mori, S. Shironita and Y. Horiuchi, Catal. Surv. Asia, 2008, 12, 88–100 CrossRef.
  22. H. Yamashita and M. Anpo, Catal. Surv. Asia, 2004, 8, 35–45 CrossRef.
  23. H. Yamashita and M. Anpo, Curr. Opin. Solid State Mater. Sci., 2003, 7, 471–481 CrossRef.
  24. M. Anpo and J. M. Thomas, Chem. Commun., 2006, 3273–3278 RSC.
  25. H. Yamashita, S. Kawasaki, Y. Ichihashi, M. Harada, M. Takeuchi, M. Anpo, G. Stewart, M. A. Fox, C. Louis and M. Che, J. Phys. Chem. B, 1998, 102, 5870–5875 CrossRef.
  26. J. M. Thomas and G. Sankar, Acc. Chem. Res., 2001, 34, 571–581 CrossRef PubMed.
  27. K. Mori, Y. Kondo, S. Morimoto and H. Yamashita, J. Phys. Chem. C, 2008, 112, 397–404 Search PubMed.
  28. M. Anpo, H. Yamashita, Y. Ichihashi, Y. Fujii and M. Honda, J. Phys. Chem. B, 1997, 101, 2632–2636 CrossRef.
  29. K. Ikeue, H. Yamashita, M. Anpo and T. Takewaki, J. Phys. Chem. B, 2001, 105, 8350–8355 CrossRef.
  30. Y. Sohn, W. Huang and F. Taghipour, Appl. Surf. Sci., 2017, 396, 1696–1711 CrossRef.
  31. M. Anpo, N. Aikawa, Y. Kubokawa, M. Che, C. Louis and E. Giamello, J. Phys. Chem., 1985, 89, 5017–5021 CrossRef.
  32. M. Anpo, N. Aikawa, Y. Kubokawa, M. Che, C. Louis and E. Giamello, J. Phys. Chem., 1985, 89, 5689–5694 CrossRef.
  33. H. Yamashita, Y. Ichihashi, M. Anpo, M. Hashimoto, C. Louis and M. Che, J. Phys. Chem., 1996, 100, 16041–16044 CrossRef.
  34. N. U. Zhanpeisov, M. Matsuoka, H. Yamashita and M. Anpo, J. Phys. Chem. B, 1998, 102, 6915–6920 CrossRef.
  35. M. Anpo, S. G. Zhang, S. Higashimoto, M. Matsuoka, H. Yamashita, Y. Ichihashi, Y. Matsumura and Y. Souma, J. Phys. Chem. B, 1999, 103, 9295–9301 CrossRef.
  36. S. Higashimoto, M. Matsuoka, H. Yamashita, M. Anpo, O. Kitao, H. Hidaka, M. Che and E. Giamello, J. Phys. Chem. B, 2000, 104, 10288–10292 CrossRef.
  37. S. Higashimoto, Y. Hu, R. Tsumura, K. Iino, M. Matsuoka, H. Yamashita, Y. G. Shul, M. Che and M. Anpo, J. Catal., 2005, 235, 272–278 CrossRef.
  38. H. Yamashita, K. Yoshizawa, M. Ariyuki, S. Higashimoto, M. Che and M. Anpo, Chem. Commun., 2001, 435–436 RSC.
  39. C. Murata, H. Yoshida and T. Hattori, Chem. Commun., 2001, 2412–2413 RSC.
  40. H. Yamashita, K. Kida, K. Ikeue, Y. Kanazawa, K. Yoshizawa and M. Anpo, in Std. Surf. Sci. Catal., ed. S.-E. Park, R. Ryoo, W.-S. Ahn, C. W. Lee and J.-S. Chang, Elsevier, 2003, vol. 146, pp. 597–600 Search PubMed.
  41. Y. Horiuchi, K. Mori, N. Nishiyama and H. Yamashita, Chem. Lett., 2008, 37, 748–749 CrossRef.
  42. K. Mori, Y. Miura, S. Shironita and H. Yamashita, Langmuir, 2009, 25, 11180–11187 CrossRef PubMed.
  43. K. Mori, T. Araki, S. Shironita, J. Sonoda and H. Yamashita, Catal. Lett., 2009, 131, 337–343 CrossRef.
  44. K. Mori and H. Yamashita, Phys. Chem. Chem. Phys., 2010, 12, 14420–14432 RSC.
  45. K. Mori, K. Sugihara, Y. Kondo, T. Takeuchi, S. Morimoto and H. Yamashita, J. Phys. Chem. C, 2008, 112, 16478–16483 Search PubMed.
  46. S. Okada, K. Mori, T. Kamegawa, M. Che and H. Yamashita, Chem. – Eur. J., 2011, 17, 9047–9051 CrossRef PubMed.
  47. S. Okada, S. Ikurumi, T. Kamegawa, K. Mori and H. Yamashita, J. Phys. Chem. C, 2012, 116, 14360–14367 Search PubMed.
  48. H. Yamashita, M. Matsuoka, K. Tsuji, Y. Shioya, M. Anpo and M. Che, J. Phys. Chem., 1996, 100, 397–402 CrossRef.
  49. W.-S. Ju, M. Matsuoka, K. Iino, H. Yamashita and M. Anpo, J. Phys. Chem. B, 2004, 108, 2128–2133 CrossRef.
  50. A. Maldotti, R. Amadelli, C. Bartocci, V. Carassiti, E. Polo and G. Varani, Coord. Chem. Rev., 1993, 125, 143–154 CrossRef.
  51. A. J. Esswein and D. G. Nocera, Chem. Rev., 2007, 107, 4022–4047 CrossRef PubMed.
  52. C. K. Prier, D. A. Rankic and D. W. C. MacMillan, Chem. Rev., 2013, 113, 5322–5363 CrossRef PubMed.
  53. X. Liu, S. Inagaki and J. Gong, Angew. Chem., Int. Ed., 2016, 55, 14924–14950 CrossRef PubMed.
  54. N. Mizoshita, T. Tani and S. Inagaki, Chem. Soc. Rev., 2011, 40, 789–800 RSC.
  55. M. Ogawa and K. Kuroda, Chem. Rev., 1995, 95, 399–438 CrossRef.
  56. W. J. Youngblood, S.-H. A. Lee, K. Maeda and T. E. Mallouk, Acc. Chem. Res., 2009, 42, 1966–1973 CrossRef PubMed.
  57. R. Kuriki and K. Maeda, Phys. Chem. Chem. Phys., 2017, 19, 4938–4950 RSC.
  58. J. C. Fierro-Gonzalez, S. Kuba, Y. Hao and B. C. Gates, J. Phys. Chem. B, 2006, 110, 13326–13351 CrossRef PubMed.
  59. H. S. Kim, T. C. T. Pham and K. B. Yoon, Chem. Commun., 2012, 48, 4659–4673 RSC.
  60. H. S. Kim and K. B. Yoon, Coord. Chem. Rev., 2014, 263–264, 239–256 CrossRef.
  61. K. Mori, K. Kagohara and H. Yamashita, J. Phys. Chem. C, 2008, 112, 2593–2600 Search PubMed.
  62. M. Martis, K. Mori and H. Yamashita, Dalton Trans., 2014, 43, 1132–1138 RSC.
  63. K. Mori, M. Kawashima, K. Kagohara and H. Yamashita, J. Phys. Chem. C, 2008, 112, 19449–19455 Search PubMed.
  64. Y. Kuwahara, K. Nishizawa, T. Nakajima, T. Kamegawa, K. Mori and H. Yamashita, J. Am. Chem. Soc., 2011, 133, 12462–12465 CrossRef PubMed.
  65. K. Mori, M. Tottori, K. Watanabe, M. Che and H. Yamashita, J. Phys. Chem. C, 2011, 115, 21358–21362 Search PubMed.
  66. K. Mori, K. Watanabe, M. Kawashima, M. Che and H. Yamashita, J. Phys. Chem. C, 2011, 115, 1044–1050 Search PubMed.
  67. K. Mori, K. Watanabe, Y. Terai, Y. Fujiwara and H. Yamashita, Chem. – Eur. J., 2012, 18, 11371–11378 CrossRef PubMed.
  68. K. Mori, K. Watanabe, K. Fuku and H. Yamashita, Chem. – Eur. J., 2012, 18, 415–418 CrossRef PubMed.
  69. K. Mori, M. Kawashima, M. Che and H. Yamashita, Angew. Chem., Int. Ed., 2010, 49, 8598–8601 CrossRef PubMed.
  70. K. Mori, H. Tanaka, M. Dojo, K. Yoshizawa and H. Yamashita, Chem. – Eur. J., 2015, 21, 12085–12092 CrossRef PubMed.
  71. K. Mori, Y. Kubota and H. Yamashita, Chem. – Asian J., 2013, 8, 3207–3213 CrossRef PubMed.
  72. S. Fukuzumi, Y.-M. Lee and W. Nam, Coord. Chem. Rev., 2018, 355, 54–73 CrossRef.
  73. K. Mori, H. Kakudo and H. Yamashita, ACS Catal., 2014, 4, 4129–4135 CrossRef.
  74. T. Nakato, H. Edakubo and T. Shimomura, Microporous Mesoporous Mater., 2009, 123, 280–288 CrossRef.
  75. J. Ma, J. Wu, J. Zheng, L. Liu, D. Zhang, X. Xu, X. Yang and Z. Tong, Microporous Mesoporous Mater., 2012, 151, 325–329 CrossRef.
  76. M. Gasperin and M.-T. le Bihan, J. Solid State Chem., 1980, 33, 83–89 CrossRef.
  77. K. Mori, S. Ogawa, M. Martis and H. Yamashita, J. Phys. Chem. C, 2012, 116, 18873–18877 Search PubMed.
  78. M. Kawashima, K. Mori, J. Aoyama and H. Yamashita, Bull. Chem. Soc. Jpn., 2014, 87, 874–881 CrossRef.
  79. M. Wen, K. Mori, Y. Kuwahara and H. Yamashita, ChemCatChem, 2015, 7, 3519–3525 CrossRef.
  80. A. Fujishima, T. N. Rao and D. A. Tryk, J. Photochem. Photobiol., C, 2000, 1, 1–21 CrossRef.
  81. X. Chen and S. S. Mao, Chem. Rev., 2007, 107, 2891–2959 CrossRef PubMed.
  82. M. R. Hoffmann, S. T. Martin, W. Choi and D. W. Bahnemann, Chem. Rev., 1995, 95, 69–96 CrossRef.
  83. A. L. Linsebigler, G. Lu and J. T. Yates, Chem. Rev., 1995, 95, 735–758 CrossRef.
  84. H. Yamashita, H. Nose, Y. Kuwahara, Y. Nishida, S. Yuan and K. Mori, Appl. Catal., A, 2008, 350, 164–168 CrossRef.
  85. C. Ooka, H. Yoshida, M. Horio, K. Suzuki and T. Hattori, Appl. Catal., B, 2003, 41, 313–321 CrossRef.
  86. Y. Kuwahara and H. Yamashita, J. Mater. Chem., 2011, 21, 2407–2416 RSC.
  87. Y. Kuwahara, J. Aoyama, K. Miyakubo, T. Eguchi, T. Kamegawa, K. Mori and H. Yamashita, J. Catal., 2012, 285, 223–234 CrossRef.
  88. Y. Kuwahara, Y. Magatani and H. Yamashita, Rapid Commun. Photosci., 2015, 4, 19–21 CrossRef.
  89. T. Kamegawa, R. Kido, D. Yamahana and H. Yamashita, Microporous Mesoporous Mater., 2013, 165, 142–147 CrossRef.
  90. T. Kamegawa, Y. Ishiguro, R. Kido and H. Yamashita, Molecules, 2014, 19, 16477–16488 CrossRef PubMed.
  91. T. Kasahara, K. Inumaru and S. Yamanaka, Microporous Mesoporous Mater., 2004, 76, 123–130 CrossRef.
  92. Y. Magatani, Y. Kuwahara, K. Nishizawa and H. Yamashita, ChemistrySelect, 2017, 2, 4332–4337 CrossRef.
  93. Y. Kuwahara, T. Kamegawa, K. Mori and H. Yamashita, Chem. Commun., 2008, 4783–4785 RSC.
  94. Y. Kuwahara, K. Maki, Y. Matsumura, T. Kamegawa, K. Mori and H. Yamashita, J. Phys. Chem. C, 2009, 113, 1552–1559 Search PubMed.
  95. T. Nonami, H. Hase and K. Funakoshi, Catal. Today, 2004, 96, 113–118 CrossRef.
  96. A. Nakajima, K. Takakuwa, Y. Kameshima, M. Hagiwara, S. Sato, Y. Yamamoto, N. Yoshida, T. Watanabe and K. Okada, J. Photochem. Photobiol., A, 2006, 177, 94–99 CrossRef.
  97. Y. Kuwahara, T. Yamanishi, T. Kamegawa, K. Mori and H. Yamashita, J. Phys. Chem. B, 2011, 115, 10335–10345 Search PubMed.
  98. X. F. Qian, T. Kamegawa, K. Mori, H. X. Li and H. Yamashita, J. Phys. Chem. C, 2013, 117, 19544–19551 Search PubMed.
  99. T. Torimoto, Y. Okawa, N. Takeda and H. Yoneyama, J. Photochem. Photobiol., A, 1997, 103, 153–157 CrossRef.
  100. Q. Xiang, J. Yu and M. Jaroniec, Chem. Soc. Rev., 2012, 41, 782–796 RSC.
  101. W. Donphai, T. Kamegawa, M. Chareonpanich, K. Nueangnoraj, H. Nishihara, T. Kyotani and H. Yamashita, Phys. Chem. Chem. Phys., 2014, 16, 25004–25007 RSC.
  102. Y. Liu, J. I. Dadap, D. Zimdars and K. B. Eisenthal, J. Phys. Chem. B, 1999, 103, 2480–2486 CrossRef.
  103. I. A. Janković, Z. V. Šaponjić, M. I. Čomor and J. M. Nedeljković, J. Phys. Chem. C, 2009, 113, 12645–12652 Search PubMed.
  104. T. Kamegawa, H. Seto, S. Matsuura and H. Yamashita, ACS Appl. Mater. Interfaces, 2012, 4, 6635–6639 Search PubMed.
  105. T. Kamegawa, S. Matsuura, H. Seto and H. Yamashita, Angew. Chem., Int. Ed., 2013, 52, 916–919 CrossRef PubMed.
  106. T. Kamegawa, D. Yamahana and H. Yamashita, J. Phys. Chem. C, 2010, 114, 15049–15053 Search PubMed.
  107. M. Sadakane, C. Takahashi, N. Kato, H. Ogihara, Y. Nodasaka, Y. Doi, Y. Hinatsu and W. Ueda, Bull. Chem. Soc. Jpn., 2007, 80, 677–685 CrossRef.
  108. A. Stein, B. E. Wilson and S. G. Rudisill, Chem. Soc. Rev., 2013, 42, 2763–2803 RSC.
  109. K. R. Phillips, G. T. England, S. Sunny, E. Shirman, T. Shirman, N. Vogel and J. Aizenberg, Chem. Soc. Rev., 2016, 45, 281–322 RSC.
  110. T. Kamegawa, N. Suzuki, M. Che and H. Yamashita, Langmuir, 2011, 27, 2873–2879 CrossRef PubMed.
  111. T. Kamegawa, S. Tanaka, H. Seto, D. Zhou and H. Yamashita, Phys. Chem. Chem. Phys., 2013, 15, 13323–13328 RSC.
  112. T. Kamegawa, T. Ando, Y. Ishiguro and H. Yamashita, Bull. Chem. Soc. Jpn., 2015, 88, 572–574 CrossRef.
  113. T. Kamegawa, Y. Ishiguro, H. Seto and H. Yamashita, J. Mater. Chem. A, 2015, 3, 2323–2330 Search PubMed.
  114. G. J. d. A. A. Soler-Illia, C. Sanchez, B. Lebeau and J. Patarin, Chem. Rev., 2002, 102, 4093–4138 CrossRef PubMed.
  115. Q. Zhang, I. Lee, J. Ge, F. Zaera and Y. Yin, Adv. Funct. Mater., 2010, 20, 2201–2214 CrossRef.
  116. Y. Ide, Y. Koike and M. Ogawa, J. Colloid Interface Sci., 2011, 358, 245–251 CrossRef PubMed.
  117. T. Kamegawa, Y. Ishiguro, Y. Magatani and H. Yamashita, J. Nanosci. Nanotechnol., 2016, 16, 9273–9277 CrossRef.
  118. A. M. El-Toni, M. A. Habila, J. P. Labis, Z. A. ALOthman, M. Alhoshan, A. A. Elzatahry and F. Zhang, Nanoscale, 2016, 8, 2510–2531 RSC.
  119. R. Purbia and S. Paria, Nanoscale, 2015, 7, 19789–19873 RSC.
  120. Y. Kuwahara, T. Ando, H. Kango and H. Yamashita, Chem. – Eur. J., 2017, 23, 380–389 CrossRef PubMed.
  121. K. Fujiwara, Y. Kuwahara, Y. Sumida and H. Yamashita, J. Mater. Chem. A, 2017, 5, 25431–25437 Search PubMed.
  122. S. Ikeda, Y. Ikoma, H. Kobayashi, T. Harada, T. Torimoto, B. Ohtani and M. Matsumura, Chem. Commun., 2007, 3753–3755 RSC.
  123. S. Ikeda, H. Kobayashi, Y. Ikoma, T. Harada, T. Torimoto, B. Ohtani and M. Matsumura, Phys. Chem. Chem. Phys., 2007, 9, 6319–6326 RSC.
  124. S. Ikeda, H. Kobayashi, T. Sugita, Y. Ikoma, T. Harada and M. Matsumura, Appl. Catal., A, 2009, 363, 216–220 CrossRef.
  125. G. Li, E. T. Kang, K. G. Neoh and X. Yang, Langmuir, 2009, 25, 4361–4364 CrossRef PubMed.
  126. Y. Ren, M. Chen, Y. Zhang and L. Wu, Langmuir, 2010, 26, 11391–11396 CrossRef PubMed.
  127. Y. Kuwahara, Y. Sumida, K. Fujiwara and H. Yamashita, ChemCatChem, 2016, 8, 2781–2788 CrossRef.
  128. K. Fujiwara, Y. Kuwahara, Y. Sumida and H. Yamashita, Langmuir, 2017, 33, 6314–6321 CrossRef PubMed.
  129. K. Fujiwara, Y. Kuwahara, Y. Sumida and H. Yamashita, Langmuir, 2017, 33, 288–295 CrossRef PubMed.
  130. Y. Horiuchi, H. Ura, T. Kamegawa, K. Mori and H. Yamashita, Appl. Catal., A, 2010, 387, 95–99 CrossRef.
  131. X. Feng and L. Jiang, Adv. Mater., 2006, 18, 3063–3078 CrossRef.
  132. P. Roach, N. J. Shirtcliffe and M. I. Newton, Soft Matter, 2008, 4, 224 RSC.
  133. B. Xin and J. Hao, Chem. Soc. Rev., 2010, 39, 769–782 RSC.
  134. T. Darmanin and F. Guittard, J. Mater. Chem. A, 2014, 2, 16319–16359 Search PubMed.
  135. X. Chen and S. S. Mao, Chem. Rev., 2007, 107, 2891–2959 CrossRef PubMed.
  136. A. Kubacka, M. Fernández-García and G. Colón, Chem. Rev., 2012, 112, 1555–1614 CrossRef PubMed.
  137. R. Wang, K. Hashimoto, A. Fujishima, M. Chikuni, E. Kojima, A. Kitamura, M. Shimohigoshi and T. Watanabe, Nature, 1997, 388, 431–432 CrossRef.
  138. R. Wang, K. Hashimoto, A. Fujishima, M. Chikuni, E. Kojima, A. Kitamura, M. Shimohigoshi and T. Watanabe, Adv. Mater., 1998, 10, 135–138 CrossRef.
  139. J. Liu, M. Li, J. Wang, Y. Song, L. Jiang, T. Murakami and A. Fujishima, Environ. Sci. Technol., 2009, 43, 9425–9431 CrossRef PubMed.
  140. T. Kawahara, Y. Konishi, H. Tada, N. Tohge, J. Nishii and S. Ito, Angew. Chem., Int. Ed., 2002, 41, 2811–2813 CrossRef PubMed.
  141. X. Chen, Z. Li, J. Ye and Z. Zou, Chem. Mater., 2010, 22, 3583–3585 CrossRef.
  142. G. Kaune, M. Memesa, R. Meier, M. A. Ruderer, A. Diethert, S. V. Roth, M. Dacunzi, J. S. Gutmann and P. Müller-Buschbaum, ACS Appl. Mater. Interfaces, 2009, 1, 2862–2869 Search PubMed.
  143. T. Kamegawa, N. Suzuki and H. Yamashita, Energy Environ. Sci., 2011, 4, 1411–1416 Search PubMed.
  144. T. Kamegawa, N. Suzuki and H. Yamashita, Chem. Lett., 2009, 38, 610–611 CrossRef.
  145. H. Y. Lee, Y. H. Park and K. H. Ko, Langmuir, 2000, 16, 7289–7293 CrossRef.
  146. J. M. Thomas, Angew. Chem., Int. Ed., 1999, 38, 3588–3628 CrossRef PubMed.
  147. A. Corma, Chem. Rev., 1997, 97, 2373–2419 CrossRef PubMed.
  148. M. Ogawa, Chem. Commun., 1996, 1149–1150 RSC.
  149. N. Nishiyama, S. Tanaka, Y. Egashira, Y. Oku and K. Ueyama, Chem. Mater., 2002, 14, 4229–4234 CrossRef.
  150. H. Yamashita, S. Nishio, I. Katayama, N. Nishiyama and H. Fujii, Catal. Today, 2006, 111, 254–258 CrossRef.
  151. H. Yamashita, Y. Horiuchi, S. Imaoka, S. Nishio, N. Nishiyama and K. Mori, Catal. Today, 2008, 132, 146–152 CrossRef.
  152. H. Yamashita, S. Nishio, S. Imaoka, M. Shimada, K. Mori, T. Tanaka and N. Nishiyama, Top. Catal., 2008, 47, 116–121 CrossRef.
  153. Y. Horiuchi, H. Ura, T. Kamegawa, K. Mori and H. Yamashita, J. Mater. Chem., 2011, 21, 236–241 RSC.
  154. Y. Horiuchi, H. Ura, T. Kamegawa, K. Mori and H. Yamashita, J. Phys. Chem. C, 2011, 115, 15410–15415 Search PubMed.
  155. T. Kamegawa, Y. Masuda, N. Suzuki, Y. Horiuchi and H. Yamashita, ACS Appl. Mater. Interfaces, 2011, 3, 4561–4565 Search PubMed.
  156. Y. Horiuchi, T. Kamegawa, K. Mori, H. Yamashita and N. Nishiyama, e-J. Surf. Sci. Nanotechnol., 2009, 7, 141–144 CrossRef.
  157. K. Mori, S. Imaoka, S. Nishio, Y. Nishiyama, N. Nishiyama and H. Yamashita, Microporous Mesoporous Mater., 2007, 101, 288–295 CrossRef.
  158. Y. Horiuchi and H. Yamashita, Appl. Catal., A, 2011, 400, 1–8 CrossRef.
  159. H. Yamashita, K. Mori, S. Shironita and Y. Horiuchi, Catal. Surv. Asia, 2008, 12, 88–100 CrossRef.
  160. D. Öner and T. J. McCarthy, Langmuir, 2000, 16, 7777–7782 CrossRef.
  161. P. Aussillous and D. Quéré, Nature, 2001, 411, 924–927 CrossRef PubMed.
  162. A. Steele, I. Bayer and E. Loth, Nano Lett., 2009, 9, 501–505 CrossRef PubMed.
  163. T. Onda, S. Shibuichi, N. Satoh and K. Tsujii, Langmuir, 1996, 12, 2125–2127 CrossRef.
  164. A. Nakajima, A. Fujishima, K. Hashimoto and T. Watanabe, Adv. Mater., 1999, 11, 1365–1368 CrossRef.
  165. J. Genzer and K. Efimenko, Science, 2000, 290, 2130–2133 CrossRef PubMed.
  166. D. Schondelmaier, S. Cramm, R. Klingeler, J. Morenzin, C. Zilkens and W. Eberhardt, Langmuir, 2002, 18, 6242–6245 CrossRef.
  167. Y. Horiuchi, K. Fujiwara, T. Kamegawa, K. Mori and H. Yamashita, J. Mater. Chem., 2011, 21, 8543–8546 RSC.
  168. H. Yamashita, K. Kida, K. Ikeue, Y. Kanazawa, K. Yoshizawa and M. Anpo, Stud. Surf. Sci. Catal., 2002, 146, 597–600 CrossRef.
  169. Y. Horiuchi, Y. Shimizu, T. Kamegawa, K. Mori and H. Yamashita, Phys. Chem. Chem. Phys., 2011, 13, 6309–6314 RSC.
  170. S. Shironita, T. Takasaki, T. Kamegawa, K. Mori and H. Yamashita, Top. Catal., 2010, 53, 218–223 CrossRef.
  171. X. Feng, J. Zhai and L. Jiang, Angew. Chem., Int. Ed., 2005, 44, 5115–5118 CrossRef PubMed.
  172. Q. Fu, G. V. R. Rao, S. B. Basame, D. J. Keller, K. Artyushkova, J. E. Fulghum and G. P. López, J. Am. Chem. Soc., 2004, 126, 8904–8905 CrossRef PubMed.
  173. G. K. Jennings and E. L. Brantley, Adv. Mater., 2004, 16, 1983–1994 CrossRef.
  174. J. Lahann, S. Mitragotri, T. N. Tran, H. Kaido, J. Sundaram, I. S. Choi, S. Hoffer, G. A. Somorjai and R. Langer, Science, 2003, 299, 371–374 CrossRef PubMed.
  175. S. Wang, H. Liu, D. Liu, X. Ma, X. Fang and L. Jiang, Angew. Chem., Int. Ed., 2007, 46, 3915–3917 CrossRef PubMed.
  176. X. Zhang, M. Jin, Z. Liu, D. A. Tryk, S. Nishimoto, T. Murakami and A. Fujishima, J. Phys. Chem. C, 2007, 111, 14521–14529 Search PubMed.
  177. F. Zhou and W. T. S. Huck, Chem. Commun., 2005, 5999–6001 RSC.
  178. T. Kamegawa, Y. Shimizu and H. Yamashita, Adv. Mater., 2012, 24, 3697–3700 CrossRef PubMed.
  179. T. Kamegawa, K. Irikawa and H. Yamashita, Chem. Lett., 2015, 44, 509–511 CrossRef.
  180. T. Kamegawa, K. Irikawa and H. Yamashita, Sci. Rep., 2017, 7, 13628–13635 CrossRef PubMed.
  181. X. Liu, J. Iocozzia, Y. Wang, X. Cui, Y. Chen, S. Zhao, Z. Li and Z. Lin, Energy Environ. Sci., 2017, 10, 402–434 Search PubMed.
  182. X. Zhang, Y. L. Chen, R. S. Liu and D. P. Tsai, Rep. Prog. Phys., 2013, 76, 046401 CrossRef PubMed.
  183. X. Zhou, G. Liu, J. Yu and W. Fan, J. Mater. Chem., 2012, 22, 21337–21354 RSC.
  184. Q. Xiang, B. Cheng and J. Yu, Angew. Chem., Int. Ed., 2015, 54, 11350–11366 CrossRef PubMed.
  185. C. Clavero, Nat. Photonics, 2014, 8, 95–103 CrossRef.
  186. S. Yu, A. J. Wilson, G. Kumari, X. Zhang and P. K. Jain, ACS Energy Lett., 2017, 2, 2058–2070 CrossRef.
  187. M. Rycenga, C. M. Cobley, J. Zeng, W. Li, C. H. Moran, Q. Zhang, D. Qin and Y. Xia, Chem. Rev., 2011, 111, 3669–3712 CrossRef PubMed.
  188. M. R. Langille, M. L. Personick and C. A. Mirkin, Angew. Chem., Int. Ed., 2013, 52, 13910–13940 CrossRef PubMed.
  189. K. Mori, P. Verma, R. Hayashi, K. Fuku and H. Yamashita, Chem. – Eur. J., 2015, 21, 11885–11893 CrossRef PubMed.
  190. M. Chandra and Q. Xu, J. Power Sources, 2006, 156, 190–194 CrossRef.
  191. A. Gutowska, L. Li, Y. Shin, C. M. Wang, X. S. Li, J. C. Linehan, R. S. Smith, B. D. Kay, B. Schmid, W. Shaw, M. Gutowski and T. Autrey, Angew. Chem., Int. Ed., 2005, 44, 3578–3582 CrossRef PubMed.
  192. P. Verma, Y. Kuwahara, K. Mori and H. Yamashita, J. Mater. Chem. A, 2015, 3, 18889–18897 Search PubMed.
  193. P. Verma, Y. Kuwahara, K. Mori and H. Yamashita, J. Mater. Chem. A, 2016, 4, 10142–10150 Search PubMed.
  194. P. Verma, Y. Kuwahara, K. Mori and H. Yamashita, Catal. Sci. Technol., 2017, 7, 2551–2558 Search PubMed.
  195. P. Verma, K. Yuan, Y. Kuwahara, K. Mori and H. Yamashita, Appl. Catal., B, 2018, 223, 10–15 CrossRef.
  196. P. Verma, Y. Kuwahara, K. Mori and H. Yamashita, Chem. – Eur. J., 2017, 23, 3616–3622 CrossRef PubMed.
  197. A. Naldoni, F. Riboni, U. Guler, A. Boltasseva, V. M. Shalaev and A. V. Kildishev, Nanophotonics, 2016, 5, 112–133 CrossRef.
  198. W. Ye, R. Long, H. Huang and Y. Xiong, J. Mater. Chem. C, 2017, 5, 1008–1021 RSC.
  199. X. Zhang, X. Ke and J. Yao, J. Mater. Chem. A, 2018, 6, 1941–1966 Search PubMed.
  200. S. B. Wang and X. C. Wang, Small, 2015, 11, 3097–3112 CrossRef PubMed.
  201. T. Zhang and W. B. Lin, Chem. Soc. Rev., 2014, 43, 5982–5993 RSC.
  202. J. L. Wang, C. Wang and W. B. Lin, ACS Catal., 2012, 2, 2630–2640 CrossRef.
  203. K. K. Tanabe and S. M. Cohen, Chem. Soc. Rev., 2011, 40, 498–519 RSC.
  204. Y. Li, H. Xu, S. X. Ouyang and J. H. Ye, Phys. Chem. Chem. Phys., 2016, 18, 7563–7572 RSC.
  205. C. Wang, Z. G. Xie, K. E. deKrafft and W. L. Lin, J. Am. Chem. Soc., 2011, 133, 13445–13454 CrossRef PubMed.
  206. T. H. Zhou, Y. H. Du, A. Borgna, J. D. Hong, Y. B. Wang, J. Y. Han, W. Zhang and R. Xu, Energy Environ. Sci., 2013, 6, 3229–3234 Search PubMed.
  207. M. Alvaro, E. Carbonell, B. Ferrer, F. Xamena and H. Garcia, Chem. – Eur. J., 2007, 13, 5106–5112 CrossRef PubMed.
  208. Y. Horiuchi, T. Toyao, M. Saito, K. Mochizuki, M. Iwata, H. Higashimura, M. Anpo and M. Matsuoka, J. Phys. Chem. C, 2012, 116, 20848–20853 Search PubMed.
  209. Y. H. Fu, D. R. Sun, Y. J. Chen, R. K. Huang, Z. X. Ding, X. Z. Fu and Z. H. Li, Angew. Chem., Int. Ed., 2012, 51, 3364–3367 CrossRef PubMed.
  210. G. A. Filonenko, R. van Putten, E. N. Schulpen, E. J. M. Hensen and E. A. Pidko, ChemCatChem, 2014, 6, 1526–1530 CrossRef.
  211. M. C. Wen, K. Mori, Y. Kuwahara and H. Yamashita, ChemCatChem, 2015, 7, 3519–3525 CrossRef.
  212. C. Wang, K. E. deKrafft and W. B. Lin, J. Am. Chem. Soc., 2012, 134, 7211–7214 CrossRef PubMed.
  213. T. Toyao, M. Saito, S. Dohshi, K. Mochizuki, M. Iwata, H. Higashimura, Y. Horiuchi and M. Matsuoka, Chem. Commun., 2014, 50, 6779–6781 RSC.
  214. S. Pullen, H. H. Fei, A. Orthaber, S. M. Cohen and S. Ott, J. Am. Chem. Soc., 2013, 135, 16997–17003 CrossRef PubMed.
  215. A. Fateeva, P. A. Chater, C. P. Ireland, A. A. Tahir, Y. Z. Khimyak, P. V. Wiper, J. R. Darwent and M. J. Rosseinsky, Angew. Chem., Int. Ed., 2012, 51, 7440–7444 CrossRef PubMed.
  216. J. D. Evans, C. J. Sumby and C. J. Doonan, Chem. Soc. Rev., 2014, 43, 5933–5951 RSC.
  217. M. C. Wen, K. Mori, Y. Kuwahara, T. C. An and H. Yamashita, Appl. Catal., B, 2017, 218, 555–569 CrossRef.
  218. J. He, J. Q. Wang, Y. J. Chen, J. P. Zhang, D. L. Duan, Y. Wang and Z. Y. Yan, Chem. Commun., 2014, 50, 7063–7066 RSC.
  219. R. Wang, X.-L. Liu, M.-Y. Zhang, Y.-P. Yuan and C. Xue, APL Mater., 2015, 3, 104403 CrossRef.
  220. W. L. Zhen, H. B. Gao, B. Tian, J. T. Ma and G. X. Lu, ACS Appl. Mater. Interfaces, 2016, 8, 10808–10819 Search PubMed.
  221. M. C. Wen, K. Mori, T. Kamegawa and H. Yamashita, Chem. Commun., 2014, 50, 11645–11648 RSC.
  222. K. M. Choi, D. Kim, B. Rungtaweevoranit, C. A. Trickett, J. T. D. Barmanbek, A. S. Alshammari, P. Yang and O. M. Yaghi, J. Am. Chem. Soc., 2017, 139, 356–362 CrossRef PubMed.
  223. L. J. Shen, M. B. Luo, Y. H. Liu, R. W. Liang, F. F. Jing and L. Wu, Appl. Catal., B, 2015, 166, 445–453 CrossRef.
  224. C. W. Zhao, Y. A. Li, X. R. Wang, G. J. Chen, Q. K. Liu, J. P. Ma and Y. B. Dong, Chem. Commun., 2015, 51, 15906–15909 RSC.
  225. M. C. Wen, K. Mori, Y. Kuwahara and H. Yamashita, ACS Energy Lett., 2017, 2, 1–7 CrossRef.
  226. M. C. Wen, Y. Kuwahara, K. Mori, D. Q. Zhang, H. X. Li and H. Yamashita, J. Mater. Chem. A, 2015, 3, 14134–14141 Search PubMed.
  227. M. C. Wen, Y. Cui, Y. Kuwahara, K. Mori and H. Yamashita, ACS Appl. Mater. Interfaces, 2016, 8, 21278–21284 Search PubMed.

This journal is © The Royal Society of Chemistry 2018
