Na_1.5La_1.5TeO₆: Na⁺ conduction in a novel Na-rich double perovskite

Abstract

Increasing demand for lithium batteries for automotive applications, coupled with the necessity to move to large-scale energy storage systems, is driving a push towards new technologies and has seen Na-ion batteries emerge as a leading alternative to Li-ion. Amongst these, all solid-state configurations represent a promising route to achieving higher energy densities and increased safety. Remaining challenges include the need for Na⁺ solid electrolytes with the requisite ionic conductivities crucial for use in a solid-state cell. Here, we present the novel Na-rich double perovskite, Na_1.5La_1.5TeO₆. The transport properties, explored at the macroscopic and local level, reveal a low activation energy barrier for Na⁺ diffusion and great promise for use as an electrolyte for all solid-state Na-batteries.

---

The lower cost and greater availability of sodium compared to lithium, together with its similar redox couple potential of ca. 0.3 V lower for Na/Na⁺ compared to Li/Li⁺, has led to enormous interest in the development of Na batteries by the energy storage community over the last decade.¹ The larger cation size and heavier mass of sodium had made it a suitable candidate for medium to large-scale stationary energy storage applications, where gravimetric energy density is not a priority. As with Li-ion batteries, organic liquid Na-electrolytes present concerns in terms of safety and the operating voltage window available. The use of solid-state electrolytes in Na batteries could increase the energy density and safety of the battery, enable longer cyclability and permit the use of versatile cell geometries.^2,3 Current Na⁺ solid-state electrolytes display Na⁺ conductivities at room temperature from 10⁻¹⁰ S cm⁻¹, in the case of the Na(B/Al)H₄ complex hydrides, to benchmark values close to the mS cm⁻¹ for the recently reported Na-containing chalcogenides.^2–4 Other systems include the NASICON phosphate materials, the classic β′′-Al₂O₃ and the more recent layered P2-type Na₂M₂TeO₆ materials.^2,5 The electrolyte choice should fit the specific battery application, operating temperature and electrode in order to avoid malfunction. For example, β′′-Al₂O₃ degrades with moisture content⁶ and the room temperature superionic Na-containing sulfide materials suffer from poor electrochemical stability and reaction with Na metal electrodes.⁷ Therefore, research on new Na⁺ solid-state electrolyte systems that could meet requirements lacking in present systems is critical. Here, we present a new sodium-rich solid-state electrolyte Na_1.5La_1.5TeO₆, where the robust perovskite framework and redox stability of the Te⁶⁺ ions^8–12 could enable its use in combination with high voltage electrodes.

A₂BB′O₆ double perovskite structure allows for a wide range of potential compositions with multiple combinations of elements on the A, B and B′ sites, where B and B′ cation positions are ordered in the crystal structure.¹³ The novel Na-rich Na_1.5La_1.5TeO₆ double perovskite presented here crystallises in the monoclinic P2₁/n space group, with 1 mol of Na⁺ and 1 mol of Te⁶⁺ cations occupying the octahedral B and B′ sites in a rock-salt type ordered fashion (Fig. 1). From the 2 mols of 8-fold coordinate A-sites, 1.5 mol is occupied by La³⁺ cations and 0.5 mols are occupied by additional Na⁺, producing a “Na-rich” double perovskite with an expanded formula unit of Na_0.5La_1.5NaTeO₆. A similar alkali-metal rich double perovskite was reported by Rosseinsky and co-workers for the Li_1.5La_1.5WO₆ composition.¹⁴ The discrepancy between the charges and sizes of the cations sitting in the A and BB′ sites produces the distortion of the symmetry from the ideal cubic structure to a monoclinic symmetry through an a⁻a⁻b⁺ tilting system, as expected for a tolerance factor of 0.83 calculated for the Na_1.5La_1.5TeO₆ composition. The synthesis of Na_1.5La_1.5TeO₆ was achieved though an energy-efficient microwave-assisted solid-state synthesis. Such routes have been developed by our group in recent years for Li⁺ solid electrolytes,^15–18 where the presence of hydroxide and oxide precursors increase the reaction kinetics by coupling effectively to microwave irradiation.¹⁹

Fig. 1 Crystallographic representation of the Na_1.5La_1.5TeO₆ structure with monoclinic symmetry P2₁/n, where brown spheres represent octahedrally coordinated Te⁶⁺ ions, blue spheres represent 8-fold coordinated La³⁺ ions, purple spheres are the Na⁺ ions and the oxygen anions are represented in red.

The structure of the Na_1.5La_1.5TeO₆ double perovskite with monoclinic P2₁/n symmetry was established by Rietveld refinements of powder XRD data (Fig. 2). As expected, Na⁺ and Te⁶⁺ cations occupy the rock salt ordered B and B′ sites and refinement of site occupancies (Table S1, ESI†) indicated the presence of ∼25% vacancies on the La³⁺ occupying the A-site, reminiscent of the related Li_1.5La_1.5WO₆ double perovskite.¹⁴ Na⁺ was refined into these vacant A-sites unoccupied by the La³⁺, giving an A-site occupancy for this additional Na⁺ of 0.239(2) which fills the available A-site vacancies. The calculated angle for the Na_B–O–Te was 152.1(4)°, resulting in a Glazer tilt of 13.9°, in good agreement with the related Li_1.5La_1.5WO₆ material (∼13.6°).¹⁴ The precision in the atomic parameters of Na⁺ and O²⁻ is necessarily lower than for the stronger X-ray scatters La³⁺ and Te⁶⁺, but the high atomic displacement parameters of the Na⁺ ions may be indicative of mobility. The stoichiometry from Rietveld refinement was found to be Na_1.48(1)La_1.534(4)TeO₆, which was further confirmed by EDX analyses, where an atomic ratio of Na_1.52(8)La_1.48(4)Te_1.00(4) was found (Fig. S2, ESI†), in excellent agreement with XRD and the target stoichiometry. Raman analysis (Fig. S1, ESI†) also confirmed the presence of vibrational bands corresponding to the monoclinic P2₁/n group and the absence of carbonate or hydroxide moieties that could arise from secondary phases, typically invisible to laboratory XRD. The material microstructure was studied by SEM (Fig. 2 inset). The Na_1.5La_1.5TeO₆ particles had sizes ranging from 1 to 5 μm, with irregular, faceted morphologies.

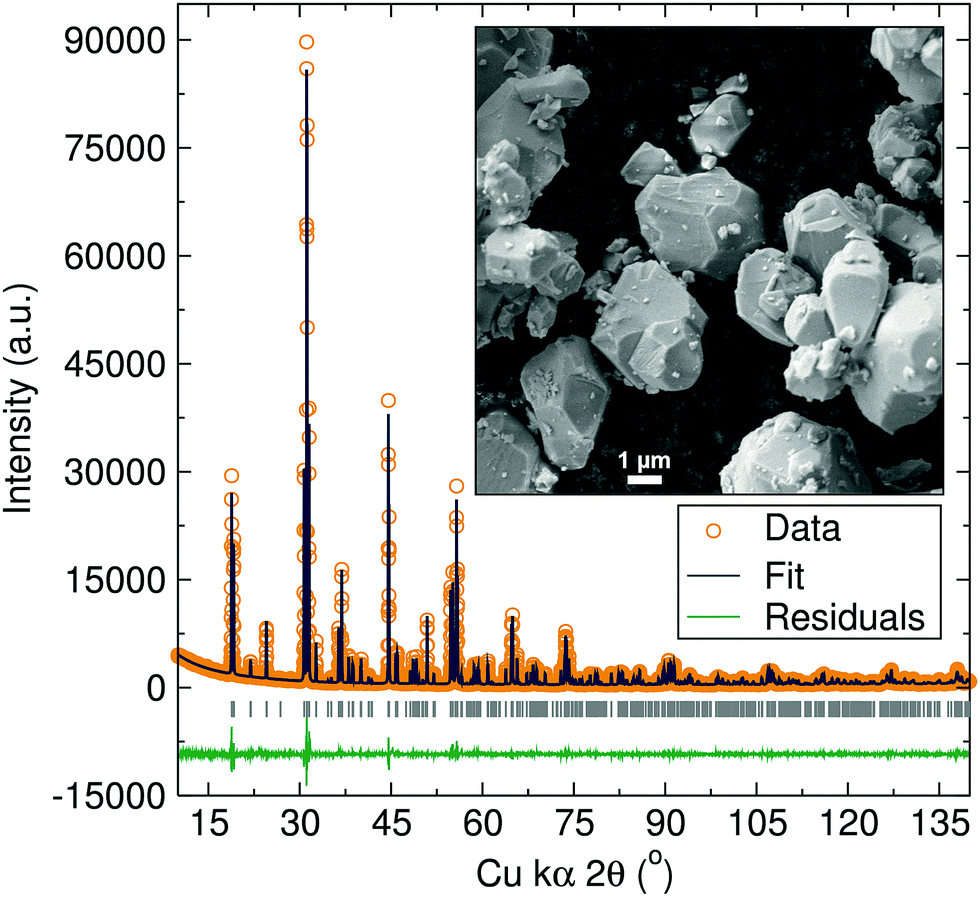

Fig. 2 Rietveld refinements of XRD data for the Na_1.5La_1.5TeO₆ double perovskite to the P2₁/n monoclinic space group. Bragg peaks positions for the monoclinic P2₁/n structure are indicated by vertical grey tick marks. Fit in excellent agreement to monoclinic space group P2₁/n, with cell parameters a = 5.69186(2) Å, b = 5.83933(2) Å, c = 8.13119(3) Å, β = 90.186(1)° and V = 270.253(1) ų. R_wp = 0.0743, R_exp = 0.0530 and χ² = 7.051. Inset: SEM image of Na_1.5La_1.5TeO₆ double perovskite.

To investigate the ionic macro- and microtransport properties of the Na_1.5La_1.5TeO₆ materials, electrochemical impedance spectroscopy and muon spin relaxation measurements (μ⁺SR) were carried out. Fig. 3a shows the Nyquist plots of the impedance measurements, where two main components are observed. A semicircle component is noted at high frequencies, due to the resistance of the material towards ionic diffusion, and a second component in form of a linear tail can be seen at low frequencies resulting from the sodium-blocking gold electrodes employed in these measurements, indicating the predominantly ionic character of the observed impedance.²⁰ These data were fitted using equivalent electrical circuit composed of a resistor in parallel with a constant phase element, in series with a Warburg resistance. This gave a value for the ionic conductivity of Na_1.5La_1.5TeO₆ at room temperature of 5.4 × 10⁻⁸ S cm⁻¹. This is on the order of that first reported for phosphate NASICON materials, which has since seen improvements up to 10⁻³ S cm⁻¹ through stoichiometric and structure-tailoring strategies.^21–25 These structure-tailoring strategies include element substitutions in the NASICON framework to increase the carrier concentrations or to increase the conduction channel size and hence the ionic conductivity of these materials.^26,27 In the case of the P2-type Na₂M₂TeO₆ tellurates oxides materials, the original work reported conductivities of 10⁻⁶ S cm⁻¹ which have been now optimized to reach the mS cm⁻¹ range.^5,12 It is reasonable to expect therefore that similar improvements are possible for the Na_1.5La_1.5TeO₆ double perovskite presented here through, for example, aliovalent doping or morphological control.

Fig. 3 (a) Nyquist plot of EIS data for Na_1.5La_1.5TeO₆ at different temperatures and a representative fit to the equivalent electrical circuit. (b) Room temperature μ⁺SR data collected for Na_1.5La_1.5TeO₆ at zero field and applied longitudinal fields of 5 G and 10 G, fitted (solid lines) using the Keren function. (c) Arrhenius plots of the ionic conductivity and diffusion coefficient of Na_1.5La_1.5TeO₆ from μ⁺SR and EIS.

The activation energy required for macroscopic ionic conduction, calculated from an Arrhenius plot of EIS data, showed a promising value of 0.27(2) eV (Fig. 3c). This value is significantly lower compared to that obtained for the analogous Li_1.5La_1.5WO₆ double perovskite material of 0.50(5) eV.¹⁴ This lower energetic requirement for ionic diffusion found for Na_1.5La_1.5TeO₆ could be related to the high relative density of the sintered material, nearly 96%, which results in a lower inter-grain energy requirement for Na⁺ diffusion between sintered particles. The macroscopic activation energy found for this Na-rich double perovskite is similar to current benchmark systems with low activation energy values from EIS measurements,^2,3,28 for example Na₃PSe₄ which displays an activation energy of 0.21 eV.²⁹ Preliminary EIS analysis of a Na-metal electrode-sandwiched Na_1.5La_1.5TeO₆ cell at 80 °C revealed the lack of a Warburg element, confirming Na⁺ as the conducting species (Fig. S3, ESI†). An increase in impedance over time is observed, which may point to a reaction with the sodium metal electrode at this temperature. Further examination of this, together with the use of similar protection approaches used for Li-metal anodes, could overcome these compatibility issues at high temperatures.^30,31

The local Na⁺ diffusion properties were also investigated by μ⁺SR measurements performed on the EMU instrument at the ISIS Neutron and Muon source. The use of μ⁺SR as a local probe to study Li⁺ and Na⁺ diffusion in battery materials has grown in recent years.^15,32–34 The natural abundance of the spin 1/2 ²³Na isotope is 100%, making Na⁺ an ideal candidate to be studied by μ⁺SR. The temporal evolution of the decay positron asymmetry for Na_1.5La_1.5TeO₆ at three different longitudinal magnetic fields is shown in Fig. 3b. At short times, the decay positron asymmetry followed a moderate decay, while at longer times the asymmetry decrease followed a slower trend, as expected for this Na-rich double perovskite with no paramagnetic ions in its structure and which also contains active nuclear spins (²³Na, ¹³⁹La and ¹²⁵Te) which can interact with the muon spin. To obtain the fluctuation rate of the muons due to sodium-ion diffusion (Fig. S4, ESI†), the muon decay asymmetry data were fitted using Keren's analytic generalization of the Abragam function (Fig. 3b).³⁵ The Na⁺ diffusion coefficients from the muon fluctuation rate at different temperatures were then calculated applying eqn (1),³⁶ where N_i is the number of accessible Na sites in the i-th path, Z_v,i is the vacancy fraction of the destination sites, s_i the jump distance between Na⁺ sites, and ν the calculated muon fluctuation rate at each temperature.

Since a detailed model of the Na⁺ diffusion pathways for this novel Na-rich double perovskite is still not available, a simplified model based on the calculations reported by Rosseinsky and co-workers for the Li_1.5La_1.5WO₆ perovskite was employed.¹⁴ The model is shown in Fig. S5 (ESI†) where Na⁺ diffuses from the A sites to the two neighbouring B sites and from the B sites to the four neighbouring A sites, creating a 3D network for Na⁺ diffusion. Additionally, a conservative 0.01 vacancy fraction in the Na⁺ positions was introduced in both A and B sites to allow diffusion. From this preliminary model, and introducing the two different Na_A–Na_B distances of 3.33 and 3.46 Å, a Na⁺ diffusion coefficient at room temperature of 4.2 × 10⁻¹² cm² s⁻¹ was obtained. This diffusion coefficient is similar to that reported for the Na_x(Mn/Co)O₂ layered cathode materials (10⁻¹¹–10⁻¹² cm² s⁻¹), indicating excellent compatibility of these components in terms of Na⁺ diffusion.^34,37,38 The microscopic diffusion of Na_1.5La_1.5TeO₆ is also in line with other Na⁺ ionic conductors such as the Na_xWO₂Cl₂ tungsten bronze with a Na⁺ diffusion coefficient of 10⁻¹³ cm² s⁻¹,³⁹ and Na₃PS₄ with a value in the range of 10⁻¹² cm² s⁻¹.⁴⁰ The μ⁺SR measurements indicate that the activation energy required for local Na⁺ diffusion is 0.163(9) eV. This low activation energy is similar to related oxide materials, such as the Ga-doped Na₂Zn₂TeO₆ with an activation energy of 0.12 eV as observed from NMR measurements,¹² or β′-alumina single crystals with activations energies in the 0.12–0.16 eV range.⁴¹

The higher activation energy values obtained from the macroscopic EIS measurements which probes long range Na⁺ conduction through multiple intra-grain crystalline sites and grain boundaries, compared to microscopic μ⁺SR measurements which are more sensitive to individual Na⁺ hops within the crystalline grain, could have its origin in the contribution to the resistance from grain boundaries to ionic conduction which is virtually invisible to μ⁺SR. Lower conductivity values and higher energy barriers to diffusion could also result from the presence of La³⁺ ions in the A-sites, which could hinder long-range Na⁺ conductivity. Nevertheless, the excellent microscopic Na⁺ transport properties displayed by this novel Na_1.5La_1.5TeO₆ Na-rich double perovskite indicates that, upon further optimization, this material could be a promising candidate as a solid electrolyte for Na batteries.

In conclusion, we have demonstrated the synthesis of a novel Na-rich double perovskite, Na_1.5La_1.5TeO₆ through microwave methods, which crystallises with monoclinic P2₁/n space group with Na⁺ on both the A- and B-sites. The material displays a macroscopic ionic conductivity on the order of 10⁻⁸ S cm⁻¹ at room temperature with a low activation energy of 0.27(2) eV. μ⁺SR measurements reveal a microscopic diffusion coefficient for Na⁺ at room temperature in the order of 10⁻¹² cm² s⁻¹ and a very low activation energy of 0.163(9) eV. These findings reveal the promising transport properties for this Na_1.5La_1.5TeO₆ material and further developments are forthcoming to optimize the macroscopic transport to its maximum microscopic potential.
