Growth and dissolution of NaO₂ in an ether-based electrolyte as the discharge product in the Na–O₂ cell

Abstract

The deposition and dissolution of sodium superoxide (NaO₂) was investigated by atomic force microscopy. Rectangular prisms consisting of 8 smaller sub-structures grew from NaO₂ platelets, when discharged in 0.5 M NaClO₄, diethylene glycol dimethyl ether on highly ordered pyrolytic graphite. During oxidation the 8 sub-structures are conserved. Ring-like structures of Na₂CO₃ of 200 nm diameter remain at the end of oxidation.

---

Sodium–oxygen (Na–O₂) batteries are under investigation due to the advantageous theoretical specific energy of 1106 Wh kg⁻¹ for the reaction (eqn (1)):¹

Na⁺ + e⁻ + O₂ → NaO₂ E° = 2.27 V vs. Na⁺/Na (1)

The reduction of dissolved O₂ in the presence of Na⁺ results in the precipitation of large micrometre-sized cubes (1–50 μm)^2,3 of NaO₂ on the surface of the electrode. Understanding the growth and dissolution mechanism of NaO₂ cubes formed by the one-electron reduction of O₂ is critical towards the realisation of Na–O₂ as a practical technology. NaO₂ cubes are often of uniform size; however, their morphology changes based on the rate of formation. At high rates (>600 μA cm⁻²)² icosahedral features are formed on the electrode surface.² At lower rates (<400 μA cm⁻²)² they precipitate out as cubes.⁴ The explanation of these observations is that at higher rates the amount of soluble NaO₂ formed rapidly saturates the electrolyte near the electrode interface and precipitates out as smaller cubes at many nucleation points.² Whereas the slower formation and saturation of the electrolyte at lower rates results in larger cubes at a decreased amount of nucleation points. Subsequently, the reaction is halted by the formation of compact insulating NaO₂ films.^5,6

Recent reports on the growth mechanism of NaO₂ suggest that the soluble NaO₂ formed, aided by HO₂⁷ catalysed intermediates, agglomerate within the solution to form cubic structures.⁷ The sudden death of the cell chemistry is attributed to the formation of a passivation film between the cubic structures at the end of the discharge process, where the thickness is discharge rate dependent.⁸

Although many factors based on NaO₂ growth and morphology have been reported including rate,^2,8,9 impurity concentration,^7,10 and solvent dependence,^11–18 a unified model of the fundamental control parameters of the discharge process remains unclear, with different conclusions operating under similar conditions being made. Although there has been an extensive review carried out by Bender et al.¹ that ascertains the differences and similarities, Bi et al.¹⁹ analysed the cell setup concluding that glass cell setups afford different discharge products (mainly Na₂O₂·2H₂O) in comparison to stainless steel cell setups (NaO₂ only).

Atomic force microscopy (AFM) is a powerful method for the investigation of NaO₂ growth and dissolution reaction, as the size and morphology of the deposits can be directly measured with nanometer precision. This experimental approach has been already successfully undertaken in a lithium–oxygen (Li–O₂) battery system by Wen et al.²⁰ on highly ordered pyrolytic graphite (HOPG) and by Liu et al.²¹ on Au. On HOPG, agglomerates of LiO₂ nanoparticles are collected and grow at step edges forming Li₂O₂ nanoplates.²⁰ On Au, due to the lack of step edges and a more uniform surface reactivity, Liu et al.²¹ concluded that a soluble LiO₂ species was initially formed that subsequently precipitates out on the surface as Li₂O₂.²² S. E. Herrera et al.²³ studied the formation of Li₂O₂ in DMSO on HOPG using ex situ AFM, and herein an analogous AFM study in the Na–O₂ system of the growth and dissolution of NaO₂ precipitates on HOPG is presented.

A CV of O₂ saturated 0.5 M NaClO₄, diethylene glycol dimethyl ether (DEGDME) on a HOPG surface is shown in Fig. 1a. All stated potentials are vs. Na⁺/Na. The reductive current increase begins at the thermodynamic potential of NaO₂ formation (2.33 V) where it peaks at 1.5 V.

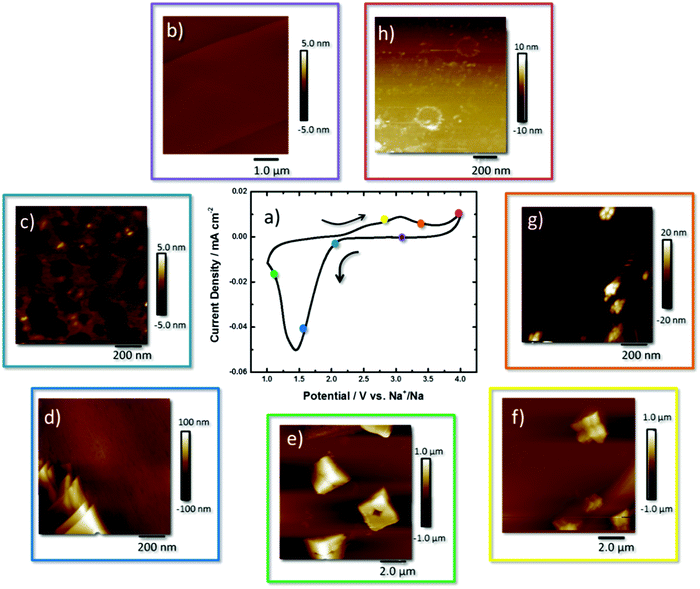

Fig. 1 (a) Cyclic voltammogram of HOPG in oxygen saturated, 0.5 M NaClO₄, DEGDME, AFM images taken at various potentials around the CV (b) 2.8, (c) 2.10, (d) 1.6, (e) 1.1, (f) 2.8, (g) 3.3, and (h) 4.0 V vs. Na⁺/Na.

During the reverse scan a broad peak beginning at 2.35 V, reaching a maximum at 3.06 V, signals the electrooxidation of NaO₂ back to O₂ and Na⁺. The current increases at 4.0 V, highlighting further oxidation of the remaining reaction products.^12,16,24

The sequential description of the AFM images collected around the CV curve begins at the OCP (2.8 V) where the small striations of the freshly cleaved HOPG surface are observed that follow the step edges of the stacked graphene sheets, and the height profiles show that the step edges are 0.8 nm in height (Fig. 1b and Fig. S1, ESI†). At 2.2 V (Fig. 1c) an inhomogeneous 5 nm film of NaO₂ was observed on the surface with 20 × 20 nm sized deposits of 5 nm thickness. Calculation of the mass of the discharge product, via the charge passed, estimates an idealised film of 4.7 nm formed on the surface (Table S1, ESI†). Height profiles are shown in the ESI† for all measurements (Fig. S2–S7, ESI†).

The formation of 50–150 nm-thick plate-like structures of NaO₂ was observed at 1.9 V (Fig. 1d and Fig. S3, ESI†), and at 1.5 V the formation of cube-like NaO₂ crystals at the interface is observed (Fig. 1e and Fig. S4, ESI†). The NaO₂ crystals have dimensions of 2 × 2 × 1 μm, with axial lines visible on the surface along with a centralised recess that is half the deposits’ height. These deposits are smaller than those observed in the literature which are generally 2–10 μm in size.²⁵ The Raman spectra (Fig. S8, ESI†) of these deposits show a peak at 1165 cm⁻¹, consistent with a superoxide species. The axial lines reveal a structure whereby the discrete crystal consists of stacked particles that have agglomerated on the surface and grown together. Some crystals appear prismatic or tetragonal in shape coming out of the surface, but still contain the same axial lines defining different cube-like features together, but emerging out of the plane. The depth of the hole within the centre of the crystal is ∼0.5 μm in height as observed from the line profile (Fig. S4, ESI†).

Taking an extended view of the surface, the NaO₂ crystals formed at the HOPG surface are all fairly uniform in size and are both scattered across the basal plane and agglomerated along the step edge (Fig. S9, ESI†). Visible along the x- and y-axes of these features are faint lines that reveal cubic building blocks of the overall structure (Fig. 1e). The scale of the hole here suggests that the depth of this hole is in fact the height of the cube (1.0 μm). Upon closer inspection of the height profile, it is actually 0.5 μm (Fig. S4, ESI†). For other deposits, the electrode surface is visible in the middle of the cube (Fig. S10, ESI†). The secondary image taken on top of NaO₂ shows imperfect facets of the cubic structure. This is interesting as the majority of studies show uniform NaO₂ cubes that appear as perfect plate-like structures.²⁶

Upon reversing the potential back to 2.6 V, the NaO₂ are diminished in size with the axial outlines of smaller cubes making up the larger crystals still apparent (Fig. 1f and Fig. S7, ESI†). This observation concurs with the previous state where these NaO₂ crystals formed are built essentially from 8 smaller building blocks. By moving the overpotential to 3.25 V (Fig. 1g and Fig. S8, ESI†), beyond the peak current density of the redox process, very little NaO₂ is left on the HOPG surface. Only tiny agglomerates of the nanoparticles (ca. 20 nm in height) are observed. At 4.0 V little remains on the surface of the HOPG electrode (Fig. 1h and Fig. S9, ESI†). Nonetheless, in comparison with HOPG at the OCP (Fig. 1b), the image shows some residual material on the electrode surface, some of which form rings of ca. 200 nm diameter and 1.5–7 nm height, suggesting incomplete oxidation of the discharge products. This is possibly the imprints of NaO₂ deposits on the surface of the electrode (the line profile shown in Fig. S9, ESI†). The plates could be a coating of side products obtained from other reactions as indicated by Ledano et al.²⁶ and Black et al.²⁷ Only the carbon G band (1583 cm⁻¹) of HOPG is present in the Raman spectrum (Fig. S11a, ESI†). However in the FTIR spectrum, a band for Na₂CO₃ at 1429 cm⁻¹ (Fig. S11b, ESI†) is detected.

Observations from the AFM study are summarised within Scheme S1 (ESI†) where initially a thin film (2–3 nm) is formed on the surface with deposits of nanoparticles of 5 nm. Platelets an order of magnitude (100 nm) higher than the film appear on the surface. On the surface as the overpotential is increased, agglomeration of cubic structures that grow into rectangular prisms of NaO₂ that consist of 8 discrete building blocks is observed. With the start of the oxidation process the edges of each crystal loses definition, leading to the presence of nano-agglomerates left at the interface. The resulting “ghost” shells of the crystal can be seen on the interface identified as Na₂CO₃.

Further AFM measurements (Fig. S12, ESI†) showed that NaO₂ crystallisation chemistry was found to be salt dependent and reduction of O₂ in 0.5 M NaTFSI, DEGDME in the electrolyte resulted in the formation of a holed plate-like deposit with larger dimensions of 16 × 16 × 0.5 μm. This identifies that further work needs to be undertaken to fully understand the role of the anion, as well as the ion coordination and solvent types in the electrolytes upon NaO₂ precipitation.²⁸

The observation of imperfections on the NaO₂ rectangular prism including both holes and axial lines indicates the high mobility of NaO₂ particles at the interface to agglomerate and grow in discrete, potential dependent morphologies. This has implications for practical cells where controlling the type of NaO₂ precipitate will be necessary for predictable cell behaviour. The high mobility of NaO₂ indicates that agglomerates will migrate along the surface until an energy favourable site, such as a defect, is available to deposit. At the initial stage of reduction, the NaO₂ is dissolved into the electrolyte. Once the double layer is saturated with NaO₂, the deposition and formation of NaO₂ crystals can occur.

Evidence of coarsening or Ostwald ripening is found in the initial film and final stages of the reduction of O₂ (Fig. 1c) and the oxidation of NaO₂ (Fig. 1g). This is provided by the spherical nature of the particles mapped within the AFM images. These are thermodynamically more stable due to surface energy minimisation of the particles through particle dissolution and ion precipitation.²⁹ At this stage of formation, the precipitation of primary nanoparticles is similar to classical nanoparticle growth. Therefore at these stages of the discharge, a high concentration of monomers i.e. O₂⁻ and Na⁺ should prevent particle coarsening and changes in morphology.^30,31 These effects would be heightened at an electrode interface due to the formation of the double layer structure. The anion has a considerable influence on the structure of the double layer in each system, and hence, the electrolyte anion affects these stages of NaO₂ growth, as demonstrated by the variation in deposit size between NaClO₄ (Fig. 1) and NaTFSI (Fig. S12, ESI†). However, classical crystallisation does not characterise the complete mechanism here due to the observation of Rubik cube-like structures.

Precursor layered plates and then Rubik cube-like structures are unsurprising given the observations of oxide formation in this solvent in the lithium analogue of this system.²⁰ From evidence mentioned here the steps between spherical nanoparticles of NaO₂ and rectangular prismatic structures suggest that a reoriented aggregation (RO) or mesocrystal mechanism is taking place. RO mechanisms simply encompass the aggregation of building block nanoparticles which then reorient to form single-faced structures again minimising the surface energy. Within the film the initially formed NaO₂ nanoparticles are observed (Fig. 1c). These favourable aggregation sites will then form the precipitation sites at the interface. Here collisions of aligned nanocrystals in suspension or the rotation of collided misaligned nanoparticles form the basis of growth at the interface.^31,32 Once an agglomerate of a certain size is reached, in some instances coarse ripening has been shown to smooth the edges of the final crystal structures. However, this model is not the best fit. Mesocrystal formation is a better model in this case because of the initial stages of growth proceeding into subsequent smoothing of the final precipitate. In mesocrystal formation the primary nanoparticles are iso-oriented into a crystal via oriented aggregation (OA).³³ Organic medium has been shown to temporarily stabilise these particles which form a mesocrystal via mesoscale assembly.³³ Fusion can then occur to form an oriented crystal and then finally to a single crystal. These previous observations help to explain the observations of the Rubik cube-like structures within this data series. Within this the final stage of fusion to form a single crystal is not observed (in contrast to many literature reports^33,34), most likely due to the much shorter timescale of the voltammetry experiment and the high current rate generation of superoxide.

The process of fusion of mesocrystals, which is thermodynamically favoured under the displacement of the solvent molecules, can often include part of the organic molecule as a coating,³³ and this is proposed as a pathway for the formation of a Na₂CO₃ coating upon the formation of crystals, and a crust of Na₂CO₃ remaining on the surface of the electrode after oxidation of NaO₂.²⁶

The dissolution mechanism should firstly involve the oxidation of the surface layer in contact with the surface and the edges of the rectangular prism agglomerates. The stages characterised in this study would suggest that similar stages of dissolution are present upon dissolution as upon formation of these mesocrystals.

The scan rate used (100 mV s⁻¹) resulted in a high rate of O₂ reduction leading to initial film formation by supersaturation of the double layer providing many smaller nucleation points.³⁵ In the medium ionic strength electrolyte (NaClO₄/DEGDME), the amount of time a particle of NaO₂ can reorient itself before being fixed is lowered.⁸ This observation is different from that reported by Ledrano et al.⁶ through in situ electrochemical quartz mass balance measurements on Au electrodes. They concluded that there is only solution-based NaO₂ in this instance and that no film is formed until the end of the discharge. Recently Lutz et al.³⁶ have highlighted the different behaviour of this process due to the substrate, especially the difference in the observed morphology between carbon (cubic NaO₂) and Au (NaO₂ flakes) surfaces. Undoubtedly the electrode surface, solvent, salt and H₂O level have major influences on the growth and morphology of NaO₂ crystals, and further investigations are required to understand these influences.

In conclusion, ex situ AFM images on HOPG demonstrate the rich and intricate dissolution and recrystallisation chemistry during O₂ reduction in an aprotic ether-based solvent in the presence of Na⁺. An initial formation of a 5 nm NaO₂ film followed by subsequent deposition of stacked NaO₂ platelets is observed. These plates then grow into crystalline rectangular prisms (2 × 2 × 1 μm) consisting of 8 smaller sub-structures. These were found to preferentially agglomerate at the step edges of HOPG, and also upon the basal plane itself. The observation of building block rectangular prisms that have stacked on top of each other, with striations on the deposit resembling those found on the Rubik's Cube puzzle, was unexpected, and this method of NaO₂ precipitation results in the observed 0.5 μm deep holes present in the central face of the NaO₂. Upon oxidation the dissolution of the rectangular prismatic structure conserves an unevenly shaped collection of 8 sub-structures that degrades further to groups of 40 nm-sized deposits. Rings of 200 nm diameter remain on the surface after oxidation, and these rings are thought to be the unoxidised side reaction product (Na₂CO₃) that forms on the surface of NaO₂.
