Fe₃O₄ nanoparticles coated with a guanidinium-functionalized polyelectrolyte extend the pH range for phosphate binding

Abstract

In this work commercially available Fe₃O₄ NPs were coated with polyallylamine hydrochloride (PAH) and PAH functionalized with guanidinium groups (PAH–Gu) for investigating the phosphate adsorption properties under alkaline conditions. The coating can be prepared easily and rapidly and results in Fe₃O₄ NPs with improved properties related to phosphate binding and colloidal stability. At a low initial phosphate concentration (2 mg L⁻¹), the novel Fe₃O₄@PAH–Gu material was able to remove phosphate rather independently of the pH condition (4.0, 3.6 and 3.7 mg g⁻¹ at pH = 5, 8 and 10, respectively), whereas for the uncoated Fe₃O₄ NPs the amount of adsorbed phosphate drops by >75% upon changing from acidic to alkaline conditions (0.84 mg g⁻¹ at pH = 10). Under alkaline conditions, the fastest adsorption was observed for Fe₃O₄@PAH–Gu followed by Fe₃O₄@PAH and Fe₃O₄. This can be related to the additional interaction forces due to the presence of primary amine groups (in PAH and PAH–Gu) and Gu groups (in PAH–Gu only) in coatings. Over 80% of the phosphate adsorbed on the novel Fe₃O₄@PAH–Gu material was successfully desorbed and the coated NPs were re-used over three adsorption/desorption cycles. This work will stimulate the design and preparation of functionalized polyelectrolytes for an extended area of applications, especially for the selective removal of target compounds from wastewater.

---

Introduction

The uncontrolled discharge of phosphate-containing products as present in aqueous streams from agricultural and cosmetic sectors^1,2 has increased eutrophication processes, i.e. the rapid growth of aquatic algae in lakes and rivers.^3,4 These processes contribute to an unbalanced aquatic ecology and to a decrease of water quality. Phosphate is therefore considered to be one of the most critical contaminants present in wastewater. Many countries have set a standard for the discharge of phosphate into water.⁵ For instance, the European Union recently regulated a maximum value of 0.07 μg P per L for rivers and 100 μg P per L for lakes to reduce the risk of eutrophication.⁶ In order to meet such strict requirements and to manage the high phosphorus demand at the same time,^7,8 the recovery of phosphorus from phosphate-contaminated aqueous media has been recognized as a challenging key strategy. For this purpose different technologies have been developed, including biological treatments,⁹ membrane-based processes,^10,11 crystallization,^12,13 flotation,¹⁴ and adsorption-based processes.¹⁵ From this list of well-known techniques, adsorption processes have high potential. This is mainly related to their low operational costs, high efficiency, low energy consumption and their versatility to be applicable in different wastewater sources.¹⁵

Among candidates for phosphate adsorbents, iron oxides are considered to be highly promising.¹⁶ This is because of (1) their high selectivity to bind phosphate in the presence of competing anions and (2) their easy introduction in municipal wastewater treatment plants (WWTPs). Furthermore, a good adsorbent is identified by, amongst others, the available specific adsorption area. For this reason, a lot of attention is now paid to develop new nano-sized adsorbents, because of their high-surface-area-to-volume ratio.¹⁷ Nanoparticles of iron oxide (Fe₃O₄ NPs) fulfill these conditions and even possess magnetic properties, making easy separations possible by using external magnetic fields.¹⁸ Phosphate adsorption onto Fe₃O₄ NPs occurs through an inner-sphere complex, due to the presence of surface hydroxyl groups.^16,19 When the pH is lower than the point of zero charge (PZC), the surface of the iron oxide nanoparticles is positively charged, which promotes binding and surface adsorption of phosphate anions. The lower the pH, the more charge on the surface and therefore a higher binding capacity.^20,21 However, at lower pH values the amount of phosphate anions decreases, as they are converted to phosphoric acid.²² This becomes significantly below pH < pK_a1 = 2.1. The pH of water streams in WWTPs is typically 6–8,^23,24i.e., around the PZC of the Fe₃O₄ NPs. At such pH values, the surface charge is slightly positive, neutral or slightly negative, which has a large negative impact on the phosphate anion binding capacity. In the mentioned pH range, the phosphates are monoanionic and partly dianionic (pK_a2 = 7.2).²² Moreover, in this pH range the NPs aggregate to precipitate, due to the decreased inter-particle electrostatic repulsions. Thus, for phosphate separation processes at pH values around the PZC of Fe₃O₄ NPs, there is room for improvement. For this reason, different types of chemical surface modifications have been applied by the attachment of specific ligands, including amino groups,²⁵ metal organic frameworks (MOFs),¹⁹ polymers,^26,27 layered double hydroxides (LDHs)²⁸ and graphene.²⁹ These examples illustrate well the effectiveness of surface functionalization in terms of controlling the affinity for a specific target species. Yet, it would be interesting to further employ these surface modification strategies in order to extend the use of iron oxide nanoparticles for phosphate anion binding at higher pH values, where unmodified iron oxide is otherwise less effective.

Receptor-functionalized polyelectrolytes (PEs) can bind to surfaces of opposite charge^30–32 and can contribute to nanoparticle stabilization,³³ while the receptor groups introduce selectivity for binding certain targets. Recent advances in this direction resulted in the availability of polyelectrolytes that were functionalized with, e.g., biotin, fluorescent probes and guanidinium groups to address chelation and the selective capture of His-tagged proteins,^34,35 biosensing,³⁶ fingermark visualization,³⁷ and ion selectivity.³⁸ Interestingly, polyelectrolyte functionalization and the subsequent modification of NPs do not require complicated chemical steps and can be performed rapidly in aqueous media.

In the current study, we present the concept of a simple surface modification of commercially available Fe₃O₄ NPs using polyelectrolytes functionalized with phosphate-receptors. For the receptor we have chosen the guanidinium moiety, which is able to coordinate phosphate ions in a wide range of pH values.^39,40 The Gu-functionalized polyelectrolyte was applied to modify the Fe₃O₄ NPs. The thus-obtained NPs are characterized in terms of their morphology, thermal stability and surface properties. The effect of the pH on the phosphate adsorption is investigated in detail, as well as the kinetics of the process. The obtained results were compared with those of bare Fe₃O₄ NPs as well as Fe₃O₄ NPs coated with a non-functionalized polyelectrolyte.

Experimental

Materials

Poly(allylamine hydrochloride) (PAH, M_w ∼15 000 Da) guanidine acetic acid (GAA, 99%), 1-ethyl-3-(3-dimethylaminopropyl) carbodiimide (EDC, commercial grade) and N-hydroxysuccinimide (NHS, 98%) were purchased from Sigma-Aldrich and used without any further purification. 1 M HCl and 1 M NaOH (analytical reagent grade, obtained from Fluka, Germany) were used for pH adjustments. Sodium dihydrogen phosphate (NaH₂PO₄·H₂O, Acros Organics) was used in phosphate removal experiments. Commercial iron oxide nanoparticles (Fe₃O₄ NPs, 8 nm in diameter as determined by TEM) were purchased as a 3 wt% acidic aqueous dispersion from PlasmaChem GmbH (Germany) without any organic stabilizer. All aqueous solutions were prepared using Milli-Q water (Milli-Q Ultrapure Water System, Millipore 22 μm).

Preparation of PAH–Gu, Fe₃O₄@PAH and Fe₃O₄@PAH–Gu

PAH–Gu (Scheme 1, top right) was obtained by the reaction of GAA with a part of the amino groups of PAH following the procedure published earlier by our group.³⁸¹H-NMR was used to confirm the chemical structure (ESI, Fig. S1†) and to calculate the degree of amino group functionalization by guanidinium (Gu) moieties; it was found to be ∼30% for the batch used in the current work. In order to study the effect of present Gu groups, non-functionalized PAH was used as a reference.

Scheme 1 A schematic showing the three different NPs (top left) and the interactions between amino-phosphate and guanidinium-phosphate, shown for the monovalent anion (top right). Brief stepwise description of the coating process of Fe₃O₄ NPs with (functionalized) polyelectrolytes (in the grey-colored box, bottom left), and pictures of different NP suspensions at pH = 9.5 (bottom right).

Next, the Fe₃O₄ NPs were modified with PAH or PAH–Gu via the following procedure.⁴¹ Aqueous solutions of PAH and PAH–Gu (2.5 g L⁻¹) were prepared by sonication using a probe sonicator (Cole-Parmer CPX750, 30% power, 750 watts) for 20 min and simultaneous cooling by placing the tube in ice. Similarly, a Fe₃O₄ NP suspension (0.5 g L⁻¹) was prepared in MilliQ water and sonicated under the same conditions. After sonication, the pH of all solutions was adjusted to 9.5 by the addition of drops of concentrated HCl or NaOH (1 M). At this pH value the Fe₃O₄ NPs have a negative surface charge, while the polyelectrolytes are positively charged. The Fe₃O₄ NP suspension was added drop-wise to the polyelectrolyte solutions and stirred for 24 h at room temperature (RT) to ensure complete adsorption at the Fe₃O₄ NP surface. The functionalized NPs were separated from the excess of PEs by three cycles of centrifugation, decantation and washing (Heraeus instrument D-37520 Osterode, Germany) at 17 000 rpm (20 min at 20 °C). The product was finally re-dispersed in 40 mL of MilliQ water to maintain the initial concentration and then sonicated to obtain uniform solutions of Fe₃O₄@PAH and Fe₃O₄@PAH–Gu. A schematic overview of the coating procedure and the different types of Fe₃O₄ NPs is presented in Scheme 1.

Characterization

The ¹H NMR spectrum of the PAH–Gu polymer was obtained using a Bruker AVANCE 400 NMR spectrometer with D₂O as solvent.

Modified NPs were studied with Fourier Transform InfraRed spectroscopy (Nicolet 8700 FT-IR Spectrometer) by mixing the NPs with KBr and pressing pellets. The spectral range of FT-IR was from 4000 cm⁻¹ to 500 cm⁻¹ with a resolution of 4 cm⁻¹.

X-ray Photoelectron Spectroscopy (XPS, Thermo Fisher Scientific, K-Alpha model) was used to determine the atomic composition of the modified NP surfaces. In more detail, a monochromatic Al Kα X-ray source was used with a spot size of 400 μm at a pressure of 10⁻⁷ mbar. A constant pass energy of 200 eV for the survey spectra and 50 eV for the detailed high-resolution spectra was used. The flood gun was turned on during the measurement to compensate for potential charging of the surface. The peak position was adjusted based on the internal standard C1s peak at 284.8 eV, with an accuracy of ±0.05 eV. Avantage processing software was used to analyze all spectra.

ThermoGravimetric Analysis (TGA) measurements were performed with Thermal Analysis (TA) Instruments equipment from RT to 550 °C at a heating rate of 10 °C min⁻¹ under continuous air purging.

The size and morphology of the unmodified and modified NPs were studied using a Transmission Electron Microscope (TEM, JEOL JEM-1400 Plus, USA) operated at 120 kV. A holey carbon support film (200 meshes, Quantifoil®) was dipped into the NP-containing solution and then dried at room temperature overnight. TEM images were analyzed by using Image J software and the mean size value of each NP system was calculated based on 20 separately determined diameters.

The hydrodynamic diameter (D_h) of NPs was determined at 25 °C by Dynamic Light Scattering (DLS) using a Zetasizer Nano ZS900 (Malvern, UK). The instrument was operated at a backscattering angle of 173° with a laser beam with a wavelength of 633 nm. The same instrument was used to measure the ζ-potential at 25 °C for all samples and measurements were performed in triplicate. To this end, an aqueous suspension of Fe₃O₄ NPs (0.5 mg mL⁻¹) was prepared by adding 167 μL of the original concentrated NP solution into 10 mL MilliQ water. Samples for ζ-potential measurements were prepared by diluting 80 μL of the above-prepared NP suspension (0.5 mg mL⁻¹) to 10 mL using MilliQ water. The solution was sonicated using a probe sonicator (30%, 750 watts, cooling in an ice bath, 6 min) to break the existing aggregates. In the last step, the pH was adjusted to the desired values by using 1 M NaOH and 1 M HCl. The same procedure was used to determine the ζ-potential of all NP systems, as well of the pure PEs (PAH and PAH–Gu), where a solution of 0.5 mg mL⁻¹ in MilliQ water was used. All the measurements were done 5 min after the sonication procedure to minimize possible differences due to colloidal instability.

Batch adsorption experiments

Phosphate adsorption experiments were performed for Fe₃O₄, Fe₃O₄@PAH, and Fe₃O₄@PAH–Gu NPs. All desired phosphate solutions, including the standard known concentration of phosphate for calibration measurements, were prepared by diluting a stock solution (1000 mg L⁻¹ of NaH₂PO₄ in 250 mL). The phosphate adsorption was studied as a function of time starting with an initial phosphate concentration of 2 mg L⁻¹, taken from the stock solution, and an adsorbent solution of 0.5 g L⁻¹ in 30 mL. The adsorbed amount was deduced from the reduction of the phosphate concentration according to the work optimized by Yoon et al.⁴² In contrast to other studies,^42,43 we have decided to keep a fixed initial adsorbent concentration and to focus on the effect of pH on the adsorption process. In this study the pH conditions have a great impact not only on the stability of the suspension of NPs and their surface charges, but also on the type of speciation of phosphate involved in the adsorption process. Before starting the experiments, the pH of both the adsorbent solution and phosphate solution was adjusted to the desired value. Phosphate was added to NP solutions, followed by stirring at RT for 24 h. Samples were taken at different times and centrifuged (Eppendorf AG, Germany) at 13 000 rpm for 1 h. The phosphate adsorption efficiency was measured through UV-vis spectroscopy (UVIKON XL, Beun De Ronde) by using the ascorbic acid method.^44,45

Adsorption and desorption cycles

Fe₃O₄@PAHGu NPs were subjected to three adsorption and desorption cycles to test the reversibility of the binding process as well as the reusability of the coated NPs. In more detail, a solution containing 5 mg L⁻¹ of NaH₂PO₄ was added to 3 mL of a 0.5 g L⁻¹ Fe₃O₄@PAHGu suspension at pH = 5. The adsorption experiment was performed by stirring at RT for 24 h followed by a centrifugation step (1 h at 13 000 rpm). The desorption experiment was done by adding a 10 mM NaCl solution to the Fe₃O₄@PAHGu NPs that were obtained after the centrifugation step of the first adsorption. The solutions were stirred for 3 h at RT and the resulting solution was separated from the NPs by centrifugation (1 h at 13 000 rpm). Before the 2^nd and 3^rd adsorption cycle, Fe₃O₄@PAHGu NPs were washed twice with MilliQ water while stirring for 30 min each time after which the water was removed by centrifugation (1 h at 13 000 rpm, each time). All phosphate-containing solutions were analysed through Ion Chromatography (930 Compact IC Flex, 150 mm A Supp 5 column, Metrohm).

Results and discussion

Given the importance of electrostatic interactions in the surface modification using polyelectrolytes,^33,46 we first present and discuss the ζ-potential data of the PAH and PAH–Gu separately, and Fe₃O₄ NPs as such. Next, FTIR, XPS, TGA and TEM data are given to characterize the bare and modified Fe₃O₄ NPs. The phosphate sorption studies of the NPs are split into three different topics: (i) pH effects, (ii) kinetic study and (iii) reversibility of phosphate binding.

ζ-Potential investigation of PEs and Fe₃O₄ NPs

Fig. 1 shows the ζ-potential of bare Fe₃O₄ NPs as well as of PAH and PAH–Gu in aqueous solutions as a function of the solution pH. It is observed that for all cases the zeta potential becomes less positive with increasing pH value.

Fig. 1 ζ-Potential as a function of solution pH for (a) an aqueous suspension of unmodified Fe₃O₄ NPs (0.5 g L⁻¹, black squares), (b) an aqueous solution of 0.5 g PAH per L (blue circles), and (c) an aqueous solution of 0.5 g PAH–Gu per L (red triangles).

For the unmodified Fe₃O₄ NPs the zeta potential changes from a positive (Fe–OH₂⁺ groups are in excess) to a negative (Fe–O⁻ groups are in excess) sign around pH = 7, reflecting the PZC as has been reported in the literature.⁴⁷

In contrast, PAH and PAH–Gu polyelectrolyte solutions remain positive over the whole investigated pH region. PAH–Gu shows a higher positive surface charge compared to the (unfunctionalized) PAH. This can be easily understood in terms of the respective pK_a values of PAH and Gu, which are 8–9 for the primary amine of PAH^48,49 and 13 for the guanidinium group present in PAH–Gu.⁵⁰ Furthermore, for PAH–Gu the ζ-potential data at pH < 6.5 show a plateau behavior, which is absent for PAH and the Fe₃O₄ NPs in the studied pH window. This indicates that the overall surface-charge density of PAH–Gu at pH < 6 is constant. This difference may be associated with the differences in the PZC of the respective materials, including a shift of the apparent dissociation constant of PAH (pK_a(app)) due to local changes of the electrostatic environment⁵¹ and, for PAH–Gu a saturation of chargeable groups under acidic pH conditions.

To conclude this part, the results show that within the pH window of ∼7 to ∼9.5 the unmodified Fe₃O₄ NPs are negatively charged, while both PEs are positively charged. In addition, from the literature it is known that Fe₃O₄ NPs are maximally covered by weak polyelectrolytes (like PAH) if the pH is similar to the polyelectrolyte pK_a value.⁵² We have therefore chosen to perform our experiments at a pH of 9.5, the pK_a value of PAH, for both PAH and PAH–Gu modifications.

Characterization of coated Fe₃O₄ NPs

The FTIR spectra of bare Fe₃O₄ NPs, Fe₃O₄@PAH, and Fe₃O₄@PAH–Gu as well as those of the pure PEs are shown in Fig. 2. The data show that the modified NPs are covered with PAH or PAH–Gu. In all cases a large contribution between 3404 cm⁻¹ and 3017 cm⁻¹ is observed, which can be associated with the O–H bond stretching. Its broadness originates from H-bridge formation with physically adsorbed water, which was used as a solvent and can be entrapped between the polymeric chains (see also TEM and TGA analysis; vide intra).⁵³ The presence of iron oxide is confirmed by the observed stretching of Fe–O at 577 cm⁻¹ in the cases of Fe₃O₄ NPs (black, dashed), Fe₃O₄@PAH (blue, dashed) and Fe₃O₄@PAH–Gu (red, dashed).⁵⁴ The success of the PAH coating process becomes clear from the typical peaks at 2918 cm⁻¹ and 2850 cm⁻¹ that are associated with C–C stretching and two peaks at 1575 cm⁻¹ and 1541 cm⁻¹ of the C–N and N–H bending, which compare well with bands present in the FTIR spectrum of PAH (blue). Finally, the bands at 1604 cm⁻¹ and 1506 cm⁻¹ can be assigned to the bending vibration related to the amino group.⁵⁵ Likewise, in agreement with the bare PAH–Gu spectrum (red), the coating of NPs with PAH–Gu is confirmed by the presence of two peaks at 2918 cm⁻¹ and 2850 cm⁻¹ for C–C stretching, a peak at 1631 cm⁻¹ assigned to the stretching of C=N bond from the Gu group and a peak at 1537 cm⁻¹ of the N–H bending.^38,56 It should be mentioned that in both spectra of Fe₃O₄@PAH and Fe₃O₄@PAH–Gu, the positions of the characteristic peaks of primary amine and amide bonds shift to some extent with respect to the corresponding bare PEs. This can be explained by the interaction between iron ions and charged groups of PEs and the formation of amino complexes.⁵⁷

Fig. 2 FTIR spectra of (a) bare Fe₃O₄ NPs (black, dashed), (b) Fe₃O₄@PAH (blue, dashed), (c) PAH polymer (blue, solid), (d) Fe₃O₄@PAH–Gu (red, dashed), and (e) PAH–Gu polymer (red, solid).

XPS was used to further map the surface chemistry of NPs before and after modification (Table 1). The successful NP functionalization is evident from the N/Fe ratio that increases upon the preparation of the coating from 0 (bare Fe₃O₄ NPs) to 0.30 and 0.60 for Fe₃O₄@PAH and Fe₃O₄@PAH–Gu, respectively. Moreover, with respect to the bare NPs, the C/Fe ratio is higher in the presence of the PEs and this can be associated with the alkyl polymer backbone and methylene groups in the side chains. Oxygen is measured in all samples, which can be related to OH groups present at the Fe₃O₄ NP surface and the C=O in the Fe₃O₄@PAH–Gu system.

Table 1 XPS elemental ratios of bare and polyelectrolyte-modified NPs

	C/Fe	O/Fe	N/Fe
Fe3O4	1.67	1.64	—
Fe3O4@PAH	6.02	4.69	0.30
Fe3O4@PAH–Gu	2.44	2.52	0.60

---

Carbon is detected in Fe₃O₄ as well, and this can be related to hydrocarbon surface contamination often observed on surfaces.⁵⁸ While the C/Fe ratio of Fe₃O₄@PAH is higher than that of Fe₃O₄@PAH–Gu, the contribution of carbon contamination makes it hard to draw any conclusion on the degree of coverage based on C/Fe. An indication of the amount of PEs bound to the NP surface can be deduced from the N/Fe ratio. Taking into account a degree of Gu group substitution of 30% (see the chemical structure reported in Scheme 1), the calculated amount of N per repeating unit in PAH–Gu is 1.9 times higher than that for PAH (considering 0.3 × 4(N) + 0.7 × 1(N)). From XPS analysis a ratio of (0.60/0.30) = 2 was observed, indicating that a similar amount of both polyelectrolytes is bound to the NPs.

Additional evidence of the changed surface chemistry of the NPs was obtained from TGA analysis (Fig. 3). Bare Fe₃O₄ (line a) showed hardly any weight loss for the indicated temperature range (residual of 98%). This small weight reduction can be attributed to the loss of water physically adsorbed at the NP surface combined with the loss of condensed groups at temperatures higher than 100 °C.⁵⁹ In contrast, two degradation steps clearly appear for Fe₃O₄@PAH (line b) and Fe₃O₄@PAH–Gu (line c). The first step at 30–120 °C refers to the loss of water. The presence of water is due to both physically adsorbed water at modified NP surfaces and the hydration shell of ions (ammonium and chlorine) of the polyelectrolyte chains, which is found to be almost the same for both systems (in accordance with the FTIR spectra). The second weight loss at 250–400 °C can be related to the breakdown of the PEs. The residuals of Fe₃O₄@PAH and Fe₃O₄@PAH–Gu overall drop to 87% and 84%, respectively. The weight drop can be attributed to the bonded polyelectrolyte at the NP surface. The difference between the drop for Fe₃O₄@PAH and Fe₃O₄@PAH–Gu is due to the Gu modification, considering that the average mass per monomer unit is larger for PAH–Gu than that for PAH.

Fig. 3 TGA curves showing the fractional weight loss of (a) bare Fe₃O₄ (black), (b) Fe₃O₄@PAH (blue), and (c) Fe₃O₄@PAHGu (red).

The morphology of NPs was examined with TEM; the images of Fe₃O₄ NPs, Fe₃O₄@PAH, and Fe₃O₄@PAH–Gu are shown in Fig. 4. In the absence of a polymeric coating, Fe₃O₄ NPs show a typical spherical shape.⁶⁰ The same spherical shape can also be observed in images (b) and (c); in addition, a smooth and transparent layer is seen around the NPs, likely due to the presence of the polymeric coating (c).⁶¹Table 2 lists the mean diameters of the NPs as obtained from TEM analysis. Fe₃O₄ NPs were found to have a diameter of 8 ± 2 nm, confirming the specifications given by the supplier. The diameters of Fe₃O₄@PAH and Fe₃O₄@PAH–Gu, including the additional smooth layer, are 11 ± 2 nm, indicating an adsorbed polyelectrolyte layer thickness of ca. 3 nm (TEM-based size distribution plots are presented in ESI Fig. S2†).⁶²

Fig. 4 TEM images of (a) bare Fe₃O₄, (b) Fe₃O₄@PAH NPs, and (c) Fe₃O₄@PAH–Gu NPs.

Table 2 Sizes and zeta potentials of our investigated NPs

Type of NPs	TEM diameter (nm)	D h ^, (nm)	ζ-Potential^b (mV)
a From DLS. b pH = 9.5.
Fe3O4	8 ± 2	86 (PDI 0.7)	−16.7 ± 0.7
Fe3O4@PAH	11 ± 2	65 (PDI 0.5)	26.0 ± 1.2
Fe3O4@PAH–Gu	11 ± 2	41 (PDI 0.3)	32.0 ± 1.7

---

Table 2 summarizes the size data of our investigated NPs as obtained from TEM and DLS (hydrodynamic diameters) and zeta potential measurements. At pH = 9.5, the unmodified and polyelectrolyte-modified NPs have hydrodynamic diameters much larger than the sizes of single particles observed by TEM. This is due to the agglomeration of these NPs in solution. This agglomeration is reduced for the NPs modified with a polyelectrolyte: 86 nm observed for the unmodified Fe₃O₄ NPs, compared to 65 nm and 41 nm for the Fe₃O₄@PAH and Fe₃O₄@PAH–Gu, respectively. The difference is related to the colloidal stability, which is increased for polyelectrolyte-modified NPs, thus preventing aggregation.^{29,30,58,63,64} We also observed a stable suspension for both PE-modified NPs, while the unmodified Fe₃O₄ NPs precipitated after 24 h at pH = 9.5 (Scheme 1, bottom left and ESI Fig. S3 and S4†).

The stability of the NP suspension at pH = 9.5 as observed from DLS was confirmed with ζ-potential, which changes sign upon modification to +26 mV and +32 mV for the PAH and PAH–Gu coatings, respectively. The positive ζ-potential values strongly confirm the presence of polycations at the NP surface.⁶¹ Moreover, it should be noted that the magnitude of the surface potential reflects the level of electrostatic repulsion between NPs. A higher zeta potential gives more repulsion and therefore a more stable suspension. From these zeta potential measurements it is now clearly understood why the Fe₃O₄ NPs start to agglomerate, while the PE-modified NPs are still stable. From the results obtained, it is evident that the addition of a Gu moiety altered the Fe₃O₄ properties; this is in terms of not only reversing the surface charge to a positive value (as is the case for Gu-free PAH), but also increasing the absolute charge density, leading to an increased colloidal stability. Again, this can be explained by the differences in the PZC between the amino-PAH and Gu moiety.⁶⁵ Images of the NP suspension at different pH values after 24 h and Fe₃O₄@PAH–Gu after 1 week are shown in Fig. S2 and S3 in the ESI.†

Phosphate adsorption: effect of pH

In order to map the pH-dependency of phosphate adsorption at our (modified) NPs, three pH values were chosen for the adsorption experiments: pH = 5, pH = 8 and pH = 10. Within the pH window from 5 to 10 the degree of dissociation of phosphoric acid decreases accordingly, thus at pH = 5 H₂PO₄⁻ is predominant, at pH = 8 H₂PO₄⁻ and HPO₄²⁻ are equally present, while at pH = 10 mostly HPO₄²⁻ can be expected.²² The adsorption experiments were performed at a fixed concentration of 0.5 g (modified) NP per L and 2 mg NaH₂PO₄ per L; thus there is always an excess of adsorbent. Fig. 5 shows the results of the phosphate adsorption as a function of pH for Fe₃O₄ NPs, Fe₃O₄@PAH and Fe₃O₄@PAH–Gu after equilibration for 24 h at RT as determined by the ascorbic acid/UV method.⁴⁵

Fig. 5 Amount of phosphate adsorbed (mg_P g_NPs⁻¹) after equilibration for 24 h at RT for (a) Fe₃O₄ NPs (black), (b) Fe₃O₄@PAH (blue), and (c) Fe₃O₄@PAH–Gu NPs (red). The dashed lines serve as a guide to the eye. Measurements were performed in triplicate and all errors were found to be <0.05%.

At pH = 5 all NPs show a similar amount of phosphate adsorbed. Under these conditions, the phosphate is predominantly present as the mono-anion (pK_a1 = 2.1 and pK_a2 = 7.2) and the Fe₃O₄ NPs are below their PZC and therefore will have a net positive charge. For the PAH and PAH–Gu modified Fe₃O₄ NPs also the net surface charge is positive. The phosphate mono-anion will therefore bind to the unmodified Fe₃O₄ NPs, as reported in the literature.¹⁹ Since there is hardly any extra effect of the PAH and PAH–Gu modifications on the adsorbed phosphate amount it is suggested that the Fe₃O₄ NP surface determines the adsorption under these conditions. Despite the positive charges at the Fe₃O₄ NP surface, the stability of the PE coating under this pH condition can be related to the presence of neutral amino groups in the PAH and PAH–Gu chains. It is likely that both positive charges and neutral hydroxyl groups present on the Fe₃O₄ NP surface interact with the unprotonated amino groups of PEs.

Increasing the pH from 5 to 8 and 10 shows a reduction of phosphate adsorption by the unmodified Fe₃O₄ NPs of 46% and 77%, respectively. At these pH values, the surface charge has turned to a negative value and the adsorption of phosphate monoanions or dianions is suppressed by electrostatic repulsion. Yet, at pH = 10 the phosphate adsorption is not reduced to 0; instead, it is still 0.85 mg g⁻¹. Thus, the adsorption of phosphate onto iron-oxide surfaces occurs both by electrostatic interactions, absent at pH = 10, and by a chemisorption process.^66,67 The latter involves the formation of Fe–O–P bonds through a ligand exchange reaction between OH groups at the NP surface and phosphate oxygen. This may explain the P adsorption detected at pH = 10.

A very clear difference is observed for pH = 8 and pH = 10, if PAH or PAH–Gu is present. The amount of adsorbed phosphate is now higher than that observed for unmodified Fe₃O₄ NPs and more or less similar to the adsorbed amount observed at pH = 5 for the three investigated NPs. Clearly, the reduced affinity of the (unmodified) Fe₃O₄ NP surface at pH = 8 is compensated nearly completely by the PAH and PAH–Gu modifications. For pH = 10, it is seen that the phosphate adsorption for PAH is decreased compared to that of the PAH–Gu modified surface. For PAH–Gu still a phosphate adsorption of 3.67 mg g⁻¹ is observed. This difference nicely reflects the difference of the pK_a values of PAH (8–9) and PAH–Gu (Gu groups pK_a = 13) due to which the latter has a higher positive charge density at pH = 10.

In addition, the increased stability of the colloidal suspension may contribute to the uptake of phosphate, because a higher contact area is available compared to the aggregated state. Increased colloidal stability is supported by ζ-potential measurements: at pH = 10 a zeta potential of +21.1 mV and +3.8 mV is found for Fe₃O₄@PAH–Gu and Fe₃O₄@PAH, respectively. As mentioned previously, the adsorption of phosphate slightly decreases upon increasing pH. Under alkaline conditions, OH⁻ groups are abundant and they might compete with phosphate in the adsorption process.^19,28

Effect of contact time and adsorption kinetics

Phosphate adsorption was monitored as the decrease of the phosphate concentration over time at pH values of 5, 8 and 10 (Fig. 6). At pH = 5 all NPs show a very fast adsorption behavior. Equilibrium was reached within 5 min. Due to our experimental setup we are not able to accurately monitor the adsorption increase within that time frame. However, it is clear that at pH = 8 and pH = 10 the adsorption process is slower, making monitoring of the adsorption increase possible. Equilibrium is now obtained within 1 h. This is similar to observations made by others.^29,68

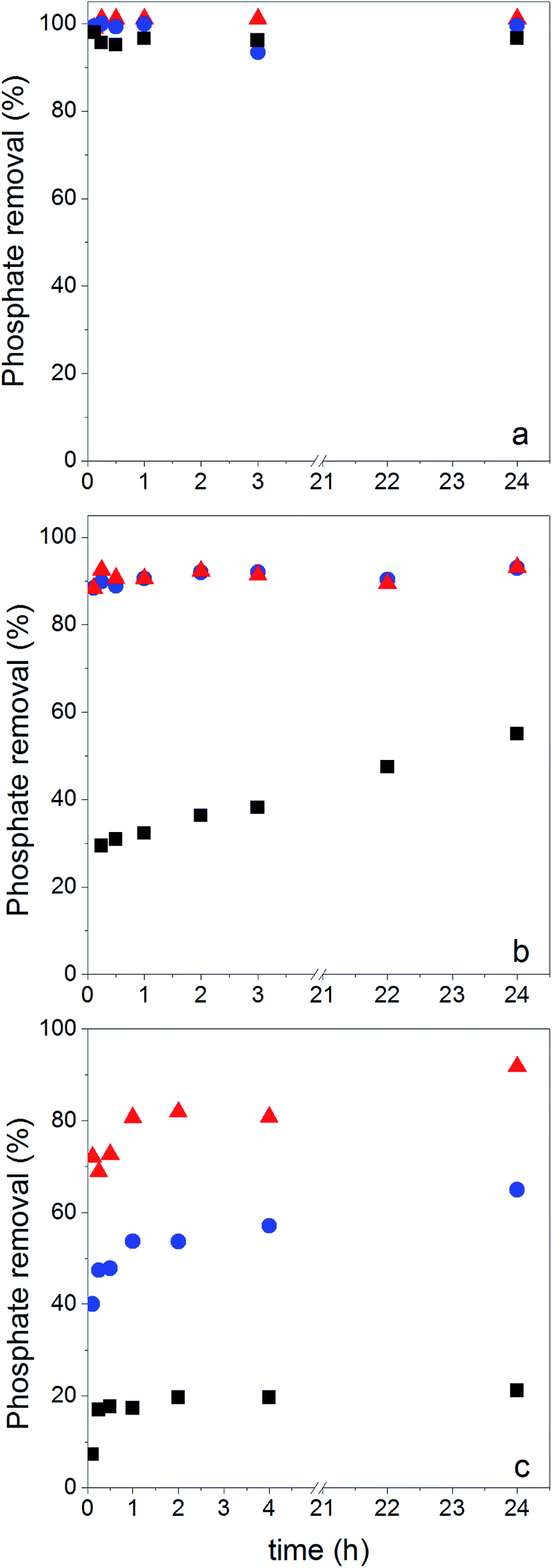

Fig. 6 Phosphate adsorption vs. time at (a) pH = 5, (b) pH = 8 and (c) pH = 10. Data were collected for bare Fe₃O₄ (black squares), Fe₃O₄@PAH (blue spheres) and Fe₃O₄@PAH–Gu (red triangles). Measurements were done in triplicate and all errors were found to be lower than 0.05%.

The monitored increase of phosphate adsorption as a function of time can be nicely fitted with a pseudo-second-order kinetic equation.^69,70

where q_e is the amount of phosphate adsorbed at the equilibrium, q_t is the phosphate adsorbed during the time t and k₂ is the pseudo-second-order rate constant. The equation describes the increased amount of adsorbed phosphate over time as a function of the difference between q_e and q_t. Although other kinetic models are reported in the literature to describe adsorption processes (i.e., pseudo-first-order, Elovich), the pseudo-second-order is widely recognized as the best model particularly at low initial solution concentration.⁷¹ The fit is shown for the linearized form of eqn (1), which is given by eqn (2) (fitting plots are reported in Fig. S5,† while the non-linear curve fitting parameters are listed in Table S1†):

In Table 3 the results of the fitting q_e and k₂ are compiled together with the calculated value of the initial rate at t → 0 (h in mg g⁻¹ min⁻¹),

h = k₂q_e² (3)

and the coefficient of determination (R²), reflecting the quality of the fit.

Table 3 Kinetic model parameters obtained from pseudo-second-order model fitting to experimental time-dependent adsorption data for phosphate on Fe₃O₄, Fe₃O₄@PAH, and Fe₃O₄@PAH–Gu at pH = 5, 8 and 10. For completeness, the q_e values experimentally determined at 24 h (q_e exp) are included

	pH 5	pH 8					pH 10
	q e exp mg g^−1	q e exp mg g^−1	q e mg g^−1	k 2 mg g^−1 min^−1	h mg g^−1 min^−1	R ^2	q e exp mg g^−1	q e mg g^−1	k 2 mg g^−1 min^−1	h mg g^−1 min^−1	R ^2
Fe3O4	3.7	2.0	1.5	0.28	0.63	0.99	0.84	0.82	0.15	0.10	0.99
Fe3O4@PAH	4.0	3.7	3.7	0.52	7.0	0.99	2.6	2.3	0.13	0.68	0.99
Fe3O4@PAH–Gu	4.0	3.7	3.6	2.2	29	0.99	3.7	3.7	0.20	2.1	0.99

---

As said, under conditions of pH = 5 the process is too fast for monitoring adsorption increase data and therefore we only report here experimental values of q_e. Under conditions of pH = 8 and 10 the monitored data of increased adsorption fitted very well with the second-order kinetic equation as deduced from the obtained coefficients of determination close to unity. The observed second-order behavior is a net result of the combination of adsorption and desorption processes occurring simultaneously.⁷¹ While it is realized that the pseudo-second-order kinetics is often ascribed to a double-site interaction,^42,70 we point to the derivation of the pseudo-second-order rate equation from the Langmuir kinetics as described by Liu and Shen.⁷¹ Double-site adsorption would be a correct physical interpretation, only if the binding sites involved can move independently over the surface and need to be close in order to bind one phosphate. However, the work of Liu and Shen⁷¹ demonstrates that the combination of the simultaneous adsorption and desorption processes also leads to apparent second-order kinetics when the total amount of binding sites per unit of volume is larger than both the initial concentration of the adsorbate and the inverse of the equilibrium binding constant. The fact that we observe second-order kinetics implies that these conditions are met.

No physical meaning can be attributed to k₂,⁷² but the values for the initial adsorption rate (h) and the amount of adsorbed phosphate at equilibrium (q_e) can be interpreted. At both pH = 8 and pH = 10, h increases from Fe₃O₄ NPs to Fe₃O₄@PAH to Fe₃O₄@PAH–Gu. At pH = 10, q_e also increases in this order. In contrast, at pH = 8 for Fe₃O₄@PAH and Fe₃O₄@PAH–Gu a similar order of q_e is observed, which is higher than that of Fe₃O₄ NPs. It is suggested therefore that at pH = 8 the adsorption capacity of the two investigated polyelectrolytes is similar. The difference between the two polyelectrolytes becomes visible at pH = 10, in favor of Fe₃O₄@PAH–Gu, showing a pH-independent value of q_e. This is likely due to the differences in the pK_a of the PAH and PAH–Gu PEs; the Gu moieties are still protonated at pH = 10, while for PAH the degree of protonation is reduced compared to the situation at pH = 8. From the results shown in Table 3, it is also clearly seen that at pH = 8 and pH = 10 the phosphate adsorption is dictated by the present PEs and that the dominant role observed for Fe₃O₄ at pH = 5 is now tempered. An additional difference between Fe₃O₄@PAH and Fe₃O₄@PAH–Gu (not shown here) is the selectivity for phosphate binding for the Gu containing polyelectrolytes, which we have shown in our previous study.³⁸

Reversibility of phosphate binding

The reversibility of the adsorption process is highly relevant when it comes to practical applications. Initially we run desorption experiments under high alkaline conditions⁴³ (pH = 12.9) to weaken the electrostatic interaction between PAH–Gu and phosphate. While a high phosphate desorption was obtained this way (>80%), the NPs were found to agglomerate and it was difficult to get them re-dispersed. Hence, the second adsorption cycle was unsuccessful and the NPs were not reusable, likely caused by a partial removal of the PAH–Gu coating, which acts as a coagulant for Fe₃O₄ NPs.⁵⁴ However, phosphate could be removed successfully from Fe₃O₄@PAH–Gu NPs by a regeneration process using 10 mM of NaCl solution through an anion-exchange mechanism. Phosphate adsorption and desorption were monitored over three cycles (Fig. 7) and high levels of phosphate recovery were reached in good agreement with previous work reported in the literature.^26,42 After the first cycle, the adsorption of phosphate was decreased in the next cycle by almost 20%, which might be explained by phosphate being irreversibly bound to (and/or physically entrapped in) the NPs and PAH–Gu network or to a decrease of the available active surface caused by a partial NP aggregation after the centrifugation steps.

Fig. 7 Recovery of phosphate for Fe₃O₄@PAH-Gu over three cycles; empty columns give the adsorption data after 24 h, while the filled columns show the desorption results. NPs were regenerated with a 10 mM NaCl solution at RT and pH = 5, the adsorbent dosage was 0.5 g L⁻¹ and the initial phosphate concentration was 5 mg L⁻¹.

Conclusions

While several nanomaterials have been investigated for the removal of phosphate from aqueous (wastewater) streams, it remains a challenge to develop new systems operable under alkaline conditions. This study shows the results of a simple surface modification method applied to commercially available Fe₃O₄ NPs by using a polyelectrolyte functionalized with guanidinium groups for phosphate anion binding. The surface modification was confirmed by thermal, morphological and surface analysis measurements (FTIR, XPS and ζ-potential analysis). The PAH–Gu modified Fe₃O₄ NPs showed good phosphate adsorption (3.7 mg g⁻¹) up to pH = 10, where the phosphate adsorption ability of the PAH-modified Fe₃O₄ (2.3 mg g⁻¹) and unmodified Fe₃O₄ (0.82 mg g⁻¹) is reduced. The initial rate of phosphate adsorption increased from 2.1 to 29 mg g⁻¹ min⁻¹ for PAH–Gu coated Fe₃O₄ NPs upon switching the pH from 10 to 8. The observed second-order adsorption kinetics can be explained as the net result of simultaneous adsorption and desorption processes at the NP surface. At the same time, the colloidal stability was enhanced upon coating the NPs with polyelectrolytes. Finally, the reversibility of phosphate binding to the novel Fe₃O₄@PAH–Gu NPs was studied over three cycles of adsorption and desorption, showing the reusability of the NPs. While already most (>80%) of the bound phosphate could be released again, we believe that the efficiency can be further improved by additional advanced surface modification strategies, e.g. by covalently binding the coating to the NPs and capping the remaining surface hydroxyl groups.

Acknowledgements

The authors thank Wetsus – European centre of excellence for sustainable water technology (Leeuwarden, the Netherlands) for financial support and Dr Henk Miedema (Wetsus) and Mr Willem van Baak (FUJIFILM Manufacturing Europe BV, The Netherlands) for their support and fruitful discussions. This study was partly supported by the European Research Council (ERC Consolidator Grant 682444, E-motion, PI De Smet). The authors thank Dr Wiel Evers and Mr Yi Song (both TU Delft) for obtaining the TEM images and experimental support, respectively.
