Kinetic analysis methods applied to single motor protein trajectories

A. L. Nord a, A. F. Pols b, M. Depken *b and F. Pedaci *a
aCBS, Univ. Montpellier, CNRS, INSERM, Montpellier, France. E-mail: francesco.pedaci@cbs.cnrs.fr
bKavli Institute of NanoScience and Department of BioNanoScience, Delft University of Technology, Delft, 2629HZ, The Netherlands. E-mail: s.m.depken@tudelft.nl

Received 14th May 2018 , Accepted 15th June 2018

First published on 2nd July 2018


Abstract

Molecular motors convert chemical or electrical energy into mechanical displacement, either linear or rotary. Under ideal circumstances, single-molecule measurements can spatially and temporally resolve individual steps of the motor, revealing important properties of the underlying mechanochemical process. Unfortunately, steps are often hard to resolve, as they are masked by thermal noise. In such cases, details of the mechanochemistry can nonetheless be recovered by analyzing the fluctuations in the recorded traces. Here, we expand upon existing statistical analysis methods, providing two new avenues to extract the motor step size, the effective number of rate-limiting chemical states per translocation step, and the compliance of the link between the motor and the probe particle. We first demonstrate the power and limitations of these methods using simulated molecular motor trajectories, and we then apply these methods to experimental data of kinesin, the bacterial flagellar motor, and F1-ATPase.


1 Introduction

Molecular motors convert chemical and electrical energy into mechanical work in the form of linear or rotary motion. This process can be seen as a stochastic sequence of chemical and conformational changes driven by chemical-energy consumption and influenced by thermal forces. While bulk measurements are able to report on the average of the stochastic motion, they fail to capture the information contained in the single molecule fluctuations. However, advances in single-molecule techniques, which provide the opportunity to measure the movement of single motor proteins in vivo and in vitro, have proven remarkably valuable in the study of molecular motors. Given adequate spatio-temporal resolution, the mechanochemical reaction schemes of motor proteins can be resolved, providing details of the underlying microscopic mechanism.1 Single-molecule experiments have enabled the direct resolution of individual steps in many molecular motors, revealing details of the mechanochemical cycle for kinesin,2,3 myosin,4–7 dynein,8,9 F1-ATPase,10,11 the viral packaging motor ϕ29,12,13 and the bacterial flagellar motor.14 Such measurements yield information about the fundamental mechanical step size, the number of chemical processes per mechanical step, the transition rate between states, and the number of fuel molecules consumed per mechanochemical cycle.

Despite great experimental advances, the signal-to-noise ratio of single motor trajectories is often insufficient to resolve individual motor steps. Under these conditions, analysis of the stochastic fluctuations can provide information not deducible from average quantities. For example, in the time domain, measurements of the variance in displacement have yielded the number of rate-limiting processes and the number of ATP molecules consumed per mechanochemical cycle of kinesin.15–17 In the frequency domain, the underlying stochastic signal and the noise often have separable power spectra, and can thus be identified and characterized in Fourier space, yielding the number of rate-limiting steps in the enzymatic cycle.18 Such analysis has further yielded the step size of UvrD helicase19 and DNA translocase FtsK,20 and the relaxation step of DNA supercoiling type II topoisomerase.18

In this study, we extend previous work in order to provide analytical solutions to (i) the steady-state variance of reporter-particle displacements over fixed time intervals and (ii) the power spectrum of the speed of the reporter particle. Under certain conditions, these methods, one of which operates in the time domain and the other in the frequency domain, are capable of recovering the mechanical step size of the motor, the number of chemical processes per step, and the stiffness of the linker between the motor protein and probe, even under conditions where the individual steps are not spatially and temporally resolved. We perform simulations to compare the performance of these methods, and we demonstrate their utility in extracting additional information from previously published experimental data of three molecular motors.

2 Materials and methods

2.1 Theoretical analysis of single motor trajectories

In order to extract additional information from the stochastic fluctuations of a reporter particle, we need to model the effects of the underlying mechanochemical cycle on its motion. In a classical approach to macromolecular dynamics,15 which shares several aspects with the treatment of shot noise in physical systems,21,22 the displacement xb(t) of the observable reporter object, often a microscopic bead, tethered to the molecular motor is modeled by

xb(t) = aN(t) + η(t).(1)
Here a is the size of the mechanical step of the motor along its track, N(t) is the total number of mechanical steps in time t, and η is the thermal noise characterized by 〈η〉 = 0 and 〈η2〉 = kBT/kl, where kl is the total stiffness of the construct. Implicit in this description is further that the response of the system is faster than any other relevant timescale of the system, including the motor stepping rate. This condition might not always be clearly satisfied a priori, and we relax this condition by instead modeling the bead motion as governed by Stoke's drag (drag coefficient γ)

image file: c8cp03056a-t1.tif(2)
where the random force ξ(t) satisfies23

ξ(t)〉 = 0, 〈ξ(t)ξ(t′)〉 = 2γkB(tt′),(3)
and δ is the Dirac-delta function.

2.2 Time-domain analysis of reporter-particle position fluctuations

In the case that the motor is a Poisson stepper, and the reporter particle instantaneously responds to motor displacements (i.e. when eqn (1) holds), both the average and variance of the reporter-particle displacement increase linearly with time in the steady state15

image file: c8cp03056a-t2.tif(4)
where Δxb(t) = xb(t0 + t) − xb(t0) and v is the average speed of the bead. The utility of this approach comes from the fact that eqn (4) can be used to estimate the step size a and construct stiffness kl by analyzing the average and variance of the experimentally accessible reporter-particle displacements. More precisely, eqn (4) shows that

image file: c8cp03056a-t3.tif(5)
More generally, if the step size is known, the randomness parameter

image file: c8cp03056a-t4.tif(6)
has been introduced15 to quantify how much the process deviates from Poisson statistics (r = 1). In the simple case where only every m:th chemical step gives rise to translocation, it can be shown that r = 1/m, and if the step size is known, one can estimate the number of effective chemical steps in one translocation cycle.15

As we aim to also capture the relaxation dynamics of the system, we extend the above analysis by considering the variance and average displacement of a reporter particle that moves according to eqn (2). Assuming that the molecular motor is a Poisson stepper, wherein each mechanical step of the motor is a consequence of a single rate-limiting biochemical process, we find that the variance of the bead position can be expressed as (see derivation in the S1 Appendix, ESI)


image file: c8cp03056a-t5.tif(7)
It is worth noting that this expression of the variance expands the classical result described above by eqn (4), including the filtering effect of the elastic linkage, which imposes a characteristic relaxation time tc = γ/kl. In the limit of tc → 0, eqn (4) is retrieved from eqn (7). Therefore, by measuring the bead position xb(t), its variance var(xb(t)) can be calculated and fit with eqn (7) to obtain the relaxation time (or equivalently the drag), as well as the step size a and the construct stiffness kl. Fig. S1F–I (ESI) demonstrate the behavior of eqn (7) as a function of motor step size, motor speed, stiffness of the linker, and bead size. It is interesting to note that if the average energy dissipated by moving the bead a distance equal to the motor step (avγ) is not negligible compared to twice the thermal energy (2kBT), then we will underestimate the construct stiffness if we assume the dynamics to be governed by eqn (1). (To put this in perspective, hydrolysis of a single ATP molecule gives ∼20kBT.) Moreover, for non-negligible tc, in order to practically fit eqn (4) to the experimental data, one must limit the fit to t > tc, requiring a priori knowledge of kl.15

2.3 Frequency-domain analysis of reporter-particle velocity fluctuations

Instead of analyzing the motor position in the time domain, we now approach the molecular system by analyzing the speed of the motor in the frequency domain. In the time domain, characteristic behaviors on different timescales are convoluted, and often hard to disentangle. In the frequency domain, such time-separated behaviors are often readily disentangled as they affect different frequency ranges. This is true, for instance, for low signal-to-noise measurements where the signal and noise, due to their statistics, can by separated and identified in the Fourier domain.18 Below we show that an analysis of the speed of the motor in the frequency domain provides the interesting ability of simultaneously quantifying step size, construct stiffness, and relaxation time of the molecular system. In the frequency domain we further manage to extend our considerations to the situation where only every m:th chemical cycle results in translocation, allowing us to estimate also the effective number of rate-limiting chemical steps for each translocation step.

Taking the Fourier transform of eqn (2) (derived in the S1 Appendix, ESI), the power spectral density (PSD) of the speed of the bead velocity (vb = dxb/dt) as a function of frequency f (measured in Hz) can be written as


image file: c8cp03056a-t6.tif(8)
where tc = γ/kl is the characteristic relaxation time of the construct. The two components Svm and Sξ are the PSD of the speed of the motor vm, and the PSD of the thermal forces ξ acting on the bead, respectively. By direct analogy to shot noise in electronic circuits (see the S1 Appendix, ESI), the PSD of the motor's velocity can be written as

Svm = avm〉 = av,(9)
in the steady state. We note here that Svm is independent of frequency. The PSD of the thermal forces acting on the bead can be computed by applying the Wiener–Khinchin theorem24 to eqn (3), giving

image file: c8cp03056a-t7.tif(10)
Note that the above term is independent of frequency as well, i.e. the thermal forces acting on the bead produce white noise. Finally, combining eqn (8)–(10), the explicit analytical expression for the PSD of the speed of a bead vb elastically tethered to a Poissonian stepping motor can be written as

image file: c8cp03056a-t8.tif(11)
This result can be generalized to the situation where only every m:th chemical step gives rise to translocation of the motor. Letting τ be the average time between translocation events, we find that the PSD of the motor speed gains an extra factor α (derived in the S1 Appendix, ESI), Svm = avα(f), with

image file: c8cp03056a-t9.tif(12)
Therefore, in this more general case, the overall PSD of the speed of the bead becomes

image file: c8cp03056a-t10.tif(13)
We note that in the case of a pure Poisson stepper (m = 1), α = 1 and eqn (13) reduces to eqn (11). Fig. S1A–E (ESI) demonstrate the behavior of eqn (13) as a function of motor step size, motor speed, construct stiffness, probe size, and the number of rate-limiting chemical transitions.

2.4 Motor simulations

Kinetic Monte Carlo (KMC) methods, performed in Python, were used to model a Poisson stepper and obtain the motor trace xm(t), which was then used to obtain the bead trace xb(t) by integrating eqn (2). The input parameters were the mechanical step size a, the number m of (equally rate-limiting) chemical processes per mechanochemical step, the rate k for each of the m transitions, the stiffness kl of the elastic linkage, and the radius rb of the attached particle. The integration time was set to tc/15, where tc = γ/kl was the bead relaxation time.

2.5 Time domain analysis of position fluctuations

The displacement of the bead was calculated over integer numbers of points for each trace, and the variance of the displacement was plotted as a function of time. A weighted least square fit of eqn (7) was computed for a time interval of zero to 1/100 the trace duration, yielding the motor step size, a, and the linker stiffness, kl. Errors were calculated by performing 50 simulations with input parameters which matched the fit parameters of each of the experimental motors, then calculating the mean error of a and kl over all the simulations.

2.6 Frequency domain analysis of velocity fluctuations

The normalized, one-sided, log-binned, power spectral density (PSD) of the bead's speed was calculated for each trace. A least squares fit of eqn (13) to the PSD was performed to optimize the free parameters of motor step size, a, the stiffness of the system, kl, the number of rate-limiting steps, m, and for the experimental data, the drag of the system, γ. The average velocity of the motor, 〈vm〉, was calculated as the total distance traveled divided by the total time of the trace. Errors were calculated by performing 50 simulations with input parameters which matched the fit parameters of each of the experimental motors, then calculating the mean error of a and kl over all the simulations.

3 Results

3.1 Simulated molecular motor

Using simulations of a linear Poisson stepping motor (see Materials and methods), we have tested the performance of each analysis method described above over a biologically relevant range of step sizes and linkage compliances. Fig. 1 shows an example of such simulations and the analysis via the two methods. We performed fits of the simulated data, and the results of this analysis are shown in Fig. 2. These simulations model a large load (1 μm bead) attached to the motor; see the S1 Appendix and Fig. S3 (ESI), for similar simulations of a small load (30 nm bead) attached to the motor.
image file: c8cp03056a-f1.tif

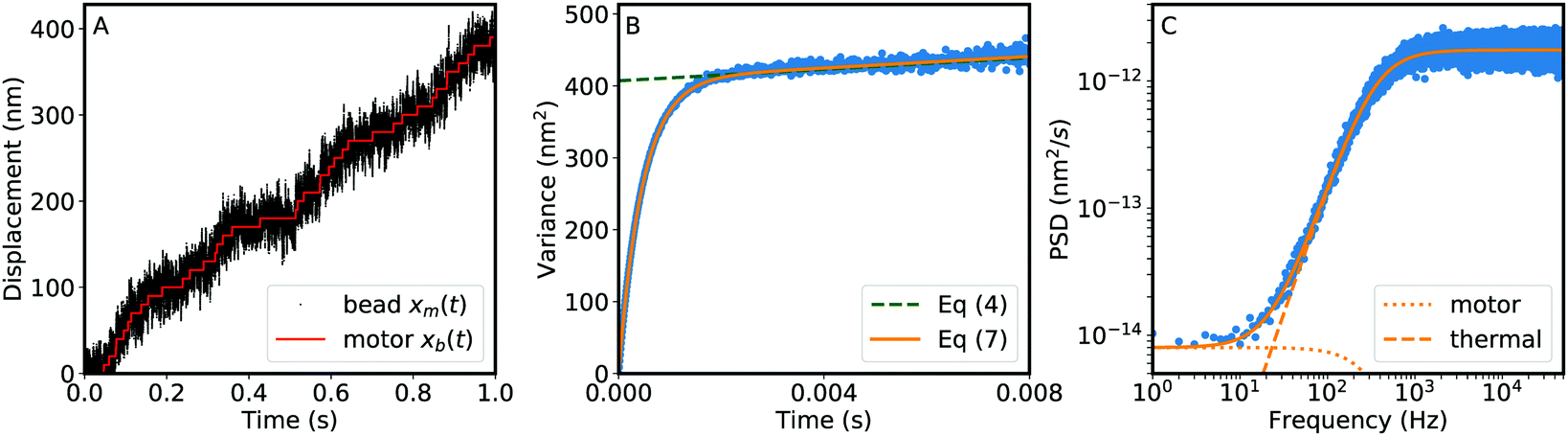

Fig. 1 An example of the simulations used to test the analysis methods. (A) The simulated displacement versus time of a motor (red) and the attached reporter-particle (black). The first 1 s of a 90 s simulation is shown here; the full simulation was used for B and C. Simulation parameters: 1 μm bead, 〈vm〉 = 400 nm s−1, a = 10 nm, kl = 2 × 10−5 N m−1. (B) The variance of the reporter-particle displacement var(Δxb(t)) as a function of time for the simulated trace (blue points). Theory, as given by eqn (4) and (7), is show by the dotted green and solid orange line, respectively, where the latter includes the response time of the system. (C) The power spectral density (PSD) of the speed of the bead (blue points) and theory (eqn (11), solid orange line). The dotted and dashed lines show the components of the PSD attributed to the movement of the motor and the thermal noise on the bead, respectively. This PSD is an average of 90 PSDs taken on 1 s non-overlapping windows over the trace.

image file: c8cp03056a-f2.tif

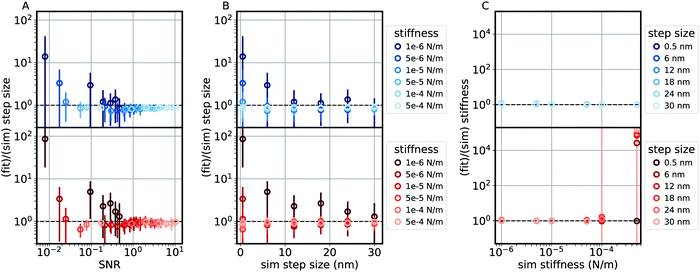

Fig. 2 The performance of the frequency domain analysis of velocity fluctuations (blue) and time domain analysis of position fluctuations (red) on simulated traces of a linear motor driving a 1 μm bead at 400 nm s−1 with step size and stiffness as labeled. (A) Ratio of the extracted step size to the simulated step size as a function of the signal to noise ratio (SNR), defined as the simulated step size divided by the standard deviation of the difference between the bead position and motor position. (B) Ratio of the extracted step size to the simulated step size as a function of the simulated step size. (C) Ratio of the fit stiffness to the simulated stiffness as a function of the simulated stiffness. The dashed black lines represent perfect recovery of the input parameters. Points and error bars represent mean and standard deviation over 30 simulations (2 s each) per point.

We emphasize that the results shown in Fig. 2 and Fig. S3 (ESI) are highly dependent upon the characteristics of both the motor and the experimental measurement. For example, with the frequency domain analysis of velocity fluctuations, recovery of the step size improves with longer measurements (yielding lower frequencies in the power spectrum), while recovery of the stiffness improves with higher acquisition rates (yielding higher frequencies in the power spectrum). Thus, simulations are a useful tool either to optimize such parameters prior to experiments or to explore under what circumstances these methods are applicable. In the following, we challenge the analysis methods developed above to extract the mechanical features of three molecular motors, whose parameters have been already independently assessed.

3.2 Kinesin

Kinesin is a cytoskeletal molecular motor which hydrolyzes ATP in order to move unidirectionally along microtubules, driving active cellular processes such as the transportation of molecular cargo. Moving with a ‘hand-over-hand’ technique, the heads of kinesin-1 take 16 nm steps along the microtubule.25,26 Kinesin-1 is a model system for the study of molecular motors and development of single-molecule techniques.15,27

Fig. 3A shows the translation of Drosophila kinesin-1 along an immobilized microtubule at saturating ATP concentration, tracked at 1 kHz via a gold nanoparticle (30 nm diameter) attached to one N-terminal head of the dimeric motor (data from Mickolajczyk et al.28). Fig. 3B shows the power spectrum (points) and fit (line) of the speed of the motor. The fit of the power spectrum yields a step size a = 16 ± 4 nm, where m = 4 states are present per two mechanochemical cycles (as only one head is labeled), with a total stiffness kl = 0.06 ± 0.05 pN nm−1. The retrieved step is in agreement with the 16.4 nm step resolved in the time domain, and expected by the displacement of a single head along the microtubule. At saturating [ATP], the total duration of the mechanochemical cycle is evenly split between 1 head-bound (HB) and 2HB states,28 each of which contain one rate-limiting step.3,29 Thus, for saturating [ATP] assays in which a single head is labeled, one expects four rate-limiting processes per step, validating the value of m = 4 found here. Time domain analysis of position fluctuations (Fig. S2B, ESI) yields a step size of 4.4 ± 0.9 nm; given four rate-limiting processes per step, this measurement is expected to be underestimated by a factor of 4, and is thus in agreement with the power spectral analysis. Finally, the total stiffness found from the fit in Fig. 3B likely reflects a weighted average value of the stiffness of the system in the 1HB and 2HB states.


image file: c8cp03056a-f3.tif
Fig. 3 Experimental data of three molecular motors. (A) Translation of Drosophila kinesin-1 along an immobilized microtubule, at saturating [ATP], tracked via a gold nanoparticle attached to one N-terminal head.27,28 Inset shows assay schematic. (B) Points show the PSD of the speed of trace (A), and the line shows the best fit. (Fit parameters – m = 4; a = 16.3 nm; kl = 0.06 pN nm−1.) (C) Rotation of a bead attached to a truncated flagellar filament of a single BFM on a surface-immobilized E. coli cell.14 Inset shows assay schematic. (D) Points show the PSD of the speed of trace (C), and the line shows the best fit. (Fit parameters – m = 1; a = 11.7°; kl = 1443 pN nm rad−1.) (E) Rotation of a bead attached to the γ subunit of a single surface-immobilized yeast F1-ATPase.40 Inset shows assay schematic. (F) Points show the PSD of the speed of highlighted segments of trace (E), and the line shows the best fit. (Fit parameters – low [ATP] (blue): m = 1; a = 118°; kl = 21 pN nm rad−1; high [ATP] (green): m = 3; a = 95°; kl = 23 pN nm rad−1).

3.3 Bacterial flagellar motor

The bacterial flagellar motor (BFM) is the rotary molecular motor which rotates a flagellar filament of many species of motile bacteria, enabling swimming, swarming, and chemotaxis. Resolution of the fundamental step of the BFM has long proven difficult due to the rapid speed of motor rotation (up to 300 Hz in E. coli30), and the soft torsional compliance of the hook, which connects the rotor to the filament.31 Using single-molecule measurements of a particle attached to the filament of an immobilized bacterial cell, Sowa et al. successfully resolved individual steps of the BFM under severely deenergized conditions.14

Fig. 3C shows the rotation of a polystyrene bead (227 nm diameter) attached to a truncated flagellar filament of a single Na+-driven chimeric BFM on a surface-immobilized E. coli cell (data from Sowa et al.14). The speed of the motor was slowed via low expression of stator proteins (stator units are the torque-generating complexes), low [Na+] in the external buffer, and photodamage from the illumination source. Fig. 3D shows the power spectrum of the speed of this trace (points) and theoretical best fit (line). The fit of the power spectrum yields a step size of 11.7 ± 0.5 degrees, equivalent to 31 ± 1 steps per revolution. This result is compatible with the results obtained by Sowa et al. (13.8 degrees, 26 steps per revolution),14 and also with the 26- or 34-fold symmetric ring of FliG molecules, the ‘track’ upon which the stators generate torque.32,33 Time domain analysis of position fluctuations (Fig. S2D, ESI) yields a slightly larger step size, 38 ± 2 degrees, potentially affected by speed fluctuations during the trace (see the S1 Appendix, ESI). The fit of the power spectrum yields a stiffness of 1400 ± 400 pN nm rad−1. Previous measurements have determined that the torsional compliance of the BFM is dominated by the compliance of the hook (instead of the filament),31 and estimates of the torsional compliance of the hook span an order of magnitude, from 100–1300 pN nm rad−1.31,34,35 Our result is consistent with the upper range of these measurements.

3.4 F1 ATPase

F1FO ATP synthase is the rotary molecular motor responsible for the synthesis of ATP in bacteria and eukaryotes. The enzyme is in fact comprised of two separable coaxial molecular motors, FO and F1. On its own, F1 behaves as an ATP-hydrolyzing enzyme, the mechanochemical cycle of which has been well established by extensive single-molecules studies.36 Briefly, the rotation of F1 is comprised of six steps,11 of alternating size 80° and 40°. F1 consumes three ATP molecules per rotation (one for each of its catalytic sites); each ATP-binding dwell (three per rotation) shows single-exponential kinetics, and each catalytic dwell (also three per rotation) shows at least double-exponential kinetics, due to ATP hydrolysis and phosphate release.37–39

Fig. 3E shows the rotation of a 60 nm gold bead attached the γ subunit of a single surface-immobilized yeast F1-ATPase (data from Steel et al.40). The ATP concentration in the flow cell was changed from low to high (5 μM to 3 mM) during the recording, evidenced by the change in rotation speed. Fig. 3F shows the power spectra (points) and fit (line) of the highlighted sections of Fig. 3E for low [ATP] and high [ATP] (blue and green, respectively). The fit of the low [ATP] spectrum yields 3.0 ± 0.4 steps per revolution, where m = 1 states are present, consistent with previous results which show 3 steps per revolution at low [ATP],10 and show that this step of the mechanochemical cycle is limited by a single reaction, ATP-binding.11 Time domain analysis of position fluctuations (Fig. S2G, ESI) yields 2.7 ± 0.4 steps per revolution. The fit of Fig. 3F for high [ATP] yields 3.8 ± 0.5 steps per revolution, where m = 3 states are present per mechanochemical cycle, yielding 11.4 ± 1.5 processes per revolution. Our model assumes that each step of the motor consists of the same number of Poisson processes, an assumption that doesn't hold for F1 at non-limiting [ATP]. Nonetheless, the fit is consistent with 3–4 rate-limiting processes per catalytic site per revolution.41 Time domain analysis of position fluctuations (Fig. S2G, ESI) yields 7.2 ± 4 steps per revolution, also consistent with the number of rate-limiting mechanochemical processes. Interestingly, the fits of Fig. 3F at low and high [ATP] yield a stiffness of 21 ± 4 and 23 ± 3 pN nm rad−1 respectively, consistent with a previous measurement of 30 pN nm rad−1 and 66 pN nm rad−1 at the ATP-waiting and catalytic dwells, respectively.42

4 Discussion

We have presented two new analytical solutions which are capable of extracting key features of the mechanochemical cycle of a molecular motor from single experimentally measured trajectories. We have used simulations to measure the performance of these methods under two quite different experimental conditions, and we have applied these methods to previously published data of three molecular motors.

Our simulations show that, with respect to recovering the step size, the stiffer the linker the better. This is apparent in both of the analysis methods, and most pronounced in the time domain analysis of position fluctuations, wherein a compliant linker lengthens the relaxation time of the system, introducing a correlation between dwell times. As stiffness increases, the methods perform similarly. Fig. S3 (ESI) compares these methods to a third method in which the distribution of the dwell time of the reporter particle over a defined window size allows the determination of the number of sequential steps within the window.43–46 For our simulations, the two methods developed here recover the step size with better accuracy and lower error than the dwell time analysis method (see the S1 Appendix (ESI) for discussion). We note that, while a stiffer linker improves recovery of step size, it may also increase the probability of interactions between the reporter-particle and motor which may disturb motor function.

Fig. 2A and Fig. S3A, D (ESI) show the recovery of the step size as a function of the ratio between the standard deviation of the noise and the step size. Crucially, these plots show good recovery of the step size up to and far beyond the limits of traditional step detection algorithms,47,48 emphasizing the utility of these methods in situations where steps are not able to be resolved.

Simulations show that both the time domain analysis of position fluctuations and the frequency domain analysis of velocity fluctuations are able to recover the stiffness of the linker between the reporter particle and motor, showing little dependence on the step size. At both large and small loads, the two methods produce similar accuracy and error, at least for a compliant linker. As the stiffness increases, the accuracy of the time domain analysis of position fluctuations drops dramatically. The frequency domain analysis of velocity fluctuations performs better at higher stiffness, though simulations of a small load (where the corner frequency of the power spectrum shifts towards higher frequencies) show that recovery of the stiffness is affected by systematic errors associated with the discrete power spectra, such as aliasing and spectral leakage.49

These two methods obviate the need for step-detection algorithms, which are often sensitive to user-set parameters,47,50 and which prove of little use when the noise becomes of the order or larger than the step size. Furthermore, these methods are complementary, though we emphasize that simulations are useful to determine the accuracy and error of each method for a particular experiment. While both methods are based on the assumption of a Poisson stepper, where the time between two successive steps is exponentially distributed and the step size is constant, the frequency domain analysis of velocity fluctuations has the ability to further decipher the number of chemical processes per mechanical step in situations where the time between steps is a convolution of multiple exponentials. Both methods will be affected by off-pathway states, such as pauses, which are common amongst many molecular motors, though we note that this affects only the recovery of the step size, not the linker stiffness. Thus, the statistical analysis methods presented here provide a powerful mechanism of extracting kinetic features which are otherwise often invisible within single-molecule data.
