Ultrahigh humidity sensitivity of graphene oxide combined with Ag nanoparticles

Abstract

Novel capacitive-type humidity sensors with ultrahigh sensitivity based on graphene oxide (GO) combined with Ag nanoparticles (AgNPs) in different concentrations are reported in this study. Various characterization techniques such as transmission electron microscopy (TEM), X-ray diffraction (XRD), water contact angles, and Fourier transform infrared spectroscopy (FTIR) were used to verify the composite formation. The best performance was shown by the GO/Ag (2 wt%) composite-based sensors, with a sensitivity of 25 809 pF/% RH in the humidity range from 11% RH to 97% RH and 328 pF/% RH in the humidity range from 11% to 33% RH, which was 100 times larger than that of the previous humidity sensor, especially at low humidity levels (<33% RH). The Schottky junction theory and complex impedance spectroscopy were employed to understand the underlying sensing mechanisms of the GO/Ag composite towards humidity. The GO/Ag composite was proven to be an excellent candidate for the construction of ultrahigh-sensitivity humidity sensors for various applications.

---

Introduction

Humidity sensors have attracted significant attention because of their extensive application in various fields.^1,2 However, more efforts should be made to investigate various high-performance humidity sensors for meeting high-sensitivity requirements such as in industrial control, medical and pharmaceutical chemistry, and environmental monitoring.^3–5 Moreover, highly sensitive sensors in a low humidity environment have been paid significant attention such as for humidity control in ultra-clean chambers, IC industrial production, and chemical material storage.^6–8 To meet these requirements, many novel sensing materials and methods, especially with regard to nanomaterials, have attracted significant interest for the fabrication of high-performance humidity sensors.^9–11

Graphene oxide (GO) presents many advantages as a material for sensing applications. Moreover, GO is water dispersible, thereby allowing the formation of continuous films via an easy method.¹² Furthermore, the basal plane and edges of GO platelets are composed of distributed oxygen groups, which can increase the hydrophilicity of GO and consequently enhance the humidity sensing properties.¹³ Recently, many research teams have used GO sensing materials to detect humidity. Borini et al.¹⁴ fabricated a humidity sensor with an ultra-fast response speed by initially spin-coating a GO film on IDEs. Bi et al.¹⁵ fabricated a humidity sensor with high sensitivity by drop-coating GO on IDEs. Zhang et al.¹⁶ fabricated a capacitive-type humidity sensor with a GO/PDDA composite film using a layer-by-layer self-assembly method. However, since it is restricted to natural GO, all the previous GO humidity sensors have limited sensitivity at low humidity levels and are hardly able to meet the abovementioned needs.

Incorporation of metal nanoparticles into inorganic semiconductors or polymers is an effective method for enhancing the function of materials.^17–19 Ag nanoparticles/nanowires and their composites with semiconductors or polymers have been used to fabricate humidity sensors. Dzhafarov et al.²⁰ found that the open-circuit voltage of a Ag porous Si–Si substrate interface changed linearly with variations in the humidity. Power et al.²¹ prepared Ag nanoparticles stabilized with polyvinyl alcohol and revealed the rapid humidity response of these nanoparticles. Lu et al.²² fabricated Ag nanowires with DNA as a template and reported that the Ag–DNA network showed a current increase of more than 400%. Wang et al.²³ fabricated sensors based on NA-graphene modified with Ag nanoparticles, which showed a fast response speed (∼1 second). Therefore, the combination of Ag and GO could be expected to create new functional nanocomposites with excellent humidity sensing properties.

In the present study, the development of an excellent humidity-sensing layer based on the GO/Ag composite utilizing simple physical blending methods has been reported for the first time. The composites were extensively characterized using different material characterization techniques. The humidity sensing properties of the proposed sensors were investigated over a wide range of 11–97% relative humidity at room temperature. The proposed sensors exhibited unprecedented sensitivity. The influence of different proportions of Ag nanoparticles in the composites on the sensing property was investigated. Moreover, the possible humidity-sensing mechanism has been discussed in detail.

Experimental

GO/Ag composites

All the chemicals were of analytical grade and purchased from Xianfeng-nano company. The GO dispersion (1 mg ml⁻¹) and Ag nanoparticle dispersion (0.1 mg ml⁻¹) with a grain size of 20 nm were ultrasonically treated for 30 min before use; then, AgNPs at various weight percentages (0.5, 1, 1.5, and 2 wt%) were added to the GO dispersion,⁵² which was sonicated to achieve a uniform dispersion of nanoparticles. The final product has been denoted as GO/Ag(X), where X represents the different weight percentages of Ag to GO. Interdigitated electrodes (IDEs) were fabricated on a N-doped silicon wafer with a top layer of SiO₂ (300 nm) formed as an insulating layer. Ti/Au layers with a thickness of 100 nm/400 nm were deposited on the SiO₂ layer using magnetron sputtering. Au electrodes with a 50 μm-wide gap were prepared through photoetching followed by wet etching. Before the fabrication of the sensing films, the IDEs were rinsed with distilled water and ethanol and dried under N₂ overnight. To perform the humidity tests, 0.4 ml of each sample was drop-cast on the IDEs through a micro-syringe, followed by drying at room temperature under N₂ for 2 hours.

Characterization

Transmission electron microscopy (TEM) images were obtained using the FEI/Philips Tecnai 12 BioTWIN transmission electron microscope. The water contact angles were measured using the Kruss DSA 25 drop shape analyzer. The X-ray diffraction measurements of GO, Ag, and GO/Ag were performed using an X'Pert Pro MPD X-ray diffraction instrument (PANalytical Co., Holland) at 40 kV and 35 mA. Infrared spectra were obtained via a Bruker Tensor 27 FT-IR spectrophotometer (Bruker Corporation, Germany) using KBr as a carrier. The humidity sensing properties were investigated by exposing the GO/Ag film sensor to various relative humidity (RH) levels, which were achieved using several saturated aqueous solutions. The saturated aqueous solutions in a closed vessel at a stable temperature can provide stable and controllable RH levels in their equilibrium states. Hence, saturated solutions of LiCl, CH₃COOK, MgCl₂, K₂CO₃, Mg(NO₃)₂, CuCl₂, NaCl, KCl, KNO₃, and K₂SO₄ in a closed vessel were used to obtain approximately 11%, 23%, 33%, 43%, 54%, 62%, 75%, 85%, 93%, and 97% RH levels, respectively. The capacitance response and ac complex impedance spectroscopy of the presented sensors were measured using an LCR meter (Wayne Kerr, 4100, UK), which was connected to a PC through a LAN interface. The current–voltage (I–V) curves of the sensors were obtained using a source meter (Keithley, 2400, USA). A schematic of the experimental set-up used for the humidity-sensing measurement is illustrated in Fig. 1.

Fig. 1 Schematic of the experimental set-up.

Results and discussion

Structure and morphology

During the humidity-sensing process, it was found that GO/Ag (2 wt%) showed the maximum response. Thus, we tried to highlight the morphology as well as carry out a structural analysis of this sample through our characterizations.

Fig. 2(a and b) show the TEM images of GO/Ag (2 wt%) and pure GO, where the latter appears rougher. Sufficient AgNPs can be observed in the GO/Ag composite films, and they can also be recognized clearly in the high-resolution TEM image (Fig. 2(c)). Moreover, many more wrinkles can be observed in the GO/Ag films. All these nanostructures of the GO/Ag films provide a large specific surface area, which is beneficial for the adsorption of water molecules. Through measuring the wettability, the water contact angles were found to be about 49.6° and 27.8° for pure GO and GO/Ag (2 wt%), respectively, as shown in Fig. 2(d and e), indicating that the composites were more hydrophilic,²⁴ consistent with their nanostructures.

Fig. 2 TEM characterization of (a) GO/Ag and (b) GO. (c) High-resolution TEM characterization of GO/Ag. The water contact angles of (d) GO and (e) GO/Ag.

XRD was performed to investigate the phase structure of GO, Ag, and GO/Ag (2 wt%) (Fig. 3(a)). Pure GO displayed a typical characteristic (002) peak at 10.81°. In the XRD pattern of the pure AgNPs, the peaks at 2θ = 37.7°, 43.7°, 64.8°, 77.8°, and 81.27° can be assigned to the (111), (200), (220), (311), and (222) crystalline planes of silver, respectively. These diffraction peaks are in agreement with the standard card (JCPDS: 04-0783).²⁵ The diffraction peaks of GO/Ag are in good agreement with the standard Ag, except for the broad (002) peak at approximately 10.8°, which can be indexed to the disordered stacked graphitic sheets. No peaks from other phases were detected; thus, the product was considered to be of high purity.

Fig. 3 (a) XRD spectra for GO, Ag, and GO/Ag. (b) C 1s XPS spectrum of GO–Ag. (c) Ag 3d core level spectrum of GO/Ag. (d) XPS survey scans of GO/Ag before and after the humidity sensing process. (e) FT-IR spectra and (f) Raman spectra of GO/Ag at low and high humidity environments.

XPS analysis was performed to investigate the chemical state of the GO/Ag composite. In Fig. 3(d), the survey spectra clearly indicate the existence of C, O, and Ag in GO/Ag. The C 1s and Ag 3d XPS core level spectra of the GO–Ag nanocomposite are shown in Fig. 3(b and c), respectively. The C 1s core level XPS spectrum can be deconvoluted into four components with the binding energies at 285.0, 287.1, 288.5, and 289.3 eV assigned to C=C, C–O, C=O, and HO–C=O, respectively (Fig. 3(b)). These results indicate that there are a large number of functional groups on the surface of the GO nanosheets. The intensity of the band at 287.1 eV (C–O) decreased; this indicated the partial reduction of GO nanosheets to graphene nanosheets. As shown in Fig. 3(c), the XPS spectra clearly show the concision of elemental Ag and the elemental status of Ag (3d). The Ag (3d) peaks are a doublet, which arises from spin–orbit coupling (3d_5/2 and 3d_3/2).⁴⁷ The binding energies of the Ag 3d_5/2 and Ag 3d_3/2 peaks are 368.76 and 374.79 eV, respectively, which clearly prove that silver is present only in the metallic form; this indicates the formation of AgNPs on the surface of the GO nanosheets. Fig. 3(d) also shows the XPS spectra of GO/Ag (2 wt%) after water molecule adsorption, and it indicates that the adsorption process does not change the chemical state of GO/Ag.

Fig. 3(e) shows the FT-IR spectra of the GO/Ag (2 wt%) thin film in the range of 400–4000 cm⁻¹ under low and high humidity environment. As shown in Fig. 3(e), a characteristic absorption peak of GO appeared at 3440 cm⁻¹ because of the presence of –OH groups. The peaks between 1800 and 1050 cm⁻¹ are due to C=O stretching, C–H stretching, C–OH stretching, C–O–C stretching, and C–O stretching at 1730, 1630, 1396, 1240, and 1060 cm⁻¹, respectively.²⁶ These results indicate that the GO/Ag films are covered with oxygen functional groups. According to the spectra of GO/Ag, the peaks at 1730 and 1240 cm⁻¹ are absent at high humidity. This might be explained as follows: under a high humidity environment, during the water molecule adsorption process, C=O and C–O–C are combined with water molecules and converted to C–OH. Based on the XPS and FTIR characterizations, it can be concluded that this conversion process is reversible.

The attachment of silver nanoparticles on the GO sheets was also investigated by Raman spectroscopy. This technique is a powerful tool for investigating ordered and disordered nanocarbons. The Raman spectrum of GO/Ag was characterized by the presence of bands at 1320 cm⁻¹ (D band) and 1570 cm⁻¹ (G band) under low and high humidity environments, respectively, as shown in Fig. 3(f). A laser operating at 532 nm was used as the excitation source. The D band is active in the presence of defects in the graphitic structure.⁴⁸ The G band corresponds to the first-order bond stretching of sp² carbon atoms (E_2g) and is related to the graphitic mode. The ratio ID/IG of GO/Ag was 1.13 and basically remained the same under both low humidity and high humidity environments.

Humidity-sensing results

For clearly contrasting the performance of all the samples, the sensitivity of the samples towards humidity was defined as follows:where S denotes the sensitivity, C_RH denotes the capacitance of the sensor at the current RH levels, and C_initial is the initial capacitance. According to the experiment, we chose the initial state of the sensors as that at the 11% RH level. Fig. 4(a) shows a comparison of the sensitivity of the samples towards humidity. As can be seen, the capacitance of all the samples increased with the increasing RH. Under the same RH condition, the capacitance of the sensing materials tended to increase with the increasing Ag content. The sensitivity of GO/Ag (2 wt%) was more than 22 times that of pure GO. As shown in Table 1, the sensing property of the GO/Ag (2 wt%) samples was comparable to those of capacitive-type humidity sensors proposed in previous studies.^27–32 This comparison highlights the unprecedented performance of GO/Ag (2 wt%) as a candidate for constructing humidity sensors, with large variations of output capacitance from 1050 pF to 2 220 624 pF and a sensitivity of 25 809 pF/% RH, which is a 100 times larger than that of previous capacitive humidity sensors such as polyimide humidity sensors.²⁹ Fig. 4(b) indicates the capacitive responses of all the sensors at low humidity (<33%). The sensitivity of GO/Ag (2 wt%) (328 pF/% RH from 11% to 33% RH) was much higher than that of pure GO (8.7 pf/% RH from 10% to 33% RH). This result reveals the excellent sensitivity of GO/Ag under environments with low RH levels, which can extend the applications of sensors.

Fig. 4 (a) Capacitance dependence on the relative humidity of pure GO and GO/Ag(X), X: 0.5 wt%, 1 wt%, 1.5 wt%, and 2 wt%. (b) At low humidity levels (<33% RH). (c) Relationship between impedance and RH at different frequencies based on GO/Ag (2 wt%). (d) Response and recovery curve of the sample GO/Ag (2 wt%). (e) Hysteresis characteristic of the sample GO/Ag (2 wt%). (f) Long-term stability of the GO/Ag (2 wt%)-based sensor exposed to 33%, 54%, 75%, and 97% RH. (g) Measured I–V curves of the sample GO/Ag (2 wt%) at various RH levels. (h) Selectivity performance of GO/Ag (2 wt%).

Table 1 Comparison of the sensitivities for different humidity sensing materials reported in the literature and in this study

Sensing material	Fabrication method	Measurement range	Sensitivity	(<33% RH)	Literature
MWCNTs/polyelectrolyte	Solution dripping	35–60% RH	4.2 pF/% RH		27
Au/PVA	Drop casting	11–97% RH	11.38 pF/% RH	—	28
Polyimide	Spin coating	20–90% RH	43.9 pF/% RH	—	29
GO	Solution dripping	25–65% RH	−9.5 pF/% RH	—	30
GO	Drop casting	15–95% RH	46.3 pF/% RH	—	31
GO/PDDA	LBL self-assembly	11–97% RH	1552 pF/% RH	6 pf/% RH	16
GO/ZnO	LBL self-assembly	11–97% RH	17 785 pF/% RH	∼50 pf/% RH	32
Au/GO (9 wt%)/MPTMOS	Sol–gel process	20–90% RH	118 kΩ/% RH	—	49
GO/Ag (2 wt%)	Drop casting	11–97% RH	25 809 pF/% RH	328 pf/% RH	This paper

---

It should be pointed out that although the sensitivity of the composite is proportional to the ratio of Ag, the ratio has a limit. Ag nanoparticles are a good conductor. When the proportion of Ag nanoparticles in the composites is too much, the initial resistance of the composites becomes too small to be dielectric. This phenomenon can be explained through percolation thresholds.³³

The relationship between capacitance and RH at various frequencies for GO/Ag (2 wt%) is shown in Fig. 4(c). The results showed that the capacitance increased with the increasing RH (especially at RH > 43%) in the low-frequency region and then became nearly independent of RH in the high-frequency region (i.e. between 5 and 10 kHz). These results indicated that the capacitance was simultaneously dependent on the frequency and RH. According to the literature,³⁴ the polarization of adsorbed water molecules occurs in the low-frequency region, whereas the electrical field changes direction rapidly in the high-frequency region. The polarization speed of the water molecules cannot cope with these changes; consequently, the capacitance becomes small and independent of the RH in the high-frequency region. As observed, the curve displayed the best linearity at 100 Hz. Thus, the frequency of 100 Hz was determined as the operation frequency for assessing the other humidity-sensing properties of GO/Ag (2 wt%). The response and recovery behaviour represent a significant basis for assessing the performance of humidity sensors. Fig. 4(d) shows the response–recovery characteristic of GO/Ag (2 wt%). The time taken by a sensor to achieve 90% of the total impedance change is defined as the response time in the case of adsorption and the recovery time in the case of desorption. The measured response and recovery times were approximately 8 and 12 s, respectively. Compared with traditional-sensing-materials-based sensors,^27,29 GO/Ag exhibited significantly reduced response times and recovery times. Furthermore, the capacitance can be fully restored to the initial capacitance value. Large humidity hysteresis has long been a serious problem in humidity sensors. The hysteresis (between humidification and desiccation and measured over an RH range of 10–90% RH) was less than 5% RH (Fig. 4(e)), which corresponds to 65% RH. This result indicated that the hysteresis of GO/Ag (2 wt%) was relatively low. The rapid response and recovery might have played an important role in weakening the hysteresis. Stability is an important parameter of humidity-sensing properties. The capacitance of GO/Ag (2 wt%) was tested repeatedly under fixed humidity levels over a period of 5 days. The results are shown in Fig. 4(f). The capacitance variation is less than 4% in each humidity region for 1 month at 100 Hz, which shows good long-term stability. The current–voltage (I–V) curves of GO/Ag (2 wt%) (p-GO/Ag hybrid device) at various RH levels are shown in Fig. 4(h). Both the forward and reverse currents in the device increased with the increasing RH. However, the reverse currents were small; this indicates a better rectifying behaviour of the Schottky junction.³² The selectivity performance of the samples should be investigated to avoid the influence of other reducing and oxidising gases and vapours. The capacitance of GO/Ag (2 wt%) was tested with H₂, CH₄, CO₂, H₂S, NH₄, benzene, alcohol, and methanal vapours with the same high concentration of 5000 ppm at room temperature to investigate the selectivity towards H₂O, and the results are shown in Fig. 4(g). The benzene, alcohol, and methanal vapours were prepared by a liquid evaporation method⁵⁰ with N₂ as the carrier gas. It is clearly observed that the test samples have extremely higher sensitivity towards H₂O than towards other test gases. The good selectivity of the GO/Ag samples might be attributed to the ion conduction benefit from the absorption of water molecules.

Humidity-sensing mechanism

The electrical response of the sensing materials to humidity is related to the physical adsorption of water molecules. To interpret the relationship between the capacitance and the RH, the following eqn (2) was adopted to depict the relationship:³⁵

C = (ε_γ − iγ/ωε₀)C₀ (2)

where γ denotes the conductance, ω denotes the frequency, and i is the imaginary constant. According to this expression, the capacitance of the sensing material is proportional to γ and inversely proportional to ω. In addition, γ is related to the physisorption of water molecules in the sensing material such that different sorption processes yield different γ values. γ increases with the increasing RH; thus, the capacitance increases with the increasing RH depending on the frequency.³⁵

i. Adsorption process of water molecules on GO/Ag materials. At low RH, water molecules are primarily physisorbed onto the available active sites (hydrophilic groups and vacancies) of the GO surface through double hydrogen bonding, as shown in Fig. 5(a). In this regime, the water molecules are unable to move freely because of restriction from the double hydrogen bonding. The hopping transfer of protons between adjacent hydroxyl groups in the first-layer physical adsorption of water requires a lot of energy; hence, the GO films mainly exhibit intrinsic conductance.

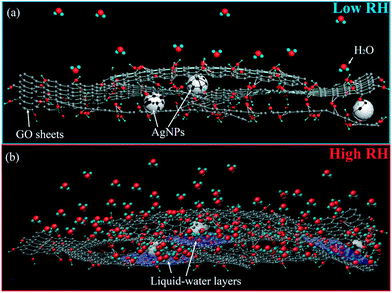

Fig. 5 Schematic of the humidity sensing mechanism under (a) low and (b) high RH conditions, respectively.

As the RH increases, water molecules are physisorbed through single hydrogen bonding on the hydroxyl groups. Moreover, the water molecules permeate into the interior of GO layers (Fig. 5(b)). Thereafter, the water molecules become mobile and progressively become identical to those in the bulk liquid. Moreover, the physisorbed water molecules gradually exhibit a liquid-like behaviour, and a fraction of them can be ionized under an electrostatic field to produce a large number of hydronium ions (H₃O⁺) as charge carriers. In the bulk liquid, proton hopping between adjacent water molecules occurs in the GO films, with charge transport occurring through conductivity generated by a Grotthuss chain reaction (H₂O + H₃O⁺ → H₃O⁺ + H₂O).³⁶ Furthermore, the functional groups of GO can be hydrolyzed in bulk water layers, which contribute to the ionic conductivity. All these factors would lead to a sudden increase of γ; this would lead to a quite high sensitivity at high RH. In addition, the dielectric constants of water under different conditions vary. For instance, the dielectric constant of hydrated water at low RH is 2.2, whereas that of free water at high RH is 78. This variance enhances the sensor capacitance, thereby resulting in a high sensitivity. This finding explains the excellent humidity-sensing characteristics of the sensing materials.

The defects in GO play important roles for humidity sensing. Hence, the humidity-sensing property of rGO/Ag with different defect concentrations can be controlled with different reduction processes of rGO. To avoid the interference of impurities, rGO was prepared through a thermal reduction method with different reduction times⁵¹ and combined with 2 wt% AgNPs to fabricate humidity-sensing samples. It is known that the I_D/I_G ratio can reflect the defect concentration. Thus, the Raman characterization was carried out for the different rGO/Ag samples, and the results are shown in Fig. 6(a). The initial capacitance and sensitivity of different rGO/Ag samples are shown in Fig. 6(b). It can be observed that the defect concentration is inversely proportional to the reduction degree of rGO and proportional to the sensitivity of the samples. This phenomenon indicated that the defects in the samples played an important role in the adsorption of water molecules.

Fig. 6 (a) The Raman spectra of rGO/Ag with different reduction times. (b) The sensitivity and initial capacitance of rGO/Ag with different reduction times.

ii. Complex impedance spectra of the GO/Ag composite and GO. To confirm the different sorption mechanisms of sensing materials at various RH values, complex impedance spectra (CIS) were adopted to interpret the conductivity processes that occurred in a humidity sensor. The typical complex impedance spectra of GO/Ag (2 wt%) at different RH values were obtained over a frequency range of 100–10 000 Hz at a testing voltage of 1 V and temperature of 25 °C. The difference in the impedance spectra implies different physical phenomena for the electrical conductivity and polarization that occur in the material in the presence of water molecules. Fig. 7(a) shows the semi-circular CIS curves at low humidity. As shown in Fig. 7(b), alongside continuously increasing RH, a line appears at high RH values and the semi-circular behaviour seen in the low-frequency range is depressed. When the RH increases to 62% (Fig. 7(c)), the semicircle disappears, only leaving a line behind. The semicircle is typical of the relaxation mechanism exhibited by resistance–capacitance parallel circuits. Therefore, the semicircle results primarily from the intrinsic impedance of the material. The decrease in the curvature of the semicircle with the increasing RH reflects the decrease in the intrinsic impedance, which is related to the interaction between the sensing film and water.³⁷ The physical phenomena of the electrical conductivity and polarization that occur in a humidity sensor are represented not only by the resistance and capacitance, but also by the diffusion and interface phenomena of ions. The straight line may stem from the ionic and/or electrolytic conductivity. Therefore, as the RH increases, the line becomes dominant in the CIS; this reflects the enhanced ionic conductivity behaviour.³⁸

Fig. 7 Complex impedance spectra (CIS) of GO/Ag (2 wt%) (a–c) and GO (d–f) under switching RH.

To confirm the effect of Ag nanoparticles, the CIS of pure GO was obtained and is shown in Fig. 7(d–f). Upon comparing Fig. 7(b and e), a straight line is observed at 22% RH for sensor 5 and at 54% RH for sensor 1. This phenomenon indicates that the ionic conductivity behaviour exists more easily in GO/Ag than in pure GO at low RH levels, and this results in excellent sensitivity for the GO/Ag composites, especially under a low humidity environment, as shown in Fig. 4. This phenomenon could be attributed to two main reasons. First, the greater number of wrinkles in the GO/Ag composite increased the surface-to-volume ratio of the material. The water absorption capability of the GO/Ag composite was thus better than that of pure GO, as shown in Fig. 2(d). Second, as shown in Fig. 5(b), the Ag nanoparticles dispersed on the GO surface served as adsorption centres, which could promote the formation of bulk water layers and consequently strengthen the ion conduction for humidity sensing. Due to the abovementioned reasons, the GO/Ag sensing films exhibited excellent humidity sensitivity, especially at low humidity levels.

iii. The effect of the Ag–GO Schottky junctions. Ag is a good conductor, and GO is a p-type semiconductor. The work functions of Ag and GO are 4.26 and ∼4.9 eV, respectively.³⁹ Similar to the case of other semiconductors,^40–46 when Ag is well connected to GO sheets, a Schottky junction is formed, as shown in Fig. 8(a). According to the literature,³⁹ at low RH levels, the influence of γ is determined mainly by the electrical conduction in a sensing material and in the Ag–GO Schottky junctions. Under a low humidity environment, the intrinsic conduction of a material is poor; thus, the electrical conduction in the Ag–GO Schottky junctions plays the main role. In the Ag–GO Schottky junction, the absorbed water molecules attract electrons to the surface of GO, and the work function of GO decreases, as shown in Fig. 8(b and d). Thus, the hole barrier decreases simultaneously, and consequently, this increases the conduction in the Schottky junctions. Therefore, the capacitance of GO/Ag is significantly increased as compared to that of GO at low RH (Fig. 4(b)). Therefore, the Ag–GO Schottky junctions play an important role, which result in the extremely high sensitivity of GO/Ag at low humidity.

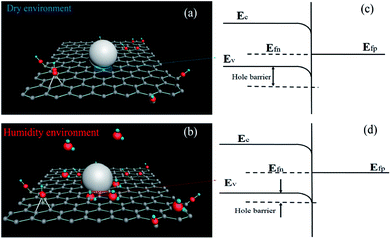

Fig. 8 GO–Ag Schottky junction and corresponding energy band diagram in (a, c) dry environment and (b, d) humidity environment.

Conclusions

A GO/Ag composite was prepared and studied as a humidity sensing material. The study results showed that the GO/Ag material displayed an ultrahigh sensitivity under the proper addition content of Ag, and it also possessed a relatively short response time. The analysis of the humidity-sensing mechanism indicated that more wrinkles in the GO/Ag composite increased the surface-to-volume ratio of the material, and the Ag nanoparticles in the composite served as the adsorption centres, which could promote the formation of the bulk water layers. Moreover, the Ag–GO Schottky junctions played the main role in improving the conduction of the sensing material at low humidity. Due to the abovementioned reasons, the GO/Ag composite exhibited excellent humidity sensitivity, especially at low humidity levels. This sensing mechanism is expected to be suitable to explain the sensing behaviour of other metal-semiconductor-material-based humidity sensors.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This research work was supported by the National Natural Science Foundation of China (No. 61471305), Key Project of National Natural Science Foundation of China (61731016), and Science and Technology Support Program of Sichuan Province (2016JZ0028).
