Mesoporous silica-based carbon dot–carbon nitride composite for efficient photocatalysis

Abstract

In this work, graphene carbon nitride (g-C₃N₄, CN) is loaded into the carbon dots (CD) modified SBA-15 mesoporous silica by a precursor impregnation method. The obtained samples are characterized by various spectroscopy techniques and applied in the visible-light-driven photocatalytic degradation of phenol. The photocatalytic activity of the obtained SBA15–CN is 2 times as high as that of pure g-C₃N₄ due to the high dispersion of g-C₃N₄ into SBA-15 channels. For CD-SBA15–CN, the visible light driven photocatalytic activity is further increased, which is 4 times as high as that of pure g-C₃N₄. This promotion can be attributed to carbon dots with the ability to transfer photogenerated electrons as well as the compound catalyst having a bigger surface area and pore volume. When the weight ratio of CD-SBA15/g-C₃N₄ was 1 : 6, the catalyst (1 : 6 CD-SBA15–CN) performed best. The 1 : 6 CD-SBA15–CN photocatalyst had enhanced visible absorption and the interaction between CDs and g-C₃N₄ can further promote the separation of photo-generated electrons and holes, achieving the highest photocatalytic activity of CD-SBA15–CN compared to SBA15–CN and g-C₃N₄.

---

1. Introduction

The degradation of organic pollutants in water and the production of H₂ or O₂ from water by using semiconductor-based photocatalysts have attracted great attention because of the global environment pollution and energy crisis.^1,2 To date, various efficient photocatalysts have been developed, such as TiO₂,^3,4 CdS,^5,6 and so on. In particular, g-C₃N₄ as a novel organic semiconductor with a special layered structure, has been considered to be a fascinating candidate for photocatalysis due to its unique properties.^7,8 In 2009, Wang et al. first reported the excellent photocatalytic ability of g-C₃N₄ for hydrogen production.⁹ Since then, the photocatalytic performance of g-C₃N₄ for degradation of organic pollutants in wastewater has also been investigated.^10,11

However, the photocatalytic efficiency of g-C₃N₄ is relatively low, mainly due to the small surface area, quick recombination of photo-generated electron–hole pairs and limited visible light utilization.¹² In order to address these problems, a variety of methods have been developed such as morphology control,^13,14 element doping,¹⁵ coupling with other semiconductor,^16,17 and modification with carbon materials.¹⁸ Zhang et al. reported the carbon dots decorated g-C₃N₄ nanosheet and demonstrated that the composite catalyst had superior visible light photocatalytic activity as compared to pure g-C₃N₄.¹⁸

Meanwhile, mesoporous silica with high specific surface area can act as good host for semiconductor photocatalysts, leading to greatly improved photocatalytic performance by reducing the recombination of photo-generated electron–hole pairs in these semiconductors. Guo et al. discovered a CdS@Ti-MCM-41 composite with much higher visible light photocatalytic activity than the bulk CdS for hydrogen production from water.¹⁹ Li et al. dispersed nanophase g-C₃N₄ into SBA-15 by a two-step vapor-deposition method. The obtained materials are active catalysts for CO₂ activation and conversion.²⁰ In addition, in our previous work, mesoporous silica materials embedded with amide-containing carbon dots (CD) have been developed.²¹ Inspired by these works, we envision that CD modified SBA15-supported g-C₃N₄ materials will demonstrate higher photocatalytic performance than g-C₃N₄.

Herein, we report a facial route for the fabrication of CD-SBA15-supported g-C₃N₄ materials. When g-C₃N₄ is loaded into SBA-15, obtained SBA15–CN shows better visible-light photocatalytic activity than pure g-C₃N₄. In addition, the photocatalytic efficiency for degradation of phenol is further improved for CD-SBA15–CN. The mechanism for the enhanced photocatalytic activity has also been discussed.

2. Experimental

2.1 Chemicals

Citric acid (CA), hexane, hydrochloric acid, tetraethoxysilane, melamine, phenol are all obtained from Shanghai Ling Feng Chemical Reagent Co, Ltd. Pluronic P123, N-(β-aminoethyl)-γ-aminopropylmethyldimethoxysilane (AEAPMS) are purchased from Aldrich reagent plant. The reagents are all used as received from the suppliers without further purification. And deionized water is used for all solution experiments.

2.2 Preparation of silylated carbon dots (Si-CDs)

Si-CDs are prepared through a one-step synthetic procedure according to a method reported previously.^22–25 The reaction proceeds through pyrolysis of anhydrous CA. 10 mL of AEAPMS is put in a three-necked flask with 50 mL of volume and the temperature is raised to 240 °C with stirring under N₂ atmosphere. Then 0.5 g of CA is quickly added into the flask. The heating is stopped after 1 minute reaction. When the reaction mixture is cooled to room temperature, it is washed twice using hexane, after which the oily liquid product is obtained. Then the product is sealed with hexane and stored for use in refrigerator.

2.3 Preparation of the CD incorporated SBA-15 mesoporous silica (CD-SBA15)

SBA-15 is prepared with Pluronic P123 as template via a method similar to previous report.²⁶ Then, an amount of CDs and SBA-15 are refluxed in dehydrated toluene (250 mL) at 110 °C for 24 h under N₂ flow. The obtained products are washed for three times with deionized water and dried over night at 60 °C. The resultant sample is denoted as CD-SBA15.

2.4 Preparation of g-C₃N₄ and CD-SBA15–CN

Pure g-C₃N₄ is prepared by the pyrolysis method. 4 g of melamine are put into a porcelain ark, heated to 520 °C in argon gas with a heating rate of 2 °C min⁻¹ and then maintained at 520 °C for 4 h.

The CD-SBA15–CN photocatalysts are prepared by calcining mixed CD-SBA15 and melamine in argon gas. In details, desired amounts of CD-SBA15 and melamine are put into 200 mL of deionized water at 90 °C and vigorously stirred for 2 h. Then the temperature is raised to 100 °C for evaporating the water. The obtained powder mixture of CD-SBA15 and melamine is collected and heated to 520 °C in argon gas with a heating rate of 2 °C min⁻¹ and then maintained at 520 °C for 4 h to get the final product. By this method, samples using mass ratio of CD-SBA15 to melamine of 1 : 1, 1 : 2, 1 : 4, 1 : 6 and 1 : 8 are prepared, and denoted as 1 : x CD-SBA15–CN (x = 2, 4, 6, 8), respectively. The reference sample of SBA15–CN is prepared by the same method using SBA-15 instead of CD-SBA-15 and the mass ratio of SBA15 to melamine is 1 : 6.

2.5 Characterizations

The morphology of the obtained CD-SBA15–CN series samples are observed by transmission electron microscopy (TEM, JEM2000EX). The crystal structure of the samples are characterized by powder X-ray diffraction (XRD), which are recorded on a Rigaku D/MAX-2550 diffract meter using Cu Kα radiation of wavelength 1.5406 Å, typically running at a voltage of 40 kV and current of 100 mA. UV-visible absorbance spectra are achieved for the dry-pressed disk samples using a Scan UV-visible spectrophotometer (SHIMADZU, uv-2450), and using BaSO₄ as a reflectance sample. BET surface area measurements are carried out by N₂ adsorption at 77 K using an ASAP2020 instrument. By utilizing the Barrett–Joyner–Halenda (BJH) model, the pore volumes and pore size distributions are got from the adsorption branches of isotherms. X-Ray photoelectron spectroscopy (XPS) studies are taken by a Perkin-Elmer PHI 5000CESCA system with Al Kα radiation operated at 250 W. FTIR of the samples are recorded in transmission mode from KBr pellets at room temperature on a Bruker Tensor spectrometer with a resolution of 4 cm⁻¹, using 32 scans per spectrum in the region of 400–4000 cm⁻¹. The mass ratio of every sample to KBr is constant at 1 : 200. TG measurements of the catalysts are conducted on a Netzsch TG 209 F3 apparatus. The samples are placed in α-Al₂O₃ crucibles and heat in flowing argon gas (20 mL min⁻¹) from room temperature to 800 °C at a rate of 10 °C min⁻¹. The analysis of photoluminescence spectra (PL) and time resolved PL decay spectra is carried out at room temperature using a PTI QM-4 fluorescence spectrophotometer. Electrochemical Impedance Spectroscopy (EIS) are carried on the classical three-electrode system, using Zahner electrochemical station to test the electrochemical property of the samples. The supporting electrolyte is the mixed solution of 25 mmol L⁻¹ K₃Fe(CN)₆ and K₄Fe(CN)₃ and 0.1 mol L⁻¹ KCl. The counter, reference and working electrode are Pt electrode, saturated calomel electrode (SCE) and FTO glass coated with thin film sample, respectively. The electrode potential is 0.2 V versus SCE. The frequency range is from 0.1 to 10⁶ Hz.

2.6 Photocatalytic activity test

Photodegradation of a phenol solution (10 mg L⁻¹) is performed to evaluate the photocatalytic performance of the synthesized catalysts. The catalyst (50 mg) is added into the phenol solution (50 mL). Prior to irradiation, the suspension has a dark adsorption for half an hour. Then it was irradiated by a 300 W Xe lamp with a 420 nm cut off filter. At given time intervals, aliquots of the irradiated suspension are collected, centrifuged and analyzed by a HPLC system. In details, the aliquots were analyzed using “SHIMADZU LC-20A” which set with a two-channel UV-vis light absorption detector set at 270 nm absorbance for phenol detection. A Inertsil ODS-3 4.6 mm × 150 mm × 5 μm C18 column was used, injected volume 10 μL, column temperature of 40 °C and a flow of mobile phase acetonitrile: water (20 : 80, v/v) at a flow rate of 1.0 mL min⁻¹.

3. Results and discussion

3.1 Characterization results

XRD measurement. Fig. 1 Shows the wide-angle XRD patterns of CD-SBA15, 1 : 6 SBA15–CN and CD-SBA15–CN photocatalysts. As can be seen from the figure, a broad peak at 22° which is attributed to amorphous silica is shown.²⁷ Compare with the diffraction peaks of CD-SBA15, two distinct peaks located at 13.1° and 27.4° are shown and the characteristic peak intensity of composites is stronger and stronger with increasing melamine amounts. The two peaks are indexed to the (100) and (002) diffraction planes of g-C₃N₄ and correspond to the interlayer stacking peak of aromatic systems and the in-plane structural packing motif of tri-s-triazine units.^28,29 These two peaks together prove the successful synthesis of carbon nitride in the composite catalysts.

Fig. 1 Wide-angle XRD patterns of different samples.

The N₂ adsorption–desorption measurement. The N₂ adsorption–desorption measurement is performed to explain characteristics of CD-SBA15 before and after coupling with carbon nitride. The isotherm of CD-SBA15 is of type IV in Fig. 2a according to the IUPAC classification, along with a steep H1 hysteresis loop in the range of p/p⁰ = 0.5–0.8, indicating that the samples possessed typical mesoporous structures.^30–32 Table 1 shows the structural features of the prepared catalysts. It is observed that SBA-15 has the largest BET surface area of 565.54 m² g⁻¹ and the largest pore volume of 0.87 cm³ g⁻¹, while the CD-SBA15 shows a decrease in surface area and pore volume as CDs are loaded into the silica channel.

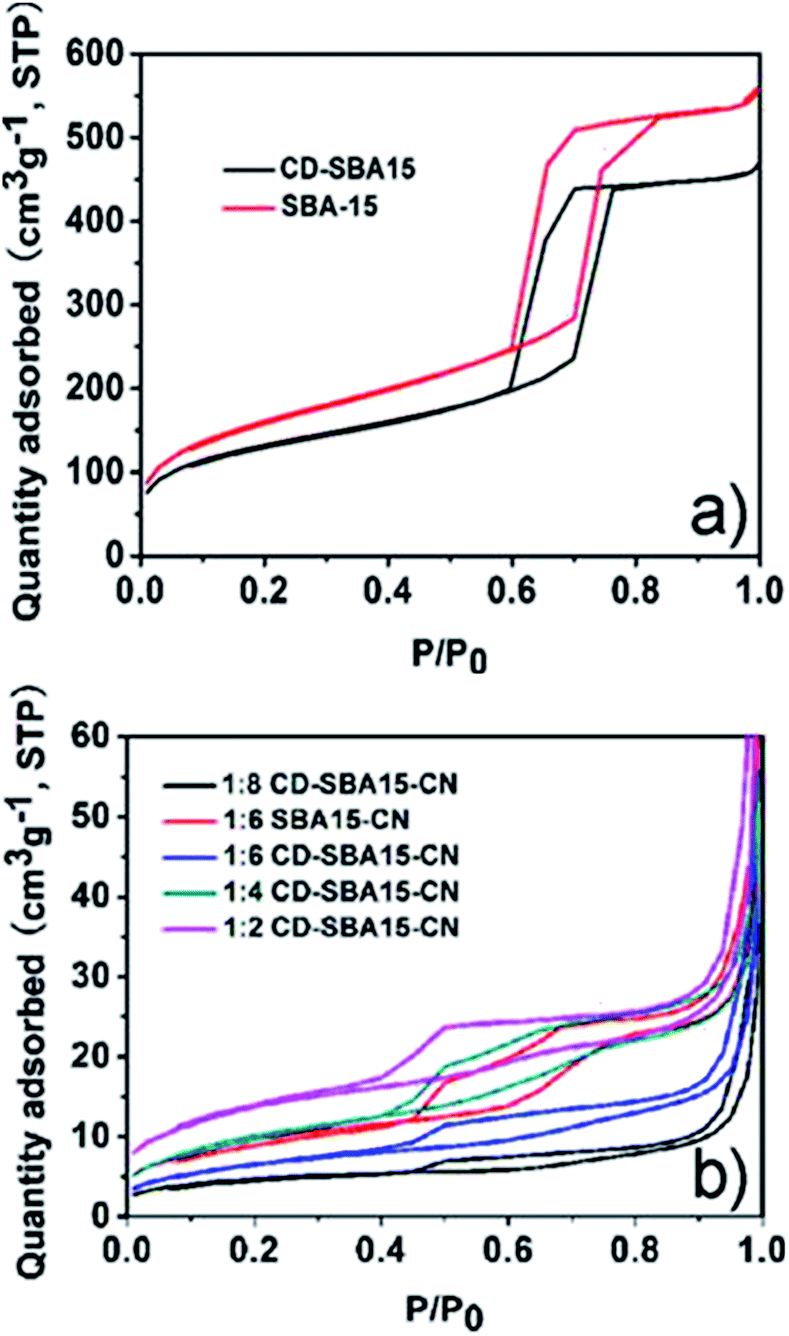

Fig. 2 N₂ adsorption–desorption isotherms of (a) SBA-15 and CD-SBA15, (b) CD-SBA15–CN series samples.

Table 1 Specific surface area, pore volume and pore size of g-C₃N₄, SBA-15, CD-SBA15 and CD-SBA15–CN photocatalysts

Samples	SBET (m^2 g^−1)	Pore volume (cm^3 g^−1)	Pore size (nm)
g-C3N4	8.43	0.04	25.65
SBA-15	565.54	0.87	5.65
CD-SBA15	455.35	0.71	5.45
1 : 6 SBA15–CN	38.11	0.10	3.80
1 : 2 CD-SBA15–CN	47.58	0.15	3.99
1 : 4 CD-SBA15–CN	36.47	0.09	3.81
1 : 6 CD-SBA15–CN	23.35	0.08	3.79
1 : 8 CD-SBA15–CN	16.05	0.05	3.69

---

After the loading of g-C₃N₄, the mesoporous structure of all CD-SBA15–CN photocatalysts is maintained (Fig. 2b). As presented in Table 1, pure g-C₃N₄ has small specific surface area, small pore volume, and large pore size. After compositing CD-SBA15 or SBA-15 with g-C₃N₄, SBA15–CN and CD-SBA15–CN photocatalysts show relatively higher specific surface area, larger pore volume and smaller pore size as compared to the pure g-C₃N₄, but with increasing g-C₃N₄ amounts, the surface area, pore size and pore volume of the CD-SBA15–CN reduced, indicating the successful dispersed g-C₃N₄ into the pores of CD-SBA15 and existing a optimum content of g-C₃N₄.

TEM measurement. TEM is further used to confirm the mesoporous structure and the morphology of CD-SBA15 and CD-SBA15–CN photocatalysts. Fig. 3 shows the TEM images of SBA-15, 1 : 6 SBA15-CN, CD-SBA15 and 1 : 6 CD-SBA15–CN. As shown in Fig. 3a and c, both SBA-15 and CD-SBA15 present highly ordered mesoporous structures, which are consistent with the N₂ adsorption–desorption isotherms (Fig. 2a). As for SBA15–CN in Fig. 3b and CD-SBA15–CN in Fig. 3d, the mesoporous have been partially filled with carbon nitride materials without obvious aggregation of carbon nitride observed and the hollow mesostructures are dominant, meaning the well dispersion of carbon nitride in CD-SBA15.

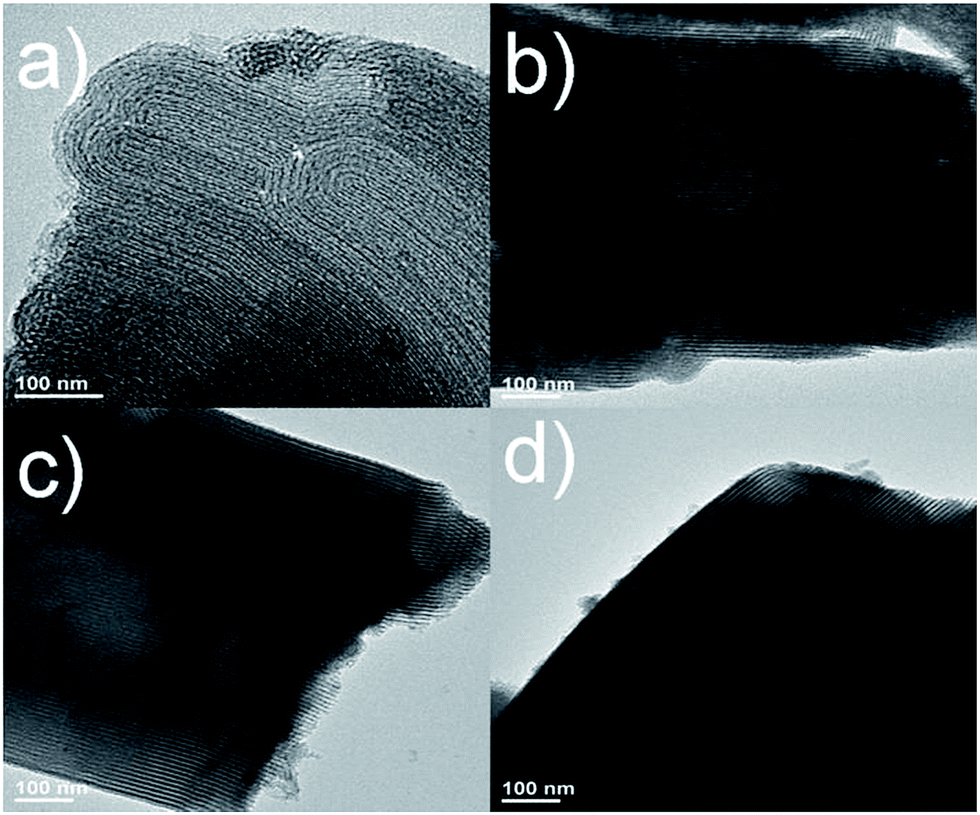

Fig. 3 TEM images of (a) SBA15, (b) 1 : 6 SBA15–CN, (c) CD-SBA15, (d) 1 : 6 CD-SBA15–CN.

XPS analysis. XPS analysis can as a powerful evidence to show the composite catalyst is g-C₃N₄ loading into carbon dots modified SBA15, as it is widely used to investigate the chemical composition of materials surface. Fig. 4a shows the survey spectrum of 1 : 6 CD-SBA15–CN, which reveals that elements of the sample including Si, O, C and N. As displayed in Fig. 4b, the high resolution spectrum of C 1 s can be de-convoluted to three peaks at 288.5 eV, 288.3 eV and 284.8 eV. The peak at 284.8 eV corresponds to graphene carbon, and the weaker one at 288.3 eV is associated with sp²-bonded carbon (N–C=N) which usually appear in the XPS spectra of g-C₃N₄. In addition, the C 1s peak at 288.5 eV is identified as the bond of C=O.³³ This result coincides well with the high resolution spectrum of O 1s (Fig. 4d), in which the de-convoluted peaks around 535.2 eV and 531.6 eV corresponded to –OH and HO–C=O, respectively,³⁴ what have identified the existence of carbon dot. Besides, as we can see from the N 1s core level in Fig. 4c, the de-convoluted peak centered at 398.5 eV belong to sp²-hybridized nitrogen (C–N=C). And the peaks at 399.6 eV and 400.8 eV correspond to the nitrogen in N–(C)₃ and C–N–H which come from the g-C₃N₄, respectively.^35,36 All above results further confirmed the formation of samples composed of g-C₃N₄ and carbon dots, suggesting the g-C₃N₄ have been introduced into the CD-SBA15 successfully.

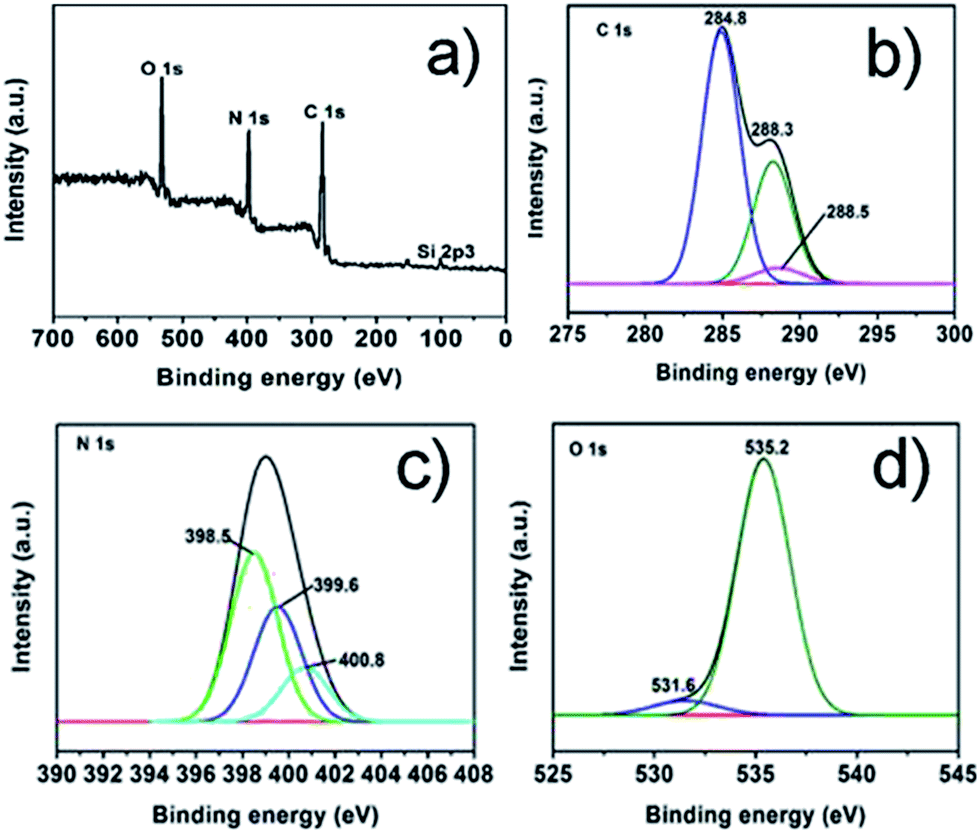

Fig. 4 XPS spectra of 1 : 6 CD-SBA15–CN: (a) survey scan; (b) deconvoluted C 1s; (c) deconvoluted N 1s and (d) deconvoluted O 1s.

UV-vis measurement. The optical absorption properties of the prepared CD-SBA15–CN composites are investigated by UV-vis diffuse reflectance spectroscopy. The results are shown in Fig. 5. It can be found that the absorption edge of g-C₃N₄ is about 450 nm. The red-shift of the absorption edge and the increase of the absorption intensity of 1 : 6 SBA15–CN in visible light region can also be observed. This indicates that the modification of SBA-15 can improve visible light utilization of SBA15–CN photocatalysts due to the high dispersion of g-C₃N₄ in SBA-15 channel. By contrast, the visible light harvesting capability of the CD-SBA15–CN composites increase with the decrease of g-C₃N₄ due to the intrinsic optical absorbance of the CDs, which indicates that CD-SBA15–CN can absorb more energy from the visible light that leads to enhance photocatalytic activity. A further observation is that the absorption edge of CD-SBA15–CN shift, which suggests the incorporation of CDs into the g-C₃N₄.

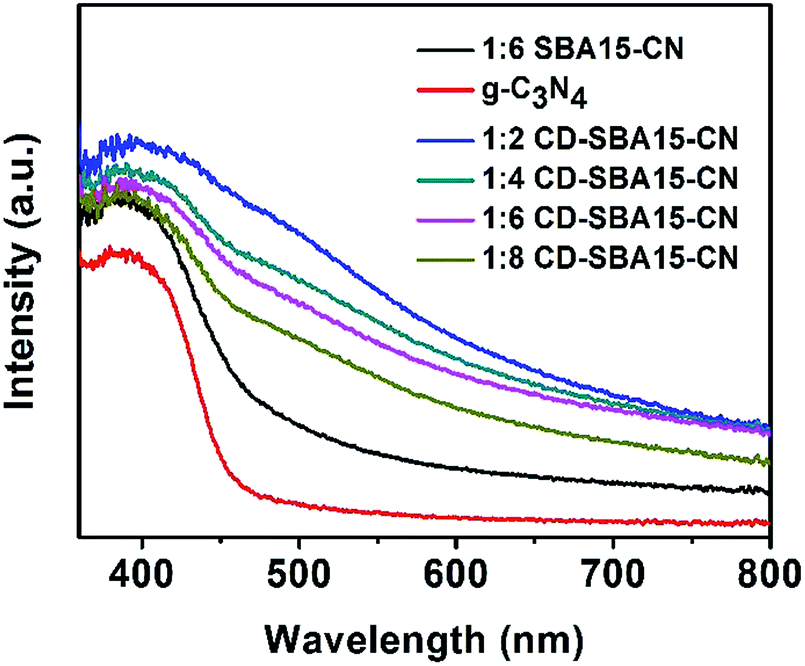

Fig. 5 UV-vis absorption spectra of different materials.

3.2 Photocatalytic performances

Photocatalytic degradation of phenol. To evaluate the visible light photocatalytic activity of the as-prepared samples, a test reaction is carried out for degradation of 10 mg L⁻¹ of phenol with 50 mg of the catalyst under visible light irradiation. And the results are shown in Fig. 6. It can be seen from Fig. 6, the degradation of phenol hardly occurs under visible light irradiation in the presence of CD-SBA15. Instead, the degradation of phenol proceeds obviously with g-C₃N₄. The phenol degradation rate of 1 : 6 SBA15–CN reaches 36%, which is 2 times as high as that of bare g-C₃N₄. After loading of CDs into the mesoporous channels of SBA-15, the phenol degradation rate can be further enhanced. In addition, by optimizing the mass ratio of CD-SBA15 to g-C₃N₄, the best photocatalytic performance of CD-SBA15–CN photocatalysts can be achieved for 1 : 6 CD-SBA15–CN, whose phenol degradation rate almost reaches 70%.

Fig. 6 Photocatalytic degradation of phenol (10 mg L⁻¹) over different materials under visible light irradiation (λ > 420 nm).

Photocatalytic mechanism. To investigate the mechanism for the enhancement of the photocatalytic activity by combining g-C₃N₄ and CDs in SBA-15, photoluminescence (PL) spectra are measured, which are shown in Fig. 7. For CD-SBA15, there is an intense emission come from the loading carbon dots. The pristine g-C₃N₄ exhibits a strong emission centered at 460 nm. This emission results from the radiative recombination of the photo-generated charge carriers in g-C₃N₄. Obviously, the 1 : 6 SBA15–CN shows weaker emission intensity than that of g-C₃N₄. The significant PL quenching of g-C₃N₄ may be because of the well dispersion of g-C₃N₄ fragments with decreased particle size in the SBA-15 channels, shortening the transfer distance of the photo-generated charge carriers to the active sites on the surface and consequently effectively promoting the separation of the photo-generated charge carriers in 1 : 6 SBA15–CN. For 1 : 6 CD-SBA15–CN, the PL intensity is further decreased, indicating the interaction between CDs and g-C₃N₄ can promote the separation of charges more effectively,^37–39 which is consistent with the photocatalytic activity of the samples.

Fig. 7 PL emission spectra of different samples.

Besides the PL measurement, electrochemical impedance spectroscopy (EIS) is another important measurement to investigate the charge transfer ability of the catalysts.^40–42 A smaller arc radius means a higher utilization of visible light and a higher photocatalytic activity. As shown in Fig. 8 as we can see that g-C₃N₄ has the largest arc radius, suggesting a high charge transport resistance of the material. After g-C₃N₄ loading on SBA-15, high disperse g-C₃N₄ has a smaller charge transport resistance, which means a more quickly transfer photo-generated electrons. When the carbon dots combine with SBA15, carbon dots can quickly transfer photogenerated electrons (that's why CD-SBA15 has a smaller arc radius) showed a much smaller arc radius. As a result, compare with SBA15–CN, arc radius of CD-SBA15–CN is smaller, and 1 : 6 CD-SBA15–CN is smallest, which means photogenerated electrons on 1 : 6 CD-SBA15–CN can be quickly transfered then have an excellent photocatalytic performance.

Fig. 8 Electrochemical impedance spectroscopy of different samples.

Based on the above results, a mechanism for the enhanced photocatalytic phenol degradation and charge transfer over the CD-SBA15–CN composite photocatalyst is proposed and schematically illustrated in Fig. 9. The high dispersion of g-C₃N₄ into CD-SBA15 leads to reduced recombination of photo-generated electrons and holes, as proved by the PL analysis. In addition, the combination of g-C₃N₄ and CDs in the mesoporous can make the catalyst absorb more visible light, resulting in more photo-generated electrons and holes. Moreover, CDs could inject electrons to g-C₃N₄ under visible light irradiation, serving as photosensitizer to g-C₃N₄.⁴³ Lastly, the interaction between CDs and g-C₃N₄ could help the photogenerated electrons transfer more efficiently as demonstrated by the EIS result, further reduce the recombination rate of electron–hole pairs as well as greatly promote the generation of active species on the surface. Collectively, all the above contributed to the enhanced photocatalytic activity, accelerated the phenol degradation.

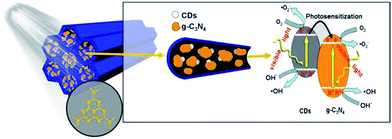

Fig. 9 The proposed photocatalytic mechanism of CD-SBA15–CN composites.

Conclusion

To sum up, g-C₃N₄ has been successfully loaded into the CD-SBA15 by an impregnation method. The obtained SBA15–CN composites exhibit better photocatalytic performance than the pure g-C₃N₄ under visible light irradiation. The well dispersion of g-C₃N₄ into SBA-15 can shorten the distance for charge transfer and inhibit the recombination of charges in g-C₃N₄. Moreover, for CD-SBA15–CN, the photocatalytic activity under visible light is further improved because the CDs can enhance the adsorption of visible light and the interaction between CDs and g-C₃N₄ can promote the separation of photo-generated electron–hole pairs. This thought of charge transfer enhancement by the CD-SBA15 will provide a new route to develop advanced composite catalysts for water purification.
