High-temperature colossal dielectric behavior of BaZrO₃ ceramics

Abstract

BaZrO₃ (BZO) powders were synthesized by solution combustion based on the glycine nitrate process. The sintering conditions of the BZO sample were optimized by varying the sintering temperature and dwell time. The dielectric properties of the sintered samples were investigated in the temperature range of 300–1080 K and frequency range of 10² to 10⁶ Hz. The sample sintered at 1973 K for 12 h was found to show the best dielectric properties. Detailed investigations on this sample reveal an incipient ferroelectric behavior in the temperature range below 420 K and a colossal dielectric behavior above 420 K. The colossal dielectric behavior is composed of two thermally activated relaxations. The low-temperature relaxation was argued to be a dipolar relaxation caused by an oxygen vacancy hopping motion inside grains and the high-temperature one was ascribed to a Maxwell–Wagner relaxation due to the oxygen vacancies being blocked by the sample/electrode contacts.

---

1. Introduction

Materials showing colossal dielectric constants (CDCs, dielectric constants larger than 10³) have drawn considerable attention due to their promising potential for application in the area of device miniaturization and energy storage.^1–3 There are currently two main types of CDC material systems. The traditional type of CDC material is ferroelectric perovskites, which show dielectric constants up to 10⁴ to 10⁵ around the ferroelectric phase transition,⁴ but suffer from strong temperature dependence. Another type of CDC material system is the plethora of non-ferroelectric oxides represented by CaCu₃Ti₄O₁₂.^5–7 The CDC behavior of this type of material is characterized by a colossal and temperature stable dielectric constant plateau around room temperature. This dielectric plateau decreases in a step-like manner to a low dielectric constant plateau at low enough temperature. Meanwhile a relaxation peak appears in the corresponding dielectric loss. The high-temperature dielectric plateau is promising for practical applications. Nevertheless, the remarkable dielectric loss in this temperature range limits its application. The low-temperature dielectric plateau, on the contrary, is independent of both frequency and temperature with very low dielectric loss. This feature is very desirable for device applications. But for most CDC materials, the low-temperature plateau appears at temperatures far below room temperature (RM). For example, the plateau appears below 100, 120, and 200 K for Ba₂CoNbO₆,⁸ Na_0.5Bi_0.5Cu₃Ti₄O₁₂,⁹ and TbFeO₃ (ref. 10) recorded at 10 kHz, respectively. In order to circumvent this limitation, the search for materials exhibiting such kind of dielectric plateau at or above RM is of vital importance. Recently, our group has reported that CaLaAlO₄ ceramics showed CDC behavior in the temperature above RM.¹¹ The typical feature of this material is that it contains no transition metal ions and the CDC behavior is caused by the electromigration of oxygen vacancies. This work provides a heuristic hint to search for high-temperature CDC materials in oxides free of transition metal ions.

Proton conductors based on cerate and zirconate perovskite oxides have attracted considerable attention in recent years for electrochemical applications, such as fuel cells, separation membranes, and steam electrolysers.^12,13 Of the known perovskite-type proton conductors, there has been considerable experimental interest in acceptor-doped BaZrO₃ (BZO) due to its high proton conductivity in a cubic structure coupled with good chemical and mechanical stability.^14,15 The electric properties of pure BZO, however, is dominated by oxygen vacancies.^16,17 On the other hand, the Zr⁴⁺ is very stable (with respect to Ti⁴⁺). This fact makes BZO similar to a material free of transition metal ions. Therefore, high-temperature CDC behavior could be expected in BZO. However, to the best of our knowledge, dielectric properties of BZO were performed in low-temperature range below RM¹⁸ or on Ti-doped samples.^19–21 There are no reports on the dielectric properties of BZO above RM.

In this paper, we performed investigations on high-temperature (300 to 1080 K) dielectric properties of BZO ceramics. As expected, the sample showed high-temperature CDC behavior composed of two relaxations. The mechanisms of these relaxations were discussed.

2. Experimental details

BZO samples were synthesized by solution combustion based on the glycine nitrate process. Stoichiometric amounts of barium nitrate (Ba(NO₃)₂) (0.04 mol) and zirconium nitrate (Zr(NO₃)₄·5H₂O) (0.04 mol) were dissolved in deionized water (800 mL) to form a solution. Glycine was then added at a molar ratio of glycine (0.16 mol) to total metallic cations of 2. The water in the solution was evaporated by heating over a hot plate while stirring until a gel was formed. The gel was moved to an electric oven at 513 K triggering auto-combustion. The resulting primary powders were further calcined at 1373 K for 5 h in ambient air. After cooling to room temperature naturally, pellets of 11 mm diameter and approximately 1 mm thickness were pressed and sintering at different conditions. The phase purity of the synthesized powders was characterized by X-ray diffraction (XRD) on a Rigaku SmartLab diffractometer (Rigaku Beijing Co., Beijing, China) with Cu Kα radiation. The microstructure and grain size of the sintered pellets were studied using a field-emission scanning electric microscope (SEM, Model S-4800, Hitachi Co., Tokyo, Japan). The temperature-dependent dielectric properties were measured using a Wayne Kerr 6500B precise impedance analyzer with the sample mounted in a holder placed inside a PST-2000HL dielectric measuring system (Partulab Co., Wuhan, China). The temperature variations were automatically controlled using a PCT10 Stanford temperature controller with a heating rate of 3 K min⁻¹. The ac measuring signal was 100 mV. Annealing treatments were performed in oxygen and nitrogen (both with purity > 99.999%) at 1073 K for 2 h with flow rate of 200 mL min⁻¹.

3. Results and discussion

Fig. 1 shows the room-temperature XRD pattern of synthesized BZO powders in the 2θ range of 20 to 80°. The pattern can be indexed based on a cubic structure with Pm3̄m space group (JCPDS file no. 06-0399), and no impurity phases were observed. In order to obtain a BZO sample with high relative density for dielectric measurements, the pressed BZO pellets were sintered at different conditions.

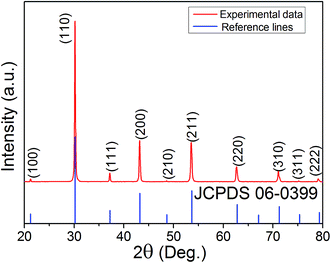

Fig. 1 The XRD pattern of the synthesized BZO powders recorded at room temperature.

Fig. 2 presents the SEM images of the sintered BZO ceramics. It can be seen that all samples present distinct grain structure. The average grain size and relative density are summarized in Table 1. From which, it is clearly seen that both the grain size and relative density increase with increasing sintering temperature and dwell time. The sample sintered at 1973 K for 12 h was found to show the highest relative density with a value of 98.1%.

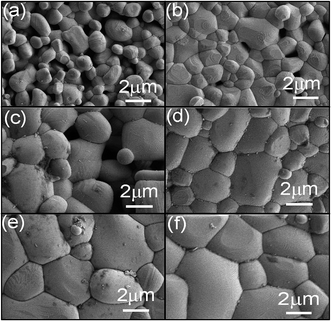

Fig. 2 SEM surface images of the BZO samples prepared at various sintering conditions: (a) 1773 K for 12 h, (b) 1873 K for 12 h, (c) 1923 K for 6 h, (d) 1923 K for 12 h, (e) 1973 K for 6 h, and (f) 1973 K for 12 h.

Table 1 The average grain size, standard deviation and relative density of the BZO pellets prepared at different sintering conditions

Sintering condition	Average grain size (μm)	Standard deviation (μm)	Relative density (%)
1773 K–12 h	1.05	0.20	90.8
1873 K–12 h	1.65	0.36	93.0
1923 K–6 h	2.73	0.62	95.2
1923 K–12 h	3.13	0.83	96.3
1973 K–6 h	3.47	0.92	96.3
1973 K–12 h	4.19	0.95	98.1

---

Fig. 3 compares the temperature dependence of dielectric constant, ε′ (the real part of the complex permittivity ε*) and dielectric loss tangent tan δ(T) (tan δ = ε′′/ε′, ε′′ is the imaginary part of complex permittivity) for BZO ceramics prepared at different sintering conditions. It is seen that no CDC behavior can be found in the sample sintered at 1773 K for 12 h. When the sintering temperature is elevated to 1873 K, the ε′(T) curve steplike increases from a low-temperature plateau around 27.5 to a high-temperature plateau with values over 300. Meanwhile, the corresponding tan δ(T) shows a peak. These features resemble the CDC behavior except for the not high enough value of the high-temperature plateau. As the sintering temperature is elevated higher than 1923 K, the high-temperature plateau shows values larger than 10³, indicating that the CDC behavior appears in these samples. To judge the merit of the CDC behavior, quality criteria, such as high dielectric constant, low dielectric loss, and good temperature stability have been put forward. Based on these factors, it is not difficult to find out that the sample sintered at 1973 K for 12 h shows the optimum properties. We, therefore, perform detailed dielectric investigations focusing on this sample in the following part.

Fig. 3 The dielectric permittivity (a) and loss tangent (b) as a function of temperature for BZO ceramics prepared at different sintering conditions. The curves were recorded with a frequency of 800 Hz.

Fig. 4 displays the temperature dependence of ε′(T) and tan δ(T) measured with various frequencies for BZO sintered at 1973 K for 12 h. In the temperature range below 420 K, both ε′(T) and tan δ(T) behave as plateaus independent of frequency and temperature. This can be ascribed to the intrinsic dielectric properties resulting from the electronic and/or ionic polarization. The flat dielectric constant was found to be ∼34.8, which agreed well with the previously reported values of 32–37.^21,22 However, a careful examination reveals that the dielectric constant plateau is actually a frequency-independent decline similar to that found in SrTiO₃ and KTaO₃.^23–25 This behavior is the typical feature for incipient ferroelectrics. To further confirm the incipient ferroelectric nature in the present sample, the data recorded with 1 MHz were fitted using the Barrett equation:²⁶

where C is a constant, T₀ is hypothetical Curie temperature, T₁ is onset temperature of quantum fluctuations, and B is dielectric constant at high-frequency limit. The fitting result as well as the experimental data were given in the insert of Fig. 4(a). Perfect agreement between the experimental data and fitting result was achieved. The fitting yields the parameters of B = 28.54, C = 5454, T₁ = 309 K, and T₀ = −18 K. These values are comparable with those previously reported in BaZrO₃,²⁰ indicating that the incipient ferroelectric behavior exists in the present sample. With further increasing temperature, the sample exhibits CDC behavior similar to that reported in CaCu₃Ti₄O₁₂.⁶ The CDC behavior is found to be composed of two stepwise increases occurring around 500 and 900 K (for the curve recorded under 100 Hz). Meanwhile, two sets of peaks in the curves of the dielectric loss tangent are observed. The positions of both sets of peaks shift to high temperature with increasing frequency. This indicates that there are two thermally activated relaxations in BZO. To discuss each relaxation clearly, the two relaxations were referred to as R1 and R2 in the order of ascending temperature.

Fig. 4 The temperature dependence of (a) dielectric constant and (b) loss tangent for BZO measured with different frequencies. The inset of (a) is an enlarged view of dielectric constant recorded at 1 MHz in the low temperature range, which compares the experimental data (open circles) and the fitting curve (solid line) based on the Barrett equation [eqn (1)].

To understand the mechanism of the observed relations, we try to calculate the relaxation parameters for each relaxation. But R2 in tan δ(T) is obscured by the increasing background, which makes it difficult to deduce its position accurately. To overcome this shortcoming, the dielectric function of electric modulus M* (=M′ + jM′′ = 1/ε*, where, ) is applied. It was suggested that electric modulus could provide valuable information about relaxation mechanism in the absence of a well-defined dielectric loss peak in tan δ(T). Fig. 5 shows the imaginary part of the electric modulus M′′(T) as a function of temperature under various frequencies ranging from 100 Hz to 1 MHz for BZO ceramics. Owing to the absence of the increasing background, a set of thermally activated relaxation can be clearly seen. The inset (a) is an enlarged view of the M′′(T) curves in the high-temperature range as indicated by the rectangle. It clearly shows the high-temperature relaxation. The electric modulus spectra substantially confirm the two sets of relaxations in BZO. To calculate the relaxation parameters, the measuring frequency (f) and the peak position (T_P) was plotted according to the Arrhenius law:

f = f₀ exp(−E_a/k_BT_P) (2)

where f₀ is eigenfrequency, E_a is activation energy for relaxation and k_B is Boltzmann constant. Arrhenius plots for R1 and R2 (closed points) along with the linear fits (straight lines through the data points) were shown in the inset (b) of Fig. 5. The relaxation parameters E_a and f₀ was calculated, respectively, to be 0.80 eV and 9.97 × 10¹⁰ Hz for R1, and 1.52 eV and 1.28 × 10¹¹ Hz for R2. The values of the activation energy of both relaxations are comparable with that reported for the thermally activation migration of oxygen vacancies, which has been widely reported to be around 1.0 eV.^27–33 Thus, the observed relaxations might be related to the migration of the oxygen vacancies.

Fig. 5 The imaginary part of electric modulus as a function of temperature for BZO sample at various frequencies. The inset (a) is an enlarged view of the rectangle region as indicated by the arrow. The inset (b) shows the Arrhenius plots of R1 and R2. The solid lines in the inset are the linear fitting results.

To further clarify this inference, we measured the dielectric properties of BZO after being annealed first in O₂ and then in N₂. Table 2 summaries the values of the relaxation parameters (E_a and f₀) of R1 and R2 in different cases. From which we can see that the value of activation energy for both relaxations is increased by the O₂-annealing treatment and then decreased by the N₂-annealing treatment. It was reported that the activation energy increases (decreases) with the decreasing (increasing) concentration of oxygen vacancies. Since the concentration of oxygen vacancies can be decreased (increased) by annealing in oxygen (nitrogen),³⁴ this result firmly confirms that the two relaxations are associated with oxygen vacancies. Our recent results revealed that the hopping motion of oxygen vacancies first created a reorientational dipolar relaxation and then a Maxwell–Wagner relaxation when the vacancies were blocked by interfaces such as grain boundaries.³⁵ The R1 can be reasonably ascribed to be the dipolar relaxation related to the hopping oxygen vacancies, while R2 might be the Maxwell–Wagner relaxation related to the blocked oxygen vacancies.

Table 2 Relaxation parameters of R1 and R2 for BZO samples treated in different annealing conditions

Annealing case	R1		R2
	Ea (eV)	f0 (Hz)	Ea (eV)	f0 (Hz)
As-prepared	0.80	9.97 × 10^10	1.52	1.28 × 10^11
O2-annealed	0.94	1.2 × 10^12	1.83	6.31 × 10^13
N2-annealed	0.74	1.47 × 10^11	1.33	1.08 × 10^11

---

In order to evidence this point, we conduct impedance analysis, as it is a powerful technique to separate the dielectric contributions from bulk (grain), grain boundary and contact effects. Fig. 6(a) and (b) displays the Nyquist plots (Z′′ vs. Z′, where Z′ and Z′′ are the real and imaginary parts of the complex impedance Z*) of BZO sample measured at the temperatures of 450 and 730 K under different DC biases. The complex impedance spectra at 450 K behave as a semicircular arc independent of DC bias confirming bulk dielectric response. At 730 K, the impedance spectra can be separated into two distinct regions: the high-frequency region independent of the DC bias indicative of the bulk response, and the low-frequency region which can be enhanced by increasing the bias. This fact substantially convinces that the low-frequency arc corresponds to interfacial response. However, the interfacial response is usually associated with Schottky barrier that should be depressed rather than enhanced by the DC bias.³⁶ Our recently report in ZnNb₂O₆ ceramics indicated that this abnormal bias behavior was caused by sample/electrodes contacts instead of grain boundaries.³⁷ This is because that the electrode is electronic conductor instead of ion conductor. When the vacancies are blocked by the interface at the electrode, they can never overcome this barrier. Thus, the DC bias notably enhances the space charge, which, in turn, enhances the Maxwell–Wagner relaxation. This finding strongly supports that R2 is related to the blocked oxygen vacancies. The absence of grain boundary effect might be that fact that the BZO shows the largest grain size and its density is very close to that of single crystal [see Table 1]. This implies that the fraction of grain-boundary in BZO is very small. Thus, the influence of grain-boundary is almost negligible.

Fig. 6 Complex impedance of BZO sample at the measured temperatures of (a) 450 and (b) 730 K under various DC biases.

The above results indicate that R1 and R2 are related to bulk and interfacial effects, respectively. To further convince this point, we conduct AC conductivity analysis. Fig. 7(a) shows the AC conductivity (σ(ω)) as a function of frequency recorded at different temperatures. We note that the curves, especially for those measured at intermediate temperatures, behave as low- and high-frequency plateaus with sigmoidal curves collecting them. The plot can be clarified into two regions (I and II) separated by a dashed line. Obviously, the well-known universal dielectric response (UDR) model fails to describe this kind of AC conductivity behavior,³⁸ because the UDR conductivity is characterized by the feature of a low-frequency plateau (DC conductivity) followed by a rapid increase in the high-frequency range. To explain this behavior, we presented an equivalent circuit as illustrated in the inset of Fig. 7(a). It contains two serially connected RC (R = resistor and C = capacitor) units with the subindex 1 and 2 referring to the bulk and interfacial effects, respectively. Based on the equivalent circuit, the AC conductivity can be written as:³⁹

where ω = 2πf is angular frequency, τ is relaxation time, σ₀ and σ_∞ are the conductivity at ω = 0 and ∞, respectively. Eqn (3) is formally equivalent to the well-known Debye relaxation equation. Clearly, the AC conductivity shows a low-frequency plateau (σ₀) and a high-frequency plateau (σ_∞) with a sigmoidal curve linking them. It was reported that the low- and high-frequency plateaus, i.e., regions I and II in Fig. 7(a), correspond to the interfacial and bulk contributions, respectively.³⁹ The Arrhenius plots of σ₀ and σ_∞ deduced from regions I and II, respectively, were plotted in Fig. 7(b). The activation energy for σ₀ and σ_∞ was calculated to be 0.79 and 1.56 eV, respectively. These values agree well with the corresponding activation energy values for R1 and R2. This finding further demonstrates that R1 and R2 are bulk and interfacial responses, respectively.

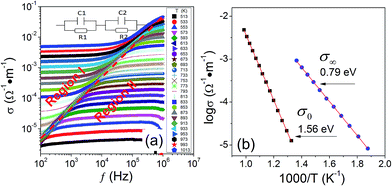

Fig. 7 (a) The frequency dependence of AC conductivity of BZO measured at different temperatures. (b) The Arrhenius plots of the conductivity with the data deduced from regions I and II as shown in (a).

Finally, it is worthwhile to compare the dielectric properties between pure and acceptor-doped BZO ceramics. The relaxing species in pure BZO are the inherent defects of oxygen vacancies. The observed dielectric relaxations are associated with the migration of the vacancies. Whereas the acceptor-doped BZO ceramics become the well-known proton conducting oxides.⁴⁰ There are two distinctly important types of carriers: hydroxyl ions and oxygen vacancies in the samples. These carriers may associated with the dopants, such as Y or Zr, giving rise to complex dipole pairs . The high-temperature dielectric properties are thereby determined by the complex dipoles.^40,41 Besides, the grain boundaries instead of the sample/electrode contacts in the acceptor-doped BZO have been widely evidenced to show higher resistance than the interior of the grains and hinder the migration of charged carriers.^42–44

4. Conclusions

In summary, BZO powders were synthesized by solution combustion based on the glycine nitrate process. The sample sintered at 1973 K for 12 h was found to show optimal dielectric properties. It was found that BZO showed incipient ferroelectric behavior in the temperature range below 420 K. Above this temperature, CDC behavior appears composed of two sets of oxygen-vacancy-related relaxations (R1 and R2). The low-temperature relaxation R1 was attributed to be a dipolar relaxation due to hopping oxygen vacancies inside grains, while the high-temperature relaxation R2 was argued to be a Maxwell–Wagner-type relaxation related to the vacancies blocked by the sample/electrode contacts.

Acknowledgements

The authors are thankful for the financial support from National Natural Science Foundation of China (Grant No. 51502001, 51572001, 11404002, and 11404003). This work was supported in part by Collaborative Innovation Center of Weak Signal-Detecting Materials and Devices Integration of Anhui University (Grant No. Y01008411) and Anhui University Personnel Recruiting Project of Academic and Technical Leaders (Grant No. J01006029).
