Cationic phthalocyanine dendrimers as potential antimicrobial photosensitisers

Abstract

In the present study we describe the synthesis, photophysical properties and the photoinactivation performance against representative microorganisms of two families of cationic dendrimeric phthalocyanines as potential photosensitisers. Four charged dendrimeric compounds varying in their degree of ionicity (4 or 8 positive charges) and the coordinating metal (zinc or ruthenium) are compared and assessed as potential photosensitising agents in terms of their antimicrobial activity.

---

Introduction

Pathogenic microorganisms have become a universal threat and leading cause of mortality and morbidity worldwide.^1–6 The issue of prevention and control of infectious diseases continues to be open and a series of highly virulent pathogens are emerging in and beyond hospital settings.^7,8 Concomitant with the rise of antibiotic-resistant bacteria, the approval of new antibiotics has slowed dramatically. Moreover, the number of novel compounds with new mechanisms of action remains scarce, despite the efforts devoted to finding new hits among emerging drugs.^9–11 Thus, the development of novel approaches to address this problem has become urgent.¹² Several alternatives to antibiotic treatments have gained attraction recently.^13–19 Some of them, including photodynamic therapy,^20,21 are not novel, but their use was eclipsed mainly due to two reasons: insufficient understanding among researchers at the moment of their discovery and the advent of antibiotics.

Photodynamic therapy (PDT) consists of an adequate combination of three factors: light, oxygen and a light-active compound referred to as a photosensitiser (PS). None of them are toxic per se; however, their combination leads to the formation of highly reactive oxygen species (ROS) such as singlet oxygen (¹O₂) responsible for exerting cytotoxic damage.²⁰ The advantages of antimicrobial PDT (aPDT) over traditional antibiotics include the activity against antibiotic-resistant species and the lack of development of resistance due to its multi-target mode of action. These attributes make aPDT suitable for the treatment of superficial and localised infectious diseases.^20–22

Phthalocyanines (Pcs) have been investigated in detail for many years due to their interesting physical properties.^23–27 This family of compounds have also become popular for PDT applications, especially for cancer treatment, since Pc derivatives including some metal core atoms such as zinc, ruthenium or silicon display photosensitising activity.^28–35 However, due to their highly hydrophobic nature, Pcs require suitable functionalisation or combination with carrier systems to ensure appropriate administration within a therapy. Dendrimer-encased PSs are an attractive option to achieve successful biomedical applications³⁶ because their inner chromophores are partially shielded from media. This allows maintaining their photoactive form since the bulky substituents prevent the aggregation of the macrocycle. Moreover, their large dimensions allow extended circulation in the blood and higher accumulation of dendronised PSs in the tumour tissues via the so-called enhanced permeation retention effect.³⁷ Several series of Pc-based architectures and their ability to generate ¹O₂ have been previously described.^35,38–41 However, to our knowledge, cationic dendrimeric Pcs have not been studied for antimicrobial purposes. Thus, this work explores the synthesis, photophysical characterisation and potential application of ruthenium- and zinc-Pcs encased in multi-cationic dendrimers as a potential PS platform for aPDT.

Results and discussion

Synthesis description

The synthesis started with the preparation of dimethylamino-appended phthalonitrile 1, which confers the basic motif of terminal moieties that can be found in the dendritic phthalonitriles described thereafter. In first instance, 1 has been prepared from 4-nitrophthalonitrile and dimethylaminoethanol (DMAE) following a literature protocol.^42,43 However, it turned out that the use of microwave-assisted irradiation gave 1 in shorter time with easier purification and a higher yield. This rather simple 1,2-benzenedicarbonitrile was then engaged in the literature-described cyclotetramerisation in the presence of Zn(OAc)₂ under the formation of 2.^42,43 Likewise, the presence of RuCl₃·3H₂O as the metal template for the formation of the Pc macrocycle allowed obtaining 3 in almost quantitative yield. Of note, pyridine has been added to the reaction medium as two equivalents of these N-type ligands occupy the axial positions. The coordination of two pyridine ligands at the axial positions is very important at the stage of evaluating the experimental data as this coordination prevents to a great extent the aggregation often encountered for Pcs. In contrast, the aggregation phenomenon has to be considered important in the case of zinc Pcs as the axial positions are not occupied by ligands. Both Pcs were then subjected to an excess of methyl iodide to give the respective quaternary ammonium salts in very high yields as a dark green solid in the case of ZnPc or RuPc as a blue solid (Scheme 1).

Scheme 1 Synthetic route to zero generation tetracationic ZnPc and RuPc. Reagents and conditions: (i) 2: Zn(OAc)₂, DMAE, reflux, overnight, 21%; 3: RuCl₃·3H₂O, pyridine, DBU, ethoxyethanol, reflux, overnight, 24%; (ii) MeI, DMF, 40 °C, 6 h (ZnPc: 65%, RuPc: 97%).

The quaternisation of 2 has been described in the literature.^42,43 It is important to note that we were aiming at quaternary ammonium salts resulting from the alkylation of terminal amines rather than simple protonation. This is especially important when introducing the dendrimer polyelectrolytes into physiological media as the stability of the former is by far higher when compared to the latter. Depending on the pH prevalent in the corresponding part of the body, the proton might be abstracted under formation of neutral species, which might then lead to an undesired precipitation due to decreased hydrophilicity.

While attempting to construct fractal dendritic wedges containing an increasing amount of dimethylaminoethyl end groups, the respective coupling reactions proved inefficient or/and the purification too tedious. Consequently, this prompted us to realign the synthetic strategy to prepare phthalonitriles endowed with Boc-protected amino groups rather than employing the dimethylamino terminal units. The simple benzenedicarbonitrile derivative 4 has been synthesised again by ipso-substitution of 4-nitrophthalonitrile and 2-(tert-butoxycarbonyl)aminoethanol according to a described method.⁴⁴ On the other hand, compound 5 has been easily prepared closely following the procedure of Liskamp et al.^45,46

This building block contains two Boc protected ethoxyamino groups in positions 3 and 5 and a carboxylic acid function prone to amide coupling reactions. Accordingly, 4 has been deprotected under the use of trifluoroacetic acid (TFA) and after neutralization subjected to benzotriazol-1-yloxytripyrrolidinophosphonium hexafluorophosphate (PyBOP)-mediated amide bond formation. The first generation derivative 6 has been obtained in 95% yield as colourless foam. Iterative deprotection of the two Boc protection groups was performed again by PyBOP-assisted amidation reactions which then readily provided the second generation phthalonitrile 7 with four terminal Boc-protected amino groups in 83% yield as a colourless solid (Scheme 2).

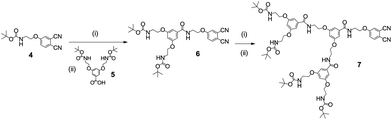

Scheme 2 Synthetic route to second generation Boc-terminated phthalonitrile 7. Reagents and conditions: (i) TFA, CH₂Cl₂, 0 °C to room temperature (6: 3 h, 7: 4 h); (ii) PyBOP, NEt₃, room temperature, overnight (6: 95%, 7: 83%).

Similarly to the synthesis of Pcs 2 and 3, phthalonitriles 4, 6 and 7 were engaged in the cyclotetramerisation in either the presence of Zn(OAc)₂ or a mixture of RuCl₃·3H₂O and pyridine. However, only the respective zinc Pcs 8 ⁴⁷–9 and ruthenium Pcs 11–12 have been obtained as dark green or dark blue solids after purification by column chromatography and size exclusion chromatography. The second generation derivative 10 has been obtained in very small quantities and mass spectroscopic characterization indicated the target peak, but due to the small amount of the compound, quaternisation has not been attempted. Similarly, the synthesis of the second generation ruthenium Pc was found to give inseparable mixtures of compounds regardless of the applied reaction conditions most likely due to steric hindrance hampering the formation of the desired Pc. At the last stage of the synthetic sequence, again a two-step protocol has been employed for the quaternisation of the terminal amino groups, i.e. (i) cleavage of the Boc groups by TFA and (ii) alkylation with a mixture of 1,2,2,6,6-pentamethylpiperidine (PMP) and CH₃I (Scheme 3).⁴⁸

Scheme 3 Synthetic route to second generation zinc and ruthenium Pcs. Reagents and conditions: (i) 8–10: Zn(OAc)₂, DMAE, reflux, overnight (8: 45%, 9: 33%, 10: 2%); 11–12: RuCl₃·3H₂O, pyridine, DBU, ethoxyethanol, reflux, overnight, (11: 7%, 12: 7%); (ii) TFA, CH₂Cl₂, 0 °C to room temperature (ZnPc, RuPc, RuPc1: 4 h, ZnPc1: 7 h); (iii) PMP, MeI, DMF, room temperature, overnight (ZnPc: 98%, ZnPc1: 80%, RuPc: 86%, RuPc1: 70%).

The polycationic zinc Pcs ZnPc and ZnPc1 as well as the ruthenium Pcs RuPc and RuPc1 have been obtained in high yields after repetitive sonication/filtration steps from various solvents. As expected, the series of multiply charged Pcs showed good solubility in polar media including water.

Photophysical characterisation

Fig. 1 shows the normalised absorption spectra of all four polycationic Pcs in tetrahydrofuran (THF), water and dimethylsulfoxide (DMSO). Marked changes are observed depending on the extent of aggregation that they experience in each solvent. Aside from minor peak shifts derived from solvatochromic effects, important changes are evidenced in terms of different relative intensities of the bands in the Soret and Q regions. The spectrum in DMSO is taken as representative of the monomeric form, characterised by a narrow and intense red Q band.³⁷ The general trend is that the dendrimeric Pcs tend to disaggregate in aqueous media. This is not fully true for compound ZnPc (panel a in Fig. 1) whose Soret band, but not the Q band, resembles that in DMSO. Both ruthenium derivatives disaggregate almost completely in water. Despite having the same charges as their zinc analogues, the presence of the apical pyridyl groups seems to prevent aggregation.

Fig. 1 Normalised absorption spectra of dendrimeric cationic phthalocyanines in DMSO (green dashed line), THF (red dotted line) and water (blue solid line). ZnPc (a), ZnPc1 (b), RuPc (c) and RuPc1 (d).

The fluorescence of the compounds was also studied using the same series of solvents. As observed in Fig. 2 and Table 1, there is a substantial difference in the behaviour depending on the nature of the central metal ion, only ZnPcs being fluorescent.

Fig. 2 Normalised fluorescence spectra of dendrimeric cationic zinc-Pcs in DMSO (green dashed line), THF (red dotted line) and water (blue solid line). ZnPc (a), ZnPc1 (b).

Table 1 Summary of the photochemical properties of the dendrimeric phthalocyanines of study in water (D₂O for Φ_Δ measurements) and THF (values in parentheses)

Compound	λ Abs ^a/nm	Φ F ^b	Φ Δ ^c	τ Δ /μs
a Maximum wavelength at the Q-band. b Rhodamine 6G as the reference (ΦF (ethanol) = 0.94).^50 c 5,10,15,20-Tetraphenyl-21H,23H-porphine (TPP; ΦΔ (THF) = 0.62 and meso-tetrakis(4-sulfonatophenyl)-porphyrin (TPPS; ΦΔ (D2O) = 0.64 as references.^51
ZnPc	634 (679)	0.035 (<1 × 10^−4)	0.022 (0.002)	62.8 (20.8)
ZnPc1	690 (684)	0.538 (0.002)	0.119 (0.004)	64.0 (21.0)
RuPc	633 (628)	<1 × 10^−3 (<1 × 10^−4)	0.015 (0.011)	45.3 (19.7)
RuPc1	636 (631)	<1 × 10^−3 (<1 × 10^−4)	0.017 (0.001)	38.7 (19.4)

---

Moreover, a major difference in the fluorescence quantum yield values (Φ_F) was also encountered depending on the medium, once again attributed to aggregation effects. Especially significant is the case of ZnPc1 that exhibits Φ_F values two orders of magnitude lower in THF than in water (Table 1).

Finally, the ability of the Pcs to sensitise the production of ¹O₂ was studied both in THF and in deuterated aqueous media. The quantification of the ¹O₂ quantum yield (Φ_Δ) was performed by direct observation of ¹O₂ phosphorescence at 1275 nm (Fig. 3) exciting either at 355 nm (for zinc-Pcs) or at 532 nm (for ruthenium-Pcs). In line with fluorescence results, the photosensitising properties of the Pcs correlated with the extent of aggregation, being more efficient when less aggregated. This effect was especially noticeable for compound ZnPc1 whose Φ_Δ value in deuterated water was almost two orders of magnitude higher than in THF (Table 1). As regards ¹O₂ decay kinetics (monitored through the ¹O₂ lifetime value, τ_Δ), ruthenium-Pc dendrimers manifest ¹O₂ self-quenching. This is evidenced from the fact that their ¹O₂ lifetime values are shorter than those reported in the literature for the neat solvents (21 μs in THF and 65 μs in D₂O, respectively).⁴⁹ This effect has previously been observed for other ruthenium dendrimeric derivatives, although to a lesser extent.³⁵

Fig. 3 Time-resolved near-infrared ¹O₂ phosphorescence signals at 1275 nm in air-saturated D₂O solutions for [a] ZnPc (green) & ZnPc1 (blue) and [b] RuPc (red) & ZnPc1 (garnet). TPPS was used as the reference (brown). Dashed lines represent datasets from signal fitting. Inset: Magnification of the ¹O₂ signals of the cationic Pcs.

As compared to other dendrimeric Pcs, the reported cationic ZnPcs outperform poly-anionic analogues in terms of production of ¹O₂ in aqueous media.³⁸ Regarding novel cationic ruthenium-Pcs, their ¹O₂ sensitising capacity remains similar to that reported for other anionic dendrimeric analogues.^35,39

Photoinactivation studies

The incorporation of positive charges in PSs has been a benchmark in the re-emerging of aPDT as a potential platform to fight antibiotic-resistant microorganisms.^52–56 We have assessed for the first time the potential of four different cationic dendrimeric Pcs as potential antimicrobial PSs. Zinc and ruthenium Pcs encased in multi-cationic dendrimers were assayed against representative members of Gram-positive (Staphylococcus aureus), Gram-negative (Escherichia coli) and fungi (Candida albicans) to assess their potential use as broad-spectrum photosensitising agents (Fig. 4–6).

Fig. 4 S. aureus photoinactivation studies with ZnPc (a), ZnPc1 (b), RuPc (c) and RuPc1 (d) upon red light irradiation. Light doses: 10 J cm⁻² (triangles), 30 J cm⁻² (filled squares), and 60 J cm⁻² (inverted triangles). Working concentrations: 0.01, 0.1, 0.3, 0.6 and 1 μM. Dark controls are represented with empty squares. Results are the mean from at least three different experiments.

Fig. 5 E. coli photoinactivation studies with ZnPc (a), ZnPc1 (b), RuPc (c) and RuPc1 (d) upon red light irradiation. Light doses: 10 J cm⁻² (triangles), 30 J cm⁻² (filled squares), and 60 J cm⁻² (inverted triangles). Working concentrations: 0.01, 0.1, 0.5, 1, 2.5, 5 and 10 μM. Dark controls are represented with empty squares. Results are the mean from at least three different experiments.

Fig. 6 C. albicans photoinactivation studies with ZnPc (a), ZnPc1 (b), RuPc (c) and RuPc1 (d) upon red light irradiation. Light doses: 30 J cm⁻² (filled squares), and 60 J cm⁻² (inverted triangles). Working concentrations: 0.01, 0.1, 1, 10 and 25 μM. Dark controls are represented with empty squares. Results are the mean from at least three different experiments.

Fig. 4 presents photoinactivation results against S. aureus upon different PS concentrations and light-doses. Two different trends are revealed out of the figure: (i) Both zinc-coordinated Pcs are capable of achieving over 6-log₁₀ colony forming units per millilitre (CFU mL⁻¹) reduction at 1 μM for the higher light-doses and a bactericidal effect (3-log₁₀ CFU mL⁻¹ reduction) when irradiating at 60 J cm⁻² with a concentration of 0.6 μM. Overall photo-killing efficiency is slightly higher for the octacationic ZnPc1 as compared to the ZnPc performance, especially at the highest concentration assayed. (ii) Ruthenium-coordinated compounds have resulted less harmful against S. aureus achieving the bactericidal effect only in the case of maximum concentration and light dose (namely, 1 μM and 60 J cm⁻²). Octacationic RuPc1 is slightly less efficient than its tetracationic analogue. Non-irradiated samples (dark controls) reveal that at maximum concentration there is an apparent 1-log₁₀ CFU mL⁻¹ reduction inherent to drug toxicity. This dark toxicity especially affects the RuPc1 compound, which is poorly efficient.

As for E. coli photoinactivation results, Fig. 4 shows the behaviour of the four cationic dendrimers upon different light and concentration conditions. The dark toxicity was below 1-log₁₀ CFU mL⁻¹ reduction for ZnPc, ZnPc1 and RuPc1, but higher for RuPc at concentrations above 5 μM. A remarkable difference in the photodynamic inactivation efficiency was also observed depending on the coordinated metal. Zinc-coordinated dendrimers exhibited a photokilling performance far better than their ruthenium analogues. Reductions over 6-log₁₀ CFU mL⁻¹ were achieved at concentrations as low as 2.5 μM for ZnPc and 5 μM for ZnPc1 at 30 J cm⁻² light dose. In contrast, a lower photoinactivation was obtained when using RuPc even under harsher photodynamic conditions (approximately 5-log₁₀ reduction with 5 μM and 60 J cm⁻², but with a higher dark toxicity). Finally, RuPc1 only accomplished a modest 2-log₁₀ CFU mL⁻¹ reduction even under conditions as high as 50 μM and 100 J cm⁻² (data not shown). Of note, the inactivation efficiency slightly decreased in some cases when increasing from 5 to 10 μM and at high light-doses. This behaviour might be attributed to increased aggregation under these experimental conditions.

Finally, photodynamic inactivation studies were also performed against C. albicans as a representative opportunistic fungal pathogen. As in the previous scenarios, the dendrimeric cationic zinc-Pcs outperformed the ruthenium analogues in terms of reducing cell viability upon comparable light/dose conditions. While ZnPc and ZnPc1 were capable of achieving approximately 6-log₁₀ CFU mL⁻¹ reduction, RuPc and RuPc1 yielded a reduction in CFU mL⁻¹ two-orders of magnitude inferior. In all cases, the concentration required to exert a noticeable damage was higher as compared to the studies with bacteria.⁵⁷ In terms of charges, minor differences arise when comparing the photokilling efficiency of the tetracationic versus octacationic dendrimers in both series of compounds. For the low light-dose conditions, octacationic compounds seem to respond more efficiently; however, this differences vanish at 60 J cm⁻² light-dose, both for ruthenium- and zinc-Pcs. Of note, octacationic RuPc1 was capable of exerting almost 4-log₁₀ CFU mL⁻¹ reduction against this fungi model, despite being poorly phototoxic against both bacterial models.

Overall, the results obtained in the photodynamic inactivation studies against all representative microorganisms correlate with their photophysical behaviour in solution. Hence, zinc-coordinated dendrimers have shown superior properties than the ruthenium counterparts for all three microbial models. This is especially noticeable comparing octacationic Pcs. Thus, in the concentration/light doses in which ZnPc and ZnPc1 achieved microbial reduction over 6-log₁₀ CFU mL⁻¹, dendrimeric ruthenium-Pcs were unable to achieve similar yields. Other ruthenium complexes have been reported to behave as antimicrobial agents,⁵⁸ pointing out that the lower efficiency has to do with the overall photophysics of the compounds rather than the capacity of the coordinated metal itself. Of note, for the zinc-coordinated derivatives, the photo-killing efficiency – similar for both compounds – does not fully correlate with the measured Φ_Δ values in solution (ZnPc1 is 2-fold higher in water and 5-fold higher in THF than ZnPc). Different extents of aggregation under the experimental conditions upon interaction with the different microorganisms may be responsible for this observation.

Previous studies have attempted to establish relationships between the photodynamic inactivation efficacy and the global charge of the PSs although with contradictory results. For instance, Merchat et al. described no differences in activity despite changes in the net charge.⁵⁹ On the other hand, the study of Caminos et al. showed that the photosensitising efficiency of a series of meso-substituted cationic porphyrins against E. coli followed the trend (PS)³⁺ > (PS)⁴⁺ > >(PS)²⁺ > (PS)⁺ in terms of enhanced photoinactivation.⁶⁰ In another work, Alves et al. compared the bacterial photoinactivation process of seven cationic porphyrins with up to four positive charges for Gram-positive and Gram-negative bacteria.⁶¹ The study showed that tri- and tetracationic porphyrins resulted more efficient than the less charged analogues, consistent with Caminos et al. Moreover, photokilling was dependent not only on the net number of positive charges, but also on the charge distribution and nature of substituent groups.⁶² Studies with tricationic porphycenes (asymmetric porphyrin isomers) have shown a broad-spectrum activity and also slight differences depending on the peripheral substituent.^56,62 Herein, our results would point out that dendrimeric octacationic Pcs slightly outperform tetracationic analogues in solution, but do not show a clear improved photoinactivation performance overall. Further studies ought to be addressed to compare the effect of functional groups relative to the resulting photoinactivation performance.

Conclusion

Four different cationic dendrimeric Pcs have been synthesised with either zinc or ruthenium in the centre, fully characterised and compared against the representative microbial species (Gram-positive/Gram-negative bacteria and fungi) in order to correlate their photochemical behaviour in solution with their photokilling efficiency. The differences arising from the inner central metal lead to different behaviours in solution with zinc-compounds being much more efficient displaying higher ¹O₂ yields in solution and, thus, obtaining a higher bacterial reduction upon irradiation. Finally, our results show that an increase of the net charge from four to eight positive charges does not have a marked impact in terms of photokilling efficiency despite exhibiting slightly better singlet oxygen production in solution. While overall promising, further studies should be addressed to optimise the final dendrimer candidates and also explore the possible effect of peripheral substituents.

Experimental section

Chemistry

General remarks. Chemicals were purchased from commercial suppliers and used without further purification. The synthesis of compounds 1,^42,432,^42,434,⁴⁴5,^45,468,⁴⁷ZnPc^42,43 has been accomplished according to the literature procedures. Microwave reactions were carried out in CEM Discovery apparatus. Thin layer chromatography was carried out on aluminium sheets, pre-coated with silica gel 60 F254 (0.2 mm thick, E. Merck); visualisation was by UV-vis light. Column chromatography was performed on glass columns packed with silica gel, Merck-60 (230–400 mesh, 60 Å). Gel permeation chromatography (GPC) was performed using Bio-Beads S-X1 (200–400 mesh). NMR spectra were recorded at 25 °C on a BRUKER AC 300 (300 MHz) instrument with a solvent signal as the reference (H_pc: Pc protons, H_pn: phthalonitrile protons, H_py: pyridine protons, H_ar: aromatic protons). UV-vis spectra were recorded on a JASCO V-660 spectrophotometer. IR spectra were recorded on a Bruker Vector 22 spectrophotometer. HRMS spectra and MALDI-TOF mass spectra were recorded on a Bruker Reflex III spectrometer. Matrix-assisted laser desorption/ionization time-of-flight (MALDI-TOF) mass spectra were recorded in the positive ion mode with a Bruker Ultrareflex III TOFTOF spectrometer equipped with a Nd:YAG laser operating at 355. ESI (electrospray ionization) mass spectra were recorded with an Applied Biosystems QSTAR using as injection system HPLC1100 (Agilent Technologies).

Synthetic procedures

4-[(N,N-Dimethylamino)ethoxy]phthalonitrile (1). In a microwave tube, a mixture of 4-nitrophthalonitrile (1.00 g, 5.78 mmol) and DMAE (0.81 mL, 8.09 mmol) was dissolved in anhydrous DMF (10 mL). After stirring for 10 minutes, anhydrous potassium carbonate (3.20 g, 23.15 mmol) was added and the solution was heated for 25 min at 100 °C under microwave irradiation (300 W maximum power input). After cooling to room temperature, the mixture was transferred into a one-neck flask and the solvent was evaporated to dryness. The residue was partitioned between H₂O and CH₂Cl₂, the organic phase separated and the water phase was extracted with CH₂Cl₂. The combined organic phase was dried with MgSO₄ and the solvent was removed under reduced pressure. Gradient column chromatography (silica gel; eluent: CH₂Cl₂ to CH₂Cl₂/CH₃OH 8 : 1) gave 1 (1.09 g, 88%) as pale yellow viscous oil. The characterisation data confirmed the literature values.⁴³

Preparation of ruthenium phthalocyanine 3. A mixture of 1 (300 mg, 1.39 mmol), RuCl₃·3H₂O (72 mg, 0.35 mmol), pyridine (226 μL, 2.79 mmol) and DBU (21 μL, 1.39 mmol) in ethoxyethanol (1.5 mL) was refluxed overnight. After cooling to room temperature, the volatiles were removed under reduced pressure and the crude was purified by column chromatography (neutral alumina; eluent: CH₂Cl₂/MeOH 10 : 1) followed by GPC (eluent: THF) to give 3 (382 mg, 98%) as a dark blue solid. M.p.: >250 °C; ¹H NMR (300 MHz, CDCl₃): δ = 2.50 (s, 24H, CH₃), 3.00 (br, 8H, CH₂N), 3.70 (br, 4H, H_py), 4.58 (br, 8H, CH₂O), 5.24 (br, 4H, H_py), 6.05 (t, 2H, H_py), 7.48 (m, 4H, H_pc), 8.61 (d, 4H, H_pc), 8.97 ppm (m, 4H, H_pc); FT-IR (film): ν = 2957, 2924, 2360, 1608, 1397, 1233 cm⁻¹; UV-vis (THF): λ_max (log ε) = 209 (4.7), 319 (4.6), 624 (4.3); ESI-MS (MeOH + 1% HCOOH): m/z [M + H]⁺ calcd for C₅₈H₆₃N₁₄O₄Ru: 1121.4, found 1121.7; [M + H (−2py)]⁺ calcd for C₄₈H₅₃N₁₄O₄Ru: 963.3, found 963.6.

Preparation of polycationic RuPc. Compound 3 (22 mg, 19.6 μmol) was dissolved in DMF (0.5 mL), CH₃I (49 μL, 0.786 mmol) was added and the reaction stirred at 40 °C for 6 h. After cooling to room temperature, the crude was precipitated in ether, the solid was filtered and washed with CH₂Cl₂, acetone, ethyl acetate and ether to give RuPc (32 mg, 97%) as a dark blue powder. ¹H NMR (300 MHz, DMSO-d₆): δ = 2.35 (d, J = 6 Hz, 4H, H_py), 3.36 (s, 36H, CH₃) 4.08 (br s, 8H, CH₂N), 5.00 (br s, 8H, CH₂O), 5.62 (t, J = 7 Hz, 4H, H_py), 6.36 (t, J = 7 Hz, 2H, H_py), 7.60 (br m, 4H, Hpc), 8.67 (m, 4H, H_pc), 8.96 ppm (m, 4H, H_pc); FT-IR (film): ν = 1606 (C=C), 1472 (CH₂N+), 1397 cm⁻¹ (CN); UV-vis (H₂O): λ_max (log ε) = 263 (5.04), 313 (4.90), 633 (4.58); ESI-MS: m/z [M − 2I]²⁺ calcd for C₆₂H₇₄N₁₄O₄RuI₂ 717.16, found: 717.17, [M − 2I − 2py]²⁺ calcd for C₅₂H₆₄N₁₂O₄RuI₂ 638.12, found: 638.13, [M − 3I − 2py]³⁺ calcd for C₅₂H₆₄N₁₂O₄RuI: 383.11, found: 383.12, [M − 4I − 2py]⁴⁺ calcd for C₅₂H₆₄N₁₂O₄Ru 255.51, found: 255.61.

Preparation of dendritic first generation phthalonitrile 6. To a solution of 4 (230 mg, 0.80 mmol) in CH₂Cl₂ (5 mL) was added TFA (0.37 mL, 4.80 mmol) at 0 °C. The resulting solution was allowed to warm to room temperature and monitoring of the deprotection by TLC indicated the complete removal of the Boc-protecting groups after 3 h. The acid was then neutralised by the addition of NEt₃ (0.67 mL, 4.80 mmol). Carboxylic acid 5 (425 mg, 0.97 mmol) and PyBOP (653 mg, 1.26 mmol) were added to the mixture, followed by the addition of another amount of NEt₃ (0.40 mL, 2.90 mmol) to initiate the reaction. The mixture was stirred overnight at room temperature. The solvent was evaporated to dryness, the residue dissolved in CH₂Cl₂ and the organic phase was washed with aq. NaOH (1 M), dried with Na₂SO₄ and evaporated to dryness. Purification by column chromatography (silica gel; eluent: EtOAc/CH₂Cl₂ 2 : 1) gave 6 (466 mg, 95%) as colourless foam. ¹H NMR (300 MHz, CDCl₃): δ = 1.45 (s, 18H, CH₃), 3.50 (q, J = 10.9, 5.3 Hz, 4H, CH₂N), 3.88 (q, J = 10.8, 5.3 Hz, 2H, CH₂N), 4.03 (t, J = 5.3 Hz, 4H, CH₂O), 4.26 (t, J = 5.2 Hz, 2H, CH₂O), 4.97 (br s, 2H, NH), 6.56 (br s, 1H, H_ar), 6.85 (br s, 1H, NH), 6.99 (br s, 2H, H_ar), 7.23 (dd, J = 8.8, 2.5 Hz, 1H, H_pn), 7.29 (d, J = 2.5 Hz, 1H, H_pn), 7.71 ppm (d, J = 8.8 Hz, 1H, H_pn); ¹³C NMR (300 MHz, CDCl₃): δ = 28.4, 39.2, 39.8, 67.3, 67.7, 79.8, 104.8, 105.9, 107.5, 115.3, 115.7, 117.4, 119.3, 120.0, 135.4, 136.0, 156.1, 159.8, 161.8, 167.6 ppm; FT-IR (film): ν = 3070, 2976, 2881, 2340, 2230, 1703 cm⁻¹; high resolution ESI-MS. (MeOH): m/z [M + Na]⁺ calcd for C₃₁H₃₉N₅NaO₈ 632.2802, found 632.2667.

Preparation of dendritic second generation phthalonitrile 7. To a solution of 6 (41 mg, 67.3 μmol) in CH₂Cl₂ (4 mL) was added TFA (21 μL, 269 μmol) at 0 °C. The resulting solution was allowed to warm to room temperature and monitoring of the deprotection by TLC indicated the complete removal of the Boc-protecting groups after 4 h. The acid was then neutralised through the addition of NEt₃ (38 μL, 269 μmol). Carboxylic acid 5 (88 mg, 0.20 mmol) and PyBOP (115 mg, 0.22 mmol) were added to the mixture, followed by the addition of NEt₃ (38 μL, 269 μmol) to initiate the reaction. The mixture was stirred overnight at room temperature. The solvent was evaporated to dryness, the residue dissolved in CH₂Cl₂ and the organic phase was washed with aq. NaOH (1 M), dried with Na₂SO₄ and evaporated to dryness. Purification by column chromatography (silica gel; eluent: EtOAc/CH₂Cl₂ 2 : 1) gave 7 (70 mg, 83%) as colourless foam. ¹H NMR (300 MHz, CDCl₃): δ = 1.53 (s, 36H, CH₃), 3.54 (br q, 8H, CH₂N), 3.83 (br q, 4H, CH₂N), 3.93 (br q, 2H, CH₂N), 4.03 (br t, 8H, CH₂O), 4.17 (br t, 4H, CH₂O), 4.34 (br t, 2H, CH₂O), 5.39 (br s, 4H, NH), 6.55 (br s, 2H, H_ar), 6.60 (br s, 1H, H_ar), 6.96 (br s, 4H, H_ar), 7.09 (br s, 2H, H_ar), 7.23 (m, 1H, H_pn), 7.38 (m, 3H, H_pn, NH), 7.68 (d, J = 8.6 Hz, 1H, H_pn), 7.76 ppm (br t, 1H, H_pn); ¹³C NMR (75 MHz, CDCl₃): δ = 21.1, 28.5, 39.4, 39.5, 39.9, 66.7, 67.3, 67.6, 79.7, 104.6, 104.9, 105.9, 107.3, 115.3, 115.7, 117.2, 119.3, 120.0, 135.3, 136.2, 136.3, 156.2, 159.8, 161.8, 167.6, 167.7 ppm. FT-IR (film): ν = 3072, 2977, 2878, 2341, 2230, 1705 cm⁻¹; high resolution MALDI-TOF MS (Dithranol): m/z [M + Na]⁺ calcd for C₆₃H₈₃N₉NaO₁₈: 1276.5648, found: 1276.5759.

Preparation of zinc phthalocyanine 9. A mixture of 6 (158 mg, 0.26 mmol) and Zn(OAc)₂ (16 mg, 0.07 mmol) in DMAE (2 mL) was heated at reflux under an argon atmosphere overnight. The crude was poured onto water after cooling to room temperature and the resulting green precipitate was filtered, washed with MeOH and dried. Purification by column chromatography (silica gel; eluent: CH₂Cl₂/MeOH/TEA 97 : 3 : 1) and GPC (eluent: THF) afforded 9 (53 mg, 33%) as green solid. M.p.: 157–159 °C; ¹H NMR (300 MHz, DMSO-d₆): δ = 1.37 (s, 72H, CH₃), 3.29 (m, 16H, CH₂N), 3.64 (m, 8H, CH₂N), 3.98 (t, J = 4 Hz, 16H, CH₂O), 4.29 (t, J = 5 Hz, 8H, CH₂O), 6.63 (br s, 4H, H_ar), 6.91–7.05 (m, 16H, H_ar, NH), 7.27–7.35 (m, 8H, H_pc, NH), 7.72 (m, 4H, H_pc), 8.68 ppm (m, 4H, H_pc); FT-IR (film): ν = 1695 cm⁻¹; UV-vis (THF): λ_max (log ε) = 283 (4.8), 350 (4.9), 610 (4.5), 676 (5.2). MALDI-TOF MS (DCTB): m/z [M]⁺ calcd for C₁₂₄H₁₅₆N₂₀O₃₂Zn: 2503.1, found: 2503.0.

Preparation of zinc phthalocyanine 10. A mixture of 7 (200 mg, 0.16 mmol) and Zn(OAc)₂ (7.3 mg, 0.04 mmol) in DMAE (2.5 mL) was heated at reflux under an argon atmosphere overnight. The crude was poured onto water after cooling to room temperature and the resulting green precipitate was filtered, washed with MeOH and dried. Purification by column chromatography (silica gel; eluent: CH₂Cl₂/MeOH/TEA 99 : 3 : 1) and GPC (eluent: THF) afforded 10 (3.2 mg, 1.6%) as a green solid. M.p.: 156–158 °C; FT-IR (film): ν (film) = 2981, 2929, 2855, 2354, 1693, 1596 cm⁻¹; MALDI-TOF MS (DCTB): m/z [M]⁺ calcd for ZnC₂₅₂H₃₃₂N₃₆O₇₂Zn: 5081.3, found: 5081.4.

General procedure for preparation of ruthenium phthalocyanines 11 and 12. A solution of the appropriate phthalonitrile (4 eq.), RuCl₃·3H₂O (11: 1 eq., 12: 1.2 eq.) and pyridine (8 eq.) in ethoxyethanol was deoxygenated by bubbling argon through the solution for 15 minutes. The solution was then heated at 90 °C under argon and at this temperature DBU (11: 4 eq., 12: 5 eq.) was added and the mixture was heated at gentle reflux overnight. After cooling to room temperature, the crude was purified as outlined in the following text.

Preparation of ruthenium phthalocyanine 11. Prepared from 4 (200 mg, 0.696 mmol), RuCl₃·3H₂O (36 mg, 0.174 mmol) pyridine (113 μL, 1.39 mmol) and DBU (130 μl, 0.87 mmol) in ethoxyethanol (1.5 mL). The reaction mixture was poured onto water and the precipitate was filtered, washed with MeOH and dried. Purification by gradient column chromatography on silica gel (hexane/THF 4 : 1 to 1 : 1 with 1% of TEA) and GPC (eluent: THF) then afforded 11 (18 mg, 7%) as a dark blue solid. ¹H NMR (300 MHz, CDCl₃): δ = 1.53 (s, 36H, CH₃), 2.51 (d, 4H, J = 3 Hz, H_py), 3.79 (m, 8H, CH₂N) 4.52 (br m, 8H, CH₂O), 5.15–5.45 (br m, 8H, NH, H_py), 6.07 (t, J = 7 Hz, 2H, H_py), 7.44 (m, 4H, Hpc), 8.37–8.67 (br m, 4H, H_pc), 8.89 ppm (m, 4H, H_pc); FT-IR (film): ν = 2360 (C=N), 1716 (C=O), 1610 cm⁻¹ (NHCO); UV-vis (THF): λ_max (log ε) = 239 (5.12), 319 (5.60), 366 (4.97), 624 (5.30); MALDI-TOF MS (DCTB): m/z [M]⁺ calcd for C₇₀H₇₈N₁₄O₁₂Ru: 1408.5, found: 1408.5, [M − 2py]⁺ calcd for C₆₀H₆₈N₁₂O₁₂Ru 1250.4, found: 1250.4.

Preparation of ruthenium phthalocyanine 12. Prepared from 6 (140 mg, 0.230 mmol), RuCl₃·3H₂O (14 mg, 68.9 μmol), pyridine (37 μL, 0.459 mmol) and DBU (43 μL, 0.287 mmol) in ethoxyethanol (0.5 mL) under an argon atmosphere was refluxed overnight. After cooling to room temperature, the solvent was evaporated and the crude compound was purified by column chromatography (silica gel; eluent: hexane/THF from 4 : 1 to 1 : 1, with 1% of TEA) and GPC (eluent: THF) afforded 12 (11 mg, 7%) as a dark blue solid. M.p.: 220–221 °C; ¹H NMR (300 MHz, CDCl₃): δ = 1.44 (s, 72H, CH₃), 2.47 (d, 4H, J = 3 Hz, H_py), 3.50 (br s, 24H, CH₂N, NH), 4.04 (br m, 24H, CH₂N, CH₂O), 4.64 (br s, 8H, CH₂O), 5.24 (t, J = 5 Hz, 4H, H_py), 6.04 (t, J = 6 Hz, 2H, H_py), 6.56 (m, 4H, H_ar), 6.89–7.11 (m, 12H, H_ar, NH), 7.46 (m, 4H, H_pc), 8.64 (m, 4H, H_pc), 8.97 ppm (m, 4H, H_pc); FT-IR (film): ν = 1743, 1645 cm⁻¹; UV-vis (THF): λ_max (log ε) = 211 (5.7), 318 (5.4), 625 (5.0); MALDI-TOF MS (DCTB): m/z [M − py]⁺ calcd for C₁₂₉H₁₆₁N₂₁O₃₂Ru: 2618.1, found: 2617.9.

General procedure for quaternization of Boc-appended Pcs. Step (i): The appropriate Boc-protected Pc (1 eq.) was dissolved in CH₂Cl₂ and the solution was cooled to 0 °C. TFA (10 eq. per Boc group) was added and the mixture was stirred for 1 h at room temperature until complete Boc deprotection. All volatiles were removed under reduced pressure. Step (ii): The crude was dissolved in DMF, PMP (1–2 eq. per original Boc group) and an excess of CH₃I (5–10 eq. per original Boc group) were added and the reaction was allowed to stir overnight at room temperature. The addition of acetone induced precipitation of the quaternary ammonium salts, which are purified by several cycles of sonication and washing with acetone and a mixture of acetone containing DMF (6%).

Preparation of polycationic ZnPc. Step (i): Prepared from 8 (50 mg, 41 μmol) and TFA (126 μL, 1.65 mmol) in CH₂Cl₂ (0.3 mL) after 4 h at room temperature. Step (ii): PMP (30 μL, 0.16 mmol) and CH₃I (30 μL, 0.456 mmol) in DMF (0.3 mL). The workup as described in the general procedure yielded ZnPc (60 mg, 98%) as a green solid. The characterisation data confirmed the literature values.^42,43

Preparation of polycationic ZnPc1. Step (i): Prepared from 9 (17 mg, 6.79 μmol) and TFA (42 μL, 0.543 mmol) in CH₂Cl₂ (1 mL) after 7 h at room temperature. Step (ii): PMP (20 μL, 109 μmol) and CH₃I (34 μL, 0.543 mmol) in DMF (0.2 mL). The workup as described in the general procedure yielded ZnPc1 (17 mg, 96%) as a green solid. M.p.: >250 °C; ¹H NMR (300 MHz, DMSO-d₆): δ = 3.22 (s, 72H, CH₃), 3.83 (br s, 16H, CH₂N), 3.98 (br s, 8H, CH₂N), 4.56 (br s, 16H, CH₂O), 4.76 (br s, 8H, CH₂O), 6.88 (br s, 4H, H_ar), 7.19 (br s, 4H, NH), 7.31 (br s, 8H, H_ar), 7.84 (m, 4H, H_pc), 8.97 (m, 4H, H_pc), 9.35 (m, 4H, H_pc); FT-IR (film): ν = 1590 cm⁻¹; UV-vis (H₂O): λ_max (log ε) = 286 (4.56), 347 (4.67), 629 (4.4), 690 (4.85); ESI-MS (MeOH): m/z [M − 3I⁻]³⁺ calcd for C₁₀₈H₁₄₈N₂₀O₁₆ZnI₅: 893.86, found: 893.86, [M − 4I⁻]⁴⁺ calcd for C₁₀₈H₁₄₈N₂₀O₁₆ZnI₄: 638.67, found: 638.68.

Preparation of polycationic RuPc. Step (i): Prepared from 11 (30 mg, 21.3 μmol) and TFA (65 μL, 0.852 mmol) in CH₂Cl₂ (0.3 mL) after 4 h at room temperature. Step (ii): PMP (15 μL, 85.2 μmol) and CH₃I (52 μL, 0.852 mmol) in DMF (0.3 mL). The workup as described in the general procedure yielded RuPc (31 mg, 85%) as a dark blue solid. For characterization data see above.

Preparation of polycationic RuPc1. Step (i): Prepared from 12 (25 mg, 9.27 μmol) and TFA (28 μL, 0.371 mmol) in CH₂Cl₂ (1 mL) after 4 h at room temperature. Step (ii) PMP (27 μL, 148 μmol) and CH₃I (23 μL, 0.371 mmol) in DMF (0.5 mL). The workup as described in the general procedure yielded RuPc1 (21 mg, 82%) as a dark blue solid. M.p.: >250 °C; ¹H NMR (300 MHz, DMSO-d₆): δ = 2.35 (d, 4H, J = 4 Hz, H_py), 3.12 (s, 72H, CH₃), 3.74–3.95 (br m, 24H, CH₂N, CH₂O), 4.46–4.70 (br m, 24H, CH₂N, CH₂O), 5.60 (t, J = 5 Hz, 4H, H_py), 6.35 (t, J = 6 Hz, 2H, H_py), 6.88 (br s, 4H, H_ar), 7.14–7.35 (m, 8H, H_ar), 7.53 (m, 4H, H_pc), 8.59 (m, 4H, H_pc), 8.76–9.02 (m, 8H, H_pc, NH); FT-IR (film): ν = 2360, 1594 cm⁻¹; UV-vis (H₂O): λ_max (log ε) = 260 (5.05), 309 (4.7), 635 (4.3).

General spectroscopic measurements

Steady-state characterisation. All spectroscopic measurements were carried out in 1 cm quartz cuvettes (Hellma, Germany) in air-saturated solutions at rt. Absorption spectra were recorded with a double-beam Cary 6000i spectrophotometer (Varian, Palo Alto, CA). Fluorescence emission spectra were recorded by means of a Spex Fluoromax-4 spectrofluorometer (Horiba Jobin-Ybon, Edison, NJ). The absolute fluorescence quantum yield (Φ_F) was calculated using eqn (1).where I_x corresponds to the fluorescence intensity, integrated over the entire emission spectra and corrected by differences in the absorption (1–10^−Abs) for the sample and reference, respectively. All solutions were set below 0.1 absorbance value at the excitation wavelength. η_i stands for the refractive index of the sample and reference solutions.

Singlet oxygen measurements. Near infrared (NIR) phosphorescence of ¹O₂ was detected by means of a customised PicoQuant Fluotime 200 system.⁶³ A diode-pumped pulsed Nd:YAG laser (FTSS355-Q; Crystal Laser, Berlin, Germany) working at 1 kHz repetition rate (1.2 μJ per pulse, 1 ns pulse-width) was used for excitation either at 355 or 532 nm. A 1064 nm rugate notch filter (Edmund Optics Ltd, York, UK) was placed in the laser path to remove any NIR emission. The luminescence exiting from the side of the sample was collected at 90 degrees, filtered by using a 1100 nm long-pass filter (Edmund Optics Ltd, York, UK) and a narrow bandpass filter at 1275 nm (bk-1270-70-B, bk Interferenzoptik, Germany) to isolate the NIR phosphorescence. A TE-cooled NIR-sensitive photomultiplier tube assembly (H9170-45; Hamamatsu Photonics, Hamamatsu City, Japan) coupled with a multichannel scaler (Nanoharp 250, PicoQuant Gmbh, Germany) was used as the photon-counting detector. GraphPad Prism 5 data analysis software was used to fit the singlet oxygen time-resolved luminescence decays, S(t), according to eqn (2).

S ₀ is defined as a quantity proportional to Φ_Δ. In order to assess the Φ_Δ value of the different dendrimeric Pcs, optically-matched solutions of the dendrimeric PSs and the appropriate references (see Table 1) were excited and their S₀ values were scaled using eqn (3).

Microbial studies

Microbial strains and culture conditions. Escherichia coli CECT 101 and Staphylococcus aureus CECT 239 were obtained from the Spanish Type Culture Collection (CECT, Valencia, Spain). Candida albicans ATCC 18804 was purchased from LGC Promochem (Teddington, UK). Bacterial cells were grown overnight in sterile tryptic soy broth (TSB) at 37 °C and then subcultured in fresh TSB at the same temperature in an orbital shaking incubator until the required optical density was obtained. C. albicans cultures were grown in a similar fashion, using Sabouraud broth as the growing medium and 35 °C as temperature to an optical density of 0.7 at 600 nm (corresponding to approx. 10⁷ CFU mL⁻¹).

Photodynamic inactivation studies. Subcultured cell suspensions were grown to an exponential phase, then centrifuged (5 min, 3500 rpm), suspended and adjusted in PBS to an optical density at 600 nm to achieve approx. 10⁸ CFU mL⁻¹. Cell suspensions in PBS were incubated in the dark at rt. for 30 min with the appropriate Pc concentration. Then, bacterial suspension aliquots were placed in 96-well plates. The wells were illuminated from the top of the plates by means of a LED-lamp (Sorisa Photocare; 635 ± 15 nm). The fluence rates were routinely measured using a power meter. At the time points when the desired fluence had been obtained, aliquots were thoroughly mixed before sampling to avoid bacteria settlement. Controlling the cell irradiation without PS was also performed to exclude any inactivation due to light or heating effects. For the determination of population reduction, aliquots were serially diluted, streaked on nutrient agar plates, and incubated in the dark at the appropriate temperature.
