Long-pulse laser launch and ionization of tailored large neutral silver nanoparticles with atomic mass assignment

Abstract

We explore the synthesis, characterization, neutral launch and vacuum ultraviolet ionization of massive perfluorinated-alkyl-capped nanoparticles. The presence of the ligand coating in solution is corroborated by Fourier transform infrared spectroscopy (FT-IR) and the particle size distribution is analyzed by transmission electron microscopy (TEM). Matrix-assisted laser desorption/ionization time-of-flight (MALDI-TOF) mass spectrometry identifies perfluoralkyl coated silver nanoparticles as the most stable species among the materials studied here. They can be launched in high vacuum using long-pulse low-power laser heating – orders of magnitude below typical thresholds for laser desorption. Energy-dispersive X-ray spectroscopy (EDX) of the recaptured silver clusters confirms the expected elemental distribution. Volatilization with subsequent ionization of the neutral nanoparticle beam in high vacuum by 157 nm light allows analyzing their mass with atomic resolution.

---

Introduction

Nanoparticles have moved into the spotlight of research, because their physical and chemical properties are size-dependent and can be tailored by controlling their structure.^1,2 Metal nanoclusters have a wide spectrum of potential applications in catalysis,^3–5 nanoelectronics,^6,7 sensing,^8–11 nanoprinting^12–16 and drug delivery.¹⁷ Functionalization with tailored ligands can provide them with electrical, optical, catalytic, thermal or solubility properties that would be otherwise inconceivable.^18–22

Several techniques have been developed for volatilizing and characterizing isolated high-mass particles in high vacuum: electrospray ionization (ESI) has been used to generate highly charged beams of ligand-stabilized nanoclusters in the gas phase.^23–25 However, applications in soft surface deposition,²⁶ laser induced forward transfer,²⁷ classical deflectometry or fundamental tests of quantum physics²⁸ can profit from beams of neutral and slow nanoparticles. Common volatilization methods (MALDI, ESI) require elaborate techniques to slow down the charged nanoparticles to ensure low kinetic energies for soft landing as higher energies will lead to substantial deformation of nanoparticles during the impact. Low velocities are also a prerequisite for successful fundamental quantum experiments, as the particle's momentum is inversely proportional to its de Broglie wavelength. Techniques like laser desorption ionization (LDI) without the use of an additional matrix have shown already that the molecular beam velocity can be drastically reduced.^29,30

Evidence has recently been provided for the thermal transfer of neutral silicon nanoparticles between two surfaces across a short distance in ultrahigh vacuum.³¹ Subsequent atomic force microscopy allowed imaging the re-captured silicon with core diameters around 2 nm covered by a thin soft shell. Here, we show that mass spectrometry of thermally launched neutral particles can furthermore provide the unambiguous identification of the attached ligands in the gas phase, with atomic resolution. We achieve this using soft photo-ionization in the gas phase even for masses up to several 10 kDa. We test this idea for various combinations of cluster cores and ligand shells and find, that the successful launch, ionization and detection strongly depends on the specific nature of the particle core and ligand composition. Based on successful experiments with carbon nanospheres^32,33 and massive libraries of porphyrin derivatives,^30,34 we have explored the possibility of synthesizing a library of silver nanoparticles capped by perfluoroalkyl chains. The electronegative fluorine atoms withdraw electron density from the alkyl chains, reduce their polarizability and lower the attractive van der Waals interaction between neighboring nanoparticles. This should facilitate the volatilization even of compounds of considerable size. The metal cluster core shall add mass, define the optical response and enable soft photoionization by vacuum ultraviolet (VUV) radiation for subsequent mass analysis of the free-flying neutral nanoparticles. Inspired by this vision, we here report on the synthesis, launch and ionization of such tailored nanoclusters.

Experimental results

Nanoparticle synthesis

Even though a large range of metals is amenable to functionalization, it is not a priori obvious which material-ligand combination may offer the highest stability³⁵ during thermal launch and the highest detectability in laser-induced ionization after volatilization. In a preliminary search, we synthesized nanoparticles of gold, platinum, silicon, silver and silver–sulfur which we coated with different aromatic and/or fluorinated ligands in order to assist the ionization and volatilization processes, respectively (see Fig. S1†). The particles were characterized and analyzed by MALDI-ToF mass spectrometry. In most of the cases, low-intensity broad bands were detected due to fragmentations or aggregations of the particles under MALDI conditions. A well-resolved spectrum was obtained with platinum particles coated with 2-phenylethanethiol, however its detailed analysis revealed C–O bond cleavage during MALDI which left ligand-free platinum oxide clusters behind (ESI Fig. S1†). The desired behavior was finally found for silver nanoparticles coated with alkylthiols exposing perfluorinated tails. While a Brust–Schiffrin^36,37 approach could not attach the ligands to the metal cores, the polyol-method^38,39 was successful. Details in the synthesis are crucial for the reproducibility of the procedure and strongly influence the physico-chemical behavior of the particles. However, once prepared, samples maintained reproducible properties over at least two years.

To explore the reactivity of the terminal thiol group we selected alkylthiols of various lengths.

We synthesized particles capped by 3,3,4,4,5,5,6,6,6-nonafluoro-1-hexanethiol (L⁽¹⁾ = SC₂H₄C₄F₉), 3,3,4,4,5,5,6,6,7,7,8,8,8-tridecafluoro-1-octanethiol (L⁽²⁾ = SC₂H₄C₆F₁₃), and 3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,10-heptadecafluoro-1-decanethiol (L⁽³⁾ = SC₂H₄C₈F₁₇) to yield the particles F₉-AgNP1, F₁₃-AgNP2 and F₁₇-AgNP3, respectively. The non-fluorous analogue H₁₇-AgNP4 was produced using octanethiol (L⁽⁴⁾ = SC₂H₄C₆H₁₃) and served as a reference sample. All four nanoparticles were synthesized by heating silver nitrate and two equivalents of the thiol ligand in ethylene glycol at 160 °C for 20 hours (Scheme 1). They were purified through cycles of centrifugation-redispersion in methanol, THF and diethyl ether.

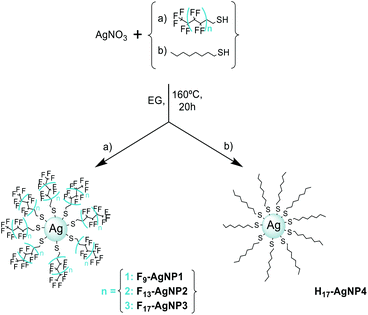

Scheme 1 Synthesis of silver nanoparticles decorated by three different perfluorinated ligands: F₉-AgNP1 (L⁽¹⁾ = SC₂H₄C₄F₉), F₁₃-AgNP2 (L⁽²⁾ = SC₂H₄C₆F₁₃) and F₁₇-AgNP3 (L⁽³⁾ = SC₂H₄C₈F₁₇), to study the role of the ligand length, and with the non-fluorous octanethiol (L⁽⁴⁾ = SC₂H₄C₆H₁₃) on H₁₇-AgNP4 to verify the importance of fluorination.

Verification of ligand attachment in solution

Infrared spectroscopy on purified silver nanoparticles retrieved all absorption bands of the free ligands, only slightly shifted towards higher energy. Fig. 1 compares both spectra for F₁₇-AgNP3. This corroborates that they were stably attached to the metal cores. Similar spectra have been recorded for all nanoparticles types in this study (see ESI Fig. S2†).

Fig. 1 Infrared spectrum of the free ligands (blue line) and the silver nanoparticle F₁₇-AgNP3 (red line). The purified nanoparticles display all vibrational bands of the isolated ligands, indicating their intact attachment to the silver core.

A subsequent thermogravimetric analysis (TGA) of the same batch allowed us to determine the molar ratio of silver atoms and ligands (see ESI Fig. S3†) to be 2.3 for F₉-AgNP1, 1.5 for F₁₃-AgNP2, 2.3 for F₁₇-AgNP3, and 2.0 for H₁₇-AgNP4.

TEM images (Fig. 2) showed well isolated nanoparticles with core diameters between 0.5–1 nm varying by up to 40% within one sample. Such polydispersity is common in colloidal nanoparticles.⁴⁰

Fig. 2 Transmission electron micrographs of ligand-stabilized silver nanoparticles. Particles in solution are dropped onto a graphene TEM grid, dried and imaged. The mean particle diameters and their standard deviation are (a) F₉-AgNP1d = (0.7 ± 0.3) nm, (b) F₁₃-AgNP2d = (0.5 ± 0.2) nm, (c) F₁₇-AgNP3d = (0.7 ± 0.3) nm and (d) H₁₇-AgNP4d = (1 ± 0.4) nm. The scale bar corresponds to 50 nm.

To understand their underlying atomic composition, we subjected all species to MALDI-ToF mass spectrometry recording all spectra in the positive mode (ESI Fig. S4†). A zoom into the low mass range up to 10 000 Da (Fig. 3) shows a series of equidistant peaks consistently separated by the mass of exactly one ligand and one silver atom, i.e. by 388 Da for AgL⁽¹⁾ in F₉-AgNP1, 488 Da for AgL⁽²⁾ in F₁₃-AgNP2, 588 Da for AgL⁽³⁾ in F₁₇-AgNP3 and 256 Da for AgL⁽⁴⁾ in H₁₇-AgNP4.

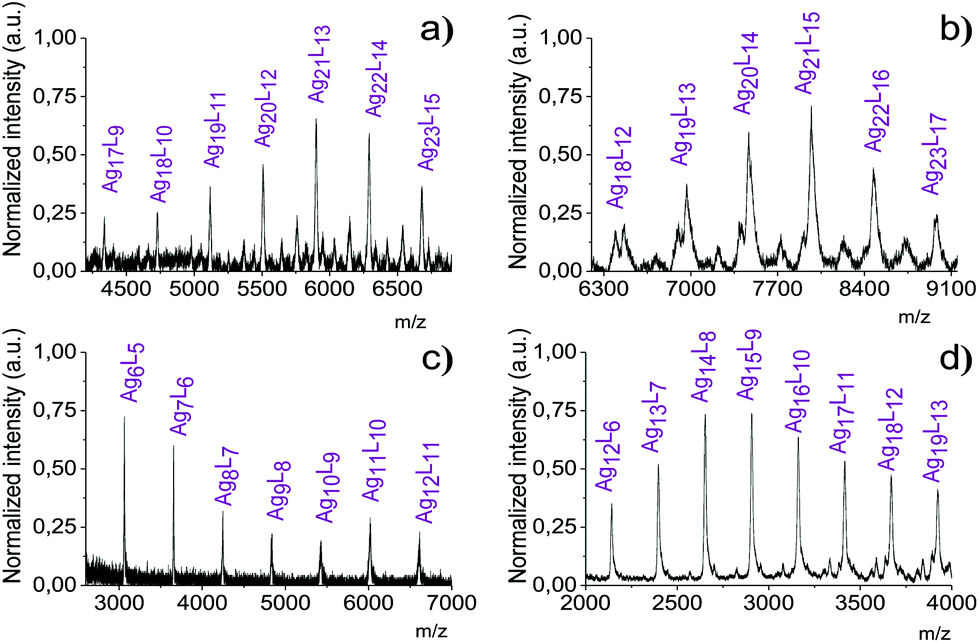

Fig. 3 MALDI mass spectra of the Nanoparticles (a) F₉-AgNP1, (b) F₁₃-AgNP2, (c) F₁₇-AgNP3 and (d) the non-fluorous nanoparticles H₁₇-AgNP4 and the assigned molecular formulas of the species within the cluster library.

Thermal launch and VUV ionization

The silver nanoparticles were then exposed to thermal laser heating and the emerging plume subjected to VUV ionization in high vacuum (Fig. 4). A blue diode laser, gated to a pulse length of 10 ms and a pulse energy of up to E = 30 mJ, was focused onto the nanoparticles that had been prepared as a thin layer on a metal plate. The laser intensity of up to 95 W cm⁻² was 4–5 orders of magnitude below threshold for MALDI-like laser desorption (10⁶–10⁷ W cm⁻²).

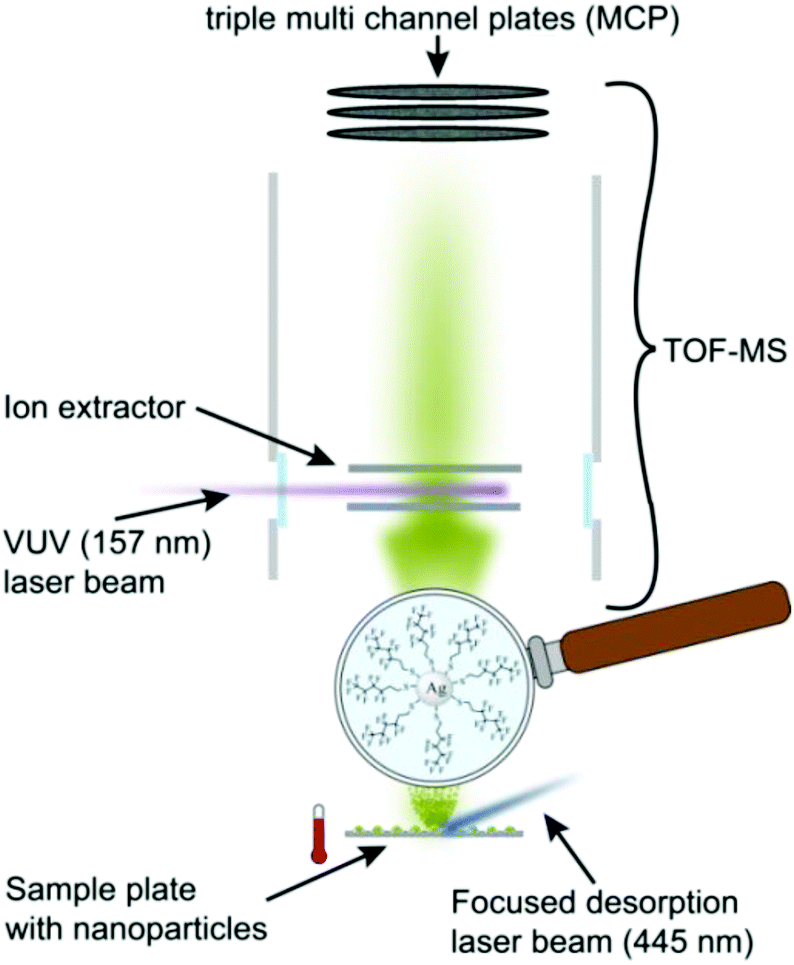

Fig. 4 Launch, recapture and VUV ionization of perfluoroalkyl-capped silver nanoparticles. The particles were launched by a long-pulse (10 ms) laser beam (445 nm, electrically chopped, max. 3 W cw, 2 mm spot diameter). In recapture experiments the particles were collected on a carbon grid 4 cm above the launch pad and later analyzed ex situ in scanning electron microscopy. For mass analysis, particles were ionized by a vacuum ultraviolet (VUV) laser beam (157 nm, E ≤ 1.1 mJ, A = 1 × 3 mm, pulse length 10 ns) and detected in time-of-flight mass spectrometry (m/Δm ≈ 100).

In a first set of experiments, we heated the nanoparticles in the blue laser beam and captured them on a carbon grid 4 cm above. EDX in scanning electron microscopy allowed us to identify the atomic content of the collected material. Starting from F₁₃-AgNP2 particles, we found silver, carbon and fluorine. In contrast to that, the laser-induced transfer of H₁₇-AgNP4 resulted in a pure carbon film, sparsely decorated with particles up to several hundred nanometers in diameter, containing silver and sulfur but hardly any carbon. This indicates that the cores separated from their ligands and aggregated to metal-sulfide clumps.

To characterize the atomic composition of the nanoparticles in free flight, we have intersected them with an F₂ laser beam. The resulting ions were analyzed in a linear time-of-flight mass spectrometer. All nanoparticles were tested under the same volatilization conditions and we verified the initial neutrality of the evaporated beam: ions could only be detected in the presence of ionizing VUV light. Its intensity was optimized for each species to maximize their signal and minimize their photo-fragmentation.

Clean and atomically resolved mass spectra could only be acquired for F₉-AgNP1 and F₁₃-AgNP2. Fig. 5a shows three different libraries within the mass distribution of F₉-AgNP1, marked by dots, stars and triangles. For F₁₃-AgNP2, we identify at least five different cluster libraries (Fig. 5b).

Fig. 5 Vacuum ultraviolet photoionization mass spectra after ms-laser heating. The peak separation within every series corresponds to AgL, the mass of one ligand and one silver atom. (a) F₉-AgNP1 library; VUV laser intensity is (85 ± 4) × 10⁴ W cm⁻², signal electronically amplified by ×50 (b) F₁₃-AgNP2 signal, without electronic amplification; the ionization intensity was (58 ± 4) × 10⁴ W cm⁻². The different nanoparticle libraries were identified and are labelled with blue triangles, stars, rhombuses, circles (empty & filled) and squares.

They differ in their basic Ag_xL_y core but within the same library, the nanoparticles differ consistently between next neighbors in the mass spectrum by one AgL⁽¹⁾ for F₉-AgNP1 and one AgL⁽²⁾ for F₁₃-AgNP2. This is consistent with our previous MALDI-ToF spectra and with the hypothesis that the nanoparticles are launched intactly, surrounded by their ligand chains.

F₁₃-AgNP2 had higher signal than F₉-AgNP1 even though the particles are more massive. This confirms the importance of a well-tailored perfluoroalkyl coating. Consistent with this hypothesis, we could not detect any sizeable signal for the non-fluorous H₁₇-AgNP4 nanoparticles. Surprisingly, we were not able to record any ionization mass spectrum of F₁₇-AgNP3, the particle with the longest perfluorinated chains of all four test objects.

Since F₁₇-AgNP3 particles seem to be susceptible to laser induced transfer in high vacuum, as verified by TEM imaging, we hypothesize that electron recapture may suppress the ionization probability. It therefore seems that the 3,3,4,4,5,5,6,6,7,7,8,8,8-tridecafluoro-1-octanethiol ligand of F₁₃-AgNP2 represents a good compromise in chain length between facilitating volatilization and not preventing ionization.

We note that high ionization laser intensities may also cause fragmentation and thus down-shift the mass spectra (see ESI Fig. S5†). When we gradually increase the ionization intensity by a factor of five from 8.5 × 10⁵ to 4 × 10⁶ W cm⁻² the detected ion distribution shifts to lower masses and the peaks are less well resolved. However, at optimized detection laser intensity the multimodal character of the mass spectra is present both in MALDI and in the post-volatilization data. This corroborates the assumption that the long-pulse neutral launch largely maintains the integrity of the original particles.

Discussion

It may seem surprising that even nanoparticles in the mass range up to 20 000 Da can be volatilized using millisecond laser heating, at light intensities far too low for typical laser desorption. Preliminary experiments with an extended library of F₁₇-AgNP2, in the mass range between 60 000 and 100 000 Da show that volatilization by slow laser heating can even be extended to such highly massive particles – although at reduced signal strength and without atomic mass resolution.

A tentative explanation for the underlying mechanism may be found in analogy to a recent study where perfluoroalkylated gold nanoparticles were used as a decomposing matrix to softly launch small biomolecules: a nanosecond UV laser pulse detached the ligands from the gold particles and provided an expanding perfluorinated matrix to launch the analyte biomolecules.⁴¹

Here we propose that a similar mechanism may also be at work, however with the analyte particles providing their own matrix and the nanosecond laser pulse being replaced by millisecond laser heating. Earlier studies using microfocus laser sources showed that at laser intensities of 3 MW cm⁻² thin layers of dye molecules could be heated to about 1000 K and evaporated intactly.⁴² In our case, purely thermal evaporation of 10 kDa particles at 200 m s⁻¹ could only be explained by assuming a temperature of 36 000 K. This temperature is very unlikely, since we know from thermogravimetric analysis that perfluoroalkyl-capped silver nanoparticles in the mass range of 10 kDa will decompose when exposed to 520 K for a long period of time. In comparison to that, a self-seeded matrix process seems plausible: long-pulse laser desorption is likely to release a locally dense gas of perfluoroalkyl chains from a subset of clusters and these chains propel another subset of silver nanoparticles intactly into the gas phase, which may even be surprisingly massive. Their beam velocity is then determined by the mass and energy of the ligand plume that acts as a slow carrier gas, leading to a more realistic launch temperature around 1000 K. This mechanism resembles MALDI in that small molecules can launch surprisingly large nanoparticles largely intactly. However, our studies were only successful using long-pulse low-intensity radiation and consistently failed when using nanosecond pulses of the same energy of several mJ.

This observation raises the question whether the ligand coated nanoparticles observed in postionization mass spectrometry may have aggregated in the desorption plume and not represent the synthesized sample. To elucidate this question, a mixture of F₉-AgNP1 and F₁₃-AgNP2 was launched, ionized and detected following the same procedure as before. If the fragmentation-aggregation model were correct, both ligands L⁽¹⁾ and L⁽²⁾ should finally be found on the same particle. However, we find only peak distances of around 490 Da (ESI Fig. S6†) corresponding to the ligands of F₁₃-AgNP2. F₉-AgNP1 ligands never appear on F₁₃-AgNP2. F₉-AgNP1 does not appear in the mixed sample either. They are visibly desorbed from the sample plate but are not recorded in the same mass spectrum, since the optimal detection laser pulse energy – maximizing the ion signal and minimizing ionization-induced fragmentation – differs by a factor of two between the two nanoparticle species.

Conclusion

We have presented the synthesis and characterization of a new class of perfluoroalkyl-functionalized silver nanoparticles, and the assignment of their atomic composition using MALDI. We have found that surprisingly massive particles can be launched in high vacuum by millisecond laser heating at low optical intensity. We have proved the presence of massive ligand-capped particles using VUV photoionization mass spectrometry, with unambiguous atomic assignment. The ligand length and chemical composition can be tailored to shape the thermal and ionization properties of the nanoparticles. Soft launch and postionization require a delicate balance between ligand length, composition and core mass. The data are consistent with the assumption that ligand-capped nanoparticles can be launched by the expansion of a self-seeding carrier gas of ligand side chains.

Acknowledgements

We acknowledge financial support through EU project No. 304886, ERC No. 320694, FWF W1210-N25, the Swiss National Science Foundation (Grant No. 200020_159730) as well as the “Forschungskommission” of the University of Basel. We acknowledge fruitful discussions with Nadine Dörre, Jonas Rodewald, Philipp Geyer, and Armin Shayeghi. We also acknowledge Annika Büttner, Markus Dürrenberger and Stephan Puchegger for their contributions on the TGA, TEM and SEM/EDX studies of the nanoparticles, respectively.
