Calabrese
Gianpiero
*a,
Daou
Anis
a,
Rova
Aikaterini
b,
Tseligka
Eirini
b,
Vizirianakis S.
Ioannis
b,
Fatouros G.
Dimitrios
c and
Tsibouklis
John
d
aSchool of Life Science, Pharmacy and Chemistry, Kingston University London, Penrhyn Road, Kingston-upon-Thames, Surrey KT1 2EE, UK. E-mail: G.Calabrese@kingston.ac.uk
bDepartment of Pharmacology, School of Pharmacy, Aristotle University of Thessaloniki, GR-54124 Thessaloniki, Greece
cDepartment of Pharmaceutical Technology, School of Pharmacy, Aristotle University of Thessaloniki, GR-54124 Thessaloniki, Greece
dSchool of Pharmacy and Biomedical Sciences, University of Portsmouth, Portsmouth, PO1 2DT, UK
First published on 28th October 2016
To limit the incidence of relapse, cancer treatments must not promote the emergence of drug resistance in tumour and cancer stem cells. Under the proviso that a therapeutic amount of boron is selectively delivered to cancer cells, Boron Neutron Capture Therapy (BNCT) may represent one approach that meets this requirement. To this end, we report the synthesis and pharmacology of several chemical entities, based on boron-rich carborane moieties that are functionalised with Delocalized Lipophilic Cations (DLCs), which selectively target the mitochondria of tumour cells. The treatment of tumour and cancer stem cells (CSCs) with such DLC-functionalized carboranes (DLC-carboranes) induces cell growth arrest that is both highly cancer-cell-selective and permanent. Experiments involving cultures of normal and cancer cells show that only normal cells exhibit recapitulation of their proliferation potential upon removal of the DLC-carborane treatment. At the molecular level, the pharmacological effect of DLC-carboranes is exerted through activation of the p53/p21 axis.
Cancer cell initiation and progression represent complex multifactorial processes that impede the efficacy and safe clinical outcome of pharmacological interventions. Tumour cells' heterogeneity and microenvironment present major challenges at the clinical setting. Cancer treatment protocols are determined by location, type and stage. Most commonly, preliminary surgery is employed to remove as much tumour tissue as possible, followed by radiotherapy and/or chemotherapy.4 Since glioblastomas possess a high metastasising capability, relapse rates are very high.5 Recent experimental evidence has identified cancer stem cells (CSCs) as a subpopulation that exhibits distinct cellular and genomic characteristics that render these cells capable of escaping radiotherapy- and chemotherapy-induced cell death by staying arrested over time at the G1/G0 cell growth phase, which in turn allows them to re-enter the cell cycle under appropriate microenvironment conditions. This implies that research efforts have to be focused on the design of anti-cancer molecules, the therapeutic range of which includes CSCs.6–8 Owing to the capability of recently developed BNCT agents to target cancer cells, including CSCs, both efficiently and selectively, the clinical use of these agents may be characterized by low incidence drug resistance profiles.9,10
Apart from the phenotypic distinctions, several differences between mitochondria in normal and in tumour cells have been observed, and some have been rationalized at the genetic, molecular and biochemical levels.4,11,12 ATP synthesis via oxidative phosphorylation displays an electrochemical gradient that incorporates contributions from the pH gradient and the potential difference across the inner membrane of mitochondria.13,14 The in vitro mitochondrial trans-membrane potential of a healthy cell is in the range 180–200 mV; whereas, the corresponding in vivo potential is of the order of 130–150 mV.15 The mitochondrial trans-membrane potential of carcinoma cells is ca. 60 mV higher than that of epithelial cells.16 This difference makes mitochondria promising targets for selective drug delivery. In addition, the mitochondria of CSCs or tumour-initiating cells (TICs) exhibit features – e.g. increased glycolytic metabolism, different redox state regulation (mitochondrial membrane potential, expression of apoptosis-related proteins) – that distinguish them from the ordinary, more differentiated tumour cells. These features may be exploited to guide the design of therapeutics that target cancer cells with a high degree of specificity.17,18

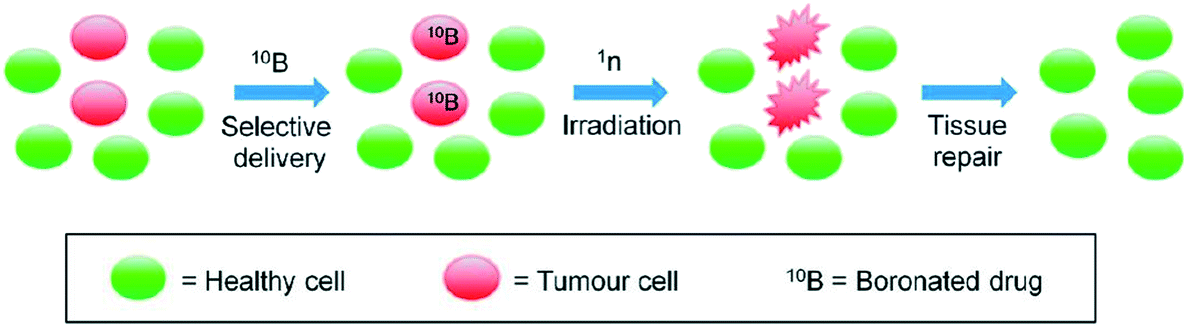

The interaction of 10B with low-energy neutrons (i.e. the capture reaction) results in nuclear fission that effects the selective destruction of the host tumour cells. During this reaction, energetic alpha particles possessing high linear energy transfer (LET), low oxygen enhancement ratio and high relative biological effectiveness are produced. LET particles are lethal but – because of their size, energy and short path lengths (4.5–10 μm) – the effect is confined to the host cell.19 The predominant products of the 10B neutron capture reaction are recoiling 7Li nuclei and α particles. It takes only a few α particles, which are as lethal to hypoxic and oxygenated cells as they are to non-proliferating cells, to kill a malignant cell.20 If 10B is accumulated selectively in cancer cells and, assuming that in surrounding healthy tissue its concentration does not exceed a certain critical value, the cytocidal effects of the capture reaction are limited to malignant cells. Inevitable capture reactions involving 1H and 14N from normal tissue, which respectively produce γ rays and protons, are of little relevance since the corresponding thermal-neutron-capture cross-sections for these nuclei are too small to induce marked complications during BNCT.21
BNCT has been investigated for use in the treatment of glioblastoma multiforme (GBM),22 a malignancy with a current mean survival time of <12 months.23 BNCT offers promise in GBM, but significant research effort is required before the many performance requirements for successful treatment are met,24 including the synthesis of 10B-enriched compounds with very low inherent toxicity and integration of the selective targeting strategy into the molecular design, such that therapeutically useful concentrations (>109) of 10B atoms/tumour cells are achieved while a tumour/blood concentration ratio >5:
1 and a tumour/normal tissue concentration ratio >3
:
1 are maintained throughout the neutron capture stage of the treatment.
The multitude of performance demands that 10B-containing drugs need to satisfy before they can be used in the clinic is reflected by the very small number of 10B compounds that have reached this stage: para-boronophenylalanine (BPA) and sodium mercaptoundecahydrododecaborate (BSH), which respectively incorporate 1 and 12 boron atoms in their molecular structures. Following an early attempt by Pitochelli and Hawthorne25 and fuelled by the data of clinical trials conducted by Hatanaka26 in Japan, polyhedral boranes have become the materials of choice for the delivery of 10B-rich moieties to cancer cells. Among the common polyhedral boron agents, the neutral lipophilic icosahedral dicarba-closo-dodecarboranes (C2B10H12; commonly referred to as carboranes), which also exist as ortho-, meta- and para-isomers, are of particular interest not only because of their high 10B content, good catabolic stability and low toxicity, but also because of their amenability to chemical functionalisation.21 The base-induced removal of one boron atom from the icosahedral cage transforms the lipophilic closo-carborane into the corresponding nido-carborane, which is more hydrophilic and hence more compatible with water-based systems.
![]() | ||

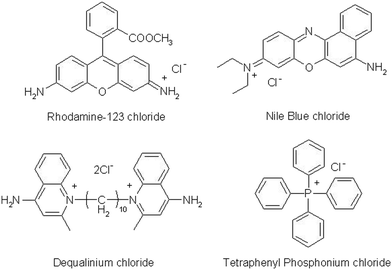

Fig. 2 Typical delocalized lipophilic cations (DLCs): rhodamine-123 chloride, nile blue chloride, dequalinium chloride and tetraphenylphosphonium chloride. |
As the name implies, all DLCs are amphiphilic cationic compounds in which the positive charge is delocalized over an extensive π electron system. Their lipophilic nature and the delocalization of the positive charge over a large area act cooperatively to reduce the free energy change when DLCs diffuse through lipid membranes, such as those of mitochondria. Driven by the mitochondrial membrane potential, the accumulation of DLCs may be described by the Nernst equation:
ΔΨ(mV) = 61.5![]() |
Since the mitochondrial membrane potential of carcinoma cells is ca. 60 mV greater than that of normal epithelial cells,16 one consequence of the Nernstian relationship is that there is a ten-fold increase in the propensity of DLCs to accumulate within the mitochondria of such cells.33 This process is further assisted by the plasma membrane potential (typically 30–60 mV; negative inside), which promotes the increased accumulation of cations into carcinoma cells prior to their localisation into mitochondria. The synergistic effect results in 90–95% of the available intracellular cations becoming localised at mitochondrial sites.34
DLCs, often termed mitochondriotropics,35,36 are used extensively in the visualisation of mitochondria and also in the estimation of mitochondrial activity.37,38 The use of these materials in diagnosis is constrained only by their concentration-dependent toxicity to mitochondria. The toxic effects of rhodamine-123 and dequalinium chloride, two of the most commonly used DLCs, have been linked to their capacity to inhibit the enzymes F0F1 ATPase39 and NADH-ubiquinone reductase.40 Oral administration to mice bearing transplanted tumours has shown that substances containing a benzo[a]phenoxazine nucleus, such as Nile blue chloride, exhibit a tumour-staining and growth-retarding action.41 Studies have shown that the subcellular localisation of Nile blue chloride is highly selective to lysosomal targets and also that cellular uptake in tumours involves an ion-trapping mechanism.42 Also, DLCs have been shown to cause mitochondrial depolarisation, which leads to the opening of mPTPC and the consequent loss of pyridine nucleotides from the mitochondrial matrix. This effects a further increase in mitochondrial membrane potential,43 which promotes the influx of DLCs into cancer cells. Such cells exhibit mitochondrial abnormalities that include progressive swelling, disruption of the mitochondrial cristae, concomitant mitochondrial outer membrane rupture and multiple mitochondrial lesions, which ultimately result in cell death.44
Adams et al.45 synthesised a carboranyl derivative of dequalinium (DEQ-B), which has been shown by in vitro evaluations to exhibit tumour uptake and toxicology that are similar to those characterising its non-boronated analogue. In vitro, DEQ-B was seen to be taken up and retained by KB, F98, and C6 tumour cell lines, but not by the normal epithelial cell line CV1. At low concentrations, DEQ-B was shown to be less toxic towards the latter cell line. The uptake, retention and toxicity of DEQ-B were found to be comparable with those of other non-boronated DLCs, such as dequalinium chloride, rhodamine 123 and tetraphenylphosphonium chloride.45 Another example of a boronated DLC derivative is rhodamine B-phenyl boronic acid (containing a single 10B atom per molecule), which has been employed as a fluorescent marker and has been shown to accumulate selectively in colon carcinoma cells at a cancer/normal cell ratio of 5.5.46 Calabrese et al.47 reported the synthesis of a series of compounds in which carboranes are combined with DLCs. A preliminary in vitro evaluation study, utilising human prostate carcinoma (PC3) and normal (PNT2) epithelial cell lines, indicated the combined propensity of these agents to target tumour cells and to deliver therapeutically relevant quantities of boron.48 Consistent with the increased mitochondrial membrane potential of carcinoma cells, the percentage of 10B taken up by PC3 cells was higher than that determined in parallel experiments involving PNT2 cells. The data indicated that, with the exception of one Nile blue derivative, the synthesized compounds exhibited features such as uptake efficiency, tumour selectivity and capability to deliver therapeutically relevant amounts of boron that are pre-requisite to candidate materials for BNCT of cancer. Fig. 3 presents the structures of compounds selected for further evaluation.10 Rendina et al.48 reported the synthesis of closo-carborane phosphonium salt derivatives and commented on the absence of a covalent bond between the anionic boron entity and the cation in the compounds reported by Calabrese et al.47In vitro boron uptake studies have shown48 that advantageous cancer/healthy cell distribution ratios and overall levels of boron accumulation can be achieved irrespective of the presence or absence of a covalent bond between the carborane and DLC moieties. Hence, it appears that a covalent link between the DLC and the boron moiety may not be necessary for the selective delivery of boron to tumour sites.49
![]() | ||
Fig. 3 DLC-functionalised carboranes: triphenyl methylenecarboranyl phosphonium bromide (BOR2) and nido-carborane salts of tetraphenyl phosphonium (BOR3), dequalinium (BOR4) and rhodamine-B (BOR5). |

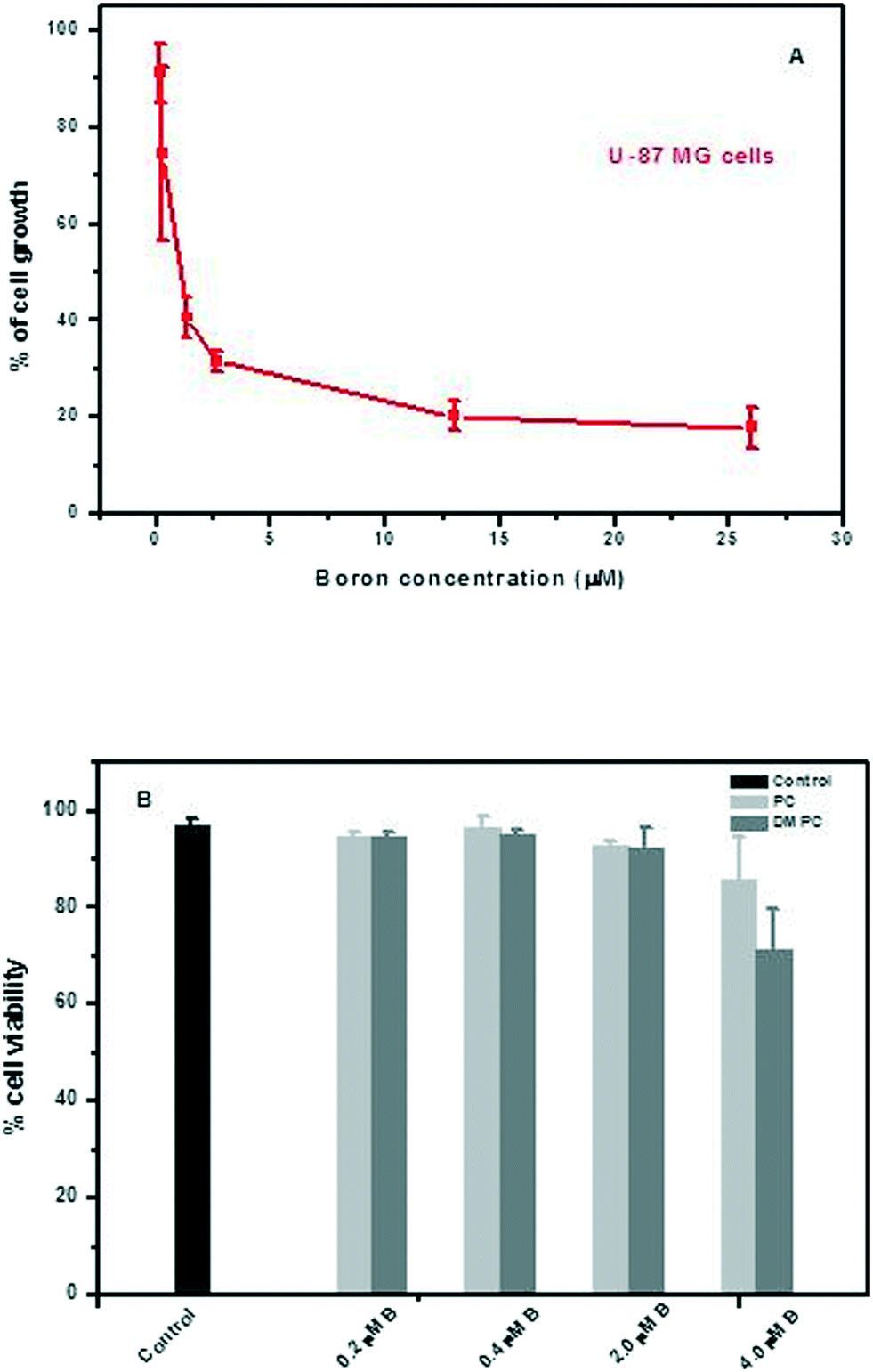

Towards a preliminary assessment of the effects of DLC-carboranes on cell growth,49 U-87 MG cells were incubated over a specified time period with systematically varied concentrations of bis-nido-carborane dequalinium salt (BOR4). Cell viability data (Fig. 4) demonstrated a concentration-dependent toxicity effect and allowed the estimation of IC50 of this molecule at 0.832 μM. Analogous experiments with carborane-loaded PC and DMPC liposomes over the boron concentration range 0.2–4.0 μM indicated the biocompatibility of these formulations at boron concentrations of the order of ≤2.0 μM boron. A recent study has investigated the pharmacological behavior of BOR, BOR2, BOR3, BOR4 and BOR5 in malignant, cancer stem and normal cell lines. The work identified selective cytotoxic behavior towards tumor cells and cancer stem cells, while normal cells were seen to recapitulate their physiological proliferation rate upon removal of the DLC-carborane from cultures.10 Tested against the criterion of selective cytotoxicity behavior, the same study identified BOR2 and BOR3 as the most promising candidate materials for further investigation.10
Underpinned by the principle that the elimination of CSCs may lead to positive long-term clinical outcomes,50,51 DLC-carboranes offer the potential for selective cytotoxicity within heterogeneous tumour cell populations. It has been shown that the mechanism of action of DLC-carboranes involves activation of the p53/p21 gene axis. It appears that the selective accumulation of DLC-carboranes to the mitochondria of tumour cells provides the stimulus that ultimately activates the tumour suppressor protein p53, which mediates the DNA damage-induced checkpoint mechanism through the trans-activation of growth inhibitory genes, such as p21. This in turn causes permanently malignant cells to enter a phase of p53-dependent G1 growth arrest, and prevents cell cycling and division. Notably, it has been shown that malignant cells exposed to DLC-carboranes simultaneously activate the expression of genes that are linked to apoptosis (e.g. bax, bad, caspases 3 and 9), to survival (e.g. bcl-2) and to mitogenesis (e.g. c-myc, cyclin D1, cdk4).10 The opposing cellular response functions in the observed gene expression profile may be explained in terms of an attempt by cells to overcome the DLC-carborane-triggered cell-cycle arrest mediated by p53/p21 through genetic manipulation.
Evidence to date suggests that DLC-carboranes may be of value not only to BNCT but also as stand-alone anticancer drugs. Consequently, DLC-carboranes represent a new class of anticancer agents, the pharmacological efficacy and safety profiles of which merit investigation with reference to their chemical structure such that the most promising compounds are identified for clinical verification. In terms of chemistry, the significance of the nature of the bond that connects the DLC and carborane moieties needs to be understood in order to allow the research focus to shift to ionic or covalent structures according to their promise to meet the performance requirements imposed by the BNCT protocol.
