In situ ligand exchange-mediated 0D/1D transformation of a polyoxovanadate

Abstract

The antimonato-polyoxovanadate {Ni^II(en)₃}₃[V^IV₁₅Sb^III₆O₄₂(H₂O)]·ca.15H₂O was utilized as a synthon for the solvothermal in situ generation of the new compound {Ni^II(phen)₃}₂[{Ni^II(en)₂}V^IV₁₅Sb^III₆O₄₂(H₂O)]·19H₂O, a rearrangement induced by ligand metathesis. While in the precursor structure cations and anions are isolated, the solid-state structure of the product is characterized by 1D chains consisting of alternating [V₁₅Sb₆O₄₂(H₂O)]⁶⁻ cluster shells and [Ni(en)₂]²⁺ units covalently linked to neighboring clusters via terminal oxygen atoms. Water clusters composed of sixteen hydrogen-bonded H₂O molecules are located in void spaces of the structure. The magnetic properties indicate weak antiferromagnetic interactions of the bridging Ni²⁺ center and adjacent polyoxovanadate anions, as well as small magnetic anisotropy of the individual Ni²⁺ centers.

---

Introduction

The structures and physico-chemical properties of high-nuclearity polyoxovanadate (POV) clusters can be significantly altered by introducing hetero-atoms like e.g. Si, Ge, As, or Sb.¹ Charge compensation of the negatively charged POV clusters is realized by ammonium,^2–4 alkali metals cations,^5–8 protonated amine molecules^9–12 or transition metal amine complexes.^13–15 There are also reports that bond formation between the POV cores and cations^16–18 leads to charge-neutral complexes. The main synthetic route for preparation of such hetero-POVs is the solvothermal approach applying vanadium and antimony compounds such as NH₄VO₃, V₂O₅ or Sb₂O₃ as educts. Hetero-POVs are synthesized at pH > 8 using V^V-containing sources, and a reducing agent is required for generation of the magnetically highly interesting partially reduced or fully reduced compounds, i.e. those comprising V^IV centers. Hence, the POV chemistry significantly differs from polyoxomolybdate and polyoxotungstate chemistry, where preformed cluster anions or in situ generated building blocks are used as synthons for the preparation of chemically modified high-nuclearity clusters.

Recently, we discovered a Sb-POV exhibiting good solubility in water.¹⁹ In a first synthesis we reacted this compound, {Ni(en)₃}₃[V₁₅Sb₆O₄₂(H₂O)]·ca.15H₂O (I), at T = 150 °C leading to in situ reorganization of the cluster shell and formation of the β-isomer of the [V₁₄Sb₈O₄₂]⁴⁻ anion.²⁰ In the presence of [Ni(phen)₃](ClO₄)₂·0.5H₂O (phen = 1,10-phenanthroline) and Sb₂O₃ the α-isomer of [V₁₄Sb₈O₄₂]⁴⁻ could be obtained.²¹

To further develop this Sb-POV chemistry, we reacted I with [Ni(phen)₃](ClO₄)₂·0.5H₂O, which leads to the formation of the new compound {Ni(phen)₃}₂[{Ni(en)₂}V₁₅Sb₆O₄₂(H₂O)]·19H₂O (II). The partial replacement of the [Ni(en)₃]²⁺ complexes in I here leads to interconnection of the {V₁₅Sb₆O₄₂} anions into a 1D chain-based solid-state structure, in which large (H₂O)₁₆ water clusters are located. Here, we report the synthesis, crystal structure and the magnetic properties of the new compound {Ni(phen)₃}₂[{Ni(en)₂}V₁₅Sb₆O₄₂(H₂O)]·19H₂O (II) representing the first successful in situ transformation of an isolated {V₁₅Sb₆O₄₂} moiety into a higher hierarchical structure.

Results and discussion

The title compound {Ni(phen)₃}₂[{Ni(en)₂}V₁₅Sb₆O₄₂(H₂O)]·19H₂O (II) can be prepared according to several synthesis routes. Heating I for 1 d at 150 °C in the presence of pure phenanthroline, [Ni(phen)₃]²⁺, [Cr(phen)₂Cl₂]¹⁺ or [Eu(phen)₂(NO₃)₃] afforded formation of II (see Experimental section for details). The results of the different synthesis routes strongly indicate that an in situ ligand exchange reaction takes place.

Compound II crystallizes in the monoclinic space group C2/c with four formula units per unit cell (Table S3†) with all atoms except V2, Ni1, O7, O13 and the oxygen water atoms O38–O42 located on general positions. The structure features the [V₁₅Sb₆O₄₂(H₂O)]⁶⁻ cluster shell as central structural motif (Fig. 1). Two condensed V₆ hexagons formed by edge-sharing VO₅ polyhedra are joined by three VO₅ pyramids and three Sb₂O₅ units forming the sequence V₆–V₃–V₆ in the cluster anions. The terminal V=O bonds are shorter (average: 1.619 Å) than the bridging V–μ₃-O bonds (average: 1.950 Å) (Table S4†). The Sb–O bonds scatter in a narrow range (1.930–1.944 Å; average: 1.938 Å, Table S4†). All geometric parameters of the anion agree well with literature data of Sb-POVs.^22–27 The oxidation states were determined by bond valance sum calculation (BVS)²⁸ leading to the formulation [V^IV₁₅Sb^III₆O₄₂]⁶⁻ (Table S4†). The presence of V^IV centers is supported by the strong characteristic vanadyl stretching vibration at 973 cm⁻¹ in the IR spectrum (Fig. S3†).

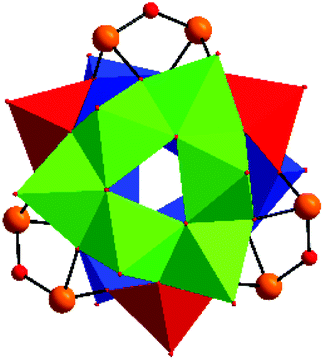

Fig. 1 Crystal structure of the cluster anion of [V₁₅Sb₆O₄₂]⁶⁻ in II. The two V₆ hexagons and the three VO₅ pyramids joining the hexagons are drawn in different colors. Red: oxygen; orange: Sb (the central H₂O molecule is omitted for clarity).

The cluster anions are joined by [Ni(en)₂]²⁺ complex cations into chains that elongate along [101] with the [Ni(phen)₃]²⁺ complexes ‘decorating’ the chains (Fig. 2 and S6†). The Ni²⁺ cations are octahedrally coordinated by two en ligands and two O atoms from two adjacent trans-positioned polyanions. The Ni–N (2.085(3)–2.095(3) Å) and Ni–O bonds (2.158(2) Å) are in line with the literature.²⁹ In the crystallographically independent [Ni(phen)₃]²⁺ complex, Ni²⁺ is in a distorted octahedral environment with Ni–N bond lengths ranging from 2.079(3) to 2.114(3) Å, equatorial N–Ni–N angles between 79.01(12) and 98.58(13)°, and trans N–Ni–N angles from 166.96(13) to 171.66(13)° (see Table S5†).

Fig. 2 Crystal structure of II with view of the chains and the decorating [Ni(phen)₃]²⁺ complexes (H atoms are omitted for clarity).

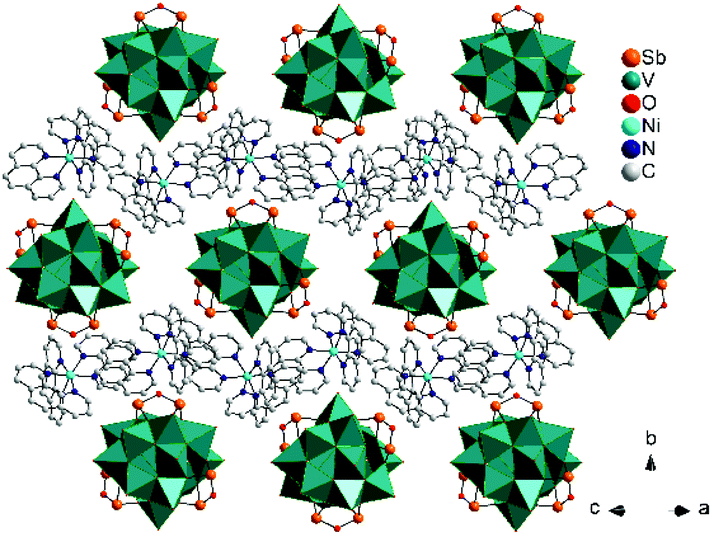

Within the (101) plane a layered arrangement of alternating [Ni(phen)₃]²⁺ complexes and chains is observed (Fig. 3).

Fig. 3 View of the arrangement of the chains in the (101) plane (H atoms are omitted for clarity).

The voids between the POV clusters (Fig. 3) are occupied by (H₂O)₁₆ clusters, consisting of two unique and seven symmetry-related H₂O molecules (Fig. S7†). The geometric parameters of the hydrogen bonding interactions of the water cluster (Fig. 4) are listed in Table S7.† All values are typical for strong hydrogen bonds reported for water clusters.^30–34 Following the nomenclature suggested by Infantes et al.^35–37 the cluster can be defined as U0 type for cross-linked discrete rings, namely U02(2)2(2)5(2)5(2)5(3)5(3)8(6). The water cluster has a stabilizing effect caused by further H bonds to oxygen atoms of the Sb-POV cluster core, to O16 connecting the {V₁₅Sb₆O₄₂} clusters with bridging [Ni(en)₂]²⁺, and to the N–H atoms of the [Ni(en)₂]²⁺ complex and to the C–H atoms of the [Ni(phen)₃]²⁺ cations (Table S6†).

Fig. 4 Water cluster in II constructed by hydrogen bonding interactions between the water molecules located in the free spaces in Fig. 3 (red: O, gray: H).

In many structures of POVs water molecules are observed, which are frequently disordered preventing the identification of water clusters. Hence, the occurrence of the (H₂O)₁₆ cluster is unusual in Sb-POV chemistry.

The remaining water molecules (O40 and O41) are not involved in H bonding interactions. Besides the hydrogen bonding network involving the water cluster, the [Ni(en)₂]²⁺ and the [Ni(phen)₃]²⁺ complexes form H bonds with oxygen atoms of the POV cluster shell (Table S7†). Furthermore, pronounced π–π stacking interactions between the aromatic phenanthroline ligands are present (Fig. 5). There are three types of intermolecular distances: sandwich type arrangements (average: 3.906 Å, shortest: 3.687 Å), parallel oriented phen molecules (average: 3.841 Å; shortest: 3.666 Å) and T-shaped arrangements (3.970 Å). For such π–π interactions, energies in the order of 10 kcal mol⁻¹ were calculated and significantly contribute to the structural arrangements.^38–42

Fig. 5 Possible π–π stacking interactions between the aromatic phenanthroline ligands in the structure of II (T-shaped: pink, parallel: green, sandwich: orange).

During the transformation of {Ni(en)₃}₃[V₁₅Sb₆O₄₂(H₂O)]·ca.15H₂O (I) into {Ni(phen)₃}₂[{Ni(en)₂}V₁₅Sb₆O₄₂(H₂O)]·19H₂O (II), two of the [Ni(en)₃]²⁺ complexes are formally substituted by [Ni(phen)₃]²⁺ complexes. The third [Ni(en)₃]²⁺ complex loses one ethylenediamine ligand and connects adjacent anions to form a chain. The observation that not all en ligands in the [Ni(en)₃]²⁺ complexes are exchanged is somewhat surprising because [Ni(phen)₃]²⁺ was supplied in a threefold excess. The formation of an intermediate with composition [{Ni(en)₂}V₁₅Sb₆O₄₂(H₂O)]⁴⁻ cannot be excluded. But based on our observations made in ref. 21 where I was transformed into the [V₁₄Sb₈O₄₂]⁴⁻ cluster, the formation of such an intermediate is not likely. It seems that an en ligand of one of the [Ni(en)₃]²⁺ complexes is detached followed by bond formation to POV oxygen sites. Applying [Ni(phen)₃]²⁺ in the reaction the other [Ni(en)₃]²⁺ complexes are either exchanged or en is replaced by phen. In addition, syntheses with phen, [Cr(phen)₂Cl₂]¹⁺ or [Eu(phen)₂(NO₃)₃] also afforded crystallization of II requiring an in situ ligand exchange of en by phen.

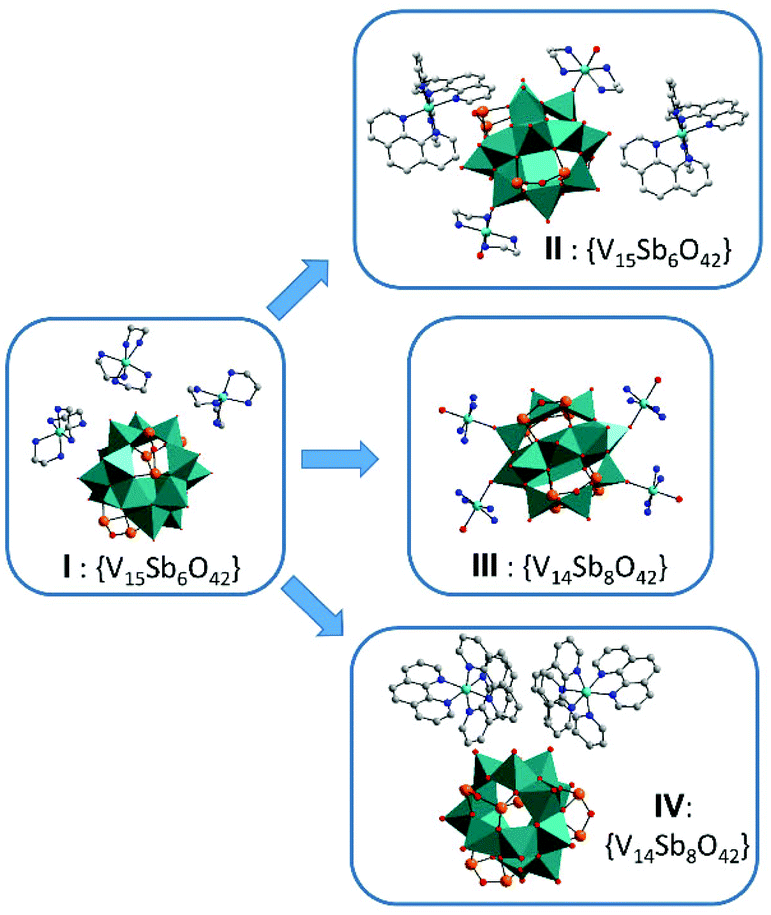

Many Sb-POVs contain isolated cations and anions,^43–45 but 1D,^31,46 2D ¹⁶ and 3D networks^17,27 are less common. Fig. 6 summarizes the structures obtained until now using I as synthon and Ni²⁺-centered en and phen complexes. The compound [{Ni(en)₂}₂V₁₄Sb₈O₄₂]·5.5H₂O ²⁰ (III) crystallized with a Sb-richer cluster shell and the complexes join adjacent anions thus generating a layered structure. A different isomer of the [V₁₄Sb₈O₄₂]⁴⁻ anion was observed in {Ni(phen)₃}₂[V₁₄Sb₈O₄₂]·phen·12H₂O ²¹ (IV), and cations and the anion are separated. In the title compound the cluster anion of the synthon is retained and the ligand exchange pattern yields a 1D structure.

Fig. 6 Compounds derived from the precursor {Ni(en)₃}₃[V₁₅Sb₆O₄₂(H₂O)]·ca.15H₂O ¹⁹ (I): {Ni(phen)₃}₂[{Ni(en)₂}V₁₅Sb₆O₄₂(H₂O)]·19H₂O (II), [{Ni(en)₂}₂V₁₄Sb₈O₄₂]·5.5H₂O ²⁰ (III) and {Ni(phen)₃}₂[V₁₄Sb₈O₄₂]·phen·12H₂O ²¹ (IV).

To get a better understanding of the reaction conditions the ratio of precursor compound I : [Ni(phen)₃](ClO₄)₂·0.5H₂O and the reaction temperature were altered. The lower the temperature, the lower was the yield, but II was always obtained between 80 and 140 °C. At the lowest temperatures compound II crystallized in a low yield in a mixture with the precursor I. Change of the ratio of the starting materials also leads to a lower yield, yet crystallization of II was always observed.

Magnetic measurements

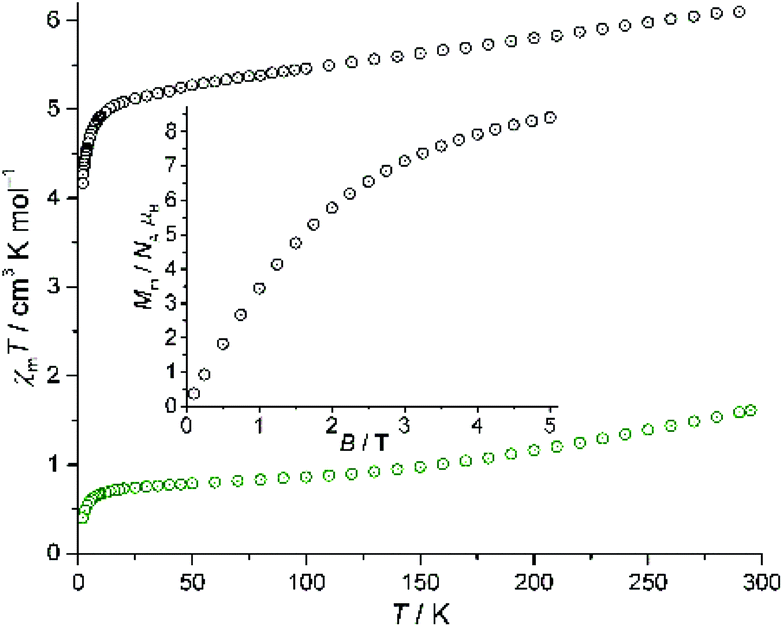

The temperature-dependent magnetic susceptibility data for compound II at 0.1 Tesla and the molar magnetization M_mvs. magnetic field B at 2.0 K are shown in Fig. 7. At 290 K, the χ_mT value of 6.11 cm³ K mol⁻¹ is higher than expected⁴⁷ for three non-interacting high-spin Ni²⁺ centers (the expectation range for Ni^II is 2.94–4.60 cm³ K mol⁻¹). Taking into account the contribution of 15 (hypothetically) non-interacting V⁴⁺ centers, this value is, however, significantly below the corresponding expected range 8.36–10.22 cm³ K mol⁻¹. The deviation is readily explained by the magnetism of the {V₁₅Sb₆} polyoxovanadate anion, as it is characterized as a system of 15 spin-1/2 vanadyl groups that exhibit strong antiferromagnetic coupling,²³ leading to low χ_mT values at room temperature. Upon decreasing the temperature, the χ_mT vs. T curve for II is approximatively linear down to 25 K, and subsequently sharply decreases to 4.17 cm³ K mol⁻¹ at 2.0 K. The low-temperature characteristics of χ_mT are potentially due to weak antiferromagnetic interactions of the bridging Ni²⁺ center and the two neighboring polyoxovanadate anions as well as a small anisotropy of the single Ni²⁺ centers due to ligand field effects and spin–orbit coupling. For T > 25 K, non-interacting octahedrally coordinated Ni²⁺ centers are expected to yield an almost constant χ_mT vs. T curve, thus the data seem to indicate a temperature-independent paramagnetic (TIP) contribution. This assumption is, however, disproved by the fact that the remaining χ_mT ≈ 5.1 cm³ K mol⁻¹ is far too large for three Ni²⁺ ions. In addition, we consider the magnetic data of the isolated {V₁₅Sb₆} polyoxovanadate anion²³ depicted in Fig. 7 as green circles: on the one hand, the χ_mT vs. T curve is not a straight line through the origin (which would correspond to a TIP). On the other hand, the distinct bend of the curve at approx. 160 K does not appear in the data for II. We thus assume that the bridging Ni²⁺ center either affects the exchange interactions within the {V₁₅Sb₆} anion, or this effect is directly due to the {V₁₅Sb₆}–Ni–{V₁₅Sb₆} exchange pathway. The molar magnetization at 2.0 K (Fig. 7, inset) is a linear function of the applied field up to ca. 2 T, and reaches M_m = 8.4N_Aμ_B at 5.0 T without saturation. This value is larger than for the range 6.0–7.4 N_Aμ_B expected for three non-interacting (or ferromagnetically coupled) Ni²⁺ cations, therefore indicating a significant contribution caused by the {V₁₅Sb₆} anions at 2.0 K. Using CONDON,^48,49 we explore several model scenarios to reproduce the magnetic data (see ESI†), but the simple model of additive contributions (of Ni^II and {V₁₅Sb₆}), which usually works well for transition metal-augmented Sb-POVs, does not satisfactorily reproduce the magnetic characteristics of II.

Fig. 7 Magnetic data of II: χ_mT vs. temperature T at 0.1 T; inset: molar magnetization M_mvs. magnetic field B at 2.0 K. Black circles: experimental data; green circles: χ_mT([V₁₅Sb₆O₄₂]⁶⁻) (scaled).²³

Conclusions

We demonstrated that the soluble precursor {Ni(en)₃}₃[V₁₅Sb₆O₄₂(H₂O)]·ca.15H₂O can be transformed in situ into {Ni(phen)₃}₂[{Ni(en)₂}V₁₅Sb₆O₄₂(H₂O)]·19H₂O in the presence of phen or phen containing complexes within 1 d, a transformation that apparently is driven by step-wise ligand exchange. This reorganization of the constituents induces formation of a chain structure consisting of Ni²⁺-centered complexes and anionic cluster shells, in which large and highly ordered water clusters are embedded. The usage of soluble precursors for the synthesis of new POV compounds leads to a dramatic shortening of the reaction time compared to usual POV synthesis.

Experimental

Both precursor compounds {Ni(en)₃}₃[V₁₅Sb₆O₄₂(H₂O)]·ca.15H₂O (I) and [Ni(phen)₃](ClO₄)₂·0.5H₂O were synthesized as described in literature.^19,50 The compound {Ni(phen)₃}₂[{Ni(en)₂}V₁₅Sb₆O₄₂(H₂O)]·19H₂O (II) was prepared under solvothermal conditions in DURAN glass tubes (inner volume 11 mL) at 150 °C. [Eu(phen)₂(NO₃)₃] was synthesized by dissolving 5.009 g (14.80 mmol) Eu(NO₃)₃·6H₂O in 50 mL ethanol and adding a solution of 2.027 g phen in 20 mL ethanol. The colorless precipitate was obtained after 1 d (32% yield). The [Cr(phen)₂Cl₂]Cl complex was synthesized by refluxing a mixture of 0.040 g (2.5 mmol) CrCl₃·6H₂O, 0.010 g (1.5 mmol) Zn powder in 25 mL methanol for 20 min. Subsequently 0.901 g (5.0 mmol) phen were added and refluxed for 1 h.⁵¹

Synthesis of II: 0.167 g (0.055 mmol) of I were mixed with 0.1140 g (0.165 mmol) of [Ni(phen)₃](ClO₄)₂·0.5H₂O in 4 mL dist. H₂O and heated at 150 °C for 1 d. Yield: 83%, based on V. Elemental analyses: C 23.14, H 2.34, N 5.62%; calcd for C₇₆H₁₀₄Ni₃N₁₆O₆₂Sb₆V₁₅: C 23.38, H 2.34, N 5.74%.

Further experiments were performed to investigate the ligand exchange reaction (reaction time: 1 d; T = 150 °C). Varying the amount of [Ni(phen)₃](ClO₄)₂·0.5H₂O from 50 to 150% always afforded crystallization of II with no significant changes of the yield. However, using larger concentrations of the complex leads to crystallization of the excess together with compound II. Adding en (0.1–0.5 mL) blocks the formation of II.

When using [Eu(phen)₂(NO₃)₃] or [Cr(phen)₂Cl₂]Cl as precursor complexes, compound II is formed. Most importantly, adding only phen instead of any preformed complexes also leads to crystallization of II. Applying a large excess of phen (0.33–0.66 mmol) formation of II is also observed.

Compound II was characterized by elemental (CHN) analysis, energy dispersive X-ray analysis (EDX), differential thermoanalysis and thermogravimetry (DTA-TG) and IR spectroscopy as well as single crystal structure analysis (see ESI Fig. S1–S3 and Tables S1, S2†). X-ray powder diffraction patterns (XRPD) of the products obtained after the different syntheses are displayed in Fig. S4 and S5.† All chemicals were purchased (NH₄VO₃, NiCl₂·6H₂O, Sb₂O₃, CrCl₃·6H₂O, Eu(NO₃)₃·6H₂O (Merck), ethylenediamine (Fluka), phenanthroline, Ni(ClO₄)₂·6H₂O (ABCR)) and used without further purification.

Spectroscopic investigations

The IR spectra were measured in the 400–4000 cm⁻¹ range using a Genesis FTIRTM spectrometer (ATI Mattson).

Elemental analysis

CHN analyses were performed using an EURO EA Elemental Analyzer from EURO VECTOR Instruments.

Differential thermoanalysis and thermogravimetry

Thermogravimetry analysis were performed in Al₂O₃ crucibles using a Netzsch STA-409CD instrument heating the sample under a nitrogen atmosphere with a constant flow rate of 75 mL min⁻¹ and a heating rate of 1 K min⁻¹.

EDX analyses

EDX measurements were performed using a Philips Environmental Scanning Electron Microscope ESEM XL30 equipped with an EDAX detector.

X-ray powder diffraction

The X-ray powder patterns were recorded using a STOE STADI-P diffractometer (transmission geometry, Cu-Kα radiation (λ = 1.540598 Å)) to determine the phase purity of the reaction product comparing the experimental pattern with that calculated from single crystal X-ray data.

Magnetic measurements

A Quantum Design MPMS-5XL SQUID magnetometer was used to collect magnetic susceptibility data of II. The polycrystalline sample was compacted and immobilized into cylindrical PTFE capsules. The data were acquired as a function of the field (0.1–5.0 T at 2.0 K) and temperature (2.0–290 K at 0.1 T). The data were corrected for the diamagnetic contributions of the sample holder and the compound (χ_dia = −1.93 × 10⁻³ cm³ mol⁻¹).

Single crystal structure analysis

Data collection was performed with a STOE Imaging Plate Diffraction System (IPDS-1) with Mo-K_α radiation (λ = 0.71073 Å). A numerical absorption correction was performed (T_min/max: 0.5232/0.7241). The crystal structure was solved with the SHELXS-97 ⁵¹ and refined against F² using SHELXL-2014.⁵² All non H atoms were refined anisotropic. The C–H and N–H H atoms were positioned with idealized geometry and refined isotropic using a riding model. Most of the O–H H atoms were located in difference maps, their bond lengths were set to ideal values and finally, they were refined isotropic using a riding model. One water molecule is disordered over two positions and was refined using a split model. Two additional water positions are not fully occupied. For the last three O atoms the H atoms could not be located but were considered in the calculation of the formula.

Crystallographic data (excluding structure factors) for the structure in this paper have been deposited with the CCDC (No. 1504150).

Acknowledgements

We thank the state of Schleswig-Holstein for financial support. The work has been in part funded by ERC grant 308051 – MOLSPINTRON.
