Ionic liquids with anions based on fluorosulfonyl derivatives: from asymmetrical substitutions to a consistent force field model

Abstract

Herein, seven anions including four imide-based, namely bis[(trifluoromethyl)sulfonyl]imide (TFSI), bis(fluorosulfonyl)imide (FSI), bis[(pentafluoroethyl)sulfonyl]imide (BETI), 2,2,2-trifluoromethylsulfonyl-N-cyanoamide (TFSAM) and 2,2,2-trifluoro-N-(trifluoromethylsulfonyl) acetamide (TSAC), and two sulfonate anions, trifluoromethanesulfonate (triflate, TF) and nonafluorobutanesulfonate (NF), are considered and compared. The volumetric mass density and dynamic viscosity of five ionic liquids containing these anions combined with the commonly used 1-ethyl-3-methylimidazolium cation (C₂C₁im), [C₂C₁im][FSI], [C₂C₁im][BETI], [C₂C₁im][TFSAM], [C₂C₁im][TSAC] and [C₂C₁im][NF] are measured in the temperature range of 293.15 ≤ T/K ≤ 353.15 and at atmospheric pressure. The results show that [C₂mim][FSI] and [C₂mim][TFSAM] exhibit the lowest densities and viscosities among all the studied ionic liquids. The experimental volumetric data is used to validate a more consistent re-parameterization of the CL&P force field for use in MD simulations of ionic liquids containing the ubiquitous bis[(trifluoromethyl)sulfonyl]imide and trifluoromethanesulfonate anions and to extend the application of the model to other molten salts with similar ions.

---

Introduction

Until the mid-90s, the use of ionic liquids (ILs) was not widespread since they exhibited either quite high melting points or were composed of hydrolytically unstable anions. This dramatically changed in 1996 when Bonhôte et al.¹ introduced low-coordinating anions such as bis[(trifluoromethyl)sulfonyl] imide and trifluoromethanesulfonate. These highly delocalized charge anions, systematically known as bistriflimide (TFSI) and triflate (TF), are nowadays widely used in ILs^2,3 since they provide their corresponding salts with lower toxicity and higher chemical, electrochemical and thermal stability than the majority of the traditional counterions, such as chloride or tetrafluoroborate.

With the aim to improve the desired properties of ILs, namely to decrease their viscosity and melting points as well as to improve their ionic conductivity and miscibility with certain gases (CO₂), efforts were employed on the modification of these anions. The first strategy focused on either elongation or shortening of the perfluoroalkyl chains in the anion. Thus, from 2000 onwards, the family of TFSI anions was replenished with new members: the bis(fluorosulfonyl)imide (FSI) anion,⁴ which can be considered as a short version of TFSI, and bis[(pentafluoroethyl)sulfonyl]imide (BETI)⁵ and bis[(nonafluorobutyl)sulfonyl]imide (C₄C₄) anions⁶ which are long versions of TFSI. Similarly, the nonafluorobutanesulfonate (NF)¹ anion was proposed as a modification of TF (Fig. 1a). Generally, it was concluded that an increase in the perfluoroalkyl chains in symmetrical anions leads to an increase in the viscosity, density and melting points of the respective ILs.

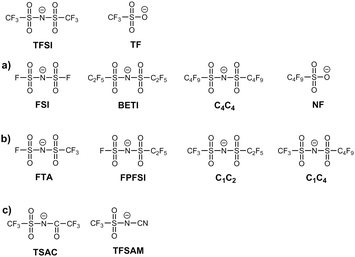

Fig. 1 Development of the TFSI and TF anion families.

The second research focus was dedicated to the introduction of asymmetry in imide anions via two routes: enlargement of one of the perfluoroalkyl chains or substitution of one trifluoromethylsulfonyl group by another moiety. Regarding the first route, anions such as (fluorosulfonyl)-N-(trifluoromethylsulfonyl) imide (FTA),⁷ (fluorosulfonyl)-N-(pentafluoroethylsulfonyl) imide (FPFSI),⁸ (trifluoromethylsulfonyl)-N-(pentafluoroethylsulfonyl) imide (C₁C₂),^7,9 and (trifluoromethylsulfonyl)-N-(nonafluorobutylsulfonyl) imide (C₁C₄)¹⁰ were proposed (Fig. 1b). The second route resulted in the preparation of 2,2,2-trifluoro-N-(trifluoromethylsulfonyl) acetamide (TSAC)¹¹ anion and very recently, the 2,2,2-(trifluoromethyl)sulfonyl-N-cyanoamide (TFSAM)^12,13 anion (Fig. 1c). The introduction of asymmetry in the anion plays a remarkable role in decreasing the melting point and the viscosity, and consequently enhancing the conductivity of the resultant ILs, which are particularly attractive features for the creation of new electrolyte materials.

The development of trusted methods for modeling and understanding and predicting the thermophysical properties of ILs have been among the primary objectives of the IL research community since the beginning of 2000. The first molecular simulation study of a pure IL was carried out by Hanke et al.¹⁴ in 2001.

Currently, one of the most precise methods in the field of IL modeling is the Canongia Lopes & Padua (CL&P) force field.¹⁵ Back in 2006, TFSI was one of the first IL anions to be incorporated in the CL&P force-field. Presently, special attention is given to the parameterization of the torsion motions of new ions, and TFSI is a perfect example of a flexible molecular ion exhibiting complex behavior (two coupled and symmetrical C–S–N–S dihedral angles). Nevertheless, it could be modeled using traditional cosine series and methods to determine the right partition between bonded and non-bonded interactions. Validation of the resulting force field relies heavily on a few crystalline structures deposited at the Cambridge Structural Database and suffers from the scarcity of liquid density data for TFSI-based ILs. Over the last years, new symmetrical anions belonging to the TFSI family have been incorporated in the CL&P force field. In most cases, it was found that parameters were transferable within ions of the same class (a sign of the resilience of the force-field) without incurring large deviations from the available experimental data used for validation. Deviations of up to 5% in density between experimental and simulation results are common and considered acceptable.^15,16

With the incorporation of asymmetrical composite anions (Fig. 1c), our preliminary simulations started to show large deviations in terms of the predicted densities. The bridging between different families of anions (imides, sulfonates, cyanamides, fluorocarboxylates) probably means that some of the parameter transfer rules applicable within a given family are no longer valid or need to be refined. Thus, the objective of this study is to precisely measure the volumetric mass density (ρ) and dynamic viscosity (η), and to calculate derived properties such as molar volume (V_m), for five different 1-methyl-3-ethyl imidazolium-based ILs with both symmetrical (FSI, BETI) and asymmetrical (TSAC, TFSAM, NF) anions, to re-access the parameterization of such salts and propose a new refined set of parameters that will continue to emphasize the consistency, transferability and compatibility of the CL&P force field.

Experimental details

Materials

Herein, 1-ethyl-3-methylimidazolium bis(fluorosulfonyl)imide, [C₂mim][FSI] (99.5 wt%) and 1-ethyl-3-methylimidazolium bis[(trifluoromethyl)sulfonyl]imide, [C₂mim][TFSI] (99+ wt%) were obtained from Solvionic, while 1-ethyl-3-methylimidazolium trifluoromethanesulfonate, [C₂mim][TF] (99+ wt%) was obtained from Merck KGaA. Ionic liquids 1-ethyl-3-methylimidazolium bis[(pentafluoro-ethyl)sulfonyl]imide, [C₂mim][BETI] (98.5 wt% pure), 1-ethyl-3-methylimidazolium nonafluorobutanesulfonate, [C₂mim][NF] (98.5 wt% pure), 1-ethyl-3-methylimidazolium 2,2,2-trifluoro-N-(trifluoromethylsulfonyl)acetamide, [C₂mim][TSAC] (98.0 wt% pure) and 1-ethyl-3-methylimidazolium 2,2,2-(trifluoromethyl)sulfonyl-N-cyanoamide, [C₂mim][TFSAM] (98.5–99.0 wt% pure) were synthesized as described in previous studies.^1,12,13 All IL samples were dried/degassed for at least 4 days at approximately 1 Pa and 318 K. The final water content of all samples was determined by Karl Fischer titration using an 831 KF Coulometer (Metrohm) (Table 1). The chemical structures and adopted nomenclature of the ILs used in this study are presented in Fig. 2.

Table 1 Water content, wt% H₂O, molar mass, M_m, volumetric mass density, ρ, dynamic viscosity, η, and molar volume, V_m, of the ionic liquid samples used in this study. The values of the three selected thermophysical properties (ρ, η, and V_m) are at 303.15 K and atmospheric pressure

IL sample	H2O (wt%)	M m (g mol^−1)	ρ (g cm^−3)	η (mPa s)	V m (cm^3 mol^−1)
a Values taken from Tomé et al.^17
[C2mim][TFSAM]	0.02	284.26	1.343	17.4	211.6
[C2mim][FSI]	0.09	291.30	1.438	16.8	202.5
[C2mim][TSAC]	0.08	355.26	1.449	21.3	245.2
[C2mim][TFSI]	0.02	391.31	1.514^a	27.2^a	258.5^a
[C2mim][NF]	0.08	410.26	1.542	109.7	266.1
[C2mim][BETI]	0.02	491.33	1.588	55.2	309.4

---

Fig. 2 Anions studied in this work with the corresponding adopted acronyms and atom labelling nomenclature.

Density and viscosity measurements

Volumetric mass density and dynamic viscosity measurements were performed at atmospheric pressure in the temperature range of 293.15 ≤ T/K ≤ 353.15 using an SVM 3000 Anton Paar rotational Stabinger viscometer-densimeter. The density and viscosity values of [C₂mim][NF] were measured in the more limited temperature range of 303.15 ≤ T/K ≤ 353.15 due to its relatively high melting point (ca. T = 293.11 K).¹⁸ The standard uncertainty for the temperature is 0.02 K. The repeatability of the density and dynamic viscosity data is 0.0005 g cm⁻³ and 0.35%, respectively. The reported results are the average values of triplicate determinations for each sample. The highest relative standard uncertainty registered for the density and dynamic viscosity measurements was 1 × 10⁻⁴ and 0.03, respectively.

Force field parameterization

The force field used in this study is based on the systematic CL&P parameterization for ionic liquids,^15,19–22 which has the same functional form of the OPLS-AA molecular force field:²³

The parameters used for the modelling of the imidazolium cations (ethylmethylimidazolium (C₂C₁im) and also dimethylimidazolium (C₁C₁im) in the case of crystalline-phase simulations) were retrieved directly from the CL&P parameterization.¹⁹ For the anions, to the best of our knowledge, no force field has been reported for TSAC and TFSAM. Thus, a new set of parameters for these anions and also re-parameterized values for bistriflimide, triflate and their derivatives were developed in the present study (Result and discussion section).

MD simulation details

Ionic liquid simulations were performed using GROMACS 5.1.4.²⁴ All simulation boxes contained 500 ion pairs randomly distributed inside a simulation box using Packmol.²⁵ A cutoff distance of 1.6 nm was used for the van der Waals and Coulomb interactions, and for the latter case, the particle-mesh Ewald technique was used to correct the electrostatic interactions at long distances. A V-rescale thermostat (relaxation time constant of 1 ps), and a Parrinello–Rahman barostat (relaxation time of 5 ps; compressibility of 4.5 × 10⁻⁵) were used to control the temperature and pressure at 300 K and 0.1 MPa, respectively. Equilibration of the simulation boxes was achieved by making several 5 ns simulation runs until a constant density was achieved. A production run of 40 ns was then performed, collecting the trajectory each 100 ps and using a time step of 2 fs.

Simulation of the crystalline ionic liquids was performed using DL_POLY 4.08.²⁶ A cutoff distance of 1.5 nm was used, and to account for the electrostatic interactions at long distances, the Ewald summation corrections were applied. All simulations in crystalline phases were performed considering an anisotropic isothermal–isobaric ensemble (N–σ–T) at the temperatures used in the experimental determinations and at a pressure of 0.1 MPa. For this purpose, a Nosé–Hoover thermostat and barostat (relaxation time constants of 1 ps and 4 ps, respectively) were employed. Production stages of 4.0 ns were made for all simulations after an initial equilibration stage of 1 ns. A time step of 2 fs was used in all MD runs. The initial simulation boxes were prepared by staking several crystal unit cells so that an approximately cubic box with at least 4 nm side was obtained.

All input files for the GROMACS and DL-POLY simulations were prepared using DLPGEN 2.0.2.²⁷

Results and discussion

Density and viscosity results

The experimental volumetric mass density and dynamic viscosity values at atmospheric pressure, ρ and η, as a function of temperature for the five ILs under discussion are listed in Tables S1 and S2 of the ESI† and depicted in Fig. 3. The density and viscosity data of [C₂mim][TFSI] (previously reported by our group)¹⁷ at 303.15 K and atmospheric pressure are also included in Table 1 for comparison purposes.

Fig. 3 Volumetric mass density (a) and dynamic viscosity (b) at atmospheric pressure of the ionic liquids: [C₂C₁im][BETI] (), [C₂C₁im][NF] (), [C₂C₁im][TFSI]¹⁷ (), [C₂C₁im][TSAC] (), [C₂C₁im][FSI] (), and [C₂C₁im][TFSAM] ().

Fig. 3a shows that the density trends with temperature are almost linear in the considered temperature range. At any given temperature the order of the densities among the ILs under discussion is [C₂C₁im][TFSAM] < [C₂C₁im][FSI] < [C₂C₁im][TSAC] < [C₂C₁im][TFSI] < [C₂C₁im][NF] < [C₂C₁im][BETI]. Since all the ILs have a common cation, the order of densities just reflects the prevalence of denser atoms in the molecular anions (higher proportions of oxygen and/or fluorine atoms lead to ILs with higher densities).

The density data were fitted to the functions given by eqn (2) and the fitting parameters are listed in Table 2.

ln(ρ/(g cm⁻³)) = a − b·T (2)

Table 2 Parameters of the density fitting functions (eqn (2)) and the thermal expansion coefficient, α_p

IL sample	a (—)	b, αp (kK^−1)
[C2mim][TFSAM]	0.4857 ± 0.0005	0.6289 ± 0.0015
[C2mim][FSI]	0.5555 ± 0.0002	0.6335 ± 0.0006
[C2mim][TSAC]	0.5842 ± 0.0001	0.7041 ± 0.0004
[C2mim][TFSI]	0.6125 ± 0.0011	0.6524 ± 0.0033
[C2mim][NF]	0.6387 ± 0.0001	0.6793 ± 0.0003
[C2mim][BETI]	0.6734 ± 0.0002	0.6959 ± 0.0005

---

The major advantage of fitting ln(ρ) data instead of the ρ values is that the slope of the fitting line directly gives the value of the thermal expansion coefficient, α_p. In the case of ionic liquids, the values of α_p are fairly constant over relatively large temperature ranges, where the excellent linear fit of the present experimental data can be attested by the extremely low uncertainties assigned to the fitting parameters (Table 2).

Force field re-parameterization and validation

As previously mentioned, TSAC and TFSAM were modeled using a new set of force-field parameters. The other anions (TFSI, TF and their derivatives, namely FSI, BETI and NF) were also re-parameterized in the present study. The force field data used in this study are given in Tables 3 and 4 (intermolecular and intramolecular parameters, respectively).

Table 3 Intermolecular parameterization used in this study, according to the force-field functional given by eqn (1). Data in bold italics correspond to the new parameterization proposed this study and data in roman correspond to the CL&P parametrization.^15,19–22 Atomic acronyms correspond to those in Fig. 2

Atoms	q/e	ε/kJ mol^−1	σ/Å	Atoms	q/e	ε/kJ mol^−1	σ/Å
NBT	−0.660	0.71100	3.250	CBT	0.350	0.27614	3.500
NCS	−0.710	0.71100	3.250	CTF	0.360	0.27614	3.500
Nz	−0.760	0.71100	3.200	C2N	0.700	0.43960	3.750
SBT	1.020	1.04600	3.550	CF1	0.400	0.27614	3.500
STF	1.020	1.04600	3.550	CF2	0.190	0.27614	3.500
SO	1.180	1.04600	3.550	CF3	0.260	0.27614	3.500
FBT	−0.160	0.25540	3.118	CFS	0.240	0.27614	3.500
FTF	−0.160	0.25540	3.118	CZ	0.640	0.27600	3.300
FSI	−0.130	0.25540	3.118	O2N	−0.620	0.87923	2.960
F	−0.120	0.22200	2.950	OBT	−0.530	0.83736	3.150
FC1	−0.200	0.22200	2.950	OTF	−0.630	0.83736	3.150
				OS3	−0.680	0.83736	3.150

---

Table 4 Intramolecular parameterization used in this study according to the force-field functional given by eqn (1). Data in bold and italics corresponds to the new parameterization proposed this study and data in roman correspond to the CL&P parametrization.^15,19–22 Atomic acronyms and atomic symbols without subscripts refer to any atom of that type (wildcard) present for the ions in Fig. 2

Bonds	k r	r o	Angles	k θ	θ o
a k r in kJ mol^−1 Å^−1; ro in Å; kθ in kJ mol^−1 rad^−2; θo in deg; and Vi in kJ mol^−1. b Improper dihedral with C2N in the central position.
NCS–C2N	4103	1.335	N–S–C	764	103.5
NCS–CZ	4206	1.310	N–S–O	789	113.6
C2N–O2N	4773	1.229	NBT–SBT–FSI	902	103.0
CZ–NZ	7746	1.150	OBT–SBT–FSI	1077	104.2
C2N–CF1	2654	1.523	C–C–C	488	112.7
C–F	3071	1.332	C–C–F	418	109.5
S–N	3137	1.570	F–C–F	644	109.1
S–O	5331	1.455	FBT/TF–CBT/TF–FBT/TF	781	107.1
C–C	2243	1.529	S–C–F	694	111.7
S–C	1970	1.792	So–CF3–CFS	583	113.3
CBT/TF–FBT/TF	3697	1.323	SBT–CBT–CTF	418	115.9
SBT/TF–OBT/TF	5331	1.437	OS3–So–OS3	969	114.0
SBT/TF–CBT/TF	1970	1.818	OBT–SBT–OBT	969	118.5
SBT–FSI	1879	1.575	OTF–STF–OTF	969	115.3
			OS3–So–CF3	870	104.4
			OBT/TF–SBT/TF–CBT/TF	870	102.6
			SBT–NBT–SBT	671	125.6
			SBT–NCS–C2N	419	115.3
			NCS–C2N–O2N	670	133.4
			NCS–C2N–CF1	586	108.7
			CF1–C2N–O2N	670	120.4
			C2N–CF1–FC1	418	109.5
			CZ–NCS–SBT	419	115.3
			NCS–CZ–NZ	425	175.2

---

Dihedral	V 1	V 2	V 3	V 4
OBT–SBT–NCS–C2N	0.0	0.0	0.0	0.0
CBT–SBT–NCS–C2N	20.7777	−3.3713	0.2652	0.0
SBT–NCS–C2N–O2N	0.0	0.0	0.0	0.0
SBT–NCS–C2N–CF1	32.6240	48.3492	5.5957	−7.0216
NCS–C2N–CF1–FC1	0.0	0.0	−1.1400	0.0
O2N–C2N–CF1–FC1	0.0	0.0	0.0	0.0
CBT–SBT–NCS–CZ	27.8108	−20.5560	2.4856	0.0
OBT–SBT–NCS–CZ	0.0	0.0	0.0	0.0
SBT–NCS–CZ–NZ	0.0	0.0	0.0	0.0
FSI–SBT –NBT–SBT	11.4450	−15.1860	−3.2120	0.0
FBT–CBT–SBT–NCS	0.0	0.0	1.3220	0.0
SBT–CBT–C–C	50.0900	0.0	−4.6260	−4.0080
C–C–SBT–OBT	0.0	0.0	−0.7400	0.0
SBT–CBT–C–F	0.0	0.0	1.4530	0.0
F–C–S–O	0.0	0.0	1.4510	0.0
C–CBT–SBT–NBT	−3.0940	0.0	0.0	0.0
CBT–SBT–NBT–SBT	32.7730	−10.4200	−3.1950	0.0
OBT–SBT–NBT–SBT	0.0	0.0	−0.0150	0.0
C–C–C–C	27.7064	3.9664	−5.8074	−8.8617
F–C–C–C	1.2552	0.0	1.6736	0.0
F–C–C–F	−10.4600	0.0	1.0460	0.0
S–C–C–C	−16.1000	−2.0046	0.7674	0.0
S–C–C–F	0.0	0.0	1.3797	0.0
C–C–S–O	0.0	0.0	1.3938	0.0
NCS–C2N–CF1–O2N^b	0.0	87.9228	0.0	0.0

---

The atomic point charges (APC), q, for TSAC and TFSAM were determined considering the ChelpG charges²⁸ computed from quantum mechanical calculations at the MP2/aug-cc-pVDZ level of theory^29–33 using the Gaussian 09 software,³⁴ consistently combined with values from the CL&P^15,19–22 and OPLS-AA²³ force fields. In both cases the (trifluoromethyl)sulfonyl groups retained their CL&P APC values,¹⁹ whereas the central nitrogen atoms changed their APC values from −0.66 e to −0.71 e. In the case of TFSAM, the cyanimide group was assigned APC values similar to those found in the dicyanamide anion. For all the other studied anions, the CL&P^15,19–22 and OPLS-AA²³ APC values were used.

The 12–6 Lennard-Jones (LJ) non-bonded parameters presented in Table 3 were also revised in order to attenuate a systematic deviation of ca. 4.4% between the computed and experimental density values for the ILs under investigation (Results and discussion section). Such reassignment considered that: (i) all oxygen atoms attached to the sulfur atoms in TFSI, TF, FSI, TSAC, TFSAM and BETI have LJ parameters similar to those of the oxygen atoms in sulfonate ions (e.g. NF),³⁵ (ii) the LJ parameters of the fluorine atoms in the fluorinated chains located in an alpha position relative to sulfur are similar to that of the fluorine atoms in PF₆⁻ anions;¹⁹ (iii) the carbonyl group of TSAC is modeled using LJ parameters of ketones given in the OPLS-AA force field;²³ and (iv) the cyanamide group of TFSAM is modeled using the same LJ values (and charges) previously proposed for dicyanamide.²¹ All remaining LJ parameters keep the assignments of the original force fields.

The new intramolecular potential functions of TSAC and TFSAM anions are given in Table 4. Their bond and angle parameters, equilibrium distances and angles (r_o and θ_o, respectively), and the corresponding harmonic force constants (k_r and k_θ, respectively) were retrieved from the CL&P and OPLS-AA force fields.^15,20,22,23 The missing dihedral angle parameters were computed in this study in order to reproduce ab initio calculations performed at the MP2/aug-cc-pVDZ level of theory^29–33 following a previously proven procedure.¹⁵ These include the parameterization of the torsion profiles of the C_BT–S_BT–N_CS–C_2N, S_BT–N_CS–C_2N–C_F1 and N_CS–C_2N–C_F1–F_C1 dihedral angles of TSAC and the C_BT–S_BT–N_CS–C_Z dihedral angle of TFSAM (Fig. 4). The analysis of the figure indicates that the newly proposed dihedral potentials are able to accurately capture the internal rotation of the newly parameterized molecular moieties.

Fig. 4 Comparison between the potential energy scan computed for selected dihedral angles of TSAC (C_BT–S_BT–N_CS–C_2N (a), S_BT–N_CS–C_2N–C_F1 (b) and N_CS–C_2N–C_F1–F_C1 (c)) and TFSAM (C_BT–S_BT–N_CS–C_Z (d)) obtained from ab initio calculations at the MP2/aug-cc-pVDZ level of theory (blue dots) and using the corresponding force-field parameterization data from Tables 3 and 4 (red curve).

Validation of the proposed force field was achieved by comparing the theoretical and experimental liquid density values determined for ionic liquids containing the cation C₂mim⁺ and the anions in Fig. 2. In addition, the ability of the parametrization to reproduce the crystal structures of ionic liquids at low temperature was also tested.

As highlighted in the introduction of this study, one of the problems of the original CL&P parameterization for anions of the TFSI and TF families was the lack of liquid density data available for comparison with the simulation predictions. Thus, in this study, reference data for six TFSI-based ILs and for NF were collected to evaluate the accuracy of the re-parameterized force field. These values were experimentally determined or retrieved from the existing literature.

The experimental liquid densities established in this study are shown in Table 5. For [C₂mim][TF] and [C₂mim][TFSI], due to the large number of experimental data in the literature, the values listed in 5 are the average of the results previously reported at 303.15 K (9 values for [C₂mim][TF]^36–43 and 19 values for [C₂mim][TFSI]^41,44–61). Moreover, Table 5 presents the density values obtained from the MD simulation results and the corresponding deviation from the experimental data. From these results, it is possible to conclude that the new parametrization reproduces the densities of these liquids with an absolute average deviation of 1.3% and a maximum shift of 2.3%. As can be observed in Fig. 5, this represents a significant improvement compared with the results obtained using the previously established force field, where an average deviation of 4.6% and maximum difference of 5.8% were observed.

Table 5 Density values determined experimentally in this study or retrieved from the literature (ρ_exp) and computationally obtained from molecular dynamic simulation results (ρ_MD) using the refined CL&P force field. Also given in the table is the deviation in percentage (δρ) between the simulation and experimental data. All values refer to 303.15 K (see text for details)

Ionic liquid	ρ exp/g cm^−3	ρ MD/g cm^−3	δρ/%
a Average value from the literature. b This study.
[C2mim][TF]	1.3788^a	1.3875	0.6
[C2mim][FSI]	1.4383^b	1.4552	1.2
[C2mim][TFSI]	1.5135^a	1.5175	0.3
[C2mim][TSAC]	1.4489^b	1.4812	2.2
[C2mim][TFSAM]	1.3431^b	1.3592	1.2
[C2mim][BETI]	1.5879^b	1.5685	−1.2
[C2mim][NF]	1.5415^b	1.5769	2.3

---

Fig. 5 Comparison between the experimental liquid density values obtained in this study (ρ_exp) and simulation data (ρ_calc) using the previously recommended CL&P parameterization (open symbols),^15,19–22 and the new re-parameterized values (close symbols). The dotted line represents a perfect match between the experimental and simulation results.

The second validation test was the evaluation of the accuracy of the re-parameterized force field in reproducing unit cell parameters for [C₂mim][TFSI],⁶² [C₂mim][TF]⁶³ and [C₁mim][FSI]⁶⁴ crystals at low temperature. The results are summarized in Table 6.

Table 6 Molecular dynamic simulations details and comparison between the computed results and experimental data in the literature (given in bold) retrieved from the Cambridge Structural Database (CSD)⁶⁵

	[C2mim][TFSI]	[C2mim][TF]	[C1mim][FSI]
a Ion pairs in the asymmetric unit and unit cells. b Crystal unit cells staked along the x, y and z axis. c Ion pairs in the simulation box.
CSD ref. 49	RENSEJ01^45	RENSIN^46	ZOLVAZ^47
T/K	100	150	173
Z′/Z^a	2/8	1/8	0.5/4
Supercell^b	2 × 6 × 3	4 × 3 × 2	8 × 3 × 3
N	144	192	288
a/Å	27.713 27.977	10.183 10.168	5.000 4.997
δa/%	0.95	−0.15	−0.06
b/Å	7.034 7.099	12.384 12.212	14.973 15.353
δb/%	0.92	−1.39	2.54
c/Å	15.796 16.075	18.294 19.319	14.415 14.407
δc/%	1.77	5.60	−0.06
α, β, γ/deg	90.0 90.0	90.0 90.0	90.0 90.0
ρ/g cm^−3	1.688 1.628	1.499 1.441	1.707 1.666
δρ/%	−3.55	−3.87	−2.40

---

It should be mentioned that the initial parameterization reasonably captured the crystal cell dimensions of the ionic liquids in the solid state. Thus, it was pertinent to evaluate if the modification made in the Lennard-Jones parameters of the O_BT, O_TF, F_BT and F_SI atoms did not change this capability of the original force field. The results obtained using the new and old parametrizations are compared in Table 6 with the corresponding experimental data. Also included in the table are details regarding the simulations (supercell dimensions, number of ion pairs in the box and temperature). The analysis of the data in Table 6 indicates that the modifications introduced in this study have no significant influence on the obtained crystal cell dimensions. These results are in accordance with recent observations suggesting that APC distributions have larger impacts in the arrangement of molecules in the solid state than the LJ parameterization of the atoms.^27,66

It must be stressed that one of the main objectives of the present study is the re-evaluation of the non-polarizable CL&P force-field as far as the parameterization of anions related to [TFSI] is concerned. This objective was successfully achieved due to the measurement of a new and more comprehensive set of volumetric properties of different ionic liquids based on [TFSI]-related anions. Although the viscosity of these systems was also measured in the present study and comparisons with MD results are now also possible, such comparisons should be performed with polarizable force-fields or other schemes that try to account for polarization or charge transfer effects among ions, and hence lie out of the scope of the present study.

One of the main characteristics of the CL&P force field is its systematic character and the ability to yield acceptable equilibrium and structural properties. Dynamics under the CL&P force field are too slow compared with experimental data, although not so slow that the behaviour of the systems ceases to be fluid-like and becomes glass-like. However, the solution to this problem through the correct incorporation of polarization effects using one of the above mentioned methods, can always start (and generally does) with the definition of a consistent and general fixed-charge force-field, such as CL&P.

Conclusions

In this study, the volumetric mass densities, molar volumes and dynamic viscosities of five ionic liquids combining 1-ethyl-3-methylimidazolium (C₂C₁im) as the commonly used cation and several derivatives of bis[(trifluoromethyl)sulfonyl]imide (TFSI) and trifluoromethanesulfonate (TF) anion families, such as bis(fluorosulfonyl)imide (FSI), bis[(pentafluoroethyl)sulfonyl]imide (BETI), 2,2,2-(trifluoromethyl)sulfonyl-N-cyanoamide (TFSAM), 2,2,2-trifluoro-N-(trifluoromethylsulfonyl) acetamide (TSAC) and nonafluorobutanesulfonate (NF) were measured in the temperature range of 293.15 ≤ T/K ≤ 353.15 at atmospheric pressure. The results showed that [C₂mim][FSI] and [C₂mim][TFSAM] ILs exhibit the lowest densities and viscosities among all the studied ILs.

For the first time, the force field has been reported for ILs with asymmetric TSAC and TFSAM anions. Moreover, the parameterization of TFSI and TF-based ILs was re-accessed and a new set of precise parameters was proposed. It was found that the re-parametrization of the CL&P force field produces a significant improvement in the reproducibility of the IL densities compared to that obtained using the previously established force field.
