Toward highly efficient in situ dry reforming of H₂S contaminated methane in solid oxide fuel cells via incorporating a coke/sulfur resistant bimetallic catalyst layer

Abstract

The escalating global warming effects are a reason for immediate measures to reduce the level of greenhouse gases. In this context, dry reforming of methane (DRM), an old yet both scientifically and industrially important process, is making a comeback in contributing to the utilization of CO₂. However, catalyst deactivation (sulfur poisoning and coke formation) and the associated high energy consumption remain technological hurdles to its practical implementation. Here we demonstrated that dry reforming of H₂S-containing CH₄ can be efficiently conducted in conventional solid oxide fuel cells via incorporating a coke/sulfur resistant catalyst layer. The add-on layer, composed of tailored Ce_0.8Zr_0.2O₂ supported NiCu nanoclusters, demonstrated outstanding in situ reforming activity while possessing reasonable coke/sulfur resistance. At 800 °C and in a 50 ppm H₂S containing CH₄–CO₂ mixture, the cell had a maximum power density of 1.05 W cm⁻², a value high enough for practical application. Through H₂ selective oxidation, the energy required for DRM was partially compensated for and the produced water greatly suppressed the carbon deposition. This study offers a new dimension in cogenerating CO₂-derived synthesis gas and electrical power in the context of increasing interests in efficient utilization of H₂S-containing CH₄ and CO₂.

---

1. Introduction

Synthesis gas or briefly, syngas, is a mixture of carbon monoxide and hydrogen, which is normally referred to as a “chemical intermediate” that could be readily transformed into numerous value-added chemicals or fuels by Fischer–Tropsch processes.^1–3 For over a century, much attention from both academia and industries has been paid to syngas production towards more efficient, sustainable, and environmentally benign conversion of fossil fuel feedstocks.^4–8 Due to the large reserves of natural gas worldwide along with the recent boom of shale gas/biogas, methane becomes an ideal “precursor” of syngas not just for today but also for the foreseeable future.^9–11 There are typically three routes for methane-syngas conversion to date, namely, partial oxidation of methane (POM), steam reforming of methane (SRM) and dry reforming of methane (DRM). Notwithstanding the fact that SRM prevails over the rest in industry, DRM shows advantages over SRM, combining syngas production and greenhouse gas (GHG) utilization.

Unfortunately, the practical implementation of DRM still faces several technical challenges:^12–22 the first one is coke formation which deactivates almost every type of commercial catalyst for DRM (e.g., Ni).^13–17 DRM is thermodynamically more prone to coking than other reforming reactions, albeit abundant achievements have been made regarding the development of coke-resistant catalysts, e.g., Ni and its alloys, during the past decades.^{14–17,23,24} This is logical since if excess CO₂ is introduced to alleviate carbon deposition, it will remain as the main impurity in the effluent (excess H₂O in SRM can be removed easily), decreasing the efficiency of the entire process. Secondly, the DRM reaction is extremely endothermic, requiring high temperatures to attain a reasonable yield of syngas. This huge energy input is also a matter of concern for the commercialization of DRM. The third challenge is associated with sulfur poisoning, because H₂S is one of the components of methane sources. Once the commonly known H₂S poison is present in the raw feedstock, the reforming efficiency will decrease substantially as a result of sulfur deactivation.^21,22 Fortunately, much research activity has been dedicated to developing sulfur tolerant DRM catalysts which show promising performances.^12,25–27

Solid oxide fuel cells (SOFCs), which typically operate at higher temperatures (above 500 °C) compared to other types of fuel cells, have received particular attention in recent years not only for power generation^28–30 but also for the potential of performing simultaneous DRM reactions in their anode compartments.^31–33 A high operation temperature is favored by DRM, and at the same time, the heat released during the electro-oxidation process can partially compensate the energy required for DRM. Nonetheless, the conventional Ni–Y₂O₃-stabilized-ZrO₂ (YSZ) electro-catalyst shows neither good in situ dry reforming activity nor an excellent electrochemical performance in a CH₄–CO₂ mixture,^34–36 not to mention that sulfur impurities always significantly deactivate its reforming capability. On one hand, the recent advancement of coke-sulfur resistant DRM catalysts is not fully utilized in SOFC research due to many practical barriers, e.g., the >1300 °C sintering temperature of SOFC fabrication. On the other hand, a typical Ni–YSZ supported cell usually shows a much decreased performance when being directly fed with equal amounts of CH₄ and CO₂,³³ although performance can be improved by introducing noble metal catalysts^37,38 or using novel fabrication methods.^39,40 To combine the advantages of both hands, we herein design a novel SOFC reactor equipped with a highly coke/sulfur resistant triple-layer anode (TA-SOFC). The so-called electrochemical dry reforming (EDRM) process efficiently converts the H₂S-containing (sour) CH₄–CO₂ into syngas and electricity.

2. Experimental

2.1. Material preparation and cell fabrication

Ni_0.8M_0.2 (NiM: M = none, Co, Cu, Fe)–Ce_0.8Zr_0.2O₂ (ZDC) catalysts were prepared using a glycine–nitrate combustion process (GNP). The button cell (ϕ 13 × 1 mm) of the conventional SOFC (C-SOFC) is composed of a Ni–YSZ support layer, Ni–YSZ functional layer, YSZ electrolyte, Ce_0.9Gd_0.1O_1.9 (GDC) buffer-layer and a 0.5 cm² La_0.6Sr_0.4Co_0.2Fe_0.8O_3−δ (LSCF)-GDC cathode. The triple anode layer SOFC (TA-SOFC) was constructed by coating the Ni_0.8Cu_0.2O (NiCuO)–ZDC slurry onto the surface of the Ni–YSZ support, followed by calcination at 900 °C for 2 h in air. Fabrication details of the cell can be found in the ESI.†

2.2. Evaluation of catalyst performance in DRM process

Catalytic activity measurements for the DRM reaction were performed at atmospheric pressure from 550 to 800 °C using a fixed bed reactor (details are described in the ESI†). With regard to the assessments of sulfur tolerance, we performed an accelerated poisoning test via aging the catalysts in a H₂S-containing feed stream (H₂-500 ppm H₂S) at 850 °C for 5 h. During the DRM, the gas mixtures of sweet (H₂S-free) CH₄–CO₂ (mole ratio = 1 : 1) or sour (H₂S-containing) CH₄–CO₂ (mole ratio = 1 : 1, with 50 ppm H₂S) were fed into the reactor at a flow rate of 20 ml min⁻¹. Compositional analysis of the effluent gases was performed with a gas chromatograph (GC, Hewlett Packard Series two). The percentages of CH₄ conversion and CO selectivity were calculated according to eqn (1) and (2), respectively.

2.3. EDRM process measurements

A detailed description and explanation of EDRM are presented in Section 3.1 (vide infra). In the experiment, an Au paste current collecting layer was painted on both sides of the electrode surface and baked in air at 800 °C for 2 h. Pt mesh and wire were used as the current collector and the measuring lead, respectively. Button cells were sealed on an alumina tube using a Ceramabond® glass sealant (Type 552) and reduced in pure H₂ atmosphere at 800 °C for 2 h. Prior to electrochemical evaluation, the anode was polarized in H₂ or H₂-500 ppm H₂S (denoted as H₂S treated cell below) at 850 °C and 0.8 V constant voltage for 5 h. After reduction and stabilization, I–V polarization curves and electrochemical impedance spectra (EIS) in H₂ (40 ml min⁻¹), CO (40 ml min⁻¹), CO–H₂ (mole ratio = 1 : 1, 40 ml min⁻¹) and sweet CH₄–CO₂ (20 ml min⁻¹, the gas hourly space velocity was ∼9041 h⁻¹) were collected. The performance stability and corresponding effluent gas composition were also measured under constant current with sweet or sour CH₄–CO₂ (with 50 ppm H₂S) as the feeds, and the flow rates were both 20 ml min⁻¹. The air flow rate in the cathode was fixed at 500 ml min⁻¹.

3. Results and discussions

3.1. Electrochemical dry reforming of methane (EDRM)

Fig. 1 shows a schematic of the electrochemical dry reforming of methane in TA-SOFC. In this design, an additional coke/sulfur resistant layer, composed of ZDC supported bimetallic alloys, was attached to the surface of the anode support to perform dry reforming. Prior to entering the Ni–YSZ anode, the sour CH₄–CO₂ feedstream is therefore effectively reformed, yielding syngas. Sequentially, the acquired syngas reaches the triple-phase boundaries (TPBs) where H₂ is preferentially oxidized with negligible CO₂ formation, pertaining to H₂ conversion in SOFCs being several fold faster than that of CO (vide infra). This unique behavior became more prominent when sulfur was present, which might be attributable to the sulfur–nickel synergetic effect,^41–43 as the sulfur poisoning suppressed the oxidation of CO much more significantly. In addition, the H₂O generated from the H₂ electrochemical reaction suppresses coke formation, and the heat released during the energy conversion process can partially compensate for that required for DRM.

Fig. 1 A schematic drawing of the electrochemical dry reforming of methane in SOFC.

3.2. Screening sulfur/coke resistant DRM catalyst

The prepared NiM (M = none, Co, Cu, Fe) bimetallic alloys on ZDC were initially characterized via X-ray diffraction (XRD). The results showed that single metallic phases formed in all of the catalysts (Fig. S2†). For example, Fig. 2a displays the XRD patterns of the as-synthesized and reduced NiCuO–ZDC, confirming that the ZDC crystal remained stable in both the reducing and oxidizing atmospheres, whereas NiCuO was fully reduced to NiCu bimetallic alloy. The broad diffraction peak of NiCu also implied its fine particle size, ensuring high catalytic activity for the DRM reaction. The reduction behaviors of these catalysts were characterized using thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) performed in 10% H₂ (see Fig. 2b and S3†). As pure ZDC demonstrated good weight stability, we concluded that the two exothermic peaks (250.80 °C and 383.64 °C) of NiCuO–ZDC came from the reduction of NiCuO. Transmission electron microscopy (TEM) analysis was performed to further investigate both the compositional and morphological characteristics of the NiCu–ZDC catalyst. The bright field (BF) image in Fig. 2c shows the good dispersion of the bimetallic nanoparticles (NPs). The energy dispersive X-ray spectroscopy (EDX) elemental mappings further confirmed the formation of the bimetallic NiCu phase (cf. XRD data above). The high resolution TEM (HRTEM) micrographs in Fig. S4 †reveal that the NiCu NPs are spherical, 10 to 25 nm in size, and well dispersed over the cube-like ZDC (Fig. S5†).

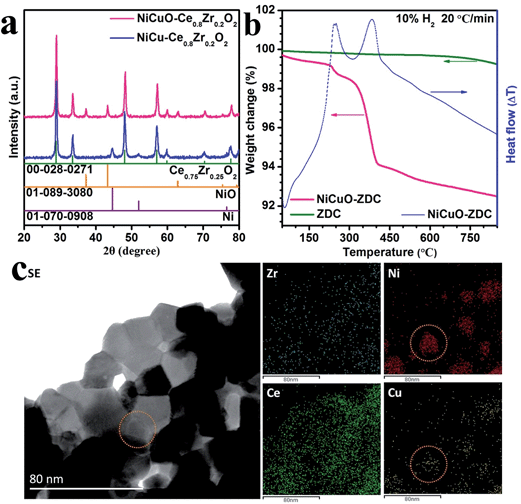

Fig. 2 (a) XRD patterns of the as-synthesized and reduced NiCuO–ZDC; (b) TGA–DSC curves of ZDC and NiCuO–ZDC catalysts in 10% H₂; (c) TEM bright field image of NiCu–ZDC and EDX elemental mappings of Ni, Co, Ce and Zr.

The performances of the NiM–ZDC catalysts, regarding their catalytic activity and coke/sulfur resistance, for the DRM reaction were evaluated prior to EDRM application. The state-of-the-art Ni–YSZ electro-catalyst (calcined at 1390 °C to simulate the sintered state of the SOFC anode) was also included as a control. Fig. 3a to e compare the CH₄ conversion, CO selectivity and the effluent composition when different catalysts were applied in sweet CH₄–CO₂ from 550 to 800 °C. Apparently, CH₄ conversion and syngas yield increased rapidly with an increase of temperature. NiM–ZDC catalysts showed excellent activities, and >90% methane conversion was recorded at temperatures higher than 750 °C. Conversely, the performance of Ni–YSZ was rather poor, most likely as a result of the sintering effect causing severe agglomerations of Ni particles. In fact, this observation was in accordance with those documented in the literature, showing that the conventional Ni–YSZ anode of SOFCs was not capable of achieving effective internal DRM under SOFC conditions.^44–46 Its inferior performances were also reflected in the measured low power density and high polarization resistance.^39,44,45

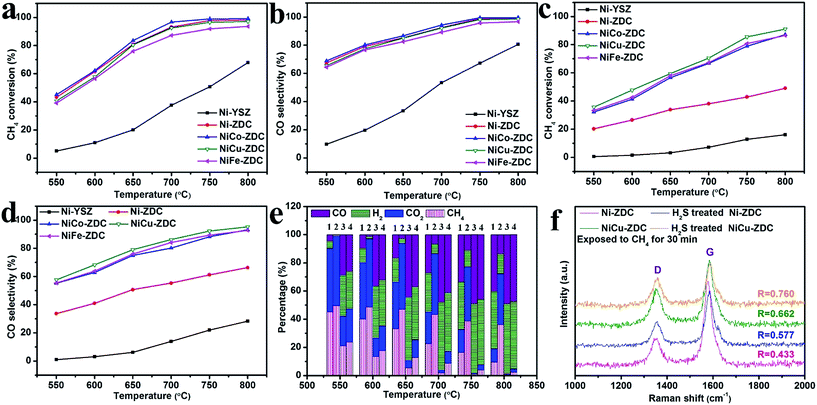

Fig. 3 (a and c) CH₄ conversion and (b and d) CO selectivity in the DRM process at various temperatures using (a and b) pristine and (c and d) 500 ppm H₂S–H₂ pretreated catalysts in a fixed bed reactor; (e) the effluent compositions when using (1) Ni–YSZ, (2) NiCu–ZDC, (3) H₂S treated Ni–YSZ and (4) H₂S treated NiCu–ZDC catalysts; (f) Raman spectra and R values of carbon deposits on the catalysts after being exposed to CH₄ at 800 °C for 30 min.

Sulfur tolerance was evaluated by initially exposing the catalyst to H₂-500 ppm H₂S at 850 °C for 5 h prior to the DRM test. Although the H₂S treatment deactivated all the catalysts regarding the DRM reaction, the bimetallic catalyst showed a much enhanced sulfur tolerance.^47,48 The methane conversion on H₂S treated Ni alloys could reach 91%, approximately 4-fold higher than that of Ni–YSZ (see Fig. 3c). In particular, NiCu seemed to outperform the controls. The poisoned NiCu catalyst showed a roughly identical CH₄ conversion and syngas yield in comparison with the pristine at temperatures above 750 °C. This is because the alloying elements, such as Cu and Co, have lower affinities to H₂S and are thus thermodynamically more stable in a H₂S environment.^47,48

Coke resistance is another pivotal parameter to consider when designing DRM catalysts. Therefore, we further evaluated their carbon resistance via exposing them to pure CH₄ for 30 min at 800 °C. Such a coking test under extreme conditions (in pure CH₄ rather than 50% CO₂ + CH₄) could accelerate the carbon deposition rate.^35,36,39,40 The Raman spectra in Fig. 3f and S6† compare the carbon peak of the Ni–YSZ, pristine and sulfur poisoned NiM–ZDC catalysts. Two intense bands related to the deposited carbon appeared in the spectra, i.e., the D (defect) band associated with the disordered structure of carbon, and the G (graphite) band featuring the graphitic layers and the tangential vibration of carbon atoms. Usually, the amorphous carbon can be easily removed when oxidants are present (e.g., CO₂, H₂O or O²⁻).^39,40,49 The intensity ratio R(I_D/I_G) reflects the graphitization degree. A higher value of R here implies that the material might be more coke resistant under DRM conditions (cf. the quantitative coke deposition study via TGA below).^35,36,39,40 The NiCu–ZDC catalyst yielded the highest R value (0.662) compared with the other bimetallic catalysts in pure methane. This graphitization degree decreased further on the poisoned catalyst, NiCu–ZDC, yet it exhibited the highest R value (0.760). In fact, copper is commonly documented as an excellent “coke-suppressing” alloying element, as it dilutes the active site on the surface of nickel, restraining carbon–carbon bond formation.^12,23,24

After screening a series of DRM catalysts, we concluded that the conventional Ni–YSZ electro-catalyst was not appropriate for in situ dry reforming of methane, particularly due to its low activity and poor sulfur resistance. Alternatively, NiM–ZDC bimetallics exhibited a greatly improved catalytic performance, among which NiCu behaved complementarily in reference to its activity and coke/sulfur resistance. It was thus selected as the catalyst in the EDRM process.

3.3. Designing SOFCs with a triple anode layer for the EDRM process

Despite the excellent performances of the NiCu bimetallic catalyst towards the DRM reaction, applying it to the SOFC anode remains a challenging task. This was simply due to the low melting points of both copper and copper oxide which can sublimate during the co-firing step of SOFC fabrication (>1300 °C). To cope with this difficulty, we designed a triple-layer anode in SOFCs (denoted as TA-SOFC) as shown in Fig. 4a. The extra layer on the anode, containing nanosized NiCu bimetallic catalyst, was fabricated using a 900 °C calcination process. No delamination of this layer from the anode support was observed afterward (Fig. S7†), which could be ascribed to the addition of a Zr doping element that increased the compatibility at the YSZ and ZDC interface (also to the adoption of a Ni based alloy). Meanwhile, this seamless integration led to efficient electron transfers during electrochemical reactions.

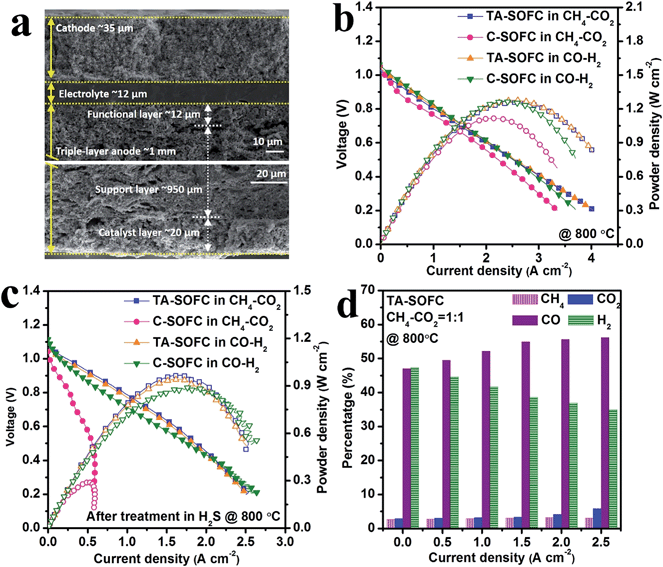

Fig. 4 (a) Cross-section microstructure of the reduced TA-SOFC; (b and c) the I–V and I–P curves of (b) pristine and (c) 500 ppm H₂S–H₂ pretreated C-SOFC and TA-SOFC in CH₄–CO₂ and CO–H₂ at 800 °C; (d) the current-dependent anode exhaust composition of TA-SOFC fed with sweet CH₄–CO₂ after H₂S pretreatment.

The addition of the bimetallic layer did not deteriorate the SOFC performance, and the TA-SOFC and conventional SOFC (denoted as C-SOFC) demonstrated essentially identical performances in H₂, CO and syngas (see Fig. 4 and S8–S10†). For instance, the peak power densities (PPDs) in H₂ were ∼1.4 W cm⁻² for both C-SOFC and TA-SOFC, whereas they decreased to ∼1.0 W cm⁻² in sour atmospheres. We used the cell performance in syngas as a descriptor to evaluate the degree of internal reforming when feeding the cell with CH₄–CO₂. This is because when methane was completely dry reformed in situ, the actual feed of the SOFC became exactly the same as CO–H₂. Intuitively, similar SOFC performances should be therefore recorded. Hence, Fig. 4b compares the I–V and power density profiles in various fuels at 800 °C. Though the PPDs of C-SOFC and TA-SOFC were close in CO–H₂ (∼1.2 W cm⁻²), the PPD of TA-SOFC in CH₄–CO₂ was roughly 12.5% higher than that obtained in C-SOFC (1.26 W cm⁻²vs. 1.12 W cm⁻²). Since TA-SOFC indeed exhibited an almost identical performance in both feedstreams, it became reasonable to speculate that the additional catalyst layer, NiCu–ZDC, fostered the conversion of methane. This was in good agreement with our catalyst screening tests (vide supra). Conversely, the noticeable PPD decrease of C-SOFC in CH₄–CO₂ in comparison with that in syngas was related to the weak reforming capability of the conventional Ni–YSZ anode.

More importantly, after H₂S pretreatment, the TA-SOFC showed much better performances. Albeit both TA-SOFC and C-SOFC demonstrated satisfactory performances in syngas (see Fig. 4c), the PPD of C-SOFC dropped drastically to 0.29 W cm⁻² when the feed was switched to CH₄–CO₂. In contrast, a high PPD, equal to 0.96 W cm⁻², was preserved in TA-SOFC. This privileged feature was likely to relate to the excellent sulfur tolerance of NiCu–ZDC regarding the methane reforming reaction.

This instinctive conjecture regarding the reforming activity of the catalyst in SOFCs was then re-assessed quantitatively via analyzing the gas composition of the anode effluent (see Fig. 4d and S11†). Obviously, a high content of both CH₄ and CO₂ remained in the effluent of the C-SOFC under all current conditions. In the TA-SOFC, the percentages of CO₂ and CH₄ were both ∼3% at the open-circuit, affirming the previous claim that CO₂ and CH₄ were almost completely converted to syngas (cf.Fig. 3e). Interestingly, as the applied current rose up, CO concentration increased whereas that of H₂ decreased; in the meantime, a negligible amount of CO₂ was produced from CO electrochemical conversion when the current was below 1.5 A cm⁻². Such a “selective” oxidation of H₂ contributed to the power generation, leading to nearly zero GHG emission. This effect is beneficial in terms of GHG control/chemical coproduction, and has been rarely reported in hydrocarbon fueled SOFCs.^50–52

In fact, both the C-SOFC and TA-SOFC were employed with oxygen-conducting electrolytes. Theoretically, O²⁻ can readily oxidize both CO and H₂ when the SOFC is biased. The selective oxidation of H₂ observed above can be explained from two perspectives. On one hand, intrinsically, the electro-oxidation of H₂ in SOFCs proceeds more rapidly, and its rate is believed to be several fold faster than that of CO.^53,54 Our measurements in Fig. S8† also proved this. On the other hand, such a rate difference became more prominent in the sour feed stream, mainly due to the extremely poor electrochemical performance of the TA-SOFC in CO. Its PPD decreased to merely 0.30 W cm⁻² (1.06 W cm⁻² in H₂, see Fig. S9†). In the electrochemical EIS in Fig. S10,† the polarization resistance (R_P) in H₂ decreased to 0.17 Ω cm² when the cell was biased at −0.5 V (relative to OCV), but R_P reached 2 Ω cm² in CO under the same conditions. From the thermodynamic calculation⁵⁵ and our former XPS data,⁴² we ensured that the adsorbed sulfur species were formed on Ni in this study, alternating the chemisorption geometry of CO on Ni.⁴³ This might have possibly prevented the diffusion of CO to the TPB, consequently restraining its electrochemical oxidation.

We also performed stability tests on the NiM–ZDC catalyst. Fig. 5a displays the time dependent CH₄ conversion of the NiCu–ZDC catalyst at 800 °C under open circuit conditions. It decreased as a function of time in sweet CH₄–CO₂, presumably due to coke formation.^17,18 Such degradation was suppressed on the poisoned catalyst. Under EDRM conditions when TA-SOFC was biased at 1.5 A cm⁻² (50 ppm H₂S contained CH₄–CO₂), the output voltage was stable at ∼0.68 V whereas the corresponding power density attained 1.02 W cm⁻² during the entire 48 h test (see Fig. 5b). This significantly surpassed most reports in the literature, particularly considering the sour feed conditions of this work (see Table S2† for details). Meanwhile, the effluent gas composition profile shows high conversions of CH₄ and CO₂ during this period of time yet the produced CO was barely oxidized (see the CO₂ concentration under OCV condition in Fig. 4d). This strongly indicates that EDRM in TA-SOFC is a promising process with little CO₂ emission.

Fig. 5 (a) Time dependent CH₄ conversion of the DRM process at 800 °C; (b) time dependence voltage of H₂S-pretreated TA-SOFC in sour CH₄–CO₂, containing 50 ppm H₂S, at 800 °C and at 1.5 A cm⁻², and the corresponding variations of anode exhaust composition; (c) TGA signals in air of various fresh and used catalysts, and the weight loss quantitatively reflects the burning of coke; (d) thermodynamic calculation of equilibrium carbon content vs. fuel utilization during the EDRM process.

We thus quantitatively investigated the coke formation in the NiCu–ZDC reforming layer of the TA-SOFC after the 48 h stability test using a temperature programmed oxidation technique (TPO via coupled TGA-MS, shown in Fig. 5c and S14†). The as-reduced NiCu–ZDC was oxidized, showing a weight-increase at ∼400 °C. However, after DRM in either sour or fresh feeds, huge weight losses were recorded at ∼500 °C, correlating with the oxidation of deposited carbon. Particularly for that without H₂S pre-treatment, the weight loss reached 55%. In the catalysts after the EDRM process (J = 1.5 A cm⁻²), much less carbon was found. Such suppressed carbon deposition was further alleviated by H₂S treatment and/or feeding sour CH₄–CO₂, pertaining to the possible sulfur passivation effects.^56,57 The higher grade of coke tolerance in EDRM was ascribed to the steam generated during the preferential oxidation of H₂. Fig. 5d compares the equilibrium carbon content (ECC) as a function of H₂ (CO) utilization in SOFCs, calculated using HSC Chemistry 5.1. At 825 °C, the ECC was more than 14%, making DRM (0% fuel utilization) extremely prone to graphitization. In the EDRM process, however, when the fuel utilization reached 50% (note that our fuel utilization in the experiment was ∼45% at 1.5 A cm⁻²), the tendency of coking was substantially reduced by ∼60%, giving 6.5% ECC. Hence, the EDRM process in the TA-SOFC suppressed coke formation both kinetically (via the NiCu catalyst) and thermodynamically.

4. Conclusions

We conclude that electrochemical dry reforming of sour methane in SOFCs consisting of a triple-layer anode enables the co-production of syngas and electricity. The applied NiCu bimetallic catalyst layer was well-incorporated into the anode of the SOFC and possessed an excellent reforming capability and coke/sulfur resistance. The in situ produced H₂ is selectively oxidized, resulting in fairly low CO₂ emission. The energy required for DRM was partially compensated for and the coproduced steam greatly suppressed the carbon deposition.
