Changmin
Kim
a,
Ohhun
Gwon
a,
In-Yup
Jeon
a,
Youngsik
Kim
a,
Jeeyoung
Shin
b,
Young-Wan
Ju
*a,
Jong-Beom
Baek
*a and
Guntae
Kim
*a
aDepartment of Energy Engineering, Ulsan National Institute of Science and Technology (UNIST), Ulsan, 44919, Republic of Korea. E-mail: ywju@unist.ac.kr; jbbaek@unist.ac.kr; gtkim@unist.ac.kr
bDepartment of Mechanical Engineering, Dong-Eui University, Busan, 47227, Republic of Korea
First published on 11th January 2016
With the recognition of metal–air batteries as promising candidates for clean and efficient energy storage, the development of inexpensive and effective bifunctional catalysts for the oxygen reduction reaction (ORR) and the oxygen evolution reaction (OER) has become one of the most important topics in this field. Herein, we designed new composite catalysts consisting of a nanorod type Nd0.5Sr0.5CoO3−δ (NSC) perovskite and edge-iodinated graphene nanoplatelets (IGnPs) as bifunctional catalysts for ORR and OER. Interestingly, the simple application of ultrasonication endowed the catalyst with a fascinating morphology comprising cloud-like IGnPs on NSC nanorods (NSC@IGnP). Benefiting from the unique morphological features, NSC@IGnP provides superior bifunctional activities toward both ORR and OER, remarkable cell performance, and exceptionally high stability for hybrid Li–air batteries.
In these regards, heteroatom-doped carbon-based materials, such as boron (B), nitrogen (N), phosphorus (P), and iron (Fe), have been considered as alternatives to Pt-based catalysts due to their highly catalytic properties for ORR.8–12 Jeon et al., for the first time, fabricated edge-halogenated graphene nanoplatelets (XGnPs, X = F, Cl, Br, I) via ball-milling graphite in the presence of fluorine, chlorine, bromine, and iodine.13 XGnPs have favorable binding affinity with O2 molecules and weaken O–O bond strengths of oxygen molecules as a result of the halogenation-induced charge transfer. Among XGnPs, edge-iodinated graphene nanoplatelets (IGnPs) exhibited remarkable electrocatalytic activities toward ORR with excellent long-term cycle stability in an alkaline medium. Although carbon-based electrocatalysts have demonstrated notably enhanced catalytic activities for ORR, they still struggle with poor stability during the OER process.14
Therefore, to improve the overall energy efficiency and retain the stability of the catalysts, efficient oxygen evolution is required. Transition metal oxides, such as spinel, pyrochlores, and perovskites, have been suggested as potential alternatives to noble metal-based OER catalysts.15–19 Among them, perovskite oxides with the general formula of ABO3 (the A-site is a rare and alkaline earth metal cation and the B-site is a 3d transition metal cation) have been extensively explored due to their unique structural and electronic properties. Following the report by Shao-Horn's group on perovskite catalysts for OER using σ* antibonding orbital occupation principles,20 various perovskite oxides have been investigated as electrocatalysts for Li–air batteries, including Sr0.95Ce0.05CoO3−δ,6 Sr2MMoO6−δ,21 La0.8Sr0.2MnO3−δ,22 and La0.6Sr0.4Co0.8Fe0.2O3−δ.23 The relatively sluggish ORR kinetics of these perovskite oxides, however, necessitates proper support materials such as carbon. Thus, many studies have been carried out to grow or attach nanostructured oxide catalysts on carbon.24,25 Notwithstanding these efforts, the in situ synthesis of perovskite oxides with a carbon support is still limited by their high sintering temperature.
With this background, we designed a new composite catalyst with excellent bifunctional activities toward both ORR and OER consisting of a nanorod type Nd0.5Sr0.5CoO3−δ (NSC) perovskite and IGnPs via a simple ultrasonication method. Interestingly, the morphology of the composite was characterized by cloud-like IGnPs surrounding NSC nanorods. Since intermediation-spin Co(III) ions on the surface of the cobaltates offer an e1g configuration,20,26 the NSC nanorod perovskite exhibits superior OER activity. Moreover, IGnPs provide favorable binding affinity with O2 molecules and fast electron transfer pathways,13 contributing to dramatic improvement of the ORR performance. With these favorable properties, we investigated, for the first time, cloud-like IGnPs on NSC nanorods (NSC@IGnP) with excellent bifunctional activities toward both ORR and OER, remarkable cell performance, and exceptionally high stability for hybrid Li–air batteries.

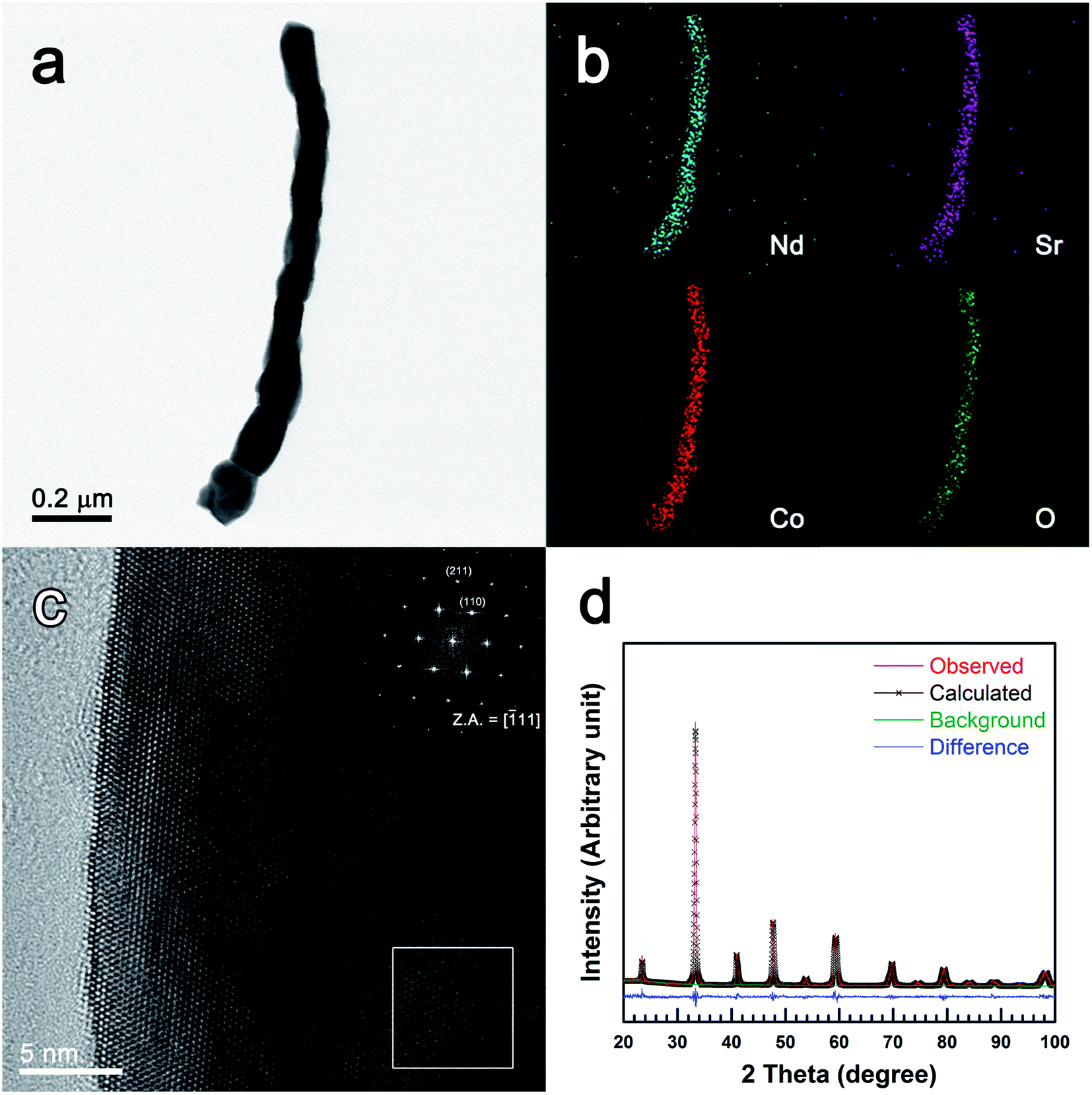

A nanorod type Nd0.5Sr0.5CoO3−δ (NSC) perovskite was prepared by the electrospinning method using a 15 wt% polyvinylpyrrolidone (PVP, average Mw ∼ 1300
000 by LS, Sigma-Aldrich Co.) solution of 0.1 M metal nitrate precursors in N,N-dimethylformamide (DMF, Alfa Aesar Co.). The metal nitrate solution was prepared by dispersing stoichiometric amounts of Nd(NO3)·6H2O (Sigma-Aldrich Co., 99.9%, metal basis), Sr(NO3)2 (Sigma-Aldrich Co., 99+%), and Co(NO3)2·6H2O (Sigma-Aldrich Co., 98+%) in DMF solvent under continuous stirring. The prepared 15 wt% PVP metal nitrate solution was placed in a 30 mL syringe with a capillary tip (D = 0.5 mm). A variable high voltage power supply (Korea switching Co.) was used for the electrospinning process. The anode of the high voltage power supply was clamped to a syringe needle tip, and the cathode was connected to an aluminum foil collector. The applied voltage was 15 kV, the distance between the nozzle and collector was 15 cm, and the supply rate of the solution was 0.5 mL h−1. The electrospun fibers were collected and sintered by heating to 850 °C at a rate of 2 °C min−1 in air, and holding them at that temperature for 4 h. The mass ratio of NSC to IGnPs was 1
:
1, 2
:
1, and 3
:
1 and each sample was denominated as NSC@IGnP (1
:
1), NSC@IGnP (2
:
1), NSC@IGnP (3
:
1), respectively. Each composite was dispersed in isopropyl alcohol (IPA) followed by a treatment of ultrasound with a 500 W ultrasonic generator for 1 h. The resultant product was then vacuum filtered followed by an overnight drying at 80 °C. Details of the electrochemical characterization with different mass ratios of NSC to IGnPs are available in the ESI (Fig. S7, ESI†). In this study, NSC@IGnP (2
:
1) was chosen as the optimized ratio and representatively named NSC@IGnP.
The electrochemical tests were carried out using a computer-controlled potentiostat (Biologic VMP3) with a RRDE-3A rotating disk electrode system. A platinum wire was used as the counter-electrode and an Hg/HgO (1 M NaOH filled) electrode as the reference electrode. The working electrodes were prepared by applying each of the catalyst inks onto a pre-polished glassy carbon disk electrode. The catalysts were first dispersed in ethanol/isopropyl alcohol solution (10 mg mL−1) and Nafion (25 wt%) stock solution (10 μL) in ethanol was added to the catalyst ink by bath sonication to prepare the catalyst ink. The addition of a small amount of Nafion could effectively improve the dispersion of catalyst suspension and enhance the binding onto the GC electrode. A total of 5 μL well-dispersed catalyst ink was applied onto the prepolished glassy carbon (GC) disk electrode (5 mm in diameter).
The carefully prepared electrodes were dried at room temperature before the electrochemical tests. The number of electrons transferred (n) and peroxide yields (%) were calculated by the followed equations.27,28
Fig. 2a shows a TEM image with the schematic illustration of edge-iodinated graphene nanoplatelets on the NSC nanorod (NSC@IGnP). Interestingly, the simple method of ultrasonication leads to NSC@IGnP having a fascinating morphology with cloud-like graphene platelets around NSC nanorods. The typical thickness of the IGnP layers covering NSC was approximately 10 nm. Recently, high energy wet-milling has been explored to fabricate graphitic layer coated metal-oxides.30,31 Surface graphitic layers on metal-oxides can provide facile electron conductive pathways and an extended electrochemically active area toward the ORR process.30,31 Suslick reported that ultrasound delivers extremely high energy during interparticle collisions at the liquid–solid interface,32 which could explain the formation of the IGnP layers throughout the NSC nanorod by ultrasonication in this study. Furthermore, an EDS analysis was carried out to reveal the elemental profiles of the NSC@IGnP, which confirms that IGnPs uniformly cover NSC nanorods (Fig. 2b).
![]() | ||
Fig. 2 (a) TEM image of NSC@IGnP with the schematic illustration as the inset. (b) Elemental mapping by EDS from TEM energy-filtered images. |
The oxygen reduction activities of Pt/C, NSC, IGnP, and NSC@IGnP were investigated by rotating ring disk electrode (RRDE) experiments in O2-saturated 0.1 M LiOH. Fig. 3a shows the ORR performance of each sample by linear sweep voltammetry (LSV) measurement on the RRDE at a rotation rate of 1600 rpm and a scan rate of 0.01 V s−1. The onset potential for oxygen reduction of IGnPs is −0.09 V versus a Hg/HgO reference electrode, which is slightly higher than that of Pt/C (+0.05 V). Meanwhile, the limiting current of IGnPs is even higher than that of Pt/C at the higher overpotential area, revealing exceptional ORR activity of IGnPs, as reported.13 While only NSC shows a relatively high onset potential with low current density, the composite of NSC@IGnP presents dramatically enhanced ORR activities, contributed by IGnPs, offering favorable O2 molecule binding affinity along with weakened O–O bond strength.13
To obtain further insight into electrocatalytic pathways for ORR, the number of electrons transferred (n) and the peroxide yields (%) of the samples were calculated from the disk (Fig. 3a) and ring currents (Fig. S3a, ESI†) on a rotational disk-ring electrode. The number of electrons transferred (n) at −0.8 V for IGnPs, NSC, and NSC@IGnP was determined to be 3.83, 3.74, and 3.80, respectively (Fig. 3b). The corresponding peroxide yields (%) were measured to be less than 10% (Fig. S3b, ESI†), suggesting a predominant four-electron transfer pathway during the ORR process. These results reveal that the composite of NSC@IGnP is a highly promising electrocatalyst in an alkaline solution due to its excellent ORR activity and cost-effectiveness compared to the benchmark Pt/C catalyst.

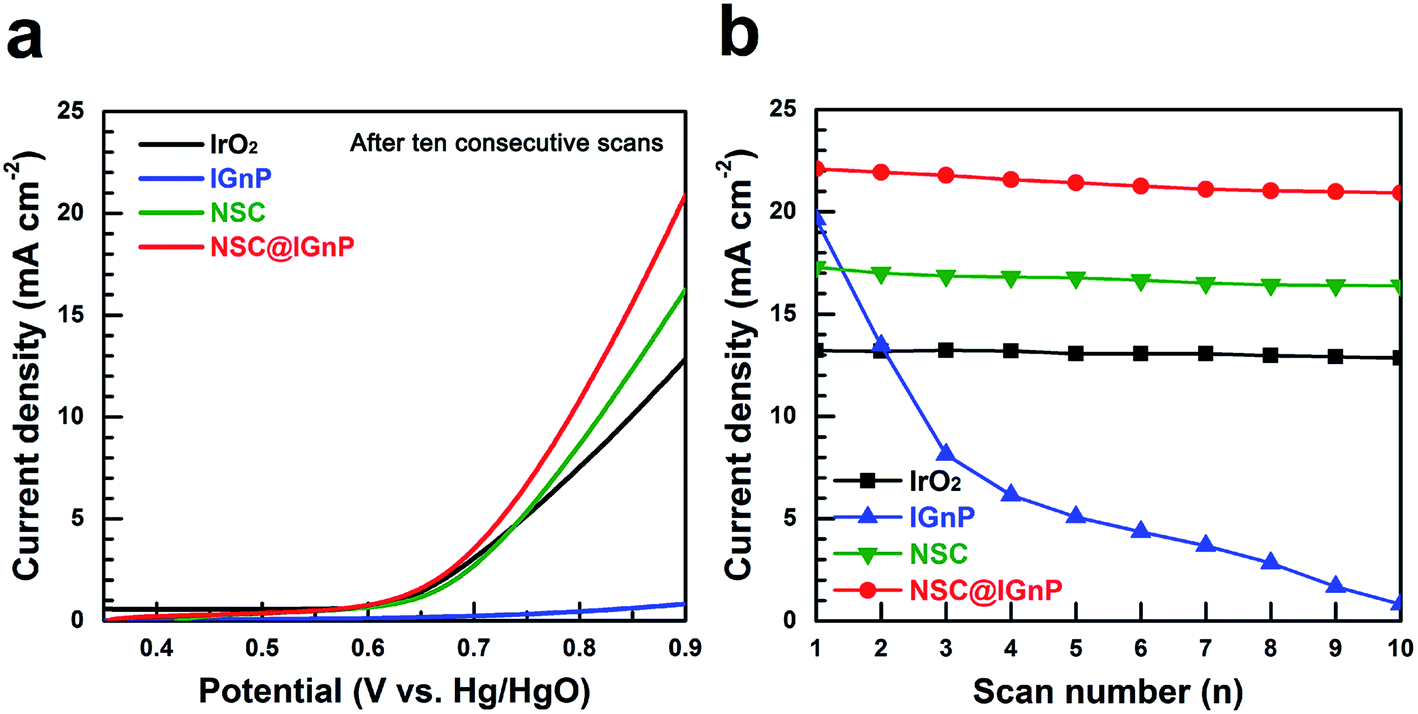

Furthermore, efficient oxygen evolution is required to achieve higher energy efficiency and retain the stability of the catalysts. The activities of the oxygen evolution reaction (OER) were measured in O2-saturated 0.1 M LiOH at a rotation rate of 1600 rpm and a scan rate of 0.01 V s−1. Fig. 4a shows the polarization curves of OER after ten consecutive polarization scans for IGnPs, NSC, and NSC@IGnP, and IrO2 as a reference. IGnPs present very poor OER electrocatalytic activity with a high onset potential and a low current density. On the other hand, NSC shows excellent OER activity, outperforming IrO2 because the intermediate-spin Co(III) cations on the surface provide an e1g configuration.20,26 Moreover, OER activities are notably enhanced for the NSC@IGnP, as confirmed by the much lower onset potential and higher current density. The synergistic OER enhancement of NSC@IGnP could stem from the high OER activity of NSC and the efficient electron transfer pathways of uniformly coated IGnPs. Fig. 4b displays the current densities along ten consequent scans at 0.9 V for each electrocatalyst. For the first scan, IGnPs exhibit an onset potential of 0.35 V and a current density of 19.6 mA cm−2 at 0.9 V, whose value is superior to that of IrO2 (Fig. S4, ESI†). In contrast, severe degradation of the OER performance is observed during ten consecutive scans for IGnPs, resulting in a positive shift of the onset potential and a significant drop of the current density. These results confirm that IGnPs are highly vulnerable to the OER process, as generally observed for carbon-based materials,14 while NSC shows highly efficient OER activities without degradation during ten consecutive scans. Interestingly, the composite NSC@IGnP exhibits highly stable and superior OER activities, possibly originating from OER catalytic properties of NSC. This suggests that NSC@IGnP is a prospective OER catalyst, providing remarkable performance with high durability in alkaline media.
The electrochemical performance of Pt/C, IGnPs, NSC, and NSC@IGnP was evaluated using a hybrid Li–air battery. Fig. 5a shows the first discharge–charge curves of Pt/C, IGnPs, NSC, and NSC@IGnP in 0.1 M LiOH at a current density of 625 mA g−1. The discharge voltage plateaus are obtained at 2.98, 2.94, 2.33, and 2.89 V versus Li/Li+ for Pt/C, IGnPs, NSC, and NSC@IGnP, respectively. More discharge profiles are investigated at higher current densities in the range of 625 to 2500 mA g−1 (Fig. S5, ESI†). At 625 mA g−1, the discharge voltage of NSC@IGnP is only 0.09 V lower than that of Pt/C. Even at a higher current density of 2500 mA g−1, the difference in the discharge voltage between NSC@IGnP and Pt/C is only 0.1 V. These results demonstrate that the NSC@IGnP catalyst is comparable to Pt/C even in the high current density region. Fig. 5b presents the cycling performance of IGnPs, NSC, and NSC@IGnP at a constant current density of 125 mA g−1 in ambient air. IGnPs show obvious degradation during 40 h with a substantial increase in the discharge–charge voltage gap from 0.58 V to 1.62 V. This result is in accordance with the vulnerability of IGnPs during the OER process (Fig. S4, ESI†). For NSC, in contrast, invariant cycling performance was obtained during 40 h more reduced charge overpotential relative to IGnPs. However, the relatively sluggish ORR kinetics of NSC causes a low discharge performance with a high discharge–charge voltage gap of 1.23 V. In the case of NSC@IGnP, outstanding cycling performance was obtained during 40 h with the lowest discharge–charge voltage gap (less than 1.0 V). Consequently, NSC@IGnP is an efficient bifunctional catalyst with comparable performance to noble metal based catalysts, such as Pt/C and IrO2, for a hybrid Li–air battery.
Footnote |
† Electronic supplementary information (ESI) available. See DOI: 10.1039/c5ta08493h |
