Silicon oxycarbide ceramics as anodes for lithium ion batteries: influence of carbon content on lithium storage capacity

Abstract

We report here on the synthesis and characterization of silicon oxycarbide (SiOC) in view of its application as a potential anode material for Li-ion batteries. SiOC ceramics are obtained by pyrolysis of various polysiloxanes synthesized by sol–gel methods. The polysiloxanes contain different organic groups attached to silicon, which influence the chemical composition and the microstructure of the final ceramic product. The structure of the SiOC samples is investigated by XRD, micro-Raman spectroscopy, solid state ²⁹Si MAS-NMR and TEM. All investigated samples remain amorphous. However, at the elevated temperature of pyrolysis a phase separation process begins. During this process the carbon clusters become more ordered, which is reflected in the higher intensity and narrowing of the D1 band and decreasing of the D3 band. Moreover, the elevated temperature of pyrolysis promotes consumption of mixed bonds units, SiO₃C, SiO₂C₂, SiOC₃, and increases the share of oxygen rich SiO₄ and carbon rich SiC₄ tetrahedra. Electrochemical studies show a clear dependence between free carbon content and lithium storage capacity. Carbon-rich samples exhibit significantly higher capacities (∼550 mA h g⁻¹ recorded at low current rate after 140 charge–discharge cycles) compared to carbon-poor samples (up to 360 mA h g⁻¹). Moreover, carbon-rich samples exhibit a lower irreversible capacity during their first cycles compared to low carbon samples.

---

1. Introduction

The aim of research on lithium-ion batteries is to find lightweight and small rechargeable power sources to power not only portable electronics but also bigger applications like electric vehicles. Progress in efficient accumulation of energy is a crucial topic in the field of electrochemistry, because of the increasing energy consumption and demand.^1–6 Three different ways of improving the performance of lithium-ion batteries may be observed depending on the components researchers focus on, i.e. electrodes,^7–10 electrolytes^11,12 and separators.¹³ Our study is settled in the field of searching for anode materials that can meet recently raised expectations. Negative electrodes should have a low self-discharge, optimal energy density and stability and rapid charging/discharging capability. Polymer Derived Ceramics (PDCs) approach allows designing the electrochemical properties of anodic materials. It provides an opportunity to examine different prepolymer combinations and molar ratios in order to obtain ceramic material of desirable electrochemical properties.^14–18 Silicon oxycarbide ceramics (SiOC) is commonly known to display high reversible capacities, stability and slight volume changes during charging/discharging cycles.^19–22 Thus, within this work we investigate SiOC obtained through the pyrolysis of several polysiloxanes as an alternative electrode material. To tailor the composition the polysiloxanes were prepared by sol–gel synthesis, in which three preceramic precursors containing different functional groups were used, i.e. methyltriethoxysilane, vinyltriethoxysilane and phenyltriethoxysilane. The mechanism of lithium-ions storage is not still fully understood. A set of electrochemical data was already published in the middle of the 1990s by the group of Dahn.^23,24 However, the above publications mostly address the electrochemical performance of the materials with respect to their elemental composition, without considering the mechanism of lithium storage and lithium transport in these materials. As a consequence of increasing interest in this kind of electrode materials, questions related to the lithium storage mechanisms within SiOC based materials have recently been the focus of many research. Raj et al. claim that the mixed bond configuration (tetrahedrally coordinated silicon from SiC₄ via SiC₃O, SiC₂O₂ and SiCO₃ to SiO₄) in SiOC ceramics acts as a major lithiation site.^25–29 Other research groups claim that the Li insertion into carbon-rich SiOC compounds occurs in the form of an adsorption and surface storage within the free carbon phase, similar to the storage of Li-ions in disordered carbons. Host sites are considered the edges of graphene sheets, interstitial and defect sites, micro-pores, graphite nano-crystallites and interfacial adsorption at carbon-crystallite interfaces. To the Si–O–C glassy phase, on the contrary, is attributed a minor role in the reversible storage process. The recent investigation of Fukui et al. by means of ⁷Li MAS NMR (magic angle spinning nuclear magnetic resonance) measurements demonstrates that the free carbon phase within these materials is the major hosting site for Li ions.^19,30 However, it is known that the electrochemical properties of final ceramics are strictly dependent on the chemical components of starting polysiloxanes used in synthesis, their molar ratios, crosslinking steps and the temperature of pyrolysis.^14,20–22 It has been proven that organic substituents such as phenyl groups increase the final amount of free carbon phase, that affects the capacity. As it has been reported, the relationship between carbon content and lithium storage capacity is not linear, therefore it is important to investigate the structure of materials along with their electrochemical properties.^14,31

An important part of this work is to optimize the selection of precursors and their ratios for synthesis in order to improve the electrochemical activity of final SiOC product. Moreover, we focused on the analysis of the influence of different organic functional groups on the structure and the chemical composition of SiOC materials. The structure of the samples were analyzed by various methods such as X-ray diffraction, Raman spectroscopy, ²⁹Si MAS NMR. Furthermore, the electrochemical performance of the obtained anode materials towards lithium ions has been investigated by galvanostatic measurements with potential limitation and cyclic voltammetry.

2. Experimental

2.1. Synthesis of silicon oxycarbides

Silicon oxycarbide samples were prepared by pyrolysis (Ar atmosphere, 1000 °C, selected samples also at 1300 °C) of different polysiloxanes containing various organic functional groups attached directly to silicon (phenyl-, vinyl- and methyl-). As it is known, such functional groups are the source of carbon in the final ceramic material.^14,32 Sol–gel method was used for synthesis of polysiloxanes. Three different starting precursors were chosen, namely phenyltriethoxysilane (PhTES), vinyltriethoxysilane (VTES) and methyltriethoxysilane (MTES) and mixed in different ratios in order to adjust type and amount of functional groups present in the final preceramic polymer. Six samples were prepared: VTES, VTES : MTES 3 : 1, VTES : MTES 2 : 1, PhTES : VTES 2 : 1, PhTES : VTES 1 : 1, PhTES : VTES 1 : 2 (number means molar ratios between alkoxysilanes used as substrates for sol–gel synthesis). Precursors were mixed together and then ethanol (CH₃CH₂OH/Si = 2) and acidic water (pH = 4.5, acidified by HCl, H₂O/OCH₂CH₃ = 1) were added to the solution while mixing. The temperature of the synthesis solution was slowly increased to 90 °C and kept for 1 h. Prepared sols, after cooling down to room temperature, were poured to polypropylene test tubes for gelation (4 days at room temp.) and drying (the temperature of drying was increased by 20 °C every three days starting from 40 °C to 100 °C). The dried polysiloxanes were used for pyrolysis (Ar atmosphere, 1000 and 1300 °C).

2.2. Characterization techniques

FTIR spectra were acquired with a FT-IR Nicolet 8700 spectrometer (Thermo Fisher Scientific Inc., USA) operating in ATR mode. Thermogravimetric analysis (TGA) was carried out on a NETZSCH STA 449F1 thermal analyzer (Netzsch Gerätebau GmbH, Germany) under argon gas flow of 70 cm³ min⁻¹ in Al₂O₃ crucibles. The heating procedure was the same as the pyrolysis program. Chemical composition of the SiOC samples was analyzed using a carbon analyzer (Leco C-200, Leco Corporation, USA) and a nitrogen/oxygen analyzer (Leco TC-436, Leco Corporation, USA). The silicon amount was calculated as a difference to 100 wt%, taking into account that only C, O and Si are present in the samples. Possible small amount of hydrogen in the samples was neglected. X-ray powder diffraction measurements were performed using a flat-sample transmission geometry on a Bruker D8 Advance using Ni-filtered Cu Kα radiation. Raman spectra were recorded using a confocal micro-Raman spectrometer (InVia, Renishaw) with an argon ion laser (514 nm) within the wavenumber range of 100–3200 cm⁻¹. MAS-NMR measurements were performed on a Bruker Avance III 700 MHz spectrometer operating at a proton frequency of 700.24 MHz. ²⁹Si NMR spectra were recorded with following parameters: single pulse sequence, ²⁹Si frequency: 139.11 MHz, π/8 pulse length: 2.5 μs, recycle delay: 100 s (sufficient time to get fully relaxed spectra), 1k scans, external secondary reference: DSS. 3.2 mm zirconia rotors filled with samples were spun at 8 kHz under air flow. Electrochemical cells were tested using Atlas-Sollich 0961 (Atlas-Sollich, Poland). Galvanostatic charging and discharging were performed between 3.0 and 0.005 V at different current rates from 18.6 mA g⁻¹ to 744 mA g⁻¹.

2.3. Preparation of the electrodes

SiOC ceramic samples were milled in a ball mill (Mixer Mill MM200, Retsch, Germany). Zirconia pot and zirconia balls (10 mm and 5 mm) were used. Median particle size (D50) after milling was equal to about 10 μm and D90 was below 40 μm. The active material was mixed with the binder (polyvinylidene fluoride PVdF, Solef, Germany) and the conducting additive (Carbon Black Super P^®, Timcal Ltd., Switzerland), with the amounts of 85 wt%, 10 wt% and 5 wt% respectively. The slurry for coating was made by adding NMP (N-methyl-2-pyrrolidone, BASF, Germany) as a solvent (approx. 1 g of NMP for 0.6 g of powder mixture). The slurry was homogenized in the ball mill (Mixer Mill MM200, Retsch, Germany). The electrode layers were tape casted by doctor blade technique (the wet layer was approx. 100 μm thick). Surface treated copper foil was used as substrate for coating (10 μm, copper SE-Cu58 Schlenk Metallfolien GmbH & Co. KG, Germany). The electrode films were dried at 80 °C for 24 h, then the circular electrodes (diameter of 6 mm) were cut and weighted. The active material loading was in a range of 1.2 and 2 mg cm⁻². Before assembling the cells, the electrodes were dried under vacuum at 80 °C for 24 h in a Buchi oven and transferred to the glove box (<0.5 ppm O₂, <0.5 ppm H₂O) without contact with air. The electrochemical measurements were performed in two-electrodes cell configuration (Swagelok®) with SiOC layers as a working electrode and lithium foil (99.9% purity, 0.75 mm thickness, Alfa Aesar, Germany) as a counter/reference electrode. Solution of 1 M LiPF₆ in ethylene carbonate (EC)/dimethyl carbonate (DMC) (Sigma-Aldrich) served as an electrolyte and a quartz filter paper MN GF-2 (Macherey-Nagel GmbH & Co. KG, Germany) was used as a separator.

3. Results and discussion

The progress of the hydrolysis, condensation and the drying processes were monitored by FTIR spectroscopy. Fig. 1 shows the spectra of the sample prepared from pure vinyltriethoxysilane (VTES) starting from the precursor through sol–gel synthesis to the final ceramic material. The spectra of the pure alkoxysilane and the sol (synthesis solution after 0.5 h at 90 °C) look similar. The only difference appears in the region characteristic for Si–O–C stretching vibrations. The bands in this region are slightly broader in the sol spectrum, indicating the appearance of Si–O–Si bonds. Moreover, in the spectrum of sol sample new bands appear: (i) small band at ∼880 cm⁻¹ which may be attributed to Si–OH bending vibrations, (ii) broad band at 1620–1660 cm⁻¹ responsible for H₂O bending vibration and (iii) broad band at 3100–3600 cm⁻¹ indicating the presence of water and alcohol (O–H stretching vibrations). The spectrum of the dried gel exhibits a broad band between 940 and 1200 cm⁻¹. This region is attributed to stretching vibration of Si–O–Si and Si–O–C bonds. However, significant broadening of bands in 1000–1100 cm⁻¹ region may suggest presence of long chains siloxanes.^33,34 Moreover, there are no visible bands at 2975, 2930 and 2885 cm⁻¹ responsible for stretching vibration coming from ethoxy groups, what proves complete hydrolysis and full condensation process. The spectrum of the dried gel does not show bands coming from water or alcohol molecules, while the spectrum of ceramic material shows only broad bands coming from Si–O–Si vibrations. The band at 760 cm⁻¹ (δ(Si–C)), visible in the gel spectrum, disappears in the ceramic sample spectrum, which suggest that most of the carbon from vinyl groups attached to silicon became a free carbon phase after pyrolysis. FTIR spectra of other SiOC samples follows the same scheme as shown in Fig. 1 for VTES sample.

Fig. 1 FTIR spectra of VTES sample: precursor, sol (synthesis solution after 0.5 h at 90 °C), dried gel and ceramic sample after pyrolysis at 1000 °C.

TGA measurement revealed that during pyrolysis polysiloxane gels lose around 16–17.5% of mass. The final chemical composition of studied materials is presented in Table 1. The sample PhTES : VTES 2 : 1 containing the highest amount of phenyl groups contains also the highest amount of carbon in the final ceramic. Moreover, most of the carbon coming from phenyl groups turned into the free carbon as it can be noticed by the empirical stoichiometry of this sample (SiO_1.84C_0.08 + 2.92C_free). Replacing phenyl groups with vinyl ones leads to a significant decrease of the amount of carbon in the ceramic material. The sample prepared from pure vinyltriethoxysilane VTES contains only 19.5% of free carbon. On the other hand, replacing vinyl groups with methyl groups in the polysiloxane results in further reduction of free carbon content, and at the same time, causes an increase of carbon atoms bound to silicon. The results of elemental analysis clearly shows that the carbon content and its character can be precisely adjusted by varying functional groups in the preceramic polymers. All investigated samples, pyrolyzed up to 1300 °C, are amorphous. There is only a small difference between the XRD patterns of the samples pyrolyzed at 1000 and 1300 °C (Fig. 2). Higher pyrolysis temperature gives rise to a broad signal at 22° which corresponds to amorphous SiO₂ (ref. 35) and may be also attributed to the amorphous phase of SiOC.²⁰ The more pronounced reflex at 22° may suggest a phase separation process at elevated temperature, which is typical behavior for silicon oxycarbide ceramics. However, there is no sign of the presence of silicon carbide (reflexes at 36°, 61° and 72°), which used to segregate already at 1200 °C from other silicon oxycarbide materials.^20,35 This result proves the thermal stability of the prepared SiOC samples against crystallization. The small reflex at 43°, attributed to the presence of disordered carbon in the ceramic material,^36,37 becomes more pronounced in the diffractograms of the samples pyrolyzed at 1300 °C. The presented XRD patterns show changes of the structure of the SiOC samples upon increasing temperature of pyrolysis.

Table 1 Results of elemental analysis of the investigated SiOC materials pyrolyzed at 1000 °C

Sample	C, wt%	O, wt%	Si^a, wt%	Cfree, wt%	SiOC stoichiometry SiO2(1−x)Cx + yCfree
a Calculated as a difference to 100 wt%.
VTES	22.9	36.8	40.3	19.5	SiO1.60C0.20 + 1.13Cfree
VTES : MTES 3 : 1	23.7	32.0	44.3	16.7	SiO1.26C0.37 + 0.88Cfree
VTES : MTES 2 : 1	23.2	33.3	43.5	17.1	SiO1.34C0.33 + 0.91Cfree
PhTES : VTES 2 : 1	38.5	31.6	30.0	37.5	SiO1.84C0.08 + 2.92Cfree
PhTES : VTES 1 : 1	38.5	26.2	35.3	33.3	SiO1.30C0.35 + 2.2Cfree
PhTES : VTES 1 : 2	38.0	27.6	34.4	33.7	SiO1.40C0.30 + 2.28Cfree

---

Fig. 2 XRD pattern of carbon-rich PhTES : VTES 2 : 1 sample and carbon-poor VTES sample pyrolyzed at 1000 °C and 1300 °C.

Micro-Raman spectroscopy was used to analyze the structure of carbon phase in the SiOC samples (Fig. 3). All the SiOC samples exhibit two overlapping bands at 1330 ± 10 cm⁻¹ and 1595 ± 5 cm⁻¹, which corresponds to D (D1) and G bands, characteristic for carbonaceous materials. The G band represents the in-plane bond-stretching motion of sp² carbons (E_2g symmetry), whereas the D band is related to disorder in graphitic layers (A_1g breathing mode) and is not observed in perfect graphite.^36,38–40 According to literature reports,^36,40–43 a more detailed analysis may be done by fitting the first order Raman spectra of carbonaceous materials with three to five peaks. Typical examples of additional bands are: D4 (I) located at ∼1200 cm⁻¹, D3 (D′′, A) at ∼1500 cm⁻¹ and D2 (D′) at ∼1620 cm⁻¹.^36,40–43 In the case of the investigated SiOC samples the best fitting result was obtained by deconvolution of each spectrum with four peaks (examples shown in Fig. 3b). The curve fitting of the spectra was performed for the wavenumber range of 800–2000 cm⁻¹ after background subtraction. D1, D4 and G bands were fitted with Lorentzian line shapes and D3 was fitted with Gaussian line shape. The analyzed spectral parameters and the ratio of absolute intensities of D1 to G bands (I_D1/I_G) are gathered in Table 2.

Fig. 3 Raman spectra of: (a) the SiOC ceramic samples pyrolyzed at 1000 °C; (b) deconvoluted spectra of PhTES : VTES 2 : 1 sample pyrolyzed at 1000 °C and 1300 °C.

Table 2 Bands positions, bands area and intensity ratio I_D1/I_G obtained from curve fitting of the Raman spectra of the ceramic samples. Samples pyrolyzed at 1000 °C unless otherwise mentioned

Sample	D4		D1		D3		G		ID1/IG
	cm^−1	Area	cm^−1	Area	cm^−1	Area	cm^−1	Area
VTES	1191	7.6	1326	59.6	1508	7.4	1594	25.4	1.03
VTES (1300 °C)	1199	11.6	1340	59.0	1509	3.0	1599	26.4	1.15
VTES : MTES 3 : 1	1191	2.0	1327	67.8	1509	6.7	1591	23.5	1.31
VTES : MTES 2 : 1	1190	4.3	1329	65.4	1507	6.8	1596	23.5	1.32
PhTES : VTES 2 : 1	1199	5.9	1326	61.3	1509	9.3	1593	23.5	1.20
PhTES : VTES 2 : 1 (1300 °C)	1191	10.6	1342	59.2	1507	3.5	1598	26.8	1.26
PhTES : VTES 1 : 1	1199	8.1	1324	60.1	1507	7.7	1594	24.1	1.13
PhTES : VTES 1 : 2	1190	7.9	1336	60.2	1510	6.4	1598	25.5	1.16

---

In the case of all the SiOC samples the D1 band located at around 1330 ± 10 cm⁻¹ is the main band with the highest area. The second main band is the G band at 1595 ± 5 cm⁻¹. Additionally, the D4 mode can be found at 1191–1199 cm⁻¹ and D3 positioned at ∼1508 cm⁻¹. The D4 band is generally observed as a shoulder of the D1 band for soot and related carbon materials^36,43 and it is attributed to the disordered graphitic lattice (C–C and C=C stretching vibrations and sp²–sp³ bonds). The D3 band is ascribed to amorphous carbon fractions.^36,41,42 As presented in Fig. 3b and Table 2, the D3 band has significant contribution to the spectra of the samples pyrolyzed at 1000 °C. However, its area decreases considerably (2–2.5 times) with increasing temperature of pyrolysis up to 1300 °C. This suggests an ordering of the amorphous carbon phase. Additional changes in the spectra of the samples pyrolyzed at elevated temperature are: (i) the increasing intensity, the narrowing and the shift of the D1 band (from 1326 to 1340 cm⁻¹ for VTES sample and from 1326 to 1342 cm⁻¹ for PhTES : VTES 2 : 1 sample) and (ii) the increase of I_D1/I_G ratio (from 1.03 to 1.15 for VTES sample and from 1.20 to 1.26 for PhTES : VTES 2 : 1 sample). According to Ferrari et al.⁴⁴ the increase of the I_D1/I_G ratio suggest an ordering from amorphous carbon to nanocrystalline graphite. The changes observed on Raman spectra confirm the structural evolution of the free carbon phase with the increasing temperature of pyrolysis.

Further investigation of the structure of the prepared SiOC materials was performed by ²⁹Si MAS-NMR spectroscopy. The spectra of the SiOC samples pyrolyzed at 1000 °C are presented in Fig. 4. Spectra of all the samples, except of VTES, exhibit three broad peaks with maxima at chemical shifts of: 108–116 ppm, 76–78 ppm and 40–44 ppm corresponding to the silicon tetrahedra: SiO₄, SiO₃C, and SiO₂C₂, respectively.^45–47 The spectrum of the VTES sample, synthesized from pure vinyltriethoxysilane, exhibits only one main peak corresponding to SiO₄ and one small ascribed to SiO₃C. Analyzing the NMR results (Table 3) together with elemental analysis and the empirical stoichiometry (Table 1) one can conclude that methyl groups contribute more to the mixed bonds tetrahedra than vinyl or phenyl groups. An evident change of the structure is observed for the carbon rich sample PhTES : VTES 2 : 1 pyrolyzed at 1300 °C, compared to the one pyrolyzed at 1000 °C. The peak attributed to the SiO₄ unit becomes broader and slightly changes its position toward lower chemical shift values. At the same time, peaks corresponding to the mixed bonds units SiCO₃ and SiC₂O₂ decrease significantly and a small peak at approx. −11 ppm appears, which may be ascribed to the SiC₄ tetrahedra.^45–47 This result confirm the phase separation process upon an elevated temperature of pyrolysis.

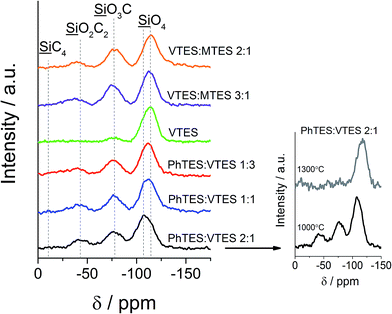

Fig. 4 ²⁹Si MAS-NMR spectra of the SiOC samples pyrolyzed at 1000 °C; inset: spectra of PhTES : VTES 2 : 1 sample pyrolyzed at 1000 °C and 1300 °C.

TEM pictures of the PhTES : VTES 2 : 1 sample pyrolyzed at 1300 °C are shown in Fig. 5a and b. It can be seen that SiOC ceramic sample is amorphous and homogenous. At higher magnification (Fig. 5b) nanocrystalline domains are observed. Based on the identified atomic interlayer distances d(hkl) with d = 2.481 ± 0.08 Å, these nanodomains may be attributed to nanocrystalline silicon carbide (d = 2.510 Å at 2θ = 35.744°)^48,49 created during the phase separation process. The presence of SiC was not observed in XRD data, probably due to too small crystals. This in turn, suggests that the phase separation process starts at 1300 °C but is not significant yet.

Fig. 5 TEM images of PhTES : VTES 2 : 1 sample pyrolyzed at 1300 °C.

Electrochemical activity of the prepared ceramics was studied by galvanostatic charging–discharging and cyclic voltammetry. First lithiation–delithiation curves recorded at a low current rate (18.6 mA g⁻¹) are shown in Fig. 6. All materials exhibit significant irreversible capacity and large hysteresis in the first cycle. The large hysteresis, namely the difference in the insertion and extraction potential, is typically observed in the polymer-derived ceramic electrode material.^31,50–52 It is attributed to: (i) traces of hydrogen present in the ceramic which trap lithium ions and (ii) presence of the disordered carbon phase,⁵³ which adsorbs lithium at the surface or in nanopores. In both cases, lithium ions are expected to be release at higher potentials. The significant capacity losses observed in the first cycle are most probably related to the presence of defects in the ceramic as well as in the carbon phase. The modelling of lithium insertion into SiOC material (P. Kroll, private communication) reveals that in the first cycle lithium in irreversibly captured in the pores/defects, in particular in the proximity of oxygen.³¹ The coulombic efficiency of the first cycle is lower for carbon poor samples (49.6–51.1%) than for the samples with a high carbon content (59.6–63.3%). Columbic efficiency η is obtained by simple correlation of first cycle insertion capacity (C_{ins 1st}) and first cycle extraction capacity (C_{extr 1st}), η = (C_{extr 1st}/C_{ins 1st}) × 100%. Despite a hysteresis observed in the charge–discharge curves most of the capacity (75–85%) is recovered below 1.5 V. The shape of the curves is similar for all investigated samples. However, small differences can be noticed in the first lithiation curves. The plateau observed at ∼0.4–0.45 V for the PhTES : VTES 2 : 1 sample with the highest free carbon content during first lithiation is more sloping and at a slightly higher potential than for other materials. On the other hand, for the carbon-poor samples the plateau starts earlier, is long, flat and is situated at a bit lower potential of ∼0.35 V. This observation is in agreement with our previous study, where the lowest potential of the plateau (0.16 V) was recorded for the sample with the lowest carbon content (13.3 wt%).¹⁴ The differences between the potentials of the plateaus may suggest different mechanisms of lithium insertion into the SiOC ceramics with different carbon content. This plateau is only observed during the first lithiation (see inset in Fig. 7) and is probably related to irreversible capacity, attributed to lithium bonding to oxygen sites.^14,31,54

Fig. 6 First lithiation/delithiation cycle of SiOC electrodes.

Fig. 7 Cyclic voltammetry curve recorded for carbon-rich sample PhTES : VTES 2 : 1, inset: 1st and 2nd lithiation/delithiation curves of the PhTES : VTES 2 : 1 sample. Scan rate 50 μV s⁻¹.

Cyclic voltammetry curves of the first and second cycle recorded for carbon-rich sample PhTES : VTES 2 : 1 are presented in Fig. 7. The CV curves are in agreement with galvanostatic curves (inset in Fig. 7). The irreversible cathodic peak with maximum at 0.07 V in the first cycle corresponds to the plateau recorded during first lithiation. Second cycle of CV reveals no peak and so the second lithiation galvanostatic curve exhibits no plateau. The second cycle coulombic efficiency (94.5%) is much higher than the first one (61.5%) and increases with further cycles up to 99.8%.

Prolonged galvanostatic cycling was performed in order to investigate long term stability of all investigated SiOC electrodes. Delithiation capacity as a function of cycle number is presented in Fig. 8. Galvanostatic charge and discharge processes were recorded with increasing current density from 18.6 mA g⁻¹ to 744 mA g⁻¹. The sample with the highest content of free carbon phase exhibits the highest capacity values both at low and high current rate. Reversible capacity after 140 charge–discharge cycles measured with low current again (18.6 mA g⁻¹) reaches value of about 550 mA h g⁻¹ for all carbon-rich samples. Capacity values decrease significantly with deceasing carbon content. Samples, which contain less than 20% of free carbon phase exhibit poor electrochemical activity toward lithium ions. The main correlation between the electrochemical performance of the investigated SiOC materials and their carbon content is the following: the more free carbon phase in the sample the higher the lithium storage capacity, especially at high rates. However, such correlation is not always this simple, as presented in our previous study.¹⁴ SiOC samples with different amount of free carbon might exhibit similar electrochemical behavior, suggesting a major influence of microstructure on the electrochemical activity towards lithium ions.

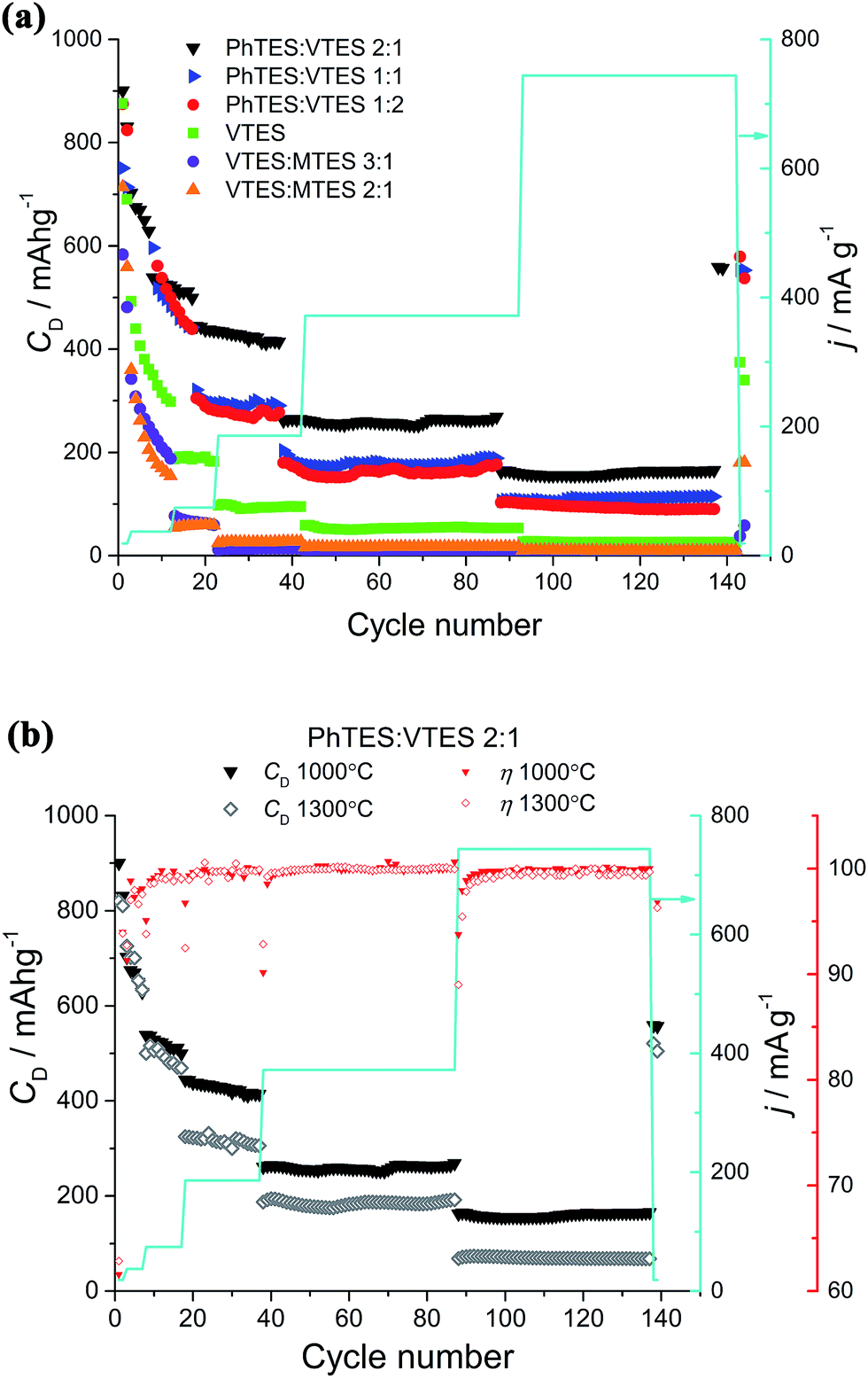

Fig. 8 Delithiation capacity vs. cycle number recorded at different current rates: (a) investigated SiOC electrodes; (b) PhTES : VTES 2 : 1 sample pyrolyzed at 1000 °C and 1300 °C.

The electrochemical performance of PhTES : VTES 2 : 1 sample pyrolyzed at 1000 and 1300 °C is presented in Fig. 8b. At low current rates both samples present similar electrochemical performance. Furthermore, at high current densities the differences in capacity values become pronounced. This result proves that the microstructure of SiOC materials significantly influence their electrochemical properties. Analysis of Raman spectra show diminution of D3 band and increase of the I_D1/I_G ratio, signifying increase of order of free carbon phase. According to previous investigations of polymer derived SiOC and SiCN ceramics,^22,51 the ordering of carbon clusters should lead to much better rate performance, although lower capacitance values recorded at both low and high current rates. Moreover, nanocrystalline SiC visible in TEM micrographs should lead to increase of material conductivity,⁵⁵ and in consequence facilitate electron transfer and improve rate capability. However, the results of NMR investigation clearly show a considerable phase segregation in the 1300 °C sample, namely the increase of the number of SiO₄ units from 57.6% (1000 °C) to 91.5% (1300 °C). Mixed bonds configuration was found to be of crucial importance for better performance of free carbon phase within the ceramic.²⁵ Mixed bonds structure is for the 1300 °C sample replaced by silica and silicon carbide nanodomains. In consequence, we believe that carbon phase becomes less accessible for lithium ions and electrons, due to the presence of insulating silica phase. In comparison with literature, the measured capacity of PhTES : VTES 2 : 1 (1300 °C) at low current rates (18.6–74.4 mA g⁻¹) is very high compared to other SiOCs pyrolyzed at temperatures higher than 1200 °C.^20,22,37

Table 3 ²⁹Si MAS-NMR characterization of the SiOC samples. Samples pyrolyzed at 1000 °C unless otherwise mentioned

Sample	SiO4		SiO3C		SiO2C2		SiOC3		SiC4
	δ/ppm	%	δ/ppm	%	δ/ppm	%	δ/ppm	%	δ/ppm	%
PhTES : VTES 2 : 1	−108.7	57.6	−76.3	25.2	−42.4	13.8	−1.9	3.4	—	—
PhTES : VTES 2 : 1 (1300 °C)	−117.1	91.5	−76.3, −55.6	1.4, 1.9	—	—	—	—	−10.7	5.2
PhTES : VTES 1 : 1	−108.1	54.0	−76.8	27.5	−41.5	16.0	−0.9	1.5	−16.5	1.0
PhTES : VTES 1 : 2	−111.8	51.2	−76.2	27.0	−39.2	14.3	—	—	−15.4	7.5
VTES	−113	92.2	−76.7	7.8	—	—	—	—	—	—
VTES : MTES 3 : 1	−114.5	56.7	−77.8	31.8	−39.5	10.1	—	—	−16.6	1.4
VTES : MTES 2 : 1	−113.0	53.4	−75.8	33.3	−36.0	13.3	—	—	—	—

---

Results obtained from galvanostatic cycling are summarized in Table 4 (and Table 1S in ESI†). The results prove a strong influence of free carbon phase on electrochemical properties of silicon oxycarbide ceramics, especially at high current rates. All the carbon-rich sample (PhTES : VTES) contain the same amount of total carbon (38.5–38%). Among the PhTES : VTES mixed samples, PhTES : VTES 2 : 1 contains the highest amount of free carbon phase (37.5%, compared to 33.3 and 33.7 wt%, cf. Table 1), which explains well its high rate lithium capacity.

Table 4 Comparison of the irreversible C_irrev and reversible C_D capacity of the first cycle and average delithiation capacities C_D of SiOC electrodes measured at different current rates. Samples pyrolyzed at 1000 °C unless otherwise stated

Sample	1^st cycle CD/mA h g^−1			Average discharge capacity CD/mA h g^−1
	Cirrev	18.6/mA g^−1	Efficiency/%	74.4/mA g^−1	186/mA g^−1	372/mA g^−1	744/mA g^−1	18.6/mA g^−1, last (134^th) cycles
PhTES : VTES 2 : 1	562	900	61.5	520	427	260	160	558
PhTES : VTES 2 : 1 (1300 °C)	484	820	62.8	492	316	184	70	505
PhTES : VTES 1 : 1	594	876	59.6	487	295	179	110	553
PhTES : VTES 1 : 2	506	875	63.3	508	279	163	94	558
VTES	763	751	49.6	188	94	53	26	357
VTES : MTES 3 : 1	580	584	50.1	66	13	9	6	48
VTES : MTES 2 : 1	683	714	51.1	70	31	18	10	181

---

To compare electrochemical performance of the investigated samples with other SiOC compounds with similar free carbon content (from 20 to 40%) an overview of various SiOC materials and their electrochemical characteristics is presented in Table 5.

Table 5 Overview of various SiOC compounds and their electrochemical characteristics reported in literature. The SiOC stoichiometry, free carbon content, first cycle reversible (C_rev) and irreversible capacity (C_irr), coulombic efficiency (η), current rate and if available the capacity retention upon continuous cycling are given⁵⁶

SiOC stoichiometry, SiO2(1−x)Cx + yCfree	Free C/wt%	1^st cycle			Rate/mA g^−1	Capacity retention	Ref.
		Crev/mA h g^−1	Cirr/mA h g^−1	η/%
SiOC0.5 + 2.4C	36.6	560	300	65	14.8	n/a	23
SiO0.61C0.695 + 2.045C	34.7	523	270	66	32.7	n/a	57
SiO1.96C0.02 + 3.44C	40.9	732	381	66	32.7	not stable	58
SiO0.85C0.575 + 1.415C	25.9	794	370	68	100	n/a	27
SiO0.98C0.51 + 1.96C	32.0	605	325	65	18	Cycling stable	59
SiO1.39C0.305 + 0.375C	21.8	322	400	45	18.6	n/a	60
SiO0.6C0.7 + 0.96C	20.0	702	1032	68	100	84% after 1020 cycles	52
SiO1.01C0.495 + 2.435C	36.8	434.3	273.8	61.3	From 37 to 370	58.7% after 60 cycles	61
SiO0.93C0.535 + 1.725C	29.5	501.4	302.7	62.3	From 37 to 370	47.3% after 60 cycles	61
SiO0.87C0.565 + 1.055C	20.6	682.5	495.8	57.9	From 37 to 370	13.5% after 60 cycles	61

---

Our results as well as data presented in Table 5 clearly show the significance of free carbon phase supporting the hypothesis that free carbon is a major lithium storage host. However, it is hardly possible to quantify the contribution of carbon, with respect to the ceramic, to the electrochemical performance. The goal of the present study is to demonstrate that the electrochemical performance of the SiOC electrode is not linearly dependent on the amount of the free carbon, but it significantly depends also on the microstructure of the material. According to Prof. Kroll⁵⁴ the presence of a free carbon phase provides low-laying unoccupied states in which electrons can go in, and by consequence significantly decreases the band gap. A strong bonding of Li in the solid SiOC structure is provided, if the interaction of the lithium cation with the host in the form of Li–O bonds outweighs the promotion energy for the electron. Consequently, on the one hand the free carbon phase facilitates lithium bonded to oxygen sites, leading to irreversible lithium uptake; on the other hand, the segregated carbon provides a major part of the reversible lithium storage capacity.⁵⁴

4. Conclusions

Sol–gel synthesis is an appropriate method to tailor compositions of preceramic polymers and to design the chemical composition and the structure of silicon oxycarbide ceramics. The amount of free carbon phase is a crucial factor for the electrochemical activity towards lithium ions. Moreover, the microstructure plays an important role, in particular in stabilizing the microstructure of free carbon phase. Purely amorphous materials (pyrolyzed at 1000 °C) exhibit better electrochemical performance than materials pyrolyzed at higher temperatures (1300 °C). Moreover, they are very stable at high current rates, what makes them suitable for high power application. The high irreversibility of the first cycle still remains a drawback for possible application of SiOC ceramics.

Acknowledgements

This work is supported by Foundation for Polish Science under grant HOMING PLUS/2012-6/16. JK, MGZ, RR acknowledge the support of German Science Foundation (SPP 1473/JP8).
