Functionalized α,β-ynones: efficient ligand for Cu catalyzed Sonogashira-type cross-coupling reaction

Abstract

Under the classic reaction conditions, a large excess of copper catalyst and N, O donor ligands were mandatory for the catalytic cross-coupling of Csp²–Csp bonds. Herein, we wish to report α,β-ynones as σ-, π-electron donating ligands for copper catalyzed Sonogashira-type reaction. As low as 0.25–2.5 mol% of L₁₁ (3-(4-bromophenyl)-1-(4-methoxyphenyl)prop-2-yn-1-one) significantly accelerated the 0.1–1.0 mol% of CuI catalyzed cross-coupling of aryl iodides with terminal alkynes and alkynylcarboxylic acids, respectively. This low-mol% catalyst system showed satisfactory activity and tolerance with 36 examples of substituted alkynes.

---

The Sonogashira reaction is a powerful tool for preparing alkyne compounds, which has been widely applied in the synthesis of natural products, pharmaceuticals, and organic materials.¹ Recently, much attention has been attracted to the use of copper catalysts,² because copper is abundant, economic and less toxic.³ To enhance the catalytic efficiency of copper catalysts, many hard donor ligands were employed in Cu-catalyzed Sonogashira reactions.⁴ Generally, a large excess of multi-dentated ligands such as N,N-dimethylglycine (30 mol%),⁵ L-proline (10 mol%),⁶ 8-hydroxyquinoline (20 mol%),⁷ rac-BINOL (10 mol%),⁸ choline chloride (20 mol%),⁹ 6-methylpicolinic acid (10 mol%),¹⁰ diamines (10 mol%),¹¹ 1,10-phenanthroline (20 mol%),¹² DABCO (20 mol%),¹³ N,N-dibenzyl BINAM (20 mol%),¹⁴ diketone (20 mol%),¹⁵ salicylic acid (20 mol%),¹⁶ bis(pyrazolyl)methane (10 mol%)²⁵ is required to facilitate the Cu-catalyzed cross-coupling reaction of aryl iodides and terminal alkynes. More recently, C. Bolm et al., observed the ligand accelerating effect of 20–30 mol% DMEDA (N,N′-dimethyl-ethane-diamine), by which as low as 0.5 mol% CuI catalyzed cross-coupling reactions with decent yields.¹⁷ Until now, the addition of excess ligands (10–30 mol%) is mandatory to maintain the coupling efficiency for most homogeneous systems.¹⁸ Despite of the ligand-accelerating effect of these classic ligands, to explore new ligand system is a promising way to enhance the efficiency of copper catalysts.

Recently, few aromatic ligands, such as xantphos,¹⁹ pyrene,²⁰ BIMs (bisindoles)²¹ and TTCs (triainze trizole)²² were established as efficient ligands for Sonogashira cross-coupling reaction with low-mol% copper loading (Scheme 1). 2.5 mol% aromatic bidentated phosphine ligands successfully facilitated low-mol% Cu-catalyzed Sonogashira cross-coupling reaction, in which xantphos and Dppf showed excellent activity for 1.0 mol% Cu₂O. The polycyclic aromatic hydrocarbon ligands pyrene enhanced the activity of Cu(OTf)₂, affording 52% to 90% yields of alkyne products. BIMs bearing π-electron-rich aromatic moiety of 4-chloro-phenyl group was modulated as a powerful ligand for the Cu-catalyzed Sonogashira reaction with the yield up to 99%. TTCs with multiply hard donor sites stabilized catalytic active copper by the diverse coordination modes and afforded 61% to 96% yields. In light of these multi-functionalized ligands, particularly the beneficial accelerating effect of aromatic functional groups for Cu catalysis, we herein report α,β-ynones as σ-, π-electron donating ligands for copper catalyzed Sonogashira-type cross-coupling reaction. Ligand screening experiments of 20 substituted ligands found that L₁₁ containing methoxy- and Br- was the most efficient ligand. In presence of 2.5 equivalent L₁₁, 1.0 mol% CuI afforded 96% yield, whilst as low as 0.5 mol% of CuI gave 71% yield. An efficient copper catalyst system of CuI (1.0 mol%)/L₁₁ (2.5 mol%) showed satisfactory catalytic activity and compatibility in 36 examples of Sonogashira coupling and decarboxylative coupling, respectively (Scheme 2).

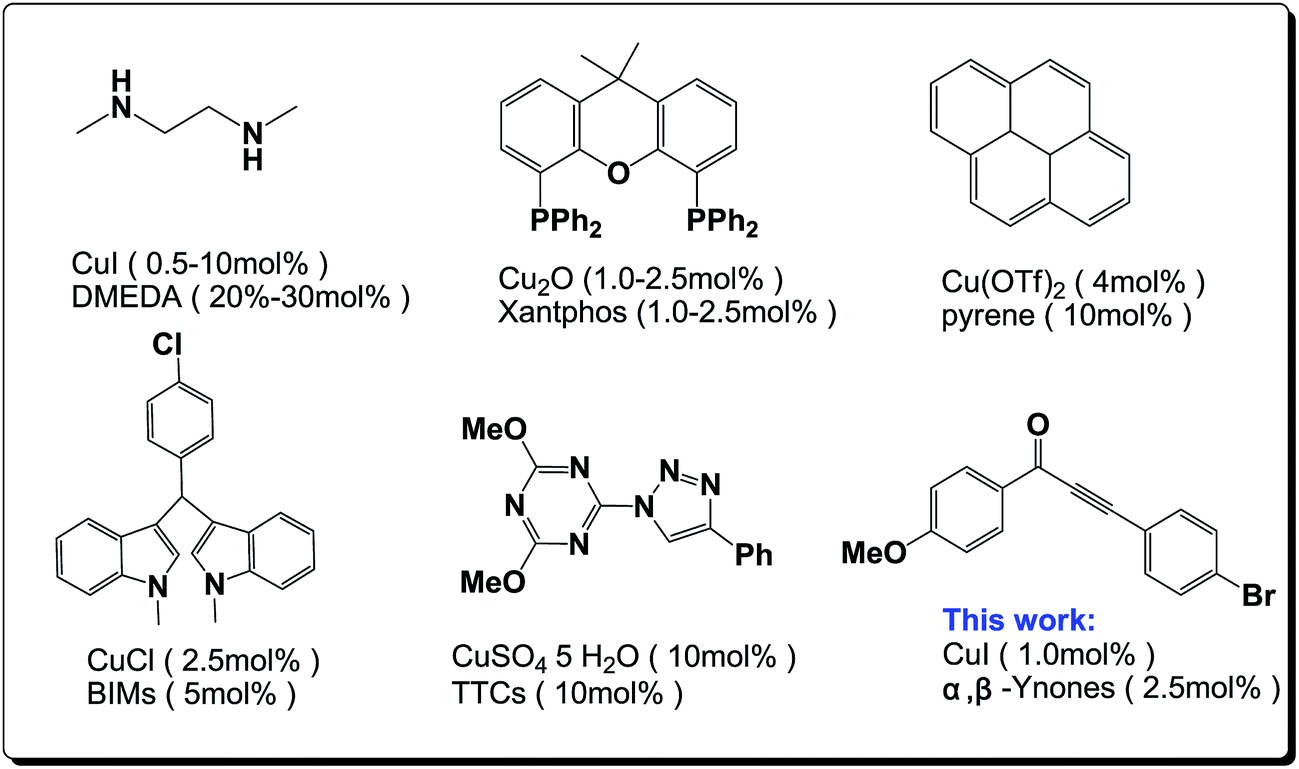

Scheme 1 Efficient ligands for Cu-catalyzed Sonogashira reactions.

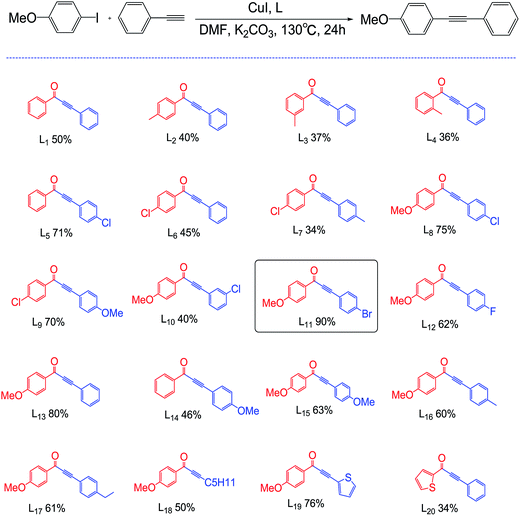

Scheme 2 Ligands screening for Cu-catalyzed Sonogashira reactions. Reaction conditions: CuI (1.0 mol%), α,β-ynones (4.0 mol%), 4-iodo-anisole (0.5 mmol), phenylacetylene (0.6 mmol), DMF (3.0 ml), K₂CO₃ (0.5 mmol), 130 °C, N₂, 24 h. ¹H-NMR yields.

In presence of 4.0 mol% ligands (L₁–L₂₀), 1.0 mol% of CuI catalyzed cross-coupling reaction of 4-iodoanisole and phenyl-acetylene were used as a model reaction to evaluate the catalytic efficiency of α,β-ynones.^26a The simple aromatic α,β-ynone L₁ afforded moderate 50% yield, and L₂, L₃ and L₄ bearing methyl groups gave 40% to 36% yields. It was reported that chloro-benzene significantly accelerated transition metal catalyzed C–C cross-coupling reaction.²³ Herein, α,β-ynones ligands bearing halobenzene group were evaluated systematically. Six chlorinated α,β-ynones, L₅ to L₁₀ showed the different activity, in which L₈ bearing 4-OMe on benzoyl group accelerated the reaction with 75% yield. Interestingly, L₁₁ bearing 4-OMe on benzoyl group and 4-Br on phenylethenyl group gave the highest yield of 90%. Other ligands bearing methoxy groups (L₁₂–L₁₈) showed the decent activity and afforded up to 80% yield. Extra S-donor failed to further enhance the activity of α,β-ynone ligands compared with Ph(L₁). L₁₉ and L₂₀ bearing thiophenyl group gave 76% and 34% yield, respectively. These experiments clearly demonstrated that functionalized α,β-ynones ligands^26b,c system accelerated Cu catalyzed cross-coupling of Csp²–Csp bonds.

The efficiency of α,β-ynone ligands were further investigated for various Cu loadings. In the control experiment without ligand, 1.0 mol% CuI gave 40% yield (Table 1, entry 1). The accelerating effect were observed by adding 1.0–5.0 mol% of L₁₁, which significantly enhanced the catalytic activity of Cu catalyst and afforded 65–96% yields (Table 1, entries 2–7). Notably, 2.5 mol% L₁₁ gave the highest yield of 96% (Table 1, entries 4), 4.0 mol% and 5.0 mol% ligands slightly inhibited the activity of Cu catalyst, affording 92% and 89% yield (Table 1, entries 6 and 7), respectively. Notably, the ligand accelerating effect was also observed in the sub-mol% Cu catalyzed reaction. 1.25 mo% L₁₁ and 0.5 mol% CuI afforded 71% yield (Table 1, entry 8). As low as 0.25 mol% of L₁₁ and 0.1 mol% of CuI gave 50% yield (Table 1, entry 9).

Table 1 L₁₁ accelerated cross-coupling of 4-iodoanisole and phenylacetylene^a

Entry	CuI	L11	Yield^b (%)
a Reaction conditions: 4-iodo-anisole (0.5 mmol), phenylacetylene (0.6 mmol), DMF (3.0 ml), 130 °C, N2, 24 h, K2CO3 (0.5 mmol).b ^1H-NMR yields (average on three parallel reactions).
1	1	0	40
2	1	1	88
3	1	2	94
4	1	2.5	96
5	1	3	92
6	1	4	89
7	1	5	65
8	0.5	1.25	71
9	0.1	0.25	50

---

The scope and limitation of α,β-ynones/CuI catalyst system were extensively explored with functionalized aryl iodides and terminal alkynes (Table 2). The cross-coupling reaction displayed remarkable tolerance towards the substitution pattern and steric effect.^26d,e Both electron-rich, electron-neutral or electron-deficient substituents and sterically encumbering substituents in the aryl ring gave good results. The aryl iodides containing electron-donating groups (4-OMe, 4-CH₃, 4-C₂H₅, 2-CH₃, 2-OMe, 3-OMe or 3-CH₃) gave isolated yields of 76% to 96% (Table 2, entries 1, 2, 4, 12, 13, 17, 18). When aryl iodides with electron-withdrawn groups (4-OCF₃, 4-CF₃, 4-NO₂, 4-COCH₃, 4-COOC₂H₅, 4-Br, 4-Cl, 4-CF₃, 2-CF₃, 2-Cl, 3-I or 3-CF₃) were used, the products were isolated with 56% to 90% yields (Table 2, entries 3, 5–10, 14–16, 19). When 1-octyne, 1-heptyne and 1-hexyne were employed instead of phenylacetylene, the lower yields (63%, 61%, 55%) were obtained (Table 2, entries 25–27). When 4-OMe, 4-CH₃, 4-C₂H₅, 4-C₃H₇, 3-CH₃, 3-OMe and 3-NH₂ phenylacetylene were involved in the coupling reaction, the good yields were obtained 69%, 63%, 56%, 80%, 74% and 58%, respectively (Table 2, entries 21–24, 28 and 29). Polycyclic compounds also reacted with phenylacetylene in excellent yields, 1-iodo-naphthalene was isolated in 63% yield (Table 2, entry 30).

Table 2 Cu-catalyzed Sonogashira cross-coupling reaction of aryl iodides with terminal alkynes^a

Entry	R1	R2	Yield^b (%)
a Reaction conditions: CuI (1.0 mol%), L11 (2.5 mol%), K2CO3 (0.5 mmol), DMF (3.0 ml), 130 °C, 24 h, aryl iodide (0.5 mmol), alkyne (0.6 mmol).b Isolated yields.
1	4-CH3O	C6H5	96
2	4-CH3	C6H5	89
3	4-NO2	C6H5	85
4	4-C2H5	C6H5	83
5	4-COCH3	C6H5	86
6	4-COOC2H5	C6H5	90
7	4-CF3	C6H5	76
8	4-OCF3	C6H5	74
9	4-Br	C6H5	78
10	4-Cl	C6H5	72
11	H	C6H5	89
12	2-CH3O	C6H5	75
13	2-CH3	C6H5	73
14	2-CF3	C6H5	65
15	2-Cl	C6H5	58
16	3-I	C6H5	56
17	3-CH3O	C6H5	81
18	3-CH3	C6H5	76
19	3-CF3	C6H5	70
20	H	CH3(CH2)5CCH	53
21	4-CH3O	4-CH3C6H4	69
22	4-CH3O	4-C2H5C6H4	63
23	4-CH3O	4-C4H9C6H4	56
24	4-CH3O	4-CH3OC6H4	80
25	4-CH3O	CH3(CH2)3CCH	63
26	4-CH3O	CH3(CH2)4CCH	61
27	4-CH3O	CH3(CH2)5CCH	55
28	4-CH3O	3-NH2C6H4	74
29	4-CH3O	3-CH3C6H4	58
30	1-Naphthalene	C6H5	63

---

In the past several years, decarboxylative couplings of alkynylcarboxylic acids have been considered as a sub-category of Sonogashira coupling reactions since they are readily available and inexpensive.²⁴ The CuI (1.0 mol%)/α,β-ynones (2.5 mol%) system was also suitable for the decarboxylative coupling. We successfully applied the CuI/L₁₁ catalyst system in the decarboxylative cross-coupling reaction. The results were summarized in Table 3. The decarboxylative coupling of alkynylcarboxylic acid with aryl iodides containing electron-donating groups (–OMe or –CH₃) gave good yields. The moderate yields were obtained when aryl iodides bearing an electron-withdrawing groups (–NO₂, –Br) were used.

Table 3 CuI-catalyzed decarboxylative coupling reaction of aryl iodides with alkynylcarboxylic acid^a

Entry	R1	Yield^b (%)
a Conditions: CuI (1.0 mol%, 0.0009 g), L11 (2.5 mol%, 0.004 g), K2CO3 (0.5 mmol, 0.0689 g), aryl iodide (0.5 mmol), alkynylcarboxylic acid (0.5 mmol, 0.073 g), DMF (3.0 ml), 130 °C, 24 h.b Isolated yields.
1	4-CH3O	83
2	4-CH3	80
3	H	61
4	3-CH3O	42
5	4-NO2	58
6	4-Br	40

---

Conclusions

In conclusion, we have disclosed α,β-ynones as efficient ligand system for copper catalyzed Sonogashira and decarboxylative cross-coupling reaction, respectively. The functionalized ligand L₁₁ bearing bromo- and methoxy-group is the most efficient ligand, by which 1.0 mol% copper catalyzed Sonogashira-type reactions. The catalyst system of CuI/L₁₁ were applied for the cross-coupling of both terminal alkynes and phenylpropiolic acids with various aryl iodides, respectively. The coupling reactions were compatible with a broad scope of functional groups and affords products in good to excellent yields. The activation mechanism of these α,β-ynone ligands is under investigation.

Experimental section

A mixture of aryl iodide (0.5 mmol), aryl alkyne (0.6 mmol), CuI (1.0 mol%), L₁₁ (2.5 mol%), K₂CO₃ (0.5 mmol), and dry DMF (3.0 ml) in a Schlenk tube was stirred under a nitrogen atmosphere at 130 °C for 24 h. After that, the mixture was poured into separating funnel (150 ml) and washed with water (50 ml). And then, it extracted with ethyl acetate (3 × 15 ml). The organic layer was dried by anhydrous MgSO₄, then filtered and evaporated under vacuum. The residue was separated by flash column chromatography.
