Solvent-free fabrication of paper based all-carbon disposable multifunctional sensors and passive electronic circuits

Srinivasulu Kanaparthi and Sushmee Badhulika*
Department of Electrical Engineering, Indian Institute of Technology Hyderabad, Kandi, 502285, India. E-mail: sbadh@iith.ac.in

Received 26th August 2016 , Accepted 30th September 2016

First published on 3rd October 2016


Abstract

In light of recent interest in the green fabrication of electronics, we report eco-friendly engineered temperature sensors, pH sensors, humidity sensors and passive resistor–capacitor (RC) filters by solvent-free processing of graphite on cellulose paper. This was achieved via direct writing of graphite pencil on cellulose paper which involves the deposition of few layers to multi layers of conductive graphene flakes intercalated by clay and wax. The temperature sensor exhibits a negative temperature coefficient of resistance of −4232 ppm K−1, which is comparable to that of conventional temperature sensors (platinum, nickel, and copper) that are fabricated by capital intensive and complex procedures. The dynamic response of the temperature sensor shows its repeatability with excellent response time of 13.5 s. The all-carbon pH sensor could efficiently distinguish acidic, alkaline and neutral solutions with significant sensitivity from 1.77 kΩ pH−1 to 2.21 kΩ pH−1. The higher sensitivity of the pH sensor is attributed to the oxygen functional groups present in pencil graphite which undergoes protonation and deprotonation in presence of H+ and OH ions to alter the conductivity of graphite trace. The interdigitated capacitive humidity sensor shows a linear response to humidity with fast response (1.5–2 s) and recovery times (6–7 s). These fast response and recovery times are due to fast adsorption and evaporation kinetics of water molecules on polar OH groups of cellulose fibers in paper, which depends on porosity of the paper. The versatility of the pencil-on-paper approach was further explored by drawing resistor and interdigitated capacitor in series to fabricate in-plane all-carbon RC filter which demonstrate anticipated functionality with a cut-off frequency of 6 kHz. To the best of our knowledge, no studies have been reported on direct-write graphite on paper based in-plane all carbon passive electronic circuits, pH sensor and humidity sensor. This cleanroom-free approach further expands the scope of graphite on paper as a functional material in developing sensors and circuits for greener consumer electronics thereby causing no environmental contamination either in their production or disposal.


1. Introduction

The fabrication of electronic devices on paper is considered as a promising solution for the realization of inexpensive, eco-friendly, use-and-throw disposable electronics.1,2 So far several efforts have been made to realize paper electronics including technologies such as lithography and physical/chemical vapor deposition. Even though these methods are highly efficient and progressive, complexity and expensive process steps make them unsuitable for small scale production. Alternatively, printing techniques have been studied and implemented to realize efficient and robust electronic devices like gas sensors,3 biosensors,4 transistors,5 energy storage devices6 and touchpad.7 However, the synthesis of conductive inks used in printing involve eco-unfriendly volatile organic solvents, surfactants, stirring or sonication for dispersion of nanomaterials and deposition of these conductive inks require plasma treatment of substrates which are complex and time consuming. All these pre-fabrication and post-fabrication multi step processes make it expensive, complicated and eco-unfriendly. In addition, there is a possibility that the structure and functionality may change when the nanomaterial is mixed in an organic solvent and thus efficiency of the device may be affected.

In order to address the aforementioned issues, a solvent-free fabrication of chemical and physical sensors have been reported with binder free carbon nanotube (CNT) composite pencils or pellets.8,9 Despite being efficient and solvent-free method, the cost of the CNT makes it rather expensive and the binder free CNT pellet is not strong enough to write sensors, components and circuits on paper with precise control. Alternatively, commercially available graphite pencil on paper has emerged as a material in implementing low cost, flexible, biodegradable electronics in use-and-throw applications. Owing to its outstanding electrical, mechanical and chemical properties, graphite was demonstrated as an active material in devices such as transistors,10,13 circuits,10,11 energy storage devices,12 strain sensors,13,16 thermal flow sensors14 and electrochemical sensors.15 The fruitful implementation of these devices without using any toxic and expensive materials reveals that there is a lot of scope to develop other inexpensive and eco-friendly devices utilizing this methodology.

In this work, we report the fabrication of physical and chemical sensors by direct writing of pencil graphite on paper (GoP) which is an inexpensive and eco-friendly method. The HB pencil graphite trace on paper was utilized as a temperature and pH sensors. The temperature sensor exhibited excellent temperature coefficient of resistance (TCR) (the rate of change of normalized resistance per degree celsius of temperature) which attributed to the presence of defects in the HB pencil graphite. The pH sensor was able to distinguish real time samples over a wide pH range as diverse as lemon juice, DI water and detergent solution with significant sensitivity and reproducibility. The 5B pencil graphite interdigitated capacitor on cellulose paper was demonstrated as a humidity sensor. The sensor exhibited excellent sensitivity towards exhaled breath and hot water vapor. The response and recovery times are very high, which are attributed to the fast adsorption and de-adsorption of water molecules on cellulose fibers. The fast adsorption and de-adsorption of moisture on paper are due to capillary pressure and spreading of water molecule on paper respectively. The versatility of the GoP was further extended to realize passive electronic circuits which act as the basic backbone of most modern day electronic devices. The RC (resistor–capacitor) filter was fabricated by drawing a trace which acts as a resistor in series with interdigitated capacitor. As fabricated RC circuit has been demonstrated as an integrator (low pass filter) and a differentiator (high pass filter) and it exhibited a cut-off frequency of 6 kHz. The successful fabrication of low cost and eco-friendly passive RC filters on paper indicates that this approach can be utilized widely in use-and-throw and disposable electronic circuits. To the best of our knowledge, no studies have been reported on solvent-free fabrication of GoP based in-plane all carbon passive electronic circuits, pH sensor and humidity sensor. Although a GoP temperature sensor has been reported, it's practical applicability as a temperature sensor is unclear with no insight to the performance in terms of repeatability and response/recovery times.14 In this work we report the dynamic characteristics of temperature sensor by exposing it to candle flame repeatedly. Moreover, being an all-carbon temperature sensor, it doesn't involve the usage of any metal contacts, thereby eliminating the contact resistance losses.

2. Experiments

2.1 Fabrication of sensors and circuits

2.1.1 Fabrication of temperature and pH sensor. A 30 mm × 5 mm rectangular graphite film was deposited on cellulose paper (EW-81051-92, Advantec, USA)by direct writing of HB graphite pencil on paper with the help of scale for several times till required resistance was achieved. As fabricated device was used as both temperature sensing and pH sensing independently.
2.1.2 Fabrication of humidity sensor. An interdigitated electrode capacitor with 12 electrode digits, 2 mm digit width, 1 mm spacing between digits and 20 mm overlapping length was fabricated by direct drawing of 5B graphite pencil on paper with the help of scale. As fabricated device was employed as a humidity sensor.
2.1.3 Fabrication of RC filters. A first order RC filter was fabricated by direct writing of 4 mm × 1.5 mm horizontal HB graphite trace on paper in series with an interdigitated capacitor with 12 digits, 1 mm digit width, 1 mm separation between digits and 20 mm overlap length of digits was drawn by 5B graphite pencil on paper. As fabricated device was utilized as integrator and differentiator.

2.2 Characterization of sensors and circuits

Field emission scanning electron microscopy (FESEM, supra 40, Carl Zeiss AG) was used to study the surface morphology of the cellulose paper and graphite trace on paper. Senterra Invia Raman Spectrometer (Senterra, Bruker, UK) with 532 nm laser excitation and 10 mW cm−2 optical power was used for Raman characterization of graphite on paper. The resistance of the pH sensor with different pH solutions was measured using Arduino Uno development board by connecting the device in Arduino ohm meter configuration. The capacitance of the humidity sensor was measured using Arduino Uno by connecting the device in Arduino capacitance meter configuration. Temperature-dependent electrical characterization was performed using Phoenix PM8, Kaurl Suss to measure the resistance of temperature sensor from 29 °C to 120 °C in steps of 5 °C. The electrical properties (sinusoidal and square wave response) of the low pass and high pass RC circuits were measured by using a digital storage oscilloscope DSO3062a, Agilent.

3. Results and discussions

Pencil graphite is a composition of graphite, clay and wax. The abrasion of pencil on paper leaves chunks of conductive graphite flakes which range from mono to few layers graphene. Fig. 1(a) and (b) demonstrate the direct writing of pencil on paper to deposit graphite flakes. The writing of pencil on paper is repeated for several times to achieve required conductivity. Since different pencils have different compositions of graphite, clay and wax,17 they exhibit different conductivities for similar length, width and thickness of the pencil graphite deposition. The hard pencils (H series) are less conductive compared to those of soft pencils (B series) as graphite content in hard pencil is relatively less compared to that of soft pencils. Hard pencils were used to draw high resistance traces and soft pencils were used to design low resistance interdigitated lines to implement resistors and capacitors on paper. Field emission scanning electron microscopy (FESEM) was used to study the surface morphology of the paper and pencil graphite deposition on paper. Fig. 1(c) indicates that the paper contains a fiber network and it has porous structure. The rough surface of the paper ensures the deposition of graphite flakes ranging from few layers of graphene to multi layers of graphene during the writing of pencil on paper and is continuous as depicted in Fig. 1(d) (see Fig. S1, ESI for more SEM images showing morphology of graphite on paper at different magnification levels). Raman spectroscopy was used to analyze the defect quantity in HB pencil graphite. The Raman spectra of HB pencil graphite shown in Fig. 1(e) shows two main peaks at wave numbers 1350 and 1580 corresponding D and G peaks which represents the level of defects and sp2 bonded carbon networks inside graphite respectively.
image file: c6ra21457f-f1.tif

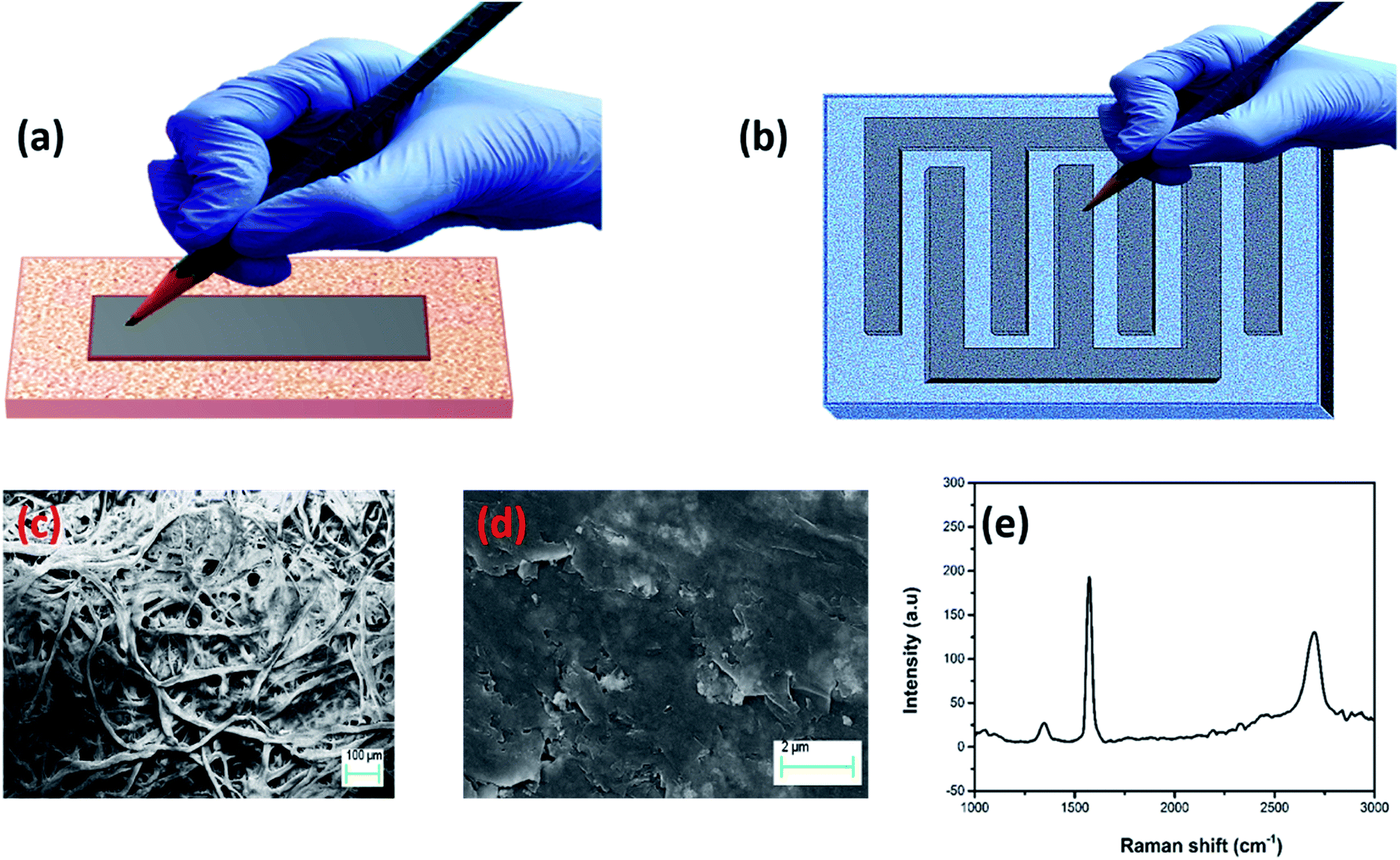

Fig. 1 (a) and (b) Schematic representation of fabrication of graphite on paper resistive and interdigitated capacitive sensors; (c) SEM image of cellulose paper; (d) SEM image of graphite on paper; (e) Raman spectra of HB pencil graphite.

In order to study the variation of resistance with the variation in length of the pencil trace the normalized resistance of HB pencil trace was measured by keeping the width of the trace constant at 5 mm and plotted as shown in Fig. 2(a). The normalized resistance increases with increase in length of the trace and this variation is almost linear with respect to the length of the trace. Similarly, the properties of 5B pencil interdigitated capacitor on paper was studied by measuring the capacitance of the device with variation in either the number of interdigitated lines or overlapping length of digits by keeping other parameter constant as shown in Fig. 2(b) and (c). It was observed that the capacitance increases with increase in overlap length and number of digits, which is attributed to the increase in overlapping area of interdigitated lines and is consistent with the interdigitated capacitor properties reported with silver ink printed on paper.7 The large variation in resistance and capacitance in Fig. 2 can be attributed to the imperfections in making the device, non-uniformity of graphite film on paper.


image file: c6ra21457f-f2.tif

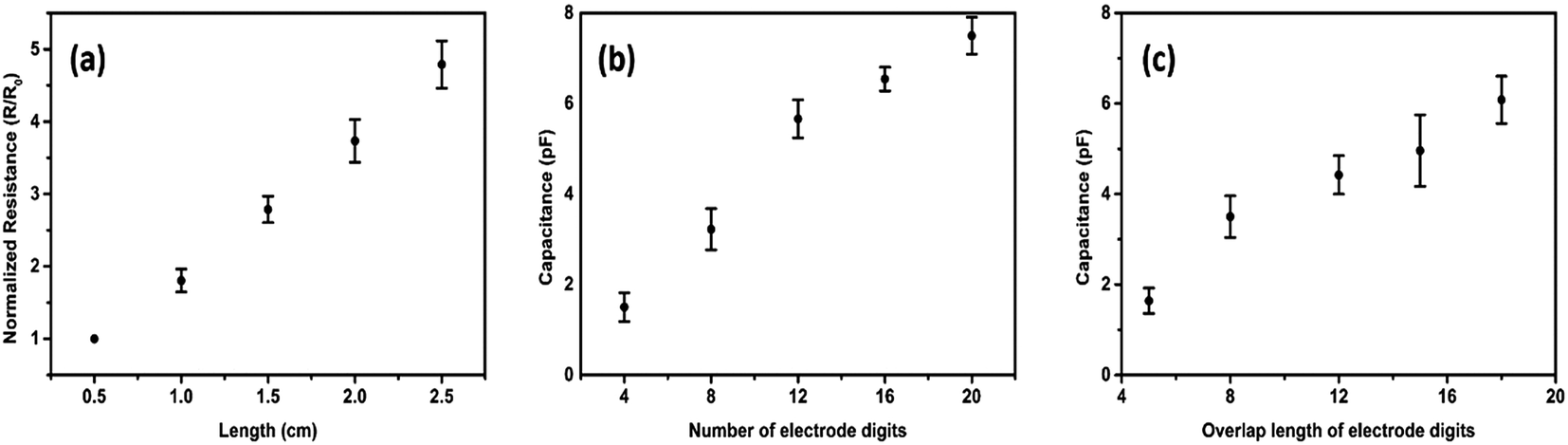

Fig. 2 (a) Normalized resistance with the length of the trace (N = 3); (b) capacitance of interdigitated capacitor with the number of electrode digits (N = 5); (c) capacitance of interdigitated capacitor with the overlap length of electrode digits (N = 5).

3.1 Temperature sensor

A 30 mm × 5 mm HB pencil trace on paper is employed as a temperature sensor. The resistance of the sensor was measured by increasing the temperature in steps of 5 °C from room temperature (29 °C) to 120 °C. Fig. 3(a) shows the average and standard deviation of variation in the resistance of 3 GoP devices as a function of temperature. It can be seen that the average resistance of the trace decreased by 38% with an increase in temperature from 29 °C to 120 °C. The decrease in resistance of pencil graphite trace with increase in temperature indicates the semiconducting nature of graphite. This thermally activated conduction in graphite trace on paper can be explained as follows:
image file: c6ra21457f-f3.tif
Fig. 3 (a) Resistance of temperature sensor as a function of temperature; (b) Arrhenius plot of temperature sensor; (c) temporal response of temperature sensor with candle flame; (d) exponential fitting of response of temperature sensor under flame test.

The resistance in graphite film is due to (i) graphite grain resistance and (ii) grain boundary resistance.18,19 From Raman spectra, it can be observed that the defects in pencil graphite are large in number and thus the free carriers trapped at grain boundaries, creating a potential barrier which hinders the motion of carriers across the grains. Therefore the resistance due to grain boundaries is large and predominant compared to resistance due to grains. This grain boundary resistance can be represented by eqn (1)


image file: c6ra21457f-t1.tif(1)
where k is Boltzmann's constant and Φ is the potential barrier height. The variation in resistance with temperature can be linearly expressed by using Arrhenius equation:

image file: c6ra21457f-t2.tif(2)
where image file: c6ra21457f-t3.tif and R0 is the resistance of the trace at temperature T0. The potential barrier height was found to be 50 meV from the slope of Arrhenius plot shown in Fig. 3(b), which is comparable to the activation energy of MWCNT trace on paper.8 The motion of the carriers across the potential barrier can be due to tunneling and thermionic emission. As the potential barrier height is very low, thermionic emission is dominant and is primarily responsible for decrease in resistance of graphite trace on paper with increase in temperature.14 It can be observed that there exists a significant deviation in response of temperature sensor above 80 °C in Fig. 3(a) and non-linearity in Arrhenius plot in Fig. 3(b) which can be attributed to variation in thickness of graphite film on paper.38 Controlling the thickness of graphite film by direct writing is a challenge and this standard deviation can be reduced if the thickness of the samples is approximately same. The thickness of graphite can be measured and controlled using atomic force microscopy (AFM) or transmission electron microscopy (TEM) or profilometer.

The variation in resistance is then quantitatively measured using temperature coefficient of resistance (TCR), which is a figure of merit of a temperature sensor.


image file: c6ra21457f-t4.tif(3)
where R(T0) and R(T) are resistances at temperatures at T0 and T respectively. The measured TCR value is −4232 ppm K−1 or −0.004232/°C, which is comparable to the existing standard temperature sensors such as nickel, copper and platinum.20 This TCR value is comparable to temperature sensor reported with MWCNT on paper,8 reduced graphene oxide based temperature sensor21 and one order larger than solution processed MWCNT based temperature sensors.22 Large TCR values of GoP sensor can be attributed to large number of defects present in pencil graphite. This value of TCR indicates that graphite on paper can be used as temperature sensors such as thermistors, anemometers and IR bolometers. As the ignition temperature of paper is well above 200 °C, it can be used over a wide range of temperatures from 25 °C to 150 °C.

The dynamic characteristics of GoP temperature sensor was investigated by exposing it to a candle flame. The temporal normalized resistance of the sensor was measured by exposing it to the flame for 15 s and allowed to recover repeatedly as shown in Fig. 3(c). The response of the sensor to flame and its recovery to initial resistance is exponential function of time as shown in Fig. 3(d). The response time of the sensor, time taken to reach 90% of its final value is 10 s and the recovery time of the sensor is 41 s. The response time is comparable to that of standard platinum temperature sensor Pt (111) (response time: 8.66 s, recovery time: 15.51 s),21 recently reported silver ink on paper based temperature sensor23 and one order faster compared to that of organic compound based temperature sensor24 whereas the recovery time is comparable to the later.

3.2 pH sensor

A 30 mm × 5 mm trace of HB pencil graphite on paper is used as a pH sensor. The pencil graphite trace contains a small fraction of oxygen rich C–O/C–OH and carboxyl groups and hard (H series) and HB pencil contain more oxygen content compared to the soft pencils (B series).15,16 The oxygen functional groups make the graphite film on paper p-type semiconductor and hence the holes are majority carriers. Upon exposure to acidic solutions, the H+ ions accept electrons from π-orbital of graphite, which results in increase in majority carrier concentration, thereby increasing the electrical conductivity. In contrast, when graphite is exposed to alkaline solutions, OH ions donates electrons to π-orbital of graphite thereby causing a reduction in electrical conductivity.26 Hence H+ and OH ions concentrations affect the generation of holes and electrons in graphite resulting in variation in resistance of graphite. Moreover, the oxygen functional groups present in graphite undergoes protonation in presence of H+ ions and thus majority carriers increases which leads to increase in conductivity25 as shown in Fig. 4. In contrast, the oxygen groups undergo deprotonation in presence of OH ions leading to decrease in majority carriers and hence results in a decrease in conductivity. Thus the conductivity of pencil graphite decreases with increase in pH.
image file: c6ra21457f-f4.tif
Fig. 4 Protonation and de-protonation of oxygen functional groups present in pencil graphite in presence of H+ and OH ions.

In order to evaluate the performance of pH sensor, the variation in resistance of the sensor was measured by drop casting lemon juice (pH = 3.5), detergent solution (pH = 10) and DI water (pH = 7). Being a paper based sensor, it absorbs liquid upon exposure to a pH solution and cannot be reused. As the sensor is meant for one time use 9 similar disposable sensors with small deviation in base resistance were made for sensing pH. 20 μL of each pH solution is drop cast on 3 devices each and normalized change in the resistance of the each sensor was measured upon exposure to acidic, alkaline and neutral solution. The variation in normalized resistance of the sensor with time upon exposure to different pH solutions is as illustrated in Fig. 5(a) (the individual response of 9 devices to pH is included in Fig. S2, ESI). It can be seen that the variation in resistance increased with increase in pH value and it is in accordance with the behavior reported in oxygen rich carbon based pH sensors.25,26


image file: c6ra21457f-f5.tif
Fig. 5 (a) Temporal response of pH sensor with 3 different pH solutions; (b) normalized change in resistance of pH sensor as a function of pH (N = 3 devices); (c) average response time of 3 pH sensors as a function of pH.

The average and standard deviation of relative change in resistance of 3 devices for each pH solution were measured for comparison and plotted as shown in Fig. 5(b). The response of the pH sensor with different pH solutions is linear and can be expressed as

ΔR/R0 = 0.08846 × pH − 0.13545
where R is the initial resistance and ΔR is the change in resistance of the graphite trace on paper after drop casting pH solution. The sensitivity is determined by 0.08846R0. We used an average base resistance from 20 kΩ to 25 kΩ throughout the experiment. Therefore the sensitivity of the pH sensor lies in the range of 1.77 kΩ pH−1 to 2.21 kΩ pH−1, which is very high compared to the graphene on paper based pH sensor reported in the literature.27 The high sensitivity of GoP pH sensor is attributed to the oxygen functional groups present in pencil graphite. Further we calculated the response time, the time taken to reach final and stable resistance value, of 3 devices for each pH solution and their average is plotted as shown in Fig. 5(c). The response time varies with the pH of the solution and it can be seen that the average response time increases with increase in pH value, which can be attributed to interaction speed between hydrogen ions and graphite.26 Pristine carbon materials are equally sensitive to both the metal ions and pH and this sensitivity is nominal. However, the oxygen functional groups present in pencil graphite are sensitive to pH and insensitive to metal ions and this sensitivity towards pH is larger compared to that of pristine materials.25 Therefore the cross sensitivity of proposed pH sensor to metal ions is very low and is negligible. The reported GoP pH sensor is a low cost, disposable and eco-friendly sensor that can find applications in numerous fields. It can be used to identify the type (acid or alkaline) of solution by measuring the change in resistance relative to the resistance in neutralized water. Therefore it allows to recognize the hazardous solutions in crucial situations when pH test strips are not available readily and in paper based disposable microfluidic applications.

3.3 Humidity sensor

A 5B pencil graphite on paper interdigitated capacitor with 12 digits (n), 2 mm digit width (w), 1 mm spacing between digits (d) and 20 mm overlapping length (l) of digits is utilized as a humidity sensor. 5B pencil was preferred over HB pencil as conductivity of 5B pencil is superior to that of HB pencil which makes the interdigitated electrodes more conductive in the former case. Cellulose paper contains cellulose fiber networks and these fibers are composed of glucose molecules attached to each other to form a cellulose chain and contains polar OH groups. The individual cellulose fibers are connected to each other with weak intermolecular hydrogen bonding between polar OH molecules of adjacent cellulose fibers. When the cellulose paper comes in contact with moisture, the water molecules participate in weak intermolecular hydrogen bonding with polar OH groups as demonstrated in Fig. 6, and penetrate between the cellulose fibers thereby increasing the dielectric constant of the material.
image file: c6ra21457f-f6.tif
Fig. 6 Adsorption of water molecules on cellulose paper surface and formation of weak intermolecular hydrogen bonding.

The porosity of cellulose paper is responsible for absorption and evaporation of moisture relative to humidity levels. Due to the tendency of paper to adsorb moisture from air, the number of water molecules adsorbed to the hydroxyl groups on cellulose paper increases with increase in humidity levels and thus the dielectric constant of the sensor varies. The capacitance of the sensor is given by

C = (n − 1)εrε0A/d
where A is the overlapping area between two digits, εr is the relative permittivity of the dielectric medium between two finger digits of interdigitated sensor, ε0 is the permittivity of free space and d is the distance between two conductive digits in the sensor. As water has a relative permittivity of >80 at room temperature, which is very high compared to that of paper, the capacitance increases with increase in humidity levels.

The performance of humidity sensor was investigated by exposing it to 3 different relative humidity (RH) levels: room temperature (42% RH), human breath (67% RH) and water vapor (88% RH). These humidity levels were measured using commercially available humidity sensor. The average and standard deviation of normalized capacitance as a function of percentage relative humidity of 3 devices were calculated and plotted as shown in Fig. 7(a). It was observed that the capacitance of the sensor increases almost linearly with increase in relative humidity levels, which is in agreement with mechanism explained in the previous section. The sensor exhibited a sensitivity of 4.5%/%RH and is comparable to expensive and solvent processed carboxyl CNT on paper and silver ink on paper humidity sensors.23,34


image file: c6ra21457f-f7.tif

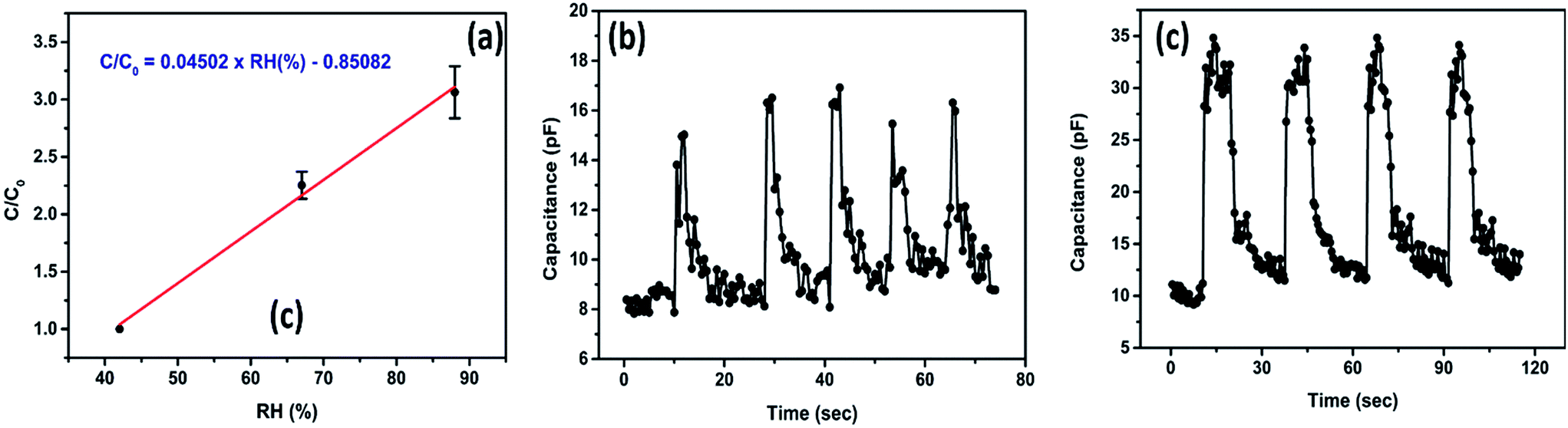

Fig. 7 (a) Normalized capacitance of humidity sensor as a function of relative humidity (%RH) (N = 3devices); (b) temporal response of humidity sensor with exhaled human breath; (c) temporal response of humidity sensor with water vapor.

Further we investigated the dynamic response of the sensor by exposing it to exhaled breath and water vapor repeatedly. Fig. 7(b) and (c) show consistent and repeatable response to breath and water vapor respectively. The response and recovery time of the sensor are 2 s and 7 s for exhaled breath and 1.5 s and 6 s for water vapor. The response and recovery times of GoP humidity sensor reported in this work are one order faster than that of humidity sensors fabricated using conventional eco-unfriendly fabrication procedures, sophisticated and energy consuming equipment and expensive and toxic materials.28–30 These fast response and recovery times of the sensor are due to faster adsorption and de-adsorption times of water drop on paper. The faster adsorption is due to the capillary pressure and the higher permeability of the cellulose paper.31 The evaporation rate depends on the mass change during evaporation which is directly proportional to the radius of water droplet. The water droplet on porous cellulose paper surface is larger compared to non-porous surfaces because of spreading which leads to faster evaporation.32 The performance and properties of this humidity sensor is compared with the other humidity sensors reported on various rigid, plastic and paper substrates as shown in Table 1. Being a solvent-free and low cost approach, this can be utilized in developing disposable atmospheric humidity sensors.

Table 1 Comparison of fabricated GoP based humidity sensor with reported literature
Sensing platform Sensitivity Response & recovery times (s) Is it biodegradable? Is it solvent-free process? Fabrication complexity & cost Ref.
Silver interdigitated electrodes on polyimide (PI) 5.537 pF/%RH 20–109.4 & 21.9–47.7 No No Simple & low cost 28
Silver interdigitated electrodes on poly amic acid (PAA) 0.185 pF/%RH 41.2–230.4 & 34.6–100.2 No No Simple & low cost 28
CMOS parallel plate capacitive sensor 0.566%/%RH 6 & NA No No Complex process & relatively expensive 29
MEMS based sensor 2.83 kΩ/%RH 10 & 5 No Yes Complex fabrication process & relatively expensive 30
Graphene oxide (GO) based sensor NA 0.02–0.03 & 0.03–0.09 No No Simple & low cost 33
Multi-walled carbon nanotubes (MWCNT) on paper 6%/%RH 6 & 120 Yes Yes Simple & expensive 34
Silver interdigitated electrodes on paper 0.18%/%RH 1.2–2 & 1.33–3.2 No No Simple & low cost 23
Pencil drawn graphite interdigitated electrodes on paper 4.5%/%RH 1.5–2 & 6–7 Yes Yes Simple and relatively cheaper This work


3.4 Passive RC filters

In order to explore the possibility of GoP electronic circuits, the pencil trace in series with interdigitated capacitor is exploited as a first order passive RC circuit as shown in Fig. 8(a). The pencil trace acts as a resistor and was drawn with HB pencil to get high resistance line. 5B pencil contains more graphite (82%) compared to that of H series, HB series and other lower series B pencils and is more conductive and thus was used to draw the interdigitated capacitor. The resistance of the HB trace was found to be 1.2 MΩ. To study the functionality of RC filter as an integrator, a square wave input was applied across series RC circuit using a function generator and the output across the capacitor was measured using a digital storage oscilloscope as shown in Fig. 8(b). At lower frequencies, the output of the filter is almost similar to the input with reduced amplitude as depicted in Fig. 8(c). As frequency increases the rise time of the waveform increases and finally the waveform becomes triangular in shape with further increase in frequency as shown in Fig. 8(d) and (e). This change in shape of the output of waveform is attributed to the variation of reactance Xc with the variation of frequency of the input signal as given by the following equation
image file: c6ra21457f-t5.tif
where f is the frequency of the input signal, C is the capacitance of the interdigitated capacitor and Cp is the capacitance of the oscilloscope probe (15 pF). The output voltage across the capacitor can be determined by
image file: c6ra21457f-t6.tif

image file: c6ra21457f-f8.tif
Fig. 8 (a) Pencil drawn RC circuit on paper; (b) schematic of RC integrator circuit; low pass filter (integrator) input (blue) and output (green) at (c) 500 Hz, (d) 5 kHz and (e) 30 kHz; (f) normalized output vs. frequency of low pass filter.

As frequency increases, the reactance decreases so that the output voltage across the capacitor decreases. The frequency at which the gain falls by 3 dB is the cut-off frequency of the filter and is found to be 6 kHz as shown in Fig. 8(f). The capacitance of the interdigitated capacitor was found to be 6 pF by using the relation

image file: c6ra21457f-t7.tif

Similarly, the performance of all-carbon paper based differentiator was studied by applying square wave input across the series RC circuit and measuring the output voltage across the resistor. The differentiator converts the low frequency square wave to spikes and the output resembles the input as frequency increases as shown in Fig. S3, ESI, which is in agreement with conventional resistor and capacitor based passive high pass filters.

To further investigate the frequency response of the RC low pass filter with sinusoidal signals, the sine wave input was applied across the resistor from the function generator and the output across the capacitor was observed in the oscilloscope. At low frequencies the low pass filter allows the signal to pass through with negligible attenuation as shown in Fig. S4(a), ESI. As the frequency increases the attenuation increases and the output signal becomes negligible at very high frequencies as observed in Fig. S4(b) and (c), ESI, respectively. Similarly the high pass filter allows the signal to pass through the circuit with small attenuation at higher frequencies and significantly attenuates the signal at low frequencies as shown in Fig. S5, ESI.

The successful fabrication of passive electrical components and their combinational circuits by direct writing of pencil trace on cellulose paper suggests that simple and complex passive RC circuits can be implemented with desired resistance and capacitance by varying the physical dimensions of the pencil trace on paper. Moreover, this is a solvent-free and eco-friendly approach to fabricate biodegradable planar electronic circuits on paper as opposed to the fabrication of electronic circuits on paper reported in literature as shown in Table 2.

Table 2 Comparison of graphite on paper (GoP) based RC filters
Materials Cut-off frequency (fc) Is it biodegradable? Is it solvent-free process? Is it planar? Cost Reference
Pencil graphite and ion gel 9 kHz Partially No Yes Low 10
Pencil graphite and NaCl salt 9 kHz Yes No No Low 11
Only pencil graphite 6 kHz Yes Yes Yes Very low This work


3.5 Effect of thickness of graphite film on paper on sensitivity of the sensors

The thickness and uniformity of the graphite film affect the sensitivity of the sensors as explained below.
3.5.1 pH sensor. Pure graphite is hydrophobic but pencil graphite has some oxygen rich functional groups which makes it somewhat hydrophilic. However, the hydrophobicity increases with increase in thickness of multilayered graphene or graphite film.41 It reduces the efficiency of graphite to absorb a liquid. Thus the relative change in conductivity of thick material upon exposure to a acidic or alkaline solution is less compared to that of thin films. Hence the sensitivity of pH sensor decreases with increase in thickness of the graphite film.
3.5.2 Temperature sensor. Graphite has multiple interlayers that are sandwiched between two surface layers. The effect of temperature on thermal motion velocity of surface electrons is negligible. However the thermal velocity of interlayer channel electrons is significantly affected by the temperature and this effect is more when the thickness of graphite is increased. Thus the variation in conductivity with variation in temperature increases with increase in thickness of the graphite film. Therefore the thicker films have higher TCR compared to thin films.38
3.5.3 Humidity sensor. The capacitance of the sensor depends on the thickness of the electrodes as given by the equation below.39,40
C = C1 + C2 + C3
where
image file: c6ra21457f-t8.tif

C2 = ε0ε2t/d
Here k(x) is a characteristic parameter that depends on geometry of the interdigitated capacitor, ε0, ε1, ε2 and ε3 are dielectric constants of free space, air, medium between electrodes and the substrate and t is the thickness of electrodes. In this case ε1 = ε2 as medium between electrodes is air. As the thickness t increases the capacitance C2 and hence the total capacitance C increases. Thus the initial capacitance of thicker electrodes is more compared to that of thin electrodes. However, the humidity affects the capacitance only due to substrate (C3) and this variation in capacitance is constant irrespective of thickness of electrodes. It is well known that a fixed variation in small quantity is more observable compared to that of large quantity. Therefore the sensitivity of humidity sensor will decrease with increase in thickness of the graphite film on paper.

Uniformity of the graphite film on paper is necessary to reproduce the sensors with sensitivity with least device to device variation. However, porous nature of cellulose paper makes it difficult to get uniform film on paper and there will be a measurable variation or deviation in sensitivity from device to device. However, this method being low cost and eco-friendly is beneficial for small scale production where cost and environment are major concerns at the expense of deviation in accuracy. This report is a proof of concept of direct writing of graphite on paper to make low cost and eco-friendly paper electronics and chemical sensors that can be applied in numerous fields and as authors, we are optimistic that realizing the tremendous potential this strategy has, there will be significant interest in this area which will lead to a need to find tools that can write electronics on paper with greater precision and uniformity suitable for commercialization.

So far, numerous electronic circuits, physical and chemical sensors have been reported on plastic substrates like polyimide (PI) and polyethylene terephthalate (PET). Despite the excellent performance of these devices, non-biodegradability restricts their use to limited applications13 and PET substrate cannot be used above 110 °C.35 Alternatively, paper is biodegradable and can be processed up to 200 °C. However, the existing fabrication strategies utilize either expensive materials, equipment or toxic solvents, which make paper electronics expensive and eco-unfriendly. Here we report the alternative low cost, eco-friendly and solvent-free fabrication method to develop electronic circuits and sensors by direct drawing of pencil trace on paper. The estimated cost of the each device is <$0.1. Such proposed technology will significantly reduce the electronic-waste generated due to the non-recyclable and non-biodegradable electronics which is a major problem worldwide leading to significant health issues and environment contamination.36,37

4. Conclusion

In summary, graphite on paper was used as a functional material to implement electronic components such as resistors, capacitors, their combinational first order passive circuits and physical and chemical sensors such as temperature sensor, pH sensor and humidity sensor. This was achieved via direct writing or mechanical abrasion of graphite pencil on cellulose paper which involves the deposition of few layers to multi layers of conductive graphene flakes intercalated by clay and wax. The performance of the as fabricated devices was similar to those fabricated by using capital intensive equipment and eco-unfriendly materials. This approach offers a simple, solvent-free, eco-friendly, inexpensive green fabrication method of passive electronic devices and physiochemical sensors on paper, in use-and-recycle or use-and-throw electronics applications.

Acknowledgements

The authors acknowledge the financial support from Science and Engineering Research Board (SERB), Department of Science & Technology, Government of India, Grant # YSS/2015/000863. SK thanks Harshit Gupta, 2nd year B.Tech student, Department of Electrical Engineering, Indian Institute of Technology Ropar, India, for his assistance in characterization of the sensors using Arduino Uno development board.

References

  1. D. Tobjork and R. Osterbacka, Adv. Mater., 2011, 23, 1935–1961 CrossRef PubMed.
  2. S. K. Mahadeva, K. Walus and B. Stoeber, ACS Appl. Mater. Interfaces, 2015, 7, 8345–8362 CAS.
  3. N. Dossi, R. Toniolo, A. Pizzariello, E. Carrilho, E. Piccin, S. Battiston and G. Bontempelli, Lab Chip, 2012, 12, 153–158 RSC.
  4. N. C. Sekar, S. A. M. Shaegh, S. H. Ng, L. Ge and S. N. Tan, Sens. Actuators, B, 2014, 204, 414–420 CrossRef.
  5. F. Pettersson, T. Remonen, D. Adekanye, Y. Zhang, C. E. Wilén and R. Österbacka, ChemPhysChem, 2015, 16, 1286–1294 CrossRef CAS PubMed.
  6. Y. Wang, Y. Shi, C. X. Zhao, J. I. Wong, X. W. Sun and H. Y. Yang, Nanotechnology, 2014, 25, 094010 CrossRef PubMed.
  7. R. Z. Li, A. M. Hu and T. Zhang, ACS Appl. Mater. Interfaces, 2014, 6, 21721–21729 CAS.
  8. S. Kanaparthi and S. Badhulika, Nanotechnology, 2016, 27, 095206 CrossRef PubMed.
  9. K. M. Frazier, K. a. Mirica, J. J. Walish and T. M. Swager, Lab Chip, 2014, 14, 4059–4066 RSC.
  10. N. Kurra, D. Dutta and G. U. Kulkarni, Phys. Chem. Chem. Phys., 2013, 15, 8367–8372 RSC.
  11. P. Nath, I. Hussain, S. Dutta and A. Choudhury, Indian J. Phys., 2014, 88, 1093–1097 CrossRef CAS.
  12. G. Zheng, L. Hu, H. Wu, X. Xie and Y. Cui, Energy Environ. Sci., 2011, 4, 3368–3373 CAS.
  13. S. Kanaparthi and S. Badhulika, Green Chem., 2016, 18, 3640–3646 RSC.
  14. T. Dinh, H. P. Phan, D. V. Dao, P. Woodfield, A. Qamar and N. T. Nguyen, J. Mater. Chem. C, 2015, 3, 8776–8779 RSC.
  15. C. W. Foster, D. A. Brownson, A. P. R. de Souza, E. Bernalte, J. Iniesta, M. Bertotti and C. E. Banks, Analyst, 2016, 141, 4055–4064 RSC.
  16. C. W. Lin, Z. Zhao, J. Kim and J. Huang, Sci. Rep., 2014, 4, 3812 Search PubMed.
  17. M. C. Sousa and J. W. Buchanan, Comput. Graph. Forum, 2000, 19, 27–49 Search PubMed.
  18. T. R. Albrecht, H. A. Mizes, J. Nogami, S. I. Park and C. F. Quate, Appl. Phys. Lett., 1988, 52, 362–364 CrossRef CAS.
  19. Y. Gan, W. Chu and L. Qiao, Surf. Sci., 2003, 539, 120–128 CrossRef CAS.
  20. J. T. W. Kuo, L. Yu and E. Meng, Micromachines, 2012, 3, 550–573 CrossRef.
  21. A. Di Bartolomeo, M. Sarno, F. Giubileo, C. Altavilla, L. Iemmo, S. Piano, F. Bobba, M. Longobardi, A. Scarfato, D. Sannino, A. M. Cucolo and P. Ciambelli, J. Appl. Phys., 2009, 105, 064518 CrossRef.
  22. S. Sahoo, S. K. Barik, G. L. Sharma, G. Khurana, J. F. Scott and R. S. Katiyar, arXiv e-prints, 2012.
  23. J. M. Nassar, M. D. Cordero, A. T. Kutbee, M. A. Karimi, G. A. T. Sevilla, A. M. Hussain, A. Shamim and M. M. Hussain, Adv. Mater. Technol., 2016, 1, 1600004 CrossRef.
  24. S. M. Abdullah, Z. Ahmad and K. Sulaiman, Sensors, 2014, 14, 9878–9888 CrossRef CAS PubMed.
  25. P. Gou, N. D. Kraut, I. M. Feigel, H. Bai, G. J. Morgan, Y. Chen, Y. Tang, K. Bocan, J. Stachel, L. Berger, M. Mickle, E. Sejdic and A. Star, Sci. Rep., 2014, 4, 4468 CrossRef PubMed.
  26. L. Liu, J. Shao, X. Li, Q. Zhao, B. Nie, C. Xu and H. Ding, Appl. Surf. Sci., 2016, 386, 405–411 CrossRef CAS.
  27. C. Lee, K. F. Lei, S. Tsai and N. Tsang, BioChip J., 2016, 10, 182–188 CrossRef CAS.
  28. T. Yang, Y. Z. Yu, L. S. Zhu, X. Wu, X. H. Wang and J. Zhang, Sens. Actuators, B, 2015, 208, 327–333 CrossRef CAS.
  29. V. P. Chung, C. L. Cheng, M. C. Yip and W. Fang, Presented in part of 28th IEEE International Conference on Micro Electro Mechanical Systems (MEMS), Estoril, January, 2015 Search PubMed.
  30. C. H. Lin, L. M. Fu and C. Y. Lee, Presented in part of 9th IEEE International Conference on Nano/Micro Engineered and Molecular Systems (NEMS), Hawaii, April, 2014 Search PubMed.
  31. D. Shou, L. Ye, J. Fan and K. Fu, Langmuir, 2013, 30, 149–155 CrossRef PubMed.
  32. R. F. Griffiths and I. D. Roberts, Atmos. Environ., 1999, 33, 3531–3549 CrossRef CAS.
  33. S. Borini, R. White, D. Wei, M. Astley, S. Haque, E. Spigone, N. Harris, J. Kivioja and T. Ryhanen, ACS Nano, 2013, 7, 11166–11173 CrossRef CAS PubMed.
  34. J.-W. Han, B. Kim, J. Li and M. Meyyappan, J. Phys. Chem. C, 2012, 116, 22094–22097 CAS.
  35. H. Zhu, Z. Xiao, D. Liu, Y. Li, N. J. Weadock, Z. Fang, J. Huang and L. Hu, Energy Environ. Sci., 2013, 6, 2105–2111 CAS.
  36. B. H. Robinson, Sci. Total Environ., 2009, 408, 183–191 CrossRef CAS PubMed.
  37. S. Pramila, M. H. Fulekar and P. Bhawana, Res. J. Recent Sci., 2012, 1, 86 Search PubMed.
  38. X. Y. Fang, X. X. Yu, H. M. Zheng, H. B. Jin, L. Wang and M. S. Cao, Phys. Lett. A, 2015, 379, 2245–2251 CrossRef CAS.
  39. H. E. Endres and S. Drost, Sens. Actuators, B, 1991, 4, 95–98 CrossRef CAS.
  40. N. Angkawisittpan and T. Manasri, Meas. Sci. Rev., 2012, 12, 8–13 Search PubMed.
  41. M. Munz, C. E. Giusca, R. L. Myers-Ward, D. K. Gaskill and O. Kazakova, ACS Nano, 2015, 9, 8401–8411 CrossRef CAS PubMed.

Footnote

Electronic supplementary information (ESI) available. See DOI: 10.1039/c6ra21457f
