Upconversion nanoparticle arrays for detecting glycated hemoglobin with high sensitivity and good reusability

Abstract

Lanthanide-doped upconversion nanoparticles (UCNPs) have attracted extensive interest in bio-applications due to their unique optical properties by converting near infrared excitation to visible emission. Here, we show that NaGdF₄:48% Yb³⁺,2% Er³⁺ upconversion nanoparticle arrays could be used as a high-sensitive, reusable, and stable device for detecting glycosylated hemoglobin (HbA1c), based on the luminescent resonance energy transfer (LRET) from UCNPs to HbA1c. Importantly, the upconversion nanoparticle arrays present a much higher sensitivity to the concentration variation of HbA1c than the direct detection in the solution, which is ascribed to the extinction effect of the arrays.

---

1. Introduction

Glycated hemoglobin (HbA1c) is a stable glucose adduct with the N-terminal valine of the β-chain of haemoglobin,^1,2 the level of which indicates the average blood glucose level over the previous 2 to 3 months, and is currently a very useful diagnostic index and allows long-term monitoring for diabetes.^3–6 Conventional detections of HbA1c are usually determined via electrochemical biosensors, because of their low cost, good sensitivity, and small size.^7–9 However, they require electrode modification, separation of total hemoglobin content, and fabrication of the sensing interface involving stepwise attachment of a molecular wire, redox species, and an HbA1c analogue for competitive inhibition.^10,11 Hence, it is desirable to develop an easy-to-use and also highly sensitive biosensor for detecting HbA1c.^12,13

UCNPs are inorganic lanthanide-doped nanocrystals, capable of converting lower-energy infrared photons into higher-energy visible light emission.^14–19 Because of the infrared light being used as the excitation power source, UCNPs generate the expected fluorescent signals without background.^20–23 In addition, the upconversion luminescence has the following characteristics: good photo-stability, narrow emission bands, exciting with cost-effective infrared laser diode.^24–27

Kim et al. have recently reported a viable and efficient procedure for detecting HbA1c through luminescent resonance energy transfer process from upconversion nanoparticles to HbA1c.¹ Their results indicated that the concentration of HbA1c can be easily addressed according to the luminescence intensity of UCNPs, since the luminescence intensity decreases monotonously with increasing the concentration of HbA1c.

Here, we show that UCNPs arrays show higher sensitivity to the concentration variation of HbA1c than the direct detection in solution. In addition, this array sensor is reusable and the detection data is highly reproducible, due to a fact that the instability of UCNPs in solution is avoided.

2. Experimental

UCNPs were synthesized by the previous route²⁸ (details listed in ESI†). Subsequently, the surfaces of these UCNPs were modified with PEG according to previous protocols with slight modification.^29,30 The fabrication of the UCNPs arrays was illustrated in Scheme S1 (see ESI† for the details). The morphology and particle size of the synthesized nanoparticles were characterized by JEM 3010 high-resolution transmission electron microscopy (HRTEM). The UV-vis absorption spectra of HbA1c was recorded on a Shimadzu UV-2550 spectrometer. The photoluminescence spectra were measured by Hitachi F-2700 fluorescence spectrophotometer while the fluorescent photographs were taken on Olympus BX43 inverted fluorescence microscope.

3. Results and discussion

3.1 Upconversion fluorescence of NaGdF₄ nanoparticles

By using a facile strategy, NaGdF₄:48% Yb³⁺,2% Er³⁺ upconversion nanoparticles with efficient photoluminescence and uniform particle size were successfully prepared. The morphology and particle size of the synthesized NaGdF₄:48% Yb³⁺,2% Er³⁺ nanocrystals can be addressed by TEM and HRTEM images in Fig. 1. It is clear (Fig. 1a) that the as-prepared nanoparticles appear almost spherical in shape and monodisperse. The average diameters of these prepared NaGdF₄ nanoparticles doped with 48% Yb³⁺ and 2% Er³⁺ are determined to be about 28.5 ± 0.5 nm. The crystal lattice fringes (Fig. 1b) were clearly observed along (0001) orientation in the hexagonal NaGdF₄ nanocrystals.³¹

Fig. 1 (a) TEM image of NaGdF₄:48% Yb³⁺,2% Er³⁺ NPs; (b) the corresponding high-resolution TEM image (HR-TEM).

The upconversion fluorescent spectra of NaGdF₄:48% Yb³⁺,2% Er³⁺ nanocrystals in cyclohexane solution under the 980 nm laser excitation are shown in Fig. 2. The emission bands can be easily assigned to transition within the 4f–4f levels of the Er³⁺. The spectrum of NaGdF₄:48% Yb³⁺,2% Er³⁺ exhibits three distinct emission bands from Er³⁺ ions, centered at 521 nm, 540 nm, and 654 nm which are assigned to the Er³⁺–4fⁿ electronic transitions ²H_11/2 → ⁴I_15/2, ⁴S_3/2 → ⁴I_15/2 and ⁴F_9/2 → ⁴I_15/2, respectively. The whole luminescence appears green-yellow in color to naked eyes due to the combination of intense green and weak red emissions from the Er³⁺ ion.

Fig. 2 Room temperature upconversion emission spectra of NaGdF₄:48% Yb³⁺,2% Er³⁺ nanoparticles. The inset: the photograph of UCNPs dispersed in cyclohexane under the excitation of 980 nm infrared light.

The possible upconversion excitation emission pathways of the Er³⁺/Yb³⁺ ion couples are shown in Fig. S1.† In the case of NaGdF₄:48% Yb³⁺,2% Er³⁺ nanocrystals, an initial energy transfer from an Yb³⁺ ion in the ²F_5/2 state to an Er³⁺ ion populating the ⁴I_11/2 level of Er³⁺ ion. The second 980 nm photon or energy transfer from an Yb³⁺ ion to the Er³⁺ ion can then populate the ⁴F_7/2 level of the Er³⁺ ion. The electrons in the ⁴F_7/2 level of Er³⁺ ion can relax nonradiatively (without emission of photons) to the ⁴S_3/2 levels for the green emissions by the transition ⁴S_3/2 → ⁴I_15/2. Alternatively, the Er³⁺ ion can further relax and populate the ⁴F_9/2 level leading to the red emission from the transition ⁴F_9/2 → ⁴I_15/2. The ⁴F_9/2 level may also be populated from the ⁴I_13/2 level of the Er³⁺ ion by absorption of a 980 nm photon, or energy transfer from an Yb³⁺ ion, with the ⁴I_13/2 state being initially populated via the nonradiative ⁴I_11/2 → ⁴I_13/2 relaxation.³²

3.2 LRET mechanism and the direct detection of glycated hemoglobin in solution

The luminescent resonance energy transfer (LRET) mechanism has been reported in previous works.^1,29,33 Here, NaGdF₄:48% Yb³⁺,2% Er³⁺ nanoparticles play a role of the fluorescence donor while HbA1c performs as an acceptor. As we can see from Fig. 3, the green emission spectrum of the UCNPs ranging from 510 to 570 nm suitably overlaps with the absorption spectrum of HbA1c. Therefore, the green luminescence of the UCNPs can be strongly quenched by HbA1c.

Fig. 3 The UC fluorescence spectrum of NaGdF₄:48% Yb³⁺,2% Er³⁺ nanocrystals and the absorption spectrum of HbA1c between 510 nm and 570 nm.

HbA1c is a stable glucose adduct, of which the level indicates the average blood glucose level over the previous 2 to 3 months. There is no change to the level of HbA1c with the daily fluctuation in the blood, and is currently a very useful diagnostic index and allows long-term monitoring for diabetes. Conventional detection of HbA1c is usually determined via electrochemical biosensors, because of their low cost, high sensitivity, and small size. However, they require electrode modification, separation of total hemoglobin content, and fabrication of the sensing interface involving stepwise attachment of a molecular wire, redox species, and an HbA1c analogue for competitive inhibition. Hence, there is a need to develop a novel homogeneous biosensor for HbA1c detection with high selectivity and simplicity. Here, we show that the green upconversion fluorescent nanoprobes is very efficient and viable for detecting HbA1c, based on the luminescent resonance energy transfer process from UCNPs to HbA1c. The main merits of these UCNPs based LRET are ascribed to the deep penetration depth of the infrared excitation light and high signal to noise ratios. This efficient LRET process between UCNPs and HbA1c could be directly used for detecting the concentration of HbA1c in solution.

3.3 Detection of glycated hemoglobin by upconversion nanoparticle arrays and the enhanced sensitivity

We have directly detected HbA1c in solution (see Fig. S5 and the related discussion in ESI†) and found that the repeatedly measured fluorescent spectra have a deviation of 3–12% in intensity relative to the original one, due to the fact that the solution containing UCNPs (16.5 mg ml⁻¹) and HbA1c is not completely uniform and stable and a small part of UCNPs deposit gradually in the solution during the detecting process. In addition, the particular processing procedure, such as the surface modification of UCNPs and shaking, is necessary to ensure the solution as uniform as possible.

To overcome these problems involved in the direct detection of HbA1c in solution, UCNPs arrays were developed for detecting HbA1c with higher sensitivity to the concentration variation (∼four times of that in solution), better reproducibility of the fluorescent signals (deviation of 0.4–1.8%), and good reusability (repeated 20 times without obvious deviation).

UCNPs were first synthesized by the solvothermal method in the OA/ODE solution, and then modified with PEG to transfer their surfaces from hydrophobic to hydrophilic. These nanoparticles were subsequently washed with distilled water for several times to remove excess PEG. As demonstrated in Scheme S1,† these PEG modified UCNPs were deposited in the holes of the array board (Fig. 4a) with close two-dimensional structures due to the solid state PEG involved in the linking among nanoparticles. It should be emphasized that the PEG coating with the thickness of several nanometers could exist stably on the surfaces of UCNPs and would not resolve in water during the detection process.²⁹ The UCNPs arrays could emit green light under the excitation of 980 infrared light (Fig. 4b).

Fig. 4 (a) The bright field imaging of the UCNPs array and (b) fluorescence imaging of the UCNPs array under the excitation of a 980 nm laser diode.

The detection based on these arrays is a promising way to improve the sensitivity. We get one drop of glycated hemoglobin solution on the array, and then a series of LRET spectra were recorded (Scheme 1) and shown in Fig. 5. It is noted that the integral emission intensity from the array decreases remarkably with increasing the content of HbA1c. The sensitivity (S) is defined as the follows:

S = (I_j − I_j+1)/I_j

where I_j is the integral intensity of the green emission from UCNPs, (500–570 nm) accompanied with the different concentration of HbA1c, and the index j (j = 0, 1, 2, 3) means the detection ordinals. Here, I₀, I₁, I₂ and I₃ correspond to the integral fluorescent intensity of UCNPs (16.5 mg ml⁻¹) accompanied with HbA1c of 0, 0.025, 0.05, and 0.100 mg ml⁻¹, respectively. The calculated sensitivity (S) is equal to 0.87, 0.70 and 0.69 for detecting HbA1c on the arrays with the concentration of 0.025, 0.05 and 0.100 mg ml⁻¹, respectively. However, these sensitivities decrease to 0.13, 0.14 and 0.18, respectively, when the detection being directly performed in the solution. It is clear from Fig. 6 that the detection based on the array shows the sensitivity higher than 0.60 while the direct detection in solution presents a sensitivity lower than 0.20.

Scheme 1 Schematic illustration of the reusability and reproducibility of the UCNPs arrays.

Fig. 5 The upconversion fluorescent spectra of the NaGdF₄:48% Yb³⁺,2% Er³⁺ nanocrystals with different concentrations of HbA1c (from 0 to 0.1 mg ml⁻¹) on the upconversion nanoparticle array. Inset: the integral intensity of green emission from UCNPs vs. concentration of HbA1c.

Fig. 6 The detection sensitivity (S) to the concentration variation of HbA1c in solution and on array.

3.4 The mechanism involved in the detection based on the arrays and the reusability and reproducibility

For demonstrating the difference between the detections in solution and on array, the radiation radius is adopted for representing the emission intensity (Scheme 2). When detecting directly HbA1c in solution, the luminescence of UCNPs has a certain radiation radius and becomes shorter with increasing the concentration of HbA1c (Scheme 2a). However, for detection on the array, the collected photons are actually attributed to the emission overlap from the luminous spots on the array (Scheme 2b). It should be noted that the luminescent intensity of the overlapping region deceases much faster than the emission centers, with increasing the concentration of HbA1c. e.g., the emission from the overlapping region will vanish, while the emission intensity of emission centers decreases to half of the original one (Scheme 2b). Of course, this emission overlap obeys the laws of geometrical optics. Therefore, it can be easily inferred that the collected photons on the array are more sensitive to the concentration variation of HbA1c than those in the solution. In addition, the upconversion nanoparticles were deposited on the array and formed a close film to ensure the stability of detection process and the good reproducibility of detection data.

Scheme 2 Schematic illustration of the extinction effect in the collection of the emission photons.

The further investigation indicates that the ever-used UCNPs arrays can be cleaned with the mixture of ethanol and water (Scheme 1) and used for detecting HbA1c again. There is no obvious deviation for the detection results after repeating for 20 times (Fig. 7).

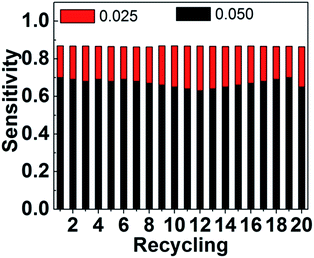

Fig. 7 The detection sensitivity (S) of the UCNPs arrays after recycling for 20 times.

4. Conclusions

Upconversion nanoparticle (NaGdF₄:48% Yb³⁺,2% Er³⁺) arrays were designed and fabricated, which can be used for detecting HbA1c through the LRET from UCNPs to HbA1c. The extinction effect of the UCNPs arrays contributed to the enhancement of the detection sensitivity. In comparison to the direct detection in solution, this method presents higher sensitivity to the concentration variation (∼4 times of that in solution), better reproducibility of the fluorescent signals (deviation: 0.4–1.8% on array; 3–12% in solution), and good reusability (repeated 20 times without obvious deviation). This method can be used for detecting glycated and non-glycated hemoglobin, while the selective detection of them is under way.

We expect these UCNPs arrays will accelerate the application of biosensors based on UCNPs in the field of biological detections.
