MCM-41-immobilized 1,10-phenanthroline–copper(I) complex: a highly efficient and recyclable catalyst for the coupling of aryl iodides with aliphatic alcohols

Yang Lina, Mingzhong Cai*b, Zhiqiang Fanga and Hong Zhao*a
aSchool of Chemistry and Chemical Engineering, Guangdong Pharmaceutical University, Guangzhou 510006, P. R. China. E-mail: zhaohong1001@sina.com
bCollege of Chemistry & Chemical Engineering, Jiangxi Normal University, Nanchang 330022, P. R. China. E-mail: mzcai@jxnu.edu.cn

Received 5th August 2016 , Accepted 2nd September 2016

First published on 2nd September 2016


Abstract

A heterogeneous C–O coupling reaction between aryl iodides and aliphatic alcohols was achieved in neat alcohol or toluene at 110 °C in the presence of 10 mol% of the MCM-41-immobilized 1,10-phenanthroline–copper(I) complex [MCM-41-1,10-phen–CuI] with Cs2CO3 as a base, yielding a variety of aryl alkyl ethers in good to excellent yields. The new heterogeneous copper catalyst can easily be prepared by a simple procedure from commercially available and inexpensive reagents, and recovered by filtration of the reaction solution and recycled at least 8 times without significant loss of activity.


1. Introduction

Aryl alkyl ethers are important structures that are often found in many naturally occurring and medicinally relevant compounds1 and important solvents and synthetic building blocks in organic synthesis.2 The copper-mediated Ullmann ether synthesis is a classical route for the preparation of these compounds.3 However, harsh reaction conditions such as high reaction temperatures, the use of strong alkoxide bases, stoichiometric quantities of copper salts, and the low to moderate yields have generally restricted its synthetic applicability. Although palladium-catalyzed C–O bond formation reactions have become effective strategies for their preparation,4 the drawbacks of the catalyst systems, such as high cost, toxicity, the utilization of environmental unfriendly phosphine ligands, and tedious multistep processes involved in the synthesis of these phosphine ligands often limit their applications in large-scale preparation. In contrast, copper-catalyzed Ullmann coupling between aryl halides and alcohols is an attractive alternative for palladium-catalyzed aryl alkyl ether synthesis due to the relatively low toxicity and cost of the catalyst, as well as a decreased amount of β-H elimination.5 For these reasons, much effort has been devoted to the development of copper-catalyzed Ullmann C–O coupling reactions for the preparation of aryl alkyl ethers.6 Although these copper-catalyzed C–O coupling methods are highly efficient for the construction of aryl alkyl ethers, about 10 mol% of copper salts and 20 mol% of ligands are usually utilized to obtain high yields. Moreover, the problem with homogeneous catalysis is the difficulty to separate the catalyst from the reaction mixture and the impossibility to reuse it in consecutive reactions. It is well known that homogeneous catalysis might result in heavy metal contamination of the desired isolated product. These problems are of particular environmental and economic concerns in large-scale syntheses and in industry. To overcome these drawbacks, development of highly efficient heterogeneous catalysts, for example by immobilization of catalytically active species onto an ideal heterogeneous support to generate a molecular heterogeneous catalyst is essential.7 The heterogenization of C–O coupling catalysts appears to be a logical solution; the use of immobilized catalysts could result in easy recovery and recyclability of the copper catalyst, thereby, minimizing copper contamination of the desired isolated products and wastes derived from reaction workup. In spite of some reports on heterogeneous copper-catalyzed C–O coupling between aryl halides and phenols in recent years,8 to the best of our knowledge, the C–O coupling between aryl halides and aliphatic alcohols catalyzed by heterogeneous copper complexes has not been reported until now.

The discovery of mesoporous MCM-41 materials has provided a new possible candidate for an ideal heterogeneous support for the immobilization of homogeneous catalysts and given an enormous stimulus to research in heterogeneous catalysis.9 The MCM-41 has high surface area, large and defined pore size, big pore volume and rich silanol groups in the inner channel walls.10 To date, some functionalized MCM-41-immobilized palladium,11 rhodium,12 molybdenum,13 gold14 and copper15 complexes have been prepared and successfully utilized as potentially green and sustainable catalysts in organic synthesis. In continuation of our efforts to develop economical and eco-friendly synthetic pathways for organic transformations,11d–f,15 herein we wish to report the first preparation of the MCM-41-immobilized 1,10-phenanthroline–CuI complex [MCM-41-1,10-phen–CuI] and its successful application to C–O coupling reaction between aryl iodides and aliphatic alcohols (Scheme 1). The new heterogeneous copper catalyst exhibits high catalytic activity for the C–O coupling reaction in neat alcohol or toluene with Cs2CO3 as base and can easily be recovered by a simple filtration of the reaction solution, and its catalytic efficiency remains unaltered even after recycling eight times.


image file: c6ra19825b-s1.tif

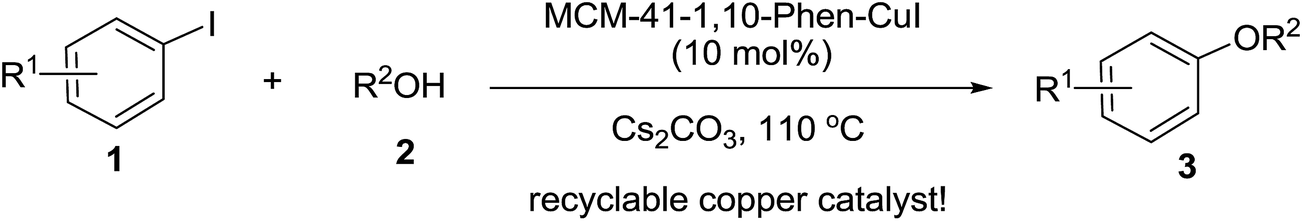

Scheme 1 Heterogeneous Cu-catalyzed C–O coupling between aryl iodides and alcohols.

2. Results and discussion

The new MCM-41-immobilized 1,10-phenanthroline–copper(I) complex [MCM-41-1,10-phen–CuI] was easily prepared according to the procedure summarized in Scheme 2. Firstly, the mesoporous material MCM-41 (ref. 16) was treated with 1-(1,10-phenanthrolin-5-yl)-3-(3-(triethoxysilyl)propyl)urea17 in toluene under reflux for 24 h, followed by the silylation with Me3SiCl in toluene at room temperature for 24 h to generate the 1,10-phenanthroline-functionalized MCM-41 [MCM-41-1,10-phen]. The latter was then reacted with CuI in acetone under reflux for 24 h to afford the MCM-41-immobilized 1,10-phenanthroline–copper(I) complex [MCM-41-1,10-phen–CuI] as a light green powder, the copper content of the catalyst was found to be 0.75 mmol g−1 according to the ICP-AES measurements.
image file: c6ra19825b-s2.tif
Scheme 2 Preparation of MCM-41-1, 10-phen–CuI.

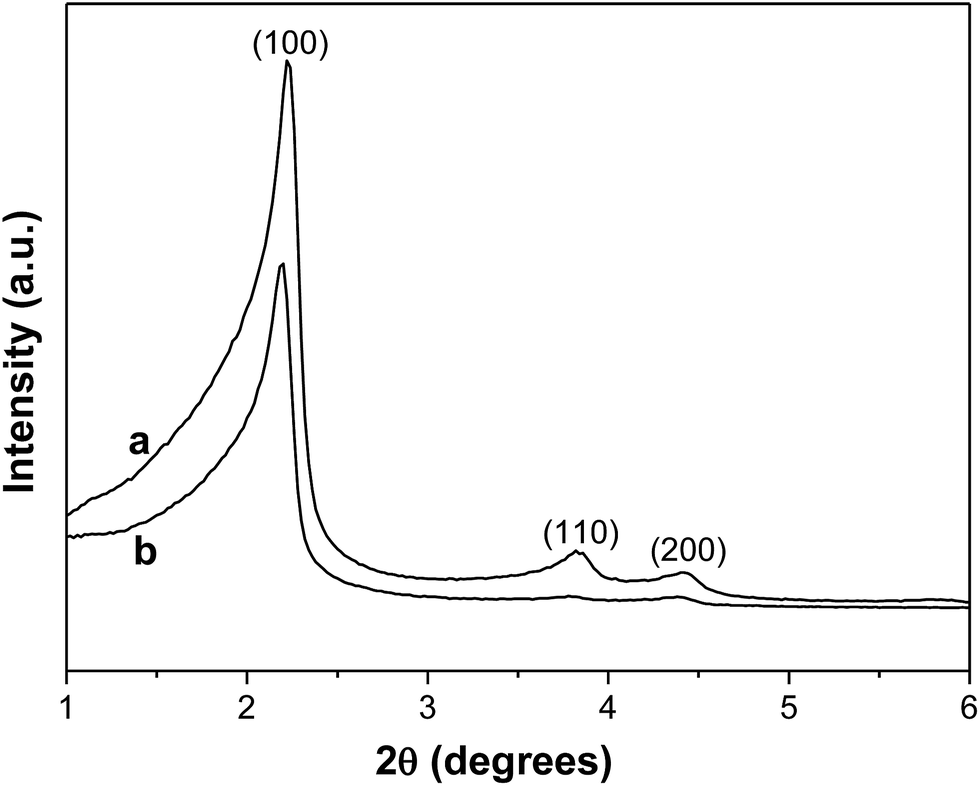

The X-ray powder diffraction (XRD) patterns of the parent MCM-41 and the MCM-41-1,10-phen–CuI complex are illustrated in Fig. 1. Small angle X-ray diffraction of the parent MCM-41 gave three peaks corresponding to hexagonally ordered mesoporous phases. For the MCM-41-1,10-phen–CuI, the (100) reflection of MCM-41 with decreased intensity was remained after functionalization, while the (110) and (200) reflections became weak and diffuse, which should be attributed to contrast matching between the silicate framework and organic moieties which are located inside the channels of MCM-41. These results indicate that the structure of the mesoporous material remains unchanged through the grafting procedure and the formation of the catalyst has taken place preferentially inside the pore system of MCM-41. The energy dispersive X-ray spectroscopy (EDS) shows the elements present in the material. EDS analysis of fresh MCM-41-1,10-phen–CuI complex shows the presence of Si, O, C, N, I, and Cu elements (Fig. 2).


image file: c6ra19825b-f1.tif
Fig. 1 XRD patterns of MCM-41 (a) and MCM-41-1,10-phen–CuI (b).

image file: c6ra19825b-f2.tif
Fig. 2 EDS analysis of MCM-41-1,10-phen–CuI complex.

In our initial screening experiments, the cross-coupling of 4-methyliodobenzene with butanol was chosen as the model reaction to optimize the reaction conditions, which include base, solvent, and reaction temperature and the results are summarized in Table 1. At first, the solvent effect was examined by using 10 mol% of MCM-41-1,10-phen–CuI as catalyst with Cs2CO3 as base at 110 °C (Table 1, entries 1–6). Among the solvents examined, toluene afforded good yield (entry 1), while other solvents such as dioxane, DMSO, DMF and butyronitrile were substantially less effective (entries 2–5). To our delight, when butanol was used as solvent, the reaction proceeded smoothly in neat alcohol to give the desired product 3a in 92% yield (entry 6). We then turned our attention to investigate the effect of base on the coupling reaction. It is evident that lower yields were obtained when other inorganic bases such as K2CO3, Na2CO3, and K3PO4 were used and organic bases such as piperidine and n-Bu3N were inefficient (entries 7–11). Lowering reaction temperature to 100 °C resulted in a lower 78% yield (entry 12) and raising reaction temperature to 120 °C did not improve the yield of the desired product (entry 13). Finally, the amount of the catalyst was also screened and 10 mol% of MCM-41-1,10-phen–CuI was found to be optimal (entries 6, 14 and 15). To compare with homogeneous copper catalytic system, 10 mol% CuI and 20 mol% 1,10-phenanthroline were used as the catalyst, the desired product 3a was isolated in 93% yield (entry 16), which indicating that the catalytic activity of the MCM-41-1,10-phen–CuI complex is comparable to that of the homogeneous analogue. Thus, the optimized reaction conditions for this transformation are the MCM-41-1,10-phen–CuI (10 mol%) in neat alcohol with Cs2CO3 as base at 110 °C under Ar for 24 h (entry 6).

Table 1 Cross-coupling between 4-methyliodobenzene and butanol in different conditionsa

image file: c6ra19825b-u1.tif

Entry Base Solvent Temp. (°C) Yieldb (%)
a All reactions were performed using 4-methyliodobenzene (0.5 mmol), n-BuOH (1 mmol), base (1 mmol), 10 mol% of MCM-41-1,10-phen–CuI, solvent (1 mL) under Ar in a sealed tube for 24 h.b Isolated yield.c 5 mol% of copper catalyst was used.d 20 mol% of copper catalyst was used.e 10 mol% CuI and 20 mol% 1,10-phenanthroline were used.
1 Cs2CO3 Toluene 110 84
2 Cs2CO3 Dioxane 110 33
3 Cs2CO3 DMF 110 49
4 Cs2CO3 DMSO 110 36
5 Cs2CO3 Butyronitrile 110 54
6 Cs2CO3 n-BuOH 110 92
7 K2CO3 n-BuOH 110 75
8 Na2CO3 n-BuOH 110 67
9 K3PO4 n-BuOH 110 46
10 Piperidine n-BuOH 110 Trace
11 n-Bu3N n-BuOH 110 Trace
12 Cs2CO3 n-BuOH 100 78
13 Cs2CO3 n-BuOH 120 91
14c Cs2CO3 n-BuOH 110 69
15d Cs2CO3 n-BuOH 110 92
16e Cs2CO3 n-BuOH 110 93


With this promising result in hand, we started to examine the scope and limitation of this heterogeneous copper-catalyzed coupling reaction between aryl iodides and aliphatic alcohols under the optimized conditions. Firstly, reactions of aryl iodides with inexpensive primary or secondary alcohols were examined and the results are summarized in Table 2. The butoxylation reactions of a variety of aryl iodides bearing both electron-donating and electron-withdrawing groups with n-BuOH (2a) proceeded smoothly in neat n-BuOH at 110 °C, leading to the corresponding aryl butyl ethers 3a–3f in good to excellent yields (78–93%) within 24 h. The results indicated that the electronic effect of substituents on the benzene ring has limited influence on this heterogeneous copper-catalyzed C–O coupling reaction. However, the electron-withdrawing substituent CN seemed to be more sensitive under the optimized coupling conditions, which may be due to the fact that nitriles are also good ligands for copper. When the reaction of 4-iodobenzonitrile was performed in neat n-BuOH, a mixture of the corresponding amide and ester as well as other decomposition products was observed even at lower temperature and shorter reaction time. Thus, this reaction was carried out with only 4 equiv. of n-BuOH in toluene as a solvent for 30 h to afford the desired 3f in 78% yield. The sterically hindered 2-iodotoluene, 2-nitroiodobenzene and bulky 1-iodonaphthalene were also coupled with n-BuOH effectively to give the corresponding products 3g, 3h and 3i in 94, 76 and 89% yields, respectively. It is noteworthy that heterocyclic substrates such as 2- or 3-iodopyridines and 2-iodothiophene can also be successfully coupled with n-BuOH to give the corresponding butyl heteroaryl ethers 3j–3l in good yields. The C–O coupling reactions of other inexpensive primary alcohols such as methanol and benzyl alcohol with aryl iodides also proceeded smoothly to furnish the corresponding aryl methyl ethers 3m, 3n and aryl benzyl ethers 3o, 3p in high yields within 24 h. Both strong electron-donating and electron-withdrawing groups on the benzene ring were tolerated well. Encouraged by the above results, we also carried out the reaction of aryl bromides with aliphatic alcohols, unfortunately, aryl bromides were not reactive under the present catalytic system even at elevated temperatures. The similar observation had also been made by Buchwald et al. using homogeneous CuI/1,10-phenanthroline system.6a

Table 2 Coupling of aryl iodides with primary or secondary alcohols catalyzed by MCM-41-1,10-phen–CuIa,b

image file: c6ra19825b-u2.tif

a All reactions were performed using 0.5 mmol of aryl iodide, 1 mL of R2OH, Cs2CO3 (1 mmol), 10 mol% of MCM-41-1,10-phen–CuI at 110 °C under Ar in a sealed test tube for 24 or 36 h.b Isolated yield.c 4 equiv. of n-BuOH in 1 mL of toluene was used for 30 h.d For 36 h.
image file: c6ra19825b-u3.tif


The preparation of aryl alkyl ethers from secondary alcohols and aryl halides represents a more challenging synthetic problem18 that thus far cannot be generally solved using palladium catalysts due to the presence of β-hydride elimination. Thus, we next examined the possibility of coupling common secondary alcohols that could also serve as solvents under optimized conditions, and the results are listed in Table 2. As shown in Table 2, isopropanol and cyclohexanol could be effectively coupled with aryl or heteroaryl iodides to afford the desired secondary alkyl aryl ethers 3q–3s in high yields on longer times (36 h). The coupling reactions of sterically hindered 2-iodotoluene and 2-iodochlorobenzene with cyclohexanol also gave the desired products 3t and 3u in high yields. Interestingly, 2-undecanol, a long chain secondary alcohol, was also good coupling partner and coupled with aryl iodides smoothly to give the expected long chain secondary alkyl aryl ethers 3v and 3w in good yields.

During our initial screening experiments, we found that toluene was a suitable solvent for the coupling of 4-methyliodobenzene with n-BuOH (Table 1, entry 1). For more precious alcohols, it is highly desirable to perform the reaction in a solvent using only a moderate excess of one of the coupling partners. We next carried out the coupling reaction with 0.5 mmol of aryl iodide, 1.0 mmol of alcohol and 1.0 mmol of Cs2CO3 in toluene (1 mL) at 110 °C for 36 h. To demonstrate the scope of this heterogeneous copper-catalyzed method, allylic alcohols, substituted benzyl alcohols, and pyridine-3-methanol were used as substrates and the results are listed in Table 3. Considering the fact that para-substituted electron-rich aryl halides are poor substrates for the corresponding palladium-catalyzed transformations, we chose 4-iodoanisole as the aromatic coupling partner for the allylic alcohols. As shown in Table 3, the primary allylic alcohols gave the corresponding allyl aryl ethers 3x and 3y in high yields. The electron-rich p-, m-, or o-iodotoluenes were also good substrates for 4-methylbenzyl alcohol and afforded the corresponding aryl 4-methylbenzyl ethers 3z–3b′ in good yields. It is noteworthy that the coupling reactions of sterically hindered 2-methylbenzyl alcohol with the electron-rich 4-iodoanisole or 4-iodotoluene in toluene could proceed smoothly to give the coupling products 3c′ and 3d′ in 94 and 79% yields, respectively. The reaction of pyridine-3-methanol with 4-iodoanisole furnished the desired 3e′ in 65% yield. Interestingly, the coupling reaction between both sterically hindered substrates, 2-chloroiodobenzene and 2-methylbenzyl alcohol in toluene also proceeded effectively to provide the corresponding ether 3f′ in good yield.

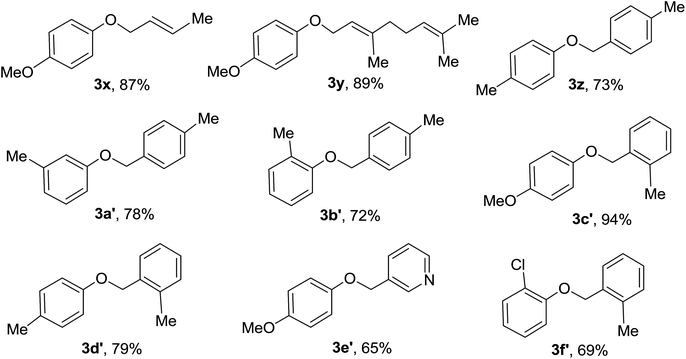

Table 3 Heterogeneous copper-catalyzed coupling of aryl iodides with aliphatic alcohols using toluene as solventa,b

image file: c6ra19825b-u4.tif

a All reactions were performed using 0.5 mmol of aryl iodide, 1 mmol of R2OH, 1 mmol of Cs2CO3, 10 mol% of MCM-41-1,10-phen–CuI in toluene (1 mL) at 110 °C under Ar in a sealed test tube for 36 h.b Isolated yield.
image file: c6ra19825b-u5.tif


To determine whether the observed catalysis was due to the heterogeneous catalyst MCM-41-1,10-phen–CuI or to a leached copper species in solution, the reaction of 4-methyliodobenzene (1a) with butanol (2a) was carried out until an approximately 50% conversion of 1a was reached. Then the MCM-41-1,10-phen–CuI catalyst was removed from the reaction mixture by hot filtration19 and the filtrate was again stirred in a sealed tube at 110 °C under Ar atmosphere for 20 h. In this case, no significant increase in conversion was observed, demonstrating that leached copper species from the supported catalyst (if any) are not responsible for the observed catalysis. It was confirmed by ICP-AES analysis that no copper species could be detected in the filtrate (below the detection limit). These results indicated that the catalyst was stable during the reactions and the observed catalysis was intrinsically heterogeneous.

Recently, Casitas and Ribas have described the role of organometallic copper(III) complexes in homogeneous catalysis.20 Although experimental evidences were lacking, organometallic copper(III) species have been invoked in many copper-catalyzed reactions. This heterogeneous copper-catalyzed C–O coupling reaction of aryl iodides with aliphatic alcohols may proceed through oxidative addition followed by a reductive elimination process (Scheme 3). Firstly, the reaction of MCM-41-1,10-phen–CuI with R2OH 2 in the presence of Cs2CO3 affords an MCM-41-immobilized 1,10-phenanthroline–Cu(I)–OR2 intermediate A. Then oxidative addition of Ar–I 1 to intermediate A forms an MCM-41-immobilized 1,10-phenanthroline–ArCu(III)I–OR2 intermediate B. Finally, intermediate B undergoes a reductive elimination to give the desired product 3 and regenerate the MCM-41-1,10-phen–CuI complex.


image file: c6ra19825b-s3.tif
Scheme 3 Plausible mechanism.

For the practical application of a heterogeneous transition-metal catalyst system its stability and reusability are important factors. We next examined the recyclability of the MCM-41-1,10-phen–CuI complex by using coupling reaction between 2-methyliodobenzene (0.5 mmol) and n-BuOH with Cs2CO3 (1.0 mmol) as base in n-BuOH (1 mL) in the presence of 10 mol% of MCM-41-1,10-phen–CuI at 110 °C in a sealed tube under argon atmosphere for 24 h. After carrying out the reaction, the catalyst was separated by simple filtration and washed with distilled water and EtOH. After being air-dried, it can be reused directly without further purification. The recovered copper catalyst was used in the next run, and almost consistent activity was observed for 8 consecutive cycles (Fig. 3). In addition, copper leaching in the supported catalyst was also determined. The copper content of the catalyst was found by ICP analysis to be 0.74 mmol g−1 after eight consecutive runs, only 1.3% of copper had been lost from the MCM-41 support. The satisfactory reusability of the catalyst should result from the chelating action of bidentate 1,10-phenanthroline ligand on copper and the mesoporous structure of the MCM-41 support. The result is important from industrial and environmental points of view. The high catalytic activity and excellent reusability of MCM-41-1,10-phen–CuI complex make it a highly attractive heterogeneous copper catalyst for the parallel solution phase synthesis of diverse libraries of compounds.


image file: c6ra19825b-f3.tif
Fig. 3 Recycle of the MCM-41-1,10-phen–CuI catalyst.

3. Conclusions

In summary, we have developed a novel, highly efficient and practical method for the synthesis of aryl alkyl ethers through C–O coupling reaction of aryl iodides with aliphatic alcohols by using an MCM-41-immobilized 1,10-phenanthroline–copper(I) complex [MCM-41-1,10-phen–CuI] as catalyst and Cs2CO3 as base in neat alcohol or toluene at 110 °C under Ar atmosphere. The reactions generated a variety of aryl alkyl ethers in good to excellent yields under mild and green conditions and were applicable to a wide range of aryl iodides and various primary or secondary aliphatic alcohols. The new heterogeneous copper catalyst can be easily prepared by a simple procedure from commercially available and inexpensive reagents and recycled for at least 8 times without significant loss of catalytic activity. The use of recyclable copper catalyst along with mild and environment-friendly reaction conditions will make this methodology a powerful complement to the traditional C–O coupling reactions.

4. Experimental

All chemicals were reagent grade and used as purchased. All solvents were dried and distilled before use. Mesoporous material MCM-41 was prepared by standard protocol.16 1-(1,10-Phenanthrolin-5-yl)-3-(3-(triethoxysilyl)propyl)urea was prepared via the addition of 5-amino-1,10-phenanthroline to 3-(triethoxysilyl)propyl isocyanate according to a literature procedure.17 The products were purified by flash chromatography on silica gel. Mixture of EtOAc and hexane was generally used as eluent. All coupling products were characterized by comparison of their spectra and physical data with authentic samples. 1H NMR spectra were recorded on a Bruker Avance 400 MHz spectrometer with TMS as an internal standard in CDCl3 as solvent. 13C NMR spectra (100 MHz) were recorded on a Bruker Avance 400 MHz spectrometer in CDCl3 as solvent. Copper content was determined with inductively coupled plasma atom emission Atomscan16 (ICP-AES, TJA Corporation). X-ray powder diffraction was obtained on Damax-γA (Rigaku). X-ray energy dispersive spectroscopy (EDS) was performed using a microscope.

Preparation of the 1,10-phenanthroline-functionalized MCM-41 (MCM-41-1,10-phen)

A solution of 1.47 g of 1-(1,10-phenanthrolin-5-yl)-3-(3-(triethoxysilyl)propyl)urea in 9 mL of dry chloroform was added to a suspension of 1.10 g of the MCM-41 in 90 mL of dry toluene. The mixture was stirred for 24 h at 110 °C under Ar. Then the solid was filtered and washed by CHCl3 (2 × 20 mL), and dried in vacuum at 160 °C for 5 h. The product was then soaked in a solution of 4.2 g of Me3SiCl in 80 mL of dry toluene at room temperature under stirring for 24 h. Then the solid was filtered, washed with acetone (3 × 20 mL) and diethyl ether (3 × 20 mL), and dried in vacuum at 120 °C for 5 h to obtain 1.53 g of hybrid material MCM-41-1,10-phen. The nitrogen content was found to be 3.66 mmol g−1 by elemental analysis.

Preparation of the MCM-41-1,10-phen–CuI catalyst

In a small Schlenk tube, 1.2 g of the above-functionalized MCM-41 material (MCM-41-1,10-phen) was mixed with 0.21 g (1.1 mmol) of CuI in 20 mL of dry acetone. The mixture was refluxed for 24 h under an argon atmosphere. The solid product was filtered by suction, washed with acetone, distilled water and acetone successively and dried at 70 °C/26.7 Pa under Ar for 5 h to give 1.33 g of a light green copper complex [MCM-41-1,10-phen–CuI]. The nitrogen and copper contents were found to be 3.41 mmol g−1 and 0.75 mmol g−1, respectively.

General procedure for the heterogeneous copper-catalyzed C–O coupling of aryl iodides with aliphatic alcohols

A test tube equipped with a magnetic stirring bar was charged under Ar with MCM-41-1,10-phen–CuI (67 mg, 0.05 mmol), Cs2CO3 (326 mg, 1.0 mmol), aryl iodide (0.5 mmol), and either (a) the alcohol (1 mL) or (b) the alcohol (1.0 mmol) and toluene (1 mL). The test tube was sealed, and the reaction mixture was stirred at 110 °C for 24–36 h. The reaction mixture was cooled to room temperature and then diluted with EtOAc (20 mL), and filtered. The MCM-41-1,10-phen–CuI complex was washed with distilled water (2 × 5 mL) and EtOH (3 × 5 mL), and reused in the next run. The filtrate was concentrated under reduced pressure and the residue was purified by flash column chromatography on silica gel to provide the desired product.

Acknowledgements

We thank the National Natural Science Foundation of China (No. 21272044) and Scientific Research Fund of Education Department of Jiangxi Province (KJLD13022) for financial support.

References

  1. (a) J. Buckingham, Dictionary of Natural Products, University Press, Cambridge, MA, 1994 Search PubMed; (b) A. Tai, T. Sawano and F. Yazama, Biosci., Biotechnol., Biochem., 2011, 75, 2346–2350 CrossRef CAS PubMed; (c) S. B. Singh, K. Herath, J. N. Kahn, P. Mann, G. Abruzzo and M. Motyl, Bioorg. Med. Chem. Lett., 2013, 23, 3253–3256 CrossRef CAS PubMed.
  2. (a) N. Yamazaki, I. Washio, Y. Shibasaki and M. Ueda, Org. Lett., 2006, 8, 2321–2324 CrossRef CAS PubMed; (b) H. Jiang, J.-M. Leger and I. Huc, J. Am. Chem. Soc., 2003, 125, 3448–3449 CrossRef CAS PubMed; (c) C. Bolm, J. P. Hildebrand, K. Muniz and N. Hermanns, Angew. Chem., Int. Ed., 2001, 40, 3284–3308 CrossRef CAS; (d) B. Cao, H. Haengsoon Park and M. M. Joullie, J. Am. Chem. Soc., 2002, 124, 520–521 CrossRef CAS PubMed.
  3. (a) F. Ullmann, Chem. Ber., 1904, 37, 853–857 CrossRef; (b) J. Lindley, Tetrahedron, 1984, 40, 1433–1456 CrossRef CAS.
  4. (a) G. Mann and J. F. Hartwig, J. Am. Chem. Soc., 1996, 118, 13109–13110 CrossRef CAS; (b) C. A. Parrish and S. L. Buchwald, J. Org. Chem., 2001, 66, 2498–2500 CrossRef CAS PubMed; (c) D. Prim, J.-M. Campagne, D. Joseph and B. Andrioletti, Tetrahedron, 2002, 58, 2041–2075 CrossRef CAS; (d) P. E. Maligres, J. Li, S. W. Krika, J. D. Schreier and I. T. Raheem, Angew. Chem., Int. Ed., 2012, 51, 9071–9074 CrossRef CAS PubMed; (e) X. Wu, B. P. Fors and S. L. Buchwald, Angew. Chem., Int. Ed., 2011, 50, 9943–9947 CrossRef CAS PubMed; (f) S. Gowrisankar, A. G. Sergeev, P. Anbarasan, A. Spannenberg, H. Neumann and M. Beller, J. Am. Chem. Soc., 2010, 132, 11592–11598 CrossRef CAS PubMed.
  5. (a) S. V. Ley and A. W. Thomas, Angew. Chem., Int. Ed., 2003, 42, 5400–5449 CrossRef CAS PubMed; (b) G. Evano, N. Bianchard and M. Toumi, Chem. Rev., 2008, 108, 3054–3131 CrossRef CAS PubMed; (c) F. Monnier and M. Taillefer, Angew. Chem., Int. Ed., 2009, 48, 6954–6971 CrossRef CAS PubMed.
  6. (a) M. Wolter, G. Nordmann, G. E. Job and S. L. Buchwald, Org. Lett., 2002, 4, 973–976 CrossRef CAS PubMed; (b) G. F. Manbeck, A. J. Lipman, R. A. Stockland, A. L. Freidl, A. F. Hasier, J. J. Stone and I. A. Guzei, J. Org. Chem., 2005, 70, 244–250 CrossRef CAS PubMed; (c) R. Hosseinzadeh, M. Tajbakhsh, M. Mohadjerani and M. Alikarami, Synlett, 2005, 1101–1104 CrossRef CAS; (d) A. Shufir, P. A. Lichtor and S. L. Buchwald, J. Am. Chem. Soc., 2007, 129, 3490–3491 CrossRef PubMed; (e) H. Zhang, D. Ma and W. Cao, Synlett, 2007, 243–246 CrossRef CAS; (f) R. A. Altmann, A. Shufir, A. Choi, P. A. Lichtor and S. L. Buchwald, J. Org. Chem., 2008, 73, 284–286 CrossRef PubMed; (g) J. Niu, H. Zhou, Z. Li, J. Xu and S. Hu, J. Org. Chem., 2008, 73, 7814–7817 CrossRef CAS PubMed; (h) J. Niu, P. Guo, J. Kang, Z. Li, J. Xu and S. Hu, J. Org. Chem., 2009, 74, 5075–5078 CrossRef CAS PubMed; (i) A. B. Naidu, E. A. Jaseer and G. Sekar, J. Org. Chem., 2009, 74, 3675–3679 CrossRef CAS PubMed; (j) M. Wang, B. Yuan, T. Ma, H. Jiang and Y. Li, RSC Adv., 2012, 2, 5528–5530 RSC; (k) Y. Guo, X.-M. Fan, M. Nie, H.-W. Liu, D.-H. Liao, X.-D. Pan and Y.-F. Ji, Eur. J. Org. Chem., 2015, 4744–4755 CrossRef CAS.
  7. (a) Y. Iwasawa, Tailored Metal Catalysis, Reidel D. Publishing Company, Dordrecht, Holland, 1986 Search PubMed; (b) M. Dusi, T. Mallat and A. Baiker, Catal. Rev.: Sci. Eng., 2000, 42, 213–278 CrossRef CAS; (c) R. M. Rioux, Model Systems in Catalysis From Single Crystals to Enzyme Mimics, Springer, 2010 Search PubMed.
  8. (a) M. Kidwai, N. K. Mishra, V. Bansal, A. Kumar and S. Mozumdar, Tetrahedron Lett., 2007, 48, 8883–8886 CrossRef CAS; (b) T. Miao and L. Wang, Tetrahedron Lett., 2007, 48, 95–99 CrossRef CAS; (c) J. Zhang, Z. Zhang, Y. Wang, X. Zheng and Z. Wang, Eur. J. Org. Chem., 2008, 5112–5116 CrossRef CAS; (d) S. Benyahya, F. Monnier, M. Taillefer, M. Wong Chi Man, C. Bied and F. Ouazzani, Adv. Synth. Catal., 2008, 350, 2205–2208 CrossRef CAS; (e) S. Benyahya, F. Monnier, M. Wong Chi Man, C. Bied, F. Ouazzani and M. Taillefer, Green Chem., 2009, 11, 1121–1123 RSC.
  9. (a) C. T. Kresge, M. E. Leonowicz, W. J. Roth, J. C. Vartuli and J. S. Beck, Nature, 1992, 359, 710–714 CrossRef CAS; (b) A. Taguchi and F. Schuth, Microporous Mesoporous Mater., 2005, 77, 1–45 CrossRef CAS; (c) R. M. Martin-Aranda and J. Cejka, Top. Catal., 2010, 53, 141–153 CrossRef CAS; (d) A. Corma, Top. Catal., 1997, 4, 249–260 CrossRef.
  10. J. S. Beck, J. C. Vartuli, W. J. Roth, M. E. Leonowicz, C. T. Kresge, K. D. Schmitt, C. T.-W. Chu, D. H. Olson, E. W. Sheppard, S. B. McCullen, J. B. Higgins and J. L. Schlenker, J. Am. Chem. Soc., 1992, 114, 10834–10843 CrossRef CAS.
  11. (a) P. C. Mehnert, D. W. Weaver and J. Y. Ying, J. Am. Chem. Soc., 1998, 120, 12289–12296 CrossRef; (b) K. Mukhopadhyay, B. R. Sarkar and R. V. Chaudhari, J. Am. Chem. Soc., 2002, 124, 9692–9693 CrossRef CAS PubMed; (c) J. Y. Ying, C. P. Mehnert and M. S. Wong, Angew. Chem., Int. Ed., 1999, 38, 56–77 CrossRef CAS; (d) M. Cai, G. Zheng and G. Ding, Green Chem., 2009, 11, 1687–1693 RSC; (e) M. Cai, J. Peng, W. Hao and G. Ding, Green Chem., 2011, 13, 190–196 RSC; (f) W. Hao, H. Liu, L. Yin and M. Cai, J. Org. Chem., 2016, 81, 4244–4251 CrossRef CAS PubMed; (g) F. Havasi, A. Ghorbani-Choghamarani and F. Nikpour, New J. Chem., 2015, 39, 6504–6512 RSC.
  12. (a) S.-G. Shyu, S.-W. Cheng and D.-L. Tzou, Chem. Commun., 1999, 2337–2338 RSC; (b) Y. Yang and R. M. Rioux, Chem. Commun., 2011, 47, 6557–6559 RSC.
  13. (a) C. D. Nunes, A. A. Valente, M. Pillinger, A. C. Fernandes, C. C. Romao, J. Rocha and I. S. Goncalves, J. Mater. Chem., 2002, 12, 1735–1742 RSC; (b) M. Jia, A. Seifert and W. R. Thiel, Chem. Mater., 2003, 15, 2174–2180 CrossRef CAS.
  14. (a) A. Corma, E. Gutierrez-Puebla, M. Iglesias, A. Monge, S. Perez-Ferreras and F. Sanchez, Adv. Synth. Catal., 2006, 348, 1899–1907 CrossRef CAS; (b) A. Corma, C. Gonzalez-Arellano, M. Iglesias and F. Sanchez, Angew. Chem., Int. Ed., 2007, 46, 7820–7822 CrossRef CAS PubMed; (c) G. Villaverde, A. Corma, M. Iglesias and F. Sanchez, ACS Catal., 2012, 2, 399–406 CrossRef CAS.
  15. (a) R. Xiao, H. Zhao and M. Cai, Tetrahedron, 2013, 69, 5444–5545 CrossRef CAS; (b) H. Zhao, W. He, R. Yao and M. Cai, Adv. Synth. Catal., 2014, 356, 3092–3098 CrossRef CAS; (c) M. Cai, R. Yao, L. Chen and H. Zhao, J. Mol. Catal. A: Chem., 2014, 395, 349–354 CrossRef CAS; (d) H. Zhao, Y. Jiang, Q. Chen and M. Cai, New J. Chem., 2015, 39, 2106–2111 RSC; (e) H. Zhao, W. He, L. Wei and M. Cai, Catal. Sci. Technol., 2016, 6, 1488–1495 RSC.
  16. M. H. Lim and A. Stein, Chem. Mater., 1999, 11, 3285–3295 CrossRef CAS.
  17. M.-J. Li, Z. Chen, V. Wing-Wah Yam and Y. Zu, ACS Nano, 2008, 2, 905–912 CrossRef CAS PubMed.
  18. (a) M. A. Keegstra, T. H. A. Peters and L. Brandsma, Tetrahedron, 1992, 48, 3633–3652 CrossRef CAS; (b) E. Vedejs, R. W. Chapman, S. C. Fields, S. Lin and M. R. Schrimpf, J. Org. Chem., 1995, 60, 3020–3027 CrossRef CAS.
  19. H. E. B. Lempers and R. A. Sheldon, J. Catal., 1998, 175, 62–69 CrossRef CAS.
  20. A. Casitas and X. Ribas, Chem. Sci., 2013, 4, 2301–2318 RSC.

Footnote

Electronic supplementary information (ESI) available. See DOI: 10.1039/c6ra19825b
