Preparation of Pickering emulsions with short, medium and long chain triacylglycerols stabilized by starch nanocrystals and their in vitro digestion properties

Abstract

Food-grade Pickering emulsions are receiving more attention in the development of new delivery systems in food and pharmaceutical areas. In this study, starch nanocrystals (SNCs) prepared via acid hydrolysis of waxy maize starches were used as food-grade particle emulsifiers, to stabilize three typical edible oils with different chain lengths of fatty acid: short, medium and long chain triacylglycerols (SCT, MCT and LCT, respectively). On increasing the SNC concentrations from 0.1 to 3.0 wt%, the droplet size of these three Pickering emulsions decreased until 1.0 wt%. At this concentration, these three emulsions showed high stability against Ostwald ripening (for SCT) and coalescence (for MCT and LCT) for 90 days at 25 °C. However, the in vitro digestion properties of these three emulsions were significantly different. The rate of lipid digestion increased in the order LCT < MCT < SCT, whereas the percentage of SNC digested decreased in the order LCT > MCT > SCT. The inverse relationship between lipid and SNC hydrolysis rates may be due to, with the higher rate of lipid hydrolysis, more SNCs being displaced from the interface which would decrease the surface areas to enzymes. At the same time, calcium in digesta may absorb to SNCs to reduce the digestibility. These results may provide information about the physical and digestive properties of food-grade Pickering emulsions of different chain length triacylglycerols.

---

1. Introduction

The concept of emulsifiers was extended from amphiphilic molecules to particles by Ramsden in 1903 (ref. 1) and Pickering in 1907.² They discovered that solid particles with suitable wetting contact angle between dispersed and continuous phases could stabilize emulsions. Particle stabilized emulsions became known as “Pickering emulsions”. Compared to traditional emulsions stabilized by molecular surfactants, Pickering emulsions exhibit outstanding long-term stability against coalescence and Ostwald ripening.^3–5

Various inorganic particles, such as silica,⁶ clay,⁷ and latex⁸ have been used as particle emulsifiers in Pickering emulsions. Some food components, such as fat crystals, casein micelles have been reported to be able to stabilize Pickering emulsions in food systems.^9,10 Recently, common molecular emulsifiers (such as polysorbate 80) have been linked to metabolic syndrome and colitis by disrupting the mouse gut microbiota¹¹ leading to safety concerns and the development of safe and natural emulsifiers for food and pharmaceutical applications. Particles of natural origin or food ingredients, such as amorphous cellulose,¹² soy glycinin,¹³ whey protein nanoparticles,¹⁴ chitosan–tripolyphosphate nanoparticles,¹⁵ starch-based nanoparticles,¹⁶ micellar casein coated nanoemulsions¹⁷ and egg yolk granules¹⁸ have been fabricated and used as Pickering emulsifiers.

Starch-based particles have received increasing interest as Pickering emulsifiers because starch is safe, inexpensive, abundant and renewable natural polymers.^19,20 In the past five years, several reports about the preparation and characteristics of Pickering emulsions stabilized by different types of starch-based particles have appeared.^5,21–23 Timgren et al.²⁴ compared the emulsion stabilizing capacity of different intact starch granules and found that size had more effect than shape on emulsion stability. Quinoa starch with the smallest size, 0.7–2.2 μm, was the best emulsifier. Our previous study agreed with these results showing that the stability of Pickering emulsions against coalescence was inversely proportional to the size of starch granules.²⁵ Yusoff et al.⁵ explained that the increased stability of Pickering emulsions against coalescence or Ostwald ripening by smaller particles was due to their higher packing efficiency to produce a more homogenous layer around droplets.

In order to generate smaller size particles from starch that might improve the stability of Pickering emulsions, the amorphous regions of starch granules were hydrolyzed by acid leaving crystalline platelets. These crystalline products or starch nanocrystals (SNCs), have diameters of 47–118 nm with a thickness of 5–8 nm depending on the starch source.²⁰ Previously we reported that SNCs from waxy maize, 40–100 nm, were able to emulsify liquid paraffin.^26,27 The paraffin Pickering emulsions stabilized by waxy maize NC had particle size of ∼20 μm and were stable against coalescence for one year. In this study, we will investigate the stability of SNCs stabilized Pickering emulsions incorporating food-grade oils further.

According to the chain length of fatty acids, oils are normally categorized into short chain triacylglycerols (SCT) with C < 6,²⁸ medium chain triacylglycerols (MCT) with C ∼ 6–12 (ref. 29) and long chain triacylglycerols (LCT) with C > 12.³⁰ SCT, such as tributyrin, is essential for the healthy maintenance of intestinal functions by producing butyric acid in the body.³¹ MCT, predominately provided as caprylic/capric triglycerides in commercial, has been widely used for the dietary treatment of malabsorption syndrome, impaired lymphatic chylomicron transport and obesity, because of its rapid metabolism, fast satiety and low adipose tissue deposition.^29,30,32 As for LCT, almost all vegetable oils are belong to LCTs, such as corn oil, olive oil and canola oil. They are the main sources for different fatty acids to our body.

Except for the inherent nutrition values, triacylglycerols of varying fatty acid chain length are commonly used as solvents or carriers for poorly soluble drugs or nutraceuticals in lipid-based delivery system.^33,34 Ahmed et al.³⁵ prepared curcumin emulsions by using SCT, MCT and LCT and revealed that the lipid digestion rate of SCT emulsions was highest, while the bioaccessibility of curcumin in SCT emulsions was lower than the ones with MCT and LCT by using in vitro models. Similar results were obtained by Salvia-Trujillo et al.³⁶ and Qian et al.³⁷ The reasons for the different rate of lipolysis and bioaccessibility of nutraceuticals may be attributed to the different digestive fate of lipids. With a relatively high water solubility, SCT is more accessible to contact and hydrolysis by pancreatic lipase. At the same time, low mobility of free fatty acids (FFAs) released from MCT and LCT would accumulated around oil droplets which further decreased the lipolysis.³⁵ However, the mixed micelles formed by FFAs in MCT and LCT emulsions have a higher solubilization capacity for nutraceuticals than SCT emulsions. So with a compromised result, SCT emulsions with the higher lipolysis exhibited a lower bioaccessibility of nutraceuticals.³⁸ The digestive fate of Pickering emulsions with different oils is still unknown until now. And compared to surfactant stabilized emulsions, Pickering emulsions may be effective to inhibit the instability caused by Ostwald ripening.^39,40 So in this paper, Pickering emulsions incorporating SCT, MCT and LCT were first prepared and then the digestion properties were investigated.

Recently researches relating to the digestion fate of Pickering emulsions are mostly focused on the protein-based system.^41–43 The digestion of starch-based Pickering emulsions are likely to be different and requires investigation. The results of this study will provide useful information about the physical and in vitro digestibility properties of Pickering emulsions stabilized by edible starch nanoparticles, as well as their potential to deliver functional oil or oil soluble nutraceuticals for foods and pharmaceuticals.

2. Materials and methods

2.1. Materials

Waxy maize starch and N-octenyl succinate anhydride (OSA) modified starch (CAPSUL) were kindly donated by Ingredion Co., Ltd. (Shanghai, China). Triacylglycerol oils with predominantly short, medium and long chain fatty acids (SCT, MCT and LCT, respectively) were used. Tributyrin (98%) (SCT) was purchased from Sigma-Aldrich Trading Co., Ltd. (Shanghai, China). Caprylic/capric triglycerides (MCT) with 43.7% C10 : 0 and 55.8% C8 : 0 was donated by Yihai Kerry Co., Ltd. (Shanghai, China). Canola oil (LCT) mainly with 63.0% C18 : 1, 20.1% C18 : 2, 9.6% C18 : 3, n-3, 6, 9, 3.5% C16 : 0, 1.5% C18 : 0 and 1.4% C20 : 1 was purchased from Standard foods Co., Ltd. (Shanghai, China) in a local supermarket. All oils were used without further purification. Enzymes used to simulate digestion: α-amylase (Aspergillus oryzae, P10065, 30 U mg⁻¹), pancreatin (porcine pancreas, P7545, 8×USP specifications), bile salt extract (porcine, B8631), amyloglucosidase (Aspergillus niger, A7420, 316 U mL⁻¹) and dyes (Nile red and Fluorescent brightener) were also purchased from Sigma-Aldrich Trading Co., Ltd (Shanghai, China) and used without further purification. All other chemicals were purchased from Sinopharm Chemical Reagent Co., Ltd (Shanghai, China). The D-glucose assay kit was purchased from Jiancheng Bioengineering Institute (Nanjing, China). Deionized water obtained from Milli-Q water purification system (Millipore Co., Bedford, MA, USA) was used in all experiments.

2.2. Preparation of starch nanocrystals (SNCs)

SNCs were prepared from waxy maize starch (30 g) by hydrolysis with 3.16 M H₂SO₄ (150 mL) for 5 days at 40 °C with continuous stirring at 400 rpm as described by Angellier et al. with minor modification.⁴⁴ After hydrolysis, the suspensions were washed with deionized water successively until the pH of supernatant separated by centrifugation was constant at 6.8. The resultant precipitate was dispersed in deionized water containing 0.02 wt% of NaN₃ and stored at 4 °C. The SNC concentration of this stock solution was determined by weighing freeze-dried powders of the homogeneous dispersion by subtracting the weight of NaN₃ added. Different concentrations of SNC suspensions were prepared by dilution from this stock homogeneous SNC dispersion using deionized water containing 0.02 wt% of NaN₃.

2.3. Characterizations of SNCs

The size and morphology of SNCs were observed by an environmental scanning electron microscope (ESEM) (S-4800, Hitachi, Japan) at high voltage (2.0 kV). SNC solution was prepared by ultrasonic and dropped on a copper mesh and then dried in ambient environment before observation.

The structures of waxy maize starch and SNC were determined using a X-ray powder diffraction (XRD) (D8 ADVANCE, Bruker, Germany) with Cu Kα radiation (λ = 1.542 Å) at 40 kV and 40 mA. The X-ray diffraction patterns were recorded at a speed of 1° min⁻¹ over the 2θ range of 3–35°. The relative crystallinity (RC) of samples was calculated according to the method from Kim et al.⁴⁵ which was equal to the ratio of the area of crystalline to the sum of crystalline and amorphous.

2.4. Preparation of Pickering emulsions

Pickering emulsions stabilized by SNCs were prepared as described previously with minor modification.²⁷ SNC dispersions with concentration from 0.1%, 0.5%, 1.0%, 1.5–3.0% (wt%) were prepared by serial dilution and stirred for at least 24 h. 5 mL of SNC dispersion was mixed with 5 mL of oil and the mixture was homogenized at 22 000 rpm for 2.5 min at 25 °C using a high speed homogenizer (Ultra-Turrax T18, IKA Works Inc., Wilmington, NC).

2.5. Stability of Pickering emulsions by visual inspection

The stability of emulsions to creaming and coalescence during storage was assessed by monitoring the position of the water-emulsion and emulsion–oil interfaces, respectively, as described by Binks et al.⁴⁶ The appearance of Pickering emulsions in glass vessels were observed and photographed (Canon SD 4500 Digital camera) at various times at 25 °C.

2.6. Optical microscopy of emulsions and droplet size measurements

According to Kalashnikova et al.,⁴⁷ the droplet size of Pickering emulsions determined by light scattering and optical microscope are similar. So in this study, droplet size was determined by analysis of optical micrographs of the emulsions captured by a VHX-1000 digital microscope (Keyence Int. Trading Co. Ltd., Japan). The emulsion samples were diluted with water and then placed directly on a microscope slide. The droplet diameter was obtained by measuring over 200 droplets from the digital microscope images by using the VHX-1000C software installed in the instrument. According to the method from Timgren et al.²⁴ and Zeeb et al.,⁴⁸ the volume mean droplet diameter (D₄₃), surface mean droplet diameter (D₃₂) and number average droplet diameter (d₁₀) were calculated using following functions (1)–(3).where d_i is the diameter of a droplet and n is the total number counted.

2.7. In vitro digestion

An in vitro model simulating digestion in the mouth, gastric and small intestine according to a procedure with slight modifications described by Braga et al.⁴⁹ and Yi et al.⁵⁰ was used in this study:

(I) Initial system: the Pickering emulsions were mixed by vortex to ensure homogeneity with oil concentrations of 50% (v/v).

(II) Simulated mouth digestion: mixed solution containing various inorganic salts (0.896 g L⁻¹ of KCl, 0.2 g L⁻¹ of KSCN, 0.888 g L⁻¹ of NaH₂PO₄, 0.57 g L⁻¹ of Na₂SO₄, 0.298 g L⁻¹ of NaCl and 1.694 g L⁻¹ of NaHCO₃) and organic component (0.2 g L⁻¹ of urea) was first prepared. Later, simulated salivary fluid (SSF) was finished by adding bioactive components of α-amylase (0.6 g L⁻¹) and uric acid (0.015 g L⁻¹) into the mixed solution according to a previous study.⁴⁹ The initial emulsion samples (4 mL) were mixed with 4 mL of SSF. The pH of the mixture was adjusted to 6.8 and stirred at 100 rpm for 3 min in a water jacketed beaker at 37 °C. The oil concentration for this step was 25% (v/v).

(III) Simulated gastric digestion: 10 mL of simulated gastric fluid (SGF) was added to the mixture after the simulated salivary digestion. The SGF was prepared by placing 2 g of NaCl and 7 mL of HCl (37 wt%) in 1 L of water and adjusting pH to 1.2 using 1.0 M HCl.⁵¹ The SGF-emulsion mixture was immediately adjusted to pH 2.0, and stirred at 100 rpm for 1 h at 37 °C. The oil concentration for this step was 11% (v/v). Pepsin was not included in the SGF because the glucose in pepsin would interfere with the analysis of SNC digestion. And according to Woolnough et al.,⁵² pepsin does not influence the digestion in starch-based system.

(IV) Simulated intestinal digestion: after the gastric digestion step, the samples were immediately adjusted to pH 7.0 by using 1 M NaOH. 15 mL of simulated intestinal fluid (SIF) composed of 1 mL of CaCl₂ (165 mM), 13.2 mL of freshly made pancreatin (6 mg mL⁻¹) and bile salt (50 mg mL⁻¹) solution, 20 μL of amyloglucosidase (AMG) and 780 μL of deionized water was added according to the method from Mahasukhonthachat et al.⁵³ The final mixture contained 6.06% (v/v) oil, 2.4 mg mL⁻¹ of pancreatin, 20.0 mg mL⁻¹ bile extract, 5 mM CaCl₂ and 0.18 U mL⁻¹ AMG, respectively.

At the start of the intestinal digestion process, pH of the digesta immediately decreases due to production of fatty acids by the lipase hydrolysis of triglycerides. The rate of fat hydrolysis was determined by maintaining the pH at 7.0 by adding NaOH (0.5 M) manually using pipette and the amount of NaOH added over time (120 min) was recorded by computer. The percentage of FFA released during the digestion was calculated according to the volume of NaOH solution added at each time point by the following equation:

where V_NaOH is the volume of NaOH added, C_NaOH is the concentration of NaOH added (0.5 M), M_{wtriglyceride} was the average molecular weight of the triglycerides in SCT, MCT and LCT. Traditional emulsions stabilized by a biopolymer emulsifier, OSA modified starches, were used as control to analyze the rate of FFA released through digested under the same conditions.

2.8. SNC digestion

SNCs were hydrolyzed during in vitro digestion by amylase and amyloglucosidase. The concentration of glucose released from SIF digestion of SNCs at time intervals was quantified using a D-glucose assay kit containing glucose oxidase and peroxidase (GOPOD) according to the method from Ai et al.⁵⁴ The digesta samples were placed in a water bath at 90 °C for 5 min to inactive the enzyme. The absorbance of standards and samples against blank was measured at 505 nm. The percentage of SNC digested was calculated using equation:where A_i is the absorbance of test solution, V_i is the total volume of samples, C₀ is the concentration of standard, A₀ is the absorbance of standard, W_i is the weight of SNCs in emulsion, 0.9 is the stoichiometric constant for starch from glucose contents. SNC dispersions were used as control to analyze the SNC hydrolysis rate through digested under the same conditions and special conditions without calcium and bile salt.

2.9. Fluorescence microscope

An upright fluorescence microscope (Nikon, Fluorescent DIC/500 pixels, Japan) with a 10× objective lens was used to capture images of the emulsions during the digestion process. Fluorescence of the lipid phase was generated by Nile red (0.05 wt% dissolved in ethanol), excited at 488 nm by argon laser light. Fluorescence bright (0.01 wt% dissolved in water), as a fluorescent dye for SNCs, was excited at 405 nm by argon laser light.

2.10. Statistical analysis

The entire experiment was conducted in duplicate and all analyses were carried out at least in triplicate and data are expressed as mean ± standard deviation (SD). Data was analyzed by One Way Analysis of Variance (ANOVA) test using the statistical software package SPSS 17.0. Duncan's multiple range test was used to determine significant differences between mean values (p < 0.05).

3. Results and discussion

3.1. Characterizations of SNCs

SNCs were prepared by means of sulfuric acid hydrolysis of waxy maize starches for 5 days and their morphology was observed by SEM. As shown in Fig. 1A, the structure of SNCs was polygonal and their size ranged from 40 to 100 nm. But SNCs were easily self-aggregated by forming agglomerates,^55,56 which was confirmed with the aggregates with size larger than 100 nm observed in SEM image. This result of SEM observation was in agreement with publications from other researchers.^55,57 According to our previous work,²⁷ the size distribution of SNCs dispersion determined by dynamic light scattering was wide and the average size was about 120 nm. This results were consistent with the observation by SEM.

Fig. 1 (A) SEM image of SNCs with acid hydrolysis time of 5 days. (B) XRD patterns of native waxy maize starches and SNCs with acid hydrolysis time of 5 days.

Powder X-ray diffraction was used to investigate the crystalline structure of SNCs. The XRD patterns of waxy maize starches and SNCs were given in Fig. 1B. Waxy maize starches and SNCs showed a similar diffraction pattern with strong peaks at 15° and 23° and unresolved double peaks at 17° and 18°, as well as two weak peaks around 10° and 11° of 2θ representing both of them had typical A-type crystalline arrangement. This results were in good agreement with the investigates from Kim et al.^45,58 and Ren et al.,⁵⁶ which indicated that acid hydrolysis of waxy maize starches did not destroy the crystalline pattern of starches. Compared to waxy maize starches, the RC value of SNCs was increased from 36.4% to 44.3% which was consistent with the previous works.^19,58 The reason for this result was assumed to be cause by the loss of amorphous regions in starch granules and reordering of the residuals to a more ordered arrangement during the acid hydrolysis.¹⁹

3.2. Preparation of Pickering emulsions with different types of oil

3.2.1. Visual assessment of Pickering emulsion stability. Since the concentration of emulsifying particles affects the stability of Pickering emulsions,²¹ different SNC concentrations (0.1, 0.5, 1.0, 1.5 and 3.0 wt%) were used to prepare Pickering emulsions with SCT (A), MCT (B) and LCT (C) and the stability was first measured by visual inspection. After one day, photographs of these three Pickering emulsions were recorded, as shown in Fig. 2. By visual observation, the emulsions exhibited various degrees of creaming which was attributed to the large droplet size of Pickering emulsions.²⁵ The creaming layers of Pickering emulsions containing MCT and LCT were at the top whereas the water phase of SCT emulsions was on the top. The higher density of pure tributyrin (ρ = 1032 kg m⁻³) compared to water (ρ = 1000 kg m⁻³) resulted in the observed sedimentation. Except for sedimentation, the emulsions with SCT did not show any other instability, e.g. oil phase separation reported by Ahmed et al.³⁵ MCT homogenized Pickering emulsions displayed a creaming layer at the top and an aqueous layer at the bottom for all SNC concentrations. For LCT, emulsion could not be formed with oil separated from the system at the lowest SNC concentration (0.1 wt%). This result may be attributed to the higher viscosity of LCT compared to SCT and MCT reduced the efficiency of emulsion formation under the same processing conditions⁵⁹ and SNCs at 0.1 wt% were not enough to stable Pickering emulsions incorporating LCT.

Fig. 2 Photographs of Pickering emulsions stabilized by SNCs with concentration of 0.1, 0.5, 1.0, 1.5 and 3.0 wt% (from left to right). A–C in the photographs designate the oil phase for SCT, MCT and LCT, respectively. Storage time for A-1, B-1 and C-1 is 1 day and the storage temperature is 25 °C.

In addition, the photographs showed that with increasing of SNC concentration, the height of the emulsion layer increased which means the stability of the emulsions against creaming increased. However, higher SNC concentrations would result in the emulsions to form gel-like structure and in order to avoid this situation, the concentration of SNCs was kept below 6.0 wt%.²⁶

3.2.2. Microstructure and droplet size of Pickering emulsions. Microstructure and mean droplet size of the emulsions were determined by optical microscope. As shown in Fig. 3, all droplets were regular spheres. The droplet size of emulsions with LCT at SNC concentration of 0.1 wt% (Fig. 3C-1), was much larger compared to SCT (Fig. 3A-1) and MCT (Fig. 3B-1), which was related to the greater phase separation observed in Fig. 2C. But with the increasing of SNC concentrations, the droplet diameter of all emulsions decreased (droplet size data shown later).

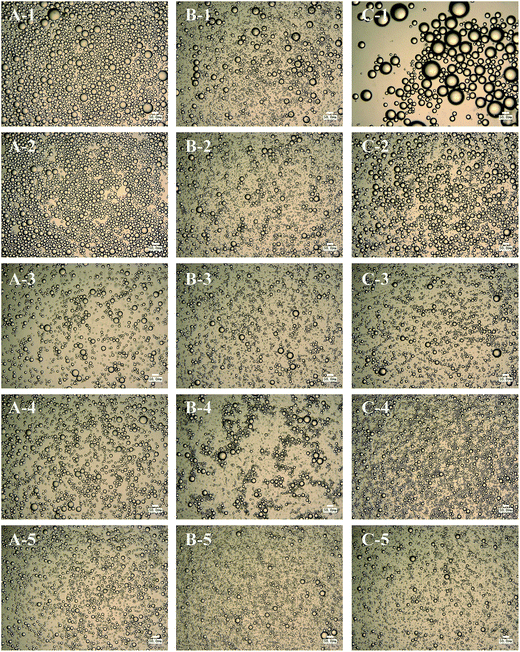

Fig. 3 Optical microscope images of Pickering emulsions stabilized by SNCs with concentration of 0.1, 0.5, 1.0, 1.5 and 3.0 wt% (corresponding to the labels from 1 to 5 in the images). A–C in the images designate the oil phase for SCT, MCT and LCT, respectively. The scale bar is 50 μm.

Non-absorbed SNC aggregates were clearly observed in the continuous phase at higher (1.0 wt%) SNC concentrations in Pickering emulsions incorporating SCT at 1000× magnification (Fig. 4A). Increasing SNC concentrations to 1.5 wt% and 3.0 wt%, the amount of non-absorbed SNC aggregates increased (Fig. 4B and C). The observation of particles in the continuous phase was also observed when microcrystalline cellulose was used as the particle stabilizer.²³ However, free SNC aggregates were not observed in the continuous phase for all SNC concentrations of MCT and LCT emulsions. These results were in agreement with previous work on Pickering emulsions incorporating oils with different polarity stabilized by silica particles by Frelichowska et al.⁶⁰ They found that more particles are required for less polar oils, just like MCT and LCT in our research. The differences of the interfacial properties of these three emulsions may further influence their in vitro digestion properties.

Fig. 4 The effect of SNCs concentration of 1.0 wt% (A), 1.5 wt% (B) and 3.0 wt% (C) on the optical microscope images of emulsions incorporating SCT. The scale bar is 50 μm.

The volume mean droplet diameters (D₄₃) of the emulsions stabilized at various concentrations of SNCs analyzed by light microscope were shown in Fig. 5. The larger D₄₃ value of LCT at 0.1 wt% of SNCs corresponded to emulsion separation observed visually in Fig. 2C. Overall, the D₄₃ values of all the SCT, MCT and LCT Pickering emulsions decreased with increasing SNC concentrations from 0.1 to 1.0 wt%, and then remained constant (p > 0.05). These results were in good agreement with the research of Pickering emulsions stabilized by starch-based nanoparticles reported by Tan et al.²¹ They also found that at 1.25 to 2.0 wt% of starch nanoparticles, the emulsion droplet size did not decrease further and was about 39 μm. The reason for this phenomenon was attributed to the limitation of homogenization conditions.²² Furthermore, with the increasing of SNC concentrations, the viscosity of emulsion systems increased, which decrease the efficiency of homogenization again.¹² Since non-absorbed SNC aggregates were observed in SCT emulsions above 1.0 wt% SNCs and all emulsions were shown to have the similar minimum particle size above 1.0 wt%, 1.0 wt% SNC was determined to be the minimum amount necessary to completely emulsify the oils under this emulsification conditions. And 1.0 wt% SNCs concentration was used in subsequent experiments.

Fig. 5 The effect of SNCs concentration on the volume mean droplet size (D₄₃) of Pickering emulsions incorporating SCT, MCT and LCT, respectively. Data are represented as the mean ± standard deviation (n = 3). Different capital letters mean significant differences (p < 0.05) in D₄₃ for different type of oils, whereas different lowercase letters mean significant differences for same oils.

3.2.3. Storage stability. The volume mean diameter (D₄₃) of the Pickering emulsions stabilized by 1.0 wt% SNCs during 90 days storage at 25 °C was used as a measurement of the long-term stability. Emulsions incorporating MCT and LCT were stable against coalescence during the 90 days storage study with a constant droplet size (Table 1). The D₄₃ values of the emulsions with SCT increased 25%, 41% and 43% after 7, 30 and 90 days, respectively. With a relatively high water solubility, SCT could rapidly diffuse from small to large droplets across the intervening aqueous phase and cause the droplet growth of emulsions by Ostwald ripening.³⁸ According to the researches from Dickinson et al.⁶¹ and Zeeb et al.,⁴⁸ the cube of the number average droplet diameter (d₁₀) should increase linearly with storage time when the emulsion exhibit Ostwald ripening. The plot of d₁₀³ by storage time of SCT Pickering emulsions was shown in Fig. 6. A linear relationship of d₁₀³ values with storage time was determined by linear fitness using Origin 8.5 with R² = 0.95, which indicated that the instability of Pickering emulsion incorporating SCT was caused by Ostwald ripening. However, compared to traditional SCT emulsions stabilized by surfactants, which normally separated immediately after preparation,³⁹ the stability of SCT emulsions against Ostwald ripening by Pickering emulsions was still better.

Table 1 The droplet size of Pickering emulsions stabilized by SNCs at 1.0 wt% with different types of oil during the storage at 25 °C^a

Oil type	Day 1			Day 7			Day 30			Day 90
	D43 (μm)	D32 (μm)	d10 (μm)	D43 (μm)	D32 (μm)	d10 (μm)	D43 (μm)	D32 (μm)	d10 (μm)	D43 (μm)	D32 (μm)	d10 (μm)
a Data expressed as mean ± standard deviation (n = 3).
SCT	24.65 ± 0.07	21.63 ± 0.18	16.84 ± 0.06	30.97 ± 1.52	27.53 ± 1.52	17.15 ± 0.03	34.79 ± 0.12	29.62 ± 0.45	17.82 ± 0.83	35.31 ± 1.73	30.22 ± 1.67	18.69 ± 0.58
MCT	26.27 ± 0.18	22.82 ± 0.12	13.33 ± 0.46	26.02 ± 0.21	22.31 ± 0.55	13.30 ± 0.29	25.91 ± 0.31	22.31 ± 0.42	13.28 ± 1.08	26.13 ± 0.31	23.20 ± 1.45	13.33 ± 0.14
LCT	26.60 ± 0.81	23.11 ± 1.44	15.59 ± 1.45	26.77 ± 0.30	22.66 ± 1.64	15.90 ± 0.14	26.33 ± 0.84	23.34 ± 1.07	15.89 ± 0.08	26.57 ± 0.84	23.68 ± 0.24	15.91 ± 0.33

---

Fig. 6 Plot of the cube of the number average droplet size (d₁₀) as a function of storage time for Pickering emulsions incorporating SCT stabilized by 1.0 wt% SNCs. The dash line represents the linear fitting of the data.

Photographs of the emulsions at Day 7 and Day 90 were shown in Fig. 7. Compared to the emulsions in Fig. 2, no significant changes were perceived except for the creaming phenomenon for MCT and LCT Pickering emulsions and sedimentation for SCT Pickering emulsions. The droplet size and visual assessment of the storage stability showed that at 1.0 wt% SNC, Pickering emulsions exhibit outstanding stability against coalescence (for MCT and LCT) and Ostwald ripening (for SCT) at 25 °C for 90 days.

Fig. 7 Photographs of Pickering emulsions stabilized by SNCs with concentration of 0.1, 0.5, 1.0, 1.5 and 3.0 wt% (from left to right). A–C in the photographs designate the oil phase for SCT, MCT and LCT, respectively. Storage times for A-7, B-7 and C-7 is 7 days; A-90, B-90 and C-90 is 90 days. The storage temperature is 25 °C.

3.3. In vitro digestion of SNC stabilized Pickering emulsions

3.3.1. Microstructure of emulsions during digestion. The microstructure of the Pickering emulsions during in vitro digestion was followed by fluorescence microscopy by staining the oil phase with Nile red (appears green, the second rows in Fig. 8A–C and 9A–C) and the SNC stabilizer with Fluorescent brightener (appears blue, the third rows in Fig. 8A–C and 9A–C). Compared to photos of Pickering emulsions under bright field (photos of the first rows in Fig. 8A–C and 9A–C), the blue fluorescent “halo” around particles was the evidence for the adsorbed SNCs at the oil and water interface. And changes of the blue fluorescence in subsequent photos could be used as a sign for the relative amounts of SNC at the interface during digestion.

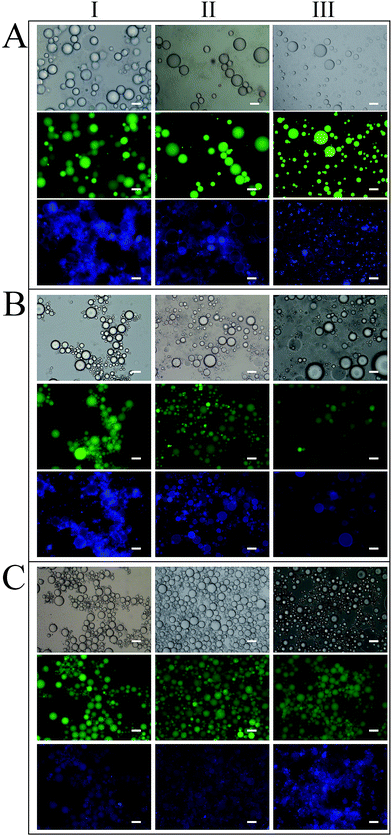

Fig. 8 Representative fluorescent microscope images of Pickering emulsions with different types of oil (A) SCT; (B) MCT; (C) LCT, as they passed through an in vitro digestion model: (I) initial emulsion; (II) simulated saliva fluid (SSF) after 3 min; (III) simulated gastric fluid (SGF) after 1 h. Lipids stained with Nile red are fluoresce green and SNC stained with Fluorescent brightener are pale blue. The scale bar is 25 μm.

Fig. 9 Representative fluorescent microscope images of Pickering emulsions with different types of oil (A) SCT; (B) MCT; (C) LCT, as they passed through an in vitro intestinal digestion model: (IV-2) simulated intestine fluid (SIF) after 2 min; (IV-20) SIF after 20 min; (IV-60) SIF after 60 min; (IV-120) SIF after 120 min. IV-20-1 and IV-20-2 for SCT samples represented images of same samples under different magnification. Lipids stained with Nile red are fluoresce green and SNC stained with Fluorescent brightener are pale blue. The scale bar is 25 μm.

There were no significant changes in the morphology and droplet size of any Pickering emulsions after incubation in SSF for 3 min (Fig. 8A-II, B-II and C-II). After the gastric digestion process for 1 h, the size of particles incorporating SCT and MCT became less uniform and particles incorporating LCT appeared to flocculate as shown by the continuous blue fluorescence in the images (Fig. 8A-III, B-III and C-III). These phenomenon may have been caused by a decrease in the negative charge of the sulfate groups at the surface of SNCs at low pH in SGF. Li et al.²⁷ reported that the zeta potential of SNCs decreased with increasing pH and at pH 3–4, liquid paraffin Pickering emulsions stabilized by SNCs aggregated. However, the biggest differences between Pickering emulsions with different lipids occurred during the simulated small intestinal stage. Photographs of samples in SIF after 2, 20, 60 and 120 min were shown in Fig. 9.

Large droplets were observed for Pickering emulsions with SCT after 2 and 20 min (Fig. 9A-IV-2 and IV-20) in SIF, but after 60 min large droplets disappeared and after 120 min little undigested oil remained. With little droplets left in photos of SCT emulsions in SIF after 120 min, so they were not exhibited in Fig. 9A. Droplet changes in MCT Pickering emulsions were similar to SCT, however, large droplets remained after 60 min and undigested oil was still present after 120 min in SIF. The oil droplets of LCT Pickering emulsions in SIF became larger when they were incubated in SIF. But with increasing digestion time in SIF, the oil droplet size increased negligibly.

The SNCs adsorbed to the oil droplets also changed during the SIF digestion. In the initial emulsions, SNCs appeared as a halo around the oil droplets (Fig. 8A-I, B-I and C-I). Incubation of the SCT emulsions in SIF for 20 min, resulted in disappearance of the blue halo of SNC around the oil droplets as shown by images with higher magnification (IV-20-2 in Fig. 9A). The fluorescence of the SNC blue halo also became fainter with increasing of digestion time for MCT and LCT. At 120 min in SIF the blue halo in the LCT emulsions disappeared completely (IV-120 in Fig. 9C).

In order to investigate the reason for the differences of the microstructure changes of these three Pickering emulsions, the hydrolysis profiles of lipid and SNC during in vitro digestion were analyzed.

3.3.2. Effect of oil types on lipolysis. The rate and extent of lipid digestion during in vitro SIF monitored by pH-stat method showed distinct differences among emulsions incorporating different oil phases (Fig. 10). Pickering emulsions with SCT had the highest rate of FFA release and the final extent of lipolysis was around 80%. The rate of lipolysis of LCT Pickering emulsions was the lowest and the extent of lipolysis was only 8% after 120 min. Pickering emulsions with MCT showed a moderate rate of lipolysis and the final extent of lipolysis was close to 60%. These results were consistent with the microstructural images of the oil droplets in Fig. 9A-IV-60, B-IV-120 and C-IV-120, where little oil was left in SCT Pickering emulsions and more oil droplets were observed in MCT and LCT Pickering emulsions. However, compared to traditional emulsions incorporating MCT and LCT stabilized by OSA modified starches the rate and extent of lipolysis for Pickering emulsions were lower. SCT traditional emulsion was not included due to the instability of the system. As shown in Fig. 10, the lipolysis extents after 120 min in SIF of MCT and LCT traditional emulsions were around 75% and 23%, respectively. The initial rates of the lipolysis within the first 10 min were obtained by linear fitting of the FFA released values against the digestion time for all emulsions (R² > 0.92). As shown in Table 2, with the same oil type, the initial rates of traditional emulsions were higher than Pickering emulsions. These results could be attributed to the dramatic increase of specific surface areas (S = 6φ/D₃₂, φ is 0.5 for all emulsions) for traditional emulsions in comparison to Pickering emulsions. Similar results have been reported by Timgren et al.⁶² which indicated that larger surface area increases the accessibility of lipase to oil phase.

Fig. 10 Impact of emulsion type (Pickering emulsion and traditional emulsion) and lipid type (SCT, MCT and LCT) on the rate and extent of FFA released in a pH-stat in vitro intestinal digestion model.

Table 2 Effect of type of emulsion and oil on the surface mean droplet diameter and initial rate of lipolysis during in vitro SIF digestion^a

Emulsion type	Oil type	D32 (μm)	Specific surface area (m^2)	Initial rate of lipolysis (min^−1 × 10^2)
a Data expressed as mean ± standard deviation (n = 3). Values of means followed by different uppercase capital letters (A–E) in the same columns are significantly different (p < 0.05).
Pickering emulsion	SCT	21.63 ± 0.18^B	0.1387 ± 0.0012^B	1.94 ± 0.10^D
	MCT	22.82 ± 0.12^B	0.1314 ± 0.0007^B	1.34 ± 0.09^C
	LCT	23.11 ± 1.44^B	0.1300 ± 0.0081^B	0.22 ± 0.05^A
Traditional emulsion	MCT	0.20 ± 0.01^A	14.69 ± 0.56^A	2.63 ± 0.48^E
	LCT	0.21 ± 0.01^A	14.58 ± 0.28^A	0.94 ± 0.09^B

---

However, no significant differences (p > 0.05) for specific surface areas among three Pickering emulsions were found before digestion and similar results were also obtained for traditional emulsions. The different fate of lipid digestion profiles for these emulsions was most likely caused by the different properties of the triglycerides. Either for Pickering emulsions nor traditional emulsions, emulsions with LCT exhibited lower rate and extant of lipolysis in comparison to MCT emulsions. For SCT, although the initial rate of SCT lipolysis in Pickering emulsions was lower than MCT in traditional emulsions, the final extent of SCT lipolysis in Pickering emulsions was still higher than MCT traditional emulsions. Two factors are thought to be mainly responsible. Firstly, SCT with a relatively high water solubility was more accessible to contact and hydrolysis by pancreatic lipase in water system.³⁸ Secondly, short chain and medium chain FFA digestion products produced from SCT and MCT diffuse more easily into the surrounding aqueous phase than the long chain FFA digestion products arising from LCT which further decrease the contact of lipase to oil droplets in LCT emulsions.³⁵

3.3.3. Effect of oil types on SNC digestion. Different lipolysis profiles of Pickering emulsions incorporating with different oils would also affect the digestion of SNCs adsorbed at the interface. The percentage of SNC digested in SIF was measured and shown in Fig. 11A. At the start of intestinal digestion process, SNC digestion increased rapidly. According to the results in Fig. 11B, within the first 5 min in SIF the rate of SNC digested for LCT emulsions was the highest, followed by MCT and SCT emulsions. The control sample of SNC dispersions in water had the lowest rate of hydrolysis. With self-aggregated property, SNCs in water are normally formed agglomerates in micrometer scale,^55,56 so the SNCs at the oil–water interface may presented a greater surface area to enzymes. However, with increasing digestion time, the profiles changed. The SNC hydrolysis of LCT Pickering emulsions was still the highest and leveled off after reaching 85% digestion at about 120 min. But SNC digestion in SCT Pickering emulsions remained low (20%) and constant after 20 min. Interestingly, the rate of digestion of SNC dispersions increased after its initial lowest rate in the first 5 min. MCT Pickering emulsions exhibited a moderate rate and extent of SNC digestion compared to LCT and SCT emulsions.

Fig. 11 Impact of lipid type (SCT, MCT and LCT) on the rate and extent of SNC digested in a pH-stat in vitro intestinal digestion model. The overall profile is shown in (A) and the initial states in first 5 min in (B).

According to the previous work, the aggregation of SNCs was affected by salt.²⁷ So in SIF calcium may also impact the dispersity of SNCs. As shown in Fig. 12A, compared to SNC water dispersion, with the addition of calcium, precipitates formed by calcium and SNCs were easily separated from the system. Furthermore, specific digestion processes without calcium and bile salt in SIF for SNC dispersions were carried out to clarify if the aggregates would affect the SNC digestion. As the results shown in Fig. 12B, without calcium in SIF the digestion of SNCs increased significantly. Conversely, without bile salt in SIF the digestion of SNCs decreased obviously. These results could be inferred that the aggregates formed by calcium and SNCs would decrease the SNC digestion. With no bile salt, calcium would not be used to precipitate bile salt and more calcium in the system would interact with SNCs and further to decrease the SNC digestion rate. However, for the digestion of Pickering emulsions, FFA released from MCT and LCT lipolysis would also consume calcium by forming soaps. So the interaction of calcium with either SNC, bile salt or FFA was though be the main reason for the different rates of SNC digestion.

Fig. 12 (A) Impact of calcium on the dispersity of SNC dispersions. (B) Impact of calcium and bile salt on the rate and extent of SNC diapersion digested in a pH-stat in vitro intestinal digestion model.

The water dispersion of SNCs contains no FFA in system, calcium is available to precipitate bile salts and SNCs. Therefore, the rate of digestion of SNC was not reduced by its partial reaction with calcium and the extent of digestion increased with digestion time. In the case of SCT Pickering emulsions, although a greater amount of FFA was released by lipolysis (Fig. 10), short chain fatty acids are not readily precipitated by calcium⁶³ and bile salts would replace the SNCs at the interface (as shown in Fig. 9A, IV-20-2, third row). Therefore, more calcium would be available to precipitate SNCs including the displaced and originally unbound SNCs aggregates in the continuous phase (Fig. 4A), which corresponded to the depressed SNC digestion after 20 min. Calcium forms soaps with the FFA produced from MCT digestion, so the amount of calcium available to form precipitates with SNCs decreased which would increase the extent of SNC digestion of MCT Pickering emulsions compared to SCT emulsions. For LCT Pickering emulsions, FFA would form soaps and decrease calcium precipitation of SNCs. With the low rate of lipid hydrolysis (Fig. 10) the droplet size of Pickering emulsions remained relatively constant as shown in Fig. 9C. So SNCs adsorbed at the oil–water interface would have a great surface area to enzymes to increase the SNC digestion rate to 85% after 120 min in SIF.

4. Conclusion

In summary, Pickering emulsions stabilized by SNCs at 1.0 wt% showed outstanding stability against Ostwald ripening by incorporating SCT and exhibited high stability against coalescence by incorporating MCT and LCT at 25 °C for 90 days. The in vitro digestion properties of these three emulsions were significantly different. The rate of FFA released was in the order SCT > MCT > LCT and the extent of SNC digested was in the order SCT < MCT < LCT. The inverse relationship between triglyceride and SNC hydrolysis rates may be related to the interaction of calcium with SNC, bile salt or FFA and the specific surface areas during digestion. With lipid hydrolysis, the SNCs were displaced from the interface and calcium in digesta would adsorb to SNCs to decrease their hydrolysis. But the calcium available to interact with SNCs changes as the properties and amount of the FFA produced from hydrolysis of SCT, MCT and LCT and bile salts in SIF. At the same time, with low lipolysis for LCT Pickering emulsions, more specific surface areas were available for SNCs to contact with enzymes which further to increase the SNC digestion significantly. So the characteristics of both lipid and emulsifier affect the digestive fate of Pickering emulsions. These results may be useful for developing Pickering emulsions with different digestion profiles by adjusting the components in the formulations for food and pharmaceuticals.
