Novel one-pot synthesis and sensitisation of new BiOCl–Bi2S3 nanostructures from DES medium displaying high photocatalytic activity

V. C. Ferreira*a, M. C. Nevesb, A. R. Hillmanc and O. C. Monteiroa
aCentro de Química e Bioquímica, Faculdade de Ciências, Universidade de Lisboa, 1749-016 Lisboa, Portugal. E-mail: vcferreira@fc.ul.pt; Fax: +351 217500088; Tel: +351 217500000
bCICECO, Department of Chemistry, University of Aveiro, 3810-193 Aveiro, Portugal
cChemistry Department, University of Leicester, University Road, Leicester, LE1 7RH, UK

Received 3rd June 2016 , Accepted 8th August 2016

First published on 9th August 2016


Abstract

A novel route to synthesise Bi2S3-sensitised BiOCl nanoparticles from deep eutectic solvent medium at room temperature by a one-pot approach is reported. The influence of the temperature, sulphur source, concentration of reactants and presence of water, on the morphological, structural and microstructural, optical and photocatalytic properties of the synthesised nanoparticles is analysed and discussed. Stable and crystalline BiOCl hybrid structures with shapes from sheet-like to flower-like hierarchical aggregates and (001) and (110) dominant crystallographic orientation were obtained. The sensitisation of BiOCl with Bi2S3 was successfully achieved in situ during synthesis by an ion-exchange process and the relative proportion of the components (BiOCl and Bi2S3) was controlled by the Bi[thin space (1/6-em)]:[thin space (1/6-em)]S ratio in the synthesis medium and by the sulphur precursor. The sensitiser nanomaterial (Bi2S3) extends the BiOCl photoactive region to the visible range. Also it favours charge separation and reducing the electron/hole pair recombination and therefore increasing the photocatalytic performance. The prepared composite materials show high ability to adsorb rhodamine B cationic dye and the complete photocatalytic degradation was achieved within 45 min (75 mg per g of catalyst).


Introduction

Bismuth oxychloride (BiOCl) has recently attracted increasing interest due to its low toxicity, semiconducting properties, excellent photocatalytic response and versatility to be further modified with a wide range of materials. In the last decade, more than 190 research papers have been published only regarding BiOCl and its composites synthesis, properties and applications. It is their size, shape and surface structure which will, ultimately, control their optical and photocatalytic properties and therefore their suitability to distinct purposes. For example, BiOCl has shown ability for the water splitting reaction under solar light irradiation,1–3 photocatalytic activity for the degradation of dyes and other pollutants under ultra-violet (UV) and visible radiation,4–11 as UV photodetectors,12 to be used as a catalyst, to be used as the air electrode of aluminium–air batteries13 and as an anode material for sodium-ion batteries.14

BiOCl has a tetragonal structure, formed by layers of [Bi2O2]2+ intercalated with a double layer of chloride ions accommodated in the interlayers, with interlayer distance of 7.38 Å. Due to its layered structure this material can be prepared in a wide range of sizes and shapes, with sheet and plate-like morphologies the most commonly reported,5–7,10,14–16 however hexagonal prisms8 and hierarchical structures resulting from distinct assembling of nanosheets are also reported.4,7,9,11 BiOCl is a semiconductor with wide band gap and indirect band gap energy (Eg). Values ranging from 2.25 to 3.5 eV have been reported in the literature,1,2,4,6,9,10,17 depending mostly on particle size, crystal structure and surface composition.

The synthesis methodologies of BiOCl are mostly based on hydro/solvothermal approaches and precipitation, but ultrasound assisted and combustion methods are also reported. Typical hydro/solvothermal based approaches require moderate to high temperatures (80–200 °C), often extended reaction times (12–24 h) and the use of specific reaction vessels.4–6,9,11,14 The precipitation at room temperature, the synthesis assisted by ultrasound and the combustion methods requires subsequent calcination at 300–400 °C.15,18,19

In order to increase the photocatalytic performance and extend the absorption to the visible range, several strategies have been used in order to improve the efficiency of semiconductor photocatalysts, for example by controlling crystal facets, doping, organic and inorganic sensitisation, and preparation of hybrid structures. It has been shown that the photocatalytic activity of BiOCl depends not only on its particle dimensions but also on the crystallographic orientation of its surface.5,6,10 BiOCl nanoplates with high exposed (001) facets show enhanced activity towards methyl orange (MO) degradation under simulated sunlight irradiation.5 Also BiOCl single crystalline nanosheets with exposed (001) facets present high photocatalytic activity for MO degradation through direct BiOCl photoexcitation under UV irradiation whereas nanosheets displaying (010) crystallographic orientation are more active to dye degradation through indirect dye photosensitisation under visible light.6 Jiang et al.1 have reported sulphide (S2−) doping of BiOCl by replacing the chloride ions by S2− in the interlayer. This widens the light absorption and decreases the band gap by 0.2 eV by creating impurity states just above the valence band. This allows those materials to be used for the oxygen evolution reaction due to extension of light absorption to the visible and improved separation efficiency of the photogenerated electron–hole pairs. Ding et al.20 have shown that replacing Bi atoms in the crystalline structure by doping BiOCl with Er3+ (1%), allows the use of visible light and confers it catalytic properties towards rhodamine B (RhB) degradation. Owing to its high ability to adsorb some organic molecules, BiOCl has been sensitised with the organic dye RhB displaying enhanced photocatalytic activity towards the MO, 4-chlorophenol and nitric monoxide degradation under visible light irradiation.11,21 The sensitisation with other inorganic materials such as SnO2, Co3O4, WO3, Fe3O4, Bi2O3, Bi2S3 and Bi has also been reported.16,17,22–27 Of those, bismuth sulphide (Bi2S3) may be a suitable candidate since it displays photocatalytic activity towards dyes degradation under UV light irradiation.28 Cao et al.25 and Cheng et al.27 have used a two-step process to prepare the BiOCl nanostructures and further sensitise with Bi2S3 through an ion exchange method using thioacetamide, thiourea and cysteine as sulphur precursors. This approach shows advantages over other methodologies reported in the past in which high reaction temperature, capping agents and use of less environmentally friendly reactants were required.29–32 The presence of Bi2S3, which has a band gap energy in the range 1.2 to 1.8 eV,26,33–35 extends the absorption of the hybrid material to the visible region since BiOCl only absorbs in the UV (Eg BiOCl bulk = 3.5 eV). The BiOCl/Bi2S3 nanomaterials exhibit efficient visible light photocatalytic activity towards RhB, 2,4-dichlorophenol and MO degradation processes.25–27

Considering all the efforts reported in the literature, the development of rapid strategies to prepare heterostructures displaying improved properties is still highly desirable and a challenge to which this work aims to contribute. Therefore, in this work, hybrid materials, with improved properties for photocatalytic applications, based on bismuth(III) oxychloride sensitised with bismuth sulphide semiconductor have been investigated. The novel approach reported here involves the one-pot synthesis and in situ sensitisation, by an ion exchange route. The ability of using environmentally friendly medium such as the deep eutectic solvent based on choline chloride and ethylene glycol and the synthesis at room temperature, in a one-pot reaction method presents further advantages.

The work reported here is distinct from that reported in the cited literature25–27 in several respects, namely (i) the synthesis and sensitisation is achieved in an single step at room temperature; (ii) the hierarchical nanostructures are obtained from an environmentally friendly solvent and (iii) the resulting hybrid materials display significantly improved photocatalytic response.

The photocatalytic performance of the prepared BiOCl–Bi2S3 hybrid materials was studied and the results indicated that these are promising materials for application as catalysts for photocatalytic degradation of pollutants, such as (but not limited to) organic dyes.

Experimental

Materials and methods

All reagents were of analytical grade (Aldrich and Fluka) and were used as received. The aqueous solutions were prepared with Millipore Milli-Q ultra-pure water.
BiOCl–Bi2S3 nanoparticles synthesis. The BiOCl–Bi2S3 nano-particles were chemically synthesised in a deep eutectic solvent (DES) medium prepared from a mixture of a 1[thin space (1/6-em)]:[thin space (1/6-em)]2 ratio of choline chloride and ethylene glycol (ChCl[thin space (1/6-em)]:[thin space (1/6-em)]2EG).36 Two bismuth sources were used, saturated solution of bismuth(III) trichloride (BiCl3) in HCl and bismuth(III) diethyl-dithiocarbamate complex (Bi[S2CN(C2H5)2]3,37 Bi(dtc)3) synthetised according to the procedure reported in the literature.33 The sulphur sources tested were saturated aqueous solutions of sodium thiosulfate (Na2S2O3, 3.2 mol dm−3) and sodium disulphide (Na2S, 2.4 mol dm−3). The bismuth(III) diethyl-dithiocarbamate complex (Bi[S2CN(C2H5)2]3) already contain both Bi and S and no extra sulphur source is required. Stock DES solutions of the precursors, BiCl3 (16 mmol dm−3), Na2S2O3 (21 mmol dm−3) and Na2S (10 mmol dm−3), were prepared by stirring until clear solutions were obtained. Typically for the BiOCl–Bi2S3 synthesis, to 20 mL of BiCl3 stock solution, adequate volume of sulphur precursor solution was added under stirring. The reaction was allowed to occur overnight, at room temperature. Reactants concentration, temperature and sulphur source influences the time elapsed for change in the solution colour from clear to yellow, light brown and finally dark grey/black. After synthesis, the resulting suspensions were centrifuged at 3500 rpm for 5 minutes and the solid repeatedly washed with deionized water. The resulting solids were dried and stored.

White bismuth oxychloride (BiOCl) particles were obtained by adding the BiCl3 saturated solution to H2O;25 bismuth sulphide (nanoBi2S3) was prepared according to the procedure previously described.33

The prepared samples are designated, according to Table 1, from A to E followed by the proportion of Bi[thin space (1/6-em)]:[thin space (1/6-em)]S in the starting reactants using Na2S2O3 as sulphur source, e.g. A (1.5[thin space (1/6-em)]:[thin space (1/6-em)]1). Samples F and G were respectively prepared with (3[thin space (1/6-em)]:[thin space (1/6-em)]1) Bi[thin space (1/6-em)]:[thin space (1/6-em)]S proportion from another sulphur source (sodium sulphide – SS) and a bismuth(III) diethyl-dithiocarbamate complex (DT/50) already containing Bi and S in the proportion (1[thin space (1/6-em)]:[thin space (1/6-em)]6), both prepared at 50 °C. Thiourea (TU), thioacetamide (TA) and carbon disulphide (CD) were also tested but no particles were obtained. Furthermore, BiOCl/Bi2S3 particles, samples K and L, were also prepared using dry BiCl3 and Na2S2O3 directly dissolved in DES, in the proportion (1[thin space (1/6-em)]:[thin space (1/6-em)]3) and (1[thin space (1/6-em)]:[thin space (1/6-em)]4), respectively.

Table 1 Experimental conditions used for the synthesis of BiOCl–Bi2S3, BiOCl and nanoBi2S3 particles
Sample Precursors Bi[thin space (1/6-em)]:[thin space (1/6-em)]S Conditions
a From saturated aqueous solutions.b From dry precursors.
A BiCl3/Na2S2O3a (1.5[thin space (1/6-em)]:[thin space (1/6-em)]1) Room temperature, overnight, DES
B (1[thin space (1/6-em)]:[thin space (1/6-em)]1)
C (1[thin space (1/6-em)]:[thin space (1/6-em)]1.5)
D (1[thin space (1/6-em)]:[thin space (1/6-em)]2)
E (1[thin space (1/6-em)]:[thin space (1/6-em)]3)
F (SS/50) BiCl3/Na2Sa (3[thin space (1/6-em)]:[thin space (1/6-em)]1) 50 °C, overnight, DES
G (DT/50) Bi(dtc)3 (1[thin space (1/6-em)]:[thin space (1/6-em)]6)
H (TU) BiCl3/thiourea (1[thin space (1/6-em)]:[thin space (1/6-em)]2) 50 °C, overnight, DES
I (TA) BiCl3/thioacetamide (1[thin space (1/6-em)]:[thin space (1/6-em)]2)
J (CD) BiCl3/CS2 (1[thin space (1/6-em)]:[thin space (1/6-em)]4)
K BiCl3/Na2S2O3b (1[thin space (1/6-em)]:[thin space (1/6-em)]2) Room temperature, overnight, DES
L (1[thin space (1/6-em)]:[thin space (1/6-em)]4)
BiOCl BiCl3 Room temperature, H2O
nanoBi2S3 Bi(dtc)3 Acetone, 60 °C


Characterization

X-ray powder diffraction (XRD) was performed using a Philips X-ray diffractometer (PW 1730) with automatic data acquisition (APD Philips v3.6B), using Cu Kα radiation (λ = 0.15406 nm) and working at 40 kV/30 mA. The diffraction patterns were collected in the range 2θ = 8–60° with a 0.02° step size and an acquisition time of 2.0 s per step. Optical characterization of the powder samples was carried out by UV-vis diffuse reflectance using a Shimadzu UV-2600PC spectrophotometer. Diffuse reflectance spectra (DRS) were recorded in the wavelength range of 200–1400 nm using an ISR 2600Plus integration sphere. Transmission electron microscopy (TEM) and high resolution transmission electron microscopy (HRTEM) were carried out using a JEOL 200CX microscope operating at 200 kV and scanning electron microscopy (SEM) in a field emission gun – scanning electron microscope JEOL-7001F (FEG-SEM), operating at 10–15 kV. Specific surface area was estimated by the Brunauer–Emmett–Teller (BET) method, from nitrogen (Air Liquide, 99.999%) adsorption data at −196 °C, using a volumetric apparatus from Quantachrome mod. NOVA 2200e. The samples, weighing between 40 and 60 mg, were previously degassed for 2.5 h at 150 °C at a pressure lower than 0.133 Pa. The potential of zero charge (p.z.c.) of the particles was measured using a Zetasizer Nano ZS90 (Malvern Instruments Ltd., UK), equipped with He–Ne laser (4 mW, 632.8 nm) using aqueous 0.1 M HCl and NaOH solutions for pH adjustments.

Adsorption and photocatalytic activity

All photocatalytic experiments were conducted using the procedure described elsewhere.38 Briefly, a 250 mL refrigerated photoreactor using a 450 W Hanovia medium pressure mercury-vapour lamp was used as radiation source. The total irradiated energy was 40–48% in the ultraviolet range and 40–43% in the visible region of the electromagnetic spectrum. Prior to irradiation, 20 mg of sample were suspended in 150 mL of a rhodamine B solution (10 ppm) and were stirred in dark conditions during 60 minutes to allow the adsorption/desorption equilibrium. After this time an aliquot of solution was collected to evaluate the adsorption of RhB on the catalyst and used as t = 0 for the photocatalytic degradation. During irradiation, aliquots of the suspensions were collected at regular intervals using a peristaltic pump, centrifuged and analysed by UV-vis spectroscopy.

Results and discussion

Structural and morphological characterisation

Effect of the bismuth[thin space (1/6-em)]:[thin space (1/6-em)]sulphur ratio. Fig. 1 illustrates the X-ray diffraction patterns obtained for the A–E as-prepared samples. The peaks in the diffraction patterns can be indexed to the tetragonal crystallographic structure of BiOCl (ICDD PDF4 file: 01-085-0861) and agrees with the pattern obtained for the BiOCl synthesised from aqueous medium. The structure of BiOCl comprises layers of [Bi2O2][Clm] or [Bi3O4+n][Clm], with the chloride ions in a non-bonding interaction in the interlayers, this arrangement being prone to form 2D lamellar particles.7 Sample A (1.5[thin space (1/6-em)]:[thin space (1/6-em)]1) shows higher crystallinity in opposition to the one of sample E (1[thin space (1/6-em)]:[thin space (1/6-em)]3) suggesting that the increase of the S content in the synthesis medium affects the crystallinity of the final particulates. Particles A (1.5[thin space (1/6-em)]:[thin space (1/6-em)]1), B (1[thin space (1/6-em)]:[thin space (1/6-em)]1) and C (1[thin space (1/6-em)]:[thin space (1/6-em)]1.5) clearly display preferential crystallographic orientation, with the peaks at 12.0° ((001) facets) and 32.5° ((110) facets) exhibiting higher relative intensities than those reported for bulk BiOCl (ICDD PDF4 file: 01-085-0861). This is further confirmed by the high relative intensities observed for the diffraction peaks of the same family of (001) facets, (002) and (003). Therefore the nanoparticle surface is dominated by (001) and (110) facets. Once BiOCl is predisposed to form 2D structures due to its lamellar nature, it is likely that faces of the particles comprise (001) facets while the edges are formed by (110) facets, in agreement with data previously reported.6
image file: c6ra14474h-f1.tif
Fig. 1 XRD patterns of samples A (1.5[thin space (1/6-em)]:[thin space (1/6-em)]1), B (1[thin space (1/6-em)]:[thin space (1/6-em)]1), C (1[thin space (1/6-em)]:[thin space (1/6-em)]1.5), D (1[thin space (1/6-em)]:[thin space (1/6-em)]2) and E (1[thin space (1/6-em)]:[thin space (1/6-em)]3) and of pure BiOCl and nanoBi2S3.

Additional diffraction peaks were detected, in samples B to E, at 18.8, 30.0 and 45.2°, which can be assigned to the Bi2S3 facets (210), (100) and (214), respectively, (ICDD PDF4 file: 04-012-0700). Besides, other Bi2S3 diffraction peaks are likely to be overlaid with BiOCl signal (at about 23.8, 26.0, 33.4, 41.2, 46.6, 49.7 and 55.1°). The presence of nanocrystalline Bi2S3 seems to be a consequence of the sensitisation of BiOCl particles during synthesis in the presence of an appropriate sulphur source, for instance Na2S2O3. This process is very likely to occur through an ion exchange process as it has been previously observed,25–27 in heterostructures prepared in a stepwise approach. In the present case, the Bi2S3 sensitisation extension increases with the S content in the reaction medium. The aforementioned diffraction peaks are not detected for sample A most probably due to its dispersity and low Bi2S3 content. However, the formation of black particles, not white as pure BiOCl, suggests effective sensitisation. Upon synthesis of the NPs, it was clear that all the synthesised particles were not pure BiOCl (ESI, Fig. S1) as their colour is very distinct from the white pure BiOCl.25,39 The hypothesis of the synthesised particles containing sulphur atoms, as dopant replacing Cl ions in the interlayers, was discarded since a shift towards lower 2θ values would be expected due to the high atomic radius of sulphur atoms as compared with chloride ion and to difficulties in accommodating di-anions (S2−). Also the hypothesis of incorporation of sulphur replacing oxygen atoms in the crystalline structure of BiOCl was rejected. This would cause expansion and/or distortion of the crystalline structure and concomitant shift of diffraction peaks towards lower 2θ values due to a similar effect as mentioned above, which was not observed.

The influence of the sulphur precursor. The X-ray diffraction patterns for samples F (SS/50) and G (DC/50), both prepared at 50 °C (no particles were formed at room temperature) and using Na2S and Bi(dtc)3 complex as sulphur sources, respectively, are shown in Fig. 2. Those patterns are similarly composed of BiOCl, displaying good crystallinity and preferential crystallographic orientation as observed for samples A to C.
image file: c6ra14474h-f2.tif

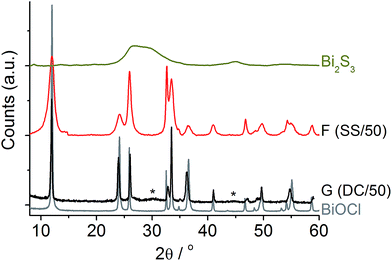

Fig. 2 XRD patterns of samples F (SS/50) and G (DC/50) and of pure BiOCl and nanoBi2S3.

However, using the Bi(dtc)3 precursor, the yield is very low and particles with heterogeneous morphology were obtained, comprising large, irregular and thin flakes of BiOCl, of about 2 μm wide, mixed with small irregular particles (ESI, Fig. S2). For that reason this sample was not used for further studies.

Other sulphur sources and the effect of H2O. Under the experimental conditions used, no particles were obtained from DES using thiourea, thioacetamide and carbon disulphide as sulphur source, neither at room temperature or at 50 °C, indicating that the S precursor plays an important role on the final product and in the formation of particles by one-pot BiOCl synthesis and sensitisation.

In order to test the effect of water on the reaction medium, BiCl3 and Na2S2O3 were dissolved directly in the DES, instead of using saturated aqueous solutions. Under these conditions, crystalline BiOCl particles sensitised with Bi2S3 were also obtained, displaying similar diffraction patterns to those observed for samples A and E (ESI, Fig. S3).

Thus the presence of H2O is not a key determining factor in the synthesis and sensitisation of BiOCl–Bi2S3 particles in this medium and also does not justify the absence of particles when thiourea, thioacetamide and carbon disulphide were used.

The average BiOCl crystallite size was estimated from the XRD patterns by using the Scherrer equation. The obtained values were 7 ± 1 nm except for sample A with ca. 9 nm crystallite size. The XRD-derived values relate to the crystallite size within the nanoparticles and are thus smaller than the TEM-derived particle size values; the distinction is clear from inspection of the images in Fig. 3 (see below).


image file: c6ra14474h-f3.tif
Fig. 3 TEM images of samples A (1.5[thin space (1/6-em)]:[thin space (1/6-em)]1), B (1[thin space (1/6-em)]:[thin space (1/6-em)]1), C (1[thin space (1/6-em)]:[thin space (1/6-em)]1.5), D (1[thin space (1/6-em)]:[thin space (1/6-em)]2) and E (1[thin space (1/6-em)]:[thin space (1/6-em)]3), and HRTEM image of sample C (1[thin space (1/6-em)]:[thin space (1/6-em)]1.5). Inset in figure: representative SEM image of sample D (1[thin space (1/6-em)]:[thin space (1/6-em)]2).

The morphology of the BiOCl particles decorated with Bi2S3 was analysed by TEM (Fig. 3). At low S concentration (sample A), plate-like particles are formed with average size of 59 ± 14 nm and 13 ± 4 nm thickness. When the sulphur concentration increases (samples B to E), flower-like hierarchical architectures of assembled nanosheets were formed with increasing diameter of 215, 221, 240 and 263 nm, respectively. These are composed of aggregated plates, as shown in the representative SEM image (inset in Fig. 3). The interlayer distance, obtained from HRTEM, is about 0.74 nm, as illustrated for sample C (1[thin space (1/6-em)]:[thin space (1/6-em)]1.5), in Fig. 3, which is consistent with the interlayer spacing between (001) planes of BiOCl (7.38 Å) and with the (001) preferential crystallographic orientation suggested by XRD analysis. Although it was not possible to estimate the Bi[thin space (1/6-em)]:[thin space (1/6-em)]S ratio in the nanoparticles by energy dispersive X-ray spectroscopy (EDX), since the Bi and S signals are overlaid in the energy scale, values ranging from 1.2 to 7.3 atom% of S were obtained by elemental analysis, confirming the presence of sulphur in the prepared samples. This indicates that Na2S2O3 is a reliable source of sulphur for BiOCl sensitisation at room temperature. By using sodium sulphide as sulphur source, sample F (SS/50), the particles obtained are irregular size and shaped sheets of 51 ± 14 nm and thickness of about 10 ± 2 nm, similar to those prepared from sodium thiosulphate, sample A (1.5[thin space (1/6-em)]:[thin space (1/6-em)]1), despite the higher Bi[thin space (1/6-em)]:[thin space (1/6-em)]S ratio used (ESI, Fig. S4). In the absence of water, sheet-like particles of about 46 ± 12 nm and 51 ± 12 nm were formed (ESI, Fig. S4) for samples K (1[thin space (1/6-em)]:[thin space (1/6-em)]2) and L (1[thin space (1/6-em)]:[thin space (1/6-em)]4), similar to sample A. Although the Bi2S3 could be expected to present a thin sheet-like morphology (ESI, Fig. S5), covering the surface of BiOCl as observed for the titanate nanofibers sensitised with Bi2S3 (ref. 34) or occur as small nanoparticles anchored to the BiOCl nanosheets,27 in the present case, the in situ sensitisation by ion exchange, the small amount of Bi2S3 and its dispersity on the BiOCl surface did not allow its differentiation by TEM analysis in any of the prepared samples. Nevertheless its presence could be readily evidenced by XRD and DRS analysis.

Additionally, it can be concluded that the use of DES as the synthesis medium allows preparation of smaller particles with a more homogeneous particle size distribution than those of pure BiOCl and BiOCl–Bi2S3 prepared from aqueous medium, which are large and irregular sized and shaped plates (ESI, Fig. S5). This effect may be a consequence of choline cation adsorption on the BiOCl particles in the initial stage of synthesis, controlling the growth of BiOCl nanostructures, since these particles, with (001) crystallographic surface orientation, are expected to have high surface density of oxygen atoms at the surface conferring a negative charge density and electric field perpendicular to the surface (see below).6

UV-vis optical response

The optical characterisation of the samples was carried out by measuring their diffuse reflectance, R, at room temperature, and the absorption spectra are depicted in Fig. 4a. The Bi2S3 sensitised BiOCl particles present contribution from both components and display two distinct absorption regions (Fig. 4). The pure BiOCl prepared absorbs in the UV region with the absorption edge at about 360 nm as shown in Fig. 4a. In contrast, the nanoBi2S3 absorbs across the entire UV-vis range.
image file: c6ra14474h-f4.tif
Fig. 4 (a) Diffuse reflectance spectra of Bi2S3–BiOCl samples A (1.5[thin space (1/6-em)]:[thin space (1/6-em)]1), B (1[thin space (1/6-em)]:[thin space (1/6-em)]1), C (1[thin space (1/6-em)]:[thin space (1/6-em)]1.5), D (1[thin space (1/6-em)]:[thin space (1/6-em)]2), E (1[thin space (1/6-em)]:[thin space (1/6-em)]3) and F (SS/50) and comparison with pure BiOCl and nanoBi2S3, (b and c) corresponding Tauc plots for the synthesised samples for indirect (b) and direct (c) transitions.

The diffuse reflectance is related with the absorption Kubelka–Munk function, FKM, through the relation image file: c6ra14474h-t1.tif, which is proportional to the absorption coefficient.40 The optical band gap energies of the samples were estimated by plotting the function fKM = (FKM)n vs. radiation energy (Tauc plot), where h is the Planck constant and ν the radiation frequency and n = 2 or 1/2 for direct and indirect transitions, respectively. The Eg values were obtained by extrapolating the linear portion of the curve near the band edge to zero absorption (Fig. 4b and c). In Table 2 are included the Eg values obtained for the prepared samples considering the generally accepted indirect band gap for BiOCl6,9,16,21,26 and direct band gap for Bi2S3.26,41

Table 2 Optical band gap energy (Eg) values of prepared samples
Sample Eg/eV
BiOCl 3.35
nanoBi2S3   1.41
BiOCl–Bi2S3 A 3.39 1.33
B   1.69
C   1.72
D   1.36
E   1.71
F 3.40 1.60
G   1.65


In samples A and F the relative contribution from BiOCl and Bi2S3, which have distinct Eg values (3.35 and 1.41 eV, respectively), could be distinguished. In contrast, for the nanoparticulates prepared with increasing proportion of sulphur in the reaction medium, the higher proportion of Bi2S3 on the resulting material did not allow that discrimination.

Regarding the contribution from the bismuth oxychloride, the optical band gap energies of samples A and F are clearly blue shifted relative to the pure BiOCl sample, in agreement with the quantum confinement effects.42 Consequently, the blue shift of the optical band gap deduced for samples A and F seems to result from the differences in particle thickness which corroborates a decrease in particles size (thickness) for those prepared from DES and aqueous medium as revealed by the TEM images analysis. Regarding the bismuth sulphide contribution, the optical band gap energy of all samples is within the range of that obtained for nanoBi2S3 (1.41 eV) showing a small blue shift particularly for those samples with higher ratio of the sensitisation material. Moreover, these results seems consistent with the hypothesis that the Bi2S3 is not homogeneously distributed on the surface of BiOCl structures, and thus giving rise to two distinct optical band gap energies.

As the results presented above suggest, the optical band gap energy is related to the nanocrystal size. This effect can be described through the particle-in-a-box model, in which case the electron–hole pair is treated as a particle in a box with an infinite potential at the interface. For semiconducting nanoparticles with anisotropic growth the following equation can be applied:43,44

image file: c6ra14474h-t2.tif
relating the dimension, Li, with the shift in the band gap energy, ΔE. Here ΔE is the difference of Eg between the bulk material and the nanomaterial (ΔE = EbulkEg), x and y are the coordinates of the lamellar plan of the particle, z the coordinate perpendicular to the lamellar plan, μi are the effective masses of the electron–hole (image file: c6ra14474h-t3.tif, image file: c6ra14474h-t4.tif) pair for the material in the plane xy, Li is the particle dimension in the direction i and h is Planck's constant.

In the case of sheet-like particles two of their dimensions (x, y) are much larger than the third (z) which determines the material properties and is responsible for the confinement. Therefore, the synthesised particles for which it was possible to estimate the Eg values from the BiOCl contribution, samples A and F in Table 2, the sheet thickness was estimated using the equation above, the electron and hole masses of 0.56me and 1.10me,2 respectively, and the Eg shift observed between pure BiOCl and BiOCl–Bi2S3. Thicknesses of about 16 and 13 nm were respectively inferred which are close to those obtained directly from TEM images (13 ± 4 and 10 ± 2 nm, see above).

RhB removal studies

In order to evaluate the ability of the synthesised materials to remove contaminants from aqueous solutions, two samples (B and F) were selected due to their distinct Bi2S3[thin space (1/6-em)]:[thin space (1/6-em)]BiOCl ratio and morphology. Sample B presents a hierarchical structure of thin BiOCl–Bi2S3 sheets assembled in a flower-like morphology and higher Bi2S3[thin space (1/6-em)]:[thin space (1/6-em)]BiOCl ratio, whereas sample F is formed by BiOCl–Bi2S3 sheets with average size of 51 nm and 10 nm thick. Rhodamine B (RhB) was used as model pollutant and its adsorption and photocatalytic degradation studied. Rhodamine B is a cationic dye which has been extensively used for photocatalytic activity evaluation of photocatalytically active materials and has been selected to be used as a model molecule/pollutant.
Adsorption studies. After 1 hour in the dark conditions for adsorption/desorption equilibrium, it was found that sample F has a much higher ability to adsorb RhB (49%, 30.7 mg g−1) than sample B (34%, 22.2 mg g−1), whereas pure BiOCl and nanoBi2S3 present low adsorption capacity, 15 and 22%, respectively (Table 3). These values are remarkable compared with those reported in the literature for BiOCl particles sensitised with Bi2S3, up to 2.6 mg g−1 for RhB adsorption on 2D BiOCl nanoplates10 and 0.2 to 1.75 mg g−1 for MO adsorption on BiOCl nanostructures.5,6
Table 3 Amount of RhB adsorbed on samples B and F, surface area of the particles (AB.E.T.), area occupied by adsorbed RhB with perpendicular (ARhB⊥) and flat (ARhB//) orientation on the surface and potential of zero charge (p.z.c.) of particles surfacea
Sample % RhB ads (mRhB/mNPs)/mg g−1 AB.E.T./m2 g−1 ARhB⊥/ANPs ARhB///ANPs p.z.c.
a ⊥ – perpendicular RhB molecule orientation with cationic group oriented towards the BiOCl surface; // – parallel orientation of RhB adsorbed flat on the BiOCl surface.
B 34 22.2 33.993 0.6 1.2 4.0
F 49 30.7 22.532 1.2 2.5 6.4
BiOCl 15 10.6 6.730 1.4 2.8 4.5
nanoBi2S3 22 15.4 24.426 0.6 1.2


Three hypothesis have been considered in order to clarify the origin of the high adsorption ability of these materials: (i) surface area, (ii) surface charge of the particles and/or (iii) insertion of RhB molecules in the interlayer spacing of the BiOCl structure.

The surface area measurements were performed by the Brunauer–Emmett–Teller (B.E.T.) method and 34.0 and 22.5 m2 g−1 were obtained for samples B and F, respectively. For pure BiOCl and nanoBi2S3, values of 6.730 and 24.426 m2 g−1, respectively, were found. The results show that higher amount of RhB was adsorbed on smaller surface area of sample F (49%, 30.7 mg g−1) than on sample B (34%, 22.2 mg g−1). Therefore it could be concluded that the surface area was not the main effect controlling the adsorption capacity of these materials. Additionally, while nanoBi2S3 have higher surface area (fourfold) than that of pure BiOCl, the amount of RhB adsorbed on the former is about 1/3 of that adsorbed on the later, suggesting that in the hybrid structures it is the BiOCl component the main responsible for the dye adsorption.

Considering the effect of the surface charge, the point of zero charge (p.z.c.) of those materials was evaluated (Table 3) and compared with that of pure BiOCl (p.z.c. at pH < 2), which agrees with that reported in the literature (p.z.c. at pH ≈ 2).11 As mentioned before, the surface of BiOCl nanostructures with (001) preferential crystallographic orientation are expected to have a high density of oxygen atoms on the surface and an electric field perpendicular to the surface6 responsible for negative zeta potential in a wide range of pH values (pH > 2) and for the high affinity towards positively charged species.

Moreover, taking into account the pH of the RhB solution (pH 6.65) in this medium, the BiOCl–Bi2S3 particles surface is negatively charged and consequently the interaction with the zwitterionic molecule of RhB (chemical structure shown in Scheme 1) at this pH (pKa 3.7) may occur through the positively charged –N(CH2CH3)2 group. Furthermore, the particles with p.z.c. close to the pH of the solution and therefore less negatively charged in the RhB solution (sample F) show higher ability to remove the dye. This suggests that repulsive interactions (with the –COO group) may hinder the RhB adsorption. In fact, comparing the area occupied by the adsorbed RhB molecules in two limit orientations (perpendicular (⊥) and parallel (//) to the surface) the results (Table 3) suggest that on sample B the RhB may adsorb preferentially in a perpendicular orientation as observed in fluorinated TiO2 particles and hexagonal ZnIn2S4.45,46 In those studies it was suggested that the negative surface charge due to the high density of surface anionic sites directed the RhB adsorption and once this was established through one –N(CH2CH3)2 group, the loss of resonance in the aromatic rings prevented the interaction with the second –N(CH2CH3)2 functionality.45,46 Therefore, it is reasonable to expect that in the present case the adsorption may occur with the cationic group oriented to the surface and the deprotonated carboxylic acid group towards the solution. However, on sample F, which is less negatively charged at pH 6.65, the formation of multilayers in a flat or perpendicular orientation is more likely to occur. This may occur by both electrostatic interactions and π-stacking between aromatic rings.47 The hypothesis of insertion of RhB molecules (thickness 4.75 Å, ACD/ChemSketch) in the interlayer spacing of the BiOCl structure (d = 7.38 Å), in a similar way to that previously reported for Rh6G intercalation in titanate nanotubes48 has been discarded due to the zwitterionic nature of the molecules and since it was not observed any shift in the XRD peak corresponding to the interlayer spacing 2θ = 12° (data not shown).


image file: c6ra14474h-s1.tif
Scheme 1 Rhodamine B structure; pKa (–COOH) = 3.7.

The results presented above indicate that the removal ability of such materials can be manipulated by changing the pH of the dye solution (to an extent limited by the dye properties) and the remarkable ability to remove RhB from solution by adsorption may also be expected to be extended to other cationic and anionic dyes by tuning the p.z.c. and adequate selection of the BiOCl–Bi2S3 heterostructures.

RhB photocatalytic degradation studies

RhB shows a strong absorption band at 554 nm which has been used to quantify the amount of adsorbed RhB and monitor the degradation process. In Fig. 5 are illustrated the UV-visible spectra obtained at different times during the degradation process of RhB using samples B and F as photocatalysts after adsorption/desorption equilibration in the dark for 1 h. The absorption band at 554 nm decreases once the irradiation was started. After ca. 45 min complete degradation of the dye was achieved using sample B as photocatalyst. By using sample F, fast degradation of RhB was observed and after 15 min of irradiation that band disappeared indicating complete discoloration of the RhB but an absorption band at 262 nm corresponding to degradation by-products remains. Considering that the surface area of sample F is smaller than that of sample B (Table 3) we can conclude that the better photocatalytic activity of such particles is not due to its surface area. Enhanced photocatalytic efficiency was obtained for the sample with the lower relative proportion of Bi2S3, which is most probably due to extension of the absorption in the visible region without blocking too much the access of RhB to the BiOCl surface. Moreover, the remarkable photocatalytic activity of BiOCl nanoparticles sensitised with small proportion of Bi2S3 was achieved and full discoloration of RhB from aqueous solution was attained in a proportion of 75 mg of RhB per gram of catalyst. This result represents a significant improvement as compared with previously studies reported in the literature.4,9,10,25,26
image file: c6ra14474h-f5.tif

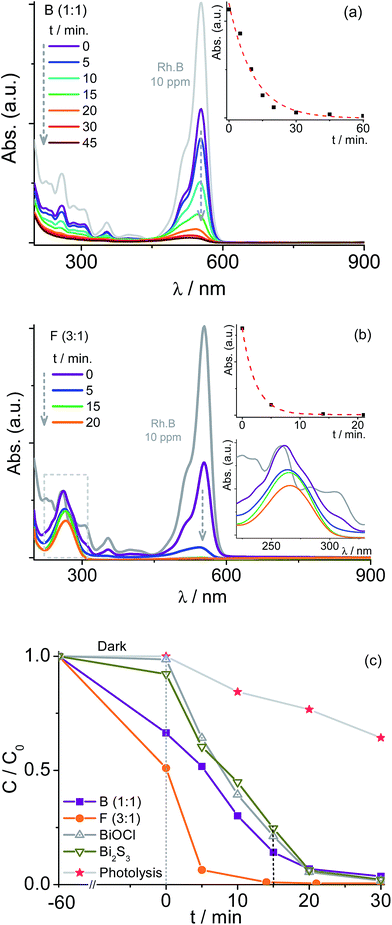

Fig. 5 Time profiles of adsorption and photocatalytic performance of samples B (a) and F (b) and comparison with pure BiOCl, nanoBi2S3 and photolysis responses (c), for RhB degradation under UV-visible light irradiation after 1 h in the dark.

The pure nanoBi2S3 and BiOCl samples were less efficient to the RhB photodegradation than samples B and F, and after 15 min of irradiation (Fig. 5) have degraded only 75 and 79% of the initial RhB in solution, respectively.

Under UV-visible irradiation the RhB degradation process onto the prepared composite nanostructures can follow two distinct mechanisms that are showed in Scheme 2. (i) Indirect dye photosensitisation under visible light irradiation for pristine BiOCl which is not excited under visible light; the photo-generated electron is transferred from the excited dye* to the conduction band (CB) of the catalyst, where the reaction with O2 generates radical active species that are involved in the dye degradation process. (ii) Direct semiconductor photoexcitation under visible (Bi2S3) and UV light (BiOCl and Bi2S3) in which the electrons in the CB and the holes in the valence band (VB) are responsible for the generation of the radical active species (e.g. ˙HO and ˙O2). The hypothesis of direct semiconductor excitation involving charge carriers transfer from the CB of Bi2S3to the CB of BiOCl was further confirmed by photodegradation of RhB under visible light irradiation (Fig. 6). For clarity purposes, the absorbance data was normalised to t = 0 minutes (start of irradiation) and consequently the observed kinetic behaviour only takes into account the photodegradation process. By plotting −ln(C/C0) vs. t, where C and C0 are the RhB concentrations at t = 0 and t = t, the pseudo-first order rate constant, k, can be retrieved from the equation −ln(C/C0) = kt. Under these experimental conditions, using only visible radiation, but using BiOCl as catalyst, no photoexcitation occurs and very slow kinetics was observed (k = 1.3 h−1). On the other hand, by using the BiOCl–Bi2S3 composite (sample F) a 3 fold increase in the pseudo first-order rate constant was observed (k = 4.3 h−1). This significant enhancement of the rate constant in the presence of Bi2S3 on the BiOCl surface can only be assigned to the effective electron transfer within the composite material between the CB of Bi2S3 and the CB of BiOCl as theorised and depicted in Scheme 2, since the latter cannot be photoexcited by visible light.


image file: c6ra14474h-s2.tif
Scheme 2 Suggested energy diagram for the charge separation process for BiOCl–Bi2S3 composite and the degradation of RhB under UV-visible irradiation.

image file: c6ra14474h-f6.tif

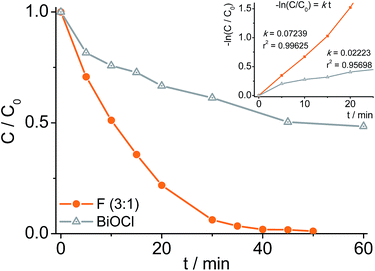

Fig. 6 Photocatalytic performance of sample F and pure BiOCl, for the RhB degradation under visible light irradiation.

Bearing in mind the Eg values for samples B and F and nanoBi2S3 and BiOCl (Table 2), the edge potential of the valence (VB) and conduction (CB) bands were estimated according to the equations25,27 EVB = XEe + 0.5Eg and ECB = EVB + Eg, assuming the electronegativity of the semiconductors, X, of 6.36 and 5.27 for BiOCl and Bi2S3, respectively (Table 4). The VB and CB values obtained are close to those reported in the literature for BiOCl (3.5–3.6 and 0.14–0.22 eV) and Bi2S3 (1.44–1.47 and 0.09–0.11 eV).18,25,27,49

Table 4 Band energy position for samples B and F and for pure BiOCl and nanoBi2S3
Sample X E/eV
VB CB
BiOCl 6.36 3.54 0.18
nanoBi2S3 5.27 1.48 0.07
B Bi2S3   1.62 −0.08
F BiOCl   3.56 0.16
Bi2S3 1.57 −0.03


Additionally, it has been reported that for RhB the electronic transition occurs between the HOMO and HOMO−1 levels with an energy difference of about 1.42 eV.49

It is well known that the low recombination rate is a key factor in the photocatalyst efficiency and therefore the introduction of additional transition states by sensitisation is advantageous.10,21

Furthermore, the strong adsorption of RhB onto this material, prior to photodegradation, may function as an organic dye pre-sensitisation step and therefore contribute to the high photocatalytic performance.10,11,18,21

Although it has not been the main subject of this study, an absorption band at about 262 nm remained after 20 min of irradiation when using sample F as photocatalyst (inset in Fig. 5c). In fact, contrarily to the observed with sample B, this absorption band could be already clearly noticed after the equilibration time in the dark period (t = 0 in Fig. 5b), remaining throughout the degradation process. Additionally, this band is very likely to be from water soluble degradation products containing one aromatic ring and will be further discussed in a more detailed work. While this fact is regularly neglected due to the narrow wavelength interval commonly reported which frequently excludes the λ values ≤400 nm, a similar effect has been reported by Zheng et al.50 for Rh6G and also observed for RhB but no further interpretation has been conveyed.51 In the case of Rh6G it has been attributed to the deamination (and demethylation) of the dye and consequent conversion into an insoluble product. This has not been observed during the photodegradation of RhB onto sample F. By using sample B complete degradation is achieved and no absorption bands were detected at the end of the irradiation.

Comparing the two tested samples, although sample F shows enhanced ability to remove RhB from solutions and better photocatalytic activity, sample B allows complete degradation of RhB in solution without aromatic intermediary products. At the end of the photo-irradiation experiments, the stability of the catalysts was evaluated by XRD analysis. The diffraction patterns (ESI, Fig. S6) show only a small increase in the crystallinity of the particulates after 1 h of irradiation with UV-vis light during RhB degradation, suggesting that these materials are feasible to be reused in repetitive degradation cycles. Therefore, homogeneous, crystalline, stable and photoactive Bi2S3-sensitised BiOCl catalysts can be successfully prepared in a one-pot approach at room temperature from environmentally friend deep eutectic solvent medium based on choline chloride and ethylene glycol.

Conclusions

An easy one-pot, room temperature synthesis of crystalline BiOCl particles sensitised with Bi2S3 has been successfully achieved. The obtained particles shape, aggregation degree (loose sheets or flower-like aggregates) and size could be controlled by the synthesis conditions. The effective sensitisation of BiOCl nanostructures with Bi2S3, was attained by a simultaneous in situ ion-exchange process, using different sulphur precursors, and the relative amount of Bi2S3–BiOCl controlled by the reactants (Bi[thin space (1/6-em)]:[thin space (1/6-em)]S) ratio in the synthesis medium. The resulting hybrid crystalline nanostructures show improved optical properties as compared with its individual components, extending the photoactive region of pure BiOCl to the visible range due to Bi2S3 sensitisation.

The BiOCl–Bi2S3 nanocomposite prepared using sodium thiosulfate allows complete degradation of RhB dye under UV-visible light irradiation whereas those prepared from sodium sulphide precursor yield intermediary products, resulting in incomplete degradation of the dye molecules.

The combination of adsorption and photocatalytic activity enable swift removal of RhB from aqueous medium by adsorption and later recovery of catalyst by photodegradation of the adsorbed pollutant.

Acknowledgements

The authors gratefully acknowledge the financial support from Fundação para a Ciência e a Tecnologia (SFRH/BPD/77404/2011 and UID/MULTI/00612/2013). M. C. Neves acknowledges FCT for a post-doctoral grant (SFRH/BPD/110423/2015) and UID/CTM/50011/2013.

Notes and references

  1. Z. Jiang, Y. Liu, T. Jing, B. Huang, Z. Wang, X. Zhang, X. Qin and Y. Dai, RSC Adv., 2015, 5, 47261 RSC.
  2. X. Zhang, B. Li, J. Wang, Y. Yuan, Q. Zhang, Z. Gao, L.-M. Liu and L. Chen, Phys. Chem. Chem. Phys., 2014, 16, 25854 RSC.
  3. L. Zhang, Z. Han, W. Wang, X. Li, Y. Su, D. Jiang, X. Lei and S. Sun, Chem.–Eur. J., 2015, 21, 18089 CrossRef CAS PubMed.
  4. K. Zhang, J. Liang, S. Wang, J. Liu, K. Ren, X. Zheng, H. Luo, Y. Peng, X. Zuo, X. Bo, J. Li and X. Yu, Cryst. Growth Des., 2012, 12, 793 CAS.
  5. X. Hu, Y. Xu, H. Zhu, F. Hua and S. Zhu, Mater. Sci. Semicond. Process., 2016, 41, 12 CrossRef CAS.
  6. J. Jiang, K. Zhao, X. Xiao and L. Zhang, J. Am. Chem. Soc., 2012, 134, 4473 CrossRef CAS PubMed.
  7. Y. Lai, G. Wang, S. Song, W. Fan and H. Zhang, CrystEngComm, 2009, 11, 1857 RSC.
  8. L. Ding, H. Chen, Q. Wang, T. Zhou, Q. Jiang, Y. Yuan, J. Li and J. Hu, Chem. Commun., 2016, 52, 994 RSC.
  9. Y. Li, Y. Tiang, R. Zhang, L. Ma, C. Zhou and X. Tian, Inorg. Chim. Acta, 2016, 439, 123 CrossRef CAS.
  10. J. Xiong, G. Cheng, G. Li, F. Qin and R. Chen, RSC Adv., 2011, 1, 1542 RSC.
  11. H. Zhao, Y. Zhang, G. Li, F. Tian, H. Tang and R. Chen, RSC Adv., 2016, 6, 7772 RSC.
  12. M. Li, J. Zhang, H. Gao, F. Li, S.-E. Lindquist, N. Wu and R. Wang, ACS Appl. Mater. Interfaces, 2016, 8, 6662 CAS.
  13. J. Yuan, J. Wang, Y. She, J. Hu, P. Tao, F. Lv, Z. Lu and Y. Gu, J. Power Sources, 2014, 263, 37 CrossRef CAS.
  14. Y. Zhang, S. Lu, M.-Q. Wang, Y. Niu, S. Liu, Y. Li, X. Wu, S.-J. Bao and M. Xu, Mater. Lett., 2016, 178, 44 CrossRef CAS.
  15. L. Ye, L. Zan, L. Tian, T. Peng and J. Zhang, Chem. Commun., 2011, 47, 6951 RSC.
  16. M. Sun, Q. Zhao, C. Du and Z. Liu, RSC Adv., 2015, 5, 22740 RSC.
  17. Y. Yu, C. Cao, H. Liu, P. Li, F. Wei and Y. Jiang, J. Mater. Chem. A, 2014, 2, 1677 CAS.
  18. C. Tan, G. Zhu, M. Hojamberdiev, K. Okada and J. Liang, Appl. Catal., B, 2014, 152–153, 425 CrossRef CAS.
  19. M. Gao, D. Zhang, H. Li, X. Pu, X. Shao and W. Li, Mater. Lett., 2015, 159, 406 CrossRef CAS.
  20. L. Ding, C. Zhang, Q. Jiang, H. Chen, W. Sun and J. Hu, Mater. Lett., 2015, 158, 229 CrossRef CAS.
  21. G. Li, B. Jiang, S. Xiao, Z. Lian, D. Zhang, J. C. Yu and H. Li, Environ. Sci.: Processes Impacts, 2014, 16, 1975 CAS.
  22. S. Shamaila, A. K. L. Sajjad, F. Chen and J. Zhang, J. Colloid Interface Sci., 2011, 356, 465 CrossRef CAS PubMed.
  23. L. Zhang, W. Wang, L. Zhou, M. Shang and S. Sun, Appl. Catal., B, 2009, 90, 458 CrossRef CAS.
  24. S. Y. Chai, Y. J. Kim, M. H. Jung, A. K. Chakraborty, D. Jung and W. I. Lee, J. Catal., 2009, 262, 144 CrossRef CAS.
  25. J. Cao, B. Xu, H. Lin, B. Luo and S. Chen, Catal. Commun., 2012, 26, 204 CrossRef CAS.
  26. S. Jiang, K. Zhou, Y. Shi, S. Lo, H. Xu and Y. Hu, Appl. Surf. Sci., 2014, 290, 313 CrossRef CAS.
  27. H. Cheng, B. Huang, X. Qin, X. Zhang and Y. Dai, Chem. Commun., 2012, 48, 97 RSC.
  28. J. Huang, H. Zhang, X. Zhou and X. Zhong, Mater. Chem. Phys., 2013, 138, 755 CrossRef CAS.
  29. T. Wu, X. Zhou, H. Zhang and X. Zhong, Nano Res., 2010, 3, 379 CrossRef CAS.
  30. R. Albuquerque, M. C. Neves, M. H. Mendonca, T. Trindade and O. C. Monteiro, Colloids Surf., A, 2008, 328, 107 CrossRef CAS.
  31. R. Piras, M. Aresti, M. Saba, D. Marongiu, G. Mula, F. Quochi, A. Mura, C. Cannas, M. Mureddu, A. Ardu, G. Ennas, V. Calzia, A. Mattoni, A. Musinu and G. Bongiovanni, J. Phys.: Conf. Ser., 2014, 566, 012017 CrossRef.
  32. H. Yu, H. Bao, K. Zhao, Z. Du, H. Zhang and X. Zhong, J. Phys. Chem. C, 2014, 118, 16602 CAS.
  33. J. F. Cabrita, V. C. Ferreira and O. C. Monteiro, Electrochim. Acta, 2014, 135, 121 CrossRef CAS.
  34. O. C. Monteiro and T. Trindade, J. Mater. Sci. Lett., 2000, 19, 859 CrossRef CAS.
  35. O. C. Monteiro, H. I. S. Nogueira, T. Trindade and M. Motevalli, Chem. Mater., 2001, 13, 2103 CrossRef CAS.
  36. A. R. Hillman, K. S. Ryder, C. J. Zaleski, V. Ferreira, C. A. Beasley and E. Vieil, Electrochim. Acta, 2014, 135, 42 CrossRef CAS.
  37. H. Zhang, J. Huang, X. Zhou and X. Zhong, Inorg. Chem., 2011, 50, 7729 CrossRef CAS PubMed.
  38. T. J. Entradas, J. F. Cabrita, B. Barrocas, M. R. Nunes, A. J. Silvestre and O. C. Monteiro, Mater. Res. Bull., 2015, 72, 20 CrossRef CAS.
  39. X. Xiao, R. Hao, M. Liang, X. Zuo, J. Nan, L. Li and W. Zhang, J. Hazard. Mater., 2012, 233–234, 122 CrossRef CAS PubMed.
  40. V. C. Ferreira, M. R. Nunes, A. J. Silvestre and O. C. Monteiro, Mater. Chem. Phys., 2013, 142, 355 CrossRef CAS.
  41. O. C. Monteiro, T. Trindade, J.-H. Park and P. O'Brien, Mater. Lett., 2003, 58, 119 CrossRef.
  42. G. Xi and J. Ye, Inorg. Chem., 2010, 49, 2302 CrossRef CAS PubMed.
  43. C. J. Sandroff, D. M. Hwang and W. M. Chung, Phys. Rev. B: Condens. Matter Mater. Phys., 1986, 33, 5953 CrossRef CAS.
  44. L. Sun, Z. Lin, J. Peng, J. Weng, Y. Huang and Z. Luo, Sci. Rep., 2014, 4, 4794 Search PubMed.
  45. Q. Wang, C. Chen, D. Zhao, W. Ma and J. Zhao, Langmuir, 2008, 24, 7338 CrossRef CAS PubMed.
  46. Y. Chen, R. Huang, D. Chen, Y. Wang, W. Liu, X. Li and Z. Li, ACS Appl. Mater. Interfaces, 2012, 4, 2273 CAS.
  47. I. Moreno-Villoslada, M. Jofré, V. Miranda, P. Chandía, R. González, S. Hess, B. L. Rivas, C. Elvira, J. San Román, T. Shibue and H. Nishide, Polymer, 2006, 47, 6496 CrossRef CAS.
  48. V. C. Ferreira and O. C. Monteiro, J. Nanopart. Res., 2013, 15, 1923 CrossRef.
  49. M. A. Gondal, X. Chang, A. A. Al-Saadi, Z. H. Yamani, J. Zhang and G. Ji, J. Environ. Sci. Health, Part A: Toxic/Hazard. Subst. Environ. Eng., 2012, 47, 1192 CrossRef CAS PubMed.
  50. Y.-M. Zheng, R. F. Yunus, K. G. N. Nanayakkara and J. P. Chen, Ind. Eng. Chem. Res., 2012, 51, 5953 CrossRef CAS.
  51. H. A. Mallah, D. M. Naoufal, A. I. Safa and M. M. El Jamal, Port. Electrochim. Acta, 2013, 31, 185 CrossRef CAS.

Footnote

Electronic supplementary information (ESI) available: Pictures of samples, TEM images and XRD diffraction patterns. See DOI: 10.1039/c6ra14474h

This journal is © The Royal Society of Chemistry 2016
