Solution-processable small molecule semiconductors based on pyrene-fused bisimidazole and influence of alkyl side-chain on the charge transport

Hui Wena, Xiaohui Gonga, Pei Hana, Baoping Lin*a, Lei Zhangb, Shanghui Ye*b, Ying Suna, Xueqin Zhanga and Hong Yanga
aSchool of Chemistry and Chemical Engineering, Southeast University, Nanjing 211189, PR China. E-mail: lbp@seu.edu.cn
bInstitute of Advanced Materials (IAM), Nanjing University of Posts & Telecommunications, Nanjing 210023, PR China. E-mail: iamshye@njupt.edu.cn

Received 28th May 2016 , Accepted 17th July 2016

First published on 18th July 2016


Abstract

To explore the potential of pyrene-fused biimidazole as a building block for soluble small molecule semiconductors, we designed and synthesized PBI-L-Na and PBI-B-Na. Imidazole rings provided substitution positions for the solubilising groups at the K-region, however, DFT calculations revealed that the repulsive steric hindrance from the neighboring hydrogen atoms on pyrene forced alkyl side chains into a twisted conformation. Thus, side chains on this type of molecule exerted a prominent influence on the molecular packing and affected their optoelectronic properties intensively in the solid state. PBI-L-Na exhibited a more ordered packing of the large conjugated plane with a π–π stacking distance of 0.36 nm and showed a hole mobility up to 0.12 cm2 V−1 s−1. Bulkier branched chains provided better solubility but impeded molecular packing of PBI-B-Na, thus giving a hole mobility of 4.6 × 10−3 cm2 V−1 s−1.


Introduction

Conjugated semiconducting materials for next-generation flexible and printed electronics have attracted great attention due to their solution processability, superior mechanical and tunable optoelectronic properties.1 Optimal molecular design of organic semiconductors for improving the device performance generally contains two parts: synthesis of new π-conjugated systems and side chain engineering. Most efforts have been focused on the design and synthesis of new π-conjugated systems because the optoelectronic properties can be easily tuned by the modulation of conjugated moieties.2 In particular, π-conjugated systems constructed by diketopyrrolopyrole (DPP),3 isoindigo4 and fused thiophene derivatives5 have been extensively investigated. Alkyl chains are commonly attached to the π-conjugated systems as solubilising groups to provide solution processability. However, it has been demonstrated that side chains also play important roles in the molecular packing and hence affect device performance.6 Compared to linear chains, the commonly used branched side chains (2-octyldodecyl, 2-decyltetradecyl) provide better solubility, but π–π intermolecular interaction is affected by the bulky chains due to the branch point is so close to conjugated systems. To reduce such steric hindrance while maintaining solubility, Pei et al. moved branch point away from the conjugated backbones and the polymers exhibited promoted π–π interaction with moving branch positions, which was consistent with the improved charge mobility.7

Pyrene, a potential building block with the large conjugated plane, has been widely investigated to develop new π-conjugated systems.8 Electrophilic substitution of pyrene preferentially takes place at the active sites (1-, 3-, 6-, and 8-positions). Thus, the most efforts to explore its potential in organic semiconductors often start from 1-substituted pyrenes due to the difficulties in synthesis of diverse substitution patterns.9 An Ir-catalysed aromatic borylation at 2,7 positions to produce pyrene-2,7-bis(boronate)ester was developed by Marder et al. which can be easily used in Suzuki coupling to synthesize new π-conjugated systems.10 Expansion of π-system by fusing at pyrene core opens up a new way for the more efficient utilization of pyrene conjugation. Recently, a few of polycyclic aromatics fused at K-region and non-K-region of pyrene were synthesized and they exhibited interesting properties.11 Rigid structure, large π-system and strong stacking ability make this type of polycyclic aromatic hydrocarbons received increasing attentions.

Herein, we developed a type of polycyclic building block (PBI-L and PBI-B, Scheme 1) by fusing two imidazole rings onto pyrene core at K-region. Fusion of five-membered imidazole rings with a symmetrical pattern by Debus–Radziszewski condensation offered several advantages: extended π-systems, large conjugated plane can be easily used in metal-catalyzed cross-coupling reactions for synthesis of new semiconductors and alkyl chains can be readily introduced on N atoms to afford satisfactory solubility for the purification and solution processing. Considering that the soluble small molecules display advantages of simple purification and well-defined structures, we synthesized two compounds (PBI-L-Na and PBI-B-Na, Scheme 1) based on the pyrene-fused biimidazole to explore the potential of this large conjugated system in small molecule semiconductors. Linear and branched chains were used to reveal side chain effects on the physical properties. PBI-L-Na showed a more ordered structure with a hole mobility of 0.12 cm2 V−1 s−1, which is almost 30 times larger than that of PBI-B-Na (4.6 × 10−3 cm2 V−1 s−1).


image file: c6ra13864k-s1.tif

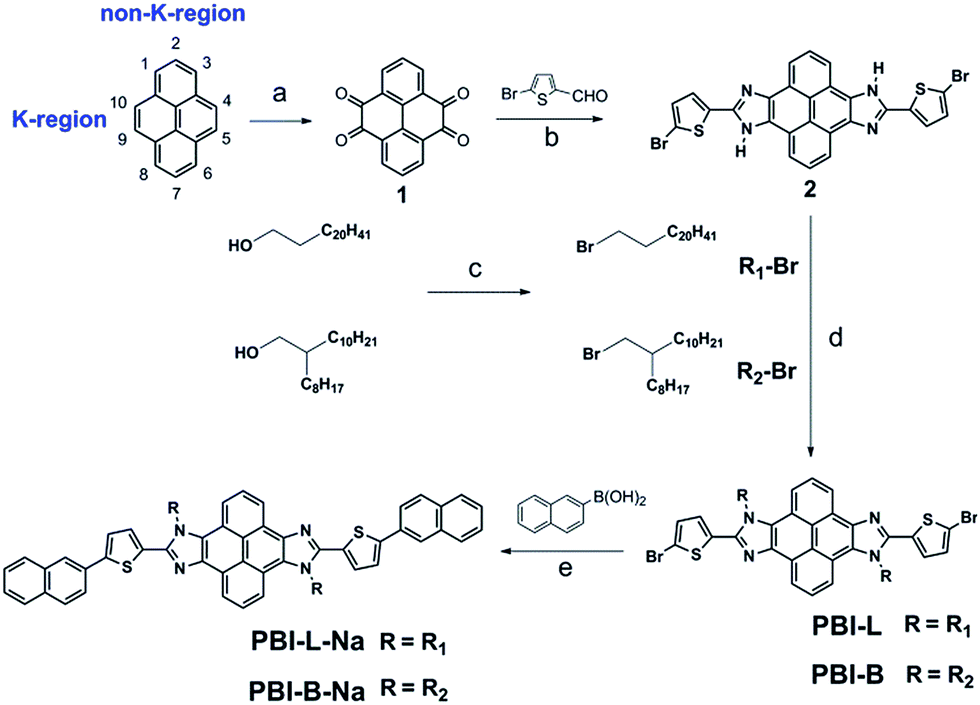

Scheme 1 Synthetic route for PBI-L-Na and PBI-B-Na: (a) NaIO4, RuCl3·xH2O, acetonitrile/dichloromethane/H2O, 30–40 °C, 12 h, 6.8%; (b) NH4OAc, glacial acetic acid, reflux, 10 h, 75%; (c) Br2, triphenylphosphine, dichloromethane, 25 °C, 12 h, 90%; (d) K2CO3, DMF, 100 °C, 12 h, 67–41%; (e) palladium-tetrakis(triphenylphosphine), K2CO3, H2O/THF, 65 °C, 12 h, 65%.

Results and discussion

Synthesis and characterizations

The synthesis of PBI-L-Na and PBI-B-Na, consisting of pyrene-fused biimidazole, is shown in Scheme 1. Pyrene-4,5,9,10-teraketone (1) was prepared by RuCl3·xH2O catalysed oxidation at K-region. Debus–Radziszewski condensation in the presence of ammonium salt and 5-bromothiophene-2-carboxaldehyde was successfully applied on 1 to construct compound 2. This compound only has solubility in the strong polar solvents such as DMF and DMSO, which originates from the active hydrogen atoms on the imidazole rings. Therefore, the crude compound 2 was directly employed in the next reaction without any further purification. In order to get the satisfactory solubility and study influence of side chain on physical properties, the long linear and branched alkyl chains were attached on the nitrogen atoms, thus giving PBI-L and PBI-B. Finally, the target compounds PBI-L-Na and PBI-B-Na can be easily prepared using a palladium-catalyzed Suzuki coupling reaction between the building blocks and naphthalene-2-ylboronic acid.

The decomposition temperatures were determined by thermal gravimetric analysis (TGA). The 5% weight loss temperatures were 392 °C and 387 °C for PBI-L-Na and PBI-B-Na (Fig. S1), respectively, indicating their high thermal stability which can be attributed to the robust conjugated system of pyrene-fused biimidazole.

Density functional theory (DFT) calculations

To further understand structural and electronic characteristics of pyrene-fused biimidazole based small molecules, density functional theory (DFT) calculations were performed at the B3LYP 6-31G* level using Gaussian 09 program. Note that calculations were performed in the single molecular state. Alkyl chains were kept with a short length in the calculations to figure out their architecture that can exert an important influence on the molecular packing. As shown in Fig. 1, pyrene-fused biimidazole unit, which is expected to facilitate strong π-stacking, displayed a rigid and planar π-skeleton in both molecules. PBI-L-Na and PBI-B-Na exhibited almost identical geometry of aromatic core suggesting that side chains do not affect conjugated systems. It is also should be noted that alkyl chains extended out of the conjugated plane. Especially for PBI-B-Na, the bulkier branched chains may strongly impede intermolecular π–π interactions by extending out of the conjugated plane with two directions. Imidazole rings fused at K-region of pyrene provide substitution positions for the side chains, thus, the steric interaction between alkyl chains and the neighboring hydrogen atoms on pyrene (indicated by red cycle in Fig. 1) may exist to cause the twisted structure. Calculation on the molecule based on naphthalene-fused bisimidazole (without the neighboring hydrogen atoms) substantiated this kind of steric hindrance (Fig. S2). PBI-L-Na and PBI-B-Na presented almost the same LUMO/HOMO orbitals, indicating that influence of alkyl chains on the electronic properties was negligible in the single molecular state. Imidazole ring is usually treated as an electron-deficient unit, however DFT calculations showed that LUMO orbitals were mainly delocalized over thiophene and naphthalene units and partially located on pyrene-fused bisimidazole. Additionally, the HOMO orbitals were predominantly located on pyrene-fused bisimidazole. This distribution of molecular orbitals was different from the typical D–A organic semiconductors constructed with strong donor and acceptor. We suggested that imidazole ring is a weak electron-withdrawing unit due to the electron-donating ability of the sp3 N in the five-membered ring.
image file: c6ra13864k-f1.tif

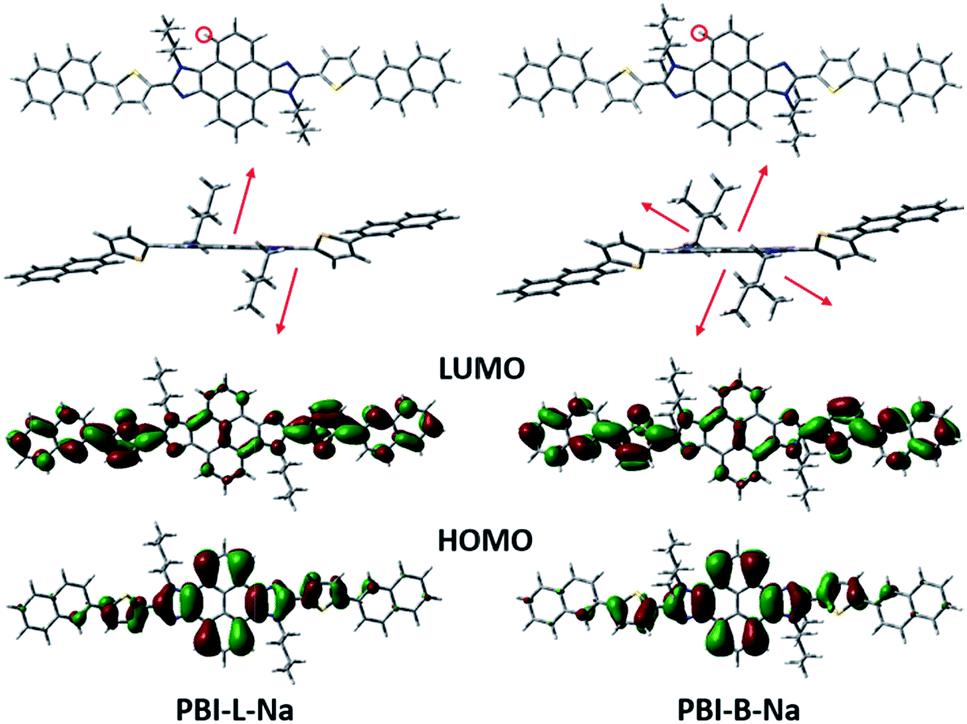

Fig. 1 Optimized geometry and calculated molecular orbitals for the PBI-L-Na and PBI-B-Na. DFT calculations were performed at the B3LYP/6-31G(d,p) level on Gaussian 09.

Optical and electrochemical properties

The UV-vis absorption spectra of PBI-L-Na and PBI-B-Na were measured in CHCl3 solution and thin films (Fig. 2). Solution of two compounds presented similar absorption spectra, indicating that alkyl chains had no effect on the photophysical properties in the single molecular state which is consistent with the result from the DFT calculations. Considering a small overlap between HOMO and LUMO orbitals, the peak at around 400 nm in solution was attributed to the intramolecular charge transfer (ICT) transition. The other two characteristic bands located at ca. 349 nm and 293 nm can be assigned to the π–π* transition and imidazole-centered n–π* transition, respectively. In solid state, PBI-L-Na spectra showed a notable bathochromic shift and a pronounced peak at 423 nm with a small shoulder, which were commonly observed for conjugated materials due to the stacking of π-systems. Furthermore, the shoulder at 455 nm turned to an obvious peak after annealing at 125 °C, implying that PBI-L-Na had an enhanced π–π interaction after thermal treatment. In contrast, spectra of PBI-B-Na films only exhibited more vibronic fine structures and a tiny red shift compared to that of solution, suggesting that the bulkier branched chains disrupted the π-stacking in the solid state. As a result, the optical energy gap (Eoptg) of PBI-L-Na (2.58 eV) measured from the onset of its absorption in the film was much narrower than that of PBI-B-Na (2.93 eV).
image file: c6ra13864k-f2.tif
Fig. 2 Normalized UV-Vis absorption spectra of PBI-L-Na and PBI-B-Na in chloroform solution and thin films.

These results suggested that side chains on pyrene-fused biimidazole based molecules can exert a prominent influence on the molecular packing, thus affected optoelectronic properties in the solid state. However, in the single molecular state, the effect of side chains on π-conjugated system can be neglected.

Electrochemical properties of PBI-L-Na and PBI-B-Na were investigated using cyclic voltammetry measurements from their drop-cast thin films on the platinum working electrode and the data are summarized in Table 1. Both compounds presented oxidation and reduction waves in their voltammograms (Fig. 3). From the onset of reduction, the LUMO energy level of PBI-L-Na was estimated to be −3.15 eV, which is 0.15 eV lower than that of PBI-B-Na. On the other hand, the HOMO energy levels were estimated to be −5.64 eV and −5.72 eV for PBI-L-Na and PBI-B-Na, respectively. The extremely deep HOMO energy levels of two molecules were likely due to the pyrene unit consisting of four fused benzene rings. Energy levels in solid state changed with different side chains and similar tendency were observed in Jian Pei's work.7 The electrochemical band gaps (Eecg) were found to be 2.49 eV for PBI-L-Na and 2.72 eV for PBI-B-Na, respectively, within 0.4 eV of the optical energy gaps.

Table 1 Electrochemical properties of PBI-L-Na and PBI-B-Na
Compound LUMO (eV) HOMO (eV) Eecg (eV) Eoptg (eV)
PBI-L-Na −3.15 −5.64 2.49 2.58
PBI-B-Na −3.0 −5.72 2.72 2.93



image file: c6ra13864k-f3.tif

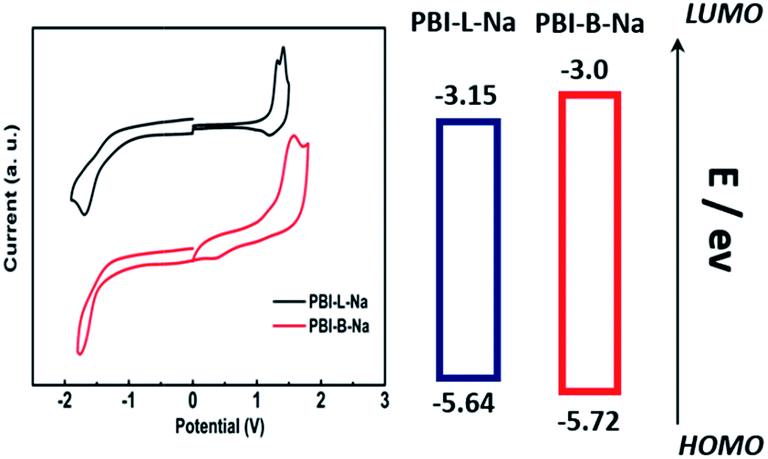

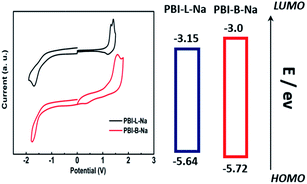

Fig. 3 Cyclic voltammograms (CV) and schematic energy diagrams of PBI-L-Na and PBI-B-Na films drop-casted onto platinum working electrode.

Characteristics of organic field-effect transistors

Large and coplanar conjugated plane may facilitate the charge transport and it is believed that side chains also have a great influence on the device performance. To investigate the charge transport properties of PBI-L-Na and PBI-B-Na, top-contact-bottom-gate OFET devices were fabricated by spin-coating of their solutions on heavily doped n-type silicon wafers with the 300 nm thermally grown SiO2. The field-effect mobilities were extracted from transfer curves in saturation region tested in the ambient air conditions, and the performance data are listed in Table 2. Two compounds are typical P-type semiconductors according to their transfer and output curves (Fig. 4, S3 and S4). Devices based on pristine films showed hole mobilities of 0.032 and 1.5 × 10−3 cm2 V−1 s−1 for PBI-L-Na and PBI-B-Na, respectively. Thermal annealing improved device performance significantly for PBI-L-Na and it was found to exhibit the maximum hole mobility of 0.12 cm2 V−1 s−1 with an on/off ratio of 1.0 × 105 after annealing at 125 °C. In contrast, the maximum hole mobility of 4.6 × 10−3 cm2 V−1 s−1 for PBI-B-Na was dramatically lower than that of PBI-L-Na.
Table 2 Summary of performance of OFET devices based on PBI-L-Na and PBI-B-Na
Compound T (°C) μ (cm2 V−1 s−1) VT (V) Ion/Ioff
PBI-L-Na 0.032 −10.3 3.2 × 104
100 0.069 −25.1 5.9 × 104
125 0.12 −21.5 1.0 × 105
150 0.080 −15.6 5.3 × 105
PBI-B-Na 1.5 × 10−3 −45.6 5.1 × 103
100 2.6 × 10−3 −46.1 8.1 × 103
125 4.6 × 10−3 −30.3 1.9 × 104
150 3.3 × 10−3 −48.1 4.2 × 103



image file: c6ra13864k-f4.tif
Fig. 4 Output (left) and transfer (right) characteristics for PBI-L-Na annealed at 125 °C. The hole mobility value calculated in the saturation region is 0.12 cm2 V−1 s−1.

Results from the OFET devices revealed that pyrene-fused biimidazole is a potential core for the design of new small molecule semiconductors. It is also interesting to note that selection of side chains for this type of molecules is very important as they can dramatically affect the charge transport properties.

Microstructures and film morphology

To gain insight into above results, conventional X-ray diffraction (XRD) measurements were performed to investigate molecular aggregation of PBI-L-Na and PBI-B-Na. As shown in Fig. 5, an intense diffraction peak at 2θ = 1.9°, corresponding to the lamellar structure with a d-spacing of 4.64 nm, was observed in pristine PBI-L-Na. Two weak peaks at 2θ = 2.8° and 4.0° also indicated a small number of more closed lamellar structures. The π–π stacking resulted in a series of peaks after 2θ = 20° in the pristine PBI-L-Na, suggested the coexistence of different packing motifs of conjugated plane. After thermal annealing, PBI-L-Na exhibited a stronger primary peak and the peak red-shifted slightly to 2θ = 2.2° (d-spacing of 4.01 nm), due to the drastically improved crystallinity. Most importantly, thermal treatment also decreased distance of π–π stacking to 0.36 nm as evidenced by the diffraction peak red-shifted to the 2θ = 24.25°. On the other hand, bulkier branched chains on PBI-B-Na impeded aggregation of the molecules, thus the effect of thermal annealing was limited. A less intensive primary peak at 2θ = 5.7° was observed for PBI-B-Na, indicating the reduced crystallinity compared to PBI-L-Na. The much smaller lamellar d-spacing (1.55 nm) corresponding to this diffraction was originated from the interdigitation of the shorter branched chains. However, the broad peak at 2θ = 22.80° showed a larger π–π stacking distance of 0.39 nm.
image file: c6ra13864k-f5.tif
Fig. 5 XRD data obtained from PBI-L-Na and PBI-B-Na before and after thermal annealing (125 °C).

To further elucidate molecular packing in OFET devices and correlate this important property with device performance, 2-D grazing-incident X-ray diffraction (GIXRD) was used to examine spin-coated films on OTS modified Si/SiO2 substrates annealed at 125 °C. The bright diffraction spot at around qz = 0.5 nm−1 which was partially blocked by the beam stop originated from the intense diffuse reflectivity. As shown in Fig. 6, PBI-L-Na exhibited an intensive peak at qz = 1.53 nm−1 along with a weak diffraction at qz = 3.18 nm−1, which were consistent with the data obtained from the conventional XRD. The clarity of diffraction peak indicated a high degree of crystallinity in PBI-L-Na, whereas the arc shape suggested that the crystalline regions were somewhat misaligned with respect to the substrate. In contrast to PBI-B-Na, an arc diffraction pattern with a drastically decreased intensity was observed at qz = 3.75 nm−1. All the above results revealed that side chains on pyrene-fused biimidazole exhibited a significant impact on conjugated plane packing, which was correlated well with the device performance. The GIXRD signal for the π-π interactions at qz direction was too weak to detect using our equipment. According to the conventional XRD, a characteristic peak of π–π stacking might be found at qxy ≈ ±16–17 nm−1, however, this detection was restricted by the limited measurement range at qxy direction (−5 to 5 nm−1) of GIXRD instrument.


image file: c6ra13864k-f6.tif
Fig. 6 2-D GIXRD images (top) and out-of-plane GIXRD profiles (bottom) for PBI-L-Na and PBI-B-Na films annealed at 125 °C.

Surface morphology of two compounds spun onto OTS treated Si/SiO2 substrates was analyzed using atomic force microscopy (AFM) (Fig. 7 and S5). The as-spun thin film of PBI-L-Na was uniform and featured with fine grains. Upon thermal annealing, the grain size and surface roughness increased obviously, suggestive of enhanced crystallinity organized by the strong intermolecular packing force. Surface morphology of PBI-B-Na looked quite different and no apparent grains were found in the films thus giving the smoother surface. This result was consistent with the lower crystallinity nature of PBI-B-Na revealed by the conventional XRD and GIXRD analysis.


image file: c6ra13864k-f7.tif
Fig. 7 AFM height images for PBI-L-Na films before and after thermal annealing at different temperatures.

Conclusions

Two small molecule semiconductors, PBI-L-Na and PBI-B-Na, were designed and synthesized based on pyrene-fused biimidazole. According to the DFT calculations, steric hindrance of neighboring hydrogen atoms on pyrene caused a twisted structure of side chains. Thus, it was found that side chains on this type of molecules had a prominent influence on the molecular packing and intensively affected optoelectronic properties in the solid state. Linear chains facilitated a more ordered packing of the large conjugated plane with a π–π stacking distance of 0.36 nm, thereby PBI-L-Na exhibited a hole mobility up to 0.12 cm2 V−1 s−1. While bulkier branched chains impeded molecular packing thus giving a much lower hole mobility of 4.6 × 10−3 cm2 V−1 s−1. This work showed the potential of pyrene-fused biimidazole as a building block for small molecule semiconductors and emphasized the importance of side chain selection for this type of molecules.

Acknowledgements

We gratefully acknowledge the financial support from National Natural Science Foundation of China (21304018, 21374016, 61106017) and Jiangsu Provincial Natural Science Foundation of China (BK20130619, BK20130617).

References

  1. (a) H. Yan, Z. Chen, Y. Zheng, C. Newman and A. Facchetti, Nature, 2009, 457, 679 CrossRef CAS PubMed; (b) Y. Lin, Y. Li and X. Zhan, Chem. Soc. Rev., 2012, 41, 4245 RSC; (c) C. Wang, P. Gu, B. Hu and Q. Zhang, J. Mater. Chem. C, 2015, 3, 10055 RSC; (d) X. Guo, A. Facchetti and T. J. Marks, Chem. Rev., 2014, 18, 8943 CrossRef PubMed.
  2. (a) J. Mei, Y. Diao, A. L. Appleton, L. Fang and Z. Bao, J. Am. Chem. Soc., 2013, 135, 6724 CrossRef CAS PubMed; (b) C. Wang, H. Dong, W. Hu, Y. Liu and D. Zhu, Chem. Rev., 2012, 112, 2208 CrossRef CAS PubMed; (c) M. Nakano, I. Osaka, K. Takimiya and T. Koganezawa, J. Mater. Chem. C, 2014, 2, 64 RSC.
  3. (a) C. B. Nielsen, M. Turbiez and I. McCulloch, Adv. Mater., 2013, 25, 1859 CrossRef CAS PubMed; (b) J. D. Yuen and F. Wudl, Energy Environ. Sci., 2013, 6, 391 RSC; (c) P. Sonar, J. J. Chang, Z. G. Shi, J. H. Wu and J. Li, J. Mater. Chem. C, 2015, 3, 2080 RSC.
  4. (a) E. Wang, Z. Ma, Z. Zhang, K. Vandewal, P. Henriksson, O. Inganäs, F. Zhang and M. R. Andersson, J. Am. Chem. Soc., 2011, 133, 14244 CrossRef CAS PubMed; (b) Z. Ma, E. Wang, M. E. Jarvid, P. Henriksson, O. Inganäs, F. Zhang and M. R. Andersson, J. Mater. Chem., 2012, 22, 2306 RSC.
  5. (a) Y. J. Kim, Y. R. Cheon, J. W. Jang, Y. H. Kim and C. E. Park, J. Mater. Chem. C, 2015, 3, 1904 RSC; (b) J. H. Kim, J. B. Park, I. H. Jung, S. C. Yoon, J. Kwak and D. H. Hwang, J. Mater. Chem. C, 2015, 3, 4250 RSC.
  6. (a) T. Lei, J. Y. Wang and J. Pei, Chem. Mater., 2014, 26, 594 CrossRef CAS; (b) J. Mei and Z. Bao, Chem. Mater., 2014, 26, 604 Search PubMed.
  7. (a) T. Lei, J. H. Dou and J. Pei, Adv. Mater., 2012, 24, 6457 CrossRef CAS PubMed; (b) J. H. Dou, Y. Q. Zheng, T. Lei, S. D. Zhang, Z. Wang, W. B. Zhang, J. Y. Wang and J. Pei, Adv. Funct. Mater., 2014, 24, 6270 CrossRef CAS.
  8. (a) K. L. Chan and J. P. F. Lim, Chem. Commun., 2012, 48, 5106–5108 RSC; (b) L. Zöphel and D. Beckmann, Chem. Commun., 2011, 47, 6960–6962 RSC; (c) M. Ashizawa and K. Yamada, Chem. Mater., 2008, 20, 4883–4890 CrossRef CAS.
  9. (a) J. M. Casas-Solvas, J. D. Howgego and A. P. Davis, Org. Biomol. Chem., 2014, 12, 212–232 RSC; (b) T. M. Figueira-Durate and K. Müllen, Chem. Rev., 2011, 111, 7260–7314 CrossRef PubMed; (c) C. L. Wang, H. L. Dong and W. P. Hu, Chem. Rev., 2012, 112, 2208–2267 CrossRef CAS PubMed.
  10. D. N. Coventry, A. S. Batsanov, T. B. Marder and R. N. Perutz, Chem. Commun., 2005, 2172–2174 RSC.
  11. (a) A. Mateo-Alonso, Chem. Soc. Rev., 2014, 43, 6311–6324 RSC; (b) L. Zou, X. Y. Wang, K. Shi, J. Y. Wang and J. Pei, Org. Lett., 2013, 15, 4378–4381 CrossRef CAS PubMed; (c) S. Q. Zhang, X. L. Qiao and Y. Chen, Org. Lett., 2014, 16, 342–345 CrossRef CAS PubMed; (d) P. Y. Gu, J. Zhang, G. Long, Z. Wang and Q. Zhang, J. Mater. Chem. C, 2016, 4, 3809 RSC.

Footnote

Electronic supplementary information (ESI) available: 1H spectra, electrochemical and OFET data. See DOI: 10.1039/c6ra13864k
