Visualization of choline-based phospholipids at the interface of oil/water emulsions with TEPC-15 antibody. Immunofluorescence applied to colloidal systems

R. Liuzzia, S. Gallierb, S. Ringlerb, S. Caserta*ac and S. Guidoac
aDipartimento di Ingegneria Chimica dei Materiali e della Produzione Industriale (DICMAPI), Università di Napoli Federico II, P.le Tecchio, 80, 80125, Napoli, Italy. E-mail: sergio.caserta@unina.it
bDanone Nutricia Research, Uppsalalaan 12, Utrecht 3584 CT, The Netherlands
cConsorzio Interuniversitario Nazionale per la Scienza e Tecnologia dei Materiali (INSTM), UdR INSTM Napoli Federico II, P.le Tecchio, 80, 80125, Napoli, Italy

Received 27th May 2016 , Accepted 20th October 2016

First published on 7th November 2016


Abstract

Phospholipids, which are amphiphilic biomolecules composed of a polar head group and two nonpolar fatty acid tails, play a central role in cellular and body functions. The most common phospholipid is phosphatidylcholine (PC), which is also widespread used as a surfactant in colloidal systems, such as oil-in-water (O/W) emulsions, for several applications ranging from food to cosmetics. In these systems, PC tends to arrange at the interface between polar and nonpolar phases. Specific identification of these molecules at the interface is still an ambitious task. In this work, we propose immunofluorescence and confocal microscopy as valuable tools for the localization of PC at the interface of O/W emulsions, where phospholipids are used as surfactants. The protocol required the use of a primary antibody (TEPC-15), specific for choline, and a secondary fluorescently-labelled antibody, which selectively binds to the primary antibody. By using this approach, we were able to visualize choline-based phospholipids in cell membranes, lipid-based emulsions and in PC films and to estimate molecule concentration by image analysis techniques. We also investigated the interference of proteins on the staining procedure. We attributed this interference to possible molecular interactions close to the interface, which were found to depend on protein concentration. This innovative approach can have a relevant impact in a wide range of interfacial engineering applications, such as tuning emulsion microstructure and stability.


Introduction

Phospholipids are amphiphilic biomolecules composed of a polar head group and two nonpolar fatty acid tails. Based on the type of head group or aliphatic chains, as well as their source, it is possible to have a wide variety of phospholipids. Their amphiphilic structure allows them to assemble at the interface between polar and nonpolar phases. The most common phospholipid is PC, which is the main constituent of lecithin, a natural substance commonly derived from egg yolk or soybeans. Due to its biological and physical functions, PC is one of the most important phospholipids and has been widely investigated. It represents the major building block of eukaryotic cell membranes, acts as pulmonary surfactant, but its essential role has also been demonstrated as nutritional supplement1 and for liver2 and brain functions.3,4 PC is highly biocompatible and is approved by the various pharmacopoeia as a natural surfactant with good emulsifying properties, which makes it suitable as a component of multiphase systems such as O/W emulsions, widely used in food,5,6 as well as cosmetic and pharmaceutical applications.7 Typically, PC locates at the interface of O/W emulsion droplets but, in order to reach and preserve the stability of the system, it is often combined with other components, such as proteins or synthetic surfactants. All of these molecules act as surfactants but with different mechanisms. Proteins tend to stabilize8 the interface undergoing unfolding9 to reach the lowest energy configuration by forming stable layers with low mobility. Phospholipids, on the other hand, form a densely packed monolayer (or multi lamellar structures) around the dispersed droplet significantly reducing interfacial tension, typically more than proteins. In addition to the fact that the critical role of PC at the interface is difficult to assess due to the several parameters that influence its behavior,10 in such mixed systems, different interactions can occur or complex structures can be formed11 in the bulk or directly at the interface. In this way, properties of the interface change depending on the type, amount and interaction of the absorbed materials, as well as on the processing steps, such as the order of addition of each ingredient during manufacturing. Investigations looking at the effect of addition of one of three types of PC (egg-PC, di-palmitoyl phosphatidylcholine, DPPC, and di-oleoyl phosphatidylcholine, DOPC) on the stability of casein-stabilized O/W emulsion12,13 have demonstrated different interactions at the interface, which affect emulsion stability. The interesting result was that egg-PC competes for space with casein at the interface during the emulsification process, DPPC did not have great effect during the entire process, while DOPC tended to displace casein from the interface during storage. The presence of these complex structures can interfere with detection techniques, making difficult to localize selectively a specific molecule. Generally, interfacial phenomena in mixed systems with proteins and lipids are dependent on the state of lipids.14

The experimental determination of the interfacial concentration of PC, as well as of other surface-active ingredients, is an ambitious and still open task.15 An ideal technique should enable the specific identification of PC at the interface, even in the presence of other species, including different phospholipids. To our best knowledge, however, there are no methods or techniques that allow one to determine in a specific way the presence and the concentration of PC at the interface in a complex system. Pendant drop tensiometry16–19 and shear rheology20 are the most common techniques to investigate the role of phospholipids at the interface. Although these techniques give important parameters21 specific for the whole system, they are not useful for the quantification of molecules at the interface.

Microscopy could represent a valid tool to obtain a general overview of the system morphology, also to investigate chemical composition, and in particular to localize and quantify interfacial concentration of specific molecules. In particular, confocal laser scanning microscopy (CLSM) has been successfully used to investigate structure and lateral organization of molecules at the droplet interface22–24 by using phospholipid analogs fluorescently labeled on the head group or acyl chain.25,26 Although this procedure allows the visualization of phospholipid analogs, certain fluorescent probes may dramatically affect the properties of the individual lipid molecules and could alter the interfacial microstructure inducing local phase separation, if used at high concentration. For this reason, concentrations are usually kept very low to minimize the impact of the phospholipid analogs on the system.27

One of the most specific and well-established methods in cell biology, which is often used to localize specific molecules with high spatial resolution, is immunofluorescence microscopy.28,29 Immunofluorescence requires the use of fluorescently labeled antibodies, which specifically bind to the molecule of interest, thus enabling their localization by confocal microscopy. Detection can occur in a direct way, by targeting antigens with a single fluorophore-labeled antibody, or in an indirect way through binding of a fluorophore-labeled secondary antibody targeted to the primary one.28,30 Protocols for immunofluorescence assays are not straightforward and depend on the sample and on the molecules to detect. Fixing of cells, staining procedures, washing steps to remove unbound antibody are some of the fundamental steps required for a correct visualization. It is worth mentioning that in the case of liquid samples washing steps are not trivial. Consecutive concentration and dilution steps by sample centrifugation can possibly achieve partial washing, even if this protocol could potentially lead to loss of interfacial material. Without the washing steps, the quality of the acquired images decreases, since a diffused background signal, due to the presence of unbound randomly distributed fluorophore-labeled antibody, leads to a poor signal-to-noise ratio. The fine-tuning of the experimental protocol depends on the sample type and the specific application.31 This method, to our knowledge, has never been applied to the investigation of multiphase fluids, such as emulsions. A commercial anti-PC antibody, TEPC-15, has been already used for recognition of PC in plaques from subgingival and supragingival in patients with periodontal diseases.32 Its specificity has been tested by immunodiffusion and it has been demonstrated that the hapten binding is specific for lipids carrying phosphorylcholine.33 Efficiency of TEPC-15 can vary based on the arrangement of phospholipids in the system, for example, it recognizes poorly PC in liposome or lipoproteins, but it is highly specific for lipid emulsions, cell membranes of some bacteria (e.g. Streptococcus pneumococci), oxidized phospholipids, and lipid monolayers.34–37 Different interactions of this antibody with PC and phosphatidylethanolamine monolayer has been also reported by Urbaneja et al.36

The aim of this work is to propose immunofluorescence detection as a new approach to localize choline-based phospholipids at the interface of O/W emulsions. In this paper, experiments on two different cell lines were carried out, as a control, and then the technique was applied to phospholipid-based emulsions and PC film. The effect of the presence of proteins on TEPC-15 staining efficiency was also investigated and quantified.

Experimental

HaCat and NIH3T3 cells

HaCaT cells, an immortalized non-cancerous human keratinocyte cell line, (Biobank, CEINGE, Italy), and NIH\3T3 mouse embryo fibroblast cell line (Biobank, CEINGE, Italy), were cultured in Dulbecco's modified Eagle's Medium (Lonza, Switzerland), supplemented with L-glutamine 200 mM (Lonza, Switzerland), 10% fetal bovine serum (Lonza, Switzerland) and the appropriate amount of penicillin/streptomycin (Lonza, Switzerland) in a humidified atmosphere containing 5% CO2 in air. Cells were plated in μ-Slide 8 Well (IBIDI, Munich, Germany) and fixed in 10% neutral buffered formalin, approximately 4% formaldehyde (05-K01009, Bio-optica; Milan, Italy) before immunofluorescence assay. For detailed schematics of the entire procedure, see ESI, Fig. S1.

Emulsions preparation

Three emulsions at a final volume of 100 mL were prepared for the staining procedure. For emulsions stabilized by phospholipids, an initial aqueous solution was obtained by adding 0.10 g of Egg Lipid Powder (ELP, with a content of 50% phospholipids, of which 72.5% PC, 17.5% phosphatidylethanolamine and 10% others) in 100 g of bidistilled water at 40 °C. For emulsions based proteins, 5.63 g of Protein Mix Powder (PMP, with a content of 50% proteins, of which 60% whey proteins and 40% casein) was added in 95 g of bidistilled water at 40 °C. For mixed emulsions, both ELP and PMP at the concentrations reported above were added in 95 g of bidistilled water at 40 °C. The mixtures were left for 1 h at 40 °C under gentle stirring (magnetic flow) to dissolve the powder. In a second step, the final O/W emulsions were obtained by adding 3.3 g of sunflower oil at 40 °C, and mixing using an Ultra-Turrax T18 digital homogenizer (IKA, Germany) for 1 min at 16[thin space (1/6-em)]000 rpm. For detailed schematics of the entire procedure, see ESI, Fig. S2 and S3. Droplets size distribution was in the range of 2–11 μm. Due to the instability of the final system, fresh emulsions were prepared shortly before each experiment.

PC film

Purified egg L-α-phosphatidylcholine, (P3556, Sigma-Aldrich) was suspended at concentrations of 50 and 100 mg mL−1 in ethanol at room temperature as suggested in the product datasheet. About 0.4 μL of PC-ethanol suspension was uniformly distributed, with the aid of a pipette, on the bottom of a μ-Slide 8 Well. The ethanol was let to evaporate at room temperature (for 1 min), and a PC film formed on the bottom of the well. Immunofluorescence experiments were carried out as described in the following paragraph. For detailed schematization of the entire procedure, see ESI, Fig. S4. In order to observe the effect of proteins on the staining of PC film, the same field of view was acquired several times, in particular, after the PC staining (t0), immediately after the addition of 150 μL of PMP solution (t1), 10 min (t2), and 25 min (t3) after the addition. In order to avoid photobleaching, the sample was not exposed to the laser between successive acquisitions.

Staining and confocal microscopy imaging

In the experiments with cells, mouse anti-PC monoclonal antibody TEPC-15 (ref. 32) (M1421; Sigma-Aldrich) at dilution of 1[thin space (1/6-em)]:[thin space (1/6-em)]50 was incubated overnight at 4 °C. Rabbit anti-mouse IgG (H + L), Alexa Fluor® 488 conjugate (A-21204, Invitrogen) (Rb α-mouse 488) was added at dilution of 1[thin space (1/6-em)]:[thin space (1/6-em)]250 and incubated for 1 h at room temperature in the dark. Successive washings with Phosphate Buffered Saline (PBS, Lonza, Switzerland) allowed removing excess unbound antibodies before and after incubation with the secondary antibody. For emulsions and PC film, incubation time of TEPC-15, at dilutions ranging from 1[thin space (1/6-em)]:[thin space (1/6-em)]200 to 1[thin space (1/6-em)]:[thin space (1/6-em)]10 was changed from overnight to 1 h to avoid destabilization of the system and creaming of the oil droplets over time. No differences in staining were observed changing incubation time. Rb α-mouse 488 or donkey anti-mouse IgG (H + L) (A-21202, Invitrogen) (Dk α-mouse 488) Secondary Antibodies Alexa Fluor® 488 conjugate was used at dilutions ranging from 1[thin space (1/6-em)]:[thin space (1/6-em)]500 to 1[thin space (1/6-em)]:[thin space (1/6-em)]10 and incubated for 1 h at room temperature in the dark. The washing steps were omitted in order to prevent loss of interfacial materials, so a higher background signal from unbound excess antibody is expected.

Double staining was achieved by using a fluorescent dye for neutral lipids, Nile Red (9-diethylamino-5H-benzoalpha-phenoxazine-5-one; Sigma-Aldrich, St Louis, USA), added to the oil phase at a concentration of 0.03 μg mL−1 before emulsification process, and fluorescently acyl chain labeled phospholipids 2-(6-(7-nitrobenz-2-oxa-1,3-diazol-4-yl)amino)hexanoyl-1-hexadecanoyl-sn-glycero-3-phosphocholine (NBD C6-HPC, N-3786, Invitrogen) in the final emulsion at a concentration of 0.1 mg mL−1 added just before images acquisition. Preparation of the stock solution of Nile Red was achieved by dissolving 0.0005 g of Nile Red powder in 120 μL of ethanol by vortexing. In the second step, solution was added to sunflower oil at 40 °C for 1 h under magnetic stirring. After this time, ethanol was let to evaporate under vacuum. Stock solution of NBD C6-HPC was obtained by dissolution of phospholipids in ethanol at a concentration of 1 mg mL−1. Images were acquired using a CLSM (Zeiss Pascal). Excitation of the samples was provided by an Ar laser at wavelengths of 488 nm and a He–Ne at a wavelength of 543 nm. Images were acquired at different magnifications using a 63× oil immersion objective and samples were identified in the fluorescence mode. In order to improve image quality, the random movement of the droplets in the sample was limited by mixing the sample with a drop of agarose solution (0.5%, 161-3101, Bio Rad) previously added on the microscope slide.

Quantification of mean gray level (MGL)

Image processing was performed using a commercial software (Image Pro-Plus® 6.0, Media Cybernetics, Silver Spring, USA). In the case of emulsions, the mean fluorescence intensity of the droplet interface was measured and normalized with respect to the mean intensity of the entire image. The interfacial MGL was calculated as the fluorescent corona surrounding the drop interface over a 4 pixel (about 0.5 μm). The thickness was chosen according to the diffraction limit, which suggests the theoretical minimum optical resolution is 0.2 μm.38 In other words, according to the Abbe's law, an emitting spot smaller than 0.2 μm is always visualized as (at the minimum) 0.2 μm. The calculated MGL on the interface was normalized with respect to the MGL over the entire image, and plotted as function of the droplet size and of the percentage of PMP in the samples. In the case of PC film, image intensity histograms and MGL were measured for different times, before (t0) and 0 min (t1), 10 min (t2), and 25 min (t3) after the addition of PMP solution to the PC film.

Results and discussion

In order to verify the effective specificity of TEPC-15 with choline-based phospholipids, a first set of experiments was carried out on two different cell lines, in order to visualize the phospholipids naturally present in the cell membranes. The membrane, which separate internal and external environment of the cell, are composed of a phospholipid bilayer mixed with proteins. Due to the amphiphilic nature and the cylindrical shape of phospholipids, they tend to align side-by-side to form broad sheets. In cell membranes, PC represents the main constituent. The specificity of TEPC-15 for choline-based phospholipids was verified and demonstrated in Fig. 1A–C on HaCaT and NIH\3T3 cell lines, whose plasmatic membrane is mainly constituted by PC. In particular, HaCat cell have 35–45%, and NIH3T3 cells 55.4% of choline-based phospholipids.39,40
image file: c6ra13775j-f1.tif

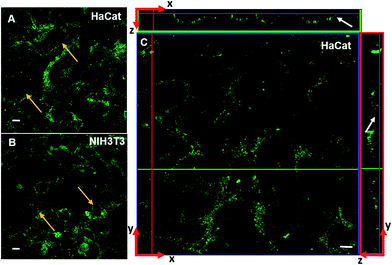

Fig. 1 Confocal images of HaCaT (A) and NIH/3T3 (B) cell lines stained with TEPC-15 (1[thin space (1/6-em)]:[thin space (1/6-em)]50) and Rb α-mouse 488 (1[thin space (1/6-em)]:[thin space (1/6-em)]250) antibodies. Yellow arrows indicate dark nuclei in the center of cells. Orthogonal images of the zy and xz planes of the confocal z-stacks of HaCaT cells (C). The curvature of cell membrane (white arrows), which is due to the nucleus, demonstrates the specificity of antibody only on the cell membrane. Scale bar is 10 μm.

Cells were fixed, labeled using TEPC-15 and Rb α-mouse 4888 antibodies and imaged using CLSM. As expected, a clear fluorescence signal is detected on the membrane of the cells, while dark nuclei are visible in the center (yellow arrows). High signal to noise ratio was obtained thanks to extensive washing of the samples with PBS, which allowed the removal of non-specific staining. Representative orthogonal images of the zy and xz planes of the confocal z-stack throughout the entire thickness of HaCaT cells are reported in Fig. 1C. Fluorescence signal follows the curvature of cells membrane, as indicated by white arrows, which suggests the specificity of the antibody for the membrane. Even if many membrane antibodies, such as those belonging to the anti-cadherin family41 are commonly used for immunofluorescence membrane staining, TEPC-15 is highly specific for PC, and in principle could be used even to quantify PC concentration and its interaction with other components or molecules.

Once the TEPC-15 staining efficiency was tested on cells, the antibody was used to visualize phospholipids in artificial systems, in particular in O/W emulsions.

A first investigation on an O/W emulsion with droplets surrounded by a phospholipid layer was carried out and reported in Fig. 2A. The staining of ELP emulsion was obtained using Nile Red to stain the core of the droplets and a fluorescently labeled phospholipids, NBD-C6-HPC, to visualize phospholipids in the mixture. As expected, NDB-C6-HPC was located at the interface of the oil droplets suggesting that phospholipids, due to their amphiphilic nature, tend to localize spontaneously at the oil-water interface. NBD-C6-HPC was homogenously distributed at the surface of the oil droplets. Once the presence of phospholipids at the interface was confirmed, the localization of PC was investigated using TEPC-15 staining. First, control experiments were carried out on emulsions without phospholipids (see Fig. S5 of the ESI), where, as expected, no fluorescence signal was detected at the droplet interface. Only a diffused background signal was visible, given the presence of secondary antibodies in the bulk, due to the absence of washing steps. Results of tests carried out on ELP emulsions incubated with TEPC-15 and Rb α-mouse 488 are reported in Fig. 2B. As in Fig. 2A, the fluorescence signal is located on the surface of the droplets. Unlike the fluorescence signal from NBD-C6-HPC (Fig. 2A), fluorescence pattern of TEPC-15 (Fig. 2B, white arrows) is distributed in a non-homogeneous way, presenting irregular spots and non-stained regions along the interface, as visible in the inset. This result may be due to a non-homogeneous distribution of the PC at the interface, or the presence of other components that interfere with the staining procedure. In both cases of Fig. 2, staining efficiency did not seem to be influenced by droplet size. It is worth mentioning that in the case of liquid emulsions it was not possible to rinse the samples, as in the case of cell samples (Fig. 1). This limitation leads to a non-negligible background signal, which must be taken into account for quantitative image analysis. Further consequence of the lack of the washing step is the presence of bright spots in Fig. 2A, possibly due to an excess of phospholipid analogs in the bulk, and in Fig. 2B, which could be due to stained PC suspended in the aqueous phase, or even to unbound secondary antibody. Moreover, the addition of ELP to water can limit the adsorption of phospholipids at the interface of the oil droplets and can result in the likely formation of phospholipid aggregates in the aqueous phase. This situation can further complicate when other components are added to the system, such as, for example, proteins.


image file: c6ra13775j-f2.tif

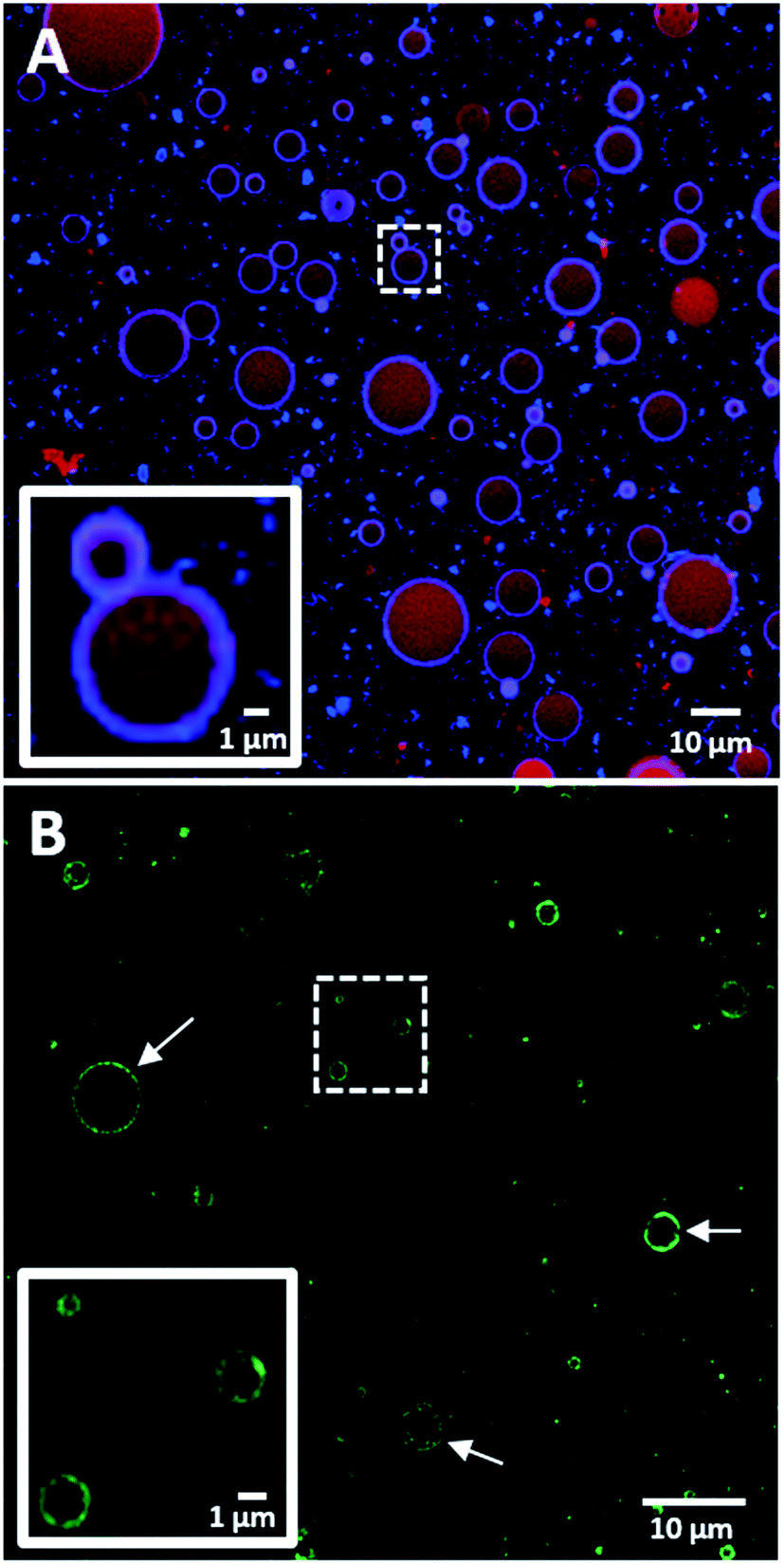

Fig. 2 Double staining of ELP emulsion with Nile Red (0.03 μg mL−1) (red) and phospholipid analogs, NBD-C6-HPC (0.1 mg mL−1) (blue) (A). ELP emulsion stained with TEPC-15 (1[thin space (1/6-em)]:[thin space (1/6-em)]200) and Rb α-mouse 488 (1[thin space (1/6-em)]:[thin space (1/6-em)]350) (green) (B). Insets show in detail the distribution of phospholipids at the droplet interface. A non-uniform fluorescence pattern distribution of TEPC-15 is visible in (B) (white arrows).

The effect of proteins on phospholipid staining was investigated (Fig. 3). PMP was added to the final ELP emulsion and left to equilibrate for about 10 min under gentle stirring, before following the usual staining and imaging protocol. Four samples were analyzed at different PMP concentration, specifically at 0%, 0.03%, 0.05% and 0.07%. 3D diagrams in the lower pictures show the fluorescence intensity spatial profile of the dotted square regions of each image (centered around a droplet). It can be observed that at 0% PMP, as in Fig. 2B, the droplet interface is stained, even if in a non-homogeneous way. A similar result was obtained for the sample containing 0.03% PMP. Based on a visual comparison, the 3D diagrams do not show significant difference compared to the 0% PMP. The higher background signal at 0.03% and 0.05% PMP is due to the fact that the corresponding images were acquired closer to the glass slide, where laser reflection from the surface is more significant. In the sample containing 0.05% PMP, several droplets show part of the interface unstained, as also visible from the fluorescence intensity plot of the dotted square region. Some droplets are not stained at all. A possible explanation for this effect could be some interactions between PC and proteins at the interface, which could become significant as soon as protein concentration is higher than a given value. In this scenario proteins could for example hide phospholipid epitopes specific for TEPC-15. When different molecules with emulsifying properties are mixed in the same system, it is possible that they form a interfacial multi-layer.14 Phospholipids at the oil-water interface form monolayer or multi-lamellar structures, depending on the conditions, helping the stabilization of the system. When proteins are added as emulsifiers, they assemble at the interface and rearrange their structure to form a stabilizing adsorbed layer of variable thickness. When mixed together, interactions between phospholipids and proteins become more complex. In particular, competitive displacement among molecules at the interface can happen. These interactions influence the stability of the system. It is also demonstrated that protein adsorption at interface is enhanced when a small amount of emulsifier is added on the droplet surface.42 This enhancement is not observed in the case of a thicker monolayer, thus encouraging a displacement of the proteins. Nature of the interface also plays a critical role for the interactions. In the ELP emulsion at 0.07% PMP only a background signal is detectable, whereas droplets are completely unstained. The fluorescence intensity plot does not show any peaks at the interface either. At a concentration value ranging between 0.05% and 0.07%, the interaction between proteins and phospholipids becomes critical for the antibody staining procedure. In order to quantify the staining efficiency as a function of PMP concentration, a detailed analysis has been done on the images for samples with different PMP concentration.


image file: c6ra13775j-f3.tif
Fig. 3 ELP emulsions at 0%, 0.03%, 0.05% and 0.07% of PMP stained with TEPC-15 (1[thin space (1/6-em)]:[thin space (1/6-em)]10) and Dk α-mouse 488 (1[thin space (1/6-em)]:[thin space (1/6-em)]500). PMP was added to the final ELP emulsion and left to homogenize for about 10 min in gentle stirring. 3D diagrams in the zoomed frames, show the fluorescence intensity spatial profile of a region surrounding a droplet, indicated by dotted squares. A non-uniform distribution of phospholipids at the interface is visible in samples containing 0% and 0.03% PMP. In the sample containing 0.05% PMP, droplets show part of the interface unstained. In ELP emulsion containing 0.07% PMP only a background signal is detectable. Scale bar is 10 μm.

The fluorescence signal of the interface was calculated over a corona surrounding the droplet, as described in the methods section, and normalized with respect to the MGL calculated over the entire image.

In Fig. 4A the normalized interfacial MGL is reported, for each of the samples considered, as a function of the droplet size. No significant differences are visible, for each data series, for different droplet diameters, in the range 2–11 μm. The higher signal is measured in the case of 0% PMP, while a decreasing emission is obtained from more concentrated samples. A linear regression is added to each plot in order to visualize the data trend, which is independent on droplet size. Only in the case of 0.05% PMP a slightly decreasing trend is observed (green line), probably due to the fact that PMP concentration is almost close to a critical point for protein–phospholipid interaction. This could also be related to the non-uniform fluorescence distribution along the drop interface, shown in Fig. 3 for the same sample. When PMP concentration was increased to 0.07%, only a background signal was visible, while droplet interfaces are not labeled, with the interfacial MGL resulting almost 0. The normalized interfacial MGL, averaged of all the droplets considered (about 10 for each sample), is reported in Fig. 4B as a function of PMP concentration. The intensity decreases exponentially with PMP concentration. This preliminary result can be considered as a measure of the sensitivity of the staining efficiency, suggesting that even slight differences in protein concentration in the emulsions can significantly modify the molecular interactions at the interface, affecting the selectivity of the antibody and the fluorescence signal. The value of 0.07% could be identified as a threshold value above which the phospholipids in the system cannot be visualized by TEPC-15 staining.


image file: c6ra13775j-f4.tif
Fig. 4 Analysis of fluorescence signal in ELP emulsions at 0%, 0.03%, 0.05% and 0.07% of PMP, reported in Fig. 3. Fluorescence intensity of droplet interface normalized respect the MGL of the entire image, was measured for droplets of different sizes, in the range of 2–11 μm, and plotted as a function of the droplet diameter (A). Linear regressions were added as guide for eyes. No significant trend with droplet size was observed for samples at 0% (black), 0.03% (red), and 0.07% (blue) of PMP. Only in the case of the sample containing 0.05% (green) PMP, a slight decreasing trend is observed, in analogy with the complex situation described in the respective image reported in Fig. 3. (A) In the right chart (B) the normalized MGL of the interface calculated over all the droplets, was plotted as a function of PMP concentration. The intensity decreases exponentially with PMP concentration (f = 11.4[thin space (1/6-em)]exp(−38.7x); R2 = 0.999).

We tried to improve staining efficiency of TEPC-15 by increasing antibody concentrations in ELP emulsions containing proteins. In these experiments ELP and PMP were mixed together, respectively 0.10 g and 5.63 g before adding the oil phase, the emulsion was first stained with TEPC-15 (1[thin space (1/6-em)]:[thin space (1/6-em)]10) and then incubated with secondary antibody (Rb α-mouse 488) at different dilutions, 1[thin space (1/6-em)]:[thin space (1/6-em)]100, 1[thin space (1/6-em)]:[thin space (1/6-em)]20 and 1[thin space (1/6-em)]:[thin space (1/6-em)]10. In Fig. 5 three images of the corresponding dilutions are reported. Even in the case of increased antibody concentration, droplets are not stained. Indeed, most of the fluorescence signal is detected in the bulk. Analogous results were obtained increasing primary antibody concentration (data not shown). We can conclude that the interference effect of the proteins is strong enough to hide PC epitopes even in the case of high antibody concentration.


image file: c6ra13775j-f5.tif
Fig. 5 ELP + PMP emulsions stained with TEPC-15 (1[thin space (1/6-em)]:[thin space (1/6-em)]10) and Rb α-mouse 488 at dilutions 1[thin space (1/6-em)]:[thin space (1/6-em)]100 (A), 1[thin space (1/6-em)]:[thin space (1/6-em)]20 (B) and 1[thin space (1/6-em)]:[thin space (1/6-em)]10 (C). Droplet are unstained. Only an increased background signal is visible.

Other experiments were carried out trying to understand the reasons of this poor efficiency, since interactions between phospholipids and proteins can occur either in the bulk or directly at the interface. In order to investigate the effective interaction mechanism and the limiting step, we also added proteins at different steps of the antibodies staining procedure. Results were promising, but deeper analysis of the data (data not shown) is necessary. For this reason, the specificity of TEPC-15 and the effect of proteins on staining procedure, were also verified on PC film.

It is known from literature that the interaction of TEPC-15 with phospholipids, when arranged as a monolayer, at the air–water interface, is dependent on the type of phospholipids used.36 It has also been demonstrated that some antibodies lose their efficiency due to a strong antibody–surface interaction, which can result in a modification of the antibody structure, depending on its flexibility.43 This modification can result in a poor recognition of the antigen. Efficiency is strongly dependent on the hydrophobicity of the surface and not on the geometrical attachment. Here, PC film was created on the bottom of a μ-slide well. After the evaporation of ethanol, images of the PC structure were acquired in brightfield mode (H) and confocal microscopy mode, as reported in Fig. 6. PC film is visible in brightfield as stratified domains (Fig. 6A). A slight reflection due to the proximity of the objective to the glass slide is visible in confocal microscopy, but no autofluorescence signal is displayed. After the addition of the TEPC-15, as expected, no fluorescent signal is detectable (Fig. 6B), while in brightfield PC structure is still visible. After completing the incubation with secondary antibody (Rb α-mouse 488), images show once again a fluorescent signal corresponding to the PC film (Fig. 6C). In particular, fluorescent lines are present in proximity of the domain edges. A dependence of the fluorescence signal from the focus position was observed, suggesting that PC domains do not form homogeneous film.


image file: c6ra13775j-f6.tif
Fig. 6 PC film in μ-Slide 8 Well stained with TEPC-15 (1[thin space (1/6-em)]:[thin space (1/6-em)]10) and Rb α-mouse 488 (1[thin space (1/6-em)]:[thin space (1/6-em)]250) after 2 h incubation at room temperature. (A) Dry PC film after ethanol evaporation as stratified islands are visible in brightfield (H) and a slight reflection of the glass slide is detectable in confocal. (B) PC film after TEPC-15 addition. No fluorescence signal is recorded. (C) PC film after complete staining with Rb α-mouse 488. PC structure is visible in brightfield and in confocal. Fluorescent lines are present in proximity of the islands edges. A dependence of the fluorescence signal from the focus position was observed, suggesting that PC islands do not form a homogeneous film.

The film experimental setup was used to confirm the effect of proteins on the staining procedure. Experiments were carried out by adding PMP solution on PC film after antibody staining. Images of the same field of view were acquired at different times, respectively after staining (t0), immediately after the PMP addition (t1), 10 min (t2) and 25 min (t3) after the addition. In Fig. 7A confocal images are reported for each time value. In agreement with Fig. 6, fluorescent signal is very strong at t0 (in some case even saturating the image). After addition of PMP, the signal gradually decreases from t1 down to t3, in agreement with a dynamic interaction mechanism of the proteins at the interface. The effect is quantitatively analyzed in Fig. 7B, where image histograms data are reported. Histograms of each image (Fig. 7B) show a gradual decrease in the number of fluorescent pixel up to the intensity value of 200, where a step-up is found, which suggests some saturation effect, as also visible from the images. Even after 25 min from the PMP addition (t3), when the mean intensity is the lowest, there are still some saturated pixels. The MGL of each image is also reported (Fig. 7C). A strong decrease is evident especially going from t0 to t1. It is worth mentioning that only four images were acquired during the entire experiment for each field of view, and the sample was not exposed to the light source between consecutive acquisitions, in order to minimize any bleaching effect.


image file: c6ra13775j-f7.tif
Fig. 7 (A) Effect of proteins on TEPC-15 staining of PC film in μ-Slide 8 Well after antibodies incubation (t0), immediately after PMP addition (t1), and after 10 min (t2) and 25 min (t3) from the addition. TEPC-15 was diluted 1[thin space (1/6-em)]:[thin space (1/6-em)]10 while Dk α-mouse 488 was diluted 1[thin space (1/6-em)]:[thin space (1/6-em)]250. (B) Histograms data corresponding at each image in (A) show a gradual decrease in the number of fluorescent pixels. A new increase is observed around intensity value of 200, suggesting the presence of some filled pixels even after 25 min after PMP addition. (C) MGL of each image in (A) as function of time.

Conclusions

A large amount of investigations are reported in the literature on phospholipid structure and functions. Great interest is focused on the localization of PC in both biological samples and colloidal systems. Despite the use of different techniques, only limited results have been obtained so far.

In this work, the immunofluorescence technique has been applied to O/W emulsions containing phospholipids (and proteins) in order to localize choline-based phospholipids at the droplet interface with TEPC-15 as a primary antibody. Efficiency of the staining has been verified by confocal imaging and image analysis. Tests on two different cell lines have confirmed the fluorescent staining of the antibody on cell membranes. In emulsions containing only phospholipids, PC is recognized from the antibody at the droplet interface, as confirmed by experiments carried out with phospholipid analogs. We proved that this method, based on TEPC-15 antibody, is efficient to stain PC even in presence of other phospholipids, as in the case of ELP emulsions. The presence of other molecules, in particular proteins, can induce the formation of complex molecular interactions at the interface of oil droplets which can seriously affect the antibody staining. Proteins hinder the efficiency of the staining procedure when more than 0.07% PMP is added to the emulsion. This value can be identified as the threshold value, above which PC is no more visible. Increasing antibody concentrations does not allow PC staining. Similar results have been obtained for PC films, where the fluorescence intensity of the field of view starts to decrease after the addition of proteins.

Studying the interactions between phospholipids and proteins is still a challenging task among researchers and deeper investigations are needed. In our case, proteins were found to interfere with antibody staining, likely by hiding the antigen-bounding site of PC.

The immunofluorescence methodology described in this work is applied for the first time, to our knowledge, to colloidal systems. Our results show that immunohistochemistry can represent a powerful tool to investigate molecule location in microstructured fluids. Given the wide diffusion of multiphase fluids, this result could be relevant in several industrial applications, such as food, cosmetic and pharmaceutical industries.44

Acknowledgements

Experimental support on cell cultures by Dr Valeria Rachela Villella is gratefully acknowledged.
