Elucidation of the mechanisms governing the thermal diastereomerization of bioactive chiral 1,3,4-thiadiazoline spiro-cyclohexyl derivatives towards their anancomeric stereoisomers

Abstract

The kinetics of the thermal isomerization of some diastereomers of three chiral 1,3,4 thiadiazoline derivatives, selected as case studies of structures resulting from mono-alkyl substitution of the anancomeric 4-acetyl-2-acetamido-1,3,4-thiadiazolinyl-spiro-cyclohexane (TsC) framework, have been investigated in order to elucidate the possible mechanistic pathways and the structural factors responsible for the observed spiro-junction lability. The insertion of a methyl or a t-butyl group on the C2 or C3 position with respect to the spiro junction generates two stereogenic centres, so that two pairs of enantiomers exist. The first-order rate constants for the isomerization of the less stable enantiomers into the most stable ones have been measured in different solvents and at different temperatures through batch-wise kinetic determinations. The obtained data have been successfully rationalized by DFT calculations and Linear Solvation Energy Relationships (LSER) analyses. The achieved elucidation should make it possible to plan a more rational synthesis of this kind of pharmacologically active compounds, thus affording a practical tool that is useful for controlling the involved stereochemistry and spiro-junction lability.

---

Introduction

The biological activity expressed by natural or synthetic products can be frequently ascribed to specific molecular frameworks, which are typically referred to as “pharmacophores”. Among these, heterocyclic moieties are quite common, covering a very wide range of pharmacological activities despite of their rather essential structure.^1–20

In addition to the electronic effects exerted by groups substituting the heterocyclic moiety, the manifested biological activity can also derive from the particular stereochemistry²¹ and structural rigidity characterizing the pharmacophoric portion that interacts with the target active site,^22–25 as observed, for example, for some classes of spiro-heterocycles.^26–32

Spiro-1,3,4-thiadiazoline derivatives, endowed with anti-inflammatory, analgesic, antifungal and/or antimicrobial activities,^33–36 represent significant examples of biologically active heterocyclic compounds in which the 1,3,4-thiadiazoline ring and the connected rigid spiro-structure act as a single ‘hybrid pharmacophore’ framework. We have recently reported³⁶ a quite in depth thermodynamic study focused to clarify the thermodynamic and stereochemical properties possessed by the chiral 1,3,4-thiadiazoline-spiro-cyclohexyl derivatives 1–3, reported in Fig. 1, obtained by mono-alkyl (methyl or t-butyl) substitution at the position 2 or 3 of the cyclohexyl ring within the 4-acetyl-2-acetamido-1,3,4-thiadiazolinyl-spiro-cyclohexane molecular framework (TsC, Fig. 1). The insertion of the alkyl group generates two asymmetric centres, i.e. the carbon atom on which the alkyl is bound and the carbon involved in the spiro junction (hereafter symbolized as C_spiro). We highlighted the anancomeric^37,38 character possessed by the TsC portion when its sulphur atom is bound in axial position (S_ax) on the cyclohexyl moiety (TsC-S_ax conformation). The anancomerism of the TsC-S_ax framework was found to be at the origin of the very different energy stability characterizing the two typologies of diastereomers M-x and L-x, each of which exists as a couple of enantiomers (where M and L indicate the more and the less stable diastereomers, respectively, with x referring to the species 1–3). The most stable diastereomers M-x in their most favourable S_ax conformation also possess anancomeric character (100% of Boltzmann population, BP), with the alkyl group always disposed in equatorial position (M-x-S_ax). For the less stable diastereomers L-x, the S_ax conformation with the alkyl moiety in axial position (L-x-S_ax) is again energetically favoured on that generated by cyclohexyl-flipping, with the sulphur atom in equatorial position (L-x-S_eq), although in this case BP is lesser than 100%. NMR, X-ray determinations and Density Functional Theory (DFT) calculations³⁶ confirmed the predominance of the S_ax conformations in compounds L-x even in the case of substitution with the sterically much hindered t-butyl group³⁷ (compound L-2).

Fig. 1 Structures and conformational preferences of the 1,3,4-thiadiazoline-spiro-cyclohexyl derivatives studied in this work and of their common TsC framework.

The dominance of the S_ax on the S_eq conformations, due to the S⋯H and O⋯H steric interactions more destabilizing the latter structures than the former ones,³⁶ is also visible in the X-ray structures of some other 1,3,4-thiadiazolinyl-spiro-cyclohexane derivatives reported in literature,^33,34 so that such a conformational preference could be considered as a general rule.

In the present study the previously highlighted tendency of compounds L-x to lose the configuration of their asymmetric spiro-carbon, to give rise to the relevant diastereomers M-x,³⁶ has been in-depth investigated. This was made in order to clarify the mechanistic pathway governing the isomerization processes, and the structural factors (i.e. the nature and the position of the alkyl substitution) responsible for the observed stereolability. In our opinion, these informations could play an important role in the development of the stereoselective synthesis of M-x or L-x species, addressing the operative conditions towards a thermodynamic or kinetic control of the reaction, respectively. For this purpose, we carried out extensive kinetic batch-wise determinations in different conditions of solvent and temperature. The obtained results have been rationalized by DFT molecular modeling calculations and LSER analyses, which allowed to elucidate the specific solvent effect on the kinetic of the studied isomerizations.

Experimental

Organic synthesis of compounds L-1, L-2 and L-3

Compounds L-1, L-2 and L-3 have been synthesized according to the procedure already reported in ref. 36 and schematized in Scheme 1, adopting conditions suitable to favor a kinetic control.

Scheme 1 Synthetic procedure adopted to obtain compounds L-1, L-2 and L-3.

Chiral HPLC

HPLC enantioseparations and diastereoseparations were performed by using the stainless-steel Chiralpak IC^39–42 (250 mm × 4.6 mm I.D. and 250 mm × 10 mm I.D.) (Chiral Technologies Europe, Illkirch, France) columns. All HPLC and spectral grade solvents were purchased from Aldrich (Italy) and used without further purification. The analytical HPLC apparatus consisted of a PerkinElmer (Norwalk, CT, USA) 200 lc pump equipped with a Rheodyne (Cotati, CA, USA) injector, a 20 μL sample loop, a HPLC Dionex CC-100 oven (Sunnyvale, CA, USA) and a Jasco (Jasco, Tokyo, Japan) Model CD 2095 Plus UV/CD detector. For semipreparative separations a PerkinElmer 200 LC pump equipped with a Rheodyne injector, a 500 μL sample loop, a PerkinElmer LC 101 oven and Waters 484 detector (Waters Corporation, Milford, MA, USA) were used. The signal was acquired and processed by Clarity software (DataApex, Prague, The Czech Republic).

Off-column diastereomerization studies

In off-column diastereomerization studies, solutions of stereoisomers of 1–3 (concentration about 0.1 mg ml⁻¹) were kept at a fixed temperature in a closed vessel. The temperature was monitored by a Julabo (Julabo Labortechnik, Seelbach, Germany) Model HP-4 thermostat. Samples were withdrawn at fixed time intervals and analyzed by HPLC on the Chiralpak IC (250 mm × 4.6 mm I.D) column.

Stereochemical lability (rate constants determination): experimental procedure

Starting from the (5S,6R)-L-2 isomer, the L-2 → M-2 isomerizations in EA and IPA at the temperature of 55 °C were monitored almost until the respective thermodynamic equilibrium was achieved. This was done following the same procedure adopted for the analogous determinations, reported in ref. 36, which were performed in CHCl₃ and AA solutions at 55 °C for the L-1, L-2 and L-3 isomers. Accordingly, the collection of kinetic data was interrupted when the [M]_eq/[L]_eq ratio became lesser than 0.5, because of the difficulty to obtain accurate values of area subtended by the decreasing peak. Therefore, the sought constants K_eq were derived through careful extrapolation procedure, by maximizing the correlation coefficient (R² always greater than 0.999) of graphs traced according to eqn (1) (see below), in which the term −K_eq/(K_eq + 1) × ln([L]₀ − [L]_eq)/([L]_t − [L]_eq) was plotted against the reaction time. From the slope of the same plots the values of the k_L→M rate constants were also obtained, as well as the relevant backward rate constants k_M→L by resorting to the relation k_M→L = k_L→M/K_eq. Instead, in order to limit the very expensive time required by this kind of determinations, for (5S,6S)-L-1 and (5R,7S)-L-3 and in the two solvents EA and IPA the off-column measurements at 55 °C were carried out by restricting the collection of isomerisation data to a minimal number, quite far from the thermodynamic equilibrium. In this way, only k_L→M rate constants could be measured through suitable analysis of the initial reaction steps. These were obtained through graphs in which the ln([L]₀/[L]_t) quantities were plotted versus the reaction times, according to the following equation: ln([L]₀/[L]_t) = −k_L→M × t, which governs irreversible first-order kinetic pathways.

Finally, this same last simplified approach was also employed to determine the k_L→M rate constants in experiments performed on (5S,6S)-L-1, (5S,6R)-L-2 and (5R,7S)-L-3 in AA at temperatures greater than 55 °C (see Table 1). Starting from all the measured L → M and M → L diastereomerization rate constants, they were then calculated the related free energy activation barriers (i.e. the ΔG^#_L→M(T) and ΔG^#_M→L(T) quantities) (Table 1 in main text).

Table 1 Kinetic results of the thermal diastereomerization of L-1, L-2 and L-3 monitored by stereoselective HPLC

#	Solvent	T (°C)	kL→M (s^−1)	kM→L (s^−1)	ΔG^#L→M (kcal mol^−1)	ΔG^#M→L (kcal mol^−1)	ΔG^°M⇆L (kcal mol^−1)	t1/2 L → M^a
a t1/2 L → M: half-life time of the L → M isomerization.b Data by ref. 36.
1	CHCl3^b	55	8.22 × 10^−6	1.23 × 10^−8	26.90	31.14	−4.24	1 d
	EA	55	9.43 × 10^−7	—	28.32	—	—	9 d
	IPA	55	2.42 × 10^−7	—	29.20	—	—	33 d
	AA^b	55	2.11 × 10^−6	1.68 × 10^−8	27.79	30.94	−3.15	4 d
	AA	65	9.09 × 10^−6	—	27.68	—	—	21 h
	AA	75	2.54 × 10^−5	—	27.79	—	—	455 min
	AA	85	8.47 × 10^−5	—	27.77	—	—	136 min
	AA	95	2.34 × 10^−4	—	27.82	—	—	49 min
2	CHCl3^b	55	6.68 × 10^−5	2.67 × 10^−9	25.54	32.14	−6.60	174 min
	EA	55	9.00 × 10^−6	5.40 × 10^−9	26.85	31.68	−4.83	21 h
	IPA	55	2.16 × 10^−6	3.96 × 10^−8	27.78	30.38	−2.60	93 h
	AA^b	55	5.06 × 10^−5	1.57 × 10^−7	25.72	29.48	−3.76	248 min
	AA	65	1.67 × 10^−4	—	25.72	—	—	69 min
	AA	75	4.72 × 10^−4	—	25.78	—	—	25 min
	AA	85	1.45 × 10^−3	—	25.75	—	—	8 min
3	CHCl3^b	55	6.97 × 10^−5	2.80 × 10^−7	25.51	29.11	−3.60	163 min
	EA	55	6.99 × 10^−6	—	27.01	—	—	1 d
	IPA	55	1.54 × 10^−6	—	28.00	—	—	5 d
	AA^b	55	2.72 × 10^−5	2.58 × 10^−7	26.12	29.16	−3.04	533 min
	AA	65	7.34 × 10^−5	—	26.27	—	—	157 min
	AA	75	2.20 × 10^−4	—	26.31	—	—	52 min
	AA	85	6.99 × 10^−4	—	26.26	—	—	17 min
	AA	95	1.60 × 10^−3	—	26.41	—	—	7 min

---

LSER analyses

LSER analyses of the activation energy data ΔG^#_L→M calculated for compounds L-1, L-2 and L-3, were performed according to the Kamlet–Taft type eqn (2) (see below) taking into account one or two of the chosen three descriptors π*, ε and δ_H² of solvent effect. A statistic analysis (F-test and t-test) was carried out, in order to exclude casualness (index-F) and quantify the statistical weight of each employed descriptor (factors t_i compared to index-T used as the reference). The analyses were performed by the dedicated functions implemented in the Microsoft Office Excel 2003 program. Probability related to the t-Student distribution in the t-test was set to 0.15. The obtained results, collected in Table S3 of ESI† clearly show that good correlations (R² values ranging from 0.823 to 0.938) can be obtained for all the three compounds L-1, L-2 and L-3, when the descriptor π* is used as unique parameter. Statistical analysis highlighted that significant results are obtained when the couple of descriptors π*, ε or ε, δ_H² are taking into account in eqn (2) only when the regression analysis is carried out on ΔG^#_L→M data of compounds L-1 and L-3.

Molecular modeling calculations

All calculations were performed with the software package SPARTAN 10, v. 1.1.0. The structures of the transition states of the spiro-thiadiazoline derivatives L-1, L-2 and L-3, as well as those of the TsC framework, involved in the Step I of the general reaction pathway, were modelled in two steps. In the first one SCF structure optimizations were performed at the HF/3-21G level of theory. In the second step, the obtained geometries were refined through further optimization at the B3LYP/6-31G(d) level of theory and validated as saddle points by checking the presence among the computed vibrational modes of only one imaginary frequency, just corresponding to the rupture-formation of the S–C_spiro bonds. The structures of the ground and the transition states relevant to Step II of the general reaction pathway and referred to the species L-1-ZW-S_eq, L-1-ZW-S_ax, L-2-ZW-S_eq, L-2-ZW-S_ax, TsC-ZW-S_eq and TsC-ZW-S_ax, were modelled by driving the progressive change of the torsional angle N–N–C_spiro–CH as a function of the energy, according to the relevant algorithm implemented in SPARTAN 10 (i.e. the “Energy Profile” option inside the “Calculate” window). The rotation of the dihedral angle was performed by imposing an overall variation of 180° trough a number of steps ranging from 15 to 17. The optimization of the single structures, with imposed constraint for each set dihedral angle, was initially performed at the HF/3-21G level of theory. Afterwards, the achieved geometries corresponding to the minimum and maximum of the assessed energy profiles have also been submitted to further optimization through the B3LYP/6-31G(d) method. In all cases, the optimization procedure was carried out by simulating chloroform as the medium, according to the SM8 solvation model implemented in Spartan. Only for the GS and TS structures of L-2-ZW-S_eq the optimization was also performed by simulating the presence of ethyl acetate or 2-propanol as the solvent, again according to the SM8 solvation model implemented in Spartan. Finally, in order to take into suitable account non-bonding interactions, all the obtained GS and TS geometries were also submitted to single point energy calculations, each one carried out in the same solvent used in their optimization (chloroform, ethyl acetate or 2-propanol), at the higher level of theory M06-2X/6-31+G(d). The use of the M06-2X method was suggested by the need to take into suitable account in the assessed total energy of the structures the not negligible contribution coming from dispersive forces, being, in fact, M06-2X a meta-hybrid GGA DFT functional known to have a very good response under dispersion forces.^43–46 The diastereomerization barriers of compounds L-1, L-2 and L-3 in aqueous medium were assessed by directly reoptimizing in water (according to the SM8 solvation model), at the B3LYP/6-31G(d) level of theory, the GS and TS geometries already found responsible for the rate-limiting steps in chloroform. The so obtained structures were then submitted to single point energy calculations at the higher level of theory M06-2X/6-31+G(d).

Results and discussion

The fact that in the compounds M-x and L-x the TsC fragment takes the S_ax conformation implies that the alkyl groups bound on the cyclohexane moiety have necessarily to assume the equatorial position in case of the most stable diastereomers M-x-S_ax, and the axial position in case of the less stable diastereomers L-x-S_ax. This was found true even in the case of the very highly hindered t-butyl group in compound L-2.³⁶

It is useful to stress that the lower stability of the L-x-S_ax stereoisomers (of 3.2, 3.8 and 3.0 kcal mol⁻¹ in acetic anhydride, for compound 1, 2 and 3, respectively³⁶) may potentially act as a driving force to the spontaneous conversion of the species to the related M-x-S_ax diastereomers. This was actually observed in both acetic anhydride (AA) and chloroform (CHCl₃), at the temperature of 55 °C.³⁶ With the aim to gain a larger and complete mechanistic picture, the kinetic investigation was extended to a large number of solvents and temperatures.

Stereochemical lability of the species L-x: experimental investigation

The kinetic analysis of the stereolability of the species L-1, L-2 and L-3 at 55 °C has been extended to ethyl acetate (EA) and isopropyl alcohol (IPA) as the solvents, while in AA the range of temperatures was extended from 65 °C to 95 °C. The time-dependent decay of the diastereomeric excess of the L-x stereoisomers was evaluated by classical batch-wise kinetic approach, as previously reported,³⁶ using the stereoselective HPLC technique as the monitoring tool.^19,47–49

All the reactions proceeded according to a reversible first-order kinetic (eqn (1)):

ln([L]₀ − [L]_eq)/([L]_t − [L]_eq) = −k_L→M × (K_eq + 1)/K_eq × t (1)

in which: K_eq is the equilibrium constant for the L ⇆ M interconversion (i.e. K_eq = [M]_eq/[L]_eq, with [M]_eq and [L]_eq being the concentrations of the species at equilibrium); k_L→M is the first order rate constant for the forward reaction; [L]₀ and [L]_t are the concentrations of the L isomer at time zero and time t, respectively. The graph of Fig. 2b, obtained by plotting the percentage-amount of (5S,6S)-L-1 against the reaction time, shows the typical trend of a reversible first-order process that achieve a final equilibrium position strongly favorable to the M product (virtually, an irreversible process). The forward and backward rate constants, k_L→M and k_M→L, and the related activation energies, for the species L-1, L-2 and L-3 have been collected in Table 1. In all cases it was found that the conversions of L-x in M-x occur without any concomitant racemization, i.e. the isomerization process involves only the stereogenic center C_spiro, while the asymmetric carbon atom of the cyclohexyl fragment retains its absolute configuration. This conclusion was supported by the analysis of the chromatograms recorded as a function of time in the course of the performed off-column isomerizations. As an example, the distereomerization in chloroform solution at 55 °C of the isomer (5S,6S)-L-1, the fourth in order of elution, is reported in Fig. 2a.

Fig. 2 (a) Off-column diastereomerization at 55 °C in chloroform by HPLC (see also ref. 36) and (b) time-dependent decay of the amount of (5S,6S)-L-1.

As the peak corresponding to (5S,6S)-L-1 decreases, the peak corresponding to its diastereoisomer (5R,6S)-M-1, the first in order of elution, increases, and the diastereomeric ratio progressively changes over the reaction time. The lack in all the chromatographic patterns of the peaks corresponding to the two stereoisomers (5S,6R)-M-1 and (5R,6R)-L-1, excludes the occurrence of an inversion of configuration at the asymmetric carbon C6.

The same trend was observed in all the performed off-column L-x → M-x kinetic determinations, for all the analyzed compound, L-x, and solvent (CHCl₃ AA,³⁶ EA or IPA).

From the data collected in Table 1 some other conclusions could be also inferred:

(i) the related barriers for L-x → M-x diastereomerization are virtually temperature-independent (see data obtained in AA), which indicates a negligible entropy contribution. This suggests that the isomerization mechanisms are based on true first-order kinetics^50–55 (i.e. a monomolecular step must be the slow-stage of the reactions);

(ii) for all the three compounds L-x, regardless of the solvent and temperature, the activation barriers of the L-x → M-x processes are significantly high, with values equal or greater than 25.5 kcal mol⁻¹. Obviously, the energy barriers for the backward M-x → L-x reactions are even higher (from ∼3 to ∼7 additional kcal mol⁻¹, depending on compound and solvent). This means that, due to the large difference in energy stability that in all the cases has been found between the L-x-S_ax and the anancomeric M-x-S_ax diastereomers, all the L-x → M-x investigated processes may be considered virtually irreversible (Table 1). Considering the temperature-independence of the ΔG^#_L→M, we can assess that at 25 °C, in AA, these isomerizations have very long half-life times (t_1/2): 9 months for L-1, 9 days for L-2 and 22 days for L-3. In other words, all the above three species can be considered reasonably stereo-stable at room temperature;

(iii) the rate of the diastereomerization process critically depends on the steric hindrance of the alkyl group bonded to the cyclohexane ring, as well as by the position of this group with respect to the spiro-centre. The comparison between the kinetic data relative to compounds L-1 and L-2 shows that, in the presence of the more bulky t-butyl group as the substituent, the isomerisation process is about ten times faster than in the presence of the much less bulky methyl group. Actually, the half-life times of the L-1 → M-1 and M-1 → L-1 processes in chloroform at 55 °C are 1 day and 483 days, respectively, and 3 hours and 30 days for the L-2 → M-2 and M-2 → L-2 processes in the same experimental conditions. As far as the effect of the position of the alkyl substitution, the obtained results were really surprising. In fact, despite of the greater distance from the reaction centre that the alkyl substituent has in L-3, the rate constants of the isomerization reaction of the compound L-3 were found very close to those obtained for the compound L-2, and markedly higher than those measured for the constitutional isomer L-1.

Diastereomerization mechanism

The evidence that the isomerisation reaction follows a first-order kinetic suggests that molecules of solvent are not directly involved in the slow-stage, nor are active bimolecular autocatalytic phenomena. Therefore, we designed a series of deepened DFT molecular modelling calculations (carried out using chloroform as solvent of reference) with the aim to relate the experimental ΔG^#_L→M data determined for compounds L-x (Table 1) with monomolecular processes able to explain the observed change of configuration of the C_spiro centres. A mechanistic pathway that meets this requirement should take place in two sequential steps:

(Step I) an initial opening of the thiadiazoline-cycle at the N–C_spiro or S–C_spiro bond, which generates a zwitterionic fragment (the thiadiazo-arm moiety hereafter denoted as ZW-F), still linked to C_spiro;

(Step II) the rotation of about 180° of the ZW-F fragment followed by a reclosing of the heterocyclic ring through a new N–C_spiro or S–C_spiro bond formation that inverts the original configuration of C_spiro.

In this pathway, the slow step of the whole process could be the ring-opening (Step I) or the ZW-F-rotation (Step II, Schemes 2 and S1 in ESI†). The DFT analysis was carried out by assessing the energy barriers for Step I and Step II. A detailed description of the computational procedures is reported in the ESI† together with the obtained results (Tables S1 and S2†). The calculations pointed out that the break of the S–C_spiro bond is advantaged on that of the N–C_spiro bond for not less than 32 kcal mol⁻¹ (Table S1†). The higher ΔE^#_L→M barrier for the S–C_spiro breaking was that estimated starting from the unsubstituted TsC framework in its anancomeric S_ax conformation (ΔE^#_L→M = 29.3 kcal mol⁻¹, Table S2† and Schemes 3a and S2 in ESI†). In compounds L-1, L-2 and L-3 the presence of a methyl or t-butyl group leads to significant structure perturbations that strongly compress the differences of energy stability existing between the two conformational ground states (GS) of L-x-S_eq and L-x-S_ax (from 5.25 kcal mol⁻¹ for TsC to 1.83, 0.24 and 1.89 kcal mol⁻¹ for L-1, L-2 and L-3, respectively). These results suggest that, inside the L-x species, the alkyl substitution has the effect to cancel the anancomeric character of the TsC-S_ax fragment. On the contrary, the same alkyl substitution increases the difference of energy stability between the related transition states, TS (E_TS-L-x-Seq − E_TS-L-x-Sax, from −0.30 kcal mol⁻¹ for TsC to 4.39, 5.63 and −2.98 kcal mol⁻¹ for L-1, L-2 and L-3, respectively). Obviously, these different effects of steric perturbation have also significant reflex on the related barriers with which the L-x species undergo ring-opening. In particular, with respect to what found for TsC-S_ax used as the reference, the assessed values of ΔE^#_L→M for the S–C_spiro breaking in almost all the considered L-x-S_ax and L-x-S_eq species, are smaller.

Scheme 2 Possible slow steps involved in the L → M diastereomerization mechanisms of compounds L-x.

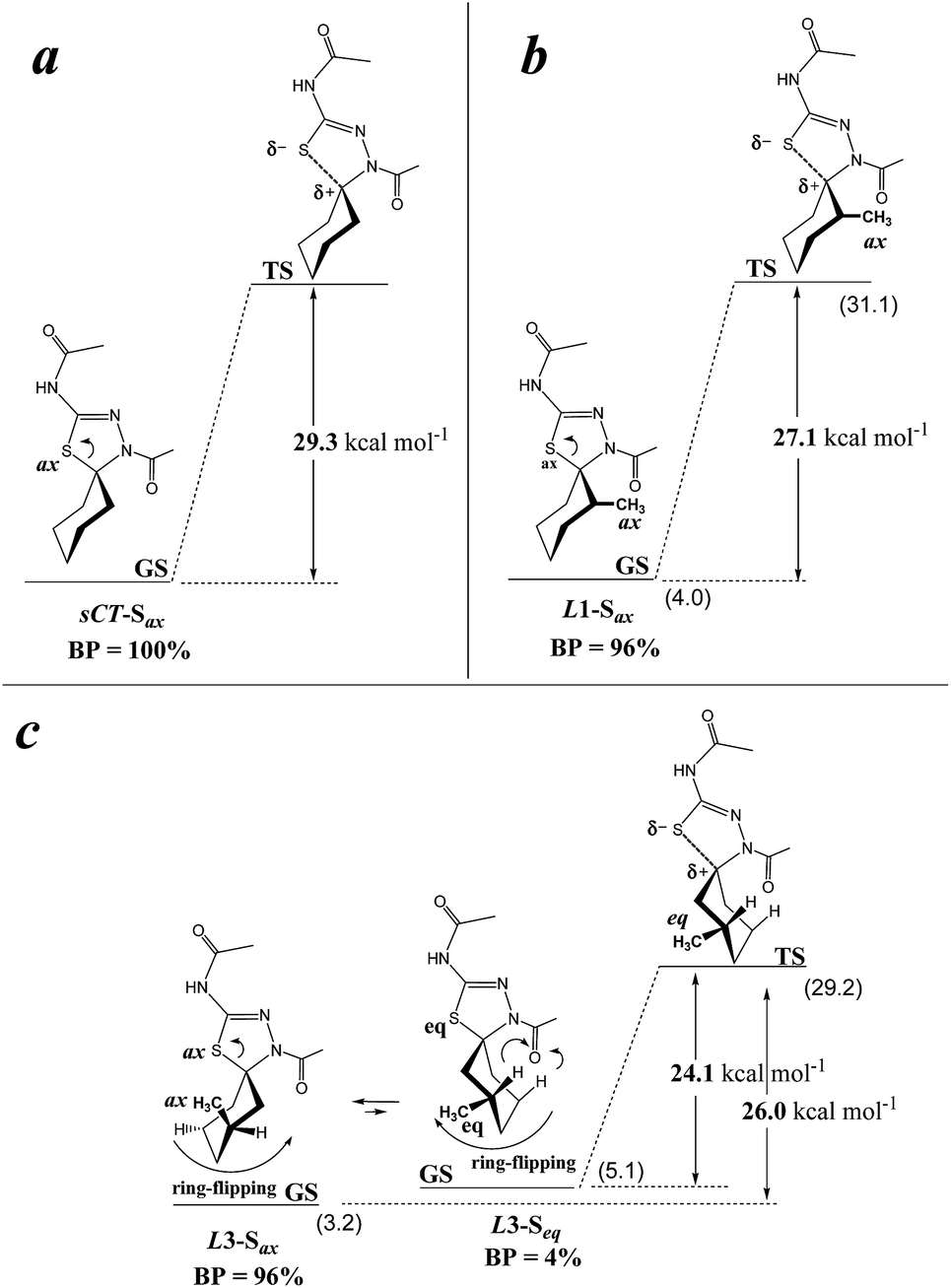

Scheme 3 L → M diastereomerization mechanisms of compounds TsC, L-1 and L-3 derived by DFT calculations. In parentheses are reported the relative energy stabilities in kcal mol⁻¹ of the species with respect to that of the relevant anancomeric M-x-S_ax isomers.

The estimated reduction of the barrier ranges from small for L-3-S_ax (0.4 kcal mol⁻¹), to medium for L-2-S_eq and L-1-S_ax (1.6 and 2.2 kcal mol⁻¹, respectively) to very marked for L-2-S_ax and L-3-S_eq (7.0 and 5.2 kcal mol⁻¹, respectively), while a little increase was observed for L-1-S_eq (−0.4 kcal mol⁻¹). In the case of the TsC-S_ax and TsC-S_eq conformers, calculations have also suggested that a negligible barrier opposes to the final reclousure of the thiadiazoline-cycle, starting from the related ZW-F structures (about 1 kcal mol⁻¹, Table S2†). Thus, for the purposes of the undertaken kinetic analyses, it seems logical to assume that also for the more complexes L-x → M-x processes such conclusive stage of the studied isomerizations can be reasonably disregarded. As it will be clarified in detail below, the S–C_spiro bond breaking in Step I was found responsible for the L → M diastereomerization in both compounds L-1 and L-3, while the ZW-F rotation was found to govern the slow step of the L → M process for compound L-2.

Diastereomerization mechanism of compounds L-1 and L-3

The two ΔE^#_L→M barriers calculated for the compound L-1, starting from the conformers L-1-S_eq and L-1-S_ax, are very different (29.7 and 27.1 kcal mol⁻¹, respectively). Thus, we could expect that the more stable geometry (i.e. the L-1-S_ax conformer, for which has been calculated a 96% of BP) is the one involved in the predicted ring-opening of Step I (Schemes 3b and S3 in ESI†). It is noteworthy to emphasize that the so calculated datum differs from the experimental one (26.90 kcal mol⁻¹) for just 0.2 kcal mol⁻¹. Differently, in the L-3 → M-3 isomerization process, the less stable conformer L-3-S_eq (BP = 4%, see ESI†) undergoes the ring-opening with an activation energy of only 24.1 kcal mol⁻¹, while for the more stable ring-flipped conformer L-3-S_ax (BP = 96%, Schemes 3c and S4 in ESI†) the estimated barrier is of 28.9 kcal mol⁻¹. Thus, for the species L-3 the most favourable S–C_spiro breaking should involve the less stable isomer L-3-S_eq, which, in turn, through a fast conformational ring-flipping, should be continuous regenerated from the most abundant conformer L-3-S_ax. The different behaviour observed for compounds L-1 and L-3 is attributable to the different effect exerted by the methyl group on the transition states of the ring-opening steps. Indeed, as already stressed above, for compound L-3 the difference of energy stability decreases of 2.98 kcal mol⁻¹ on passing from the TS geometry relative to L-3-S_ax to that relative to L-3-S_eq while for compound L-1 the same energy difference increases of 4.39 kcal mol⁻¹. On the contrary, the estimated differences of energy stability between the S_ax and S_eq ground state geometries appear very similar (1.89 kcal mol⁻¹ for L-3, and 1.83 kcal mol⁻¹ for L-1) so that no significant differential steric effect is evidenced for them. Additional details have been highlighted and discussed in ESI,† in the section “The differential role played by the methyl group in compounds L-1 and L-3”. On the basis of the above considerations, the final assessment of the energy barrier for the Step I of the L-3 → M-3 diastereomerization process requires to take into suitable consideration both the barrier of ring-opening for the geometry L-3-S_eq (24.1 kcal mol⁻¹) and the relative abundances of the conformers L-3-S_ax and L-3-S_eq (96% and 4% of BP, respectively; see ESI†). Therefore, starting from such data, the time-dependent decay of L-3 (Fig. S2 in ESI†) was successfully simulated through the software Achem,⁵⁶ thus allowing the final assessment of the associated S–C_spiro breaking activation energy, amounting to 26.0 kcal mol⁻¹. Then, as found for L-1, also for L-3 the difference between calculated ΔE^#_L→M (26.0 kcal mol⁻¹) and experimental ΔG^#_L→M (25.5 kcal mol⁻¹) barriers appears very moderate. Interestingly, for both compounds L-1 and L-3, a significant increase of dipole moment (+1.5 and +1.8 Debyes for L-1 and L-3, respectively) and molecular volume (+4.8 ų for L-1 and.+ 4.6 ų for L-3) occurs on passing from the GS to the TS geometries, as a consequence of the ring-opening process. Therefore, it seems reasonable to expect a significant solvent effect on the reaction rates, depending on the different permittivity and cohesive pressure of the solvents.

Diastereomerization mechanism of compound L-2

The theoretical analysis performed on Step I of the isomerisation reaction of the compound L-2, led to results very different to those achieved for L-1 and L-3. Starting from the most abundant conformer L-2-S_ax (BP = 60%), in which the axial t-butyl group increases the energy instability of GS much more than on the relevant TS, calculations estimated the very low ring-opening barrier of 22.3 kcal mol⁻¹. This is a much lower value than that calculated for its flipped and minoritarian (BP = 40%) counterpart L-2-S_eq (ΔE^#_L→M = 27.7 kcal mol⁻¹), but also too far from the value experimentally measured for the L-2 → M-2 process (25.5 kcal mol⁻¹). This result suggests that, for the compound L-2, the rate-limiting step of the isomerisation reaction should be the ZW-F-rotation involved in Step II rather than the breaking of the S–C_spiro bond (Schemes 4 and S5 in ESI†). In order to support this hypothesis, the barrier related to the ZW-F-rotation was estimated by assessing the energy profile resulting from the progressive change of the dihedral angle related to the N–N–C_spiro–CH torsional of the ZW-F structure, as shown in Fig. S1 of ESI.† More details on this approach are given in ESI.† A barrier energy value of 26.3 kcal mol⁻¹ for the most convenient rotation, deriving from the L-2-ZW-S_eq conformer, was calculated, while an energy value of 26.9 kcal mol⁻¹ was obtained from the ring-flipped conformer L-2-ZW-S_ax. These, in respect of the principle of the bottleneck (see ESI†), are significantly close to the experimental value, within a difference of only 0.8–1.4 kcal mol⁻¹. The same calculations on the ZW-F-rotation involved in Step II were carried out also for the compound L-1 and the TsC framework, in which the effect of the alkyl substituent on the cyclohexane moiety was expected to be less important or completely absent, respectively. In agreement with these expectations, the assessed lower energy barriers were 23.4 kcal mol⁻¹ for L-1 and 23.1 kcal mol⁻¹ for TsC, thus confirming that only for compound L-2 the ZW-F-rotation is decisive in determining the final ΔG^#_L→M quantity. Furthermore, a progressive increase of surface area (+6.5 Ų) and a modest increase of molecular volume (+1.2 ų, see Table S2 of ESI†) were assessed by calculation on passing from the ground to the relevant transition states in the Step II. Thus, we could expect that the diastereomerization rate of L-2 should be differently affected by a change of solvent with respect to compounds L-1 and L-3.

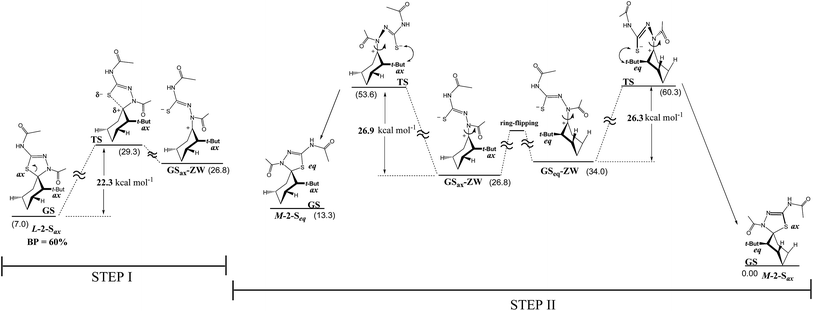

Scheme 4 L → M diastereomerization mechanism of compound L-2 derived by DFT calculations. In parentheses are reported the relative energy stabilities in kcal mol⁻¹ of the species with respect to that of the anancomeric M-2-S_ax.

Solvent effect on the diastereomerization barriers: LSER and DFT analysis

The final step of our analysis was focused to get information on the solvent effects on the ΔG^#_L→M values. The data collected in Table 1 show that, on changing the solvent, the ΔG^#_L→M values change according to the following trend: . From its inspection it is clear that cannot be derived any simple correlation between the differential solvation of ground and transition states governing the L-x → M-x interconversion and a single property of the solvent, such as permittivity or ability in establishing electrostatic, H-bond or dispersive interactions.

Therefore, we performed a Linear Solvation Energy Relationships (LSER) analysis,^22,57–60 based on a set of multiparameter equations of the type

ΔG^#_L→M = ΔG^#const_L→M + ∑f_iD_i (2)

where ΔG^#_L→M is the activation energy relative to the studied diastereomerizations in a given solvent (CHCl₃, EA, AA and IPA), ΔG^#const_L→M is the activation energy for the reaction in absence of solvent effect, D_i is the descriptor of solvation interactions, and f_i its regression coefficient. As suggested by the already discussed calculations, concerning the stages of ring-opening (Step I) and subsequent ZW-F-rotation (Step II) of the overall distereomerization processes, the descriptors D_i were selected in order to take into suitable account the effects referable to changes of dipole moment (Δμ_TS-GS), molecular volume (ΔV_TS-GS) and molecular surface (ΔS_TS-GS) of the isomerizing species. On this basis, three different descriptors were used in the LSER regressions:

(i) the solvatochromic parameter π*, sensible in monitoring solute–solvent dispersive, inductive and electrostatic interactions, directly related to the dipolarity and polarizability of the solvent, and thus to the extension of contact surface between solvent and solute;

(ii) the solvent permittivity, ε, which is able to properly modulate merely electrostatic effects of aspecific type;

(iii) the Hildebrand parameter, δ_H², which expresses the cohesive pressure of the solvent and thus the energy changes due to the generation of solvent cavities in which hosting the species involved into the analysed process.

We expected that the Δμ_TS-GS variations would be specifically monitored by the first two kinds of descriptors, while the ΔV_TS-GS changes by the highly specialized δ_H² parameter. The values of the three selected solvent parameters are collected in Table 2. More details on the performed LSER analyses are given in Experimental section and ESI.†

Table 2 Descriptor of solvation interactions employed in the LSER analyses

	Epsilon	δH^2	π*
CHCl3	4.8	9.3	0.76
AA	20.7	10.3	0.742
EA	6	9.1	0.545
IPA	19.9	10	0.505

---

LSER results obtained on compounds L-1 and L-3

Good correlations were obtained from the kinetic data for compounds L-1 (R² = 0.9992, entry 4 of Table S3†) and L-3 (R² = 0.9956, entry 14 of Table S3†) when both descriptors π* and δ_H² were used, according to eqn (3) and (4), respectively:

ΔG^#_L→M = 25.60 − 7.04 × π* + 0.72 × δ_H² (3)

ΔG^#_L→M = 26.15 − 8.18 × π* + 0.59 × δ_H² (4)

The ΔG^#_L→M value decreases on increasing the dispersive, inductive and electrostatic solute–solvent interactions (negative value of the coefficient of the parameter π*) while the increase of cavitational energy has the effect to increase the energy barrier (positive value of the coefficient of the parameter δ_H²). This is coherent with the increase, in the ring-opening stage, of dipolarity and molecular volume of the TS with respect to the GS, as suggested by DFT calculations.

In a next step the solvent permittivity, ε, has been taken into account, instead of the π* descriptor, in the multiparametric analysis (eqn (5) and (6) for compound L-1 and L-3, respectively) and good correlations have been obtained, although lower than in eqn (3) and (4) (Table S3 in ESI†).

ΔG^#_L→M = 74.37 + 0.40 × ε − 5.32 × δ_H² (R² = 0.9942) (5)

ΔG^#_L→M = 82.18 + 0.46 × ε − 6.35 × δ_H² (R² = 0.9701) (6)

It is important to stress as, in spite of their ineffectiveness as isolated descriptors of the solvent effects in monitoring the barrier, the parameters ε and δ_H² can instead act effectively and in complementary fashion when employed together.

In fact, both the descriptors were evaluated as statistically significant, with t_i values very close one to each other (i.e. of similar statistical weight, see entries 5 and 15 of Table S3†).

In conclusion, the greater is the ability of the solvent to establish good aspecific electrostatic interactions with the solute and to keep down the cost of energy need to host the solubilized molecules, the greater is the rate of the diastereomerization of the compounds L-1 and L-3. In this context, evidently, dispersive and inductive interactions play a minor role and act in a similar extent in all solvents.

Eventually, an approximate quantification of the role played by the four considered solvents in affecting the relevant L-x → M-x isomerization barriers has been achieved as the percentage contribution that the ∑f_iD_i amount affords to the ΔG^#_L→M quantities. Thus, for the case of the L-1 → M-1 and L-3 → M-3 processes the ∑f_iD_i contribution was assessed in the average value of ∼30%.

LSER and DFT results obtained on compound L-2

For compound L-2, the employment of the couples of π*–δ_H² and ε–δ_H² descriptors inside equations of type 2 was not sufficiently significant under a statistical point of view (entry 9 and 10 of Table S3 in ESI†). This is in agreement with the different mechanism suggested by the theoretical investigation for the diastereomerization of L-2 with respect to L-1 and L-3.

However, the good correlation obtained from the LSER analysis when π* was used as the unique descriptor (R² = 0.9378, entry 6 of Table S3†) suggests the involvement, in the slow step of the L-2 → M-2 isomerization reaction, of generic electrostatic, dispersive and inductive solute–solvent interactions which, evidently, act in a different way on the GS and TS structures.

Indeed, the assessed increase of the surface area on passing from the GS geometry L-2-ZW-S_eq to the related TS by ZW-F-rotation (see the last part of the subsection “Diastereomerization mechanism of compound L-2”), is coherent with the establishment of more extensive inductive and dispersive solute–solvent interactions for TS than for GS. This can account for the decrease of the ΔG^#_L→M barrier experimentally observed in response to an increase of the polarizability of the solvent, as suggested by the descriptor π* in the LSER analysis. In order to rationalize, by theoretical approach, the experimental kinetic trend of the L-2 → M-2 isomerization in the different solvents, the GS and TS geometries involved in Step II of the process and modelled in chloroform, were optimized also in ethyl acetate and 2-propanol (Table S2 in ESI†). The calculated values of energy barriers in these additional solvents (ΔG^#EA_L→M = 26.49 kcal mol⁻¹ and ΔG^#IPA_L→M = 28.00 kcal mol⁻¹) are in very good agreement with the experimental data, differing by only −0.35 and +0.22 kcal mol⁻¹, respectively. These results, again, play in favour of a different slow step for the L-2 → M-2 isomerization, which do not involve the ring-opening. Finally, in comparison with the equivalent kind of information already achieved for the L-1 → M-1 and L-3 → M-3 processes, the percentage contribution that the fπ* term of each solvent provides to the relevant ΔG^#_L→M barrier is a bit smaller, within the range 14–23%.

Assessment of the stereolability affecting compounds L-1, L-2 and L-3 in water

In consideration of the possible applications that the here studied spiro-1,3,4-thiadiazoline derivatives could have as potential drugs, we found interesting to perform a final estimation of their tendency to undergo irreversible diastereomerization from the L to the M forms in water, that is to say, in the solvent that any drug met in physiological conditions. The intent was achieved by re-optimizing through DFT calculations in water the geometries of the GS and TS states involved in the same rate-limiting steps already identified for each of them in chloroform solution. The achieved findings (Table S2†) suggested that, with respect to what experimentally observed in the four investigated media, water may appreciably decrease the activation barrier characterizing the Step I of the irreversible L → M interconversion of compound L-1 (ΔE^#_L→M = 26.6 kcal mol⁻¹) and compound L-3 (ΔE^#_L→M = 24.9 kcal mol⁻¹, passing through the continuous conversion of L-3-S_ax in L-3-S_eq). Instead, for the species L-2 a moderate reduction of the assessed ΔE^#_L→M quantity was found in water only with respect to the equivalent data measured in the solvents EA and IPA (ΔE^#_L→M = 26.3 kcal mol⁻¹). The substantial reliability of the estimated barriers is confirmed by their compatibility with the relevant trends assessable through the equations derived by LSER analyses that involve or not the new activation data calculated in water (i.e. eqn (3) and (4) or the new ones obtainable through multiple regressions inclusive of the just discussed barriers in water). In the whole, then, it seems possible to generalize that also in water, at room temperature, the studied L-x compounds are expected to effectively retain their configuration at C_spiro carbon, being the shorter half-life time of diastereomerization (i.e. that of L-3) evaluable as amounting to 4.6 days.

Conclusions

An experimental and theoretical in-depth study has been performed in order to achieve kinetic and mechanistic information about the stereolability of three chiral 1,3,4-thiadiazoline-spiro-cyclohexyl derivatives (L-1, L-2 and L-3 of Fig. 1).

The rationalization of the obtained kinetic data has been supported by DFT calculations, pointing out that two different slow steps for the diastereomerization reaction could be involved, depending on type and position of the substituent alkyl group on the cyclohexane moiety.

The slow step can be identified with the heterocycle ring-opening, for the compounds L-1 and L-3 (i.e. the Step I of the overall process) or with the 180° rotation of the zwitterionic framework resulting from the heterocycle ring-opening (still linked to the C_spiro atom) for the compound L-2 (i.e. the Step II of the overall process).

The solvent effects on the rate of the isomerisation reactions have been rationalized by LSER analyses and DFT calculations. The obtained results suggest that for compounds L-1 and L-3 the increase of dipolarity and molecular volume resulting from the heterocycle ring-opening acts in opposition one to each other in affecting the ΔG^#x_L→M barrier, with the second one (which slows down the process) slightly prevailing over the first one. Overall, in apolar solvents the stereolability of the investigated compounds increases while in protic solvents the activation barriers of the diastereomerization reactions increases. The compound L-2 behaves differently. LSER data suggested that, for this species, the increase in stereolability, by changing from less to more polarizable solvents, depends on differential dispersive and inductive interactions established by the solvent with the ground and the transition state geometries of the slow Step II of the reaction pathway. As indicated by calculations, probably this is due to the increase of surface area suffered by the GS structure when it approaches its related TS.

We believe that the here presented elucidation of the reaction mechanism, of the effects that structural factors can exert over it, as well as of the influence that a change of solvent may have on the diastereomerization barrier of the species formed under kinetic control, may be of great importance in the perspective to make rational the design of new chiral bioactive thiadiazoline-spiro-cyclohexyl derivatives. Indeed, a stereoselective synthesis of their diastereomeric forms become possible simply switching the reaction conditions from a kinetic to a thermodynamic control, and vice versa, making also possible an effective modulation of their spiro-junction lability by planning appropriate substitutions on the cyclohexane ring.

Acknowledgements

This work was conducted with financial support from the Sapienza University contract no. C26A143MYA (2014).

Notes and references

1. A. C. Albert, F. G. Joyce, D. S. Arthur, R. M. Donald, F. S. William, B. S. Joseph, J. G. Martin, W. F. Robert and D. M. Gerald, J. Med. Chem., 1976, 19, 1142.
2. H. Cederlund and P.-A. Mardh, J. Antimicrob. Chemother., 1993, 32, 355.
3. R. Rios-Santamarina and J. Garcia-Domenech, Eur. J. Pharm. Sci., 2004, 22, 271.
4. R. S. Vartanyan, J. Pharm. Chem., 1984, 18, 736.
5. H. I. El-Subbagh, S. M. Abu-Zaid, M. A. Mahran, F. A. Badria and A. M. Al-obaid, J. Med. Chem., 2000, 43, 2915.
6. I. G. Mobio, A. T. Soldatenkov, V. O. Federov, E. A. Ageev, N. D. Sergeeva, S. Lin, E. E. Stashenku, N. S. Prostakov, E. Andreeva and L. Khim, Farm. Zh., 1989, 23, 421.
7. A. R. Katritzky and W. J. Fan, J. Org. Chem., 1990, 55, 3205.
8. A. Naya, M. Ishikawa, K. Matsuda, K. Ohwaki, T. Saeki, K. Naguchi and N. Ohtake, Bioorg. Med. Chem., 2003, 11, 875.
9. R. V. Perumal, M. Adiraj and P. Shanmugapandiyan, Indian Drugs, 2001, 38, 156.
10. K. Chibale, M. Visser, D. von Schalkwyk, P. J. Smith, A. Saravanamuthu and A. H. Fairlamb, Tetrahedron, 2003, 59, 2289.
11. A. Naya, Y. Sagara, K. Ohwaki, T. Saeki, Y. Ichasawa, K. Naguchi and N. Ohtake, J. Med. Chem., 2001, 44, 1429.
12. C. R. Ganellin and R. G. W. Spickett, J. Med. Chem., 1965, 8, 619.
13. S. Chatterjee, M. Iqbal, J. C. Kauer, J. P. Mallamo, S. Senadhi, S. Mallya, D. Bozyczko-Coyne and R. Siman, Bioorg. Med. Chem. Lett., 1996, 6, 1619.
14. J. Wichmann, K. Bleicher, E. Vieira, T. Woltering, F. Knoflach and V. Mutel, Farmaco, 2002, 57, 989.
15. J. W. Daly, in The Alkaloids, ed. G. A. Cordell, Academic press, Sandiego, CA, 1998, p. 141.
16. C.-P. Wu, D. A. Van Schalkwyk, D. Taylor, P. J. Smith and K. Chibale, Int. J. Antimicrob. Agents, 2005, 26, 170.
17. E. Vieira, J. Huwyler, S. Jolidon, F. Knoflach, V. Mutel and J. Wichmann, Bioorg. Med. Chem., 2005, 15, 4628.
18. T. Shiro, T. Fukaya and M. Tobe, Eur. J. Med. Chem., 2015, 97, 397.
19. S. Carradori, R. Cirilli, S. Dei Cicchi, R. Ferretti, S. Menta, M. Pierini and D. Secci, J. Chromatogr. A, 2012, 1269, 168.
20. J. J. Li, X. M. Liang, S. H. Jin, J. J. Zhang, H. Z. Yuan, S. H. Qi, F. H. Chen and D. Q. Wang, J. Agric. Food Chem., 2010, 58, 2659.
21. R. Crossley, Chirality and the Biological Activity of Drugs, CRC Press, New York, 1995.
22. H.-J. Schneider and A. K. Yatsimirsky, Principles and Methods in Supramolecular Chemistry, Wiley & Sons, New York, 2000.
23. M. I. Page and W. P. Jencks, Proc. Natl. Acad. Sci. U. S. A., 1971, 68, 1678.
24. M. I. Page, Chem. Soc. Rev., 1973, 2, 295.
25. W. P. Jencks, Proc. Natl. Acad. Sci. U. S. A., 1978, 78, 4046.
26. G. Haberhauer, S. Ernst and C. Wilch, Chem.–Eur. J., 2011, 17, 8643.
27. H. Ito, T. Abe and K. Saigo, Angew. Chem., Int. Ed., 2011, 50, 7144.
28. I. Alkorta and J. Elguero, Tetrahedron: Asymmetry, 2010, 21, 437.
29. G. S. Singh and Z. Y. Desta, Chem. Rev., 2012, 112, 6104.
30. B. Wunsch, Curr. Pharm. Des., 2012, 18, 930.
31. L. Zhou, J. Zhao, T. Shan, X. Cai and Y. Peng, Mini-Rev. Med. Chem., 2010, 10, 977.
32. A. I. Almansour, R. S. Kumar, F. Beevi, A. N. Shirazi, H. Osman, R. Ismail, T. S. Choon, B. Sullivan, K. McCaffrey, A. Nahhas, K. Parang and M. A. Ali, Molecules, 2014, 19, 10033.
33. H. N. Hafez, M. I. Hegab, I. S. Ahmed-Farag and A. B. el-Gazzar, Bioorg. Med. Chem. Lett., 2008, 18, 4538.
34. S. Umamatheswari, B. Balaji, M. Ramanathan and S. Kabilan, Bioorg. Med. Chem. Lett., 2010, 20, 6909.
35. C. De Monte, S. Carradori, D. Secci, M. D'Ascenzio, P. Guglielmi, A. Mollica, S. Morrone, S. Scarpa, A. M. Aglianò, S. Giantulli and I. Silvestri, Eur. J. Med. Chem., 2015, 105, 245.
36. S. Menta, S. Carradori, D. Secci, C. Faggi, L. Mannina, R. Cirilli and M. Pierini, J. Org. Chem., 2015, 80, 11932.
37. E. Eliel, S. H. Wilen and L. N. Mander, Stereochemistry of Organic Compounds, Wiley & Sons, New York, 1993.
38. M. Anteunis, D. Tavernier and F. Borremans, Bull. Soc. Chim. Belg., 1966, 75, 396.
39. T. Benincori, V. Bonometti, R. Cirilli, P. R. Mussini, A. Marchesi, M. Pierini, T. Pilati, S. Rizzo and F. Sannicolò, Chem.–Eur. J., 2013, 19, 165.
40. B. Gallinella, L. Bucciarelli, L. Zanitti, R. Ferretti and R. Cirilli, J. Chromatogr. A, 2014, 1339, 210.
41. R. Ferretti, B. Gallinella, F. La Torre, L. Zanitti, L. Turchetto, A. Mosca and R. Cirilli, J. Chromatogr. A, 2009, 1216, 5385.
42. T. Zhang, D. Nguyen, P. Franco, Y. Isobe, T. Michishita and T. Murakami, J. Pharm. Biomed. Anal., 2008, 46, 882.
43. O. Tishchenko and D. G. Truhlar, J. Phys. Chem. Lett., 2012, 3, 2834.
44. I. Hermans, P. Jacobs and J. Peeters, Phys. Chem. Chem. Phys., 2008, 10, 1125.
45. Y. Zhao and D. G. Truhlar, Theor. Chem. Acc., 2008, 120, 215.
46. R. Bernini, F. Crisante, P. Gentili, S. Menta, F. Morana and M. Pierini, RSC Adv., 2014, 4, 8183.
47. G. Cancelliere, A. Ciogli, I. D'Acquarica, F. Gasparrini, J. Kocergin, D. Misiti, M. Pierini, H. Ritchie, P. Simone and C. Villani, J. Chromatogr. A, 2010, 1217, 990.
48. R. Cirilli, R. Costi, R. Di Santo, F. La Torre, M. Pierini and G. Siani, Anal. Chem., 2009, 81, 3560.
49. R. Cirilli, R. Ferretti, F. La Torre, D. Secci, A. Bolasco, S. Carradori and M. Pierini, J. Chromatogr. A, 2007, 1172, 160.
50. C. Wolf, Dynamic Stereochemistry of Chiral Compounds: Principles and Applications, RSC Publishing, London, 2008.
51. C. Wolf, Chem. Soc. Rev., 2005, 34, 595.
52. A. Fontana, P. De Maria, G. Siani, M. Pierini, S. Cerritelli and R. Ballini, Eur. J. Org. Chem., 2000, 1641.
53. A. Dalla Cort, F. Gasparrini, L. Lunazzi, L. Mandolini, A. Mazzanti, C. Pasquini, M. Pierini, R. Rompietti and L. Schiaffino, J. Org. Chem., 2005, 70, 8877.
54. F. Gasparrini, M. Pierini, C. Villani, P. De Maria, A. Fontana and R. Ballini, J. Org. Chem., 2003, 68, 3173.
55. F. Gasparrini, I. D'Acquarica, M. Pierini and C. Villani, J. Sep. Sci., 2001, 24, 941.
56. W. Braun, J. T. Herron and D. K. Kahaner, Int. J. Chem. Kinet., 1988, 20, 51.
57. M. J. Kamlet, J.-L. M. Abboud and R. W. Taft, An Examination of Linear Solvation Energy Relationships, Progress in Physical Organic Chemistry, Wiley & Sons, 1981, vol. 13.
58. M. J. Kamlet, J.-L. M. Abboud and R. W. Taft, J. Am. Chem. Soc., 1977, 99, 6027.
59. D. Kotoni, M. Piras, W. Cabri, F. Giorgi, A. Mazzanti, M. Pierini, M. Quaglia, C. Villani and F. Gasparrini, RSC Adv., 2014, 4, 32847.
60. W. Cabri, I. D'Acquarica, P. Simone, M. Di Iorio, M. Di Mattia, F. Gasparrini, F. Giorgi, A. Mazzanti, M. Pierini, M. Quaglia and C. Villani, J. Org. Chem., 2011, 76, 1751.

---

Footnotes

† Electronic supplementary information (ESI) available: Table of absolute energy stabilities computed for compounds L-1/L-3 and models TsC; table of results of the LSER analyses carried out on compounds L-1/L-3; Cartesian coordinates of the computed GS and TS structures. See DOI: 10.1039/c6ra13727j

‡ Sergio Menta and Simone Carradori contributed equally to this work.

---
