A straightforward and versatile protocol for the direct conversion of benzylic azides to ketones and aldehydes

Davir González-Calderón*, Marco A. Morales-Reza, Eduardo Díaz-Torres, Aydeé Fuentes-Benítes and Carlos González-Romero*
Departamento de Química Orgánica, Facultad de Química, Universidad Autónoma del Estado de México, Paseo Colón/Paseo Tollocan s/n, Toluca, Estado de México 50120, Mexico. E-mail: cgonzalezr@uaemex.mx; qfb_dgonzalez@yahoo.com.mx

Received 19th May 2016 , Accepted 28th August 2016

First published on 29th August 2016


Abstract

The synthesis of carbonyl compounds from benzylic azides through benzylideneamides is described for the first time. NaH-mediated activation of benzyl azides allows a rapid water-promoted oxidation under a facile protocol with good yields.


The chemistry of organic azides is very well-known. Books1 and reviews2 have compiled the role of these valuable nitrogen compounds as mediators between chemistry, medicine, biology and materials science. As synthetic intermediates, organic azides can be coupled to other substrates (e.g. 1,3-dipolar cycloaddition)3 or directly converted to other functional groups, for example by reduction (e.g. Staudinger reaction)4 or by an oxidation process. Regarding the latter, there are reports on obtaining nitro compounds5 (oxidation of the –N3 moiety) as well as synthesizing nitriles6 (oxidation of benzylic carbon). In this context, synthetic strategies to achieve carbonyls from azido groups (Scheme 1)7 (an inverse reaction as proposed by Ghorai)8 are still challenging and attractive for organic chemists. Unfortunately, all such strategies developed to date [eqn (a)–(f)] suffer from serious drawbacks, including the use of metals as reagents that are very expensive and/or unconventional and require the use of peroxides, as well as cumbersome experimental procedures or high temperatures that are particularly disadvantageous for large-scale reactions.
image file: c6ra13088g-s1.tif
Scheme 1 Recent advances in the synthesis of carbonyl derivatives from azide compounds.

Synthetic strategies involving the acidic hydrolysis of enamines [Scheme 2, eqn (g)] or imines [eqn (h)] generated in situ from azide compounds have been reported in literature. Hendrickson (1977)9a and Hassner (1979)9b published the direct conversion of vinyl azides to carbonyls via enamines in good yields. Although the thermal, photolytic and acidic decomposition of organic azides to imines has been studied extensively10,12g their applications for obtaining carbonylic compounds11 are rather limited. The high temperatures (ca. 300 °C) required for a thermal process in the synthesis of alde-hydes from alkylic azides12a (inefficient for benzylic azides)12b preclude the use of this type of reaction for most substrates. In contrast, a photolytic process using primary alkyl azides12c–f occurs at or below room temperature. However, its use is limited by very low yields (18–50%) from a complex reaction mixture. Finally, trace amounts of carbonyls have been observed under strong acid conditions.12g–i The evident inefficiency of all these methods as synthetic strategies to afford carbonyls from azides via imines has led to complete disinterest and abandonment of their use, a fact that has been demonstrated by the absence of studies in contemporary literature.13


image file: c6ra13088g-s2.tif

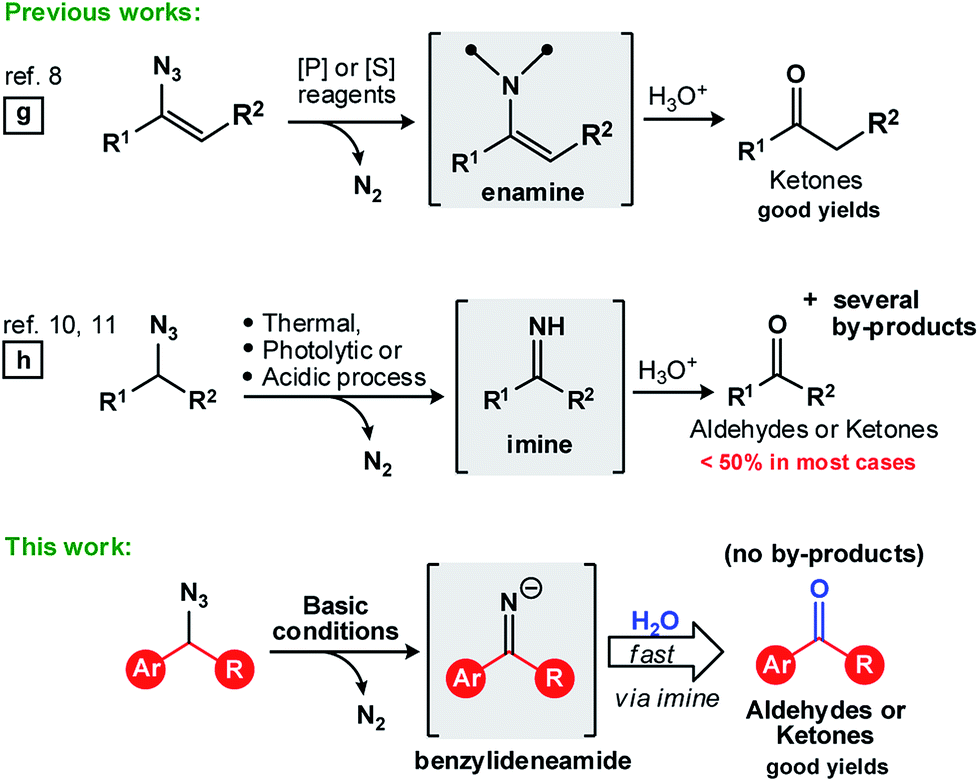

Scheme 2 Acidic hydrolysis of enamines (efficient) or imines (inefficient) generated in situ from azide derivatives representing synthetic strategies for the attainment of carbonyls.

Previously Manetsch14a and Wu/Pan14b demonstrated the tBuOK-promoted attainment of PhCH[double bond, length as m-dash]N (benzylideneamide) from PhCH2N3 as well as its inefficient use for coupling the latter with carbonyl compounds. We herein describe the utility of benzylideneamides for directly converting benzyl azides to carbonyl derivatives with good yields.

During one of our current research programs, focused on the development of novel methodologies for the construction of 1,2,3-triazole moieties through base-promoted azide-ketone cycloadditions15 we observed that when NaH was subjected to our study, benzaldehyde was isolated as by-product along with the corresponding triazole. Intrigued by this outcome, we decided to do follow-up investigation this fact in greater detail.

Firstly, in absence of ketones (in order to avoid the formation of the corresponding triazole) good yields were observed at room temperature with a reaction time of 4 h. Secondly, the effects of solvents and bases on compound 1a were observed in optimization studies (Table 1). The best performance was found for NaH (entry 9) in dimethyl sulfoxide using 2.0 equivalents of the base. The optimized conditions were then used to study the direct conversion of a variety of azides to aldehydes (Scheme 3).§ In order to evaluate the scope of our protocol, both benzylic and aliphatic azides were subjected to the optimized reaction conditions. Unfortunately, aliphatic compounds (4n and 4o) did not react to such conditions remaining intact in the flask even under thermal conditions (60 °C). Therefore, only benzylic azides were considered for the present study. An effective approach to the aldehyde derivatives was carried out with heterocycles (4j), strongly (4c, 4d, 4e, 4g and 4i) and weakly (4f) activated rings as well as weakly deactivated (4h) rings. The exception was strongly deactivated rings (4k, 4l and 4m).

Table 1 Optimization of reaction conditions: aEffect of solvent and base

image file: c6ra13088g-u1.tif

Entry Solvent Baseb Yieldc (%)
a Unless otherwise stated, reactions were run at room temperature for 8 h.b Unless otherwise stated, reactions were performed using 2.0 eq.c Yields refer to chromatographically pure isolated compounds.d These experiments were carried out at 60 °C.e Starting material was recovered.f Along with the corresponding starting material (∼15% recovered).
1 DMF anh. NaH 70
2 DMF anh. K2CO3 NRe
3d DMF anh. K2CO3 NRe
4 DMF anh. tBuOK 60
5 DMF anh. KOH Tracee
6d DMF anh. KOH 45
7 MeCN anh. NaH 35
8 DMSO anh. tBuOK 72
9 DMSO anh. NaH 80
10 DMSO anh. NaH (1.5 eq.) 74f
11 DMSO anh. NaH (1.0 eq.) 70f



image file: c6ra13088g-s3.tif

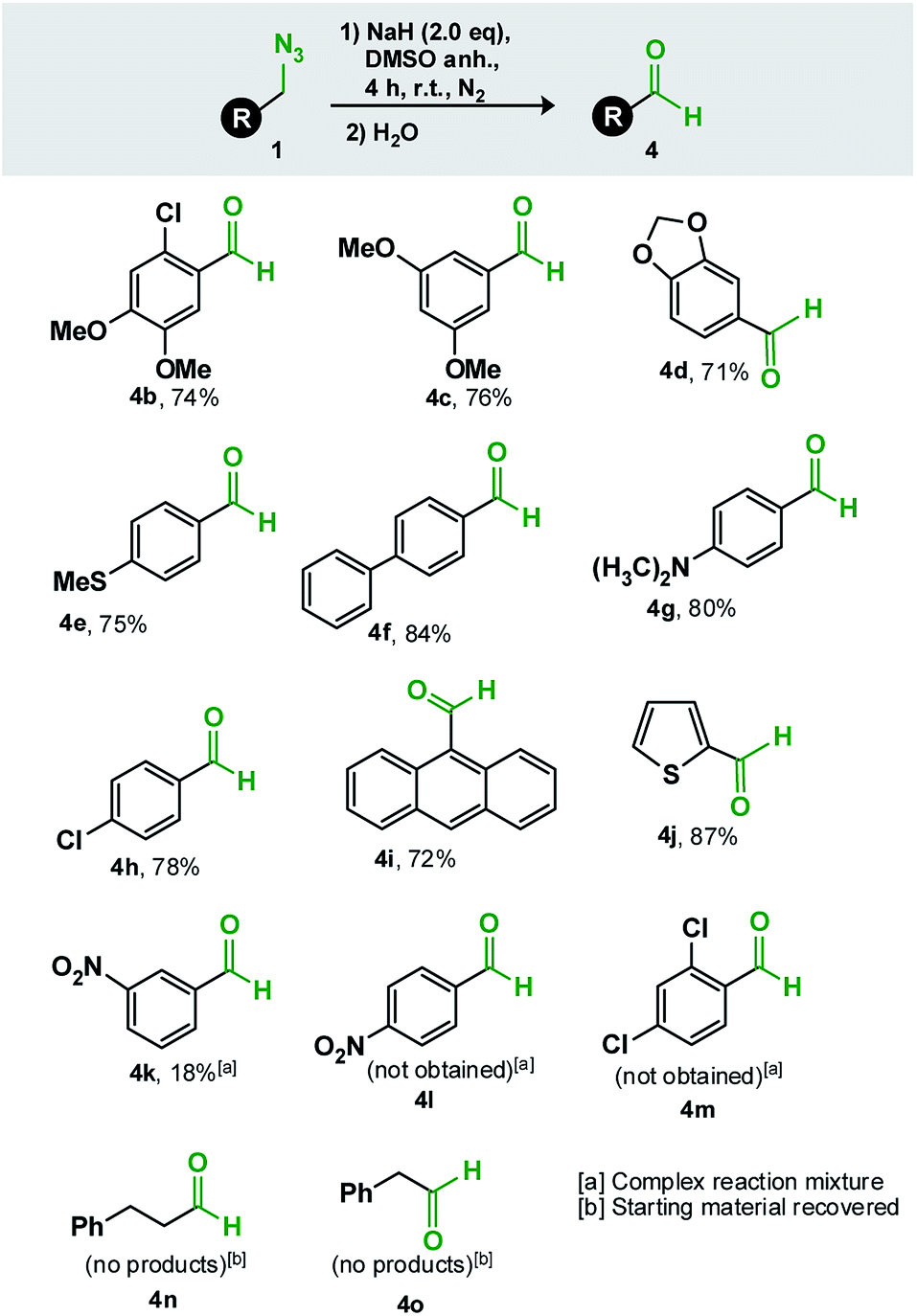

Scheme 3 Direct conversion of primary azides (1) to aldehydes (4) under optimized conditions. Reaction conditions: NaH (0.2 mmol) was added to a solution of compound 1 (0.1 mmol) in DMSO anh. Then, water was added in excess.

Encouraged by these outcomes, we decided to investigate another possibility: the synthesis of ketones using secondary azido groups. We therefore submitted the (1-azidoethyl)benzene [PhCH(N3)CH3] to the current protocol achieving the synthesis of the corresponding acetophenone (6a, Scheme 4) with good yields (85%). Therefore, a series of compounds containing secondary azides were studied under the same reaction conditions.§


image file: c6ra13088g-s4.tif
Scheme 4 Direct conversion of secondary azides (5) to ketones (6) under optimized condicions. Reaction conditions: NaH (0.2 mmol) was added to a solution of compound 5 (0.1 mmol) in DMSO anh. Then, water was added in excess.

At this stage we found the behavior similar to that observed for primary azides including the lack of reaction for aliphatic (6k) and strongly deactivated aromatic rings (6m). Two interesting exceptions were N[double bond, length as m-dash]C– [a strongly deactivating derivative (6b)] and F-substituted [a weakly deactivating derivative (6l)].

Finally, in order to demonstrate the scalability of such protocol, acetophenone (6a) was efficiently obtained (80%) from 10.0 g of the corresponding starting material [PhCH(N3)CH3]. The use of ice bath was necessary due to the exothermic reaction observed along with the intense bubbling (N2↑) during the addition (in five portions) of the hydride.

According to these results, a plausible mechanism is proposed in Scheme 5. The generation of benzylideneamide (III) by a base-promoted deprotonation of the benzyl azide (I) is supported by previous studies (Manetsch14a and Wu/Pan14b). We propose that this was followed by a rapid hydrolysis under basic conditions leading to the corresponding carbonyl group (VI).


image file: c6ra13088g-s5.tif

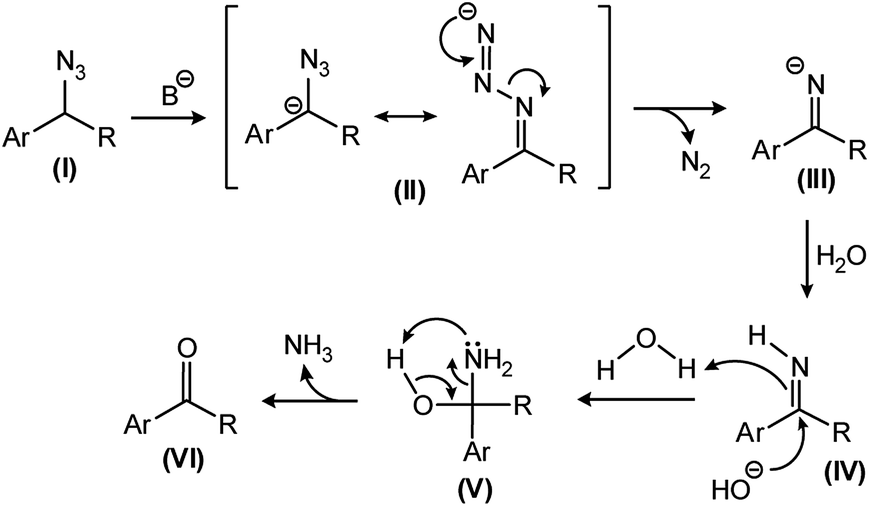

Scheme 5 Proposed plausible mechanism for direct conversion of benzyl azido groups to carbonyl derivatives.

Conclusions

In summary, we report that the benzyl azido group is directly converted to carbonyls in good yields through a rapid hydrolysis (basic conditions) of benzylideneamides generated readily/efficiently in situ. We are convinced that this synthesis is the most versatile reported so far as its scope includes both primary azides (affording aldehydes) and secondary azides (affording ketones) reacted with conventional reagents under a very simple procedure.

Acknowledgements

We gratefully acknowledge financial support from the Secretaría de Investigación y Estudios Avanzados-Universidad Autónoma del Estado de México (grant No. 3804/2014/CID) and CONACYT-Mexico (postgraduate scholarship No. 227581). The authors would like to thank the referee for valuable comments and suggestions, and M. N. Zavala-Segovia and L. Triana-Cruz (CCIQS UAEM–UNAM) for technical support.

Notes and references

  1. (a) Organic Azides: Syntheses and Applications, ed. S. Bräse and K. Banert, John Wiley & Sons, Ltd, Chichester, England, UK, 2010,  DOI:10.1002/9780470682517; (b) Supplement F2: The Chemistry of Amino, Nitroso, Nitro and Related Groups, ed. S. Pata, John Wiley & Sons, Ltd, Chichester, England, 1996, ISBN: 0-471-95171-4 Search PubMed.
  2. (a) S. Bräse, C. Gil, K. Knepper and V. Zimmermann, Angew. Chem., Int. Ed., 2005, 44, 5188–5240 CrossRef PubMed; (b) W. P. Fehlhammer and W. Beck, Z. Anorg. Allg. Chem., 2015, 641, 1599–1678 CrossRef CAS; (c) W. P. Fehlhammer and W. Beck, Z. Anorg. Allg. Chem., 2013, 639, 1053–1082 CrossRef CAS; (d) S. Chiba, Synlett, 2012, 23, 21–44 CrossRef CAS; (e) T. M. Klapötke, Chem. Ber., 1997, 130, 443–452 CrossRef; (f) E. F. V. Scriven and K. Turnbull, Chem. Rev., 1988, 88, 297–368 CrossRef CAS.
  3. For complete reviews about this issue see: (a) M. Meldal and C. W. Tornøe, Chem. Rev., 2008, 108, 2952–3015 CrossRef CAS PubMed; (b) C. G. S. Lima, A. Ali, S. S. van Berkel, B. Westermann and M. W. Paixão, Chem. Commun., 2015, 51, 10784–10796 RSC; (c) J. John, J. Thomas and W. Dehaen, Chem. Commun., 2015, 51, 10797–10806 RSC; (d) S. S. V. Ramasastry, Angew. Chem., Int. Ed., 2014, 53, 14310–14312 CrossRef CAS PubMed.
  4. For a complete review about this issue see: S. Liu and K. J. Edgar, Biomacromolecules, 2015, 16, 2556–2571 CrossRef CAS PubMed.
  5. (a) M. Carmeli and S. Rozen, J. Org. Chem., 2006, 71, 4585–4589 CrossRef CAS PubMed; (b) G. K. Surya Prakash and M. Etzkorn, Angew. Chem., Int. Ed., 2003, 43, 26–28 CrossRef PubMed.
  6. (a) J. He, K. Yamaguchi and N. Mizuno, J. Org. Chem., 2011, 76, 4552–4553 CrossRef PubMed; (b) M. Lamani, P. Devadig and K. R. Prabhu, Org. Biomol. Chem., 2012, 10, 2753–2759 RSC.
  7. (a) M. Maddani and K. R. Prabhu, Tetrahedron Lett., 2008, 49, 4526–4530 CrossRef CAS; (b) J. Risse, R. Scopelliti and K. Severin, Organometallics, 2011, 30, 3412–3418 CrossRef CAS; (c) H. P. Zhang, Y. Z. Dai and L. M. Tao, J. Chem. Res., 2011, 35, 720–722 CrossRef CAS; (d) L. Martínez-Sarti and S. Díez-González, ChemCatChem, 2013, 5, 1722–1724 CrossRef PubMed; (e) S. Giovani, R. Singh and R. Fasan, Chem. Sci., 2016, 234–239 RSC; (f) K. Alagiri and K. R. Prabhu, Tetrahedron, 2011, 67, 8544–8551 CrossRef CAS.
  8. S. Pramanik and P. Ghorai, Org. Lett., 2014, 16, 2104–2107 CrossRef CAS PubMed.
  9. (a) J. B. Hendrickson, K. W. Bair and P. M. Keehn, J. Org. Chem., 1977, 42, 2935–2936 CrossRef CAS; (b) B. A. Belinka and A. Hassner, J. Org. Chem., 1979, 44, 4712–4713 CrossRef CAS. Also see: (c) A. Hassner, E. S. Ferdinandi and R. J. Isbister, J. Am. Chem. Soc., 1970, 92, 1672–1675 CrossRef CAS.
  10. G. L'abbe, Chem. Rev., 1969, 69, 345–363 CrossRef.
  11. A. H. Haines, 5–Oxidation of Amines, Nitro Compounds and Azides, in Methods for Oxidation of Organic Compounds. Alcohols, Alcohol Derivatives, Alky Halides, Nitroalkanes, Alkyl Azides, Carbonyl Compounds Hydroxyarenes and Aminoarenes, Academic Press, United Kingdom, 1988, pp. 199–239,  DOI:10.1016/B978-0-12-315502-3.50010-8, see specially, pp. 233–234.
  12. (a) W. Pritzkow and D. Timm, J. Prakt. Chem., 1966, 32, 178–189 CrossRef CAS; (b) R. Kreher and D. Kühling, Angew. Chem., 1964, 76, 272 CrossRef CAS; (c) H. F. G. Beving, A. E. Luetzow and O. Theander, Carbohydr. Res., 1975, 41, 105–115 CrossRef CAS; (d) D. M. Clode and D. Horton, Carbohydr. Res., 1971, 17, 365–373 CrossRef CAS PubMed; (e) D. C. Baker and D. Horton, Carbohydr. Res., 1972, 21, 393–405 CrossRef CAS; (f) A. Reiser and H. M. Wagner, Photochemistry of the azido group, in The Azido Group, ed. S. Patai, John Wiley & Sons, Ltd, Chichester, UK, 1971, pp. 441–501,  DOI:10.1002/9780470771266.ch8; (g) P. A. S. Smith, J. Am. Chem. Soc., 1948, 70, 320–323 CrossRef CAS; (h) R. A. Abramovitch and E. P. Kyba, Decomposition of organic azides, in The Azido Group, ed. S. Patai, John Wiley & Sons, Ltd, Chichester, UK, 1971, pp. 221–329,  DOI:10.1002/9780470771266.ch5; (i) J. H. Boyer and F. C. Canter, Chem. Rev., 1954, 54, 1–57 CrossRef CAS , see specially p. 26 and references therein.
  13. Under this tenor, during the correction of the manuscript, an interesting work was published involving the synthesis of α-fluoroketones from vinyl azides: S. W. Wu and F. Liu, Org. Lett., 2016, 18, 3642–3645 CrossRef CAS PubMed.
  14. (a) S. S. Kulkarni, X. Hu and R. Manetsch, Chem. Commun., 2013, 49, 1193–1195 RSC; (b) Z. M. Yan, N. Wu, D. Liang, H. S. Wang and Y. M. Pan, Org. Lett., 2014, 16, 4048–4051 CrossRef CAS PubMed.
  15. (a) D. González-Calderón, A. Fuentes-Benítes, E. Díaz-Torres, C. A. González-González and C. González-Romero, Eur. J. Org. Chem., 2016, 668–672 CrossRef; (b) D. González-Calderón, I. Santillán-Iniesta, C. A. González-González, A. Fuentes-Benítes and C. González-Romero, Tetrahedron Lett., 2015, 56, 514–516 CrossRef; (c) D. González-Calderón, J. G. Aguirre-De Paz, C. A. González-González, A. Fuentes-Benítes and C. González-Romero, Tetrahedron Lett., 2015, 56, 1713–1715 CrossRef.
  16. A. S. Thompson, G. R. Humphrey, A. M. DeMarco, D. J. Mathre and E. J. J. Grabowski, J. Org. Chem., 1993, 58, 5886–5888 CrossRef CAS.
  17. D. Enders and D. Klein, Synlett, 1999, 719–720 CrossRef CAS.
  18. C. A. González-González, A. Fuentes-Benítez, E. Cuevas-Yáñez, D. Corona-Becerril, C. González-Romero and D. González-Calderón, Tetrahedron Lett., 2013, 54, 2726–2728 CrossRef.

Footnotes

Electronic supplementary information (ESI) available: Characterization data and copies of 1H-NMR/13C-NMR of all compounds. See DOI: 10.1039/c6ra13088g
Azide compounds (starting materials) were obtained from the corresponding alcohols,16 halides17 or tosylates18 according to synthetic protocols described in literature.
§ General experimental procedure for the direct conversion of azides to carbonyls: NaH (0.4 mmol, 60% dispersion in mineral oil) was added to a solution of the azide derivative (0.2 mmol) in anhydrous dimethyl sulfoxide (ca. 2.0 mL mmol−1). The solution was stirred at room temperature for 4 h under an inert atmosphere. Brine (ca. 20.0 mL) was added to the reaction stirring vigorously for 15 min. Then, the mixture was washed with ethyl acetate (3 × 8 mL). The organic layer was dried (Na2SO4), and the solvent was evaporated under reduced pressure. The crude extract was purified by flash column chromatography to afford the corresponding carbonyl derivative.
