Yu Yan‡
a,
Fan Wu‡a,
Jiawei Qin‡a,
Haijun Xub,
Maohu Shia,
Jingfeng Zhoua,
John Mack*c,
Gertrude Fomoc,
Tebello Nyokongc and
Zhen Shen*a
aState Key Laboratory of Coordination Chemistry, School of Chemistry and Chemical Engineering, Nanjing University, Nanjing, 210046, P. R. China. E-mail: zshen@nju.edu.cn
bCollege of Chemical Engineering, Jiangsu Key Lab of Biomass-based Green Fuels and Chemicals, Nanjing Forestry University, Nanjing 210037, P. R. China
cDepartment of Chemistry, Rhodes University, Grahamstown 6140, South Africa. E-mail: j.mack@ru.ac.za
First published on 26th July 2016
A series of new corrole–BODIPY dyads bridged by ethynyl linker moieties have been synthesized in high yields and fully characterized. The direction of energy transfer upon electronic excitation has been explored, and was found to be dependent on the number of corrole rings and their connection position on the BODIPY core. Intense bands in the absorption spectrum cover most of the visible region, which is potentially advantageous for capturing solar energy. Studies on the excitation spectra and lifetimes suggest that the energy transfer efficiency between the BODIPY and corrole moieties reaches almost 85%, which appears to be efficient in the context of energy transfer within the singlet manifold.
Recently, there has been a strong research focus on the synthesis of corrole–BODIPY dyads, which can act as light-harvesting antennas for the photochemical conversion of solar energy. A number of corrole–BODIPY dyads have been reported with various covalent linkers, such as direct meso-β bonds9 and triazole moieties.10 In this study, the synthesis and spectroscopic characterization of new covalently linked corrole derivatives bridged by ethynyl linkage is reported. As anticipated, these corrole–BODIPY conjugates absorb strongly in the 400–700 nm region, across almost the entire visible region. To the best of our knowledge, no previous examples of ethynyl-linked corrole–BODIPY conjugates have been reported. Energy-transfer can occur when a dyad compound consisting of two or more fluorophores are connected with each other.11 One unit acts as an energy donor and the other as an acceptor. The energy absorbed from an incident photon of light by the donor is quickly transferred to the acceptor, resulting in emission at a longer wavelength. Many factors can influence the process of energy-transfer, such as differences in the linker groups that are used,12 the spectral overlap of the donor emission with the acceptor absorbance, the effectiveness of other relaxation pathways13 and the relative orientation of the donor and acceptor moieties. In this work, the photophysical properties of a series of novel corrole–BODIPY conjugates with ethynyl linkers are systematically investigated in order to elucidate the energy transfer process and interactions between the donor and acceptor chromophores.
λabs (ε/105 M−1 cm−1) | λem(max) (nm) | ϕa | ||||
---|---|---|---|---|---|---|
Corrole | BODIPY | Corrole | BODIPY | |||
B band | Q band | |||||
a Tetraphenylporphyrin was used as the standard (ϕF = 0.11), λex = 422 nm.b Total quantum yield (BODIPY and corrole). | ||||||
1 | 505 (1.06) | 522 | 0.64 | |||
2 | 567 (0.95) | 582 | 0.61 | |||
3 | 637 (1.46) | 654 | 0.19 | |||
4 | 422 (1.37) | 564 (0.22) | 664 | 0.17 | ||
615 (0.13) | ||||||
5 | 427 (1.60) | 566 (0.24) | 505 (1.23) | 664 | 521 | 0.15b |
615 (0.14) | ||||||
6 | 424 (1.12) | 613 (0.17) | 578 (1.47) | 664 | 594 | 0.16b |
7 | 427 (2.58) | 610 (0.64) | 658 (1.29) | 676 | 0.36b |
![]() | ||
Fig. 2 The angular nodal patterns and MO energies of the HOMO and LUMO of 1 and the a, s, −a and −s MOs of 4 at an isosurface value of 0.04 a.u. Trends in the MO energies of 1–7. The HOMO and LUMO of the BODIPY moiety are highlighted with gray circles, while crosses and black triangles are used for the a/−a and s/−s MOs of Michl's perimeter model,17 respectively. The HOMO–LUMO gap for the BODIPY moiety and the average HOMO–LUMO gap taking into account the a, s, −a and −s MOs are highlighted with blue and red diamonds, respectively, and are plotted against a secondary axis. Structures with the non-protonated pyrrole nitrogens adjacent to the direct pyrrole–pyrrole ring are denoted as 4a, 5a, 6a, 7a, while those with the non-protonated pyrrole nitrogens adjacent to the y-axis meso-phenyl ring are denoted as 4b, 5b, 6b and 7c. 7b is a structure with both types of NH-tautomers. |
![]() | ||
Fig. 3 The calculated electronic absorption spectra calculated for the B3LYP optimized geometries of 1–7 by using the CAM-B3LYP functional with 6-31G(d) basis sets. The observed spectra are plotted against a secondary axis. The Q and B bands of the corrole rings are highlighted with red diamonds, while blue diamonds are used to denote the main spectral band of the BODIPY chromophore. The different possible NH-tautomers for the corrole rings are determined. Structures with the non-protonated pyrrole nitrogens adjacent to the direct pyrrole–pyrrole ring are denoted as 4a, 5a, 6a, 7a, while those with the non-protonated pyrrole nitrogens adjacent to the y-axis meso-phenyl ring are denoted as 4b, 5b, 6b and 7c. 7b is a structure with both types of NH-tautomers. The details of the calculations are provided as ESI.† |

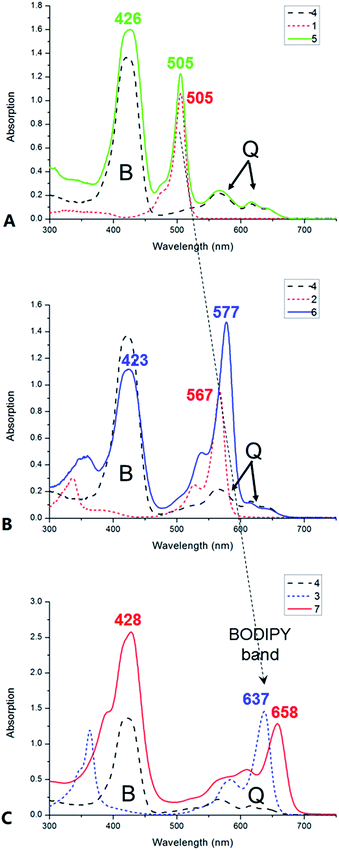

When 4-iodo-styryl groups are added at the 3,5-positions of the BODIPY core to form 2 and 3, there is a significant narrowing of the HOMO–LUMO gap due to the extension of the π-conjugation system, and this results in a marked red-shift of the main BODIPY spectral band (Fig. 2 and 3). Similar trends are observed in the energies of the MOs derived from the HOMO and LUMO of the BODIPY core in the electronic structures of 6 and 7 and this accounts for the observed red shift of the intense absorption band that is associated with the BODIPY moiety from 505 nm for 5, to 577 and 658 nm for 6 and 7 (Fig. 1 and 3), respectively.
In contrast, the introduction of the BODIPY core and ethynyl linker has a smaller effect on the energies of the frontier π-MOs of corrole ring relative to those of corrole 4, and this means the main spectral bands associated with the corrole ring remain largely unchanged in the spectra of dyads 5–7. The electronic structures of corroles result from perturbations to an ML = 0, ±1, ±2, ±3, ±4, ±5, ±6, ±7 sequence of the MOs of a parent D15h symmetry C15H153− perimeter corresponding to the inner ligand perimeter.19 The HOMO and LUMO of the parent C15H153− perimeter have ML = ±4 and ±5 nodal properties, respectively. In the context of Gouterman's 4-orbital model20 this results in allowed B (or Soret) and forbidden Q bands based on ΔML = ±1 and ±9 transitions, respectively, in the 400–450 and 500–650 nm regions. Michl introduced an a, s, −a and −s nomenclature for MOs whether there is a π-system (Fig. 2).21 Since the ethynyl linker moiety is attached to a meso-aryl ring that does not lie coplanar with the corrole ring (Fig. 4), there is an inductive rather than a mesomeric effect on the frontier π-MOs of the corrole ring, which tends to affect the energy of each MO in a similar manner regardless of the size of the MO coefficients at the point of attachment, in marked contrast with what happens with the HOMO and LUMO of the BODIPY core. As a result, the wavelengths of the main corrole bands remain largely unchanged from those of 4. For example the B band of 4 at 421 nm shifts to 426, 423 and 428 nm (Fig. 1 and 3), respectively. The possible effect of NH-tautomerism was taken into consideration, based on whether the nonprotonated pyrrole nitrogen is adjacent to the non-fluorinated meso-aryl moiety. The possible tautomers were found to have energy differences of less than 1 kcal mol−1. Significant differences are predicted in the energies of the Q and B bands (Fig. 3), as has been reported previously for free base corroles.22
Transient fluorescence spectra were recorded by the method described in the Experimental section (provided as ESI†). Fluorescence quantum yields were determined using free base tetraphenylporphyrin as a standard (ϕF = 0.11).23 The fluorescence emission maxima (λem), quantum yields (ϕ) and lifetime (τ) values in toluene are summarized in Tables 1 and 2. The model BODIPY compounds 1 and 2 have high fluorescence quantum yields (ϕ) of over 0.6, while in contrast BODIPY 3 and corrole 4 display low ϕ values. Although the ϕ values of dyads are total quantum yield values that include both the BODIPY and corrole moieties, the values are lower than that of their BODIPY and corrole precursors, indicating that additional non-radiative processes have occurred.24
Dye | λexc | λem | τ (ns) | D–A | ETeff | KET (108 s−1) |
---|---|---|---|---|---|---|
1 | 480 | 522 | 3.7 | — | — | — |
2 | 540 | 582 | 5.8 | — | — | — |
3 | 620 | 654 | 5.4 | — | — | — |
4 | 422 | 664 | 4.0 | — | — | — |
5 | 480 | 522 | 1.1 | BDP to Cor | 69.3% | 0.63 |
664 | 3.4 | |||||
6 | 540 | 594 | 0.9 | BDP to Cor | 84.5% | 0.93 |
664 | 3.2 | |||||
7 | 422 | 676 | 2.2 | Cor to BDP | 58.1% | 0.27 |
The fluorescence spectra of BODIPY 1 and corrole 4 in toluene exhibit the characteristic emission peaks for these fluorophores at 522 and 664 nm, respectively. The emission spectrum of conjugate 5, in which BODIPY is linked at the meso-phenyl ring of the corrole 4, exhibits wavelength dependent emission spectra. When a comparison is made with the absorption spectrum, the corrole ring of 5 exhibits an intense band at 422 nm and the BODIPY ring can be expected to have minimal absorbance at this wavelength. In a similar manner, the corrole ring can be expected to lack any significant absorbance at 480 nm, where the BODIPY moiety absorbs strongly. Thus allowing for selective excitation of the chromophore of BODIPY 1 for the examination of energy transfer (ET) processes from the BODIPY moiety to the corrole ring. To study the energy transfer process between the BODIPY and corrole moieties of dyad 5, 4 and 5 are excited at 422 nm and 480 nm. The related data are summarized in Fig. 5(A), S9(A)† and Table 1. Upon excitation at 422 nm (in the B band of the corrole π-system), toluene solution of the fluorescence spectrum of 5 contains only one emission band at 664 nm, which is consistent with the emission from the corrole moiety. It should be noted, that corrole 4 has almost the same fluorescence intensity as dyad 5 (Fig. S9(A)†). So there is no evidence for ET to the BODIPY core from corrole in this context. In contrast, upon excitation at 480 nm, two emission bands are observed at 522 and 664 nm, due to emission from the BODIPY and corrole fluorophores, respectively. The fluorescence emission intensity observed at 664 nm is more intense than that obtained by direct excitation of corrole 4 at 422 nm. These observations clearly demonstrate that ET occurs at this excitation wavelength. Since only part of the energy absorbed by the BODIPY donor moiety is transferred to the corrole unit, there is a weak residual emission band that can be attributed to the donor. Reverse energy transfer from the corrole ring (accepter) to the BODIPY (donor) core is not feasible. Fig. 6(A) overlays the fluorescence spectra of the donor (BODIPY 1) with the absorption spectra of the acceptor (corrole 4), and this provides an explanation for the direction of ET.
Toluene solutions of 4 and 6 were excited at 540 nm at room temperature to study the ET between the corrole and BODIPY moieties. The related data are summarized in Fig. 5(B) and Table 1. The fluorescence spectrum of 6 contains a band at 664 nm. In contrast with the spectra of 5, when different excitation wavelengths are selected, there is no indication of any other emission bands, suggesting that there is efficient fluorescence quenching of the BODIPY moiety. It is noteworthy that the fluorescence intensity of 6 is stronger than that obtained by direct excitation of corrole 4. According to Fig. 6(B), the fluorescence spectra of the donor (similar to BODIPY 2) overlays part of the absorption spectra of the acceptor (similar to corrole 4), providing a strong indication of the direction of energy transfer. As a result, an efficient ET process between the BODIPY moiety and corrole ring can be anticipated to exist, and the obvious explanation is that all of the energy absorbed by the BODIPY donor moiety is transferred to the corrole ring.
To explore the ET process between two corrole rings and the BODIPY core of 7, toluene solutions of 3, 4 and 7 were excited at 422 nm. The related data are summarized in Fig. 5(C) and Table 1. In contrast with the typical corrole emission that is observed in the spectra of 5 and 6 at 664 nm, the fluorescence spectrum of 7 has a single emission maximum at 676 nm, due to the superposition of the BODIPY and corrole fluorescence bands.
The fluorescence intensity of 7 is stronger than that obtained by direct excitation of corrole 4 (Fig. 5(C)). These observations indicate that part of the energy absorbed by the corrole donor moiety is transferred to the BODIPY unit. It should be noted that although 7 has almost the same fluorescence intensity as 3, upon excitation at 620 nm (in the absorption band of the BODIPY 3 chromophore), there is a hypsochromatic shift of ca. 23 nm compared to BODIPY 3 (Fig. S10(C)†), due to the π-conjugated-styryl substituent (Fig. S9(B) in ESI† and Table 1). The fluorescence spectra of the donor (similar to that of corrole 4) overlays part of the absorption spectra of the acceptor (similar to that of BODIPY 3) from the Fig. 6(C). The fluorescence excitation and emission data provide strong evidence for efficient ET between the corrole ring and the BODIPY core.
The fluorescence lifetimes of each dyad were measured separately at the fluorescence maxima of the corrole and the BODIPY chromophores. Dyads 5 and 6 exhibit two emissions from the BODIPY (donor, 522 nm for 5 and 594 nm for 6) and the corrole (acceptor, 664 nm), in comparison with the model compound corrole 4, the slight decrease in the lifetime values indicates the presence of a small nonradiative process associated with the incorporation of the flexible chain.24 The ET efficiencies were obtained from the lifetime values according to ETeff = ((1/τ) − (1/τ0))/(1/τ) (where τ0 and τ are the fluorescence lifetimes of the donor in the absence and presence of the acceptor, respectively).25 The values obtained were 69.3% for 5, 84.5% for 6 and 58.1% for 7, Table 2. This method is more accurate than measuring the IF values for strongly overlapping fluorescence spectra, since the fluorescence intensity cannot be readily obtained in each case. The high ETeff values demonstrate that corrole–BODIPY dyads 5–7 provide an effective way to construct energy transfer systems. The rates of energy transfer (KET) were also evaluated, since KET = (1/τ) − (1/τ0),25 Table 2. Qualitative analyses of the ET efficiency and rate data are the standard criteria for the Förster resonance energy transfer (FRET) mechanism, and are highly dependent on the center-to-center donor–acceptor separation, and the spectral overlap of the donor emission and the acceptor absorption.
Footnotes |
† Electronic supplementary information (ESI) available: Experimental details, 1H- and 13C-NMR spectra, fluorescence spectra and details of theoretical calculations. See DOI: 10.1039/c6ra12271j |
‡ These authors contributed equally to this work. |
