Synthesis and structure of ruthenium-fullerides

Abstract

We report a simple and original procedure for preparing Ru–C₆₀ polymeric chains, which spontaneously self-assemble as polymeric spherical particles. The size of the particles can be controlled by the choice of the solvent used during the reaction. In addition, these Ru–C₆₀ polymeric spheres can be surface decorated with Ru nanoparticles using the same mild reaction conditions by changing the Ru/C₆₀ ratio. Several techniques (TEM in high resolution, scanning and electron tomography modes, IR, NMR, Raman, WAXS, EXAFS and XPS) together with theoretical calculations allowed us to have an insight into the structure of these Ru–C₆₀ species.

---

1. Introduction

Extensive investigations of fullerene C₆₀, both in its pristine form as well as in its doped or intercalated variants, have definitively confirmed a strong tendency toward polymerization of this molecule.¹ The combination of C₆₀ and metals offer exciting perspectives for the production of novel fullerene-based architectures with unprecedented properties for catalysis,^2–4 batteries,⁵ sensors⁶ or nanoelectronic devices.⁷ Indeed, the spherical shape, high degree of symmetry, and coordinating geometries of C₆₀ make it an ideal candidate for the construction of well-defined supramolecular architectures. The metal fullerides have been the subject of intensive investigations over the past 20 years, and mostly compounds of C₆₀ with alkali and alkaline metals (A-C₆₀) have been synthesized.⁸ Metals in these compounds usually occupy interstitial sites in the octahedral or tetrahedral environment of the C₆₀ structure. The bonding in these fullerides is ionic and the C₆₀ molecules rotate freely. Li₄C₆₀, one of the most characteristic representatives of lithium intercalated fullerides, features an unusual type of two-dimensional polymerization.⁹ In contrast, only a few reports claiming the existence of fullerides with transition metals (TM) are known;¹⁰ and despite the progress in study of A-C₆₀ polymerization,^11,12 the knowledge about this phenomenon in the TM–C₆₀ systems is scarce. Transition metal fullerides can be prepared by chemical reactions in solution between a suitable TM complex and C₆₀,¹³ through electrochemical reduction from solutions of C₆₀ and selected TM complexes,¹⁴ or by co-evaporation of TM and C₆₀ from separate sources under ultra-high vacuum (UHV) conditions.¹⁵ Up to now, TM fullerides of Pd,¹³ Pt,¹⁶ Co,¹⁷ Ru,¹⁸ Fe,¹⁹ Rh,²⁰ and Ti¹⁵ have been reported. Although an understanding of the structure and bonding of the proposed compounds is highly desirable, the structure of these phases is still under discussion due to the poor crystallinity of the obtained samples. Depending on the amount of metal the suggested structure could be polymeric with a chain-like, two- or three-dimensional coordination. Moreover, it is believed that metal atoms serve as bridges connecting neighboring C₆₀ molecules.

The first and the most studied, TM fulleride, Pd_x–C₆₀, was reported in 1992 by Nagashima et al.¹³ This compounds, insoluble in most organic solvents, precipitated by mixing [Pd₂(dba)₃] (dba = dibenzylideneacetone) and C₆₀ benzene solutions at room temperature. Two and three-dimensional amorphous polymeric structures were already proposed based on the results of electron probe microanalysis for Pd_x–C₆₀, but the exact nature of these polymers remains really unclear. Additionally, various TEM studies on the Pd_x–C₆₀ compound suggest the possible presence of Pd nanoparticles (NPs) in the material.^21–23 The presence of metallic clusters was also evidenced for Ru_x–C₆₀ compounds produced at higher temperatures from [Ru₃(CO)₁₂].^18,24 However, using TEM, Lavrentiev et al. have observed the polymeric chains in the Co_x–C₆₀ mixture, which inner structure has been evaluated as (–C₆₀–Co–C₆₀–) order.²⁵ It is worth mentioning that most of these structural studies have used a single characterization techniques such as Raman spectroscopy,¹⁹ XPS,¹⁵ or TEM.²¹ Some theoretical works, using Density Functional Theory (DFT), on exohedral fullerenes have been mainly devoted to the interaction between C₆₀ and alkali atoms: Na, K,^26–29 and in a lesser extent TM, mainly V,³⁰ Ni,³¹ Au^32,33 and Ta^34,35 and more recently with Pd and Pt atoms.³⁶ To our knowledge, no theoretical studies on the existence or the possible structures of –C₆₀–TM–C₆₀– linear chains have been reported.

Considering the possible applications of these supramolecular architectures, it is important to have a better knowledge of their structure for the establishment of structure/properties relationships. In this context, we decided to reexamine the structure of such compounds in the case of ruthenium with a large variety of complementary characterization techniques, including TEM in high resolution, scanning and electron tomography modes, IR, NMR, Raman, WAXS, EXAFS and XPS, as well as DFT calculations. The combination of all these techniques allowed us to propose that –C₆₀–Ru–C₆₀– polymers are formed and that Ru exhibits a η²⁽⁶⁾–η⁶ coordination mode. In addition, the control of the reaction conditions allows us to synthesize C₆₀–Ru–C₆₀– polymers, nanospherical Ru–C₆₀ polymers, Ru Nps decorated nanospherical Ru–C₆₀ polymers, and Ru nanoparticles supported on a C₆₀ matrix.

2. Experimental section

2.1 General methods

All operations were carried out under argon atmosphere using standard Schlenk techniques or in an MBraun glovebox. Solvents were purified by standard methods or by an MBraun SPS-800 solvent purification system. [Ru(COD)(COT)] was purchased from Nanomeps Toulouse, fullerene C₆₀ from Sigma-Aldrich, CO and H₂ from Air Liquide. All these reactants were used as received.

The ruthenium content was established by inductively coupled plasma optical emission spectroscopy (ICP-OES) in a Thermo Scientific ICAP 6300 instrument. Solid state NMR (MAS-NMR) with and without ¹H–¹³C cross polarization (CP) were performed on a Bruker Avance 400WB instrument equipped with a 4 mm probe with the sample rotation frequency being set at 12 kHz unless otherwise indicated. Measurements were carried out in a 4 mm ZrO₂ rotor. ATR-IR spectra were recorded on a Perkin-Elmer GX2000 spectrometer available in a glovebox, in the range 4000–400 cm⁻¹. The Raman spectra have been recorded with a Explora (Horiba) spectrometer in backscattering geometry using an optical objective ×100 (NA 0.9). The wavelength of the incident laser has been 532 nm and the laser power was set to 1 mW.

2.2 TEM analyses

Some TEM and HRTEM analyses were performed by using a JEOL JEM 1011 CX-T electron microscope operating at 100 kV with a point resolution of 4.5 Å and a JEOL JEM 1400 electron microscope operating at 120 kV. The high resolution analyses were conduct using a JEOL JEM 2100F equipped with a Field Emission Gun (FEG) operating at 200 kV with a point resolution of 2.3 Å and a JEOL JEM-ARM200F Cold FEG operating at 200 kV with a point resolution of >1.9 Å. The approximation of the particles mean size was made through a manual analysis of enlarged micrographs by measuring at least 200 particles on a given grid. Other TEM micrographs were acquired with a JEOL 2100F S/TEM microscope equipped with a FEG operating at 200 kV, a spherical aberration probe corrector and a GATAN Tridiem energy filter. The resolutions attained are 2 Å and 1.1 Å under parallel TEM mode and scanning STEM modes, respectively. For STEM-HAADF analyses the spot size was of 0.13 nm, a current density of 140 pA, the camera focal length was 10 cm, corresponding to inner and outer detection angle of the annular detector of about 60 mrad and 160 mrad. For tomography experiments, the acquisitions of the tilt images series were performed using a high tilt sample holder, under angles spanning from +72 to −72°, with projections taken every 2° according to Saxton scheme. The irradiation damage was limited by using low electron doses. The images were first roughly aligned using a cross-correlation algorithm. A refinement of this initial alignment and a precise determination of the tilt axis direction were then obtained using the IMOD software where the centers of several Au nanoparticles from the analyzed group were used as fiducial markers.³⁷ The volume reconstructions have been computed using an iterative approach consisting of a simultaneous algebraic reconstruction technique implemented using the TOMO3D software,³⁸ the number of iterations not exceeding 40. Visualization and quantitative analysis of the final volumes were carried out using ImageJ software.

2.3 DFT calculations

DFT calculations were carried out using the Vienna ab initio simulation package VASP.^39–42 The code uses the full-potential projector augmented wave (PAW) framework.^43,44 Exchange-correlation effects have been approximated using the PBE functional⁴⁵ and applied in spin-polarized calculations. Besides to correctly describe weak intermolecular forces between Ru–C₆₀ complexes and solvent molecules, we have also used the optB86b-vdW functional.^46–49 We have checked that this scheme provide accurate geometries when van der Waals forces are the major bonding origin, as for instance in the C₆₀ crystalline phase. See ESI.15† for the direct comparison between simulated and experimental WAXS spectra. If a slight compression factor of 1.5% is applied on the DFT structure, the agreement becomes almost perfect between peaks up to 0.8 nm. A kinetic-energy cutoff of 400 eV was found to be sufficient to achieve a total-energy convergence within several meV, considering a k-point sampling with a (1 × 1 × 5) grid for the polymeric state or gamma-point only calculations for isolated molecules and complexes, in conjunction with a Gaussian smearing with a width of 0.05 eV. During geometry optimization runs and cell relaxations, all the atoms were fully relaxed until forces on individual atoms were smaller than 0.01 eV Å⁻¹. Calculation cells for isolated molecules and complexes were 25 × 26 × 27 Å, to avoid spurious interactions between periodic images, when the same lattice parameters on (Ox) and (Oy) were kept fixed for the polymeric phase. Figures of the different geometries were produced thanks to the 3D visualization program VESTA.⁵⁰

2.4 WAXS, EXAFS, and XPS analyses

Wide angle X-ray scattering measurements were performed on a diffractometer dedicated to Pair Distribution Function (PDF) analysis: graphite-monochromatized molybdenum radiation (0.07169 nm), solid state detection and low background setup. Samples were sealed in Lindemann glass capillaries (diameter 1.5 mm) to avoid any oxidation after filling in a glove box. For all samples data were collected on an extended angular range (129 degrees in 2 theta) with counting times of typically 150 s for each of the 457 data points, thus allowing for PDF analysis. Classic corrections (polarization and absorption in cylindrical geometry) were applied before reduction and Fourier transform.

X-ray absorption measurements were made on the bending magnet beam line of the Materials Research Collaborative Access Team (MRCAT) at the Advanced Photon Source, Argonne National Laboratory. The data were collected in step-scan, transmission mode. The 3 pre-edge regions, from −250 to −50 eV, −50 to −10 eV and −10 to 30 eV, were scanned in 10, 5 and 0.4 eV steps, respectively. The EXAFS was also scanned in 3 regions, to 6, from 6–10 and from 10–13 Å⁻¹. The data acquisition time in each region was increased to give a high signal to noise in the k²-weighted chi. The Ru on C₆₀ samples were handled and loaded in the absence of air and water in a glove box. The samples were placed in an environmental cell for data acquisition. The samples were additionally treated in 4% H₂/He at 150 °C, cooled to room temperature and data taken without exposure to air. A ruthenium foil spectrum was acquired simultaneously with each measurement for energy calibration. Samples were pressed into a cylindrical holder capable of holding 6 samples with amounts chosen to give a ruthenium edge step of ca. 0.5–1.0. The spectra were obtained at room temperature without treatment and after heating in 4% H₂/He at 150 °C for 1 h and cooled to RT. RuO₂, Ru(NH₃)₆Cl₃, Ru(NH₃)₆Cl₂, Ru(IV), Ru(III) and Ru(II), respectively, reference compounds were obtained from Aldrich and used to determine the shift in the XANES energy due to change in oxidation state. Phase shifts, backscattering amplitudes were obtained from reference compounds: RuO₂ (4 Ru–O at 1.99 Å and 2 Ru–O at 1.94 Å, or an average of 6 Ru–O at 1.97 Å) and Ru foil (12 Ru–Ru at 2.68 Å). The XANES edge energy was determined from the inflection point of the leading edge, i.e., the maximum in the first derivative. Standard procedures using WINXAS3.1 software were used to extract the EXAFS data. The coordination parameters were obtained by a least square fit in k- and r-space of the isolated multiple-shell, k²-weighted Fourier transform data. The samples were also analyzed by X-ray photoelectron spectroscopy (XPS) using a VG Escalab MKII spectrophotometer, which operated with a non monochromatized Mg K source (1253.6 eV).

2.5 Synthesis of Ru–C₆₀ nanostructures

In a typical experiment⁵¹ the [Ru(COD)(COT)] (COD = 1,5 cyclooctadiene, COT = 1,3,5-cyclooctatriene) complex was introduced in a Fisher–Porter bottle, and a solution of fullerene C₆₀ in the desired solvent was then introduced in the reactor. The resulting purple solution was stirred for 30 min at room temperature, after which the bottle was pressurized with 3 bar of H₂. The solution, which turned black after few minutes of reaction, was kept under stirring overnight at room temperature. After this period of time, excess of H₂ was eliminated and the volume of solvent was reduced under vacuum. Pentane was then added to the colloidal suspension to precipitate the Ru–C₆₀ nanostructures. After filtration under argon with a cannula, the black solid powder was washed twice with pentane and filtrated again before drying under vacuum. For each ratio studied, the quantities of reactants are detailed hereafter:

Ru–C₆₀ 1/1: 30.0 mg (0.10 mmol) of [Ru(COD)(COT)]; 68.5 mg (0.10 mmol) of fullerene C₆₀ and 300 mL of CH₂Cl₂. Yield: 68.1 mg. Ru: 10.6%.

Ru–C₆₀ 2/1: 80 mg (0.25 mmol) of [Ru(COD)(COT)]; 91.3 mg (0.126 mmol) of fullerene C₆₀ and 400 mL of CH₂Cl₂. Yield: 100 mg. Ru: 16.7%.

Ru–C₆₀ 5/1: 200 mg (0.63 mmol) of [Ru(COD)(COT)]; 91.3 mg (0.126 mmol) of fullerene C₆₀ and 400 mL of CH₂Cl₂. Yield:129 mg. Ru: 35.6%.

Ru–C₆₀ 10/1: 400 mg (1.27 mmol) of [Ru(COD)(COT)]; 91.3 mg (0.126 mmol) of fullerene C₆₀ and 400 mL of CH₂Cl₂. Yield: 188 mg. Ru: 48.7%.

Ru–C₆₀ 20/1: 100 mg (0.32 mmol) of [Ru(COD)(COT)]; 11.4 mg (0.016 mmol) of fullerene C₆₀ and 50 mL of CH₂Cl₂. Yield: 36.9 mg. Ru: 50.4%.

Ru–C₆₀ 30/1: 150 mg (0.48 mmol) of [Ru(COD)(COT)]; 11.4 mg (0.016 mmol) of fullerene C₆₀ and 50 mL of CH₂Cl₂. Yield: 48 mg. Ru: 54.7%.

Ru–C₆₀ 50/1: 250 mg (0.79 mmol) of [Ru(COD)(COT)]; 11.4 mg (0.016 mmol) of fullerene C₆₀ and 50 mL of CH₂Cl₂. Yield: 80 mg. Ru: 61.9%.

Growth mechanism. The reaction was performed at −20 °C following the standard procedure: 20 mg (0.064 mmol) of [Ru(COD)(COT)]; 23 mg (0.032 mmol) of fullerene C₆₀ and 50 mL of CH₂Cl₂. The reaction was followed by sampling the mixture over the time.

Surface reactivity with CO. The adsorption of carbon monoxide on the surface of the nanostructures was performed in the solid state as follows. A purified sample of nanoparticles was introduced in a Fischer–Porter bottle. The reactor was pressurized with 1.5 bar of CO for 72 h. Then, the CO gas was evacuated under vacuum for 20 min and the ATR-IR spectra were recorded.

3. Results and discussion

3.1 Synthesis and TEM characterization of the Ru–C₆₀ nanostructures

Ru–C₆₀ nanoarchitectures were synthesized by decomposing [Ru(COD)(COT)] under H₂ (3 bar) in the presence of C₆₀ at room temperature. The Ru/C₆₀ ratio was fixed to 2/1 and the effect of the solvent the first to be studied. Several solvents (toluene, chlorobenzene, 1,2-dichlorobenzene, dichloromethane, chloroform and decalin) were used under the same reaction conditions except for CHCl₃ and CH₂Cl₂, for which higher dilutions were used because of the low solubility of C₆₀ in these solvents. TEM analyses of the Ru–C₆₀ structures (Fig. 1) show a marked effect of the solvent on the size and shape on the synthesized materials.

Fig. 1 TEM micrographs of Ru–C₆₀ structures with Ru/C₆₀ = 2/1 synthesized in different solvents: decalin (scale bar 100 nm), 1,2-dichorobenzene (scale bar 200 nm), chlorobenzene (scale bar 500 nm), toluene (scale bar 500 nm), chloroform (scale bar 1000 nm) and dichloromethane (scale bar 500 nm).

The syntheses carried out in decalin lead to structures with very irregular shapes, decorated with small Ru NPs (1.23 ± 0.22 nm). The TEM analyses of the product of the reaction in toluene showed smaller shapeless structures with mean diameters of ca. 175 nm. In this case, no NPs were detected from the TEM and HREM analyses (ESI.1†). Spherical particles were systematically obtained using chlorinated solvents or mixtures of toluene and CH₂Cl₂. TEM micrographs of the Ru–C₆₀ structures synthesized in chlorobenzene, 1,2-dichlorobenzene, CHCl₃, and CH₂Cl₂ reveal spherical particles with mean diameters of 285 ± 3 nm, 200 ± 3 nm, 229 ± 1.5 nm, and 40 ± 0.7 nm, respectively. Ru–C₆₀ particles synthesized in CH₂Cl₂ displayed a significantly smaller mean diameter and narrower size distribution; furthermore they were decorated with small Ru NPs (1.15 ± 0.02 nm). STEM-EDX mappings of the structures synthesized in toluene, 1,2-dichlorobenzene and dichloromethane confirm that they are composed of Ru and C even if Ru NPs are not observed (Fig. 2 and ESI.1†).

Fig. 2 STEM-EDX mappings of Ru–C₆₀ (2/1) structures synthesized in: (a) toluene (scale bar 300 nm); (b) 1,2-dichlorobenzene (scale bar 200 nm); and dichloromethane (scale bar 50 nm).

It is known that polymeric spheres of uniform size can be produced using mechanical methods.⁵² In a first step, the polymers form long threads, which break into smaller droplets of uniform size due to Rayleigh instability. The size of the spheres is determined by the applied stress, and weakly depends on the viscosity ratio between the dispersed and the continuous phases.^53,54 The polymer concentration has also an impact on the structure formed.⁵⁵ If we assume that the Ru–C₆₀ spheres are polymeric and present similar properties (i.e. viscosity) in all the synthesis carried out, we can correlate the self-assembly of the polymer in spheres with the solvent viscosity but also permittivity (see ESI.2†). In decalin, which has the higher viscosity and the lower permittivity (see Table 1), no shape control is achieved, while in CH₂Cl₂ (lower viscosity and high permittivity), small spherical particles are produced.

Table 1 Solvent properties as related to the TEM analyses obtained for the Ru–C₆₀ structures

Solvent	Viscosity (mPa s)^56	C60 solubility ([C60], mg mL^−1)^57	Relative permittivity (εr)^56	TEM analyses
cis-Decalin	3.042	4.6	2.22	No shape control – structures decorated with Ru NP of 1.23 ± 0.22 nm
trans-Decalin	1.948		2.18
1,2-Dichlorobenzene	1.324	27	10.12	Spheres of 200 ± 3 nm
Chlorobenzene	0.753	7	5.70	Spheres of 285 ± 3 nm
Toluene	0.560	2.8	2.38	No shape control of the structures of ca. 175 nm
Chloroform	0.537	0.16	4.81	Spheres of 229 ± 1.5 nm
Dichloromethane	0.413	0.26	8.93	Spheres of 39.6 ± 0.7 nm decorated with Ru NP 1.15 ± 0.02 nm

---

The other solvents, showing intermediate viscosity, allow obtaining spheres as well, however, with larger mean diameters. The only exception is the material synthesized in toluene, which has, as decalin, a low permittivity. In order to unravel the growth mechanism of the spherical particles we monitored the reaction by ex situ TEM analyses. The synthesis was realized in CH₂Cl₂ using a Ru/C₆₀ ratio of 2/1 at low temperature (−20 °C) because of the fast formation of the spheres at r.t. TEM micrographs of samples taken at different times are displayed in Fig. 3. As observed for the synthesis of polymeric spheres,⁵⁴ in a first step the big droplets deform into long threads: at 5 min of reaction, mainly elongated objects (with sizes ranging from 300 to 1000 nm) are observed together with some spherical particles with diameters ca. 130 nm. At 10 min, the size of these objects ranged between 20 and 400 nm.

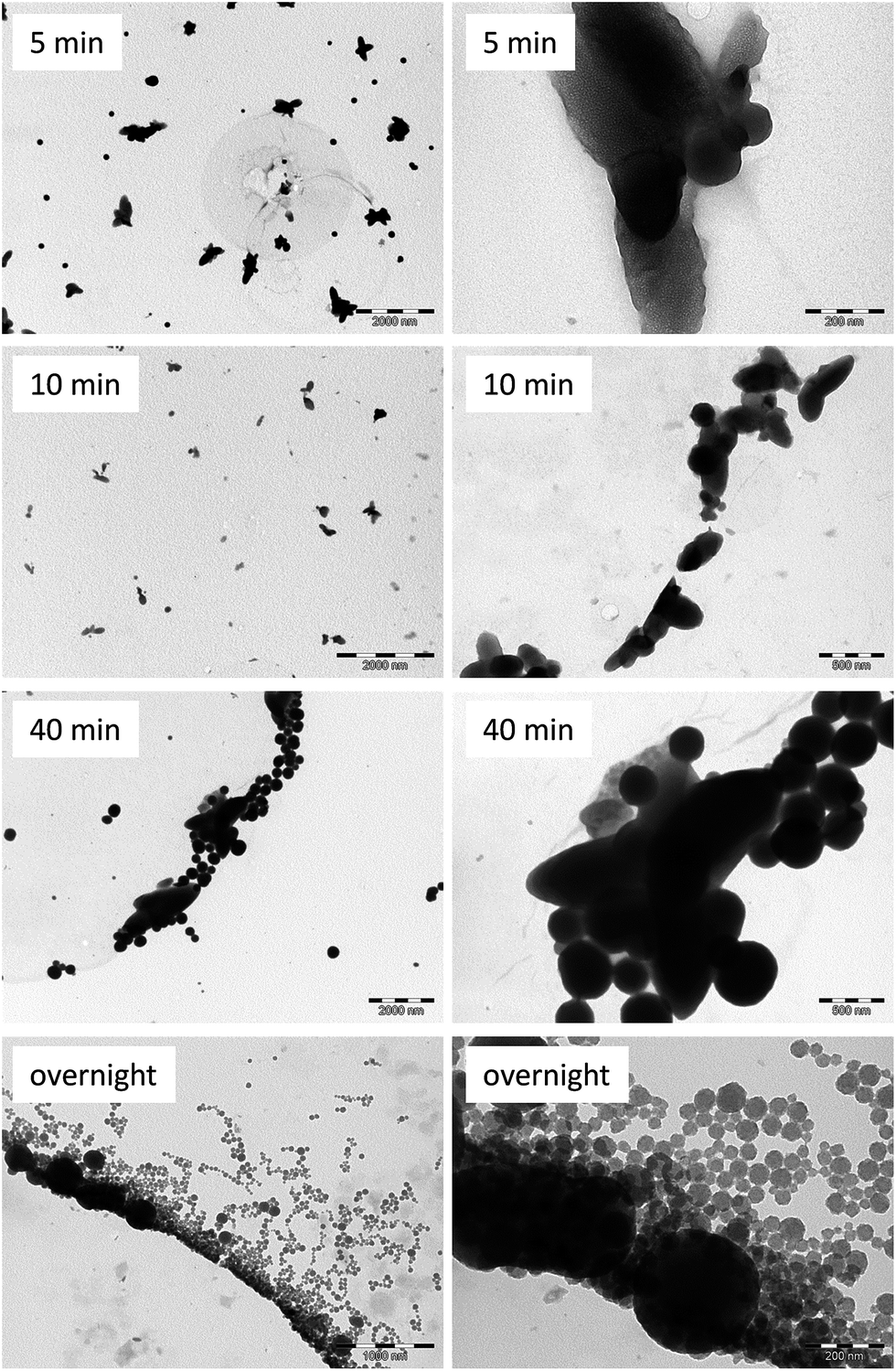

Fig. 3 TEM micrographs of Ru–C₆₀ structures synthesized in CH₂Cl₂ using a Ru/C₆₀ ratio of 2/1 at −20 °C (scale bar: 5 min, 2000 and 200 nm; 10 min, 2000 and 500 nm; 40 min, 2000 and 500 nm; and overnight, 1000 and 200 nm).

After 40 min of reaction, big spheres are observed (mean diameter of ca. 290 nm), which are clearly formed from the elongated objects. In the synthesis of polymeric particles a second step is observed, where the resulting droplets can again break up into daughter droplets. This second mechanism is much slower. We stirred the reaction overnight and a last sample was observed by TEM after 12 h. This sample shows spherical particles of 37.0 ± 0.3 nm mean diameter and big spherical particles of about 330 nm. These results indicate that a second step towards the formation of smaller spheres is indeed active. TEM images clearly show that the small spheres (≈40 nm) are formed from the large 300 nm spheres.

The STEM-EDX maps of the Ru–C₆₀ structures synthesized at −20 °C in CH₂Cl₂ (see ESI.3†) confirm that the structures observed in the early stages of the reaction are constituted by Ru and C, as well as the spheres observed at 40 min of reaction. Nagashima et al. studied the synthesis of Pd_nC₆₀ polymer from [Pd₂(dba)₃(CHCl₃)] (dba = dibenzylideneacetone) in toluene using several Pd/C₆₀ ratios.¹³ From microprobe analyses, they proposed a mechanism for the formation of C₆₀Pd_n, in which a one dimensional polymer C₆₀Pd_l is formed at the first stage. Then, insertion of additional Pd atoms between the polymer chains make bridges to form C₆₀Pd_n (n > 1). For C₆₀Pd_n (n > 3), an excess of Pd atoms would be deposited on the surface of C₆₀Pd₃. In a study on C₆₀–Pd film electrodeposition from palladium acetate, Grądzka et al. have shown that in the presence of a large excess of palladium precursor, Pd NPs can be deposited on the polymer surface.⁵⁸ In order to better understand the Ru system, we decided to explore the effect of the Ru/C₆₀ ratio on the produced Ru–C₆₀ structures. Using CH₂Cl₂ as solvent we fixed the concentration of C₆₀ and we progressively increased the ruthenium content to obtain Ru/C₆₀ ratios of 1, 2, 5, 10, 20, 30 and 50. The TEM images of the synthesized materials are shown in Fig. 4. The TEM and HREM analyses show that the Ru–C₆₀ 1/1 sample does not contain Ru NPs. Increasing the Ru content, Ru NPs are observed. Ru NPs display in all cases a small mean diameter, even at high Ru/C₆₀ ratios, ranging from 1.10 to 1.35 nm (see Table 2 and ESI.4†). Interestingly, the Ru–C₆₀ spheres do not change significantly in size for Ru/C₆₀ ratios from 1/1 to 10/1 (≈40 nm, ESI.5†). At a 20/1 ratio, two size distributions are observed for the spheres: the major one centered at 39.8 ± 1.1 nm together with some bigger spheres with mean diameter of 78.8 ± 0.7 nm (see ESI.6 for size histograms†). The Ru–C₆₀ 30/1 sample also displayed spheres with a bimodal size distribution (56.4 ± 4.7 nm and 103.2 ± 1.0 nm). At 50/1 ratio the mean diameter of the spheres is 63.3 ± 0.8 nm (Fig. 4 and Table 2). The 30/1, and more particularly, the 50/1 samples are also characterized by the presence of aggregated Ru NPs. These aggregated Ru NPs are very similar to the ones obtained by decomposition of the [Ru(COD)(COT)] precursor in the absence of C₆₀ (ESI.7†).

Fig. 4 TEM images of Ru–C₆₀ structures synthesized in CH₂Cl₂ using a Ru/C₆₀ ratio of 1/1 (scale bar 100 nm and 5 nm), 2/1 (scale bar 50 nm), 5/1 (scale bar 50 nm), 10/1 (scale bar 100 nm), 20/1 (scale bar 50 nm), 30/1 (scale bar 200 nm) and 50/1 (scale bar 200 nm).

Table 2 Mean size diameters of Ru NPs and spheres of Ru–C₆₀ according to the Ru/C₆₀ ratio

Ru/C60	Ru (%)	Nanoparticles mean size^a (nm)	Spheres mean size^a (nm)
a Manual measurement from enlarged micrographs of at least 200 objects.
1/1	10.6	Not observed	39.1 ± 0.5 nm
2/1	16.7	1.16 ± 0.02 nm	31.6 ± 0.6 nm
5/1	35.6	1.31 ± 0.03 nm	42.6 ± 1.0 nm
10/1	48.7	1.26 ± 0.03 nm	32.4 ± 0.3 nm
20/1	50.4	1.10 ± 0.01 nm	39.8 ± 1.1 nm|85.2 ± 2.9 nm
30/1	54.7	1.34 ± 0.01 nm	56.4 ± 4.7 nm|103.2 ± 1.0 nm
50/1	61.9	1.35 ± 0.02 nm	63.3 ± 0.8 nm

---

The extremely small size of the Ru species present in the Ru–C₆₀ 1/1 sample is a drawback for a classical TEM analysis. To overcome this inconvenient, a scanning TEM in high-angle annular dark field (STEM) approach, based on the Z-contrast dependence, can be useful to identify the small metallic species supported in/on the lighter matrix. For the 1/1 ratio of Ru–C₆₀, the STEM-HAADF micrographs (Fig. 5a and b) show the presence of Ru atoms and/or clusters all over the surface of the spheres. The Ru clusters size does not exceed 0.6 nm. In the case of a representative sphere for the 30/1 ratio (Fig. 5c and d) the HAADF micrographs show the presence of small Ru NPs with a higher concentration of Ru on the surface of the sphere. The distribution of the Ru signal, acquired in STEM-EDX along a line scan, confirms the presence of Ru NPs on the outer sphere surface within the 30/1 sample (ESI.8†), whereas a more uniform distribution of Ru is observed for the 1/1 sample (ESI.8†). The above TEM or STEM analyses on the 2D projections of the objects do not provide clear information on the possible presence of Ru species (clusters or small NPs) in the interior of the spheres. Electron tomography analysis allowed the investigation within the volume of theses spheres.

Fig. 5 (a) STEM-HAADF micrographs of Ru/C₆₀ 1/1 (scale bar 20 nm), (b) (scale bar 10 nm), (c) STEM-HAADF micrographs of Ru/C₆₀ 30/1 (scale bar 200 nm), and (d) (scale bar 50 nm) nanostructures. In (b), the yellow and red arrows point to the Ru few atom clusters and larger clusters, respectively.

Fig. 6 shows the results obtained for the 30/1 Ru–C₆₀ ratio. From the slices views of 3D reconstructed volumes (Fig. 6b and c), the presence of small Ru NPs is obvious on the surface of the sphere, creating a Ru NP shell with a thickness around 7 nm, which correspond to a multilayered NP structure. This is in agreement with the Ru signal distribution observed in Fig. 5c and d, as the heavier elements appear most contrasted in STEM-HAADF, and also with the distribution of the Ru signal, acquired in STEM-EDX (ESI.8†). It is thus clear that no crystallized Ru NPs are present inside the spheres, but this analysis does not exclude the presence of atomic Ru inside the polymeric matrix. The analysis was also performed for the Ru–C₆₀ sample with a 1/1 ratio, but the very small size of the clusters prevents their localization (see ESI.9†), the size of the clusters being below the resolution limit for the electron tomography analysis. The resolution attained in electron tomography is in the nanometer range, thus it is practically impossible to evidence the presence of any metal atoms and/or few-atom clusters within the spheres. It is therefore reasonable to propose that, in CH₂Cl₂, the decomposition of the [Ru(COD)(COT)] precursor leads to the formation of polymeric spheres containing Ru atoms or small clusters and fullerenes at low Ru–C₆₀ ratio (≤1), and that further increase of the Ru–C₆₀ ratio lead to Ru atoms, clusters or NPs deposition on the surface of these polymeric spheres.

Fig. 6 3D analysis of Ru/C₆₀ 30/1 by electron tomography: (a) bright field TEM images at 0° tilt from the tilt series; (b) and (c) representative cross-sectional slices along one direction in the plane of 3D reconstructed volume showing the location of shell of Ru 2 nm size NPs on the surface of the sphere. The thickness of the shell is 7 nm (scale bar 50 nm).

The addition of extra Ru atoms in the polymeric spheres might be prevent by diffusional limitations. We checked independently that the decomposition of an excess of [Ru(COD)(COT)] on the Ru–C₆₀ 1/1 sample, to reach a 10/1 ratio, leads to NPs deposition outside the Ru–C₆₀ 1/1 spheres (ESI.10†).

Cold FEG confirmed de absence of clusters on the Ru–C₆₀ matrix of 1/1 sample (Fig. 7).

Fig. 7 STEM-HAADF micrographs of Ru/C₆₀ 1/1.

3.2 DFT calculations on the Ru–C₆₀ nanoarchitectures

There are five possible sites on C₆₀ surface where Ru atoms may be adsorbed: (i) an atop site (η¹) on which the Ru atom is coordinated to a single carbon atom, (ii) a bridge site between two hexagonal rings (η²⁽⁶⁾), (iii) a bridge site between pentagonal and hexagonal rings (η²⁽⁵⁾) on which a Ru atom sits on the C–C bond and forms two Ru–C bonds, (iv) a hollow site above the center of a pentagonal ring of C atoms (η⁵), and (v) a hollow site above the center of a hexagonal ring of C atoms (η⁶).⁵⁹ For a single Ru atom interacting with one C₆₀, the most stable configuration is η²⁽⁶⁾, with an adsorption energy of −48 kcal mol⁻¹, followed by η²⁽⁵⁾, η⁶, η⁵, with energies of −39, −38, and −35 kcal mol⁻¹ respectively, when the atop site is instable. The better stability of the η²⁽⁶⁾ site is not surprising, as the double bond shared by two hexagons corresponds to a maximum of the electronic density of the fullerene. Experimentally, this coordination mode has been observed for Pt complexes and suspected for Ru ones.⁶⁰ These adsorption energies are significantly larger than the ones obtained for Ni, Au or Ta atoms for instance, with typical values smaller than −25 kcal mol⁻¹,^31,33,34 but remain in very good agreement with values obtained for Rh, Ir, Pd and Pt atoms.³⁶ Pt atoms bind more strongly than Ru ones on C₆₀ since, using the same computational settings; the adsorption energy of a Pt atom is already −66 kcal mol⁻¹. This value is also in good agreement with previously reported values.^36,61,62 For the η²⁽⁶⁾ and η²⁽⁵⁾ sites, the smallest Ru–C bond lengths are 2.06 Å. Then, the Ru–C bond length increases with the increase of adsorption energy for the different sites. For the η⁶ site, two Ru–C bond-lengths are 2.25, two others Ru–C distances are 2.34 when the last ones are 2.42 Å. It means that a single Ru prefers to lie in a displaced hollow site than a highly symmetric site. Finally, the Ru–C distances in the less stable site, i.e. in the η⁵ position, are 2.21 Å. Interestingly the most stable Ru–C₆₀ complex is magnetic with a moment of 2 μ_B.

If now, we take into account the real source of Ru in the calculation, the [Ru(COD)(COT)] precursor, we have to consider that it may coordinate even when it is partially decomposed. The [Ru(COD)] species adsorbs, in a η²⁽⁶⁾ site, with two short Ru–C bond-lengths of 2.11 Å and adsorption energy of −58 kcal mol⁻¹. The η¹ site has almost the same energy but with a smaller Ru–C distance, i.e. 2.04 Å. On the contrary, the [Ru(COT)] species has a preference for the η¹ site, with an adsorption energy of −38 kcal mol⁻¹, the η²⁽⁶⁾ site is 4 kcal mol⁻¹ higher. However when using the following energy balances: [Ru(COD)(COT)] + C₆₀ → [Ru(COT)]@C₆₀ + COD or [Ru(COD)(COT)] + C₆₀ → [Ru(COD)]@C₆₀ + COT, meaning that we take into account the precursor dissociation energy, the energy differences become largely positive: +21 and +28 kcal mol⁻¹, respectively. As a result the precursor has to be completely decomposed by the action of H₂ in order to allow for the creation of Ru–C₆₀ bond, and no partially decomposed Ru complexes can be stabilized on C₆₀ surfaces.

In interaction with 2 fullerenes, a single Ru atom will preferably coordinate in a η²–η² position, bridging two η²⁽⁶⁾ positions, with 4 Ru–C bond-lengths of 2.07 Å, as shown in Fig. 8a. This complex adopts then a dumbbell like structure, as for a Ni^31,63 or Pt atoms.^36,61,62 The corresponding stabilization energy of this nonmagnetic complex is large, −44 kcal mol⁻¹, when adding a C₆₀ to an existing Ru–C₆₀ complex. However, this binding energy for a Ru complex is still lower than the value of −65 kcal mol⁻¹, obtained at a semi-empirical level, on a C₆₀–Pt–C₆₀ complex.⁶² It suggests again that a Ru atom has a little less affinity for C₆₀ than a Pt one. Interestingly, another stable structure that exhibits a η²⁽⁶⁾–η⁶ coordination mode, as it can be seen from Fig. 8b, lies only 12 kcal mol⁻¹ higher in energy. The corresponding Ru–C distances are ranging from 2.07 to 2.85 Å for this site that connects 8C to the Ru atom. This relatively small energy difference between the two coordination modes can be reduced by 5 extra kcal mol⁻¹ due to the presence of adsorbed hydrogen atoms on the C₆₀, as proposed experimentally, cf. Section 2.3, in the vicinity of the Ru atom (ESI.11†). Indeed a significant change of the Ru coordination is observed upon H₂ adsorption since the most stable structure possesses a η²⁽⁶⁾–η⁴ character. More details on the H₂ adsorption thermodynamics are provided in ESI.† In the case of the dumbbell like structure (Fig. 8a) it seems obvious that a third C₆₀ can be easily coordinated to the central Ru atom. This reaction is still thermodynamically favorable but the energy gain is only −11 kcal mol⁻¹, due to the coordination mode of the third fullerene that is η¹. This stable Ru(C₆₀)₃ configuration might be viewed as a potential linker between ideal linear polymeric chains, as described in the following. The two C₆₀–Ru–C₆₀ complexes (Fig. 8a and b) can thus be viewed as elementary bricks for hypothetical 1D chains made of –C₆₀–Ru–C₆₀– with a 1Ru/1C₆₀ ratio. Fig. 8d shows a first model made of a unit cell that contains only 1Ru and 1C₆₀. The corresponding optimized lattice constant is around 10.4 Å. In this particular state, the four smallest Ru–C distances are lying in 2.04 to 2.11 Å range and two others are at 2.42 and 2.45 Å, when the next nearest C atoms are 2.66 Å away. As a consequence the Ru atom has a η²⁽⁶⁾–η⁴ coordination mode in this case. To allow for more flexibility in the coordination mode, we have also used a model made of 2Ru atoms and 2C₆₀ in the calculation cell. As a result of rotating slightly one of the C₆₀ molecule on a vertical axe, a η²⁽⁶⁾–η⁶ coordination mode is stabilized, as shown in Fig. 8e.

Fig. 8 (a) Side views of C₆₀–Ru–C₆₀ complex in the dumbbell like structure, (b) in the η²⁽⁶⁾–η⁶ coordination mode, and (c) of the most stable Ru–(C₆₀)₃ complex. (d) Ideal 1D chains and their corresponding lattice parameters for 1Ru/1C₆₀ ratio for the η²⁽⁶⁾–η⁴ in state, and (e) for the η²⁽⁶⁾–η⁶ state. (f) Partially hydrogenated ideal polymeric chains with one Ru atom hydrogenated, and (g) with one C₆₀ hydrogenated. Ru atoms are in grey, carbon atoms in brown and H in white.

In this structure a Ru atom does not have a perfect hollow position with 8 different Ru–C bond-lengths: 2.04, 2.11, 2.14, 2.18, 2.34, 2.44, 2.53 and 2.57 Å. Almost the same values are yielded for the second metallic center (Fig. 9). This coordination mode is in good agreement with EXAFS results as shown below.

Fig. 9 Side view of an ideal 1D chain for 1Ru/1C₆₀ ratio in the η²⁽⁶⁾–η⁶ state. Ru atoms are in grey, carbon atoms in brown.

If we now try to complete the coordination sphere of one Ru atom by approaching a H₂ molecule, it spontaneously dissociates and push the Ru to change its coordination to be η²⁽⁶⁾–η³ with two additional Ru–H distances are 1.59 Å, see Fig. 8f. When these two hydrides are transferred to one of the C₆₀, the η²⁽⁶⁾–η⁶ coordination modes are recovered but with a slight elongation of the largest Ru–C distances, that are now between 2.60 and 2.70 Å (Fig. 8g). In these cases, the Ru atoms provide large electronic density to the neighboring C₆₀, with a charge transfer of around 0.6e⁻. This value is not surprising since C₆₀ is a well-known electron acceptor and it is in reasonable agreement with Raman spectroscopy results, see below.

From the different microscopy techniques, it seems obvious that outside the spheres that contain the polymeric phase, Ru NPs are formed. To propose an answer at the molecular level of this statement, we have addressed two issues: are the thermodynamics in favor of Ru NPs formation? Could it be the solvent that protects metallic atoms and avoid Ru–Ru formation bonds?

Starting from an ideal polymeric 1D chain, and thus adding a second metal atom is indeed energetically favorable; as well as adding 2 other ones, as it can be seen in Table 3. An interesting feature is that the lattice parameter values are increased to accommodate the creation of new Ru–C bonds, and thus could be experimentally detected. Moreover the distance between the two Ru₁–Ru₂ in Fig. 10a is very unusual for metallic bond with a value of 2.28 Å. With 4Ru atoms, see Fig. 10b, the Ru₄–Ru₂ bond-length is 2.26 Å, the Ru₁–Ru₂ is slightly elongated (+0.09 Å) when the last one is 2.35 Å. From Table 3, where energy gains per Ru atom are compiled in various binding situations, i.e. in single complex with different ratio Ru/C₆₀, in some ideal 1D polymeric chains or even in small cluster models and finally in the bulk, we can provide some interesting insights of the reaction media behavior. Indeed, when comparing the stabilization energies of a Ru atom involved in a 1D chain, and one in small clusters or even worse in the bulk, it is clear that a Ru atom prefers to bind to other Ru atoms.

Table 3 Energy stabilization per Ru atom in various systems: for single C₆₀–Ru complexes, for different linear chains with different Ru/C₆₀ ratio, for two pure small metallic nanoparticles and in the bulk, with isolated Ru atom serving as the energy reference

Systems	Energy gain (kcal mol^−1)
C60–Ru	−48
(C60)2–Ru	−92
(C60)3–Ru	−103
…–C60–Ru–C60–…	−86
…–C60–Ru2–C60–…	−94
…–C60–Ru3–C60–…	−106
…–C60–Ru4–C60–…	−76
Ru13	−96
Ru55	−123
Ru bulk	−153

---

Fig. 10 (a) Side views and lattice parameters corresponding to a 2 Ru/C₆₀ and (b) 4 Ru/C₆₀ ratio. Ru atoms are in grey, carbon atoms in brown.

If one considers Ru₁₃ cluster formation energy (−96 kcal mol⁻¹) the two processes are thermodynamically favorable. At this step, one can assume that the polymeric phase, with a ratio close to 1Ru/1C₆₀ without excluding small clusters of Ru_n (n ≤ 3) linking fullerenes is the kinetic product of the reaction and then larger Ru NPs are created, producing the thermodynamic products of the reaction. To support this idea we have also calculated the binding energy of Ru₁₃–(C₆₀)_x complexes with x up to 6. The corresponding values are slightly lower than the other values given in Table 3: the energy gain per C₆₀ is maximal for x = 1 and x = 2, with −87 and −88 kcal mol⁻¹ respectively, and decreases when x increases: −77, −74, −61 kcal mol⁻¹. See ESI.12† for molecular models of the stable Ru₁₃–C₆₀, Ru₁₃–(C₆₀)₂, and Ru₁₃–(C₆₀)₆ complexes. It means that when fullerenes are in excess, they have also the possibility to strongly bind metallic NPs.

However, in the present theoretical picture of the system, it is not clear why the polymeric phase is stabilized and has a net preference for the 1Ru/1C₆₀ ratio. To propose a reasonable explanation, at the atomic scale, we have further investigated the effects of two different solvent molecules, i.e. toluene and dichloromethane, on the stabilization of the polymeric phase. Since the solvent molecules interact only weakly with the metallic center, see ESI.13† for a more detailed discussion, the main reason is only a steric effect that avoid the agglomeration of Ru atoms.

3.3 Infrared, NMR and Raman characterization

The attenuated total reflectance infrared (ATR-IR) spectra were recorded for Ru–C₆₀ samples in the solid state (ESI.12†). Characteristic peaks of C₆₀ are observed at 524, 576, 1182 and 1422 cm⁻¹, together with other vibrations in the ranges 2800–3000 cm⁻¹ (C–H stretching) and 400–1600 cm⁻¹ (C–H bending, C–C stretching, C–H out of plane). Some of the peaks have been attributed to C₆₀H₁₈ (ref. 64) and C₆₀H₃₆ (ref. 65) species, the rest of the peaks are probably due to the presence of a mixture of hydrofullerenes with different number of hydrogen atoms.^66,67 The presence of fullerene in the samples was also confirmed by MAS ¹³C{¹H} NMR, with a signal at 143.2 ppm for Ru–C₆₀ 1/1, 2/1, 5/1 and 10/1 samples (see ESI.13†). The ¹³C{¹H} MAS NMR also show a low intensity broad signal at 40 ppm. The CP-MAS ¹³C NMR (CP = ¹H–¹³C cross polarization) allowed to clearly observe the broad signal at 40 ppm, which increased the intensity with increasing the Ru content. We attributed this broad signal to the presence of a mixture of hydrogenated fullerenes,^64,68–72 as observed by ATR-IR. This was also confirmed by ¹H MAS NMR with the presence of a large peak at 4.5 ppm. However, the low intensity of these peaks indicates that fullerene hydrogenation is only a side reaction. If usually high temperatures and pressures are necessary for fullerene hydrogenation,^73,74 the hydrogenation of C₆₀ on Rh/Al₂O₃ catalyst at ambient temperature and pressure has already been reported.⁷⁵

Since carbon monoxide is a sensitive probe for studying the surface composition of metal NPs, the CO adsorption on the Ru–C₆₀ nanostructures was investigated by ATR-IR. Carbon monoxide was reacted with solid samples of Ru–C₆₀ in a Fisher–Porter bottle under mild conditions (1.5 bar of CO, r.t., 24 h). Then, ATR-IR spectra were recorded with a spectrometer available in a glove box (ESI.12b†). After CO exposure Ru–C₆₀ 1/1, 2/1, 5/1 and 10/1 samples display three new peaks between 1900 and 2130 cm⁻¹, which are typical of adsorbed terminal CO species. In the Ru–C₆₀ 1/1 nanostructure, the peaks appear at 1998, 2053 and 2120 cm⁻¹. The [Ru(CO)₃(alkene)₂] complexes typically show three adsorption bands in the CO stretching region, in particular [Ru(CO)₃(C₂H₄)₂] complex display three bands at 2081, 2005 and 1995 cm⁻¹.^76–78 Considering that C₆₀ acts as an electron-deficient olefin, the bands should be shifted to highest stretching frequencies in a [Ru(CO)₃(η²–C₆₀)₂] species compared to [Ru(CO)₃(C₂H₄)₂], fitting with the spectrum obtained for the Ru–C₆₀ 1/1 nanostructure, i.e. CO molecules are likely to coordinate to the Ru atoms in a polymeric structure to form species such as [Ru(CO)₃(μ-η²,η²-C₆₀)]_∞. However, species containing more or less CO ligands, as well as a mixture of species, cannot be discarded, as the signals are relatively broad. Ru–C₆₀ 2/1, 5/1 and 10/1 samples show the same pattern, although the signal at 1998 cm⁻¹ becomes broader when increasing the Ru content. We assigned this broad signal, which increases in intensity with the number of Ru NPs present on the sample, to terminal CO adsorbed on the Ru NPs surface as it usually appears in the region of 1970–2000 cm⁻¹.^79,80 For higher Ru–C₆₀ ratios, the ATR-IR signal intensity was too low for interpretation.

C₆₀ is a well-known electron acceptor and Raman spectroscopy can give valuable information on charge transfer. Fig. 11a shows Raman spectra excited at 532 nm of C₆₀ and Ru–C₆₀ 1/1, 2/1, 5/1 and 10/1 samples, in the spectral range of the tangential pitch mode A_g(2). It has been shown that the energy of the A_g(2) mode (1468 cm⁻¹ for pure C₆₀) is sensitive to charge transfer when evaporating C₆₀ on metal surfaces,⁸¹ or for transition metal fullerides.¹⁹ While the charge transfer depends on the work function of the metal, other factors such as screened metal–adsorbate interactions and the effect of covalent bond formation may also influence the observed spectral shift, but are believed to be less important. It is commonly accepted that this mode is downshifted by approximately 6 cm⁻¹ transferred to C₆₀ in ionic fulleride compounds. For C₆₀ alkali metals the downshift is directly proportional to the number of metal atoms since each atom donates one electron. The relationship between shift and composition is more complicated for the transition metal fullerides since these compounds may exhibit a large proportion of covalent bonding between metal and C₆₀. The A_g(2) mode downshift observed for Pd–C₆₀ and Pt–C₆₀ fullerides is 15 cm⁻¹, and it suggests that these fullerides have a structure with the metal atoms connected by a η²-bonding to two neighboring C₆₀ molecules. From the work function of Ru (4.71 eV) one would expect a similar spectral shift as for Cu (4.70 eV) of −23 cm⁻¹. We observe here a spectral shift as large as −10.1 cm⁻¹ for the Ru–C₆₀ 10/1 sample, and a significant broadening with increasing amount of C₆₀ caused by strong electron–phonon interaction. For the Ru–C₆₀ 1/1 sample, the spectral shift is of −6 cm⁻¹. The spectrum of C₆₀ without Ru is shown at the bottom of Fig. 11a for comparison. The fact that the spectra with Ru do not show a superimposed spectrum of C₆₀, demonstrates that the C₆₀ is strongly interacting with Ru. The A_g(2) mode downshift difference between the Ru–C₆₀ and Pd–C₆₀ and Pt–C₆₀ fullerides might be due to a different coordination mode: a η²-bonding to two neighboring C₆₀ for Pd–C₆₀ and Pt–C₆₀, and η² and η⁶ for the Ru–C₆₀ fulleride. The charge transfer to the C₆₀ molecules is therefore not only dependent on the metal but also on the type of covalent bonds. The charge transfer was also evidenced by XPS, by comparing the binding energy of Ru3p3/2 (462.2 eV) with that of metallic ruthenium (461.2 eV). Fig. 11b shows how the spectral shift progressively saturates at higher molar concentration of C₆₀. No sizeable spectral shifts are observed for the H_g(7) and H_g(8) modes, which is consistent with only smaller shifts observed for C₆₀ on Cu (<7 cm⁻¹). The smaller observed spectral shift observed for the Ru–C₆₀ samples compared to metal surfaces, indicates that the work function of the Ru species is larger than for bulk Ru.

Fig. 11 (a) Raman spectra excited at 532 nm of C₆₀ and Ru–C₆₀ 1/1, 2/1, 5/1 and 10/1 samples in the spectral range of the tangential pitch mode A_g(2); and (b) Raman spectral position of the A_g(2) band as a function of molar concentration of C₆₀.

3.4 WAXS and EXAFS characterization

Samples sealed in Lindemann glass capillaries were measured by WAXS using a diffractometer dedicated to pair-distribution function (PDF) studies (low background, Mo radiation). For the samples with high Ru/C₆₀ ratio, the obtained diffractograms are very close and fully consistent with metallic Ru in the hcp system (Fig. 12a) with no significant contribution of C₆₀. After corrections and Fourier transforms, the related PDF functions are as expected also very close, and consistent with metallic Ru NPs with low structural disorder and sizes (from coherence length) reaching 2.5 nm. From the shape of the envelope characterized by a rapid initial decrease and a secondary maximum for a larger value (ca. 1.5 nm) before the final decrease, size dispersion is likely, with a large proportion of NPs much smaller than the 2.5 nm value. This is in agreement with TEM measurements. Evolution is much different for smaller Ru/C₆₀ ratios: for 10/1, 5/1 and 2/1, we first observe (Fig. 12b) a gradual decrease of the peaks characteristic of the Ru hcp structure, then for the 1/1 ratio the hcp crystalline signature totally vanishes and the diffractogram is closer to the one obtained for pure C₆₀, excepted for the sharp peaks at low angle observed only for the highly ordered pure C₆₀ sample. The main interest of PDF analysis is the capability to go beyond crystalline order and to analyze characteristic distances in the material, related to crystalline periodicity or not. In the present case, we observe on the PDF a decrease of the metallic Ru order, however mostly marked for the longer distances for the 10/1, 5/1 and 2/1 ratios, actually indicating Ru NPs with a more single size distribution and an average diameter close to 1.5 nm for the 2/1 ratio. For the 1/1 ratio (ESI.14†), we observe a drastic change for the distances in the 0.2–0.3 nm range: for 2/1, we can still observe the Ru–Ru bonding distance (0.265 nm in bulk Ru), it however fully vanishes for 1/1, which in this range of distances is indeed very close to pure C₆₀. Distribution of distances in this range may also quite well accommodate bonds between Ru atoms and light elements, especially C (the 0.21–0.23 nm range for the Ru–C bonding distance is quite common).

Fig. 12 (a) Left – diffractograms for high Ru/C₆₀ ratio together with Ru hcp reference data, right – related PDF. (b) Left – diffractograms for lower Ru/C₆₀ ratio with Ru hcp reference data, right – related PDF.

In addition, ab initio calculations, as well as the results of our DFT calculations, show a significant contraction of the bond lengths for Ru_n clusters (n < 13): Ru–Ru bonding distance between 0.21 and 0.24 nm. However, since non-bonding C–C distances from C₆₀ obviously also pile up there, such agreement with PDF is however not a clear evidence of Ru–C or Ru–Ru bonds. All these elements clearly indicate that for the 1/1 ratio, there is no evidence of Ru NPs, although we cannot completely discarded some metallic bonding for Ru atoms in small clusters in this sample. Order is dominated by the C₆₀ structure for short distances, but discrepancies for distances above 0.7 nm strongly indicate more extended ordering, however difficult to safely characterize. Short distances are also in good agreement with eventual Ru–C bonding. For the 2/1 ratio, small Ru NPs (ca. 1.5 nm) can be observed. For the 5/1 ratio and above, these small NPs can still be observed but associated to an increasing proportion of larger NPs (2.5 nm from coherence length), which suggests increasing coalescence from small NPs.

EXAFS analyses. The Ru K-edge X-ray absorption spectra of samples Ru–C₆₀ 1/1 and 2/1 were obtained in N₂ (as synthesized) and after heating in 4% H₂/He for 1 h at 150 °C. The X-ray absorption near edge (XANES) spectra of Ru–C₆₀ 1/1 in N₂ and after high temperature treatment are shown in Fig. 13a. The XANES energy is 22.1244 keV for both spectra and the shape of the XANES does not change after hydrogen treatment indicating no change in the Ru oxidation state, or structure after high temperature treatment under H₂. The magnitude of the Fourier transform of Ru–C₆₀ 1/1 after high temperature H₂ (Fig. 13b) shows a peak below about 2 Å (phase uncorrected distance) and a small peak at longer distance. The fit of the Fourier transform is given in Table 4. The low R peak is fit with a Ru–C phase and amplitude functions calculated by FEFF, and gives 8.3 Ru–X bonds at 2.24 Å. Typical Ru–O bonds are below 2.0 Å, while Ru–C are longer at about 2.2 Å, thus it is likely that the light scatter is Ru–C. Within the error of the analysis the fits of the sample treated in H₂ at 150 °C is identical to that in N₂ at r.t. In both the N₂ and H₂ spectra there is no indication of Ru–Ru scatters typical of metallic Ru NPs. There is a small peak at about 3 Å, which is likely due to a Ru–C–Ru scatter; however, the peak is too small to fit reliably. The XANES and magnitude of the Fourier transform of Ru–C₆₀ 1/1 and 2/1 heated to 150 °C in H₂ are shown in Fig. 12c and b, respectively.

Fig. 13 (a) Ru K-edge XANES from 22.09 to 22.17 keV (red: Ru–C₆₀ 1/1 N₂ at RT, and blue: Ru–C₆₀ 1/1H₂ at 150 °C); (b) magnitude of the Fourier transform of k²-weighted Ru EXAFS (k²: Δk = 2.8–11.3 Å⁻¹) (blue: Ru–C₆₀ 2/1, H₂ at 150 °C, red: Ru–C₆₀ 1/1, H₂ at 150 °C); and (c) Ru K-edge XANES from 22.09 to 22.17 keV (blue: Ru–C₆₀ 1/1, H₂ at 150 °C red: Ru–C₆₀ 2/1, H₂ at 150 °C).

Table 4 Ruthenium EXAFS fits of samples Ru–C₆₀ 1/1 and 2/1

Sample	XANES energy, keV	Scatter	N	R, Å	Δσ^2 (×10^3)	Eo, eV
Ru foil, ref	22.1170	Ru–Ru	12	2.68	0.0	8.5
RuO2	22.1285	Ru–O	5.8	1.97	3.0	0.5
Ru(NH3)6Cl3	22.1268
Ru(NH3)6Cl2	22.1248
Ru–C60 1/1, N2 at RT	22.1244	Ru–C	8.3	2.21	3.0	7.7
Ru–C60 1/1, H2 at 150 °C	22.1244	Ru–C	8.3	2.21	3.0	8.7
Ru–C60 2/1, H2 at 150 °C	22.1241	Ru–C	5.1	2.21	3.0	9.4
		Ru–Ru	2.2	2.63	4.0	1.5

---

The XANES energy of Ru–C₆₀ 2/1 is the same as Ru–C₆₀ 1/1, e.g., 22.1244 keV; however, the shape of the XANES is slightly different, indicating some small difference in structure. The magnitude of the FT of Ru–C₆₀ 2/1 shows that there are fewer light scatters and a new higher R peak at about 2.5 Å (phase uncorrected distance). Fits of the EXAFS spectra indicate there are fewer Ru–C, 5.1 Ru–C at 2.24 Å, compared to sample Ru–C₆₀ 1/1. In addition, the scatter at longer R is due to Ru–Ru scatter with a coordination number of 2.2 at 2.63 Å, typical of metallic Ru NPs. Since non-metallic Ru–C has 8 bonds, a coordination number of 5.1 indicates that approximately 61% of the Ru is bonded to C in the Ru–C₆₀ 2/1 sample. The remaining Ru is, therefore, metallic, i.e., 39%. For the metallic fraction the true coordination number is the measured coordination number divided by the fraction of metallic Ru, or 2.2/0.39, or 5.6. For fcc and hcp metals a coordination number of 5.6 is consistent with a particle size of about 1.5 nm.⁸² In summary, sample Ru–C₆₀ 1/1 has 8 Ru–C bonds, which are stable to reduction in H₂ at 150 °C; while in sample Ru–C₆₀ 2/1 approximately one-third of the Ru is reduced to 1.5 nm metallic Ru NPs. In the latter, the remaining two-thirds Ru–C are identical to those in Ru–C₆₀ 1/1 sample.

4. Conclusions

In summary, the decomposition reaction of [Ru(COD)(COT)] in the presence of C₆₀ has been investigated, and the product(s) of the reaction characterized. The choice of the solvent affects the course of the reaction. Spherical particles are selectively produced in solvent with low viscosity and high permittivity, such as dichloromethane. The particle size depends on the nature of the solvent. According to the Ru/C₆₀ ratio, these spherical particles can be surface decorated with metallic Ru NPs (1.5–2.5 nm), which are stabilized by C₆₀. The structure of the spherical particles has been studied. TEM, EXAFS, WAXS, and DFT calculations point to a polymeric structure, in which each Ru atoms is coordinated to two C₆₀, with a η²⁽⁶⁾–η⁶ coordination mode. Solvent molecules contribute to stabilize this fulleride. This polymeric phase is the kinetic product of the reaction. Then, larger Ru NPs are created on their surface, producing the thermodynamic products of the reaction. During the decomposition reaction under hydrogen, partial hydrogenation of the fullerene occurs, catalysed by the ruthenium. Significant charge transfer from ruthenium to fullerene has been evidenced by Raman spectrometry and XPS for all the prepared materials, which is an important factor to take into account, particularly if we consider the possible reactivity of this fulleride. We believe that these results should open the possibility to draw structure/properties relationships.

Acknowledgements

This work was supported by the Centre National de la Recherche Scientifique (CNRS), which we gratefully acknowledge. The authors acknowledge financial support from the program of China Scholarships Council (CSC) for F. L. grant. I. C. Gerber also acknowledges the Calcul en Midi-Pyrénées initiative-CALMIP (Project p0812) for allocations of computer time. Part of this work was also performed using HPC resources from GENCI-IDRIS and CINES (Project x2015096649).
