Catalyst-free and selective synthesis of 2-aminothiophenes and 2-amino-4,5-dihydrothiophenes from 4-thiazolidinones in water

Abstract

2-Aminothiophenes and 2-amino-4,5-dihydrothiophenes were selectively and conveniently synthesized from 4-thiazolidinone derivatives. The meaningful product 10m was efficiently synthesized, which is a commonly-used intermediate for preparing olanzapine. The present method holds many advantages, such as easy operation, high yields, is catalyst-free and uses water as the solvent.

---

Introduction

Thiophenes are widely used in drug design¹ and can be found in a number of marketed drugs such as olanzapine 1, plavix 2 and cymbalta 3 (Fig. 1).² Continuous studies on thiophenes are also involved in dye chemistry,³ materials science,⁴ electronic and optoelectronic devices,⁵ biodiagnostics,⁶ block copolymer self-assembled superstructures, and conductivity-based sensory devices.⁷ As derivatives of thiophenes, dihydrothiophenes are also privileged scaffolds which present in natural products, bioactive molecules and synthetic intermediates.⁸ For example, 4,5-dihydrothiophene-3-carbonitrile 4 (Fig. 1)⁹ exhibit antibacterial and antifungal properties and 2-amino-4,5-dihydrothiophenes (ADHTs) are used as starting materials for the synthesis of partially hydrogenated thieno[2,3-b]pyridines¹⁰ and pyrimidines.¹¹

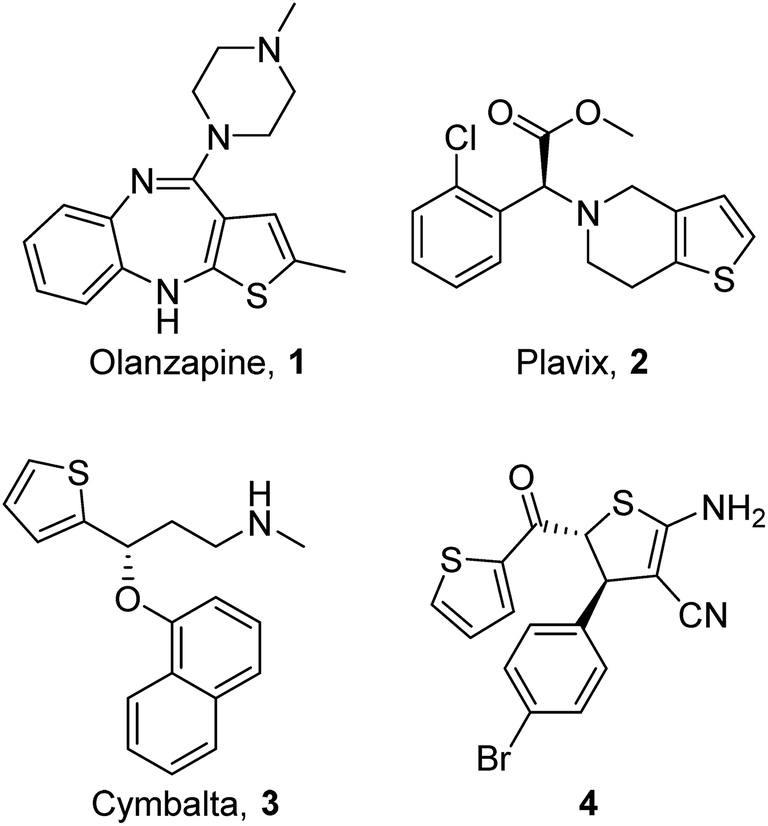

Fig. 1 Examples of bioactive thiophenes and dihydrothiophenes.

A variety of synthetic methods have been developed for the preparation of 2-aminothiophenes (ATs), of which the most attractive route is Dieckmann or Thorpe–Ziegler cyclization of thioacetals in basic medium (Scheme 1).¹² In addition, Brandsma explored a one-pot methodology using acetylenes and isothiocyanates for constructions of 5-substituted 2-aminothiophenes.¹³ Wang and co-workers disclosed the efficient synthesis of 3-substituted-2-aminothiophenes from substituted allyl benzotriazoles and isothiocyanates.¹⁴ Then, ATs obtained by treatment of arylaminothieno-oxobutanamides with Lawesson's reagent were reported.¹⁵ Recently, isothiocyanates were reported to react with electron-deficient allenes¹⁶ or Morita–Baylis–Hillman adducts¹⁷ to prepare ATs. In general, these synthetic methods have inherent drawbacks such as narrow substrate scope and the use of strong base n-butyllithium. Therefore, the development of concise and efficient methods for the access of ATs is still in high demand.

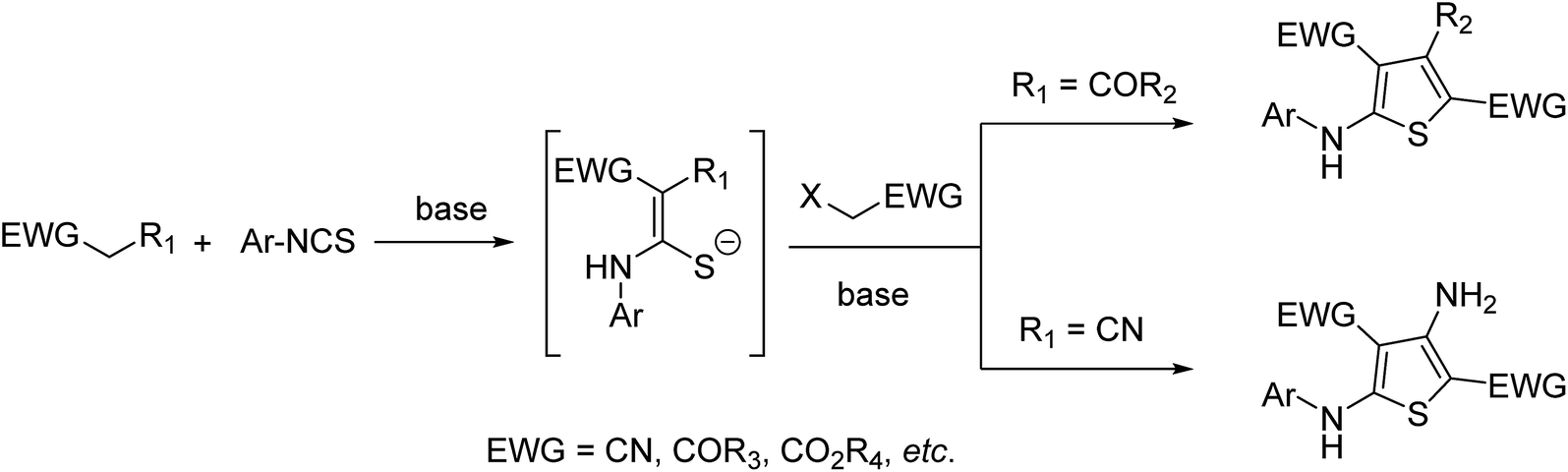

Scheme 1 Synthesis of ATs via Dieckmann or Thorpe–Ziegler cyclization of thioacetals.

Although ADHTs have great synthetic value, there are fewer publications on their synthesis in comparison with the detailed study on synthesis of thiophenes. Dotsenko and co-workers reported the synthesis of ADHTs by base-catalyzed condensation of phenacyl thiocyanate with substituted thioamides.¹⁸ Shestopalov et al. disclosed a three-component condensation reaction involving aldehydes, cyanothioacetamide and pyridinium or sulfonium ylides for synthesis of ADHTs (Scheme 2, eqn (1) and (2)).¹⁹ ADHTs could also be synthesized by a domino reaction involving 1,3-thiazolidinedione, malononitrile and aromatic aldehydes (Scheme 2, eqn (3)).^8g More recently, ADHTs were synthesized by Chandrasekaran from doubly activated cyclopropanes using tetrathiomolybdate as the sulfur transfer reagent (Scheme 2, eqn (4)).²⁰ However, these protocols suffer from one or more drawbacks, such as low yields and the narrow scope of substrates.

Scheme 2 Previous strategies for the preparation of ADHTs.

Here, the synthesis of ATs and ADHTs from 4-thiazolidinone derivatives was reported. At the beginning, we intended to selectively reduce the carboxyl group of 4-thiazolidinone derivatives 9 using NaBH₄,²¹ because 4-thiazolidinones possess broad biological activities.²² Unfortunately, no target product was obtained after many attempts. To our delight, interesting products ATs and ADHTs were detected. Then, the optimized reaction conditions and the scope of substrates were explored and the possible mechanism was also proposed.

Results and discussions

Starting materials aryl isothiocyanates 5 (ref. 23) and key intermediates 4-thiazolidinone derivatives 8 (ref. 21e) were easily obtained according to reported procedures. The corresponding carboxylic acids derivatives 9 were prepared by cleavage of tert-butyl with TFA in DCM (Scheme 3).

Scheme 3 Preparation of 4-thiazolidinone derivatives 9 from aryl isothiocyanates 5.

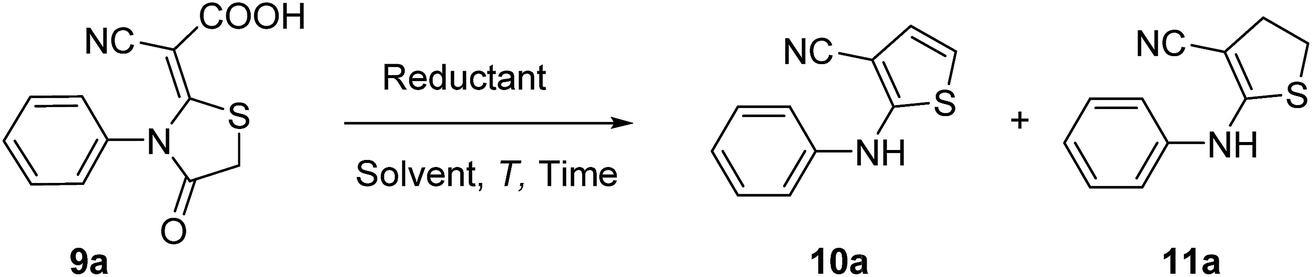

Initially, the reaction conditions were optimized (Table 1) for the direct synthesis of AT using N-phenyl 4-thiazolidinone (9a) as a model substrate. Various reductants and solvents were screened at room temperature, and the results are presented in Table 1. Among the various reductants tested, NaBH₄ was found to be superior in terms of yield of 10a (Table 1, Entry 1–4). Among the solvents screened, water was found to give the best result (Table 1, Entry 6). Other organic solvents, such as THF, MeOH and EtOH, afforded the product in relatively lower yields (Table 1, Entries 1, 2 and 5). The influence of the amount of reductants was then investigated, and 2.0 equiv. of NaBH₄ was the most effective. Moreover, it was found that the yield of AT decreased and ADHT would occur when 3.0 equiv. of NaBH₄ was used (Table 1, Entry 10). The effect of temperature was also studied. The yield of 10a increased to a remarkable 87% when the temperature was decreased to 15 °C (Table 1, Entry 11). Further decreasing the temperature to 5 °C led to significant reduction of the yield and extended reaction time (48 h) (Table 1, Entry 12). Therefore, Entry 11 was selected for the optimal reaction conditions. In order to investigate the relationship between the amount of NaBH₄ and the products ratio, the amount of NaBH₄ was further increased. Gratifyingly, the yield of 11a increased to 54% when 10.0 equiv. of NaBH₄ was employed (Table 1, Entry 15). We next examined the effect of base in water on the reaction. Saturated aqueous NaHCO₃, saturated aqueous KHCO₃, 1 M Na₂CO₃, 1 M K₂CO₃, 1 M NaOH and 1 M KOH were tried, but the yield of 11a was not improved with AT as the main product (Table 1, Entry 15 vs. Entries 17–22). At 10.0 equiv. of NaBH₄, MeOH was investigated again and the result was similar with that of Entry 2. Obvious improved yield and ratio were observed upon using EtOH as solvent (Table 1, Entries 15 vs. Entry 24). The similar yield was obtained when KBH₄ was used in water (Table 1, Entry 27), but the ratio is unsatisfied. To further increase the yield of 11a, the reactions were carried out at different temperatures (Table 1, Entry 26–31). The yield of 11a increased to 85% when the temperature was increased to 60 °C and 2 mL H₂O was used (Table 1, Entry 30). Further increasing the temperature to 80 °C did not give better results (Table 1, Entry 31). The yield of 11a decrease to 70% when 5.0 equiv. of KBH₄ was employed (Table 1, Entry 32). Based on the above observation, Entry 30 was selected for the optimal reaction conditions.

Table 1 Optimization of reaction conditions^a

Entry	Reductant (equiv.)	Solvent	Temp (°C)	Time (h)	Yield^c (%) 10a	Yield^c (%) 11a
a Reaction conditions: substrate 9a (0.2 mmol), water (1 mL).b Reaction conditions: substrate 9a (0.2 mmol), water (2 mL).c Yield was determined by UPLC (ultra performance liquid chromatography).d Isolated yield.
1	NaBH4 (2.0)	THF	25	24	6	Trace
2	NaBH4 (2.0)	MeOH	25	24	20	Trace
3	NaBH3CN (2.0)	MeOH	25	24	Trace	Trace
4	LiAlH4 (2.0)	THF	25	0.5	8	Trace
5	NaBH4 (2.0)	EtOH	25	8	68	Trace
6	NaBH4 (2.0)	H2O	25	8	78	Trace
7	NaBH4 (1.0)	H2O	25	24	8	Trace
8	NaBH4 (1.2)	H2O	25	24	68	Trace
9	NaBH4 (1.5)	H2O	25	18	70	Trace
10	NaBH4 (3.0)	H2O	25	6	62	21
11	NaBH4 (2.0)	H2O	15	20	87 (83^d)	Trace
12	NaBH4 (2.0)	H2O	5	48	72	Trace
13	NaBH4 (5.0)	H2O	25	6	37	47
14	NaBH4 (7.5)	H2O	25	6	29	51
15	NaBH4 (10)	H2O	25	2	25	54
16	NaBH4 (10)	H2O	15	3	33	52
17	NaBH4 (10)	Satd. aqueous NaHCO3	25	3	69	5
18	NaBH4 (10)	Satd. aqueous KHCO3	25	3	56	Trace
19	NaBH4 (10)	1 M Na2CO3	25	3	47	26
20	NaBH4 (10)	1 M K2CO3	25	3	48	15
21	NaBH4 (10)	1 M NaOH	25	0.5	Trace	Trace
22	NaBH4 (10)	1 M KOH	25	0.5	Trace	Trace
23	NaBH4 (10)	MeOH	25	4	24	Trace
24	NaBH4 (10)	EtOH	25	4	5	62
25	KBH4 (10)	EtOH	25	4	Trace	Trace
26	KBH4 (10)	H2O	15	3	33	58
27	KBH4 (10)	H2O	25	2	27	63
28	KBH4 (10)	H2O	40	0.5	18	74
29^b	KBH4 (10)	H2O	40	0.5	16	77
30^b	KBH4 (10)	H2O	60	0.2	6	85 (81^d)
31^b	KBH4 (10)	H2O	80	0.2	14	77
32^b	KBH4 (5.0)	H2O	60	0.2	22	70

---

With the optimal conditions established, we explored the substrates scope for synthesis of ATs. The results were summarized in Table 2 and it demonstrated broad substrates scope. The reactions of substrates bearing electron-donating groups on the aromatic ring of 4-thiazolidinones, such as methyl (9b) and methoxy (9c) groups, afforded the corresponding products in good yields. But for the substrate containing an 2,4-dimethoxy group, the yield of 10d decreased rapidly. Meanwhile, the reactions of substrates bearing electron-withdrawing groups on the aromatic ring of 4-thiazolidinones, such as fluoro (9f), chloro (9e), cyano (9i) and nitro (9j) groups, also afforded the corresponding products in good yields. In the case of substrate containing an ortho-nitro (9h) group, only 39% yield was obtained. Heteroaromatic substrate (9k) provided a lower yield. Upon the introducing methyl or phenyl into thiophene ring, the reactions also occurred smoothly to generate corresponding products 10l–10n in moderate to good yields. Most important, the meaningful product 10m could be provided conveniently, which is the commonly-used intermediate of typical antipsychotics olanzapine.²⁴

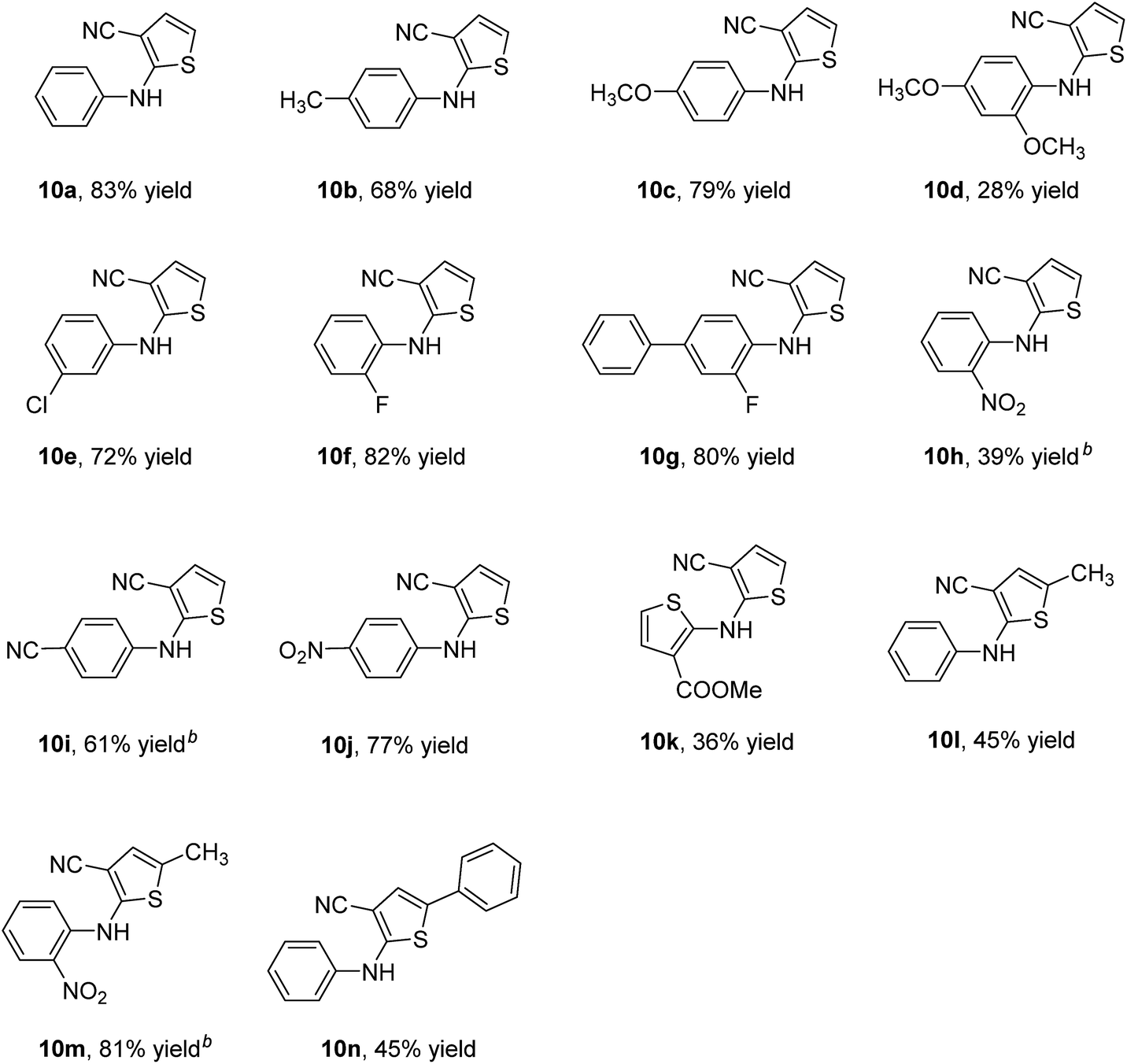

Table 2 Synthesis of ATs^a

a Reaction conditions: 4-thiazolidinone derivative 9 (0.5 mmol) and NaBH₄ (1.0 mmol) were stirred in water (2.5 mL) at 15 °C for 0.5–24 h.b Reaction conditions: 4-thiazolidinone derivative 9 (0.5 mmol) and NaBH₄ (0.5 mmol) were stirred in water (2.5 mL) at 15 °C for 0.5 h.

---

Then, the scope of substrates to give ADHTs was explored (Table 3). The reactions of substrates bearing electron-donating or electron-withdrawing groups proceeded smoothly to give the expected products 11a–11j in moderate to good yields. In case of the substrates containing 2,4-dimethoxy and 4-nitro groups, the yields of products 11d and 11i decreased slightly, which were different to the reactions of ATs. When benzene ring was replaced with biphenyl, the yield of 11g was only 52%. The decreased water solubility of substrate 9g might cause the lower yield. Heteroaromatic substrate (9k) also performed smoothly to afford product 11k in moderate yield. The yield still remained high when the R₂ was the methyl group. But upon changing R₂ to phenyl, no desired product was obtained and the major product was the AT 10n in yield of 56%.

Table 3 Synthesis of ADHTs^a

a Reaction conditions: 4-thiazolidinone derivative 9 (0.5 mmol) and KBH₄ (5.0 mmol) were stirred in water (5.0 mL) at 60 °C for 0.5 h.b The major product is 10n in yield of 56%.

---

Besides ¹H, ¹³C and ¹⁹F NMR spectroscopy, the structures of 10g and 11a were confirmed by X-ray diffraction analysis (Fig. 2). The results confirmed that the ADHTs were obtained instead of 2-amino-2,3-dihydrothiophenes. In addition, ADHTs 11 exists amino–imino automerism due to prototropic tautomerism (Scheme 4). This tautomerism can be seen in both ¹H, ¹³C and ¹⁹F NMR spectra. X-ray single crystal analysis of 11a revealed that it only exist amino form (Fig. 2). The similar tautomerism was previously studied in the 2-amino-1,3-thiazolidin-4-one derivatives.²⁵

Fig. 2 Single-crystal X-ray diffraction structures of 10g and 11a.

Scheme 4 Tautomers of 11.

A possible reaction mechanism was proposed in Scheme 5. Initially, reduction and deprotonation of 4-thiazolidinone derivatives 9 led to formation of carboxylates A. The followed C–N bond cleavage formed aldehydes B, which underwent intramolecular cyclization to form tetrahydrothiophenes C. Subsequently, tetrahydrothiophenes C were consumed in two paths: a and b. Tetrahydrothiophenes C released CO₂ to give hydroxyl compounds D in path a. Finally, hydroxyl compounds D underwent a dehydration process to give ATs 10. In path b, the C=N bond was reduced first to form carboxylates E, the second step was decarboxylation of carboxylates E with the followed release of hydroxyl ion, and 2,5-dihydrothiophenes G were given. 2,5-Dihydrothiophenes G can be easily converted to more stable 4,5-dihydrothiophenes 11.

Scheme 5 Proposed mechanism for the formation of 10 and 11.

Conclusions

A new and efficient method for the synthesis of ATs and ADHTs derivatives was developed using inexpensive and readily available starting materials and reagents. Many advantages, such as easy operation, high yields, using of water as a solvent, catalyst-free and broad substrates scope, make this method absorb more attention.

Experimental section

General procedure for the synthesis of tert-butyl-2-cyano-2-(4-oxo-3-arylthiazolidin-2-ylidene)acetates (8a–8n)

Tert-Butyl cyanoacetate (10 mmol) followed by a solution of aryl isothiocyanate 5 (10 mmol) in anhydrous DMF (10 mL) were added to a cold suspension of powdered KOH (20 mmol) in dry DMF (10 mL). The mixture was stirred at room temperature for 0.5 h, then cooled again to 0 °C, treated with a solution of appropriate 2-halogen acyl chloride 7 (15 mmol) in anhydrous DMF (10 mL) and stirred at room temperature overnight. The mixture was poured into ice-cold water, and the resulting precipitate was filtered off, dried, and crystallized from DCM–EtOH to give compounds 8a–8n in yield of 68–80%.

General procedure for the synthesis of 2-cyano-2-(4-oxo-3-arylthiazolidin-2-ylidene)acetic acid (9a–9n)

To a solution of tert-butyl acetate derivative 8 (5 mmol) in DCM (50 mL) was added a mixture of TFA (7.5 mL) and DCM (75 mL). The mixture was stirred at room temperature until the reaction was complete as indicated by TLC (typically 24 h). The solvent was evaporated under reduced pressure. The residual solid was further crystallized from DCM–MeOH to afford the compounds 9a–9n in yield of 84–91%.

General procedure for the synthesis of ATs (10a–10n)

Carboxylic acid compound 9 (0.5 mmol) was added to a solution of NaBH₄ (1 mmol) in water (2.5 mL) at 15 °C. The reaction mixture was stirred at 15 °C until the reaction was complete as determined by TLC analysis (typically 0.5–24 h). The reaction mixture was quenched with 1 M HCl, and the product precipitated was filtered. The solid was purified by silica gel column chromatography (PE : EA = 5 : 1) to afford the compounds 10a–10n.

General procedure for the synthesis of ADHTs (11a–11m)

Carboxylic acid compound 9 (0.5 mmol) was added to a solution of KBH₄ (5 mmol) in water (5 mL) at 60 °C. The reaction mixture was stirred at 60 °C for 0.5 h. The reaction mixture was cooled to room temperature and quenched with 1 M HCl. The aqueous layer was extracted with EtOAc (3 × 2 mL). The combined organic phases were washed once with brine, dried with anhydrous Na₂SO₄, vacuum-filtered, and concentrated under reduced pressure. The residue was purified by silica gel column chromatography (PE : EA = 3 : 1) to afford the corresponding ADHTs 11a–11m.

Acknowledgements

This work was financial supported by Shanghai Foundation of Science and Technology (15431902100) and National Natural Science Foundation of China (21272071).

References

1. D. Gramec, L. Peterlin Mašič and M. Sollner Dolenc, Chem. Res. Toxicol., 2014, 27, 1344.
2. E. A. Ilardi, E. Vitaku and J. T. Njardarson, J. Med. Chem., 2014, 57, 2832.
3. (a) S. Arrechea, J. N. Clifford, L. Pellejà, A. Aljarilla, P. de la Cruz, E. Palomares and F. Langa, Dyes Pigm., 2016, 126, 147; (b) Y. Cao, Y. Bai, Q. Yu, Y. Cheng, S. Liu, D. Shi, F. Gao and P. Wang, J. Phys. Chem. C, 2009, 113, 6290; (c) K. Hara, M. Kurashige, Y. Dan-oh, C. Kasada, A. Shinpo, S. Suga, K. Sayama and H. Arakawa, New J. Chem., 2003, 27, 783; (d) Z.-S. Wang, Y. Cui, Y. Dan-oh, C. Kasada, A. Shinpo and K. Hara, J. Phys. Chem. C, 2007, 111, 7224.
4. (a) G. Barbarella, M. Melucci and G. Sotgiu, Adv. Mater., 2005, 17, 1581; (b) T. Krishnamoorthy, F. Kunwu, P. P. Boix, H. Li, T. M. Koh, W. L. Leong, S. Powar, A. Grimsdale, M. Grätzel and N. Mathews, J. Mater. Chem. A, 2014, 2, 6305; (c) Y. A. Udum, E. Yildiz, G. Gunbas and L. Toppare, J. Polym. Sci., Part A: Polym. Chem., 2008, 46, 3723.
5. (a) M. Halik, H. Klauk, U. Zschieschang, G. Schmid, S. Ponomarenko, S. Kirchmeyer and W. Weber, Adv. Mater., 2003, 15, 917; (b) C. Rost, S. Karg, W. Riess, M. A. Loi, M. Murgia and M. Muccini, Appl. Phys. Lett., 2004, 85, 1613.
6. K. Doré, S. Dubus, H.-A. Ho, I. Lévesque, M. Brunette, G. Corbeil, M. Boissinot, G. Boivin, M. G. Bergeron and D. Boudreau, J. Am. Chem. Soc., 2004, 126, 4240.
7. (a) D. M. Vriezema, J. Hoogboom, K. Velonia, K. Takazawa, P. Christianen, J. Maan, A. E. Rowan and R. J. Nolte, Angew. Chem., 2003, 115, 796; (b) H. Yu, A. E. Pullen, M. G. Büschel and T. M. Swager, Angew. Chem., Int. Ed., 2004, 43, 3700.
8. (a) S. Dong and L. A. Paquette, J. Org. Chem., 2005, 70, 1580; (b) D. H. Martyres, J. E. Baldwin, R. M. Adlington, V. Lee, M. R. Probert and D. J. Watkin, Tetrahedron, 2001, 57, 4999; (c) J. Renault, D. Laduree and M. Robba, Nucleosides Nucleotides, 1994, 13, 1135; (d) M.-G. A. Shvekhgeimer, Chem. Heterocycl. Compd., 1998, 34, 1101; (e) W. Zhu, Y. Chong, H. Choo, J. Mathews, R. F. Schinazi and C. K. Chu, J. Med. Chem., 2004, 47, 1631; (f) S. Benetti, C. De Risi, G. P. Pollini and V. Zanirato, Chem. Rev., 2012, 112, 2129; (g) J. Sun, L.-L. Zhang, E.-Y. Xia and C.-G. Yan, J. Org. Chem., 2009, 74, 3398.
9. E. S. Darwish, Molecules, 2008, 13, 1066.
10. H. Maruoka, M. Yamazaki and Y. Tomioka, J. Heterocycl. Chem., 2004, 41, 641.
11. H. Maruoka, K. Yamagata and M. Yamazaki, J. Heterocycl. Chem., 2001, 38, 269.
12. (a) Q. Huang, P. F. Richardson, N. W. Sach, J. Zhu, K. K.-C. Liu, G. L. Smith and D. M. Bowles, Org. Process Res. Dev., 2011, 15, 556; (b) A. M. Shestopalov, L. A. Rodinovskaya and A. A. Shestopalov, J. Comb. Chem., 2009, 12, 9; (c) G. Sommen, A. Comel and G. Kirsch, Synthesis, 2003, 735; (d) G. Sommen, A. Comel and G. Kirsch, Synlett, 2001, 1731; (e) G. Sommen, A. Comel and G. Kirsch, Tetrahedron Lett., 2002, 43, 257; (f) L. Luo, L. Meng, Q. Sun, Z. Ge and R. Li, Tetrahedron Lett., 2014, 55, 259; (g) G. Sommen, A. Comel and G. Kirsch, Tetrahedron, 2003, 59, 1557; (h) A. El-Shafei, H. Abdel-Ghany, A. Sultan and A. El-Saghier, Phosphorus, Sulfur Silicon Relat. Elem., 1992, 73, 15.
13. O. G. A. Tarasova, L. V. Klyba, V. Y. Vvedensky, N. A. Nedolya, B. A. Trofimov, L. Brandsma and H. D. Verkruijsse, Eur. J. Org. Chem., 1998, 253.
14. A. R. Katritzky, X. Wang and A. Denisenko, J. Org. Chem., 2001, 66, 2850.
15. M. M. M. Raposo, A. M. Sampaio and G. Kirsch, Synthesis, 2005, 199.
16. D. Virieux, A. F. Guillouzic and H. J. Cristau, Heteroat. Chem., 2007, 18, 312.
17. K. H. Kim, J. W. Lim, S. Y. Kim and J. N. Kim, Tetrahedron Lett., 2015, 56, 5799.
18. V. Dotsenko, S. Krivokolysko, A. Chernega and V. Litvinov, Russ. Chem. Bull., 2007, 56, 1431.
19. (a) A. V. Samet, A. M. Shestopalov, V. N. Nesterov and V. V. Semenov, Synthesis, 1997, 623; (b) A. Shestopalov, O. Bogomolova and V. Litvinov, Synthesis, 1991, 277.
20. P. Gopinath and S. Chandrasekaran, J. Org. Chem., 2011, 76, 700.
21. (a) F. C. Brown, Chem. Rev., 1961, 61, 463; (b) M. Farhat, A. El-Saghier, M. Makhlouf, K. Kreddan and A. Elmezoughi, J. Sulfur Chem., 2007, 28, 563; (c) M. F. Farhat, M. A. Makhlouf, A. M. El-Saghier, A. B. Mezoughi, S. M. Awhida and A. A. El-mehdi, Arabian J. Chem., 2011, 4, 307; (d) M. M. Hanna and R. F. George, Chem. Pharm. Bull., 2012, 60, 1195; (e) D. Kaminskyy, A. K. Gzella and R. Lesyk, Synth. Commun., 2014, 44, 231; (f) G. R. Newkome and A. Nayak, Adv. Heterocycl. Chem., 1980, 25, 83; (g) H. M. Refaat, Eur. J. Med. Chem., 2010, 45, 2949; (h) A. C. Tripathi, S. J. Gupta, G. N. Fatima, P. K. Sonar, A. Verma and S. K. Saraf, Eur. J. Med. Chem., 2014, 72, 52; (i) A. Verma and S. K. Saraf, Eur. J. Med. Chem., 2008, 43, 897.
22. (a) A. B. Prasad, J. B. Kanth and M. Periasamy, Tetrahedron, 1992, 48, 4623; (b) R. Tale, K. Patil and S. Dapurkar, Tetrahedron Lett., 2003, 44, 3427; (c) R. P. McGeary, Tetrahedron Lett., 1998, 39, 3319; (d) R. Sharma, G. H. Voynov, T. V. Ovaska and V. E. Marquez, Synlett, 1995, 839; (e) J. B. Kanth and M. Periasamy, J. Org. Chem., 1991, 56, 5964.
23. (a) G. L. Khatik, A. Pal, S. M. Mobin and V. A. Nair, Tetrahedron Lett., 2010, 51, 3654; (b) P. Liu, C. Li, J. Zhang and X. Xu, Synth. Commun., 2013, 43, 3342.
24. (a) L. Citrome, Int. J. Clin. Pract., 2009, 63, 140; (b) A. Leyva-Pérez, J. R. Cabrero-Antonino and A. Corma, Tetrahedron, 2010, 66, 8203.
25. (a) A. K. Gzella, M. Kowiel, A. Suseł, M. N. Wojtyra and R. Lesyk, Acta Crystallogr., Sect. C: Struct. Chem., 2014, 70, 812; (b) H. H. Abdu-Allah, S. G. Abdel-Moty, R. El-Awady and A.-N. A. El-Shorbagi, Bioorg. Med. Chem. Lett., 2016, 26, 1647; (c) J. Váňa, J. Hanusek, A. Růžička and M. Sedlák, J. Heterocycl. Chem., 2009, 46, 635.

---

Footnote

† Electronic supplementary information (ESI) available. CCDC 1476608 and 1476609. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c6ra11151c

---
