Self-assembly of fluorescent diimidazolium salts: tailor properties of the aggregates changing alkyl chain features

Abstract

Searching for new fluorescent organic salts to be used in biomedical and electrochemical field, we conjugated properties of imidazolium salts with the ones of naphthalene diimide core and we obtained some N,N′-bis-(1-alkyl-3-propylimidazolium)naphthalene diimide diiodides. We took into account alkyl chains going from hexyl to dodecyl, as well as hydrogenated and fluorinated alkyl tails. After determination of their thermal behaviour by differential scanning calorimetry, concentration-, and temperature-dependent spectroscopic studies (UV-vis and fluorescence) were performed evidencing the occurrence of isodesmic and enthalpy-driven self-assembly processes. Properties of aggregates were also investigated in the solid state by fluorescence spectroscopy and scanning electron microscopy (SEM). Information obtained evidenced the formation of H-aggregates that are organized in spherical or disk-like structures.

---

Introduction

Self-assembled materials are the object of an intense interest, stretching from aggregates observed in natural systems, to the wide range of application of synthetic ones. Both share the emergence of peculiar properties from the reversible and spontaneous association of molecular building blocks.¹

Hence, self-assembly is a viable route to obtain nanostructures and smart materials, which can be employed in different technological fields, spanning from biosensing, optoelectronics, to solar cells.^2–5 In this context, the most promising self-assembled materials appear to be based on π-conjugated molecules endowed with extended aromatic nuclei and well-defined redox properties. These include oligophenylenevinylenes, oligophenyleneethylenes, oligothiophenes, perylenediimides and naphthalene diimides.^6–8

The principal non-covalent interactions involved in the formation of their aggregates are π–π stacking between aromatic surfaces and hydrogen bonds. However, in these self-assembly processes both solvent system and substituents take on key roles.

The strong link between monomer structure and properties of the aggregates is manifested in the possible formation of J and H aggregates,^9,10 where the aromatic nuclei are staggered along the longitudinal axis of the molecule or arranged in parallel, respectively.

Among the various aromatic nuclei able to self-assemble, a pivotal role is exerted by naphthalene diimides (NDIs). Their structural features are suitable for several applications, such as n-type organic semiconductors, optoelectronics, organic solar cells and the organic light emitting diodes.¹¹ Indeed, accessible π orbitals and extended charge delocalization area facilitate charge transfer.^12,13 Other interesting applications show NDI used in biomedical field, as charge device and DNA intercalators.^12,14–16 In the last case, the NDI moiety allows the formation of aggregates and, as a consequence, the interaction between biosensor and DNA.¹⁵ The particular redox properties of the NDI nucleus allow its derivates to be used also as electronic scaffolds in lipid bilayers.¹⁷ Furthermore, NDI has been used to analyse the role of DNA-G-quartet/quadruplex core in the charge transfer. These additional examples confirm the versatile features of these systems.¹⁸

To date, the study of these systems has been mainly focused on neutral NDIs. To the best of our knowledge, only two reports have taken in consideration viologen derivatives bearing NDI core, able to form supra-amphiphiles to be used in optoelectronic systems.^19,20 This raises an important question: what would be the utility of preparing new organic salts having NDI core?

The presence of cationic heads on this electron deficient core could be crucial in all the applications in which coulombic interactions play a pivotal role, like biomedical and energetic materials. In the first case, these derivatives should provide charged species able to interact with polyanions like DNA avoiding the need to prepare metal complexes. As far as the use as semiconductors is concerned, organic salts based on NDI bearing in their structure the support electrolyte should reduce the use of more corrosive inorganic salts.

In the last few years, there has been a growing interest in the obtainment of fluorescent organic salts and in particular of dicationic ones.²¹ Data so far reported evidence their high thermal stability, up to about 300 °C, their good solubility in common organic solvents and the possibility to obtain from them fibres and thin films, similar to amorphous polymers. Differently from these latter, organic salts avoid the use of complex synthetic protocols and their properties as well as their applications can be finely tuned bringing about small changes on the cation or anion structure.

Aggregation of organic salts both in solution and in solid state is generally characterized by the emission of blue light. In some cases they have shown chemical behaviour typical of ionic liquids and liquid crystals.^12,22,23 Moreover, it has been demonstrated that the presence of charges in the molecule can improve both the aggregation ability and electronic properties through the electrostatic interaction, increasing the life time of charge-separated state.^19,24

Bearing this in mind, in the framework of our interest in the aggregation ability of diimidazolium salts endowed with an aromatic spacer,^6,25 we decided to combine the well-known properties of imidazolium salts with the ones of NDI core. Then, we herein report a study of the self-assembly ability of several N,N′-bis-(1-alkyl-3-propylimidazolium)naphthalene diimide iodides ([C_nNDI][I]) (Chart 1) with the aim to answer two main questions: (i) how the alkyl chain length affects their self-assembly ability? (ii) Is the substitution of hydrogenated by fluorinated tails able to induce significant changes in their self-assembly ability?

Chart 1 Diimidazolium NDI salts studied.

To these aims, alkyl tails going from hexyl to dodecyl have been taken into account. This should allow evaluating the influence of van der Waals interactions on the formation of aggregates. Indeed, longer chains should enhance aggregation, but at the same time may interfere with the core π–π stacking, thus destabilizing the aggregates.^26,27

Fluorinated alkyl chains have also been taken into account. It is noteworthy that the presence of these chains often increases the thermal stability of substrates, affects their flexibility and could also lead to mesophases.^28,29 Moreover, long fluorinated alkyl chains, such as those in [C₈FNDI][I] and [C₁₂FNDI][I] should increase the hydrophobic character of the system.³⁰

Firstly, we analysed the thermal properties of all salts by means of Differential Scanning Calorimetry (DSC) measurements. Then, we tested the aggregation properties of our salts in a wide range of solvents by UV-vis and fluorescence measurements. We carried out concentration dependent UV-vis and fluorescence measurements in all solvents supporting aggregation of the salts. To obtain additional information on the importance of hydrogen bonding on the aggregates formation, we also analysed the effect of the addition of a protic solvent like methanol.

The thermodynamic parameters relating to the aggregation processes were determined by temperature dependent UV-vis analysis. Variable temperature ¹H NMR investigations allowed us to identify the protons more involved in the aggregation process.

Finally, the solid phase properties of systems were analysed through fluorescence spectra and SEM images.

Results and discussion

Synthesis of diimidazolium NDI salts

Our dicationic organic salts were synthesized using a two-step procedure. In the first step, the 1,4,5,8-naphthalene tetracarboxylic anhydride (NDA) was reacted with a small excess of 3-aminopropylimidazole (2.2 eq.) in DMF solution at 140 °C, according to a previous reported procedure (Scheme 1).³¹

Scheme 1

This allowed us to obtain the N,N′-bis-(3-imidazol-yl-propyl)-NDI (1) in good yield. The following alkylation of (1) was carried out using a stoichiometric amount (2 eq.) of alkyl iodide in DMF solution at 90 °C (Scheme 2).

Scheme 2

Solvent removal under vacuum and treatment of crude product with diethyl ether under ultrasound irradiation allowed us to obtain reaction products with high yields (details of synthetic procedures and full compounds characterization are reported in ESI†).

Thermal behaviour

The thermal behaviour of our organic salts was investigated performing DSC measurements. Traces of heat-cool cycles obtained are reported in Fig. S1.† With the only exception of [C₁₀NDI][I] (Fig. S1†), in all the other cases, in the heating cycle we observed transitions that were ascribed to melting processes. The melting temperatures and enthalpies were determined respectively from the maximum of the signal and from its area. In confirmation of this, observation of the salts using a polarized optical microscope (POM) allowed us to rule out mesophases formation, and by heating we obtained isotropic solutions. The trend of melting temperatures (T_m) as a function of the number of methylene units in the alkyl chain (n_CH2) is shown in Fig. 1. Furthermore, T_m are reported in Table S1,† together with enthalpy (ΔH_m) and entropy (ΔS_m) variations.

Fig. 1 Plots of (a) melting temperature (T_m) as a function of n_CH2 and (b) odd–even distribution.

Analysis of values collected indicates a certain effect of alkyl chain length on the melting temperature. The trend detected was quite complex. The above trend results more clear if data are analysed as a function of the odd or even number of methylene units in the alkyl chain. Indeed, opposite trends were detected for the two series. For odd terms, T_m increase with the increase in the number of methylene units. On the other hand, as for the even terms, T_m gradually decrease on going from [C₆NDI][I] to [C₁₂NDI][I]. Interestingly, a divergence among the above trends can be detected at higher number of methylene units (Fig. 1b). The odd–even effect has been already used by Desiraju et al.³² to explain the trend of some physico-chemical properties like the elastic modulus and melting temperature of α,ω-alkane dicarboxylic acids. In that case, the divergence between even and odd terms occurred at low number of methylene units. Also in the series of ionic liquids this effect has proved to be crucial in determining trend of density and experimental molar volume of alkylphosphonium and imidazolium salts.³³

Thermodynamic parameters corresponding to melting process indicate that, for even terms, a decrease in T_m values as a function of alkyl chain length is the result of a corresponding increase in ΔS_m values. This accounts for a more extensive association of molecules in the solid state for salts with longer alkyl chains. On the contrary, the entropic contribution becomes unfavourable in the case of odd terms and induces the increase in T_m.

Fluorination of the alkyl chain causes an increase in T_m values, as accounted for by the comparison among data collected for [C₈NDI][I] and [C₈FNDI][I] or [C₁₂NDI][I] and [C₁₂FNDI][I]. Thermodynamic parameters indicate that the increase is mainly determined by an enthalpic contribution. This result agrees with the one previously reported about tribological properties of geminal dicationic organic salts bearing fluorinated alkyl spacer.³⁴ Furthermore, more recently the above effect has been also detected comparing T_m of imidazolium ionic liquids having alkyl and perfluoroalkyl side chains,³⁵ and it has been ascribed to different segregation of non polar hydrogenated and perfluorinated regions.

Spectroscopic investigation

Spectroscopic properties of our organic salts were investigated using UV-vis and fluorescence measurements. In particular, their photophysical behaviour was firstly analysed in solvents having different polarities and hydrogen bond donor abilities, like acetone, acetonitrile (ACN), chloroform (CHCl₃), 1,4-dioxane (1,4-Diox), N,N-dimethylformamide (DMF) and tetrahydrofuran (THF). UV-vis and fluorescence spectra of solutions at a fixed concentration (5 × 10⁻⁵ M) as a function of solvent are reported in Fig. 2 and S2.†

Fig. 2 (a) UV-vis and (b) fluorescence spectra of [C₁₂NDI][I] at 5 × 10⁻⁵ M as a function of solvent nature.

UV-vis spectra show two main absorption bands located at ∼354 and 374 nm and a shoulder at ∼340 nm. The position of these bands was barely affected by solvent nature and the attempt to correlate λ_max with solvent polarity gave no regular trend, but evidenced on the whole an hypsochromic shift (∼3–4 nm) with the increase in solvent polarity. In some cases (1,4-Diox, THF and DMF), we observed a significant hypochromic effect.

Analysis of fluorescence spectra (Fig. 2b and S2†) clearly allowed us to ascribe the above changes to the occurrence of aggregation processes. Indeed, in solvents like acetone, methanol, chloroform and acetonitrile, main emission bands were quite intense and located at ∼385 and 405 nm. In these solvents the emission is strongly dominated by the monomeric component. Consequently, in these cases, we rule out the possibility of aggregation induced emission, which has been recently observed in amide functionalised NDIs.³⁶ However, moving from these solvents to DMF, THF and 1,4-Diox solutions, we detected a loss of the well-resolved spectra and a significant decrease in the fluorescence intensity. Similar changes have been previously reported in literature and have been considered as clear evidences of aggregation processes.^37–39

In the light of the above results, we performed concentration dependent UV-vis and fluorescence measurements. Concentrations used ranged from 2 × 10⁻⁷ M up to 1 × 10⁻⁴ M. In particular, to have information about solvent and alkyl chain length effect, with the only exception of [C₈FNDI][I] and [C₁₂FNDI][I], measurements were carried out in THF and DMF. For the last two salts, solubility issues allowed using only DMF. The solvent effect was further investigated using [C₁₂NDI][I] as model substrate and studying self-assembly process also in 1,4-Diox and CHCl₃. In Fig. 3 and S3,† UV-vis and fluorescence spectra for [C_nNDI][I] are shown as a function of concentration.

Fig. 3 (a) UV-vis (1 × 10⁻⁶ ÷ 1 × 10⁻⁴ M) and (b) fluorescence spectra (λ_ex = 362 nm) of [C₁₂NDI][I] (2 × 10⁻⁷ ÷ 1 × 10⁻⁴ M) in DMF solution as a function of concentration.

UV-vis spectra indicate that intensity of absorption bands gradually increased with salt concentration, without following the Lambert–Beer law. This is better evidenced looking at the trend of molar extinction coefficient (ε) that drops dramatically as the concentration increased (inset Fig. 3a and S4†). Raising the concentration induced also small but consistent hypsochromic shifts in the main absorption band ranging from 0.9 nm in DMF to 2 nm in THF solutions. According to previous reports,^6,40–42 the hypsochromic effect is the result of the formation of H-type assembly with parallel stacking of chromophores.

As for fluorescence investigation, we detected different trends as a function of the emission wavelength. Indeed, an increase in salt concentration induces a drop in fluorescence intensity (I) in the range 380–500 nm. Moreover, significant changes in the shape of emission band were also observed, like its enlargement and loss of fine structure. Conversely, a raise in intensity of the band located at ∼550 nm was evidenced, further confirming the occurrence of aggregation processes.^10,43 The increase in concentration also induced a blue shift of the main emission band and it was more significant in THF (∼4 nm) than in DMF solution (∼2 nm). Then, we determined I/C values at 415 nm for [C₈NDI][I] in DMF, [C₁₀NDI][I] in THF and DMF. Moreover, I/C was determined at 533 nm for [C₁₂NDI][I] in dioxane, 435 nm [C₁₂NDI][I] in CHCl₃ and at 422 nm in all other cases. These values gave as a function of salt concentration a hyperbolic trend, and the determination of inflection point allowed us to calculate the salt concentration corresponding to the onset of aggregation (C_on). These values are displayed in Fig. 4 and Table S2.†

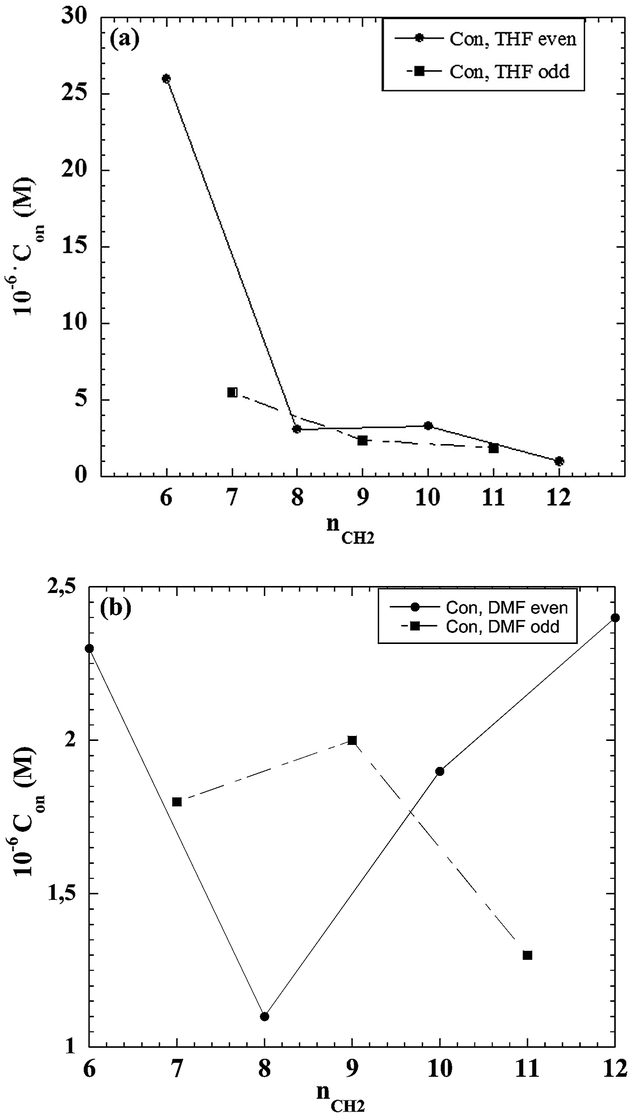

Fig. 4 Plots of C_on as a function of n_CH2 (a) in THF and (b) in DMF solution.

C_on range from 1.0 × 10⁻⁶ up to 5.5 × 10⁻⁶ M in THF and from 1.1 × 10⁻⁶ up to 3.3 × 10⁻⁶ M in DMF solution. In the latter solvent, C_on are generally lower than the ones determined in THF.

Plots in Fig. 4 indicate the presence of two series as a consequence of odd or even number of methylene units in the alkyl chain.

Self-assembly is negatively affected by the presence of fluorinated tails. Indeed, significantly higher C_on were calculated for [C₈FNDI][I] and [C₁₂FNDI][I] with respect to [C₈NDI][I] and [C₁₂NDI][I].

As above stated, the solvent effect was analysed for [C₁₂NDI][I], performing measurements in four solvents. In this case, C_on increases along the series: C_on,_THF < C_on,_DMF < C_on,_1,4-Diox < C_on,_CHCl3. The above trend does not fit neither the one of solvent polarity nor viscosity (E^N_T = 0.407, 0.259, 0.207, 0.164 and η = 0.79, 0.54, 0.46 and 1.18 cP for DMF, CHCl₃, THF and 1,4-Diox, respectively).⁴⁴ Many reports have underlined that factor different from solvent polarity and viscosity, like size and shape of molecules can be crucial in determining self-assembly processes.^45,46 Consequently, to take in consideration geometrical features of solvents, we used DFT optimized geometries and Amber atomic radii, recently determined studying self-assembly processes of some phenyleneethynylene diimidazolium salts.⁶ In particular, the ratio of the smallest to the largest molecular dimension (m/M) gives information about the shape of solvent molecule. In the present case, all solvents used resemble an oblate ellipsoid and with the only exception of DMF, C_on increases with drop in m/M values (m/M = 0.67, 0.59, 0.48 and 0.48 for THF, 1,4-Diox, CHCl₃ and DMF respectively). The above result indicates that, shape being the same, self-assembly of [C₁₂NDI][I] is determined by a concomitant action of size and polarity of solvent used. For comparable polarities, the drop in size determines a decrease in the self-assembly ability.

Data collected by fluorescence measurements were further analysed to get quantitative information on the aggregation ability of salts, determining the association constants (K_ass). To this aim, we calculated the aggregation degree (α_agg), which is the fraction of molecules present in the aggregates, using the eqn (1)

where I_(C) is the emission intensity at a given concentration, I_mon is the emission intensity detected for the lowest salt concentration and I_agg is the emission intensity detected for the highest salt concentration. α_agg was determined at 415 nm for [C₈NDI][I] in DMF, [C₁₀NDI][I] in THF and DMF. Moreover, α_agg was determined at 533 nm for [C₁₂NDI][I] in dioxane, 435 nm [C₁₂NDI][I] in CHCl₃ and at 422 nm in all other cases. Then, we plotted α_agg as a function of concentration. All plots obtained displayed a sigmoidal trend, where α_agg gradually increased from 0 to 1 as the salt concentration increased (Fig. S5†). According to previous report in literature,^47,48 such behaviour indicates the occurrence of an isodesmic process of aggregation. In this case, the aggregation is considered as a succession of equilibrium steps in which a monomer is incorporated into the growing stack. In this model of aggregation, the constant is the same irrespective of the length of the stack. To obtain the values of association constant (K_ass), we fitted this plot by non-linear least square analysis using eqn (2) based on the isodesmic model:⁴⁹K_ass values as a function of salt and solvent used are reported in Table 1 and displayed in Fig. 5.

Table 1 Association constants (K_ass) as a function of different nature of salt and solvent

Salt	10^−6 Kass,THF (M^−1)	10^−6 Kass,DMF (M^−1)	10^−6 Kass,CHCl3 (M^−1)	10^−6 Kass,1,4-Diox (M^−1)
[C6NDI][I]	1.60 ± 0.20	4.00 ± 0.10
[C7NDI][I]	0.60 ± 0.06	2.45 ± 0.10
[C8NDI][I]	2.30 ± 0.10	2.20 ± 0.10
[C9NDI][I]	3.00 ± 0.10	2.00 ± 0.10
[C10NDI][I]	2.60 ± 0.10	2.00 ± 0.10
[C11NDI][I]	1.40 ± 0.10	1.70 ± 0.10
[C12NDI][I]	3.00 ± 0.10	2.20 ± 0.20	0.40 ± 0.05	1.40 ± 0.10
[C8FNDI][I]		1.40 ± 0.10
[C12FNDI][I]		2.20 ± 0.10

---

Fig. 5 Plots of K_ass as a function of alkyl chain length determined in: (a) THF; (b) THF for odd or even terms; (c) DMF solution.

K_ass range from 0.60 × 10⁶ up to 3.00 × 10⁶ M⁻¹ in THF and from 1.40 × 10⁶ up to 4.00 × 10⁶ M⁻¹ in DMF. In THF, the highest stability was detected for [C₉NDI][I] and [C₁₂NDI][I], whereas the lowest was observed for [C₇NDI][I]. Otherwise, in DMF the lowest stability was detected for [C₈FNDI][I], whereas [C₆NDI][I] gave rise to aggregates having the highest stability.

Trends of K_ass as a function of alkyl chain are different in two solvents. Indeed, in THF it resembles a bell-shaped curve; whereas in DMF K_ass irregularly decreases with a raise in the alkyl chain length (Fig. 5).

The trend obtained in DMF solution indicates that stability of the aggregates is negatively affected by the presence of longer alkyl chains. Probably, in such polar solvent, the unfavourable contact with non polar chains induces the partial wrapping of these latter that, interfering with NDI spacer organization, causes a drop in K_ass.

On the whole, trend observed in THF is quite complex. However, the above trend can be better understood dissecting salts on the grounds of odd or even number of methylene units in the alkyl chain. For even terms a gradual increase with the alkyl chain length was observed. Differently, for odd terms [C₉NDI][I] represents the best compromise among stabilizing and destabilizing effects.

The different behaviour of odd and even terms has been already observed in self-assembly processes. It represents one of the main concerns as frequently allows modulating properties and consequently applications of aggregates. Recently, Sànchez et al. have reported data about the effect that odd or even number of methylene units has on the self-assembly of linear bis(benzamides).⁵⁰ Moreover, the presence of odd or even number effect has proven to be crucial in determining the gelling ability in toluene solution of a series of perylenebisimide dimers.⁵¹

As far as solvent effect is concerned, results obtained perfectly reassert the considerations about C_on. Indeed, size of solvent molecules determines trend of K_ass, as accounted for by its parallel decrease with m/M ratio (K_ass: THF > 1,4-Diox > CHCl₃).

By contrast, the effect of the fluorinated tail resulted different depending on the alkyl chain length. Indeed, aggregates of lower stability were formed by [C₈FNDI][I] with respect to the ones formed by [C₈NDI][I]. However, no significant differences were observed as far as corresponding dodecyl derivatives were compared.

As above stated, spectroscopic shifts indicates the occurrence in our systems of H-aggregates that could be stabilized by π–π, van der Waals and hydrogen bond formation. To estimate the relevance of hydrogen bonding, we used a protic solvent (MeOH) that did not support aggregation. To this aim, we performed a fluorescence investigation, at fixed salt concentration (5 × 10⁻⁵ M), in some THF/MeOH and DMF/MeOH mixtures having variable composition. Fluorescence spectra collected for [C₁₂NDI][I] are reported in Fig. 6.

Fig. 6 Fluorescence spectra of [C₁₂NDI][I] at 5 × 10⁻⁵ M: (a) in THF/MeOH and (b) DMF/MeOH binary mixtures as a function of MeOH percentage (λ_ex = 362 nm).

We obtained almost complete conversion of aggregates into monomeric species in the presence of 1 and 25% of MeOH for MeOH/DMF and MeOH/THF binary mixtures respectively. This result perfectly agrees with the one reported by Ghosh et al. about self-assembly of some bis-(trialkoxybenzamide)-functionalized NDI chromophores.⁴¹

Temperature-dependent measurements

Self-assembly processes were also studied as a function of temperature, performing UV-vis measurements and using salts solution having a fixed concentration (5 × 10⁻⁵ M). Investigation was carried out in all cases in which we had evidences of aggregation processes.

For all salts in THF and for [C₁₂NDI][I] in DMF and CHCl₃ solution, we detected significant spectral changes with the temperature and, at the highest value, we observed the presence of the fully monomeric species. This allowed us to analyse the effect of the alkyl chain length and solvent nature on thermodynamic parameters. In all the other cases, we obtained only a partial disruption of aggregates. The above evidences suggest a considerable thermal stability of the aggregates, according to previous reports in literature.⁵² UV-vis spectra as a function of temperature are reported in Fig. 7 and S6.†

Fig. 7 (a) UV-vis spectra as a function of temperature for [C₁₂NDI][I] (5 × 10⁻⁵ M) in THF; (b) plot of α_gg as a function of temperature (λ = 374 nm).

In the cases in which we observed the complete melting of the aggregate, we determined the fractions of aggregates molecules (α_agg) and we plotted them as a function of temperature (Fig. 7b and S7†). Plots obtained were consistent with an isodesmic aggregation pathway and could be fitted using eqn (3) based on the isodesmic model derived by Meijer et al.⁵³

where T_m,agg is the melting temperature of the aggregate, i.e. the temperature at which at which α_agg is 0.5, while T* is a characteristic temperature related to the slope of the curve at T_m,agg. To have further information, we determined association constant values at each temperature from the corresponding degree of aggregation, following the procedure reported by Meijer et al. (details of calculation method are reported in ESI†). Then, we applied the van't Hoff treatment, obtaining enthalpy and entropy variations corresponding to aggregation processes (Table 2 and Fig. S7†). T_m,agg values are reported in Table 2 together with thermodynamic parameters.

Table 2 Melting temperatures (T_m,agg), enthalpy (ΔH) and entropy (ΔS) variations corresponding to melting processes of aggregates as a function of salt and solvent

Salt/solvent	Tm,agg^a (°C)	ΔH (kJ mol^−1)	ΔS (J K^−1 mol^−1)
a In all cases standard deviations were lower than 1%.
[C6NDI][I]/THF	43	−140 ± 1	−370 ± 2
[C7NDI][I]/THF	45	−195 ± 2	−540 ± 6
[C8NDI][I]/THF	37	−240 ± 1	−690 ± 3
[C9NDI][I]/THF	43	−350 ± 5	−1020 ± 15
[C10NDI][I]/THF	41	−170 ± 1	−460 ± 4
[C11NDI][I]/THF	41	−130 ± 1	−330 ± 2
[C12NDI][I]/THF	45	−200 ± 2	−550 ± 7
[C12NDI][I]/CHCl3	45	−210 ± 2	−580 ± 6
[C12NDI][I]/DMF	77	−40 ± 1	−30 ± 1

---

Melting temperatures in THF range from 37 up to 45 °C, indicating only a modest effect of the alkyl chain length. Once again, trend of T_m,agg as a function of the alkyl chain length can be rationalized only dissecting salts used on the grounds of odd or even number of methylene units. Indeed, for even terms, T_m,agg has the lowest values for [C₈NDI][I]. Then, it regularly increases with the alkyl chain length. Differently, for odd terms, melting temperature decreases with the increase in the alkyl chain length (Fig. 8).

Fig. 8 Trends of T_m,agg values as a function of: (a) even and (b) odd number of methylene units in the alkyl chain.

Analysis of ΔH and ΔS values shows that aggregation of salts is enthalpy driven. As far as alkyl chain length is concerned, from a thermodynamic point of view, [C₉NDI][I] represents the “inversion point” (Fig. S8†). Indeed, in the range C6–C9, the enthalpy becomes gradually more negative with the increase in the alkyl chain length. Differently, for salts with longer alkyl chains a gradual gain in entropy can be evidenced, probably as a consequence of the more difficult organization of the side tail that induces a higher disorder degree in the monomers.

As for solvent effect in the case of [C₁₂NDI][I], comparable T_m,agg were obtained in THF and CHCl₃, whereas a significantly higher value was calculated in DMF. This can be ascribed to more positive enthalpy variation and can be the result of the unfavourable polar/apolar contact between solvent and side chain that maximizes van der Waals interactions among monomers and positively contributes to aggregate stability.

Temperature dependent measurements were also carried out using ¹H NMR to identify the protons mainly involved in the supramolecular interactions. Investigation was performed on [C₆NDI][I], [C₁₂NDI][I], [C₈FNDI][I] and [C₁₂FNDI][I], in DMSO-[d₆] solution at a fixed concentration (7.5 × 10⁻³ M).

As for [C₆NDI][I] and [C₁₂NDI][I], at 27 °C, we observed the enlargement and loss of multiplicity for signals corresponding to protons on the alkyl tail (Fig. S9†). Furthermore, we also noticed the presence of signals in the range 7.30–7.70 ppm that could not be easily ascribed to protons of dications. Temperature increase to 85 °C induced an improvement in the signals multiplicity, without affecting chemical shift.

To better identify the origin of the above signals, we recorded ¹H NMR spectrum of [C₁₂NDI][I] in CD₂Cl₂, a solvent that did not support aggregation. The absence of the above signals induced us to hypothesize the occurrence of self-assembly processes in DMSO-[d₆] and to ascribe them to aggregated species. Moreover, the absence of chemical shift variation with temperature could be the evidence of significant stability of the aggregates, perfectly recalling the situation observed in DMF solution for the same salt using UV-vis measurements.

As far as [C₈FNDI][I] and [C₁₂FNDI][I] are concerned, NMR investigation confirmed the presence of aggregates in the used experimental conditions at 27 °C (Fig. S10†). In these cases, signals at 8.86 and in the range 7.71–7.50 ppm were observed. Temperature increase induced a downfield shift of the above signals and it was more significant for [C₁₂FNDI][I] with respect to [C₈FNDI][I] (Fig. 9).

Fig. 9 Trend of Δδ_Hi (ppm) for (a) [C₈FNDI][I] and (b) [C₁₂FNDI][I] as a function of temperature in DMSO-[d₆] solution (7.5 × 10⁻³ M).

The above result accounts for a lower thermal stability of aggregates formed by salts bearing fluorinated tails with respect to corresponding hydrogenated terms. Moreover, it allows identifying protons of naphthalene core, together with H5 and H6 (as labelled in Fig. 9) of imidazolium ion as the most affected by supramolecular interactions, further supporting the hypothesis of H-aggregates formation in which chromophores are arranged face to face.

Properties of aggregates were also investigated in solid state using fluorescence spectroscopy and scanning electron microscopy. In both cases, we analysed thin films obtained from casting of solutions at a fixed concentration (5 × 10⁻⁵ M).

Solid state fluorescence measurements

As far as fluorescence in solid state is concerned, we were interested in analysing both solvent and alkyl chain length effect. Consequently, spectra were recorded on thin films obtained from THF solution of all salts and from CHCl₃, DMF and 1,4-dioxane solution of [C₁₂NDI][I].

In all cases we detected intense fluorescence signals with broad emission bands in the solid state. To have a comparison with spectra collected in solution and identify the position of main bands, we performed deconvolution of solid state emission bands. Superimposed normalized spectra recorded in solution and in solid state are displayed in Fig. 10 and S11.†

Fig. 10 Fluorescence spectra of [C₁₂NDI][I] in DMF solution (5 × 10⁻⁵ M) and thin film obtained from casting of DMF solution (λ_ex = 390 nm and 273 nm respectively).

After deconvolution, analysis of solid state spectra indicates that λ_max of emission band located at ∼360 nm corresponds to emission band collected in solution and located in the range 410–420 nm. In all cases, on going from solution to solid state an hypsochromic shift was observed and according to previous report this should indicate the occurrence of H-aggregation.⁵⁴

The largest and the lowest shifts (Δλ_max) were equal to 44 and 18 nm and they were detected for thin film obtained for [C₁₂NDI][I] from casting of DMF and 1,4-dioxane solutions and for [C₉NDI][I] from casting of THF solution, respectively (λ_max values for solution and solid state spectra are reported in Table S3†).

With the only exception of [C₉NDI][I], Δλ_max were not affected by alkyl chain length. On the other hand, shifts detected for [C₁₂NDI][I] films were barely affected by the nature of solvent.

SEM investigation

Morphology of some selected aggregates was investigated performing SEM measurements. In particular, we took in consideration the effect of the alkyl chain length, solvent polarity and the presence of fluorinated tails. To pursue these goals, SEM measurements were carried out on the thin films obtained from casting on aluminium stubs of [C₆NDI][I] THF solution, and [C₆NDI][I], [C₁₂NDI][I] and [C₁₂FNDI][I] DMF solutions. SEM images are reported in Fig. 11 and S12.†

Fig. 11 SEM images collected at 5 × 10⁻⁵ M from casting of (a) [C₆NDI][I] in THF; (b) [C₆NDI][I] in DMF; (c) [C₁₂NDI][I] in DMF; (d) and (e) [C₁₂FNDI][I] in DMF.

As far as solvent effect is concerned, images collected for [C₆NDI][I] in THF and DMF show that increase in solvent polarity induces an increase in the thickness of texture characterizing materials obtained (Fig. 11a and b). In both cases, they are featured by the presence of disk like aggregates. Diameter of above aggregates range from 260 up to 1560 nm for materials obtained from DMF solution and, from 460 up to 1560 nm for the ones obtained from THF solution (Fig. S12a and b†). However, in the first case a continuous film was obtained; whereas as for film deriving from THF solution, disk-like aggregates were arranged in a sponge-like three-dimensional structure (Fig. 11).

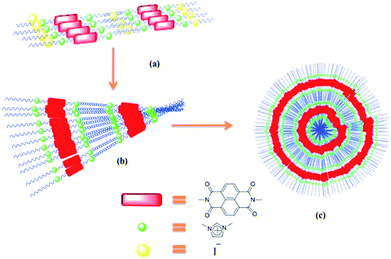

Fig. 12 Suggested schematic model of aggregation. (a) Front view of an oligomer with anions included. (b) Side view of a growing stack. (c) Representation of the final aggregates. Anions are omitted in (b) and (c) for the sake of clarity.

The increase in the alkyl chain length, on going from [C₆NDI][I] to [C₁₂NDI][I], induces a change in the shape of aggregates. Indeed, comparison between SEM images collected from casting of DMF solutions evidences the transition from disk like to spherical aggregates (Fig. S12b and c†). Furthermore, in the latter case, they are less extended as accounted for by their main size that ranges from 365 up to 848 nm.

Finally, on going from [C₁₂NDI][I] to [C₁₂FNDI][I], no significant changes in morphology were detected. The presence of fluorinated tail gave rise only to formation of less porous aggregates (Fig. S12d†).

Conclusions

It is well known that properties of self-assembled systems can be tailored to their applications by small changes on the structure of tectons. So, combining the properties of NDI chromophore and imidazolium ion, we have obtained a new series of fluorescent diimidazolium salts differing for the alkyl chain length and for the presence of hydrogenated or fluorinated tails. Our main goal was understanding the effects exerted by different features of alkyl chain borne on the imidazolium ions on the self-assembly ability of the salts.

The presence of chains having a different number of methylene units gave rise to different behaviours. Indeed, stability of the aggregates is the result of a fine balance between the positive contribution of van der Waals interactions and the negative one deriving from conformational factors and entanglement of alkyl chain.

All these salts give rise to the formation of H-aggregates in THF and DMF solution, as well as in the solid state. In these aggregates, chromophore are stacked face to face and their stability, other than van der Waals interactions, is mainly determined by π–π stacking and hydrogen bond between iodide and the protons on imidazolium ions. This latter motif is well known for imidazolium salts and it is recognized as the main contribution that gives rise to the formation of their supramolecular polymers.⁵⁵

Trend of properties of organic salts, as well as the ones of aggregates they are able to form, can be rationalized only dissecting them in two series on the grounds of odd or even number of methylene units in the alkyl chain. On the other hand, the comparison between substrates bearing hydrogenated or fluorinated alkyl chain demonstrate that fluorination increase the strength of interactions in the solid state, as accounted for by the increase in T_m values. By contrast, a significant decrease in the stability of the aggregates formed in solution was detected only for octyl derivative.

SEM investigation allows evidencing the presence in the thin films of spherical or disk-like aggregates, completing the picture about the studied system and allowing suggesting the schematic model of aggregation reported below (Fig. 12).

Experimental

Material

1,4,5,8-Naphthalenetetracarboxylic dianhydride, 1-(3-aminopropyl)imidazole, 1-iodohexane, 1-iodoheptane, 1-iodooctane, 1-iodononane, 1-iododecane, 1-iodoundecane, 1-iodododecane, 1,1,2,2-tetrahydroperfluorooctyliodide, 1,1,2,2-tetrahydroperfluorododecyliodide were purchased and used without further purification.

N,N-Dimethylformamide, tetrahydrofuran, acetonitrile and chloroform were purchased and used without further purification. Dichloromethane, 1,4-dioxane, methanol and acetone were distilled before use.

High resolution mass spectrometry

High resolution mass spectra were obtained on a Q-TOF mass spectrometer equipped with a dual AJS ESI ion source.

Spectroscopic measurements at variable concentration and temperature

All the samples were prepared by dilution of stock solutions in dichloromethane (1 × 10⁻⁴ M, 1 × 10⁻⁵ M, 1 × 10⁻⁶ M). The proper amount of these solutions was put into a vial. The solvent was removed under vacuum, and the solid obtained was dissolved in 2 mL of the desired solvent. To favour dissolution, each sample was sonicated for 2 minutes. In general the concentration ranged from 2 × 10⁻⁷ M up to 1 × 10⁻⁴ M. The UV-vis measurements were performed using a spectrophotometer equipped with a Peltier temperature controller. UV-vis spectra were recorded using quartz cuvette with a light path of 1 cm, in the wavelength range between 300 nm and 750 nm. Before recording spectra, each solution was equilibrated at 25 °C.

Measurements at variable temperature were carried out on 5 × 10⁻⁵ M solutions. The temperature range and ramp were chosen in dependence of the solvent (in the case of THF from 20 °C to 55 °C with a temperature increase of 3 °C; in the case of DMF from 20 °C to 100 °C with a temperature increase of 5 °C).

Fluorescence measurements

Fluorescence measurements were performed at 25 °C on a spectrofluorophotometer equipped with temperature controller. Measurements were conducted 24 hours after the preparation of the solutions. Spectra were recorded from 377 nm to 700 nm, using quartz cuvette with a light path of 1 cm both in excitation and in emission. Solid-state fluorescence spectra were recorded from casting of organic salt solutions (5 × 10⁻⁵ M) onto quartz plates. Spectra were recorded using a high-pass filter with λ equal to 375 nm. To ensure a meaningful comparison between solid- and solution phase spectra, the excitation spectra were recorded for each sample. Then the emission spectra were obtained by exciting the samples at those wavelengths.

Differential scanning calorimetry

DSC measurements were carried out using a Q20 instrument calibrated using indium as standard. Samples were weighed in aluminium pans and hermetically sealed. Heating and cooling rates were 20 °C min⁻¹. The maximum heating temperature was varied in dependence of the sample; the minimum cooling temperature was set at −5 °C under nitrogen atmosphere. For each sample two heat-cool cycles were performed.

Scanning electron microscopy

SEM images were recorded by using FEI Quanta 200 instrument with 20 kV operating voltage. 10 μL of the solution (5 × 10⁻⁵ M) was placed on the aluminium stub and the solvent was evaporated under vacuum. The superficial layer was shielded by gold.

NMR measurements

¹H NMR, ¹³C NMR spectra were recorded using Bruker AV-300 and AV-400 nuclear magnetic resonance spectrometers. Chemical shifts were reported relative to SiMe₄. ¹H NMR spectra at variable temperature were recorded using a 300 MHz nuclear magnetic resonance spectrometer. Temperature ranges were changed as a function as of the alkyl chain nature (27–85 °C for the hydrogenated and 27–70 °C for fluorinated alkyl chain, respectively).
