A phosphotungstic acid-supported multifunctional organocatalyst containing 9-amino(9-deoxy)epi-cinchonidine and Brønsted acid and its application in asymmetric aldol reaction

Abstract

A novel type of supported multifunctional organocatalyst CDNH₂(n)–HPW combined 9-amino(9-deoxy)epi-cinchonidine (CDNH₂) with Brønsted acid in the backbone of phosphotungstic acid was developed via facile precipitation of sodium tungstate with organophosphonic acid. The aldol addition of cyclohexanone to o, m or p-substituted benzaldehydes bearing electron-withdrawing substituents (–X and –NO₂) afforded good yields (71–96%) and excellent stereoselectivities (anti/syn = 94/6–98/2, 87–97% ee). It was found that the arm length (n) and acid capacity had significant effects on the cooperative catalysis of CDNH₂ and Brøsted acid in the aldol reaction. After the completion of the aldol reaction, the catalysts could be readily recovered in quantitative yield by centrifugation and possessed good reusability with no significant loss of catalytic performance in the five consecutive asymmetric aldol reactions.

---

Introduction

Natural cinchona alkaloid-derived primary amines, employed as homogeneous organocatalysts in asymmetric aldol,¹ Michael,² α-benzoyloxylation,³ α-alkylation,⁴ cycloaddition⁵ and cascade reactions,⁶ continue to act as powerful star organocatalysts able to effectively promote the chemical transformations of carbonyl compounds via enamine or iminium activation. As far as we know, to improve the economics and sustainability, the commonly used strategy by means of the heterogenization of these successful homogeneous organocatalysts by a covalent linkage to an organic polymer,⁷ inorganic material⁸ and magnetic nanoparticle⁹ has been well developed in recent years.¹⁰ Another effective strategy, known as one-phase catalysis and two-phase separation, provided an ideal and practical technique to combine the advantages of both homogeneous and heterogeneous catalysis, avoiding mass transfer limitation resulted from heterogeneous catalytic system.¹¹ However, it is worthwhile to note that most of above-mentioned reactions, no matter whether in homogeneous or heterogeneous catalytic system, required cooperative catalysis of primary amine and various Brønsted acids with different acid strengths such as 2-nitrobenzoic acid or HFA (10–40 mol%) as a co-catalyst to achieve a satisfactory catalytic performance.¹² Nevertheless, the simultaneous heterogenization of Brønsted acid and cinchona alkaloid-derived primary amine has been elusive owing to the lower catalytic performance compared to homogeneous counterparts in terms of activity, diastereoselectivity and enantioselectivity. Therefore, from the viewpoint of green chemistry, an efficient and recoverable supported organocatalyst possessing the multifunctionalities of enamine or iminium activation and acid catalysis is a compulsory task to meet the challenge of green chemistry.

In the present study, based on solid acid catalytic property of phosphotungstic acid displayed especially in esterification,¹³ condensation,¹⁴ alkylation¹⁵ and alcoholysis,¹⁶ a novel type of phosphotungstic acid-supported multifunctional 9-amino(9-de-oxy)epi-cinchonidine organocatalyst possessing enamine activation and acid catalysis was developed by the facile direct precipitation of sodium tungstate with phosphonic acids with different arm lengths (n = 2, 4 and 6) instead of H₃PO₄ at various added P/W molar ratios from 0.5 to 4 (Scheme 1). As expected, in the case of the as-synthesized multifunctional organocatalysts CDNH₂(n)–HPW, Brønsted acid and primary amine CDNH₂(n) attached to the same backbone of phosphotungstic acid exhibited the concerted catalysis with high catalytic performances and good reusability in aqueous asymmetric aldol addition of different cyclic ketones to various aromatic aldehydes.

Scheme 1 Synthesis of phosphotungstic acid-supported multifunctional CDNH₂(n)–HPW possessing enamine activation and acid catalysis.

Results and discussion

Preparation of phosphotungstic acid-supported CDNH₂(n)–HPW

It was well known that 12-tungstophosphoric acid, H₃PW₁₂O₄₀ (HPW), was readily prepared through the prolonged reflux of Na₂WO₄/H₃PO₄-mixed solution, acidification by HCl solution and then extraction with ethyl ether.¹⁷ After the replacement of organic CDNH₂(n)–PO₃H₂ instead of inorganic H₃PO₄, CDNH₂(n)–HPW/1, CDNH₂(n)–HPW/2 and CDNH₂(n)–HPW/4 could be directly precipitated out upon the added molar ratio of CDNH₂(n)–PO₃H₂/Na₂WO₄ above 1. However, at the same procedure, no CDNH₂(n4)–HPW/0.5 was directly precipitated out from reaction medium upon the added molar ratio of CDNH₂(n4)–PO₃H₂/Na₂WO₄ below 1. To our delight, according to the synthetic procedure of 12-tungstophosphoric acid, CDNH₂(n4)–HPW/0.5 could immediately precipitate out from solution after the medium pH was adjusted to 3–4 using HCl solution. In order to have a more comprehensive comparison of results, the effect of ageing the solids with added HCl in the preparation of CDNH₂(n4)–HPW/1 and CDNH₂(n4)–HPW/2 as examples was further investigated. Unfortunately, there was no marked difference in chemical composition and catalytic performance in aldol addition. Therefore, we did not set out the further investigation into the effect of HCl addition.

Structure of phosphotungstic acid-supported CDNH₂(n)–HPW

Unfortunately, our endeavors to cultivate single crystal to elucidate the real structure of CDNH₂(n)–HPW were unsuccessful, possibly owing to the flexibility of attached bulky CDNH₂(n)–PO₃H₂. Then, we did our endeavors to clarify the possible structure and true chemical composition of phosphotungstic acid-supported multifunctional CDNH₂(n)–HPW by means of FT-IR, XRD, DTA, ICP and elemental analysis.

It was well known that the IR spectra of neat H₃PW₁₂O₄₀ had four characteristic IR bands approximately at 1080 (α-peak, P–O in the central tetrahedron), 980 (β-peak, terminal W=O), 896 and 806 cm⁻¹ (γ- and δ-peaks, asymmetric W–O–W) associated with pure Keggin structure¹⁸ and of M–O–P (M = metal). Furthermore, the free H–O–P stretching vibration in metal phosphonate was generally in the range of 1000–1100 cm⁻¹.¹⁹ Although the characteristic absorption peaks of CDNH₂(n)–HPW red-shifted about 50–80 cm⁻¹, the hybrid CDNH₂(n4)–HPW/1, CDNH₂(n4)–HPW/2 and CDNH₂(n4)–HPW/4 series had the similar four characteristic absorption peaks, respectively at 1031 and 983, 933 and 902, 832, 715 cm⁻¹ (Fig. 1c–e). It was worthwhile to note that the vibrations of P–O in central tetrahedron and terminal W=O bonds split into two bands respectively at 1031 and 983, 933 and 902 cm⁻¹, possibly due to the formation of central P–O–W and terminal W=O possessing diverse chemical environments upon the direct precipitation of Na₂WO₄ with CDNH₂(n4)–PO₃H₂ at the added P/W molar ratios equal to or greater than 1. However, when the added molar ratio of P/W was 0.5, CDNH₂(n4)–HPW/0.5 obtained in the pH = 3–4 range by means of hydrochloric acid showed the similar four characteristic peaks without split phenomenon at 1031, 933, 832, 715 cm⁻¹ (Fig. 1b) as neat H₃PW₁₂O₄₀, which implied that CDNH₂(n4)–HPW/0.5 was more like the similar Keggin structure of H₃PW₁₂O₄₀. Moreover, the C–H stretching vibrations of –CH₂– and –CH– moieties in CDNH₂ in the 2800–2980 cm⁻¹ centered at 2930 cm⁻¹ and characteristic phenyl ring in the 1620–1450 cm⁻¹ range clearly corroborated the covalent attachment of CDNH₂–PO₃H₂ to the hybrid backbone (see ESI†).

Fig. 1 IR spectra of CDNH₂(n4)–PO₃H₂ (a), CDNH₂(n4)–HPW/0.5 (b), CDNH₂(n4)–HPW/1 (c), CDNH₂(n4)–HPW/2 (d) and CDNH₂(n4)–HPW/4 (e).

The X-ray powder diffraction patterns of neat H₃PW₁₂O₄₀ displayed a set of well-resolved sharp diffraction peaks featured for the secondary crystal structure.¹⁸ However, all these characteristic sharp peaks disappeared and several broad diffraction peaks were observed in the case of CDNH₂(n4)–HPW/2 and CDNH₂(n4)–HPW/0.5 (Fig. 2), which indicated their non-crystal structure definitely different from the crystal Keggin structure of neat H₃PW₁₂O₄₀. Compared with the characteristics of the Keggin unit with a sharp peak at about 6–10° for pristine H₃PW₁₂O₄₀, both CDNH₂(n4)–HPW/2 and CDNH₂(n4)–HPW/0.5 presented the most intense and broad peak in the range of 2θ = 5–12°, stating clearly the existence of Keggin anions in the hybrids, in accordance with the above-mentioned IR spectra. Furthermore, the broad diffraction peaks in the 2θ = 15–40° and 45–70° ranges were also observed, suggesting that CDNH₂(n4)–HPW/2 and CDNH₂(n4)–HPW/0.5 existed in amorphous states without long-range order.²⁰ This amorphous structure was in agreement with the HRTEM images for CDNH₂(n4)–HPW/0.5 (Fig. 3). The TEM image showed the irregular particles of CDNH₂(n4)–HPW/0.5 with the diameter of approximate 0.3–0.5 μm, whereas some irregular lattice fringes in different directions at the distances of 0.2–0.5 nm in the high resolution TEM image could be observed.

Fig. 2 Powder X-ray diffraction patterns of CDNH₂(n4)–HPW/2 and CDNH₂(n4)–HPW/0.5.

Fig. 3 The TEM and HRTEM images of phosphotungstic acid-supported organo-catalyst CDNH₂(n4)–HPW/0.5.

Furthermore, no precipitate was obtained upon the direct mixing of sodium tungstate with 9-amino(9-deoxy)epi-cincho-nidine, which implied that the amino group in CDNH₂(n) with-out phosphonic acid (–PO₃H₂) could not react sodium tungstate to afford the analogue of phosphotungstic acid. Combined the synthetic principle of phosphotungstic acid and the above-mentioned structural information obtained from FT-IR and XRD, the possible structure of the organic–inorganic hybrids CDNH₂(n)–HPW was constructed by the replacement of the organic phosphonic acid in CDNH₂(n)–PO₃H₂ instead of inorganic phosphate H₃PO₄ as the source of P to coordinate with a WO₆⁻ octahedra unit in parent phosphotungstic acid, and then the generated phosphotungstic acid was used as an inhert matrix to support organocatalyst CDNH₂.

Chemical composition of phosphotungstic acid-supported CDNH₂(n)–HPW

After 0.1000 g of CDNH₂(n4)–HPW/0.5 was calcined for 4 h at 800 °C, the resulting solid was dissolved in 5.0 mL of HNO₃ and 15 mL of DI water, pretreated via microwave digestion and then volumed to 100 mL. The content of wolfram in the mixture was detected by inductively coupled plasma atomic emission spectrometry (ICP-AES). The wolfram percent in CDNH₂(n4)–HPW/0.5 was calculated to be 61.52%. In addition, the content of nitrogen (1.24%) in CDNH₂(n4)–HPW/0.5, which was thrice the content of phosphorus in the same molecule, was detected by elemental analysis. Based on these results, the molar ratio of wolfram to phosphorus was calculated to be 11.2, which was very close to that of neat H₃PW₁₂O₄₀. Mean-while, based to the nitrogen content, the loading capacity of CDNH₂ in CDNH₂(n4)–HPW/0.5 was also calculated to be 0.30 mmol g⁻¹. According to the same method, the molar ratios of W/P and loading capacities of CDNH₂ in CDNH₂(n4)–HPW/1, CDNH₂(n4)–HPW/2 and CDNH₂(n4)–HPW/4 via direct precipitation were determined to be 10.0 and 0.33 mmol g⁻¹, 9.8 and 0.34 mmol g⁻¹, 10.4 and 0.32 mmol g⁻¹, respectively. Further-more, with the decrease in the arm length (n) of CDNH₂(n)–PO₃H₂ from 6 to 2, the W/P molar ratio in CDNH₂(n2)–HPW/2 decreased to 8.8, and the loading capacity of CDNH₂ increased to 0.38 mmol g⁻¹. All the data was listed in Table 1. It was noticeable that the slightly lower W/P molar ratios (8.8–11.3) in CDNH₂(n)–HPW than that of neat H₃PW₁₂O₄₀ elucidated the possible coordination of CDNH₂(n)–PO₃H₂ with MO₆⁻ octahedra in the synthetic process of these hybrids.

Table 1 The chemical compositions of as-synthesized samples CDNH₂(n)–HPW

Cat.	W^a (wt%)	CDNH2(n)–PO3H2^b (%/mmol g^−1)	Hydration water^c^,^d (%/%)	Molar ratio (W/P)^e
a Determined by ICP.b Determined by elemental analysis.c Determined automatic Karl Fischer moisture analyzer.d Determined by TGA below 120 °C.e Calculated according to the data of ICP and elemental analysis.
CDNH2(n4)–HPW/0.5	61.52	15.5/0.30	2.9/3.8	11.2
CDNH2(n4)–HPW/1	60.92	17.4/0.33	3.2/4.2	10.0
CDNH2(n4)–HPW/2	60.98	17.7/0.34	3.1/4.4	9.8
CDNH2(n4)–HPW/4	61.12	16.7/0.32	2.8/4.3	10.4
CDNH2(n2)–HPW/2	61.03	18.6/0.38	3.0/5.3	8.8
CDNH2(n6)–HPW/2	60.95	18.0/0.33	3.1/4.7	10.2

---

Thermal analysis was performed to monitor the decomposition profiles of CDNH₂(n)–HPW. Using CDNH₂(n4)–HPW/0.5 as an example, its TG, DTG and DSC curves were depicted in Fig. 4 and the others were shown in ESI.† The hydration water in CDNH₂(n4)–HPW/0.5, which was verified by IR spectra with a broad and strong O–H stretching vibration in the 3200–3600 cm⁻¹ range, was detected by automatic Karl Fischer moisture analyzer to be 2.9% of total weight. Compared with the data of weight loss (3.8%) by TG below 120 °C, it was found that the hydration water in CDNH₂(n4)–HPW/0.5 obtained by Karl Fischer method had a relatively lower value with the 0.9% decrement, possibly owing to the effect of porous structure of back-bone. The protonized water and structural water lost in the 120–800 °C range,²¹ companied by the weight loss of organic moiety in CDNH₂(n4)–PO₃H₂ with the exothermic peaks at 305, 432 and 600 °C due to the decomposition of CDNH₂(n4)–HPW/0.5 and Keggin type anion. Based on the content of nitrogen (1.24%), the weight loss of organic moiety in CDNH₂(n4)–HPW/0.5 was calculated to be 13.1%, and then the total weight loss of protonized water and structural water was summed to be 9.7%. On the whole, the chemical compositions of as-synthesized CDNH₂(n)–HPW were approximate to each other (Table 1), although they had a big difference in the added P/W molar ratios from 0.5 to 4.0.

Fig. 4 The TG, DTG and DSC curves of supported multifunctional CDNH₂(n4)–HPW/0.5.

Porous structure of CDNH₂(n)–HPW

The N₂ adsorption–desorption isotherms of all samples, obtained at the temperature of 77 K, were shown in ESI.† Phosphotungstic acid-supported organocatalysts CDNH₂(n4)–HPW/4, CDNH₂(n4)–HPW/2, CDNH₂(n2)–HPW/2 and CDNH₂(n6)–HPW/2, prepared at the added P/W molar ratios equal to or greater than 2, exhibited the classic definition of a type III isotherm. Upon the decrease in the added P/W molar ratio below 2, CDNH₂(n4)–HPW/1 and CDNH₂(n4)–HPW/0.5 showed a step-height type VI isotherm, which was possibly related to the uniform porous structure.²² The BET-specific surface areas, average pore diameters and pore volumes of all samples were listed in Table 2. The overall trend along with the increased molar ratio of added P/W was towards the enhanced BET-specific surface areas, average pore diameters and pore volumes. Especially, when the added P/W molar ratios decreased from 4.0 to 0.5, the pore size distributions, obtained from BJH algorithm on adsorption isotherm, tended from the uneven micro mesoporous structures to the regular mesopores. From Fig. 5, it was found that CDNH₂(n4)–HPW/0.5 and CDNH₂(n4)–HPW/1 with the relatively low BET-specific surface areas, average pore diameters and pore volumes possessed the five regular meso-pores at 1.8, 2.9, 4.5, 6.8 and 15.0 nm, and the other adsorption D_v values were close to zero.

Table 2 The surface areas, average pore diameters and pore volumes of as-synthesized samples^a

Cat.	Surface area^b (m^2 g^−1)	Average pore diameter^c (nm)	Pore volume^c (×10^−3 cm^3 g^−1)
a The samples were degassed at 105 °C for 5 h.b Based on the multipoint BET method.c Based on the desorption data using BJH method.
CDNH2(n4)–HPW/0.5	5.6	6.9	9.7
CDNH2(n4)–HPW/1	13.8	8.4	8.0
CDNH2(n4)–HPW/2	18.2	23.8	108.2
CDNH2(n4)–HPW/4	22.1	15.2	84.2
CDNH2(n2)–HPW/2	23.5	26.8	157.3
CDNH2(n6)–HPW/2	16.5	68.7	42.8

---

Fig. 5 The pore size distributions (PSDs) of CDNH₂(n2)–HPW/2 (a), CDNH₂(n6)–HPW/2 (b), CDNH₂(n4)–HPW/4 (c), CDNH₂(n4)–HPW/2 (d), CDNH₂(n4)–HPW/1 (e) and CDNH₂(n4)–HPW/0.5 (f).

Acid capacity and acid strength

Generally, NH₃–TPD was employed to reveal acidic site nature of solid acid.²³ Unfortunately, owing to the disturbance of weight loss resulted from the organic moieties in CDNH₂(n)–HPW in the high 200–600 °C temperature range, the acidic site nature was incapable of being investigated by terms of NH₃–TPD technique. Herein, the acid capacities of CDNH₂(n)–HPW were determined by simple and convenient acid–base titration, and the acid–base titration curves by NaOH aqueous solution (0.05 mol L⁻¹) were presented in Fig. 6 and Table S1 (ESI†). It was found that synthetic method had a great influence on the acid capacities of CDNH₂(n)–HPW. Compared with CDNH₂(n4)–HPW/4 (45.0 mmol g⁻¹), CDNH₂(n4)–HPW/2 (40.5 mmol g⁻¹) and CDNH₂(n4)–HPW/1 (12.0 mmol g⁻¹) prepared via direct precipitation at the added P/W molar ratio equal to or greater than 1, the highest acid capacity (61.5 mmol g⁻¹) was observed for CDNH₂(n4)–HPW/0.5 obtained at the lowest added P/W molar ratio in the pH = 3–4 ranges assisted by HCl, although CDNH₂(n4)–HPW/0.5 possessed the lowest surface area, average pore diameter and pore volume. Moreover, the arm lengths (n) of attached CDNH₂(n)–PO₃H₂ had no impact on the acid capacity. It was observed that CDNH₂(n2)–HPW/2 (39.5 mmol g⁻¹), CDNH₂(n4)–HPW/2 (40.5 mmol g⁻¹) and CDNH₂(n6)–HPW/2 (39.0 mmol g⁻¹) exhibited the identical level of acid capacity.

Fig. 6 The acid–base titration curves of CDNH₂(n2)–HPW/2 (a), CDNH₂(n6)–HPW/2 (b), CDNH₂(n4)–HPW/0.5 (c), CDNH₂(n4)–HPW/1 (d), CDNH₂(n4)–HPW/2 (e) and CDNH₂(n4)–HPW/4 (f) by aqueous NaOH solution (0.05 mol L⁻¹).

The acid strengths of phosphotungstic acid-supported organocatalysts CDNH₂(n)–HPW were examined by Hammett indicator method (Table S2, ESI†). Probably owing to the more like Keggin structure of CDNH₂(n4)–HPW/0.5 verified by the IR spectra (Fig. 1), it was found that CDNH₂(n4)–HPW/0.5 possessed the strongest acid strength (H₀ ≤ 0.8). Among the as-synthesized multifunctional organocatalysts CDNH₂(n)–HPW, CDNH₂(n4)–HPW/1 had the weakest acid strength (H₀ ≤ 3.86). Unfortunately, only based on the structural information obtained from IR and XRD, the reason can hardly be unconvincingly explained.

Asymmetric aldol addition

To evaluate the multifunctional catalytic performance and reusability of CDNH₂(n)–HPW simultaneously containing attached organocatalyst CDNH₂(n) and Brøsted acid, the asymmetric aldol addition of cyclohexanone to benzaldehydes was selected as a model reaction at 15 °C. Generally, aldol reaction, catalyzed by 9-amino(9-deoxy)epi-cinchona alkaloid, needs an additional acid co-catalyst such as F₃CSO₃H to achieve a desired excellent catalytic performance. Excitedly, owing to the strong acidity of CDNH₂(n)–HPW resulted from the backbone of phosphotungstic acid verified by Hammett indicator, it was highlighted that the aldol reaction smoothly carried out without the addition of an external acidic additive.

From Table 3, it was found that the arm length (n) and acid capacity of CDNH₂(n)–HPW had a significant effect on the co-operative catalysis of 9-amino(9-deoxy)epi-cinchonidine and Brøsted acid. The optimal arm length (n) was n = 4 in terms of the excellent yield (95%) and good stereoselectivity (anti/syn = 86/14, 94% ee anti, entries 3, 5 and 6). Notably, when the arm length increased to n = 6, the cooperative catalysis between 9-amino(9-de-oxy)epi-cinchonidine and Brøsted acid was getting weaker and resulted in the unsatisfactory catalytic performances (81% yield, anti/syn = 86/14, 91% ee anti, entry 6). Further-more, owing to the highest acid capacity (61.5 mmol g⁻¹) and regular mesopore structure (Fig. 5), CDNH₂(n4)–HPW/0.5 afforded the excellent stereoselectivity (anti/syn = 93/7, 96% ee anti, entry 1) in 96% yield. Unfortunately, along with the decrease of acid capacity, the more low yields and stereoselectivities were observed for CDNH₂(n4)–HPW prepared via direct precipitation at the added P/W molar ratio equal to or greater than 1 (entries 2–4).

Table 3 The asymmetric aldol addition of cyclohexanone to p-nitrobenzaldehyde catalyzed by various multifunctional CDNH₂(n)–HPW^a

Entry	Cat.	Yield^b (%)	Dr (anti/syn)^c	% ee (anti)^d
a Reaction conditions: cat. (40 mg, 0.012–0.014 mmol), cyclohexanone (0.5 mL, 4.8 g, 49.0 mmol), p-nitrobenzaldehyde (30.2 mg, 0.2 mmol), water (0.5 mL), 15 °C, 72 h.b Isolated yield.c Determined by ^1H NMR.d Determined by chiral HPLC.
1	CDNH2(n4)–HPW/0.5	96	93/7	96
2	CDNH2(n4)–HPW/1	93	89/11	95
3	CDNH2(n4)–HPW/2	95	86/14	94
4	CDNH2(n4)–HPW/4	93	86/14	94
5	CDNH2(n2)–HPW/2	90	85/15	92
6	CDNH2(n6)–HPW/2	81	84/16	91

---

Using CDNH₂(n4)–HPW/0.5 with the best catalytic performance as a example, the optimized protocol was expanded to aldol reaction of cyclohexanone and hydroxyacetone to a wide variety of aldehydes. From Table 4, o, m and p-substituted benzaldehydes bearing electron-withdrawing substituents (–X and –NO₂) afforded the good yields (71–96%) and excellent stereoselectivities (anti/syn = 98–94 : 2–6, 97–87% ee, entries 1–3 and 7–9). For m and p-CN substituted benzaldehydes, the excellent enantioselectivities and moderate diasteroselectivities were achieved in good yields (entries 5 and 6). For some un-fathomable reason, no aldol adduct was obtained in the aldol addition of cyclohexanone to o-CN substituted benzaldehyde (entry 4). Unfortunately, the aldol reaction is dramatically dependent on the electronic effect of the substituent at the aromatic ring like its homogeneous catalysis. The substrates with electron-donating o-, m- and p-CH₃ and OCH₃ groups at the aromatic ring gave the less unsatisfactory yields (0–59%, entries 10–15), which was attributed to not enough acid strength and capacity for CDNH₂(n4)–HPW/0.5 to favorably catalyze the aldol addition. Furaldehyde was also employed in the aldol reaction which showed the high yield (92%) and enantioselectivity far from satisfactory (69% ee) (entry 16). Furthermore, we tested the aldol reaction of hydroxyacetone with benzaldehydes bearing electron-withdrawing o, m or p-nitro substituent and 2,4-dinitro multiple substituents. All of them afforded the high yields (89–95%), but unfortunately, only the moderate syn/anti = 72–81/19–28 and moderate to good 77–91% ee obtained for benzaldehydes bearing o, m or p-nitro substituent. To our delight, the excellent stereoselectivities (syn/anti = 94/6 and 95% ee) were achieved for benzaldehyde bearing 2,4-dinitro substituents.

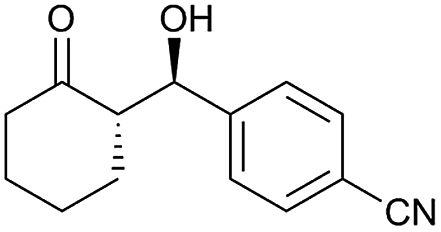

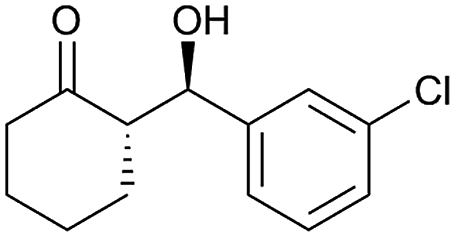

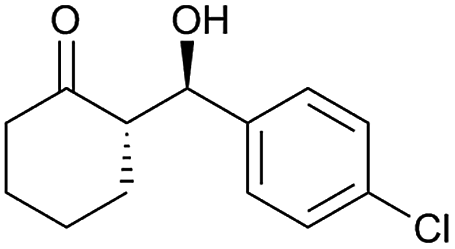

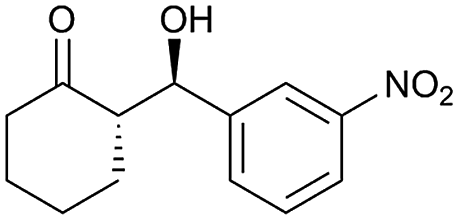

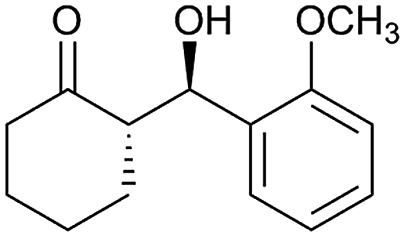

Table 4 The asymmetric aldol addition of cyclohexanone and hydroxyacetone to various aldehydes^a

Entry	Main product	Yield^b (%)	Dr^c (anti/syn)	% ee^d
a Reaction conditions: CDNH2(n4)–HPW/0.5 (40 mg, 0.012 mmol, 6.0 mol%), cyclohexanone (0.5 mL, 4.8 g, 49.0 mmol), various benzaldehyde derivatives (0.2 mmol), water (0.5 mL), 15 °C, 72 h.b Isolated yield.c Determined by ^1H NMR.d Determined by chiral HPLC.
1		83	98/2	95
2		90	93/7	96
3		96	93/7	96
4		—	—	—
5		80	84/16	95
6		76	85/15	98
7		74	98/2	97
8		71	95/5	94
9		75	94/6	87
10		35	85/15	97
11		59	82/18	95
12		20	91/9	88
13		19	78/22	90
14		36	86/14	76
15		—	—	—
16		92	86/14	69
17		95	19/81	88
18		90	30/70	77
19		89	28/72	91
20		94	6/94	95

---

On the whole, compared to the ever-reported heterogeneous catalytic aldol additions, CDNH₂(n4)–HPW/0.5 without the assistance of additional Brøsted acid afforded the higher stereoselectivity than the other 9-amino(9-deoxy)epi-cinchona alkaloid supported on inorganic backbones such as zirconium phosphonate^8a and Fe₃O₄ MNPs,⁹ especially in the aldol addition of cyclohexanone to o, m and p-substituted benzaldehydes bearing electron-withdrawing (–X, –NO₂ and –CN) substituents and hydroxyacetone to 2,4-dinitrobenzaldehyde.

Reusability of phosphotungstic acid-supported CDNH₂(n4)–HPW/0.5

After the completion of aldol addition of cyclohexanone to o-nitrobenzaldehyde, the reaction mixture was centrifuged, decanted, and the recovered catalyst CDNH₂(n4)–HPW/0.5 was reused directly for the next run after being washed with ethyl acetate (2.0 mL × 3). To our delight, it was found that the constant excellent stereoselectivity (96% ee and anti/syn = 93/7) and yield (96%) were maintained in five consecutive cycles. Even at the eighth run, there was only a slight drop in the yield (96% → 94%), diastereoselectivity (anti/syn = 93/7 → 89/11) and enantioselectivity (96% ee → 94%). After the completion of aldol reaction, the aqueous phase was evaporated, pretreated via microwave digestion in HNO₃ (1.0 mL) and DI water (3.0 mL) and volumed to 10 mL. The content of wolfram in the resulting solution was checked by ICP-AES. It was found that there was no leaching of wolfram during aldol reaction. However, after being reused seven times, the sulphur content in CDNH₂(n4)–HPW/0.5 was found to decrease from 1.91% to 1.85% detected by elemental analysis, which elucidated that 3.1% weight loss of CDNH₂(n4) resulted in the decrease of CDNH₂(n4)–HPW/0.5 in catalytic performances.

Conclusions

In summary, we had developed a novel type of supported multifunctional organocatalysts containing 9-amino(9-deoxy)epi-cinchonidine and Brønsted acid on the backbone of phosphotungstic acid via facile precipitation of sodium tungstate with organophosphonic acid for the first time, and successfully applied these supported organocatalysts in the asymmetric aldol addition of cyclohexanone and hydroxyacetone to various aromatic aldehydes bearing electron-withdrawing substituents with good to excellent catalytic performances. From the view-point of green chemistry, these phosphotungstic acid-supported organocatalysts achieved the simultaneous green circulation of organocatalyst and Brønsted acid and possessed a good reusability with no significant loss of catalytic performances in the five consecutive asymmetric aldol addition. Furthermore, the authentic structure of CDNH₂(n)–HPW and their applications for other challenging enantioselective cooperative catalysis is under the further investigation.

Experimental

Chemicals

All the chemicals including hydrochloric acid (36.5–38.0%) and sodium tungstate dehydrate (Na₂WO₄·2H₂O, ≥99.0%) were purchased and used without any further purification. Phosphonic acids CDNH₂(n)–PO₃H₂ (n = 2, 4 and 6) were synthesized by the click reaction of 9-amino(9-deoxy)epi-cinchonidine²⁴ with HS(CH₂)₂S(CH₂)nPO(OC₂H₅)₂ and subsequent hydrolysis of ethyl phoshonate according to the ref. 8a and 9.

Characterization

¹H and ¹³C NMR spectra were conducted using a Bruker av-600 NMR instrument, in which all chemical shifts were reported down-field in ppm relative to the hydrogen and carbon resonances of TMS. FT-IR spectroscopy was performed on a Perkin-Elmer model GX spectrometer using KBr pellet. Thermogravimetry-differential thermal analysis was recorded on SBTQ600 thermal analyzer at a heating rate of 10 °C min⁻¹ from 40 °C to 800 °C using N₂ as a protective gas (100 mL min⁻¹). Elemental analysis was obtained using a vario Micro cube elemental analyzer. The morphology was observed by Tecnai G2 F20 transmission electron microscope, operated at 200 kV. X-ray powder diffraction patterns were detected on an XRD-7000 S/L instrument: Cu-Kα radiation, X-ray tube settings of 40 kV/30 mA and a step size of 2° min⁻¹ in the 2θ range of 5–70°. N₂ adsorption–desorption isotherm was carried out at 77.4 K using an Autosorb-1 apparatus (Quantachrome), in which the sample was degassed at 120 °C for 12 h before measurement and specific surface area and pore diameter were calculated by a BET method and BJH model, respectively. The water content in sample was detected by means of MA-1 automatic Karl Fischer moisture analyzer. The anti/syn ratios were determined by peak area ratios of syn- and anti-CHOH protons, respectively at δ 5.3–5.9 ppm and δ 4.7–5.4 ppm in ¹H NMR (see ESI†), and the enantiomeric excess (% ee) was determined by Agilent LC-1200 HPLC with a 220 nm or 254 nm UV-vis detector using Daicel Chiralpak chiral OD-H column (4.6 mm × 25 cm), eluting with n-hexane/isopropanol (95/5) at a flow rate of 0.5 mL min⁻¹ under 20 °C.

Preparation of various supported organocatalysts CDNH₂(n)–HPW

CDNH₂(n4)–PO₃H₂ (n = 4) (30.5 mg, 0.05 mmol) in DI water (0.5 mL) was added 0.5 mL of aqueous sodium tungstate solution (29.4 mg, 0.1 mmol), and mixed under stirring at room temperature to afford a transparent solution. The medium pH was ad-justed to 3–4 using hydrochloric acid (36.5–38.0%), and light yellow solid precipitated immediately. After being aged for another 6 h, the resulting precipitate was filtered, washed with DI water (2 mL × 3) and dried under vacuum at 50 °C to afford phosphotungstic acid-supported multifunctional organocatalyst, donated as CDNH₂(n4)–HPW/0.5 (48 mg, 81%). Found C 8.86, H 1.23, N 1.24, S 1.91 by elemental analysis and W 61.52 by ICP-AES for CDNH₂(n4)–HPW/0.5.

According to the same above-mentioned procedure, when the added molar ratios of CDNH₂(n4)–PO₃H₂ to sodium tungstate equalled to 1, 2 and 4, corresponding supported multifunctional organocatalysts CDNH₂(n4)–HPW/1 (27 mg, 45%), CDNH₂(n4)–HPW/2 (30 mg, 50%) and CDNH₂(n4)–HPW/4 (34 mg, 57%) could precipitated out directly in the absence of hydrochloric acid (36.5–38.0%). Found C 10.01, H 1.26, N 1.40, S 2.14 by elemental analysis and W 60.92 by ICP-AES for CDNH₂(n4)–HPW/1; found C 10.14, H 1.30, N 1.42, S 2.18 by elemental analysis and W 60.98 by ICP-AES for CDNH₂(n4)–HPW/2, and found C 9.58, H 1.27, N 1.34, S 2.06 by elemental analysis and W 61.12 by ICP-AES for CDNH₂(n4)–HPW/4.

Furthermore, CDNH₂(n)–PO₃H₂ with the different arm lengths (n = 2 and 6) were used instead of CDNH₂(n4)–PO₃H₂ (n = 4) to afford CDNH₂(n2)–HPW/2 (28 mg, 47%) and CDNH₂(n6)–HPW/2 (39 mg, 65%) according to the same procedure as CDNH₂(n4)–HPW/2. Found C 12.20, H 1.52, N 1.58, S 2.43 by elemental analysis and W 61.03 by ICP-AES for CDNH₂(n2)–HPW/2, and found C 10.57, H 1.39, N 1.37, S 2.11 by elemental analysis and W 60.95 by ICP-AES for CDNH₂(n6)–HPW/2.

Determination of acid capacity

In 100 mL round-bottom flask, the sample (100 mg) was immersed in 10 wt% aqueous sodium chloride (50 mL), well-dispersed under sonic radiation for 30 min, and the medium pH was monitored by a pH meter till pH was constant (about 24 h). The acid content in the resulting solution was determined by acid–base titration method using NaOH solution (0.05 mol L⁻¹).

General procedure for asymmetric aldol reaction

In a 25 mL microreactor, CDNH₂(n4)–HPW/0.5 (40 mg, 0.012 mmol of CDNH₂(n4)), DI water (0.5 mL) and cyclohexanone (0.5 mL) were well mixed at 15 °C for about 15 min. Subsequently, p-nitrobenzaldehyde (30.2 mg, 0.2 mmol) was added, and the resulting mixture was allowed to react at 15 °C for 48–72 h. The reaction process was monitored by TLC. After the completion of the reaction, CDNH₂(n4)–HPW/0.5 was recovered by centrifugal separation, and the centrifugate was extracted with ethyl acetate (4 mL × 3). The combined organic phases were dried over anhydrous Na₂SO₄ and evaporated under reduced pressure to afford a crude product, which was purified by flash column chromatography and eluted with petroleum ether/ethyl acetate (v/v = 10/1 → 2/1) to give the pure 2-(hydroxy(4-methoxyphenyl)methyl)cyclohexanone.

Acknowledgements

We are grateful to the Fundamental Research Funds for the Central Universities of China (XDJK2015D028).
