Factors affecting oxygen evolution through water oxidation on polycrystalline titanium dioxide

Abstract

The effect of physicochemical properties such as specific surface area, crystalline phase, crystallite size, and crystallinity of TiO₂ on photocatalytic water oxidation was investigated. Two types of polycrystalline TiO₂ samples which have different physicochemical properties were prepared by a sol–gel method. The photocatalytic activities of the TiO₂ samples for water oxidation were evaluated by the O₂ evolution rate from an aqueous silver nitrate solution under ultraviolet light irradiation. Comparison of the two types of TiO₂ samples revealed that the specific surface area and crystalline phase were not related to the O₂ evolution rate. In contrast, a linear relationship between the crystallite sizes and the O₂ evolution rates was observed for most of the TiO₂ samples. Crystal face selective Pt and PbO₂ depositions on the TiO₂ samples were observed by photocatalytic reduction of PtCl₆²⁻ and oxidation of Pb²⁺ ions, respectively, indicating that the oxidation and reduction sites are separated on the surface. An increase in the crystallite size of the TiO₂ promotes a spatial separation of the redox sites and suppresses the electron–hole recombination, leading to the enhancement of the photocatalytic activity.

---

Introduction

Development of new energy sources has been required for the solution of energy problems. Since Fujishima and Honda¹ reported photoelectrochemical water splitting using a single-crystal rutile TiO₂ electrode in 1972, H₂ and O₂ production by photocatalytic water splitting has been widely studied as a promising technology for sustainable energy systems. Inorganic semiconductor materials such as TiO₂,^2–5 SrTiO₃,^6–8 and WO₃ ^9–11 are most promising photocatalysts for water splitting. Tantalates and metal oxides with d¹⁰ electric configuration have been widely studied for practical application in photocatalytic water splitting.^12–17 However, at this stage, a photocatalyst having sufficient activity for practical use has not been developed. Thus, improvement of water splitting activity of inorganic semiconductor photocatalysts is strongly desired.

Water splitting reaction consists of two half reactions: H₂ evolution by reduction of protons and O₂ evolution by water oxidation. The latter is the rate-limiting step in the overall reaction.¹⁸ Therefore, the improvement of O₂ evolution is important to achieve high-efficiency water splitting. The O₂ evolution rate depends on the calcination temperature of the photocatalysts due to a change in some physicochemical properties. Kominami et al.¹⁹ reported an enhancement of the O₂ evolution on TiO₂ calcined at higher temperature in the range of 250–1273 K and attributed it to the crystallization from amorphous to anatase and rutile. Recently, Maeda et al.²⁰ described the enhancement of O₂ evolution by calcining the commercially available rutile TiO₂ at 873–1273 K in air, which can be ascribed to the improvement of charge separation due to the increase in particle size. Thalluri et al.²¹ reported the relationships between the O₂ evolution rate on monoclinic BiVO₄ and the physicochemical properties which were changed by the calcination temperature. Increase in the crystallite size and decrease in the band gap and the V–O bond length depending on the calcination temperature led to the enhancement of O₂ evolution on BiVO₄. Large particle size or crystallite size appears to be important for inorganic semiconductor photocatalysts to improve O₂ evolution activity, although the reason has not been fully elucidated.

Other factors may also affect O₂ evolution activity. High specific surface area is believed to be important for high photocatalytic activity.^22–25 On the other hand, a small effect of specific surface area on water splitting activity also has been suggested.^19,21,26,27 Dependence of photocatalytic activity on crystalline phases has been reported for some inorganic semiconductor photocatalysts. Monoclinic BiVO₄ shows higher activity for O₂ evolution than tetragonal BiVO₄.^28,29 Superior activity of rutile TiO₂ for O₂ evolution than anatase TiO₂ has been reported,^30,31 whereas anatase TiO₂ shows higher activity for the decomposition of organic compounds than rutile TiO₂.^32–34 However, Prieto-Mahaney et al.³⁵ have reported that the O₂ evolution rate on TiO₂ is not affected by the crystalline phases and convincing evidence for the influence of crystalline phases of TiO₂ on O₂ evolution has not been obtained. Degree of crystallinity of inorganic semiconductor photocatalysts is also considered to affect O₂ evolution activity. Kho et al.³⁶ have reported an enhancement of O₂ evolution rate on BiVO₄ with tetragonal and/or monoclinic phases by increasing calcination temperature and attributed it to the increase in crystallinity and monoclinic content. Ohtani et al.³⁷ have investigated the photocatalytic activity of amorphous and anatase mixed TiO₂ and have shown that an increase in the fraction of anatase leads to an enhancement of the photocatalytic activity.

The fact that the calcination of inorganic semiconductor photocatalysts leads to the enhancement of their O₂ evolution activity should give us a clue for the development of highly active water splitting photocatalysts. However, the physicochemical properties of inorganic semiconductor photocatalysts change simultaneously depending on calcination temperature and thus the contribution of each physicochemical property to O₂ evolution activity is still unclear. In this study, we focused on TiO₂ which is the most typical inorganic semiconductor photocatalyst. Two types of TiO₂ samples with different physicochemical properties were prepared by unique synthetic procedures. Comparison of their O₂ evolution activity allowed the direct evaluation of the relationships between the physicochemical properties and the photocatalytic activity for water oxidation.

Experimental section

Materials

Titanium(IV) tetraisopropoxide (Ti(OC₃H₇)₄) and dialytic membranes with 3500 molecular weight cut-off were purchased from Wako Pure Chemical Industries Ltd (Osaka, Japan) and Spectrum Laboratories (CA, USA), respectively. Ultrapure water with a specific resistivity of 18.2 MΩ cm was obtained using a Milli-Q water purification system (Millipore, USA) and used for all experiments. All other chemicals were of reagent grade, purchased from Wako Pure Chemical Industries Ltd and used without further purification.

Preparation of TiO₂ powders

Preparation of the TiO₂ samples was as described previously.³⁸ Approximately 15 mL of Ti(OC₃H₇)₄ was dropped in 180 mL of aqueous solutions containing HNO₃ (1.3 mL, 60%). The mixture was peptized at room temperature for 6 days to form a highly dispersed colloidal solution. This TiO₂ sol was put in dialytic membrane pipes, dialyzed in 3000 mL of water for 3 days until a pH of approximately 4 was obtained and then dried at 40 °C for 3 days. The obtained xerogel was crushed into powder by using a mortar and pestle. The resulting powder was denoted as TiO₂-D. The TiO₂ powder which was denoted as TiO₂-ND was prepared similarly without conducting dialysis. The TiO₂-D and TiO₂-ND powders were calcined at 200–900 °C for 2–10 hours with a ramping rate of 3 °C min⁻¹. Unless otherwise stated, calcination for 2 hours is the standard in this paper.

Characterization techniques

Nitrogen adsorption–desorption isotherm measurements were performed at −195.8 °C with a TriStar II 3020 analyzer (Micromeritics, USA). The specific surface areas were measured using the Brunauer–Emmett–Teller (BET) method. By using the Barrett–Joyner–Halenda (BJH) model, the pore size distributions were derived from the adsorption branches of isotherms. X-ray diffraction (XRD) analysis was performed using a MiniFlex600 (Rigaku, Japan) with Cu Kα radiation (40 kV, 15 mA) at 2θ angles from 10° to 90° with a scan speed of 10° min⁻¹. The crystallite sizes of the TiO₂ samples were estimated using the Scherrer formula:where D is the approximate crystallite size; λ is the wavelength of the X-ray radiation (0.154056 nm); K is the Scherrer constant (0.9); β is the peak width at half-maximum height. The values of β and θ of anatase, rutile, and brookite were taken from anatase (101), rutile (110), and brookite (121) diffraction lines, respectively. The crystalline phase compositions of TiO₂-D and TiO₂-ND were estimated by Rietveld analysis with PDXL software (Rigaku, Japan). The concentration of Ag⁺ was determined by inductively coupled plasma spectroscopy (Liberty Series II, Varian, USA).

Scanning electron microscopy (SEM) images of the TiO₂ samples were obtained with a JSM-7600F instrument (JEOL, Japan). For SEM measurements, the as-prepared TiO₂ samples were attached onto the sample stage using double-sided carbon tapes. Then the attached samples on the stage were coated with platinum by spattering to prevent charging.

Transmission electron microscopy (TEM) images of the TiO₂ samples were obtained with a JEM-2100 instrument (JEOL, Japan). Before TEM measurements, the TiO₂ samples were dispersed in ethanol by sonication. The TEM samples were prepared by dropping of the TiO₂ suspension onto a copper grid covered with a carbon film and followed by drying in air.

The degrees of crystallinities of the TiO₂ samples were calculated by the following formula:

where x_crystal is the degree of crystallinity of the TiO₂ samples. R_crystal and R_amorphous are the mass fractions of the crystalline and amorphous components within the TiO₂ samples, respectively. R_crystal was estimated by Rietveld analysis of the XRD pattern of the TiO₂ samples mixed with nickel oxide (NiO) as an internal standard. Mass fraction of the impurity components such as water and 2-propanol ((CH₃)₂CHOH) produced by hydrolysis of Ti(OC₃H₇)₄ was evaluated by thermogravimetric (TG) measurements with a Thermo Plus Evo II (Shimadzu, Japan) and denoted as R_impurities. R_amorphous was calculated by subtracting R_crystal and R_impurities from the whole.

Evaluation of O₂ evolution activity

Photocatalytic activity was evaluated by the O₂ evolution rate from an aqueous AgNO₃ solution which acts as an electron scavenger (eqn (3)):

Ag⁺ + e⁻ → Ag (3)

A TiO₂ sample (0.3 g) was suspended in 150 mL of AgNO₃ solution (0.05 mol L⁻¹) in a Pyrex reactor and then the reactor was immersed in a water bath thermostated at 30 °C on a magnetic stirrer. After air dissolved in the reactant solution was removed by bubbling argon gas for 30 min, the reactor was capped with a Mininert valve. Ultraviolet light (UV) irradiation (Fig. S1†) was provided by a 250 W super-high-pressure Hg lamp (Ushio Inc., Japan) using a U330 bandpass filter (HOYA CANDEO OPTRONICS, Japan). The amount of the evolved O₂ was measured with a GC-8A gas chromatograph (Shimadzu, Japan, TCD, MS-5 Å column, Ar carrier).

Photodeposition of Pt and PbO₂ on the TiO₂ samples

In reference to previous reports,^39,40 photodeposition of platinum (Pt) on the surface of the TiO₂-ND calcined at 800 °C for 2 hours was performed using hexachloroplatinic(IV) acid (H₂[PtCl₆]) and ethanol, where Pt⁴⁺ was reduced to metal Pt by photogenerated electrons and ethanol was oxidized by photogenerated holes. 0.1 g of the TiO₂-ND sample was suspended in 60 mL of 50 vol% aqueous ethanol solution. After addition of aqueous H₂[PtCl₆] solution (1000 mg L⁻¹, 1 mL), dissolved O₂ was removed by Ar purging. Subsequently, the suspension was irradiated with UV light under Ar purging for 3 hours. The Pt-loaded TiO₂ sample was collected by filtration, washed several times with water and dried in an oven at 40 °C for 1 day. The obtained Pt-loaded TiO₂ sample was suspended in 0.1 mol L⁻¹ aqueous lead(II) nitrate (Pb(NO₃)₂) solution (60 mL) and pH of the suspension was adjusted to 1.0 with HNO₃. UV light irradiation of the suspension and collection of the TiO₂ sample co-loaded with Pt and PbO₂ were carried out by the same procedure as for the Pt loading, although air was used as purge gas instead of Ar to provide O₂.

Results and discussion

Characterization of TiO₂ samples

The specific surface areas of TiO₂-D and TiO₂-ND calcined at 200–600 °C for 2 hours are shown in Fig. 1. When being calcined at less than 500 °C, the specific surface areas of TiO₂-D were higher than those of TiO₂-ND. In the temperature range of 600–900 °C, only slight differences in the specific surface areas were observed. As shown in Fig. S2,† the pore size distribution of TiO₂-D indicated the presence of mesopores with a peak at ca. 3 nm when being calcined at 200 °C, and such pore structures collapsed gradually with an increase in the calcination temperature. Differential values of dV/dD (V: pore volume; D: pore diameter) for TiO₂-ND were lower than those for TiO₂-D, indicating that the latter is a more porous material than the former. This fact is responsible for the higher specific surface area for TiO₂-D than TiO₂-ND. For the synthesis of TiO₂-D, the pH value of the TiO₂ sol increased from <1 to ca. 4 during the dialysis and the surface charges on the TiO₂ particles decreased gradually on approaching its isoelectric point of ca. pH 6 (Fig. S3†). Such a decrease in the net surface charges would weaken electrostatic repulsion between the TiO₂ particles to form aggregates with mesopores.

Fig. 1 Specific surface areas of TiO₂-D and TiO₂-ND calcined at 200–600 °C for 2 hours.

The crystalline phase and crystallite size of TiO₂-D and TiO₂-ND were determined by powder XRD (Fig. S4 and S5†). When being calcined at 200 °C, both TiO₂-D and TiO₂-ND are anatase (JCPDS no. 21-1272) and there are no peaks ascribed to rutile. A very small diffraction peak at 2θ = 30.7° attributable to brookite (121) plane (JCPDS no. 29-1360) was observed for TiO₂-D and TiO₂-ND calcined at 200–400 °C. With an increase in the calcination temperature, a small diffraction peak at 2θ = 27.4° corresponding to rutile (110) plane (JCPDS no. 21-1276) first appeared for TiO₂-D and TiO₂-ND which were calcined at 400 °C and 300 °C, respectively. The phase transition from anatase to rutile is completed at 600 °C for TiO₂-D or 800 °C for TiO₂-ND. Fig. 2(a and b) shows the crystal phase compositions of the TiO₂-D and TiO₂-ND samples calcined at 200–900 °C. Zhang et al.⁴¹ reported that rutile nucleates at interfaces of the contacting anatase grains and thus the phase transformations from anatase to rutile take place at lower temperatures for smaller particles (<10 nm). On the basis of this interfacial nucleation mechanism, the densely aggregated TiO₂-ND should transform to rutile at lower calcination temperature than TiO₂-D which has lots of mesopores.^42–44 Therefore, the lower transformation temperature from anatase to rutile observed for TiO₂-D cannot be explained in terms of the interfacial nucleation mechanism. Inagaki et al.⁴⁵ have reported that mixing of polyvinyl alcohol with TiO₂ delayed the phase transition from anatase to rutile compared with pure TiO₂. To investigate the presence of organic matter, TG and DTA measurements for TiO₂-D and TiO₂-ND calcined at 200 °C were performed (Fig. S6†). For both TiO₂-D and TiO₂-ND, large mass reduction was observed in the temperature range up to 400 °C and attributed to the evaporation of moisture and the decomposition of organic components.⁴⁶ The mass reduction of TiO₂-D or TiO₂-ND was estimated to be 10.8% or 14.9%, respectively. This finding indicates that more organic residue exists in TiO₂-ND prepared without dialysis, which causes the slower phase transition from anatase to rutile. On the other hand, the phase transformation behaviors from brookite to rutile in TiO₂-D and TiO₂-ND are similar. The mass fractions of brookite in TiO₂-D and TiO₂-ND calcined at 200–400 °C are maintained at around 30% as shown in Fig. 2(a and b). The phase transformations from brookite to rutile within both TiO₂-D and TiO₂-ND are almost completed by calcination at 500 °C. It is noted that for TiO₂-ND calcined at 300–500 °C, no significant change in the mass fraction of anatase is observed. These results indicate that the phase transformations from brookite to rutile in TiO₂-D and TiO₂-ND proceed directly. Li et al.⁴⁷ have also reported that brookite transforms to rutile directly and the phase transformation mainly proceeds within the individual TiO₂ particles. Fig. 2(c and d) shows the crystallite sizes of the TiO₂-D and TiO₂-ND samples. The crystallite sizes of all crystalline phases in TiO₂-D and TiO₂-ND are increased with an increase in the calcination temperature.

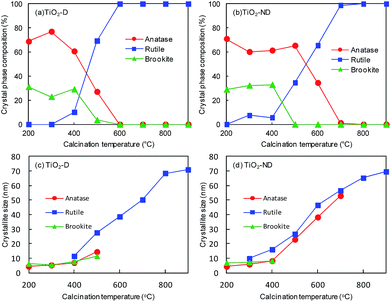

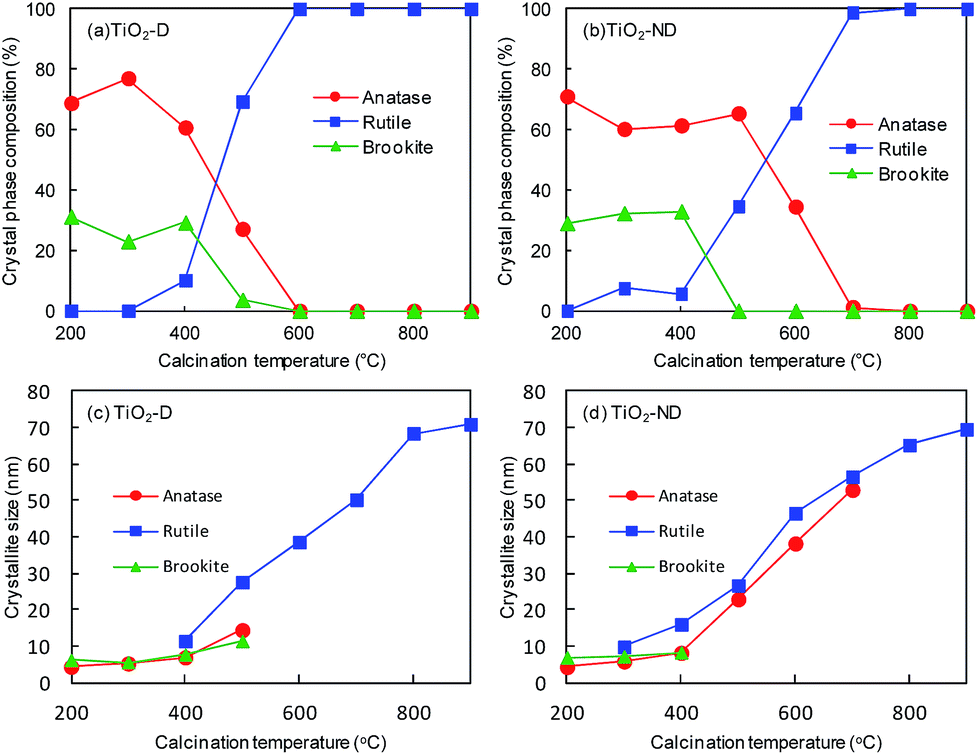

Fig. 2 (a, b) Crystalline phase compositions and (c, d) crystallite sizes of TiO₂-D and TiO₂-ND calcined at 200–900 °C for 2 hours.

Fig. 3(a) shows the mass fraction of the crystalline, amorphous, and impurity components in TiO₂-D calcined at 200–900 °C. The mass fraction of impurities is reduced with increasing calcination temperature. This result is attributable to combustion of organic matters by the calcination and reduction in the amount of adsorbed water due to a decrease in the specific surface area. Surprisingly, the mass fractions of crystalline and amorphous components hardly change on calcination. The degree of crystallinity of TiO₂-D calculated by eqn (2) is shown in Fig. 3(b) and significant change depending on the calcination temperature is not observed. In order to confirm the accuracy of this evaluation method, the crystallinity of a commercially available TiO₂ (TiO₂-Wako-rutile, rutile form, 99.9%, Wako Pure Chemical Industries Ltd) was also investigated and estimated to be 97.7%. This result guarantees the high accuracy of the method.

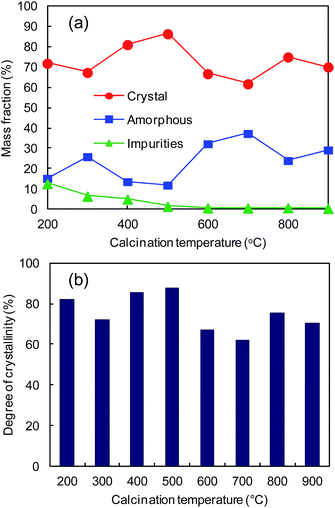

Fig. 3 (a) Component composition and (b) degree of crystallinity of TiO₂-D calcined at 200–900 °C for 2 hours.

O₂ evolution activities of TiO₂ samples

Fig. 4 shows the time courses of O₂ evolution on TiO₂-D and TiO₂-ND calcined at 200–900 °C. The O₂ evolution rates on TiO₂-D and TiO₂-ND calcined at the same temperature are very similar. As mentioned above, the specific surface areas of TiO₂-D calcined at 200–500 °C are significantly higher than those of TiO₂-ND calcined at the same temperature. These results clearly indicate that O₂ evolution activity of TiO₂ is not affected by the specific surface area. Furthermore, the O₂ evolution rate on TiO₂ hardly depends on the Ag⁺ concentration (0.001–0.01 mol L⁻¹) and the O₂ evolutions are suddenly stopped by the depletion of Ag⁺ (Fig. S7†). This result indicates that Ag⁺ is easily reduced on TiO₂ and the decrease in the specific surface area by the deposition of Ag hardly affects the O₂ evolution rate.

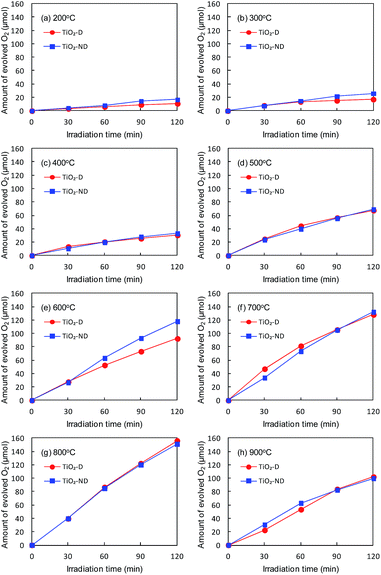

Fig. 4 Time courses of O₂ evolution from a 0.05 mol L⁻¹ AgNO₃ solution under UV light irradiation. TiO₂-D and TiO₂-ND samples were calcined at (a) 200, (b) 300, (c) 400, (d) 500, (e) 600, (f) 700, (g) 800, and (h) 900 °C for 2 hours.

As shown in Fig. 2(a and b), the crystalline phase compositions of TiO₂-D and TiO₂-ND are significantly different. Thus, it is also evident that the O₂ evolution rate on TiO₂ is not affected by crystalline phases as reported previously.³⁵

Increasing the calcination temperature from 200 °C to 800 °C leads to an improvement of O₂ evolution on the TiO₂-D and TiO₂-ND samples. The crystallinity of TiO₂-D is nearly constant and thus the change in the O₂ evolution rate depending on calcination temperature is not attributable to the change in the crystallinity. However, calcination at 900 °C caused a reduction in the O₂ evolution rate for both TiO₂-D and TiO₂-ND and the reason will be discussed later.

Relationship between O₂ evolution rate and crystallite size

To evaluate the effect of crystallite size of TiO₂ on the O₂ evolution rate, we estimated average crystallite size (D_av) by a weighted average using the following equation:

D_av = D_AX_A/100 + D_RX_R/100 + D_BX_B/100 (4)

where D_A, D_R, and D_B are the crystallite size of anatase (101), rutile (110), and brookite (121) respectively, and X_A, X_R, and X_B are the mass fraction of anatase, rutile, and brookite within the TiO₂ samples. Fig. 5 shows the relationships between D_av and the O₂ evolution rates on TiO₂-D and TiO₂-ND calcined at 200–900 °C, where the O₂ evolution rate stands for the amount of O₂ evolved for 1 h irradiation. For TiO₂-D and TiO₂-ND calcined at 400–800 °C, a linear correlation between D_av and O₂ evolution rates is observed. In order to confirm this linearity, we synthesized TiO₂-D and TiO₂-ND calcined at 200–900 °C for 10 h, which contained more rutile fraction compared with those calcined for 2 h (Fig. S8†). Similar linearity to that in Fig. 5 was observed between D_av and O₂ evolution rates for TiO₂-D and TiO₂-ND calcined for 10 hours (Fig. S9†). This result indicates that the crystalline size of TiO₂ is one of the most important factors affecting the photocatalytic activity for O₂ evolution.

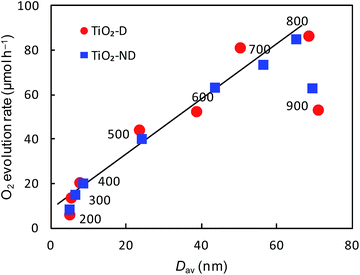

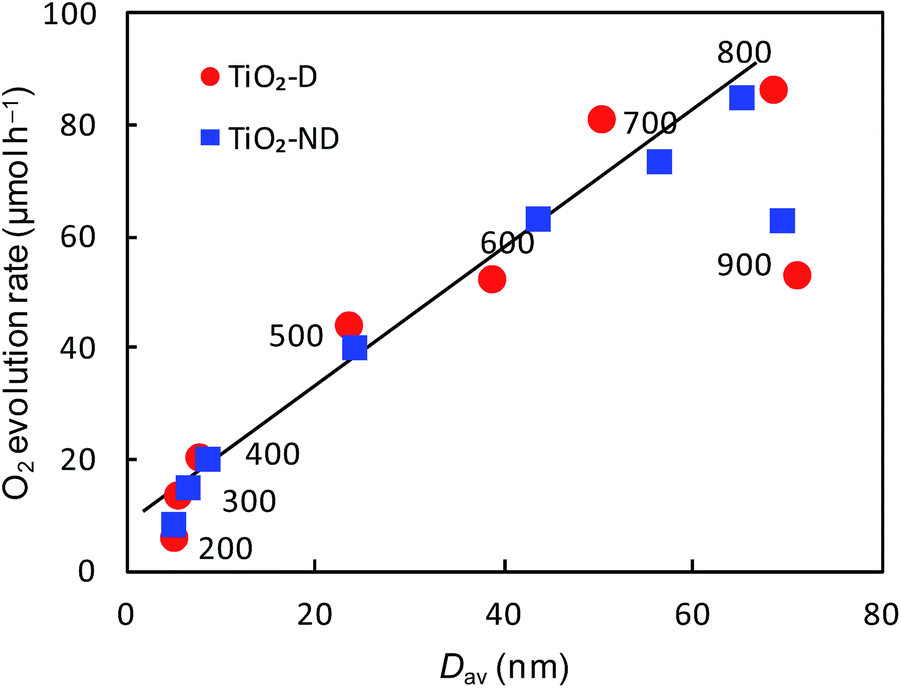

Fig. 5 Relationships between D_av and O₂ evolution rate on TiO₂-D and TiO₂-ND calcined at 200–900 °C for 2 hours.

The calcination of TiO₂-D and TiO₂-ND at 900 °C reduces the O₂ evolution rate significantly, although the crystallite sizes of them are slightly larger than those calcined at 800 °C. We have found that the crystallite size tends to approach a limiting value on increasing the calcination temperature and it remains almost constant at 900 °C regardless of the synthetic condition (i.e., with or without dialysis) and the calcination time. The SEM images in Fig. 6(a–c) show that no significant change in the morphology of TiO₂-ND is observed when being calcined at 900 °C for 2, 3 and 4 h. Their crystallite sizes evaluated from the rutile (110) peaks in the XRD patterns are almost the same at 70.15 ± 0.54 nm. On the other hand, the O₂ evolution rate clearly decreases with an increase in the calcination time (Fig. 6(d)). Maeda has reported²⁰ that the highest O₂ evolution was obtained by calcining commercially available rutile TiO₂ at 800 °C in the presence of NaIO₃ or FeCl₃ as an electron acceptor. He ascribed the lower activity obtained at a calcination temperature higher than 800 °C to a decrease in the density of oxygen vacancies in TiO₂. Amano et al.⁴⁸ demonstrated the high photocatalytic activity of rutile TiO₂ by creating oxygen vacancies through H₂ reduction treatment at 700 °C. An increase in the density of oxygen vacancies leads to an increase in the donor density in semiconductors, which promotes the migration of the photogenerated carriers to enhance the photocatalytic activity. Therefore, the observed reduction in the O₂ evolution rates on TiO₂-D and TiO₂-ND calcined at 900 °C is attributable to microscopic changes such as a decrease in the density of oxygen vacancies. Since the crystallite size is not increased by calcination at 900 °C for longer time, excess thermal energy might be used for decreasing the oxygen vacancies instead of growing the rutile particles.

Fig. 6 SEM images of TiO₂-ND calcined at 900 °C for (a) 2, (b) 3, and (c) 4 hours and (d) effect of the calcination time on the O₂ evolution rate and the crystallite size.

Charge separation on polycrystalline TiO₂ surface

Recently, improvement of photocatalytic activity by spatial charge separation has been reported for shape controlled or highly crystallized inorganic semiconductor photocatalysts.^{39,40,49–52} In such materials, photogenerated electrons and holes are transferred to the different crystal facets due to built-in electric field in the space-charge layer of them⁵³ and thus the recombination of electrons and holes is suppressed. However, charge separation depending on crystal facets has been rarely reported for polycrystalline photocatalysts.

Fig. 7(a) shows a TEM image of TiO₂-ND after being used for the photocatalytic reduction of [PtCl₆]²⁻ in the presence of ethanol, indicating Pt deposition on specific particle surfaces. The EDS mapping is shown in Fig. 7(b) and the localized Pt deposition is confirmed. On the obtained Pt-deposited TiO₂, Pb²⁺ ions were photocatalytically oxidized into PbO₂. As shown in Fig. 7(c) and corresponding EDS mapping (Fig. 7(d)), the TEM images indicate that Pt and PbO₂ are deposited on different crystal facets. The Pt or PbO₂ loaded facets act as reduction or oxidation sites, respectively. This finding indicates the separation of these redox sites depending on the crystal facets of polycrystalline TiO₂. Selected area electron diffraction patterns of the crystal facets deposited by Pt showed an inter-planar distance of 0.328 nm, corresponding to the (110) planes of the rutile phase (d = 0.3248 nm⁵⁴). Ohno et al.³⁹ reported that the reduction and the oxidation sites on the rutile TiO₂ particles were on the (110) and the (011) faces, respectively.

Fig. 7 TEM images of (a) Pt loaded and (c) Pt and PbO₂ co-loaded TiO₂-ND which had been calcined at 800 °C for 2 hours. Element mappings of (b) Pt loaded and (d) Pt and PbO₂ co-loaded TiO₂-ND which had been calcined at 800 °C for 2 hours.

Murakami et al.⁵⁵ reported that the photocatalytic activity of decahedral anatase TiO₂ for decomposition of acetaldehyde increased with an increase in the particle size up to ca. 40 nm and attributed it to the enhancement of the spatial separation of the oxidation sites and reduction sites. Small particle size is thought to be insufficient for efficient separation of the redox sites. The observed improvements of the O₂ evolution activity of TiO₂-D and TiO₂-ND with an increase in the crystallite size are also attributable to the enhancement of the spatial charge separation.

Conclusions

Polycrystalline TiO₂ particles were synthesized by the sol–gel method with and without dialysis procedures followed by calcination at 200–900 °C. The influence of their physicochemical properties on the photocatalytic activity for water oxidation has been investigated. No significant effects of the specific surface area and the crystalline phase on the O₂ evolution rate were observed. A linear correlation between the crystallite size and the O₂ evolution rate was obtained, which is attributed to the efficient spatial separation of the photogenerated carriers in large particles. The highest activity for O₂ evolution was obtained on TiO₂ calcined at 800 °C. The remarkable decrease in the photocatalytic activity of TiO₂ calcined at 900 °C is likely due to microscopic changes such as the decrease in the density of surface oxygen vacancies, which suppresses the migration of the photogenerated carriers to be separated. Therefore, large particles where the spatial charge separation and charge transfer are efficiently achieved are required for designing an excellent photocatalyst for water splitting.

Acknowledgements

We thank Prof. B. Ohtani at Hokkaido University and Prof. Y. Sakata at Yamaguchi University for useful discussions. We also thank Assoc. Prof. M. Yoshimoto and Mr Y. Fujiwara at Yamaguchi University for the zeta potential measurement. XRD measurements were performed at the Center for Instrumental Analysis, Yamaguchi University. SEM, TEM and TG measurements were carried out at the Innovation Center, Yamaguchi University. We thank Mr N. Takada and Mr H. Uejyo for their help in the measurements of TEM and selected area electron diffraction.

Notes and references

1. A. Fujishima and K. Honda, Nature, 1972, 238, 37.
2. S. Sato and J. M. White, Chem. Phys. Lett., 1980, 72, 83.
3. A. Tabata, N. Nishida, Y. Masaki and K. Tabata, Catal. Lett., 1995, 34, 245.
4. H. Arakawa and K. Sayama, Catal. Surv. Jpn., 2000, 4, 75.
5. K. Maeda, Chem. Commun., 2013, 49, 8404.
6. K. Domen, S. Naito, M. Soma, T. Onishi and K. Tamaru, J. Chem. Soc., Chem. Commun., 1980, 543.
7. K. Domen, A. Kudo, T. Onishi, N. Kosugi and H. Kuroda, J. Phys. Chem., 1986, 90, 292.
8. R. Konta, T. Ishii, H. Kato and A. Kudo, J. Phys. Chem. B, 2004, 108, 8992.
9. K. Maeda, M. Higashi, D. Lu, R. Abe and K. Domen, J. Am. Chem. Soc., 2010, 132, 5858.
10. S. S. K. Ma, K. Maeda, R. Abe and K. Domen, Energy Environ. Sci., 2012, 5, 8390.
11. A. Tanaka, K. Hashimoto and H. Kominami, J. Am. Chem. Soc., 2014, 136, 586.
12. H. Kato, K. Asakura and A. Kudo, J. Am. Chem. Soc., 2003, 125, 3082.
13. Y. Sakata, Y. Matsuda, T. Nakagawa, R. Yasunaga, H. Imamura and K. Teramura, ChemSusChem, 2011, 4, 181.
14. Z. Zou, J. Ye, K. Sayama and H. Arakawa, Nature, 2001, 414, 625.
15. K. Maeda, K. Teramura, D. Lu, T. Takata, N. Saito, Y. Inoue and K. Domen, Nature, 2006, 440, 295.
16. A. Kudo and Y. Miseki, Chem. Soc. Rev., 2009, 38, 253.
17. K. Maeda and K. Domen, J. Phys. Chem. C, 2007, 111, 7851.
18. J. Tang, J. R. Durrant and D. R. Klug, J. Am. Chem. Soc., 2008, 130, 13885.
19. H. Kominami, S. Murakami, J. Kato, Y. Kera and B. Ohtani, J. Phys. Chem. B, 2002, 106, 10501.
20. K. Maeda, ACS Catal., 2014, 4, 1632.
21. S. M. Thalluri, C. M. Suarez, M. Hussain, S. Hernandez, A. Virga, G. Saracco and N. Russo, Ind. Eng. Chem. Res., 2013, 52, 17414.
22. S. Yamazaki, Y. Fujiwara, S. Yabuno, K. Adachi and K. Honda, Appl. Catal., B, 2012, 121–122, 148.
23. X.-J. Dai, Y.-S. Luo, W.-D. Zhang and S.-Y. Fu, Dalton Trans., 2010, 39, 3426.
24. G. Tian, H. Fu, L. Jing, B. Xin and K. Pan, J. Phys. Chem. C, 2008, 112, 3083.
25. J. H. Pan, C. Shen, I. Invanova, N. Zhou, X. Wang, W. C. Tan, Q.-H. Xu, D. W. Bahnemann and Q. Wang, ACS Appl. Mater. Interfaces, 2015, 7, 14859.
26. K. Maeda, K. Teramura, T. Takata, M. Hara, N. Saito, K. Toda, Y. Inoue, H. Kobayashi and K. Domen, J. Phys. Chem. B, 2005, 109, 20504.
27. X. Sum, K. Maeda, M. L. Faucheur, K. Teramura and K. Domen, Appl. Catal., A, 2007, 327, 114.
28. A. Kudo, K. Omori and H. Kato, J. Am. Chem. Soc., 1999, 121, 11459.
29. S. Tokunaga, H. Kato and A. Kudo, Chem. Mater., 2001, 13, 4624.
30. T. Ohno, K. Sarukawa and M. Matsumura, J. Phys. Chem. B, 2001, 105, 2417.
31. R. Abe, K. Sayama, K. Domen and H. Arakawa, Chem. Phys. Lett., 2001, 344, 339.
32. Z. Ding, G. Q. Lu and P. F. Greenfield, J. Phys. Chem. B, 2000, 104, 4815.
33. Y. Sakatani, D. Grosso, L. Nicole, C. Boissière, G. J. d. A. A. Soler-Illia and C. Sanchez, J. Mater. Chem., 2006, 16, 77.
34. S. C. Pillai, P. Periyat, R. George, D. E. McCormack, M. K. Seery, H. Hayden, J. Colreavy, D. Corr and S. J. Hinder, J. Phys. Chem. C, 2007, 111, 1605.
35. O.-O. Prieto-Mahaney, N. Murakami, R. Abe and B. Ohtani, Chem. Lett., 2009, 38, 238.
36. Y. K. Kho, W. Y. Teoh, A. Iwase, L. Mädler, A. Kudo and R. Amal, ACS Appl. Mater. Interfaces, 2011, 3, 1997.
37. B. Ohtani, Y. Ogawa and S. Nishimoto, J. Phys. Chem. B, 1997, 101, 3746.
38. S. Yamazaki-Nishida, K. J. Nagano, L. A. Phillips, S. Cervera-March and M. A. Anderson, J. Photochem. Photobiol., A, 1993, 70, 95.
39. T. Ohno, K. Sarukawa and M. Matsumura, New J. Chem., 2002, 26, 1167.
40. R. Li, F. Zhang, D. Wang, J. Yang, M. Li, J. Zhu, X. Zhou, H. Han and C. Li, Nat. Commun., 2013, 4, 1432.
41. J. Zhang, Q. Xu, M. Li, Z. Feng and C. Li, J. Phys. Chem. C, 2009, 113, 1698.
42. H. Zhang and J. F. Banfield, Am. Mineral., 1999, 84, 528.
43. H. Zhang and J. F. Banfield, Chem. Mater., 2005, 17, 3421.
44. L. Cao, D. Chen, W. Li and R. A. Caruso, ACS Appl. Mater. Interfaces, 2014, 6, 13129.
45. M. Inagaki, Y. Hirose, T. Matsunaga, T. Tsumura and M. Toyoda, Carbon, 2003, 41, 2619.
46. S. Qourzal, A. Assabbane and Y. Ait-Ichou, J. Photochem. Photobiol., A, 2004, 163, 317.
47. J.-G. Li and T. Ishigaki, Acta Mater., 2004, 52, 5143.
48. F. Amano, M. Nakata and E. Ishinaga, Chem. Lett., 2014, 43, 509.
49. G. Liu, J. C. Yu, G. Q. Luc and H.-M. Cheng, Chem. Commun., 2011, 47, 6763.
50. E. Bae, N. Murakami and T. Ohno, Appl. Catal., A, 2010, 380, 48.
51. H. Lin, L. Li, M. Zhao, X. Huang, X. Chen, G. Li and R. Yu, J. Am. Chem. Soc., 2012, 134, 8328.
52. K. Soma, A. Iwase and A. Kudo, Catal. Lett., 2014, 144, 1962.
53. J. Zhu, F. Fan, R. Chen, H. An, Z. Feng and C. Li, Angew. Chem., Int. Ed., 2015, 54, 9111.
54. M. Epifani, T. C. Capilla, T. Andreu, J. Arbiol, J. Palma, J. R. Morante and R. Diaz, Energy Environ. Sci., 2012, 5, 7555.
55. N. Murakami, S. Kawakami, T. Tsubota and T. Ohno, J. Mol. Catal. A: Chem., 2012, 358, 106.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c6ra06151f

---
