Mineralization of anionic dyes over visible light responsive Cd(x)Zn(y)S–Nb₂O₅ heterostructured photocatalysts

Abstract

A novel, Cd_xZn_yS–Nb₂O₅ heterostructured photocatalyst is found to have enhanced photocatalytic activity for the degradation and mineralization of a variety of anionic dyes such as acid violet 7, methyl orange and indigo carmine compared to its single phase constituents. This composite catalyst exhibits adsorption enhanced photocatalytic activity and it is found to degrade relatively high concentrations of AV 7 solution (120 ppm) in nearly 45 min using a fluorescent lamp as a source of light (UV < 3%), which has not been reported so far. In this composite system, Cd_xZn_yS exists as a solid solution and both phases, Cd_xZn_yS and Nb₂O₅ exist in a dispersed state. The composite system exhibits improved visible light absorption compared to pure CdS. Photoluminescence and time resolved fluorescence studies indicate an increased lifetime for the photogenerated charge carriers in the composite compared to CdS and Nb₂O₅. The improved activity of the composite is attributed to increased lifetime of the charge carriers as well as to the increased adsorption of the dyes on the composite catalysts. A slight, gradual decrease in the photocatalytic activity is observed during repeated cycles of degradation experiment but the catalyst regains its activity after heat treatment. Based on the experiments with different quenchers, it is concluded that the photogenerated holes play a significant role in the degradation reaction.

---

1. Introduction

Water pollution is one of the serious problems which affect aquatic and terrestrial life. The waste water generated from textile industries contain several dyes, which constitute one of the major groups of organic pollutants.¹ Photocatalytic degradation using semiconductors is one of the potential methods to treat these effluents.^2,3 This process is attractive as solar radiation can be used for this purpose which is a renewable energy source. As about 45% of solar spectrum contains visible light, development of visible light responsive photocatalysts is a promising area of research.

CdS is a II–VI group semiconductor with a direct band gap of 2.4 eV and is widely studied for its photocatalytic properties.^4,5 It has excellent visible light absorption property and is suitable for solar energy utilization. However, photocatalytic activity of single phase CdS is poor as recombination of photogenerated charge carriers occurs very fast which limits its practical application. Besides, CdS is unstable and photocorrosion may occur during photocatalytic reaction.^6,7 Different strategies adopted to overcome these limitations are making a heterostructure of CdS with other semiconductors,^8,9 polymer¹⁰ and/or depositing a noble metal co-catalyst.¹¹

Making a heterostructure of CdS with another semiconductor is one of the possible ways which can improve photocatalytic activity and stability of CdS. Further, doping with a suitable metal ion can extent the visible light response to longer wavelength region and improve the photocatalytic activity. In order to improve the stability and photocatalytic activity of CdS, it is coupled with ZnO,^12–14 ZrO₂,¹⁵ SnO₂,^16,17 Ta₂O₅,^18,19 TiO₂,^20,21 CdO,^22,23 polyaniline,^10,24 MoS₂ (ref. 25–27) and zeolite.^28,29 The resultant composite systems exhibit enhanced photocatalytic activity due to the increased lifetime of the photogenerated charge carriers or due to the increased surface area or both. CdS–Nb₂O₅ core–shell structure is studied for the photocatalytic degradation of methylene blue under UV-visible irradiation.³⁰ It is reported that Nb₂O₅ in the composite enhances the photocatalytic activity by decreasing the bandgap and producing strong oxidants like OH radicals. CdS modified with a film of Nb₂O₅ on the surface show improved photoelectrochemical properties.³¹ The reason attributed to the increased performance is the stability of CdS photoanode resulting from the surface passivation of CdS by Nb₂O₅ film. Nb₂O₅ is an n type semiconductor with band gap energy 3.2 eV.^32–35 Advantages of using Nb₂O₅ are that it has good chemical stability, non toxicity and easy availability.

In the present work, we report the photocatalytic activity of a new combination of a heterostructured Zn doped CdS dispersed on Nb₂O₅ catalyst for the degradation and mineralization of anionic dyes. It is expected that this combination of the photocatalysts can increase the lifetime of photogenerated charge carriers and enhance the photocatalytic activity. This catalyst is found to degrade higher concentrations of anionic dyes (120 ppm) in about 45 min. This is the first report on adsorption enhanced photocatalytic activity of a heterostructured Cd_xZn_yS–Nb₂O₅ catalyst for such high concentrations of dye solutions. The observed photocatalytic activity of this heterostructured catalyst is correlated with its various physico-chemical properties.

2. Experimental

2.1. Materials

Niobium(V) oxide (Sigma Aldrich, 99.85%, metal basis), cadmium chloride hydrated AR (S.D. Fine Chem. Ltd. 99.5%), sodium sulfide flakes purified (anhydrous), zinc acetate (Merck, 99.999%, trace metal basis), thiourea GR (Merck, 99%), acid violet 7 (AV 7), indigo carmine (IC) and methyl orange (MO) dye (Sigma-Aldrich) were of analytical grade and used without further purification. Millipore water was used in all solutions.

2.2. Synthesis of photocatalysts

Pristine CdS was prepared by treating cadmium chloride with sodium sulfide in ethylene glycol medium.¹⁵ Aqueous solution of cadmium chloride (4 g) was mixed with EG (total volume = 50 cm³, water : EG = 1 : 1 by volume) and refluxed at 100 °C for 15 minutes. At this stage, sodium sulfide (2 g) dissolved in water and EG (50 cm³, water : EG = 1 : 1 by volume) was added to the solution and refluxed at 120 °C for 4 h. The precipitate obtained was separated, washed and dried in an oven at 90 °C for 5 h followed by calcination in air at 350 °C for 2 h. ZnS was prepared by adopting the same procedure as mentioned above by taking zinc acetate as a Zn source. For the synthesis of CdS–Nb₂O₅ composite analytical grade Nb₂O₅ was used. Different amounts of CdS (40, 60, 70, 80, 90 and 96% by weight of Nb₂O₅, named as xxCdS–Nb where xx represents the percentage of CdS) on Nb₂O₅ were loaded by an impregnation method. Aqueous cadmium chloride solution was stirred with Nb₂O₅ powder and evaporated to dryness (80–90 °C). The cadmium chloride adsorbed on Nb₂O₅ was heated with an aqueous solution of thiourea (Cd : thiourea = 1 : 4 ratio, at 80–90 °C). The resultant mixture was evaporated to dryness followed by heating the powder at 350 °C for 2 h. Zn doped CdS–Nb₂O₅ (% by weight of CdS) composites was prepared by taking calculated amounts of zinc acetate and cadmium chloride in water and adopting the same procedure as that for CdS–Nb₂O₅ composites. The composition of 80CdS–Nb was chosen for Zn doping. Different compositions synthesized are 20, 40, 60, 80 and 96% by weight of CdS in the composite which are named as 80CdxxZnS–Nb where xx represents the amount of Zn taken.

2.3. Photocatalytic experiments

The photocatalytic activity of the prepared catalysts was evaluated by studying the degradation of AV 7 (50 or 120 ppm), methyl orange (MO) and indigo carmine (IC) in aqueous solution under sunlight type irradiation. Photodegradation studies of AV 7 dye were carried out in a homemade photoirradiator consisting of day light compact fluorescent lamps (12 lamps, 100 W, Oreva) as source of radiation. The radiation from these lamps contains mainly visible light along with a very small amount of UV light (<3%).^36,37 The irradiation chamber consists of a rectangular galvanised iron box containing fluorescent lamps arranged vertically and equidistantly in the chamber with aluminium foil on the walls of box as a reflecting media. Air circulation was carried out to minimize the heating effect. The average light flux measured by Lutron lux meter (model LX-101) was found out to be 60 000–65 000 lux. For each experiment, 125 ml of dye (50 or 120 ppm) solution was taken in a beaker containing 0.35 g of catalyst suspended in it. Prior to irradiation, the catalyst was immersed in the dye solution for 30 min to attain the adsorption–desorption equilibrium at ambient conditions. During the experiment, magnetic stirring was performed for the homogenization of suspension. The photocatalytic activity was measured by taking a small volume of clear supernatant liquid at regular time intervals, centrifuged it and analyzed with UV-visible spectrophotometer (Shimadzu, UV-1800). The concentration of the solution was monitored by taking its absorbance at λ_max = 523 nm. The TOC values of degraded dye samples at different time intervals were monitored with the help of TOC analyser (Shimadzu, TOC-L).

2.4. Characterization

X-ray powder diffraction (XRD) patterns were recorded using a X'Pert PRO PANalytical X-ray diffractometer (Philips, Holland) operating at 40 kV. Cu K_α radiation (α = 1.5418 Å) was used for this purpose. The surface area was determined by Brunauer–Emmet–Teller (BET) method using Micromeritics ASAP 2020 V3.04 H surface area analyzer by nitrogen adsorption at 77 K. The TEM images were taken using a FEI Tecnai T-20 electron microscope operating at 300 kV. SEM and energy dispersive X-ray spectroscopy (EDS) analysis was carried out using FEI Quanta 200 ESEM. UV-visible diffuse reflectance spectra (UV-vis DRS) of all samples were recorded using a Jasco (model V-670) spectrophotometer equipped with an integrating sphere accessory. Barium sulfate was used as reference for the reflectance spectra. Photoluminescence (PL) spectra were recorded using FLSP 920 (Edinburgh Instruments) equipped with a 450 W Xe arc lamp as the excitation source and a red sensitive Peltier element cooled Hamamatsu R2658 PMT as the detector. Excited state lifetimes of the charge carriers were measured with the same instrument using a nanosecond hydrogen flash lamp as the excitation source and employing Time Correlated Single Photon Counting (TCSPC) technique. A reconvolution procedure was used to find out the fluorescence lifetime.

3. Results and discussion

3.1. Phases and morphological studies

Fig. 1A shows the XRD patterns for CdS, ZnS, Nb₂O₅, 80CdS–Nb and 80Cd80ZnS–Nb catalysts. A small portion of the XRD patterns in the region of 20 to 35 degree is shown in Fig. 1B so that the peak positions of some of the intense peaks of different phases can be seen clearly. XRD pattern of CdS suggests that it is monophasic in nature and have wurtzite type (hexagonal) structure with no other impurity phase (JCPDS file no. 41-1049). Niobium oxide exists as biphasic containing orthorhombic (JCPDS file no. 71-0336) and monoclinic phases (JCPDS file no. 37-1468). XRD pattern of 80CdS–Nb shows peaks corresponding to both CdS and Nb₂O₅, suggesting the presence of both phases in the composite sample. The pattern of 80Cd80ZnS–Nb shows peaks of CdS and Nb₂O₅ phases and no peaks of ZnS is seen. It may be noticed from Fig. 1B that the peaks corresponding to CdS for 80Cd80ZnS–Nb sample are shifted to higher angles indicating that a solid solution of cadmium zinc sulfide is formed. XRD pattern of ZnS suggest that both hexagonal (JCPDS file no. 75-1547) and cubic phase (77-2100) co-exist in ZnS. The BET surface areas of CdS, ZnS, Nb₂O₅, 80CdS–Nb and 80Cd80ZnS–Nb catalysts are given in Table 1. It is seen that the surface areas of ZnS and 80Cd80ZnS–Nb are comparable and higher than that of CdS, Nb₂O₅ and 80CdS–Nb.

Fig. 1 (A) XRD patterns for CdS, ZnS, Nb₂O₅, 80CdS–Nb and 80Cd80ZnS–Nb catalysts. (B) Enlarge view of XRD pattern in the range of 2θ (20–35°).

Table 1 Band gap, surface area and kinetic data for the degradation reaction of 120 ppm AV 7 dye using different catalysts

S. N.	Catalysts	Rate k (min^−1), 30 min	Degradation efficiency (%), 30 min	Band gap (eV)	Surface area (m^2 g^−1)
1	CdS	0.004	18	2.38	1
2	Nb2O5	—	—	3.12	3
3	ZnS	—	11	3.37	12
4	80CdS–Nb	0.011	39	2.34	2
5	80Cd80ZnS–Nb	0.057	98	2.31	15

---

SEM images of CdS, Nb₂O₅, 80CdS–Nb and 80Cd80ZnS–Nb are shown in Fig. S1 of ESI.† It can be seen that the particles of all samples are irregular shaped and the particles appears to be aggregated nanocrystallites. To see the distribution of different elements in Cd80Zn80S–Nb heterostructures, energy dispersive X-ray spectroscopy (EDS) with elemental mapping was performed. The mapping results of selected area of SEM image (Fig. S2†) suggest the coexistence of Zn, Cd, S, O and Nb elements in the heterostructure. The mapping clearly shows that the distribution of all the elements is almost homogeneous and uniform. TEM image, SAED pattern and HRTEM of 80CdS–Nb and 80Cd80ZnS–Nb are shown in Fig. 2A and B respectively. It can be seen from the image of 80CdS–Nb that the particle size of the composite is in the range of 70–150 nm. HRTEM and SAED pattern indicate the presence of both Nb₂O₅ (orthorhombic) and CdS (hexagonal) phases. HRTEM suggests that the particles of both phases are well mixed in the composite. The SAED pattern could be indexed as hexagonal wurtzite phase of CdS and orthorhombic phase of Nb₂O₅. The particle size of 80Cd80ZnS–Nb as seen from Fig. 2B is ∼100–150 nm. The distance between the fringes of HRTEM corresponds to CdS (hexagonal) and Nb₂O₅ (orthorhombic) and they appear to be in a dispersed state. The SAED pattern showed the presence of both CdS and Nb₂O₅. The dot patterns of the SAED of both samples suggest that they are single crystalline in nature. TEM image and SAED pattern of CdS is shown in Fig. S3 of ESI.† It can be concluded from the figure that the particle size of CdS is in the range of 70–100 nm. SAED pattern is indexed as the hexagonal wurtzite phase of CdS.

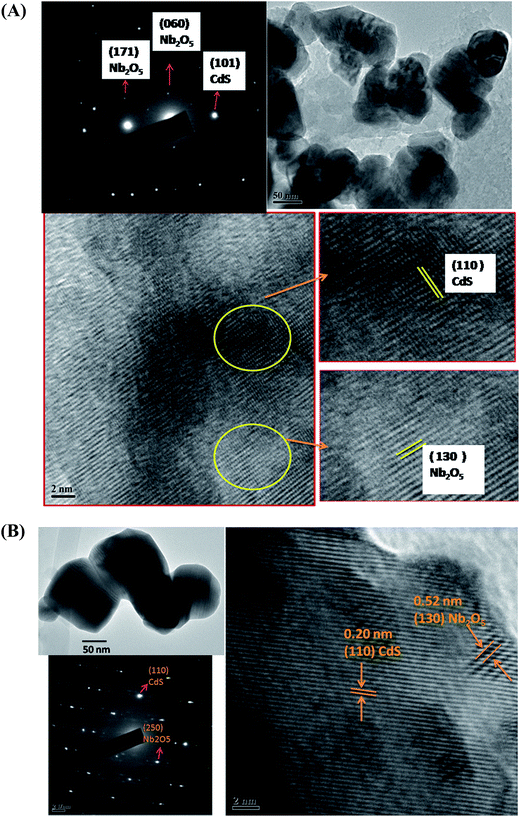

Fig. 2 (A) TEM image, SAED pattern and HRTEM of 80CdS–Nb. (B) TEM image, SAED pattern and HRTEM of 80Cd80ZnS–Nb.

3.2. Optical properties

Fig. 3A shows the UV-visible diffuse reflectance spectra of CdS, Nb₂O₅, ZnS, 80CdS–Nb and 80Cd80ZnS–Nb. The absorption edges of the composite samples are in between that of CdS and Nb₂O₅. 80Cd80ZnS–Nb composite shows the onset of absorption in higher wavelength region compared to CdS and 80CdS–Nb. Fig. 3B shows the plot of (F(R)hν)² vs. photon energy. The bandgap energies obtained from this plot for CdS, ZnS, Nb₂O₅, 80CdS–Nb, Cd80Zn80S–Nb are 2.38, 3.37, 3.12, 2.34 and 2.31 respectively. The slightly decreased bandgap of the composite compared to pristine CdS can be due to the increased number of defect levels/surface states present in these samples. The decreased bandgap of the composite indicates that the heterostructured photocatalysts can utilize more visible light for the photocatalytic reaction.³⁸

Fig. 3 (A) UV-visible diffuse reflectance spectra of CdS, Nb₂O₅, ZnS, 80CdS–Nb and 80Cd80ZnS–Nb. (B) Kubelka–Munk plot for band gap calculation of CdS, Nb₂O₅, ZnS, 80CdS–Nb and 80Cd80ZnS–Nb.

PL spectra of CdS, Nb₂O₅, 80CdS–Nb and 80Cd80ZnS–Nb are shown in Fig. 4A. The spectrum of CdS shows a broad peak in the region of 500–650 nm and centred around 570 nm. As the bandgap of this material is 2.38 eV, this cannot be due to band edge emission. This peak is originating from the defect levels/surface states and can be assigned to the defect emission.³⁹ Nb₂O₅ show an emission peak having a peak maximum at 430 nm and this peak also corresponds to defect emission. Spectra of the composites exhibit features of both Nb₂O₅ and CdS confirming that CdS and Nb₂O₅ exist as separate phases. 80CdS–Nb and 80Cd80ZnS–Nb show two peaks around 430 and 570 nm corresponding to CdS and Nb₂O₅ respectively. Fig. 4B shows the fluorescence emission decay curves corresponding to CdS, 80Cd80ZnS–Nb samples obtained after excitation at 282 nm and monitoring the emission at emission maximum at 570 nm. Fluorescence emission at 570 nm was studied as it is originating from CdS, which is the efficient photoactive material in this system. The lifetime values are τ = 1.2 and 5.8 ns for CdS and 80Cd80ZnS–Nb respectively. Higher lifetime of 80Cd80ZnS–Nb sample confirms better separation of charge carriers and lesser extent of non-radiative quenching in the composite compared to single phase CdS.

Fig. 4 (A) PL spectra of CdS, Nb₂O₅, 80CdS–Nb and 80Cd80ZnS–Nb. (B) Fluorescence emission decay curves of CdS and 80Cd80ZnS–Nb.

3.3. Photocatalytic activity

Fig. S4† shows the effect of CdS loading on Nb₂O₅ for photocatalytic degradation of AV 7 (concentration: 50 ppm). It can be seen that 80 and 90% concentrations show almost similar activity. The photocatalytic activity decreases when the concentration is increased from 90% to 96%. Among these, 80% CdS was chosen for further study as this is found to be the optimum concentration of CdS on Nb₂O₅ to get higher efficiency. Zn doping was performed in order to further improve the photocatalytic activity of the optimised 80CdS–Nb composite. Fig. S5† shows the effect of Zn doping in optimised 80CdS–Nb composite. It is clear from the figure that as the Zn loading increases the adsorption of AV 7 (50 ppm) increases. Among the prepared composites, 80Cd80ZnS–Nb shows better photocatalytic activity than the other compositions. As 80Cd80ZnS–Nb shows very high adsorption of the dye, a higher concentration of AV 7 (120 ppm) was taken to evaluate the photocatalytic performance. Fig. 5A shows the photocatalytic activity of CdS, Nb₂O₅, 80CdS–Nb and 80Cd80ZnS–Nb for the degradation of AV 7 (concentration: 120 ppm) dye. It can be seen that a significant amount of the dye is adsorbed by the catalyst under the dark conditions and when it is irradiated, the adsorbed dye undergoes degradation on the surface of the catalyst. 80Cd80ZnS–Nb shows the best performance for photodegradation of AV 7 (120 ppm). In order to confirm whether the reaction is mineralization of the dye and it is not just the decolourisation, the total organic carbon (TOC) of the solution was analyzed as a function of time. The results are shown in Fig. 5B for the 80Cd80ZnS–Nb catalyst for the photocatalytic reaction of 120 ppm of AV 7 dye. It can be seen that the TOC of the solution decreases as the reaction time increases and reaches almost to zero after 45 min suggesting that mineralization of the dye occurs during the photocatalytic reaction. Among the different composites, 80Cd80ZnS–Nb shows enhanced reaction rate and degradation efficiency than that of CdS, ZnS, Nb₂O₅ and 80CdS–Nb. The degradation efficiency and the rate constant calculated for the initial 30 min for different catalysts are presented in Table 1. The results indicate higher reaction rate over 80Cd80ZnS–Nb catalyst and a degradation efficiency of 98% is obtained within 30 minutes of irradiation for a dye solution of concentration of 120 ppm.

Fig. 5 (A) Photocatalytic performance of prepared catalysts for 120 ppm AV 7. (B) Total organic carbon (TOC%) during photocatalytic degradation reaction of AV 7 by 80Cd80ZnS–Nb.

The reaction kinetics was studied by applying the Langmuir–Hinshelwood model. Fig. S6† shows the kinetics of AV 7 degradation in presence of Cd80Zn80S–Nb. It was observed that the obtained experimental data follows the Langmuir–Hinshelwood kinetics which follows the pseudo first order rate equations. A linear relationship between ln(C₀/C) vs. irradiation time (min) was observed for AV 7 (concentration: 120 ppm) degradation over 80Cd80ZnS–Nb. The pseudo-first-order rate constant and linear regression coefficient (R² = 0.998) for photodegradation of AV 7 with Cd80Zn80S–Nb was obtained from Fig. S6.† The observed photodegradation rate (k, 45 min) by 80Cd80ZnS–Nb was found out to be 0.054 min⁻¹.

The dye AV 7 has a relatively strong adsorption on the 80Cd80ZnS–Nb catalyst at room temperature. For the purpose of the present study, the experiments were performed with different concentration of AV 7 dye solution at room temperature. Fig. S7(A)† shows the adsorption isotherm of AV 7 from aqueous solution at room temperature on the 80Cd80ZnS–Nb catalysts where the amount of equilibrium adsorption, q_e is plotted as a function of equilibrium concentration in the bulk solution, C_e. It is clear from Fig. S7† that the curve demonstrates the Langmuir type behaviour.^40–42 The adsorption parameters, q_m (equilibrium adsorption capacity) and K_L (Langmuir adsorption constant) was obtained from the slope and intercept of the plot C_e/q_e versus C_e (the linear regression coefficients for curves is 0.998). The q_m and K_L value for linear fit is found out to be 20 mg g⁻¹ and 0.0453 mg l⁻¹ respectively. The result suggests that in the concentration range studied the Langmuir model can be used to describe the adsorption process of AV 7 on 80Cd80ZnS–Nb catalysts.

The increased activity of 80CdS–Nb can be attributed to the increased lifetime of the charge carriers in the composite compared to single phase CdS. As the conduction band (CB) potential of Nb₂O₅ is less negative than that of CdS, the photogenerated electrons from CdS can be transferred to the CB of Nb₂O₅. This electron transfer minimizes the charge recombination and increases the lifetime of the photogenerated charge carriers. This charge transfer is very effective when these two phases are in a highly dispersed state, which brings about good physical contact with each other. The EDS elemental mapping indicates that these two phases are in a dispersed state (Fig. S2†), which can favour the charge transfer process. The observed improvement of photocatalytic activity with Zn doping can be attributed to three reasons. First reason is that the adsorption of the dye on the catalyst is enhanced as a result of Zn doping. Charge transfer is facilitated if the dye is adsorbed on the catalyst and hence the photocatalytic activity increases. Secondly, the increased lifetime of the charge carriers in the composite increases the photocatalytic activity. A similar observation of high adsorption of dye on the surface of Zn_1−xCd_xS has been reported earlier.^40,41,43 The third reason is the improved visible light absorption exhibited by the Zn doped composite.

The photocatalytic activity of Cd80Zn80S–Nb for AV 7 (120 ppm) was also studied at different conditions like varying pH and catalysts loading. Fig. S8† shows the photocatalytic activity at different pH and the results suggest that the 80Cd80ZnS–Nb catalysts can work efficiently with varied pH conditions and mineralize the dye (Fig. S9†). Fig. S10† shows the effect of Cd80Zn80S–Nb loading on photocatalytic activity. The results suggest that 0.35 and 0.45 g of catalyst can be used for efficient degradation reaction and increasing the concentration above this leads to decrease in the efficiency. TOC obtained for these experiments as a function of time is shown in Fig. S11,† which suggests that the dye was effectively mineralised with 0.35 g catalysts loading. In order to further confirm that it is not just adsorption, but photocatalytic degradation is also taking place, the experiment was conducted using higher concentration of AV 7 dye. The results (Fig. S12 and S13†) suggest that the dye was effectively degraded and mineralized after 120 min of irradiation indicating that the dye is getting mineralized through photocatalytic reaction and not just getting adsorbed on the surface.

3.3.1. Mechanistic study. To understand the mechanistic aspect of photodegradation over 80Cd80ZnS–Nb, the reaction was performed in the presence of different quenchers, which can react with the oxidising species. The quenchers selected were ammonium oxalate (AO) for holes (h⁺),^44–46 isopropanol (ISP) for hydroxyl radicals (OH˙)^47–50 and p-benzoquinone (BQ) for superoxide radical anion (O₂˙⁻).^51,52 Fig. 6 shows the effect of different quenchers on the efficiency of 80Cd80ZnS–Nb for the photocatalytic degradation of AV 7 (concentration: 120 ppm). It can be seen that the photocatalytic activity decreases in the presence of these quenchers suggesting that all three oxidizing species play a role in the degradation reaction. It may also be noticed that the degradation reaction is more severely affected in the presence of AO indicating that the photogenerated holes have a prominent role in the reaction.

Fig. 6 Effect of quenchers on the photocatalytic degradation of AV 7 by 80Cd80ZnS–Nb.

3.3.2. Stability of the catalyst. In order to check the stability of the composite, 80Cd80ZnS–Nb, for repeated use, the degradation (120 ppm) experiment was done repeatedly using the same catalyst. After each cycle, the catalyst was removed, washed with Millipore water and acetone followed by drying at 100 °C for 2 hours. The photocatalytic activity for each cycle as a function of time is shown in Fig. 7A. The amount of dye degraded (%) after 30 min of irradiation is shown in Fig. 7B. Both the figures indicate that after the first cycle, the activity decreases and for the subsequent cycles, the efficiency remains almost the same upto 5 cycles. The decrease in the activity can be due to the blocking of some surface sites by the dye species or by some intermediate species formed during the photocatalytic reaction. To check whether these sites can be regenerated, the used catalyst was heated at 350 °C for 2 h and the degradation experiment was conducted. The results (Fig. 7A) indicate that the catalyst can be regenerated by heating at 350 °C and the photocatalytic activity of the regenerated catalyst is almost the same as that of the fresh catalyst.

Fig. 7 (A) Photocatalytic activity of 80Cd80ZnS–Nb for different cycles. (B) Photocatalytic degradation (%) of AV 7 (120 ppm) after 120 min of irradiation for different cycles of experiment using 80Cd80ZnS–Nb.

3.4. Photocatalytic degradation of other anionic dyes

The photocatalytic activity of 80Cd80ZnS–Nb for the degradation and mineralization of other anionic dyes were also tested. For this experiment, a mixture of dyes (∼42 ml) each of AV 7, MO and IC (concentration: 50 ppm) was used and irradiated under the same conditions mentioned earlier. The UV-visible absorption spectra of the dye solution before and after irradiation for different time periods are shown in Fig. 8A. The spectra indicate that almost complete degradation of all three dyes takes place after irradiation for 120 minutes. This result suggests that the catalyst, 80Cd80ZnS–Nb, is efficient for the degradation of anionic dyes. TOC present in the solution was also tested as a function of time. It is seen from Fig. 8B that 95% decrease of TOC occurs after 150 min of irradiation.

Fig. 8 (A) Photocatalytic activity of 80Cd80ZnS–Nb for mixed dye (AV 7 + MO + IC). (B) Total organic carbon (TOC%) during photocatalytic degradation reaction of mixed dye (AV 7 + MO + IC) by 80Cd80ZnS–Nb catalyst.

4. Conclusions

A composite of Zn doped CdS and Nb₂O₅ is found to be an efficient catalyst for the photodegradation and mineralization of relatively higher concentrations of anionic dyes like AV 7, MO and IC. The photocatalytic activity of the Zn doped CdS–Nb₂O₅ composite is found to be higher than that of single phase CdS, Nb₂O₅ and CdS–Nb₂O₅ composite. In the composite, both CdS and Nb₂O₅ exist in a highly dispersed state. Improved visible light absorption is exhibited by CdS–Nb₂O₅ as a result of Zn doping, which can be due to the increased number of defect levels/surface states present in these samples. It is concluded from the PL spectra that a number of surface states/defect levels are present in the composite. Increased lifetime for the photogenerated charge carriers is observed for the composite as compared to single phase CdS. The enhanced photocatalytic activity of the Zn doped CdS–Nb₂O₅ composite is attributed to factors like, increased lifetime of the photogenerated charge carriers, increased adsorption of dyes on the catalyst and the improved visible light absorption. A slight decrease in the photocatalytic activity is observed during repeated cycles of degradation experiment, but the catalyst regained its activity fully after regeneration. Though, all three species like photogenerated holes (h⁺), super oxide radicals anions (O₂˙⁻) and hydroxyl radicals (OH˙) play role in the degradation reaction, the photogenerated holes (h⁺) influence the reaction more strongly.

Acknowledgements

One of the authors, Sachin G. Ghugal is thankful to Visvesvaraya National Institute of Technology (VNIT), Nagpur for awarding the Ph.D fellowship. Suresh S. Umare is thankful to DST-SERB for financial assistance through project number SB/EMEQ-052/2014 SERB.

References

1. H. Langhals, Angew. Chem., Int. Ed., 2004, 43, 5291–5292.
2. Z. Wang, W. Ma, C. Chen, H. Ji and J. Zhao, Chem. Eng. J., 2011, 170, 353–362.
3. R. Yuan, S. N. Ramjaun, Z. Wang and J. Liu, Chem. Eng. J., 2012, 192, 171–178.
4. H. Zhu, R. Jiang, L. Xiao, Y. Chang, Y. Guan, X. Li and G. Zeng, J. Hazard. Mater., 2009, 169, 933–940.
5. N. Bao, L. Shen, T. Takata and K. Domen, Chem. Mater., 2008, 20, 110–117.
6. G. C. De, A. M. Roy and S. S. Bhattacharya, Int. J. Hydrogen Energy, 1995, 20, 127–131.
7. W. Li, D. Li, Z. Chen, H. Huang, M. Sun, Y. He and X. Fu, J. Phys. Chem. C, 2008, 112, 14943–14947.
8. V. M. Daskalaki, M. Antoniadou, G. Li Puma, D. I. Kondarides and P. Lianos, Environ. Sci. Technol., 2010, 44, 7200–7205.
9. B. Huang, Y. Yang, X. Chen and D. Ye, Catal. Commun., 2010, 11, 844–847.
10. H. Zhang and Y. Zhu, J. Phys. Chem. C, 2010, 114, 5822–5826.
11. L.-L. Ma, H.-Z. Sun, Y.-G. Zhang, Y.-L. Lin, J.-L. Li, E.-k. Wang, Y. Yu, M. Tan and J.-B. Wang, Nanotechnology, 2008, 19, 115709.
12. H. Zhao, Y. Dong, P. Jiang, G. Wang, H. Miao, R. Wu, L. Kong, J. Zhang and C. Zhang, ACS Sustainable Chem. Eng., 2015, 3, 969–977.
13. S. Khanchandani, S. Kundu, A. Patra and A. K. Ganguli, J. Phys. Chem. C, 2012, 116, 23653–23662.
14. M. Zhou, Y. Hu, Y. Liu, W. Yang and H. Qian, CrystEngComm, 2012, 14, 7686–7693.
15. R. Sasikala, A. R. Shirole, V. Sudarsan, K. G. Girija, R. Rao, C. Sudakar and S. R. Bharadwaj, J. Mater. Chem., 2011, 21, 16566–16573.
16. S. G. Ghugal, S. S. Umare and R. Sasikala, Appl. Catal., A, 2015, 496, 25–31.
17. Y. Liu, P. Zhang, B. Tian and J. Zhang, ACS Appl. Mater. Interfaces, 2015, 7, 13849–13858.
18. S. G. Ghugal, S. S. Umare and R. Sasikala, Mater. Res. Bull., 2015, 61, 298–305.
19. L. Xu, W. Shi and J. Guan, Catal. Commun., 2012, 25, 54–58.
20. W. Dong, F. Pan, L. Xu, M. Zheng, C. H. Sow, K. Wu, G. Q. Xu and W. Chen, Appl. Surf. Sci., 2015, 349, 279–286.
21. Z. Chen and Y.-J. Xu, ACS Appl. Mater. Interfaces, 2013, 5, 13353–13363.
22. W. Yang, Y. Liu, Y. Hu, M. Zhou and H. Qian, J. Mater. Chem., 2012, 22, 13895–13898.
23. S. V. Kahane, R. Sasikala, B. Vishwanadh, V. Sudarsan and S. Mahamuni, Int. J. Hydrogen Energy, 2013, 38, 15012–15018.
24. K. He, M. Li and L. Guo, Int. J. Hydrogen Energy, 2012, 37, 755–759.
25. C. Wang, H. Lin, Z. Xu, H. Cheng and C. Zhang, RSC Adv., 2015, 5, 15621–15626.
26. Y. Min, G. He, Q. Xu and Y. Chen, J. Mater. Chem. A, 2014, 2, 2578–2584.
27. R. Sasikala, A. Gaikwad, O. Jayakumar, K. Girija, R. Rao, A. Tyagi and S. Bharadwaj, Colloids Surf., A, 2015, 481, 485–492.
28. R. Sasikala, A. Gaikwad, V. Sudarsan, R. Rao, B. Viswanadh and S. Bharadwaj, Phys. Chem. Chem. Phys., 2015, 17, 6896–6904.
29. A. Nezamzadeh-Ejhieh and Z. Banan, Desalination, 2011, 279, 146–151.
30. L. C. Oliveira, H. S. Oliveira, G. Mayrink, H. S. Mansur, A. A. Mansur and R. L. Moreira, Appl. Catal., B, 2014, 152, 403–412.
31. A. Pareek, P. Paik and P. H. Borse, Langmuir, 2014, 30, 15540–15549.
32. Y. Zhao, C. Eley, J. Hu, J. S. Foord, L. Ye, H. He and S. C. E. Tsang, Angew. Chem., Int. Ed., 2012, 51, 3846–3849.
33. T. Ohuchi, T. Miyatake, Y. Hitomi and T. Tanaka, Catal. Today, 2007, 120, 233–239.
34. A. G. Prado, L. B. Bolzon, C. P. Pedroso, A. O. Moura and L. L. Costa, Appl. Catal., B, 2008, 82, 219–224.
35. H.-Y. Lin, H.-C. Yang and W.-L. Wang, Catal. Today, 2011, 174, 106–113.
36. V. N. Kuznetsov and N. Serpone, J. Phys. Chem. B, 2006, 110, 25203–25209.
37. C. Belver, R. Bellod, S. Stewart, F. Requejo and M. Fernandez-Garcia, Appl. Catal., B, 2006, 65, 309–314.
38. C. Shifu, C. Lei, G. Shen and C. Gengyu, Powder Technol., 2005, 160, 198–202.
39. B. Yang, J. E. Schneeloch, Z. Pan, M. Furis and M. Achermann, Phys. Rev. B: Condens. Matter Mater. Phys., 2010, 81, 073401.
40. Y. Xu and C. H. Langford, Langmuir, 2001, 17, 897–902.
41. K. Lv, J. Yu, K. Deng, J. Sun, Y. Zhao, D. Du and M. Li, J. Hazard. Mater., 2010, 173, 539–543.
42. R. Dutta, T. V. Nagarjuna, S. A. Mandavgane and J. D. Ekhe, Ind. Eng. Chem. Res., 2014, 53, 18558–18567.
43. W. Wang, W. Zhu and H. Xu, J. Phys. Chem. C, 2008, 112, 16754–16758.
44. N. Zhang, Y. Zhang, M.-Q. Yang, Z.-R. Tang and Y.-J. Xu, J. Catal., 2013, 299, 210–221.
45. Y. Zhang, N. Zhang, Z.-R. Tang and Y.-J. Xu, Chem. Sci., 2012, 3, 2812–2822.
46. O. Carp, C. L. Huisman and A. Reller, Prog. Solid State Chem., 2004, 32, 33–177.
47. H. Park and W. Choi, J. Phys. Chem. B, 2004, 108, 4086–4093.
48. T. M. El-Morsi, W. R. Budakowski, A. S. Abd-El-Aziz and K. J. Friesen, Environ. Sci. Technol., 2000, 34, 1018–1022.
49. P. Calza and E. Pelizzetti, Pure Appl. Chem., 2001, 73, 1839–1848.
50. Y. Chen, S. Yang, K. Wang and L. Lou, J. Photochem. Photobiol., A, 2005, 172, 47–54.
51. P. Raja, A. Bozzi, H. Mansilla and J. Kiwi, J. Photochem. Photobiol., A, 2005, 169, 271–278.
52. M. Stylidi, D. I. Kondarides and X. E. Verykios, Appl. Catal., B, 2004, 47, 189–201.

---
