Renata A. Balagueza,
Vanessa G. Ricordia,
Rodrigo C. Duarteb,
Josene M. Toldoc,
Cristtofer M. Santosc,
Paulo H. Schneiderd,
Paulo F. B. Gonçalvesc,
Fabiano S. Rodembusch*b and
Diego Alves*a
aLaboratório de Síntese Orgânica Limpa, Universidade Federal de Pelotas – UFPel, PO Box 354 – CEP 96010-900, Pelotas, RS, Brazil. E-mail: diego.alves@ufpel.edu.br; Fax: +55 53 32757533; Tel: +55 53 32757533
bGrupo de Pesquisa em Fotoquímica Orgânica Aplicada, Universidade Federal do Rio Grande do Sul – Instituto de Química, Avenida Bento Gonçalves 9500, CEP 91501-970, Porto Alegre, RS, Brazil. E-mail: fabiano.rodembuschs@ufrgs.br; Fax: +55 51 33087204; Tel: +55 51 33087204
cGrupo de Química Teórica e Computacional, Universidade Federal do Rio Grande do Sul – Instituto de Química, Avenida Bento Gonçalves, 9500, CP 15003, CEP 91501-970, Porto Alegre, RS, Brazil
dUniversidade Federal do Rio Grande do Sul, Instituto de Química, Departamento de Química Orgânica, Av. Bento Gonçalves, 9500, Agronomia, CEP 91501-970, PO Box 15003, Porto Alegre, RS, Brazil. E-mail: paulos@iq.ufrgs.br; Tel: +55 51 33089636
First published on 5th May 2016
Bis-arylsulfenyl- and bis-arylselanyl-benzo-2,1,3-thiadiazoles were synthesized in good yields by copper-catalysed cross-coupling reaction of arylthiols or diaryl diselenides with the commercially available 4,7-dibromobenzo[c][1,2,5]thiadiazole. The arylsulfenyl derivatives present absorptions in the visible region (∼420 nm) with molar absorptivity coefficient and radiative rate constant values ascribed to spin and symmetry allowed π–π* electronic transitions, with almost complete absence of solvatochromic effect. An emission located in the cyan green to green region (514–570 nm), with a large Stokes shift (90–146 nm) was observed, probably associated to the charge transfer character of the S1 state. Theoretical calculations were also performed in order to study the geometry, charge distribution and photophysical properties of the molecules in their ground and excited electronic states. TD-DFT calculations were performed using the PBE1PBE and CAM-B3LYP functionals with cc-pVDZ basis set for geometrical optimisations in the S0 and S1 states and jun-cc-pVTZ basis set to obtain vertical transition energies and electronic properties. Solvent effects were included by IEF-PCM formalism using solvents with different dielectric constants. The computationally predicted transition energies calculated with CAM-B3LYP are in good agreement with the experimental results. No substantial solvatochromic effect was found in the absorption maxima, but in the emission from S1 state a redshift was observed on increasing the solvent polarity. This fact, combined with higher dipole moment in the first excited state and some spatial separation of HOMO and LUMO orbitals could indicate an intramolecular charge transfer character of the S1 state.
In the context of heterocyclic compounds, benzo-2,1,3-thiadiazole (BTD) derivatives comprise an interesting class of molecules and possess interesting electro-optical properties.5 Their charge transport capability make them attractive candidates for organic light-emitting diodes (OLEDs).6 In addition, BTD derivatives have received much attention in recent years because of their use as fungicides, herbicides and antibacterials,7 and were employed as bioprobes for the analyses of numerous cell types.8
Recently, a range of arylsulfonyl-BTDs 6 was synthesized and used as pyruvate kinase M2 (PKM2) modulators for the treatment of cancer.9 In this study the authors described the synthesis of sulfenyl-benzo-2,1,3-thiadiazoles derivatives via sequential palladium-catalysed reactions and subsequent oxidation of sulfides to arylsulfonyl-BTDs 6 using H2O2 and AcOH (eqn (1), Scheme 1).9 Sulfenyl-benzo[1,2-c:4,5-c]bis([1,2,5]thiadiazole) derivatives 7 were synthesized by Yamashita and co-workers by reaction of benzo[1,2-c:4,5-c]bis([1,2,5]thiadiazole) with thiophenol in DMF at 80 °C under argon atmosphere (eqn (2), Scheme 1).10
To the best of our knowledge, however, the direct synthesis and photophysical characterization of functionalized bis-arylsulfenyl-benzo-2,1,3-thiadiazoles has not been explored. In this context and in continuation of our interest in the synthesis of heterocycles bearing organochalcogen moieties, here we describe the direct copper-catalysed synthesis of arylsulfenyl-benzo-2,1,3-thiadiazoles by reaction of arylthiols with 4,7-dibromobenzo[c][1,2,5]thiadiazole 1. In addition, we dedicate our efforts to understand the photophysics of the synthesized molecules comparing experimental and theoretical properties predicted with TD-DFT calculations.
Entry | KOH (eq.) | CuO NPs (mol%) | Temperature (°C) | Yield of 3ab (%) |
---|---|---|---|---|
a Reactions are performed in the presence of compound 1 (0.5 mmol) and 2a (1.0 mmol), in DMSO (1.5 mL), for 24 h under N2 atmosphere.b Yields are given for isolated product.c Reaction was performed using CuI (20 mol%) and 1,10-phenanthroline (20 mol%) as catalytic system. | ||||
1 | 2.0 | 5 | 110 | Traces |
2 | 4.0 | 5 | 110 | 25 |
3 | 4.0 | 10 | 110 | 43 |
4 | 4.0 | 20 | 110 | 75 |
5 | 4.0 | 20 | 80 | 87 |
6 | 4.0 | — | 80 | — |
7 | 4.0 | 20c | 80 | 46 |
8 | 4.0 | 20c | 110 | 55 |
In an optimised reaction, 4,7-dibromobenzo[c][1,2,5] thiadiazole 1 (0.5 mmol), 4-methoxythiophenol 2a (1.0 mmol), CuO NPs (20 mol%) and KOH (4.0 eq.) were dissolved in DMSO (1.5 mL) and after that the mixture was stirred at 80 °C for 24 h under N2 atmosphere, affording the correspondent 4,7-bis((4-methoxyphenyl)thio)benzo[c][1,2,5]thiadiazole 3a in 87% yield. Then, the possibility to synthesize the selenium analogues of compound 3a was also studied. Interest in the chemistry and application of different selenium functionalized compounds as potential pharmaceuticals,24 new materials,25 fluorescent molecules26 and ionic liquids27 has expanded over the last years. Thus, a mixture of 4,7-dibromobenzo[c][1,2,5]thiadiazole 1 (0.5 mmol), diphenyl diselenide 4a (0.5 mmol), CuO NPs (20 mol%), KOH (4.0 eq.) and DMSO (1.5 mL) was stirred at 80 °C for 24 h under N2 atmosphere, and the desired product 5a was obtained only in 33% yield (Scheme 2, Condition 1). However, when the reaction of compounds 1 and 4a was performed using the catalytic system CuI (20 mol%) and 1,10-phen (20 mol%), KOH (4.0 eq.) as base, DMSO (1.5 mL) as solvent at 110 °C in N2 atmosphere for 24 h, selenylation product 5a was achieved in 78% yield (Scheme 2, Condition 2).
To extend the scope of our synthetic methodology, the possibility to perform these reactions of benzo[c][1,2,5]thiadiazole 1 with arylthiols 2a–f or diaryl diselenides 4a–d was investigated under our two developed methodologies and the results are presented in Table 2.
Entry | Product (yield)b | Entry | Product (yield)b |
---|---|---|---|
a Condition A: reactions are performed with compound 1 (0.5 mmol), arylthiols 2a–f (1.0 mmol), CuO NPs (20 mol%) and KOH (4 eq.) in DMSO (1.5 mL) at 80 °C for 24 h under N2 atmosphere. Condition B: reactions are performed with compound 1 (0.5 mmol), diaryl diselenides 4a–d (0.5 mmol), CuI (20 mol%), 1,10-phen (20 mol%) and KOH (4 eq.) in DMSO (1.5 mL) at 110 °C for 24 h under N2 atmosphere.b Yields are given for isolated product. | |||
1 | 6 | ||
2 | 7 | ||
3 | 8 | ||
4 | 9 | ||
5 | 10 | ||
Firstly, we employed a range of arylthiols 2a–f and our results reveal that the reactions are not sensitive to the electronic effect of the aromatic ring in the arylthiols (Table 2, entries 1–6). For example, arylthiols containing electron-donating (OMe, Me), electron-withdrawing (Cl, F) and electron-neutral group at the aromatic ring, gave good yields of the desired sulfenyl-benzo[c][1,2,5]thiadiazoles 3a–e (Table 2, entries 1–5). In addition, reaction performed with α-naphthylmercaptan 2f furnished the respective product 3f in 90% yield (Table 2, entry 6). It is worth mentioning that it was also evaluated the reactivity of benzo[c][1,2,5]thiadiazole 1 with other diaryl diselenides 4a–d under the Condition 2 described in Scheme 1. Different diaryl diselenides containing EDG and EWG were reacted with compound 1, affording the respective selanyl-benzo[c][1,2,5]thiadiazoles 5a–d in moderated to good yields (Table 2, entries 7–10). The possible mechanism for these cross-coupling reactions using CuO NPs or CuI involving aryl halides and thiols/dichalcogenides has been well explored and described in some studies.3a,22,23
(1) |
Fig. 1 UV-Vis absorption spectra in solution of the bis-arylsulfenyl- (3b–e) and bis-arylselanyl-benzo-2,1,3-tiadiazoles (5a–d) in hexane (top) and dichloromethane (bottom). |
Dye | Solvent | λabs | ε | fe | k0e | τ0 |
---|---|---|---|---|---|---|
3a | Hexane | 427 | 3183 | 0.064 | 0.35 | 28.41 |
Toluene | 435 | 3479 | 0.071 | 0.38 | 26.53 | |
1,4-Dioxane | 424 | 3173 | 0.067 | 0.37 | 27.00 | |
Dichloromethane | 432 | 2418 | 0.051 | 0.27 | 36.39 | |
3b | Hexane | 416 | 6445 | 0.131 | 0.76 | 13.16 |
Toluene | 420 | 5698 | 0.117 | 0.66 | 15.10 | |
1,4-Dioxane | 415 | 6101 | 0.131 | 0.76 | 13.16 | |
Dichloromethane | 418 | 5113 | 0.098 | 0.56 | 17.80 | |
3c | Hexane | 423 | 6662 | 0.133 | 0.74 | 13.47 |
Toluene | 426 | 6927 | 0.140 | 0.77 | 12.98 | |
1,4-Dioxane | 423 | 6445 | 0.136 | 0.76 | 13.14 | |
Dichloromethane | 425 | 5303 | 0.109 | 0.60 | 16.53 | |
3d | Hexane | 412 | 4406 | 0.090 | 0.53 | 18.87 |
Toluene | 417 | 4878 | 0.101 | 0.58 | 17.23 | |
1,4-Dioxane | 417 | 5540 | 0.118 | 0.68 | 14.75 | |
Dichloromethane | 414 | 4023 | 0.083 | 0.48 | 20.63 | |
3e | Hexane | 415 | 4457 | 0.089 | 0.52 | 19.39 |
Toluene | 421 | 4746 | 0.094 | 0.53 | 18.91 | |
1,4-Dioxane | 417 | 4511 | 0.095 | 0.55 | 18.34 | |
Dichloromethane | 416 | 3479 | 0.073 | 0.42 | 23.73 | |
3f | Hexane | 422 | 9063 | 0.188 | 1.06 | 9.46 |
Toluene | 430 | 9754 | 0.205 | 1.11 | 9.04 | |
1,4-Dioxane | 422 | 9500 | 0.203 | 1.14 | 8.75 | |
Dichloromethane | 420 | 8500 | 0.186 | 1.05 | 9.48 | |
5a | Hexane | 416 | 1646 | 0.032 | 0.19 | 53.38 |
Toluene | 429 | 1703 | 0.037 | 0.20 | 50.24 | |
1,4-Dioxane | 423 | 1537 | 0.032 | 0.18 | 55.44 | |
Dichloromethane | 421 | 1323 | 0.029 | 0.16 | 61.25 | |
5b | Hexane | 421 | 7586 | 0.149 | 0.84 | 11.93 |
Toluene | 434 | 7511 | 0.142 | 0.75 | 13.25 | |
1,4-Dioxane | 419 | 7308 | 0.151 | 0.86 | 11.64 | |
Dichloromethane | 420 | 5942 | 0.124 | 0.70 | 14.22 | |
5c | Hexane | 422 | 3296 | 0.063 | 0.35 | 28.34 |
Toluene | 428 | 3608 | 0.067 | 0.37 | 27.24 | |
1,4-Dioxane | 422 | 3533 | 0.071 | 0.40 | 24.96 | |
Dichloromethane | 423 | 2740 | 0.057 | 0.32 | 31.48 | |
5d | Hexane | 427 | 5167 | 0.100 | 0.55 | 18.27 |
Toluene | 429 | 5033 | 0.092 | 0.50 | 19.92 | |
1,4-Dioxane | 424 | 4743 | 0.098 | 0.54 | 18.39 | |
Dichloromethane | 424 | 3877 | 0.081 | 0.45 | 22.19 |
In this equation 0 is the wavenumber (energy in 1/λ units) of the maximum of the absorption band and the integral is the area under the absorption curve from a plot of the molar absorptivity coefficient ε (M−1 cm−1) vs. wavenumber (cm−1), related to a single electron oscillator and the pure radiative lifetime τ0 is defined as 1/k0e.29 The oscillator strength (fe) can also be calculated from eqn (2):
(2) |
The bis-arylsulfenyl- (3a–f) and bis-arylselanyl-benzo-2,1,3-tiadiazoles (5a–d) present absorption maxima located around 420 and 424 nm, respectively. Additionally, the intense absorption bands observed around 310 nm can be associated to the absorption of the benzo-2,1,3-tiadiazole core. The molar absorptivity coefficient ε values, as well as the calculated radiative rate constant (k0e) for all compounds indicate that spin and symmetry allowed electronic transitions, which could be related to 1ππ* transitions. From Fig. 1 it can be observed that any significative change takes place on the absorption maxima location associated with the different organic groups present in the benzo-2,1,3-thiadiazoles moiety. The same behavior was observed when sulfur atom was changed to selenium. In this way, changes on the substituent in the benzo-2,1,3-tiadiazoles core from bis-arylsulfenyl- to bis-arylselanyl do not affect the photophysics in the ground state of these compounds.
Additionally, a very small solvatochromic effect could be observed in the ground state (Δλabs from 3 to 10 nm) for the bis-arylsulfenyl compounds 3a–f, indicating an almost absent intramolecular charge transfer state (see ESI†).
The bis-arylselanyl derivatives 5a–d present more significative solvatochromism in the ground state (Δλabs from 5 to 15 nm), probably due to the better electron delocalization provided by the selenium atom. It could also be observed that changes in the chalcogen atom – sulfur to selenium – shifts the absorption maxima to longer wavelengths, also indicating that the electrons are in the ground state held tighter in the molecular structure of the sulfur derivative than in its selenium analogs.30
The studied compounds presented non constant inherent emission lifetimes τ0. In a general way, the inherent lifetimes directly excited into S0 → S1 electronic transition increases to the arylselanyl derivatives in despite of the sulfur analogues, probably indicating to the selenium derivatives a reduction in the non-radiative relaxation due to more restricted molecular motion. These results indicate an efficient non-radiative energy transfer to compounds 5a–d, which can be related to lower calculated fluorescence quantum yields (Table 4).
Dye | Solvent | λem | ΔλST | ΦF |
---|---|---|---|---|
3a | Hexane | 526 | 99 | 0.369 |
Toluene | 554 | 119 | 0.323 | |
1,4-Dioxane | 558 | 134 | 0.264 | |
Dichloromethane | 570 | 138 | 0.199 | |
3b | Hexane | 515 | 99 | 0.260 |
Toluene | 541 | 121 | 0.055 | |
1,4-Dioxane | 554 | 139 | 0.023 | |
Dichloromethane | 561 | 146 | 0.058 | |
3c | Hexane | 521 | 98 | 0.367 |
Toluene | 547 | 121 | 0.340 | |
1,4-Dioxane | 551 | 128 | 0.207 | |
Dichloromethane | 566 | 141 | 0.213 | |
3d | Hexane | 516 | 104 | 0.329 |
Toluene | 535 | 118 | 0.297 | |
1,4-Dioxane | 542 | 125 | 0.203 | |
Dichloromethane | 555 | 141 | 0.167 | |
3e | Hexane | 512 | 97 | 0.373 |
Toluene | 537 | 116 | 0.338 | |
1,4-Dioxane | 545 | 128 | 0.243 | |
Dichloromethane | 557 | 141 | 0.242 | |
3f | Hexane | 519 | 97 | 0.131 |
Toluene | 546 | 116 | 0.250 | |
1,4-Dioxane | 553 | 131 | 0.147 | |
Dichloromethane | 564 | 144 | 0.129 | |
5a | Hexane | 517 | 101 | 0.096 |
Toluene | 546 | 116 | 0.057 | |
1,4-Dioxane | 552 | 129 | 0.036 | |
Dichloromethane | 564 | 143 | 0.072 | |
5b | Hexane | 514 | 93 | 0.101 |
Toluene | 550 | 116 | 0.060 | |
1,4-Dioxane | 550 | 131 | 0.031 | |
Dichloromethane | 559 | 139 | 0.061 | |
5c | Hexane | 512 | 90 | 0.099 |
Toluene | 542 | 114 | 0.079 | |
1,4-Dioxane | 550 | 128 | 0.054 | |
Dichloromethane | 560 | 137 | 0.068 | |
5d | Hexane | 518 | 91 | 0.094 |
Toluene | 544 | 115 | 0.070 | |
1,4-Dioxane | 554 | 130 | 0.031 | |
Dichloromethane | 562 | 138 | 0.089 |
The normalised fluorescence emission spectra of the bis-arylsulfenyl- (3a–f) and bis-arylselanyl-benzo-2,1,3-tiadiazoles (5a–d) are presented in Fig. 2. The emission curves were obtained exciting the compounds at the absorption maxima wavelength. The relevant data from fluorescence emissions are summarised in Table 4, where the solvents are presented in order of increasing dipole moment.
The bis-arylsulfenyl- and bis-arylselanyl-benzo-2,1,3-tiadiazoles present emission in the cyan green to green regions (∼540 nm). As already observed in the ground state, the bis-arylsulfenyl derivatives 3a–f present comparable location to the emission maxima, which indicates that the different organic moieties in the benzo-2,1,3-tiadiazole core do not play a fundamental role on the excited state of these compounds. A similar behavior was observed to the compounds (5a–d). However, a significative solvatochromic effect was observed in the excited state (Δλem from 39 to 45 nm) for the bis-arylsulfenyl compounds 3a–f. The bis-arylselanyl derivatives 5a–d also presented a significative solvatochromism in the excited state (Δλem from 44 to 48 nm), where increasing the dipole moment of the solvent (hexane to dichloromethane), the emission maxima redshifts (Fig. 3).

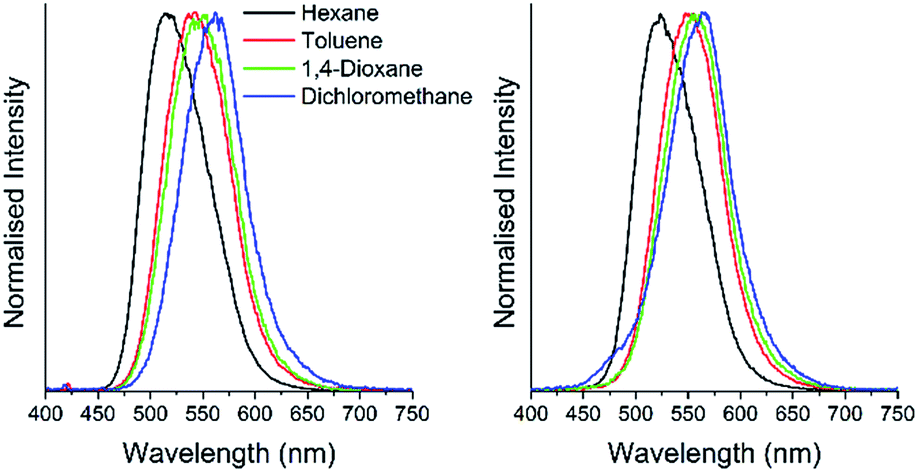

Fig. 3 Normalised fluorescence emission spectra in solution of the derivatives 3b (left) and 5a (right). The absorption maxima were used as excitation wavelengths. |
This behavior can be understood when a relaxed excited state is more polar than the ground state (i.e., μe > μg). In this case, the stronger the interaction between the solute and the solvent, the lower the energy of the excited state, the larger the redshift of the emission band.31,32 As already observed to chalcogen compounds, this results can probably also be attributed to the nature of the 1ππ* electronic transition, indicating that these compounds allow better electronic delocalization in the excited state.32 The large Stokes shift, as well as the solvathochromic effect in the excited state indicates that these compounds presents charge separation, such as an intramolecular charge transfer character in the excited state (ICT state). Moreover, the bis-arylsulfenyl derivatives 3a–f presented higher fluorescence quantum yields if compared to the selanyl analogues 5a–d, indicating that the presence of the selenium atom seems to be an efficient nonradiactive deactivation channel in these structures.
Fig. 4 depicts the compound 3f in solution under UV radiation, where a positive solvatochromism from green to yellow region, could be observed by varying the polarity of the solvent. A similar behavior could be observed with the other derivatives.
Fig. 4 Picture of the solutions of compound 3f in hexane (left), toluene (middle) and dichloromethane (right) under UV radiation (365 nm). |
The most stable conformations for the ground and excited state obtained using CAM-B3LYP and hexane as solvent are represented in Fig. 6. The most relevant calculated structural parameters obtained with both functionals and all solvents are provided in the ESI together with the optimised structures at PBE1PBE level (Table ESI1†). Due to the fact that PBE1PBE did not describe well the systems (see discussion below), all geometric parameters are discussed based on CAM-B3LYP functional.
Fig. 6 Molecular geometries for 3a–f (left) and 5a–d (right) series at ground state (on the left) and first excited state (on the right) calculated at CAM-B3LYP/cc-pVDZ level in hexane. |
In the ground state, all structures presents similar geometries, with symmetry near to C2v, independent of the R substituent attached to phenyl ring or if it is S or Se. Due to the symmetry, some angles and bond lengths are the same in both sides of the molecule and are not explicitly presented (Table ESI1†). Both S0 and S1 states have a similar geometry, indicating a high stability of those structures. This reflects a small geometrical reorganization in both transitions. The main structural difference between S0 and S1 states is the change in the dihedral angle between phenyl rings and the benzothiadiazole core (d1). In the ground state, d1 is close to 91 degrees, except in the 3f structure where the dihedral angle is close to 82 degrees. Moving to the excited state, this dihedral angle becomes to be equal to 66–70 degrees for 3a–d and 82–87 degrees for 5a–c. Although in the ground state there is no significant difference between the geometric parameters obtained with both functionals, using PBE1PBE the values obtained for d1 in the first excited state are smaller (50–57 degrees in the structures 3a–e, ∼78 in the 3f and 57–61 in the 5a–d). Another important change from S0 to S1 is the bond length between N–S2 (r3), that increase in the excited state, while the C7–S17 (r1) decreases. In fact, in the ground state all the structural parameters are very close to each other, but in excited state the dependence with R group attached to the phenyl rings and sulfur/selenium are reflected mainly on the dihedral angle d1. Moreover, the change in the dihedral angle d1 is the main structural difference calculated by the two functionals. No significant structural changes were observed when the solvent is changed.
The lack of planarity in 2,1,3-benzothiadiazole derivative may also play a role in the long wavelength absorption bands. Decreasing conjugation is known for increasing the HOMO–LUMO gap of conjugated molecules.18 The calculated absorption and emission wavelengths are shown in Table 5 together with their respective oscillator strength and dipole moments.
Dye | Solvent | S0 | S1 | ||||
---|---|---|---|---|---|---|---|
λabs | fe | μ | λem | fe | μ | ||
3a | Hexane | 413.43 | 0.187 | 7.7 | 547.71 | 0.170 | 13.0 |
1,4-Dioxane | 413.97 | 0.190 | 7.9 | 550.25 | 0.177 | 13.3 | |
Toluene | 414.60 | 0.195 | 8.0 | 551.42 | 0.180 | 13.4 | |
CH2Cl2 | 414.03 | 0.187 | 8.9 | 564.03 | 0.217 | 15.1 | |
3b | Hexane | 410.96 | 0.184 | 5.6 | 541.05 | 0.166 | 11.3 |
1,4-Dioxane | 411.58 | 0.187 | 5.8 | 544.10 | 0.173 | 11.3 | |
Toluene | 412.23 | 0.192 | 5.8 | 544.74 | 0.176 | 11.4 | |
CH2Cl2 | 411.83 | 0.184 | 6.6 | 558.72 | 0.216 | 12.9 | |
3c | Hexane | 413.11 | 0.186 | 6.8 | 545.19 | 0.168 | 12.3 |
1,4-Dioxane | 413.68 | 0.189 | 6.9 | 547.80 | 0.175 | 12.6 | |
Toluene | 414.32 | 0.194 | 7.0 | 548.91 | 0.178 | 12.7 | |
CH2Cl2 | 413.82 | 0.186 | 7.9 | 562.85 | 0.216 | 14.3 | |
3d | Hexane | 406.24 | 0.193 | 1.8 | 534.79 | 0.180 | 7.3 |
1,4-Dioxane | 406.86 | 0.196 | 1.9 | 537.14 | 0.187 | 7.5 | |
Toluene | 407.50 | 0.201 | 1.9 | 538.16 | 0.189 | 7.6 | |
CH2Cl2 | 407.55 | 0.192 | 2.3 | 551.84 | 0.226 | 8.7 | |
3e | Hexane | 407.27 | 0.186 | 2.3 | 530.07 | 0.159 | 7.9 |
1,4-Dioxane | 407.93 | 0.189 | 2.3 | 532.67 | 0.166 | 8.2 | |
Toluene | 408.59 | 0.194 | 2.4 | 533.79 | 0.169 | 8.3 | |
CH2Cl2 | 408.71 | 0.185 | 2.9 | 549.02 | 0.208 | 9.4 | |
3f | Hexane | 411.69 | 0.190 | 5.5 | 536.81 | 0.161 | 10.9 |
1,4-Dioxane | 411.91 | 0.195 | 5.6 | 539.20 | 0.168 | 11.6 | |
Toluene | 412.49 | 0.200 | 5.7 | 540.22 | 0.171 | 11.7 | |
CH2Cl2 | 411.63 | 0.193 | 6.5 | 553.04 | 0.210 | 13.3 | |
5a | Hexane | 419.06 | 0.188 | 5.3 | 543.59 | 0.164 | 10.7 |
1,4-Dioxane | 419.43 | 0.192 | 5.5 | 545.82 | 0.172 | 11.0 | |
Toluene | 420.01 | 0.197 | 5.5 | 546.78 | 0.175 | 10.6 | |
CH2Cl2 | 418.69 | 0.189 | 6.2 | 559.55 | 0.220 | 12.5 | |
5b | Hexane | 420.96 | 0.190 | 6.5 | 546.93 | 0.165 | 12.0 |
1,4-Dioxane | 421.89 | 0.198 | 6.7 | 550.11 | 0.176 | 12.4 | |
Toluene | 421.31 | 0.193 | 6.7 | 549.15 | 0.173 | 12.3 | |
CH2Cl2 | 420.45 | 0.190 | 7.6 | 562.50 | 0.22 | 13.9 | |
5c | Hexane | 414.53 | 0.196 | 1.4 | 536.27 | 0.171 | 6.9 |
1,4-Dioxane | 414.91 | 0.199 | 1.4 | 538.49 | 0.178 | 7.1 | |
Toluene | 415.49 | 0.204 | 1.4 | 539.45 | 0.182 | 7.2 | |
CH2Cl2 | 414.67 | 0.196 | 1.8 | 552.55 | 0.225 | 8.2 | |
5d | Hexane | 415.46 | 0.191 | 1.9 | 537.60 | 0.166 | 7.3 |
1,4-Dioxane | 415.87 | 0.194 | 1.9 | 539.82 | 0.173 | 7.5 | |
Toluene | 416.47 | 0.199 | 2.0 | 540.88 | 0.177 | 7.6 | |
CH2Cl2 | 415.70 | 0.190 | 2.4 | 554.42 | 0.221 | 8.7 |
It is possible to see that, in contrast to the other works, the PBE1PBE functional did not describe well λabs and λem of these systems, probably because the chalcogen atoms. This functional predicted a higher λabs and an even higher λem compared to the experimental data, mainly for the 5a–d structures (see Table ESI2†). On the other hand, the theoretical results calculated using CAM-B3LYP functional are very close to the experimental data, mainly in the ground state, validating the rationality of our method and basis set chosen. With this functional, the calculated absorption maxima obtained for the bis-aryl-sulfenyl-benzo-2,1,3-thiadiazoles (3a–f) is located around 410 nm and for the bis-aryl-selenyl-benzo-2,1,3-thiadiazoles (5a–d) the absorption maxima is located around 417 nm. The weak oscillator strengths presented are also associated with the lack of planarity since the more planar conformation, the higher oscillator strength.
No significant change takes place on the λabs related to different organic groups attached to the benzo-2,1,3-thiadiazole core. The same behavior was observed when sulfur atom was changed by selenium, in accordance with experimental data, although with Se the absorption maxima is shifted to longer wavelength. In addition, a quite similar absorption wavelength was obtained for all solvents, indicating the absence of the solvatochromic effect.
The emission maxima wavelength showed for 3a–e compounds are 530–564 nm, 536–553 nm for 3f and 536–562 nm for 5a–d. In the same way as in the ground state, a small influence of the substituent group attached to the benzene ring on the emission spectra was found. However, the presence of the halogen atom at this position slightly decreases both the emission and absorption wavelength. This could be explained by the inductive effect, i.e. simple electrostatic effects which arise from changes in electron distribution. It is known that the substitution of fluorine in positions close to a chromophore group, but not conjugated with it, leads to short wavelength shifts of the absorption bands of the more highly excited states due to the inductive effect of the fluorine atom.33 The relative magnitude of this effect differs in the ground and excited states and depends upon the degree of excitation. When there are a large overlap between the upper orbitals and the substituent group, energy changes in the excited orbitals could be produced, which make the band appear to behave anomalously on substitution.33
In contrast to the almost absent solvent dependence in absorption spectra, the fluorescence emission spectra displays a clear solvent dependence, with a bathochromic shift in the emission wavelength maxima when solvent polarity is increased (from hexane to dichloromethane around 18 nm in 3a–e and around 16 nm in 3f and 5a–d). This reflects the larger change in dipole moment from S0 to S1. Since the molecules are more polar in the excited state, more polar solvents will stabilize more the S1 than S0, resulting in emission at lower energies, as the solvent polarity is increased. In addition, the oscillator strengths also are increased from hexane to dichloromethane in excited state. Absorption spectrum is less sensitive to solvent polarity because the molecule is exposed to the same local environmental in the ground and excited states.34 The representative HOMO and LUMO molecular orbitals are shown in Fig. 7 for 3b and 5a structures.
Fig. 7 Representative HOMO and LUMO molecular orbitals obtained for 3b (above) and 5a (below) at CAM-B3LYP level using hexane as solvent. |
No significant differences were observed between HOMO and LUMO surface contour for the remaining structures or even when solvent is changed. Both HOMO and LUMO are π type, but the LUMO orbital is mostly centered on the BTD ring as a whole, whereas the HOMO is mainly located on the phenyl portion of the BTD ring (donor) and extend the conjugation over the chalcogen atom attached to it. This feature is important to understand de ICT contribution to the excited state. The vertical absorption from S0 → S1 is a 1ππ* electronic transition from HOMO to LUMO orbitals, according to the molar absorptivity coefficient values and radiative rate constant obtained experimentally. Although changing the chalcogen atom also does not affect appreciably the HOMO and LUMO, one interesting feature of these plots is the small lobes centred on sulfur atom in the LUMO that is not present changing the chalcogen to Se.
The large Stokes shift and dipole moment in the first excited state together with the solvatochromic effect in emission energies and a observed spatial separation of the HOMO and LUMO orbitals are strong evidences to ICT character of the S1 electronic state.35,36 The intensity and position of the intramolecular charge transfer bands depends on the nature of the structure and substituents influencing the donor and acceptor character. According to the literature, planar π-conjugated moiety linked with distorted π-substituents associated with well separated HOMO and LUMO distributions are a clear indication of an efficient stabilizing ICT.37
In the systems studied by us, although there is a π-conjugation of the chalcogen atoms with the donor part of the molecule, the π-extension is not so efficient since the RC6H4 unit is not conjugated with the 2,1,3-benzothiadiazole ring. In addition, since the LUMO orbital is delocalized over all 2,1,3-benzothiadiazole core, the charge separation is affected. This feature could decreases the band intensity related to an intramolecular charge transfer. Further details about the less energetic electronic transitions and molecular orbitals involved on it can be found in the ESI (Tables ESI3, ESI4 and Fig. ESI1–4†).
Additionally, one more intense band than the first one is presented in all theoretical calculations. This band is observed around 278 nm, 281 nm and 273 nm, for 3a–e, 3f and 5a–d structures, respective and could be related to the local excitation (LE) 1ππ* at the 2,1,3-benzothiadoazole core. This band involves a transition between an occupied molecular orbital of the lower energy than HOMO, with π symmetry and fully spread over at 2,1,3-benzothiadiazole core, to LUMO. Increasing the solvent polarity, this band becomes less intense.
In Fig. 8, the electronic changes to which structures 3a–f and 5a–d are subjected when excitation occurs can be observed.
In each case, significant displacement of charge and increase in the magnitude of the dipole moment takes place upon excitation (see Table 5). The dipole moment is considerably higher in excited states than in ground states. With the increase in dielectric constant of solvent, the dipole moment also increase, as result of the higher stabilization of molecules when solvent is more polar, particularly at the excited state. The main effect of the halogen atom (bonded at para position) on the dipole moment is its significant decrease with respect to the other structures in S0 and S1. Additionally, the sulfur analogues present the higher dipole moment in the ground and excited state. It can be seen that upon excitation to S1 state, the electrostatic potential over the thiophene unit increases, particularly over the sulfur atom, indicating an increase of the local electronic density. At the same time, it can be seen a decrease in electronic density over the side benzene ring when –Cl or –F are attached to it. No significant differences can be seen changing the chalcogen atom or changing the solvent.
