Morphology-dependent photoelectrochemical properties of multi-scale layered Bi(C₂O₄)OH

Abstract

In this work, a facile hydrothermal process is employed to synthesize multi-scale layered Bi(C₂O₄)OH compounds (microrods, nanorods, nanowires and straw sheaves), which can be well controlled by simply tuning oxalate source, ethylene glycol/water (EG/W) volumetric ratio, H₂C₂O₄/Bi(NO₃)₃ molar ratio, hydrothermal temperature and duration. Further, we have mainly investigated the transformation process from one-dimensional (1D) nanostructures to 3D straw sheaves of Bi(C₂O₄)OH. Moreover, it is found that the photoelectrochemical properties of Bi(C₂O₄)OH are greatly morphology-dependent: for the degradation of rhodamine B (RhB), on the one hand, the photocatalytic activity of nanorods is 2.45, 1.79 and 1.46 times higher than those of microrods, nanowires and straw sheaves, respectively; that is, the apparent reaction rate constants (k) are 0.0053, 0.01298, 0.00726, and 0.00888 min⁻¹ for microrods, nanorods, nanowires and straw sheaves, respectively. On the other hand, the capacitance values of nanorods, microrods, nanowires and straw sheaves samples are 21.00, 19.00, 20.37 and 17.50 mF cm⁻², respectively, which is in agreement with their photocatalytic activities.

---

1. Introduction

To date, various micro-/nanostructures have been applied in many fields, such as biological labeling and imaging, catalysis,^1,2 drug delivery,^3,4 sensing,^5,6 surface-enhanced Raman scattering,^7–10 and so on. The shape, size, and structure have great influences on the physicochemical properties of materials. Hence great attention has been paid to the controllable synthesis of new nanostructures. In particular, one dimensional (1D) to three-dimensional (3D) hierarchical architectures have attracted intensive attention.^11–16 For example, many experimental observations and theoretical calculations have demonstrated that anisotropic metal nanostructures exhibit shape-dependent optical properties.^17–19 Recently, our group have reported a series of new photocatalysts, including non-overlapped Ag₃PO₄ tetrapods,²⁰ three-dimensional Ag₃PO₄ towers,²¹ CuO straw sheaves,²² six-branch- and snowflake-like BiPO₄,²³ etc. We have demonstrated that the photocatalytic activity closely interrelates with the size and shape of photocatalyst.^19–23

Recently, bismuth containing compounds as a new type of photocatalytic materials have received considerable attention due to their incomparable oxidation ability. Bi₂O₂(OH)(NO₃),²⁴ Bi₄B₂O₉,²⁵ Bi₂O₂[BO₂(OH)]²⁵ and other newly found photocatalyst (Bi(C₂O₄)OH)²⁶ all exhibit highly efficient photodegradation efficiency for removing contaminants in aqueous solution. Xiao et al.²⁶ have reported that Bi(C₂O₄)OH, has an indirect band gap semiconductor (E_g = 3.73 eV), which could be a newly discovered, promising photocatalyst owing to its intrinsic physical and chemical properties, nontoxicity, low cost and high photocatalytic efficiency.²⁶ To the best of our knowledge, however, only two work involves the synthesis of Bi(C₂O₄)OH, i.e. using precipitation route²⁶ and sol–gel method.²⁷ Nevertheless, the as-obtained Bi(C₂O₄)OH products are highly agglomerated, irregular particles.^26,27 On one hand, the sol–gel method generally require rigorous operation conditions or intricate instruments, thus it is highly energy-consuming and not easy to scale up. On the other hand, it is difficult to finely control the particle morphology for the precipitation route. Thus, it is desirable to develop a simple, environmentally benign approach to synthesize Bi(C₂O₄)OH. To the best of our knowledge, little work has been done to obtain Bi(C₂O₄)OH with well-controlled new nanostructures.

In this work, new Bi(C₂O₄)OH multi-scale structures was, for the first time, prepared by a simple, mild hydrothermal method. We have investigated the influences of oxalate source, the volumetric ratio of EG to W, the molar ratio of H₂C₂O₄/Bi(NO₃)₃, hydrothermal temperature and duration on the samples. Our studies show that new Bi(C₂O₄)OH nanostructures can be well controlled merely by tuning experimental parameters. A formation mechanism of Bi(C₂O₄)OH has also been proposed on base of the time-dependent results. Moreover, we have mainly investigated the morphology-dependent photoelectrochemistry properties of Bi(C₂O₄)OH.

2. Experimental

2.1 Sample preparation

All reagents were of analytical grade, purchased from Beijing Chemical Reagents Industrial Company of China, and were used without further purification.

In a typical experiment, Bi(NO₃)₃·5H₂O and the measured amounts of oxalate source (H₂C₂O₄·2H₂O, (NH₄)₂C₂O₄·H₂O, Na₂C₂O₄) and 40 mL of distilled water were mixed together in a Teflon-lined stainless steel autoclave with a capacity of 50 mL. The autoclave was then kept at 120 °C for 12 h. When the reaction was completed, the autoclave was cooled to room temperature naturally. The white product was harvested by centrifugation, washed with ethanol and deionized water for several times, and dried overnight at 60 °C for 12 h.

In order to investigate the influences of preparation conditions on the samples, the hydrothermal temperature, duration, the volumetric ratio of ethylene glycol (EG) to water (W) and the molar ratio of H₂C₂O₄/Bi(NO₃)₃, were varied.

2.2 Characterization

The crystal structures of the samples were determined by X-ray powder polycrystalline diffractometer (Rigaku D/max-2550VB), using graphite monochromatized Cu K_α radiation (λ = 0.154 nm), operating at 40 kV and 50 mA. The XRD patterns were obtained in the range of 10–80° (2θ) at a scanning rate of 5° min⁻¹. The samples were characterized on a scanning electron microscope (SEM, Hitachi SU-1510) with an acceleration voltage of 15 keV. The samples were coated with 5 nm-thick gold layer before observations. The fine surface structures of the samples were determined by high-resolution transmission electron microscopy (HRTEM, JEOL JEM-2100F) equipped with an electron diffraction attachment with an acceleration voltage of 200 kV. X-ray photoelectron spectroscopy (XPS) measurements were done on a VG ESCALAB MKII XPS system with Mg K_α source and a charge neutralizer. All the binding energies were referenced to the C 1s peak at 284.8 eV of surface adventitious carbon. UV-vis diffused reflectance spectra of the samples were obtained using a UV-vis spectrophotometer (UV-2550, Shimadzu, Japan). BaSO₄ was used as a reflectance standard in a UV-vis diffuse reflectance experiment. The photoluminescence (PL) spectra were obtained on Cary Eclipse fluorescence spectrophotometer at room temperature. The PL lifetime was measured using time-resolved fluorescence decay spectra by time-correlated single-photon counting under the 260 nm laser excitation (Cary Eclipse, Agilent). Nitrogen sorption isotherms were performed at 77 K and <10⁻⁴ bar on a Micromeritics ASAP2010 gas adsorption analyzer. Each sample was degassed at 150 °C for 5 h before measurements. Surface area was calculated by the Brunauer–Emmett–Teller (BET).

2.3 Evaluation of photocatalytic activity

The photo catalytic activity of the sample was evaluated by the degradation of rhodamine B (RhB) aqueous solution under UV light (λ ≤ 420 nm), using a 300 W Xe arc lamp (CEL-HXF 300) equipped with an ultraviolet cutoff filter as a light source. The reaction system was placed in a sealed black box with the top opened, and was maintained a distance of 15 cm from the light source. The photocatalysts (100 mg) were dispersed in 200 mL of 10 mg L⁻¹ RhB aqueous solution in a Pyrex beaker at room temperature. Before lighting on, the suspension was continuously stirred for 30 min in the dark to ensure the establishment of an adsorption–desorption equilibrium between the catalysts and RhB solution. During degradation, 3 mL of solution was collected by pipette at an interval of irradiation, and subsequently centrifuged to remove the catalysts. UV-vis absorption spectra were recorded on a Spectrumlab 722sp spectrophotometer to determine the concentration of RhB. The degradation reaction could be expressed by an apparent first-order rate constant (k_a), which could be calculated using the following equation:

ln(C₀/C) = k_a × t, or C = C₀ × exp(−k_a × t) (1)

where C₀ is the initial concentration of RhB solution, and C is the concentration of RhB at t-min irradiation, respectively.

2.4 Theoretical calculation

The simulated results of band structures, total and partial densities of states (DOS) were calculated by density functional theory (DFT) as implemented in the CASTEP. The calculations were carried out using the generalized gradient approximation (GGA) level, and Perdew–Burke–Ernzerhof (PBE) formalism for combination of exchange and correlation function. The cut-off energy is chosen as 380 eV, and a density of (3 × 2 × 5) Monkhorst–Pack K-point were adopted to sample the Brillouin zone.

2.5 Electrode fabrication and electrochemistry test

The working electrodes were fabricated by mixing 80 wt% Bi(C₂O₄)OH, 10 wt% acetylene black, 10 wt% poly(vinylidene fluoride). The mixture was dispersed in 1-methyl-2-pyrrolidinone to form homogeneous slurry under stirring. The slurry was dotted on the surface of a nickel foam electrode and then dried for 24 h at room temperature.

All the electrochemical measurements were carried out on an electrochemical working station (CHI 660D). Electrochemical measurements were carried out in a three-electrode-type cell at room temperature. In the test, a platinum wire served as a counter electrode, a saturated calomel electrode (SCE, Hg/Hg₂Cl₂) electrode was employed as a reference electrode, and 1 M Na₂SO₄ aqueous solution was used as the electrolyte. CV and CP were conducted in a potential range of 0.1–0.9 V (versus SCE). Electrochemical impedance spectroscopy (EIS) was performed from 0.1 Hz to 100 KHz at an open circuit potential of 0.8 V and an alternating current (AC) voltage amplitude of 5 mV. The data were analyzed by ZSimWin software.

3. Results and discussion

3.1 Crystal structure and optical properties of Bi(C₂O₄)OH

Fig. 1a shows the crystal structure of Bi(C₂O₄)OH, which has the monoclinic space group Pnma with the unit cell parameters of a = 6.0853 (2) Å, b = 11.4479 (3) Å and c = 5.9722 (2) Å.²⁷ It is constructed by BiO₆ polyhetra and C₂O₄ groups. In this structure, two neighboring BiO₆ polyhetra connect each other through edge sharing to form a Bi₂O₂ chain (Fig. 1b), as known from the net structure of [Bi₂O₂]²⁺ in Aurivillius-phase (e.g., Bi₂MoO₆,²⁸ Bi₂WO₆,²⁹ Bi₂SiO₅ (ref. 30)) or Sillen-phase (e.g., BiOX, X = Cl, Br, and I).³¹ These compounds with Aurivillius-phase and Sillen-phase structures show more excellent photooxidation ability and interesting structure–property relationships because of the existence of an active (Bi₂O₂)²⁺ layer.

Fig. 1 Crystal structure (a), one-dimensional [Bi₂O₂] chain (b) and UV-vis diffuse reflectance spectra (c) (the inset of absorption^1/2 vs. energy in the absorption edge region) of Bi(C₂O₄)OH (S1-1).

Fig. 1c shows the UV-vis diffuse reflectance absorption spectra (DRS) of the as-prepared Bi(C₂O₄)OH nanorods (S1-2). In the absorption edge region, the square of absorption coefficient is linear with energy for a direct optical transition semiconductor; otherwise the square root of absorption coefficient is linear with energy for an indirect transition semiconductor.³² Observed from Fig. 1c, the optical absorption edge of Bi(C₂O₄)OH is estimated to be 323 nm and the square root of absorption coefficient is linear with energy. This suggests that the absorption edge of Bi(C₂O₄)OH is caused by an optical indirect transition.

Band gap of Bi(C₂O₄)OH is determined by optical absorption near the band edge by the following equation:

αhν = A(hν − E_g)^n/2 (2)

where α, hν, A, and E_g are the optical absorption coefficient, photonic energy, proportionality constant, and band gap, respectivvely.³³ Herein, the n value is decided by the optical transition type (n = 1, optical direct absorption; n = 4, optical indirect absorption). Herein the n value is 4 for Bi(C₂O₄)OH. As shown in the inset of Fig. 1c, the E_g value of Bi(C₂O₄)OH can be estimated to be 3.83 eV by extrapolating the straight line to the x-axis in this plot. Moreover, we can calculate the conduction and valence bands positions (CB, VB) through the eqn (3) and (4) as follows.

E_VB = χ − E^e + 0.5E_g (3)

E_CB = E_VB − E_g (4)

where χ is the absolute electronegativity of semiconductors, which is defined as the geometric average of absolute electronegativity of constituent atoms, E^e is the energy of free electrons on the hydrogen scale (≈4.5 eV), and E_g is the band gap.³⁴ The χ of Bi(C₂O₄)OH is calculated to be 6.84 eV, and E_CB and E_VB are estimated to be 0.43 and 4.26 eV, respectively.

3.2 Energy band and electronic structures by DFT calculation

The electronic and energy band structures of semiconductor have an important effect on the photoexcitation of charge carriers. Herein, the ab initio density functional theory (DFT) calculations have been carried out to calculate the electronic structures of Bi(C₂O₄)OH. The band gaps from DFT calculations are usually underestimated, but they often can provide important insight into the physicochemical behavior of semiconductor. As shown in Fig. 2, the valence band maximum (VBM) is located at the X point and conduction band minimum (CBM) is located at the point between G and Z, also demonstrating the fact that Bi(C₂O₄)OH is an optical indirect band gap semiconductor, in good agreement with the experimental result. The theoretical band gap of Bi(C₂O₄)OH is 3.01 eV, which is smaller than the experimental value of 3.83 eV due to the underestimation by density function calculation. The total density of states (TDOS) and partial density of states (PDOS) are employed to investigate the electronic properties of Bi(C₂O₄)OH. The VB top of Bi(C₂O₄)OH are composed of O 2p orbital and a little of Bi 6p orbital; while the CB bottom is composed of O 2p, C 2p and a little of Bi 6p orbital.

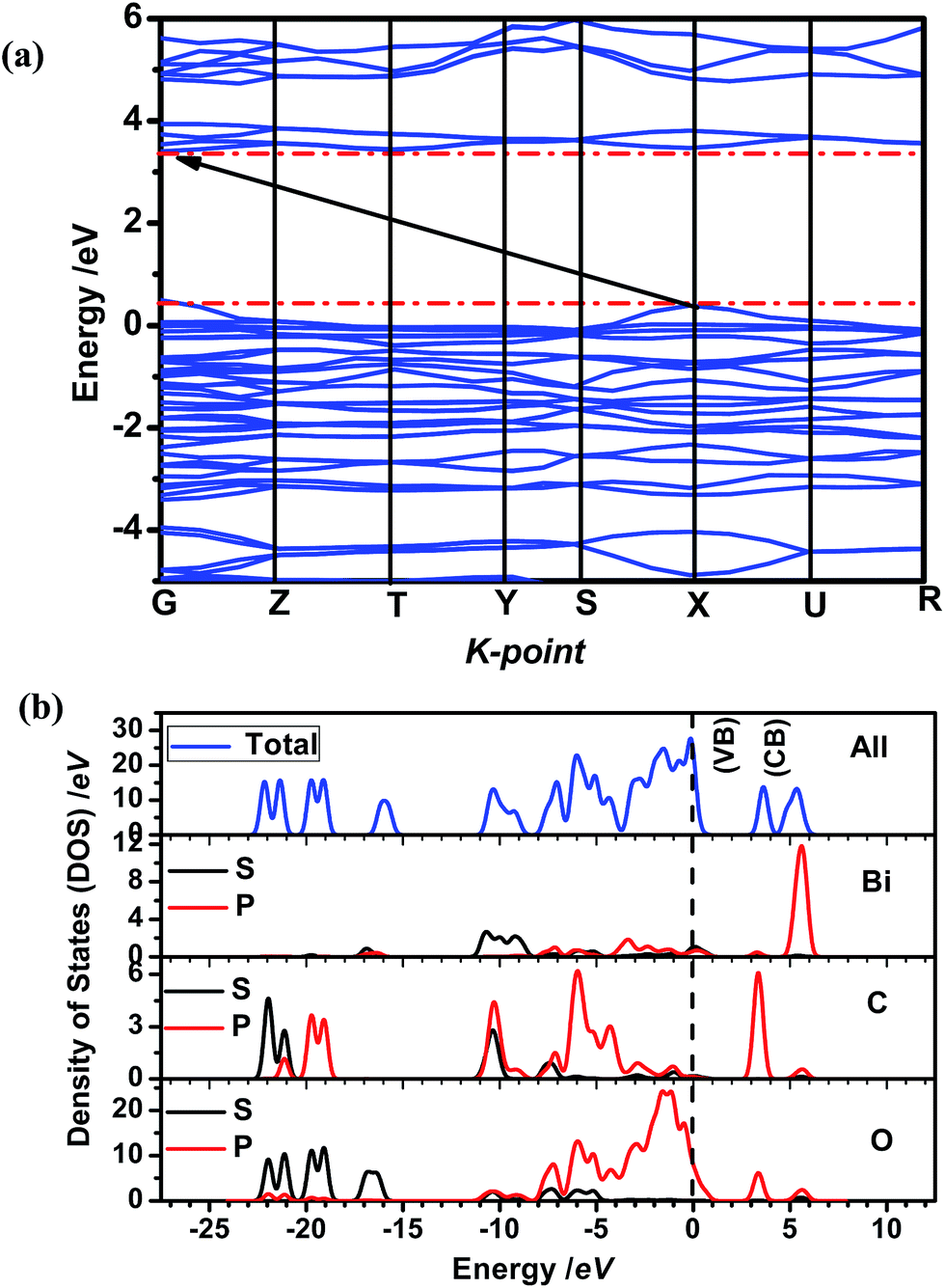

Fig. 2 (a) Energy band structures and (b) total and partial density of state (TDOS and PDSO) of Bi(C₂O₄)OH: vertical dash line, valence band maximum (VBM).

3.3 Morphology control of Bi(C₂O₄)OH

In this work, Bi(C₂O₄)OH was successfully synthesized through a simple one-pot hydrothermal approach. Herein, our particular attention has been paid to the effects of oxalate source, hydrothermal temperature, duration, the volumetric ratio of ethylene glycol (EG) to water (W) and the molar ratio of H₂C₂O₄/Bi(NO₃)₃ on the products.

3.3.1. Influence of oxalate source. First, we investigated the influence of oxalate source on the sample (Table 1). These three products with different morphologies (S1-1, S1-2, S1-3) were obtained under the same processing parameters except for different oxalate sources (H₂C₂O₄, (NH₄)₂C₂O₄ and Na₂C₂O₄). Fig. 3a gives the typical XRD patterns of the as-synthesized samples. All of the diffraction peaks are in good agreement with the standard card (ISCD#419313). No impurities peaks can be detected in the XRD patterns, indicating the formation of phase-pure Bi(C₂O₄)OH. When H₂C₂O₄ (pH = 1.6) is used as the oxalate source, the as-obtained sample consists of a large number of uniform microrods, which are 2.3 μm × 22.5 μm large with an aspect ratio of 9.8 (Fig. 3b). When Na₂C₂O₄ (pH = 7.5) is used, the as-obtained sample is composed of nanorods bundles. These nanorods are 400 nm × 4.7 μm large with an aspect ratio of 11.7 (Fig. 3c), which is thinner and shorter than the former. When (NH₄)₂C₂O₄ (pH = 6.2) is used, the uniform nanowires are 170 nm × ∼3.5 μm large with an aspect of 20.6 (Fig. 3d). It is obvious that the C₂O₄²⁻ source plays an important role in morphology control of Bi(C₂O₄)OH. We assume that the strong oxalate source-dependent morphology is closely relative to the pH value of solution. When H₂C₂O₄ is introduced into the solution, the solution can produce Bi³⁺ and C₂O₄²⁻ immediately under pH = 1.6 condition and therefore nucleation occurs at an outburst speed accompanied by the formation of a large quantity of Bi(C₂O₄)OH nuclei, which leads to low Bi³⁺ concentration in solution; that is, the amount of Bi³⁺ needed to extend the nanostructures is limited. As a result, microrods (Fig. 3b) with 2.3 μm × 22.5 μm large were formed. When (NH₄)₂C₂O₄ is added, the number of Bi³⁺ is much less than those for sample S1-1. The low Bi³⁺ concentration decreases the rate of Bi(C₂O₄)OH nuclei, resulting in the increase of aspect ratio than those of sample S1-1. However, when Na₂C₂O₄ is added, the pH value of the solution is 7.5. The very low Bi³⁺ and C₂O₄²⁻ concentrations in the solution have an effect on the rate of Bi(C₂O₄)OH nuclei, resulting in the decrease of the diameter and length of the nanorods. It should be noted that all the hydrothermally synthesized different Bi(C₂O₄)OH morphologies with simply by changing the pH values of the solution.

Table 1 Effect of oxalate source on particle shape and crystal structure of the sample

Sample	EG/W^a	C2O4^2−/Bi^b	C2O4^2− source	T/t (°C/h)	Crystalline phases	Particle shape^c
a Volumetric ratio of ethylene glycol/deionized water.b Molar ratio.c Observed by SEM.
S1-1	0/4	3/2	H2C2O4	120/12	Bi(C2O4)OH	Microrods
S1-2	0/4	3/2	Na2C2O4	120/12	Bi(C2O4)OH	Nanorods
S1-3	0/4	3/2	(NH4)2C2O4	120/12	Bi(C2O4)OH	Nanorods

---

Fig. 3 XRD patterns (a) and SEM images (b–d) of the samples prepared at 120 °C for 12 h using different oxalate sources: (b) H₂C₂O₄; (c) Na₂C₂O₄; (d) (NH₄)₂C₂O₄.

3.3.2. Influences of hydrothermal temperature and duration. We have also investigated the influence of hydrothermal temperature on the sample (Table 2 S2-1 to S2-5). The hydrothermal temperature is varied from 100 to 120, 140, 160 and 180 °C, while the other processing parameters are maintained the same. Fig. 4a gives the typical XRD patterns of the as-synthesized samples. At the temperatures lower than 160 °C, the diffraction peaks of all the samples (S2-1, S2-2, S2-3 and S2-4 in Fig. 4a) can be well indexed to single-phase Bi(C₂O₄)OH (ISCD#419313). At 180 °C, the diffraction peaks of Bi(C₂O₄)OH, as well as unknown impurities phases, can be observed (Fig. 4a). These results show that the reaction temperature has a significant influence on crystal growth. The morphologies of as-prepared samples were characterized by SEM. At a low reaction temperature (100 °C), S2-1 is composed of nanowires with an average diameter of 200 nm and the length of about 20.5 μm (Fig. 4b). It is interesting that at 120 °C, the uniform straw sheaves (S2-2) have been obtained (Fig. 4c). The individual straw sheaf consists of 400 nm × 35–50 μm nanorods. This novel hierarchical structure of Bi(C₂O₄)OH has not been reported previously. The straw sheaves have further been investigated by HRTEM (Fig. 4d and e). The nanorod bundles are further confirmed (Fig. 4d). The clear diffraction ring (the inset of Fig. 4d) reveals the polycrystalline nature of Bi(C₂O₄)OH. Fig. 4e shows the lattice fringes images of the Bi(C₂O₄)OH straw sheaves. At 140 °C, the sample (S2-3) is exclusively composed of 350 nm × 13 μm nanorods (Fig. 4f), compared with S2-2. At 160 °C, the Bi(C₂O₄)OH nanorods with an average diameter of around 325 nm and a length of around 12 μm are obtained (Fig. 4g and S2-4). At 180 °C, the 300 nm × 10 μm nanorods, as well as a few of nanoparticles, can be observed (Fig. 4h). It is obvious that the hydrothermal temperature has an important influence on the morphology and structure of the samples. It could be concluded that the nucleation and growth of crystals exist a critical temperature. It is clear that the hydrothermal temperature plays an important role in the formation of high-crystallinity Bi(C₂O₄)OH. In the latter experiments, 120 °C is selected as the appropriate hydrothermal temperature to synthesize Bi(C₂O₄)OH straw sheaves.

Table 2 Effects of hydrothermal temperature and duration on particle shape, crystal structure of the sample

Sample	EG/W	C2O4/Bi	C2O4 source	T/t (°C/h)	Crystalline phases	Particle shape
S2-1	3/1	3/2	H2C2O4	100/12	Bi(C2O4)OH	Nanorods
S2-2	3/1	3/2	H2C2O4	120/12	Bi(C2O4)OH	Straw sheaves
S2-3	3/1	3/2	H2C2O4	140/12	Bi(C2O4)OH	Nanorods
S2-4	3/1	3/2	H2C2O4	160/12	Bi(C2O4)OH	Nanorods
S2-5	3/1	3/2	H2C2O4	180/12	Bi(C2O4)OH	Nanorods
S2-6	3/1	3/2	H2C2O4	120/3	Bi(C2O4)OH	Nanorods
S2-7	3/1	3/2	H2C2O4	120/6	Bi(C2O4)OH	Nanorods
S2-8	3/1	3/2	H2C2O4	120/24	Bi(C2O4)OH	Nanorods

---

Fig. 4 (a) XRD patterns, (b and c, f–h) SEM and (d and e) HRTEM images (the inset of ED patterns) of the as-prepared samples at different hydrothermal temperatures, corresponding to those in Table 2: (b) 100 °C (S2-1); (c–e) 120 °C (S2-2); (f) 140 °C (S2-3); (g) 160 °C (S2-4); (h) 180 °C (S2-5).

Furthermore, Fig. 5a shows the typical X-ray photoelectron spectroscopy (XPS) survey spectrum of Bi(C₂O₄)OH straw sheaves. The binding energies obtained in the XPS analysis were corrected for specimen charging by referencing C 1s to 284.6 eV. It shows that Bi, O and C elements are contained in Bi(C₂O₄)OH straw sheaves. Fig. 5b displays the high-resolution XPS spectrum of the Bi 4f. The peaks at about 159.03 eV and 164.34 eV are for the Bi 4f_7/2 and Bi 4f_5/2, respectively. The result confirms the characteristic Bi³⁺ in Bi(C₂O₄)OH. Fig. 5c shows the C 1s spectra of Bi(C₂O₄)OH. The peak centered at 288.66 eV corresponds to C 1s resultant from C₂O₄²⁻ in Bi(C₂O₄)OH.³⁵ As shown in Fig. 5d, the O 1s spectrum can be fitted into the peak at 531.4 eV, which can be attributed to the Bi–O bonds of [Bi₂O₂] slabs.³⁶ Consequently, the phase-pure Bi(C₂O₄)OH has been obtained.

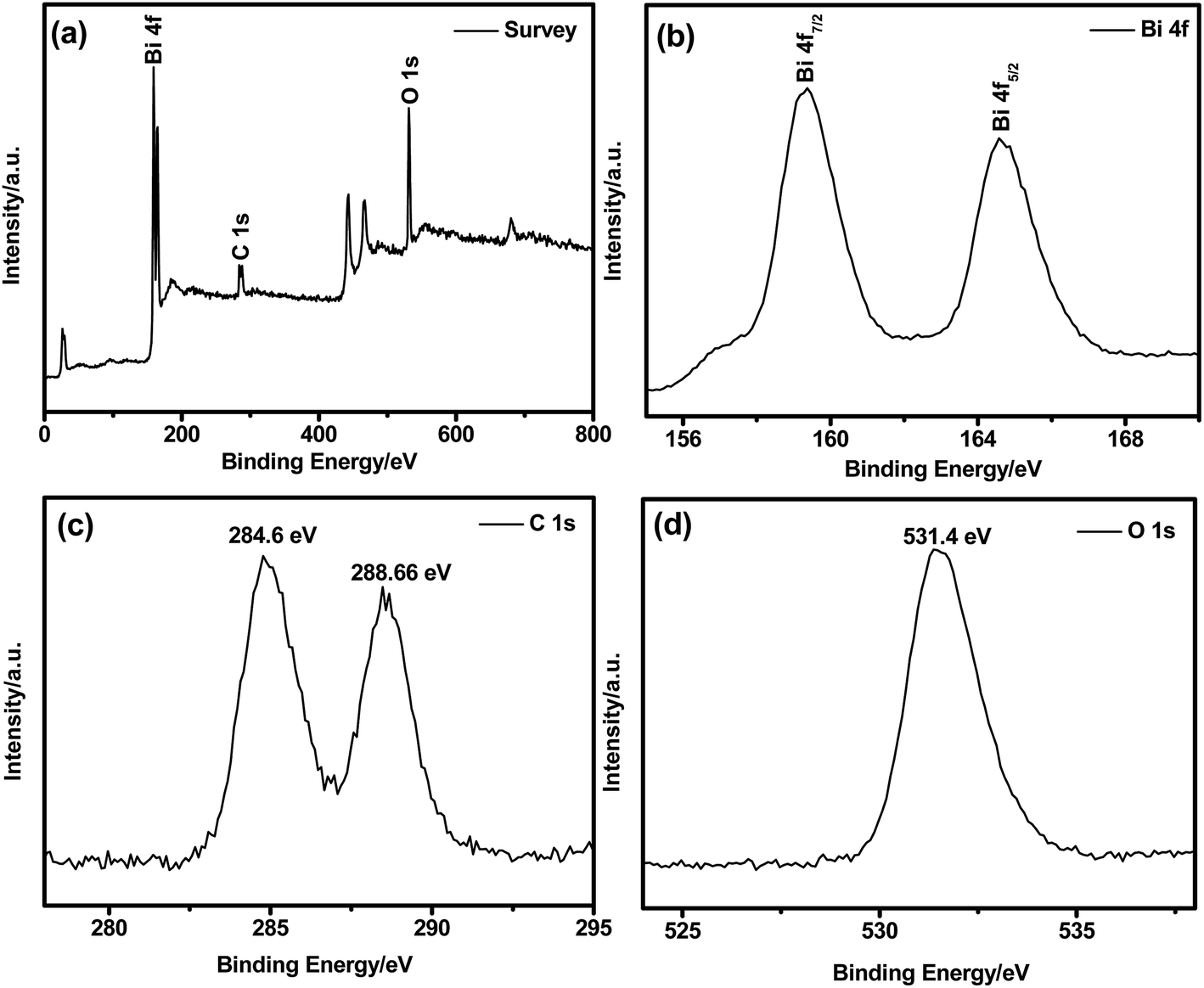

Fig. 5 XPS spectra of Bi(C₂O₄)OH straw sheaves: (a) survey spectrum; (b) Bi 4f; (c) C 1s; (d) O 1s.

To investigate the effect of reaction time, the hydrothermal time is varied from 3 to 6, 12 and 24 h while the hydrothermal temperature is kept at 120 °C (Table 2, S2-2, and S2-6 to S2-8). Fig. 6a shows XRD patterns of the as-prepared samples. The diffraction peaks of all the samples can be well indexed to single-phase Bi(C₂O₄)OH (ISCD#419313). Fig. 6b shows that the sample (S2-6) is composed of 250 nm × 8 μm nanorods. At 6 h, the as-obtained nanorods (S2-7) turned out to be 14 μm in length and 350 nm in diameter (Fig. 6c). At 12 h, the as-obtained sample consists of uniform straw sheaves, which consist of 0.4 μm × 35–50 μm nanorods (Fig. 6d). At 24 h, the sample (S2-8) is composed of an average diameter of 400 nm and a length of 9 μm (Fig. 6e). The time-dependent experiments suggest that under hydrothermal conditions, the nuclei grow into nanorods, and then the nanorods organize into the hierarchical nanostructures through a self-assembly process. An extensive research is still needed to clarify the details of self-assembly in future.

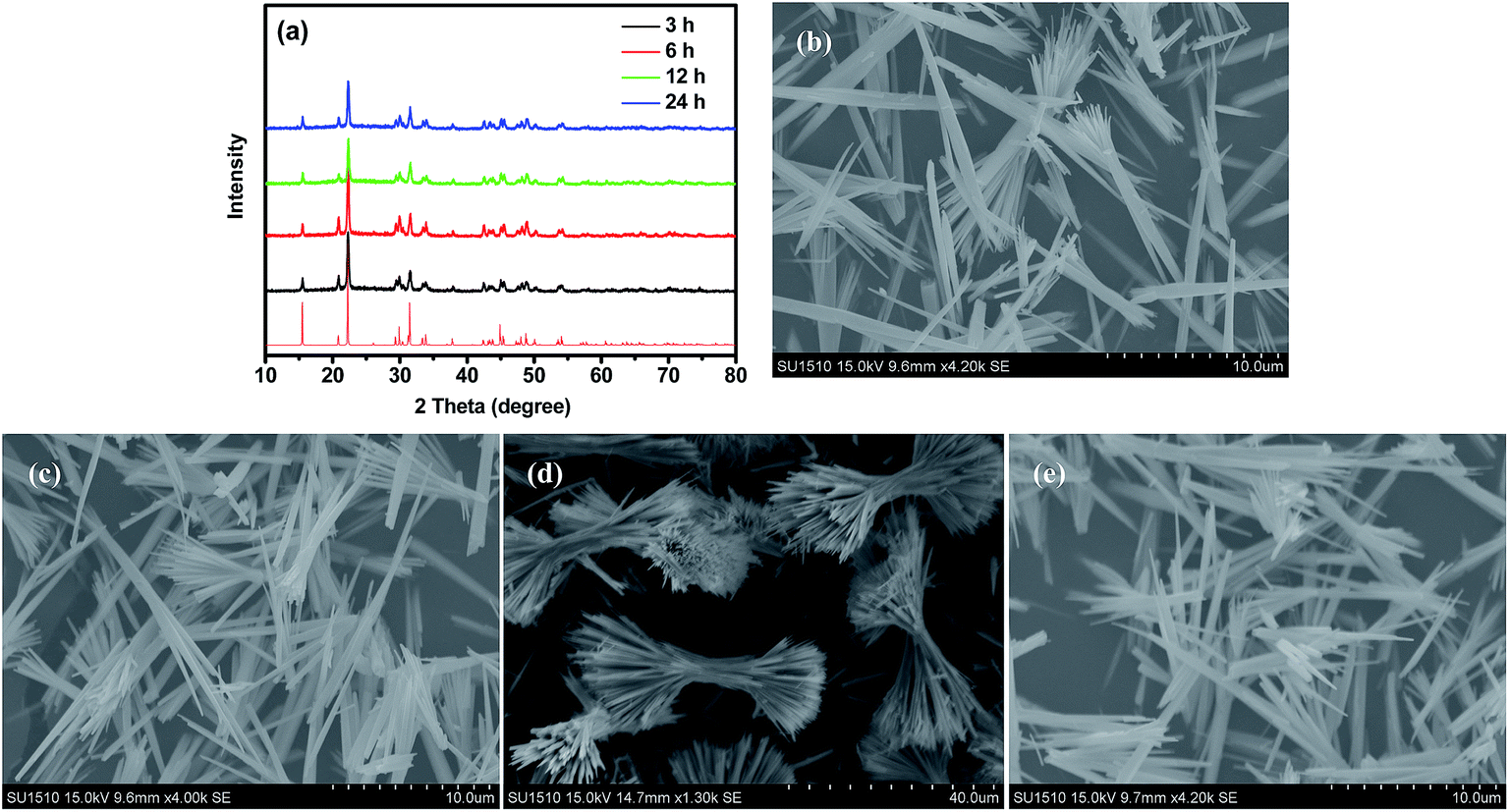

Fig. 6 XRD patterns (a) and SEM images (b–e) of the as-prepared samples at different reaction times, corresponding to those in Table 2: (b) t = 3 h (S2-6); (c) t = 6 h (S2-7); (d) t = 12 h (S2-2); (e) t = 24 h (S2-8).

3.3.3. Influences of EG/W volumetric ratio and H₂C₂O₄/Bi(NO₃)₃ molar ratio. In order to investigate the effect of reaction medium, EG/W volumetric ratio was varied at 0/4, 1/3, 2/2, 3/1 and 4/0 while keeping the other preparations parameters constant (Table 3). Their typical XRD patterns and SEM images are shown in Fig. 7. Fig. 7a shows that the diffraction peaks of all the samples (S1-1, S3-2, S3-3, S2-2 and S3-4 in Table 3) can be well indexed to single-phase Bi(C₂O₄)OH (ISCD#419313). At EG/W = 0/4 (volumetric ratio), a large number of uniform microrods are obtained, which are around 2.3 μm × 22.5 μm large, with an aspect ratio of 9.8 (Fig. 7b). When the volumetric ratio of EG/W is increased to 1/3, numbers of microrods are obtained, which are about 2.5 μm × 17 μm large, with an aspect ratio of 6.8 (Fig. 7c). At EG/W = 2/2 (volumetric ratio), the 1.6 μm × 13 μm microrods are obtained, with an aspect ratio of 8.1 (Fig. 7d). At EG/W = 3/1, the interesting straw sheaves are achieved, which are assembled by the 400 nm × (30–50) μm nanorods, with the aspect ratios of 37–125 (Fig. 7e). Fig. 7f shows at EG/W = 4/0, a large number of 200 nm × 5 μm nanorods are obtained, with an aspect ratio of 25. These facts indicate that the straw sheaves can only be obtained in the approximate volume ratio (3 : 1) of the EG/W. In other words, EG plays an important role in the formation of straw sheaf hierarchical structure. It is also obvious that the amounts of EG in the solution significantly affect the shape and size of the as-synthesized samples. It is well known that the viscosity of EG (η = 21 mPa s, 20 °C) is much higher than that of water (η = 1.0087 × 10⁻³ mPa s, 20 °C). The mobility or reactivity of ions in solvent has an important influence on the crystal growth. At an appropriate content of EG (i.e. 3/1 EG/W volumetric ratio), the Bi(C₂O₄)OH nanorods may stack one another for self-assembly process and favor to form the Bi(C₂O₄)OH straw sheaves. Although the factor can explain our experimental results well, further investigations are still needed to confirm our hypothesis and reveal the fundamental physical and chemical interactions in our process. To understand the effect of molar ratio of H₂C₂O₄/Bi(NO₃)₃, the molar ratio of H₂C₂O₄/Bi(NO₃)₃ was varied at 1/3, 2/3, 1/1, 3/2 and 3/1 while keeping the other preparations parameters constant (Table 4). Fig. 8a confirms the formation of phase-pure Bi(C₂O₄)OH at different molar ratio of H₂C₂O₄/Bi(NO₃)₃. The SEM images of the samples are shown in Fig. 8. When the molar ratio of H₂C₂O₄/Bi(NO₃)₃ is 3/1, the as-obtained sample contains of microrods with an average diameter of around 1 μm and a length of around 35 μm (Fig. 8b). At H₂C₂O₄/Bi(NO₃)₃ = 3/2 (molar ratio), a number of well-defined straw sheaves are prepared (Fig. 8c). When the molar ratio of H₂C₂O₄/Bi(NO₃)₃ is increased to 1/1, the larger dumbbells of 22 μm in length are obtained, consisting of 3–4 μm long microrods (Fig. 8d). When the molar ratio of H₂C₂O₄/Bi(NO₃)₃ is further increased to 2/3, the dumbbells are composed of nanorods with an average diameter of around 500 nm and a length of around 20 μm, some of particles have formed on the dumbbells surfaces (Fig. 8e). At 1/3, Fig. 8f shows that the morphology is made up of some of 15 μm dumbbells long and some spheres with a diameter of 800 nm. These results clearly establish that the H₂C₂O₄/Bi(NO₃)₃ molar ratio plays a important role in the self-assembly process. Additionally, the amount of Bi(NO₃)₃ is a crucial factor for the control of the hierarchical structures.

Table 3 Effect of EG/W volumetric ratio on particle shape and crystal structure of the sample

Sample	EG/W	C2O4/Bi molar ratio	C2O4 source	T/t (°C/h)	Crystalline phases	Particle shape
S1-1	0/4	3/2	H2C2O4	120/12	Bi(C2O4)OH	Microrods
S3-2	1/3	3/2	H2C2O4	120/12	Bi(C2O4)OH	Microrods
S3-3	2/2	3/2	H2C2O4	120/12	Bi(C2O4)OH	Microrods
S2-2	3/1	3/2	H2C2O4	120/12	Bi(C2O4)OH	Straw sheaves
S3-5	4/0	3/2	H2C2O4	120/12	Bi(C2O4)OH	Nanorods

---

Fig. 7 XRD patterns (a) and SEM images (b–f) of the as-prepared samples at different volumetric ratios of EG/W, corresponding to those in Table 3: (b) 0/4 (S1-1); (c) 1/3 (S3-2); (d) 2/2 (S3-3); (e) 3/1 (S2-2); (f) 4/0 (S3-4).

Table 4 Effect of Bi(NO₃)₃·5H₂O amount added on particle shape and crystal structure of the sample

Sample	EG/W	C2O4/Bi molar ratio	C2O4 source	T/t (°C/h)	Crystalline phases	Particle shape
S4-1	3/1	3/1	H2C2O4	120/12	Bi(C2O4)OH	Microrods
S2-2	3/1	3/2	H2C2O4	120/12	Bi(C2O4)OH	Straw sheaves
S4-3	3/1	1/1	H2C2O4	120/12	Bi(C2O4)OH	Dumbbells
S4-4	3/1	2/3	H2C2O4	120/12	Bi(C2O4)OH	Dumbbells + particles
S4-5	3/1	1/3	H2C2O4	120/12	Bi(C2O4)OH	Dumbbells + spheres

---

Fig. 8 XRD patterns (a) and SEM images (b–f) of the as-prepared samples at different molar ratios of H₂C₂O₄/Bi(NO₃)₃, corresponding to those in Table 4: (b) 3 : 1 (S4-1); (c) 3 : 2 (S2-2); (d) 1 : 1 (S4-3); (e) 2 : 3 (S4-4); (f) 1 : 3 (S4-5).

3.3.4. Formation mechanism. Based on the results above, a plausible growth mechanism of straw sheaf is proposed, as shown in Scheme 1. We can conclude that the EG/W mixture medium is essential for the formation of straw sheaf. The time-dependent experiments suggest the following evolution process: at first, EG, as an aprotic and polar solvent can strongly solvate Bi³⁺ ions. A [Bi(EG)_n]³⁺ complex may form by the coordination bonds between the empty orbits of Bi³⁺ and lone electron pair of O in EG. After H₂C₂O₄ is added, C₂O₄²⁻ would react with Bi³⁺ to form Bi(C₂O₄)OH nuclei and further grow into nanoparticles, as shown in step 1 in Scheme 1. It could be assumed that EG molecules may selectively adsorb on some specific facets of Bi(C₂O₄)OH (Scheme 1B) to suppress their 2D or 3D growth.³⁷ Then, Bi(C₂O₄)OH nanorods (Scheme 1D) are produced from these nanoparticles in the latter hydrothermal process (step 2 in Scheme 1).

Scheme 1 Formation mechanism of Bi(C₂O₄)OH straw sheaves.

Bi(C₂O₄)OH is composed of the alternating positive (Bi₂O₂)_n²⁺ layers and negative C₂O₄²⁻ layers, stacking along the c axis (Scheme 1C). The unique layered structure may favors for the formation of nanorods, the existence of polar charges on their top and bottom surfaces (Scheme 1D). These polar nanorods may connect to each other because of electrostatic effects of these polar charges (Scheme 1E).¹⁵ Subsequently, the hierarchical nanostructures (Scheme 1F) can form by stacking. As a result, the nanorods are stacked with each other by their self-assembly process to form hierarchical structure (Scheme 1G). Note that this hypothetic formation mechanism still needs to be confirmed by direct proof in future. Summarily, the reported approach demonstrates the obvious advantages, such as one-step synthesis, environmental friendliness, and low cost.

3.4 Morphology-dependent photoelectrochemistry properties

3.4.1. Photocatalytic performances of Bi(C₂O₄)OH. To investigate the photocatalytic activity of Bi(C₂O₄)OH samples for the degradation of organic pollutants, rhodamine B (RhB) are selected as a model pollutant. Its characteristic absorption at about 553 nm is used to monitor the photocatalytic degradation process.³⁸ In the dark, the absorbance at 553 nm of RhB decreased a little in the presence of Bi(C₂O₄)OH. Table 5 shows Brunauer–Emmett–Teller (BET) surface areas and adsorption percentages of RhB on photocatalysts in the dark after 30 min. The nanorods (S1-2) sample has the largest adsorption capacity for RhB among four samples due to its highest BET area of 6.445 m² g⁻¹. It clearly revealed that the large BET area of photocatalyst favors for the adsorption of RhB molecules.

Table 5 BET surface areas of Bi(C₂O₄)OH samples and RhB adsorption percentages

Sample	S1-1	S1-2	S1-3	S2-2
BET area [m^2 g^−1]	1.232	6.445	5.756	3.618
Adsorption [%]	2.8	9.2	8.3	5.6

---

Fig. 9a and b shows the degradation curves and reaction kinetic curves of RhB over Bi(C₂O₄)OH samples under ultraviolet light irradiation (λ ≤ 420 nm). The nanorods (S1-2) sample exhibits a higher photocatalytic activity than the others. In Fig. 9a, RhB has almost be decomposed by the nanorods (S1-2) sample after 120 min, and after 130 min, the degradation efficiencies of RhB over the microrods (S1-1), nanowires (S1-3) and straw sheaves (S2-2) are 30%, 62% and 80%, respectively. The photocatalytic degradation of RhB can be fitted to pseudo first-order kinetics (Fig. 9b). The apparent reaction rate constants (k) are 0.0053, 0.01298, 0.00726, and 0.00888 min⁻¹ for microrods, nanorods, nanowires and straw sheaves, respectively. It is exciting that the nanorods show a photocatalytic activity 2.45, 1.79 and 1.46 times higher than microrods, nanowires and straw sheaves. Since the BET area (6.445 m² g⁻¹) (Table 5) of nanorods is biggest among the four samples, we hold that BET area mainly contributes to the improved activity of Bi(C₂O₄)OH nanorods. In addition, the activity of the straw sheaves sample is 1.2 times higher than that of the nanowires sample. Because the BET area (3.618 m² g⁻¹) of the straw sheaves sample is smaller than that (5.756 m² g⁻¹) of the nanowires sample, the reflection and absorption of light structure may play key roles in the photocatalytic activity.³⁹ We also have done the UV-vis diffuse reflectance absorption spectra (DRS) analysis to evaluate the impact of photoabsorption of Bi(C₂O₄)OH samples with different morphologies on the photocatalytic activity, as shown in Fig. S1.† The photoabsorption of all the samples was similar and was located at ∼323 nm. But the intensities of photoabsorption are different. From Fig. S1,† the microrods and nanowires samples show obvious lower intensities than the nanorods and straw sheaves samples. The result is in accordance with the photocatalytic activity. But the photoabsorption intensity of straw sheaves sample is higher than that of nanorods sample, the result is not in accordance with the photocatalytic activity, suggesting that the BET area mainly contributes to the improved activity of Bi(C₂O₄)OH nanorods. It should be noted that the photoabsorption of Bi(C₂O₄)OH samples with different morphologies has an impact on the photocatalytic activity. The photoluminescence (PL) spectra of Bi(C₂O₄)OH samples are shown in Fig. 9c. It is well known that the PL spectra can reflect the recombination rate of photo-generated electron–hole pairs. It is obviously seen that the main emission peak is at 425 nm. The separation efficiency of the photogenerated electrons and holes can be investigated by PL.⁴⁰ Generally, a low PL emission intensity indicates a low recombination efficiency of photogenerated charges, and thus a high photocatalytic activity. From Fig. 9c, the nanorods sample shows an obvious lower emission than those of microrods, nanowires and straw sheaves, this indicates that the electron–hole pair recombination rate of the nanorods sample is smaller than those of others. Moreover, electrochemical impedance spectroscopy (EIS) is measured to investigate the electron transfer rate (Fig. 9d). In the high frequency region of EIS Nyquist plot, the semicircle radius of the nanorods sample is smaller than those of microrods, nanowires and straw sheaves. A smaller semicircle radius in EIS Nyquist plot means a smaller electric resistance of electrode. It is well-known that the separation efficiency of photoexcited electron–hole pairs is a crucial factor for the photo catalytic activity. A high conductivity of the nanorods sample also favors for electron transportation, thus leading to an efficient charge separation. The result is in accordance with that from PL spectra. This is also in good agreement with their photocatalytic activities.

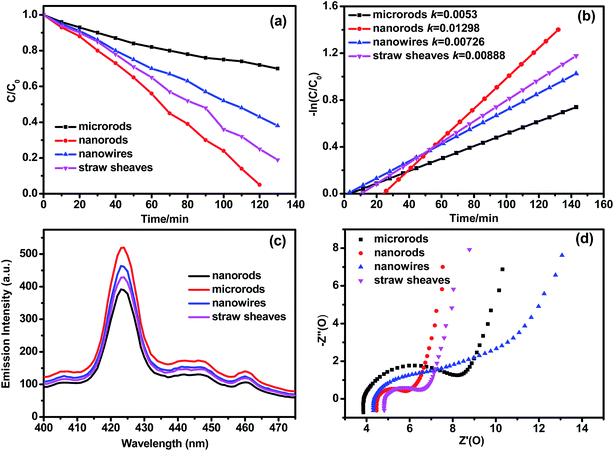

Fig. 9 (a) Degradation curves and (b) reaction kinetic curves of RhB over Bi(C₂O₄)OH samples under ultraviolet light irradiation (λ ≤ 420 nm); (c) PL emission spectra and (d) EIS plots.

3.4.2. Electrochemistry performances of Bi(C₂O₄)OH. Layered materials are ideal candidates for electrochemistry.⁴¹ To the best of our knowledge, however, the electrochemical performances of anion intercalated bismuth compounds have not been explored yet. Herein, we have investigated the electrochemistry properties of Bi(C₂O₄)OH as an anion intercalation compound for the first time. The electrochemistry properties of Bi(C₂O₄)OH samples are investigated by cyclic voltammetry (CV) and chronopotentiometry (CP) in a conventional three-electrode system.

The CV measurements of the samples are performed at a scanning rate of 10 mV s⁻¹ in 1 M Na₂SO₄ aqueous solution (Fig. 10a). The normative rectangular CV curves denote the typical electrical double-layer capacitive behavior, instead of the Faraday reaction. The specific capacitance (C) can be calculated using eqn (5) as follows.

C = Q/SV (5)

where C is the discharge capacitance (mF cm⁻²), Q is the charge calculated using the integral area of the CV curve, S is the real area (cm⁻²) of working electrode, V is the discharge potential (V). The capacitance values of microrods, nanorods, nanowires and straw sheaves samples are 17.29, 19.18, 19.07 and 16.85 mF cm⁻², respectively. It is surprising that the capacitance value of the nanorods sample is 1.11 and 1.14 times higher than those of microrods and straw sheaves samples. Summarily, the nanorods sample shows the largest capacitance of all the samples.

Fig. 10 Electrochemistry properties of Bi(C₂O₄)OH samples: (a) CV curves at different scanning rates; (b) galvanostatic charge–discharge curves at different current densities.

Fig. 10b shows the galvanostatic charge–discharge curves of the samples at a current density of 1.0 mA cm⁻². The charge/discharge curves indicate a typical electric double-layer capacitive behavior, which is in agreement with the results of the CVs. The discharging capacitance can be calculated according to eqn (6) as follows.

C = It/SV (6)

where C is the discharge capacitance (mF cm⁻²), I is the discharge current (mA), t is the discharge time (s), S is the real area (cm⁻²) of working electrode, V is the discharge potential (V). At a current density of 1.0 mA cm⁻², the capacitance values of microrods, nanorods, nanowires and straw sheaves samples are 19.00, 21.00, 20.37 and 17.50 mF cm⁻², respectively. These results are good in agreement with those of the CV measurements.

Generally, EIS is used both to investigate the electrical conductivity and ion transfer of electrochemistry test cells and to study the electrochemical processes. Fig. 9d shows the Nyquist plots of the electrodes in a frequency range from 0.1 Hz to 100 kHz, operated at an open circuit potential of 0.8 V and an alternating current (AC) voltage amplitude of 5 mV. The semicircle is related to the charge transfer resistance (R_ctr), which can be evaluated by the diameter of the semicircle. The electrode fabricated by the nanorods sample has the smallest R_ctr among the four samples, as indicated by its semicircle (Fig. 9d), the result is in agreement with the CV and CP results. Fig. 9d shows the semicircle of the nanowires is larger than that of microrods. However, the nanowires sample has a larger capacitance than the microrods sample. This demonstrates a higher conductivity for the electrode by the nanowires sample, probably resulting from the BET area. The nanowires sample with a large BET area may endow it with a fast charging rate. The microrods sample shows the largest semicircle among the four samples, but the microrods sample has a larger capacitance than the straw sheaves sample. It may affect by the morphology and the diffusion impedances. Hence, the nanorods sample has a large BET area, making it an excellent electrochemistry material.

4. Conclusions

Multi-scale layered Bi(C₂O₄)OH compound can be prepared by a simple hydrothermal method. An obvious morphology-dependent photoelectrochemistry property has been revealed. Bi(C₂O₄)OH nanorods show excellent photocatalytic and electrochemical properties, compare with the other structures (microrods, nanowires and straw sheaves). This work indicates that Bi(C₂O₄)OH with a featured layer structure can be potentially extended to the other new fields as a multi-functional material.

Acknowledgements

This work is financially supported by National Science Foundation of China (21377060), the Project Funded by the Science and Technology Infrastructure Program of Jiangsu (BM201380277), Jiangsu Science Foundation of China (BK2012862), Six Talent Climax Foundation of Jiangsu (20100292), Jiangsu Province of Academic Scientific Research Industrialization Projects (JHB2012-10), the Key Project of Environmental Protection Program of Jiangsu (2013005), A Project Funded by the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD) sponsored by SRF for ROCS, SEM (2013S002) and “333” Outstanding Youth Scientist Foundation of Jiangsu (2011-2015).
