Synthesis and properties of azulene-functionalized BODIPYs

Abstract

A series of azulene-functionalized BODIPY derivatives have been synthesized via a Suzuki–Miyaura cross-coupling reaction. The introduction of 2-azulenyl moieties onto the BODIPY core results in more red-shifted absorption bands than those observed for 1-azulenyl functionalization. Upon protonation by TFA, a blue shift of the main absorption band of the 2-azulenyl-substituted compounds is observed along with a decrease in intensity, and a new weaker peak is observed at long wavelength. In contrast, the absorption of the 1-azulenyl-substituted compounds is almost unchanged upon protonation.

---

1. Introduction

Boron-dipyrromethene (4,4-difluoro-4-bora-3a,4a-diaza-s-indacene, BODIPY) dyes have been the focus of intense research interest over the last two decades, due to their highly advantageous photophysical properties, such as their large molar absorption coefficients, narrow absorption and emission bands, and high fluorescence quantum yields that range up to unity.¹ BODIPYs have found widespread application as fluorescent probes, biochemical labels, fluorescent switches, light-emitting diodes, photosensitizers for solar cell, photodynamic therapy, and laser dyes.² Furthermore, their photophysical properties can be fine-tuned through substitution with other functional groups, fused-ring-expansion of the pyrrole moiety and aza-substitution at the meso-carbon position.¹

Transition metal-catalyzed cross-coupling reactions provide an easy and effective way to achieve 2,6-functionalized BODIPYs and can be used to introduce cyclic π-systems as peripheral substituents.^3,4 Azulene (C₁₀H₈) can be viewed as a 10-π-electron isomer of naphthalene in which an electron-rich five-membered ring is fused with an electron-deficient seven-membered ring to form resonant tropylium cation and cyclopentadienide anion substructures (Fig. 1).⁵ The unusual electronic structure results in the formation of a dipolar structure with a permanent dipole moment of around 1.08 D and weak S₂ → S₀ fluorescence.^6–8 Azulene derivatives have been widely used in various areas of molecular materials, such as liquid crystals, conducting polymers, optoelectronic molecular switches, anion receptors, and nonlinear optical (NLO) materials.^9–12 We describe here a series of azulene-functionalized BODIPYs prepared via Suzuki–Miyaura cross-coupling reactions to develop new functional molecular-based materials. The impact of introducing 1- and 2-azulenyl units on the electronic structure and pH sensitivity of the dyads has been investigated through a comparison of the optical spectral data and the results of time-dependent DFT (TD-DFT) calculations.

Fig. 1 The structures of azulene before and after protonation.

2. Experimental

2.1 Materials and instrumentation

All reagents were obtained from commercial suppliers and used without further purification unless otherwise indicated. All air and moisture-sensitive reactions were carried out under nitrogen atmosphere. Toluene was used after distillation. ¹H and ¹³C NMR spectra were recorded on a Bruker DRX400 spectrometer and referenced to the residual proton signals of the solvent. HR-MS data were recorded on a Bruker Daltonics Apex-III spectrometer. Mass spectra were measured on a Bruker Daltonics AutoflexII™ MALDI–TOF spectrometer.

2.2 Synthetic procedures

General synthetic procedures for 1–4. Azulene-Bpin (0.12 mmol), iodo-BODIPY (0.1 mmol) and Pd(PPh₃)₄ (0.01 mmol) were added to 25 mL of freshly distilled toluene under nitrogen. Na₂CO₃ solution (2 mL, 2 mol L⁻¹) was then added and the mixture was refluxed for 26 h. The aqueous phase was extracted with dichloromethane, and the combined organic phase was washed with water and dried over Na₂SO₄. The solvent was removed under reduced pressure, and the residue was purified by column chromatography on silica gel by using hexane/dichloromethane (v/v = 2 : 1) as eluent to afford the desired product as a golden solid in 73% yield. ¹H NMR (400 Hz, CDCl₃): δ 8.27 (d, J = 9 Hz, 2H), 7.54–7.49 (m, 4H), 7.35 (d, J = 6.5 Hz, 2H), 7.28–7.16 (m, 4H), 6.03 (s, 1H), 2.75 (s, 3H), 2.60 (s, 3H), 1.53 (s, 3H), 1.40 (s, 3H). ¹³C NMR (100 MHz, CDCl₃): δ 156.1, 155.1, 143.6, 143.4, 142.0, 140.3, 139.6, 136.5, 135.4, 129.4, 129.2, 128.2, 123.6, 121.7, 118.5, 14.83, 14.62, 14.09, 13.22. UV/Vis (CH₂Cl₂): λ_max (ε) = 528 nm (84 000 dm³ mol⁻¹ cm⁻¹); HR-MS: calcd for C₂₉H₂₅BF₂N₂ [M + Na]⁺: 473.1971; found 473.1976.

1b was obtained as a golden solid in 68% yield by following a procedure similar to that of 1a. ¹H NMR (400 Hz, CDCl₃): δ 8.31 (d, J = 9 Hz, 1H), 7.92 (d, J = 9.5 Hz, 1H), 7.73 (d, J = 4 Hz, 1H), 7.59 (t, J = 9.5, 19.5 Hz, 1H), 7.52–7.42 (m, 4H), 7.39–7.35 (m, 2H), 7.19–7.11 (m, 2H), 6.01 (s, 1H), 2.60 (s, 3H), 2.44 (s, 3H), 1.41 (s, 3H), 1.21 (s, 3H). ¹³C NMR (100 MHz, DMSO-d₆): δ 154.8, 154.6, 142.6, 141.9, 140.7, 139.8, 138.4, 137.2, 136.3, 135.4, 134.2, 130.6, 129.3, 129.2, 128.5, 127.9, 127.8, 123.6, 123.1, 121.4, 120.9, 117.5, 14.3, 14.0, 13.4, 12.8. UV/Vis (CH₂Cl₂): λ_max (ε) = 517 nm (53 000 dm³ mol⁻¹ cm⁻¹); HR-MS: calcd for C₂₉H₂₅BF₂N₂ [M + Na]⁺: 473.1971, found 473.1978.

2a was obtained as a green solid in 71% yield by following a procedure similar to that of 1a (azulene-Bpin (0.22 mmol), diiodo-BODIPY (0.1 mmol) and Pd (PPh₃)₄ (0.02 mmol)). ¹H NMR (500 Hz, CDCl₃): δ 8.29 (d, J = 12 Hz, 4H), 7.58–7.50 (m, 5H), 7.43 (d, J = 2.5 Hz, 2H), 7.41–7.30 (m, 4H), 7.22–7.17 (m, 4H), 2.79 (s, 6H), 1.26 (s, 6H). ¹³C NMR (100 MHz, CDCl₃): δ 157.7, 155.8, 152.6, 146.0, 143.5, 140.5, 139.4, 136.7, 136.0, 129.7, 128.5, 123.8, 118.7, 118.2, 13.6, 13.5. UV/Vis (CH₂Cl₂): λ_max (ε) = 564 nm (80 000 dm³ mol⁻¹ cm⁻¹); MALDI-TOF: calcd for [C₂₉H₂₆BF₂N₂]⁺m/z = 576.49, found m/z = 576.47 [M]⁺, 557.28 [M − F]⁺.

2b was obtained as a green solid in 63% yield by following a procedure similar to that of 2a. ¹H NMR (500 Hz, CDCl₃): δ 8.34 (d, J = 9.5 Hz, 2H), 7.97 (dd, J = 6.9, 6.7 Hz, 2H), 7.78 (d, J = 3.3 Hz, 2H), 7.60 (t, J = 9.8, 19.6 Hz, 2H), 7.52–7.45 (m, 2H), 7.46–7.44 (m, 4H), 7.21–7.13 (m, 5H), 2.48 (s, 6H), 1.54 (s, 6H). ¹³C NMR (100 MHz, DMSO-d₆): δ 154.5, 141.9, 139.7, 138.5, 138.4, 137.2, 136.3, 135.4, 135.3, 134.5, 130.9, 129.4, 129.3, 128.5, 128.0, 123.7, 123.1, 121.0, 117.5, 30.9, 22.0, 13.9, 13.5, 13.0, 12.9. UV/Vis (CH₂Cl₂): λ_max (ε) = 551 nm (55 000 dm³ mol⁻¹ cm⁻¹); HR-MS: calcd for C₃₉H₃₁BF₂N₂ [M + Na]⁺: 599.2441; found 599.2447.

2.3 X-ray structure determination

The X-ray crystallography data for 1a were collected on a Rigaku Saturn CCD diffractometer by using graphite monochromated Mo Kα radiation (λ = 0.71073 Å) in the ω–2θ scan mode. The structure was solved by direct methods and refined on F² by using the full-matrix least-squares methods of the SHELX program.¹⁴ The X-ray structure calculations and the generation of the associated molecular graphics were carried out using the SHELX-97 and Diamond programs, respectively. 1a: C₂₉H₂₅BF₂N₂; a red block-like crystal of approximate 0.28 × 0.26 × 0.22 mm³ dimensions was measured. Space group P2₁/n, a = 16.204(3) Å, b = 19.565(4) Å, c = 7.4534(17) Å, α = 90°, β = 90°, γ = 90°, V = 2363.0(9) ų, Z = 4, F(000) = 944, ρ = 1.26575 g cm⁻³, R₁ = 0.0859, wR₂ = 0.1120, GOF = 0.980. CCDC no. 1415532 contains the supplementary crystallographic data for this paper.

2.4 Spectroscopic measurements

UV-visible absorption spectra were recorded on a Shimadzu UV-2550 spectrophotometer. Fluorescence spectra were measured on a Hitachi F-4600 FL spectrophotometer with a xenon arc lamp as light source. Samples for absorption and emission measurements were contained in 1 × 1 cm quartz cuvettes. For all measurement, the temperature was kept constant at (298 ± 2) K.

2.5 Computational details

The ground state structures of dyads and the corresponding protonated species were optimized using the density functional theory (DFT) method with the B3LYP functional and 6-31G(d) basis sets. The absorption properties were predicted by time-dependent (TD-DFT) method by using the CAM-B3LYP functional with the same basis sets. All of the calculations were performed with the Gaussian09 program package.¹³

3. Results and discussion

3.1 Synthesis

The synthetic strategy for the azulenyl-substituted BODIPYs is shown in Scheme 1. 2-Iodo-and 2,6-diiodo-substituted 1,3,5,7-tetramethyl-BODIPYs (4a and 4b) were prepared according to the reported procedures.^3c1a and 2a were synthesized from 2-iodo substituted 4a in toluene, while 1b and 2b were synthesized from 2,6-diiodo substituted BODIPY 4b, through a Suzuki–Miyaura cross-coupling reaction with 2-boryl 3a (or 1-boryl 3b) azulene by using Pd(PPh₃)₄ as a catalyst.¹⁵ The dyes were formed in 73, 68, 71 and 63% yield, respectively (Scheme 1). All of the new compounds were characterized by ¹H and ¹³C NMR spectroscopy and HR-MS. The dyes are highly soluble in commonly-used organic solvents at room temperature.

Scheme 1 The synthesis of azulenyl-substituted BODIPY dyads.

3.2 Crystal structure

A single crystal of 1a was obtained by slow diffusion of hexane into a CH₂Cl₂ solution. The crystal structure of 1a is shown in Fig. 2. The boron atom is coordinated in a tetrahedral geometry by two nitrogen and two fluorine atoms (ESI,† Table S2). The indacene moiety is highly planar with an average root-mean-square (rms) deviation of 0.027 Å. The torsion angles between the indacene plane on the one hand and the meso-phenyl and azulene rings on the other, are 83.6 and 37.5°, respectively, due in each case to the steric interactions with the adjacent methyl substituents. 1a is centrosymmetric, and the shortest π–π distance between neighboring BODIPY core structures is 4.38 Å. A well-ordered molecular packing is a critical factor in developing electron transporting materials. No attempt was made to estimate the transfer integral following the approach of Valeev and coworkers,¹⁶ since the HOMO of the BODIPY core mixes extensively with close-lying MOs that are localized primarily on the azulene substituents, so it is not safe to assume that the HOMO and HOMO−1 of a dimer formed using the crystal structure are derived exclusively from the HOMO of the monomer.

Fig. 2 ORTEP drawings of the molecular structures of 1a with thermal ellipsoids set at 50% probability (a) top view; (b) side view; (c and d) crystal packing diagram of 1a.

3.3 Spectroscopic properties in solution

The absorption spectra of 1a, 1b, 2a and 2b were measured in CH₂Cl₂ (Fig. 3). The azulenyl-BODIPYs have their main band maxima in the 500–600 nm region, which can be assigned as intense 0–0 maxima of the S₀ → S₁ transition. Weaker and broader bands in the 350–450 nm region have been attributed to the S₀ → S₂ transition of the BODIPY chromophore.¹⁷ The main absorption bands of di-substituted dyes 2a and 2b are red-shifted by around 30 nm relative to the corresponding bands of mono-substituted dyes 1a and 1b. In each case, there is a significant increase in the full width at half-maximum (fwhm_abs).

Fig. 3 Absorption spectra of the azulenyl-BODIPY derivatives in CH₂Cl₂.

The UV-visible absorption spectra of 1a, 1b, 2a and 2b were also measured in hexane, dichloromethane, toluene and THF (ESI,† Fig. S1). The absorption maxima of the compounds are almost independent of solvent polarity with only a small variation of 2–3 nm observed upon going from THF to hexane, which is consistent with what is normally observed for BODIPY dyes.^1a It is noteworthy that the main spectral bands of the 2-azulenyl substituted dyes, 1a and 2a, are more red-shifted than those of the corresponding 1-azulenyl substituted dyes, 1b and 2b. In contrast, a blue-shift is predicted in the shorter wavelength absorption maxima of 1b and 2b in the 380–470 nm region.

In order to gain further insight into the influence of the azulenyl group on the properties of the BODIPY derivatives, the effect of protonation was examined (Fig. 4). Upon addition of TFA, the main absorption of 1a and 2a are blue-shifted and there is a decrease in the molar extinction coefficient of the band maximum due to generation of azulenium cations.¹⁸ The second higher energy maximum that is characteristic of the azulene rings, shifts from 421 to 372 nm due to the large dihedral angle between the BODIPY core and the azulenium cation. A new peak is observed at 612 nm for 1a and 640 nm for 2a. In contrast, there is no obvious change for the absorption spectra of 1b and 2b upon the addition of excess TFA. Upon addition of trimethylamine, the absorption spectrum of 1b is not regenerated, presumably due to the decomposition of an unstable protonated azulene species.¹⁹ Since azulenes have relatively larger HOMO–LUMO gaps, they are generally not suitable for use as molecular probes for the detection of ions by the naked eye. However, when azulenes are substituted onto the BODIPY core marked spectral changes in the visible region are observed when 1a and 2a react with TFA (Fig. 4), making these compounds potentially suitable for use as pH sensors.

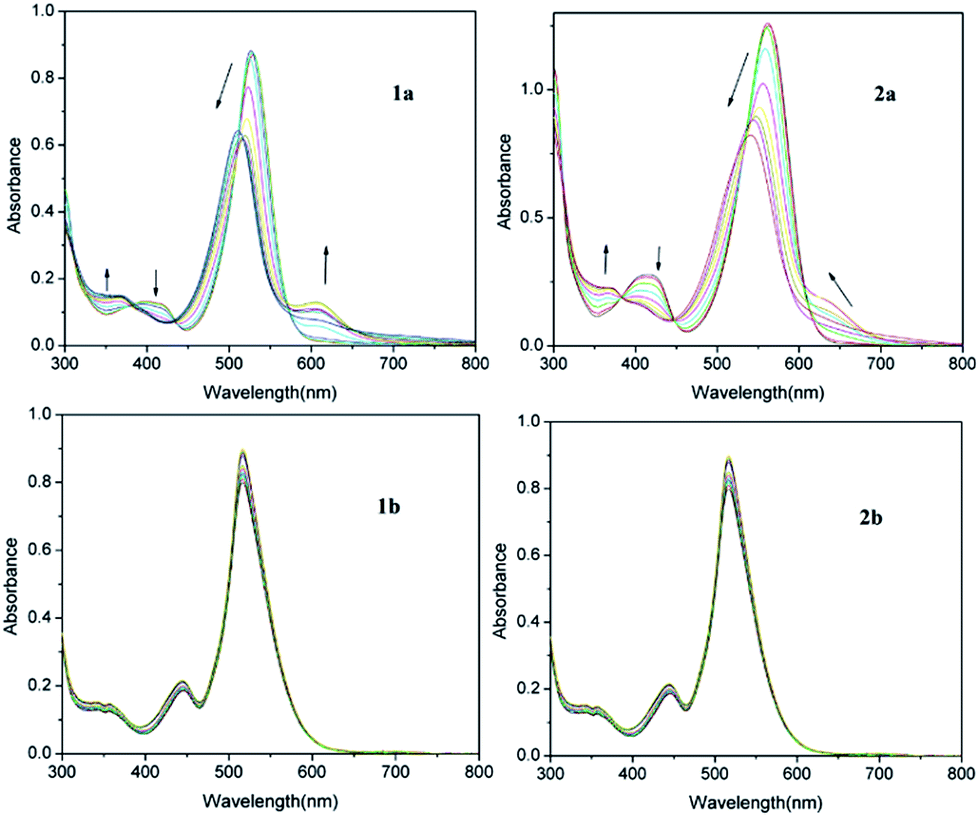

Fig. 4 Changes in the UV-visible absorption spectra of azulenyl-BODIPY derivatives 1a, 1b, 2a, 2b in dichloromethane upon the addition of TFA.

The dyes exhibit extremely weak fluorescence. This may be due to the formation of a charge separated state due to intramolecular charge transfer, since this would result in an enhancement in the rate of non-radiative decay.

3.4 Theoretical calculations¹³

To gain a deeper understanding of the spectroscopic and electronic properties of 1a, 1b, 2a and 2b and the protonated cationic species of 1a and 2a, geometry optimizations were performed using density functional theory (DFT) by using the B3LYP functional of the Gaussian 09 program with 6-31G(d) basis sets. TD-DFT calculations were carried out with the CAM-B3LYP functional and 6-31G(d) basis sets. In the B3LYP optimized structure of 1a, the dihedral angle between the azulene ring and the BODIPY core is 41.6°, which correlates well with that of the single crystal data (37.5°). The dihedral angles calculated for the azulene ring and BODIPY core structure of the 2-position substituted dyes 1a and 2a have smaller angles than the 1-position substituted dyes 1b and 2b, since there is less scope for steric interactions with the methyl groups at the 2, 3, 5 and 7-positions of the BODIPY core (Table 1 and ESI,† Table S1).

Table 1 The dihedral angle calculated between the azulene ring and the BODIPY core structure

	1a	1b	2a	2b	1a + H^+	2a + H^+
θ	41.6°	59.8°	41.4°	60.3°	9.9°	9.3°, 20.6°

---

For 1a, 1b, 2a and 2b, the HOMO orbital is located over the whole azulene-BODIPY core structure (Fig. 5), whereas the corresponding LUMOs are localized on the BODIPY core structure. It is obvious on this basis that there is significant charge transfer from the azulenyl groups to the central fluorophore involved in forming the S₁ excited state. This could lead to the observed quenching of the fluorescence via an intramolecular charge transfer (ICT) mechanism, since a charge-separated state can be formed (Fig. 5, ESI Table S1†). The TD-DFT calculations (Fig. 6) predict the presence of low-lying forbidden charge transfer bands, which provides another possible explanation for the quenching. The HOMO and LUMO of 1b and 2b are destabilized relative to those of 1a and 2a due to an increase in the electron donating inductive effect on moving from 2-azulenyl to 1-azulenyl substituents (Fig. 5). Although there is a slight narrowing of the predicted HOMO–LUMO gaps due to a relative destabilization of the HOMOs of 1b and 2b (Fig. 5), there is a blue shift of the main absorption bands of 1b and 2b in both the experimental and calculated spectra (Fig. 5 and 6). Upon protonation to form (1a and 2a)-H⁺, the LUMO is largely located on the protonated azulene ring, while the same part of the HOMO has less electron density compared with the neutral state. Although the relative band intensities in the calculated spectra are clearly not accurately reproduced, a blue shift is predicted in the wavelength of the main spectral band of (1a and 2a)-H⁺ similar to the apparent trend in the experimental data (Fig. 6).

Fig. 5 MO energy diagrams in TD-DFT calculations at the CAM-B3LYP/6-31G(d) level of theory for the B3LYP optimized geometries of 1a, 1b, 2a and 2b and the nodal patterns of the HOMO and LUMO of the BODIPY core at an isosurface value of 0.02 a.u. (Top). MOs that are localized primarily on the azulene moiety are offset to the right. Occupied MOs are denoted with small black diamonds. The HOMO–LUMO gaps are plotted against a secondary axis. A similar MO energy diagram and nodal patterns are provided for 1a, 2a and their monoprotonated species (Bottom). The MO energies are plotted relative to the LUMO of the BODIPY π-system.

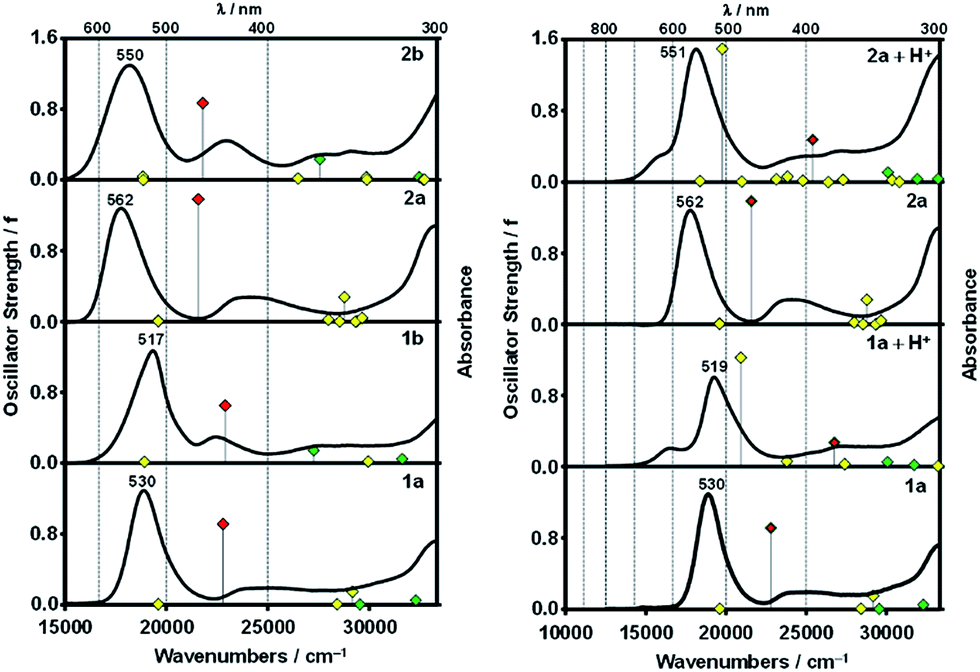

Fig. 6 TD-DFT spectra of 1a, 1b, 2a and 2b (left) and 1a, 2a and their monoprotonated structures (right) calculated with the CAM-B3LYP functional and 6-31G(d) basis sets. Red diamonds are used to denote the bands that are dominated by the HOMO → LUMO transition of the BODIPY chromophore, while yellow and green diamonds are used to highlight bands with charge transfer between the BODIPY and azulene moieties and other BODIPY π → π* bands. The experimental spectra are plotted against a secondary axis. The details of the calculations are provided in ESI Table S2.†

4. Conclusions

In summary, the synthesis, characterization, and theoretical analysis of a series of azulenyl-substituted BODIPY dyes has been investigated. Substitution at the 2-position of the azulene ring results in a larger red-shift of the main spectral band than substitution at the 1-position, and no fluorescence is observed either before or after protonation by TFA. Molecular modeling suggests that the most likely explanation is that there is a dark state with charge transfer character below the lowest energy π–π* state of the BODIPY chromophore.
